Living room base unit with drawers Royal

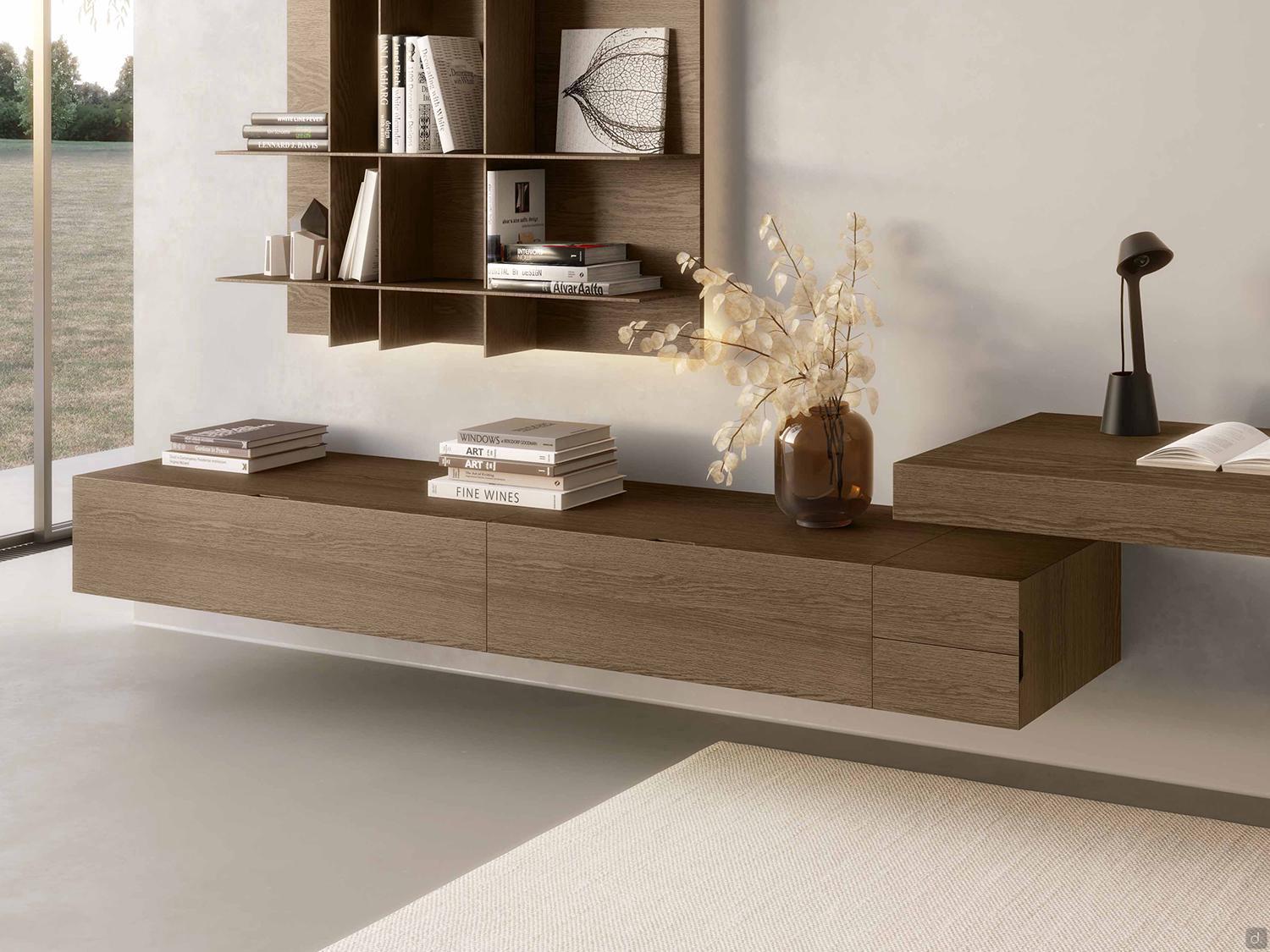

Suspended base units with deep drawers and standard drawers, open-pore oak wood in the E25 Tobacco finish

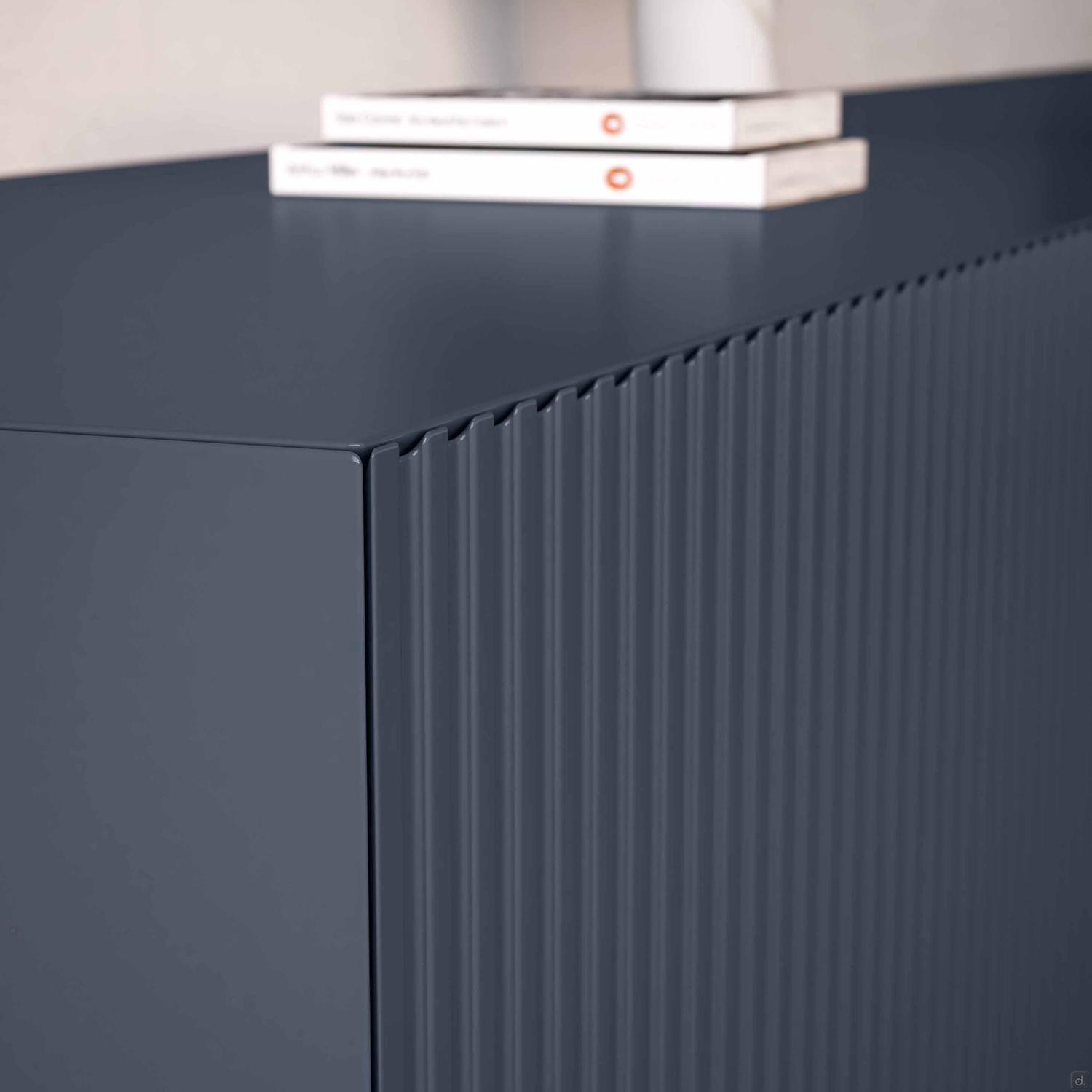

Close up of the front panels in matt lacquer (Mistletoe) with 10:10 processing technique on the surface

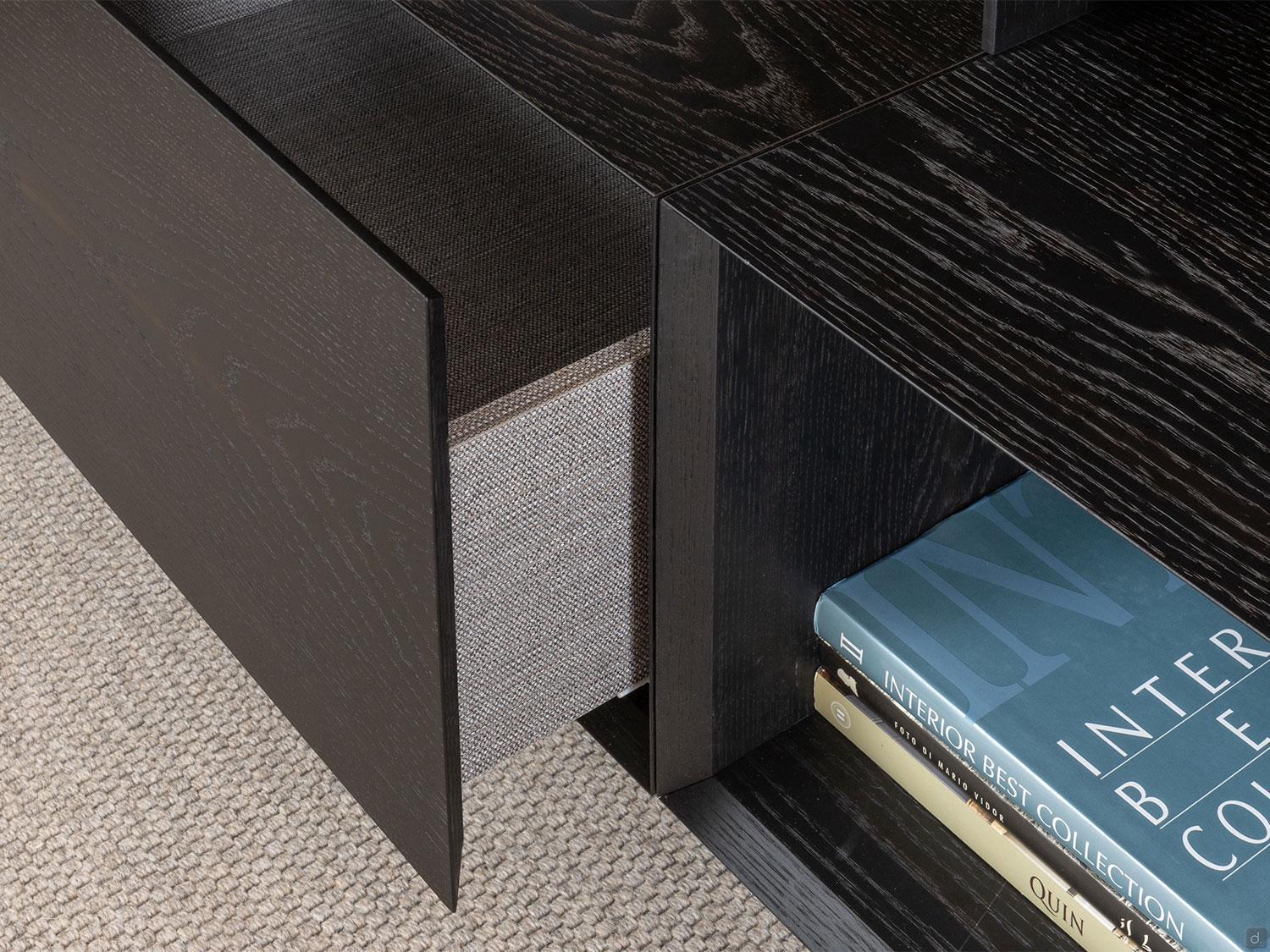

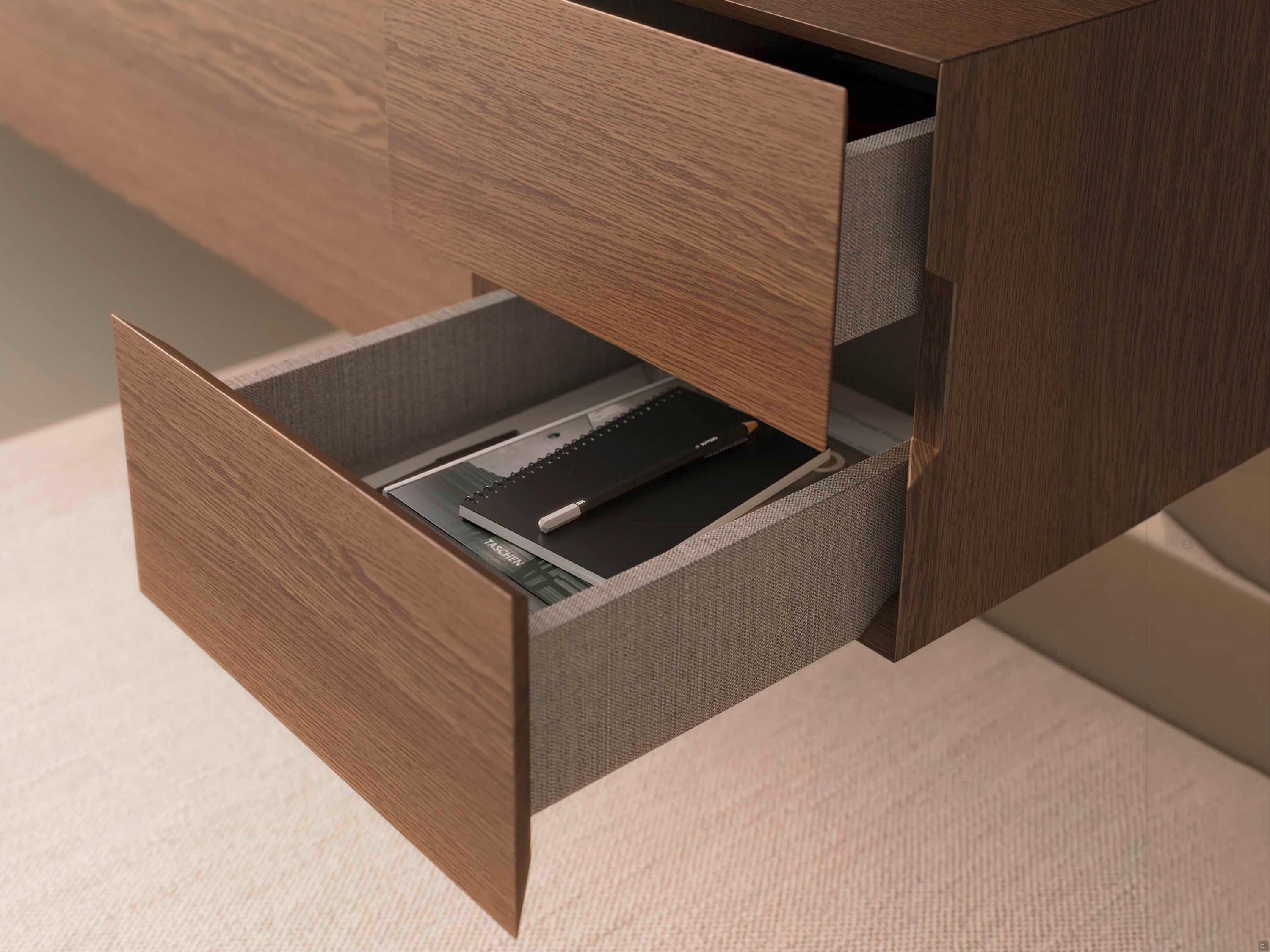

Spacious deep drawer with internal frame in T77 Alpha melamine

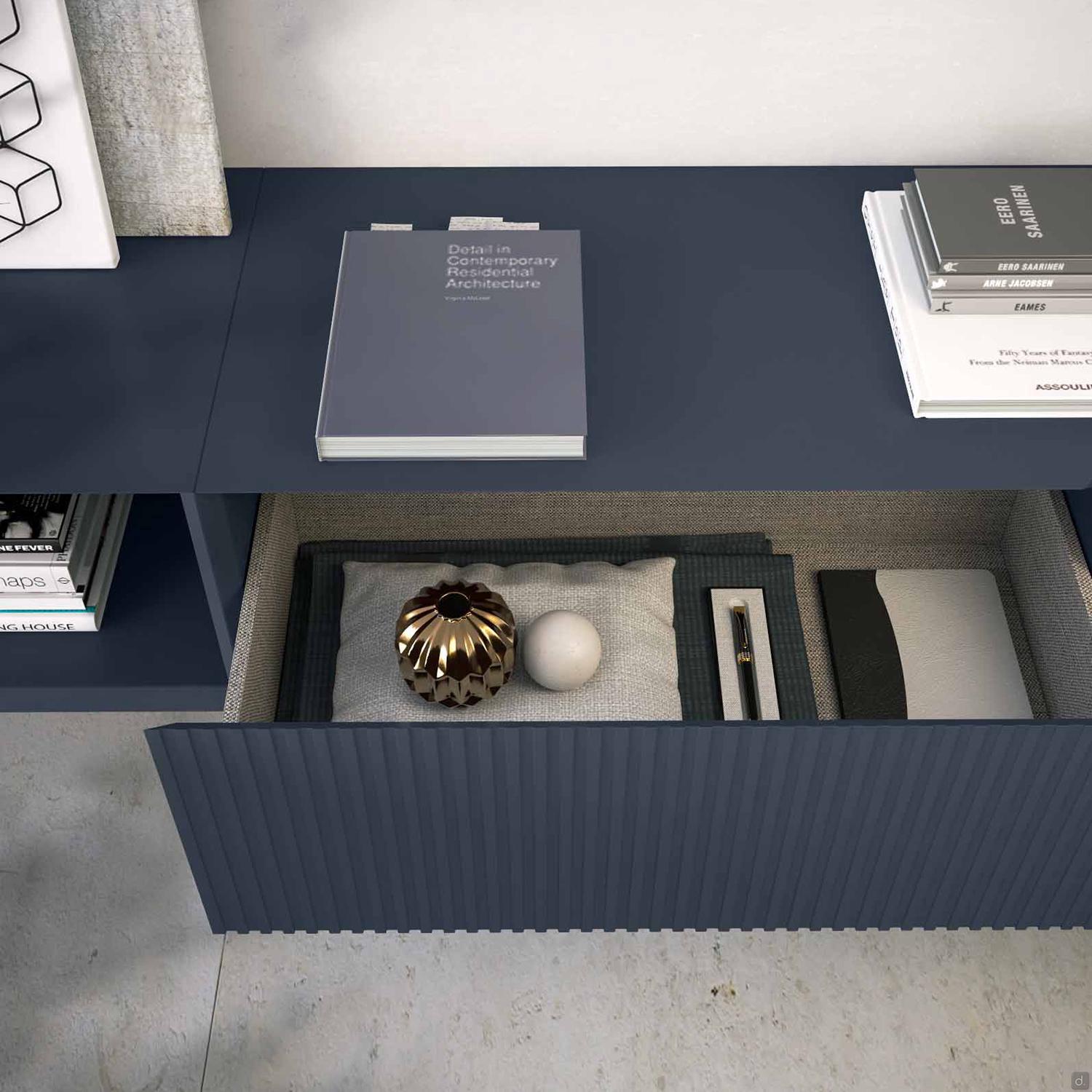

Matt lacquer base unit with deep drawer and 10:10 front panels

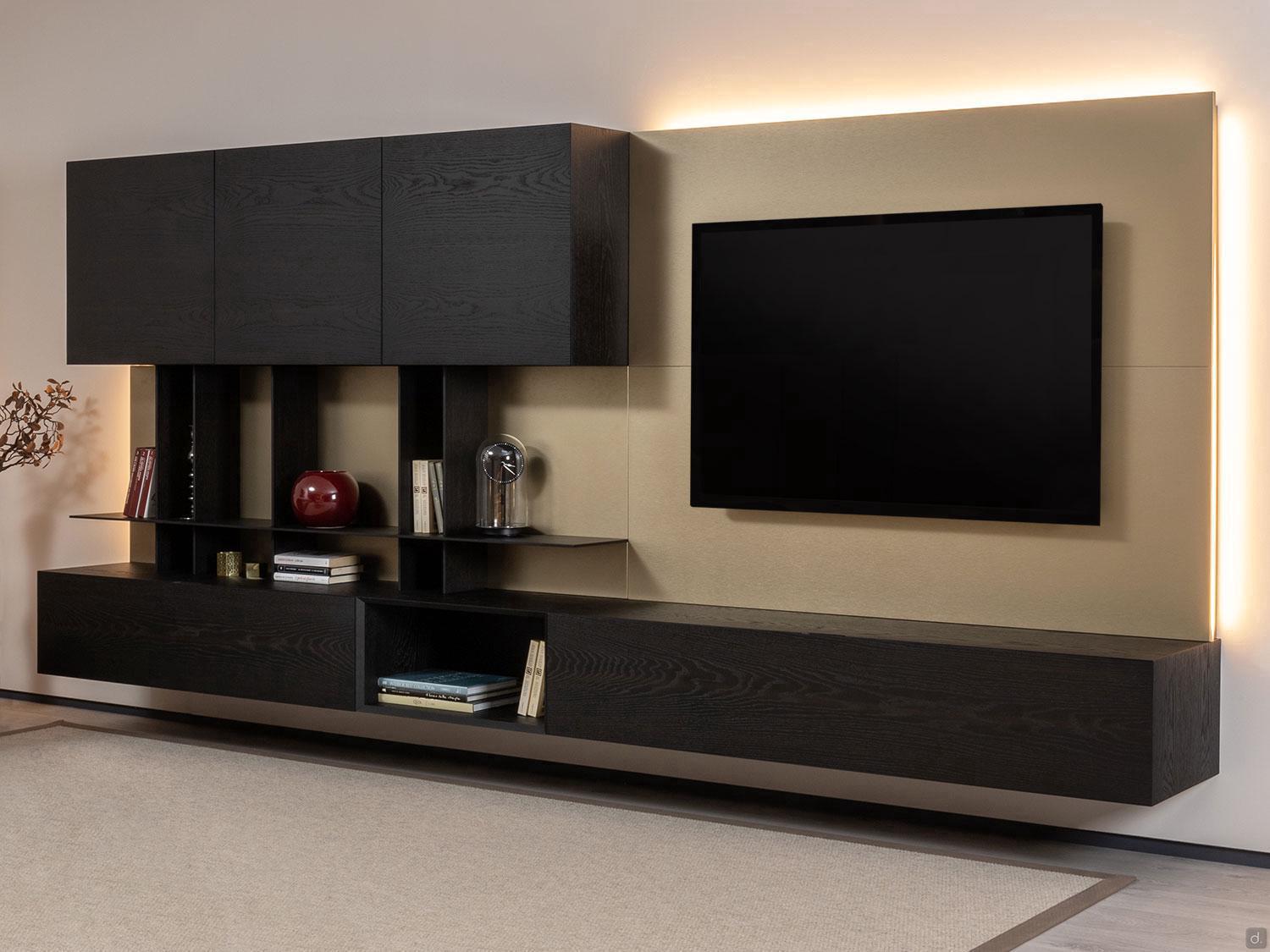

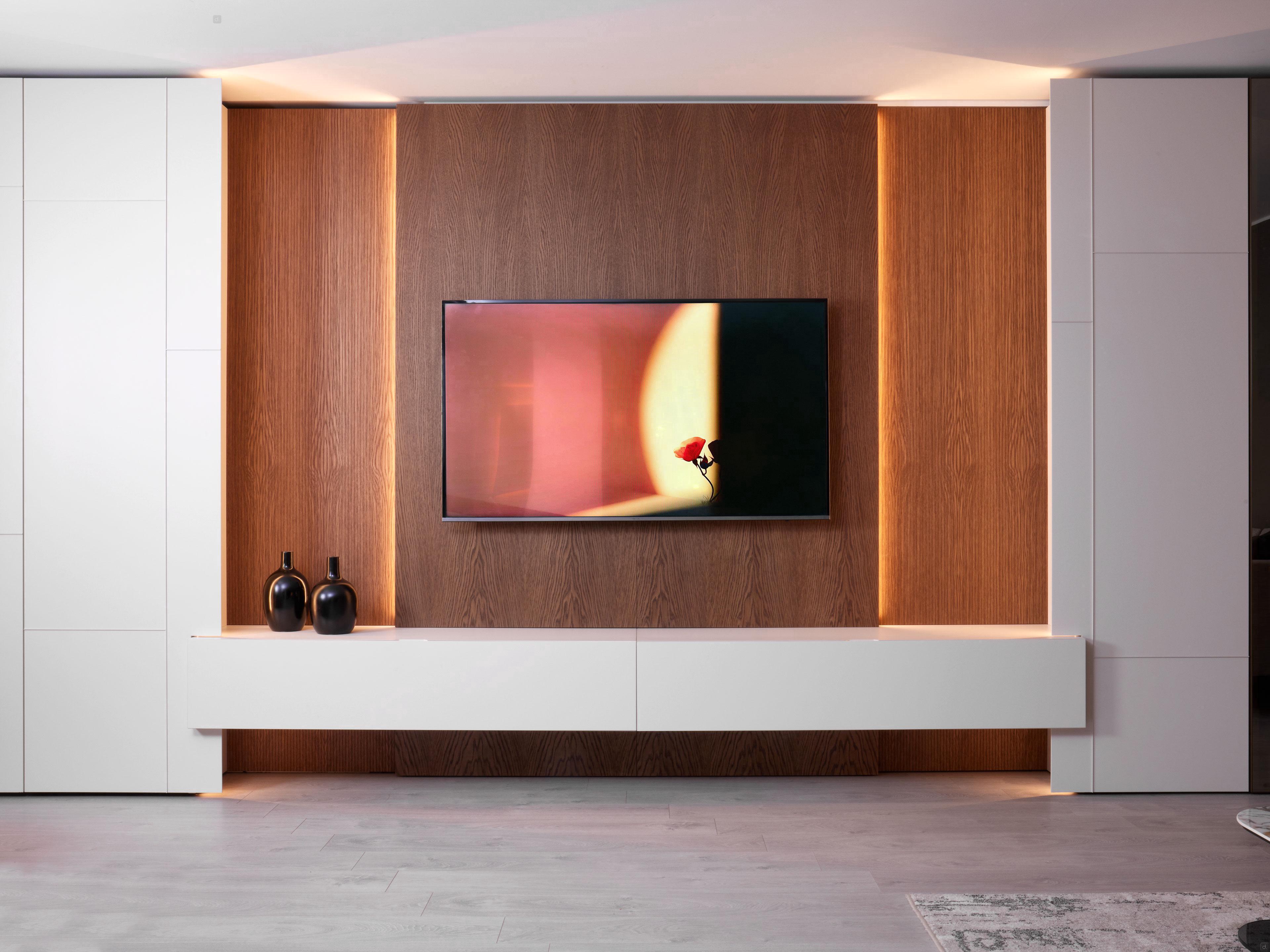

Royal wall system with a base unit featuring deep drawers and open compartments

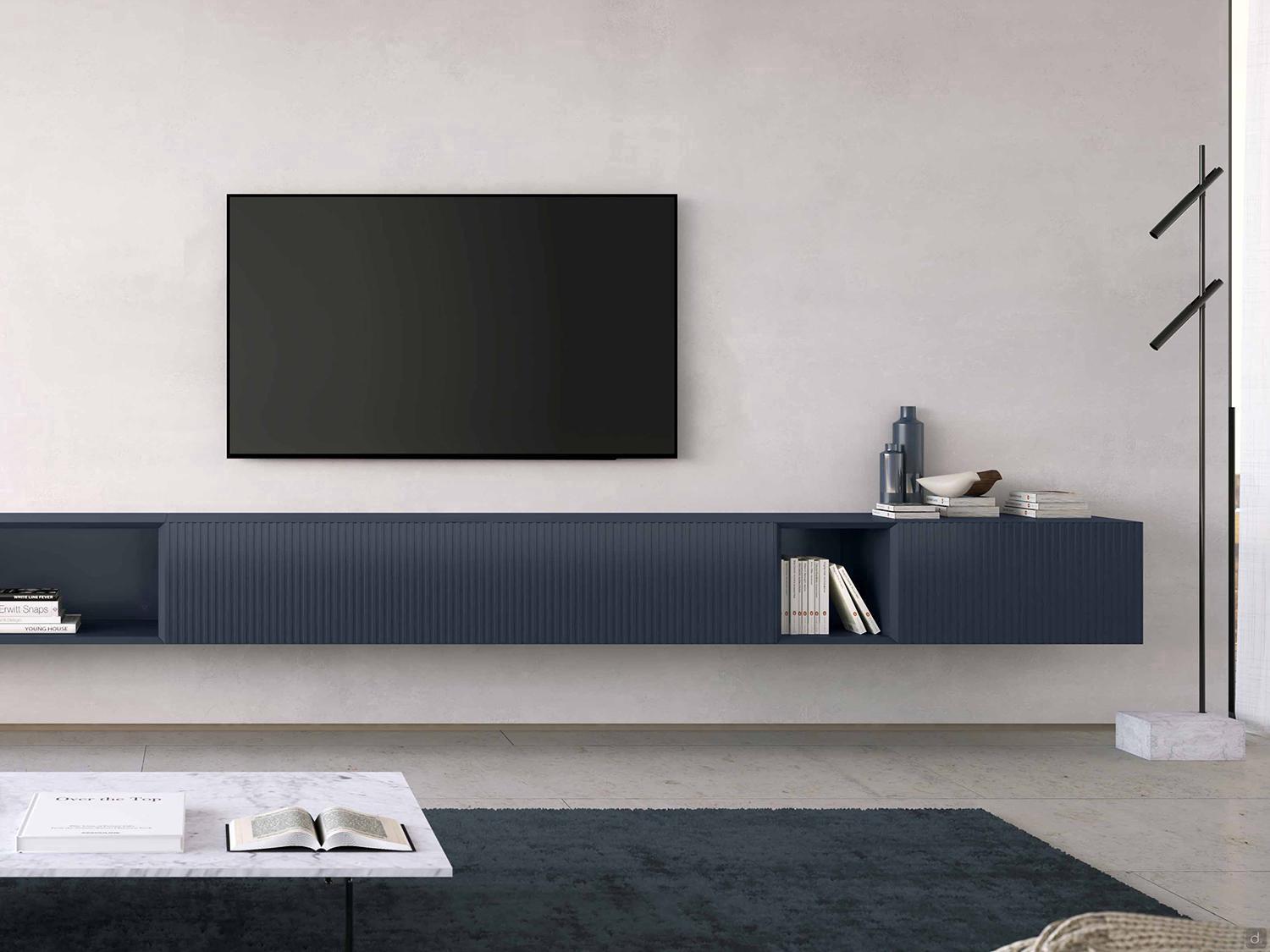

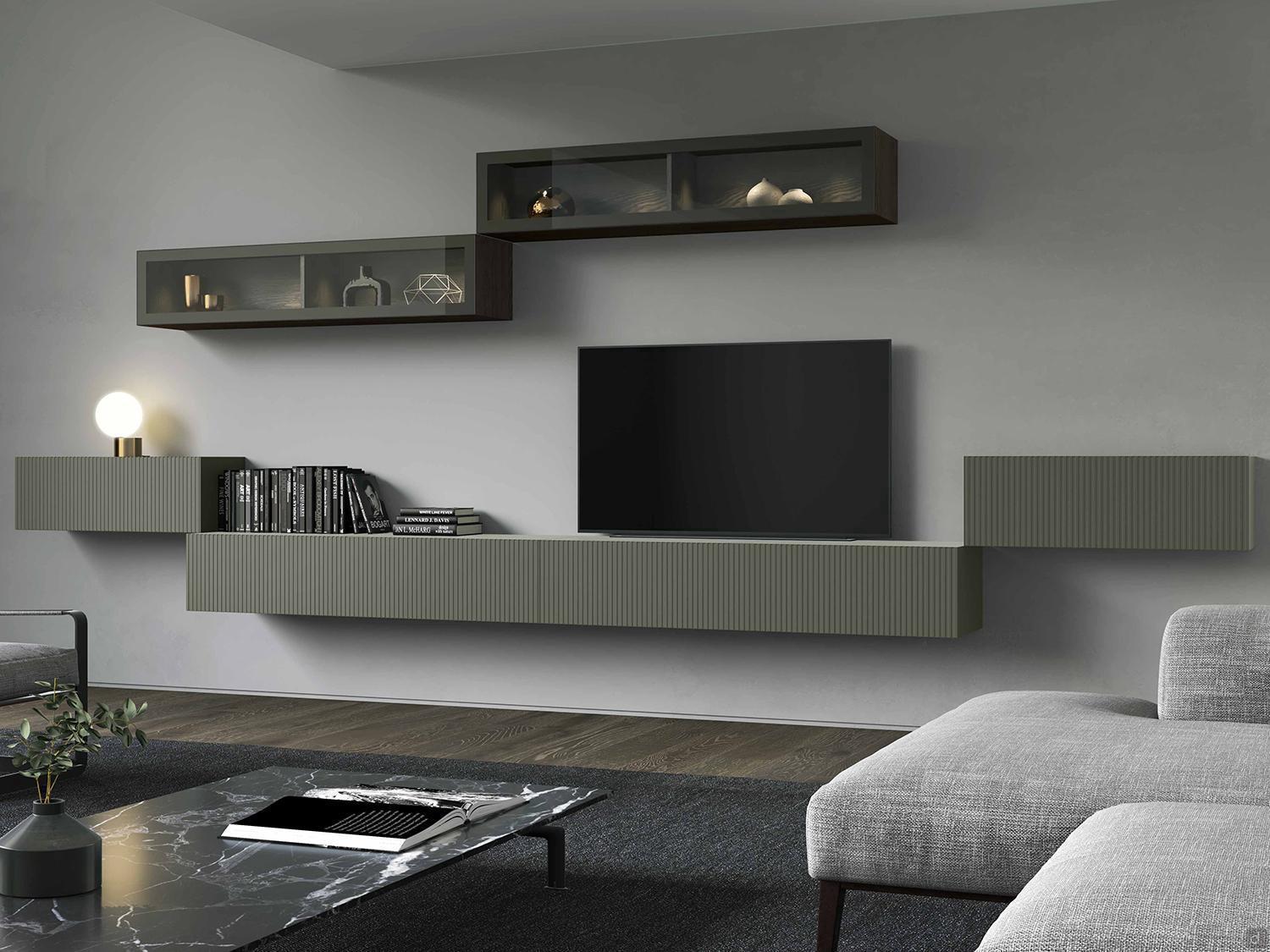

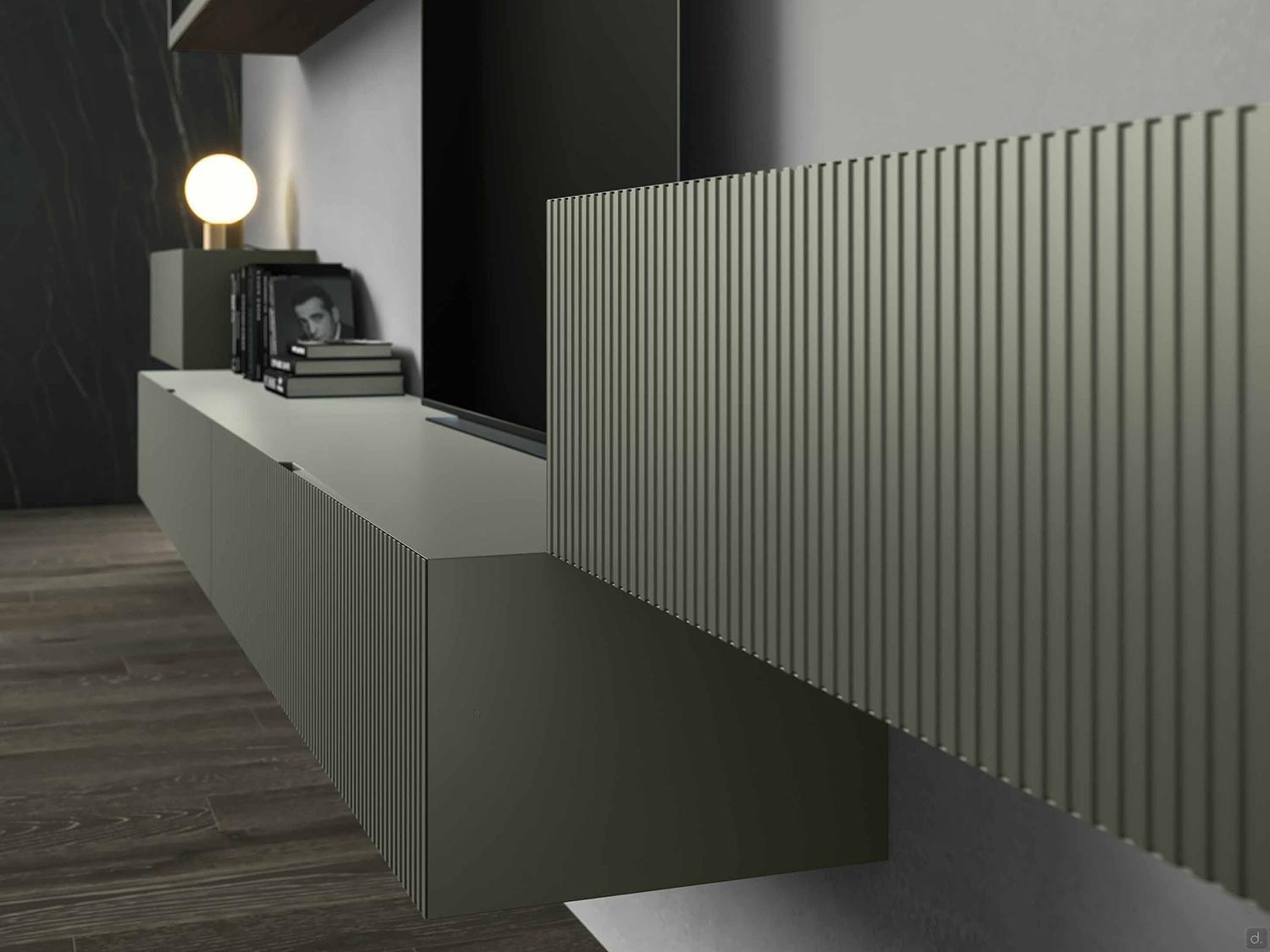

Staggered base units in Mistletoe matt lacquer with 10:10 effect on front panels

Royal wall system composed of various products from the Royal collection

Royal floor-standing base unit with cm h.12,5 base

Products from the Royal collection are highly customisable

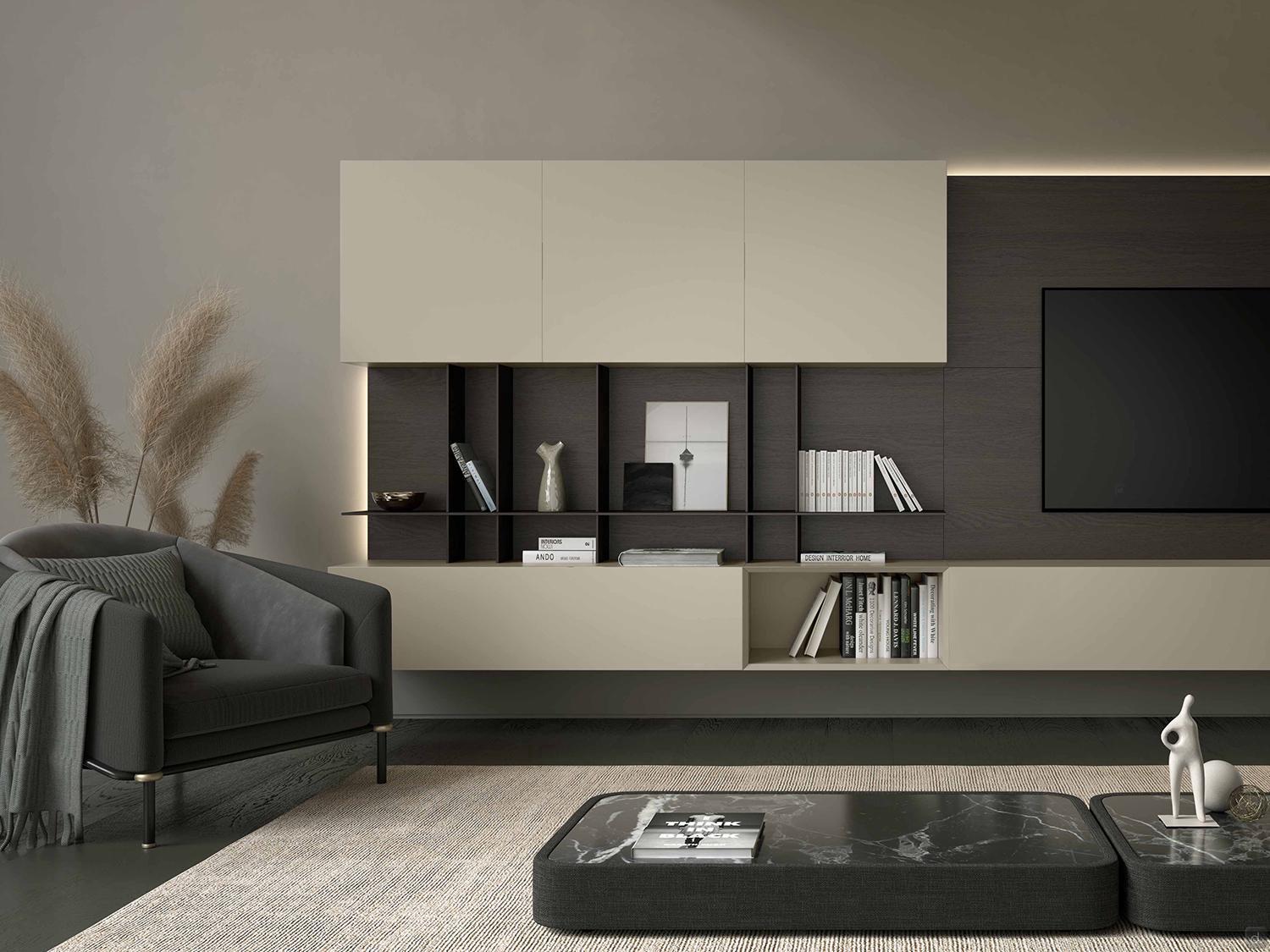

Royal wall system with base units, open elements, wall panelling with shelves, wall units and back panels

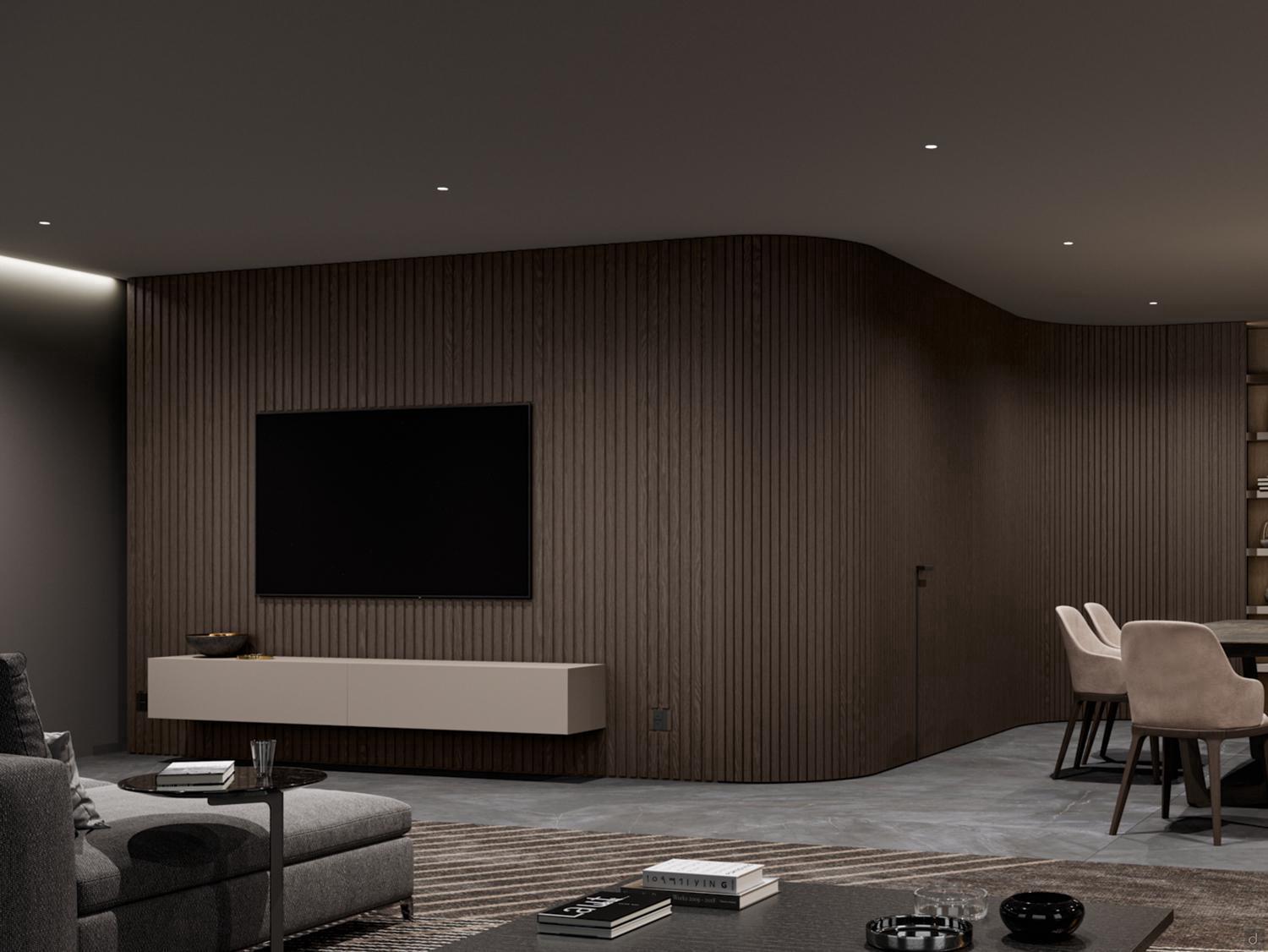

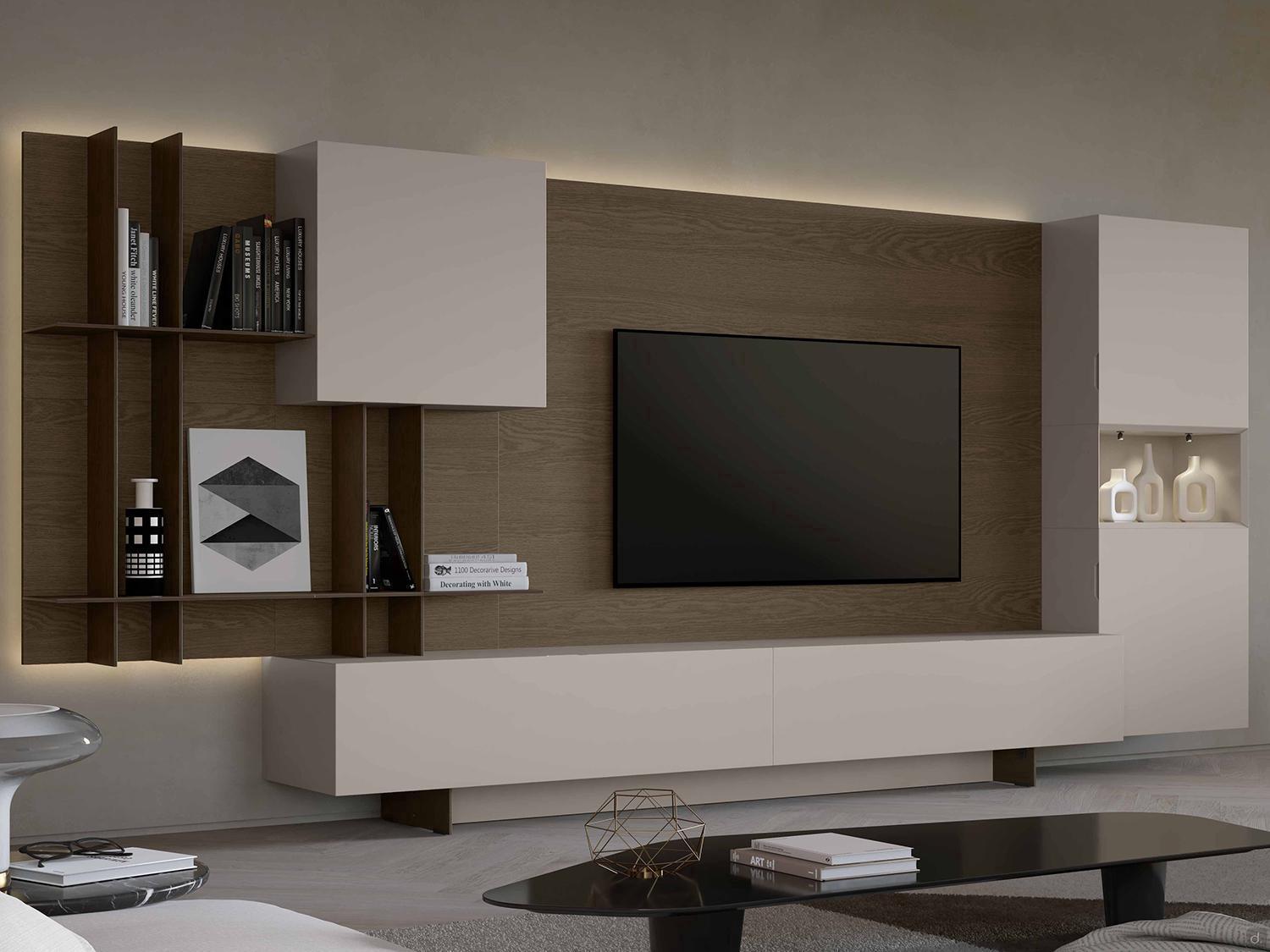

Royal base in matt hazelnut lacquer, combined with Carbon oak boiserie panels with 10:2 processing

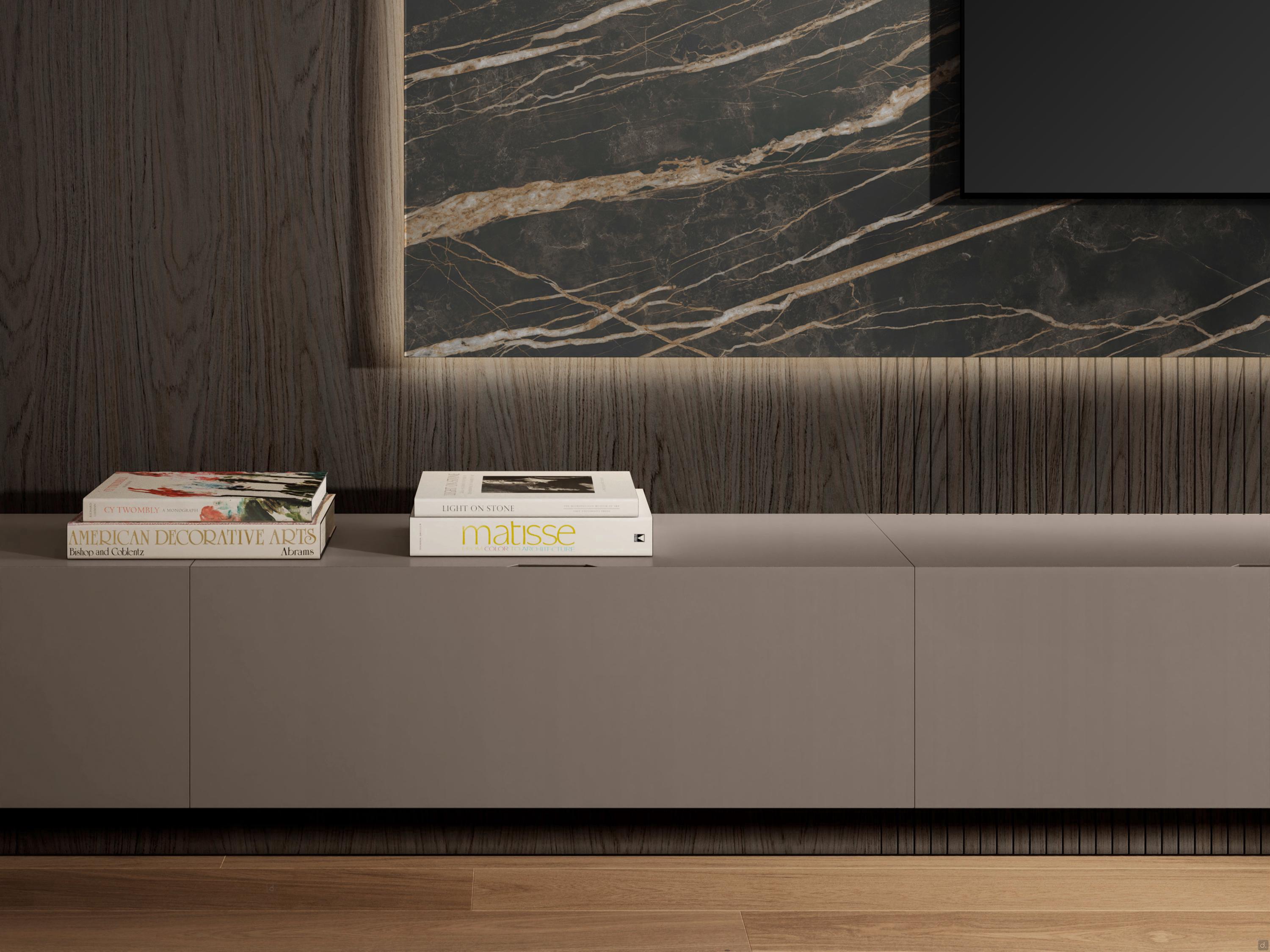

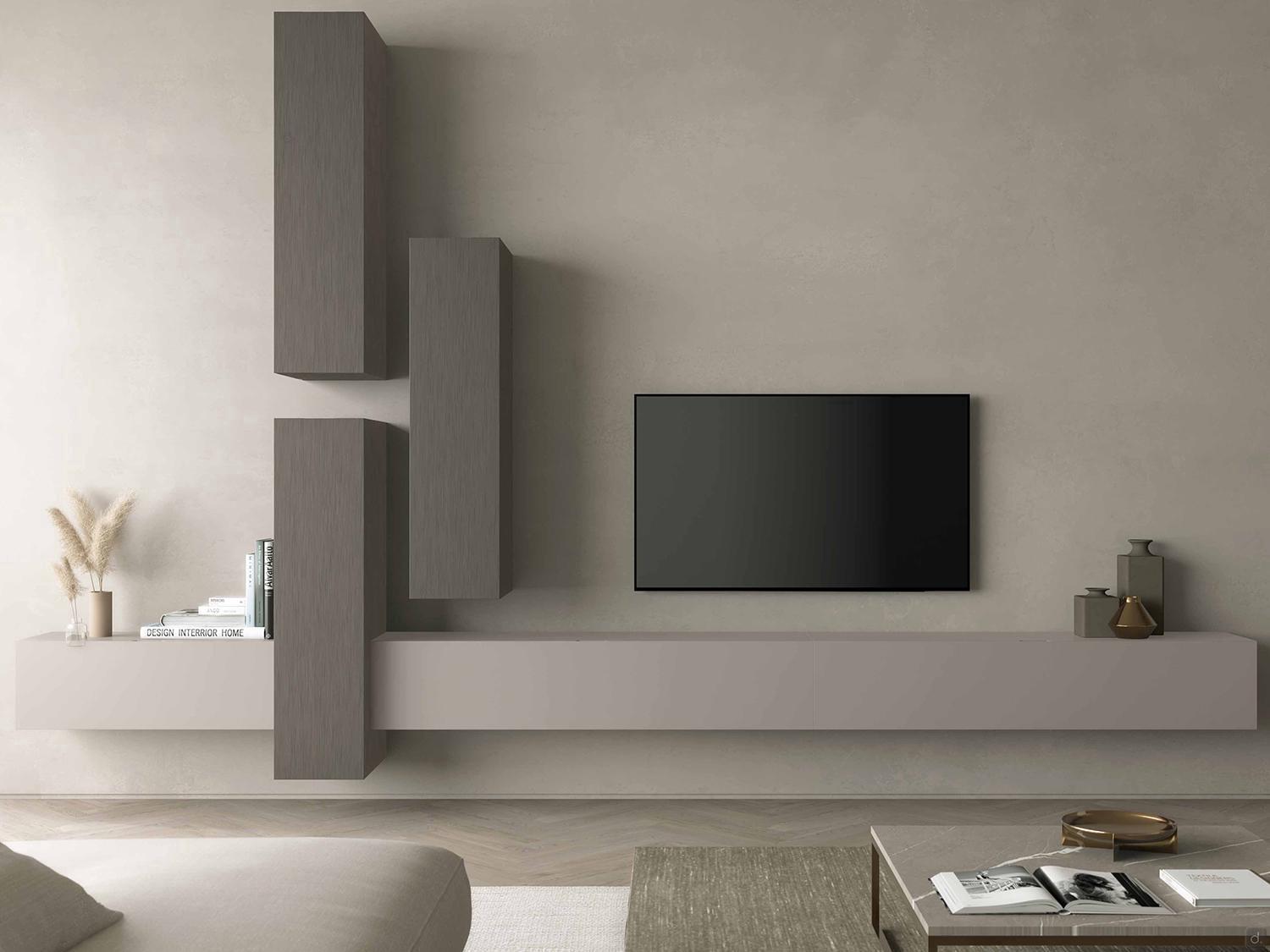

Suspended composition of Royal base units

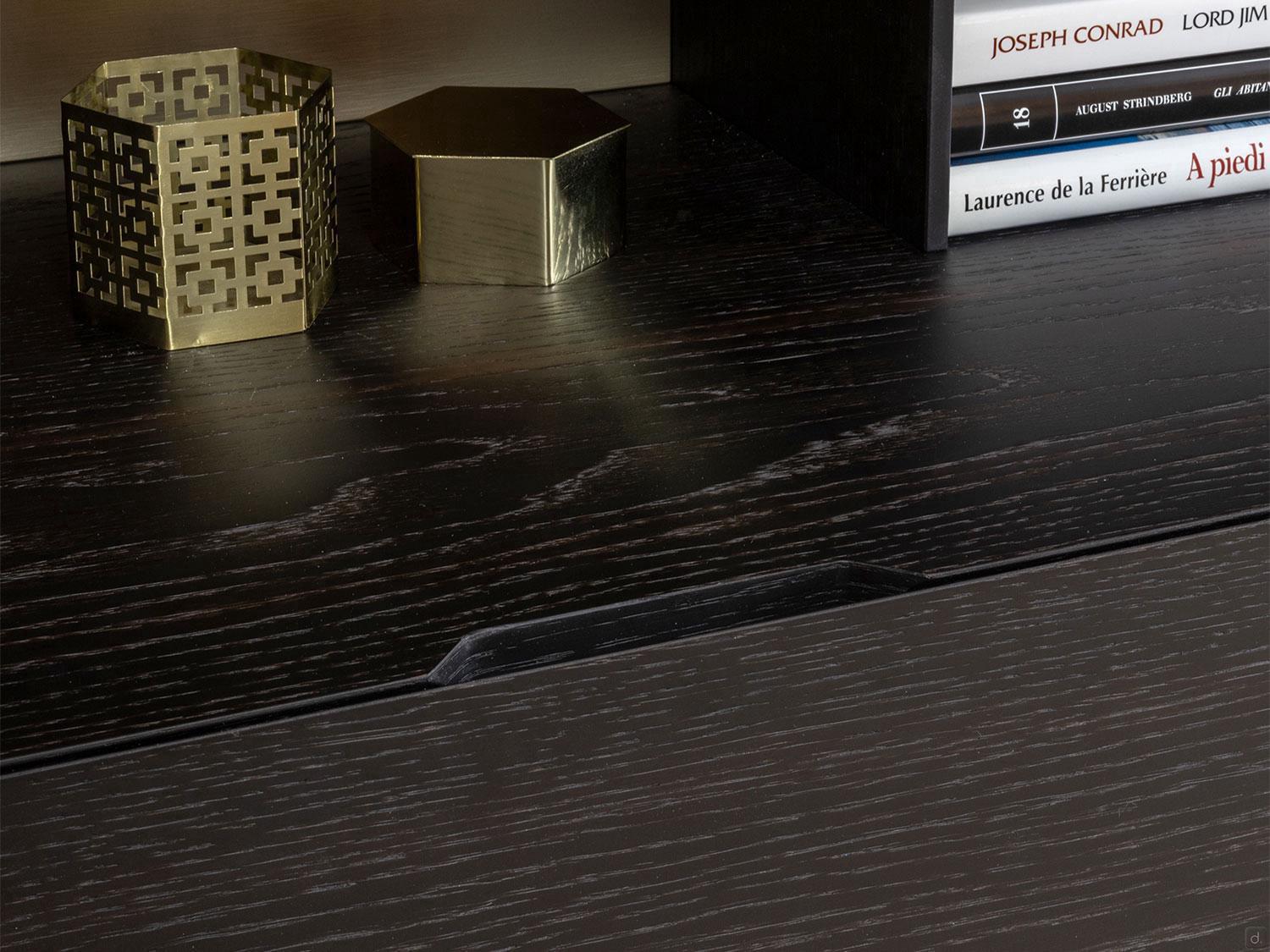

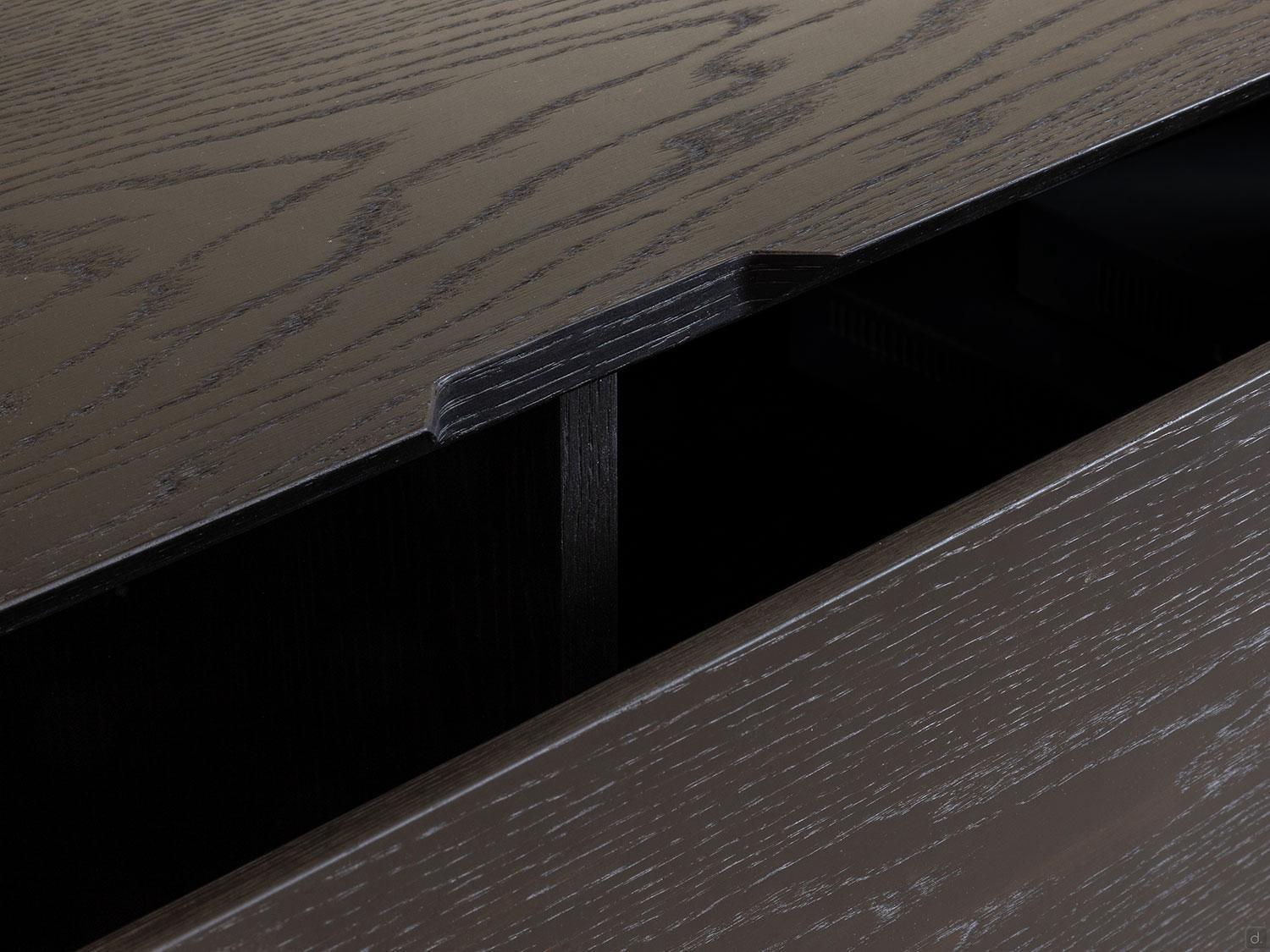

Close up of the upper recess in aged oak wood (E27 Carbon)

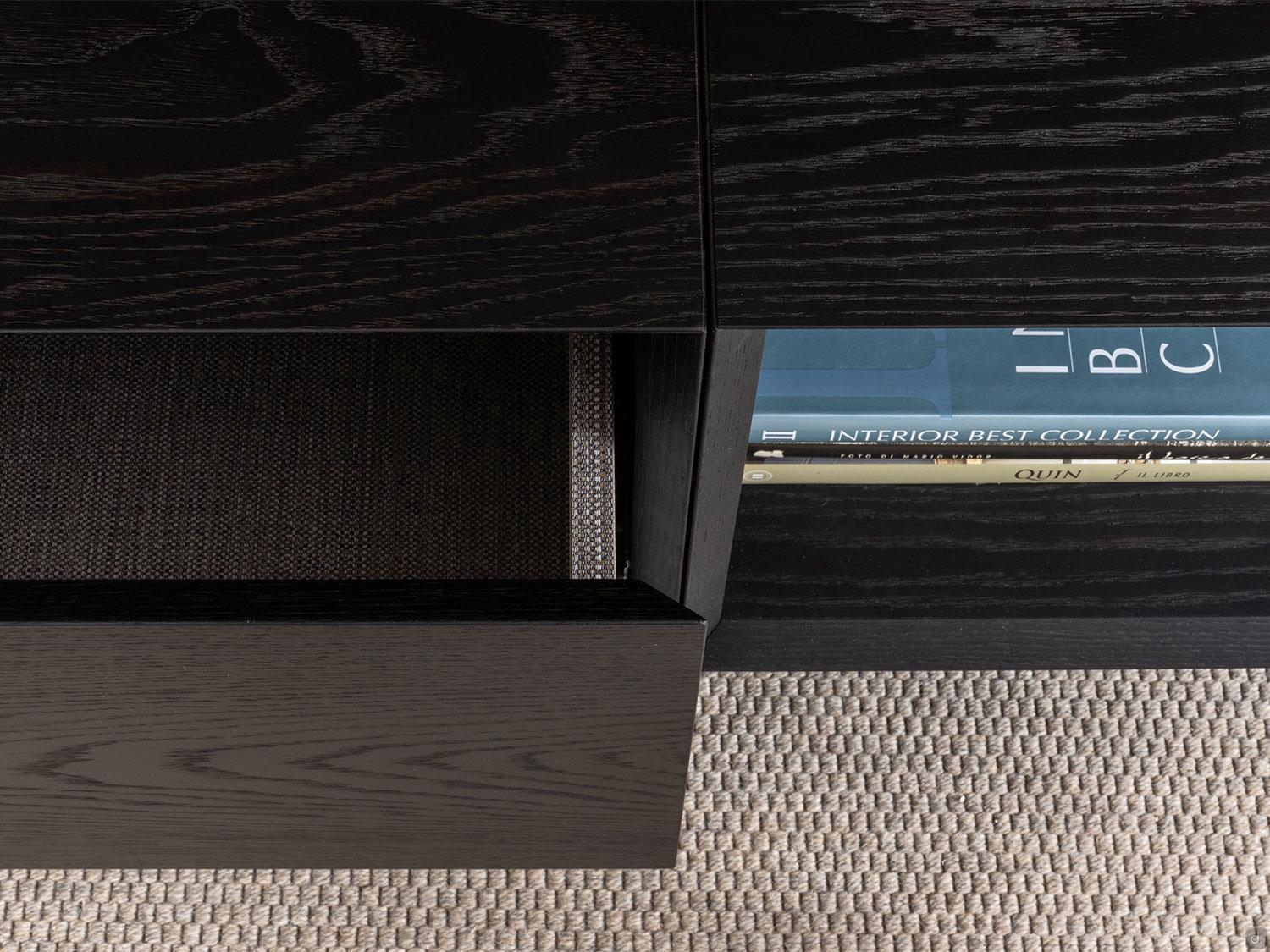

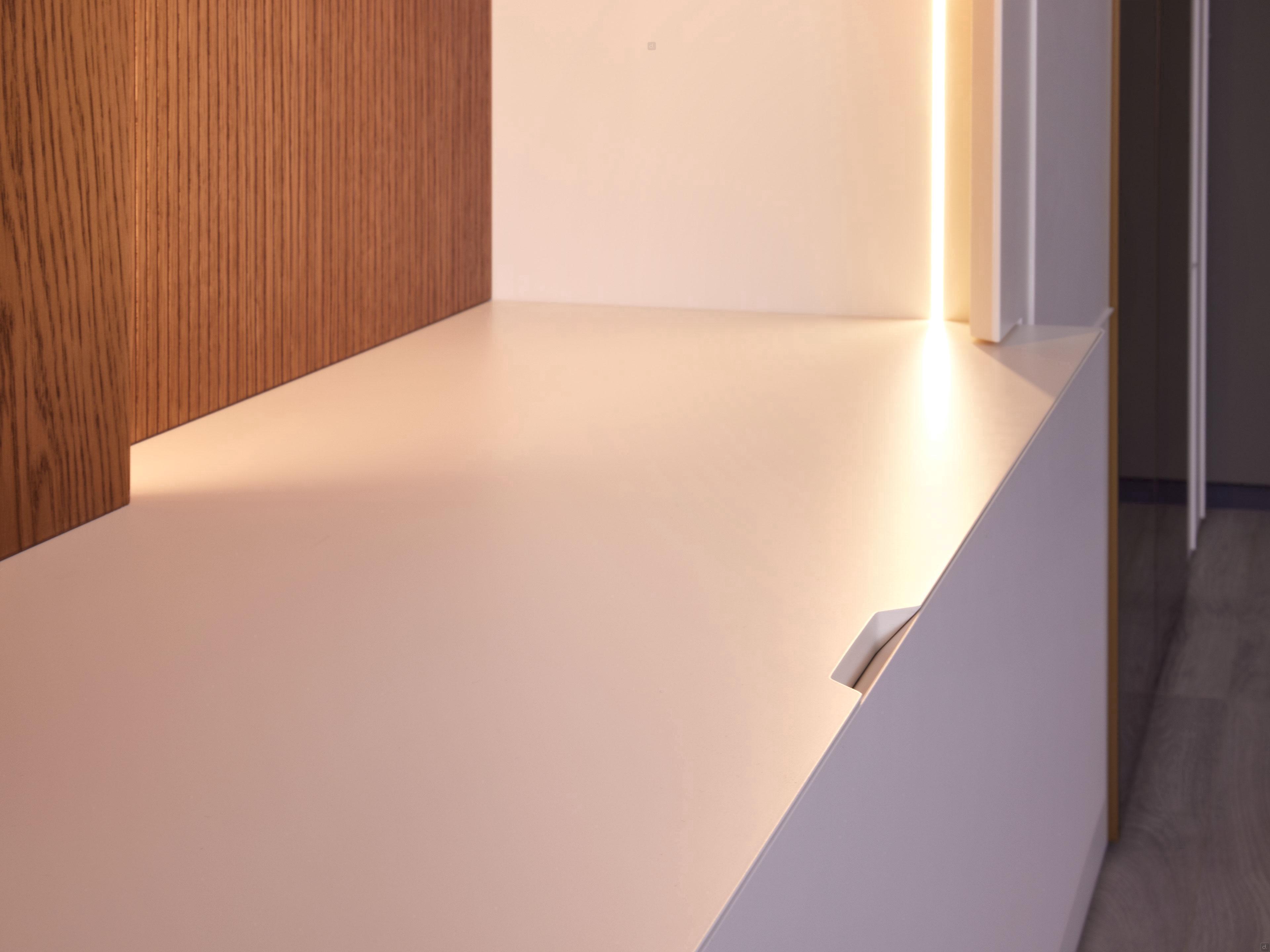

Deep drawer opens easily thanks to the recess at the top

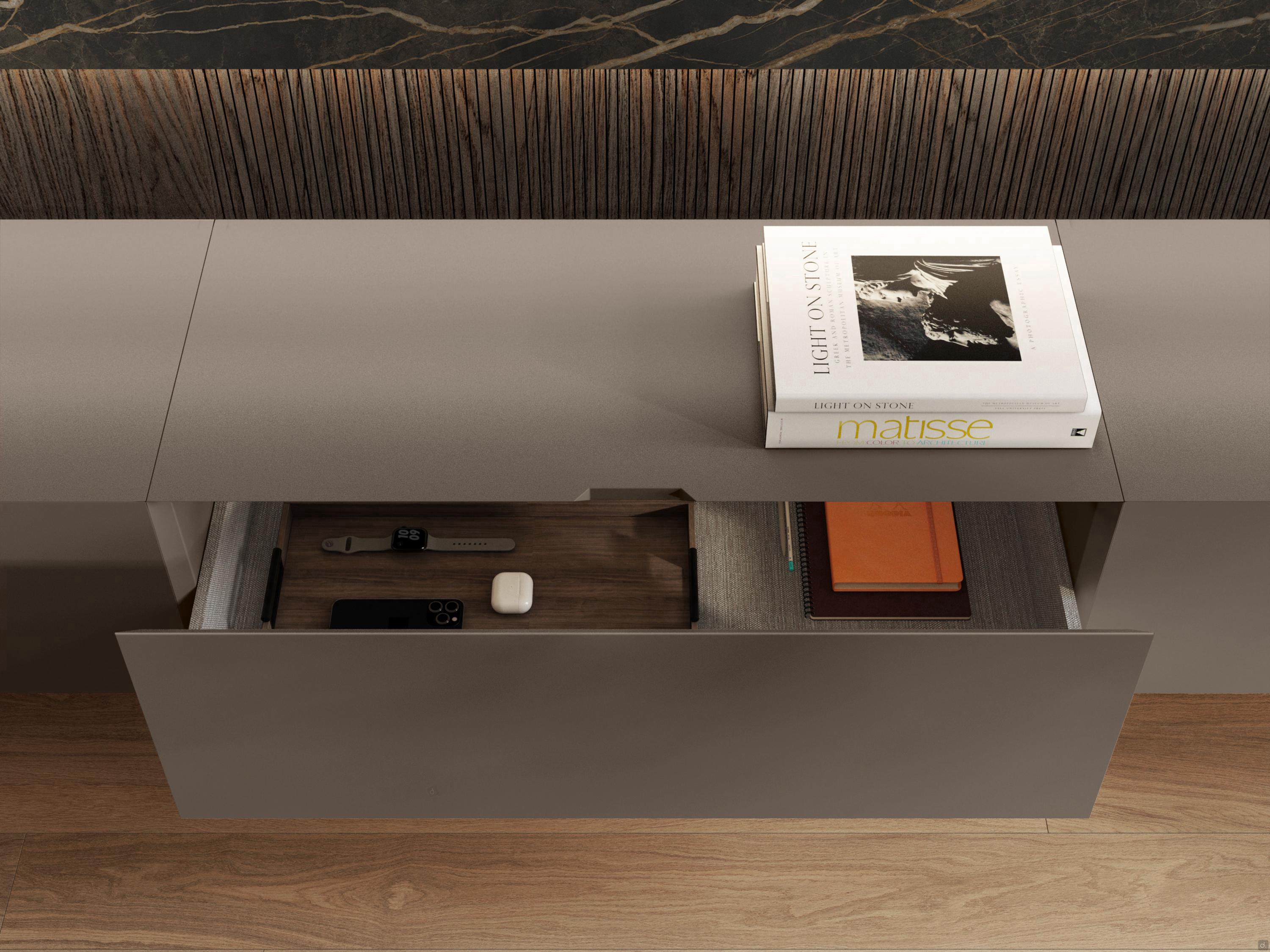

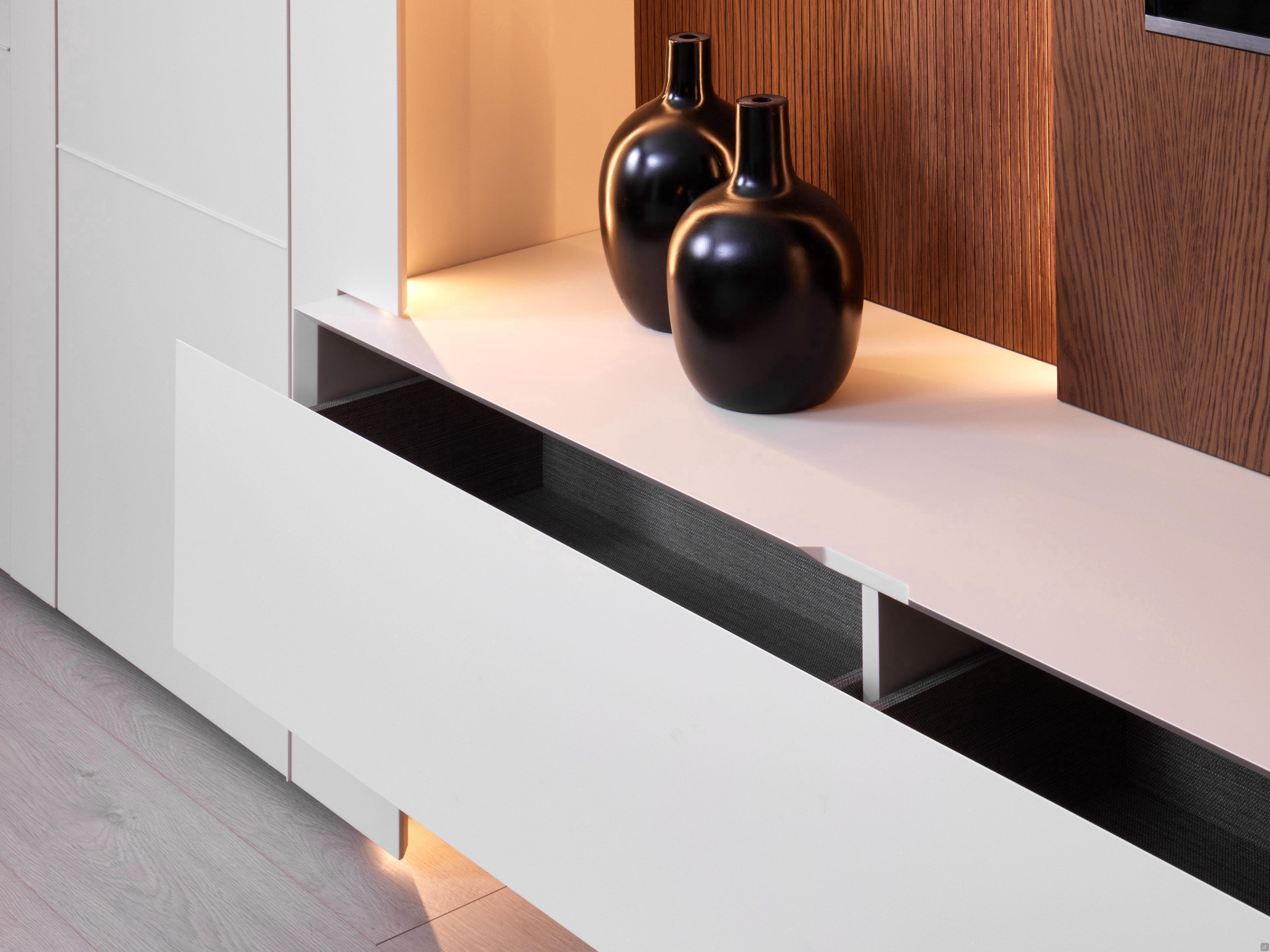

Spacious deep drawer with extractable frame in T77 Alpha melamine

The deep-drawer base unit matches other products from the Royal collection

Base unit with deep drawer in matt lacquer (Canvas)

Royal products can be embellished with a 10:10 technique on the front panels

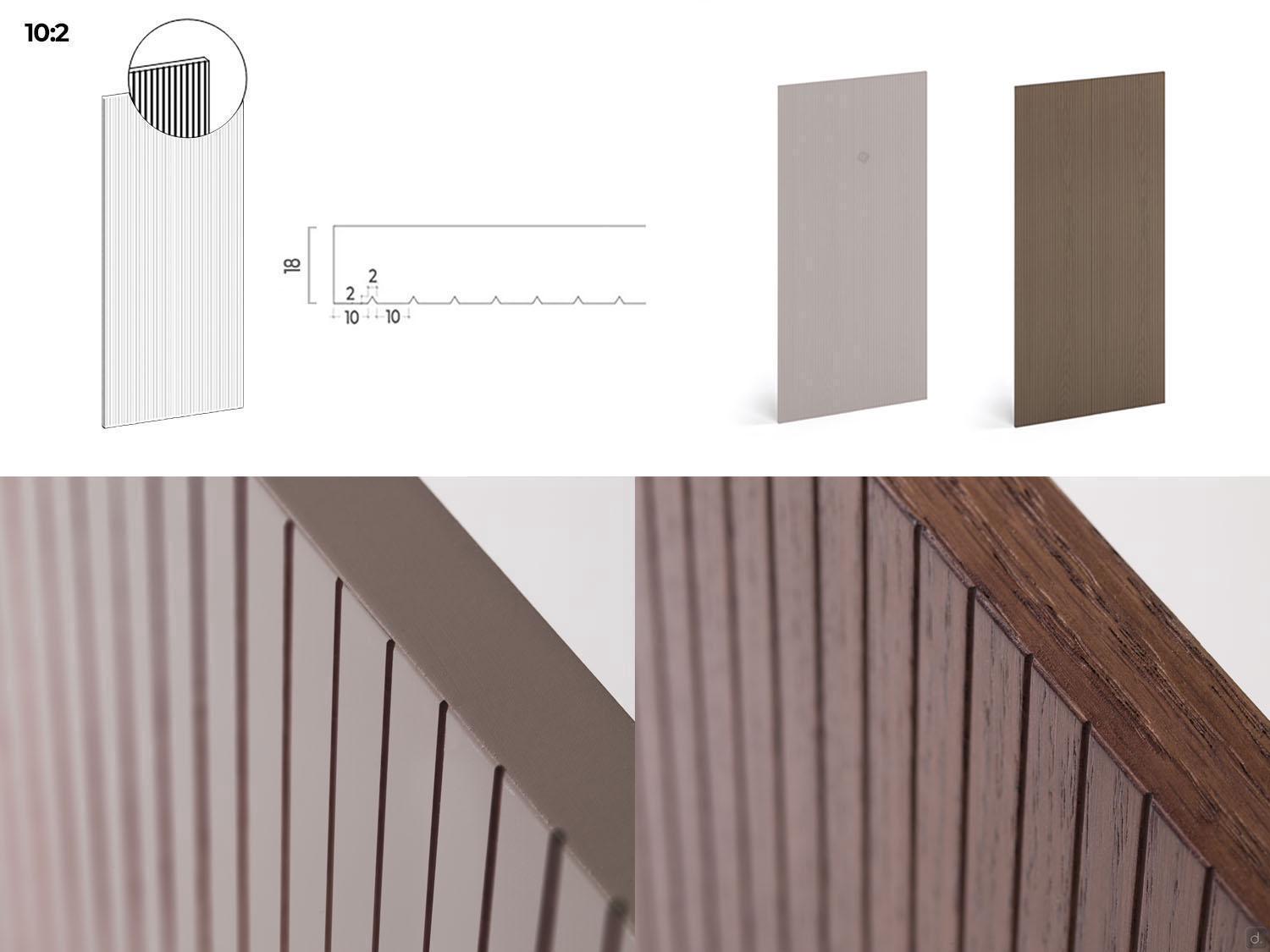

Lounge illuminated niche wall unit - "10:2" processing with vertical "V" engravings mm 2 thick

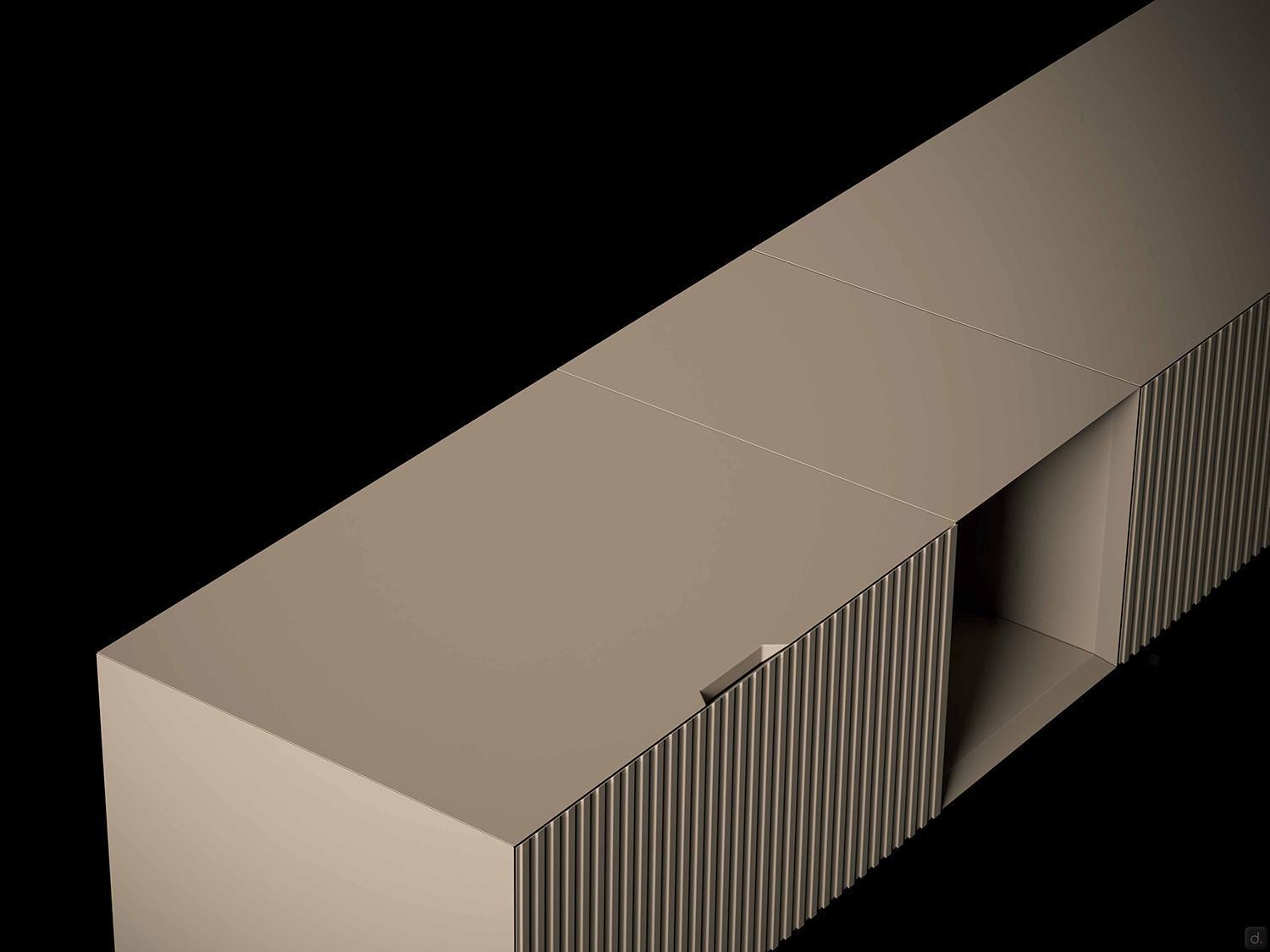

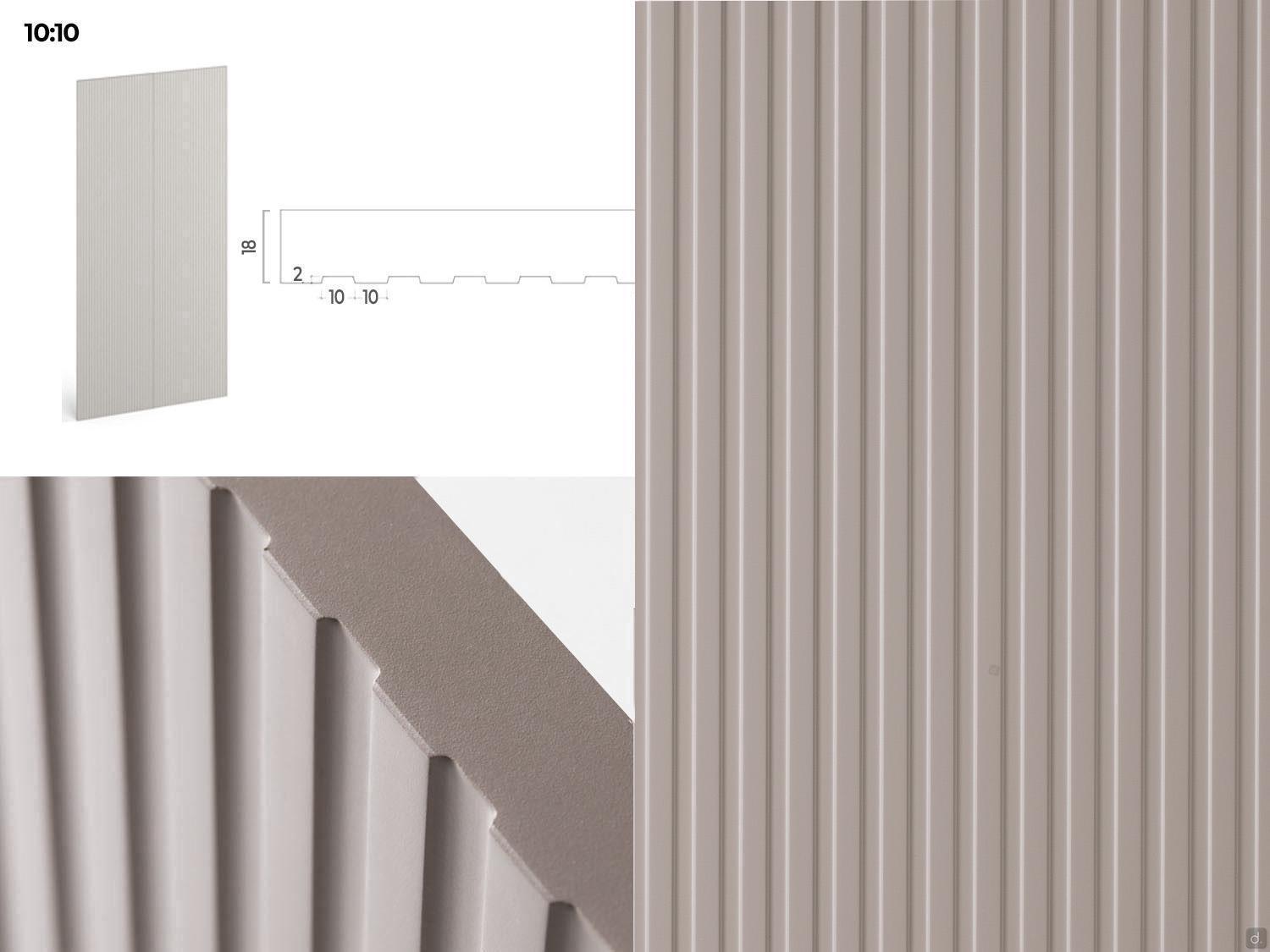

Royal living-room base Royal - Decoration "10:10" with vertical "U" shaped incisions mm 10 th.2 (available only on lacquered wood)

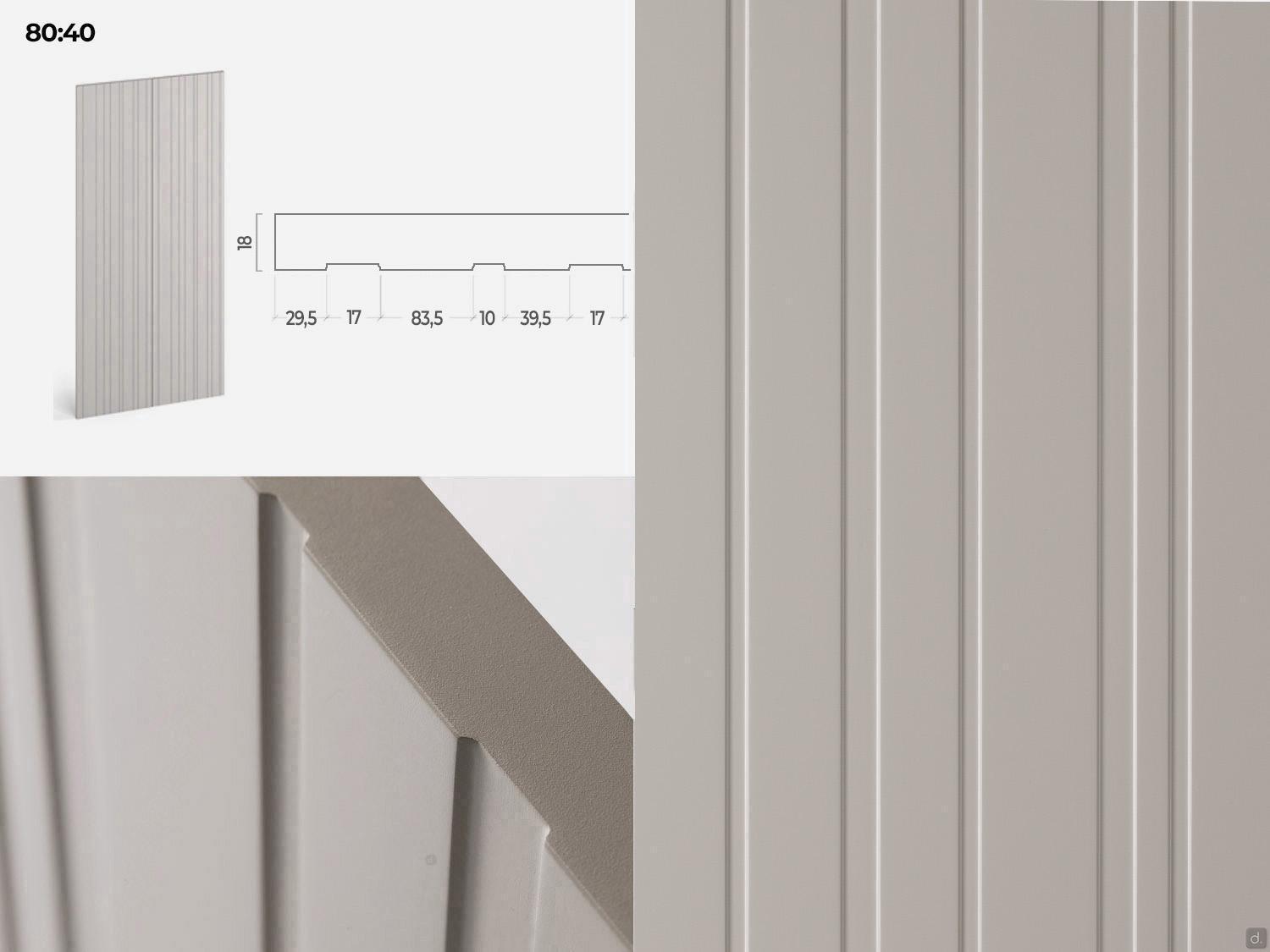

Lounge illuminated niche - "80:40" workmanship with "U" engravings 10 mm thickness 2 with variable pitch (only available on lacquered wood)

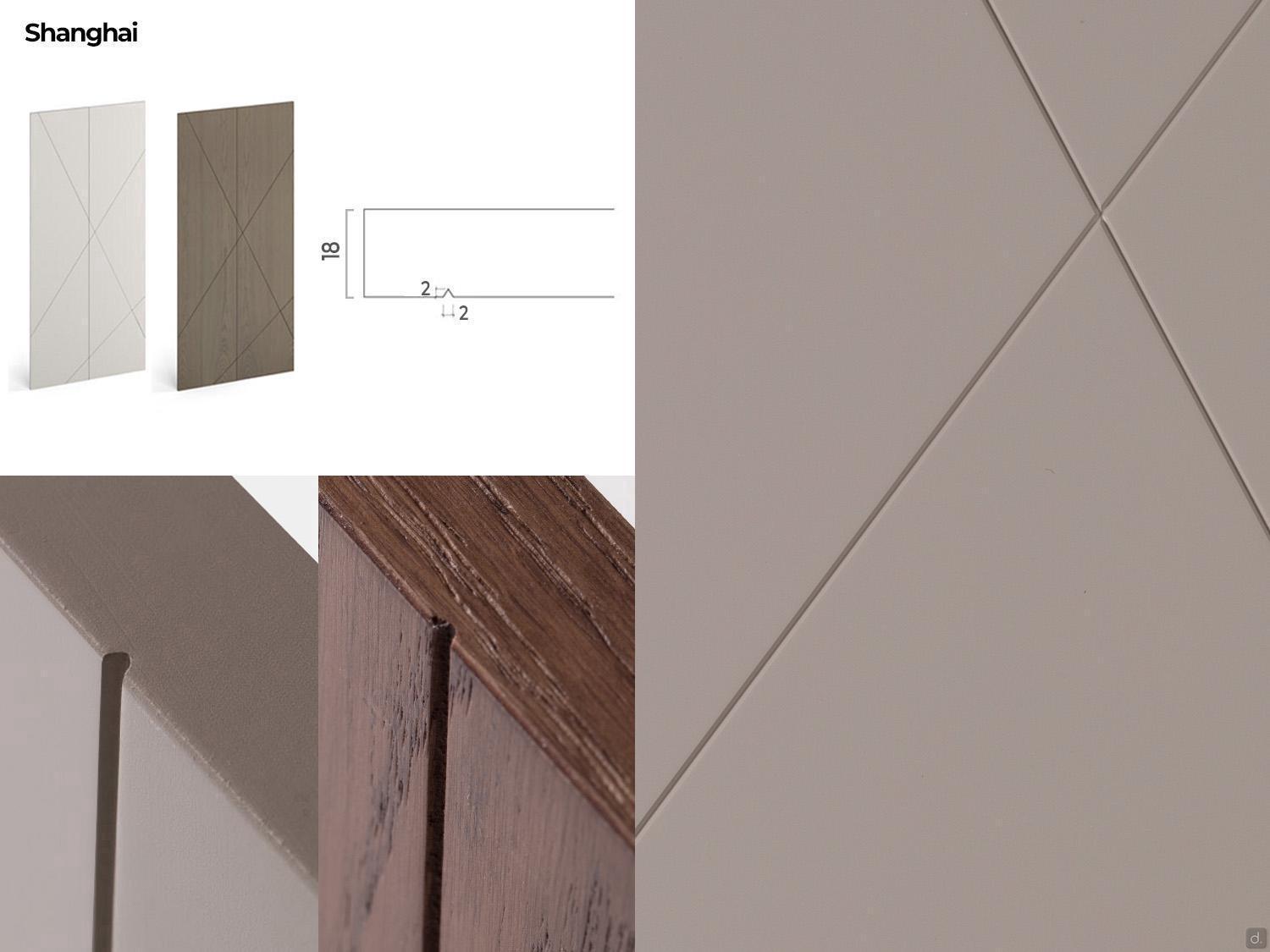

Base unit with drawers and deep drawer - Decoration "Shanghai" with diagonal "V" shaped incisions mm 2 th.2

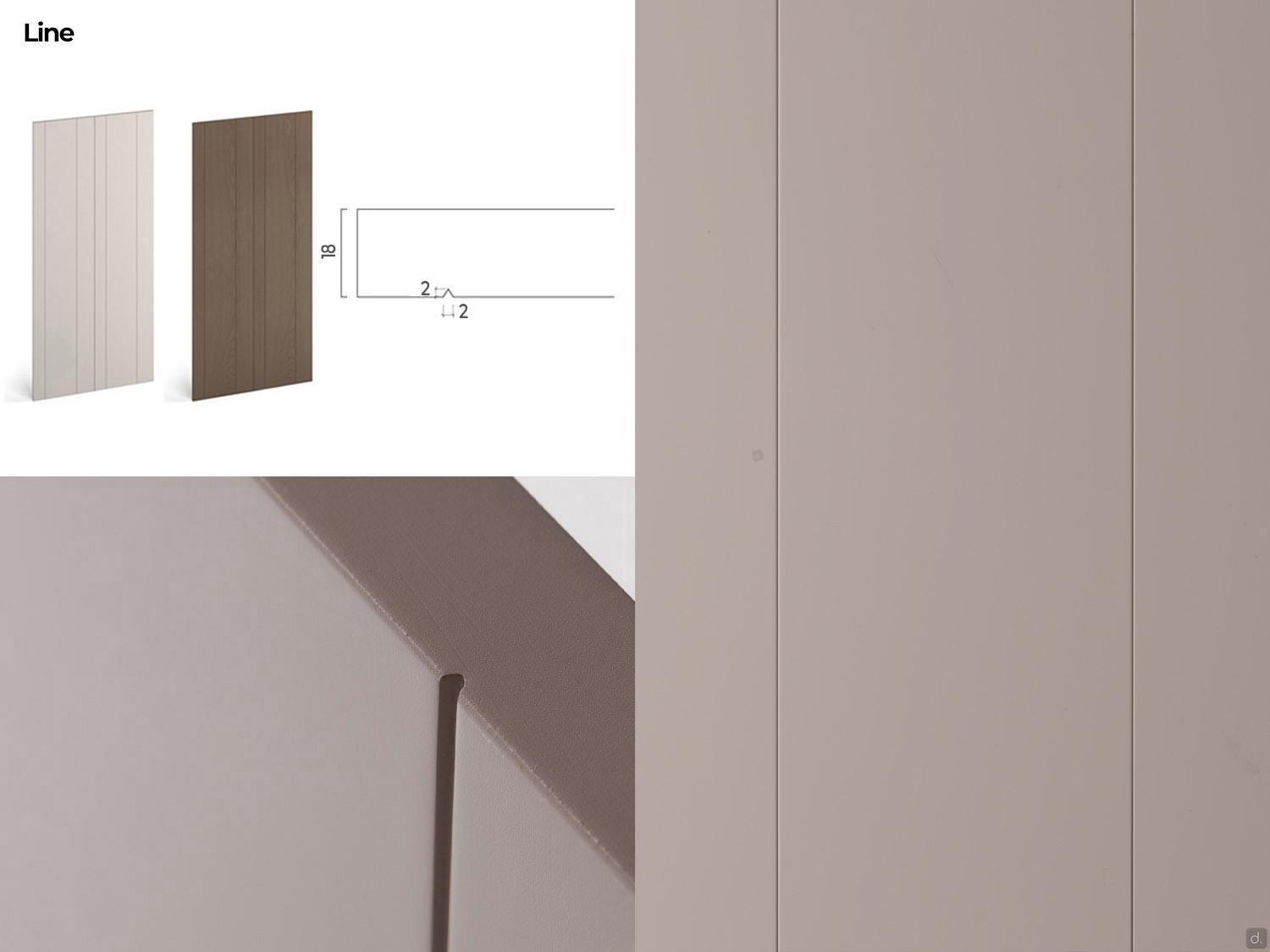

Base unit with drawers and deep drawer - Decoration "Line" with vertical "V" shaped incisions mm 2 th.2

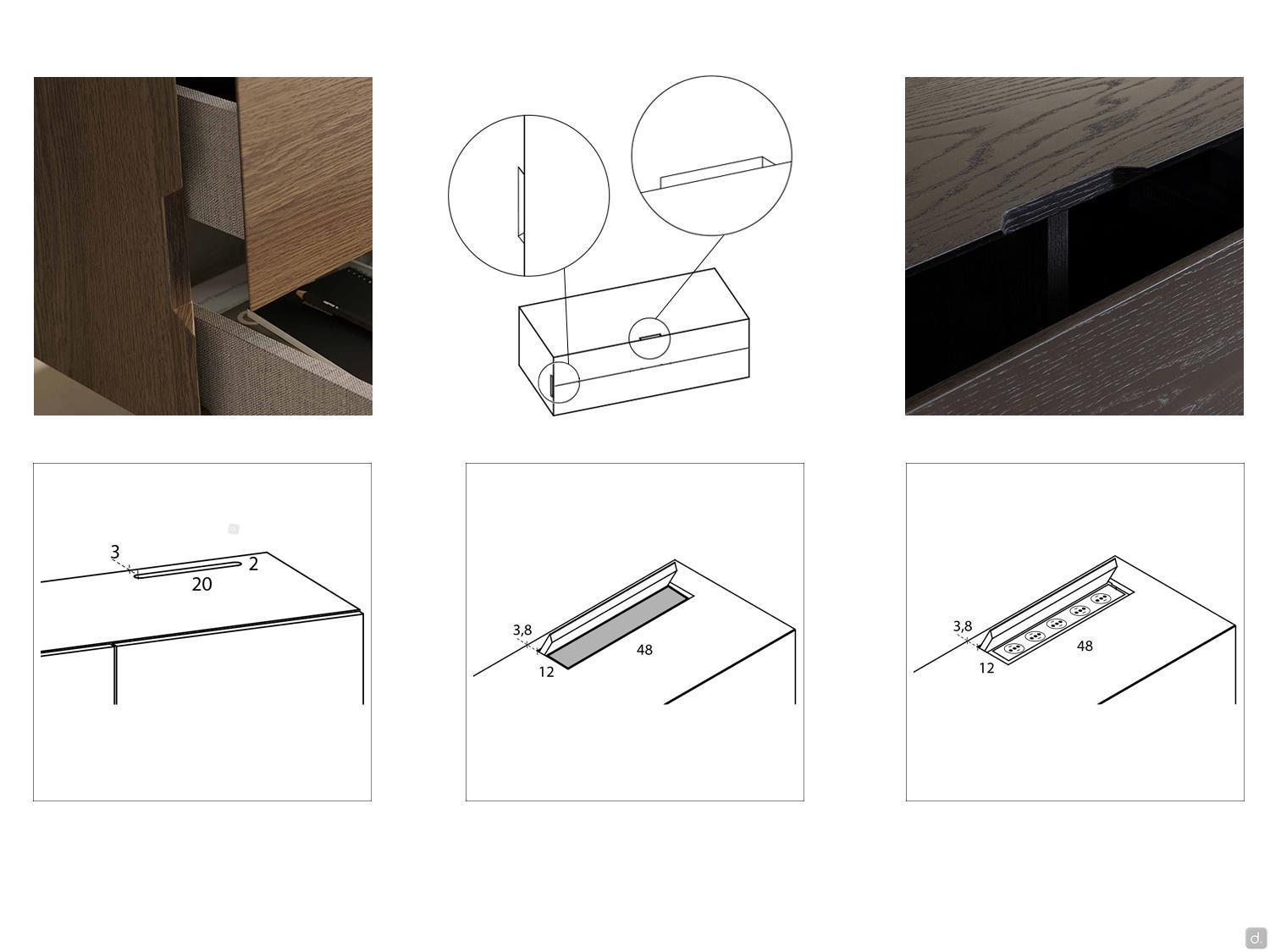

Base unit with drawers and deep drawer - Opening methods and optional cable hole set

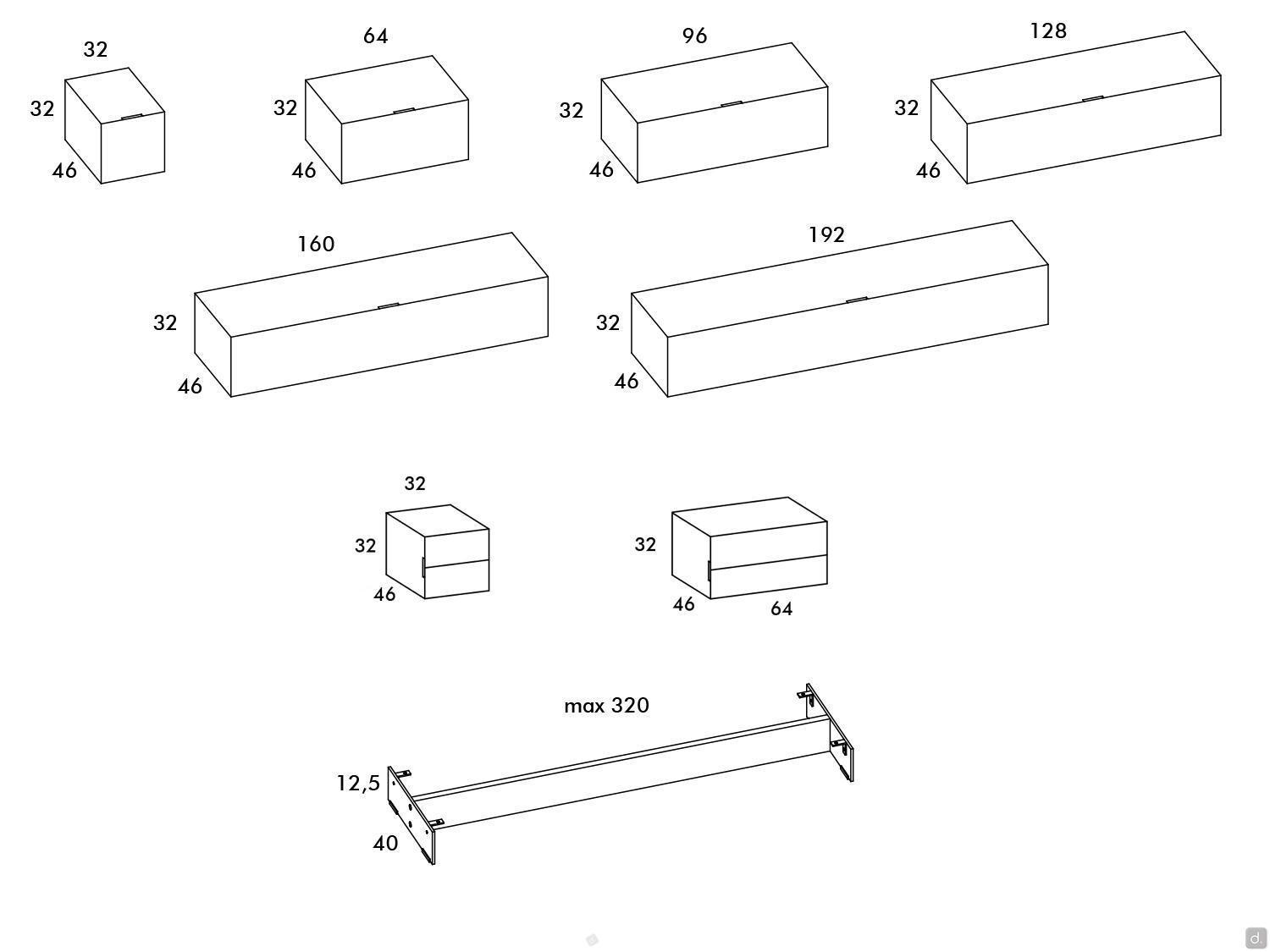

Base unit with drawers and deep drawer - Models and Measurements

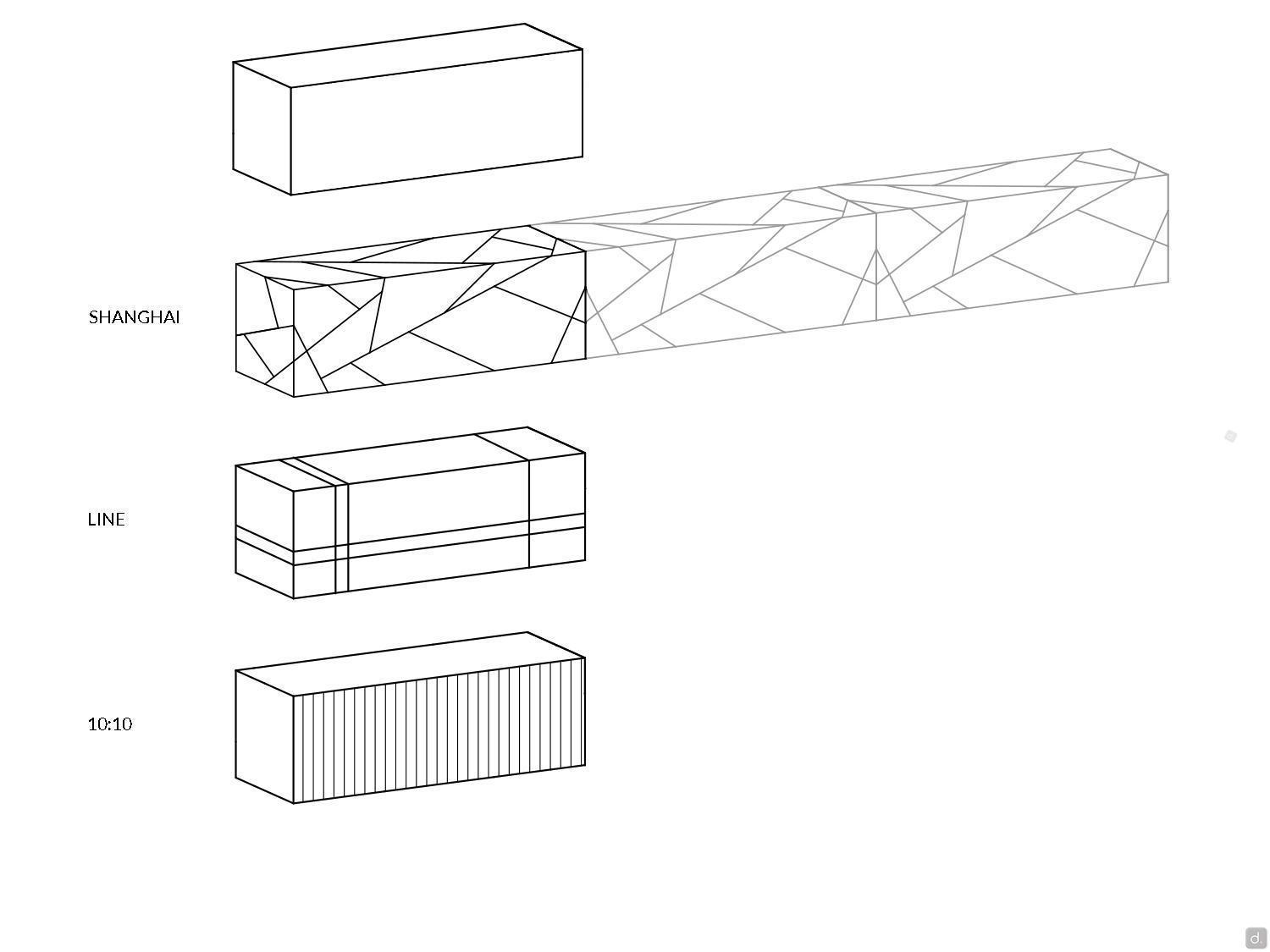

Base unit with drawers and deep drawer - Type of production technique/ effect on base unit

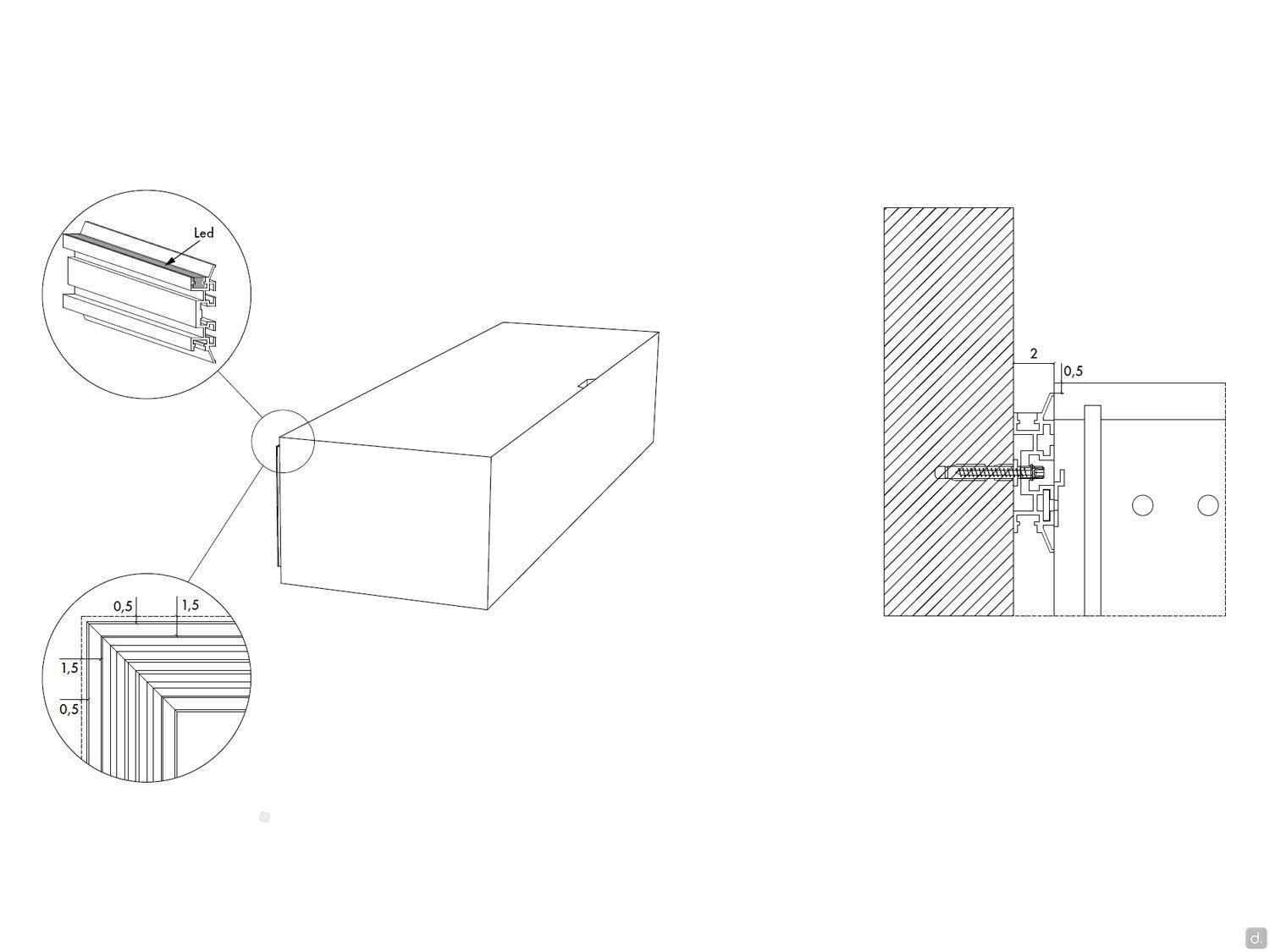

Optional perimeter lighting by means of an LED strip mounted on an aluminium frame placed between the masonry and the back of the base

+ 26

MORE IMAGES

Royal Base with Drawers or Deep Drawer

Royal living-room base unit with drawers. 32 cm in height. Ideal for creating a personalised wall system with other products from the Royal collection.

* Required Fields

Model *

with n.1 deep drawer
with n.2 drawers +€66.47

Measurements *

Equipment: *

n.2 internal compartments

Base Unit Finish *

matt lacquer

Base Unit Finish *

Base Unit Colour *

Internal Finish *

Internal Finish *

matching the base unit finish

NB: *

the extractable body of the drawer is made from T77 Alpha melamine

Base Unit Opening Type *

upper - with recess at the top

Base Unit Opening Type *

Installation Type *

Floor Base - Measurements *

cm max 320 d.40 h.12,5

Floor Base - Finish *

grey Pheltrox stainless steel

Base Unit Positioning *

Transformer for LED light *

Type of Switch *

wall switch
touch switch +€63.30

Voltage * For Europe the voltage is 220 V

220 V
110 V

Set of Cable Holes - Model and Measurements *

Cable Hole Colour *

Purchase Information *

As soon as you place your order, please send us a drawing of your Royal base unit, indicating the correct position of the cable hole set

Transformer for LED Lighting *

no transformer
n.1 transformer which is switched on/off with a switch-controlled socket +€63.30

Transformer for LED Lighting *

no transformer
n.1 transformer which is switched on/off with a switch-controlled socket +€105.50

Max. Transformer Strength *

Voltage * For Europe, select a voltage of 220 V

220 V
110 V

Quantity

From €466.31

View Samples

Wishlist

Description

The Royal living-room base unit with drawers or a deep drawer is available in matt lacquer, glossy lacquer, metallic lacquer, open-pore oak or aged oak. You can also opt for smooth front panels or front panels which have been embellished with geometric carvings on the surface.
This unit, which is 32 cm in height, is further enhanced by the unique 45° angle on all of its edges. This unit is perfect for creating a personalised wall system by combining multiple products, both floor-standing and wall-mounted, from the Royal collection. You can also choose to include a LED bar below the drawers.

Characteristics
suspended or floor-standing base unit with two drawers or one deep drawer
drawers are opened using a recess at the top or bottom
extractable drawer frame in Alpha melamine
optional cable hole set with slot or flap

Measurements
Width:
- deep drawer: cm 32 / 64 / 96 / 128 / 160 / 192
- standard drawers: cm 32 / 64
Depth: cm 46
Height: cm 32

Finish
Base unit:
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood
Door:
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood
- glass
Internal Section:
- melamine
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood

Info for your Purchase
Matte or glossy lacquer (where available) in RAL, NCS and Sikkens colours are available for this product. Please contact our Customer Service for a quote or additional info.

Technical study

Technical Specifications and Equipment
Structure: made from MDF, 1,8 cm thick, with a 45° edge on all sides. The interior section is made from melamine, matt lacquer, glossy lacquer, metallic lacquer, open-pore oak wood or aged oak wood. Deep drawer and standard drawers with a pull-out shell in T77 Alpha melamine.
Partition: matching the interior section, cm 1,8. Available for the models that are cm 96, 128, 160 and 192 in width.
Deep Drawer / Drawers: The front panels can be smooth or customised with a pattern:
- Shanghai: diagonal "V"-shaped carvings cm 0,2 d.0,2.
- Line: vertical "V"-shaped carvings cm 0,2 d.0,2.
- 10:10 (only for lacquer finishes): "U"-shaped carvings cm 1 d.0,2.
- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing
- 10:2: vertical "V" incisions cm 0,2 thick.
Opening: with a recess at the top (deep drawer) or at the side (drawers).
Base: cm max 320 d.40 h.12,5 in grey Pheltrox steel.

Optional
set of cable holes: positioned on the top in the following models:
- slot: for a 20 x 2 cm cable passage (distance from back panel: cm 3);
- flap without duct: cm 48 x 12 (distance from back panel: cm 3,8);
Backrest for back finishing the base, when in combination with Windsor Bookcase: the back is finished matching the front and structure for bases with drawers cm 32 / 64 / 96 / 128 / 160 / 192 th. 1,8 h.32

LED lighting Options
LED strip under the wall unit for external light: placed under the wall mounted storage unit (3000 K - 11 W/lm). Transformer with wall switch or touch switch (30, 75 or 150 W - 24V).
perimetral LED strip for external light: placed in a dedicated "slot" built-in the modular frame in brown anodised aluminium which is mounted between the wall and the back of the wall unit (3000 K - 11 W/lm). Transformer with wall switch or touch switch (30, 75 or 150 W - 24 V).

Assembly Tips
Hardware is pre-mounted on all elements to facilitate and speed up assembly. Deep drawer and standard drawers with standard soft-closing system. Elements are complete with brackets for fixing them to the wall.

Further Information...
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterized by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.

Video

Additional Information

Area of Production
Italy

Approximate Time
9 - 12 working weeks for production

Assembling
Medium Assembling

Weight
from 11,5 to 48 Kg

Cubic Metres
from 0,08 to 0,40 m³
