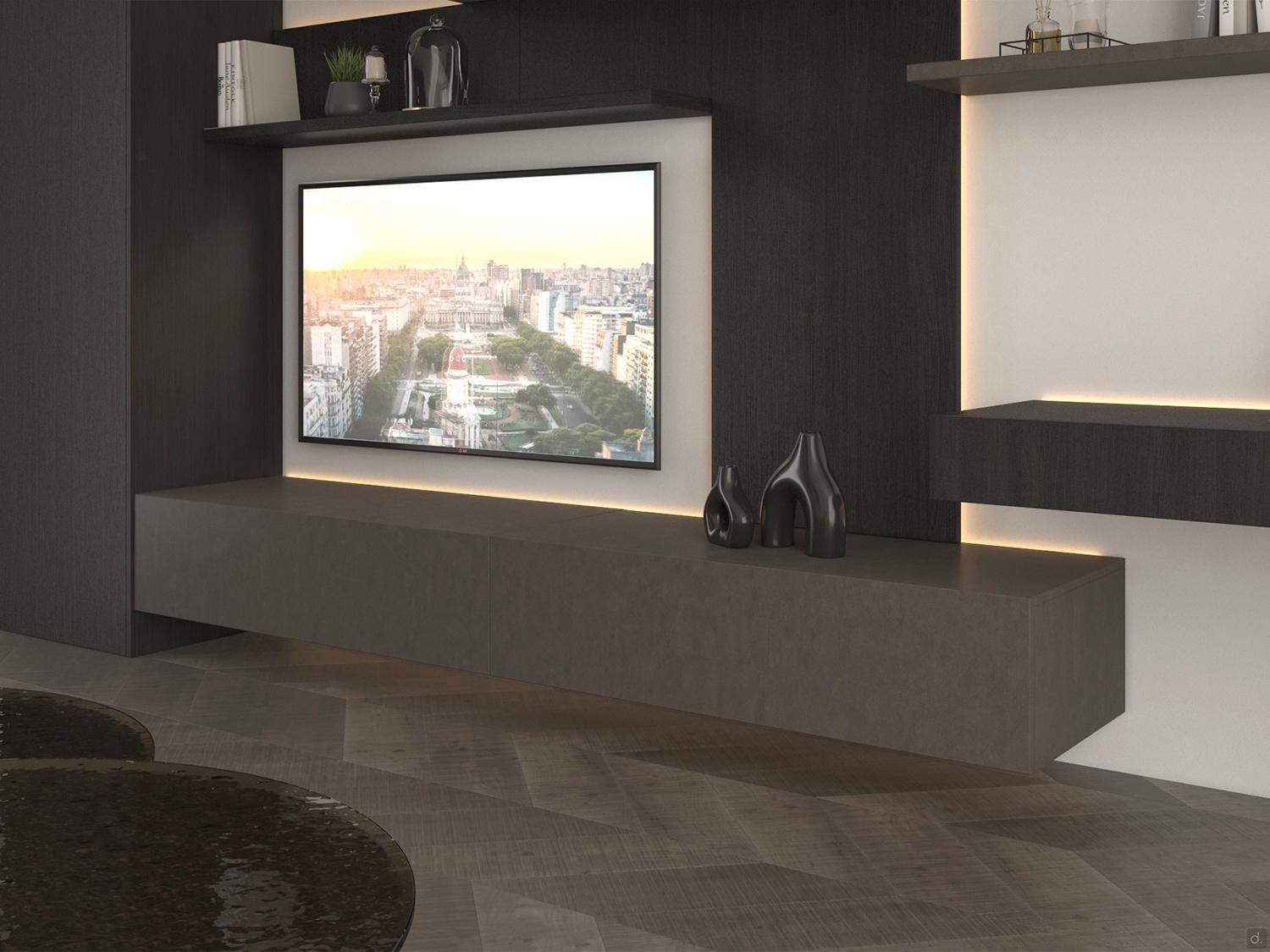

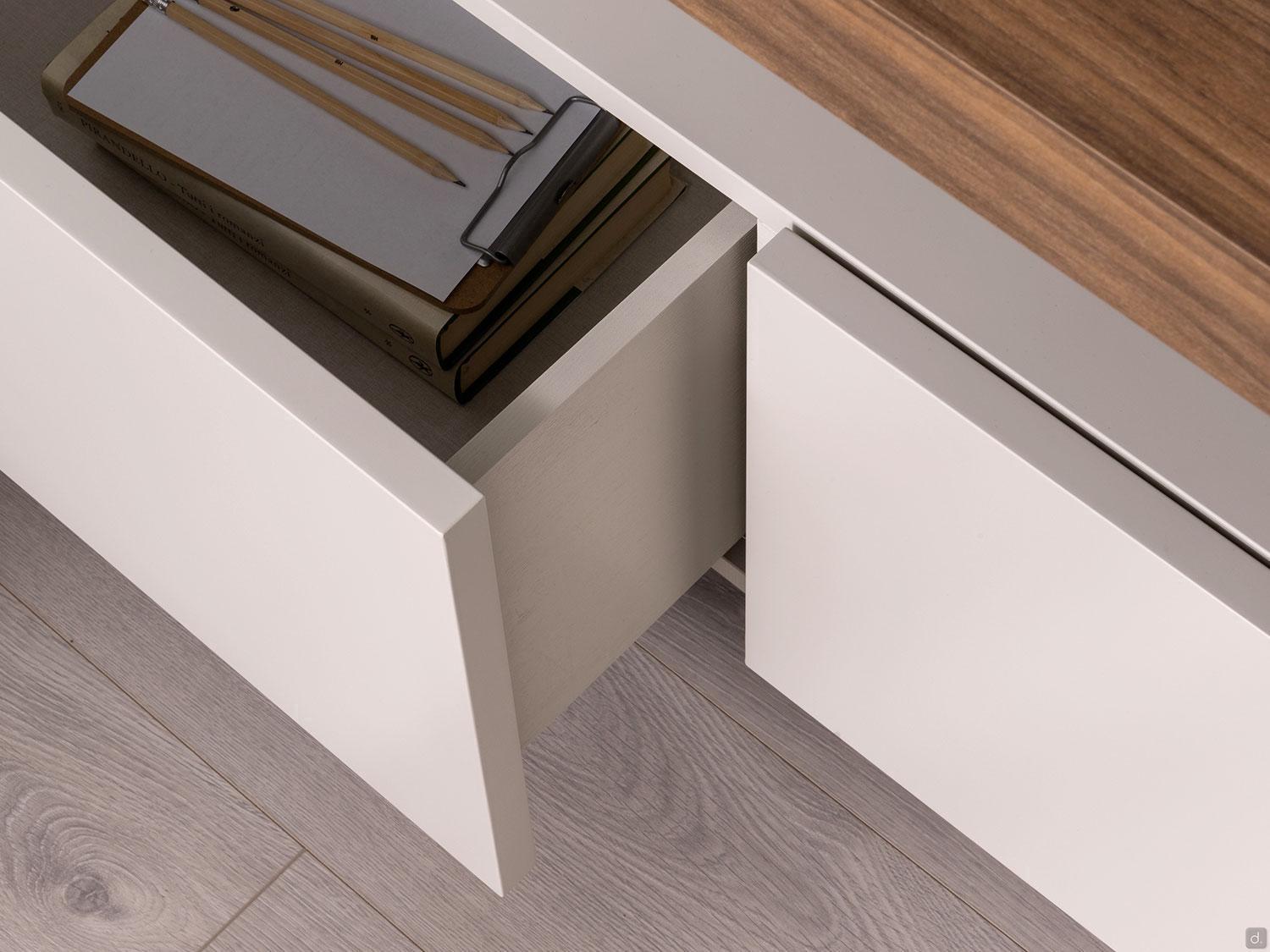

Plan drawer base unit with integrated single top also with integrated handle in metal or matte lacquer

Plan living big storage drawer unit with single integrated top, available with integrated handle in metal or lacquer. Many finishes at disposal.

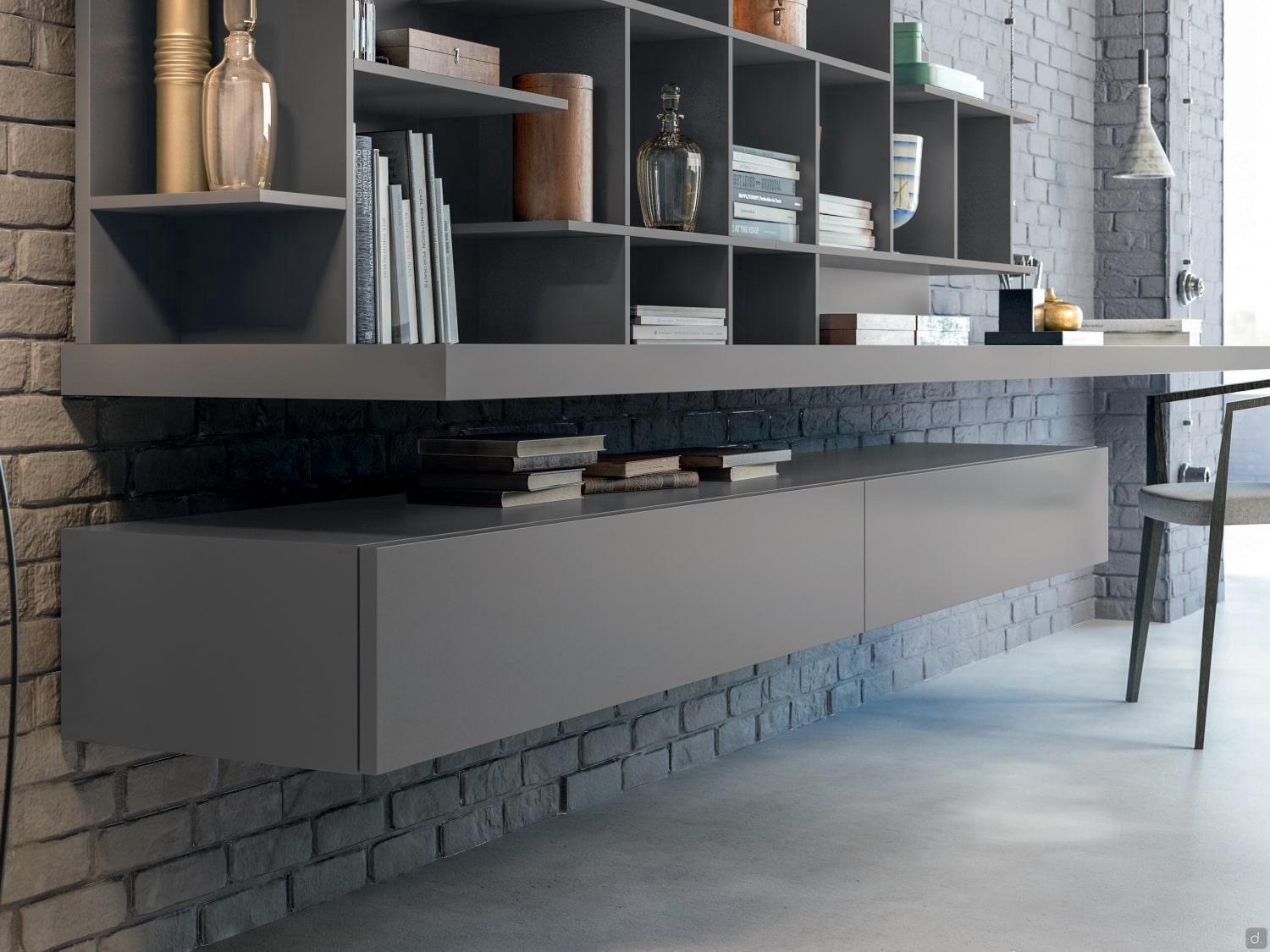

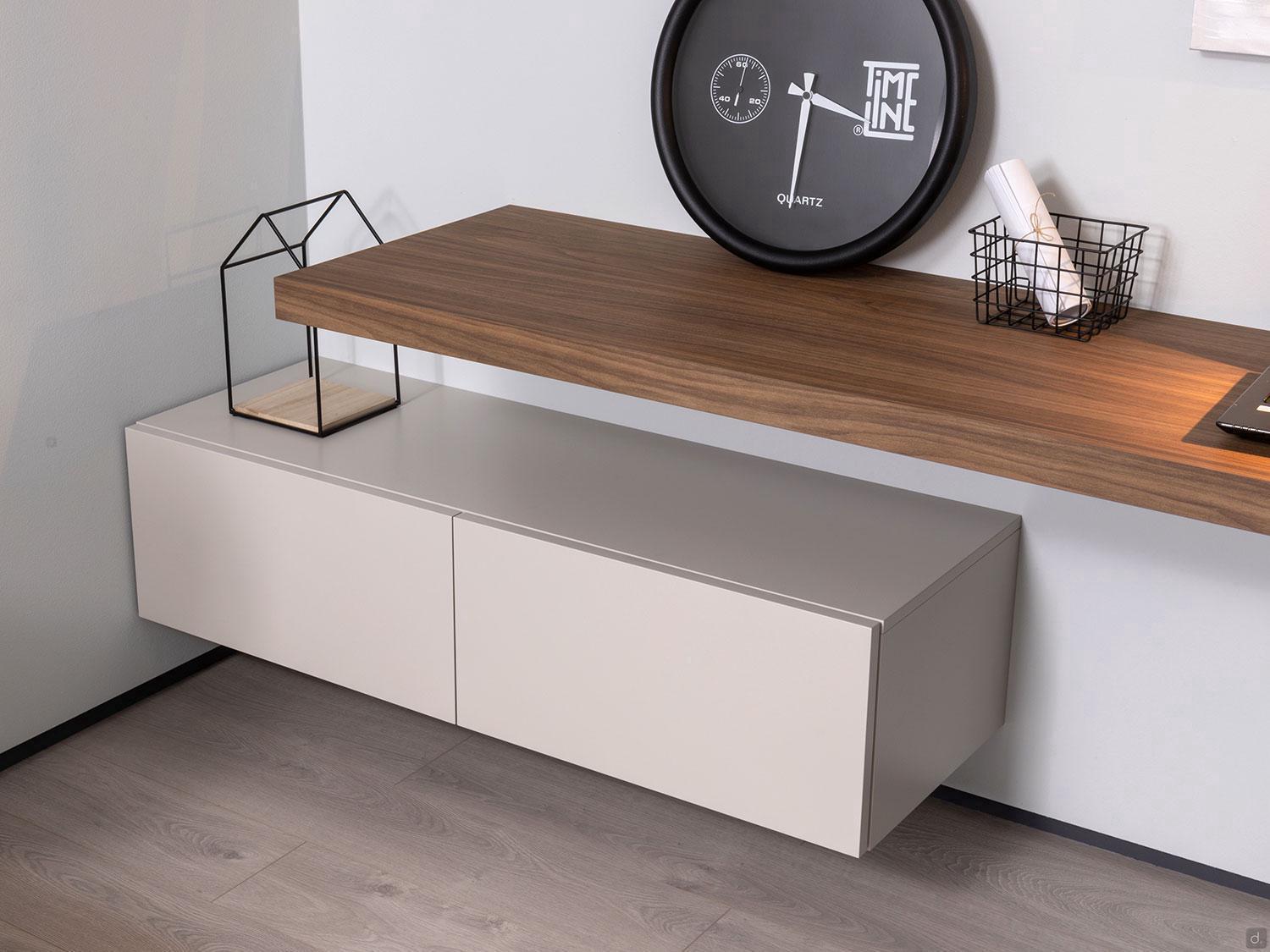

Plan wall-hung base units with integrated drawer and single top: Old Copper melamine finish

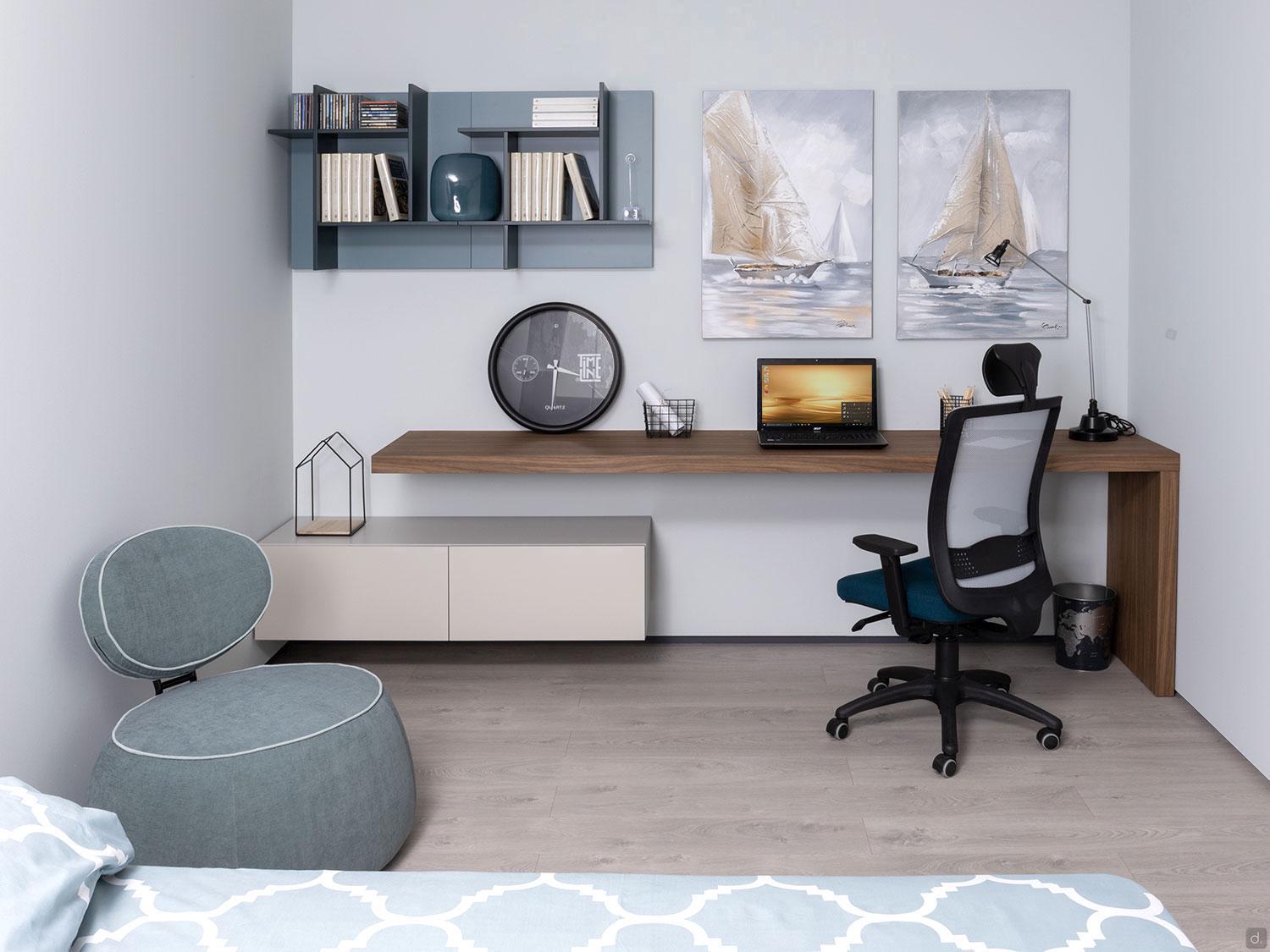

Elegant children's room with Plan shelf, tetris open elements and base units with drawers

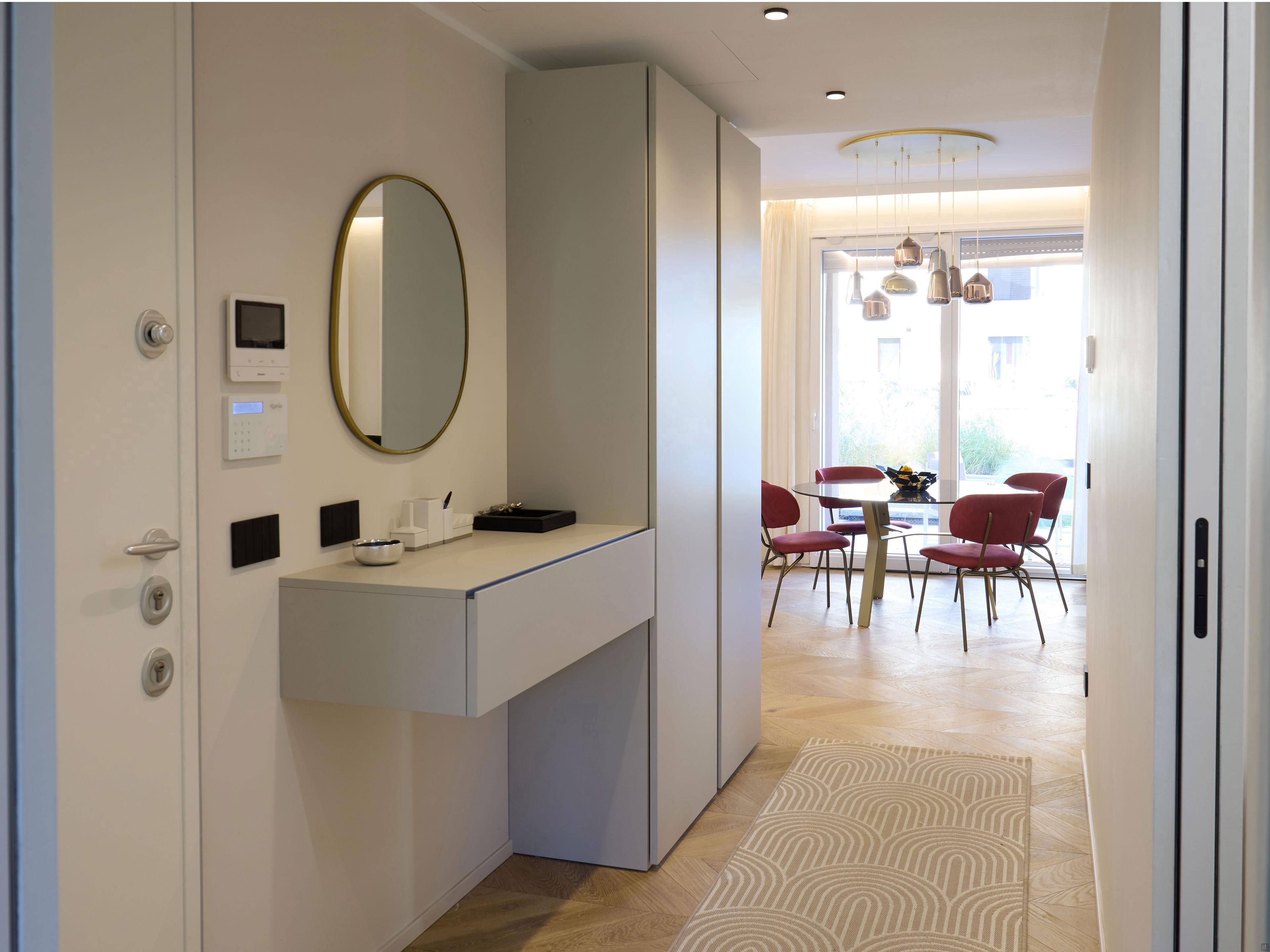

Elegant entrance area with suspended Plan drawer base cm 96 h.24 d.44 with integrated single top. C15 handle lacquered to match the base

Elegant entrance area with Plan suspended base unit with integrated single top. C15 handle lacquered to match base

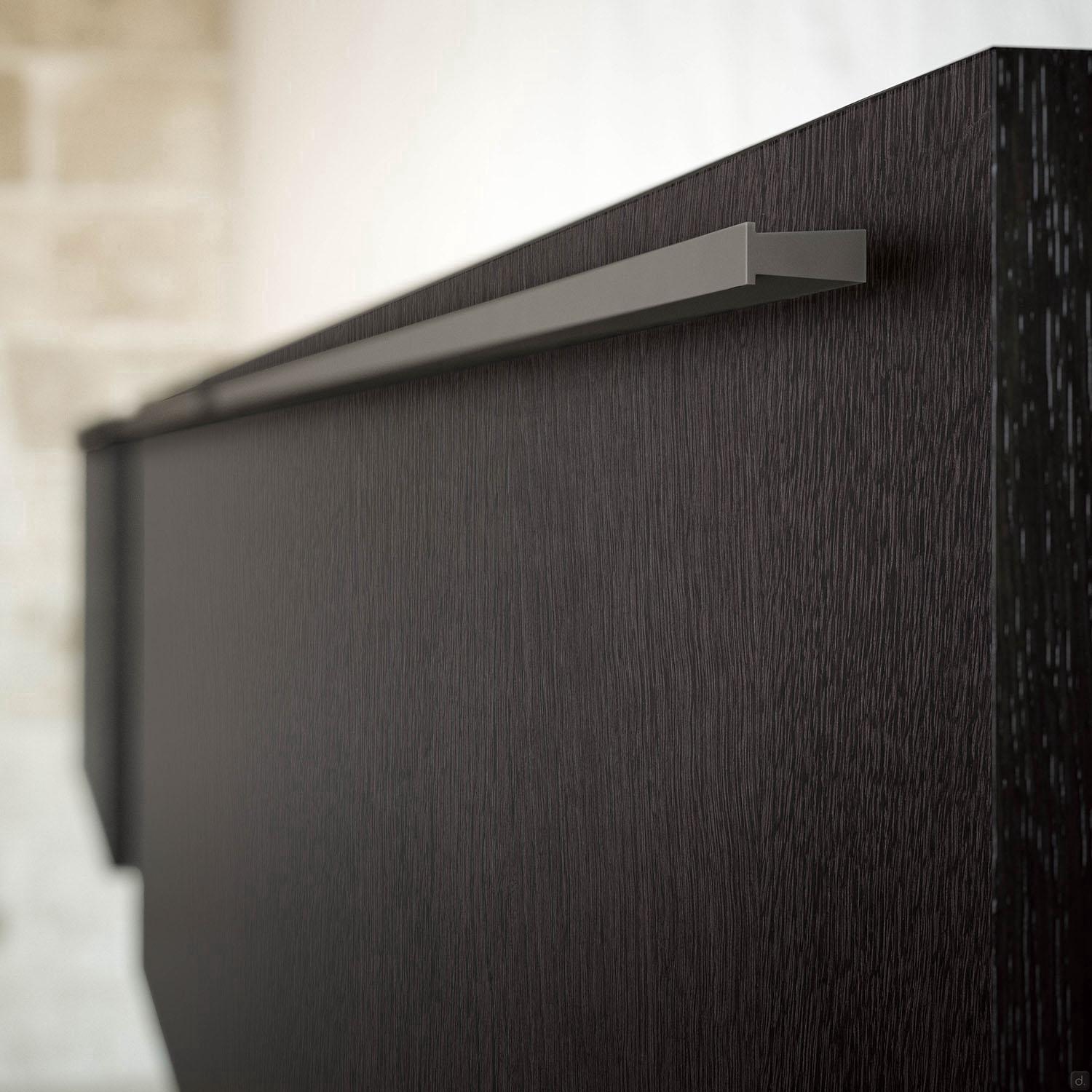

Detail of the Coal Fashion Wood finish and Z model handle in moka shine

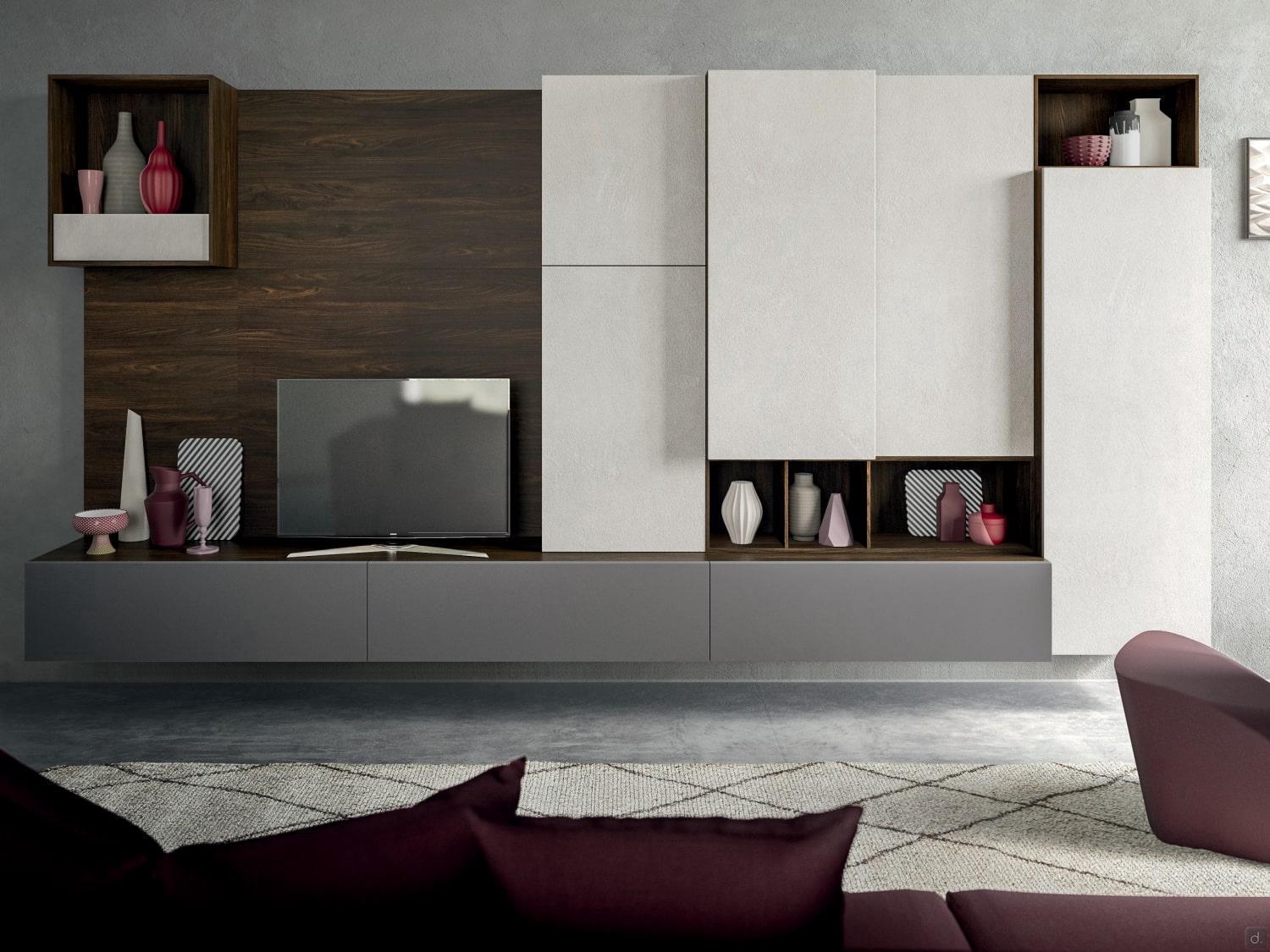

Plan cabinet with big drawers to create customized wall units

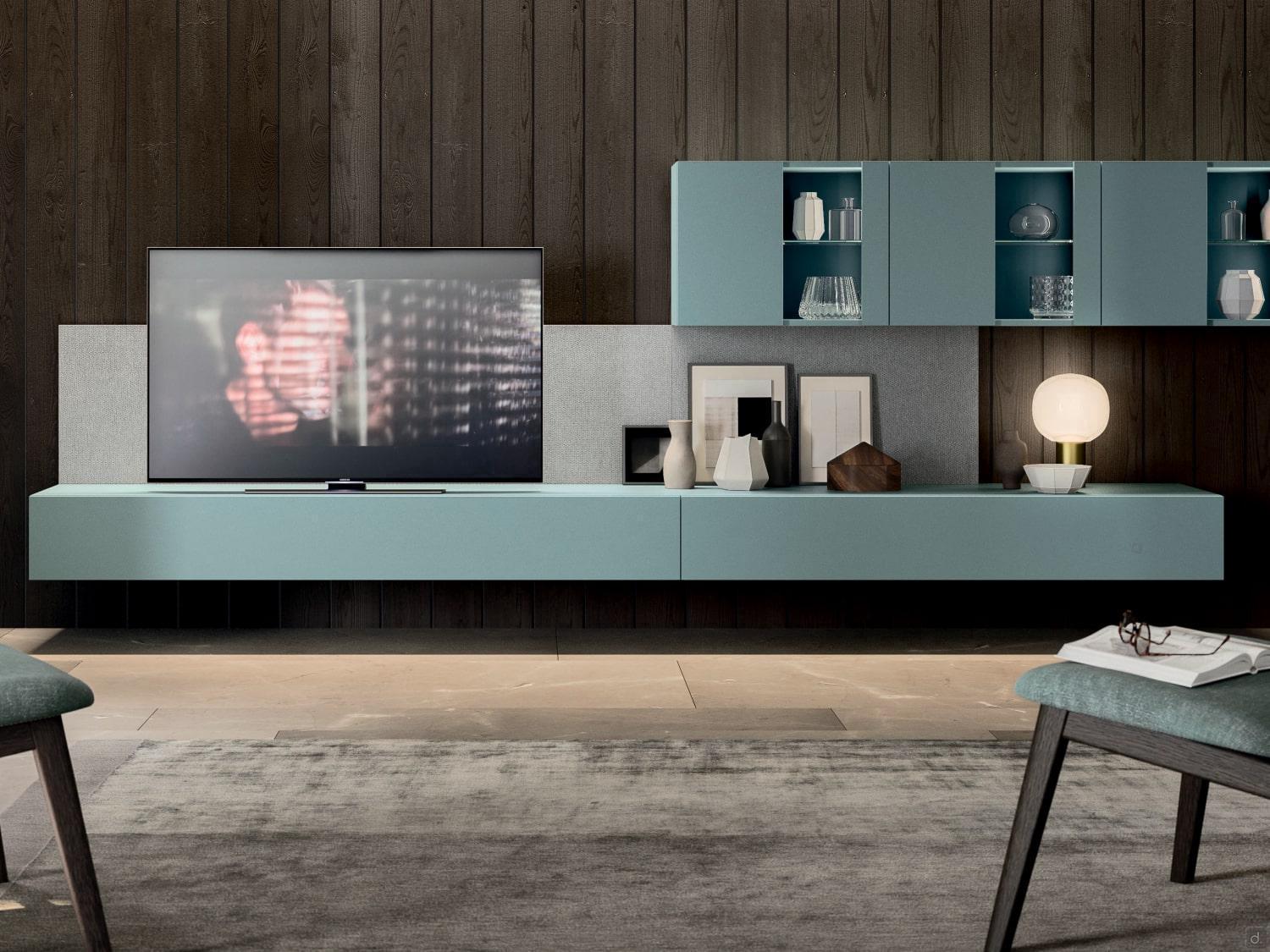

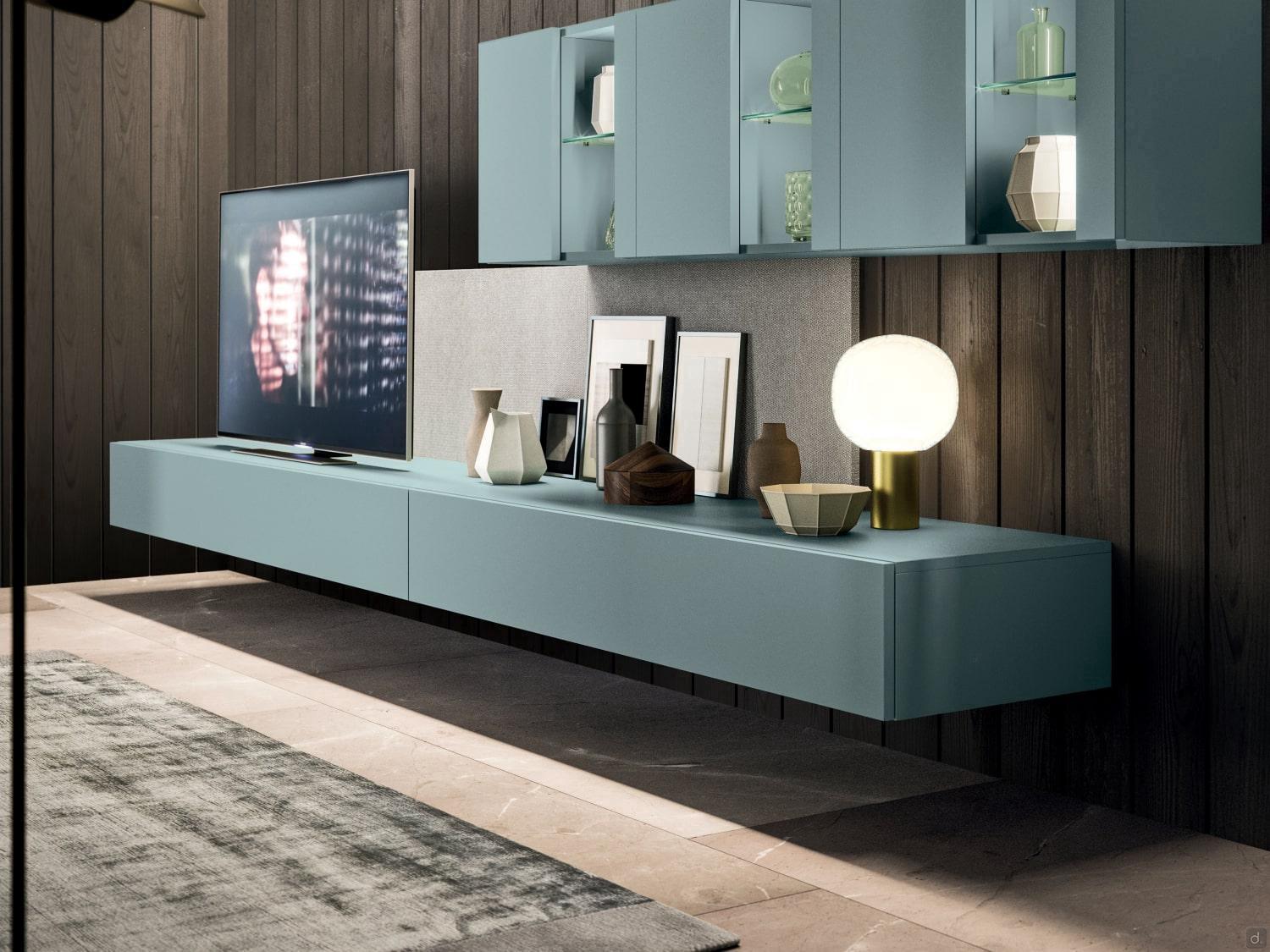

Cabinets with big drawers Plan combinable together to create modern styled living rooms in many trendy colours

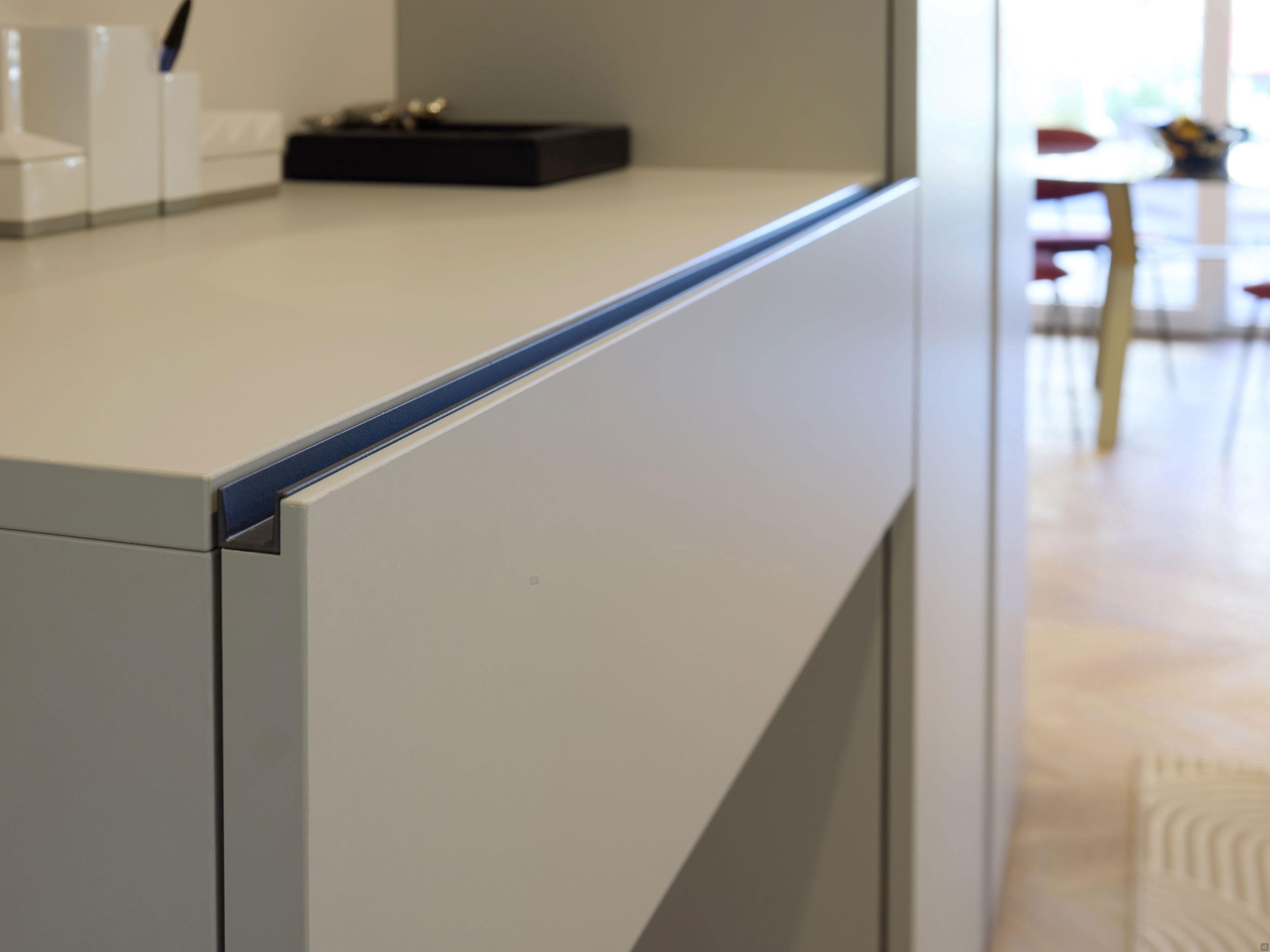

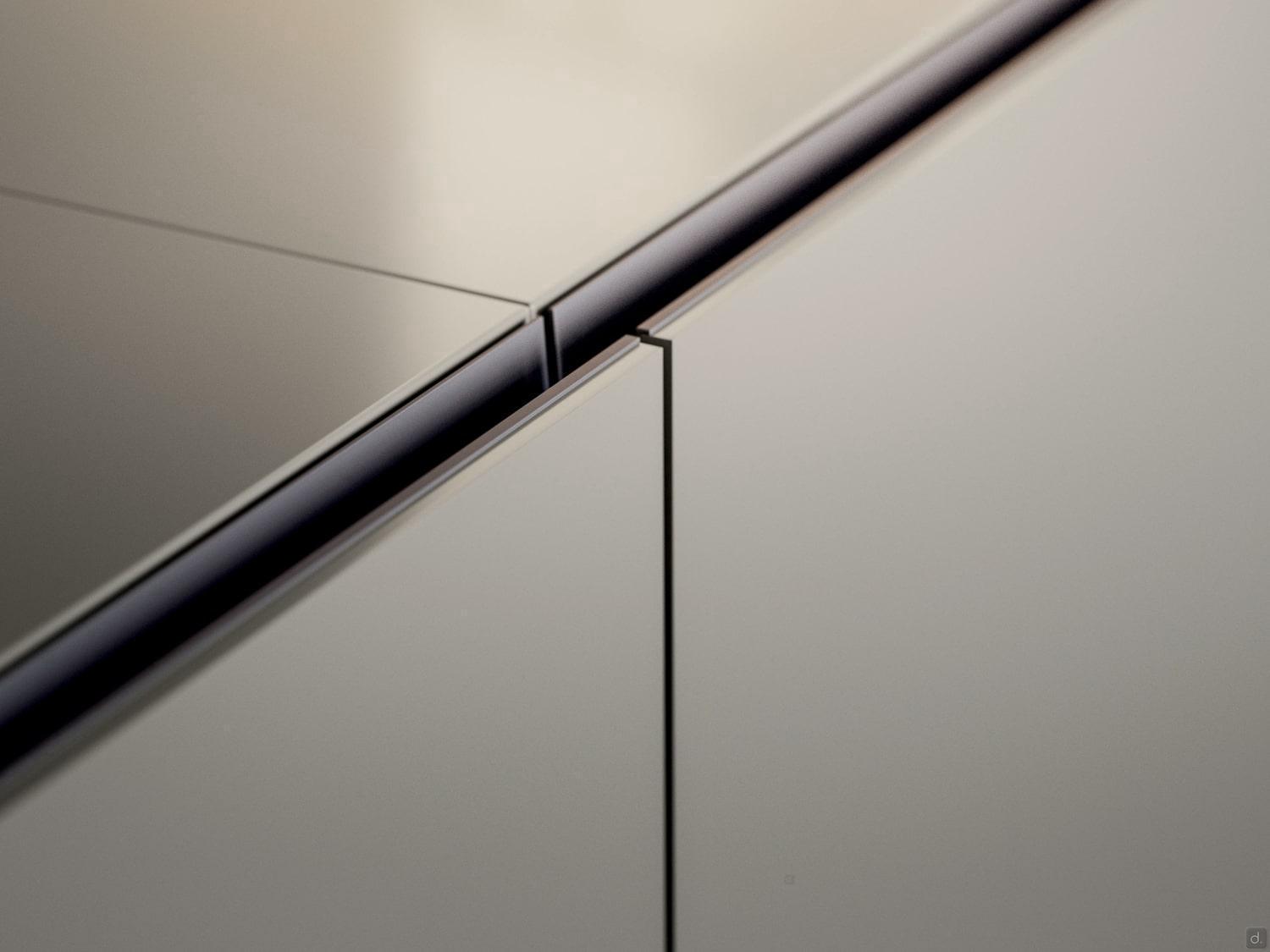

Detail of the integrated handle C15 in handle or della maniglia integrata in metallo o laccato opaco C15

Plan cabinets with big drawers, several measurements and finishes available

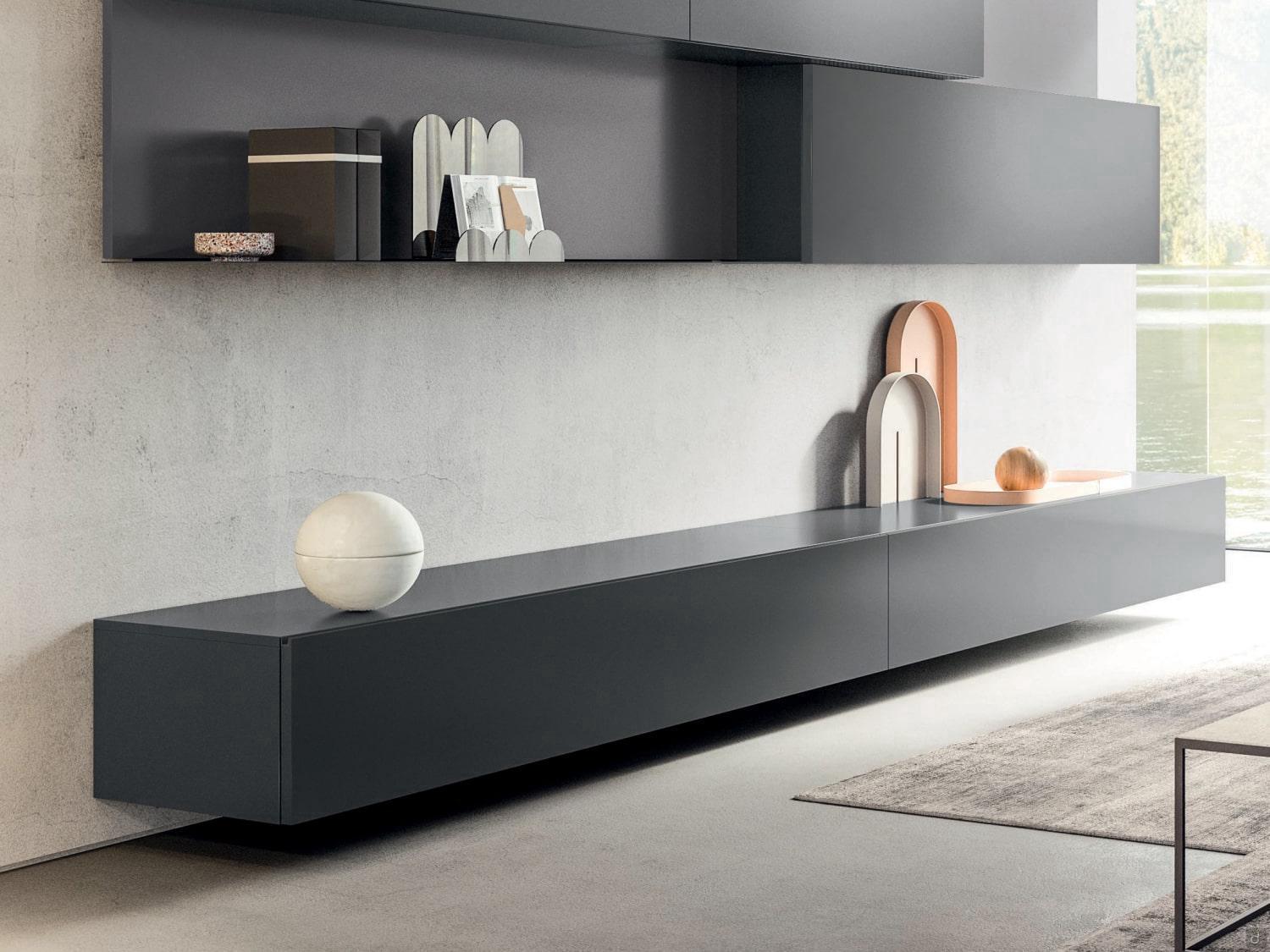

Plan cabinet with big drawers, here in a wall-mounted version

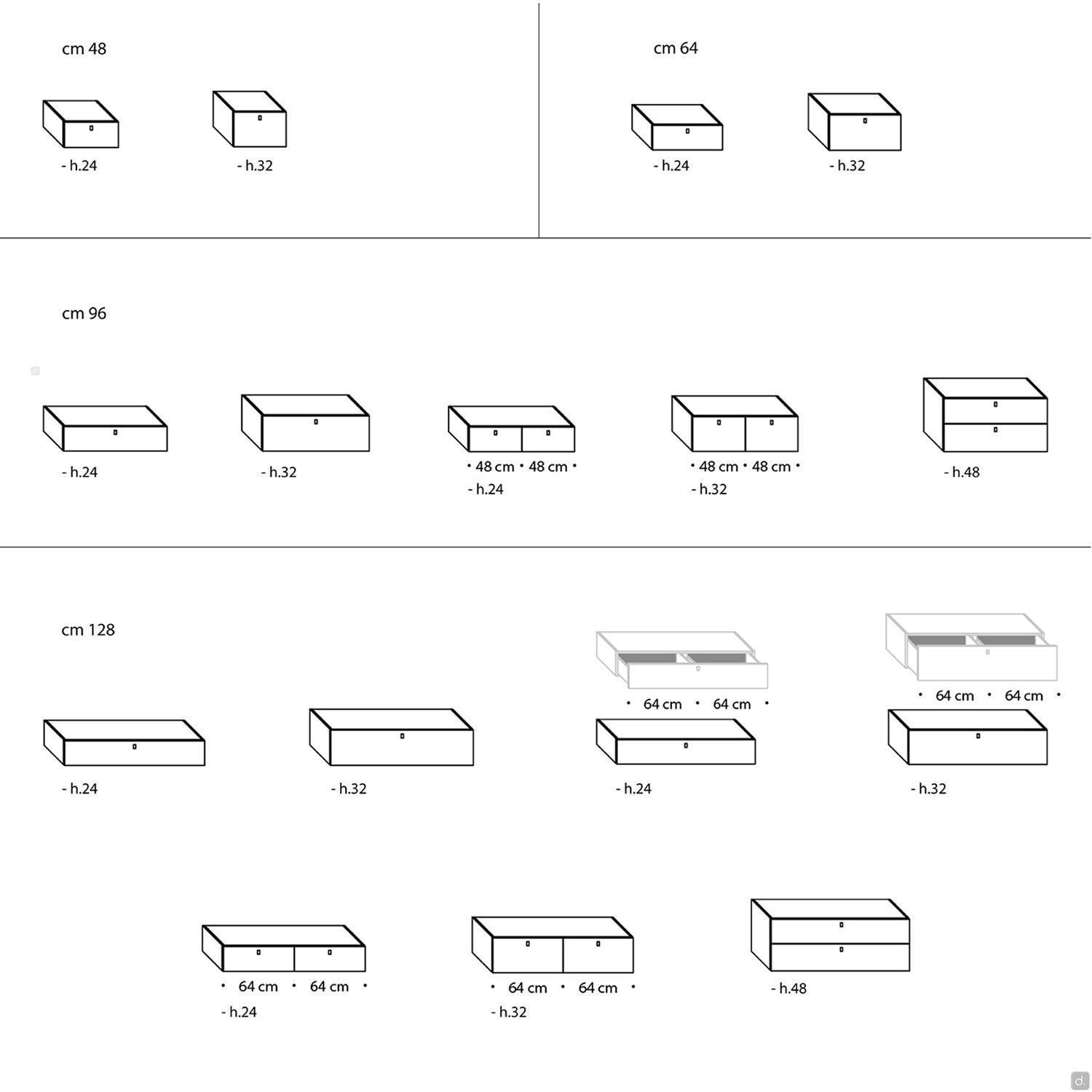

Height and Model of Plan storage element with drawers (Width cm 48 - 64 - 96 - 128)

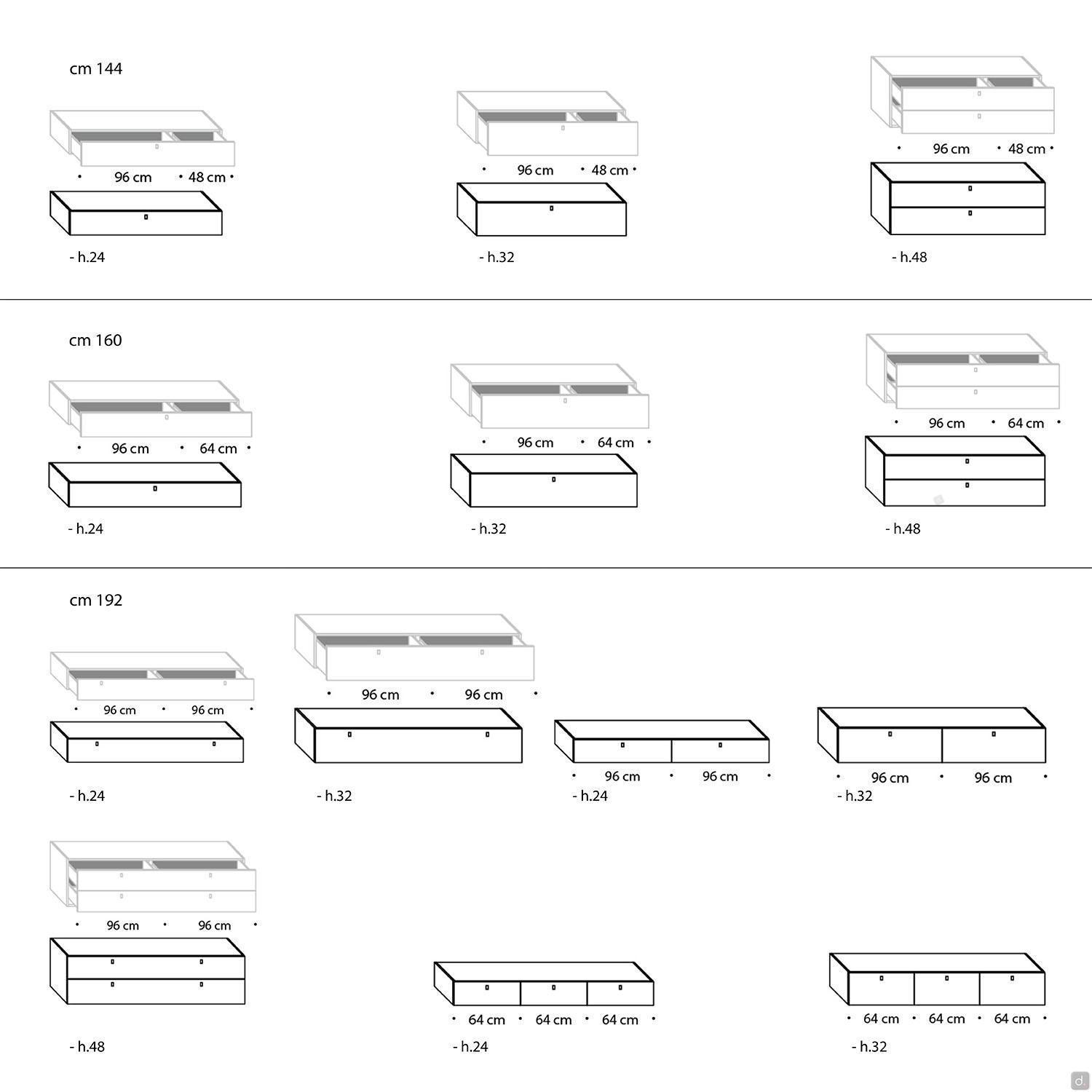

Height and Model of Plan storage element with drawers (Width cm 144 - 160 - 192)

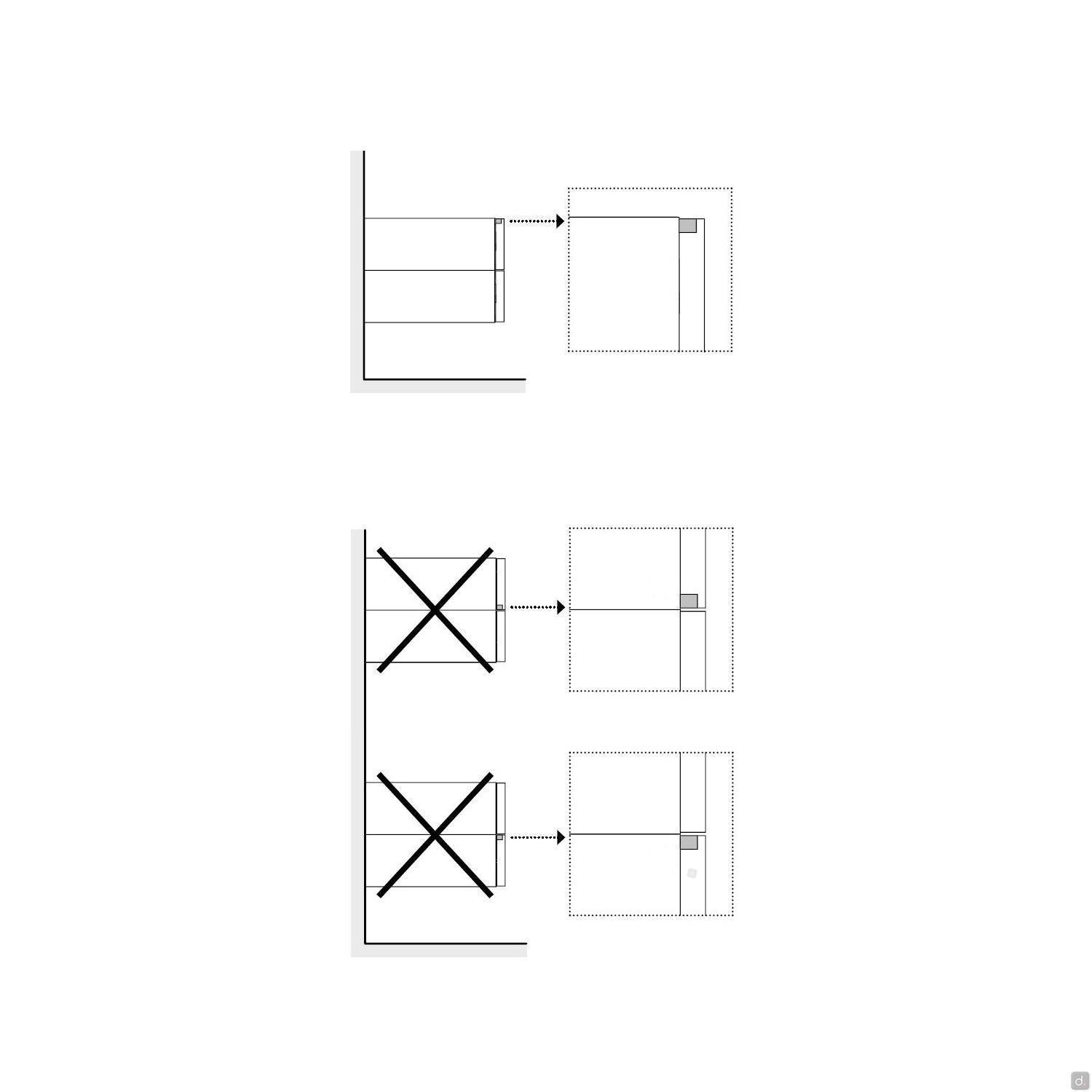

Allowed and not allowed position for handle C15 in case of a layout with more drawers

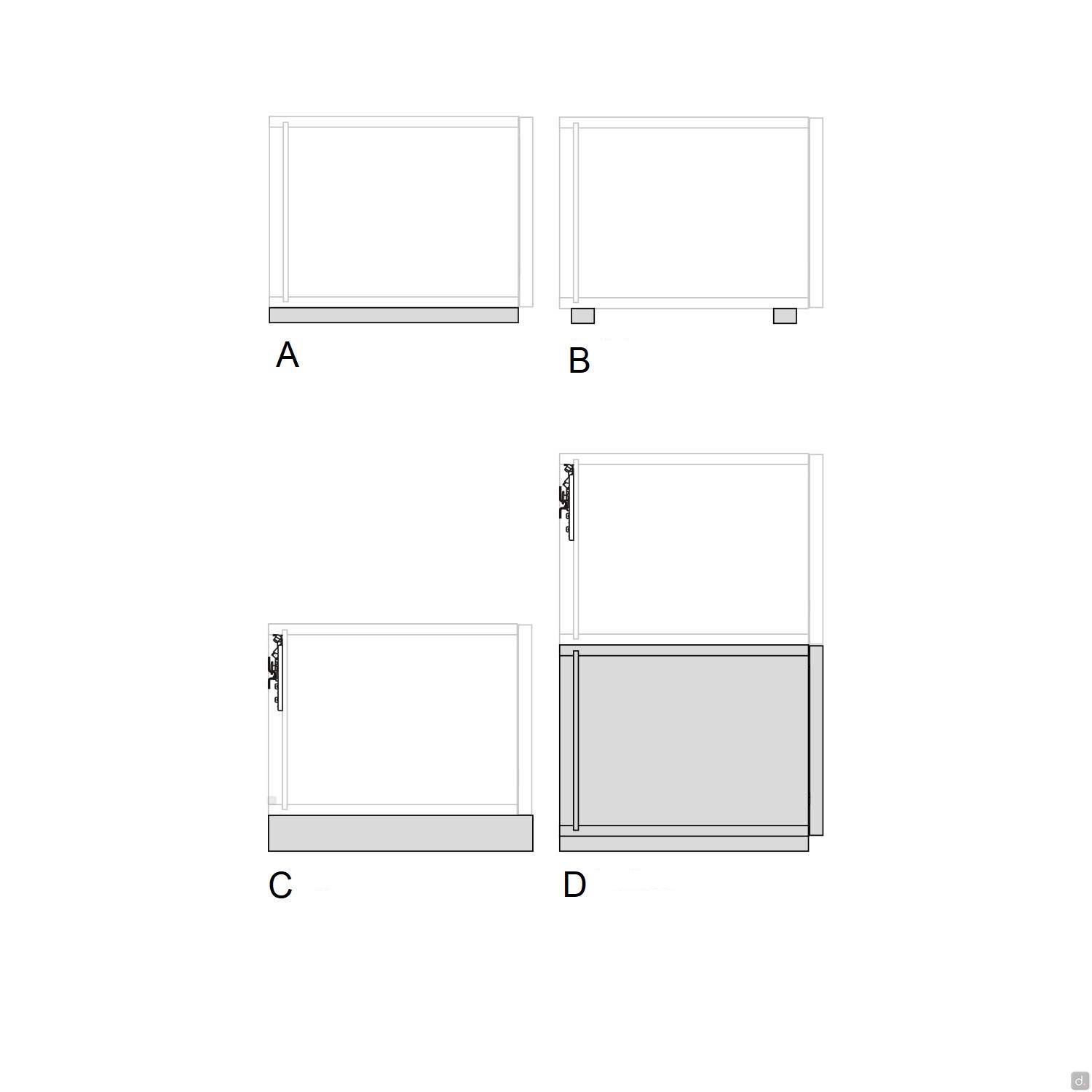

Plan living room cabinet with drawers - installation: A) plinth B) feet C) bench D) on another storage

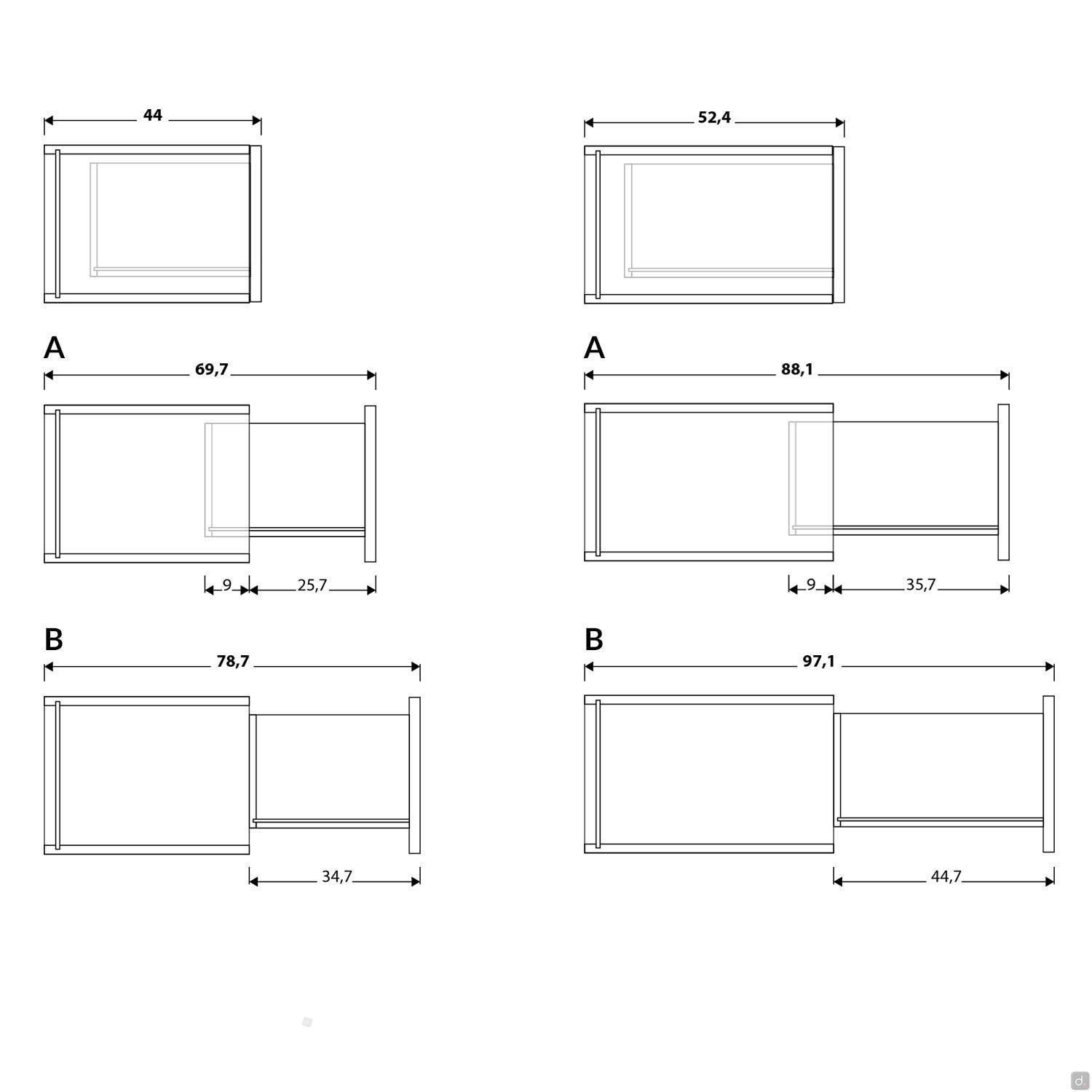

Plan living room cabinet with big drawers - standard partial extension (A) or total (B)

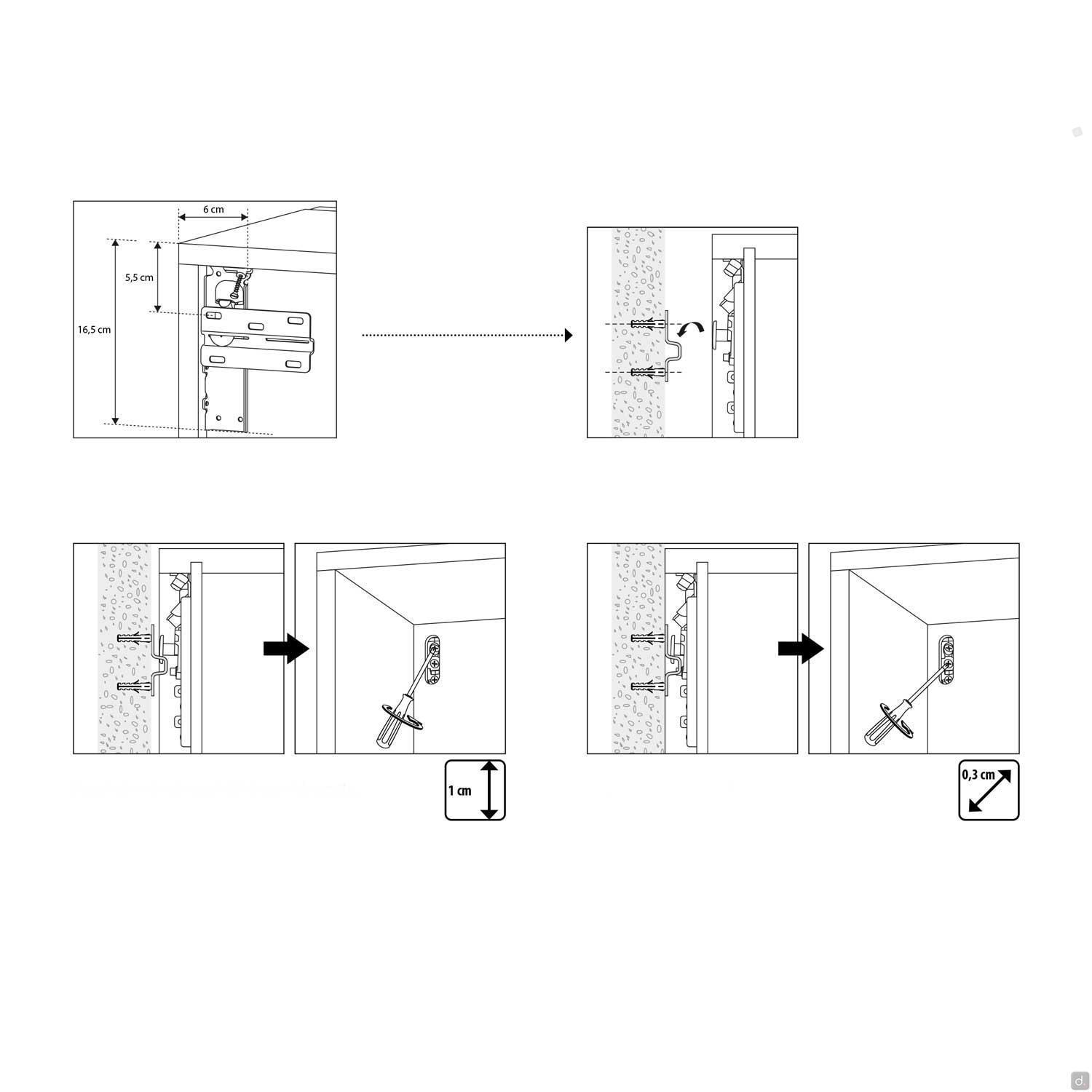

Plan living room cabinet with big drawers - brackets for wall fastening

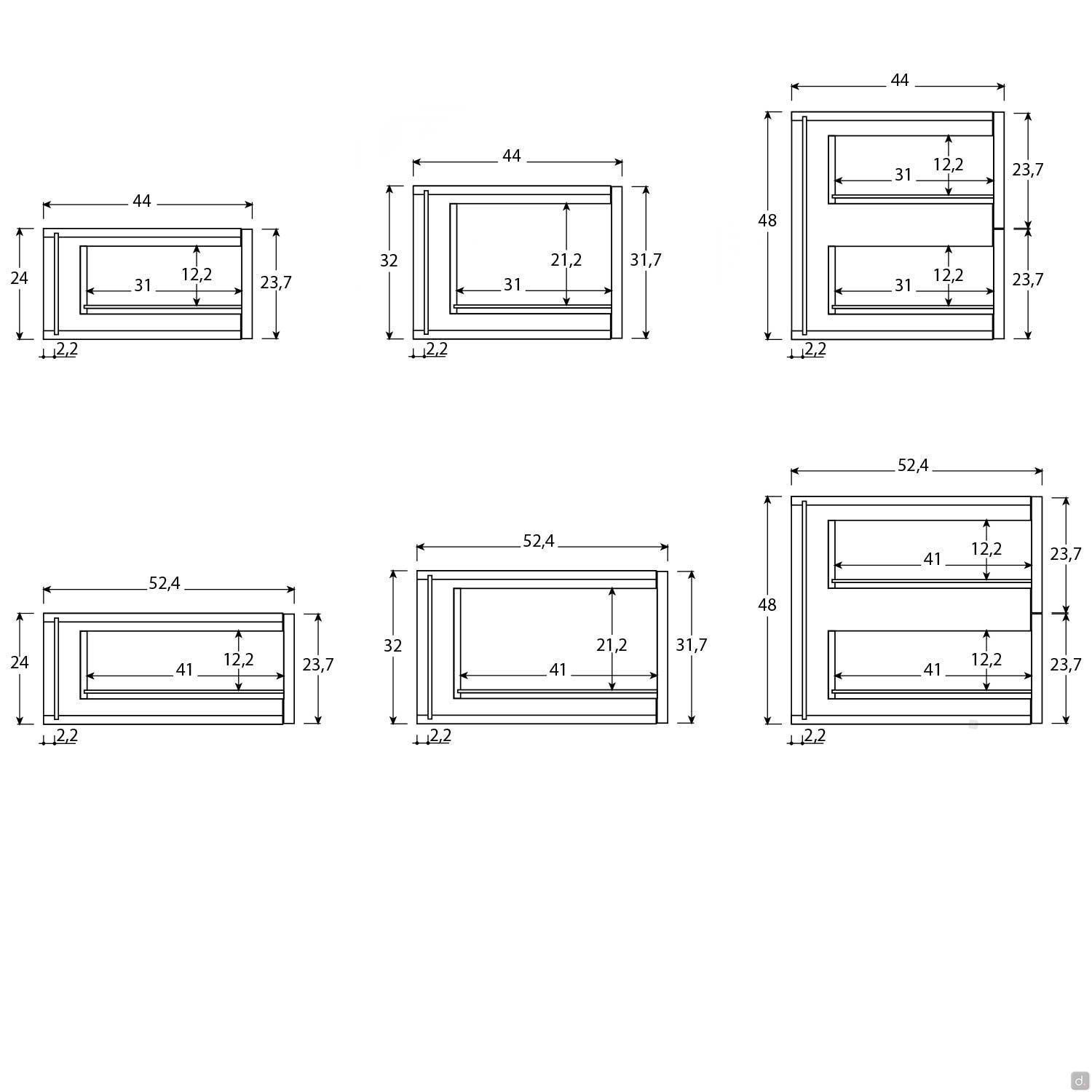

Plan living room cabinet with big drawers - specific measurements

LED back-lighting: 1) gunmetal melamine th.1,4 cm inserted between cabinet and wall 2) fixing of the panel and the cabinet on the panel 3) LED strip position

+ 18

MORE IMAGES

Plan Big Drawer - Single Integrated Top

Plan living big storage drawer unit with single integrated top, available with integrated handle in metal or lacquer. Many finishes at disposal.

* Required Fields

Width *

Height and Model *

Depth *

Finish *

Finish *

Finish *

Finish *

Opening Type *

Information for your Purchase *

handle C15 will be placed on the upper line of the first drawer

Handle Finish *

Handles Finish *

Handles Finish *

Handle Finish *

matching the front

Pomolo Cover *

grey belting leather

Internal Finish *

matching melamine (with taupe decor melamine back)

Internal Finish *

taupe decor melamine

Position *

Internal Finish *

Position *

Note: *

according to the proportions of the element, the opening system and the weight of what's inside, it might be advisable to fix the element to the wall to guarantee the perfect stability of it

Plinth Finish *

matching the structure

Plinth Finish *

matt lacquer matching the structure

Arrangement *

Arrangement *

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Voltage * For Europe the voltage is 220 V

220 V
110 V

Remote Control for Lighting System * You need 1 remote only to activate the switch on / off of the LEDs of your whole layout

no remote control
n.1 remote control +€62.91

Quantity

From €188.74

View Samples

Wishlist

Description

Plan living big storage drawer unit with single integrated top, allows you to create custom layouts for the living room. The elements can be wall mounted, placed on top of other elements from Plan collection or they can simply stand on the floor with feet or plinth.
Several widths and heights available on top of models with different number and type of drawers as well as finishes make Plan an extremely versatile element to add your own personality to a contemporary living area.

Characteristics
highly customisable living room storage element with drawers
modules in different widths, heights and two depths
practical push-pull opening or different handles type
convenient soft closing system always included

Measurements
Width: view the available widths in the Menu
Height: cm h.24 / 32 / 48 / 64
Depth: cm p.44 / 52,4
Top Thickness: cm 1,4
Feet / Plinth Height: cm h.2,5

Materials and Finishes
- melamine
- wood veneer
- open pore lacquer
- matt / gloss / metallic lacquer

Information for your Purchase
The total height of the cabinet depends on the position, if wall-mounted or floor standing. In the second case add the feet / plinth height of 2,5 cm (coming with adjustable feet).

Technical study

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldheyde emissions).
Thicknesses: door cm 2,2 / structure cm 1,8.
Big drawers: equipped with partial extension system and soft closing system.
Top: single integrated into the structure for each element, matching structure and fronts.
Opening type:
- handle T16: cm 19 d.3,3 h.0,8 in moka shine painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine painted metal or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine painted metal or matt lacquered;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with grey belting leather knob;
- handle C15: cm d.1,7 h.1,4 in moka shine, white metal or in matt lacquer. In case of a wall-mounted cabinet with C15 handle in the lower side of the front, it is recommended to place the cabinet at a height from the floor bigger than 80 cm.
- push-pull.

Optional
full-extension: drawers with full-extension runners.
LED back lighting system: you can have the cabinet with a LED strip, in this case it is mandatory to insert between the cabinet and the wall a spacing panel, 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm). The spacing panel has to be fixed to the wall, while the cabinet is fixed to the panel with the included brackets. The LED strip has a warm 3000 K light and is positioned on the back along the long sides of the cabinet through a recess on the top and bottom. The transformer can be placed both in the sanitary space behind the cabinet or under the bottom.
remote control: to switch on and off the LED light, in case of layouts made up of more cabinets you will need only one remote.

Table of Watt / LED strip length correspondence

Watt	LED strip length
2,7 Watt	cm 32
4,2 Watt	cm 48
5,8 Watt	cm 64
8,8 Watt	cm 96
11,9 Watt	cm 128
13,4 Watt	cm 144
15 Watt	cm 160
18 Watt	cm 192

Maintenance Tips
The surfaces must not come into contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a dam cloth and neutral detergents, and dried immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembly Instructions

Weight
da 11 a 73 Kg

Cubic Metres
da 0,08 a 0,48 m³
