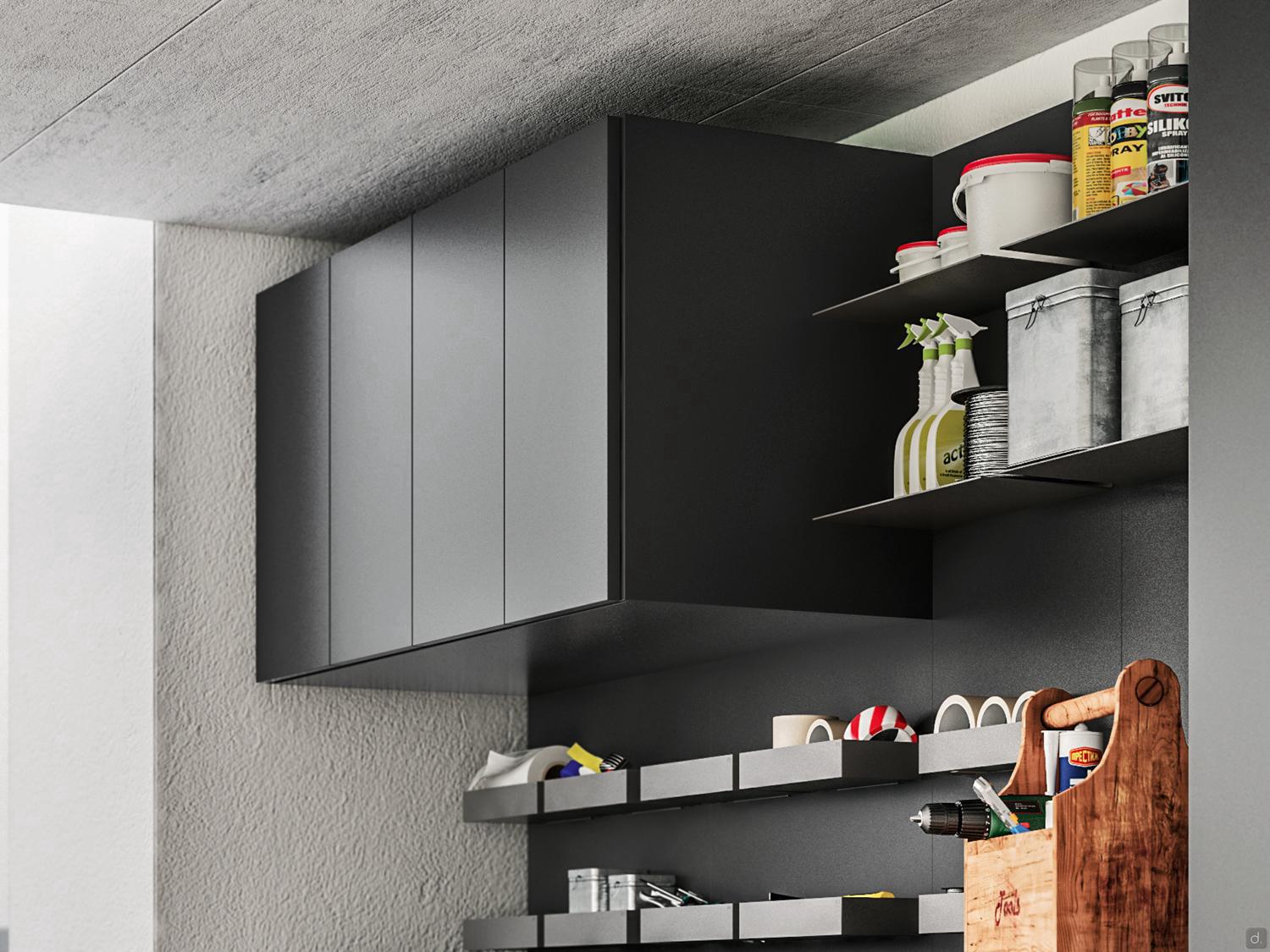

Bathroom wall unit with hinged door Wide matt lacquered, with back panels and hanging storage units. 0.3 cm thick metal shelves not available

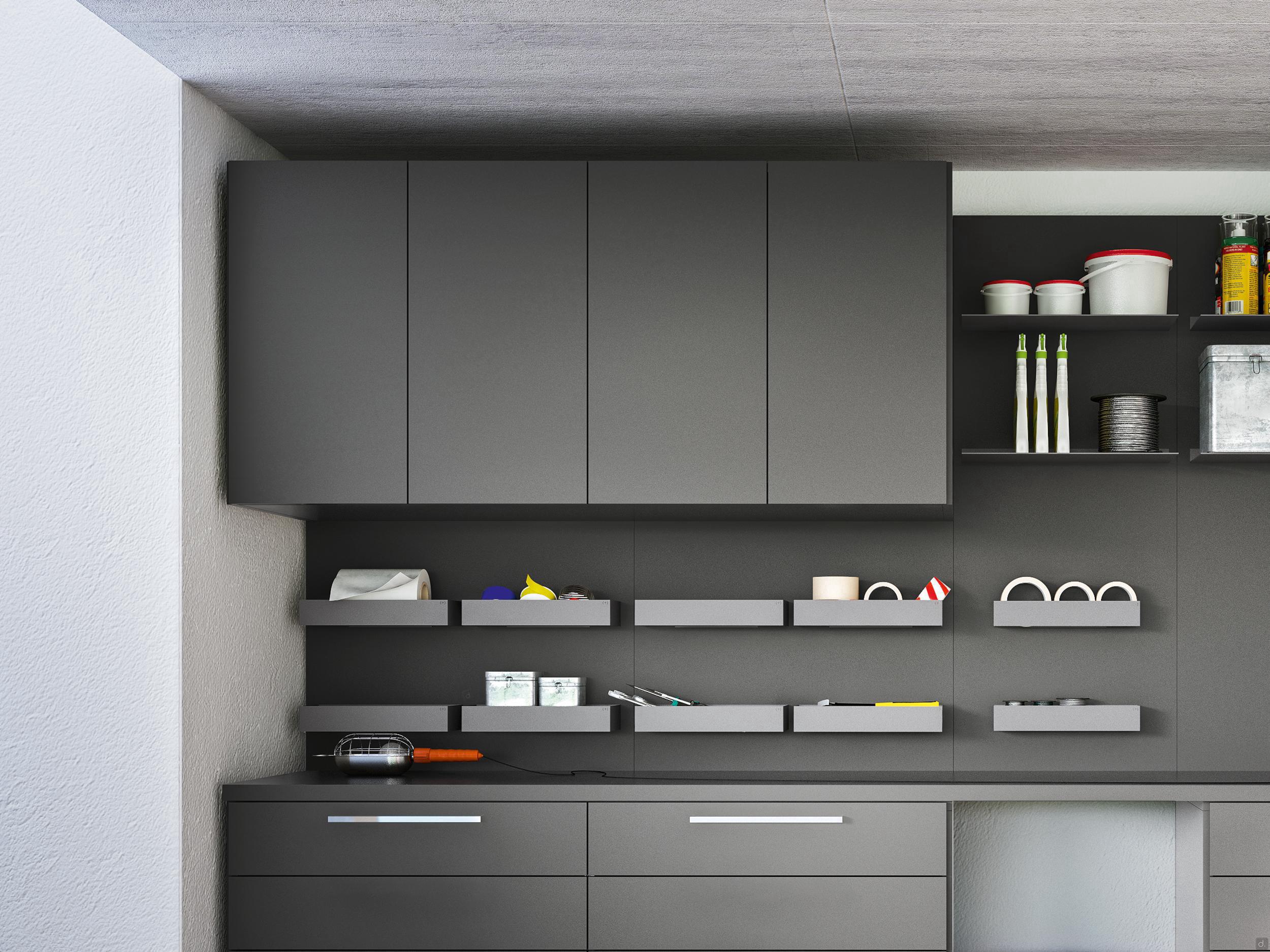

Wide wall units in an important laundry composition with drawers, backs and suspended metal storage units. The shelves on the right, in 0.3 cm thick metal, are not available

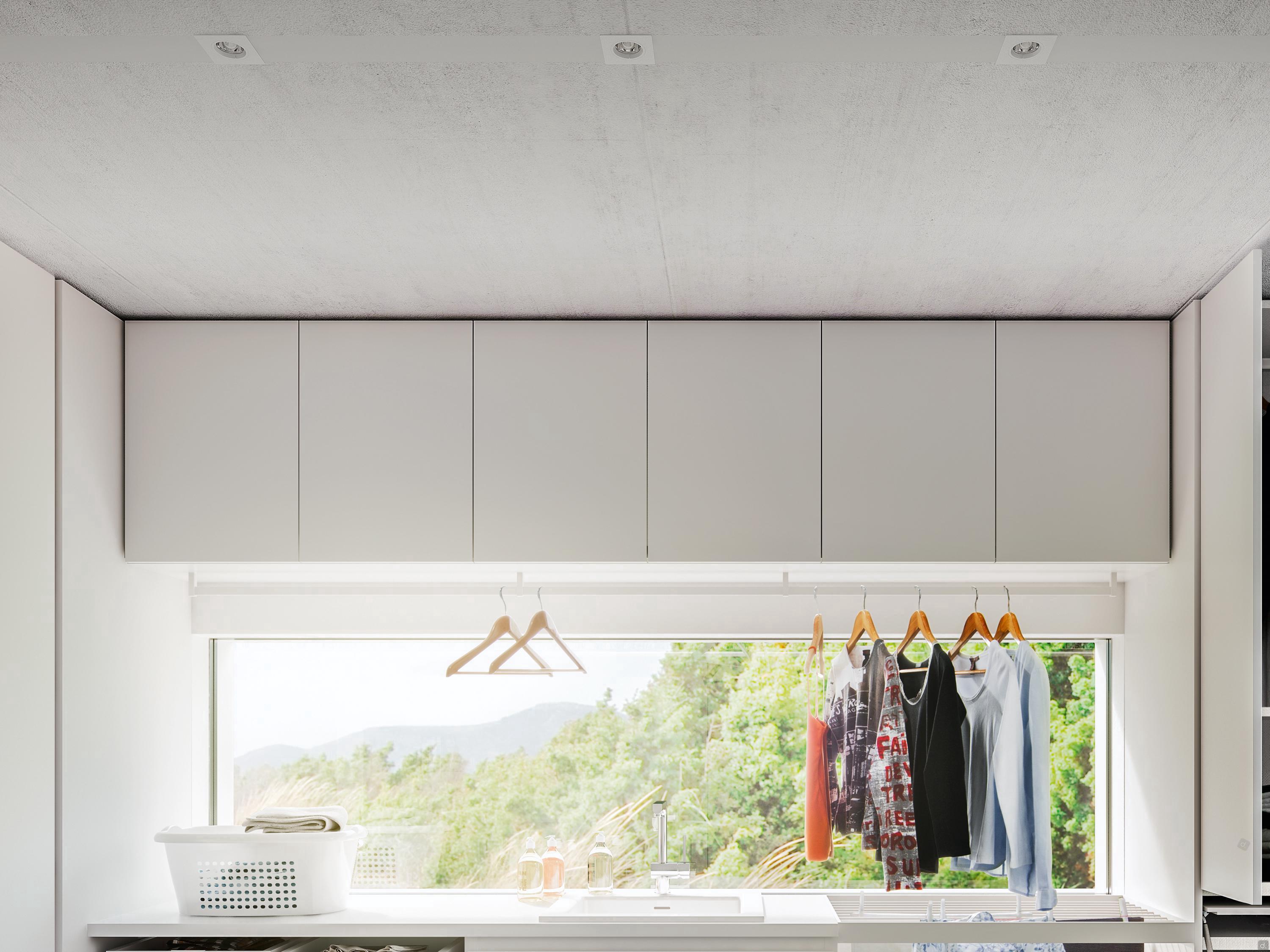

Wide laundry wall unit composition in white melamine, coupled with two side laundry columns, also part of the Wide bathroom collection

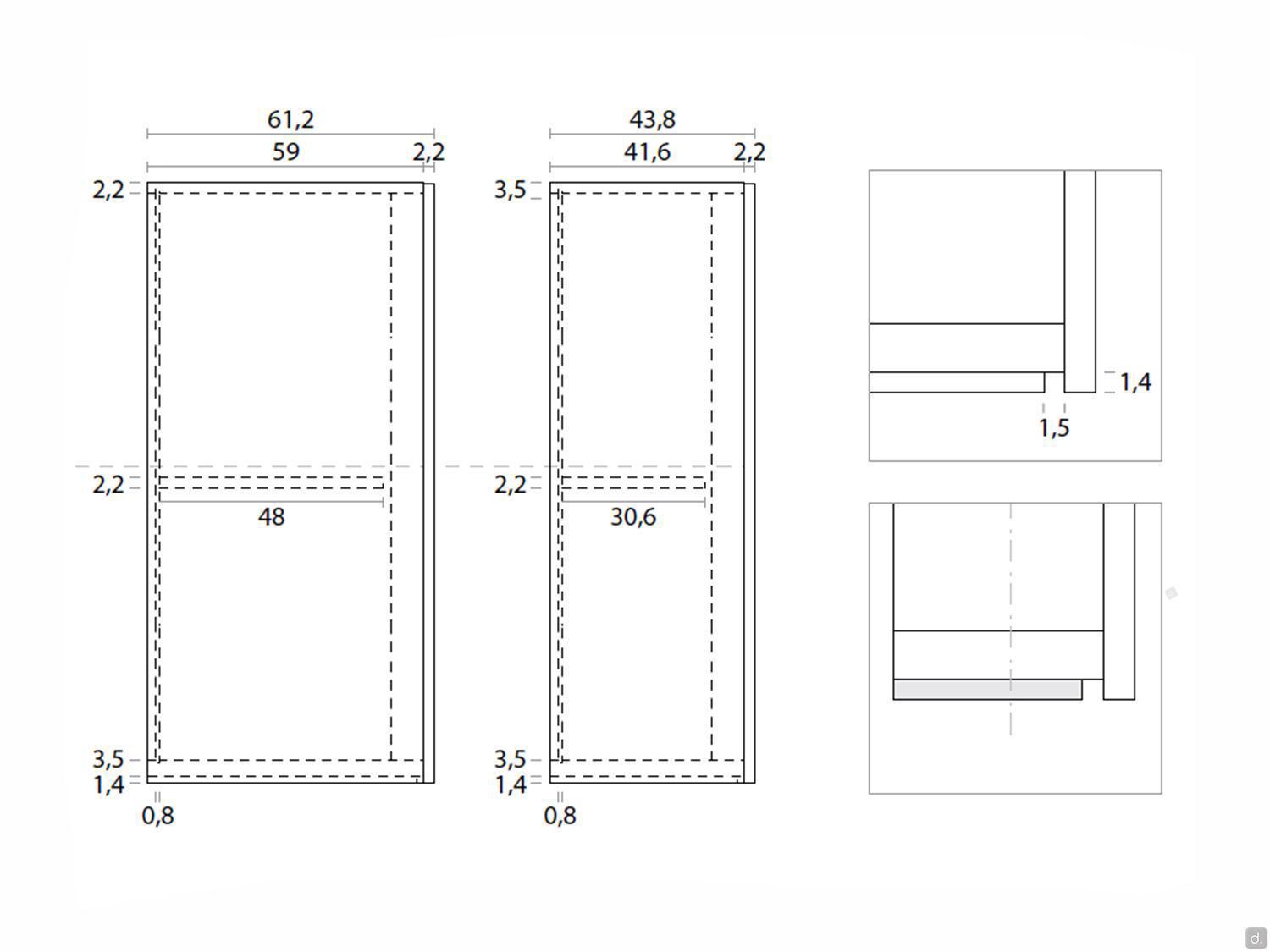

Diagram of the external and internal depths of the Wide laundry modules, which are available in both the standard 61.2 cm version and the shallow 43.8 cm version

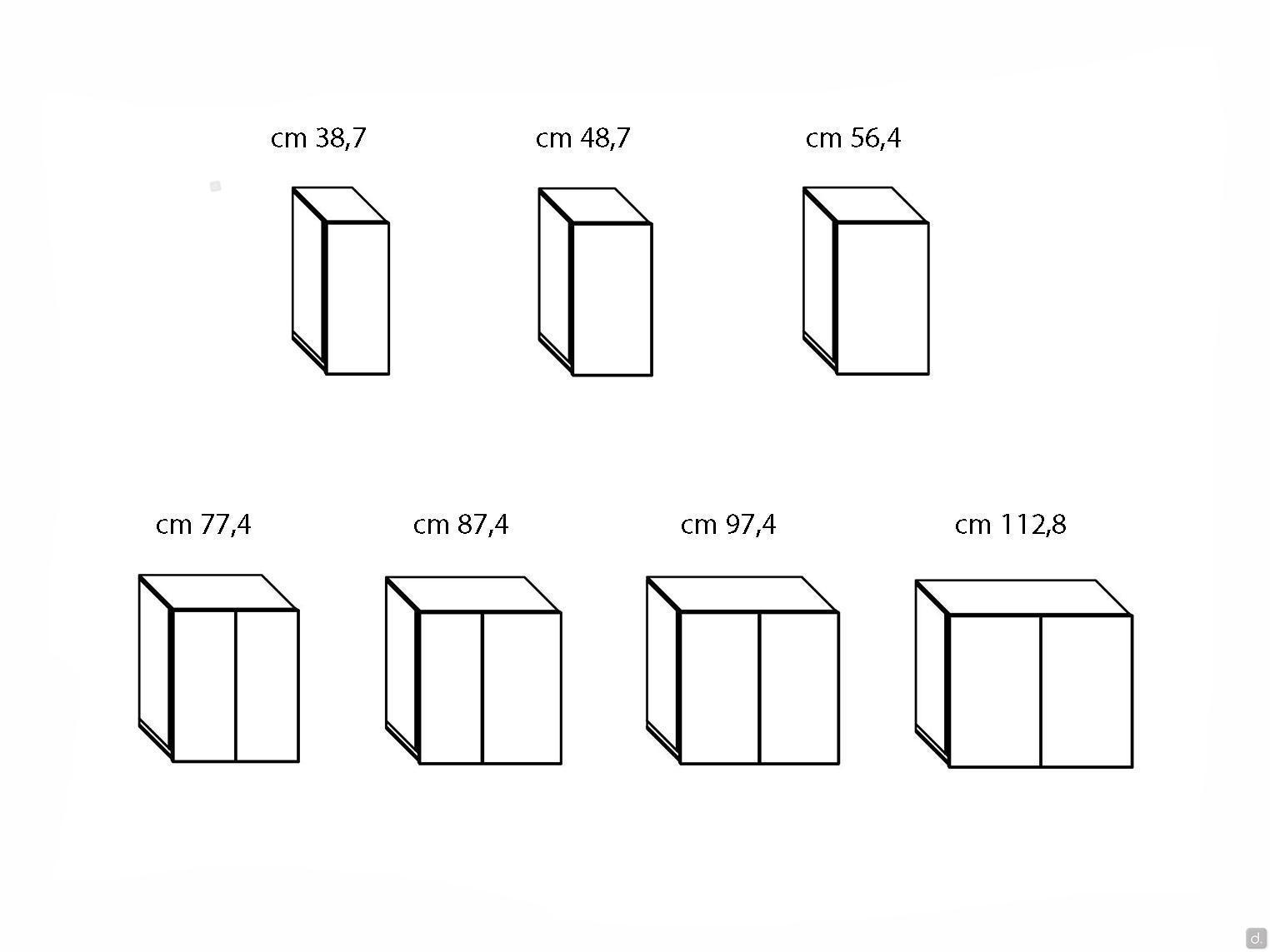

Diagram of available widths for Wide laundry wall units. Each module can in turn be configured in two depths and customised in height between 32 and 160 cm

+ 2

MORE IMAGES

Wide Hinged Wall Unit - Laundry

Laundry wall unit with hinged door Wide in several sizes; melamine, matt lacquered or in wood. Opening through groove or recess under the door.

* Required Fields

Larghezza *

Nota Bene *

Il modulo da cm 87,4 ha ante asimmetriche (cm 38,4 anta Sx / cm 48,4 anta Dx)

Altezza *

Altezza su Misura Inserisci una misura compresa tra 32,6 e 83,8 cm

Altezza su Misura Inserisci una misura compresa tra 83,9 e 125,4 cm

Altezza su Misura Inserisci una misura compresa tra 125,5 e 160,6 cm

Profondità *

Profondità *

Finitura Pensile *

Finitura Pensile *

Finitura Pensile *

Finitura Pensile *

Finitura Pensile *

Finitura Pensile *

Finitura Pensile *

Dotazioni Interne *

n.1 ripiano cm sp.3,5 (solo su altezze superiori a cm 48,6)

Dotazioni Interne *

n.1 ripiano cm sp.3,5

Tipologia Apertura *

anta liscia con presa inferiore
------ALTEZZA H.1
unghiatura verticale +€39.32
------ALTEZZE H.2 E H.3
unghiatura verticale +€78.64

Tipologia Apertura *

Finitura Unghiatura *

Finitura Lato Interno Anta *

nobilitato skin effect NSE

Finitura Interni *

nobilitato
nobilitato skin effect laccato opaco (quotazione su richiesta)

Finitura Interni *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Finitura Fianco di Chiusura *

in tinta alle Ante su entrambi i lati

Finitura Fianco di Chiusura *

in tinta alle Ante

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in Nobilitato Rovere Bianco NR

Finitura Interni *

nobilitato

Finitura Interni *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Quantity

From €389.27

View Samples

Wishlist

Description

The Wide laundry wall unit with door is the ideal to complete laundry layouts with columns, drawers and shelves. It can also be used by itself working as a capacious storage in seven widths and two depths. The height is customisable to the millimetre, while the finishes go from smooth melamines to the textured ones to the matt lacquers and the wood veneer. It includes as a standard a shelf, for a better organisation of the internal space.

Characteristics
seven widths in two depth, with height customisable to the millimetre
to be used singularly, or together with wall units and columns
doors in melamine, matt lacquer or oak wood veneer
opening through full-height metal groove, or with recess under the door

Measurements
Width: 38.7 / 48.7 / 56.4 / 77.4 / 87.4 / 97.4 / 112.8
Height: customisable to the millimetre between 32.6 and 160.6 cm
Depth:
- wall unit: cm 43.8 / 61.2
- body: cm 41,6 / 59
- interior: cm 30,6 / 48

Materials and Finishes
Wall unit:
- melamine
- matt lacquered
- wood veneer
- lacquered / frosted glass
Hinge:
- painted metal
- matt lacquered metal
Interiors:
- melamine
- matt lacquered melamine (on request to Customer Service)

Info for your Purchase
The positioning of the wall unit with Wide door can be independent, initial, central or final with respect to one or more elements. To calculate the overall dimensions of your composition simply add up the width of the various elements.
Each module with door is fitted with a 3.5 cm thick shelf inside to match the interior.

Technical study

Material Specifications
Doors, sides, partitions, top, backs, internal shelves: made of wood particle board panels, class E1 with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric, Metal Smoke and Gurè material melamine have the grain direction always vertical.

Technical Specifications and Equipment
Sides and Partitions: thickness cm 2.2.
Top: thickness cm 2.2 complete with joints for fixing, matching the Interiors.
Bottom: thickness cm 3.5 complete with joints for fixing, matching Interiors.
Back: thickness cm 0.8.
Inner shelf: thickness cm 3,5 complete with joints for fixing, matching Interiors.
Doors: thickness cm 2.2 fitted with assisted closing mechanism. Opening by means of a recess under the structure, handle or full-height nailing in white, moka shine, nickel or in numerous matt lacquered metal finishes.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembly Instructions
