Material Specifications
Structure, Fronts and Upper Panels: made from 2 cm thing wood particle panels covered in melamine with a matte, glossy or metallic lacquered effect with painted wood veneer. By glossy front we mean the external side and its edges, while the interior is supplied with the corresponding matte lacquered colour.
Back Panels: made of medium density wood particle panels, 0,8 cm thick, with synthetic finishing.

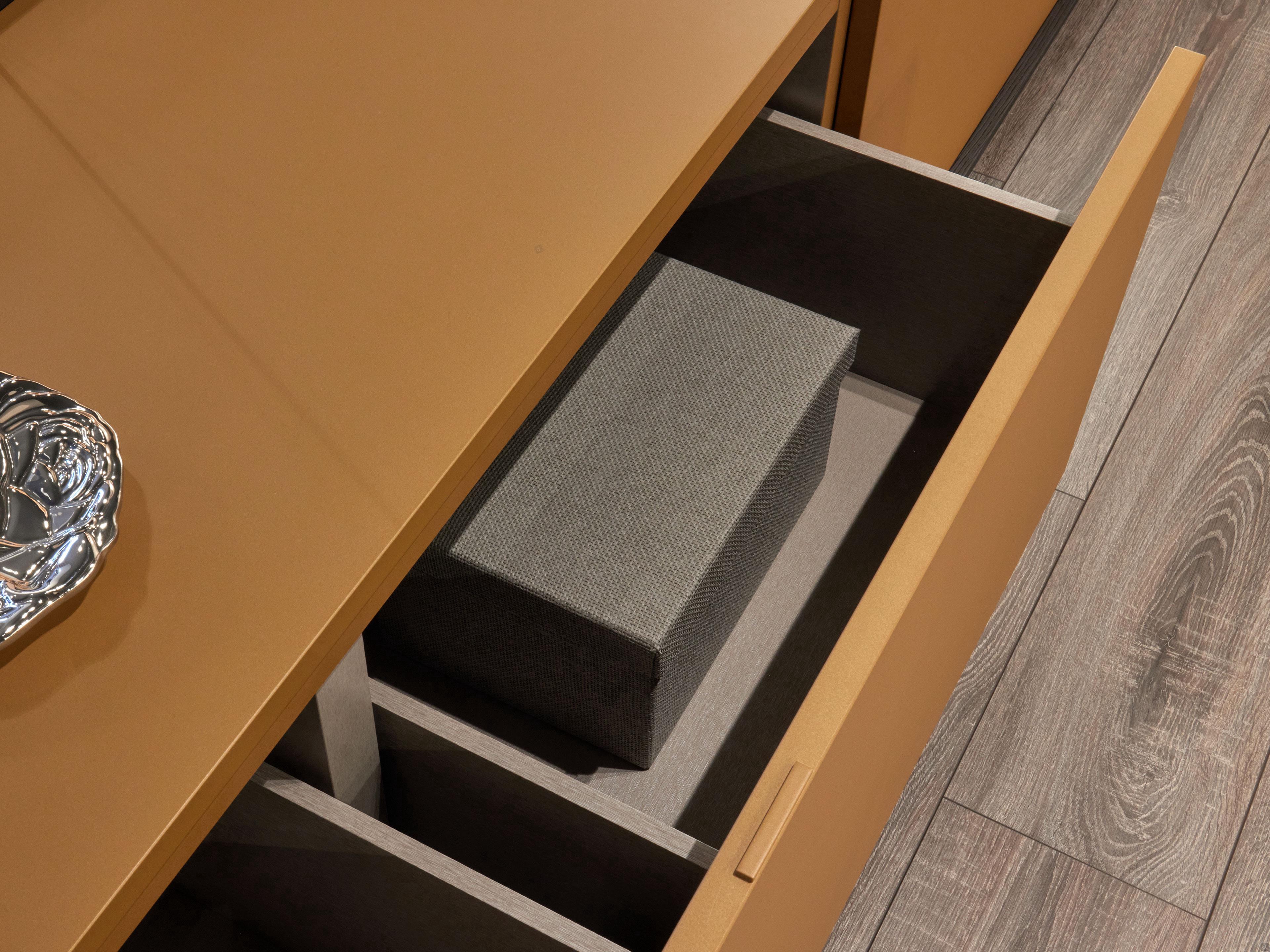

Drawer: 1,4 cm thick with 0,8 cm thick bottom panel in wood particle panels, interior in Jute textured finish. The external transparent glass shelf has a thickness of 1,2 cm.

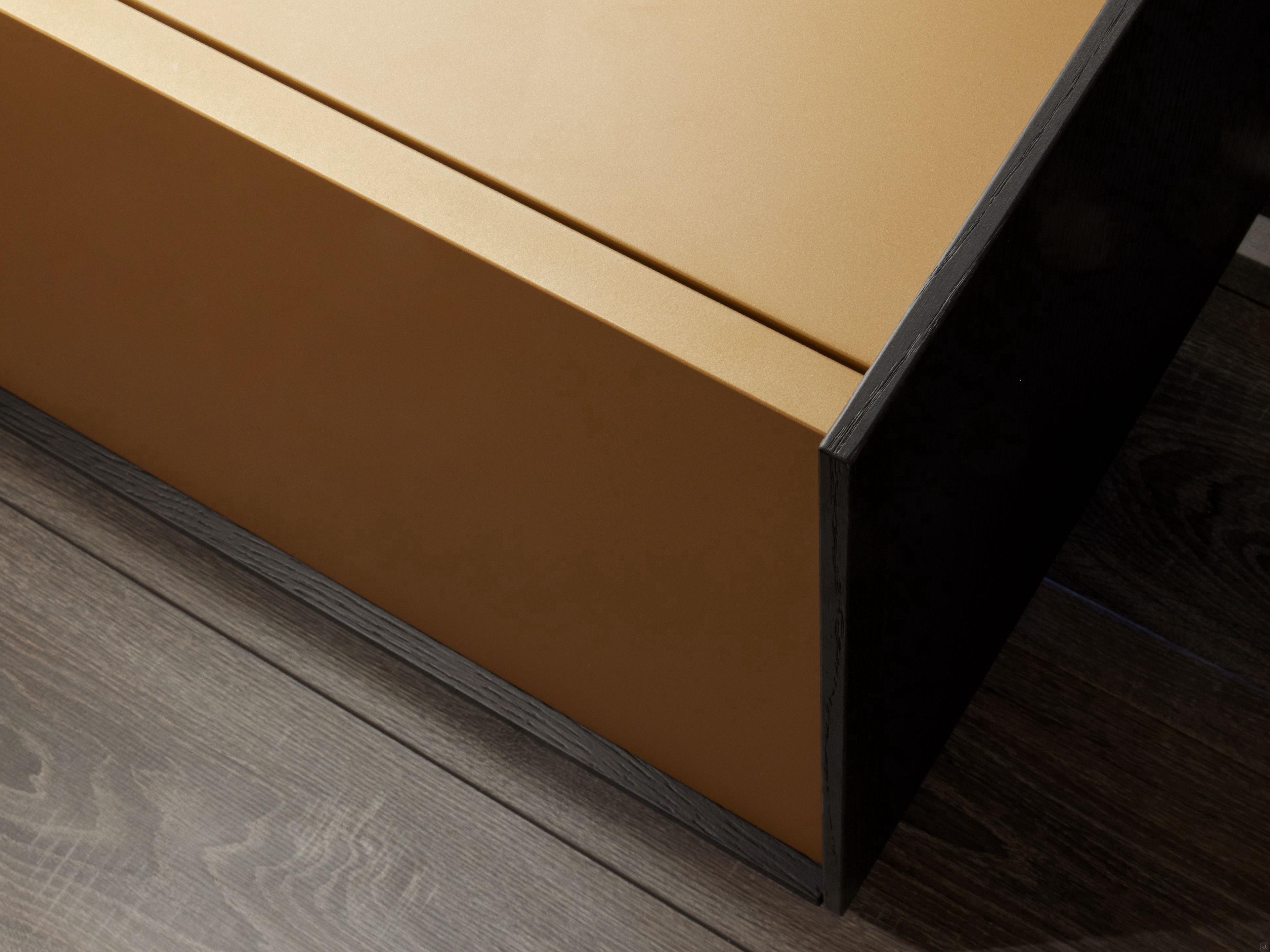

Perimeter Body: made of medium density wood particles with a thickness of 1 cm covered in melamine in a matte, metallic lacquered, or painted wood veneer finish.

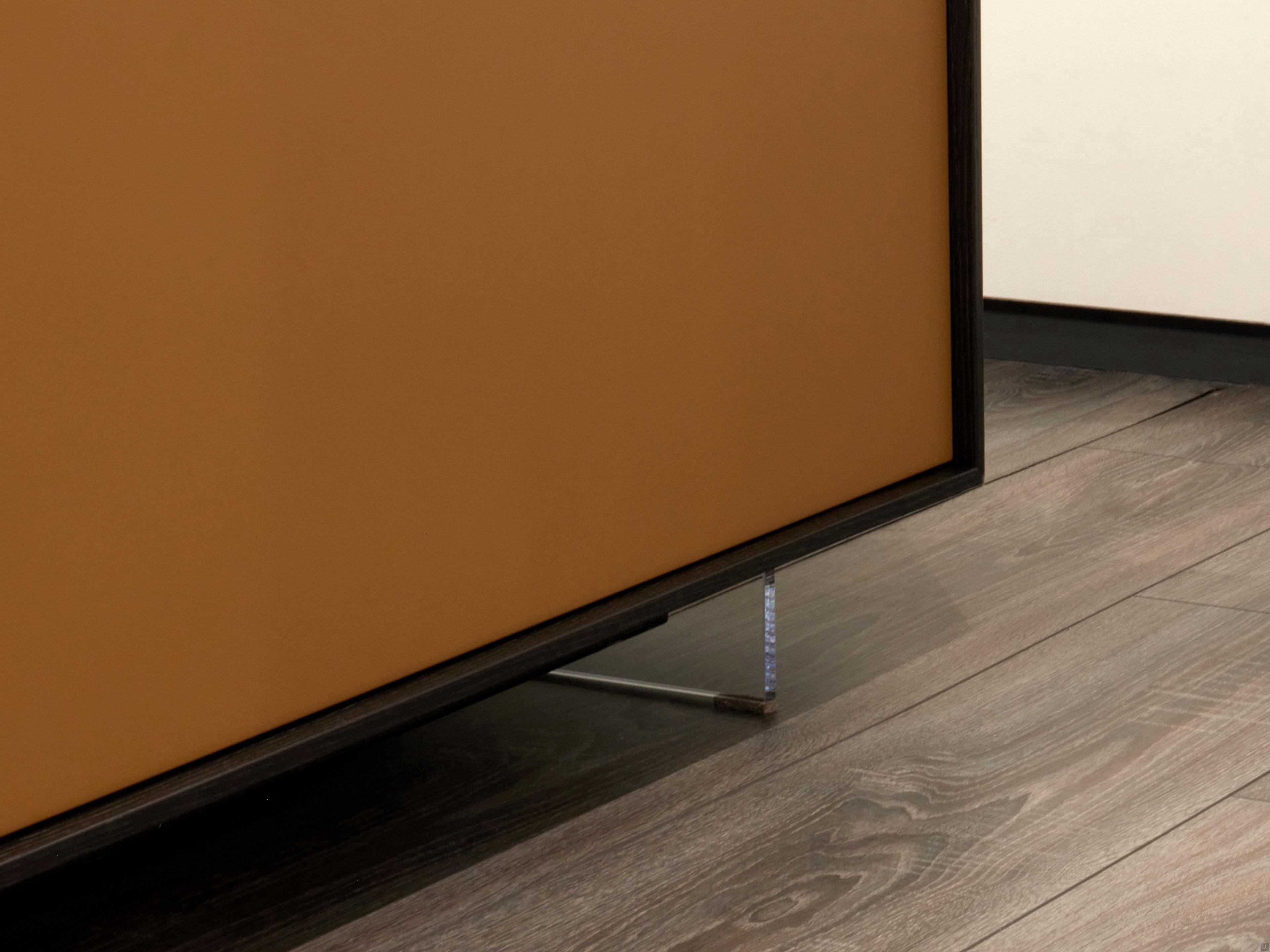

Feet:
- in black ABS Ø cm 5 and height of cm 2,7, internal adjustment cm 1,2.
- methacrylate / shaped th. cm 1,5
- cylindrical th. Ø cm 2

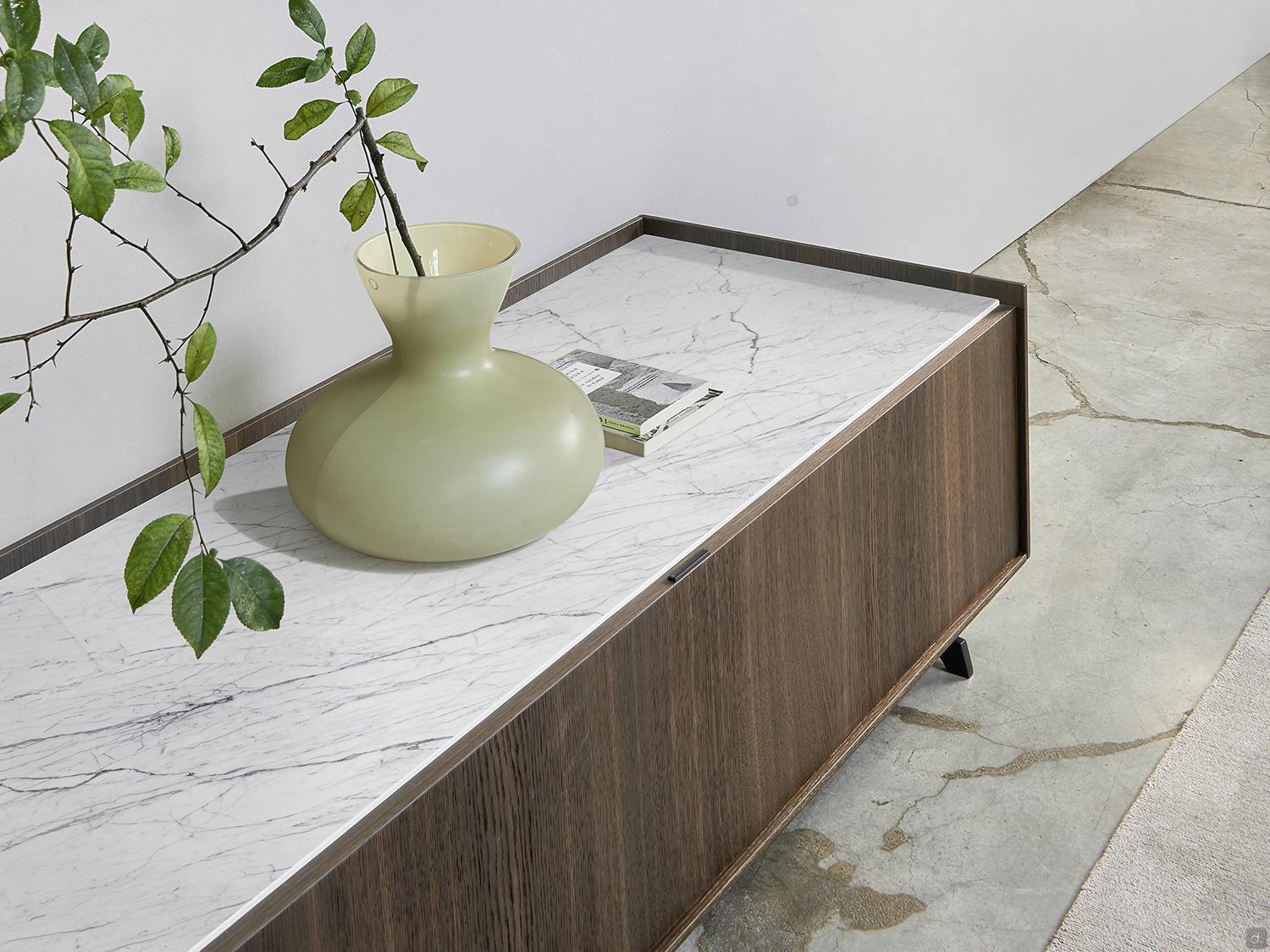

Top: made of ceramic obtained from slabs measuring 162 x 324 cm with a thickness of 1.2 cm. Cut randomly respecting the dimensions and direction of the plate design. Very resistant, they are an eco-compatible product.
Technical Specifications and Equipment

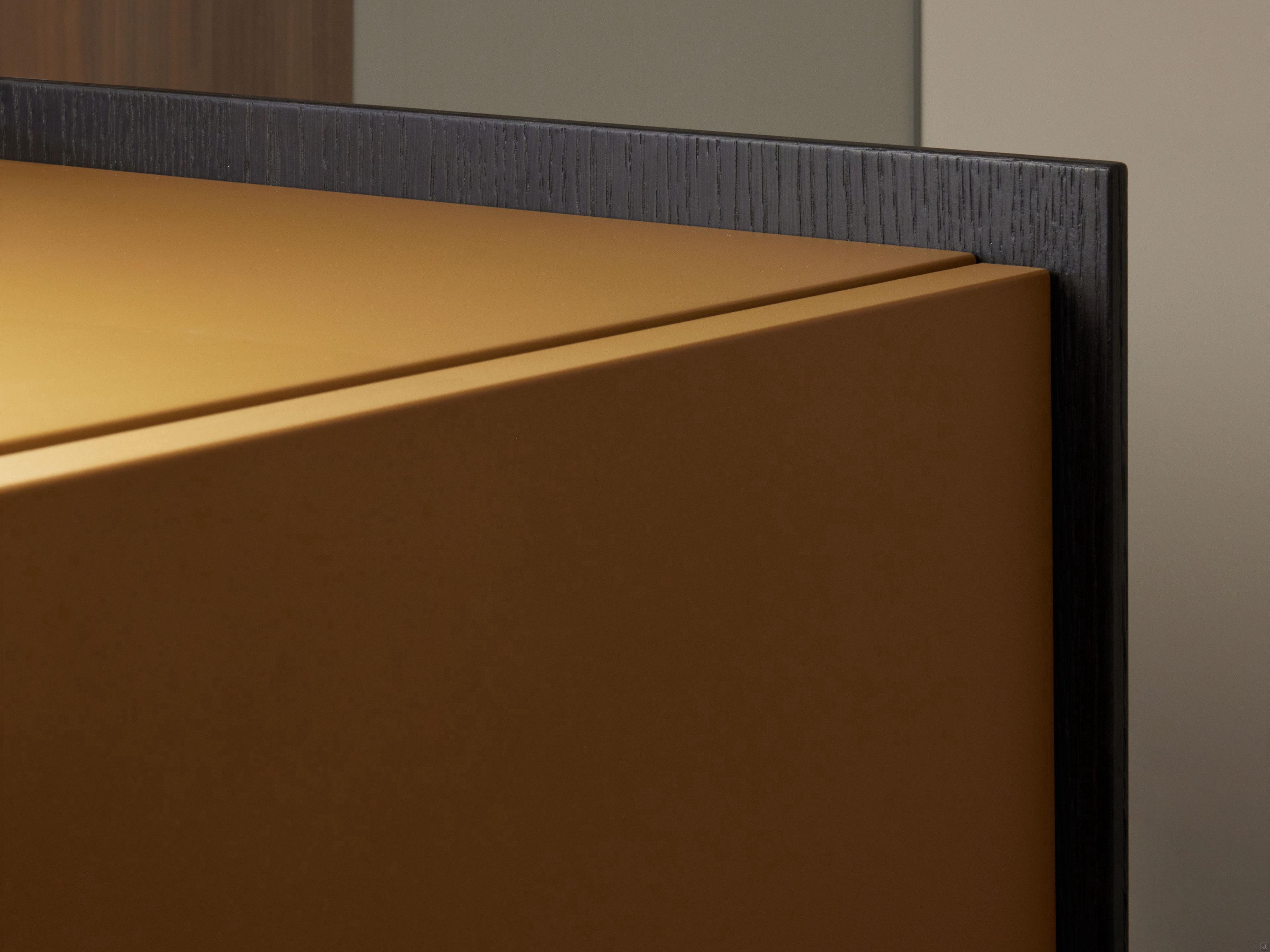

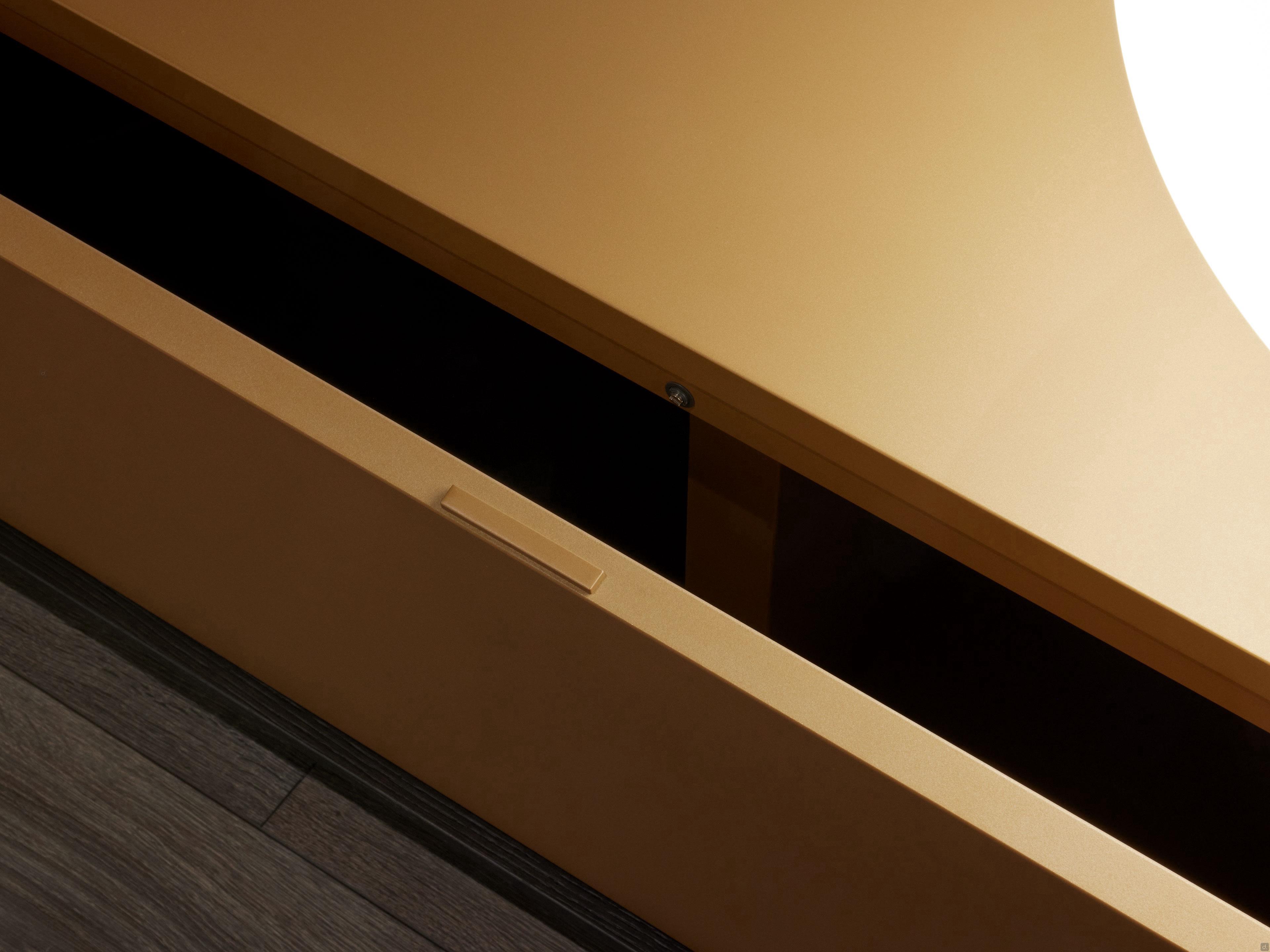

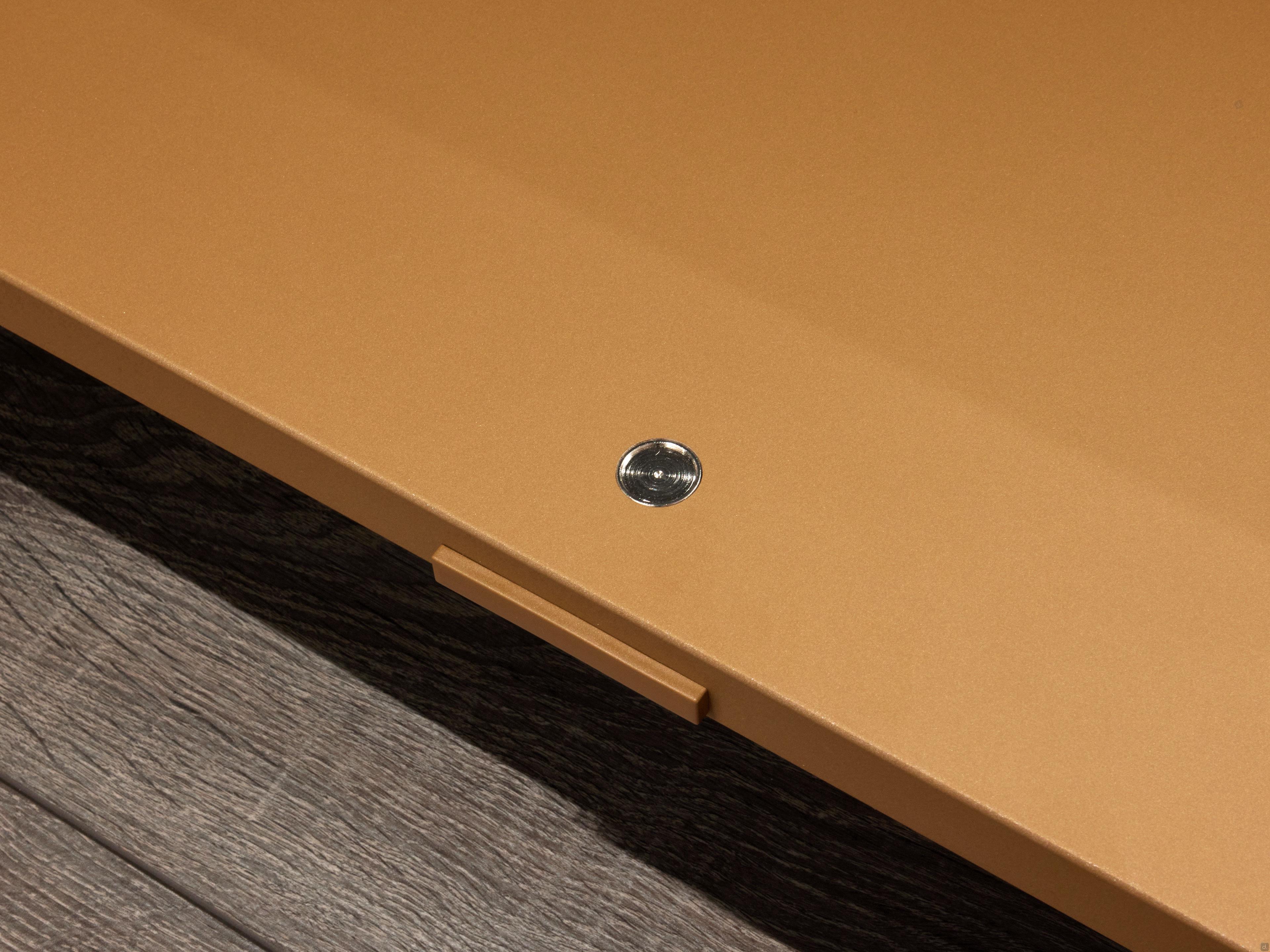

Drawer Opening: the fronts with a visible upper edge have a minimal handle, normally positioned in the centre of the front flush with the outside; for all the others there is push-pull opening.
Drawer Guides:
- opening with Minimal handle: high-sliding metal guides with total extraction, end stop block and dynamic load capacity of 30 kg. "Blumotion" soft return mechanism integrated into the guide for a smooth and silent closing. Anti-release pin and vertical adjustment of the inclination of the fronts integrated in all the guides of the system. Stabilizing bar added for drawers with a width of 90 cm and "Movento" guides with built-in stabilizer, as well as lateral adjustment of the fronts for drawers with a width of 120 and 150 cm.
- push-pull opening: high-sliding metal guides with total extraction, limit switch block and dynamic load capacity of 30 kg. Sliding synchronizer integrated in the guides of drawers with a width greater than 45 cm. Anti-release pin and vertical adjustment of the inclination of the fronts integrated in all the guides of the system.
Drawers 120 and 150 cm wide with "Movento" guides and lateral adjustment of the fronts.
Combination table for the Minimal handle with the structure
| Structure |
Handles
|
| Clay Oak |
matte terranova |
| Havana Oak |
matte brown |
| Charcoal Oak |
matte brown |
| Cuba Oak |
matte brown |
| Heat-Treated Oak | matte brown |
| Grey Oak |
matte brown |
| Canaletto Walnut |
matte brown |
| Matte Lacquer |
matte lacquer |
| Glossy Lacquer |
glossy lacquer |
| Metallic Lacquer |
metallic lacquer |
Optional
Lighting: LED light frame positioned optionally on 3 or 4 sides of the perimeter with power supply included. 3000K LED with development from 14W to 50W max depending on the size. For perimeters longer than 6 m, two LED lighting systems will be coupled. Switched on via connection to the home network or via optional remote control.

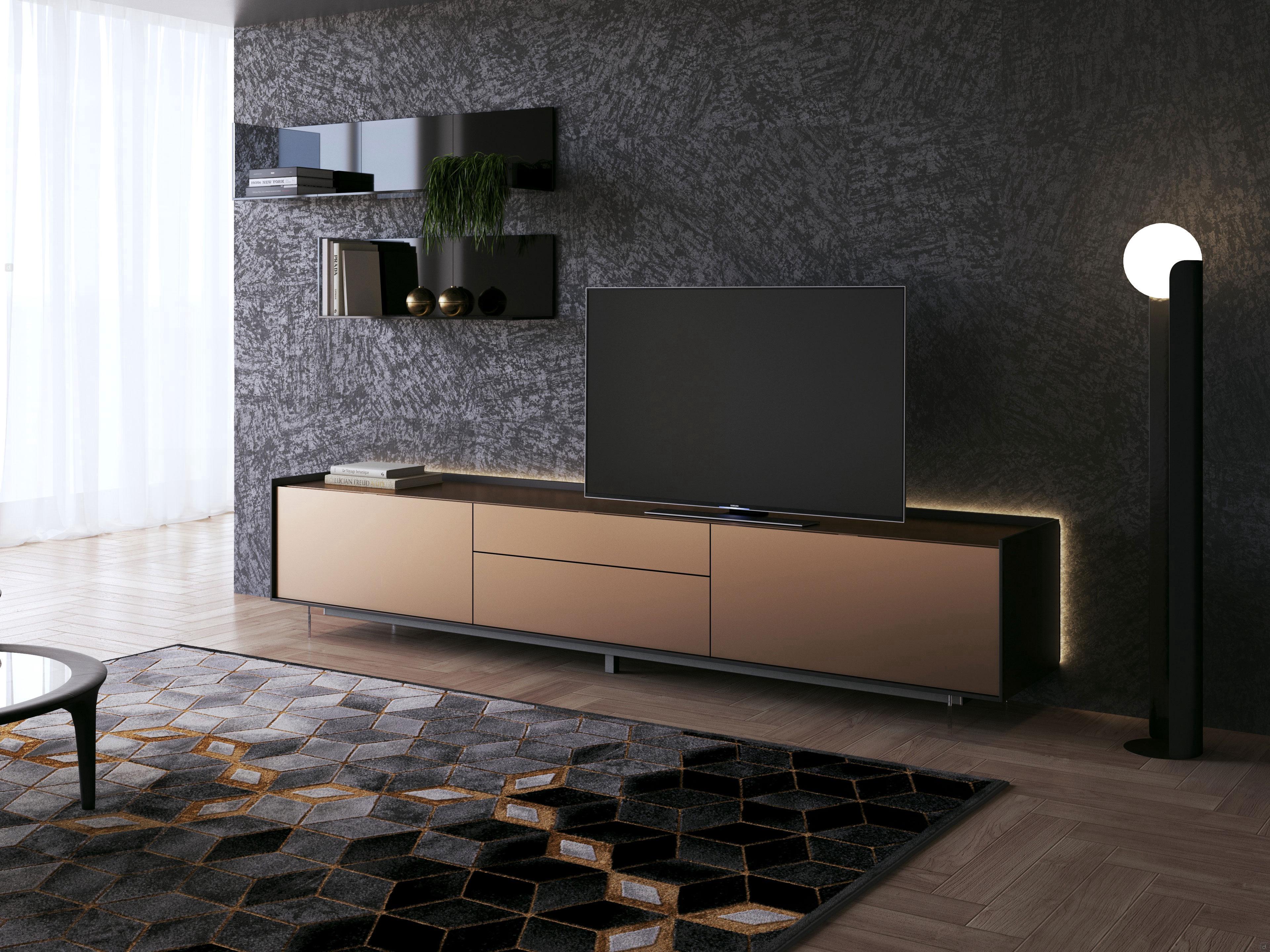

Lighting Below Base: external profile in satin aluminum 1,2 x 1,2 cm with opal plastic casing with power supply included. 3000K LED with development from 7.2W to 28.8W max depending on the size. For perimeters longer than 6 m, two LED lighting systems will be coupled. Switched on via connection to the home network or via optional remote control.

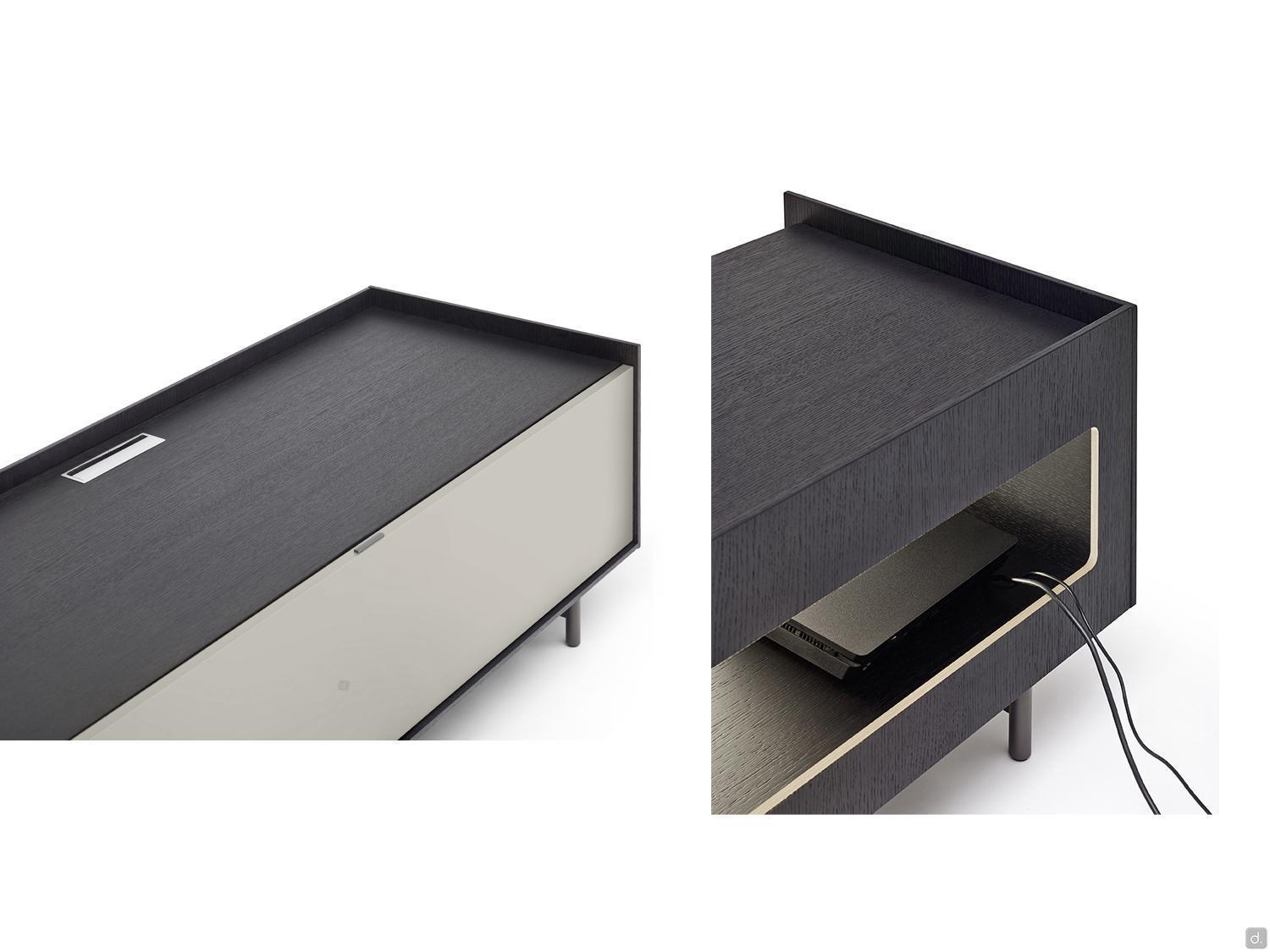

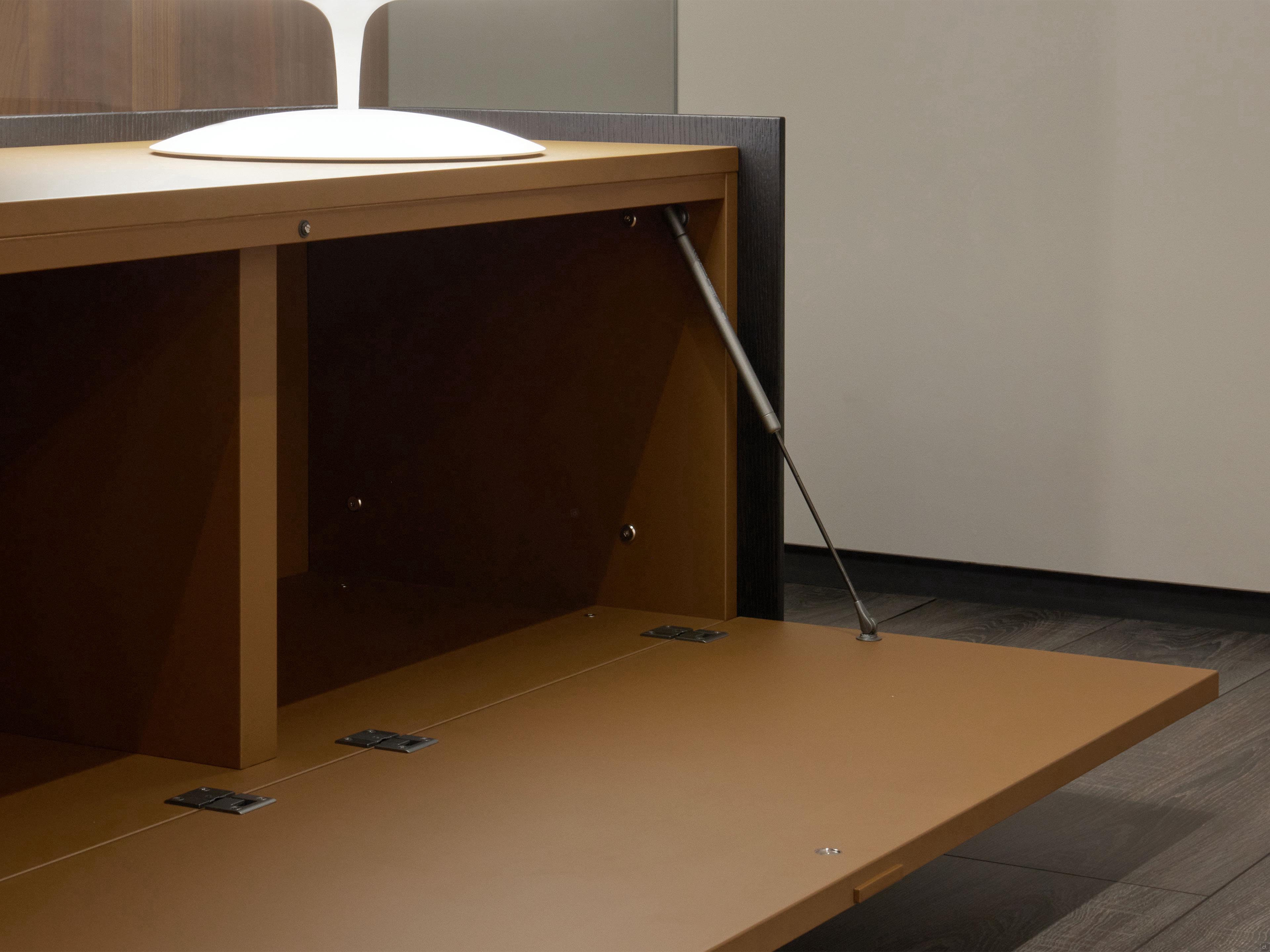

Cable Holes: Available on the top and back of elements with tilt doors. The cable hole for the top is rectangular in aluminium, with dust brush and internal dimension of 16,5 x 2,6 cm. The rear cable hole instead consists of a large slot on the central part of the back panel (not visible from the front), the dimensions of which change depending on the element involved, but leave a frame of approximately 5 cm per side. For this reason, this latter cable hole is only available on floor-standing models.
To know more...
Laminate: it is a wood-effect coating usually applied to different materials, such as melamine panels. This covering consists of layers obtained by pressing together various sheets of paper soaked in melamine or phenolic resins. There are different types and aesthetically it can have different aspects, such as the features of real wood.
Heat-Treated Oak: this particular oak wood finish is characterised by the contrats created between light veins and a dark, full backround. This effect is created by the high temperature to which the veneer is subjected, determining a different colour between the harder and softer parts of the wood, with a pleasant and random chiaroscuro.
