Plan Cupboard
Modern Cupboard

Plan lacquered wall-mounted cupboard with doors or basket, drawers or drop down door on the lower side. Also in other finishes.

Quantity

From €912.22

View Samples

Wishlist

Description

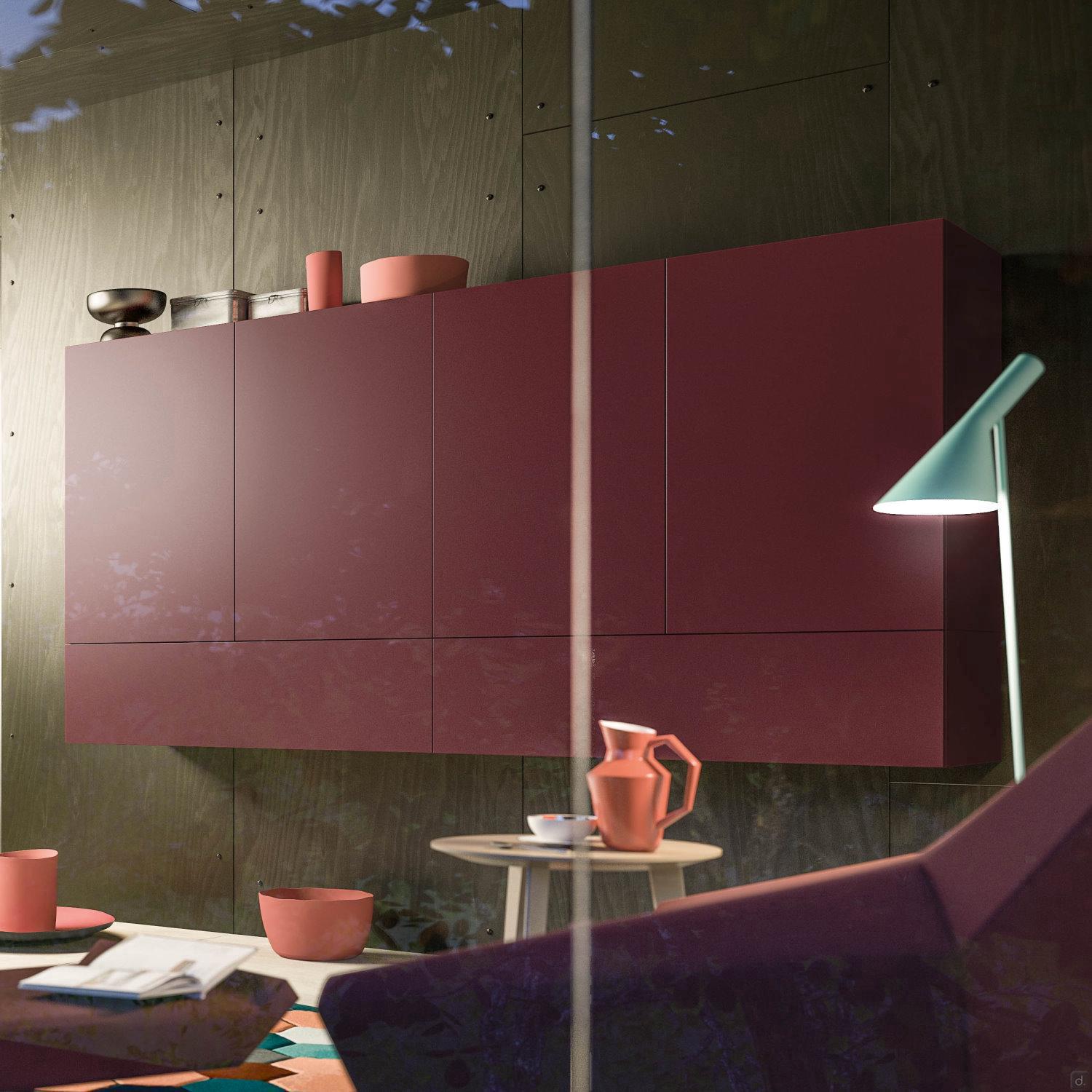

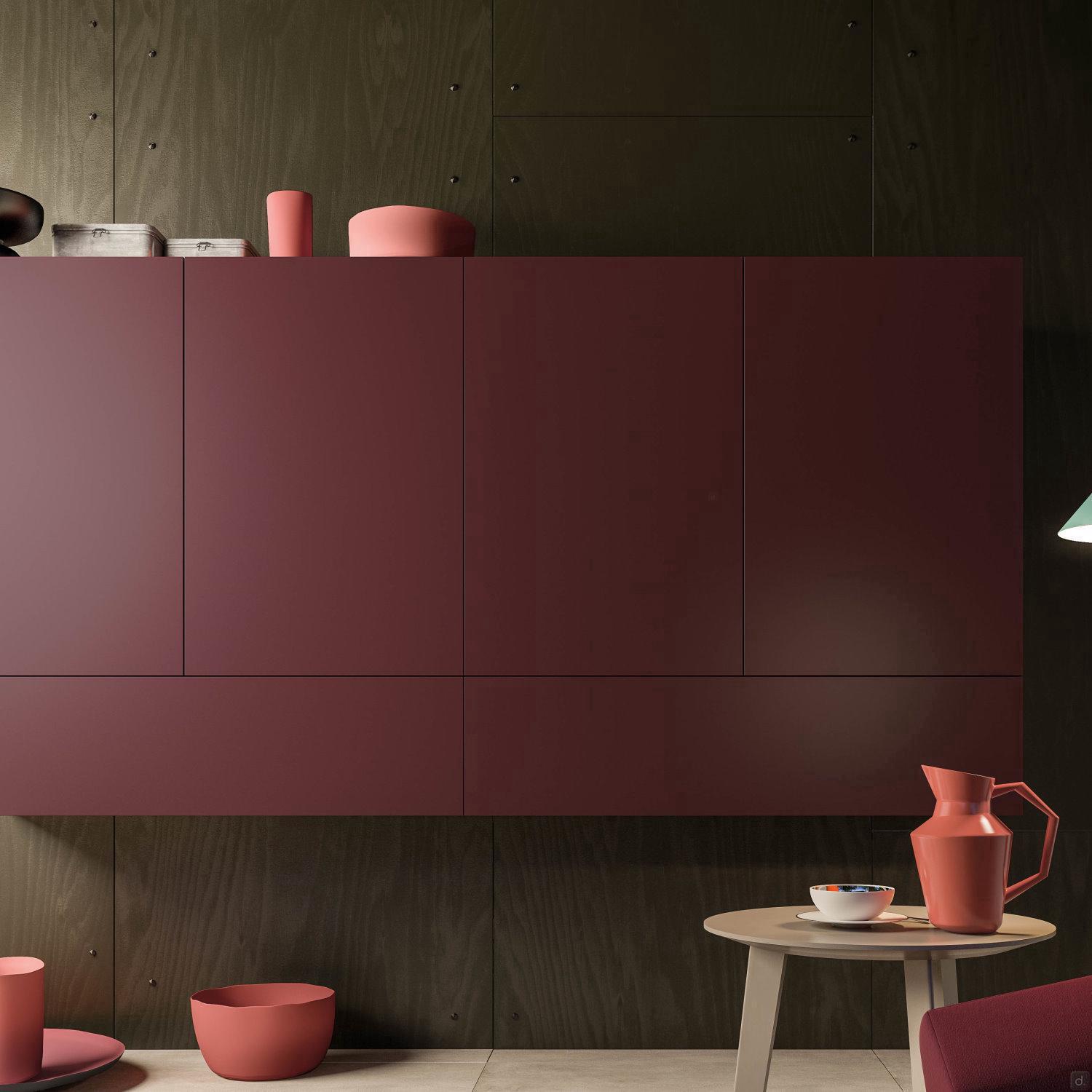

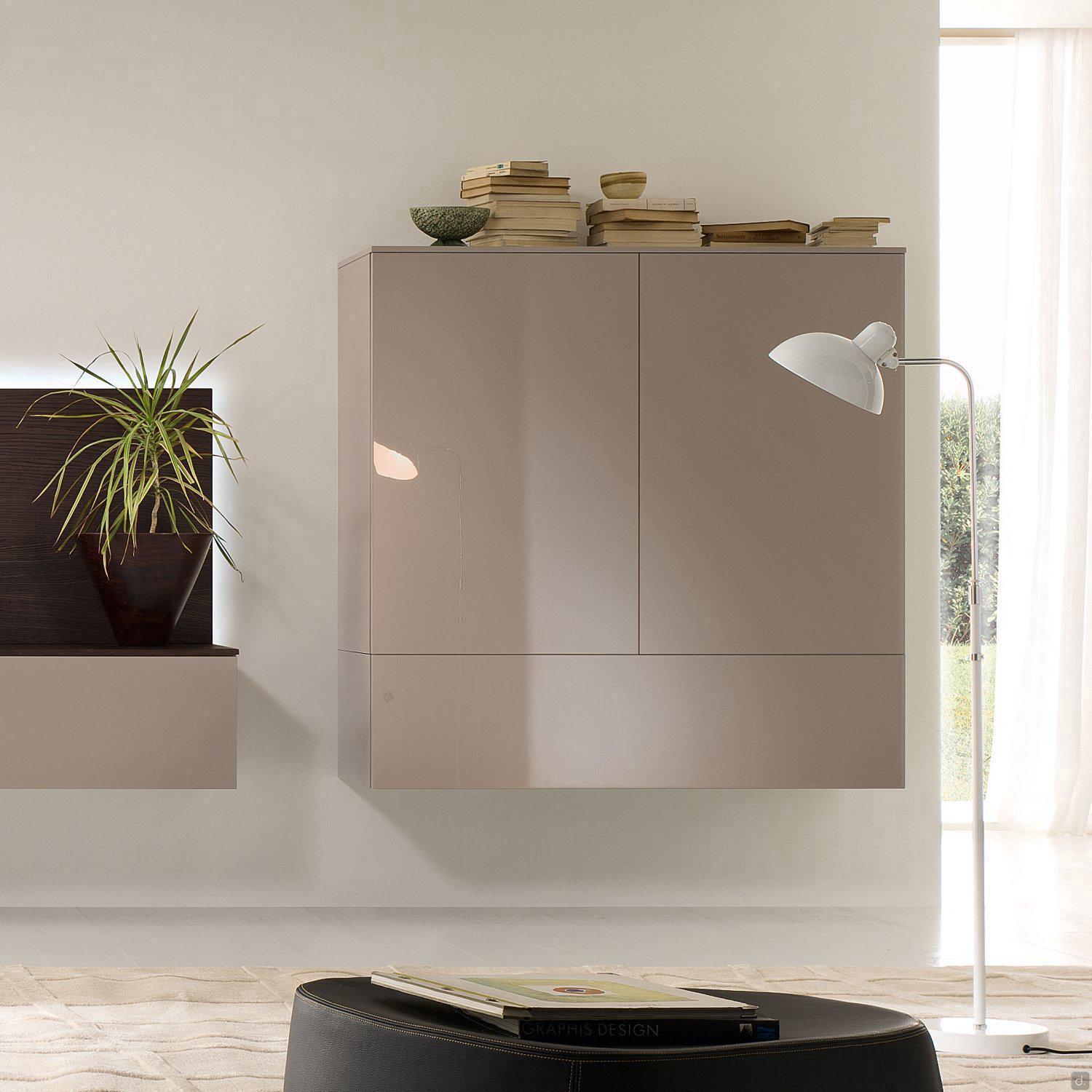

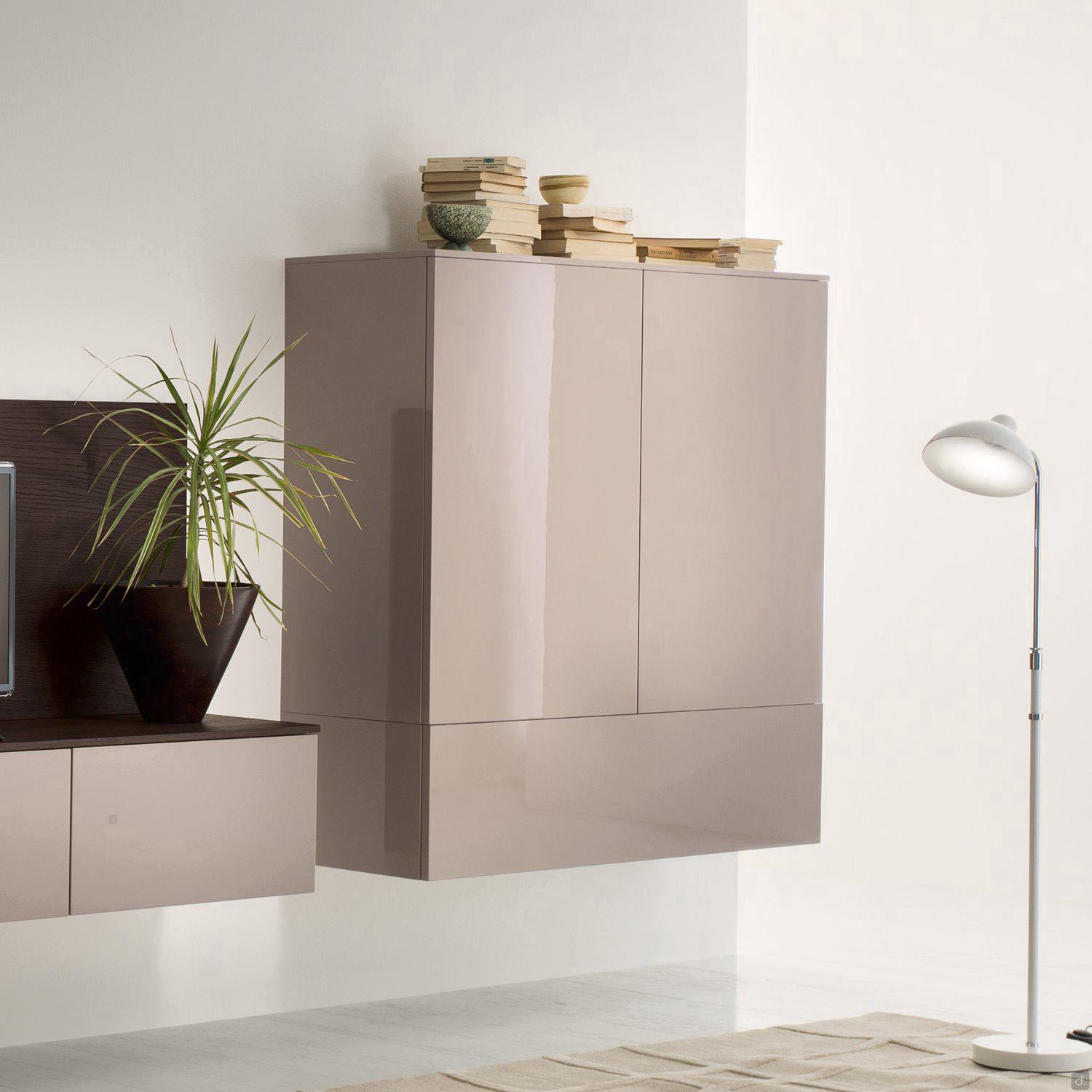

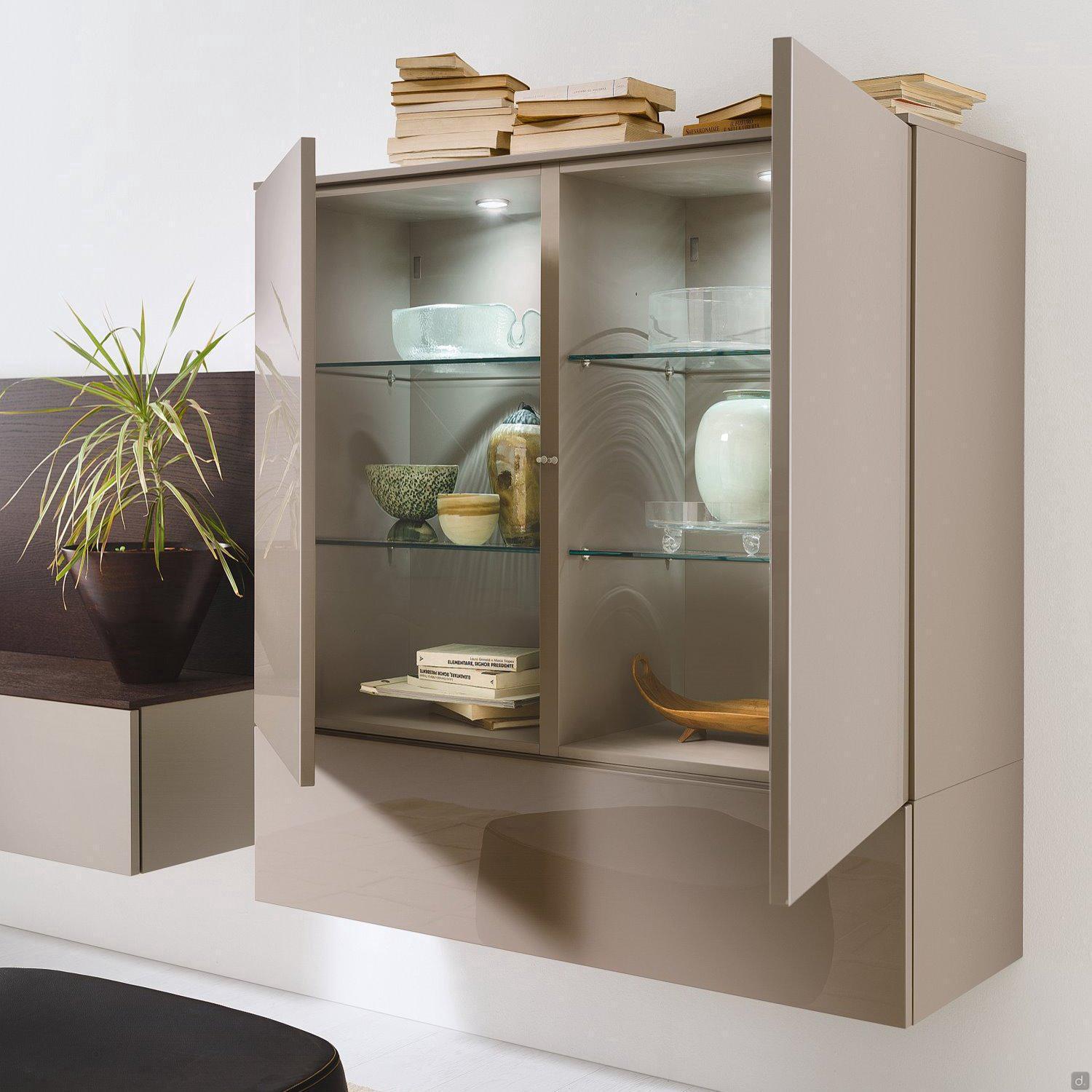

Plan is a lacquered wall-mounted cupboard made up of hinged doors on the upper and lower side; the two lower doors can be replaced by a basket, two drawers or a drop down door. Inside, the upper part is vertically divided into two compartments, each comes with two glass shelves. The structure is in wood veneer in different finishes, melamine or in matt or gloss lacquer. Plan can also be placed on the floor standing on feet or on a plinth.

characteristics
available in two measurements and four models
push and pull opening system for all models
wall-mounted or free standing on feet or plinth

Measurements
Models:
- 4 doors cupboard
- 2 doors and 2 drawers cupboard
- 2 doors and 1 basket cupboard
- 2 doors and 1 drop down door cupboard
Width: cm 96 / 128
Depth: cm 52,4
Height: cm 128
Top Thickness: cm 1,4 (only in the version with visible top)
Feet / Plinth Height: cm 2,5 (only in the free-standing version)

Materials and Finishes
Structure and Doors:
- melamine
- matt lacquer
- open pore lacquered oak veneer
- Fashion Wood brushed oak veneer
- gloss lacquer
Internal Structure:
- decor melamine
- matt lacquer

Information for Your Quote

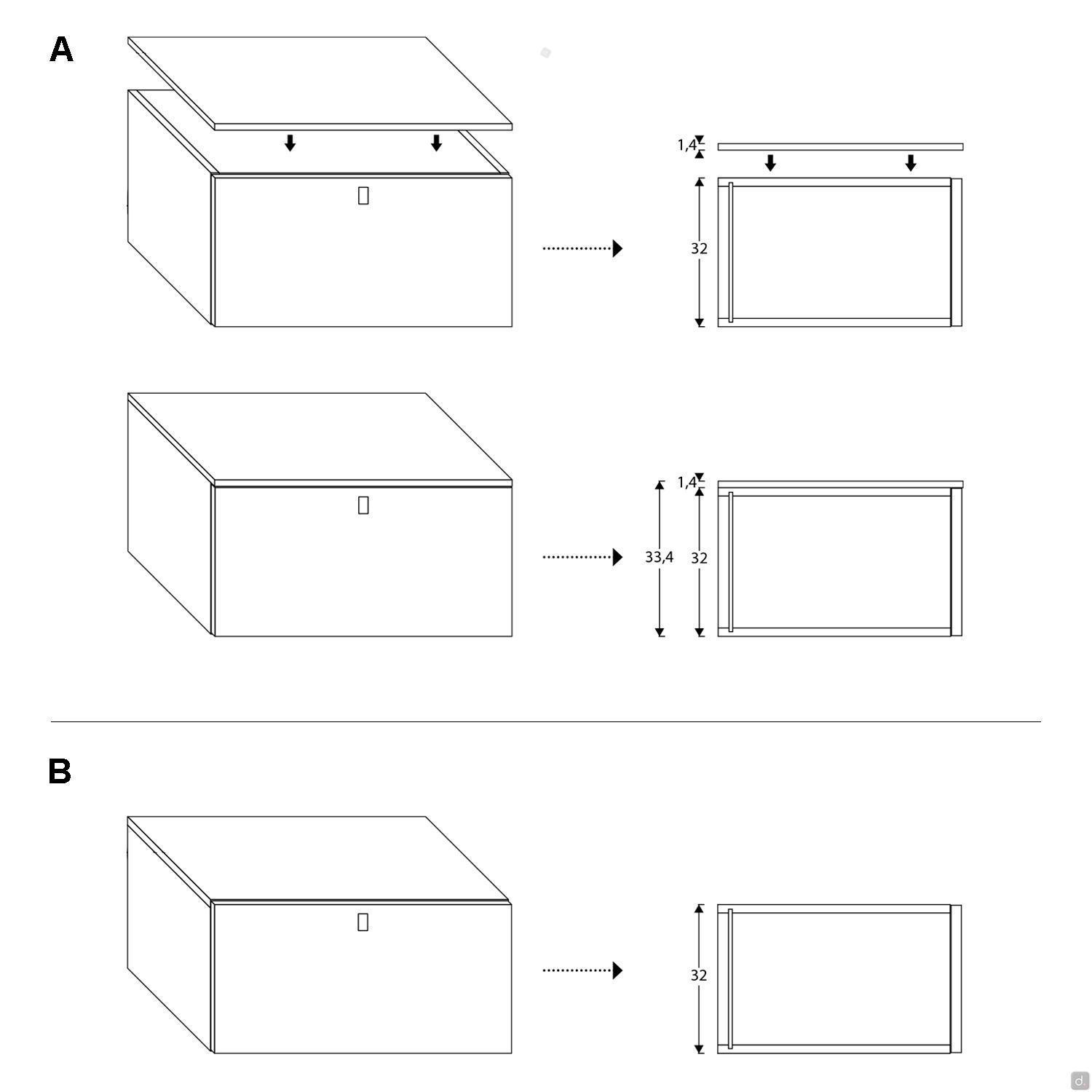

For the total height of the cupboard please also consider the Top thickness which is cm 1,4 (only in the version with visible top) and, if you choose the free-standing model, the feet / plinth height with adjustable feet (cm 2,5)..
In the version without Top the upper part of the structure comes in the same finish as the rest of the structure; this solution is recommended for the wall-mounted version, on the other hand for the free-standing one we recommend to purchase the Top as well.

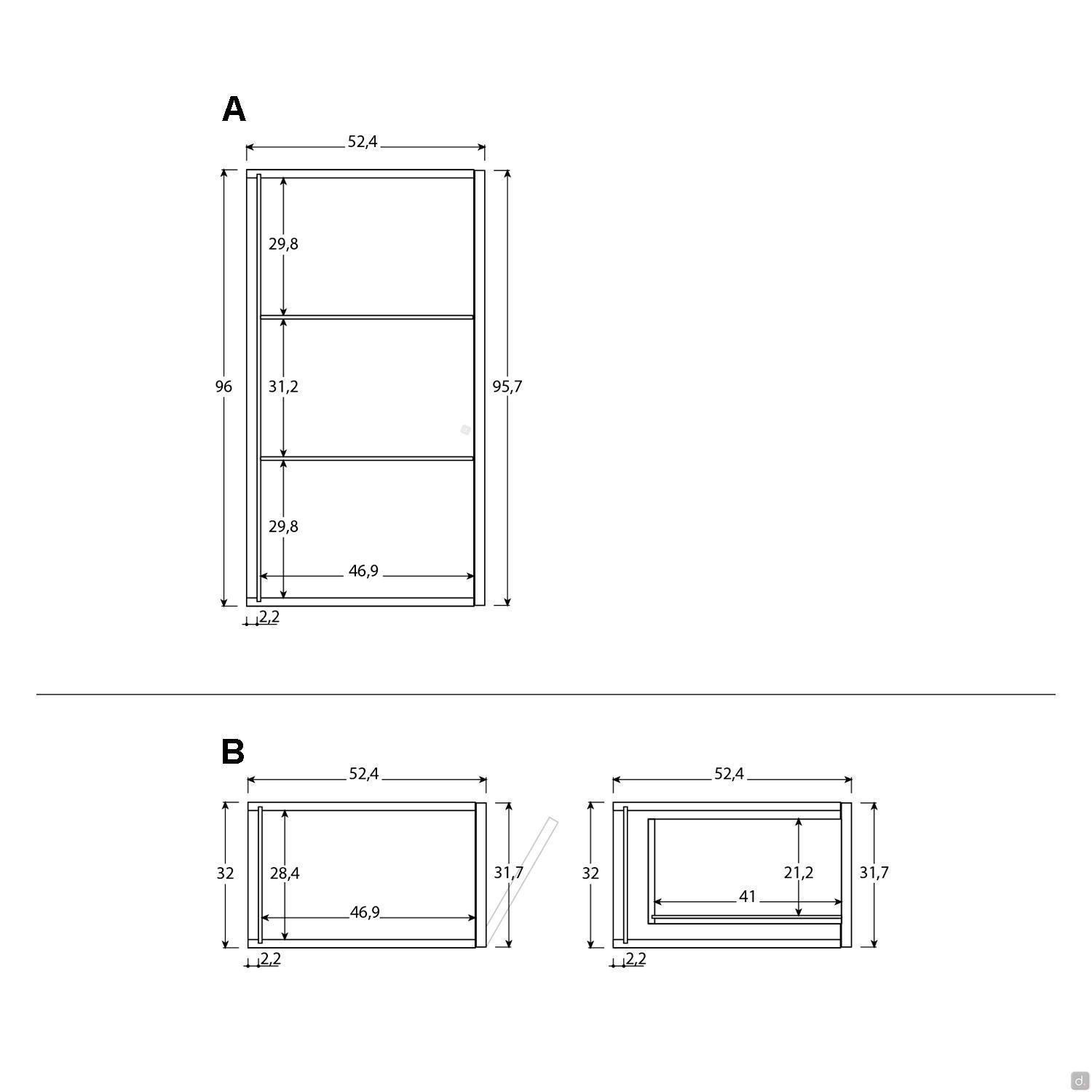

Technical study

Specifiche Materiali
Struttura: componenti realizzati con pannelli in particelle di legno (classe E1 a basso contenuto di formaldeide). Le finiture legno sono eseguite con una verniciatura a polimerizzazione ultravioletta; i laccati opachi sono realizzati utilizzando quasi totalmente vernice ad acqua; le finiture laccate lucide sono spazzolate con una polimerizzazione poliuretanica. I prodotti vernicianti utilizzati sono ad alto residuo secco.

Specifiche Tecniche e Dotazioni
Struttura: sp. 1,8 cm.
Ante: sp. 2,2 cm dotate di cerniere con chiusura ammortizzata di serie.

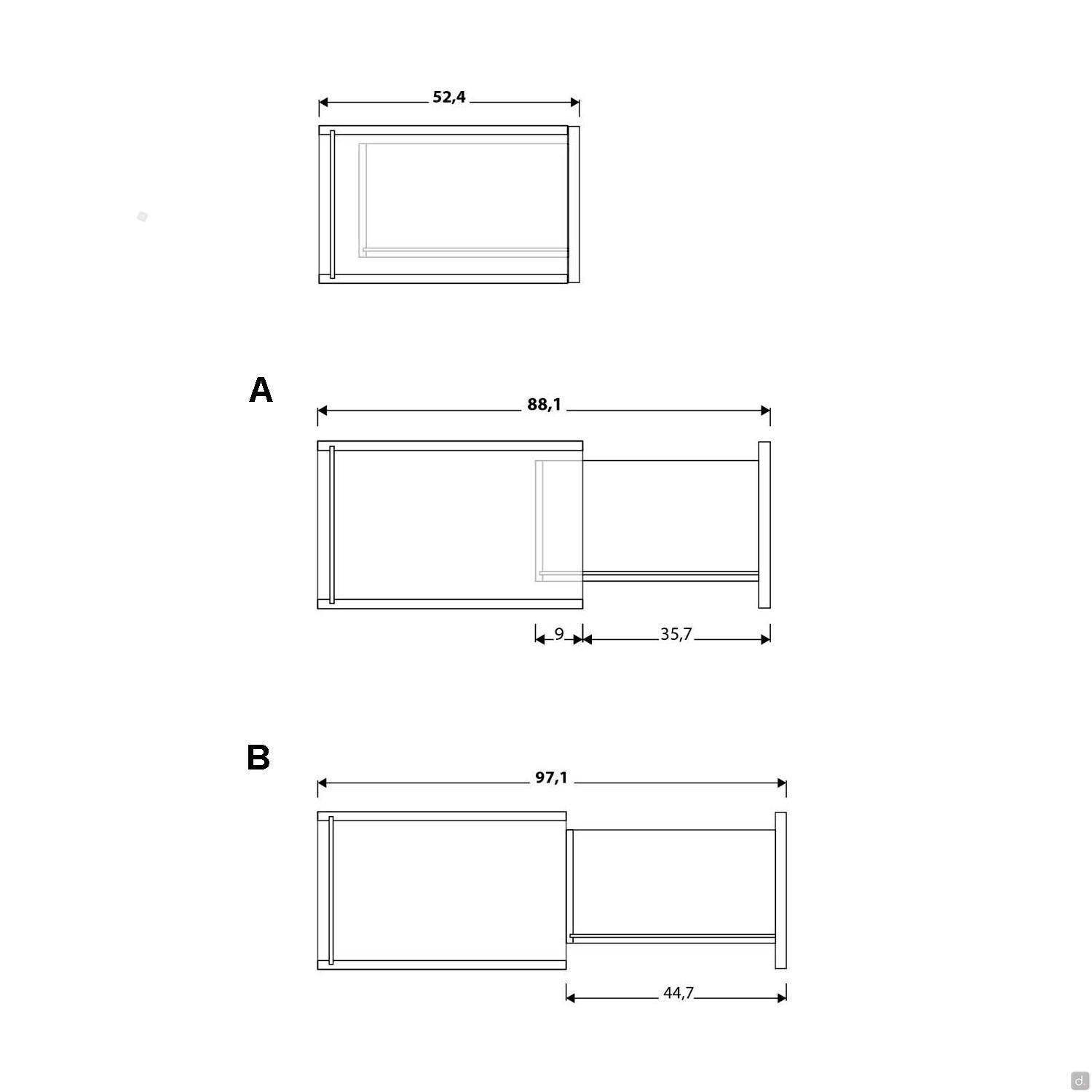

Cassetti / Cestoni: frontali sp. 2,2 cm; sponde sp. 1,4 cm. Dotati di guide a scomparsa con regolazione verticale integrata nell'aggancio, estrazione parziale di serie e chiusura ammortizzata. Portata dinamica delle guide pari a 30 Kg.
Ribalta: sp. 2,2 cm.
Bordo a vista: bordo legno, bordo legno supportato abs o abs laccato.
Ripiani Interni: i moduli con ante battenti h. 96 / 128 sono dotati di n.4 ripiani interni in vetro sp. 0,8 cm.

Optional
estrazione totale: cassetti e cestoni posso essere dotati di guide ad estrazione totale.

Consigli per la Manutenzione
Le superfici poste a lungo in contatto con acqua o altri liquidi possono subire danni. I prodotti temono il calore eccessivo e l'umidità; è pertanto consigliabile posizionarli lontani da fonti di calore e da zone umide.
La pulizia dei materiali va effettuata esclusivamente con panno umido e detergenti neutri, asciugando subito con panno morbido. È sconsigliato l'utilizzo di prodotti alcalini, solventi e abrasivi.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Cubic Metres
0,83 / 1,09 m³
