Material Specifications
Structure: made from wood particles (class E1= low formaldehyde emission) or MDF.
Technical Specifications and Equipment

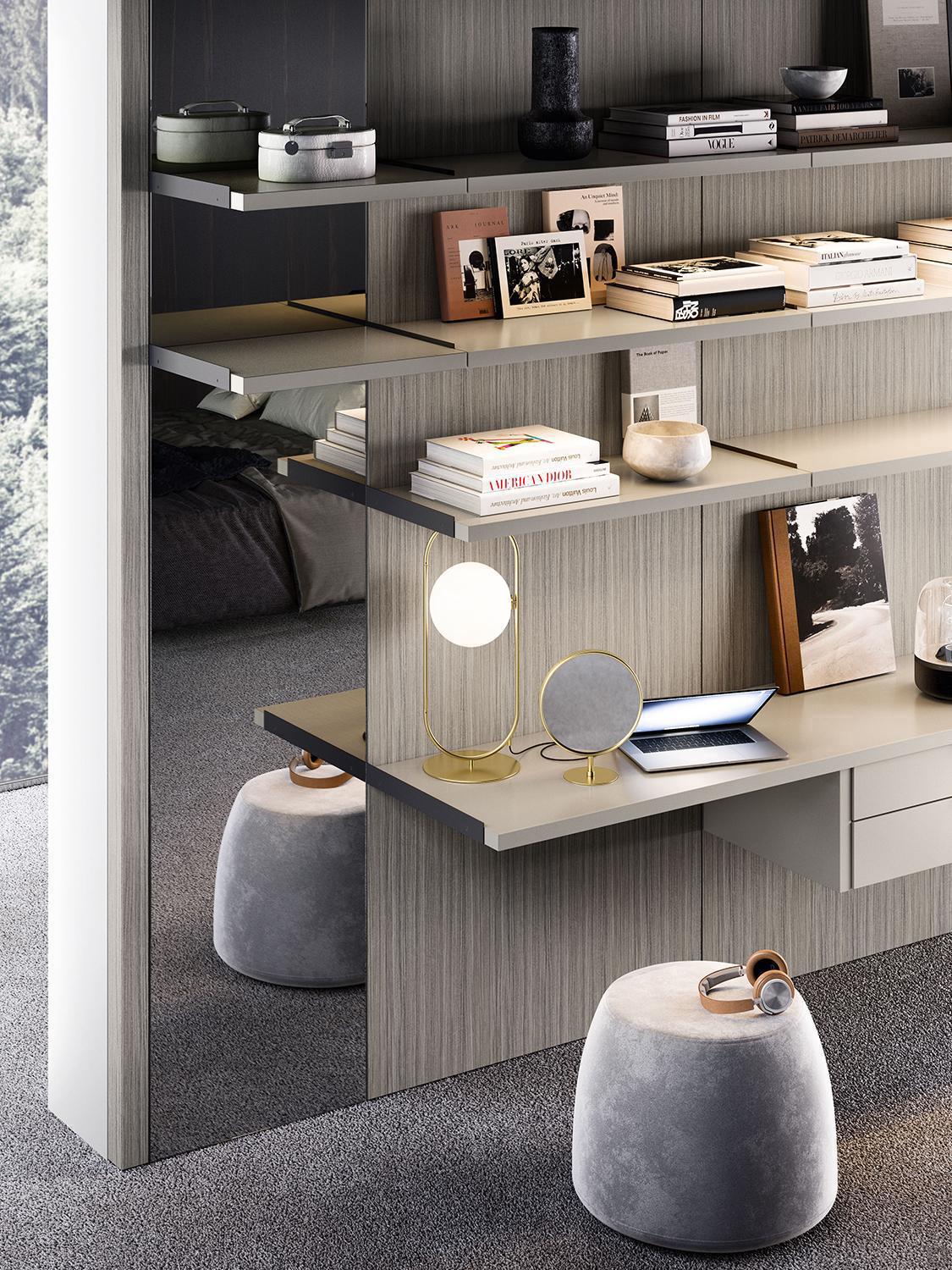

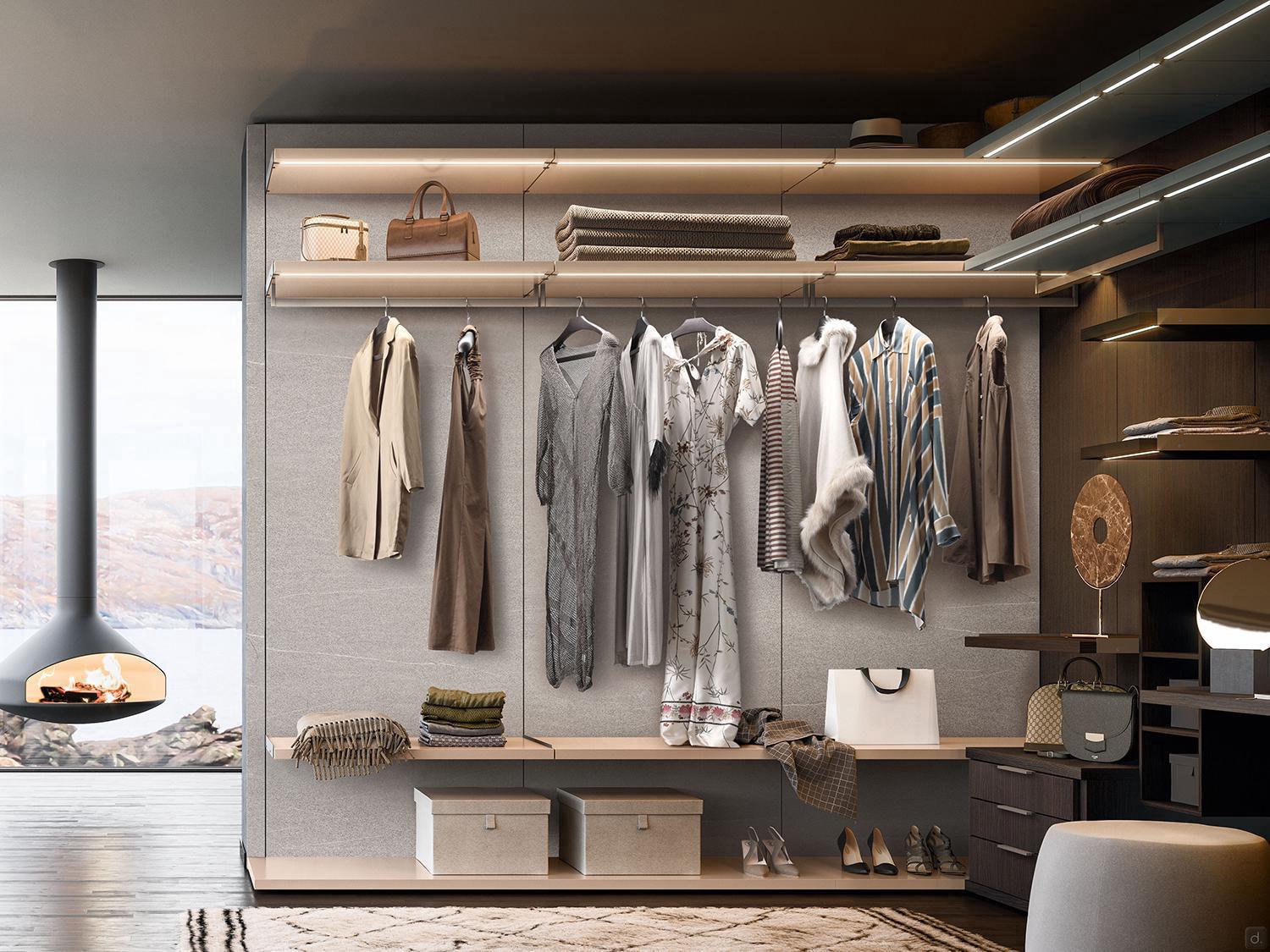

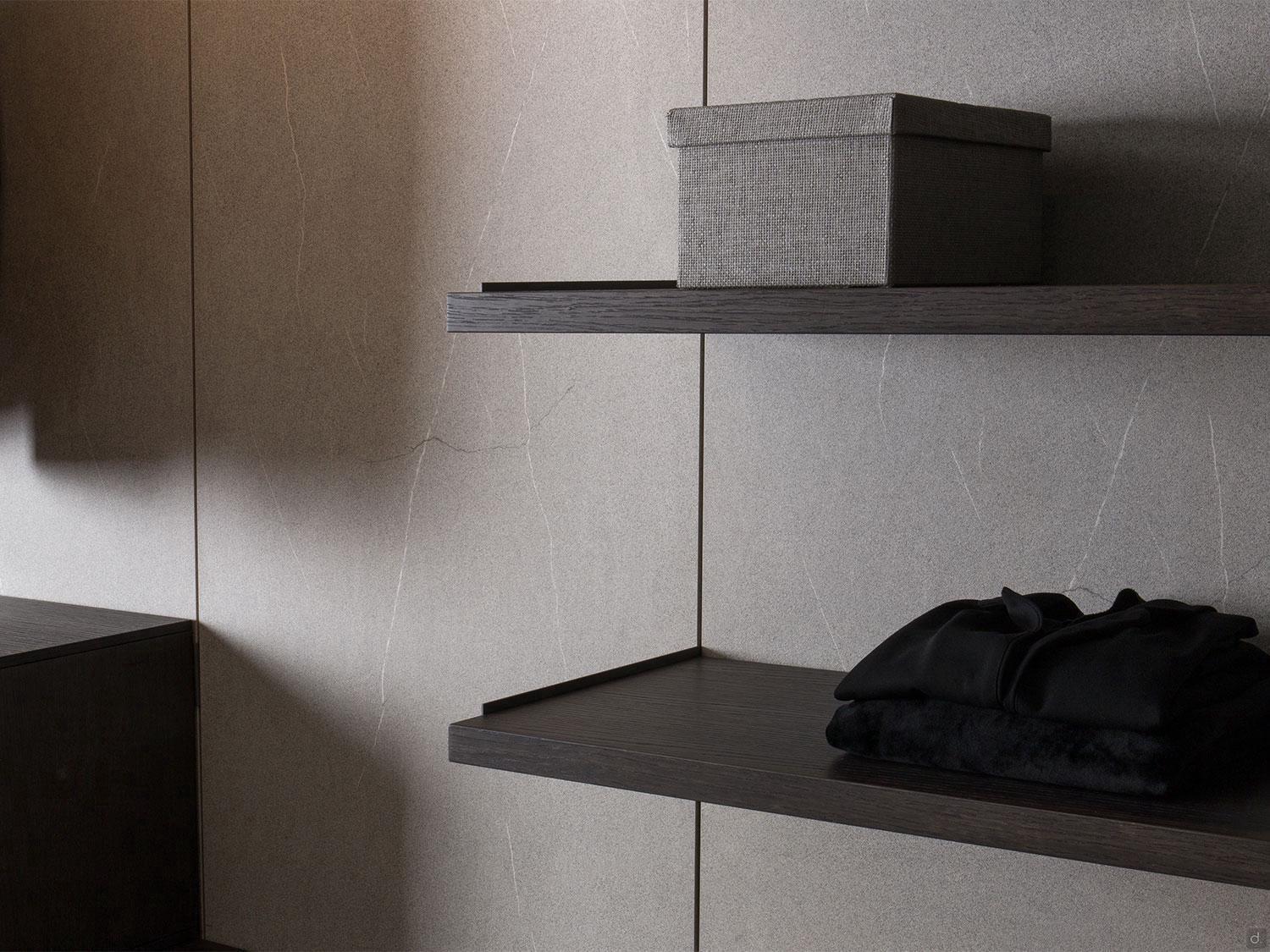

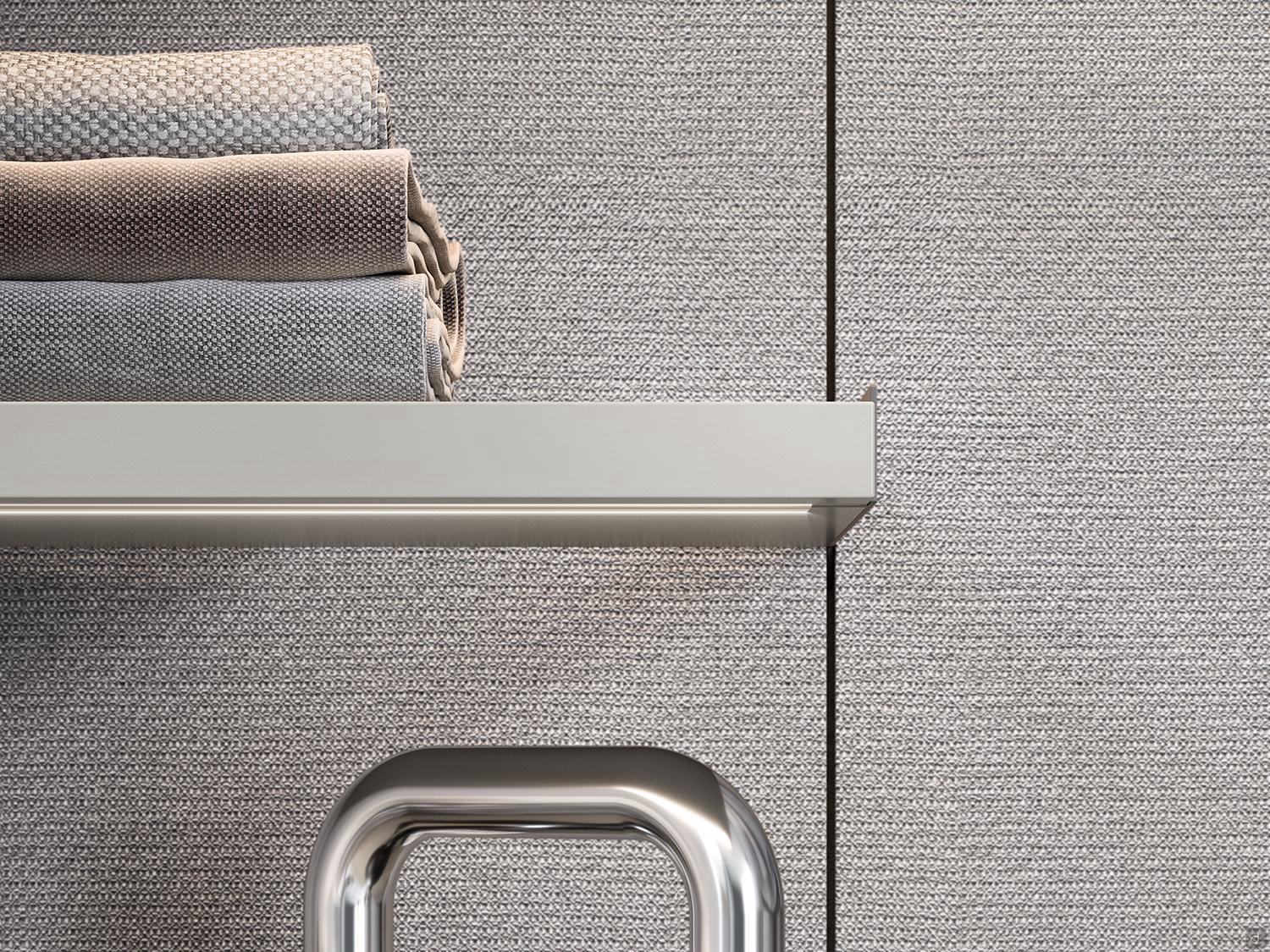

Shelf (cm d.40,2): 3,5 cm thick. Complete with metal brackets, it can be positioned at a minimum height of 8.4 cm from the ground. Can be equipped with LED bar lighting. Maximum load-bearing capacity is evenly distributed at 25 Kg per linear metre.

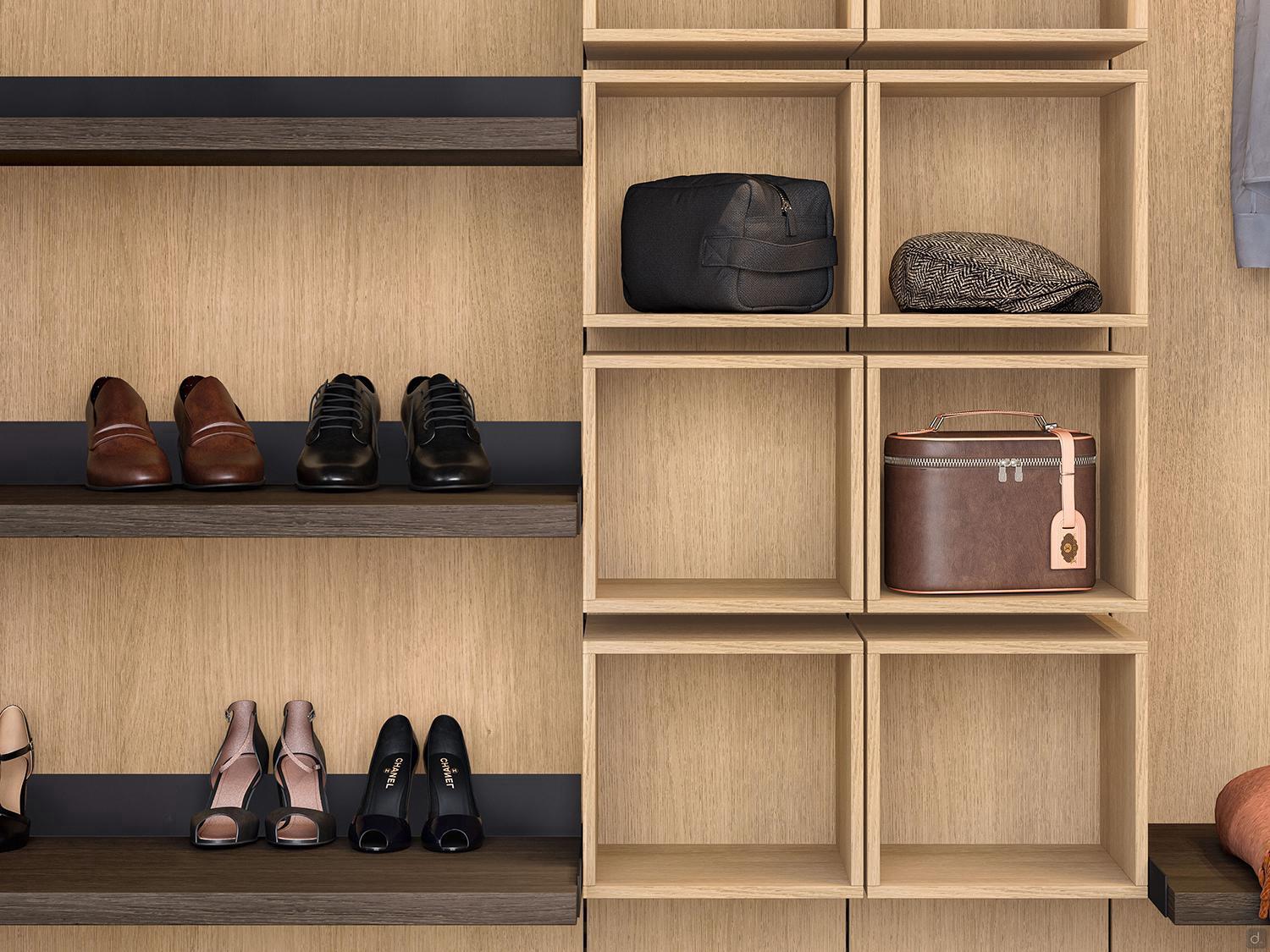

Shoe-rack shelf (cm d.40,2): 3,5 cm thick, complete with brackets and metal heel plates, can be positioned at a minimum height of 8,4 cm from the ground. Can also be equipped with an LED lighting bar. Maximum load-bearing capacity is evenly distributed at 25 Kg per linear metre.

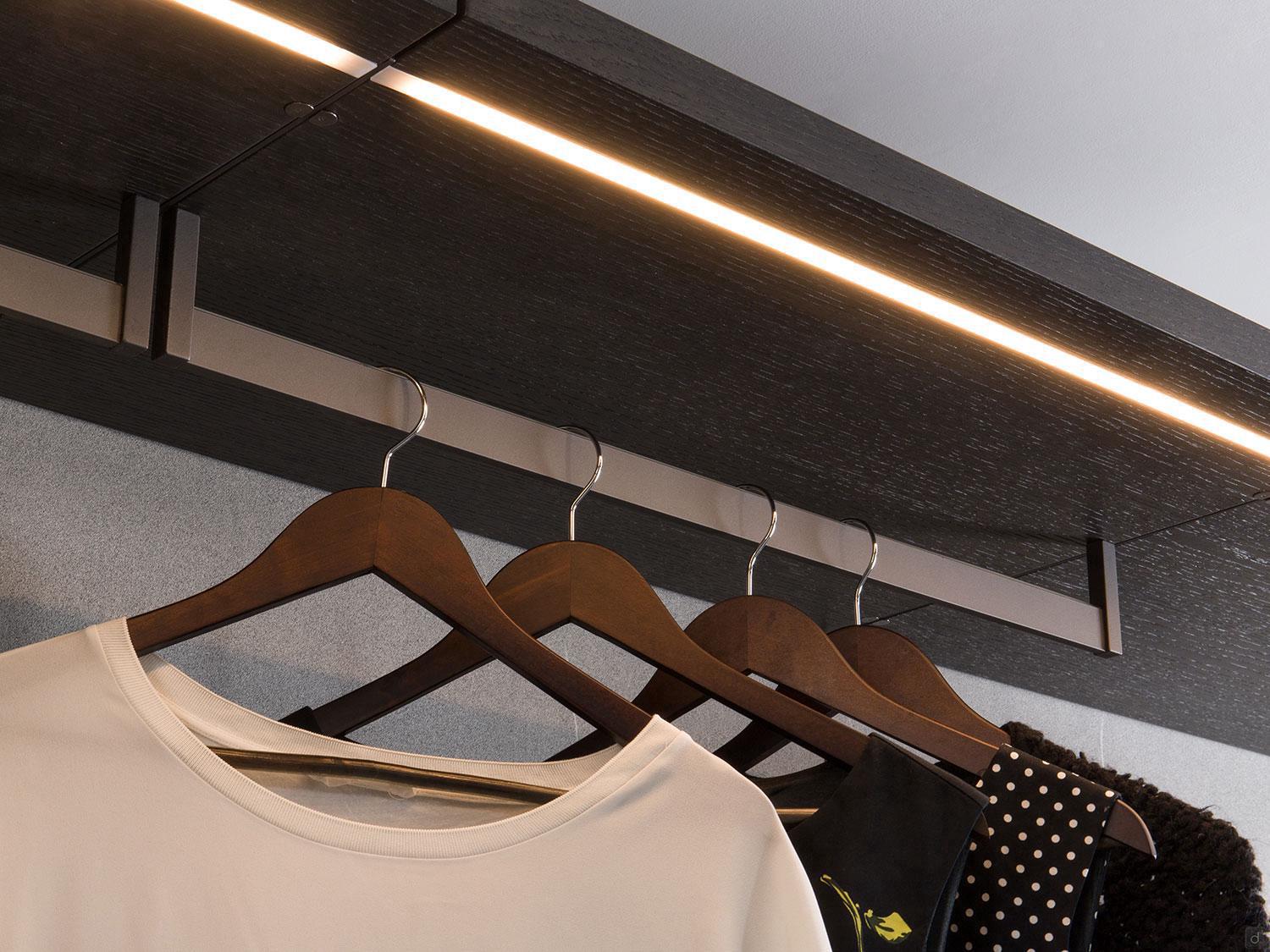

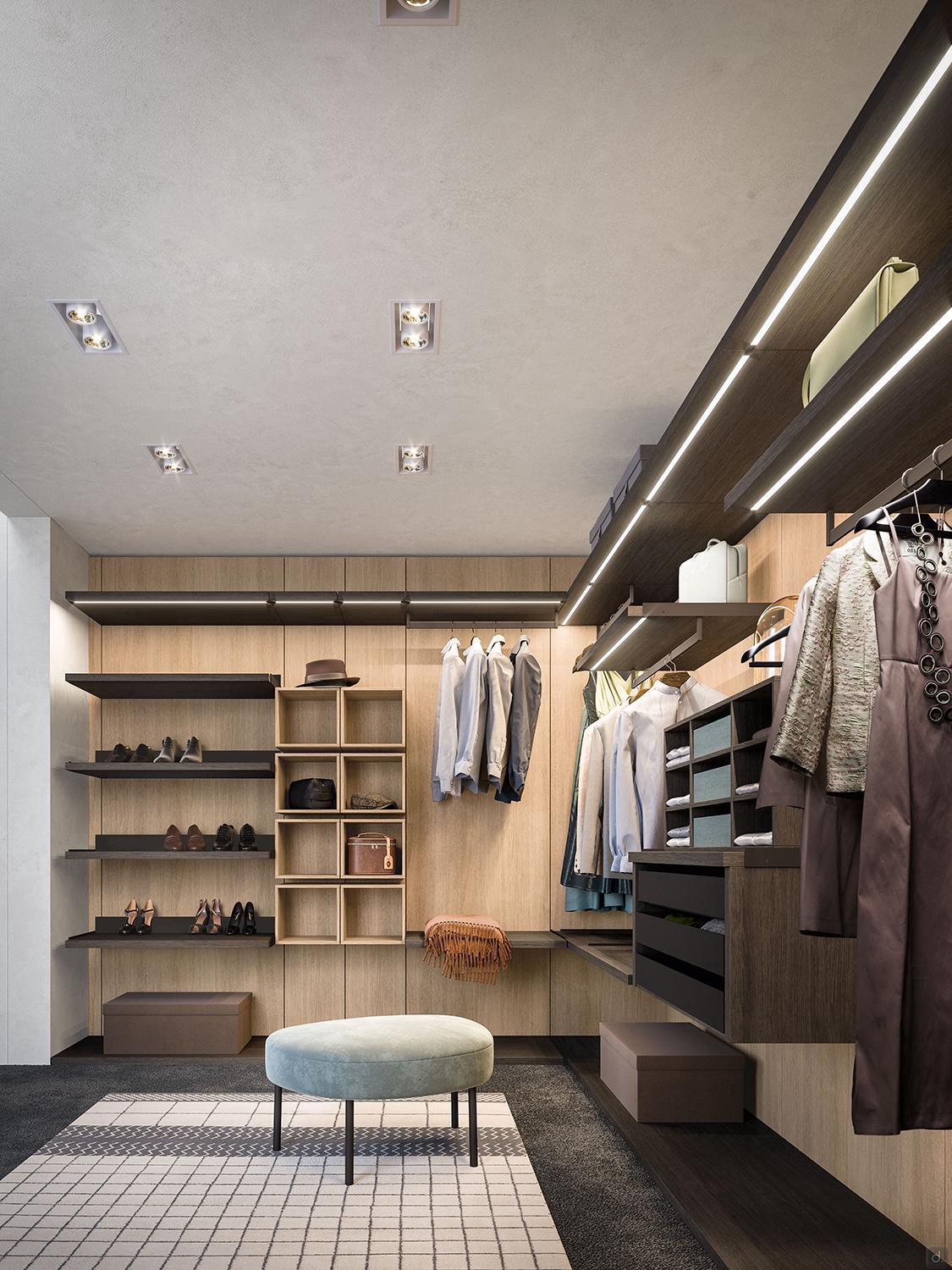

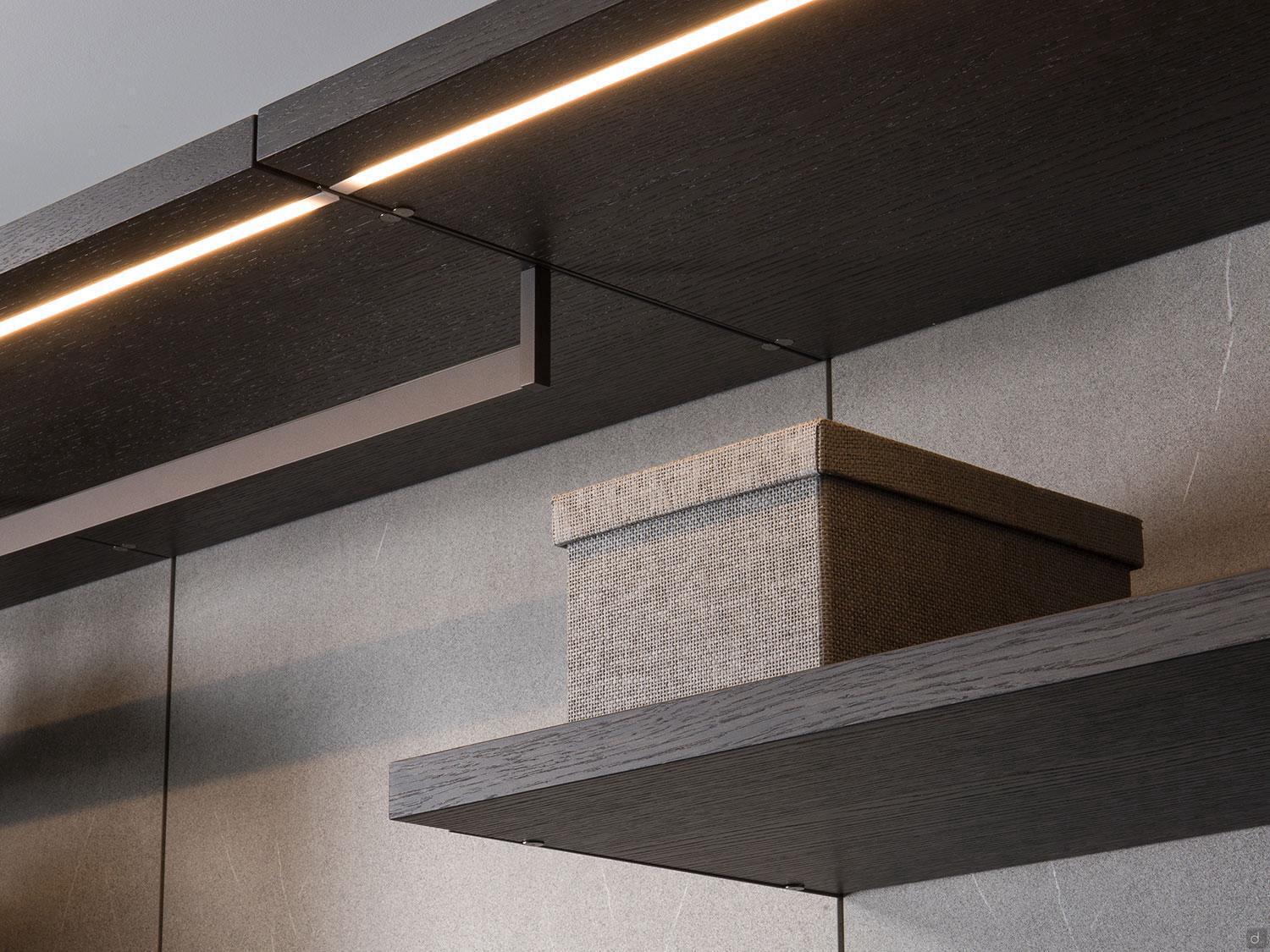

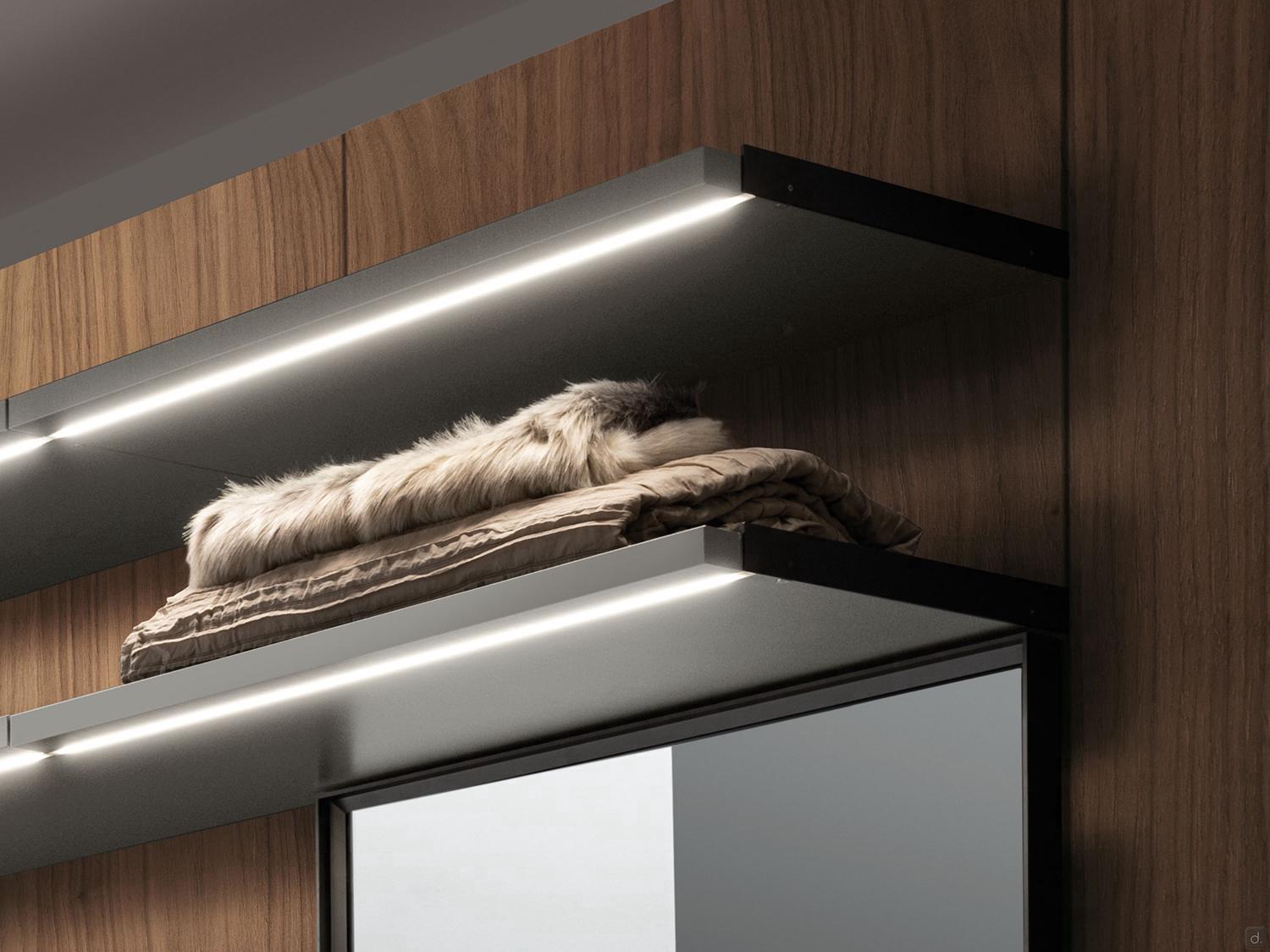

LED bar for shelf: 3000 K warm light placed under the milled linear shelf in the front. Electricity is transmitted by means of contact between the bracket, non-oxidisable for electrical conduction, with the electrified rack edge (by means of an internal gasket). The electrified rack is equipped with a power cable that must be connected to the transformer, which is positioned in the space between the panel and the wall. To electrify the compartment, both rack edges must be electrified. The lights are switched on by remote control.

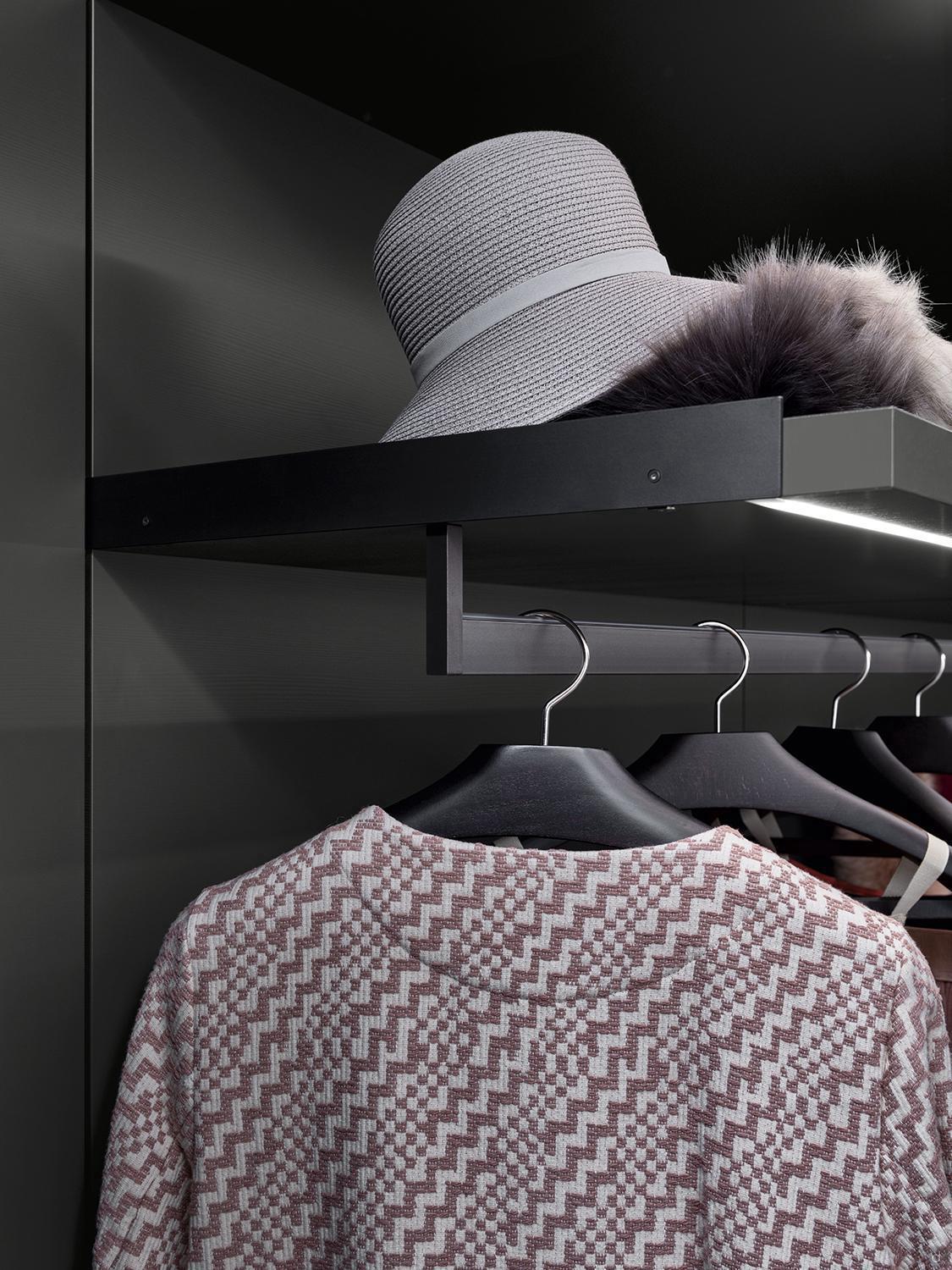

Clothes rail: made in moka shine painted extruded aluminium. Complete with a seal at the top to be fixed to the shelf. Maximum load capacity is evenly distributed at 15 Kg per linear meter.

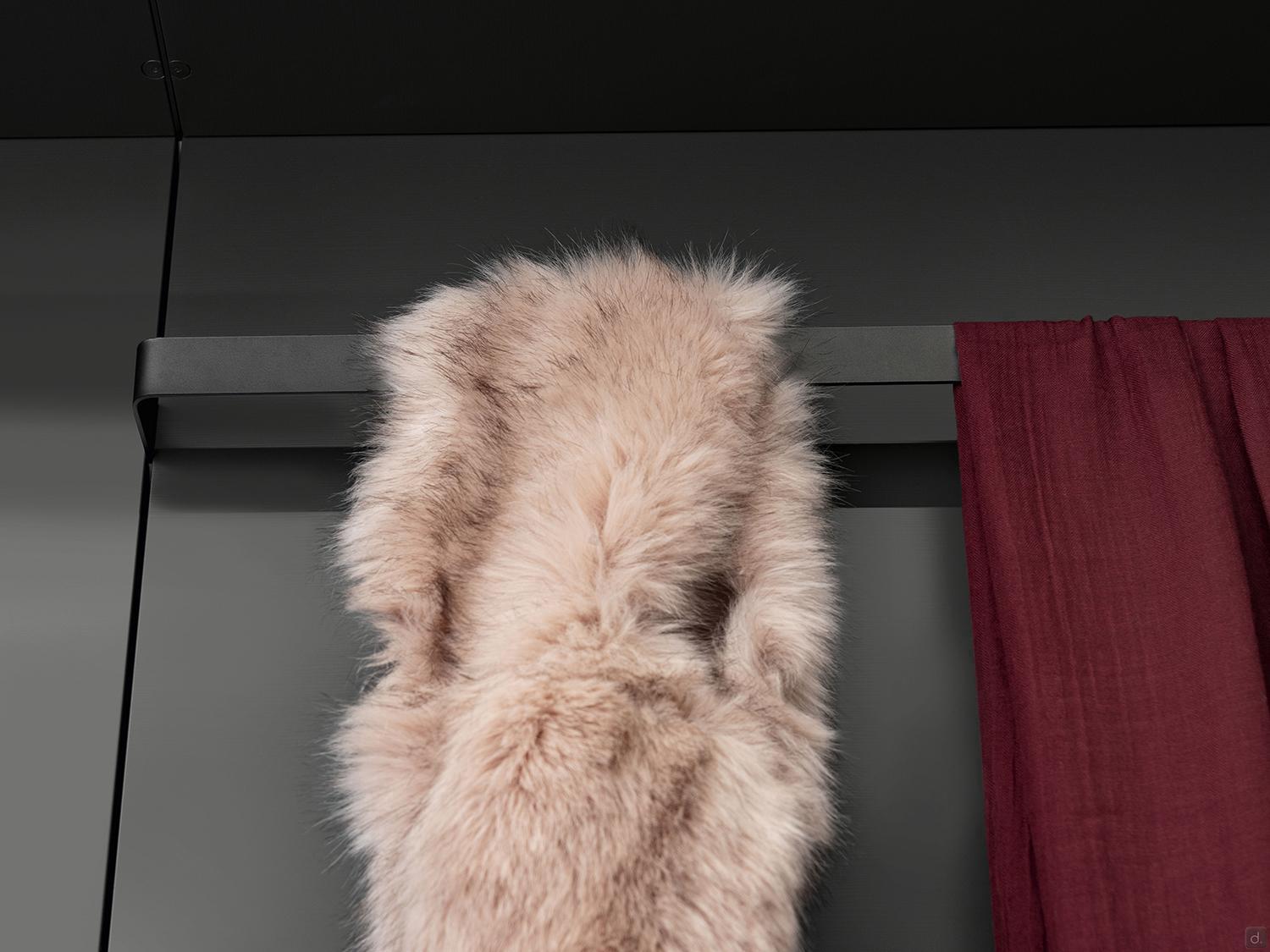

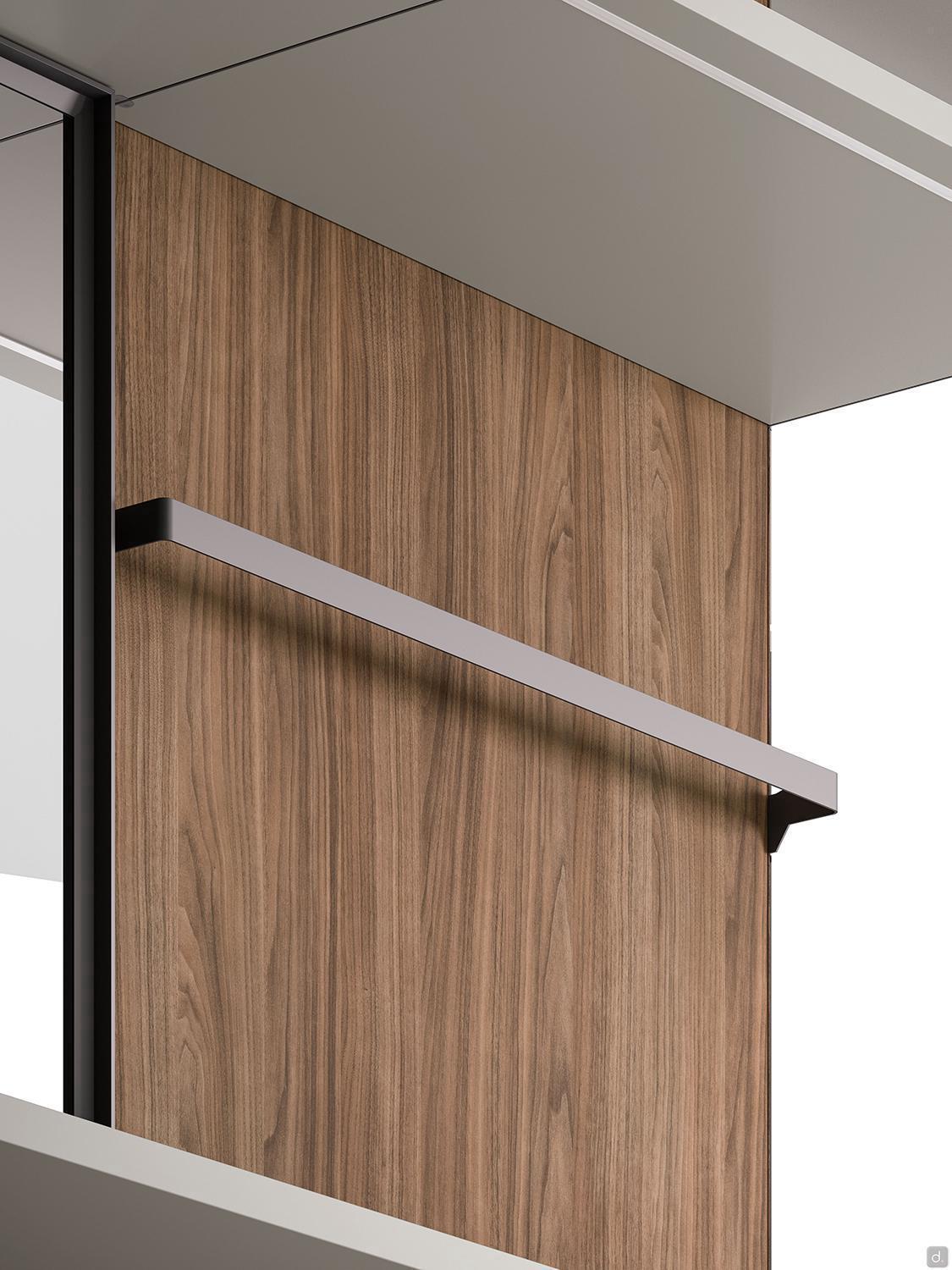

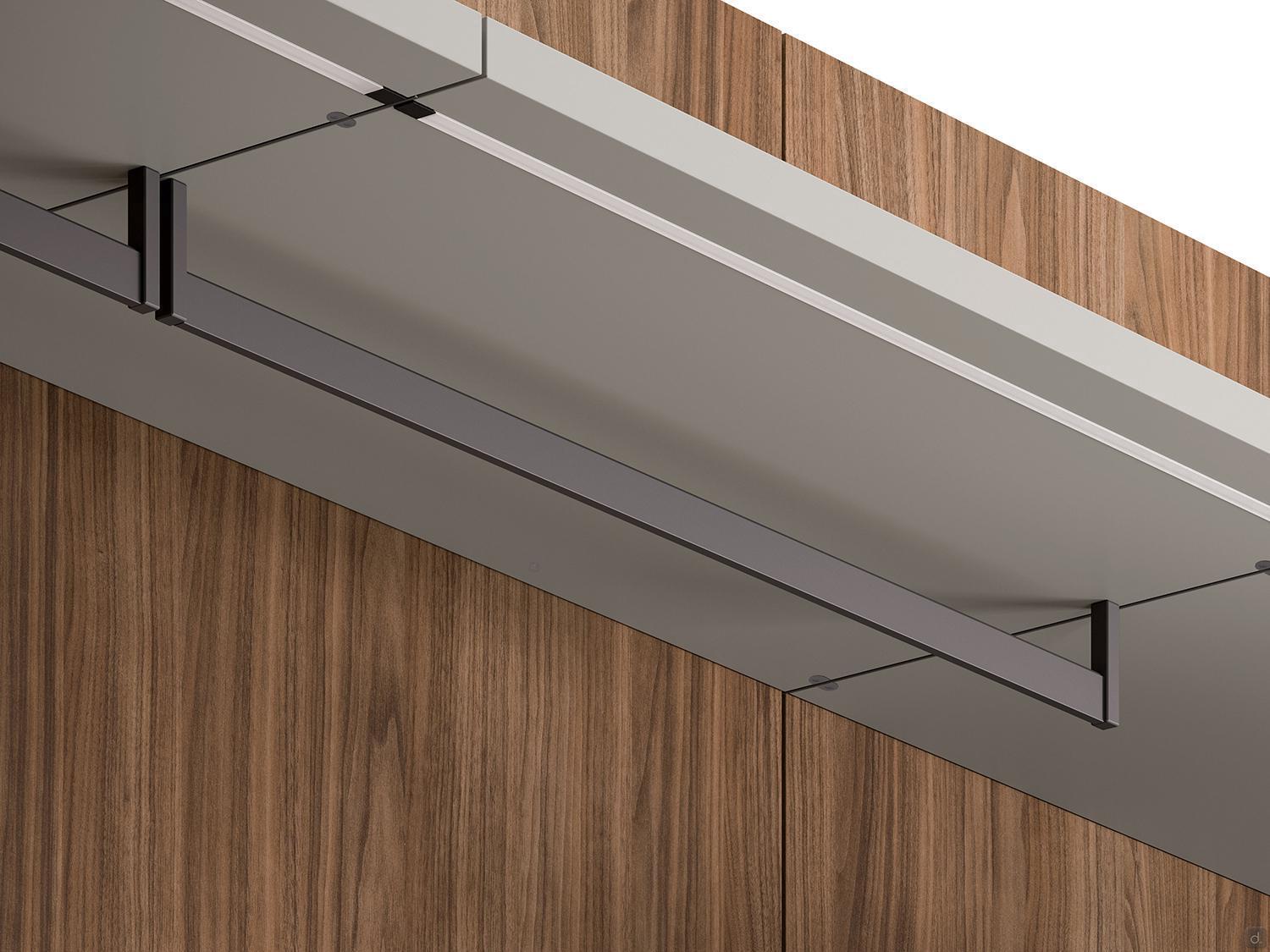

Scarf rail: moka shine painted extruded aluminium. Only available for cm 95,2. Maximum load capacity is evenly distributed at 10 Kg per linear meter.

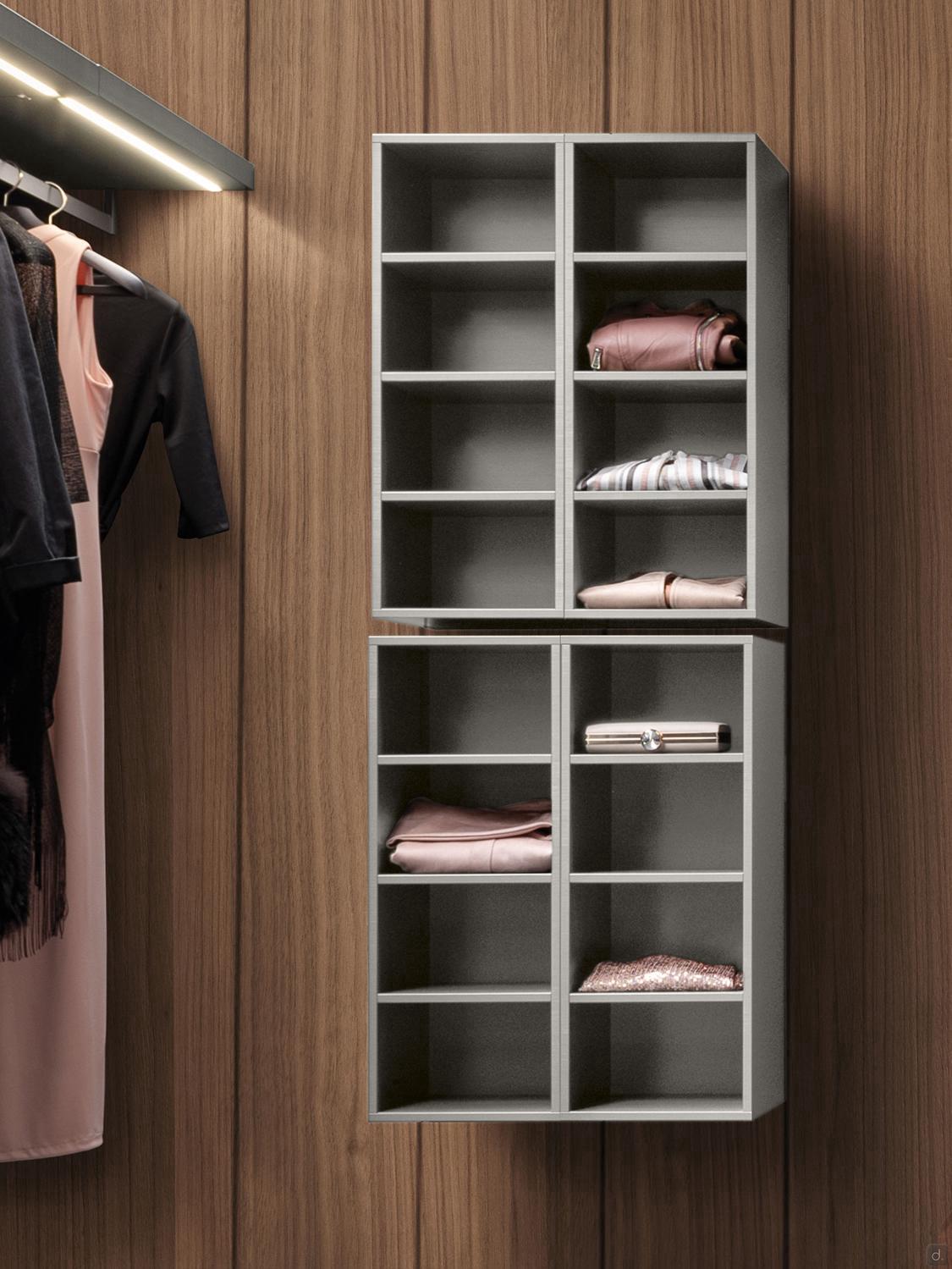

Open wall unit (cm d.40): cm 31,4 with a 1,4 cm-thick structure and a wooden, lacquered ABS or ABS edge. Complete with metal brackets, can be positioned at a minimum height of 2 cm from the ground. Maximum load-bearing capacity is evenly distributed at 30 Kg per linear metre.

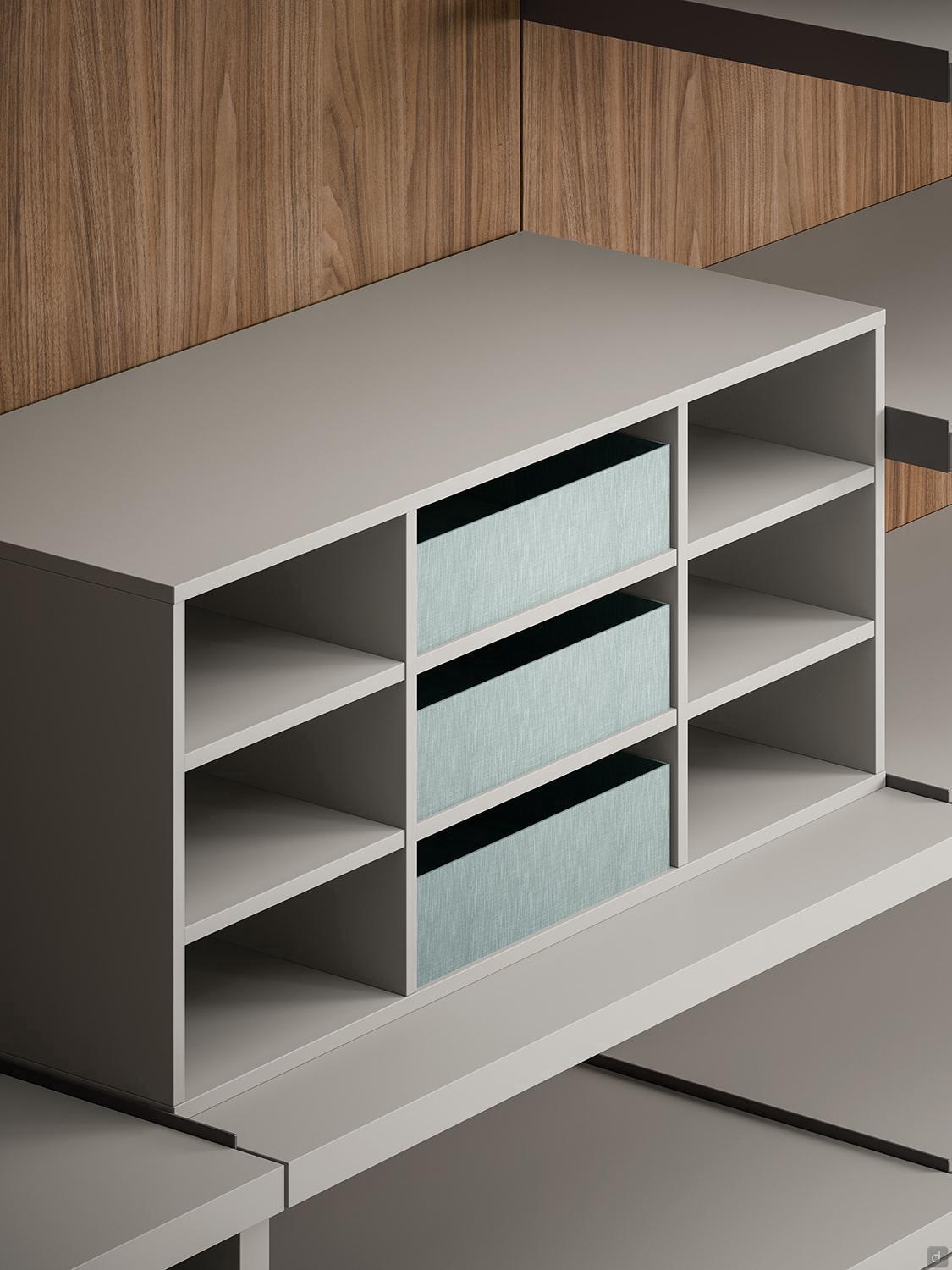

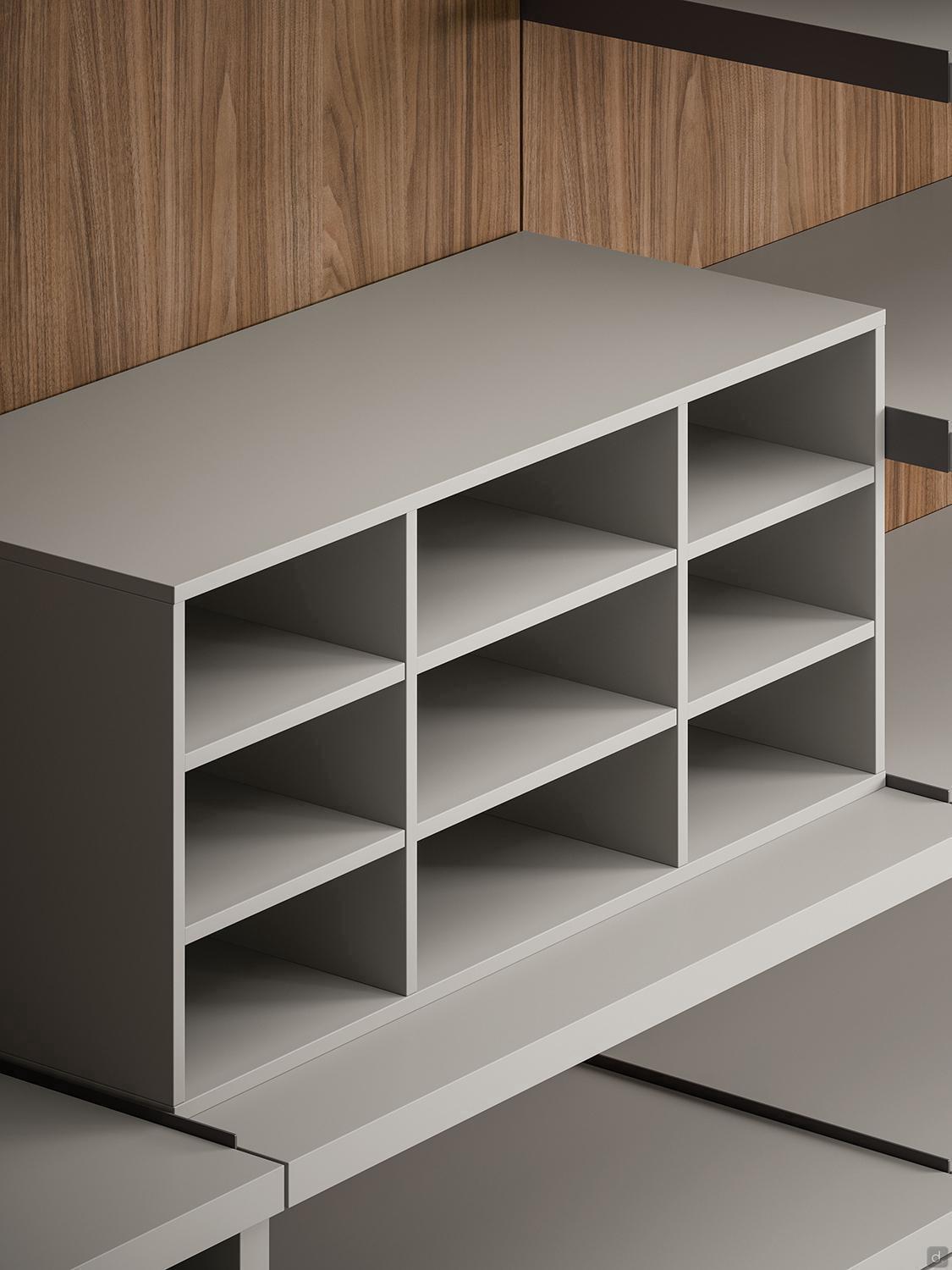

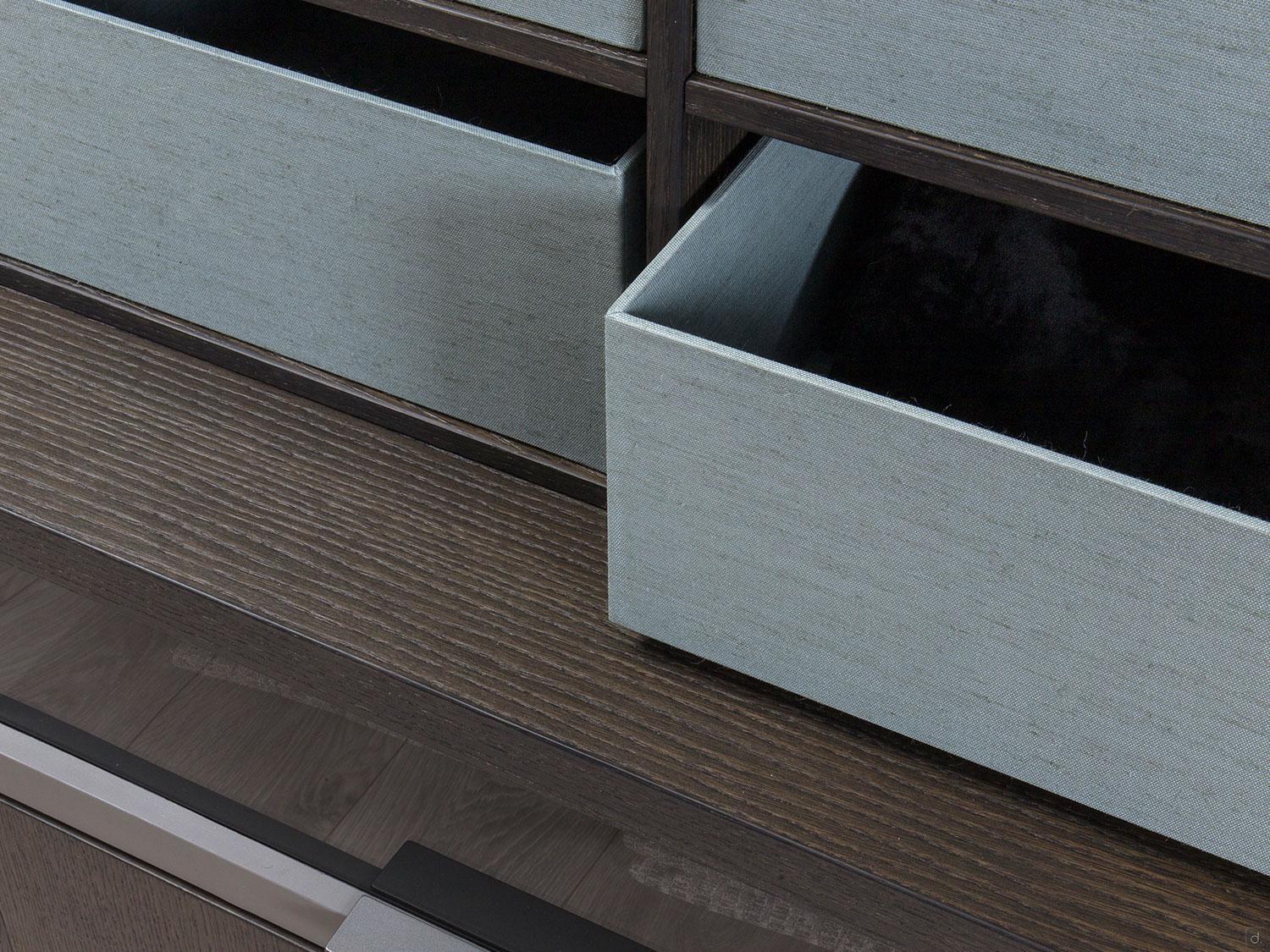

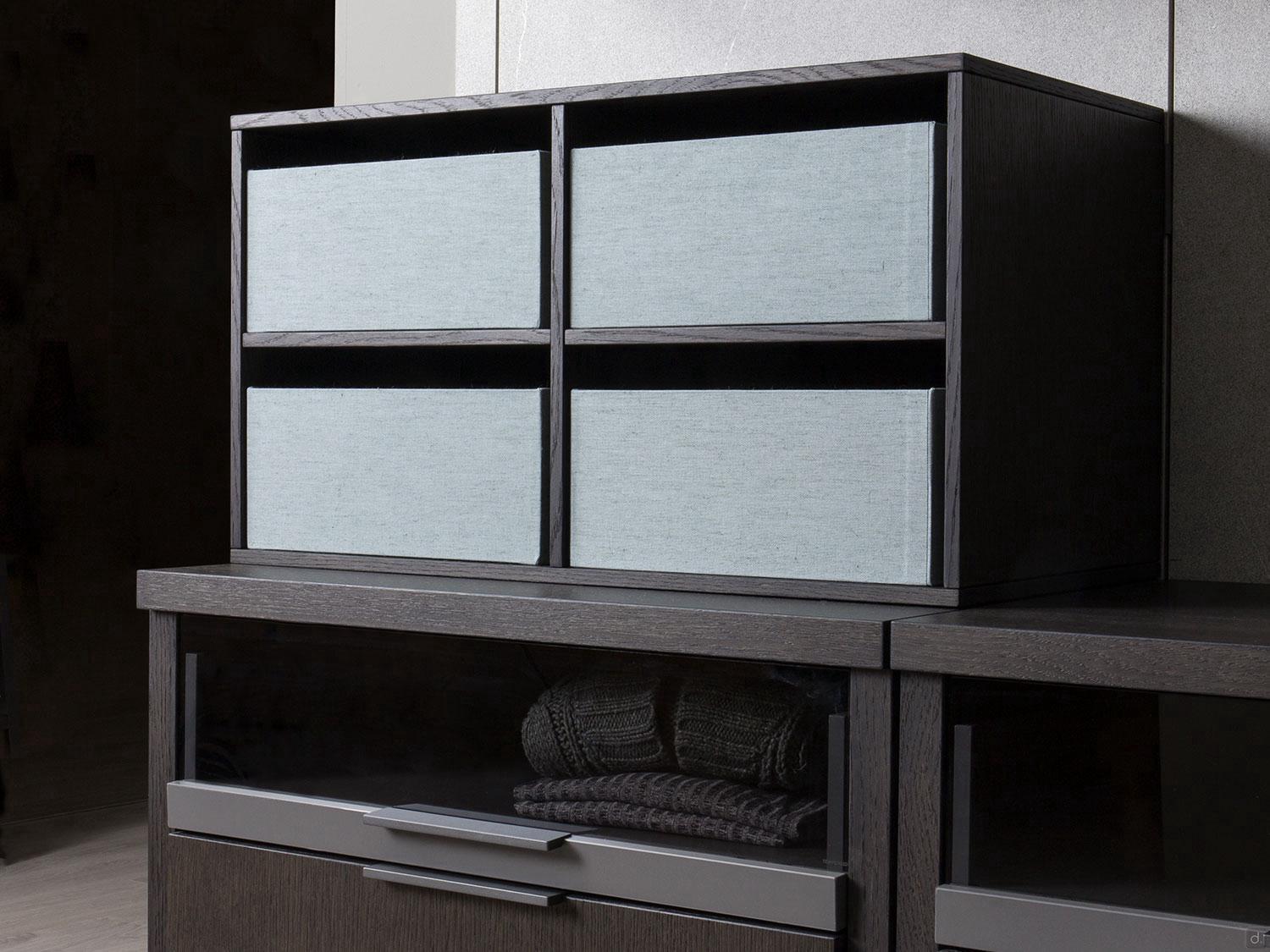

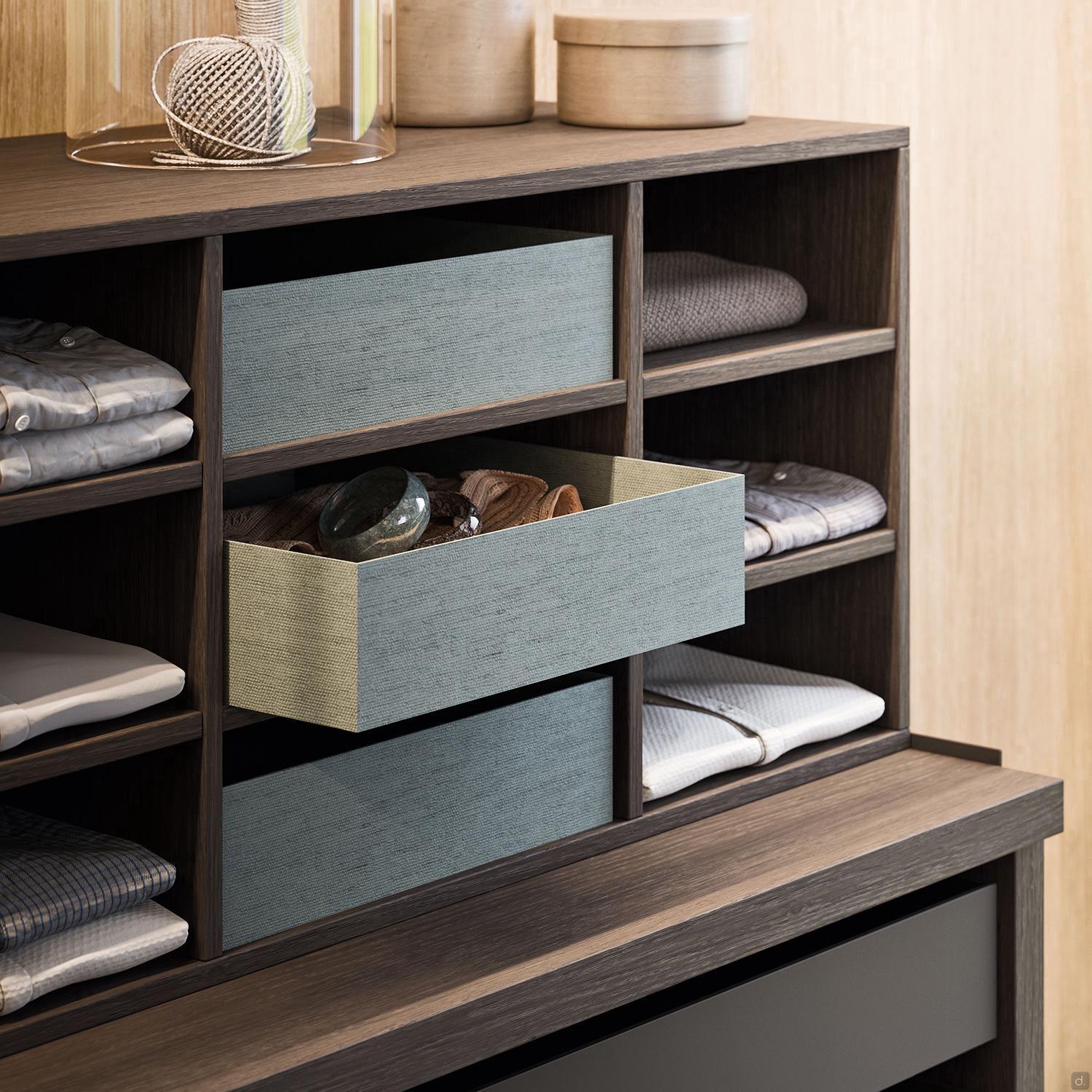

Shirt cubby unit (cm d.40): cm 75,2 / 95,2 with 1,4 cm-thick structure and wooden, lacquered ABS or ABS edge. Complete with metal brackets, can be positioned at a minimum height of 2 cm from the ground. Open compartments can be equipped with fabric-covered storage boxes cm h.8,8 / 15 (for the cm 95,2 shirt cubby unit they are in the central compartments). Maximum load-bearing capacity is evenly distributed at 30 Kg per linear metre.
Floor platform (cm d.40,7): custom width, in melamine, matt lacquer, open-pore matt-lacquer oak wood veneer, and fashion wood. 3,5 cm thick with with levelling feet (cm h.1,7). Visible edge in wood, lacquered ABS or ABS.
Brackets: in moka shine painted metal (0,3 cm thick) for mounting onto rack.
Optional - Customised reductions
bespoke width:
- open wall unit (min cm 14,8);
- linear shelf, LED bar and clothes rail (min cm 16);
- shirt cubby unit cm 75,2 (min cm 28,2): reduction on both compartments in equal measure;
- shirt cubby unit cm 95,2 (min cm 64,5): reduction only on the the external compartments, in equal measure.
