Iguana
Quilted Bed

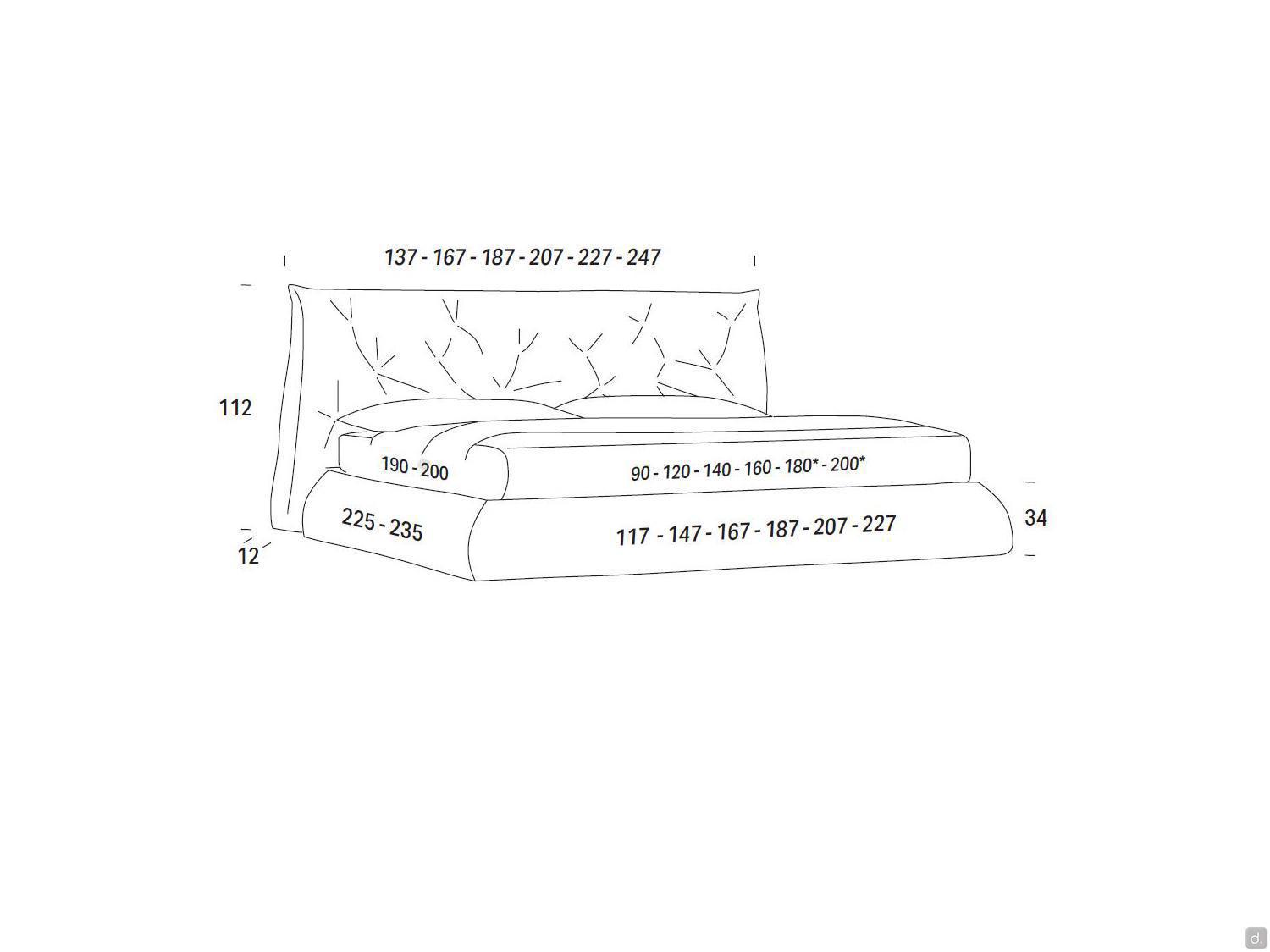

Model and Specific Measurements
Bed frame:
- single: cm 117 h.34
- large single: cm 147 h.34
- French double: cm 167 h.34
- standard double: cm 187 h.34
- king size: cm 207 h.34

Technical Specifications and Equipment
Bed base: 68mm thick slats made of steamed beech plywood bent by warm with low formaldehyde emission. The slats are connected to the metal frame with silicon rubber mounts. The steel frame is at square section mm 40 x 30. Painting with epoxied powders.
Structure: fir solid wood and/ or caged in birch plywood. 18/25 mm thick panels made of particle birch wood in E1 class of low and natural wood fibre .
Filling: crushproof polyurethane foam with different firmness, density from 18 to 40 Kg/m³. First layer made of polyester foam joined with grabbing interliner made of poyester and/or batting polyester at 100% of 200 gr.
Headboard Back: The bed is fully finished even in the back with the same cover of the bed, so that the bed can be placed in the middle of the room.
Storage box: mm 12-14 thick panels made of particle birch wood in E1 class.
Simple Lift-up base: traditional mechanism certified and tested up to 5.000 cycles, allows you to lift the bed base at 45°. Metal structure painted in epoxied powders with gas springs set on mattress weight.
Double Lift-up base: tested up to 4.000 cycles with assisted mechanism, allows you to lift the bed base at 45° and then raised it flat at a convenient height (m h.1). In this way, you can access the box easily and don't have to bend over the bed to make it or get into uncomfortable positions. Metal structure painted in epoxied powders with gas springs set on mattress weight.

Feet:
Basic standard: n.4 feet made of regenerated or recyclable polypropylene, available in wengé, black, white or silver. Height cm 3.
Lux: n.4 L-shaped feet for overall sizes of cm 18 x 18 h.3. Available in natural birch wood in wengé, black, matt white or chromed.

Optional
remove the bed base: you can purchase a bed without bed base only for the models without storage box.

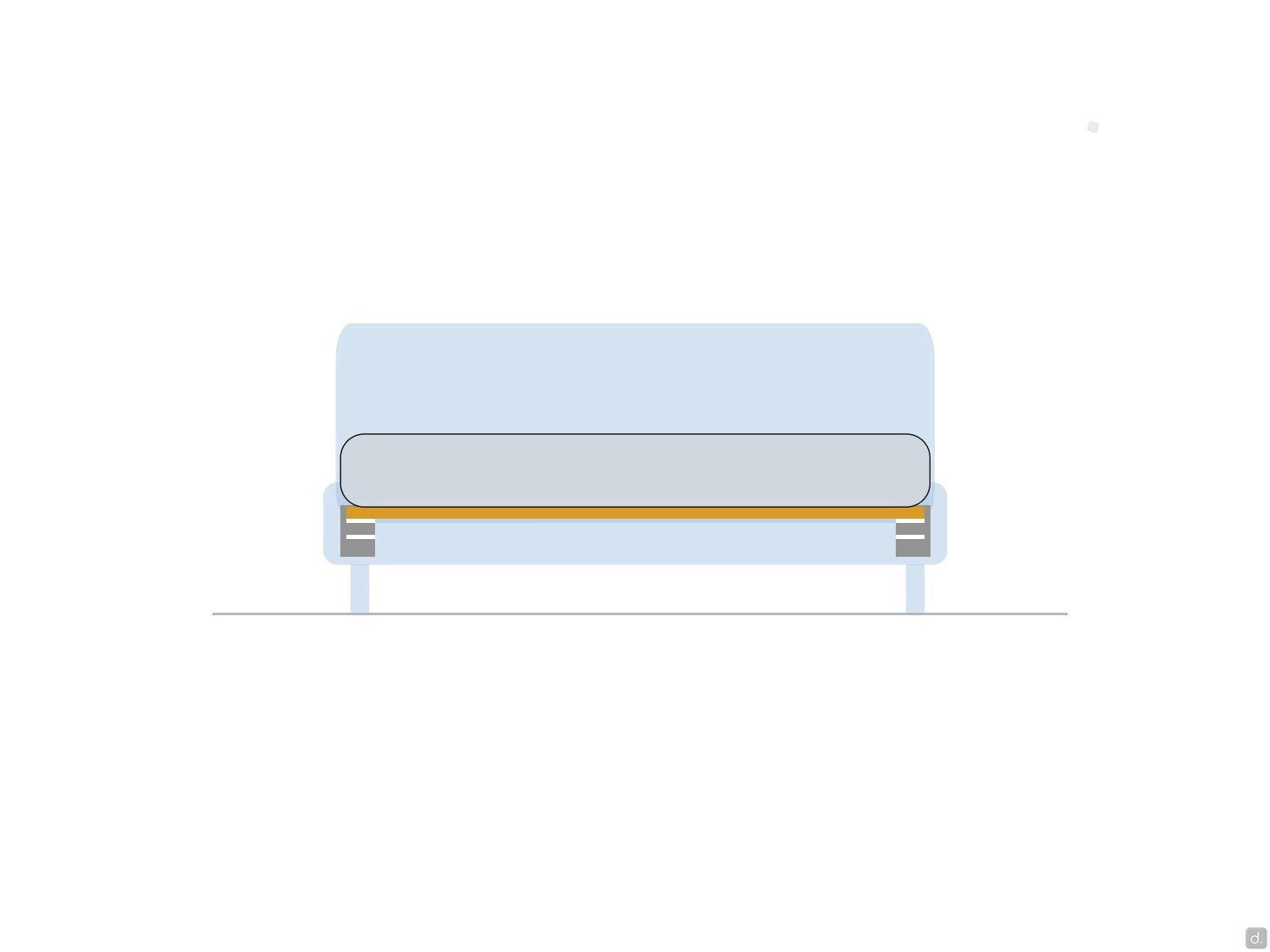

set of angular supports: available for models with mechanical bed base or without bed base. The supports allows you to adjust the height of the bed base and have a mattress that is more or less deep than the bed frame. The three heights for the position are: cm 5, cm 6 and cm 12.
accessory bag: elegant, convenient and useful solution that is applied with Velcro at the bed frame. The different compartments are divided in order to store up magazines, books, tablets, mobiles, headphone or glass cases.

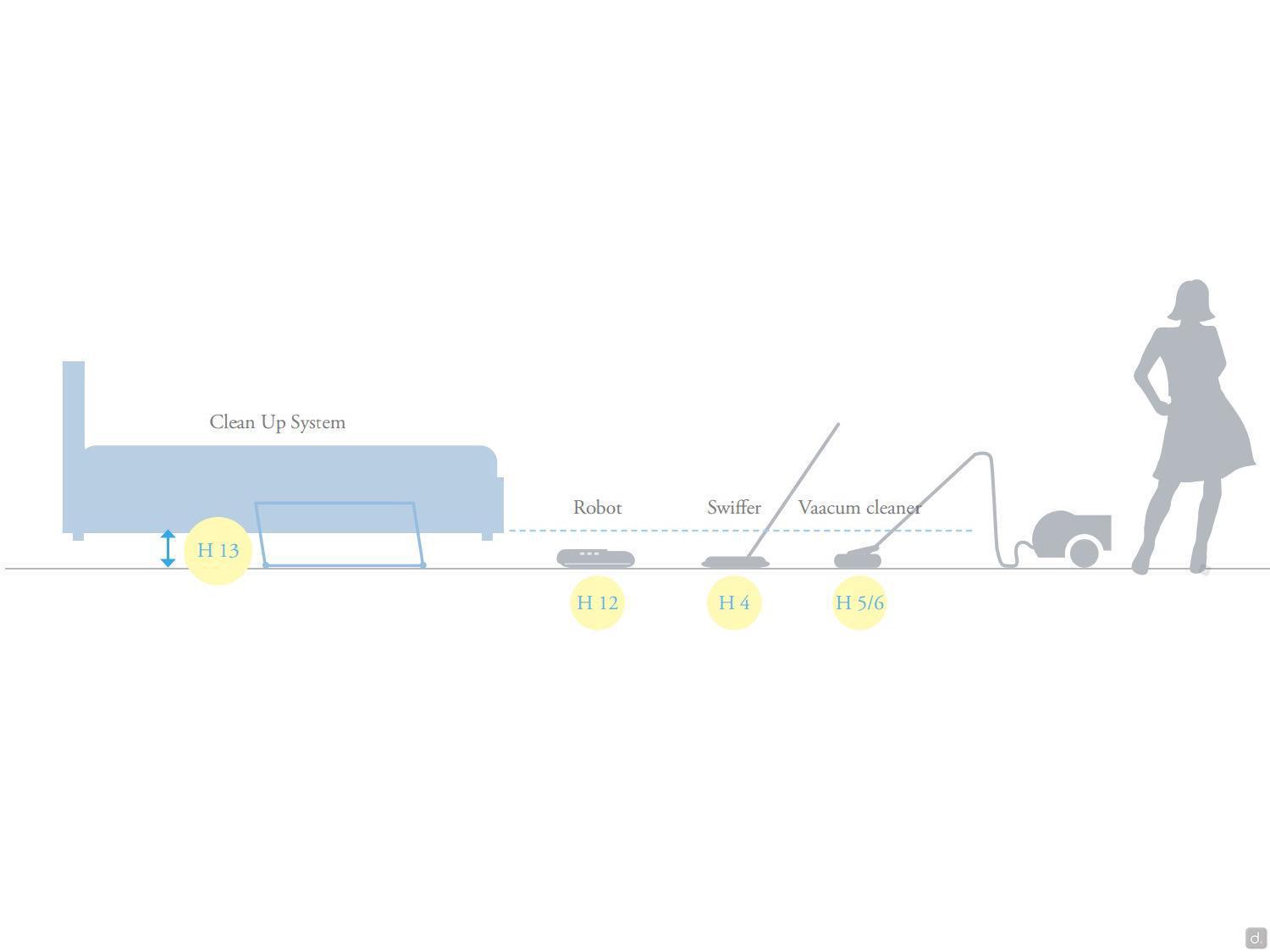

Clean Up System: it is a mechanism that allows you to lift the storage bed models and move the whole structure,without effort, by operating two hidden levers assembled on the sides of the bed frame. In this way, 4 no-marks rubber casters lower down and the whole bed is raised of cm h. 13 and can be move back and forth effortlessly. When the levers are lowered down, the casters disappear and the bed rests again on its feet. Easy, handy and safe.

Assembling Tips
Easy to be assembled, provided with instructions and maintenance .
The bed is delivered with the mechanisms already fastened onto the side rails of the bed for the storage beds and the covered headboard. Provided with Catas certification, the Italian institute for certification, research and tests in the wood furniture and industrial field.
