Technical Specifications and Equipment
Structure: made of TAMMEL (honeycomb + melamine). The honeycob has a carefully selected solid fir frame and is plated with Royal, Alpha or Grafis MDF panels. It ensures non-deformability over time, lightness, practicality, and meets all the requirements of the European class 1 standards regarding the limitation of harmful emissions of formaldehyde, and complies with CARB2 standards.
Sides: With a depth of 38 cm, the sides are made of wood particle panels (class E1 with low formaldehyde emission). with a depth of 59,2, the sides are made of honeycomb with a solid fir frame. The panels of both depths are 2,5 cm thick and comply with CARB2 standards.
Back Panels: made from wood particle panels (class E1 with low formaldehyde emission, 0,8 cm thick.
Base and Lid: made from honeycomb wood, cm th.3,2 and cm th.2,5 respectively.
Shelf: supplied, made from honeycomb wood cm th.3,2.

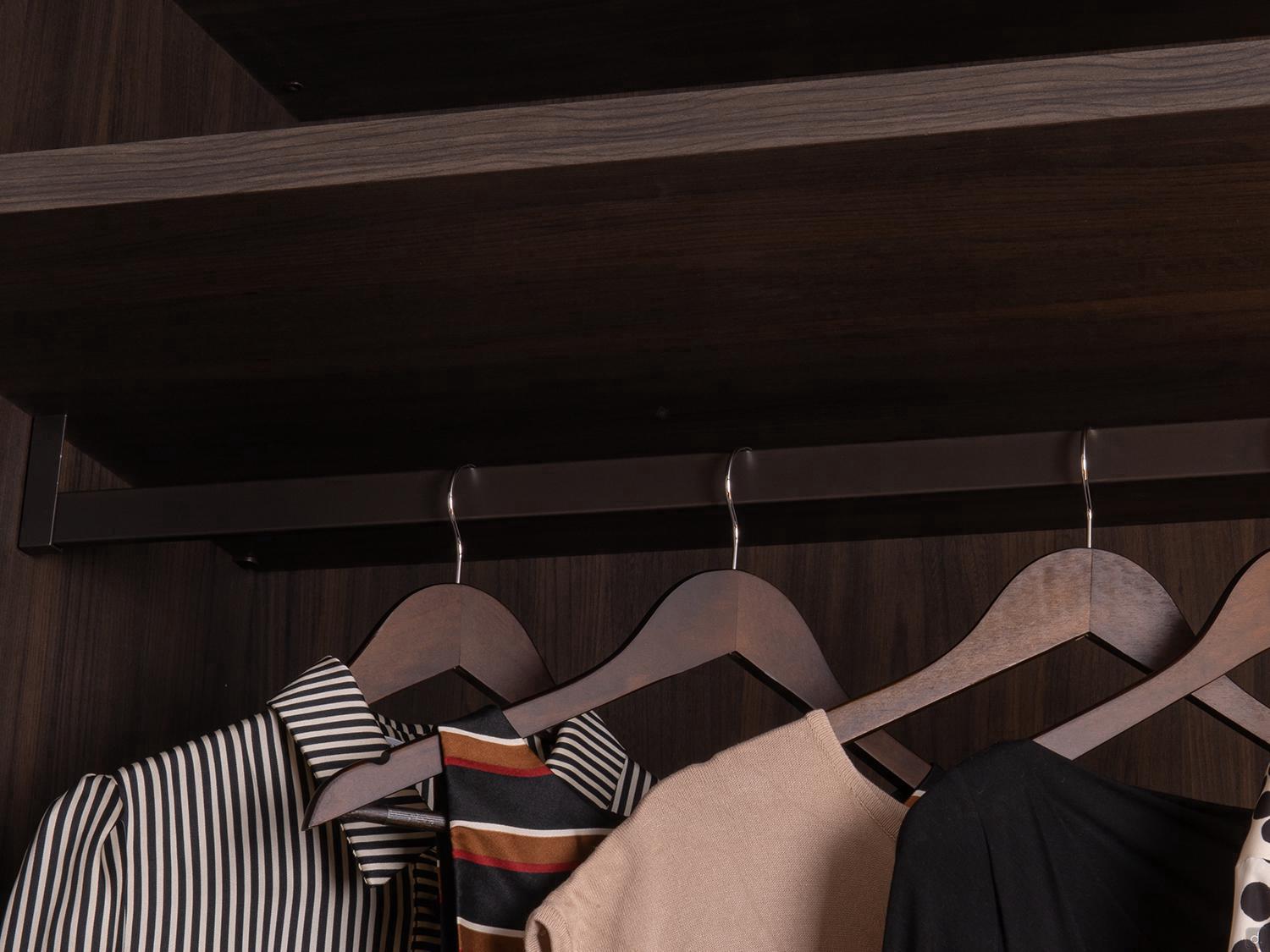

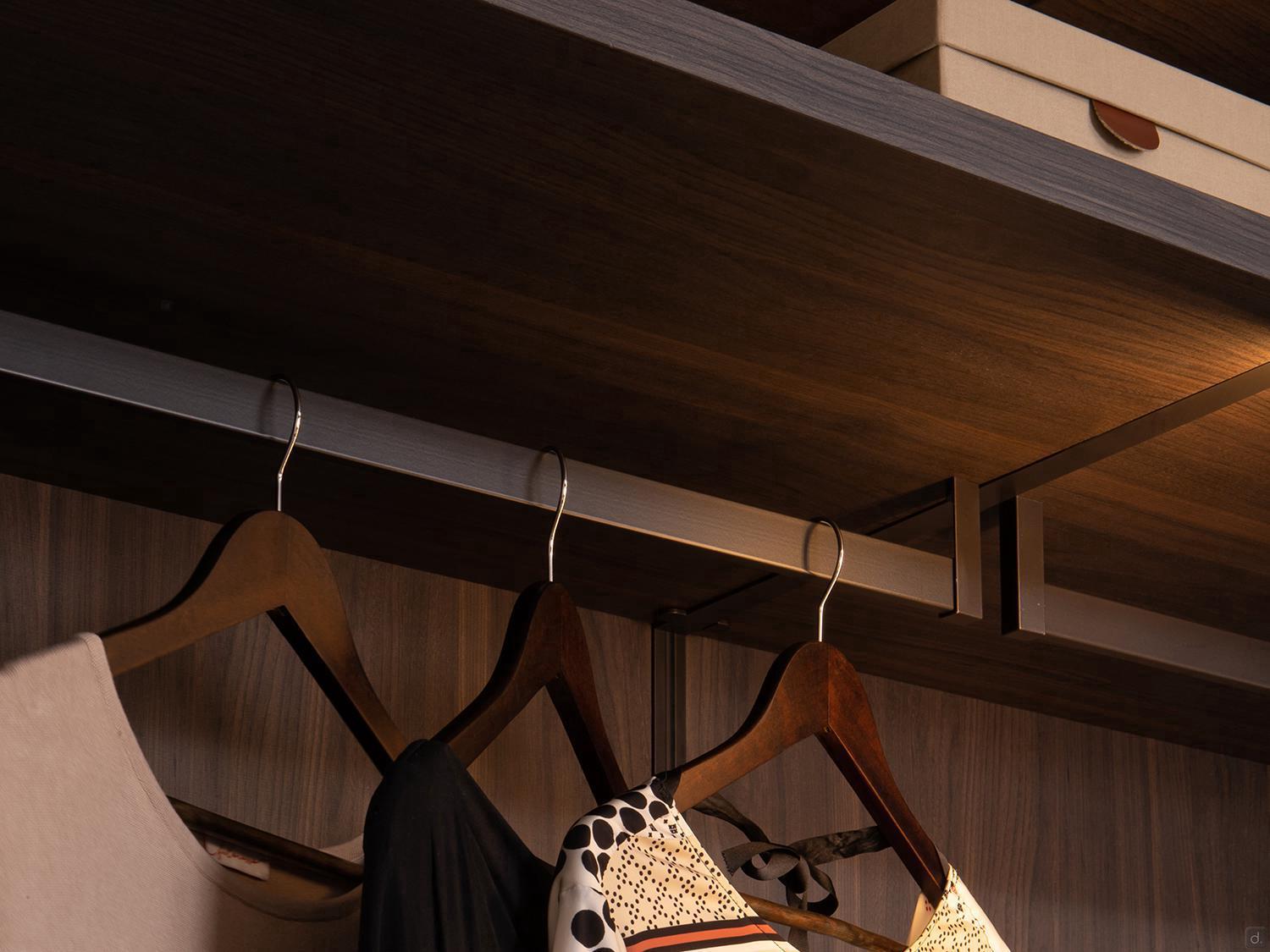

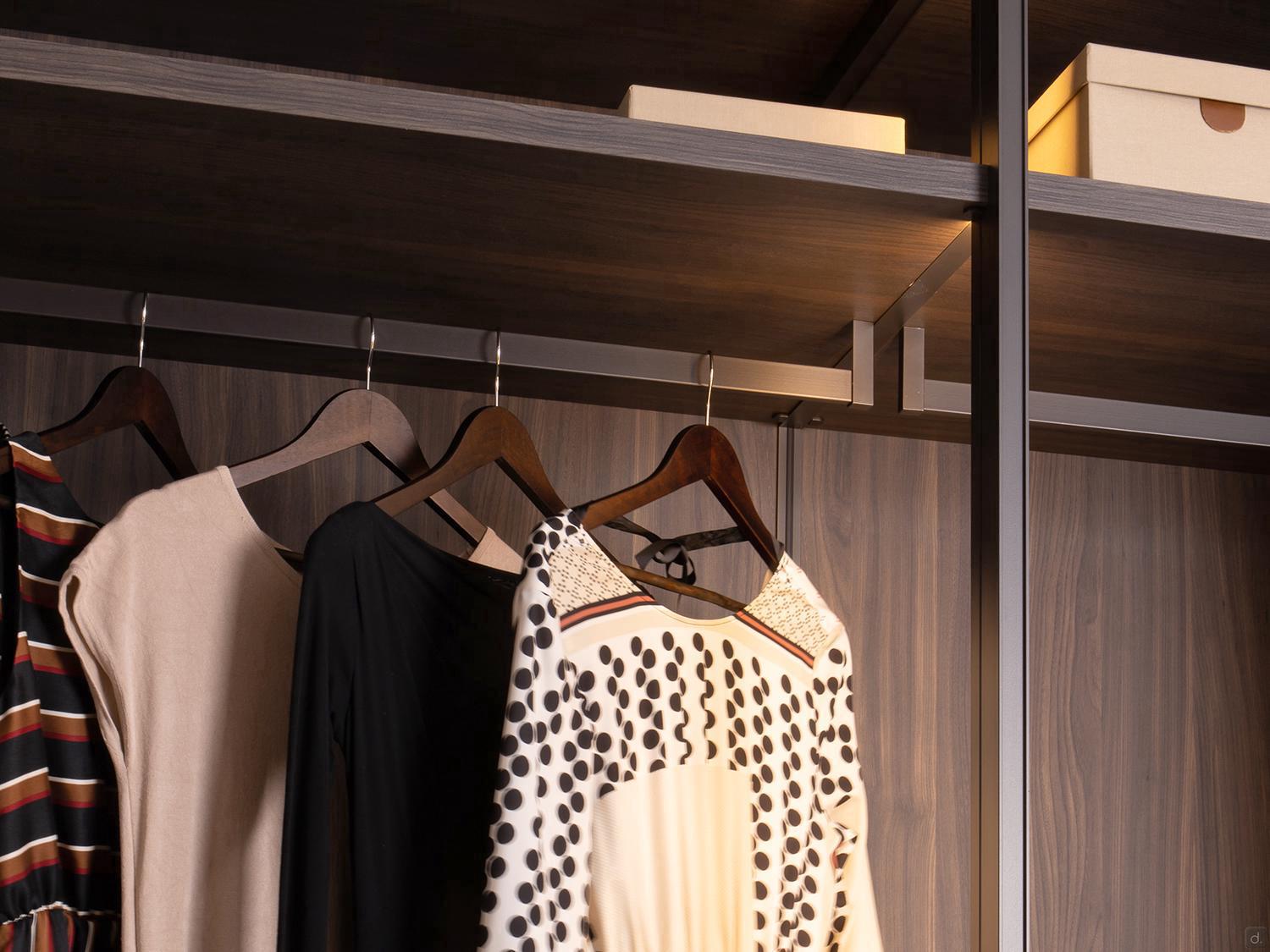

Clothes Hanger Tube: suppllied with modules with a depth of 59,2 cm. With rectangular section 3x1 cm in brown or metallic lacquered finish.
Door Height from the ground: cm h.1,1.

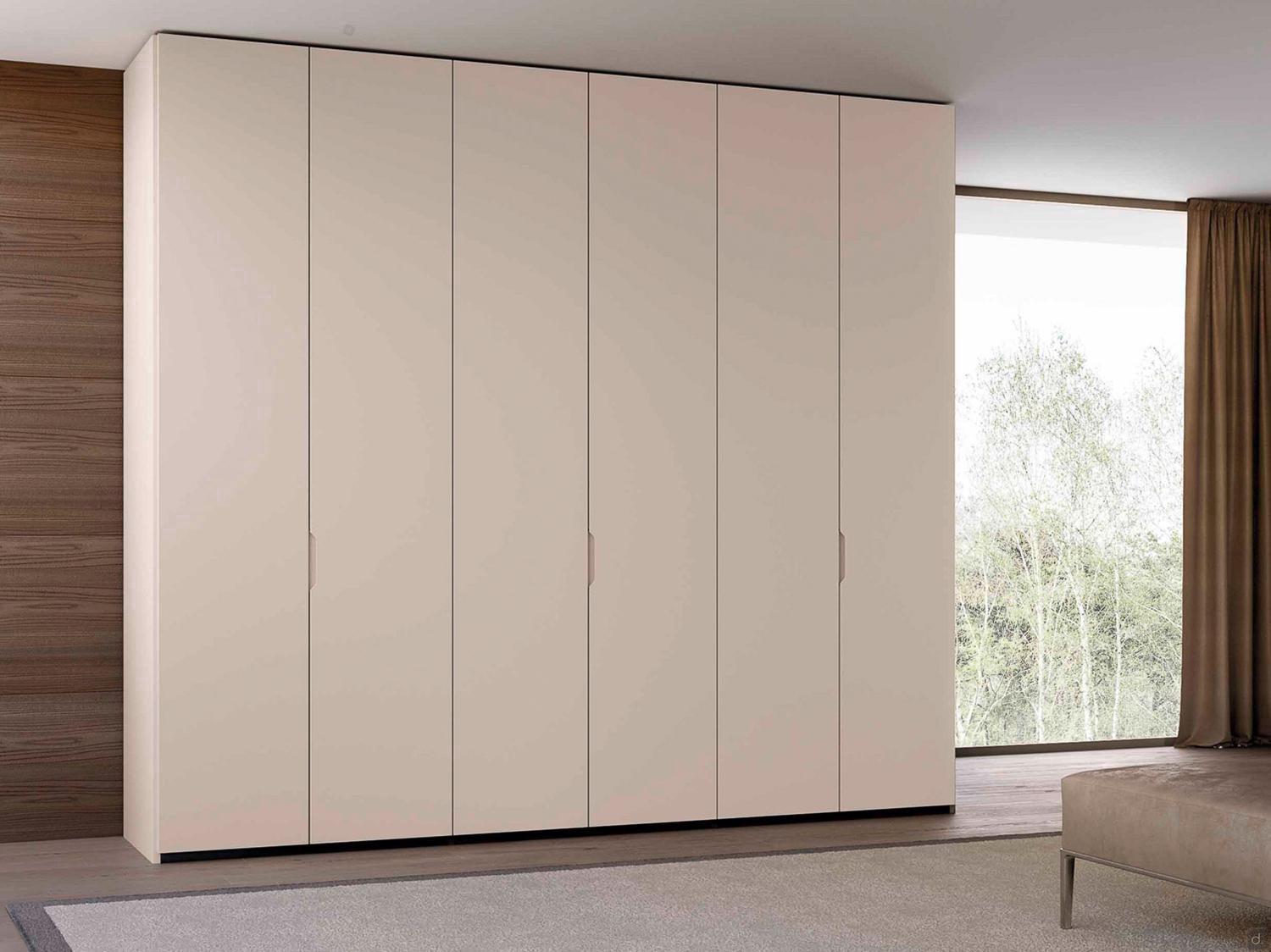

Hinged Doors: made from honeycomb wood cm th.2,4 with a solid fir frame, lacquered or wooden. In modules with two hinged doors, a single handle is normally installed on the right door. The left door is equipped with a PVC dust cover.
Folding Doors: 2,4 cm thick honeycomb wood with a solid fir frame, lacquered or wooden. On the folding door modules, the handles are double or placed on the doors hinged at the sides for ergonomic reasons. The silding track is burnished metal.
Door Decoration: the fronts can be smooth or customized:

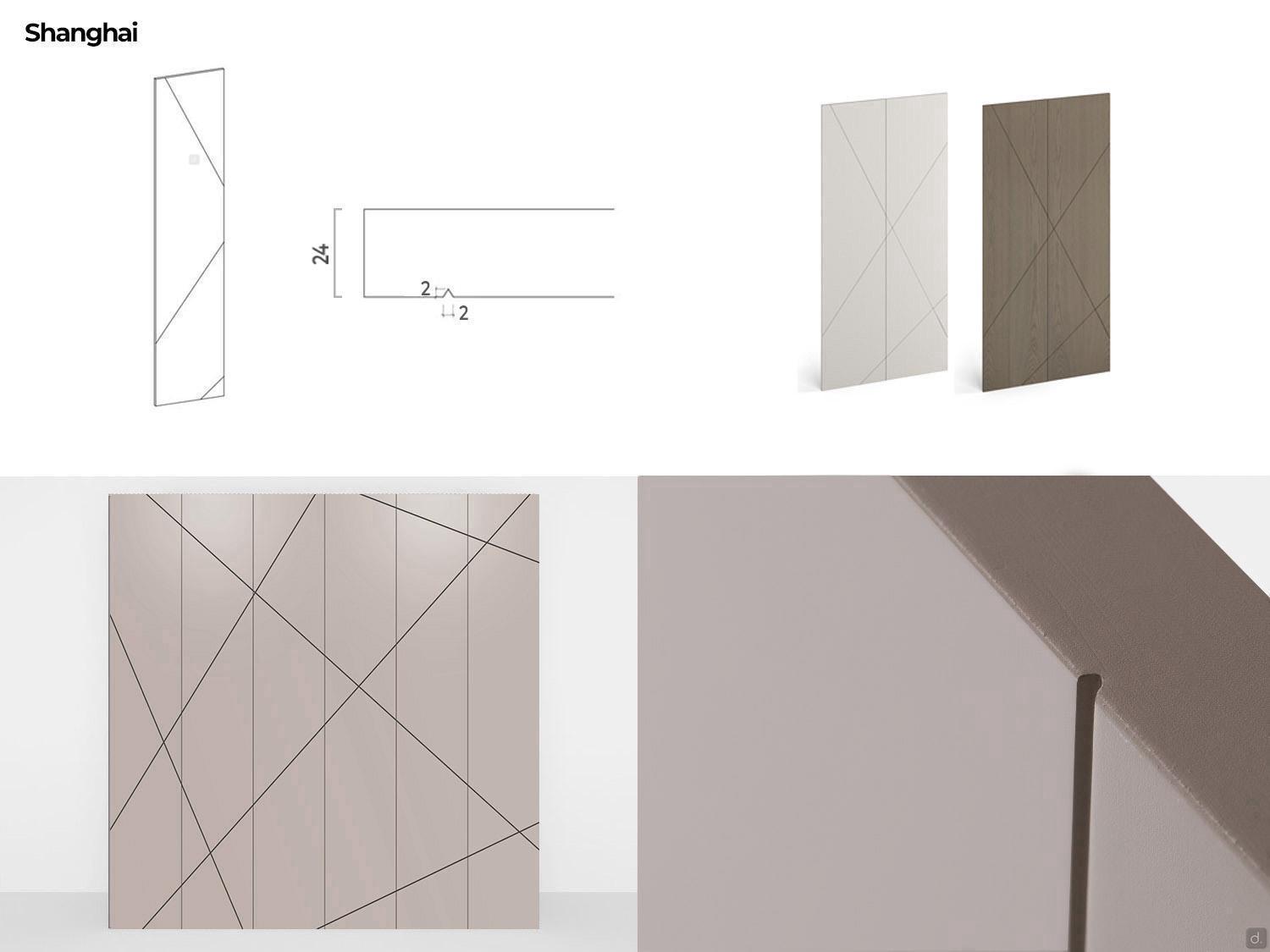

- Shanghai (only for matte lacquer finish): diagonal "V" incisions cm 0,2 th.0,2.

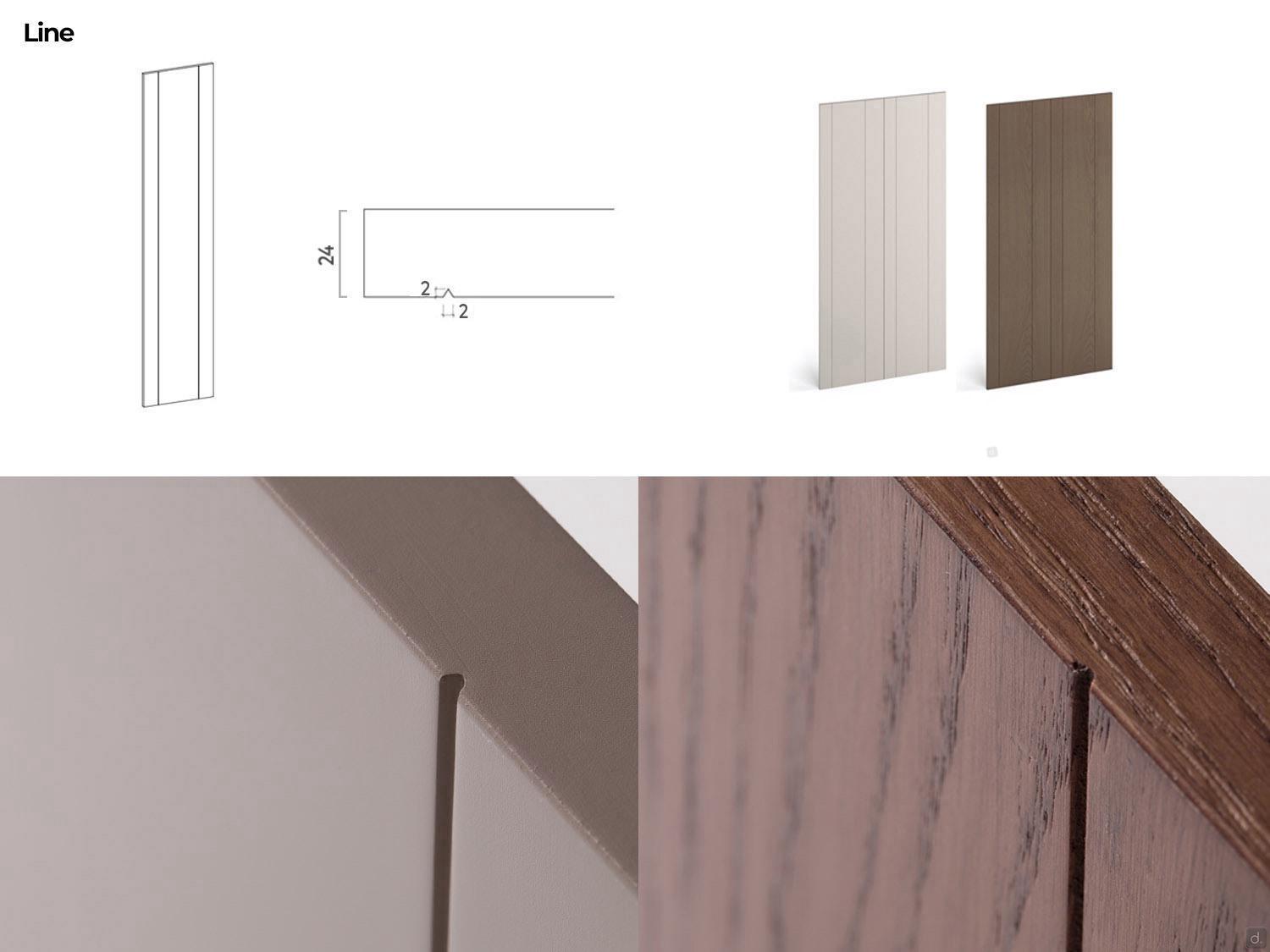

- Line (only for matte lacquer finish): vertical "V" incisions cm 0,2 th.0,2.
- with metal insert: cm 1 th.0,2 in the "version 1" with n.2 horizontal + n.1 vertical or in the "version 2" with n.1 horizontal + n.1 vertical. Also available in the 2:2 version with a matte or metallic lacquered metal insert, mm 2 th.4, protruding 2 mm from the door. Only possible on request. For further information contact our Customer Service.

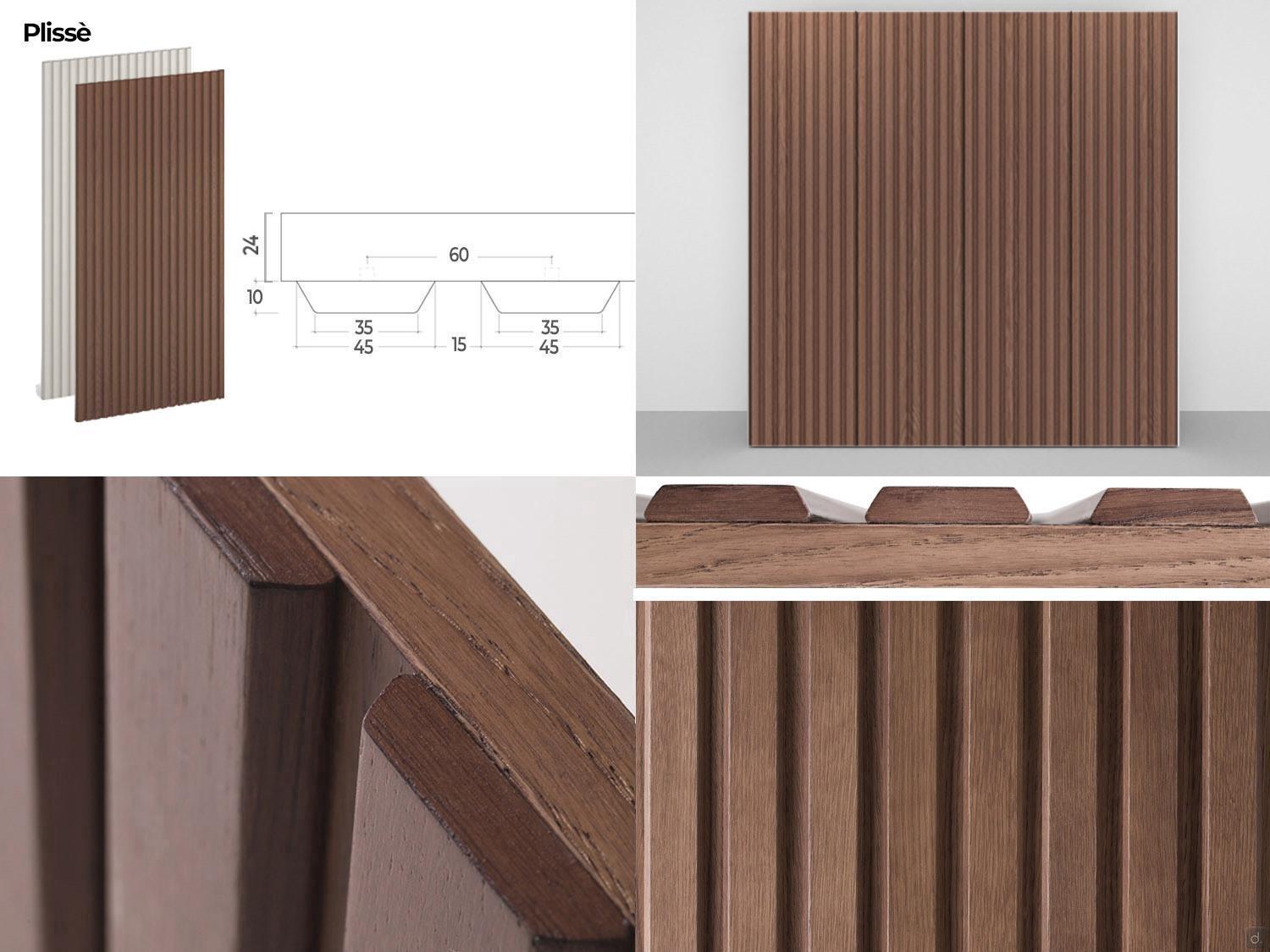

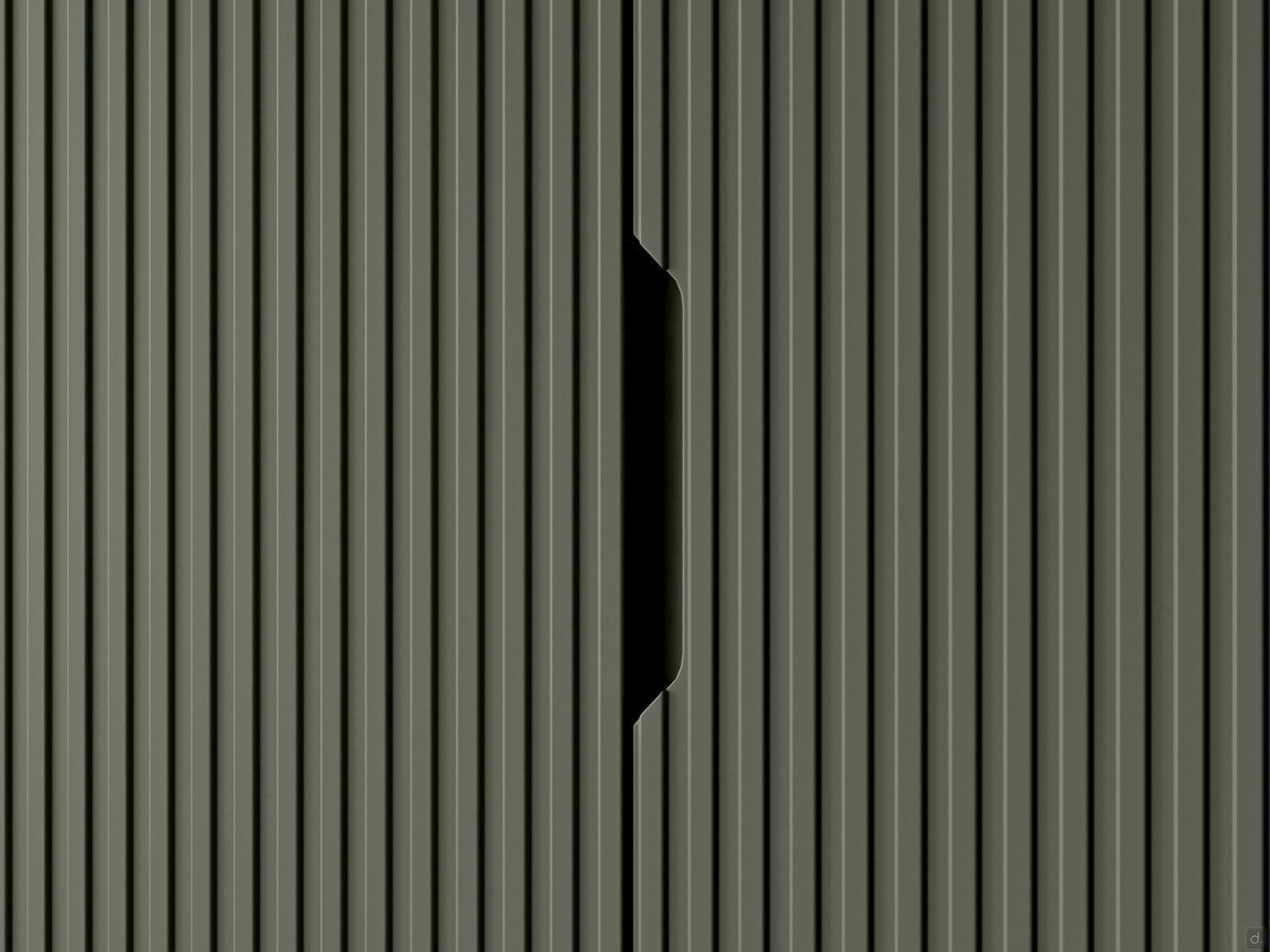

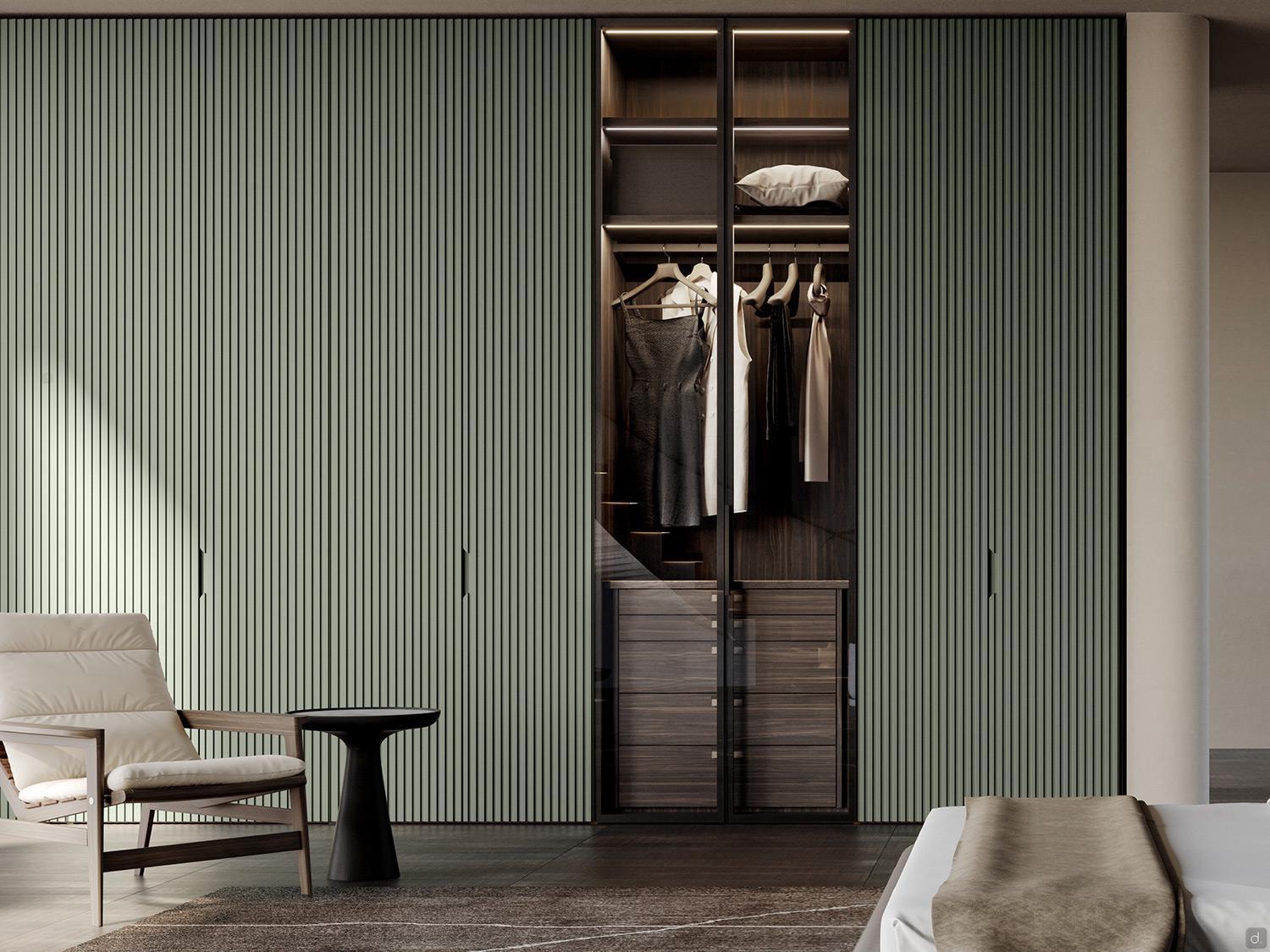

- Pleated: slats made from solid laquered or veneered oak wood with a 30° edge: cm 4,5 th.1.

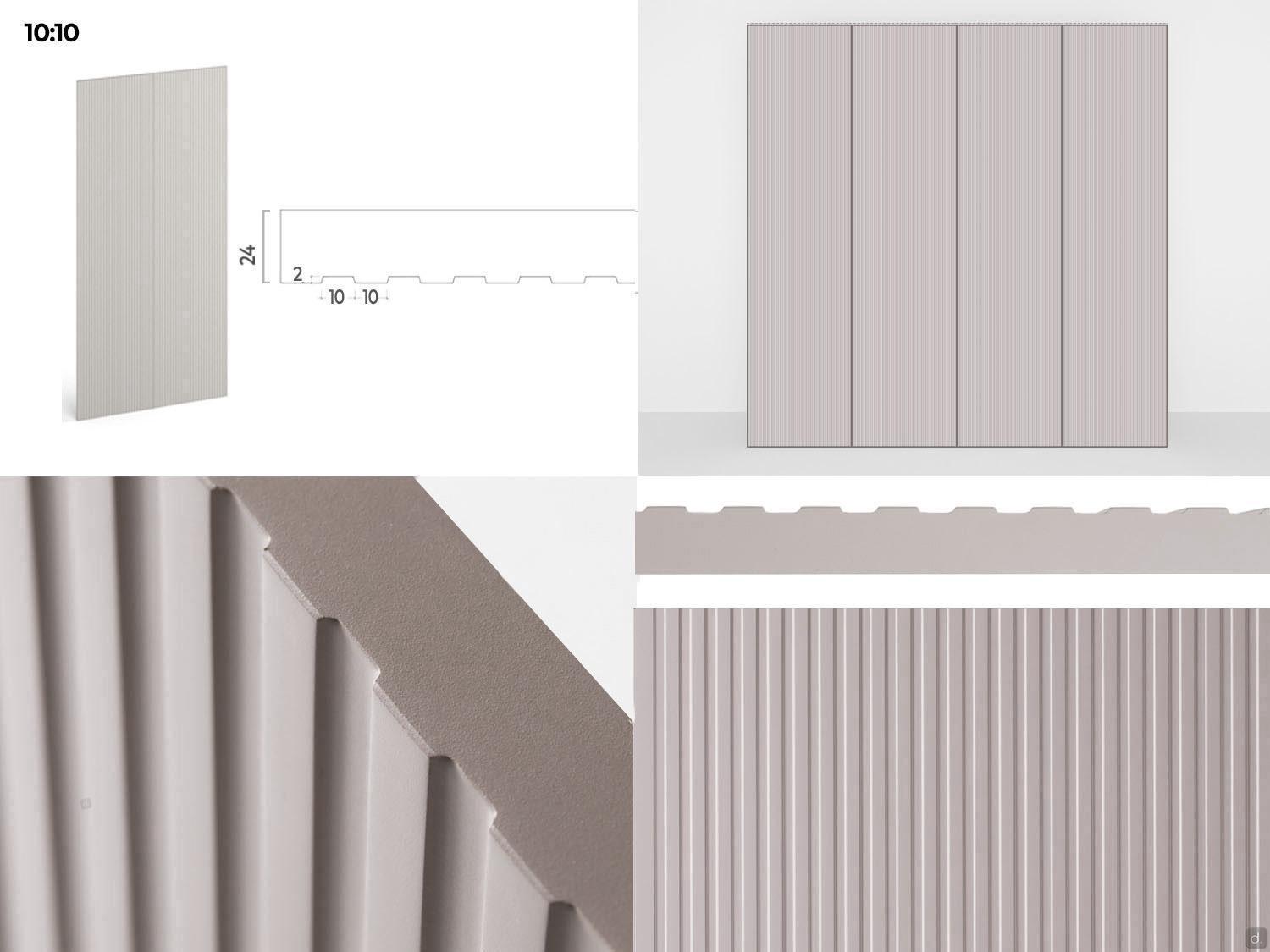

- 10:10 (only for matte lacquer finish): "U" incisions cm 1 th.0,2.

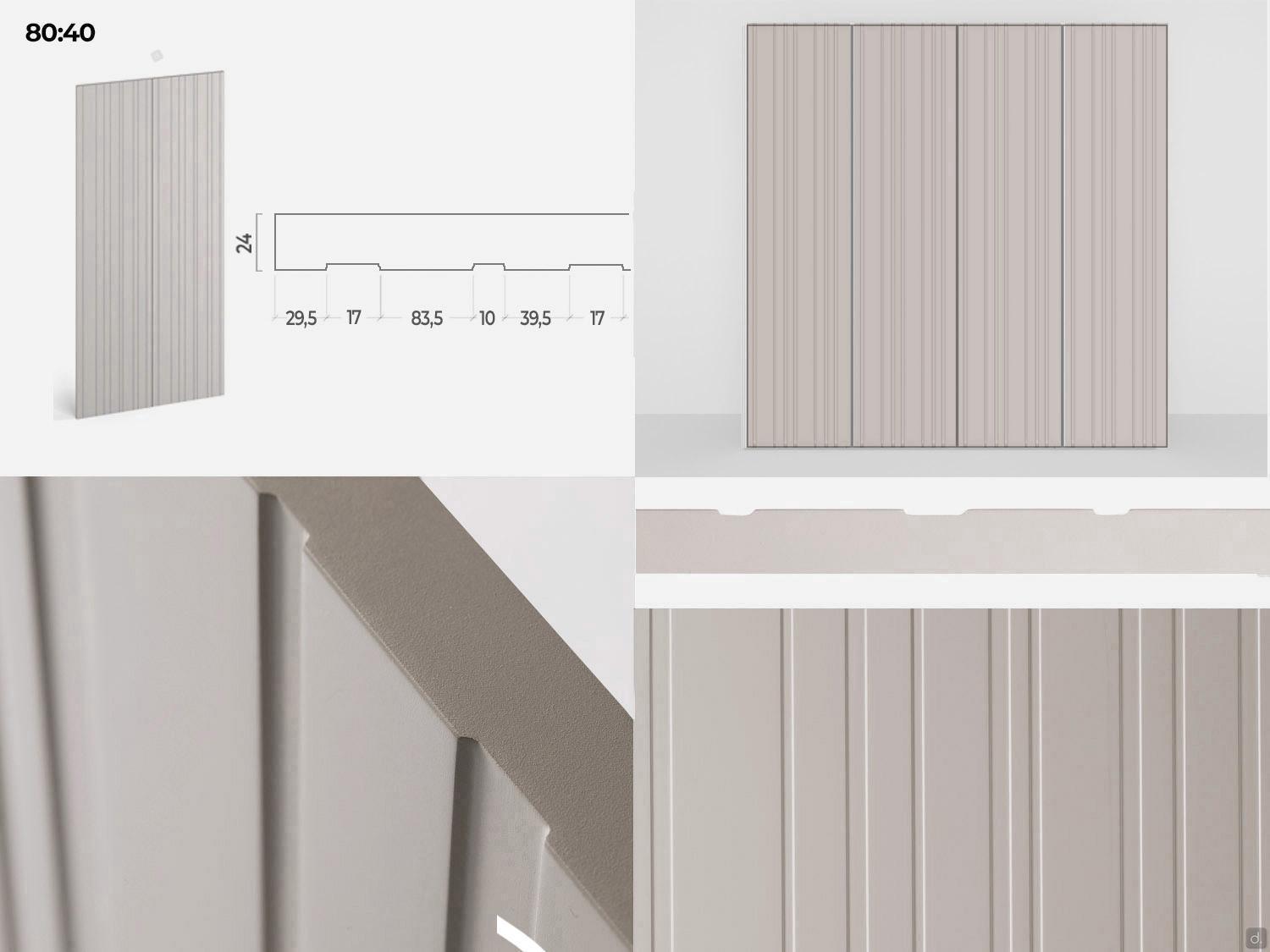

- 80:40 (only for matte lacquered finish): "U" incisions cm 1 th.0,2 with variable width.
- 10:2 (only for open pore oak wood finishes): vertical 'V" incisions cm 0,2 th.0,2.

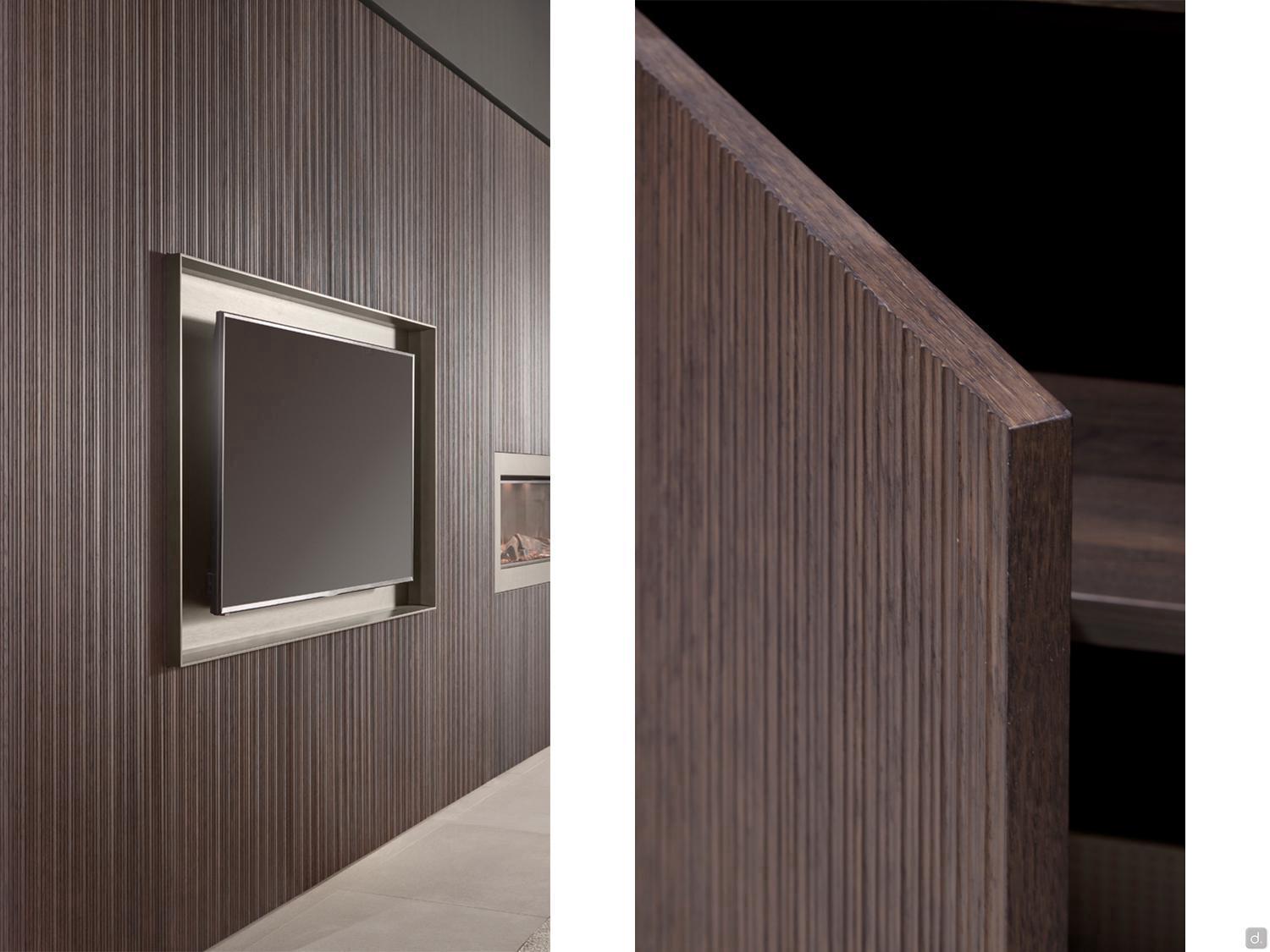

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid fir frame and honeycomb plated in solid wood on both sides, stained in the sample finishes and decorated with 10:10 or Wave finish. Available exclusively on request, for further information contact our Customer Service.
Hinges: metal in titanium finish with slow closing as standard. Standard opening angle of 110°, which can be increased to 155° except on pleated doors, supplied exclusively with 94° opening hinges.
The hinged doors are equipped with 4 slow-moving metal hinges up to 280 cm in height, 5 hinges for higher heights.
The folding doors are equipped with 4 slow-moving metal hinges on the door hinged at the side and 4 folding hinges between the two doors, up to 280 cm in height. The supplied hinges become n.5 for heights between 281 and 295 cm.

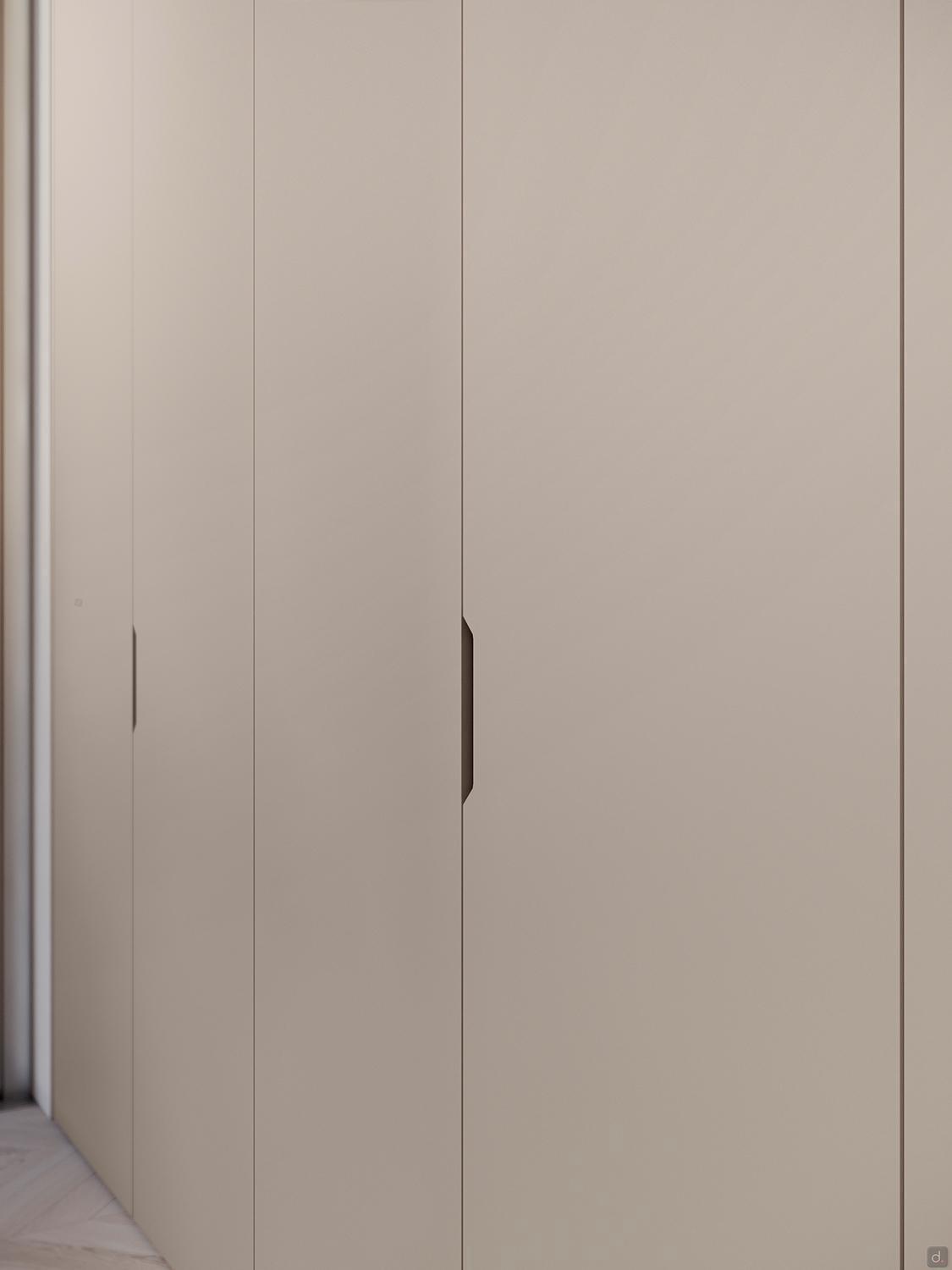

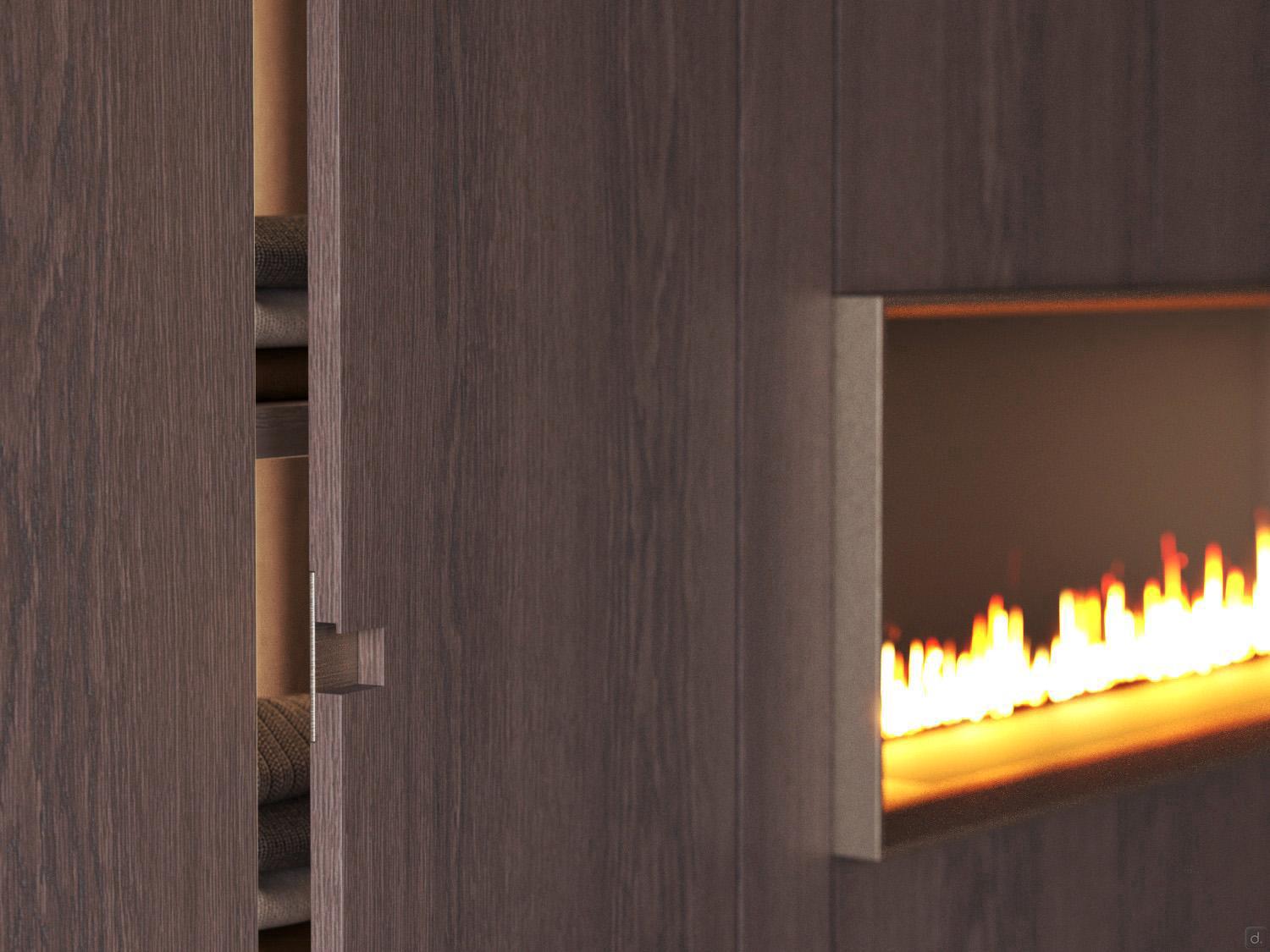

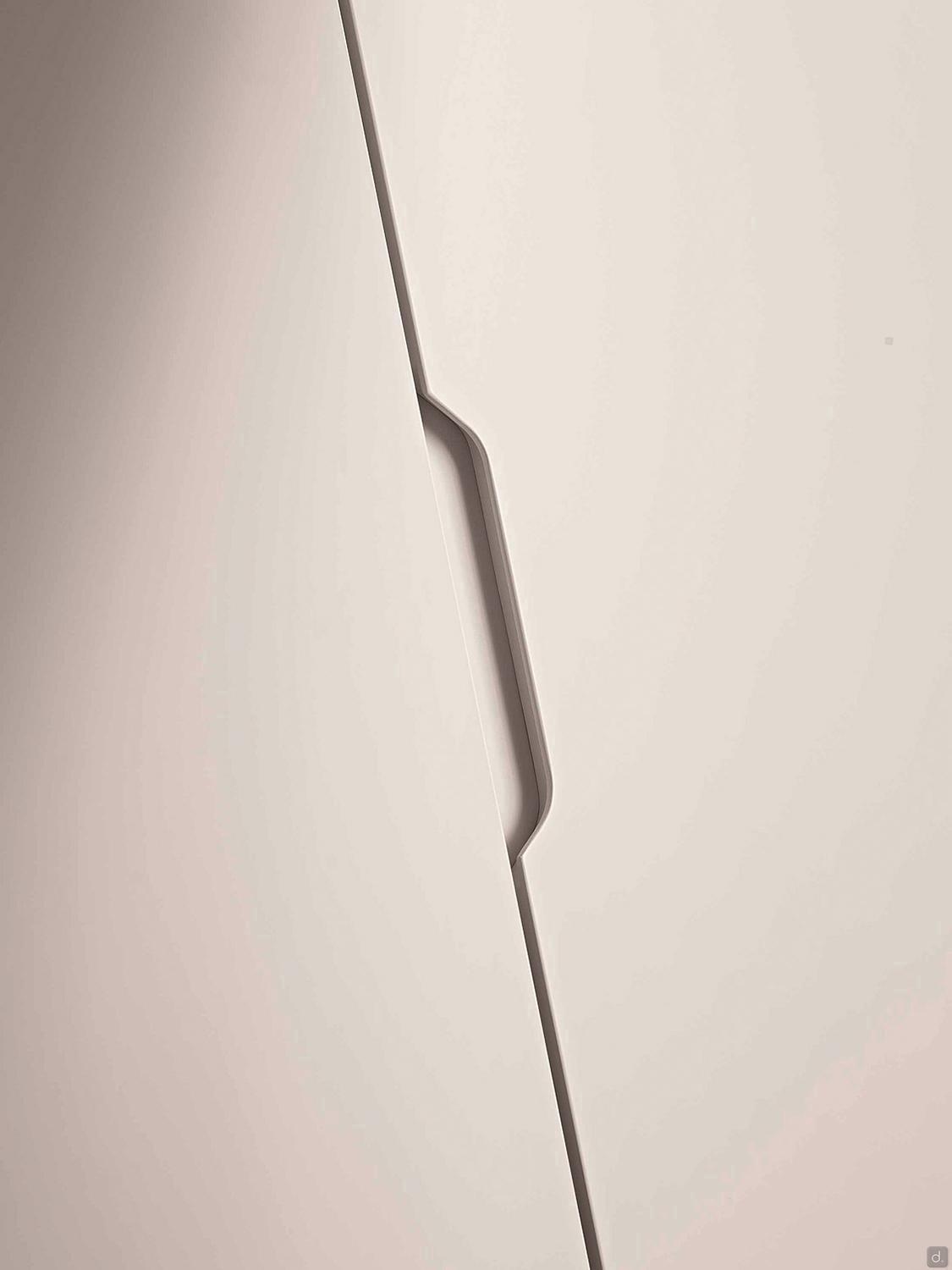

Handles: the recessed handles consist of a 3 mm thick strip which can be lacquered in all matte and metallic colours or veneered in open pore oak.

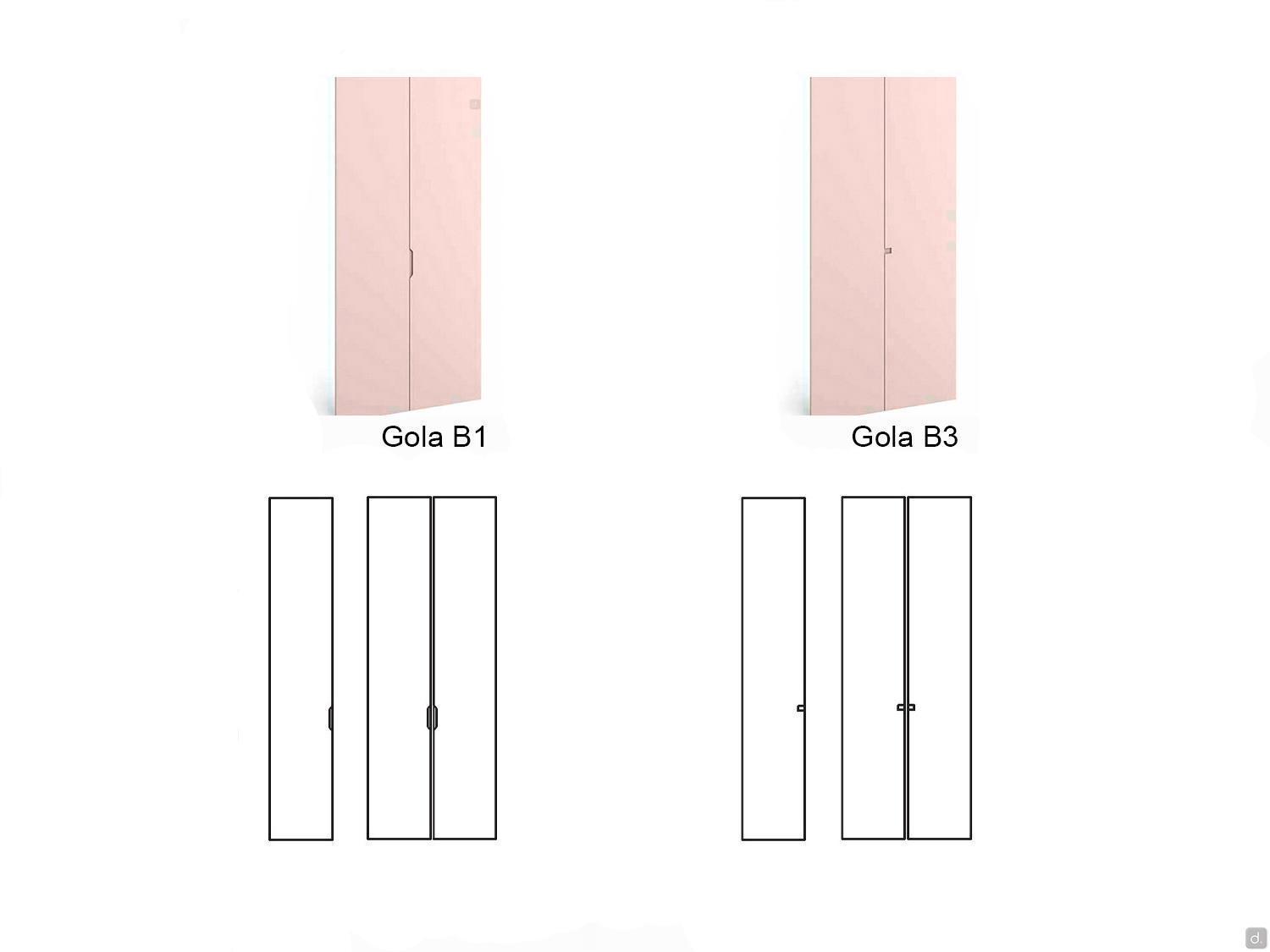

- B1: cm 2 d.1,9 h.18,5. Matte or metallic lacquered finish.
- B3: cm 4,3 d.1,9 h.3,5. Matte or metallic lacquered finish.
Useful Height: To obtain the internal useful height of the wardrobe, simply remove the thicknesses of the feet (0.5 cm), the base (3.2 cm) and the lid (2.5 cm) from the overall height of the composition. Some examples:
- for wardrobe cm h.226: cm 219,8
- for wardrobe cm h.260: cm 253,8
- for wardrobe cm h.295: cm 288,8.
Please Note: Sides and doors are always supplied without edging on the short sides. This difference in finish, often hidden from view once the wardrobe has been assembled, deliberately leaves the solid fir frame of the honeycomb panel exposed to enhance the wooden component of the element and show the high quality of the finished product.
Side Drilling

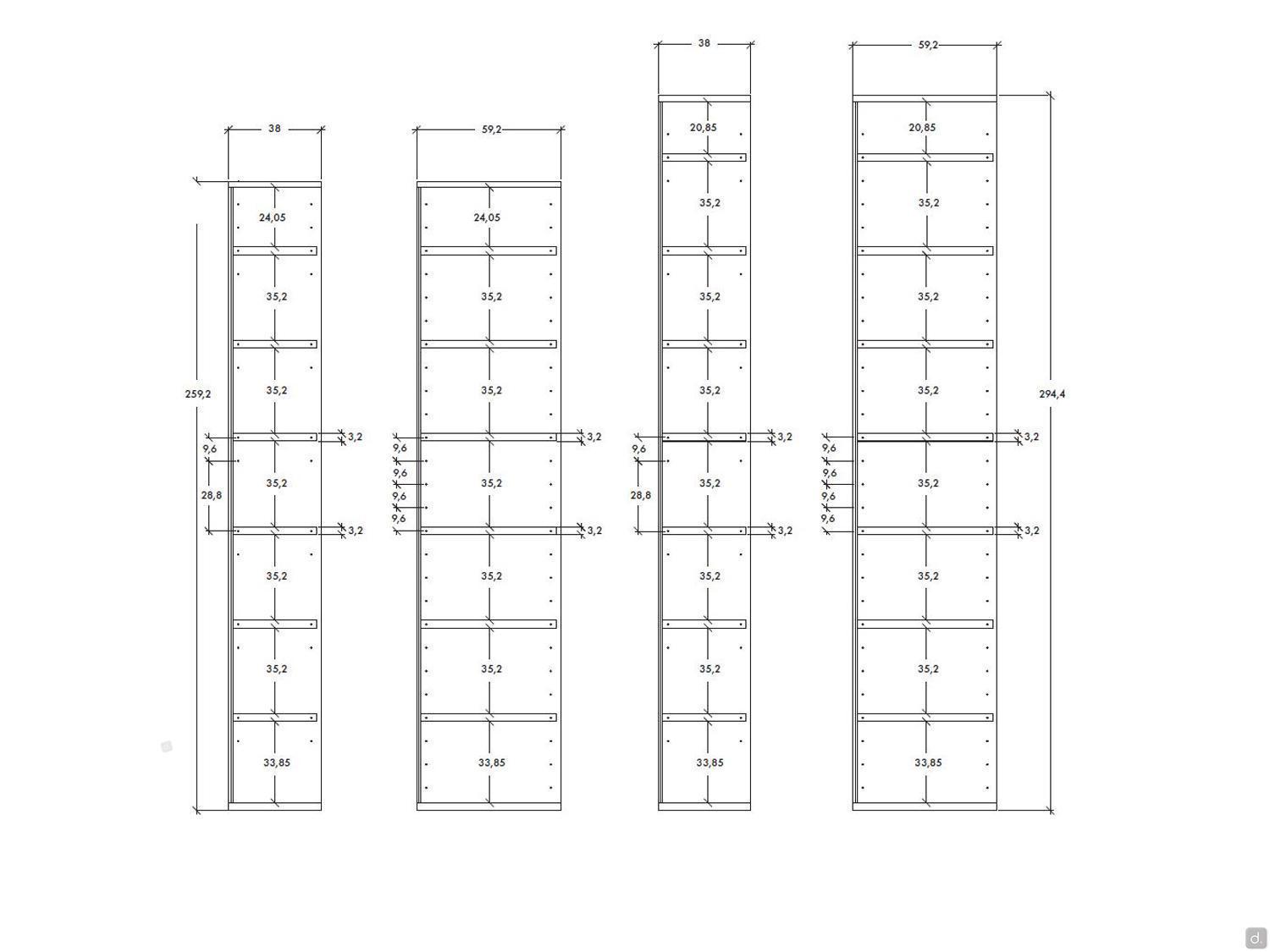

Depth 38 cm: pairs of holes Ø 1,5 mm, spaced 9.6 cm apart, placed every 35.2 cm (see the diagram in the gallery).
Depth 59,2 cm: Ø 1,5 mm holes every 9.6 cm for the entire height of the side.
Optional

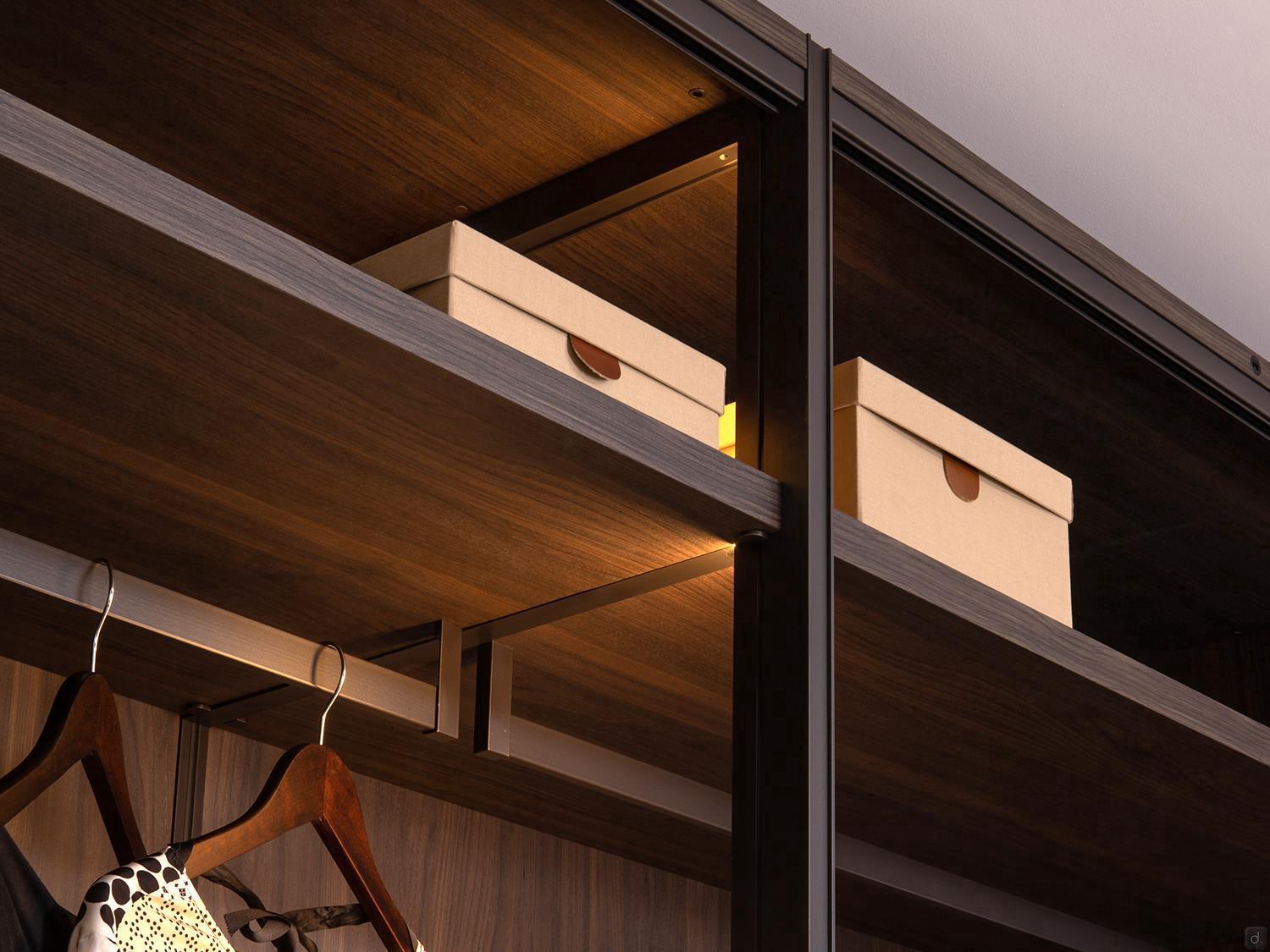

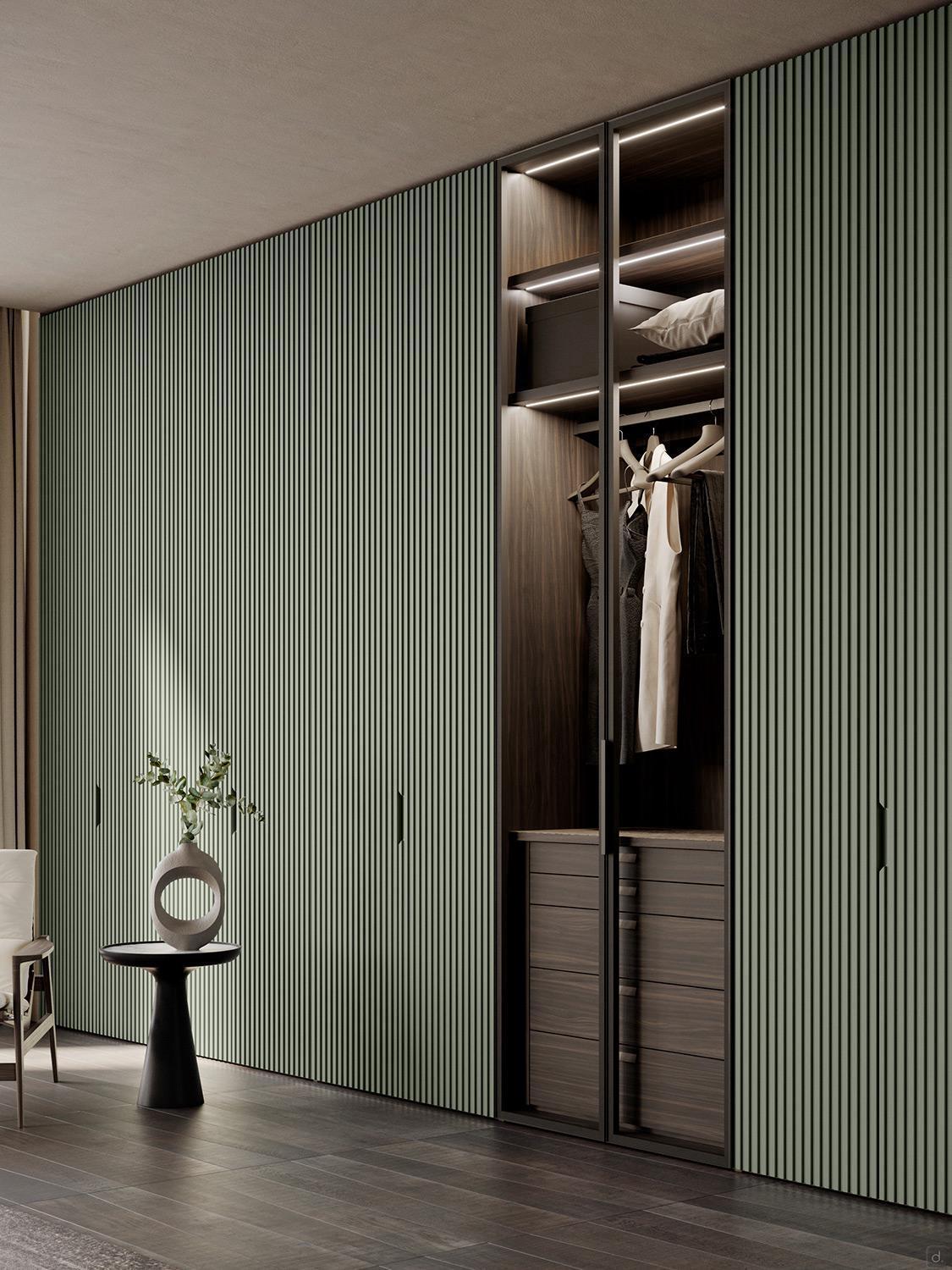

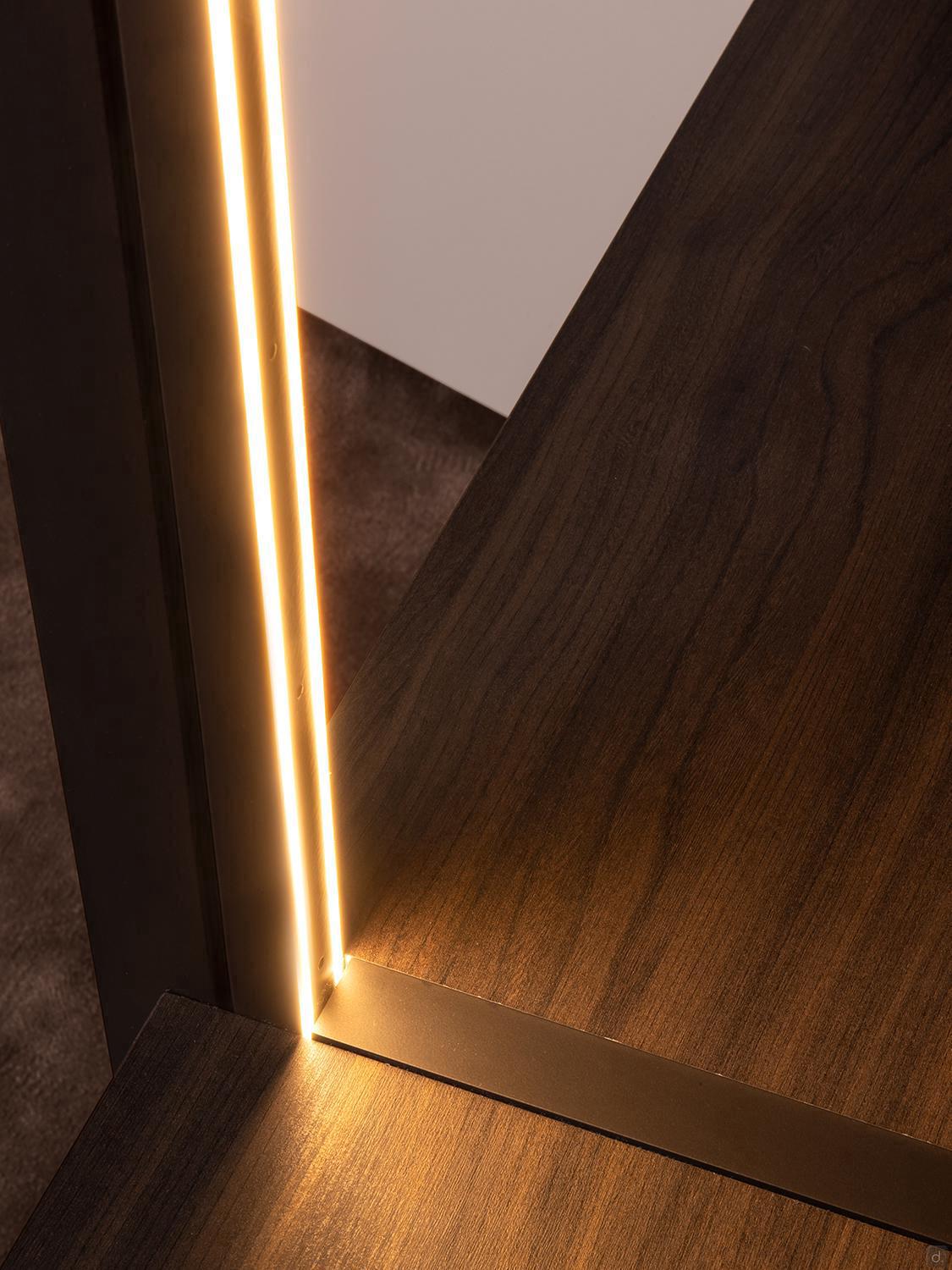

vertical LED bars: positioned on the internal metal division of the module. Can be equipped with transformer (maximum supported power 75/150W) and ignition via sensor. Warm gradation LED 3000K-24V, consumption 11 W/m.
Assembly Tips
Pre-assembled hardware on all elements to facilitate and speed up assembly operations.
The feet, also pre-mounted on the bases, allow the correct levelling of the wardrobe thanks to a maximum extension of 0.8 cm. In the unloaded position, they measure 0.5 cm.
To assemble the wardrobe body you will need:
- 4 cm in width (2 cm if mounted in a niche)
- 2 cm in height
To know more...
Honeycomb: it is a panel made with an internal honeycomb structure and a 5 / 7 cm perimeter frame in first choice solid fir wood, closed with 2 MDF panels 0.3 / 0.4 cm thick, subsequently lacquered or veneered.
The strengths of honeycomb are:
- greater durability over time;
- greater load resistance;
- significantly reduced weight of the panels (up to 60% less), useful both for transport, assembly, travel or removals, but above all for reducing the weight of the doors on the structure and hardware;
- hardware is always fixed on the perimeter (in solid fir) of the sides and doors, so the hinges will have greater resistance and the furniture will have a significantly longer life;
- better resistance to humidity, as the material "breathes";
- product exclusively "100% Made in Italy".
Brushed Oak: compared to "standard" open pore oak, brushed oak is characterized by a slightly more brushed surface, which shows a deeper pore and a more evident grain. This difference is more noticeable on large surfaces such as tables, equipped walls and wardrobes, less so on accessories, beds and bedroom furniture.
