Materials Specifications
Sides, partitions, bottom, top, backs: made with E1 class particle wood panels with low formaldehyde emission.
Doors: made with E1 class particle wood panels with low formaldehyde emission; melamine layer with thickness cm 2,1 + 0,4 thick glass, matte lacquered interior in a colour matching the colour of the glass.
Techical Specifications and Equipment
Sides and partitions: cm 2,5 thick. Sides: ABS edge for lacquered, wooden edge for veneered. Partitions: ABS edge matching the internal finish. Complete with adjustment feet inserted in the thickness and adjustable by 1,2 cm.
Top and bottom: cm 3,5 thick. ABS edge matching the internal finish.
Back panels: cm 0,8 thick.
Internal shelves: cm 3,5 thick. ABS edge matching the internal finish.
Clothing Rod: rectangular section cm 3 x 1, in Gunmetal painted metal (for natura loto, linen textured or medium elm internal finish) or Brown (for Taupe loto, Terra loto, Dark elm or Ecowalnut internal finish), Palladium (for Sand, Rock and Tobacco sketch internal finish).

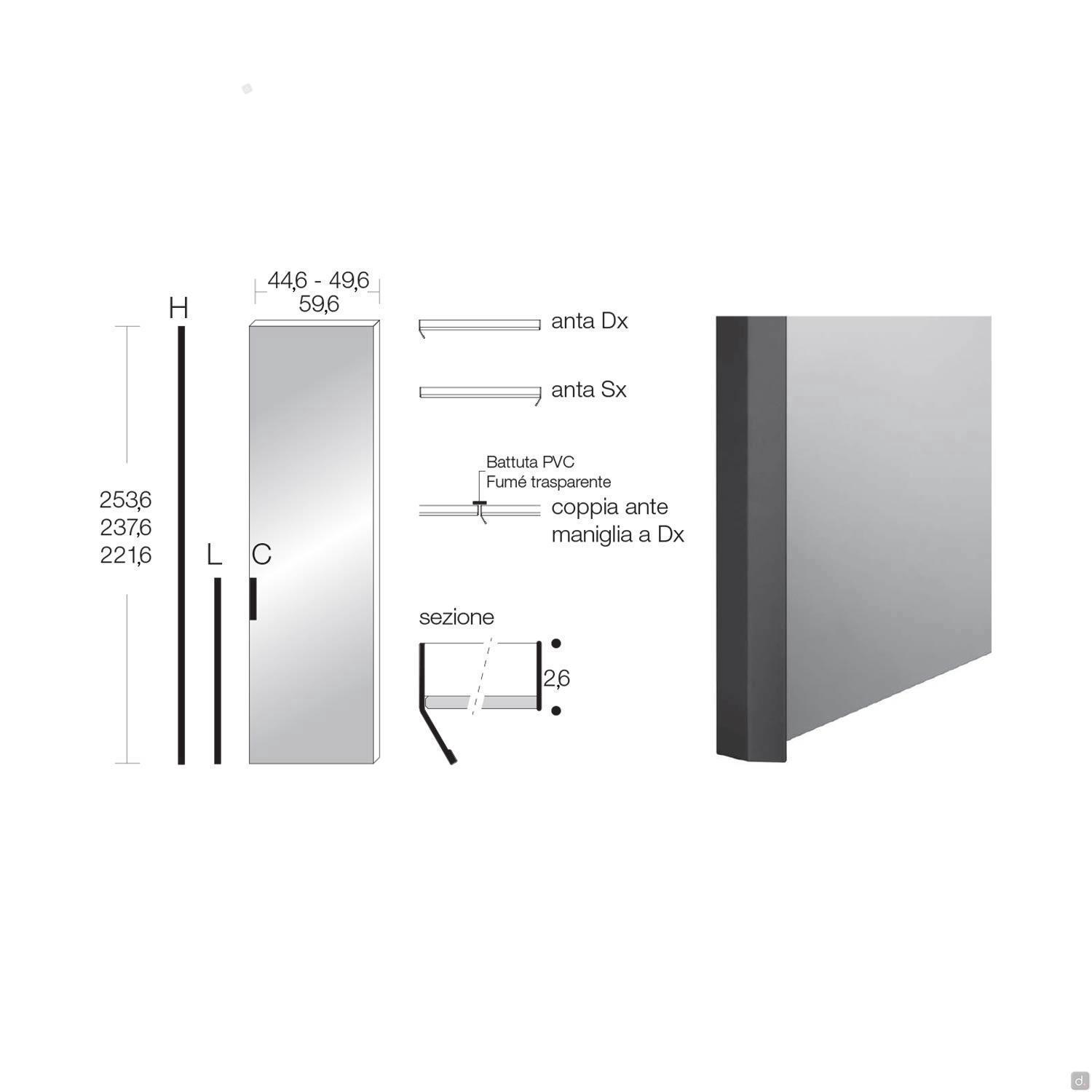

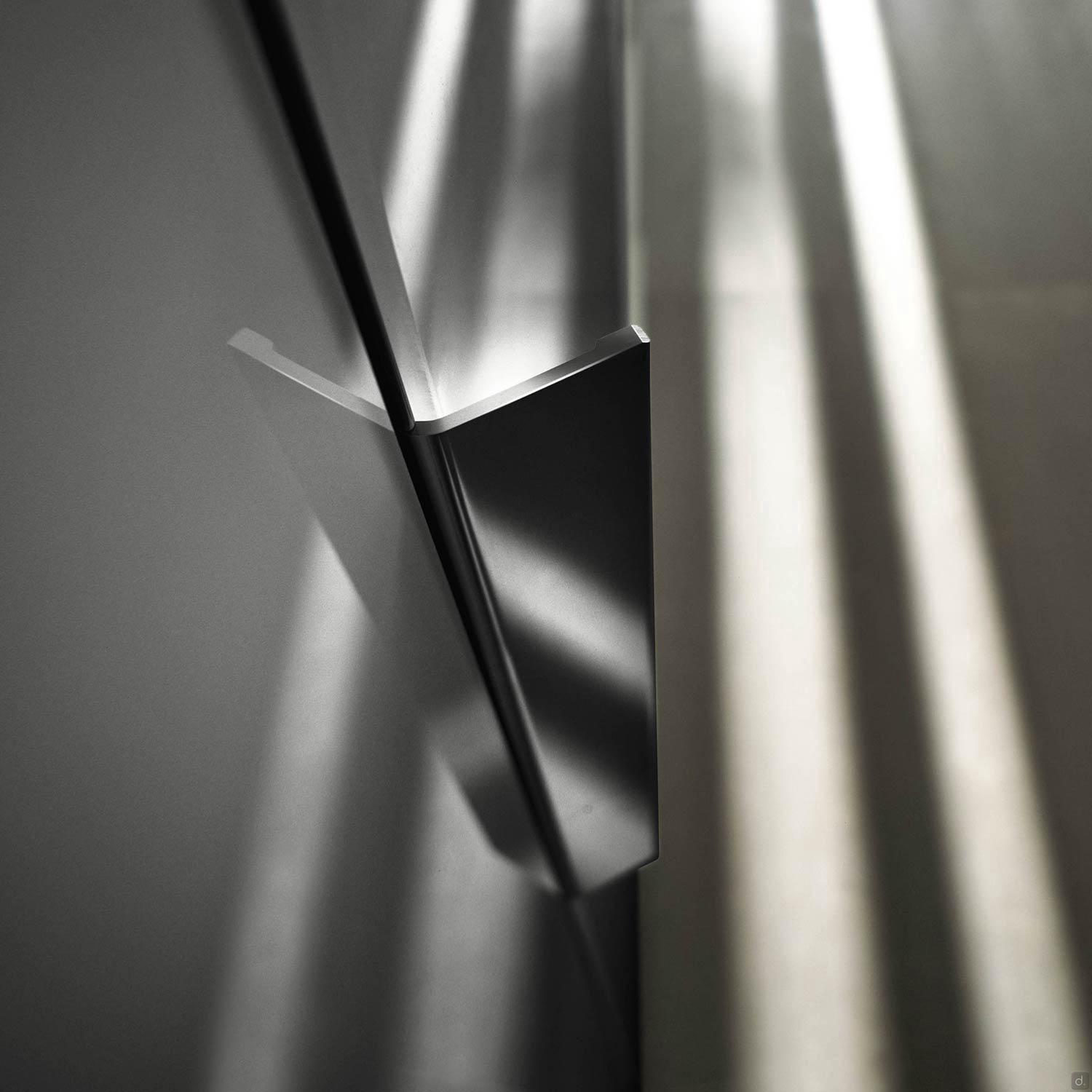

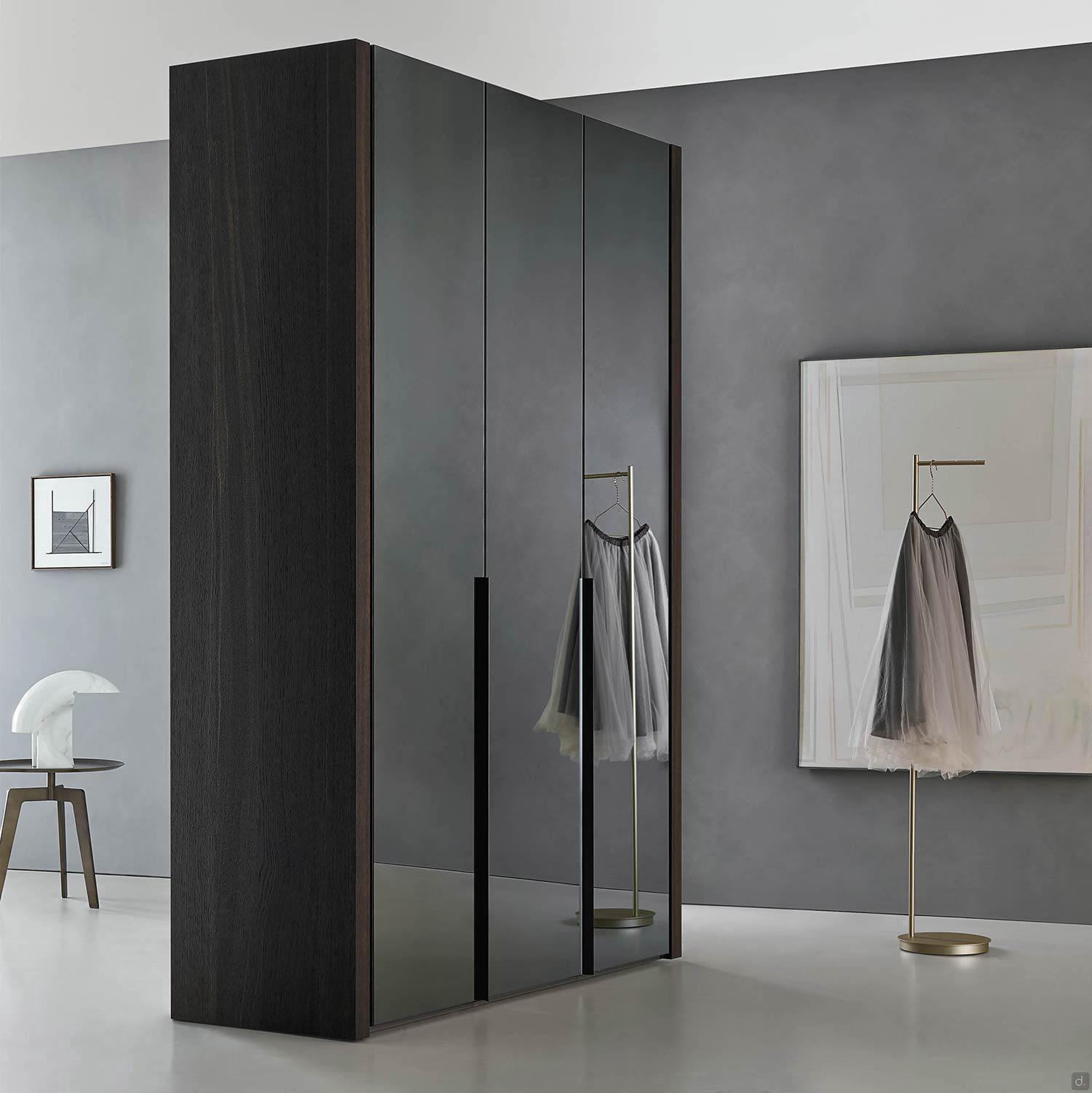

Doors: cm 2,6 thick. In case of a pair of doors, the handle is always positioned on the right-hand door; the left-hand door is fitted with transparent smoked-coloured PVC rebate profiles. Each door is fitted with hinges with soft closing mechanism with 94° opening; in the cm 35 module, the soft closing system is mounted seperately on the top. For door heights of 239,6 and 255,6 cm, 6 hinges are fitted; for door heights of 223,6 cm, 4 hinges are fitted.

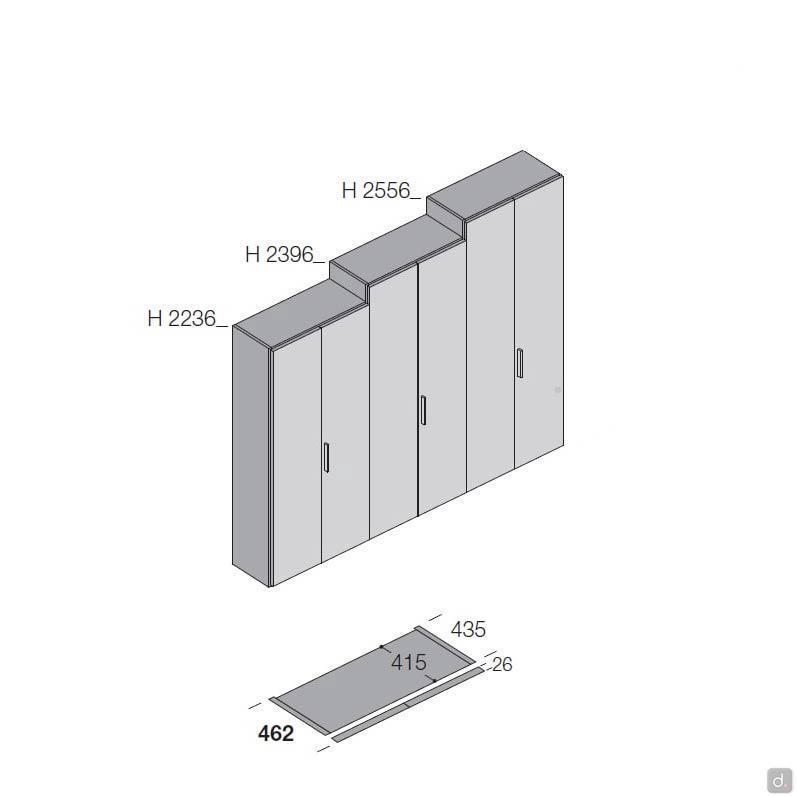

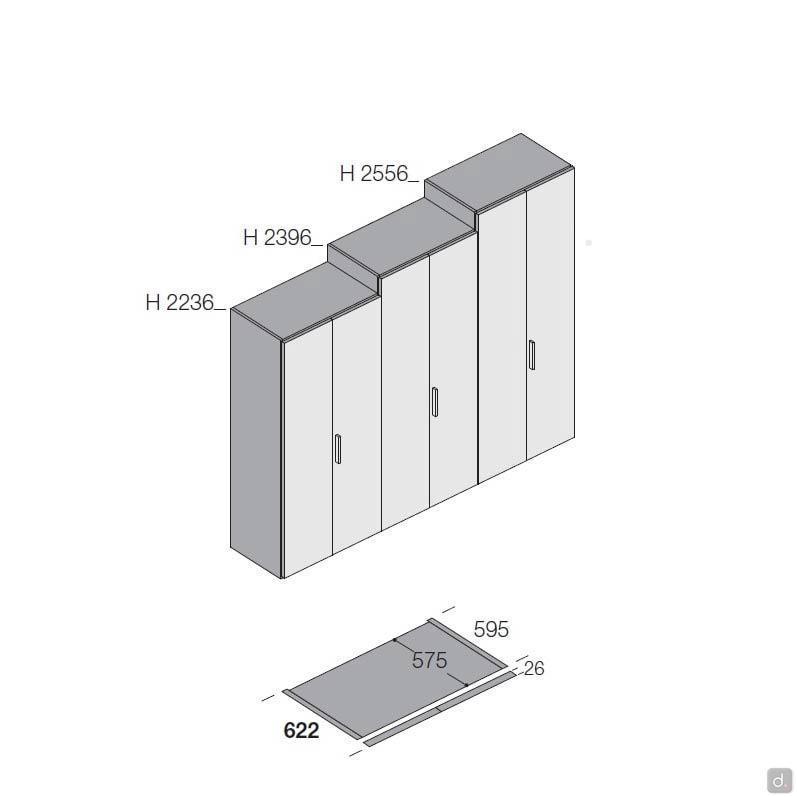

Usable internal height:
- for cm h.223,6 wardrobe: cm 216,6
- for cm h.239,6 wardrobe: cm 232,6
- for cm h.255,6 wardrobe: cm 248,6
Side Holes

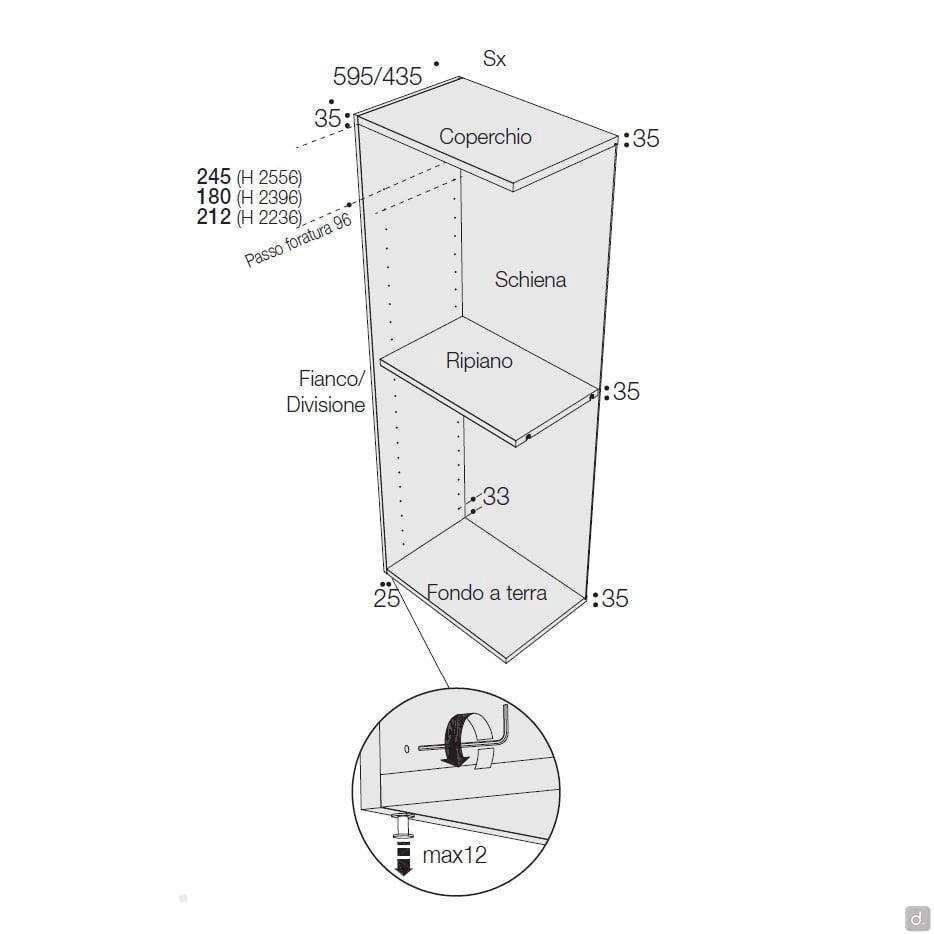

Sides and partitions come with fixed holes every 9,6 cm. For the detailed measurements please have a look at the scheme inside the picture gallery.
Assembling Tips
To assemble the structure you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in case you add LED bars, in order to place the power supply on the top)
In cm 46,2 deep wardrobes, at least 2 compartments come with a bracket for wall fastening, for safety reasons. Also cm 62,2 deep wardrobes come with a bracket for at least one compartment to be used when needed. The anti-tip bracket comes with spacer that allows the use even if you have a skirting board (max 15 mm thick).
