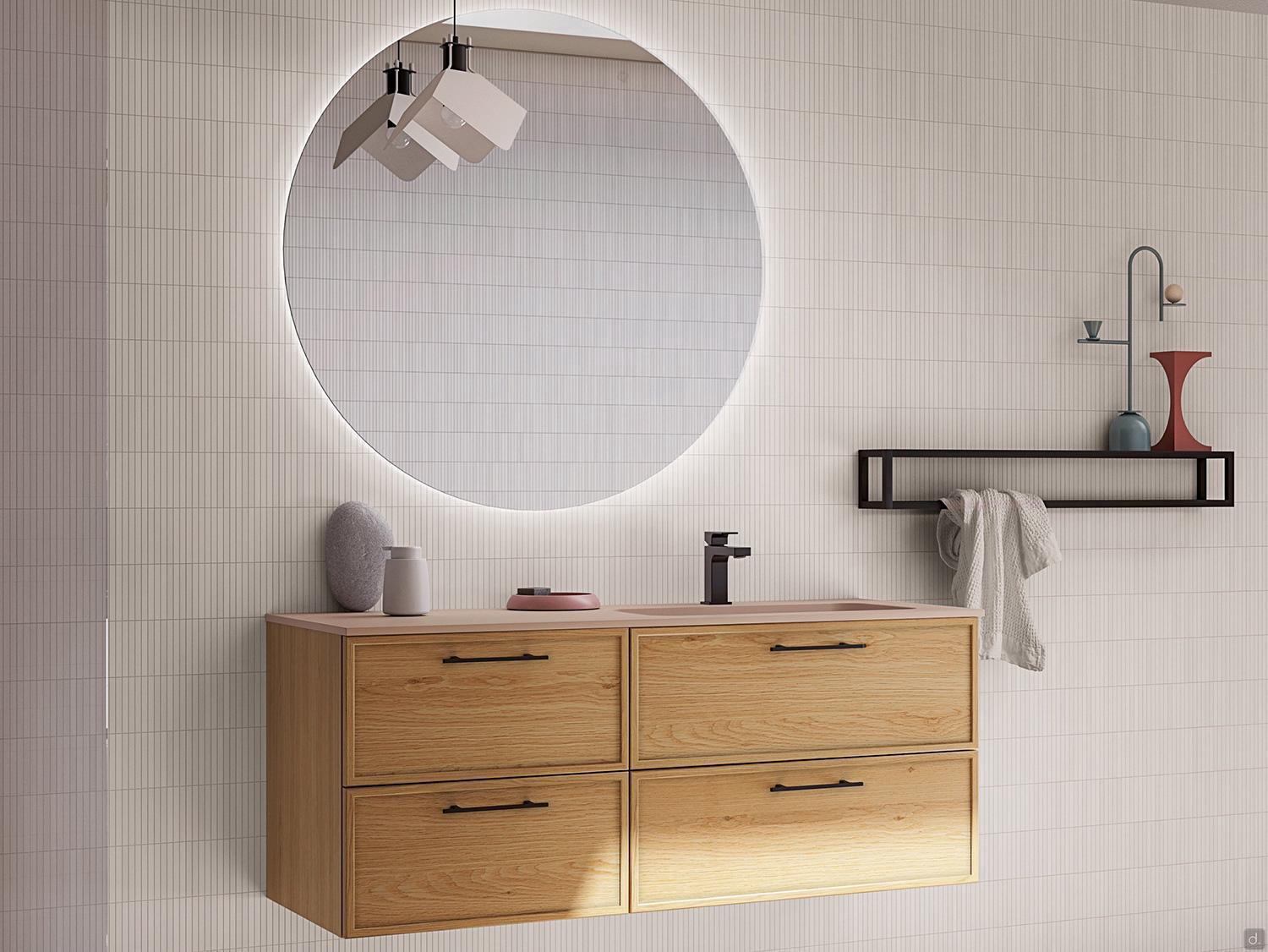

Wall-mounted bathroom cabinet wide cm 120 N113 Frame

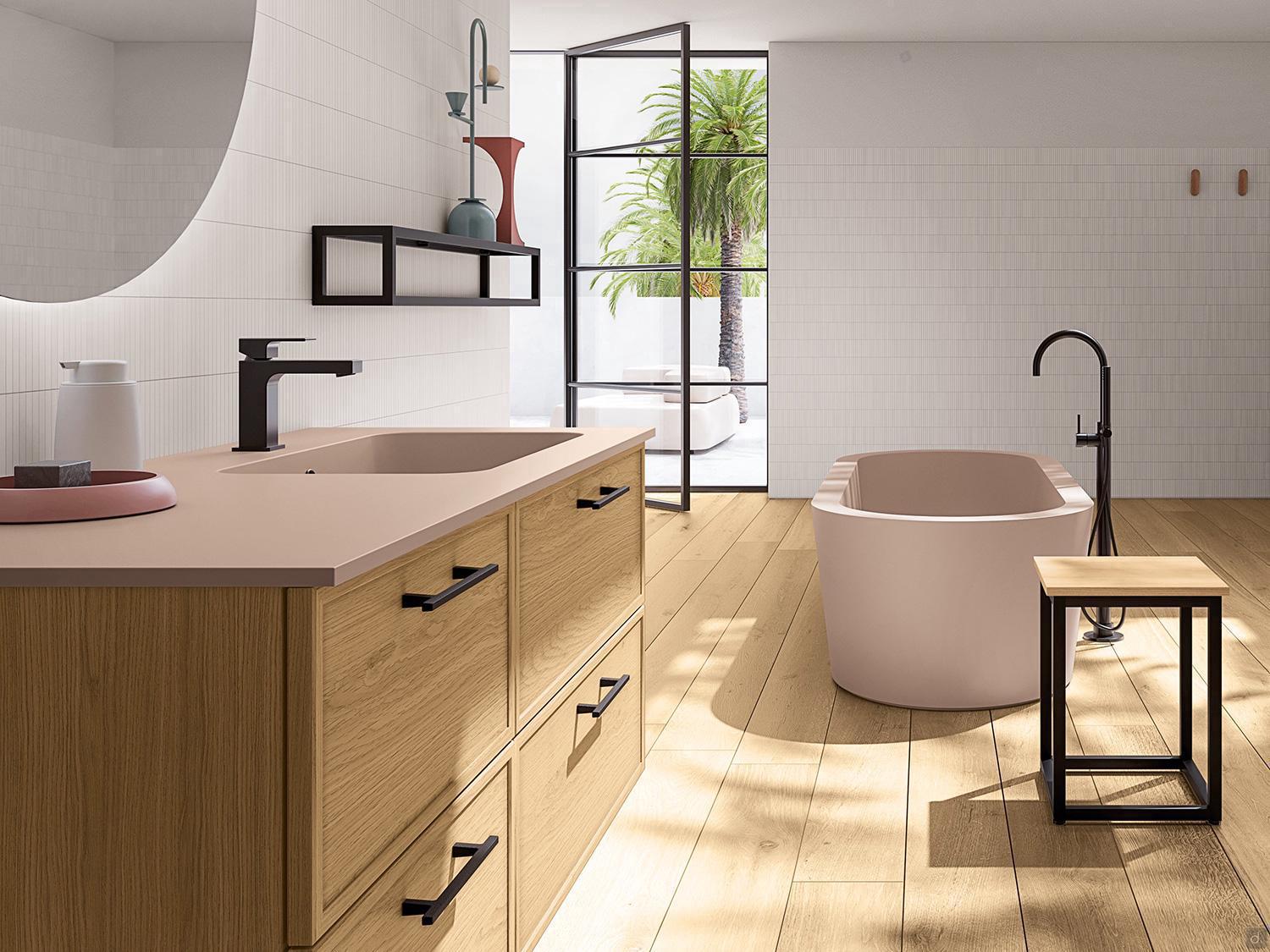

Suspended bathroom cabinet N113 Frame - wooden bases essence 838 Raw Oak with handles model 703

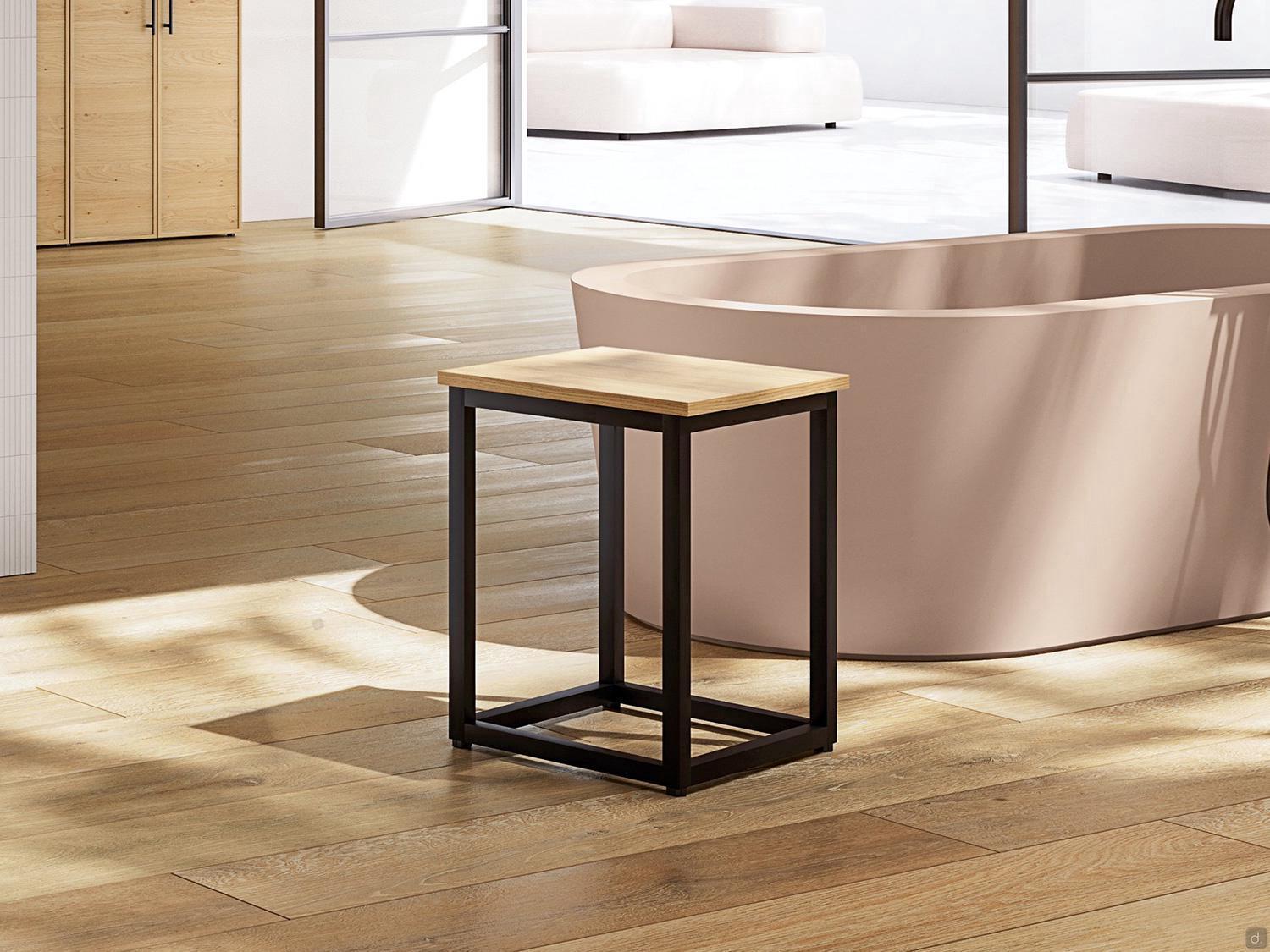

Metal bench with wooden top - practical table top for daily use

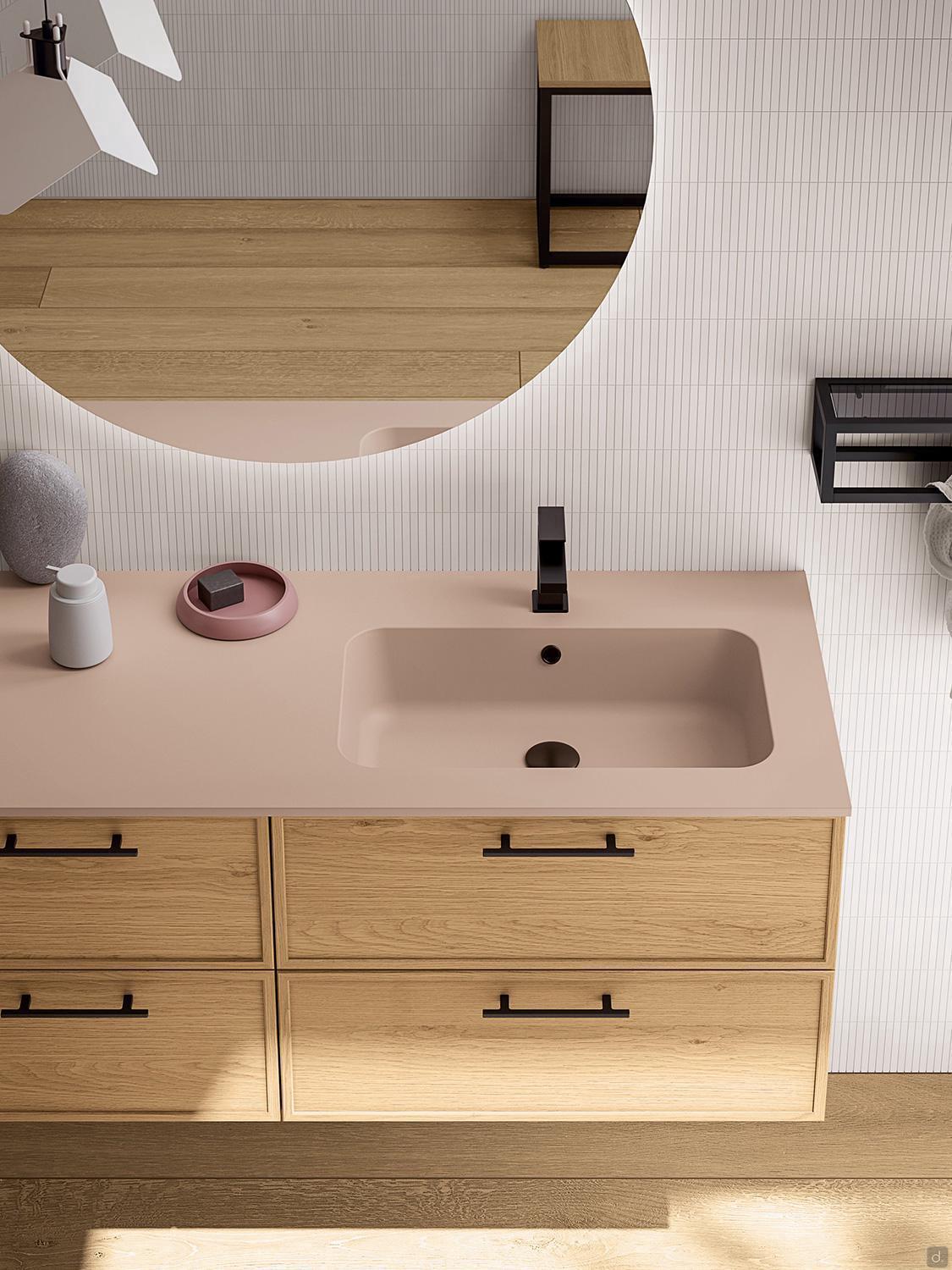

Console washbasin in Minera-Kolor color datura matte

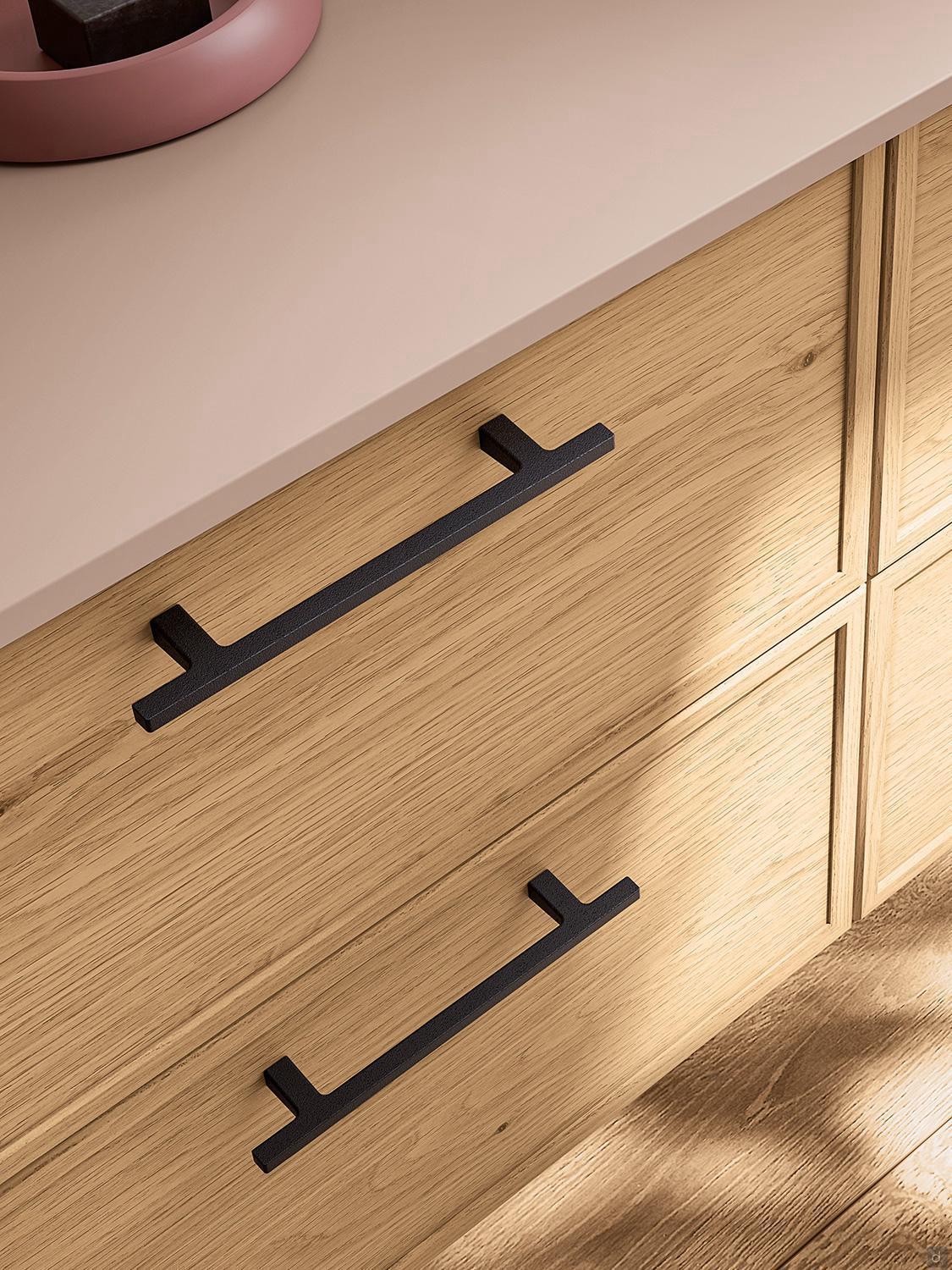

Solid wood framed fronts Handles model 703 in detail

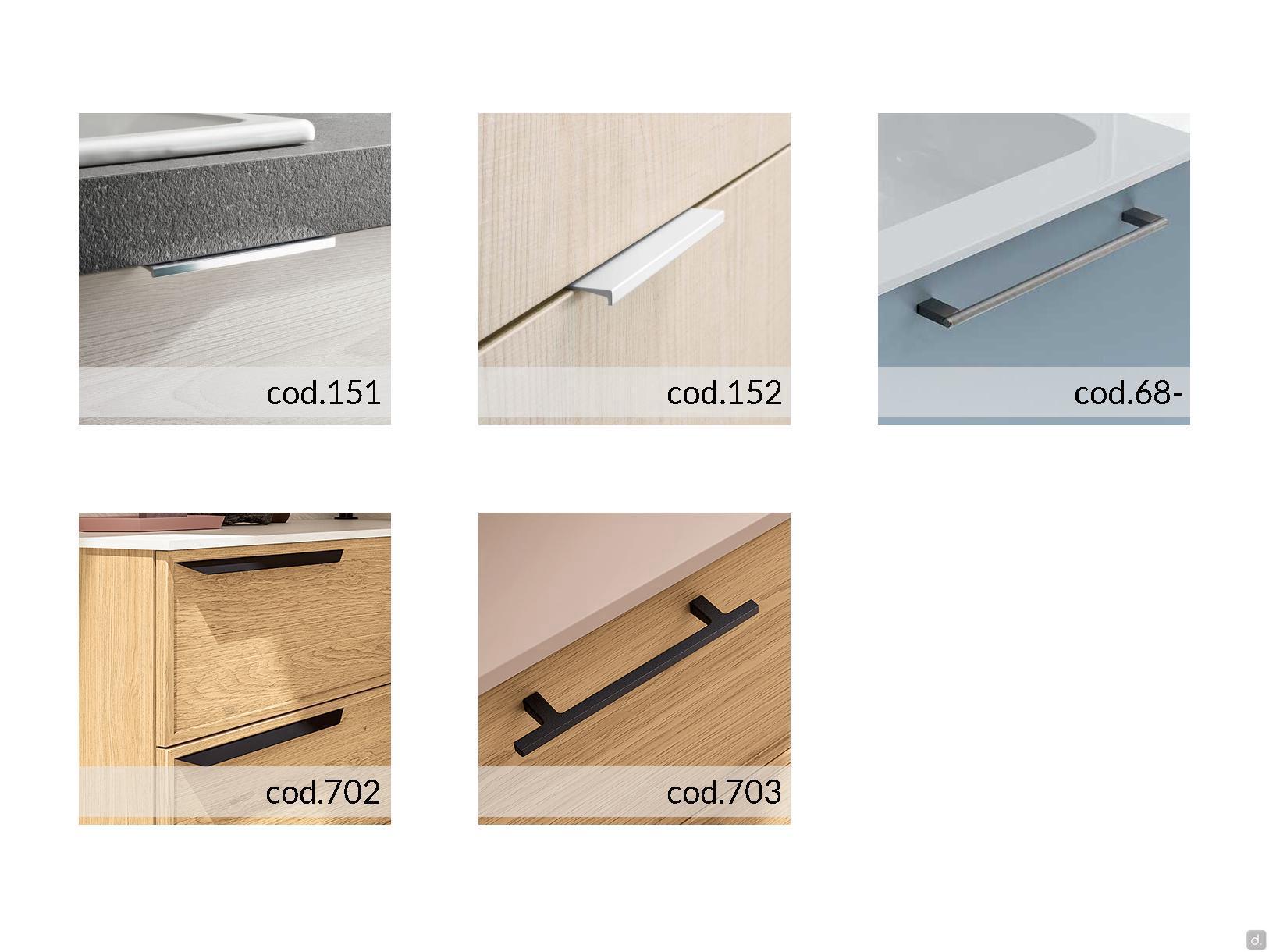

Handles available on Frame composition N113

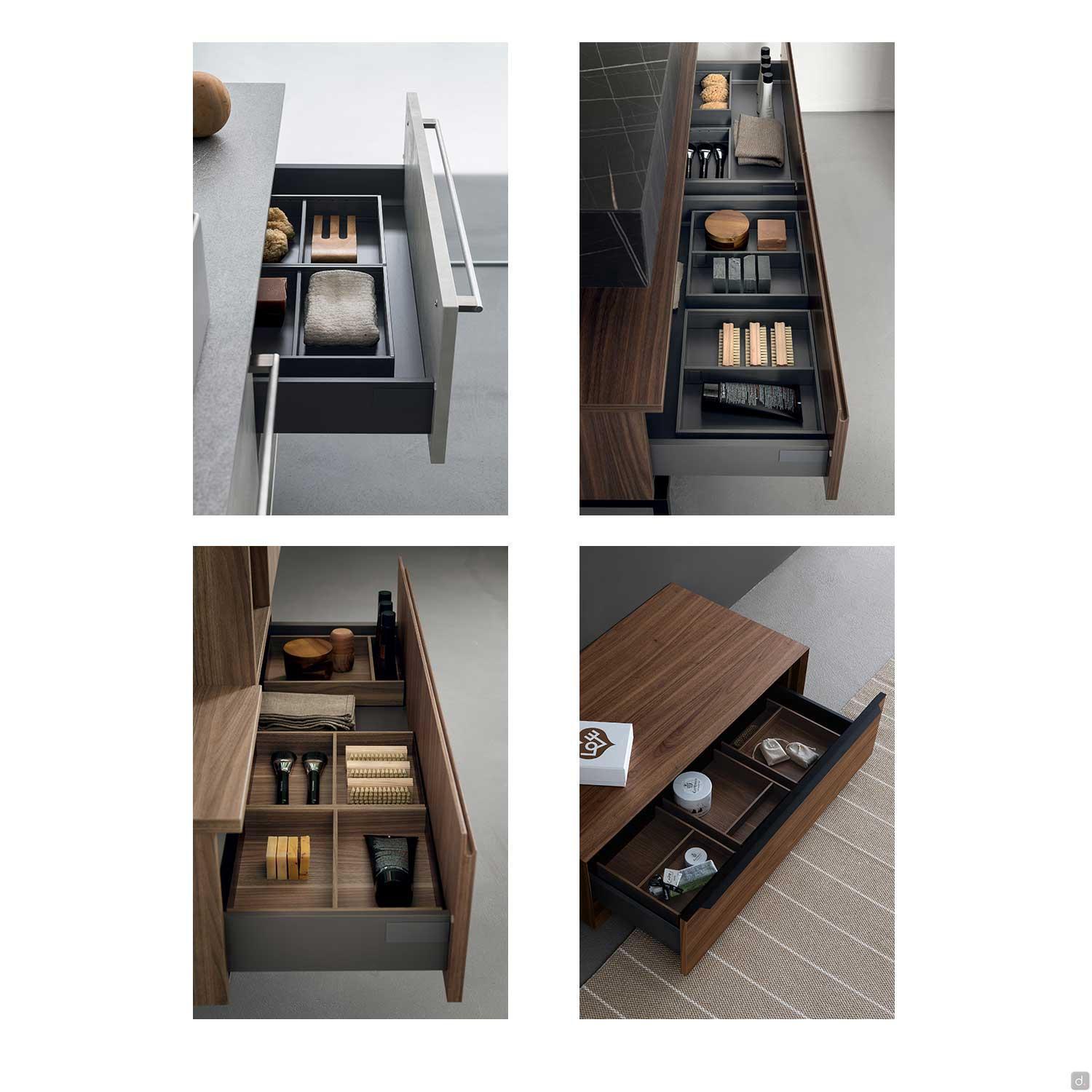

Interior drawer organizers in orione lacquer or canaletto walnut finish

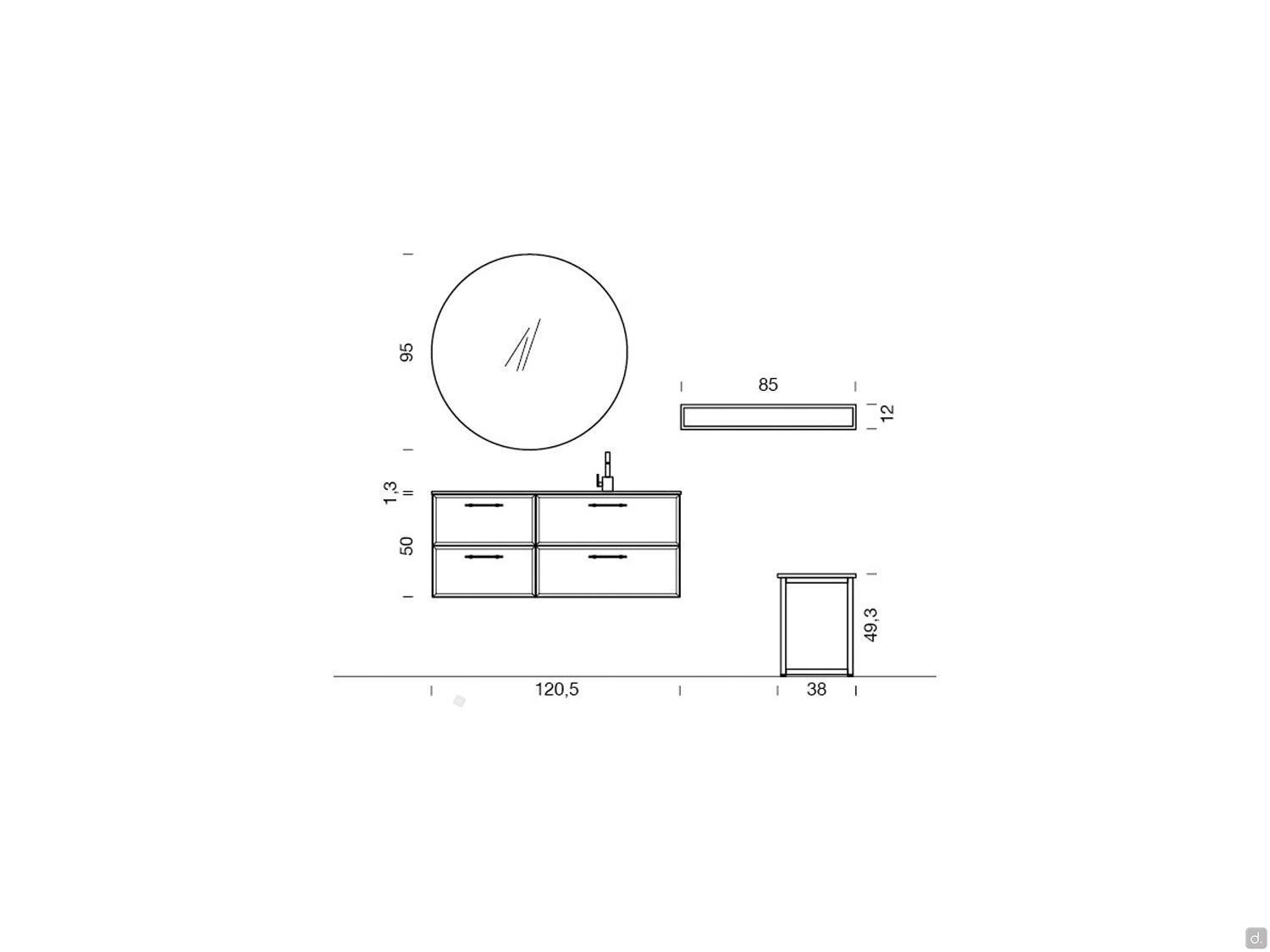

Suspended bathroom cabinet wide cm 120 N113 Frame - dimensions

+ 6

MORE IMAGES

Description

N113 Frame is a 120 cm wide wall-hung bathroom unit characterised by the console washbasin in Minera-Kolor, an innovative, resistant material with great aesthetic impact, thanks to the "matt enamelled" effect surface available in numerous colours.
The vivid colours of the console, are softly mitigated by the light oak wood of the base units, made with a visible solid wood frame, and rich in grains and knots on the fronts. The upper part of the composition is dominated by the large round mirror with LED perimeter lighting, while on the right-hand side, the open metal shelf gives an industrial-style touch that blends perfectly with the wood of the bases. The composition can also be completed by the metal bench with wooden top to match the bases, useful as a practical shelf for everyday use.

Characteristics
wall-mounted cabinet 120 cm wide and 50 cm deep with drawers and open compartment
console washbasin in Minera-Kolor in several matt lacquered colours

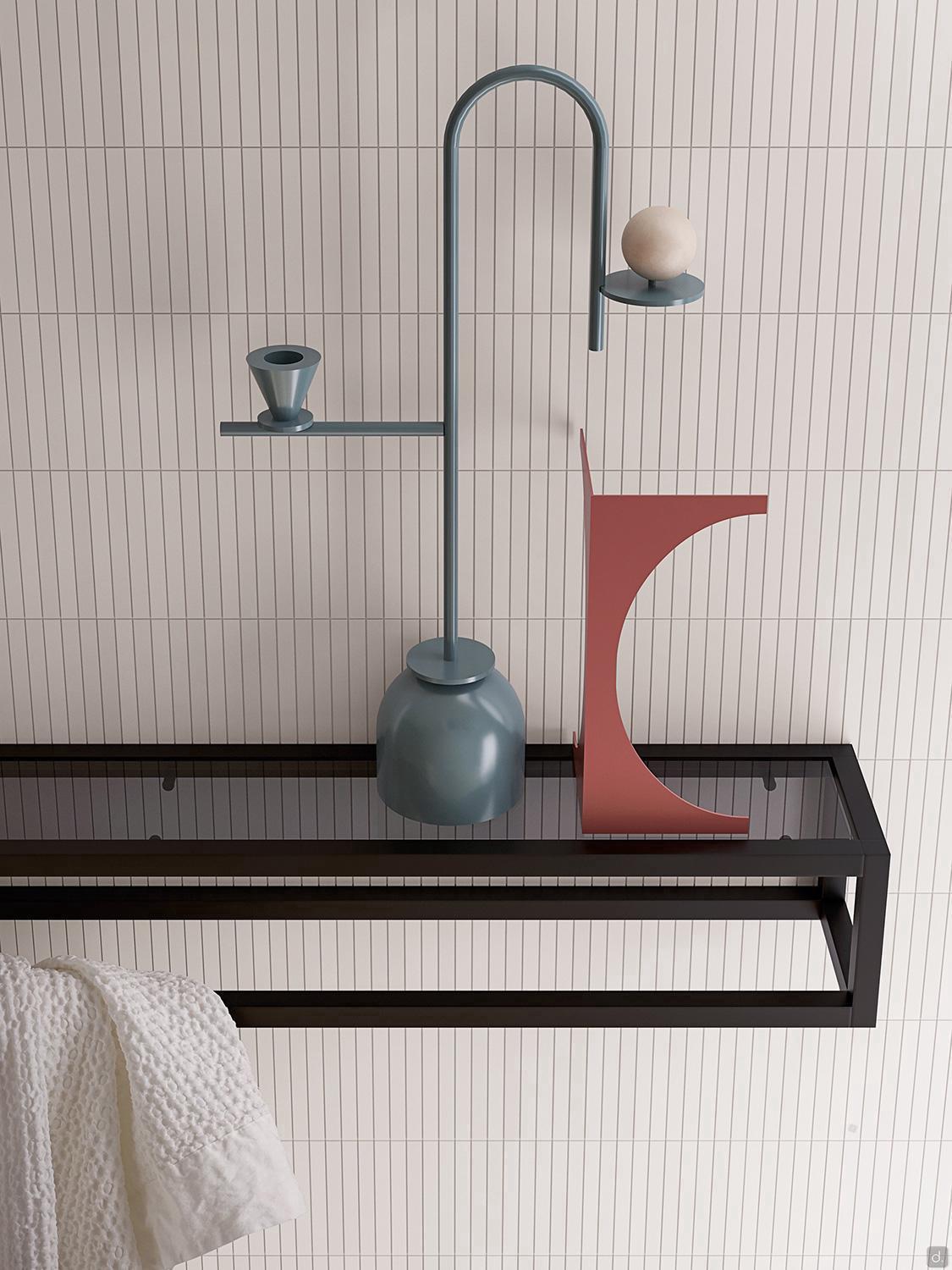

metal open shelf with transparent smoked glass shelf
organisers are also available for managing the space inside the drawers
metal bench with wooden top to match the cabinet

Measurements
Bathroom cabinet
- cm 120,5 d.51 h.50
Accessories:
- mirror: cm 95 d.2,2 h.95
- metal shelf cm 85 d.12 h.12

Materials and Finishes
Bases:
- veneered wood
Console - Washbasin:
- Minera-Kolor

Purchase Information
The top protrudes 1 cm at the front and 0.5 cm at the side. The overall height of the bathroom furniture is equal to the sum of the height of the base and the thickness of the top, it is therefore 1.3 cm higher than indicated in the configurator.
The washbasin has an overflow hole. The tapware is not included; among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Equipment
Overall measurements: cm 121 d.50 h.50
- n.1 washbasin base unit with two drawers: cm 70 d.50 h.50
- n.1 base unit with two drawers: cm 50 d.50 h.50
- n.1 console washbasin mod.IBIZA in Minera-Kolor: cm 120,5 d.51,5 h.17,5
- n.1 Circle mirror: cm 95 d.2,2 h.95 with LED lighting (27W, 230V, IP21, 4000K) without socket and switch.

Structure: cm 1.8 thick made of particle board panels, then veneered with vertical grain.
Fronts: made of solid oak frame and central panel of 2 cm thick wood particle board, then veneered with horizontal grain.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.
Handles: various models of handles are available, as well as push-pull opening.
Handles code 152 are available in matt lacquered finish in all sample colours.
The handles mod. 68- protrude 4 cm from the door surface, while the 703 handles protrude 3 cm.

Console Washbasin Model	Measurements	Internal basin	Type Built-in	Faucet Hole	Overflow
Ibiza - minera-kolor	cm 120 d.51,5 h.17,5	cm 54 d.30 h.12,5	integrated	on central top	yes

N.B. The faucet hole has a standard diameter of 3,5 cm.

Optional
splashback: designed to complete bathroom furniture with top in stratified HPL melamine, marble stone, stoneware, quartz-resin or Minera-Kolor; particularly suitable for walls that are not perfectly squared and for matching with free-standing mirrors.

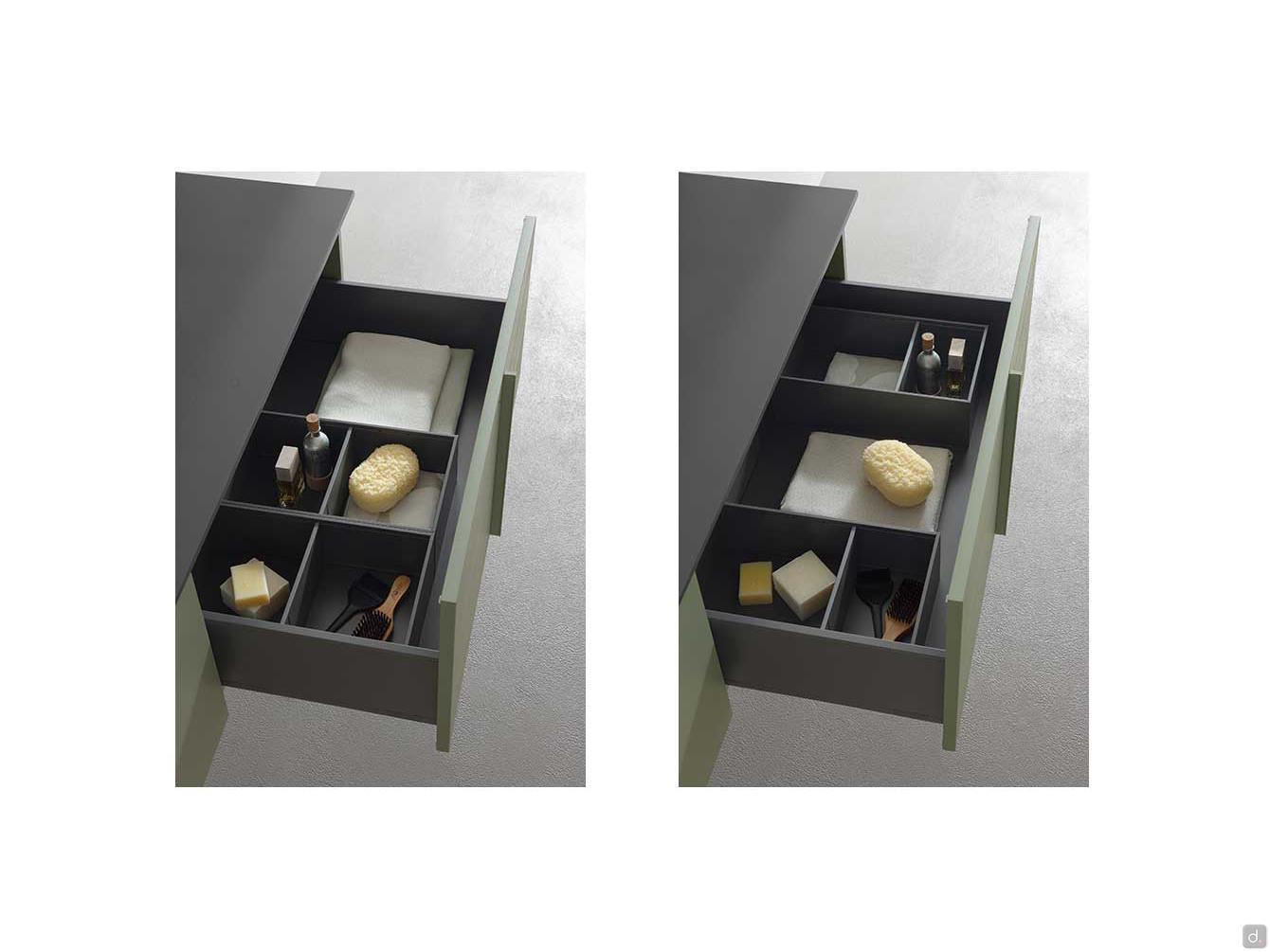

organiser: internal subdivision system for the Legrabox drawer. Available in Canaletto Walnut or Orion Grey finish.
open element:: structure in black painted or brushed aluminium; cm 85 d.12 h.12 with grey glass bottom.
metal bench: structure in black painted or brushed aluminium; cm 36 d.38 h.48 with wooden top 838 raw oak.

Maintenance Tips
Minera-Kolor: to remove most dirt and stains, powder detergent combined with an abrasive sponge or a common chlorine or bleach-based cleaner is sufficient. For removing stains caused by limescale, the use of a common limescale remover is recommended.To maintain the original opacity of the artefact, occasionally clean with amuchina or a 1/20 solution of bleach diluted in water. To enhance the typical satin opalescent finish, occasionally use an abrasive sponge, applying a circular motion.

Read more...
Wood: 'living' material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth, well wrung out. It is recommended to clean the top in the direction of the grain and dry it carefully.
Minera-Kolor: is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical enamel that covers the surface of the material is matt coloured, with excellent physical-chemical resistance. It is resistant to boiling water and changes in temperature. Any colour variations that have arisen through use can be easily removed by simple cleaning, using a lightly abrasive sponge in a circular motion.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Vedi Tab Video

Cubic Metres
0,70 m³
