Materials Specifications
Sides, partitions, top, bottom, backs: made of particle wood panel E1 class with low formaldehyde emissions.

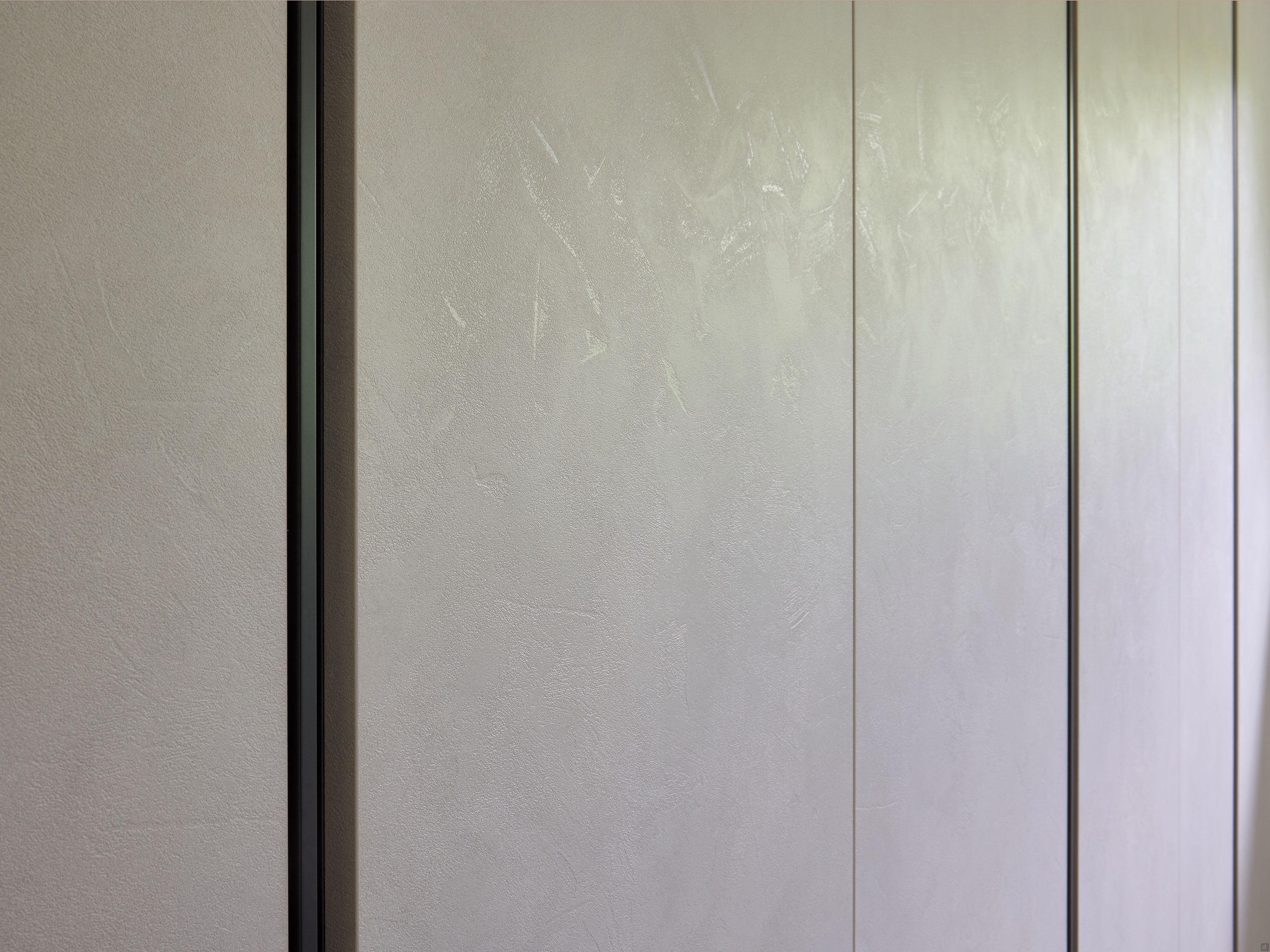

Doors: made of particle wood panel E1 class with low formaldehyde emissions (with melamine finish) or with honeycomb sandwich panels (with lacquered or wood veneer finish). Matt or glossy lacquering made with polyurethane paint.

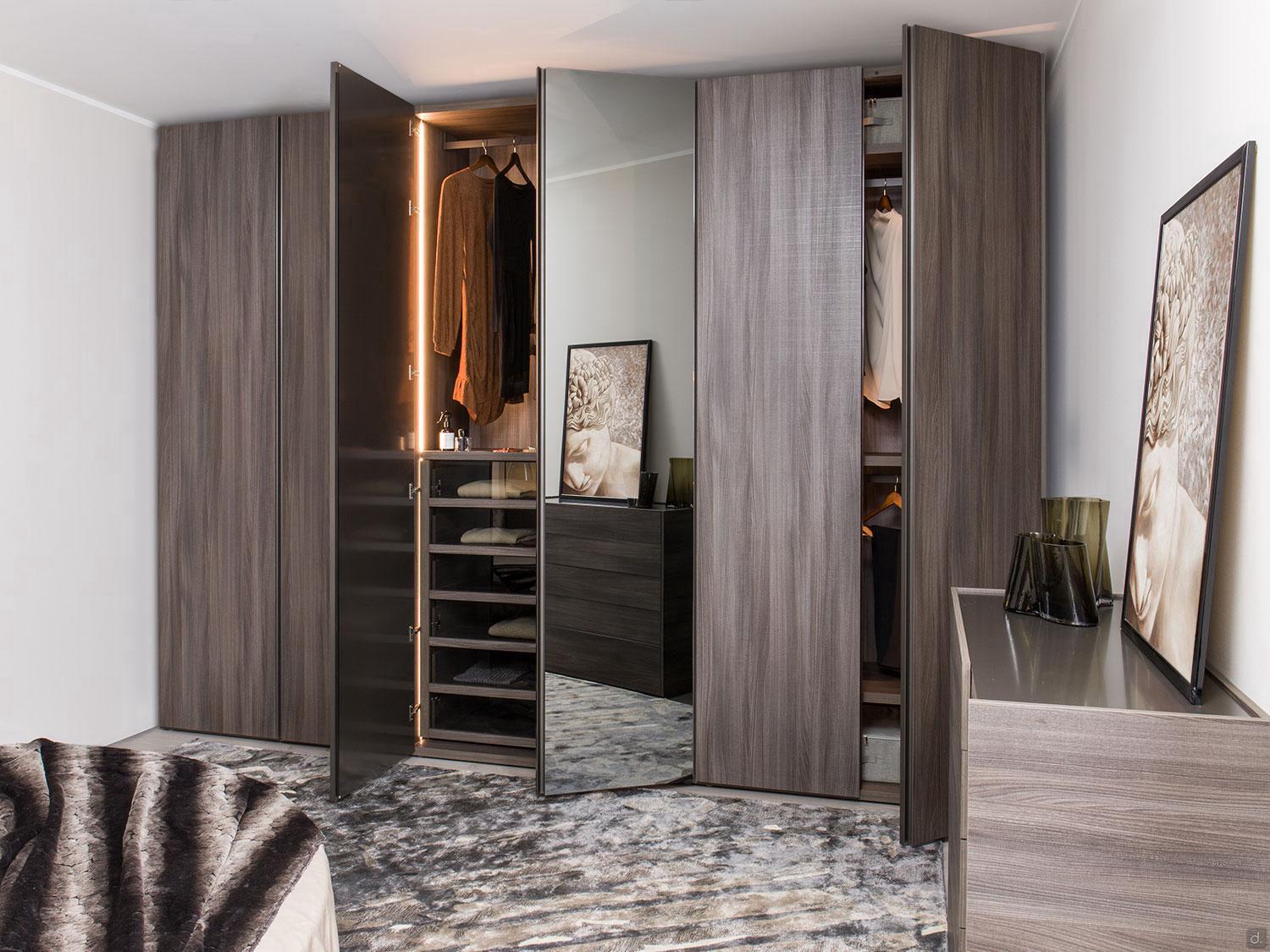

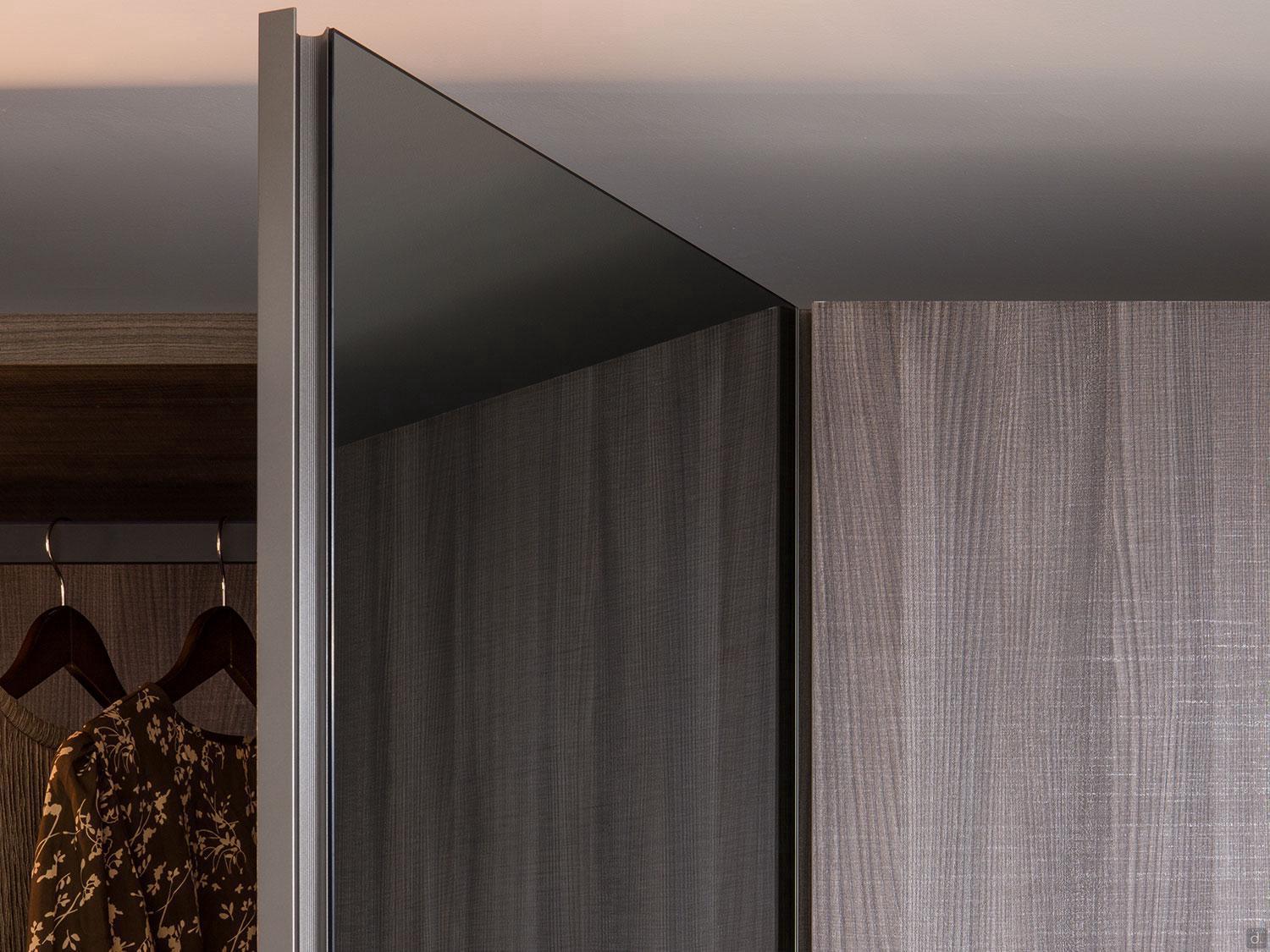

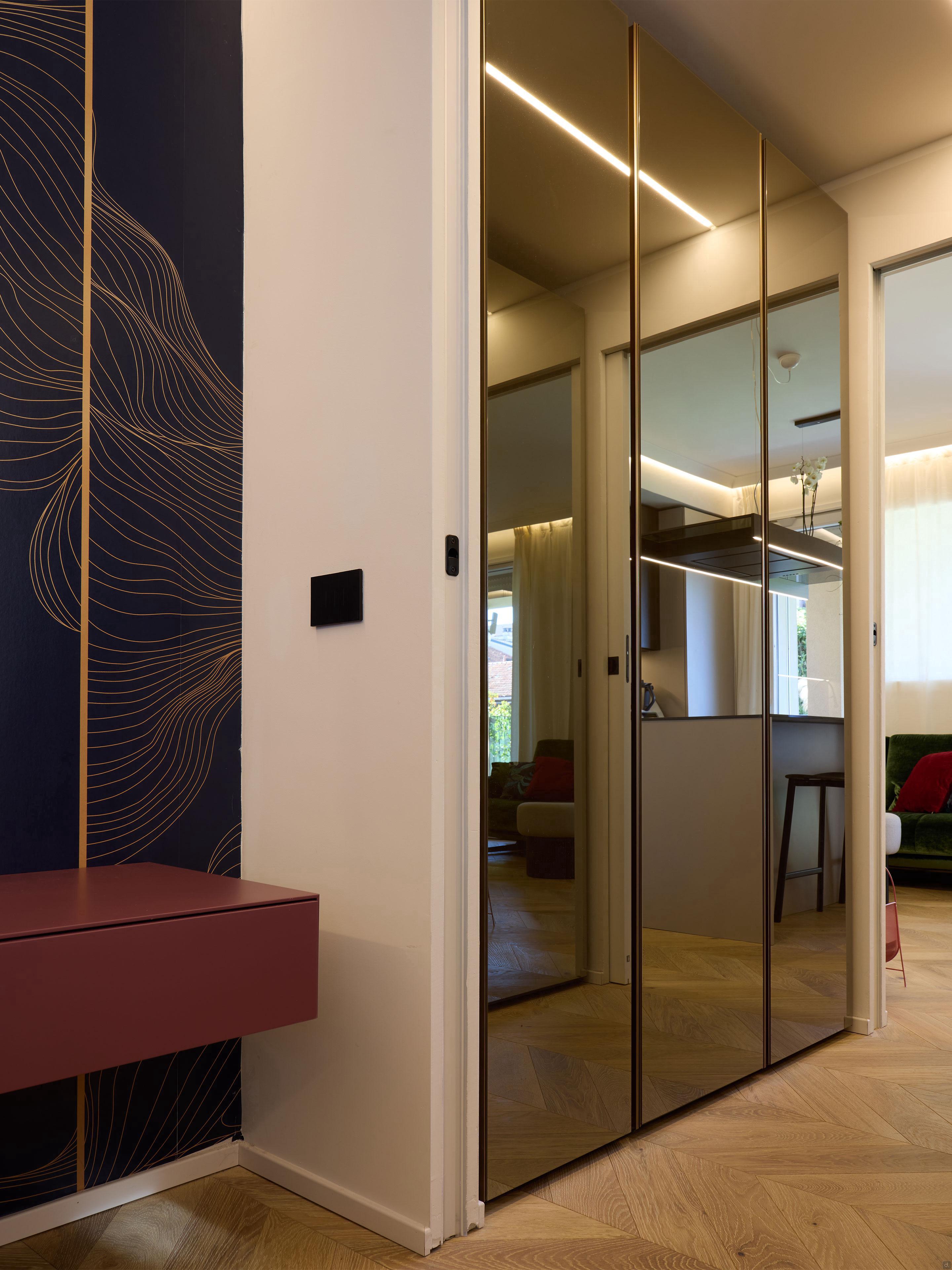

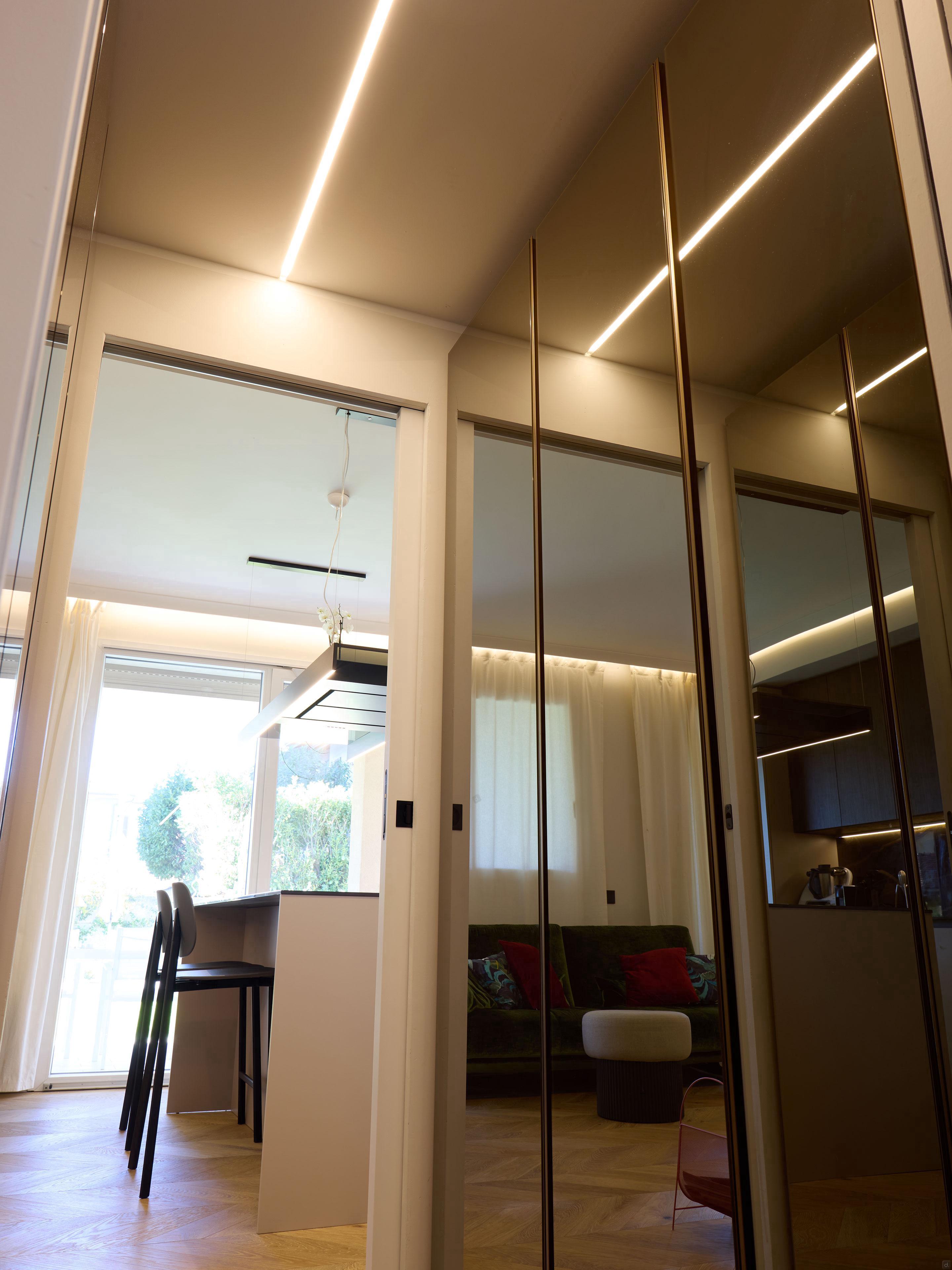

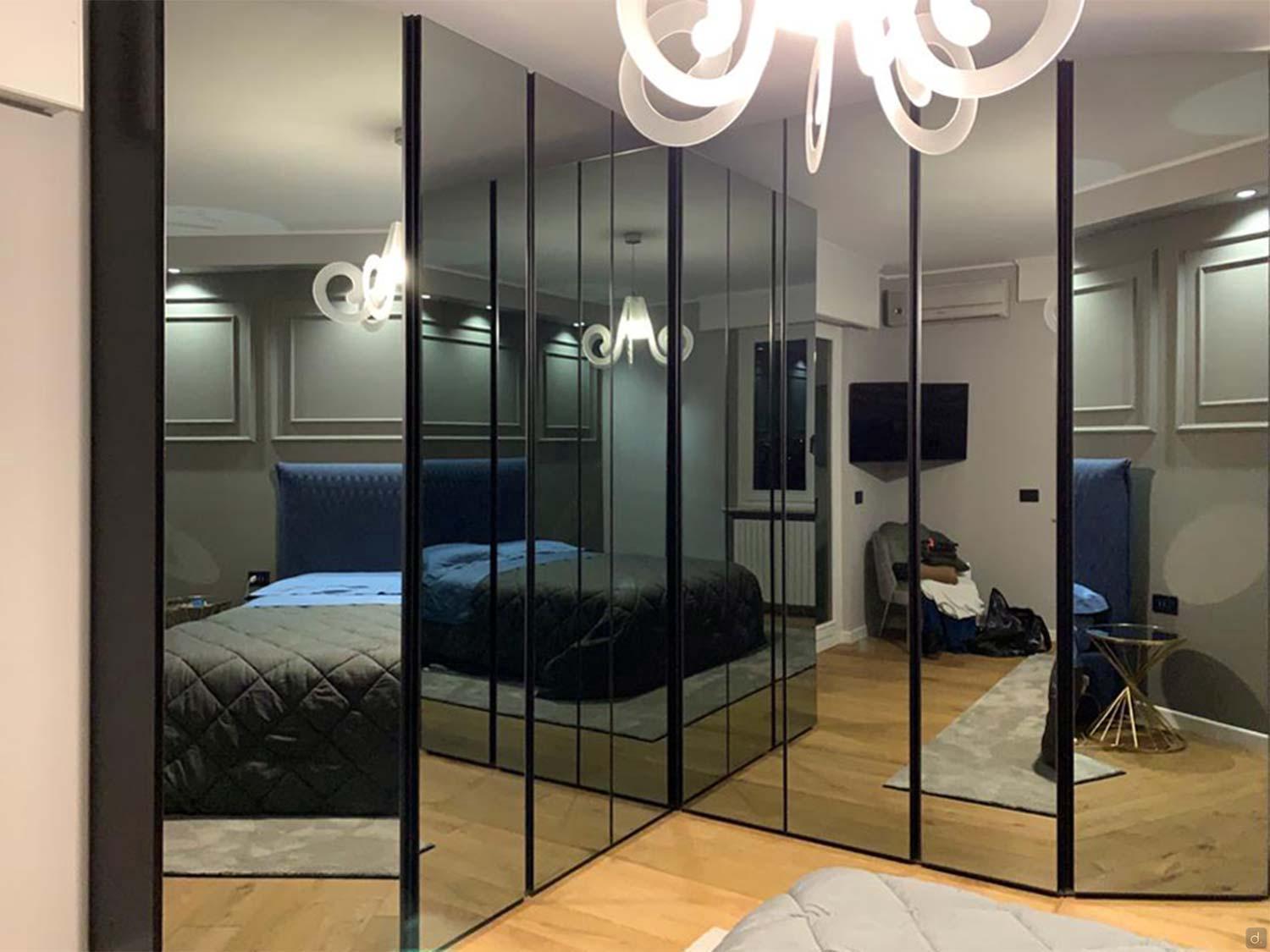

Glass / mirror doors: made with particle wood panels (class E1 with low formaldehyde emissions) melamine with 21 mm layer + glass 4 mm thick. Internal in matt lacquer matching the glass.
Coated doors: made with particle wood panels (class E1 with low formaldehyde emissions) coated with melamine layer 21 mm thick + coated panel 4 mm thick. Inside in matt lacquer.
Technical Specifications and Equipment
Sides and partitions: thickness cm 2,5. For the sides the border is in ABS for melamine and lacquers, in wood for wood veneer doors. For partitions, in ABS matching the inside. Equipped with adjusting feet inserted in the thickness, adjustable up to 1,2 cm.
Top and bottom: thickness cm 3,5. Border in ABS matching the inside.
Backrests: thickness cm 0,8.

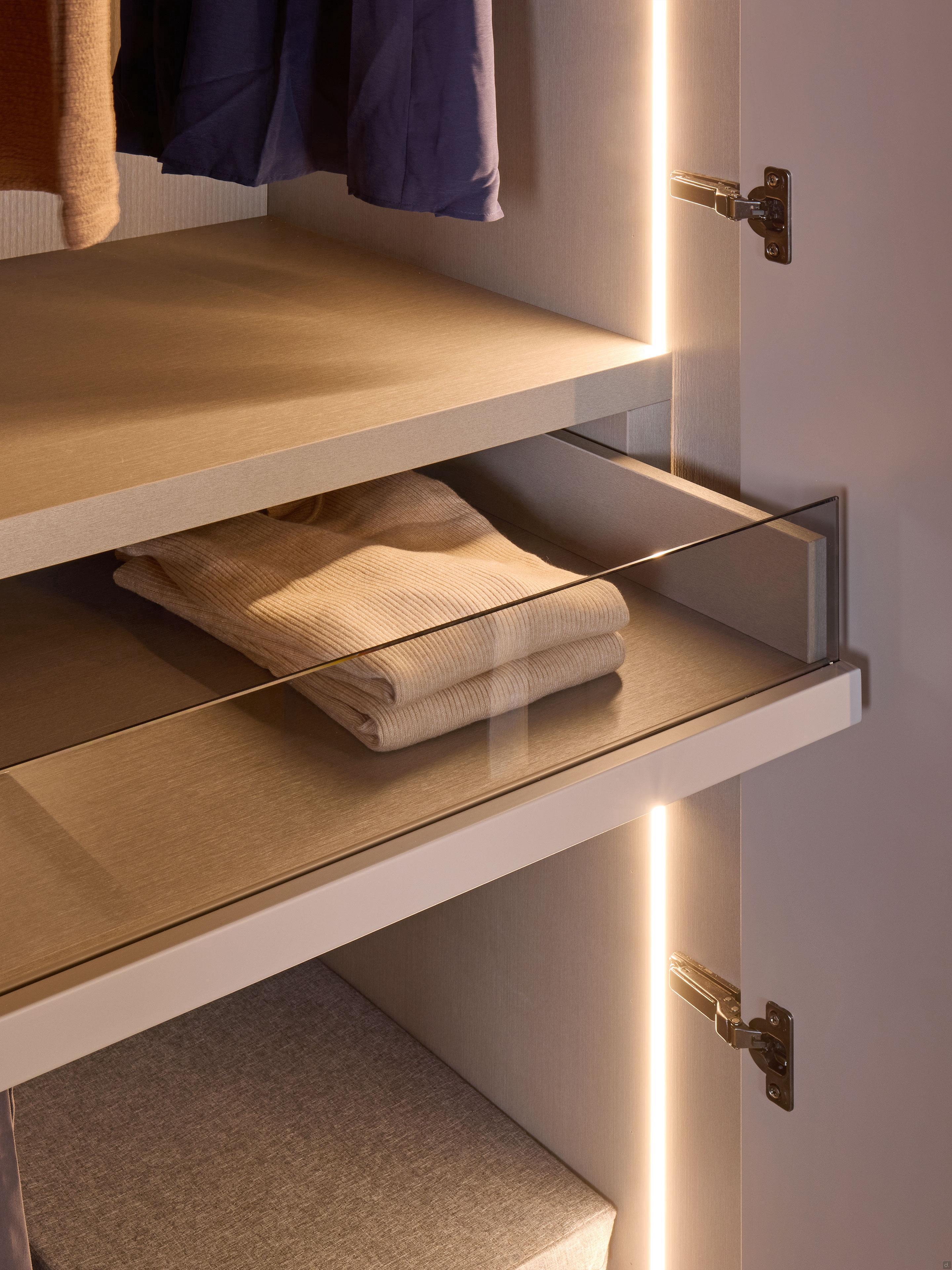

Internal shelves: thickness cm 3,5. Border in ABS matching the inside.

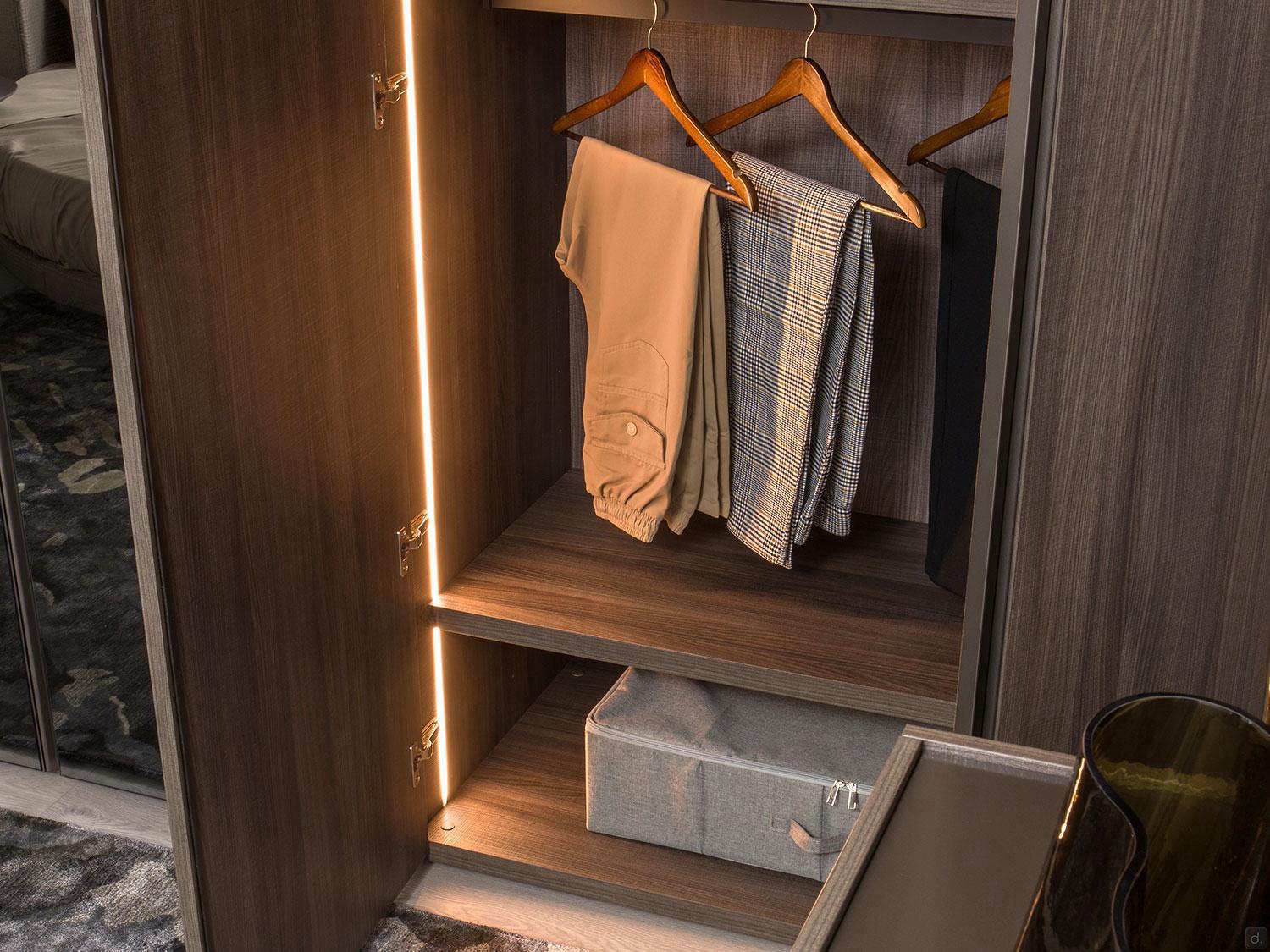

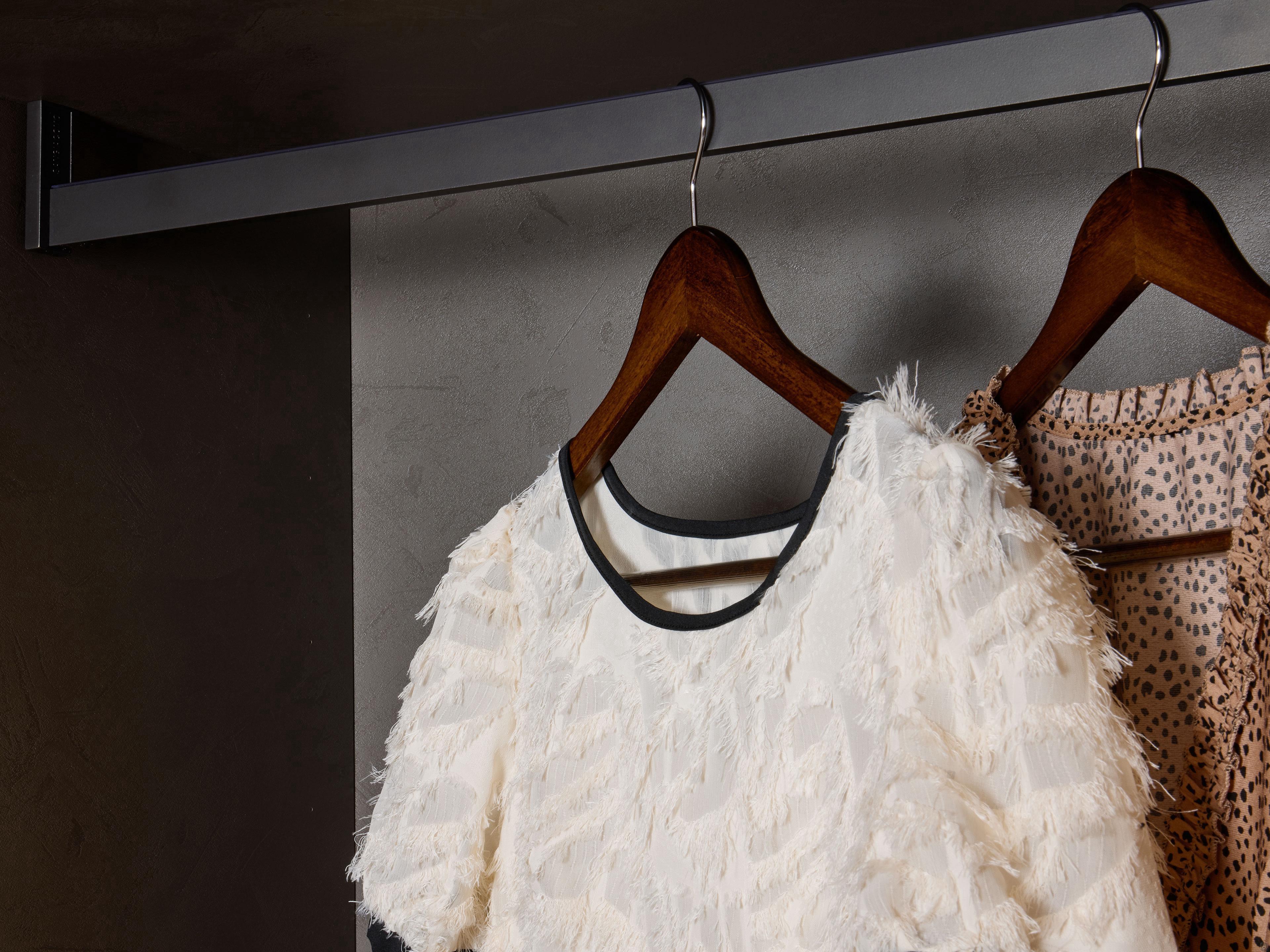

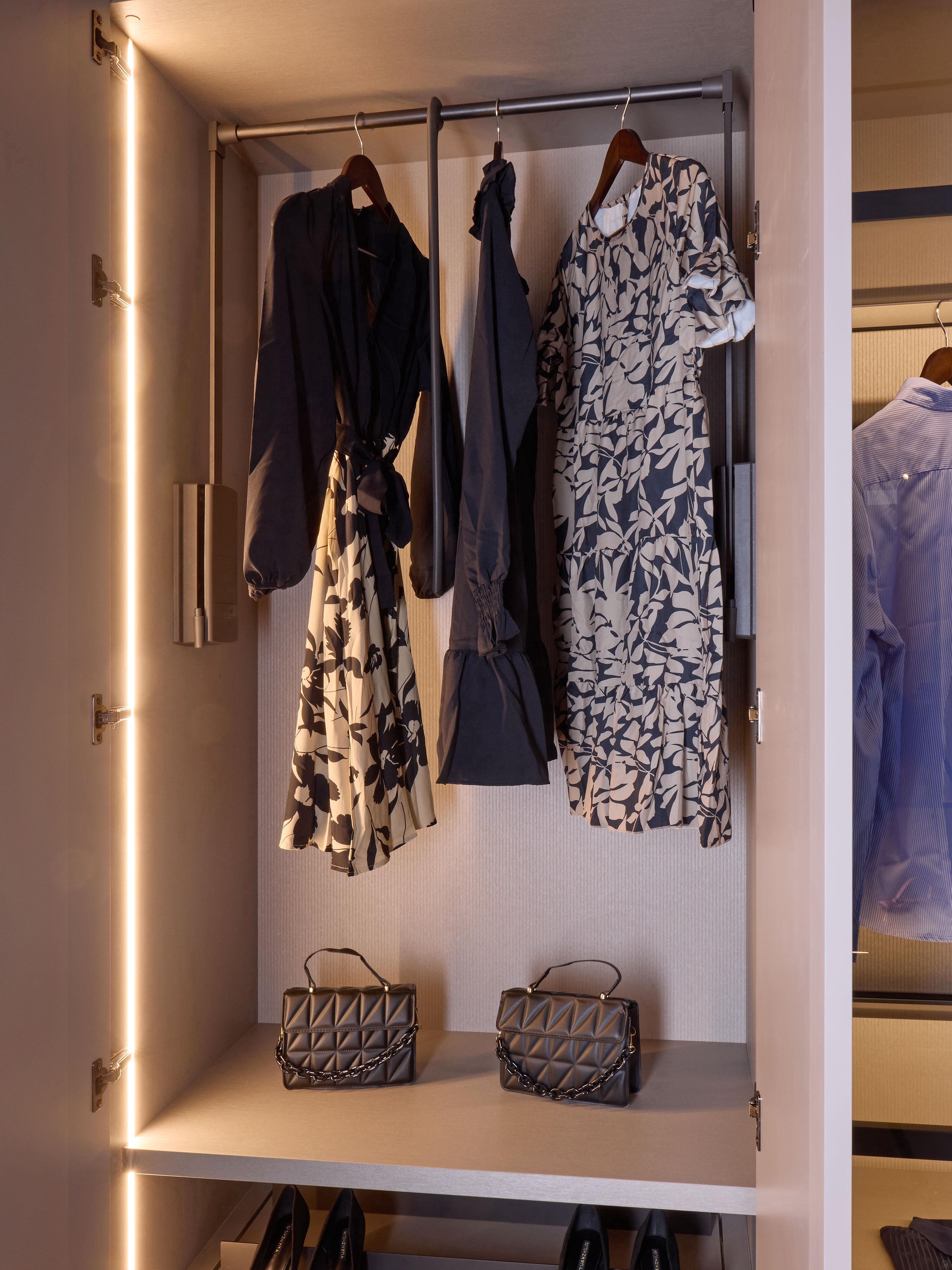

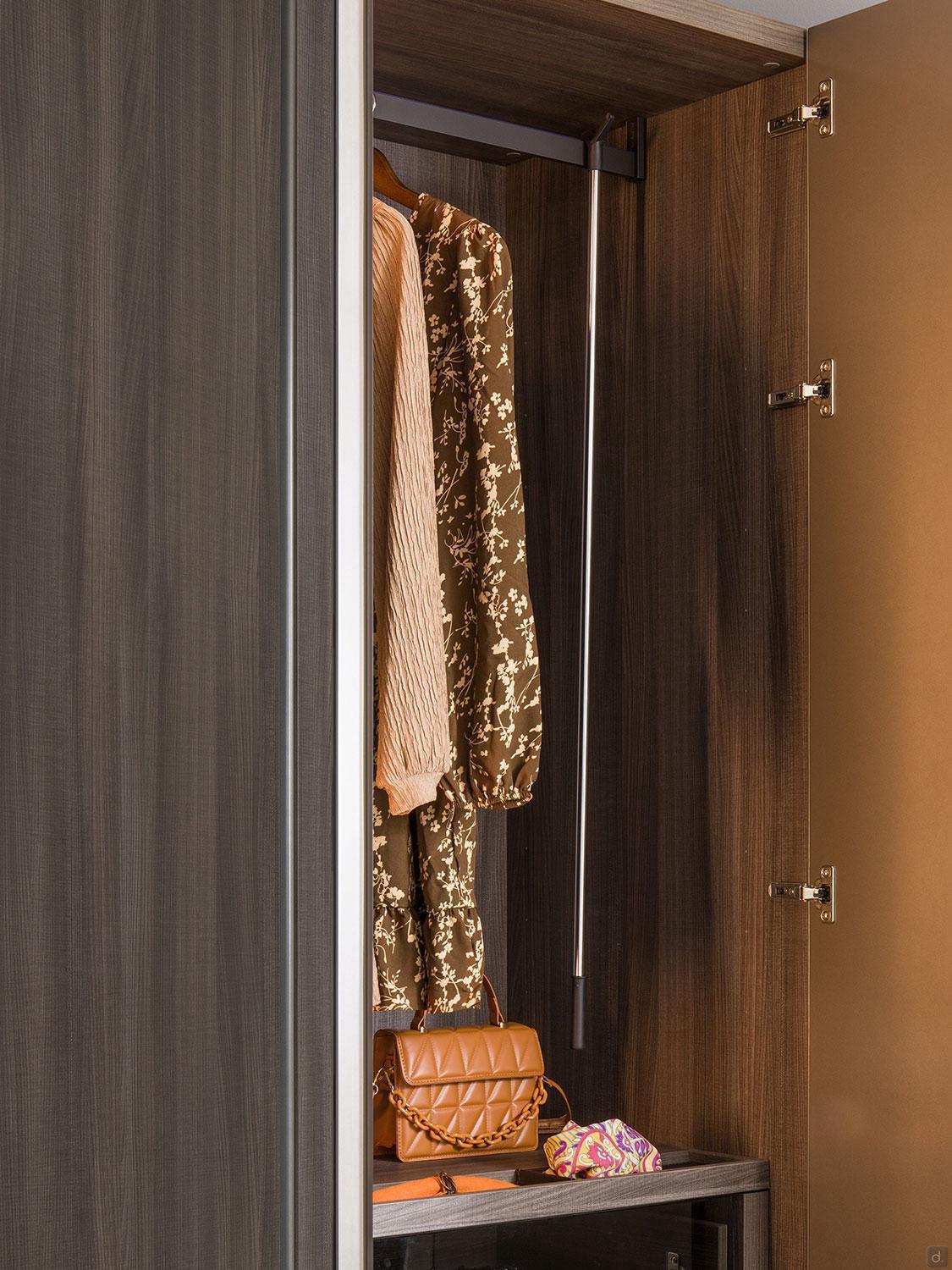

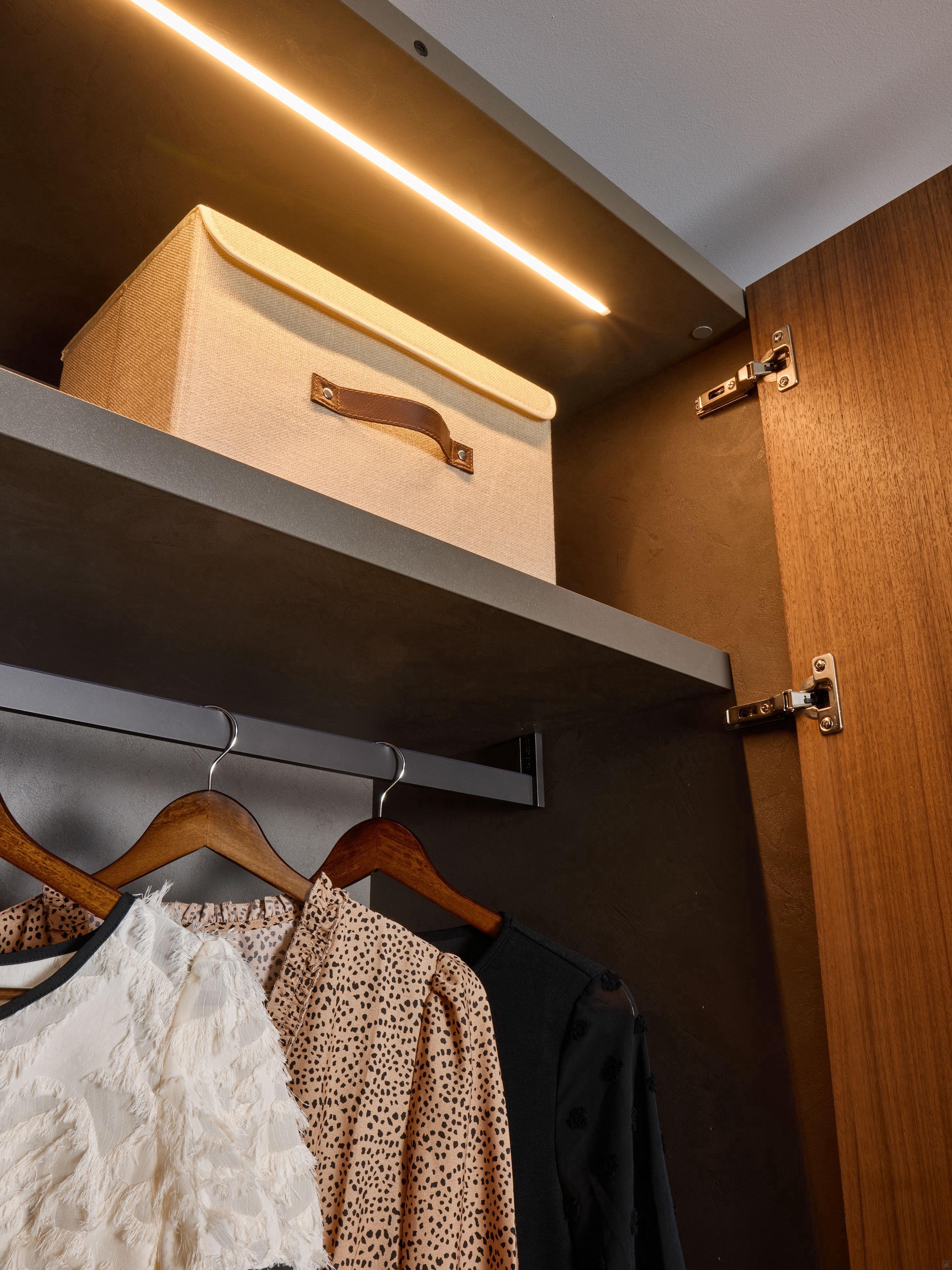

Rods for clothes: rectangular section cm 3 x 1, in Gunmetal painted metal (for internal finishes in natura loto, textured linen, medium elm), Brown (for internal finishes in taupe loto, terra loto, dark elm or ecowalnut), Palladium (for internal finishes in sketch sand, rock and tobacco).

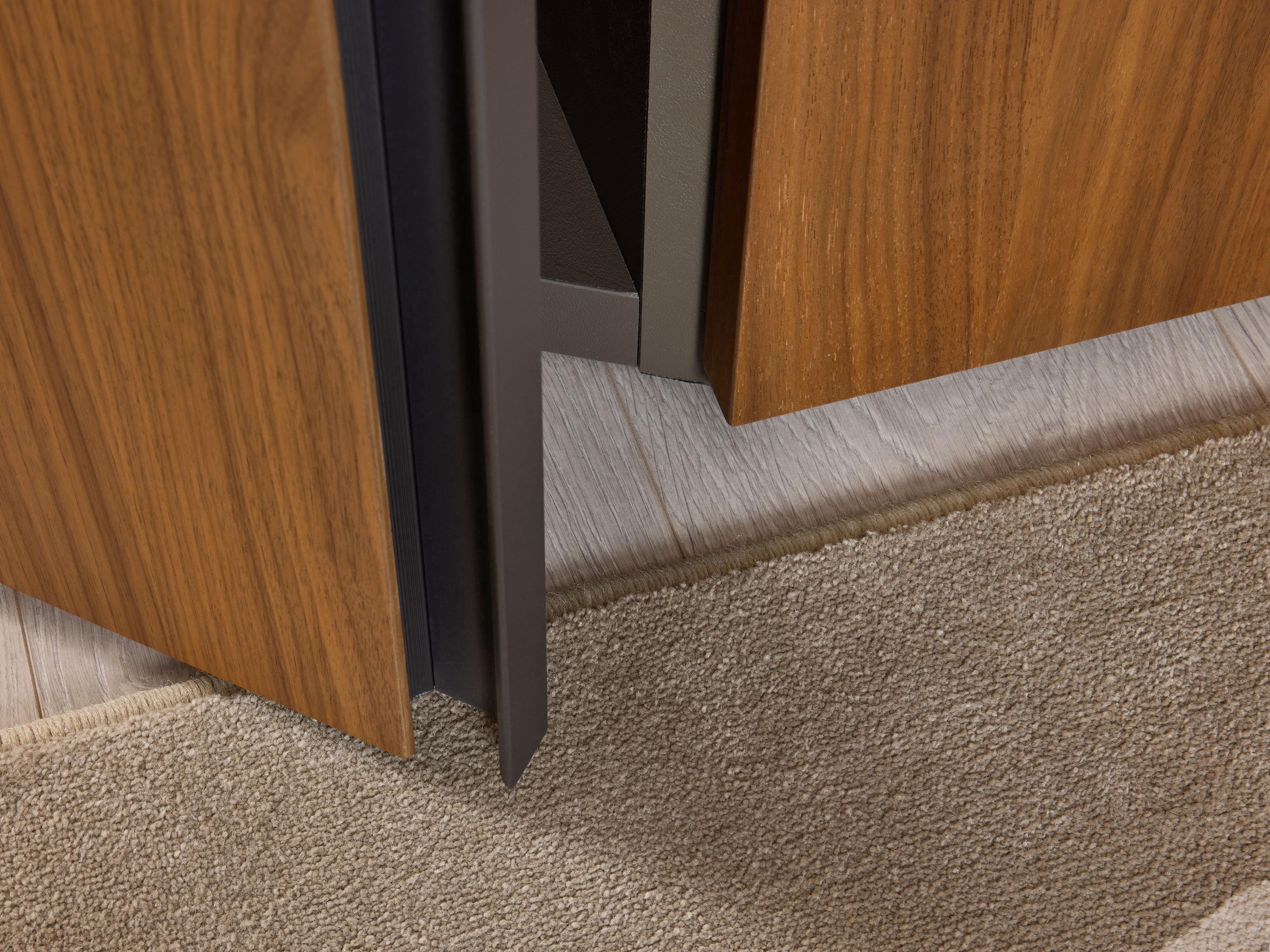

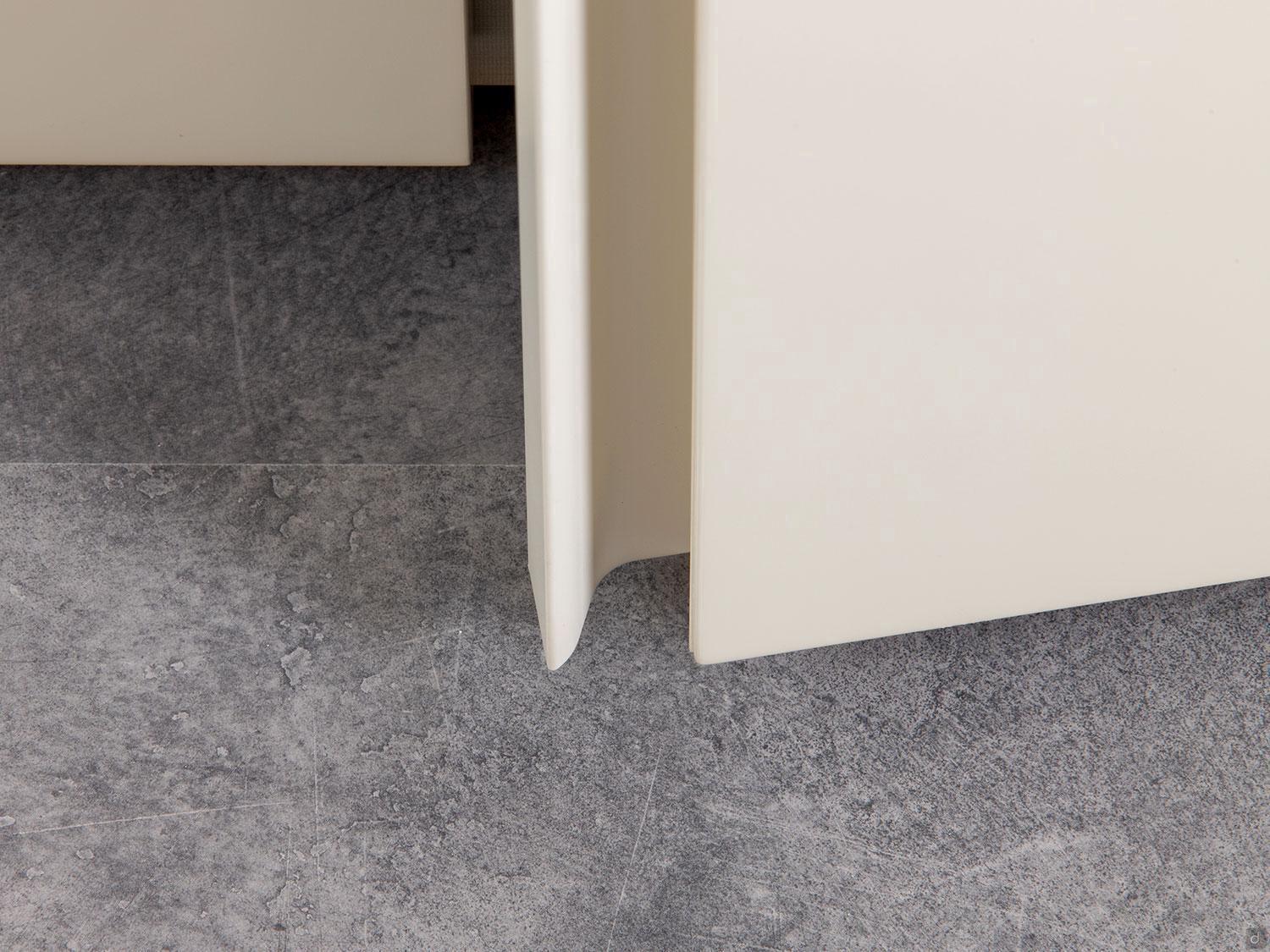

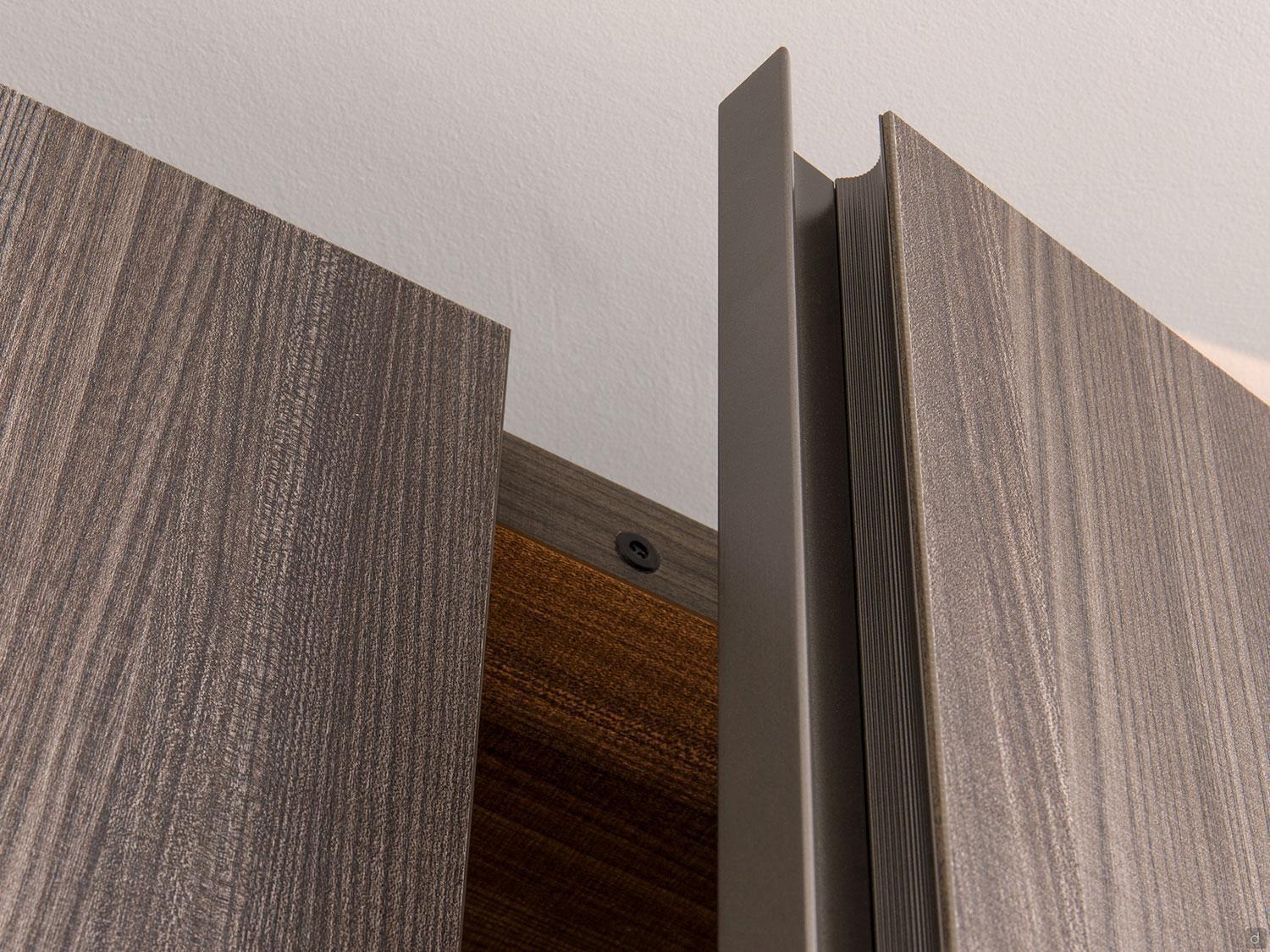

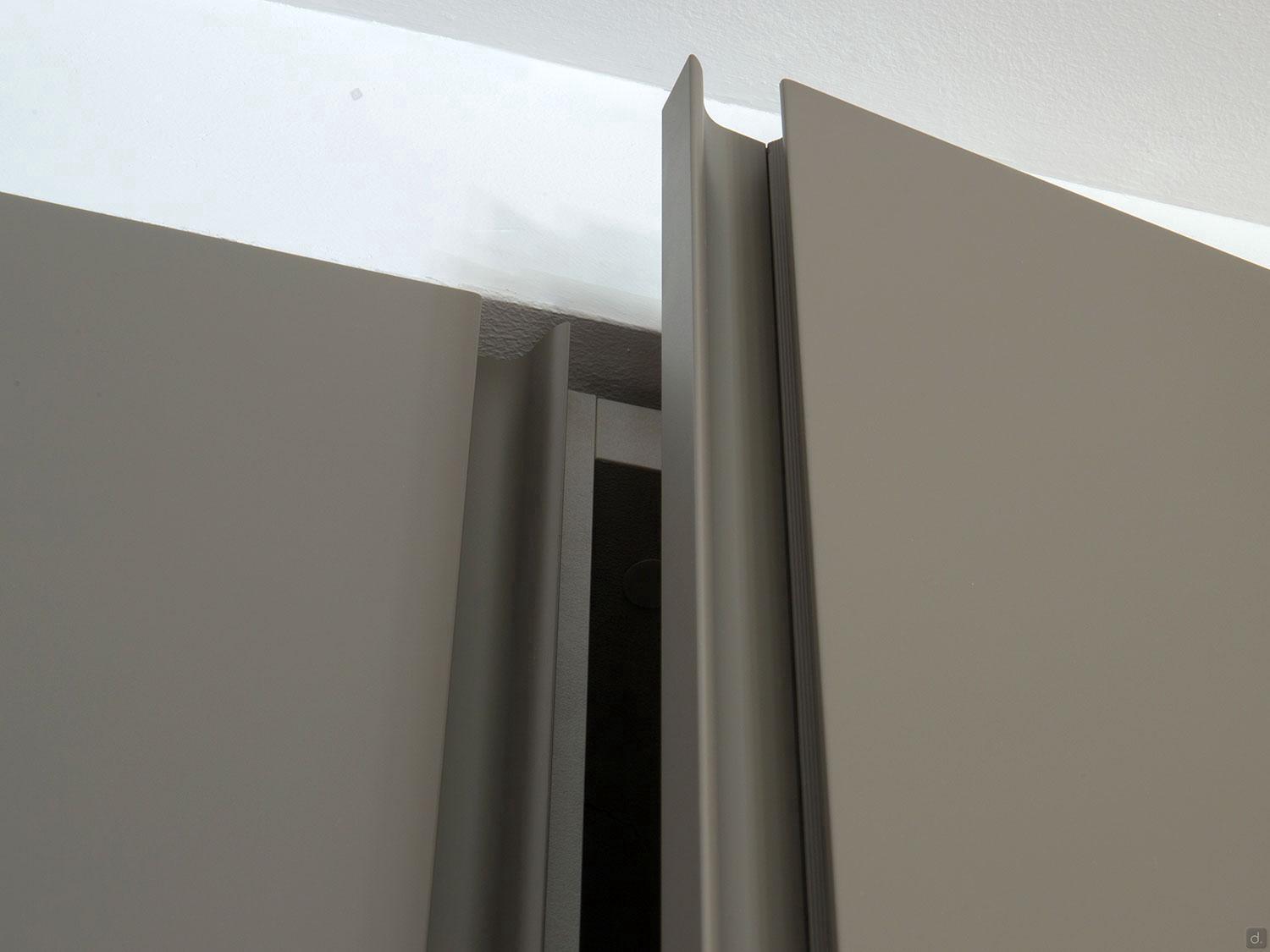

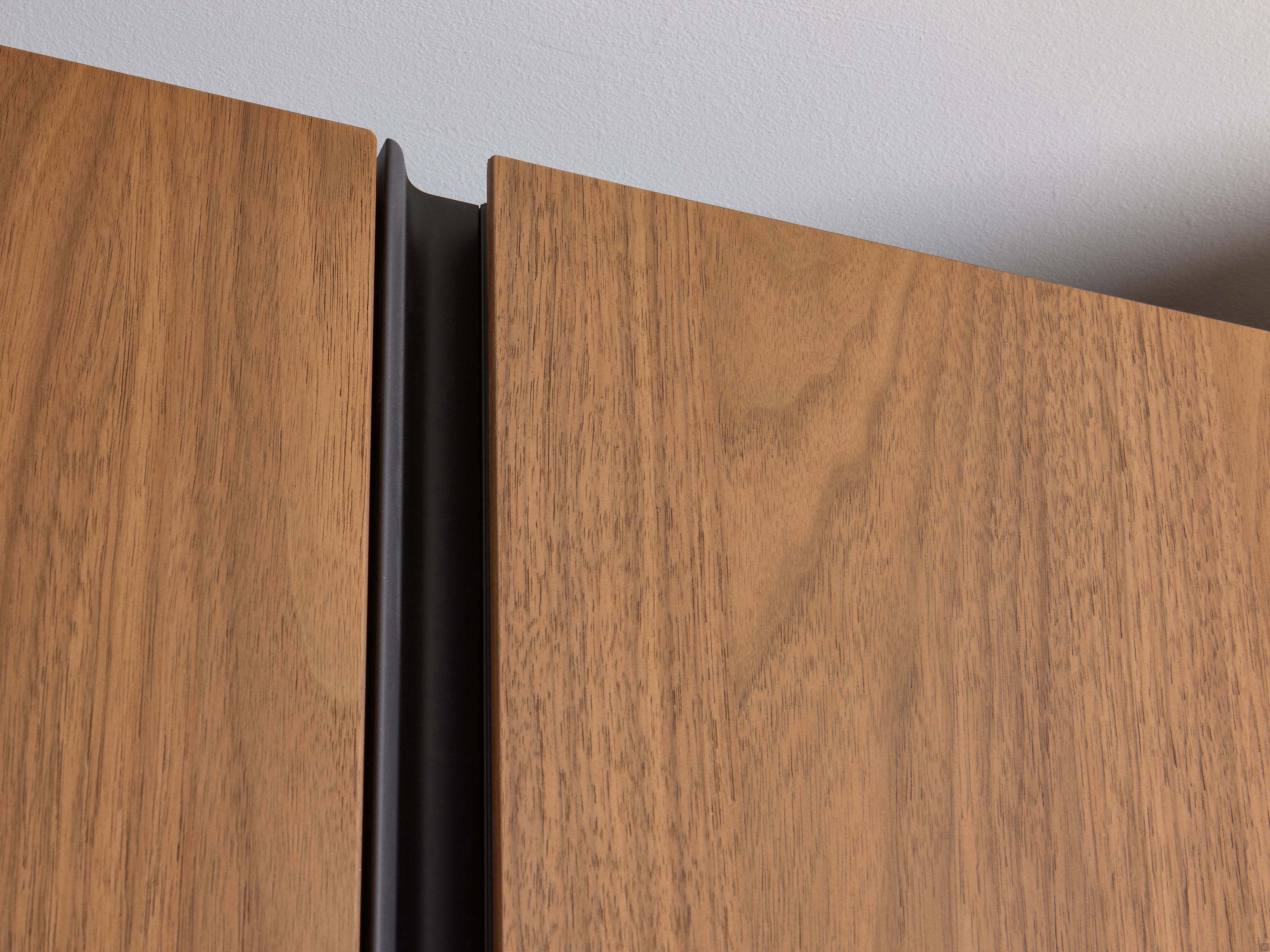

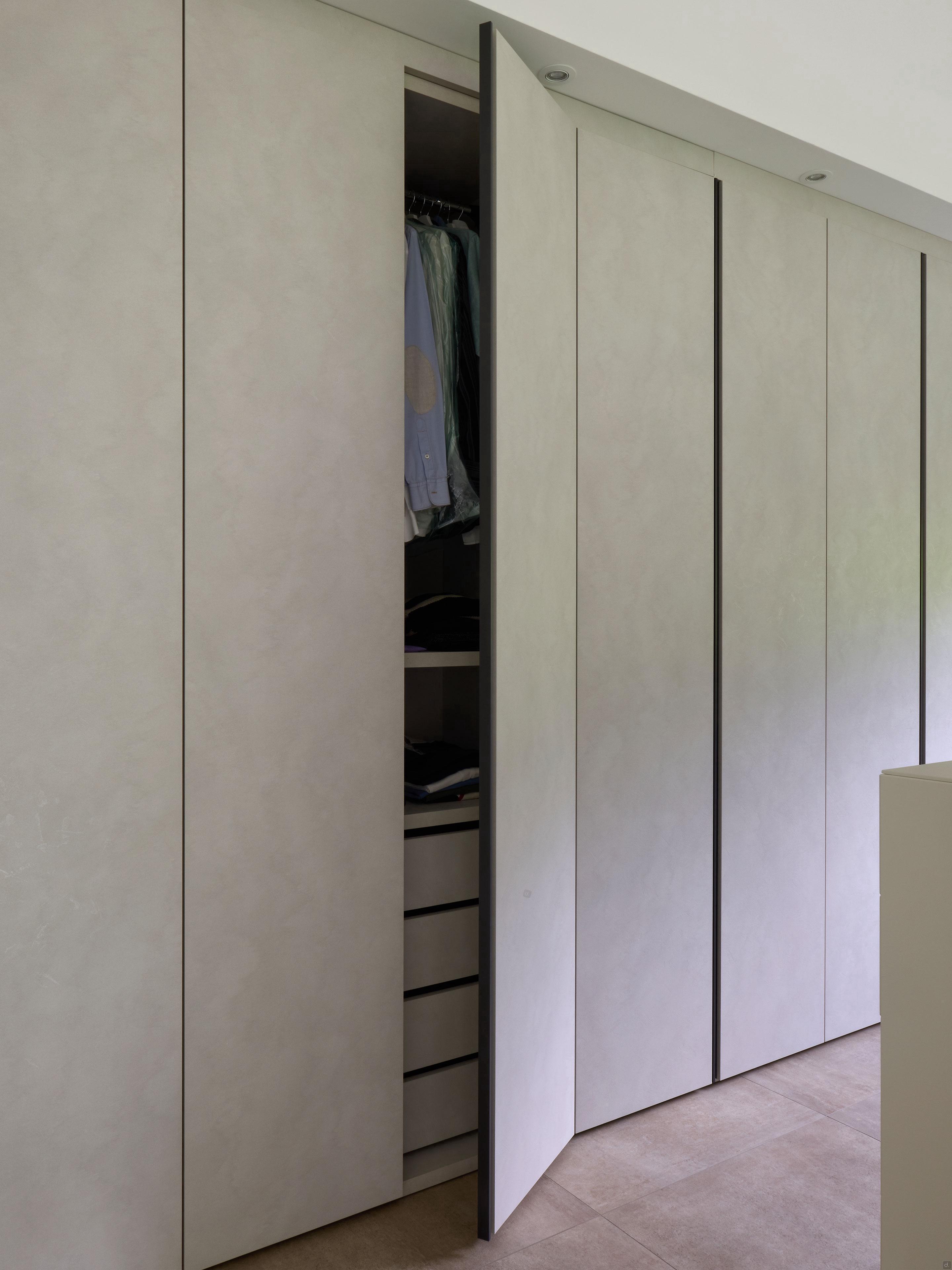

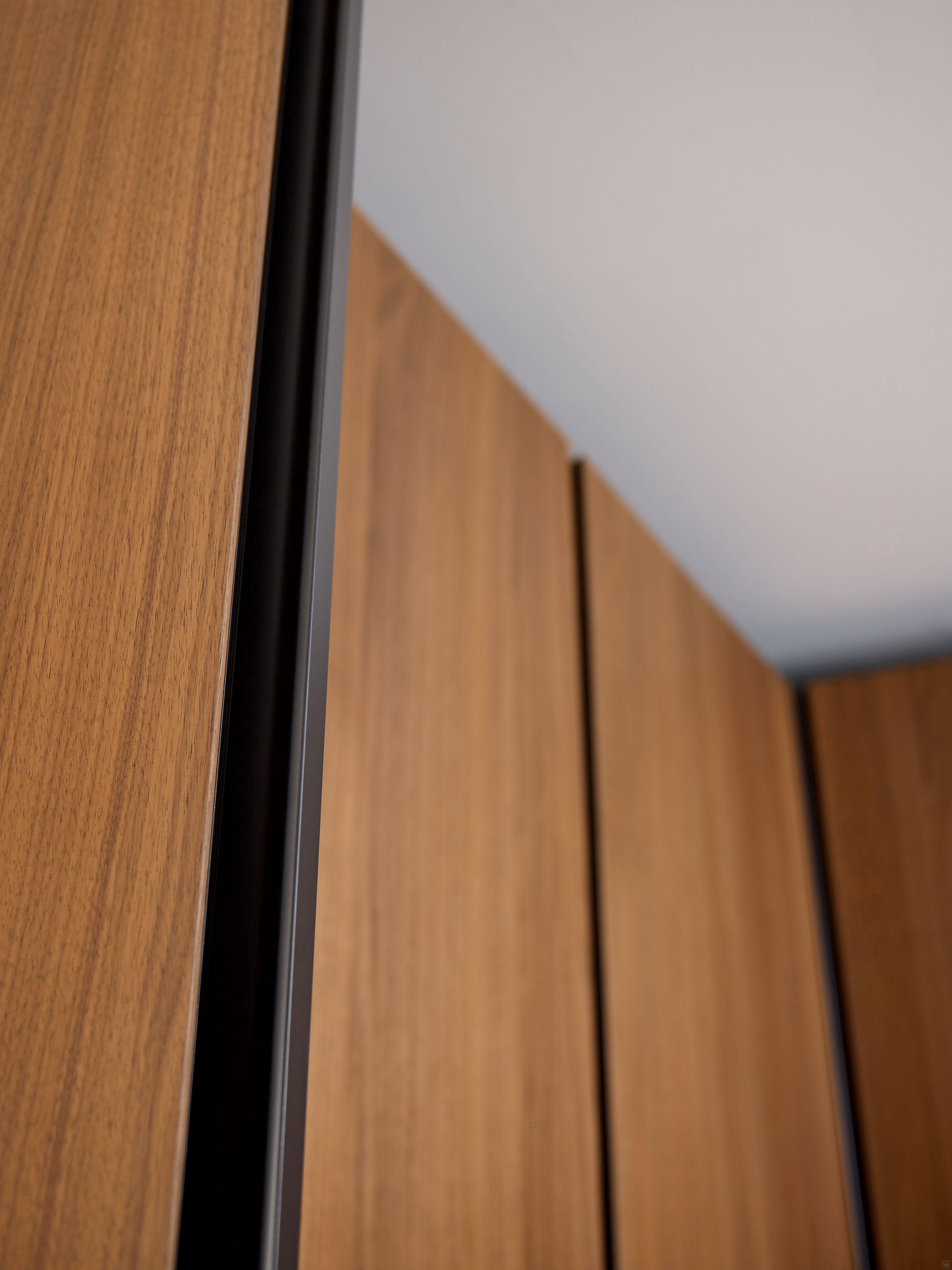

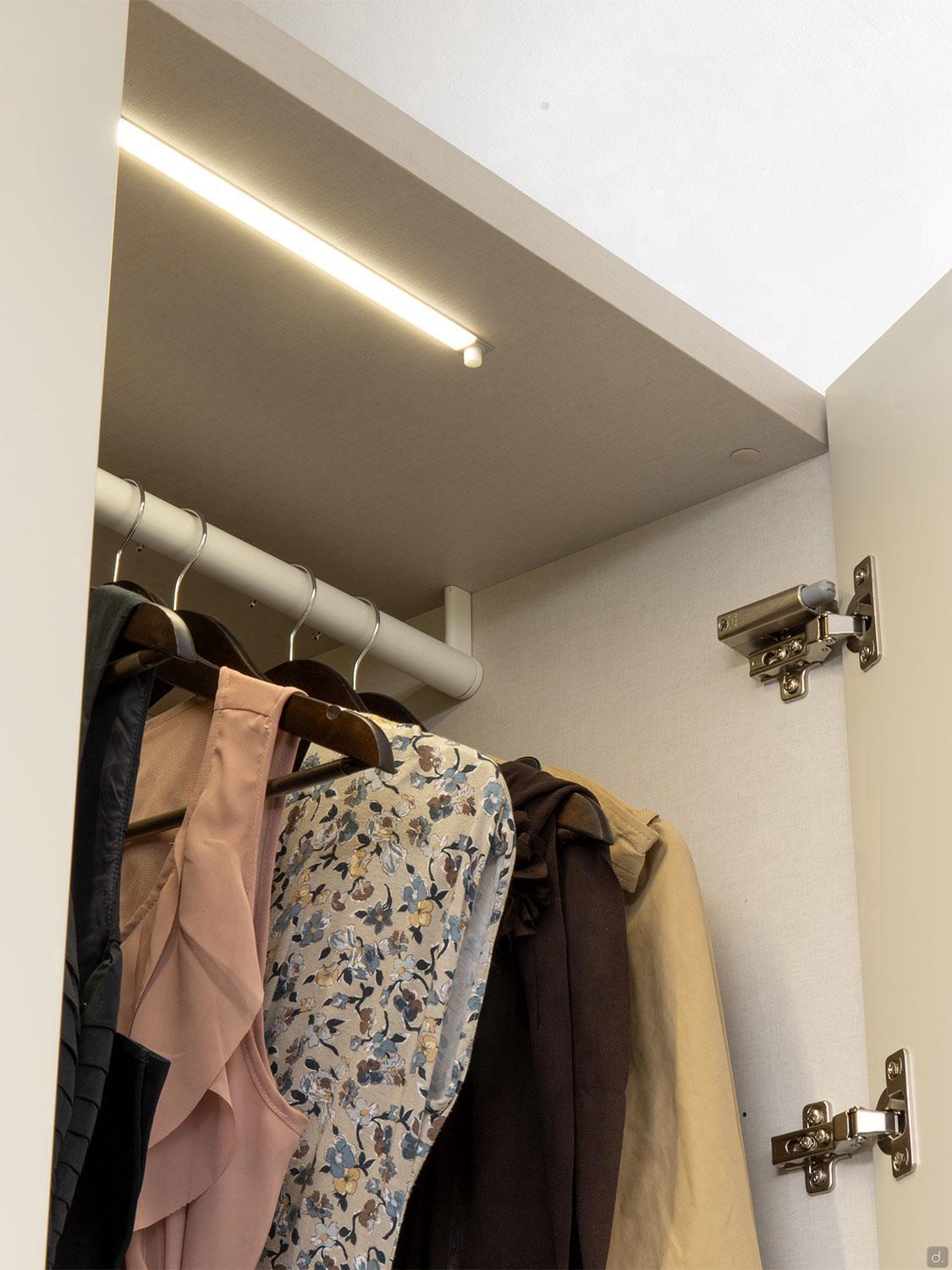

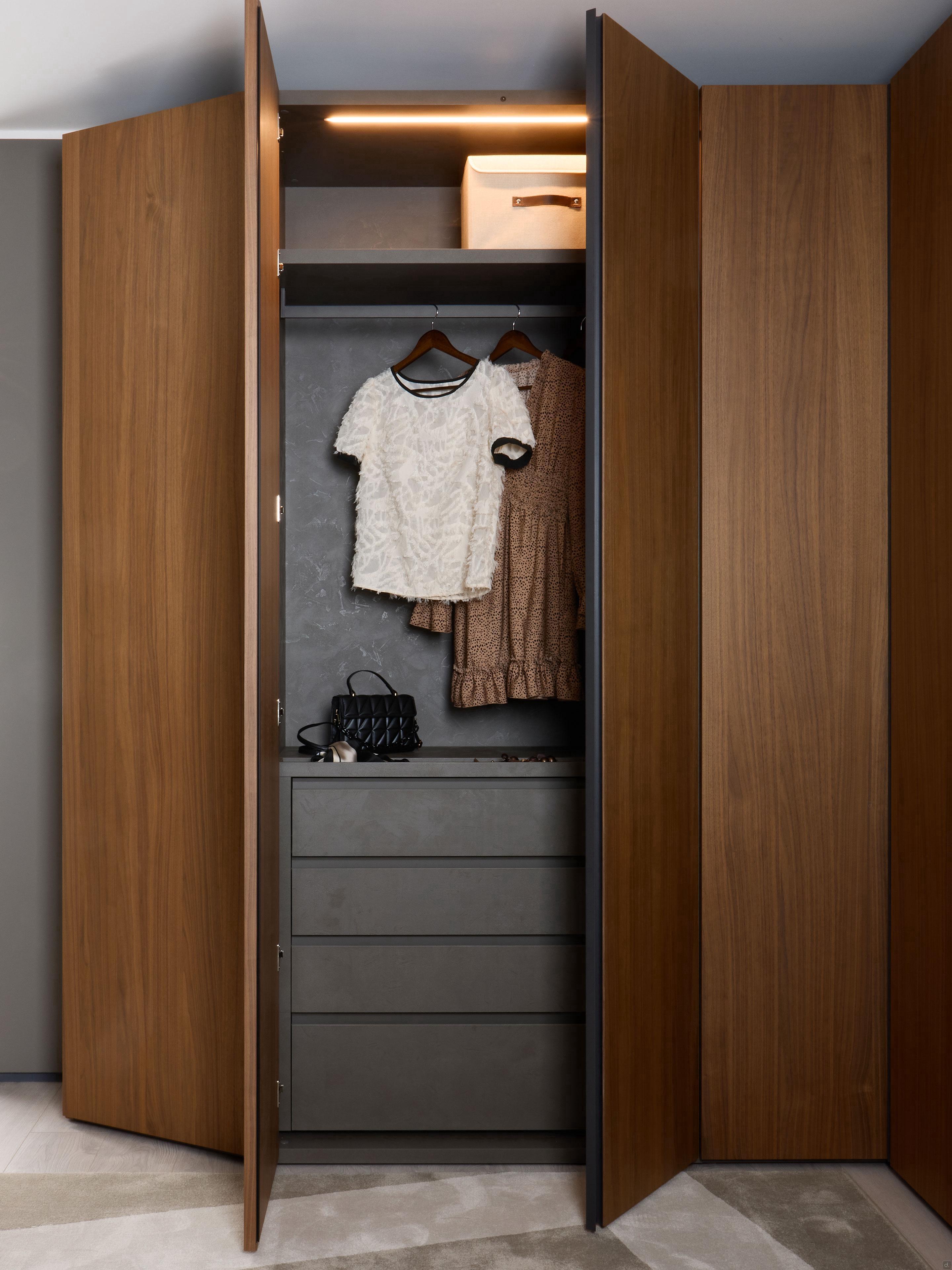

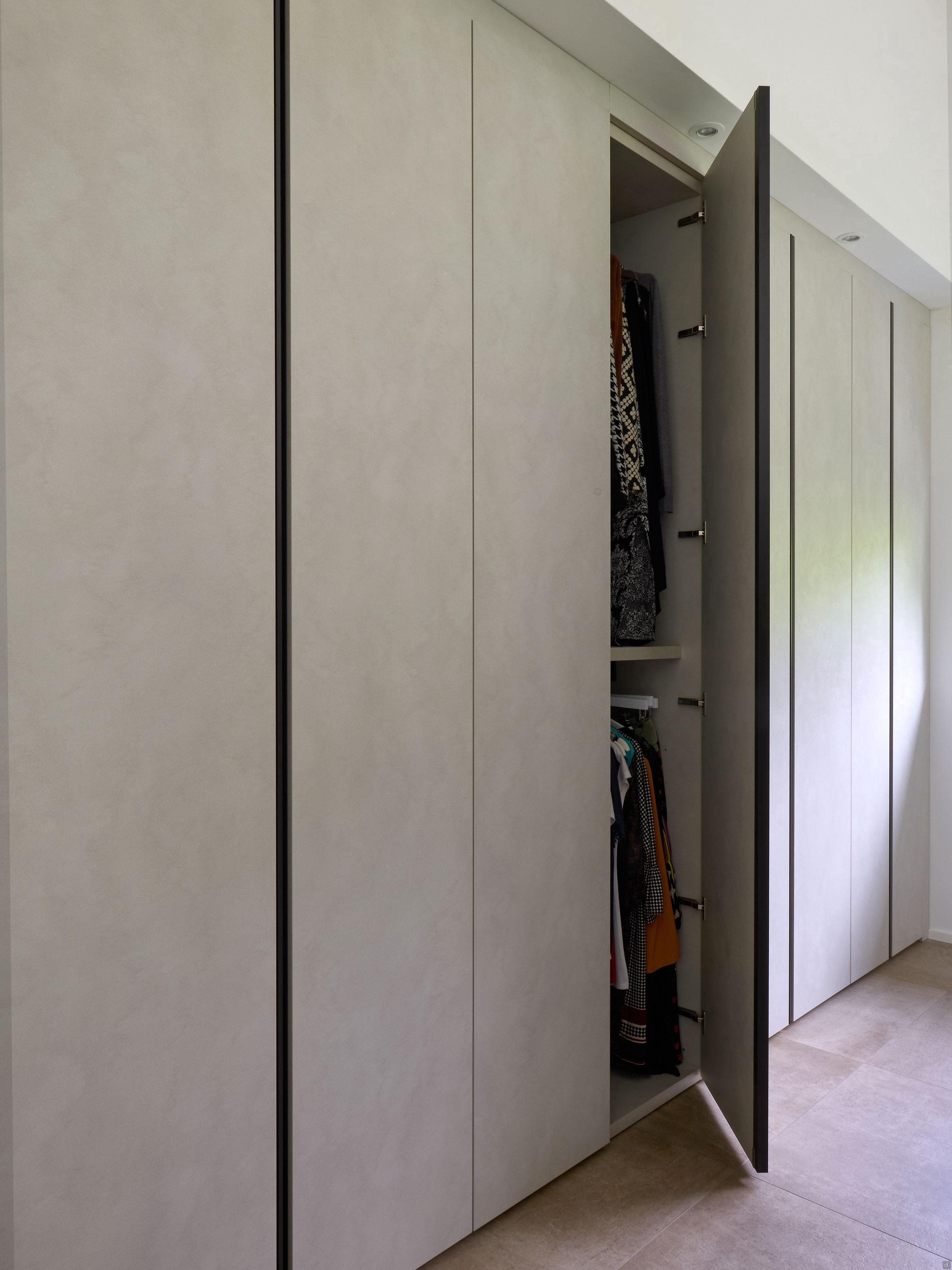

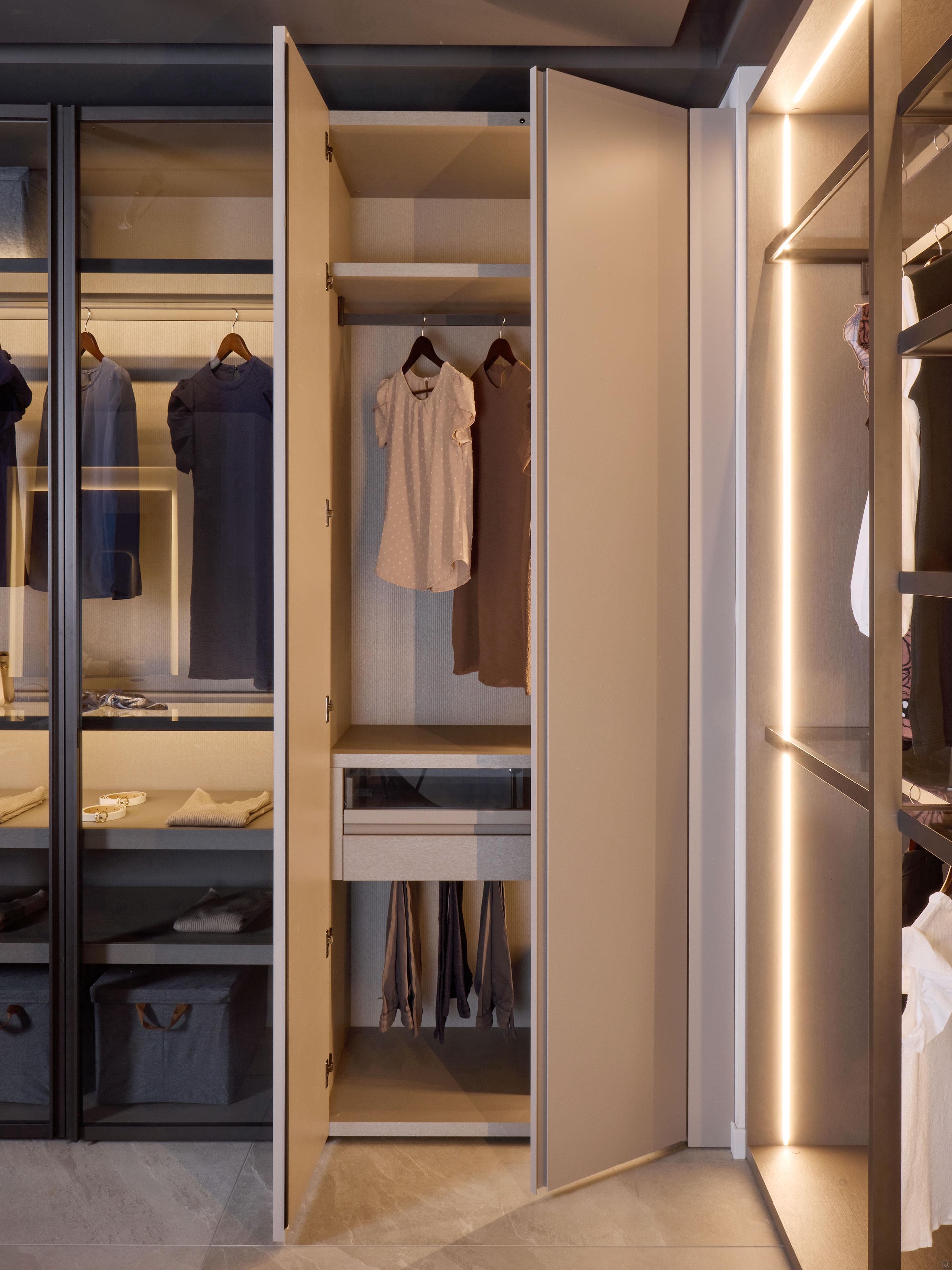

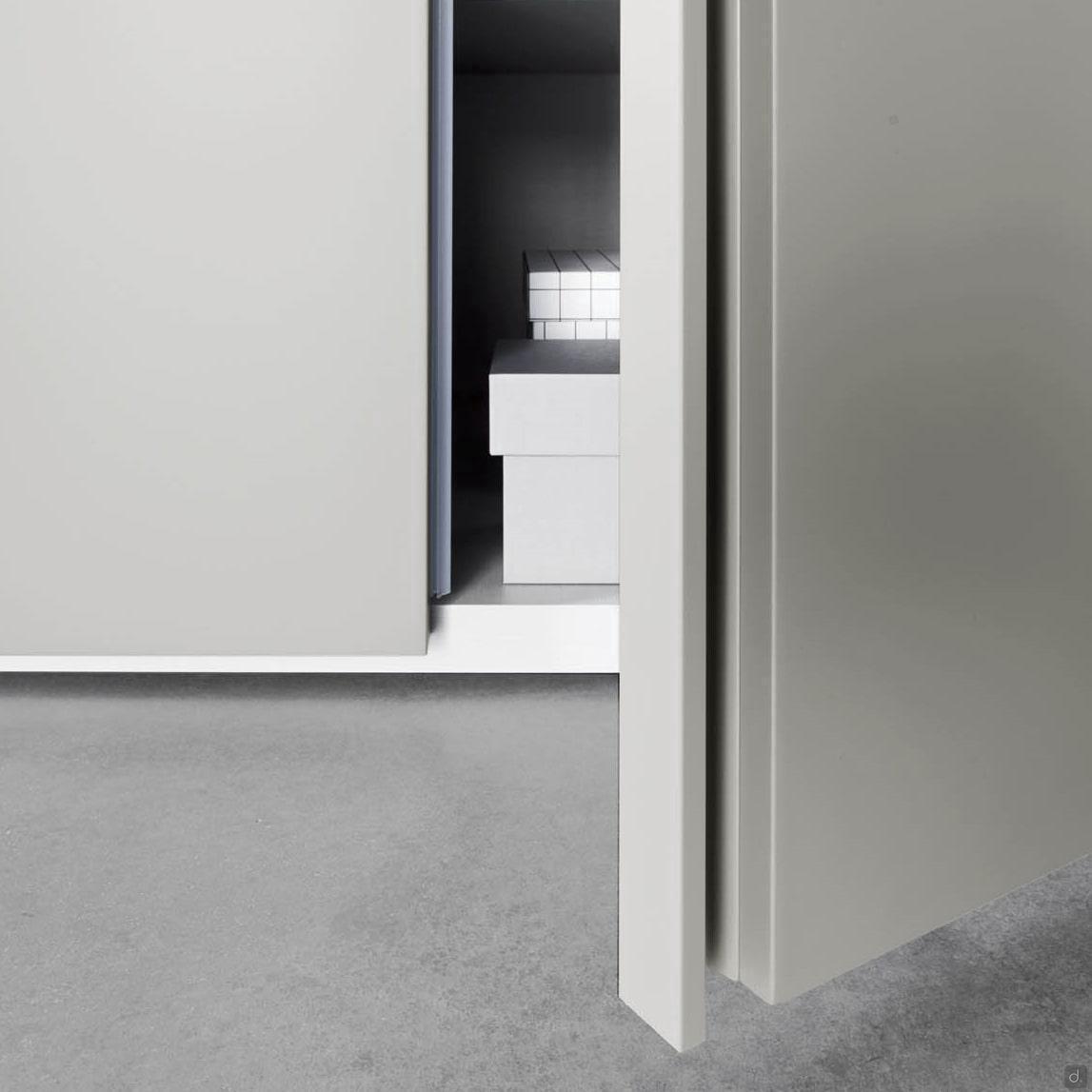

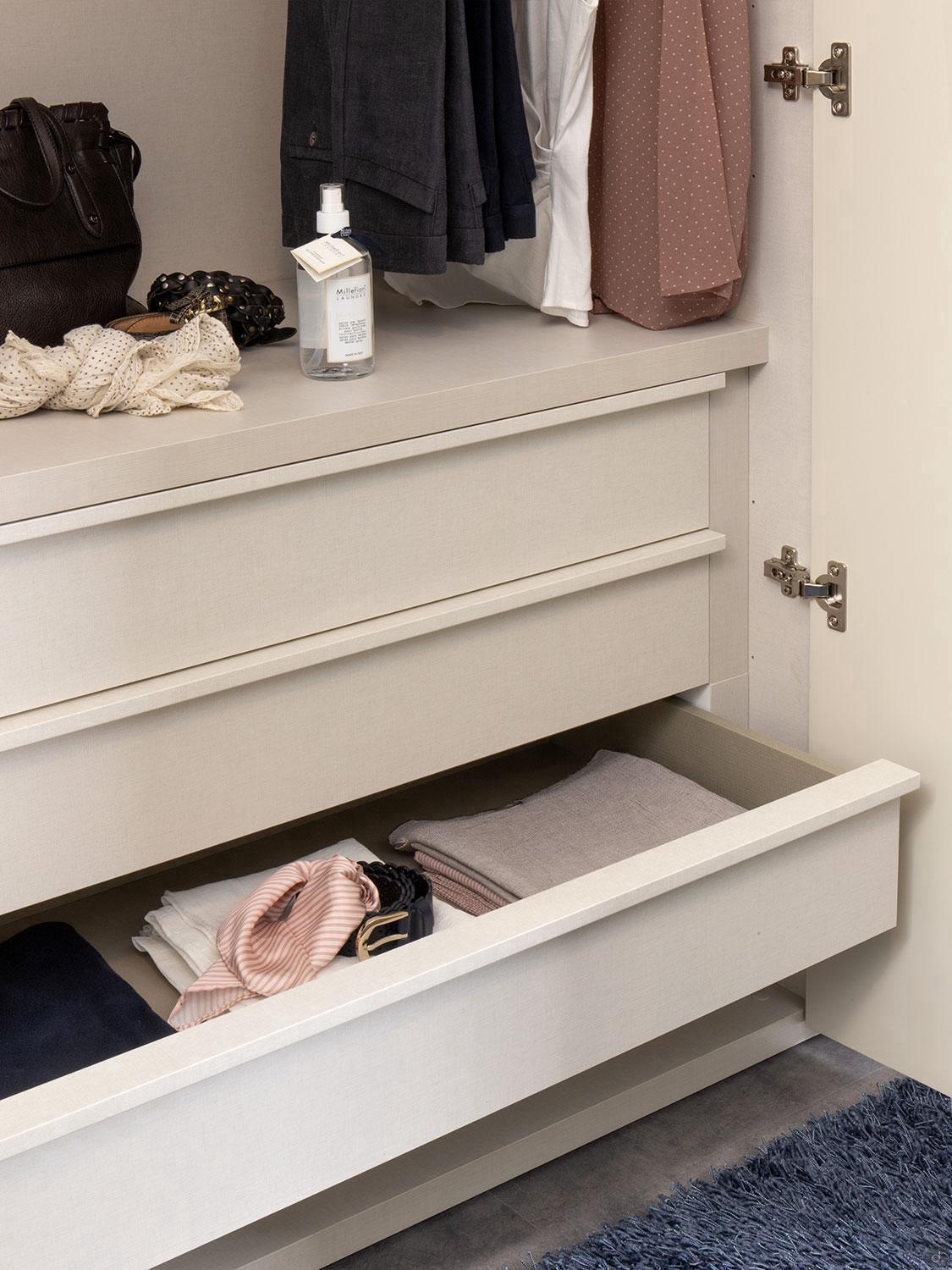

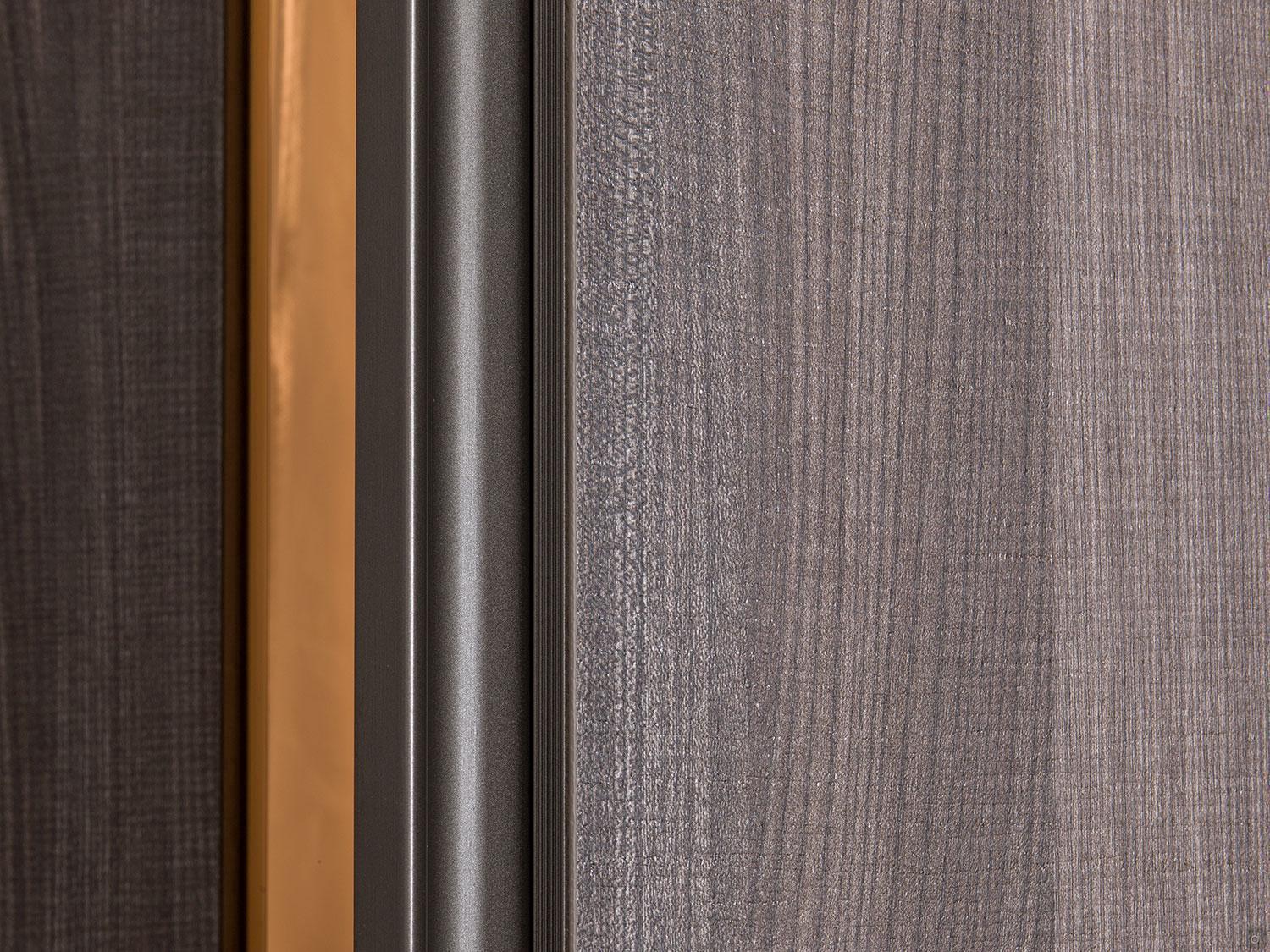

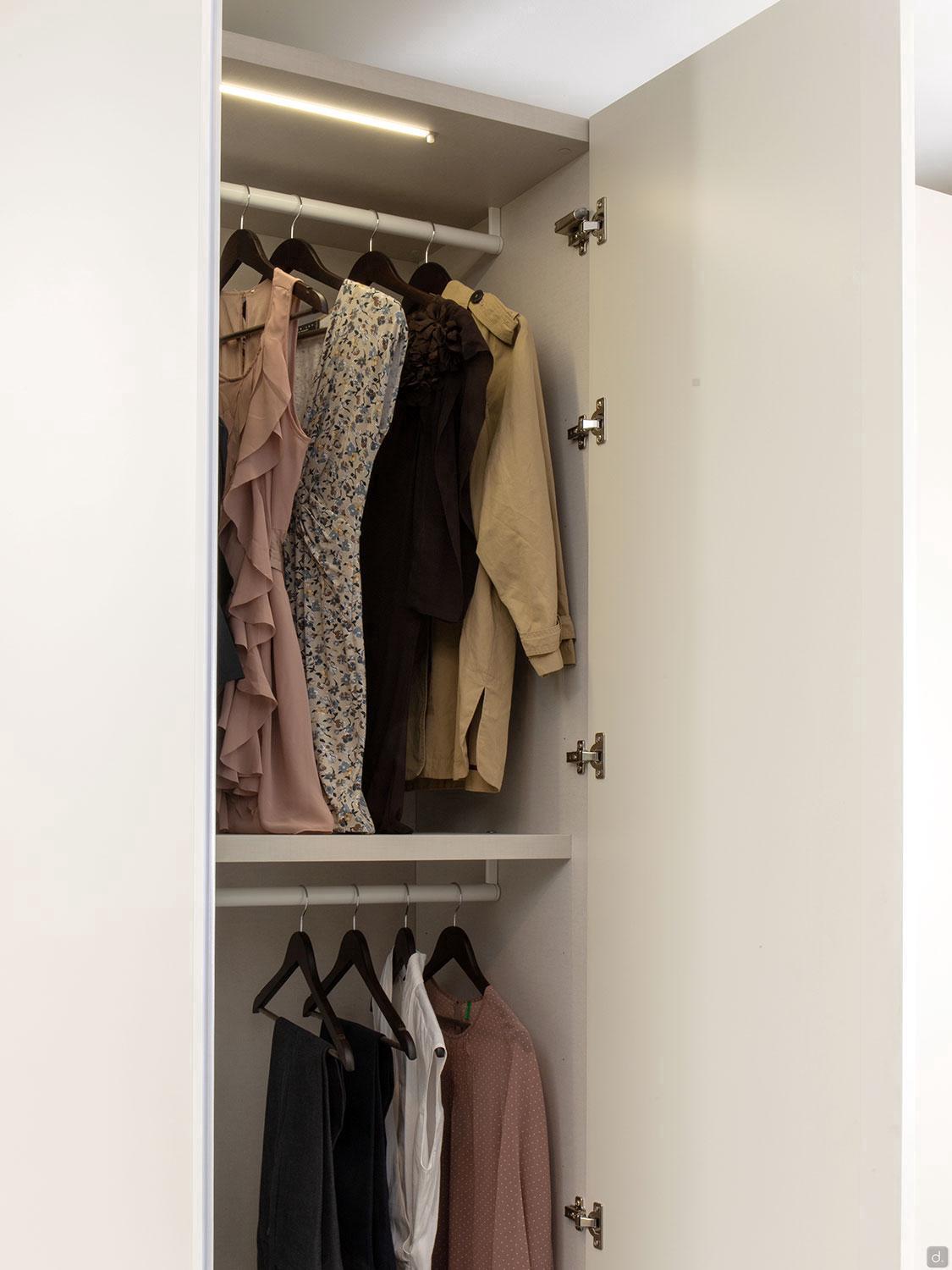

Doors: thickness cm 2,6. Border in ABS matching the door for textured finishes and lacquered, in wood for veneer doors. In case of couple of doors, the recess grip is always on the right door; the left door always comes with pvc profile in transparent smoked colour. Each door comes with soft closing hinges, 94° opening; in the cm 35 wide module the soft closing system is mounted separately on the top. For heights cm 239,6, 255,6 and 287,6 there are 6 hinges while for the height cm 223,6 there are 4 hinges.

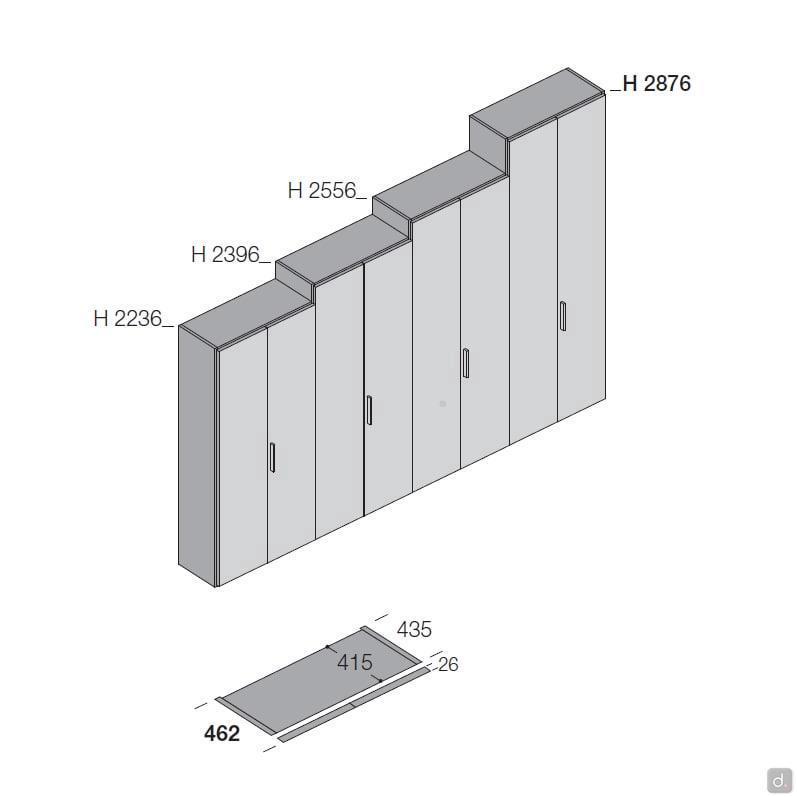

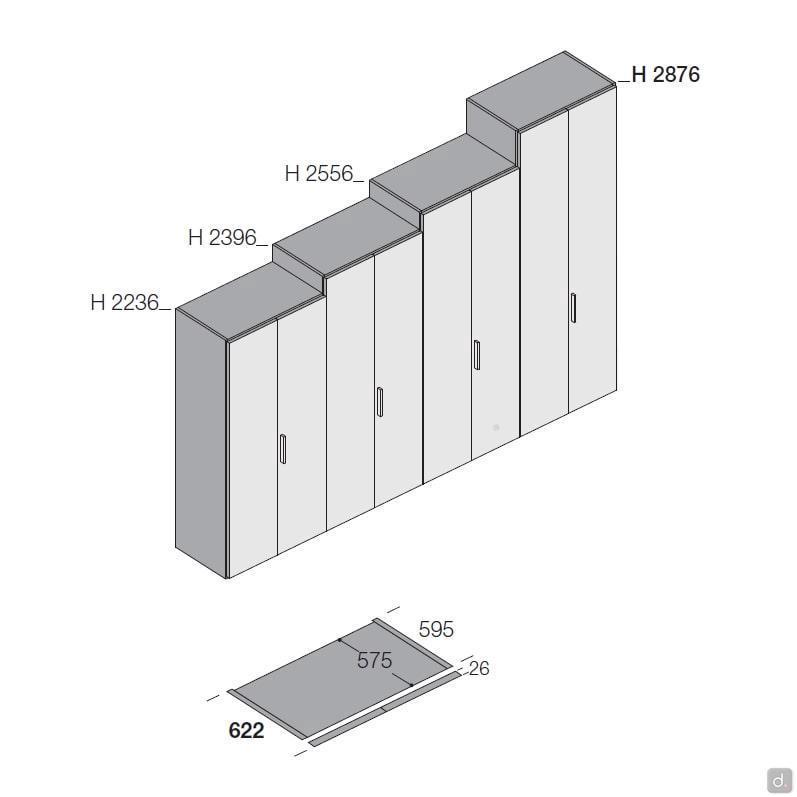

Usable internal height:
- for wardrobe cm h.223,6: cm 216,6
- for wardrobe cm h.239,6: cm 232,6
- for wardrobe cm h.255,6: cm 248,6
- for wardrobe cm h.287,6: cm 280,6

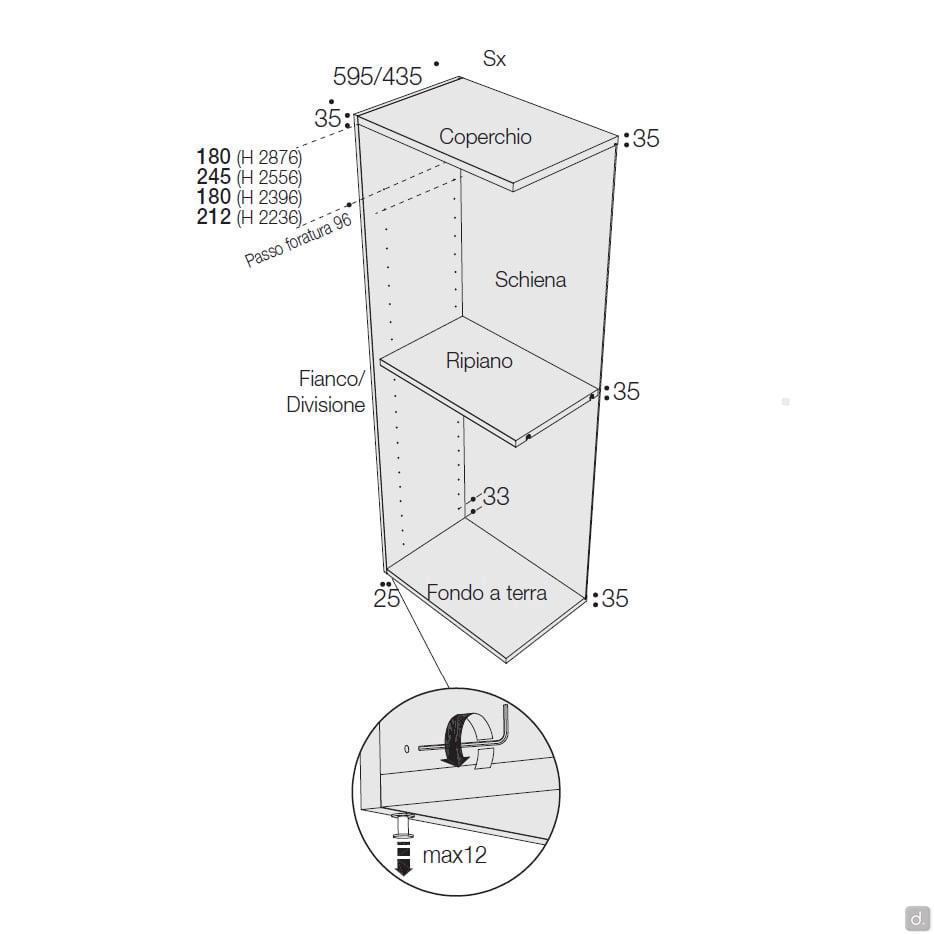

Side Holes
Sides and partitions are drilled with holes every 9,6 cm. For detailed measurements, please have a look at the scheme inside the picture gallery.
Assembling Tips
For the assembling of the structure, you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in presence of led bars to place the power supply on the top)
In the cm d.46,2 wardrobes, at least 2 modules come with an anti-tilt hook to be fixed to the wall. Also in wardrobes cm d.62,2 at least one module comes with anti-tilt hook to be used if needed. The anti-tilt plate comes with spacers that allow the use also when you have a skirting board with a max thickness of 15 mm.
