Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke / Gurè material melamine have the grain direction always vertical. In these cases, in the presence of seasonal doors, there is no vein continuity between the lower and upper doors.
Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: thickness 0.8 cm to match Interiors.
Internal shelves: thickness cm 3.5 complete with joints for fixing, matching Interiors.

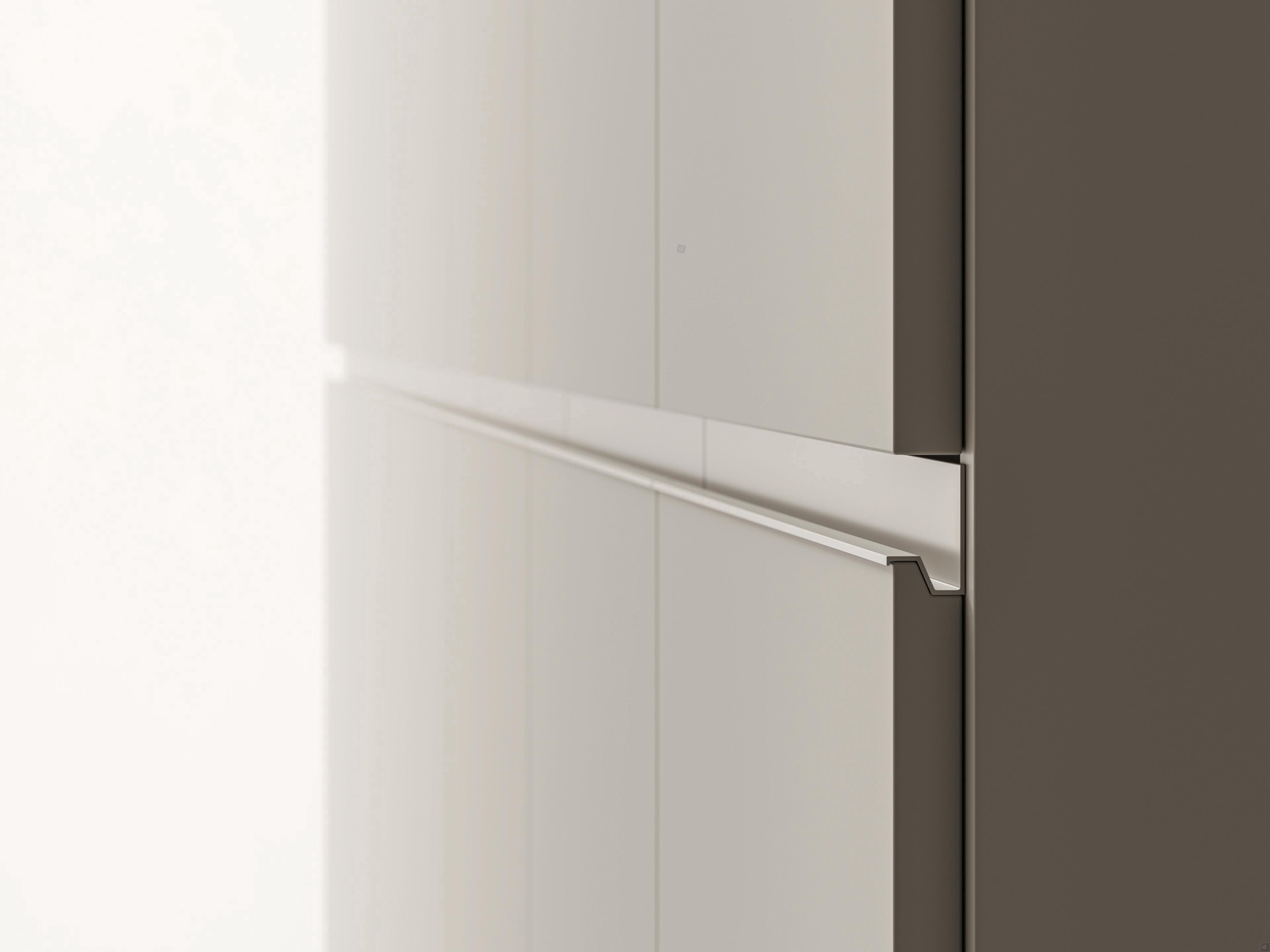

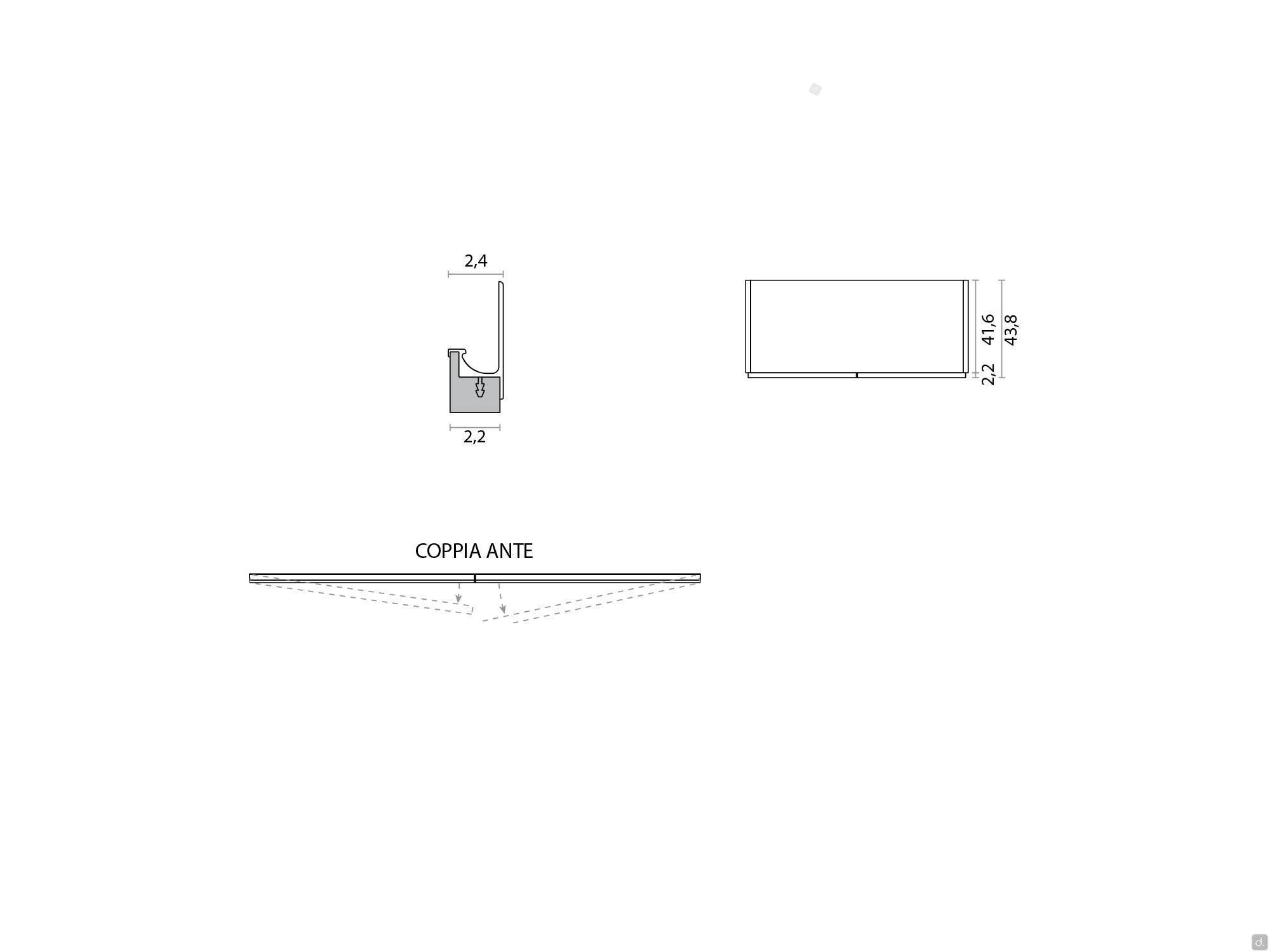

Doors: thickness cm 2.2. In modules with two hinged doors, a PVC rebate dust cover is installed on the left door. Doors open by means of horizontal grooves in white, moka shine, nickel or matt lacquered metal.
Hinges: in titanium painted metal with 110° opening and fitted with a mechanism for assisted soft closing. The doors are equipped with n.4 hinges up to cm 229,5 height, n.5 hinges for higher heights.
Drilling Sides

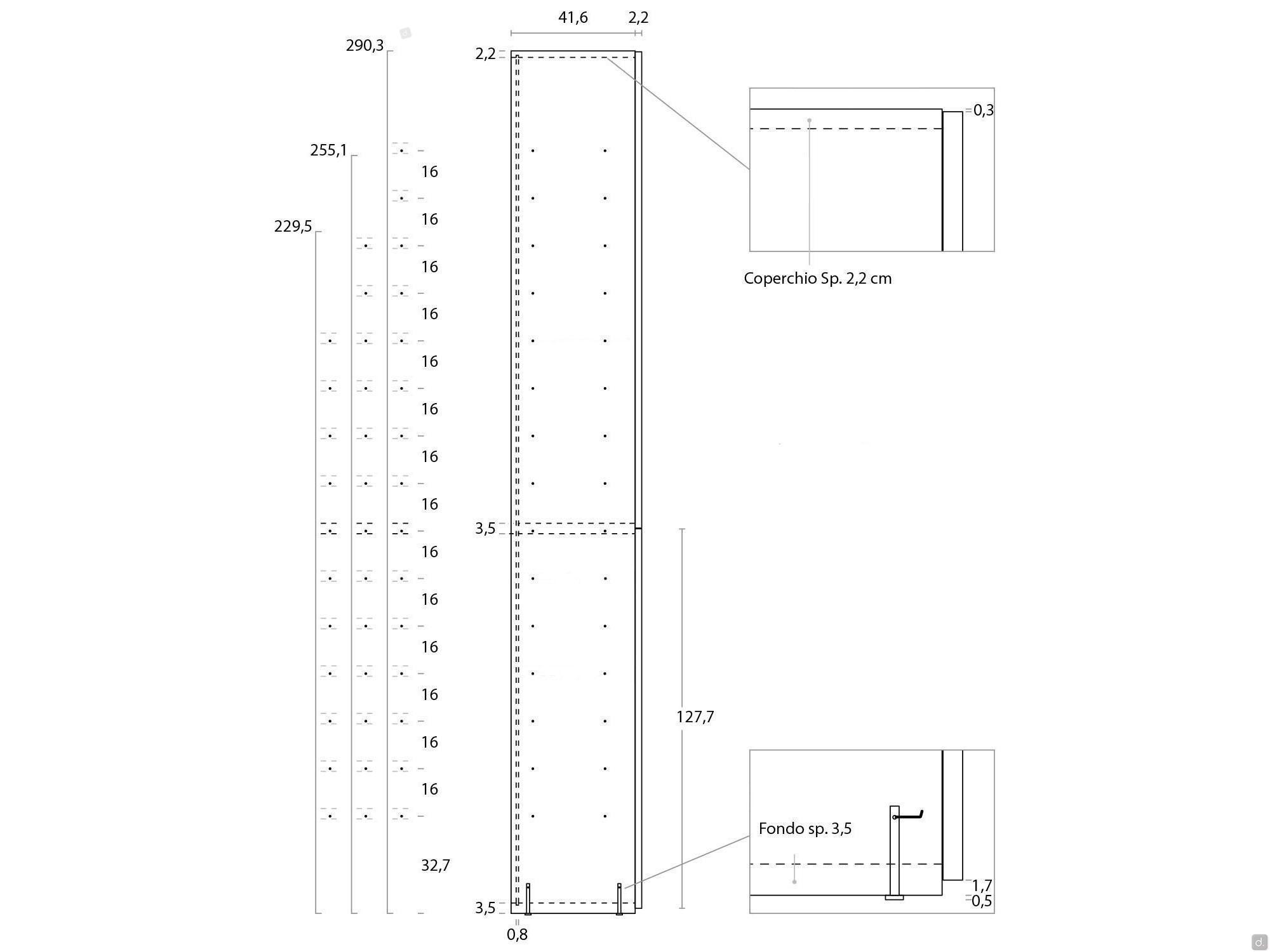

Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions, please refer to the dedicated diagram in the image gallery.
Assembly Tips
The following are required for assembling the body:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). If the lighting system is fitted, this becomes cm 3.5.
For safety reasons it is compulsory to fix the wardrobe cm p.43,8 to the wall or to the back of another wardrobe when it is positioned in the middle of the room.
