Slot foldaway bunk bed, a space-saving solution with reduced depth to obtain two beds out of a small bedroom or study

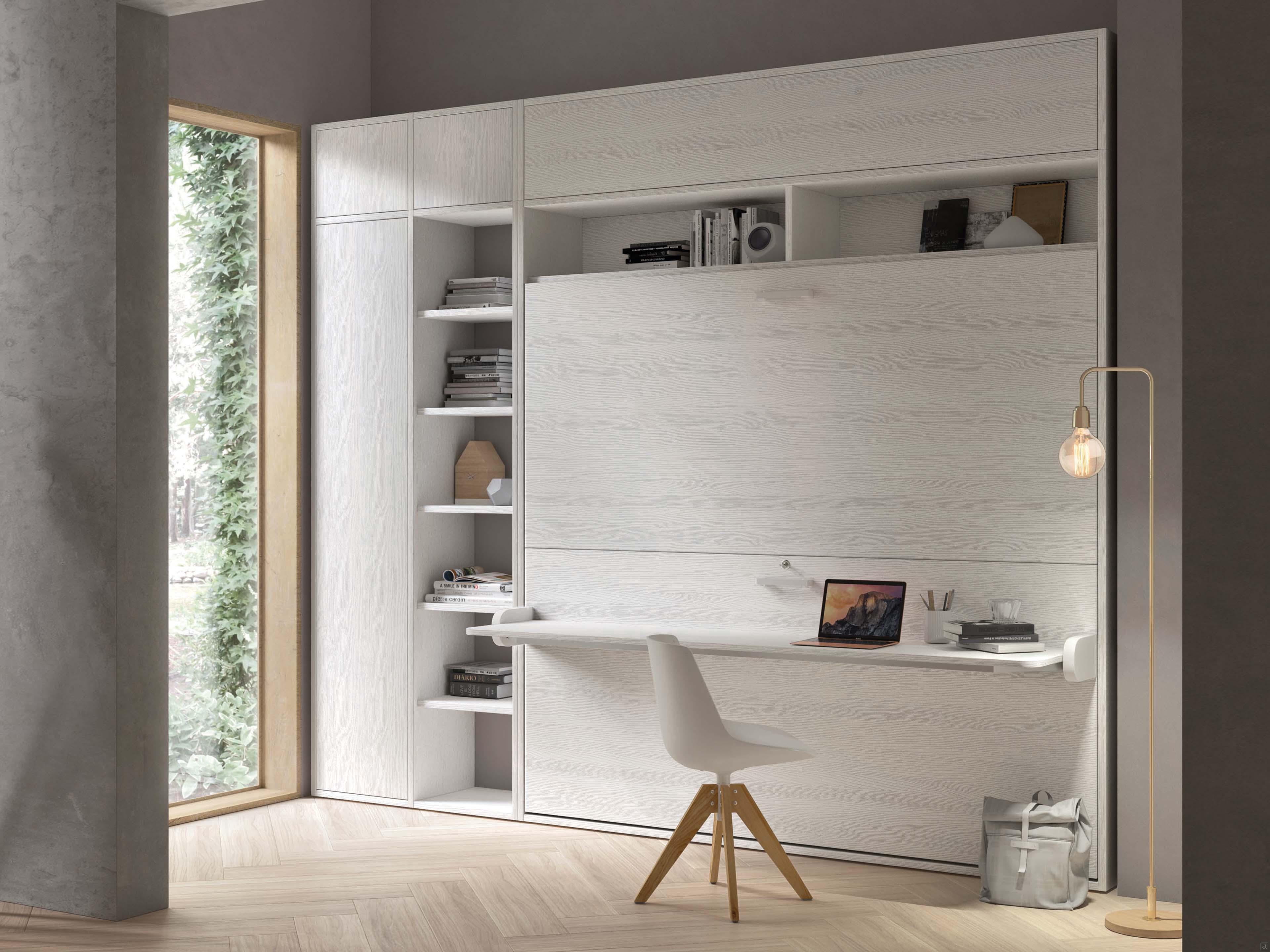

Slot foldaway bunk bed in the full width, integrated desk version that matches the bed frame

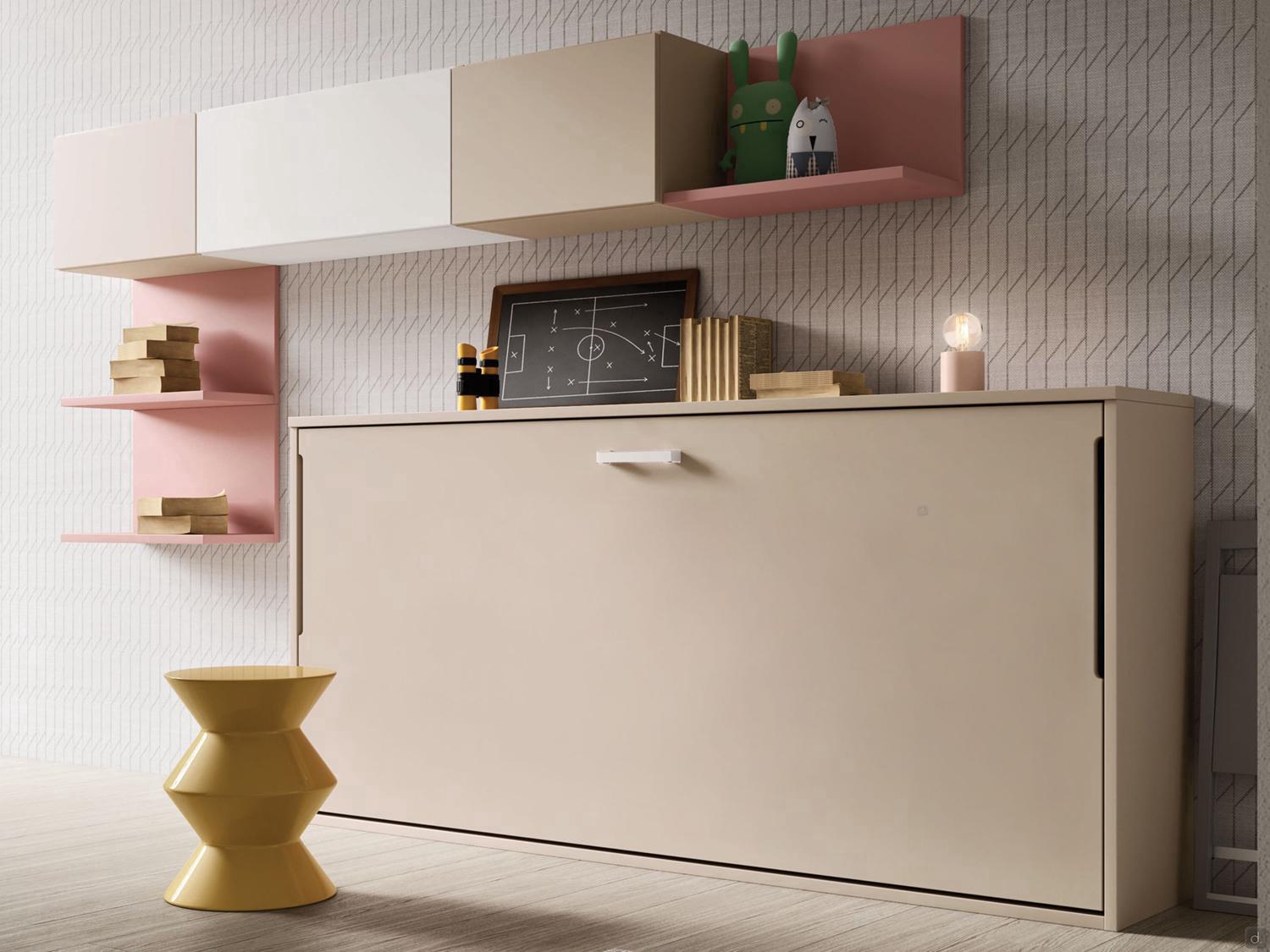

Slot foldaway bunk bed in the single version, also available with integrated desk as well as smooth front (as in photo)

Slot foldaway bunk bed with horizontal opening in only 40 cm depth and 101 cm height

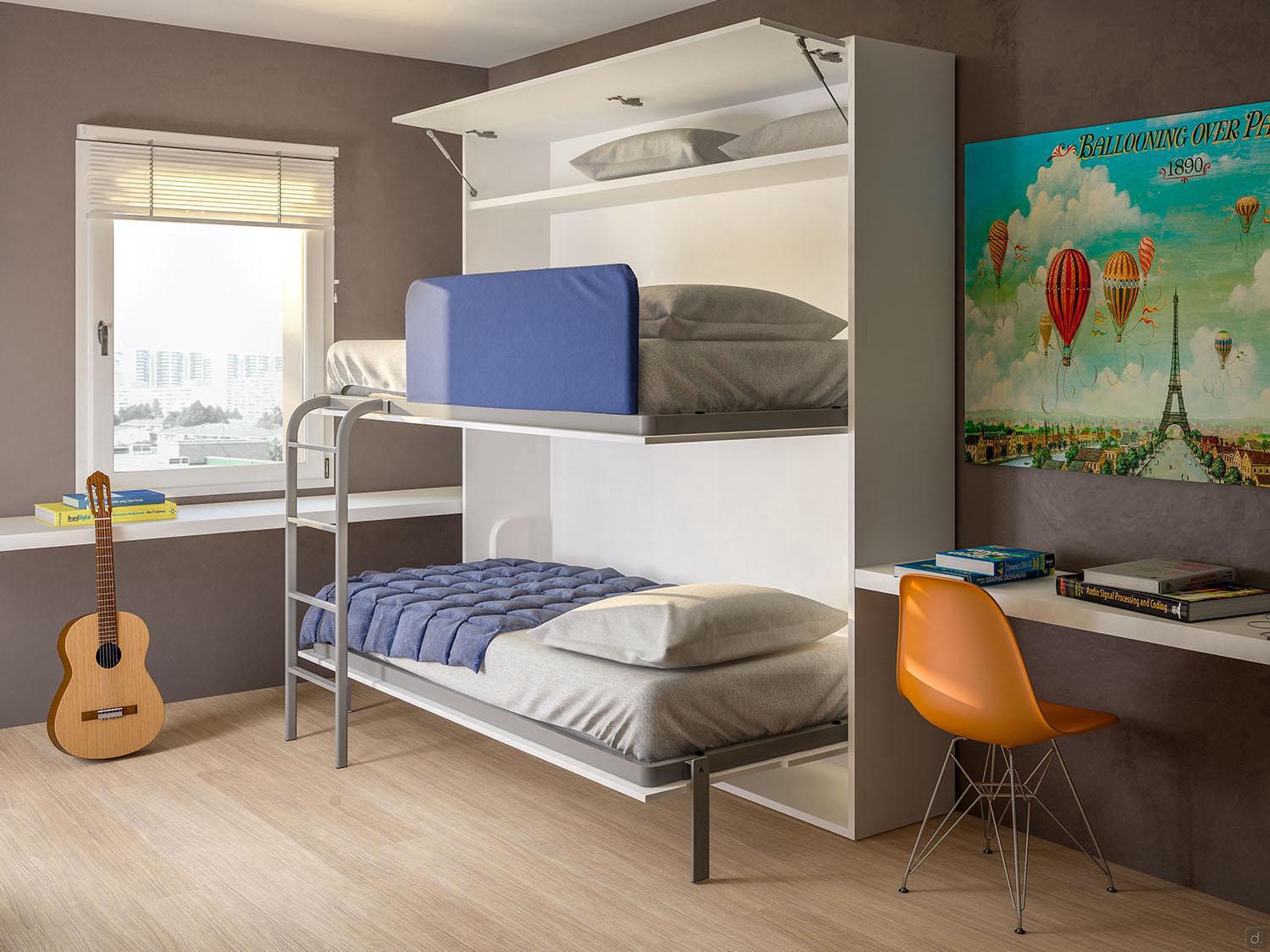

Slot foldaway bunk bed with optional top drop-down door, to hide the double open compartment also provided as standard

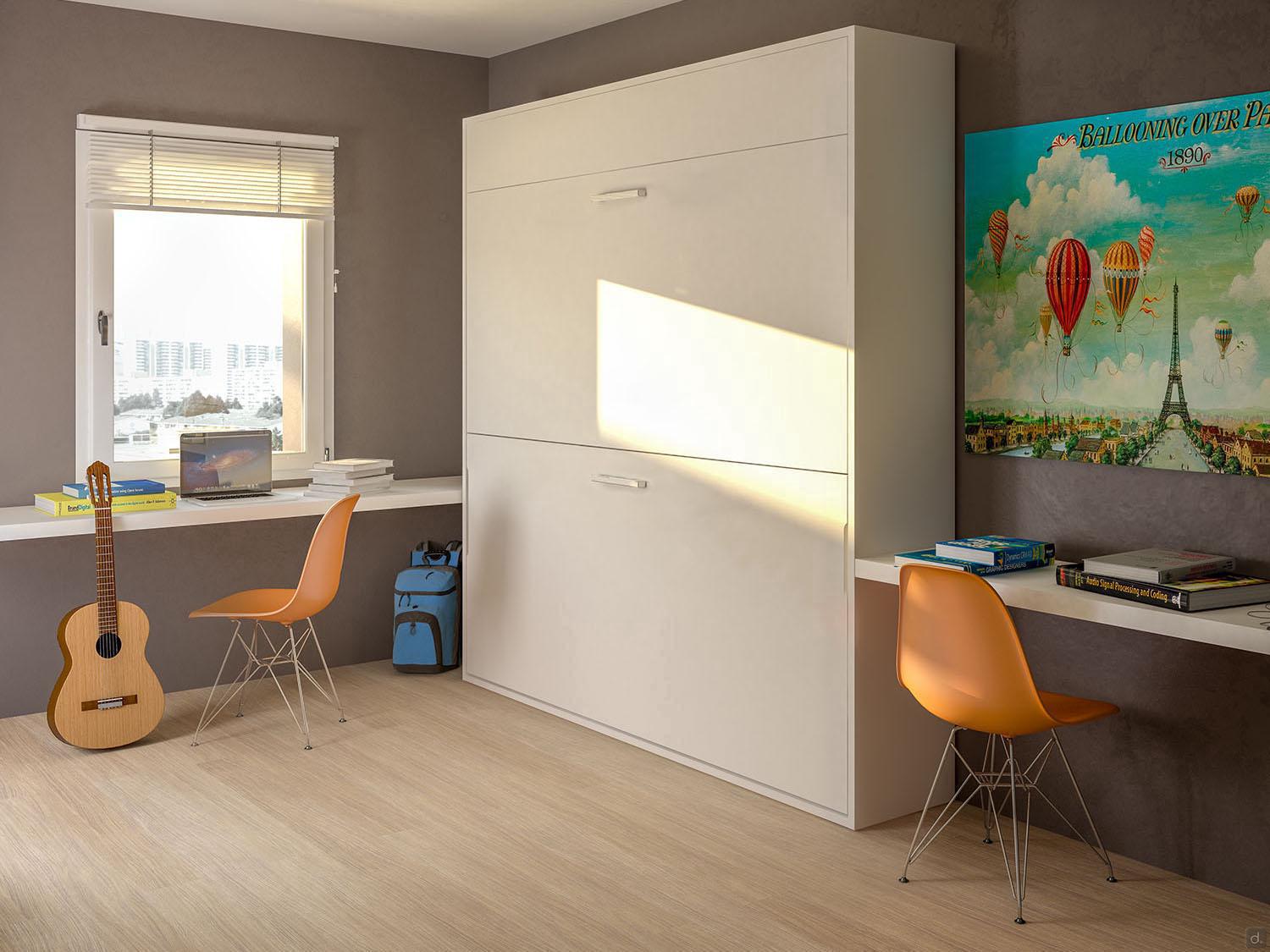

Slot foldaway bunk bed in "day" mode with the fronts closed. Minimum overall measurements equal to those of a closet with reduced depth

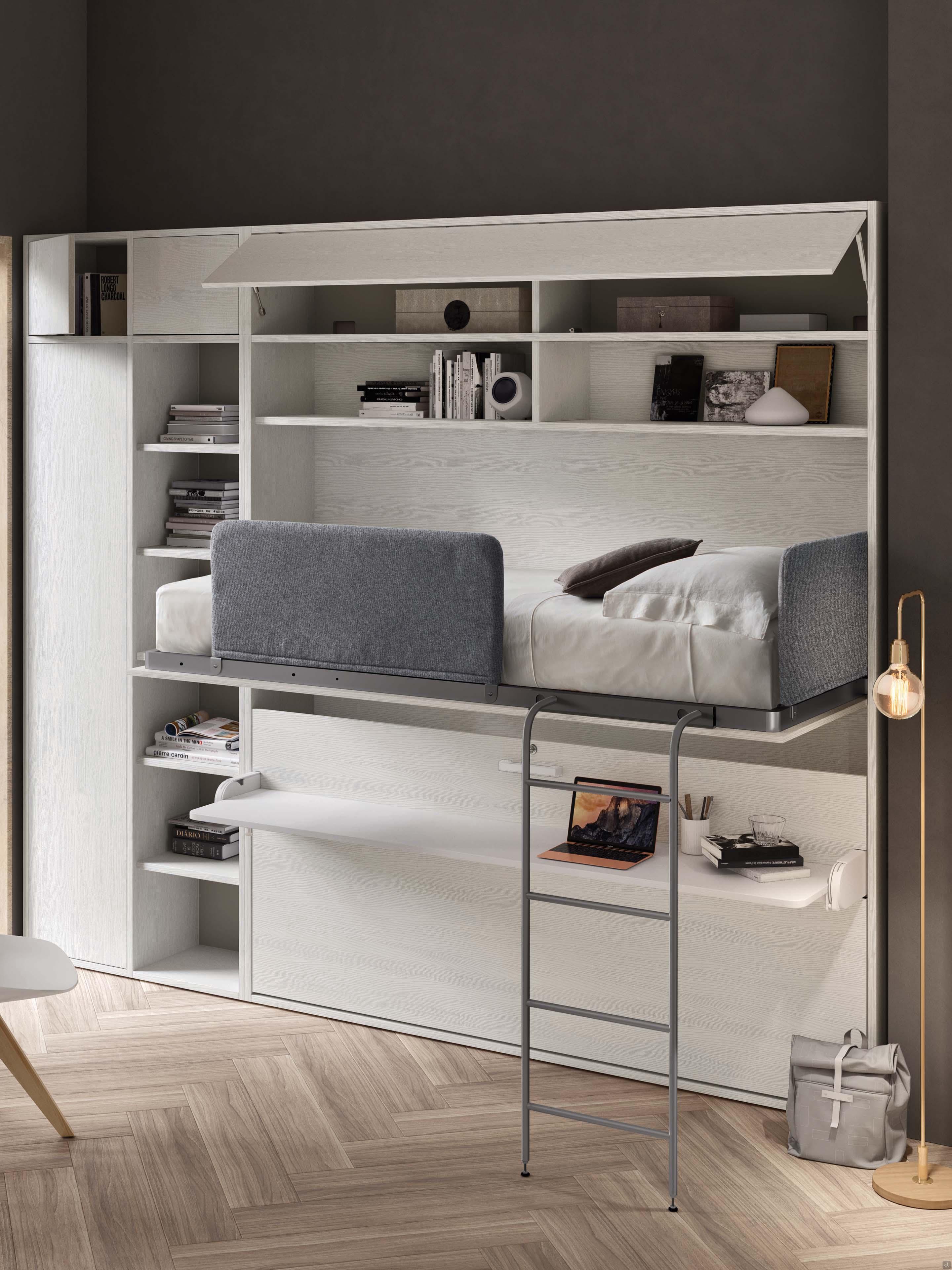

With the Slot foldaway bunk bed, you can also open just one of the two beds and maintain a study space with a desk underneath

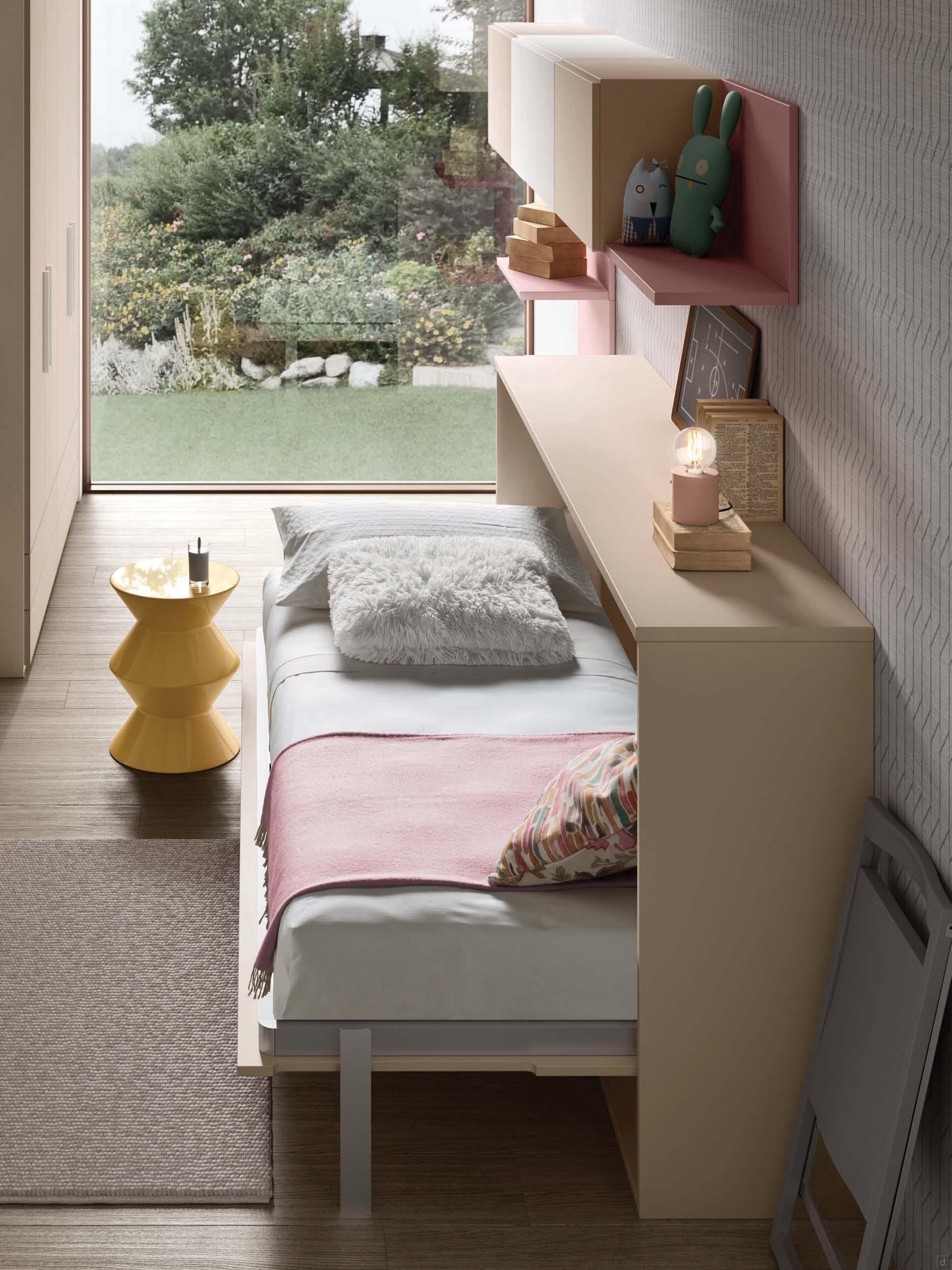

Slot single bed with smooth fronts and optional reclining headboard. The bed compartment can also be completed with a LED light with adjustable intensity

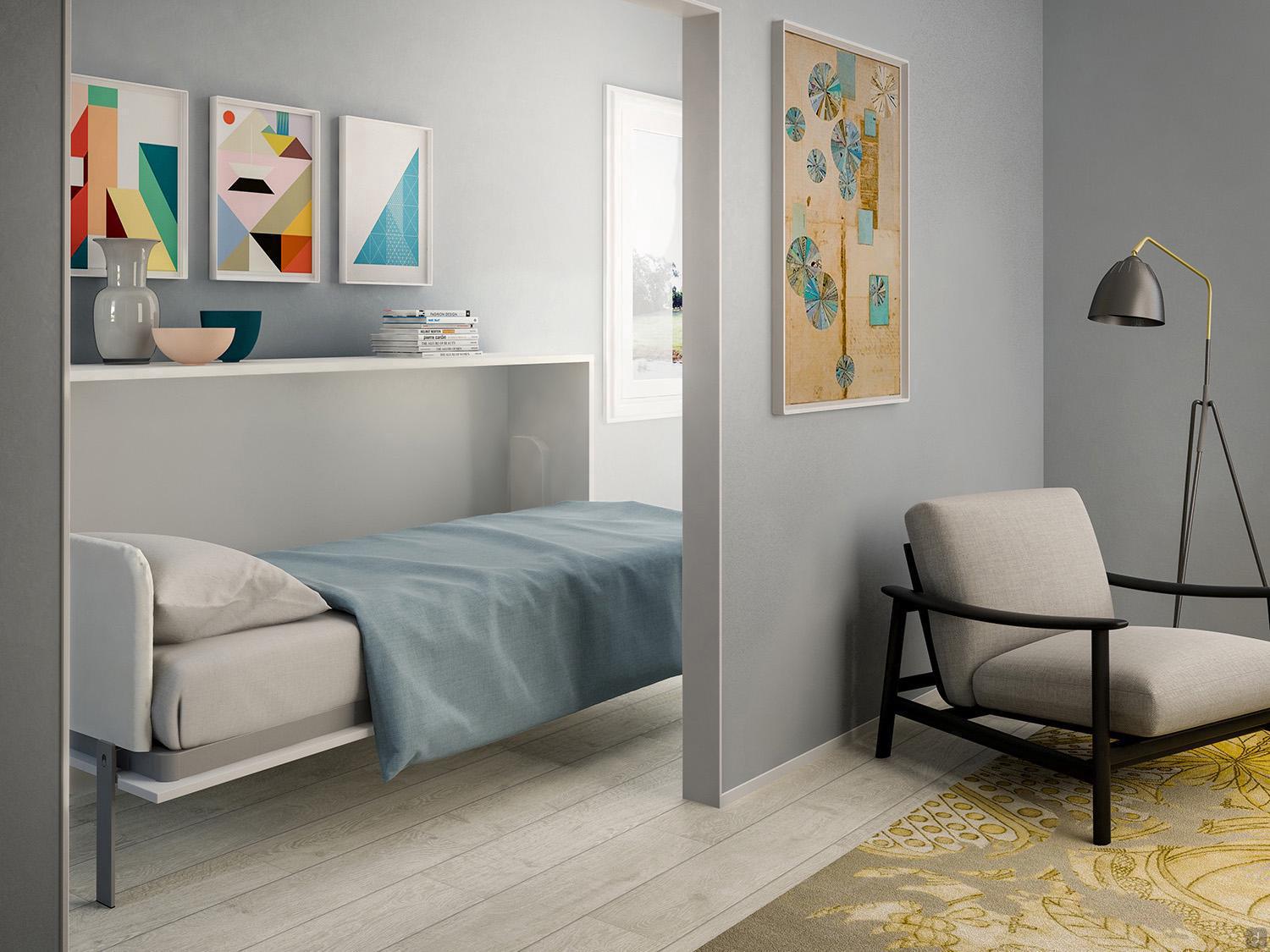

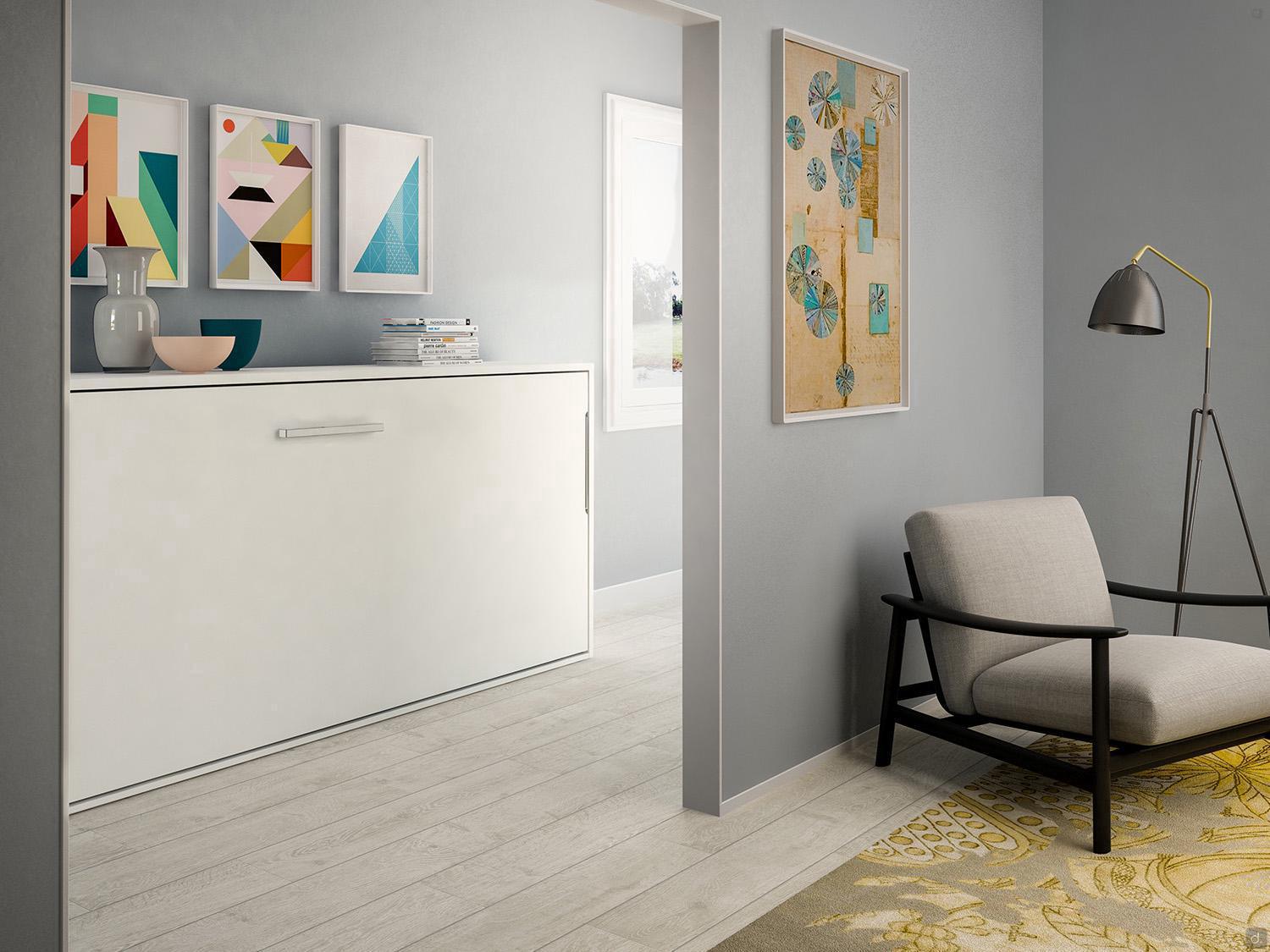

Slot single bed with smooth fronts, an addition with such a small size that it can be used in hallway settings or particularly small spaces

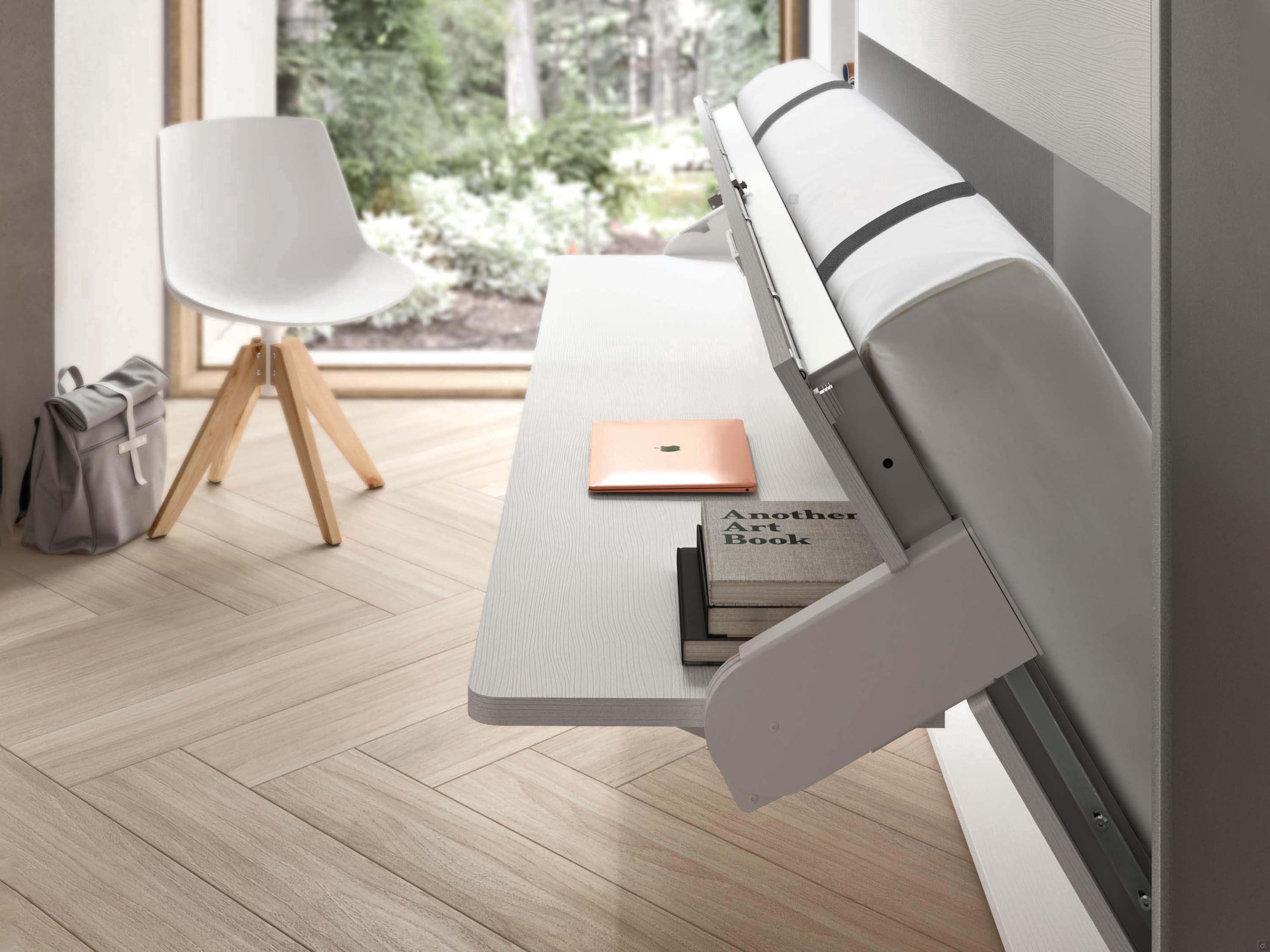

Slot optional bed desk opening mechanism with the supports automatically converting into bed stands on the floor

Metal safety rail always included with the top bed in Slot bunk models. Also available in upholstered and reclining versions

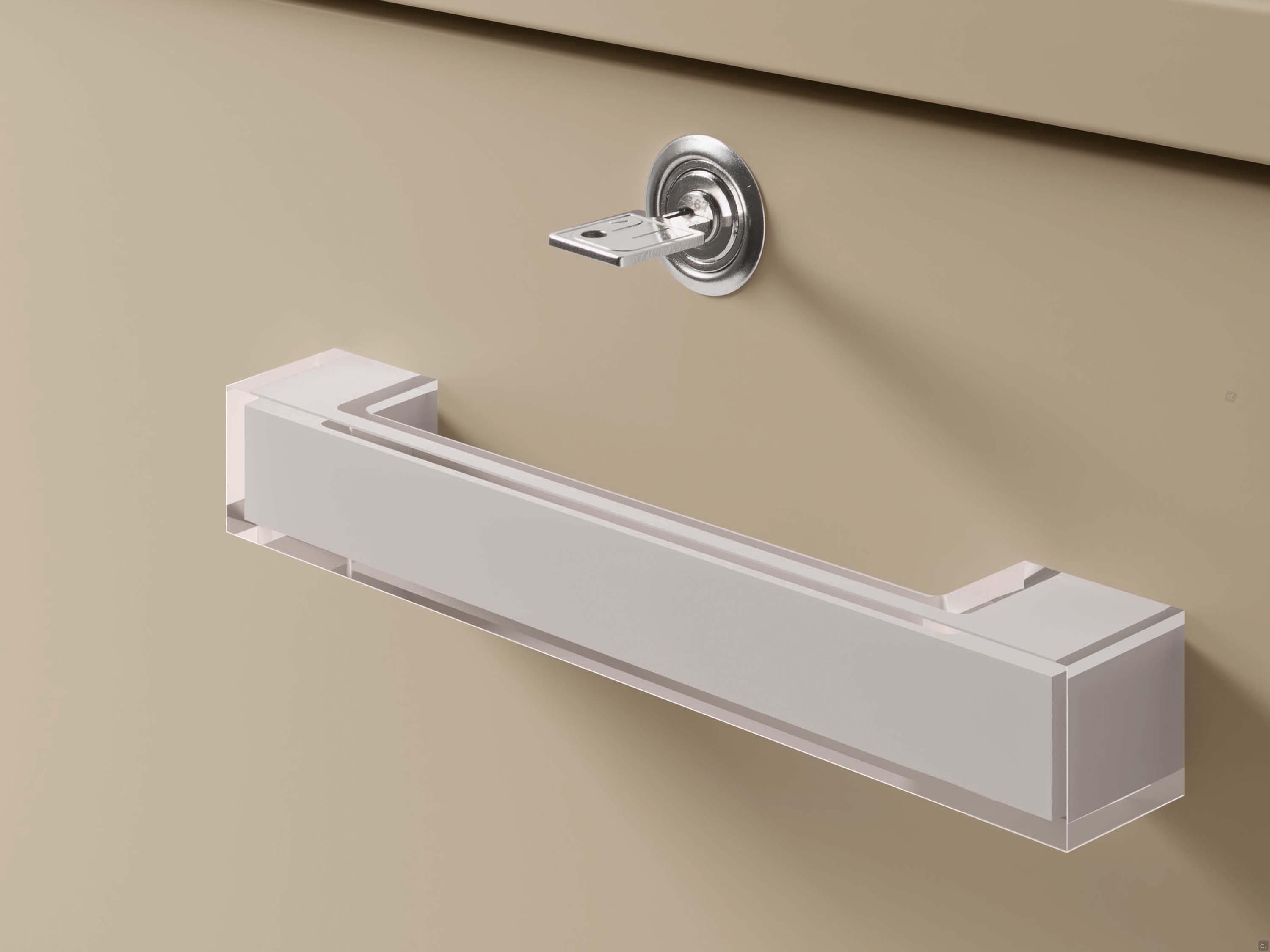

Detail of the security lock, always present on the Slot bed fronts that include the integrated desk

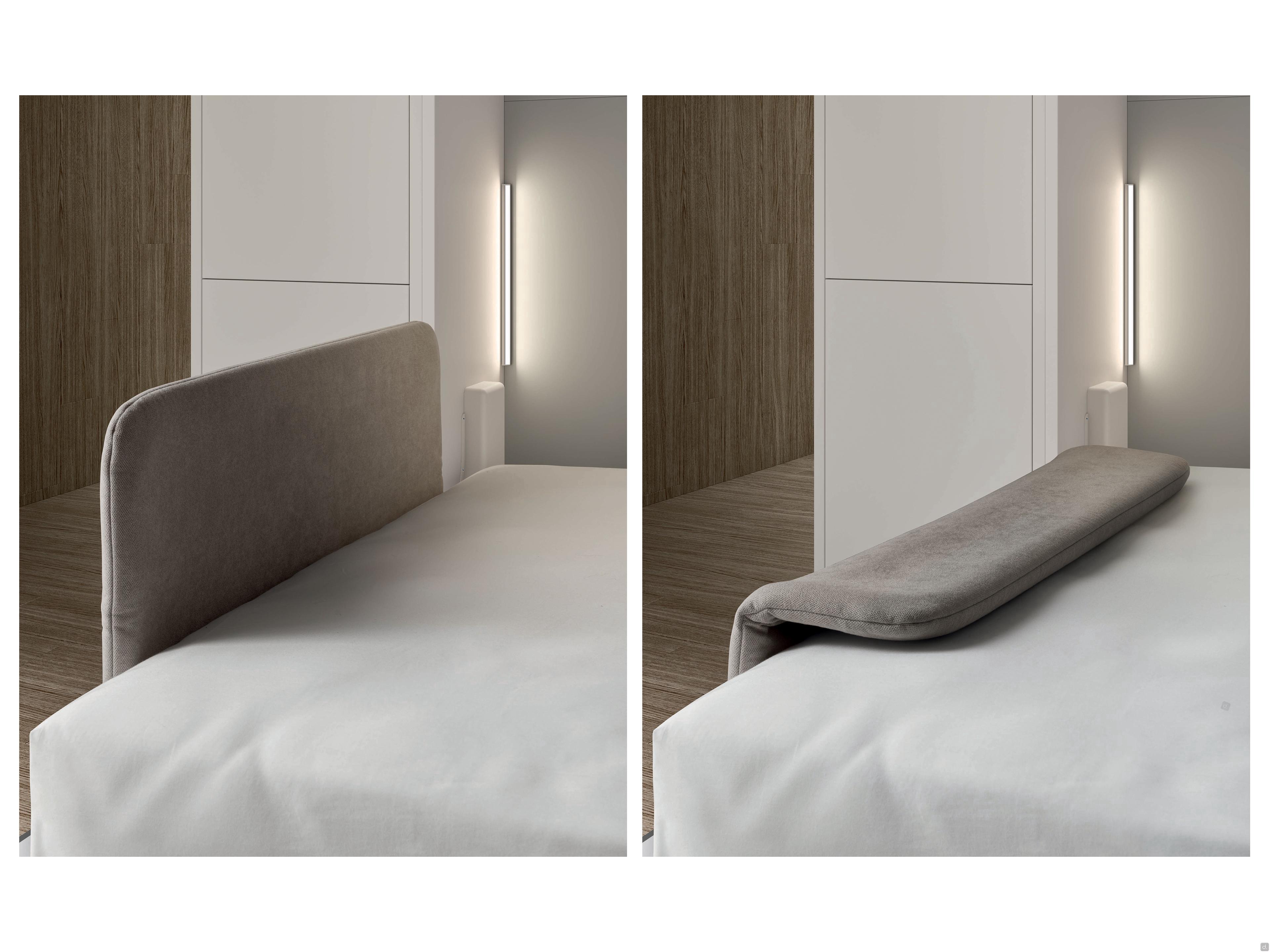

Optional upholstered and reclining headboard, available on both the Slot single and foldaway bunk bed models

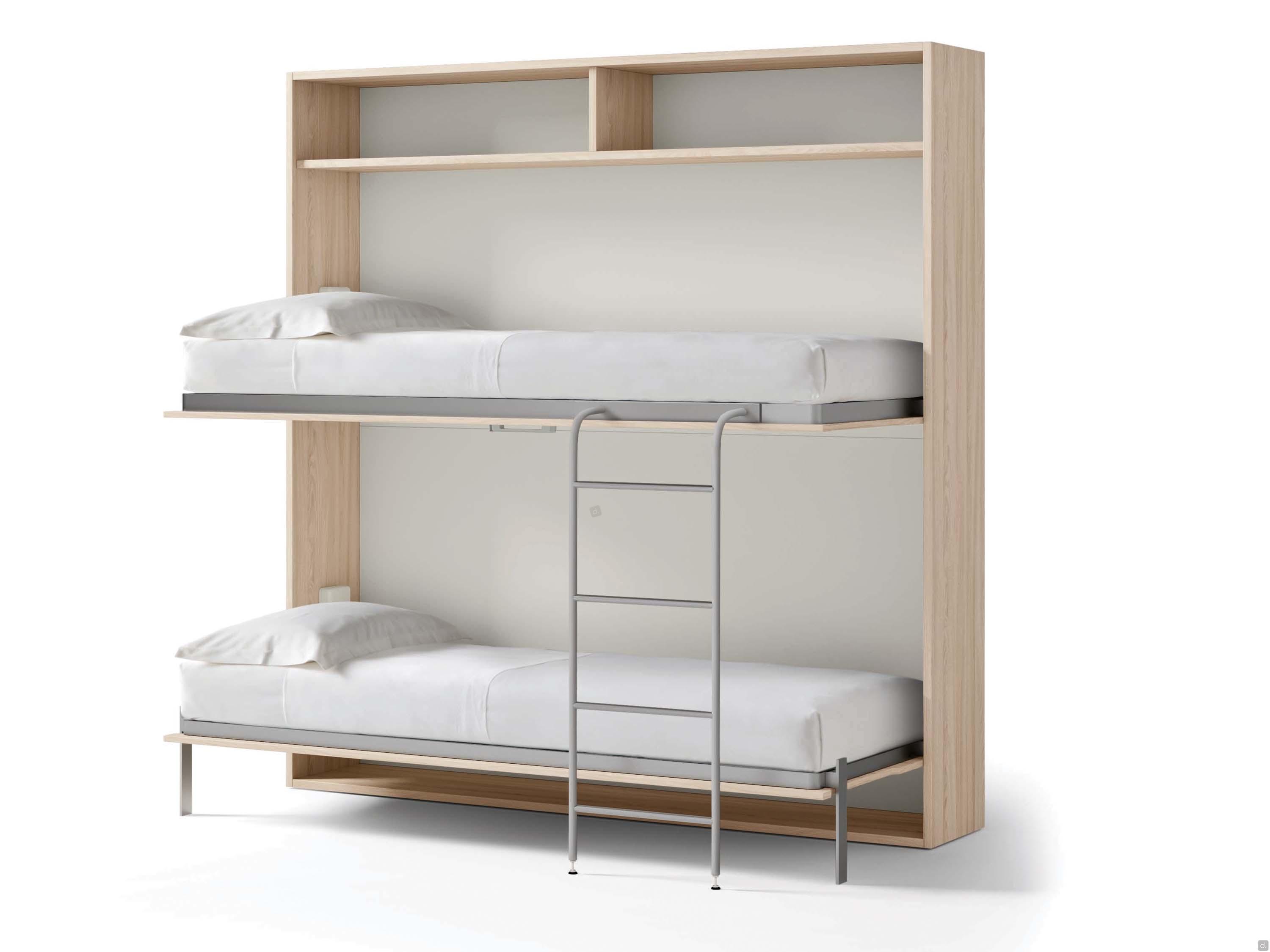

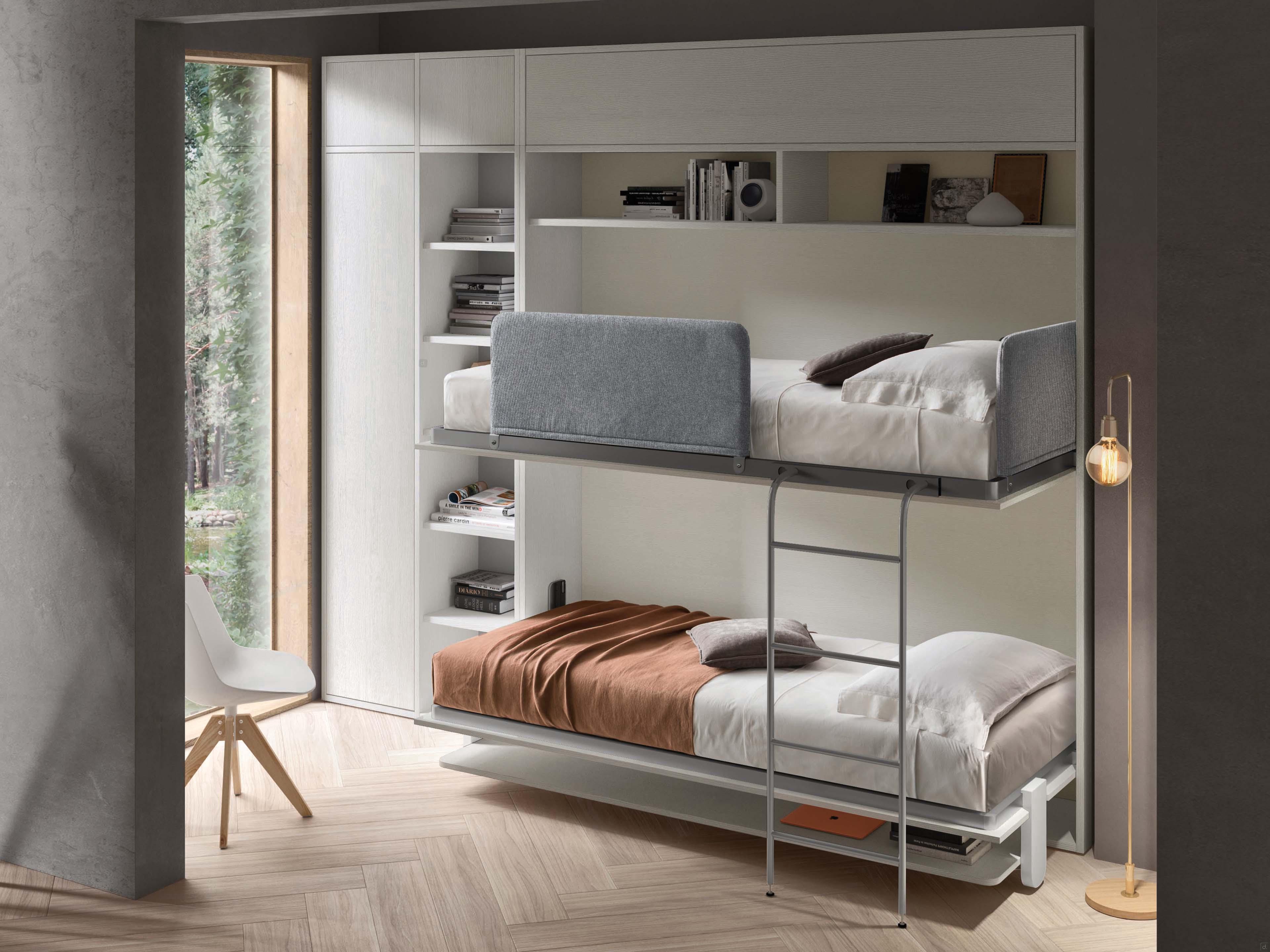

Slot foldaway bunk bed with ladder provided as standard and optional double mattress

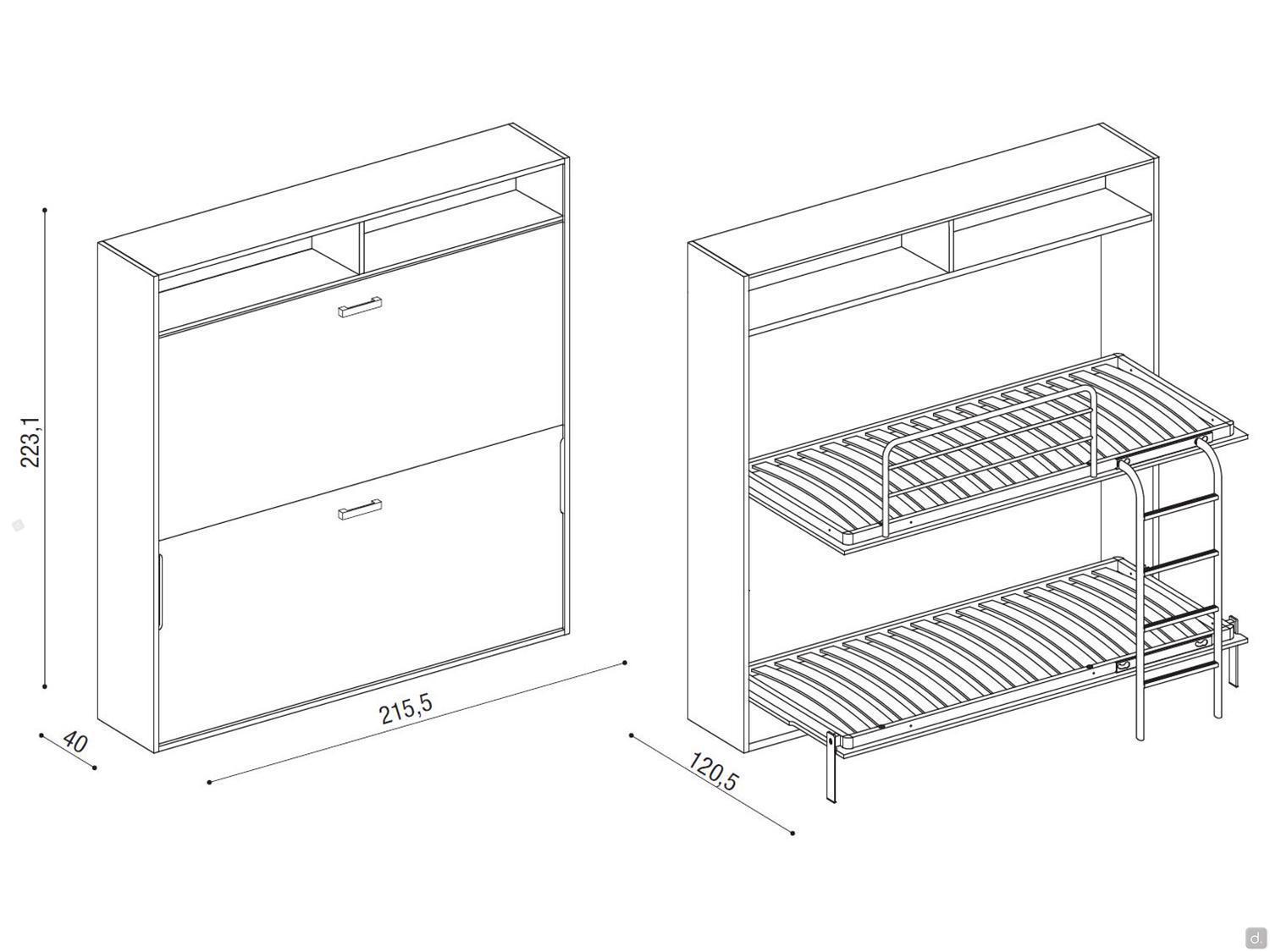

Diagram of the Slot foldaway bunk bed in the version with smooth fronts

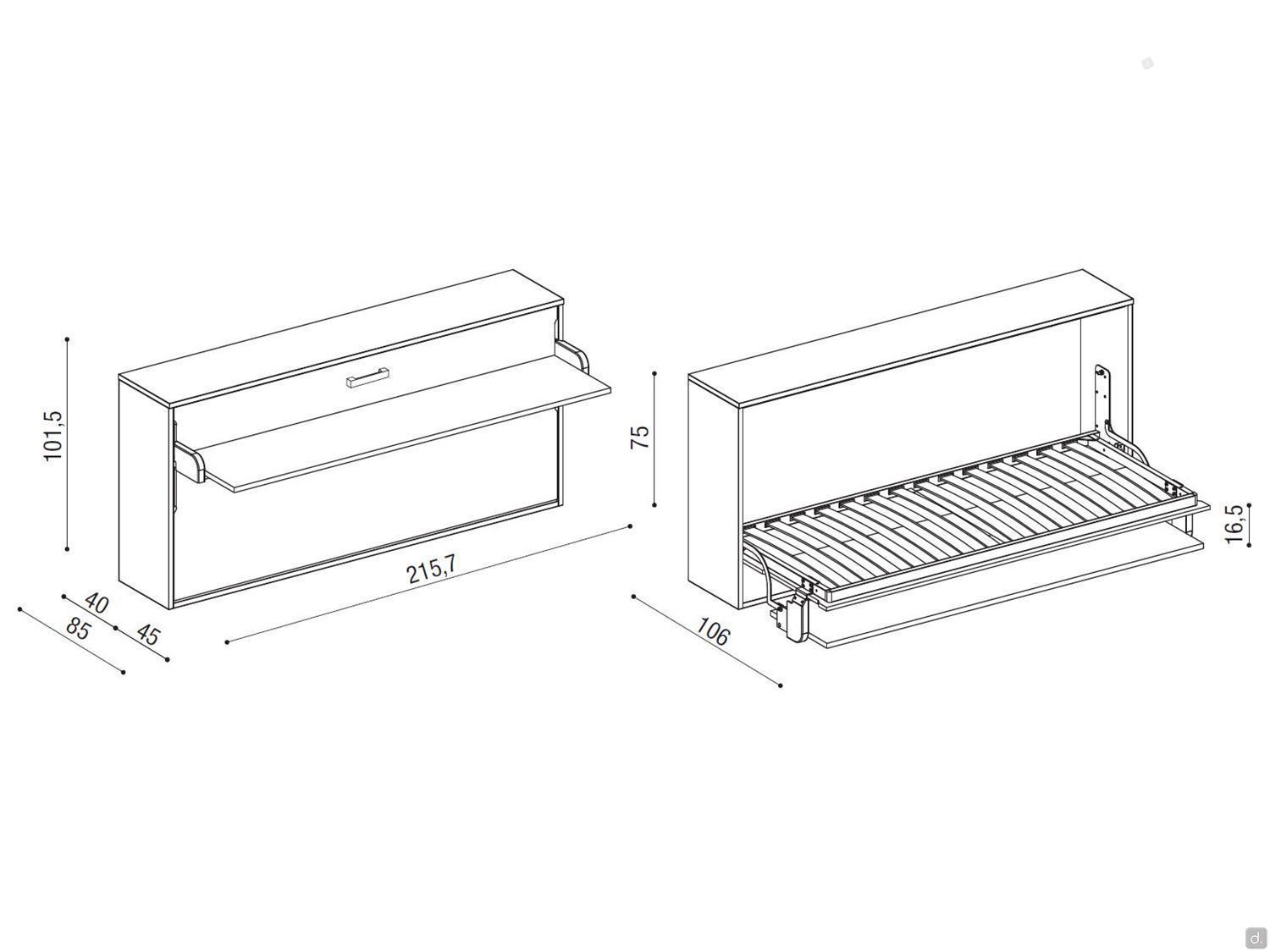

Diagram of the Slot foldaway single bunk bed in the version with integrated desk

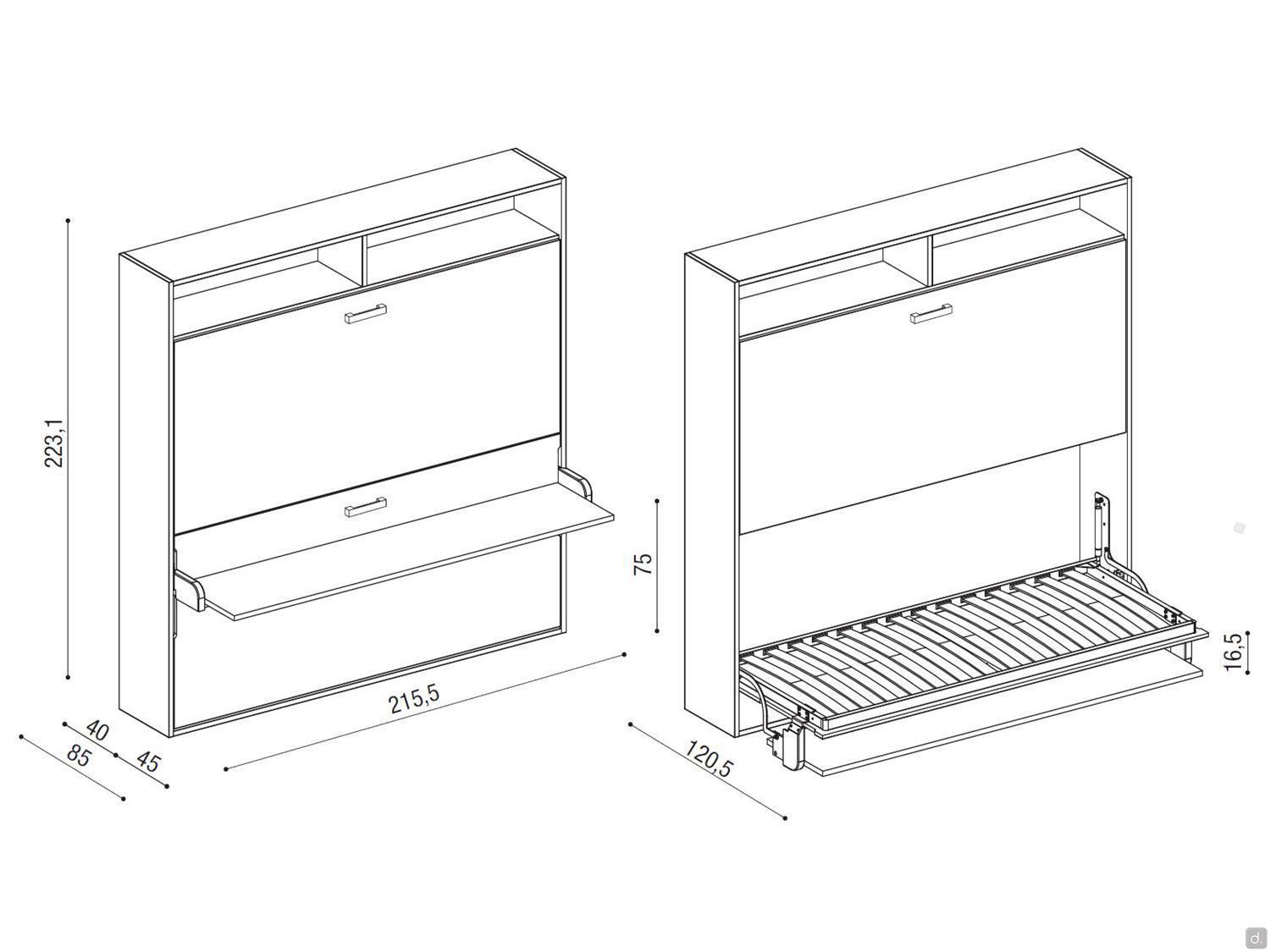

Diagram of the Slot foldaway bunk bed in the version with integrated desk

+ 15

MORE IMAGES

Slot
Wall Bed

Slot fold away wall bunk beds, also available with one single bed. White laminate or lacquered finishes. Perfect space-saving solution.

Quantity

From €1,342.82

View Samples

Wishlist

Description

Slot is a fold away wall bunk bed, an ideal space-saving solution which conceals - in only 40 cm - two beds; also available in the single version with one horizontal bed.
Slot can be chosen for a holiday home, a guest room or for corridors and hallways: thanks to its tiny measurements it can be placed also in narrow spaces. In the 'bunk' version, the two beds can be opened independently.
The opening system is slowed down by a braking system allowing the feet to gently touch the floor.

Characteristics
wall bed with braking system
20 cm high mattress, with removable and washable cover
equipped with lock and key on the front to protect against accidental openings
bunk bed with push-pull opening storage unit for pillows and blankets
optional reclining headboard and upholstered safety panel

Model and Measurements
Models: single, bunk bed

Single
Width: cm 215,7
Depth: cm 40,6 close / 106 open
Height: cm 101,5

Bunk Beds
Width: cm 215,5
Depth: cm 40 close /120,5 open
Height: cm 223

Materials and Finishes
Structure and Fronts:
- white melamine
- matt lacquer
- gloss lacquer
Back:
- white melamine
_ matt lacquer

Technical study

Technical Specifications and Equipment
sides, tops and bottoms: class E1 melamine panel, 2,5 cm thick. Bottoms come with adjustable height feet.
doors and backs: class E1 melamine panels, 1,8 cm thick.
desk: E1 melamine panel, 2,5 cm thick. It is equipped with anti-tip system, it must be fixed to the bed front.
slatted base: epoxy powder painted slatted base, beech wood slats and anti-twist system.
mechanism: equipped with braking system assembled on metal plates painted with epoxy powders.
customer mattress: the mattress must measure cm 80 x 200 h. 20 with a weight included between 13 and 25 Kg
sprung mattress: internal springing made of steel with 2,20 mm thread and 1,30 mm steel spirals, insulating felt 1000 gr/m2, D21 resin layer on both sides with a thickness of 1,5 cm, padding in hypoallergenic fibres 320 gr/m2 and polyester fabric cover, perimetrical structural frame, packed in a nylon bag.

The single bed comes with a couple of covers for the springs matching the structure.
The bunk bed comes with two couples of covers for springs matching the structure, a ladder and a metal safety rail to be stored elsewhere when the bed is closed.

Optional
upholstered reclining safety panel: cm 97 h. 40 thickness 3 cm
upholstered reclining headboard: cm 64 h. 40 thickness 3 cm
Both headboard and upholstered safety panel can be left inside the bed when it's closed.

Material Specifications
matt lacquer: sides and front are finished in matt lacquer on both sides; top and bottom are lacquered on the internal side only.
gloss lacquer:sides and front are finished in gloss lacquer on the external side and in matt lacquer on the internal side; top and bottom are finishes in matt lacquer on the internal side only.

Assembly Tips
For safety reasons it is mandatory to fix it to a brick wall. .

Video

Additional Information

Area of Production
Italy

Approximate Time
4-5 working weeks for production

Assembling
Elaborated Assembling

Assembling Instructions
Download PDF Bed Assembly Instructions Single or Bunk Beds

Other Products from the same Collection
View all the products of the collection (cod.ltp)

Partner Factory

This article is produced by an Italian company in the province of Pordenone specialising in the production of convertible wall beds. Inside what appear to be storage units are actually single beds, double beds or bunk beds, depending on the model. These solutions can be easily inserted in bedrooms, small rooms, open spaces, living rooms and sitting rooms and are particularly useful for furnishing small houses, small rooms, studios, holiday homes and residences. All the foldaway beds produced by this company are easily transformable, equipped with a safe and reliable opening system. Every item include the possibility of choosing between manual and motorised opening, a mechanism with a tested braking system, an independent slatted bed base with rigidity adjusters and anti-reflection frames. All products have a patented mechanism and have been carefully designed and quality tested. Adding value to the entire collection is the ease of assembly of all these solutions.
