Technical Specifications and Equipment
Structure: made of Tammel (honeycomb coreboard + melamine). The honeycomb core is a carefully selected solid pine frame and the honeycomb is clad with MDF panels. It guarantees non-deformability over time, lightness, practicality and meets all the requirements of European Class 1 standards in terms of limiting harmful formaldehyde emissions, it complies with CARB2 standards.
Sides: with 38 cm depth the sides are made of wood particle board panels (class E1 with low formaldehyde emission). With a depth of 59.2 the sides are made of honeycomb sandwich panels with a solid pine frame. The panels in both depths are 2.5 cm thick and meet CARB2 standards. Back Panels: in particle board panels (class E1 with low formaldehyde emission), 0.8 cm thick.
Base and Cover: in honeycomb-core wood, respectively 3.2 cm and 2.5 cm thick.
Shelf: supplied, honeycomb-core 3.2 cm thick.
Clothes Hanging Rod: supplied with 59.2 cm deep modules. With rectangular section 3x1 cm in brown or metal lacquer finish.
Door height from the ground: h.1,1. cm

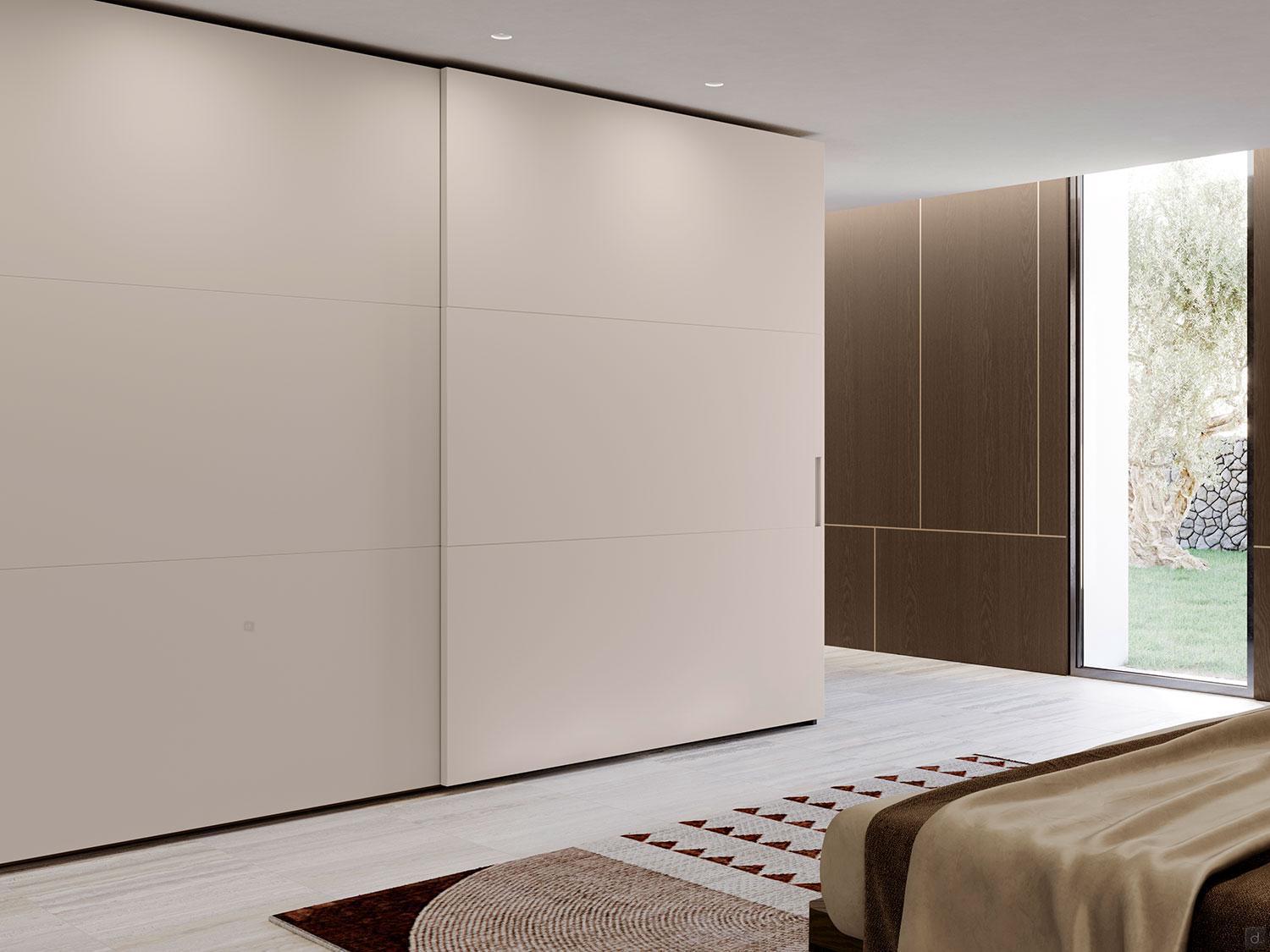

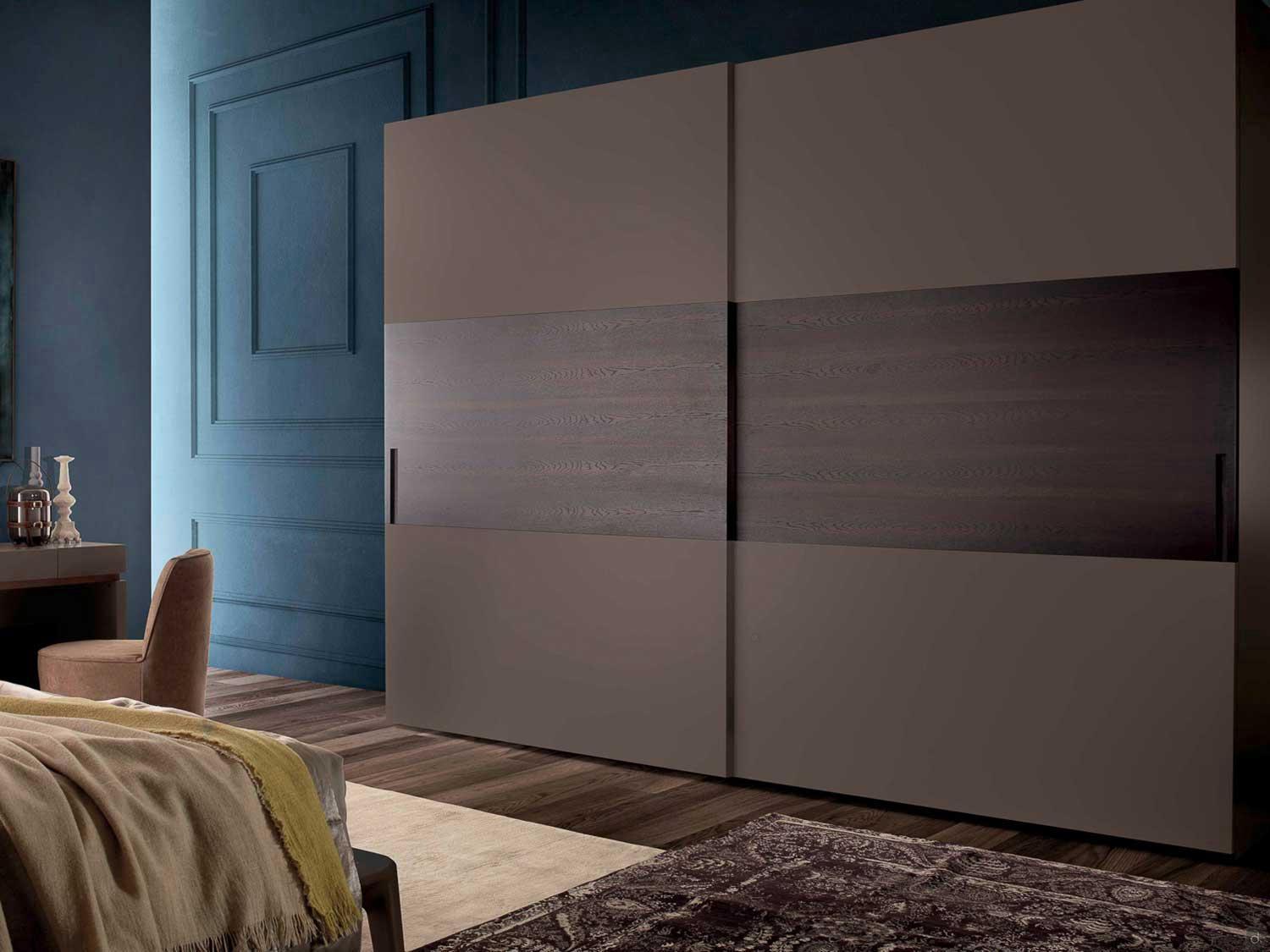

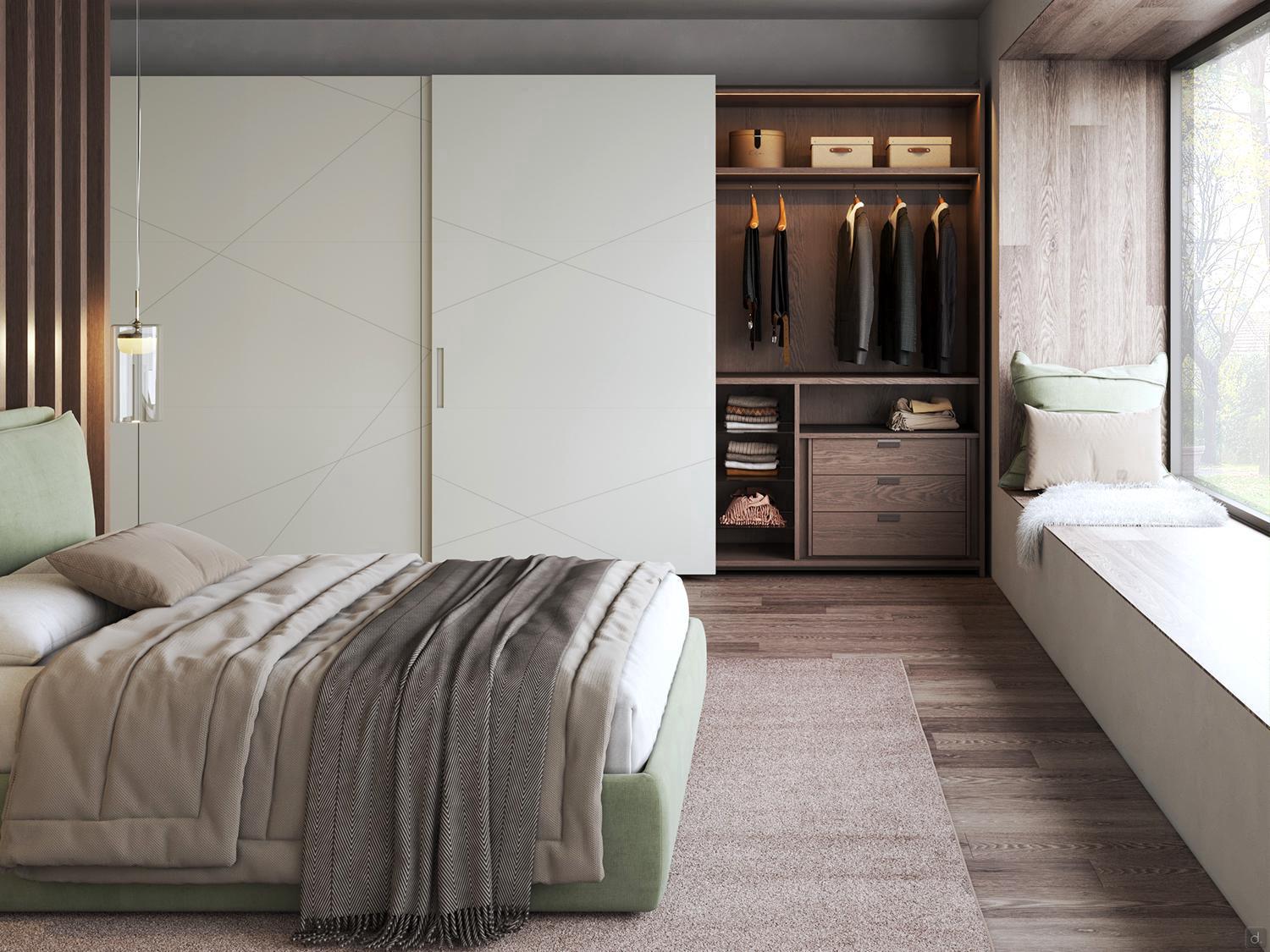

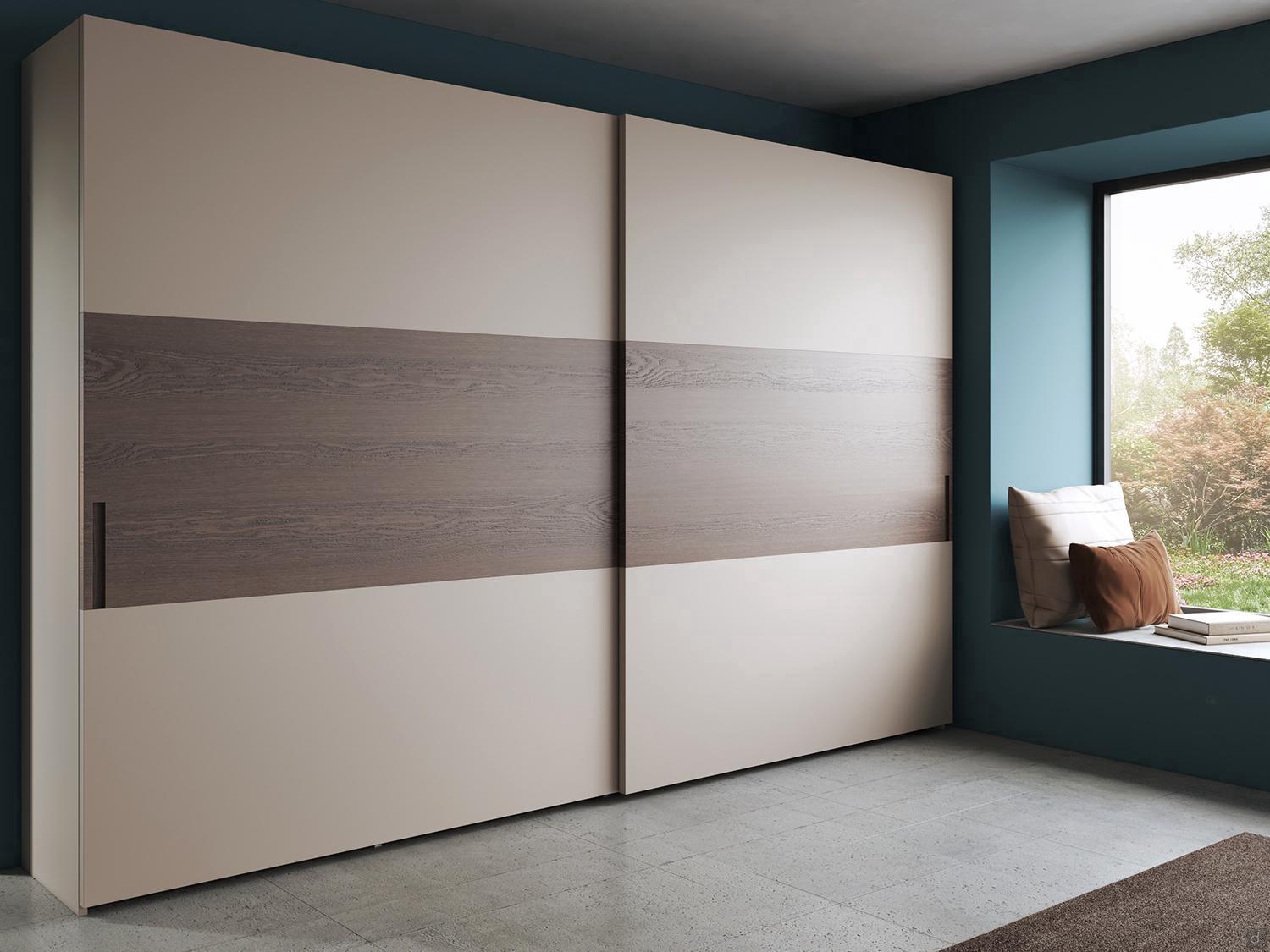

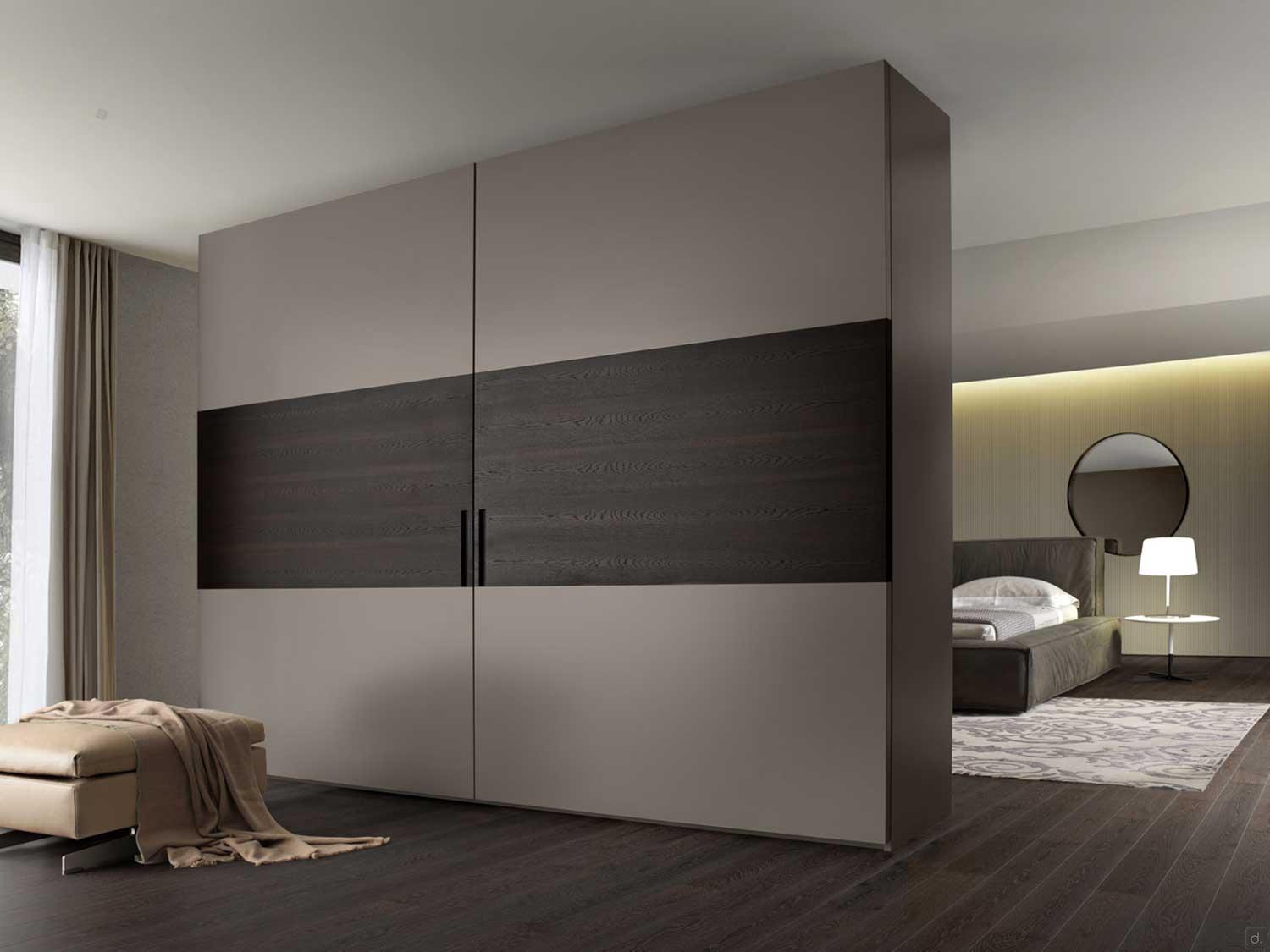

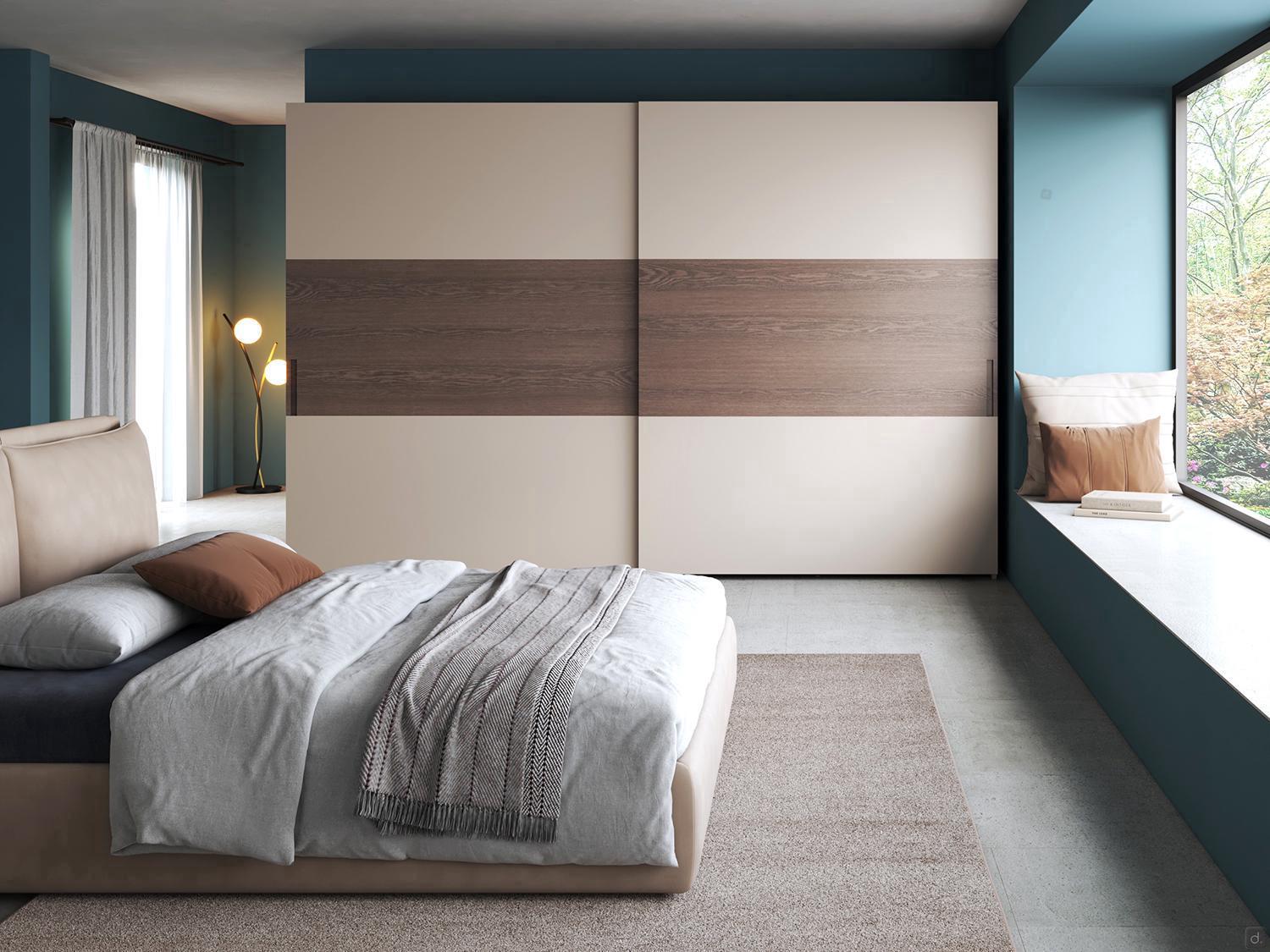

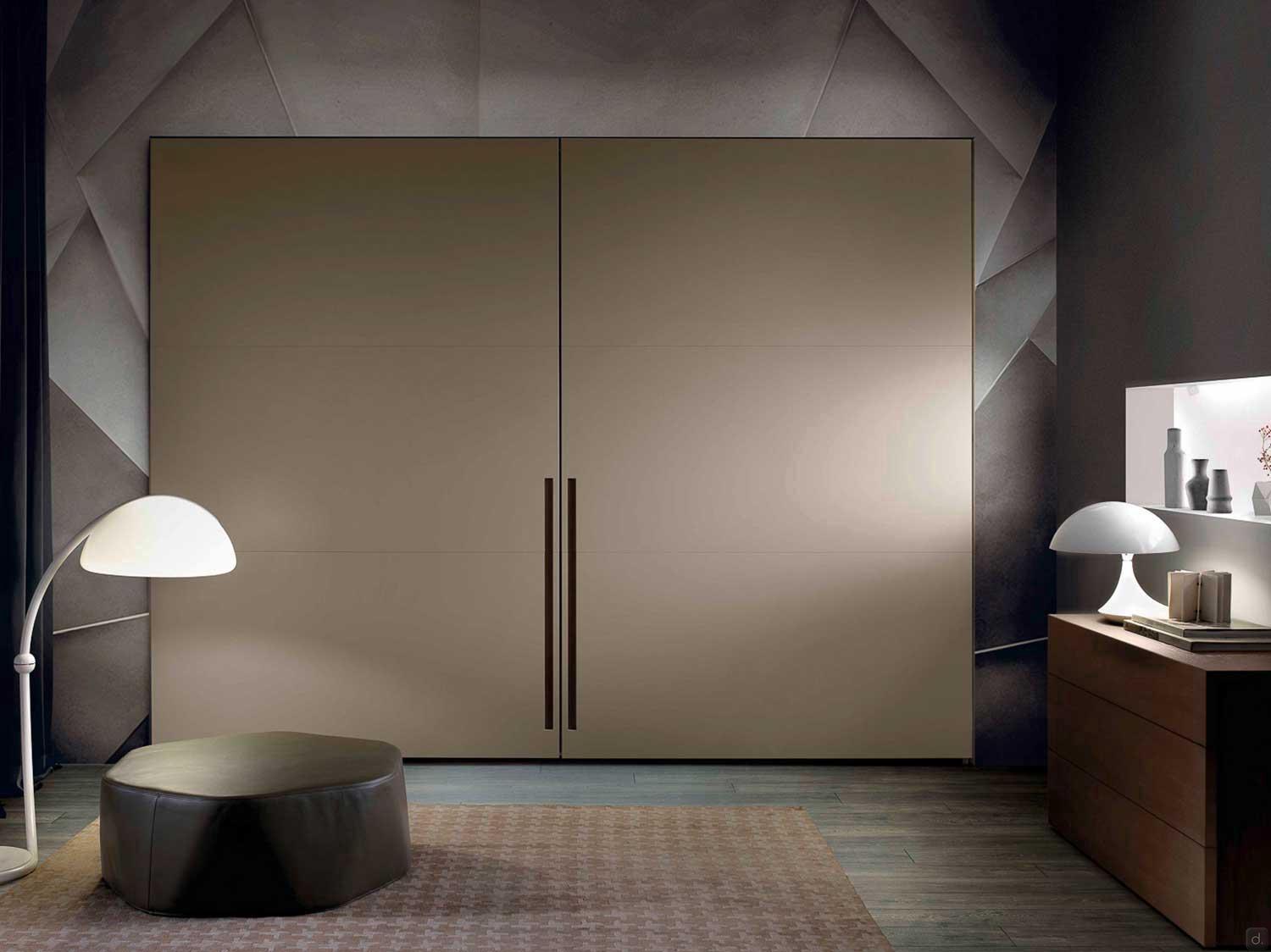

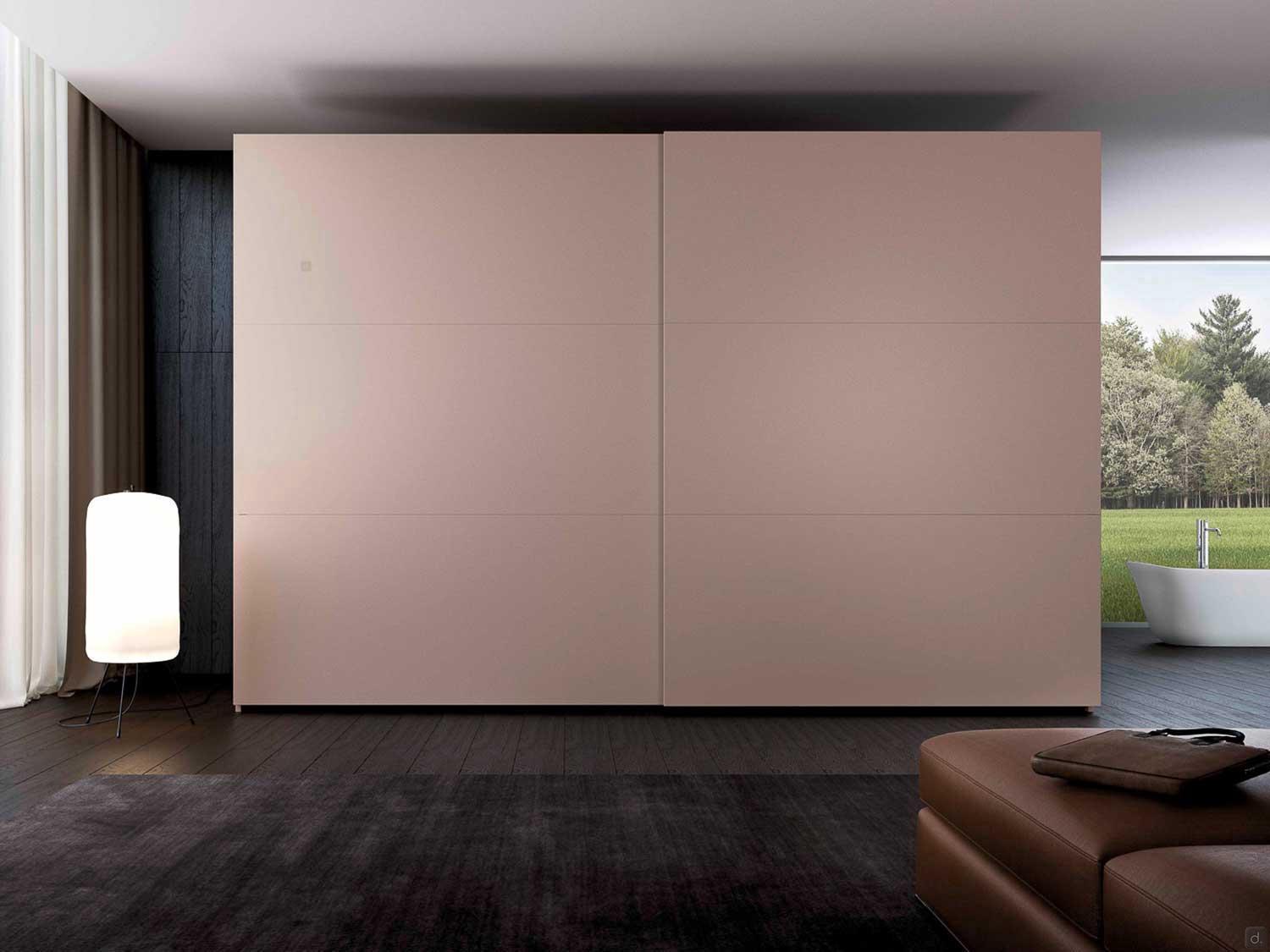

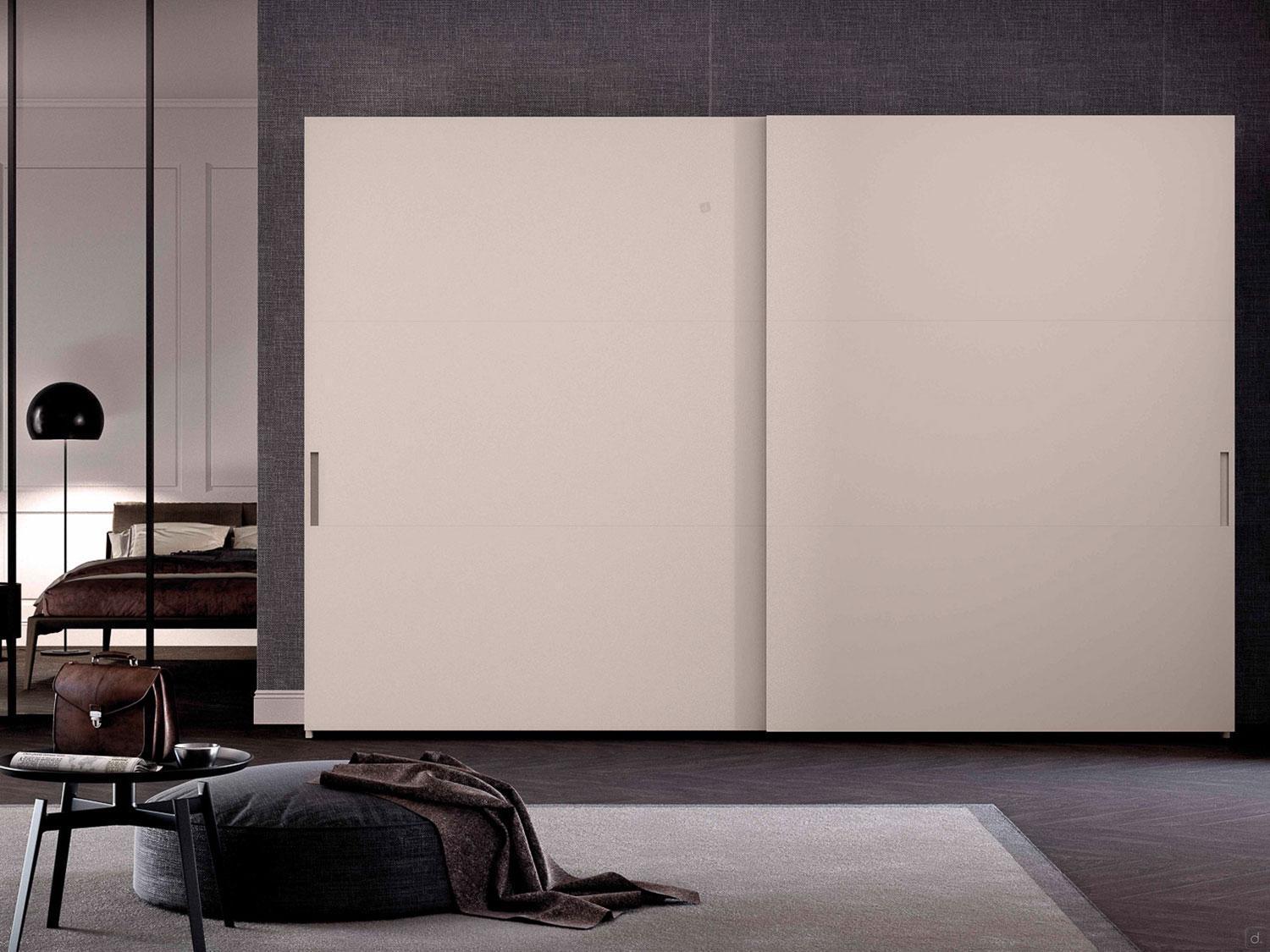

Sliding Doors: 4 cm thick honeycomb sandwich panels with solid pine, lacquered or wooden frame.
Sliding Track Doors: in brown-finish metal, with slow-closing mechanism with magnet.
Door decorations: The fronts can be smooth or customised:

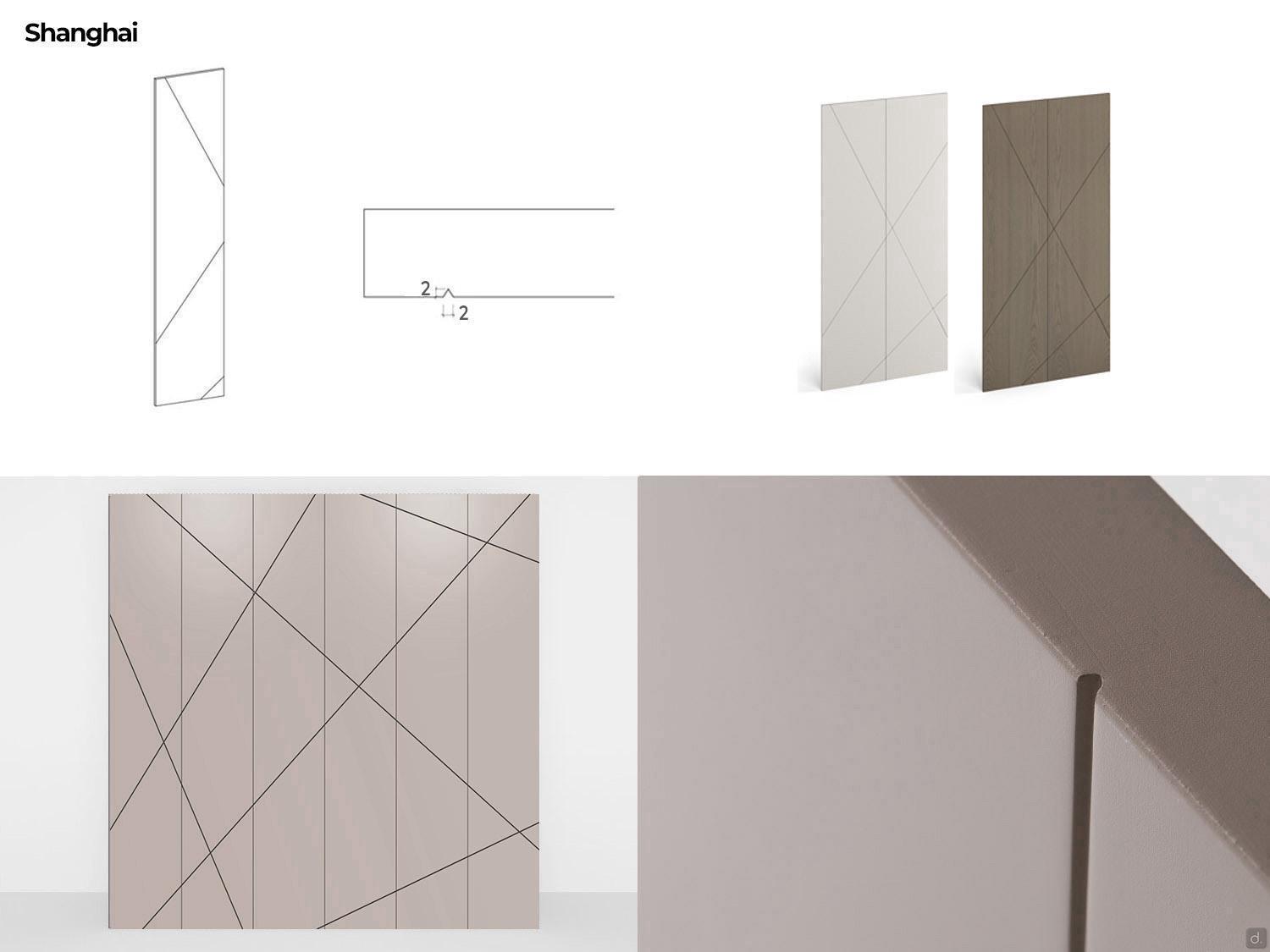

- Shanghai (only in lacquered finish): "V" engravings: 0,2 cm thick.

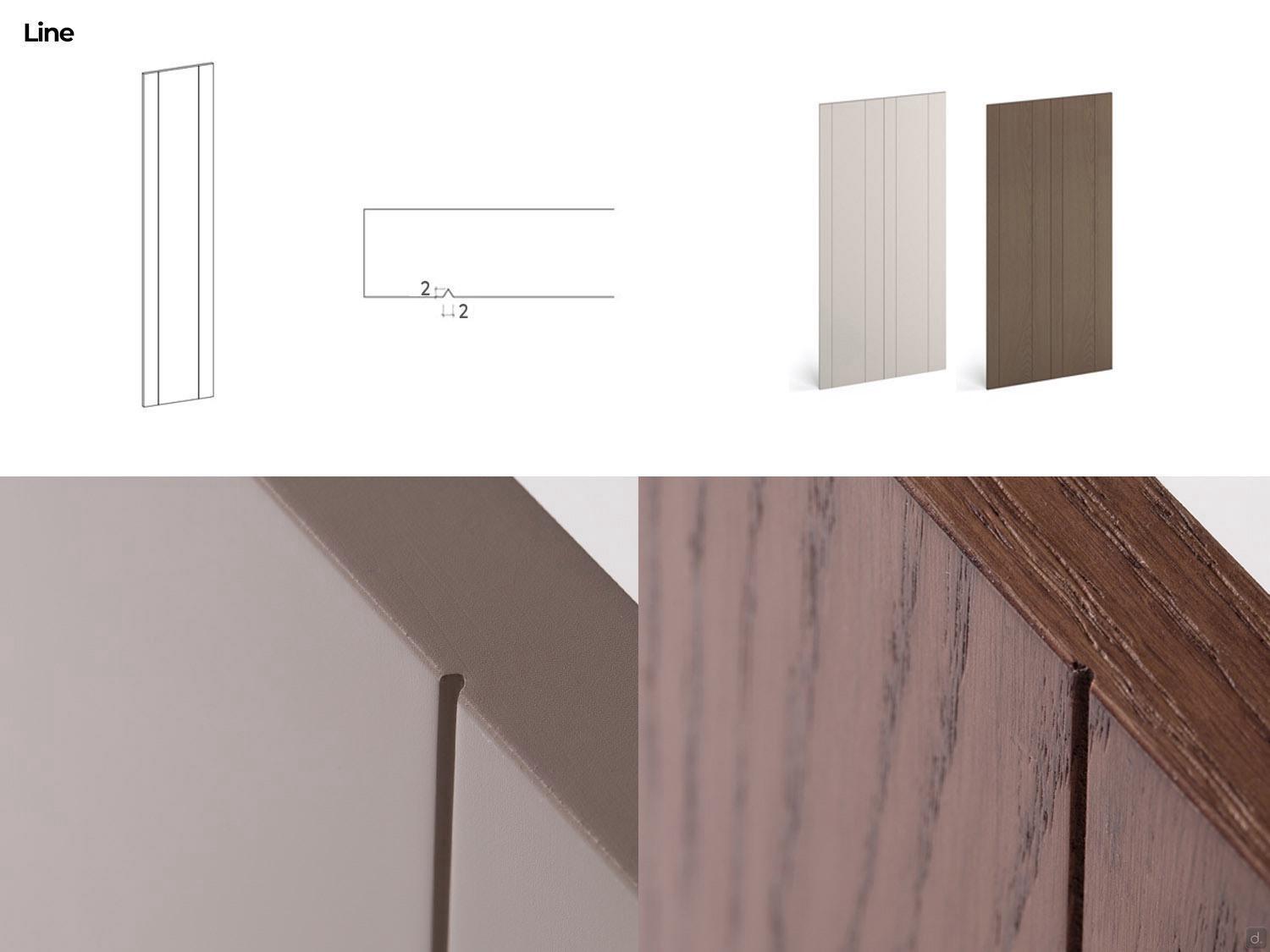

- Line: vertical "V" engravings 0,2 cm thick.
- with metal insert: 1 cm 0,2 thick in version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

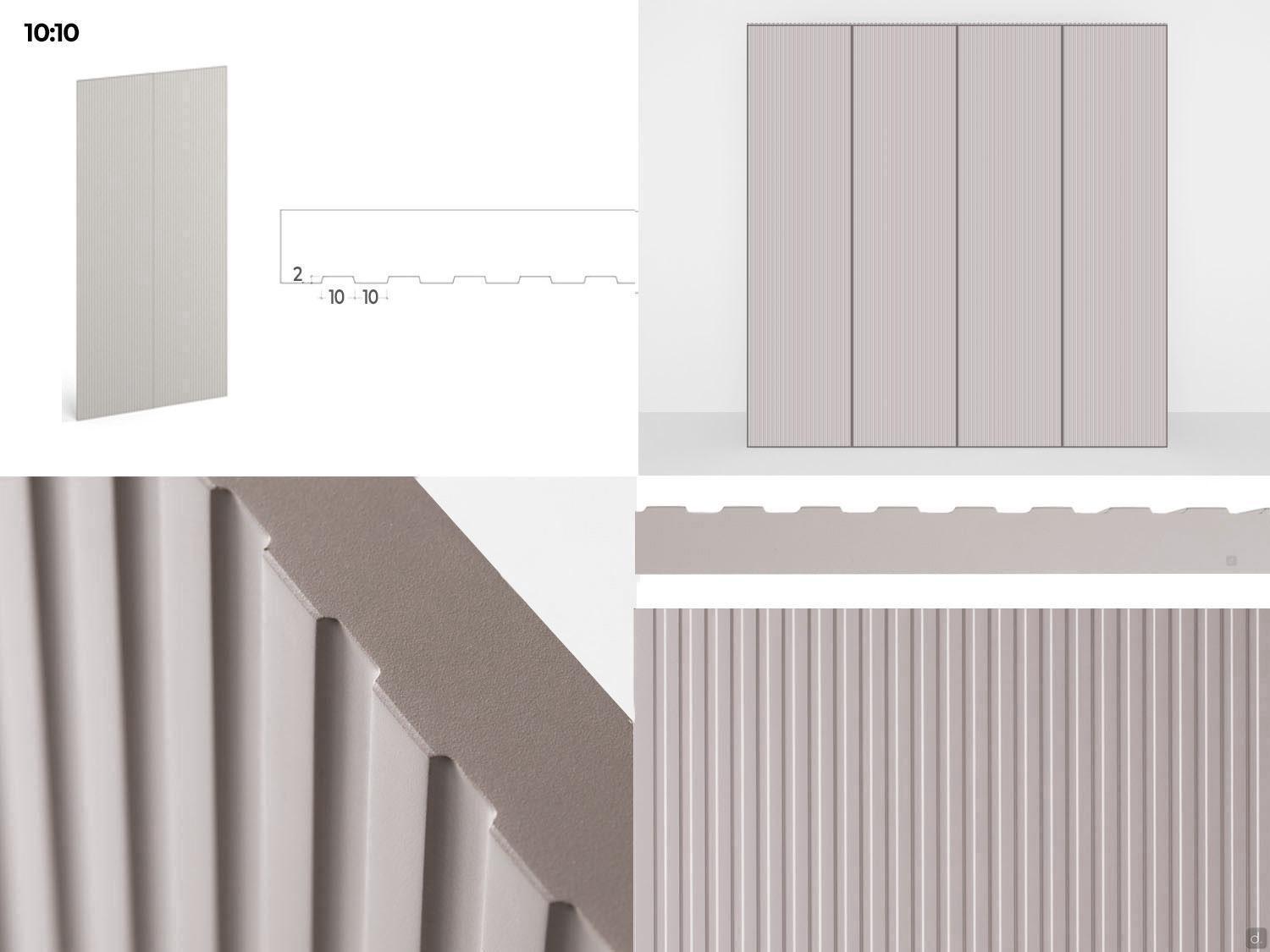

- 10:10 (only in lacquered finish): "U" engravings: 1 cm, 0.2 thick.

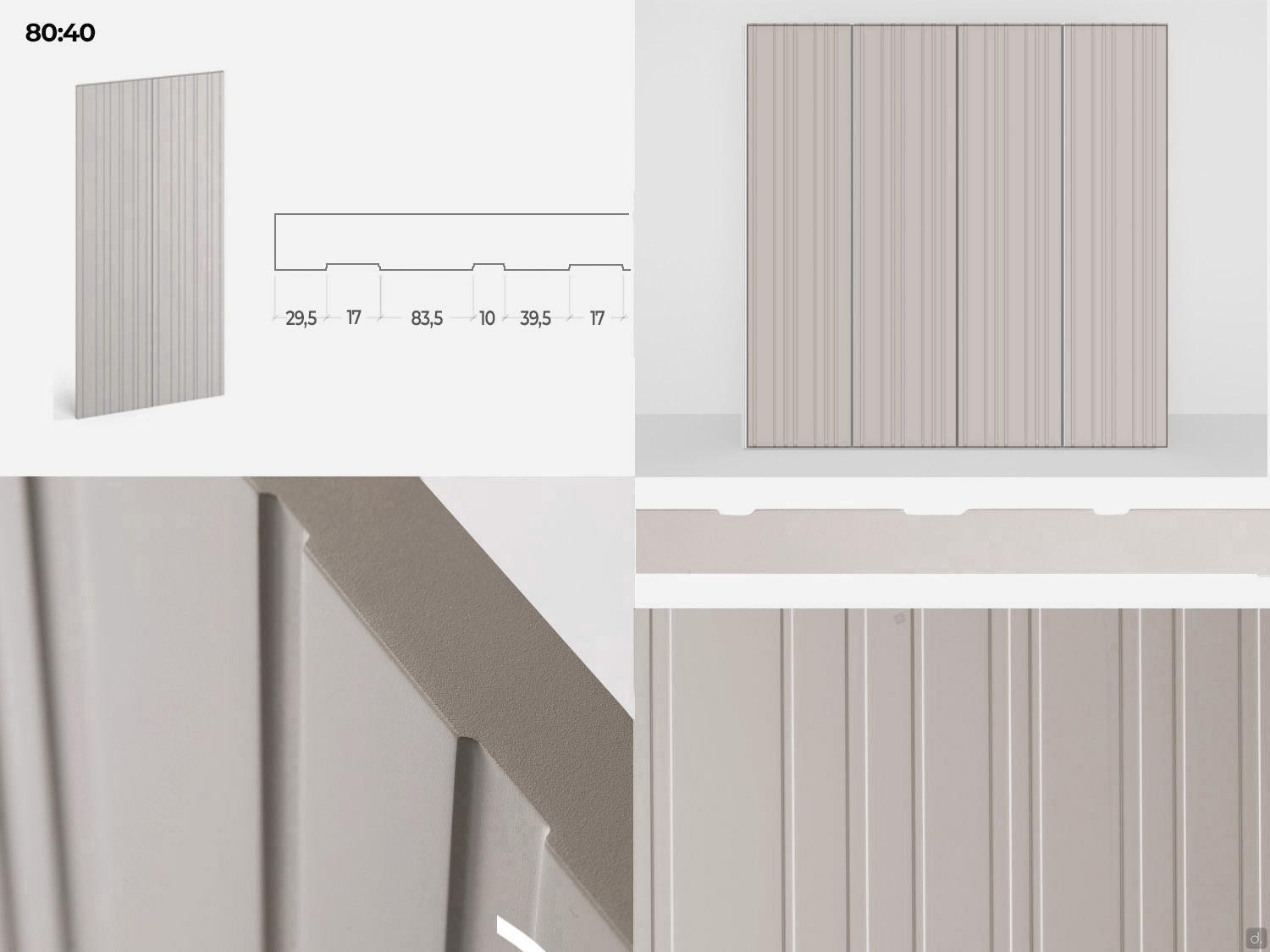

- 80:40 (only in lacquered finish): "U" incisions 1 cm, thickness 0.2 with variable pitch.
- 10:2: vertical "V" incisions cm 0,2, thickness.0,2.

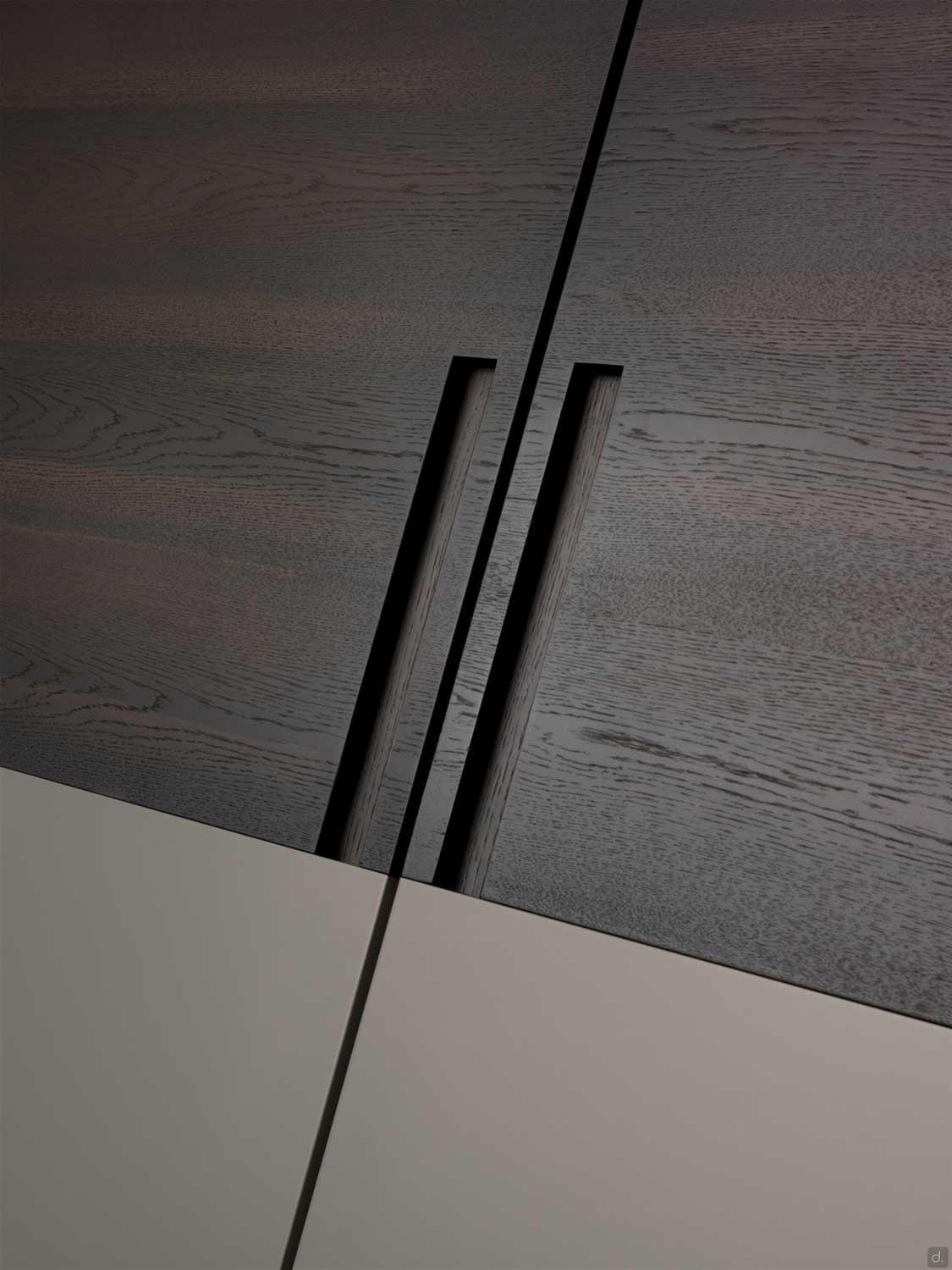

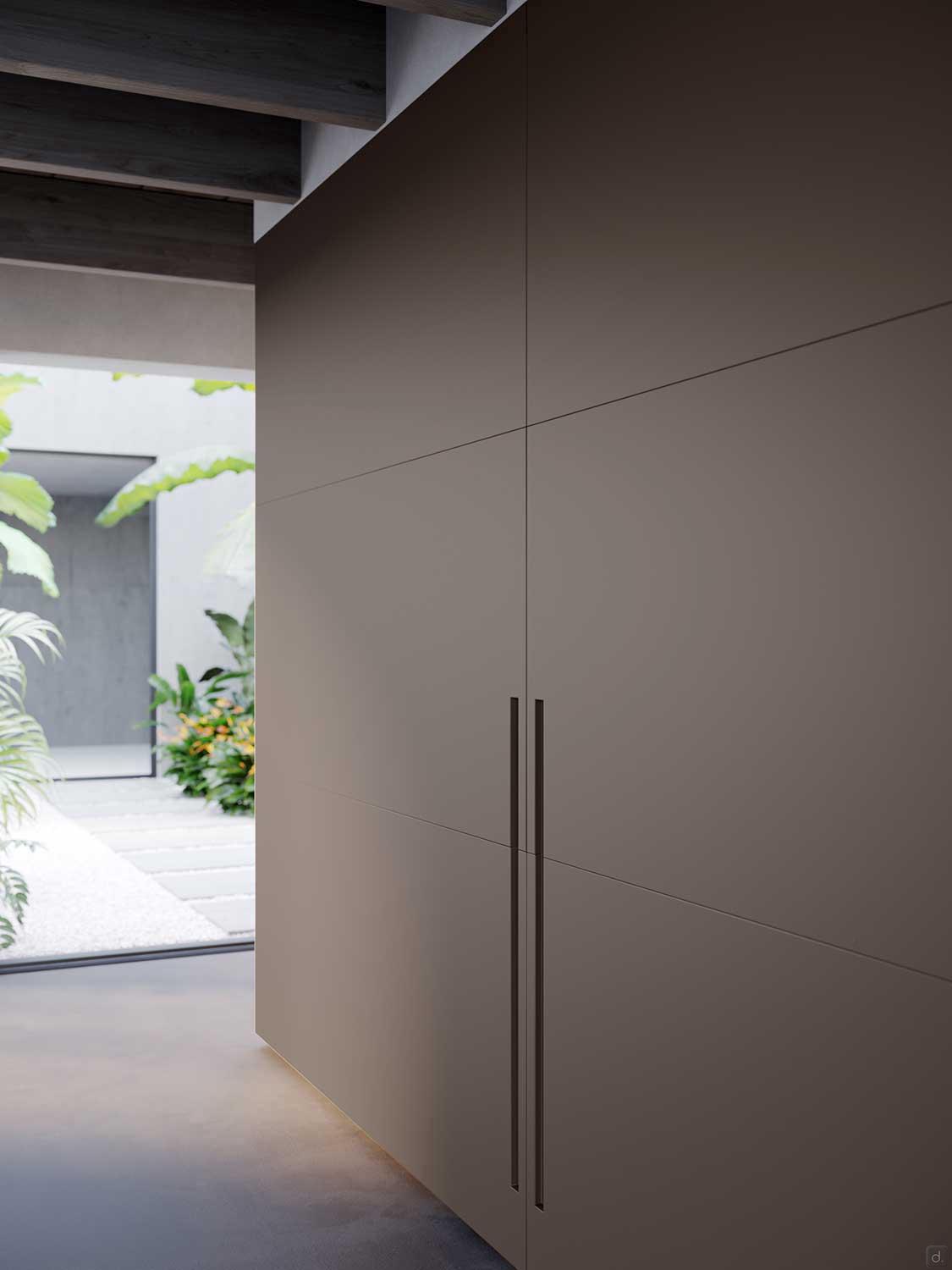

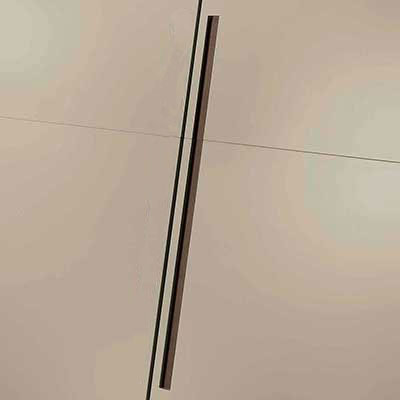

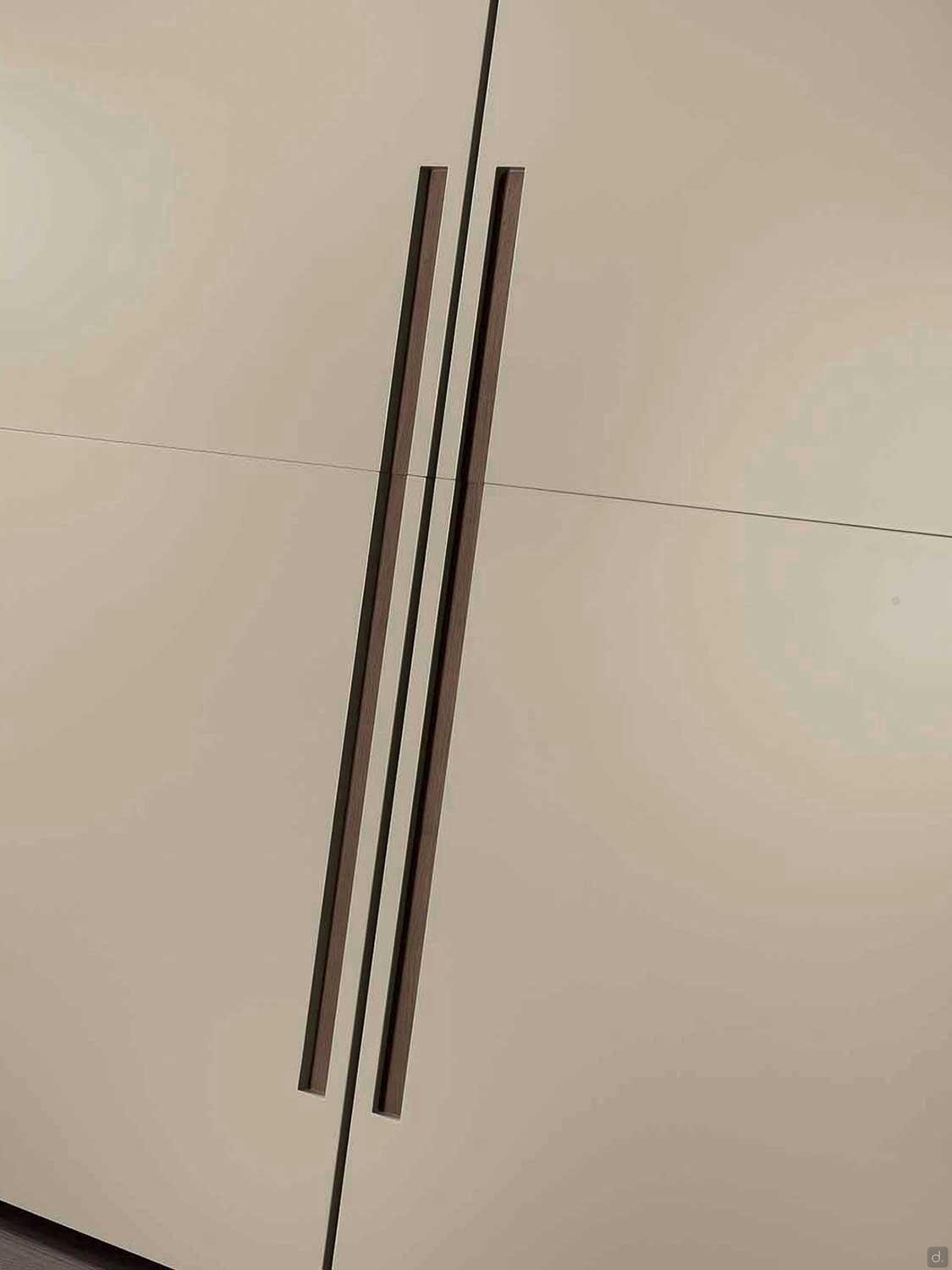

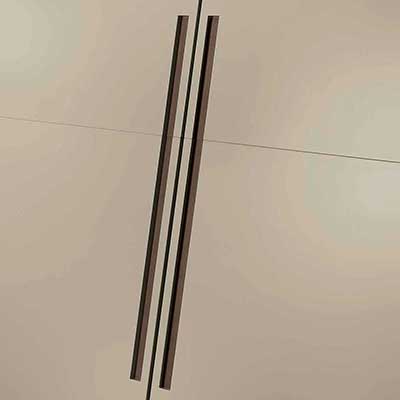

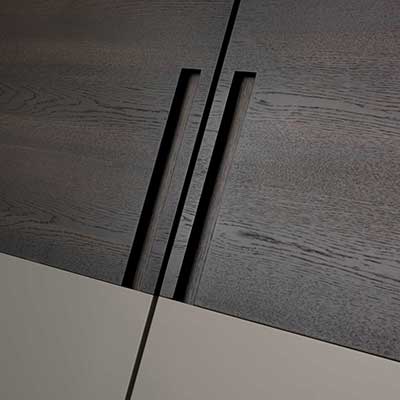

Handles: recessed handles consist of an 18 mm thick milled recess that can be lacquered in all matte and metallic colours or veneered in open-pore oak.

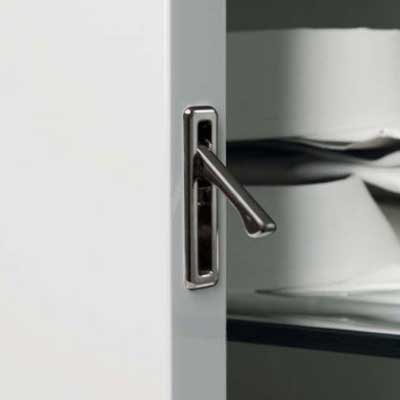

- Pendulum: recessed in the thickness of the door and therefore not visible from the front.
- A1: cm 3,5 d.2,5 h.30,7. Matte lacquered, metallic lacquered or open-pore oak wood finish.
- A2: cm 3,5 d.2,5 h.100. Matte lacquered, metallic lacquered or open pore oak wood finish.
Useful height: To obtain the useful internal height of the wardrobe, simply remove the thicknesses of the adjustable feet (0.5 cm), the base (3.2 cm) and the lid (2.5 cm) from the overall height of the composition, plus 12,4 cm for the rails. Some examples:
- for wardrobe cm h.226: cm 208,1
- for wardrobe cm h.260: cm 242,1.
Please Note: Sides and doors are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the wardrobe is assembled, deliberately leaves the solid pine frame of the honeycomb sandwich panel exposed in order to enhance the wooden component of the element and show the high quality of the finished product.
Drilling Sides

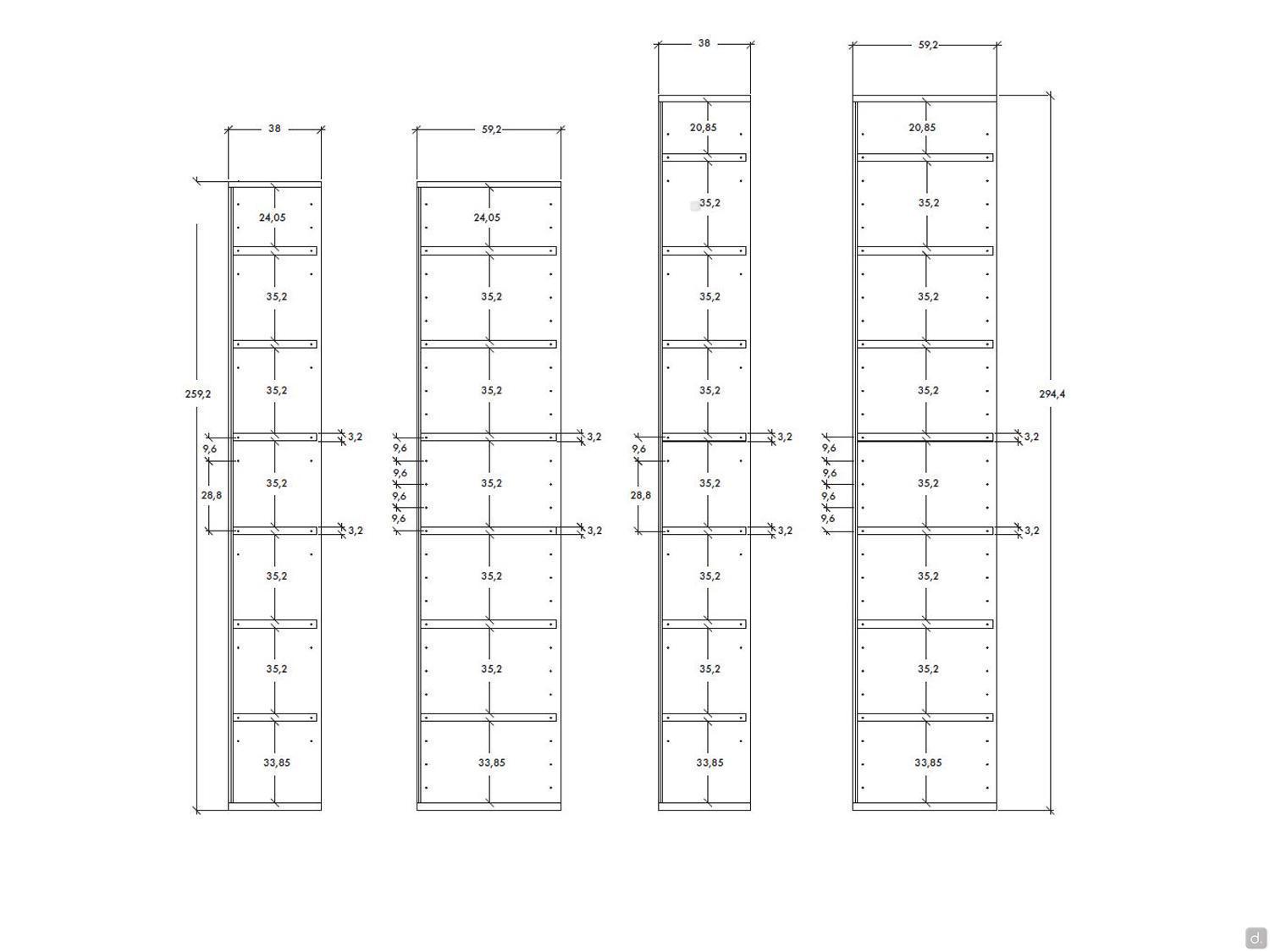

Depth 38 cm: pairs of Ø 1,5 mm holes, 9,6 cm apart, placed every 35,2 cm (see diagram in gallery).
Depth 59,2 cm: Ø 1,5 mm holes every 9,6 cm for the entire side height.
Optional
vertical LED bars: positioned on the internal metal division of the module. Can be fitted with a transformer (max. power supported 75/150W) and switched on via sensor. Warm LED 3000K - 24V, consumption 11 W / m.
Assembly tips
Pre-assembled hardware on all elements for quick and easy assembly.
The feet, also pre-assembled on the bases, allow for correct leveling of the wardrobe thanks to a maximum extension of 0.8 cm. In the unloaded position, they measure 0.5 cm.
The following is required to assemble the body:
- in width 4 cm (if installed in a niche 2 cm)
- in height 8 cm
Read more...
Honeycomb sandwich panel: this is a panel made with an internal heonycomb structure and a 5 / 7 cm perimeter frame in first choice solid pine closed with two 0.3 / 0.4 cm thick MDF panels, subsequently lacquered or veneered.
The advantages of honeycomb sandwhich panels are:
- greater durability;
- greater load resistance;
- significantly reduced panel weight (up to 60% less), which is useful for transport, assembly, moving or relocation, avove all for reducing the wight of the sashes on the structure and hardware;
- hardware always fixed to the perimeter (solid pine wood) of the sides and doors, so the hinges will have greater strength and the furniture will last considerably longer;
- better resistance to humidity, as the material 'breathers';
- exclusively '100% Made in Italy' product.
Aged Oak: compared to 'standard' open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more evident grain. This difference is more noticeable on important surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bed sets.
