Technical Specifications and Equipment

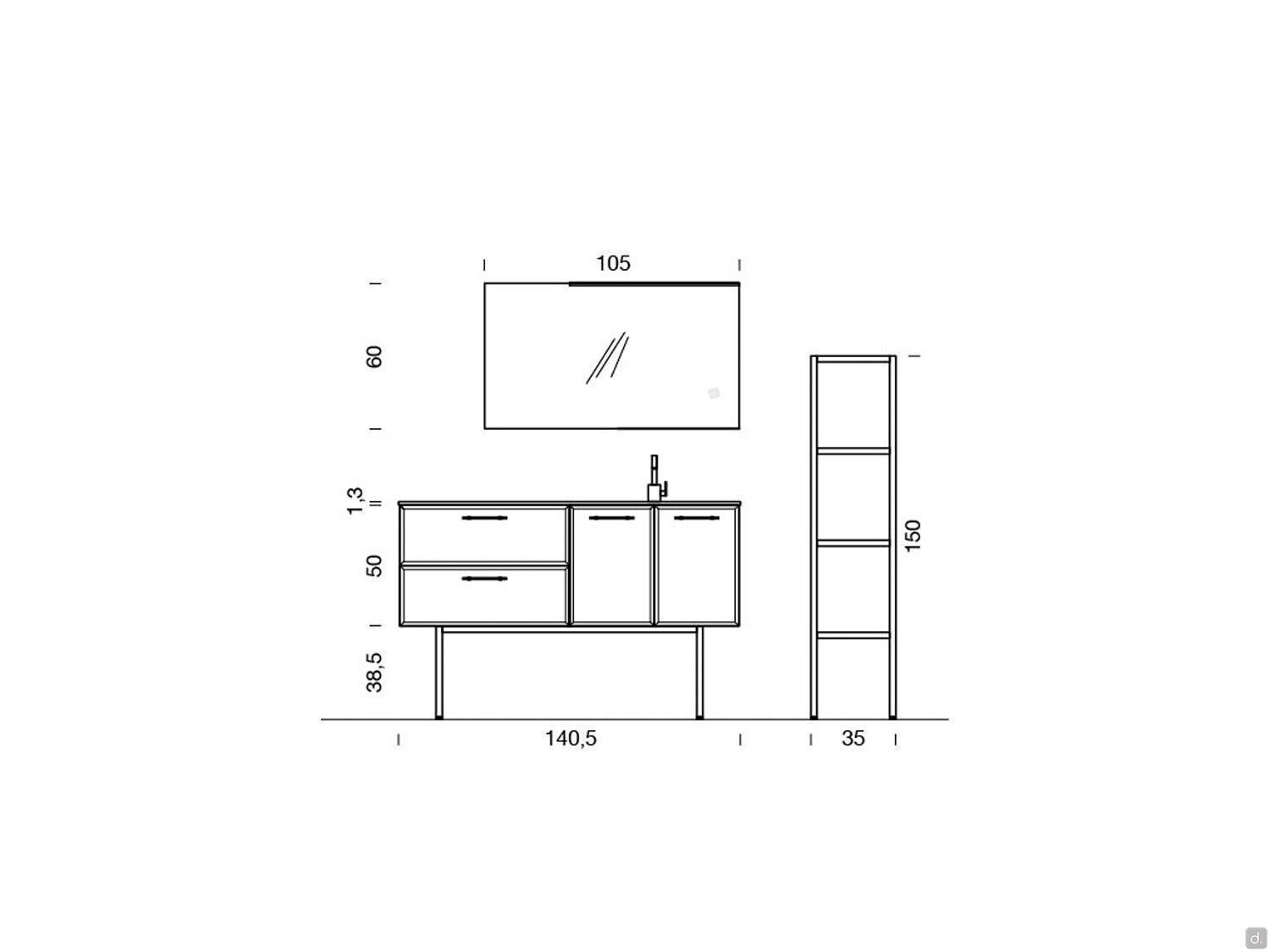

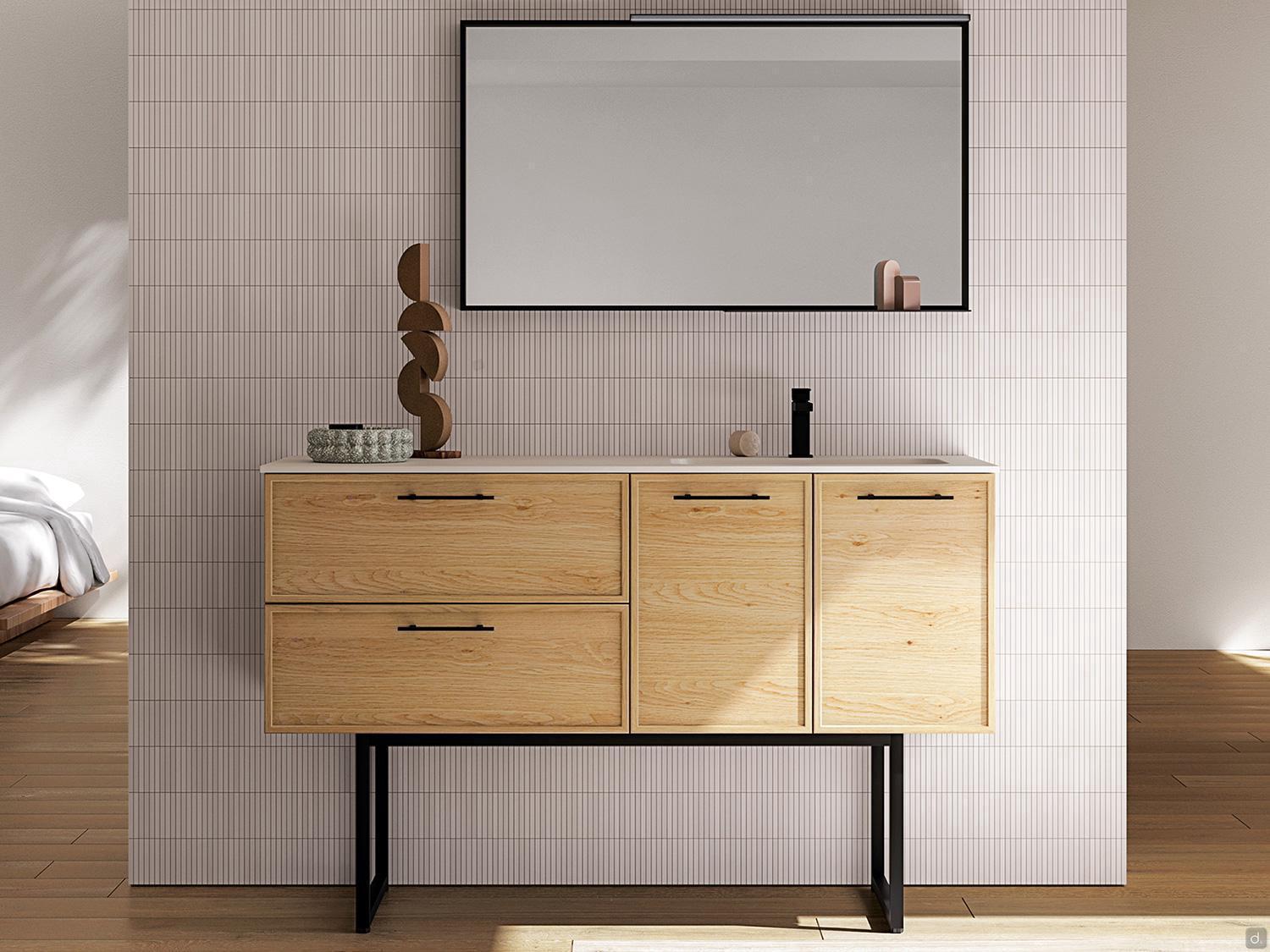

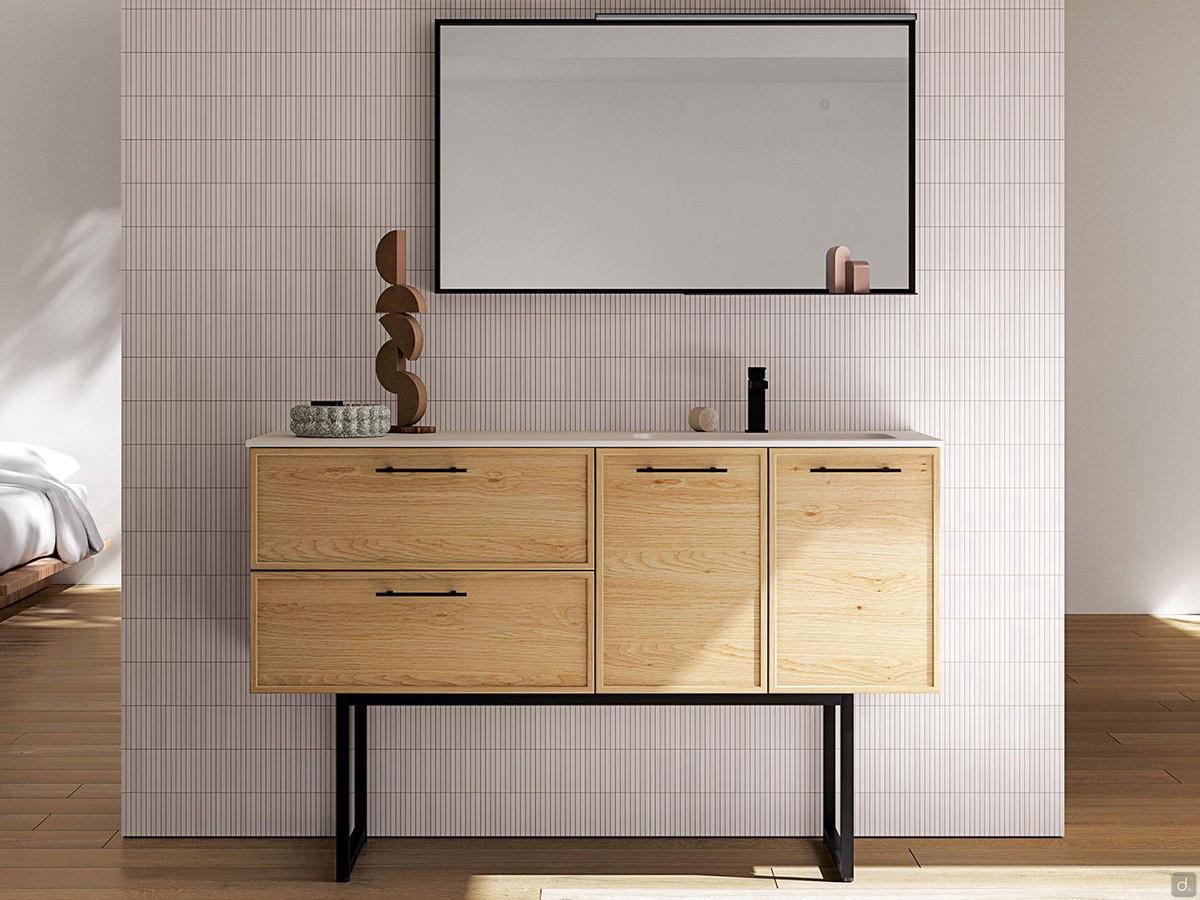

The N105 bathroom furniture is composed of:

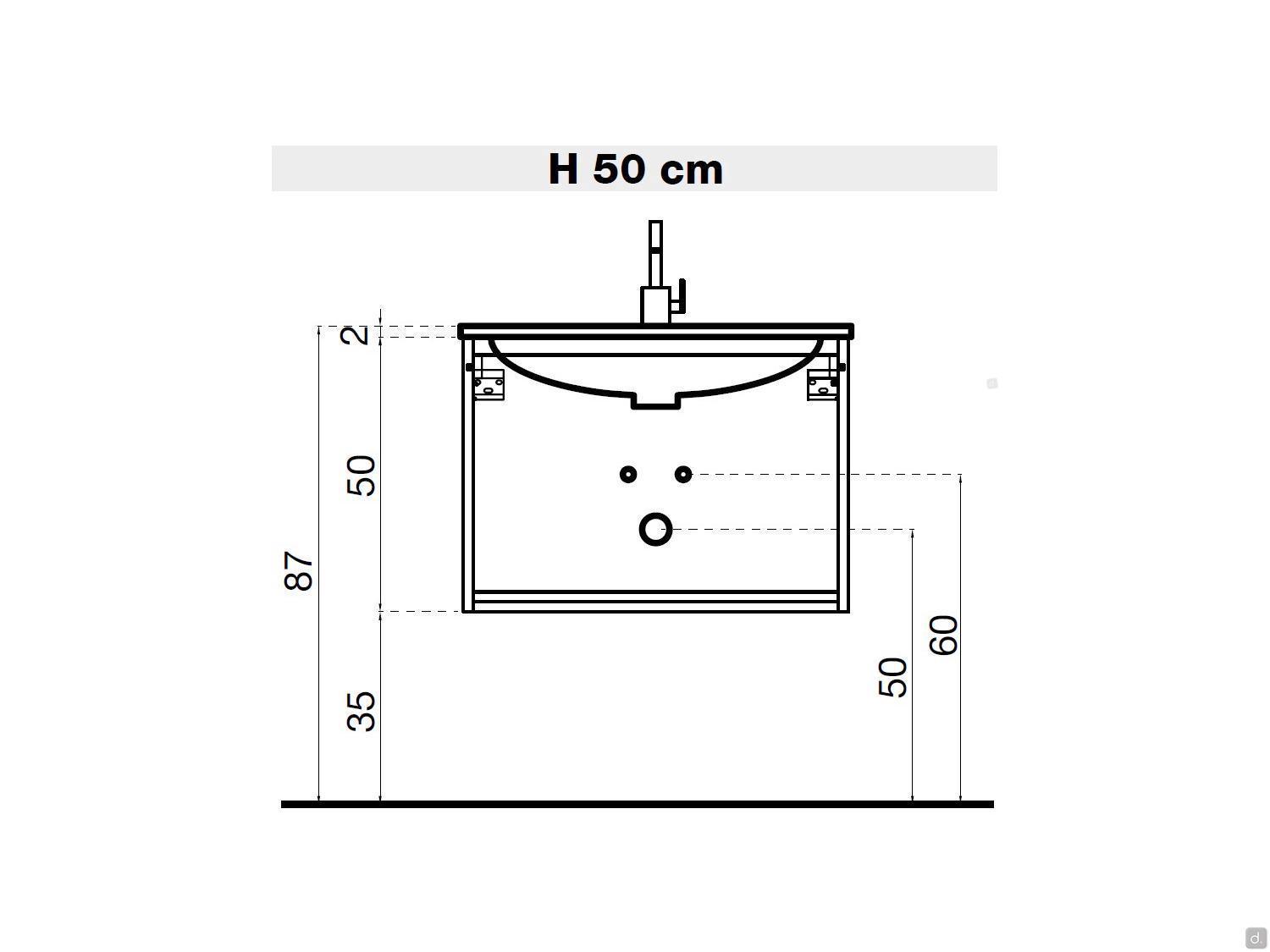

1 base unit with 2 doors: cm 70 d.50 h.50.
n.1 base unit with n.2 drawers: cm 70 d.50 h.50.

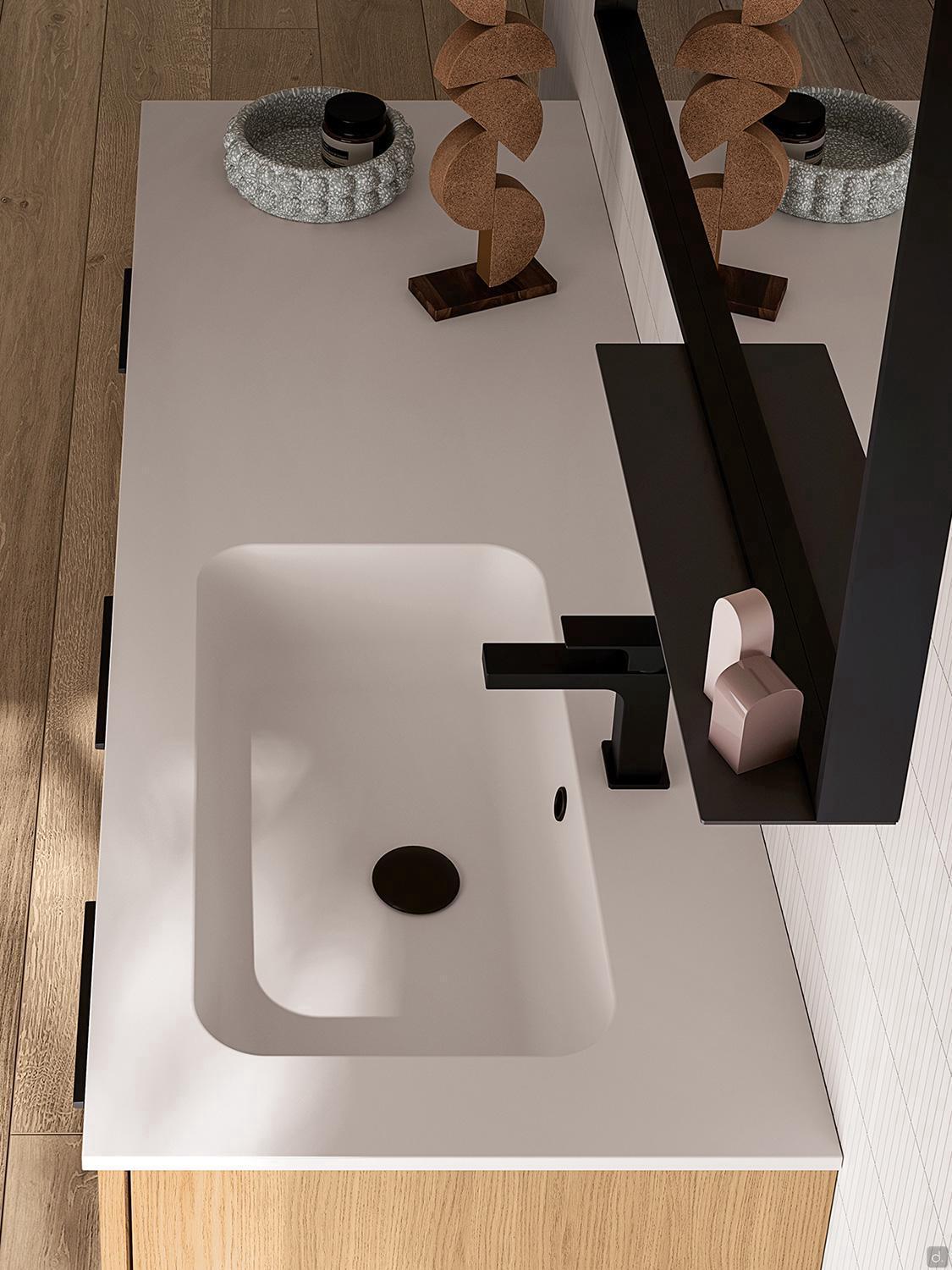

n.1 washbasin in glossy white mineralguss mod. Bliz. The measurements of the basin are: cm 54 d.30 h.12,5. It has an overflow hole and a faucet hole Ø 3.5 cm.
n.1 mineralguss top: cm 140,5 d.51 th.1,3.
n.1 Look mirror: cm 105 th.5,5 h.60 with Led spotlight mod.GAE (20W, 230V, IP21,4000K).
n.1 metal base structure: cm 105 d.45 h.38,5.
Structure: cm 1.8 thick made of particle board panels, then veneered with vertical grain.
Fronts: made of solid oak frame and central panel in cm 2 thick particle board, then veneered with horizontal grain.

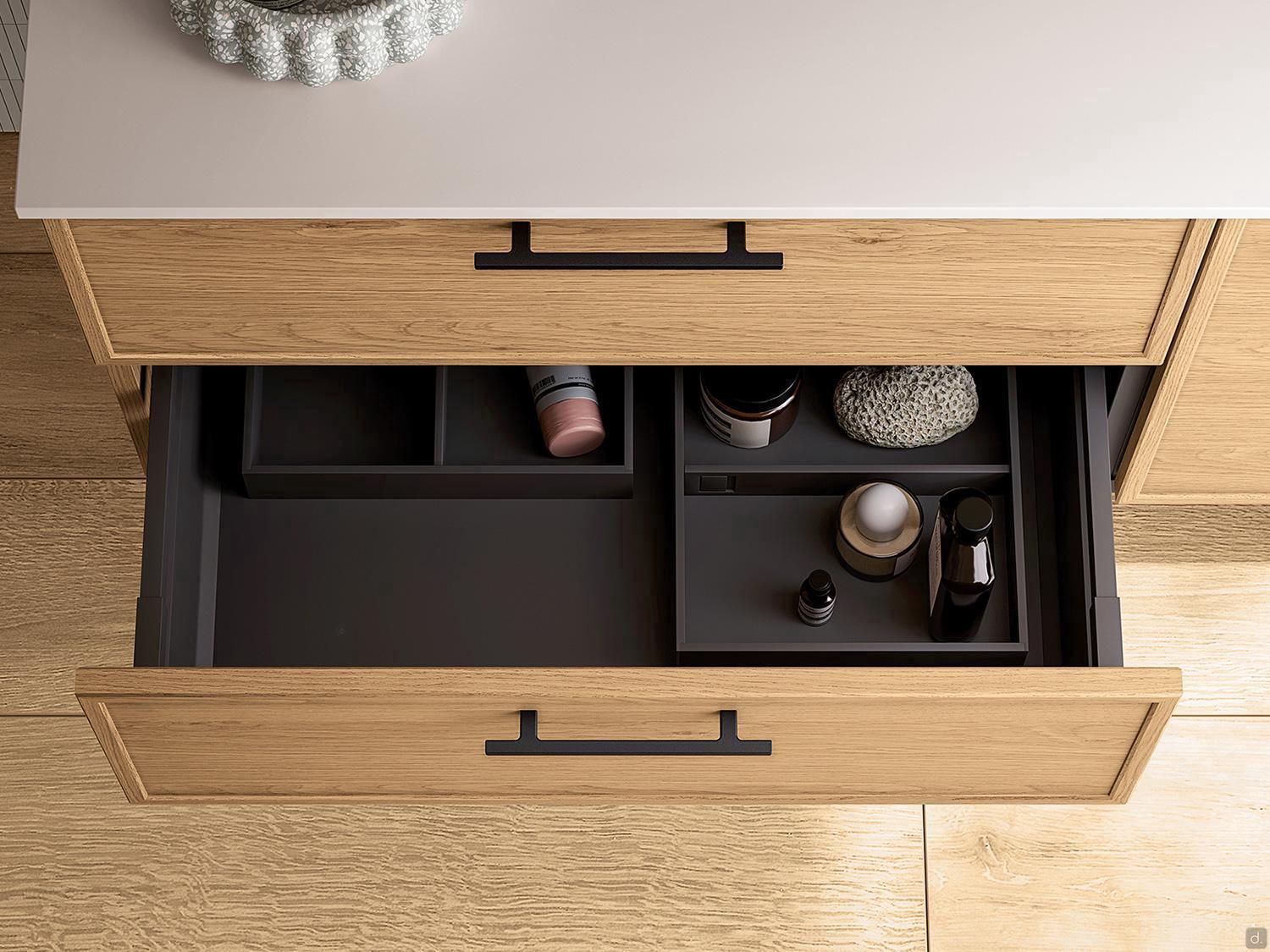

Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.

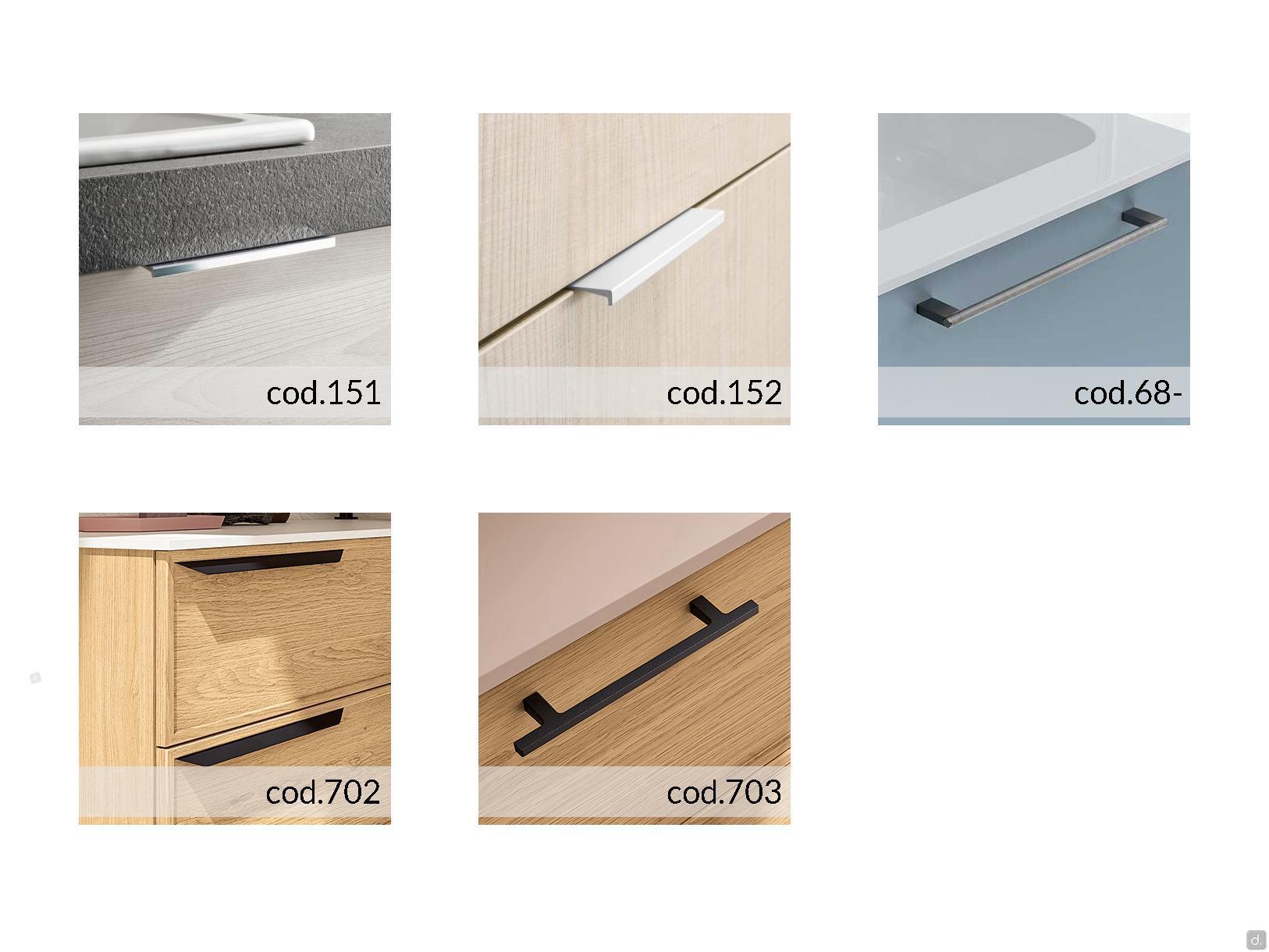

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles mod.152 are available in matt lacquered finish in all sample colours.
Handles mod.68- protrude 4 cm from the door surface, while handles mod.703 protrude 3 cm.
| Washbasin Model |
Measurements |
Internal basin |
Type
Built-in |
Faucet Hole |
Overflow
|
| Bliz - mineralguss polished white |
cm 140 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
integrated |
on central top |
yes |
N.B. The faucet hole has a standard diameter of 3,5 cm.
Optional
splashback: designed to complete bathroom furniture with HPL laminated melamine, marble stone, stoneware or quartz-resin tops; particularly suitable for walls that are not perfectly square and for matching with free-standing mirrors.

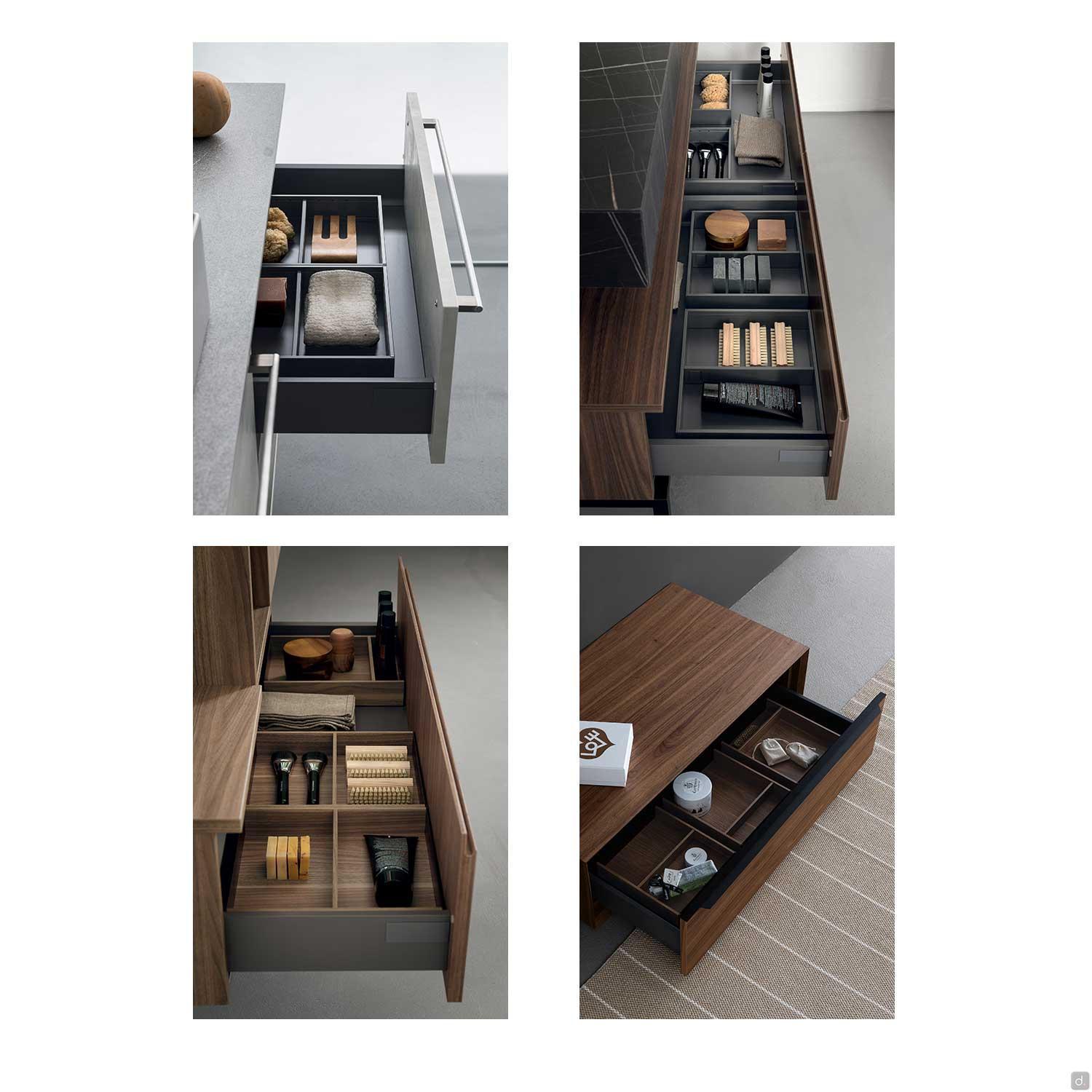

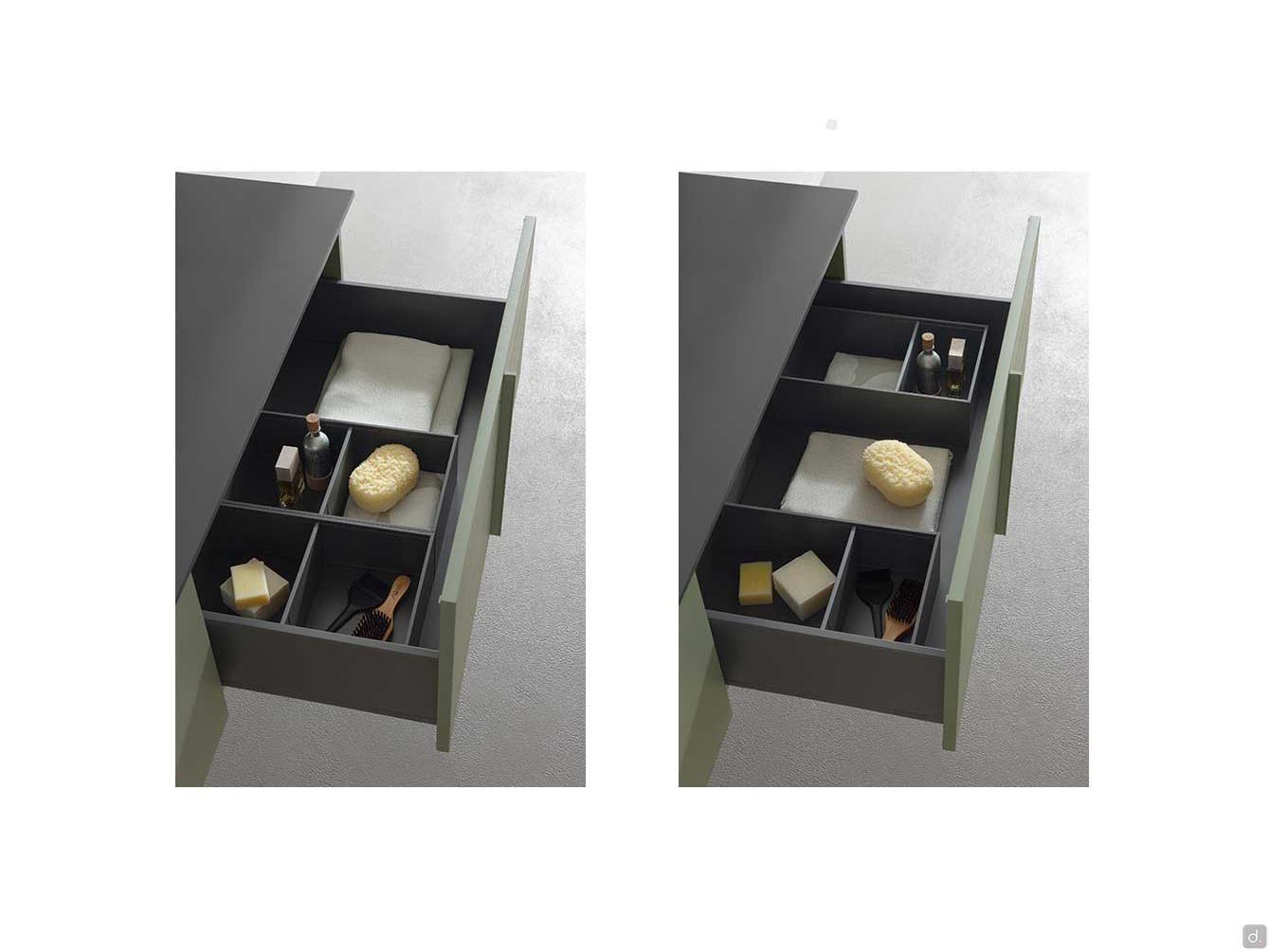

organisers: internal partitioning system for Legrabox drawer and basket. Available in Canaletto walnut and Orione finish.

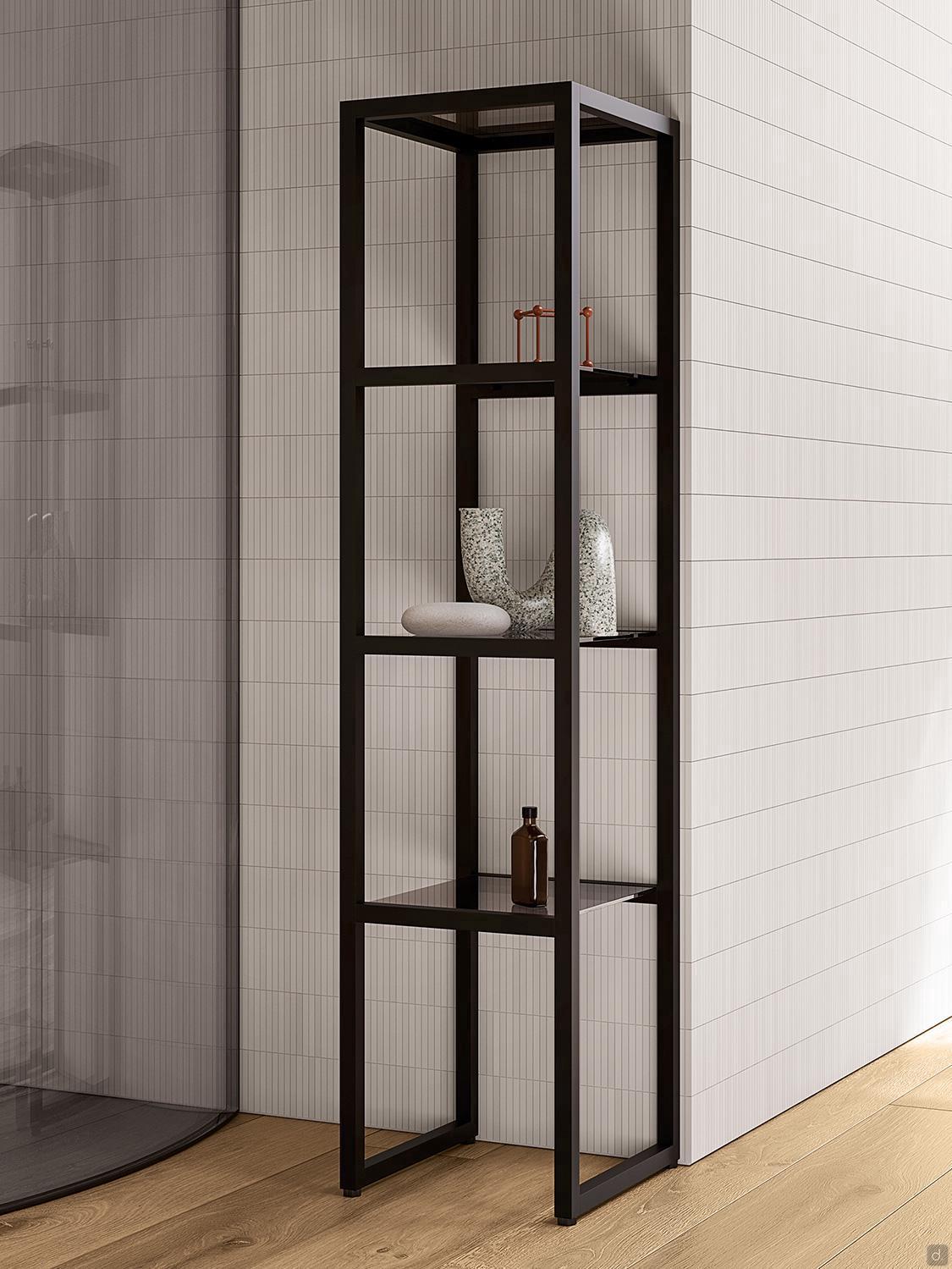

metal open column: open element with structure in black aluminium metal cm 35 d.37 h.150. Shelves in grey glass, thickness cm 0,6.
Maintenance Tips
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is recommended to clean the top in the direction of the grain and dry it carefully.
Mineralguss: for cleaning, use a sponge with water and a normal cream detergent. The surface of the top must not be in contact with solvents and alkaline lotions such as ammonia. Hair dye products must not stagnate in the basin and must be rinsed off immediately. Never fill the sink with hot water above 60°C.
Read more...
Mineralguss: is a material composed of calcium carbonates and aluminium trihydrates, bound by a low percentage of polyester resin. The surface is coated with a gelcoat film that offers excellent physical and chemical resistance. The compound is ductile and heat resistant. Any colour variations, caused by high temperatures, can be removed by cleaning with a lightly abrasive sponge and subsequent polishing.
