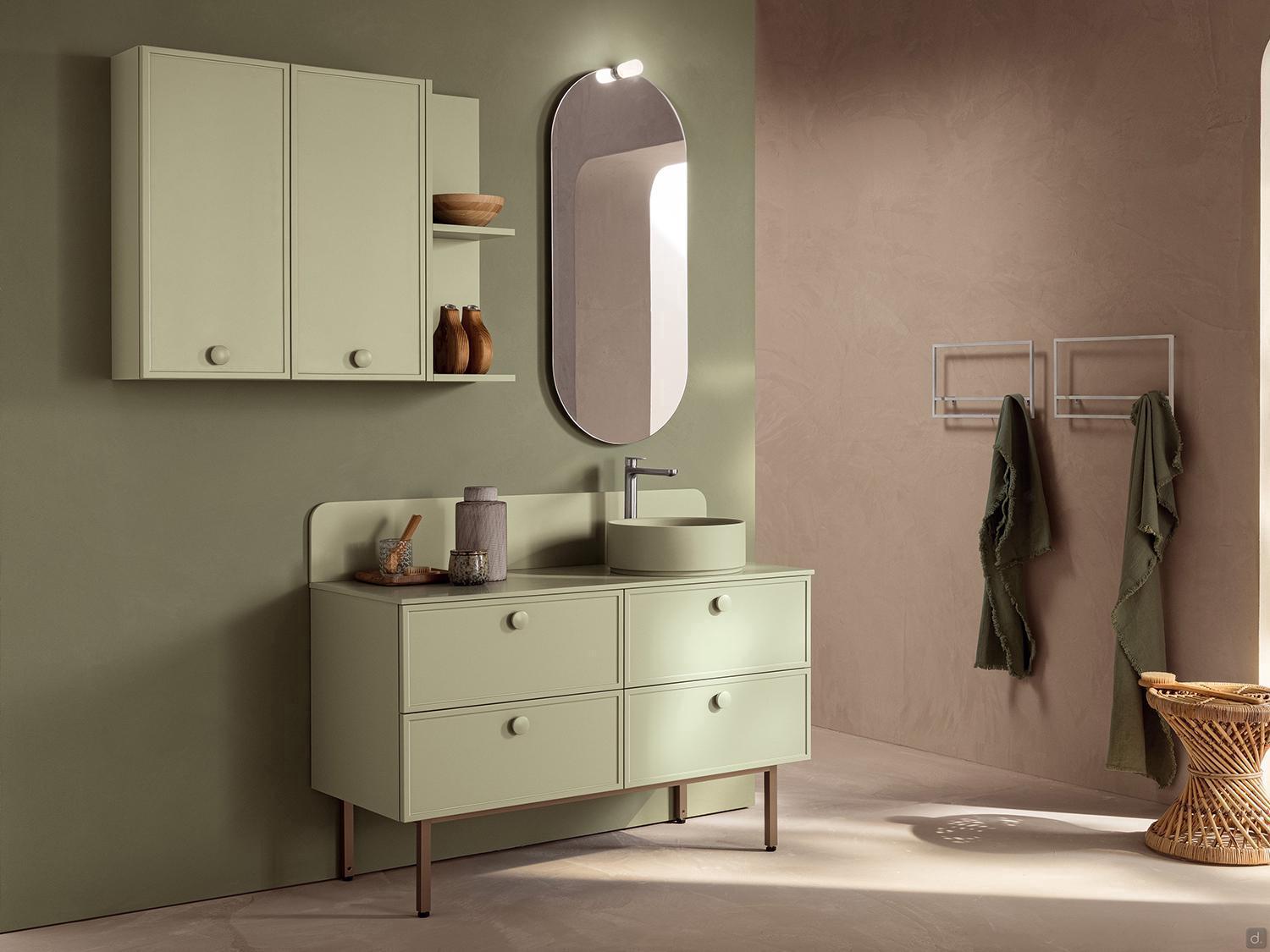

Floor-standing 120 cm bathroom cabinet N106 Frame, with mirror and wall units included

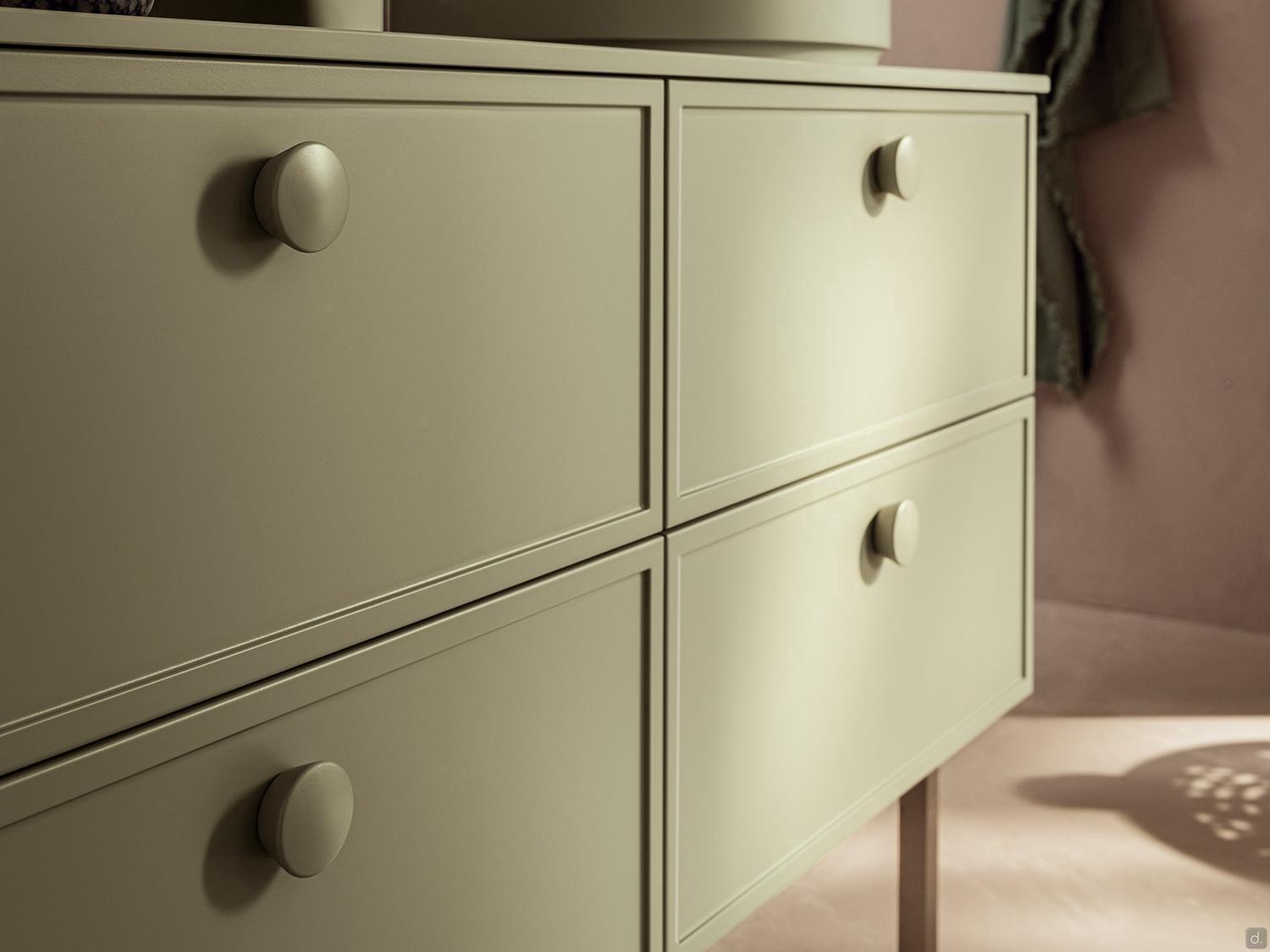

N106 Frame 120-cm floor-standing bathroom cabinet with double base with 4 drawers. Shown here are the matte lacquered 701 handles to match the base

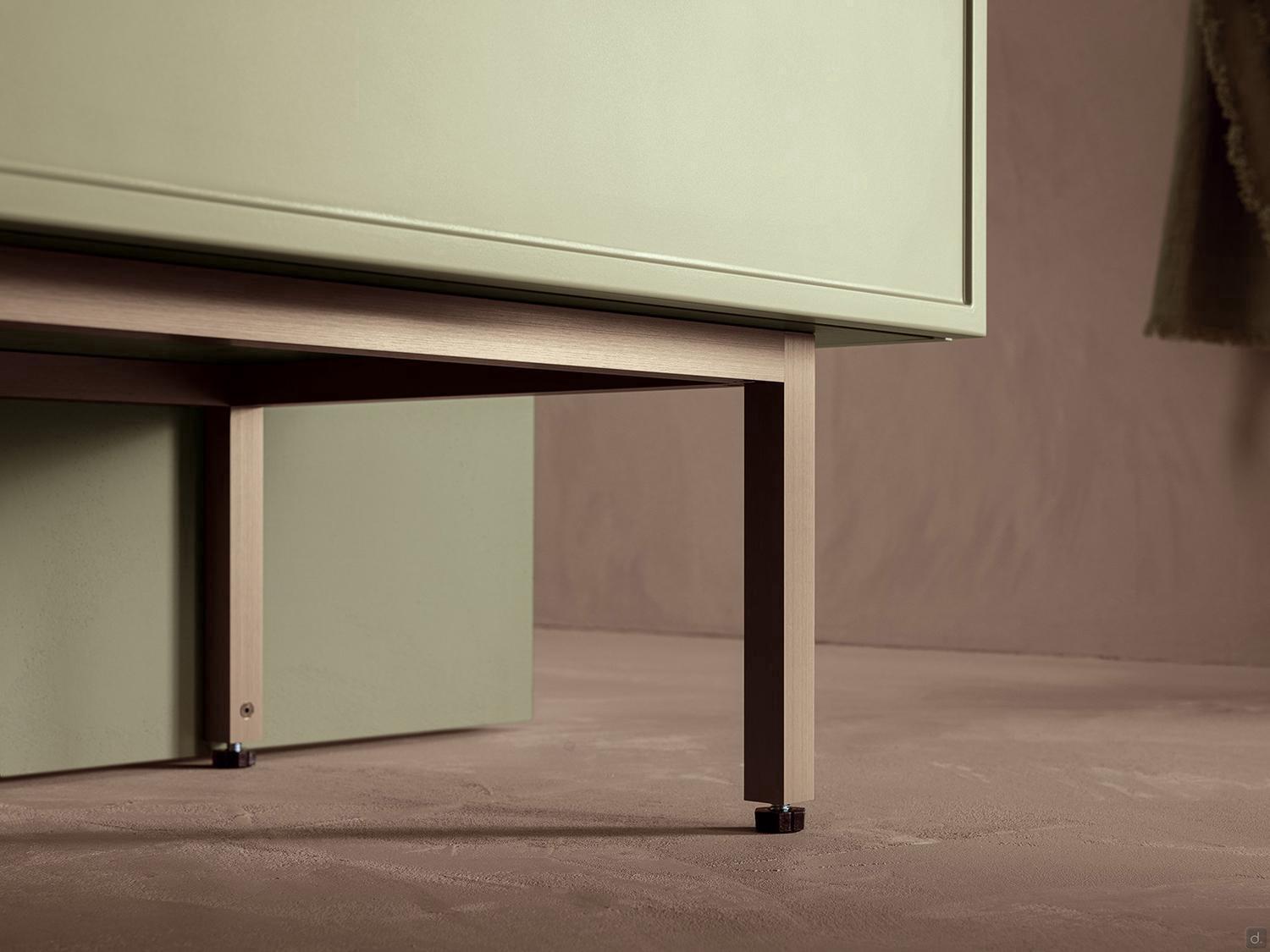

Detail of the metal frame underneath the bases of the N106 bathroom cabinet, available in matte black or brushed aluminum finish

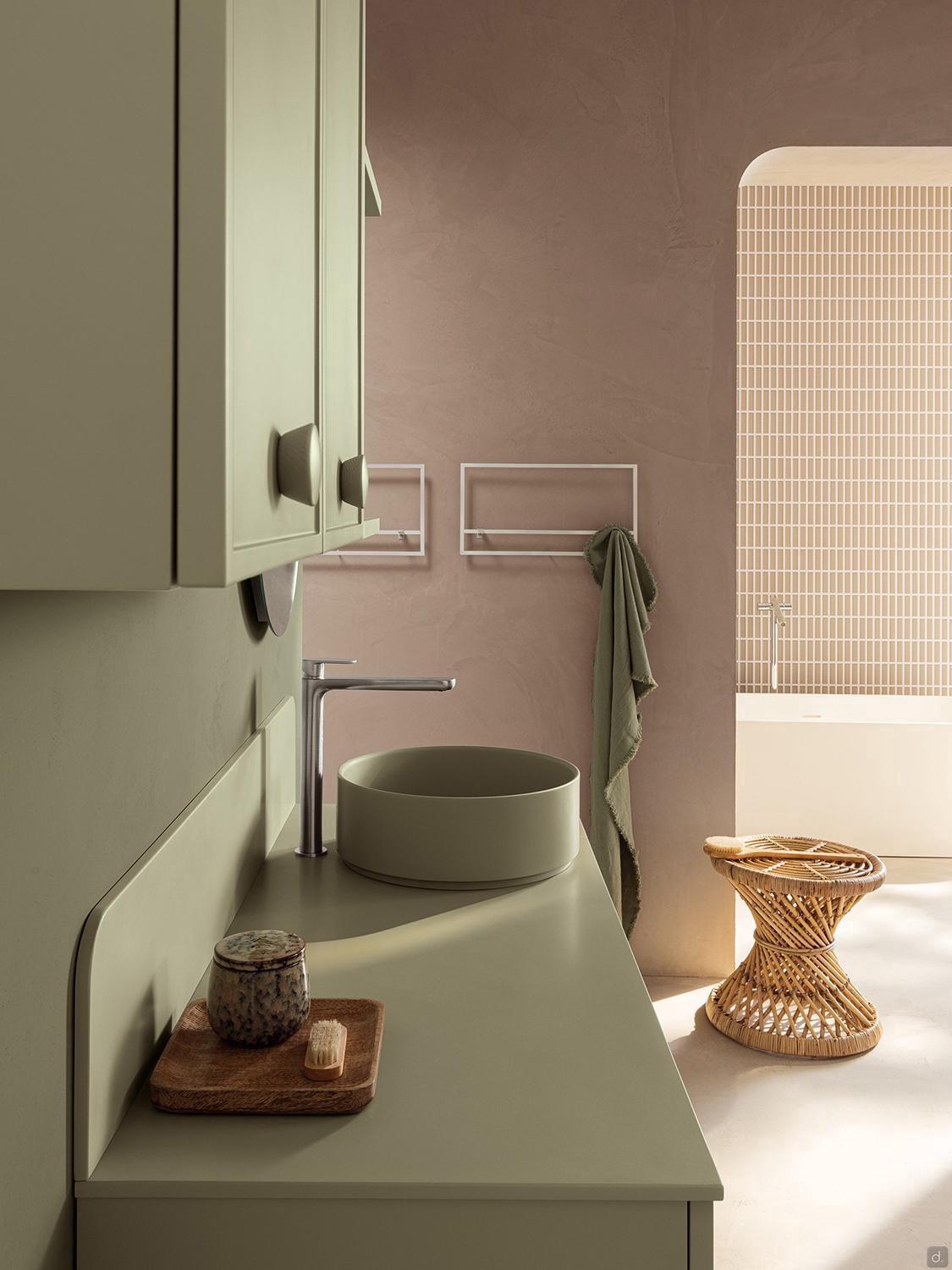

The top and washbasin of the N106 bathroom cabinet are made of Minera-Kolor, a material of mineral origin mixed with resins and available in several matte colors

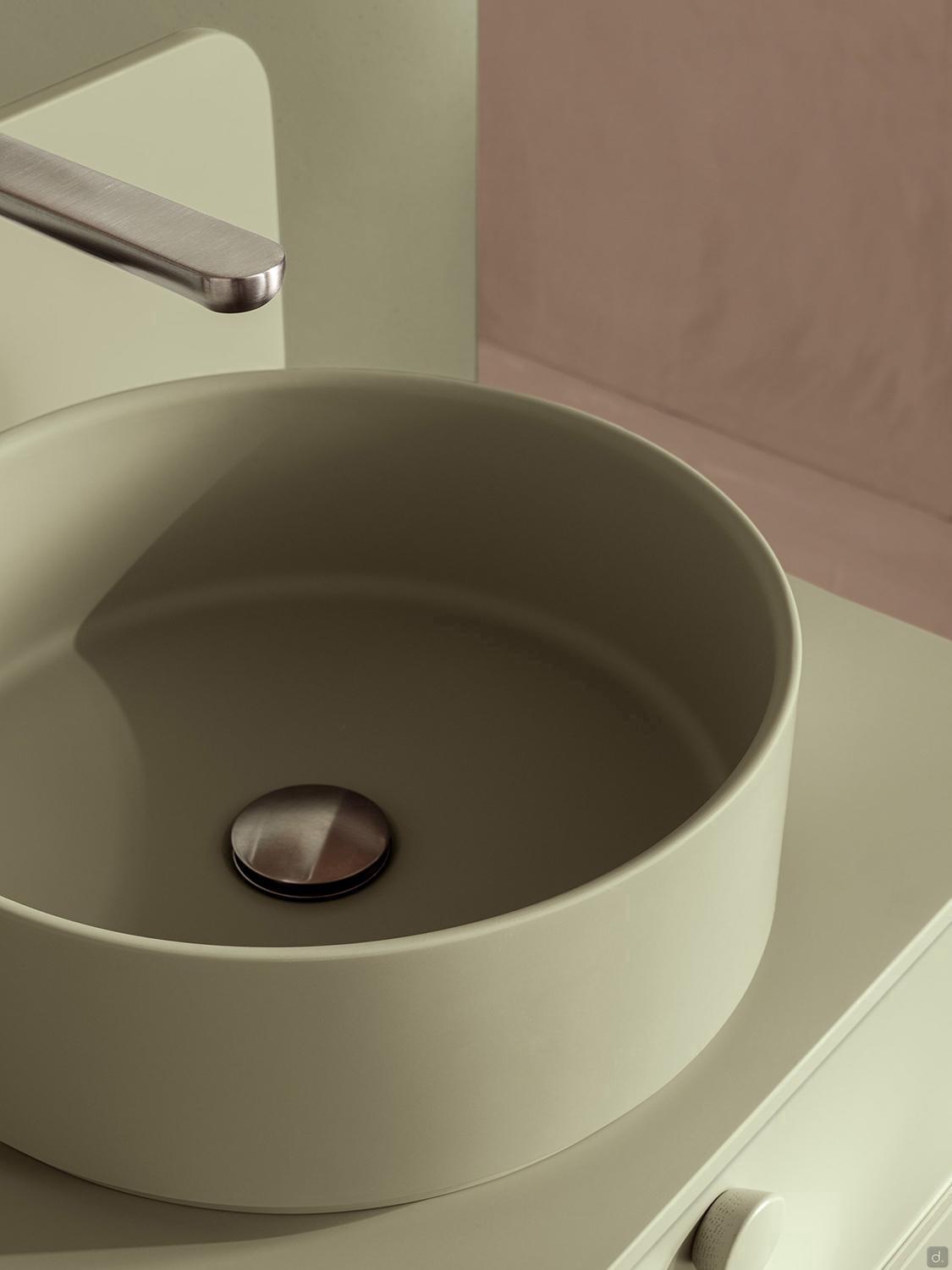

Detail of the Trieste washbasin in Minera-Kolor, offered as standard with the Frame N106 composition and always matching the top and base units

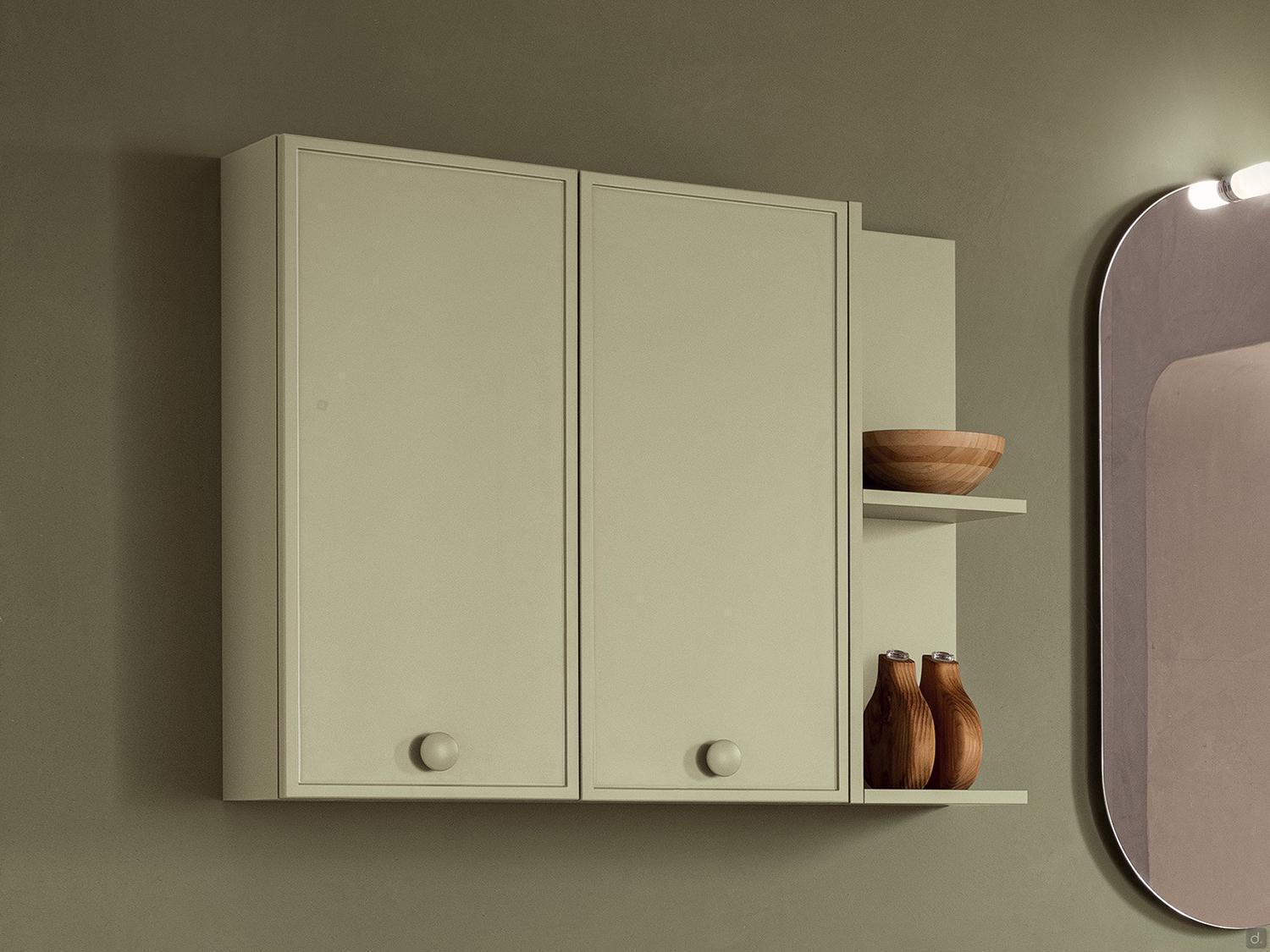

Wall unit composition included with bathroom cabinet N106, consisting of a double hinged door module and a hanging open element

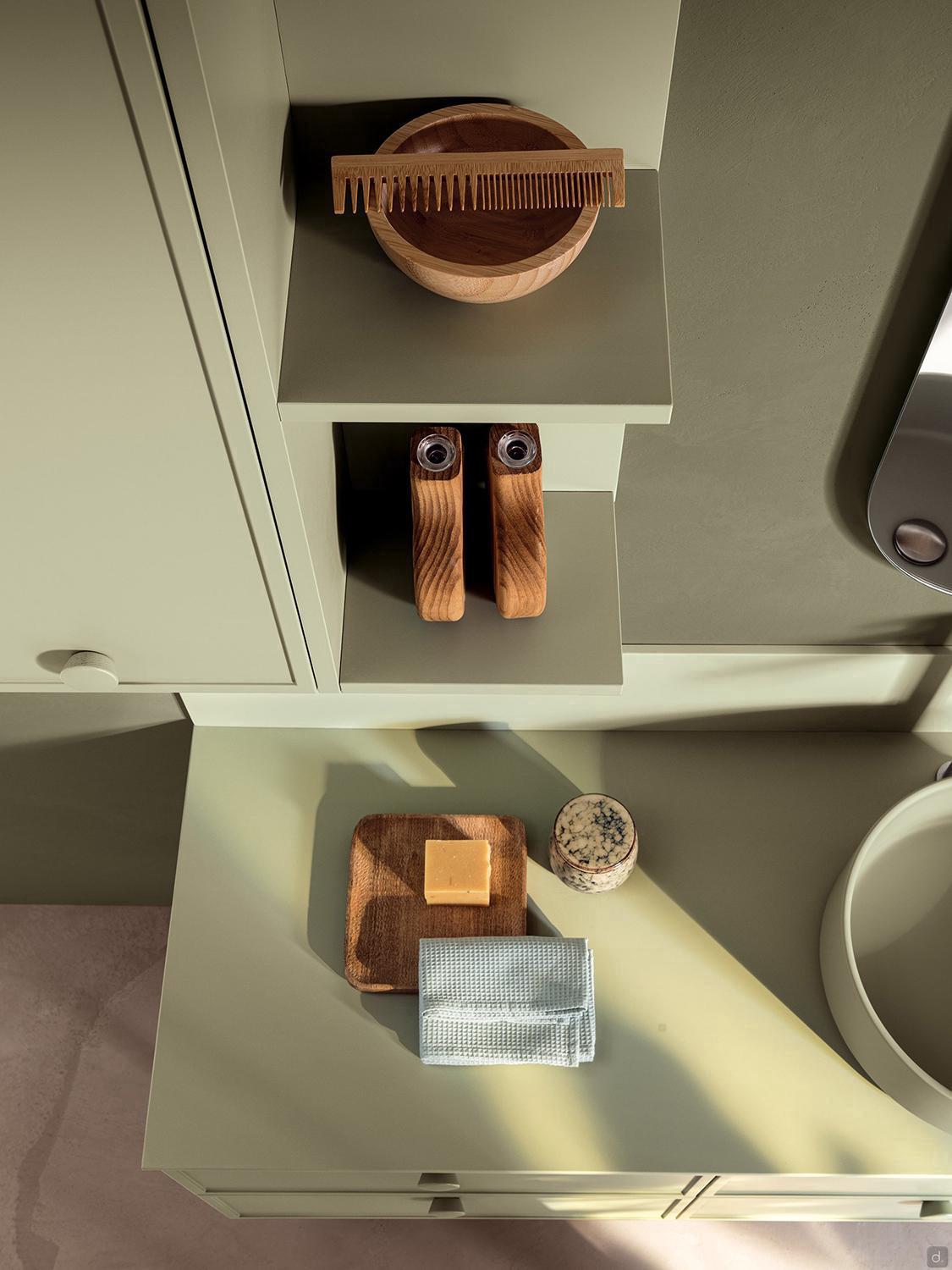

Detail of the open element, with two shelves 20 cm deep

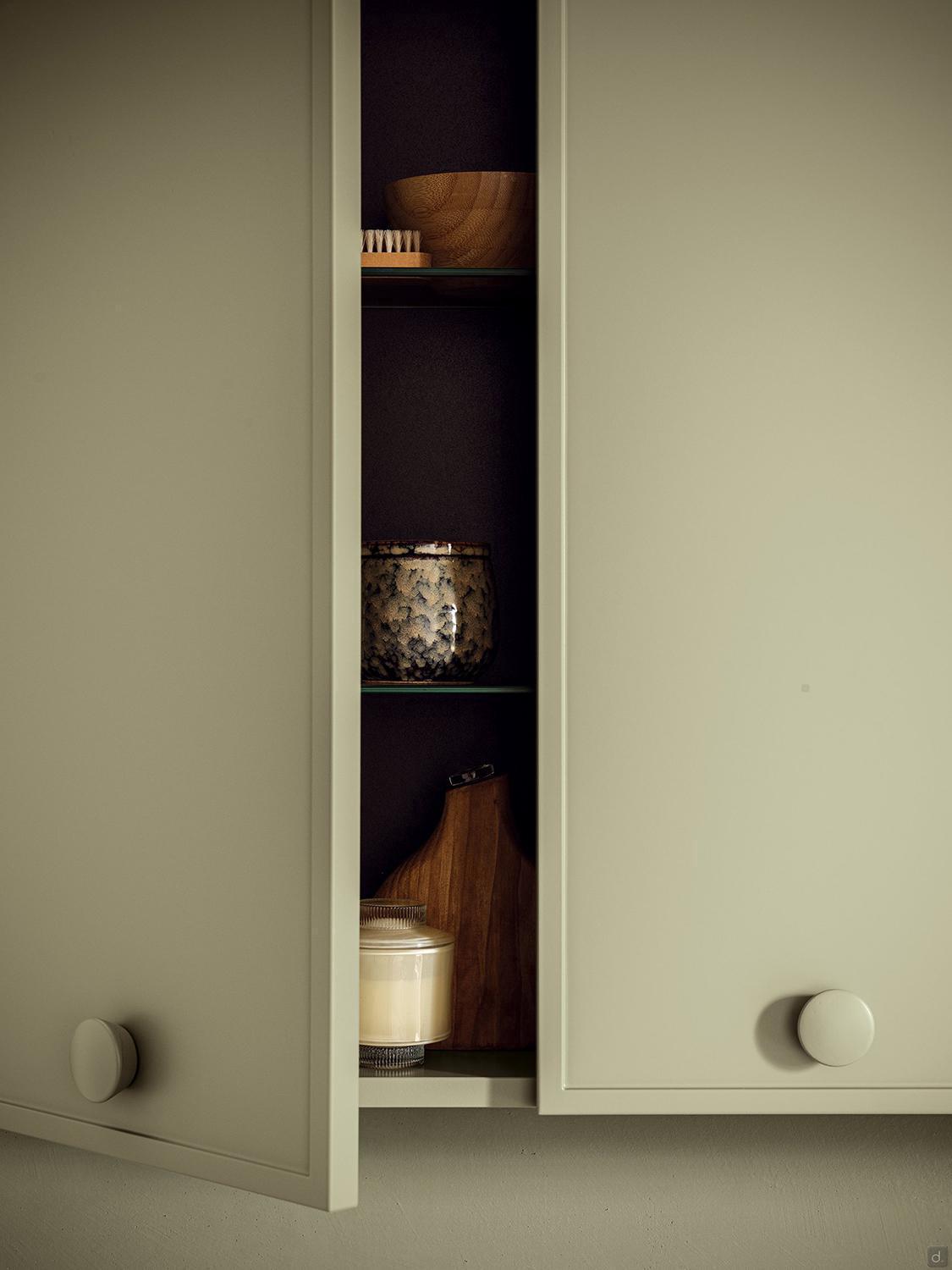

The N106 bathroom cabinet's hinged wall unit comes standard with double interior clear glass shelves

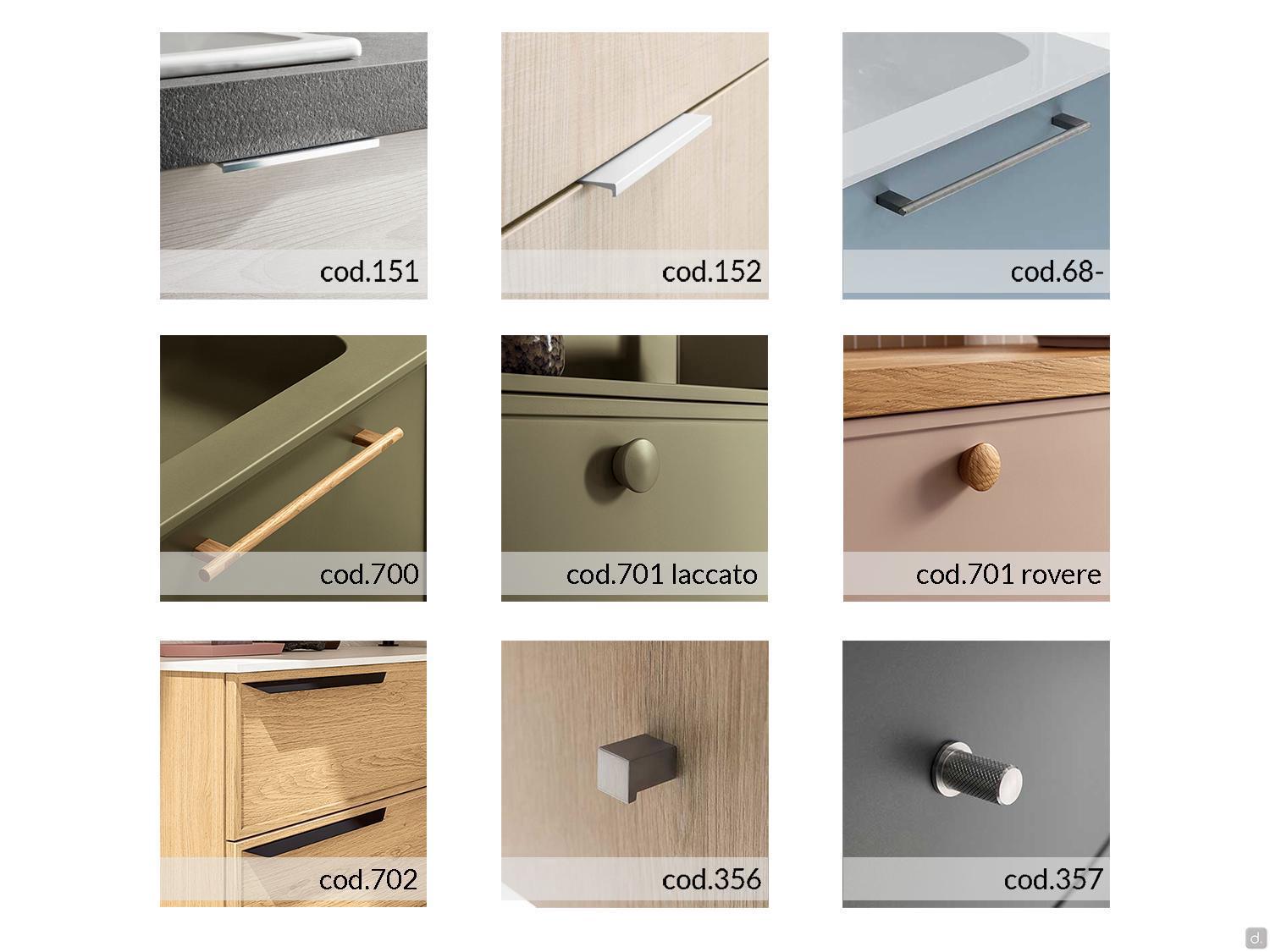

Floor-standing bathroom cabinet 120 cm N106 Frame - Handles available on base and wall units

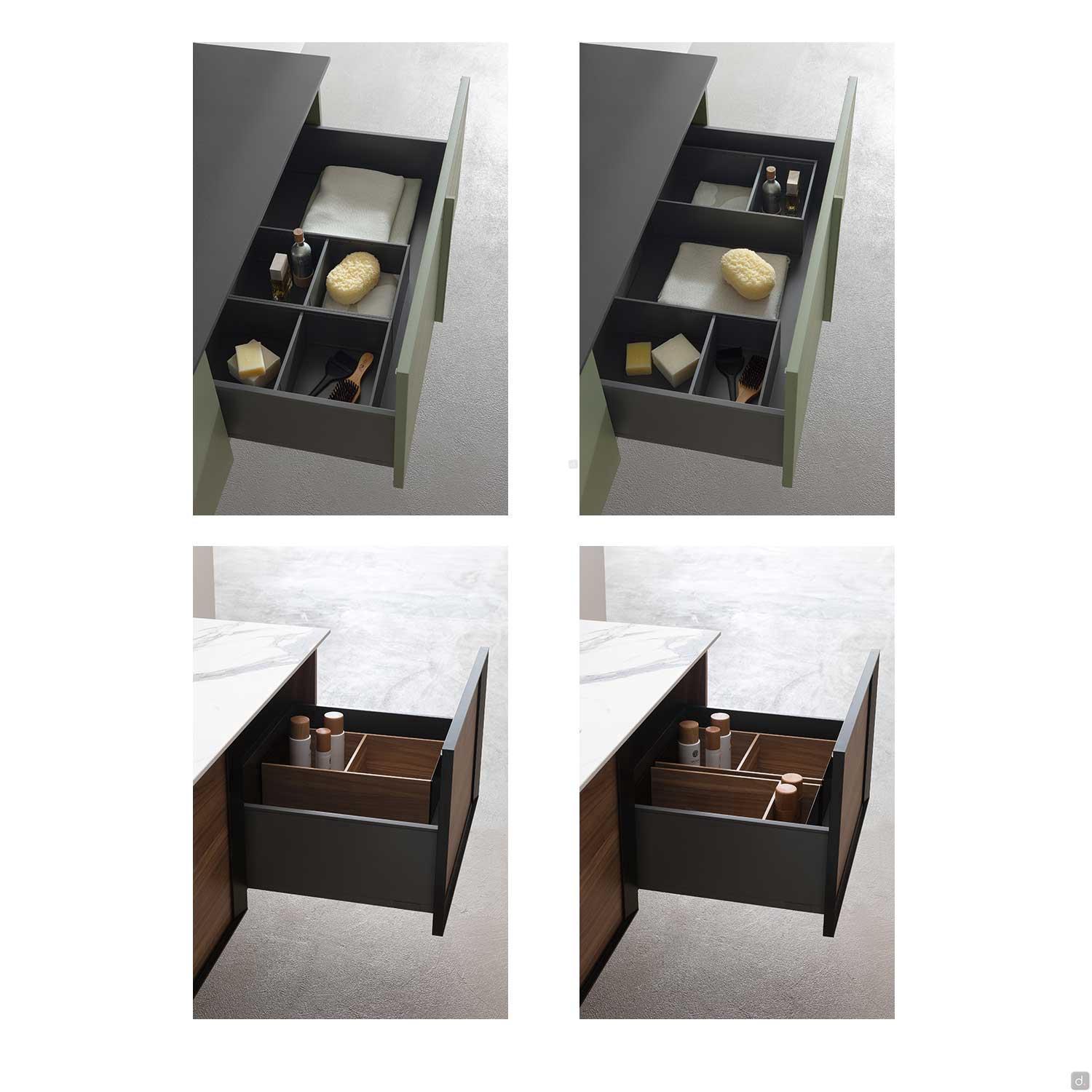

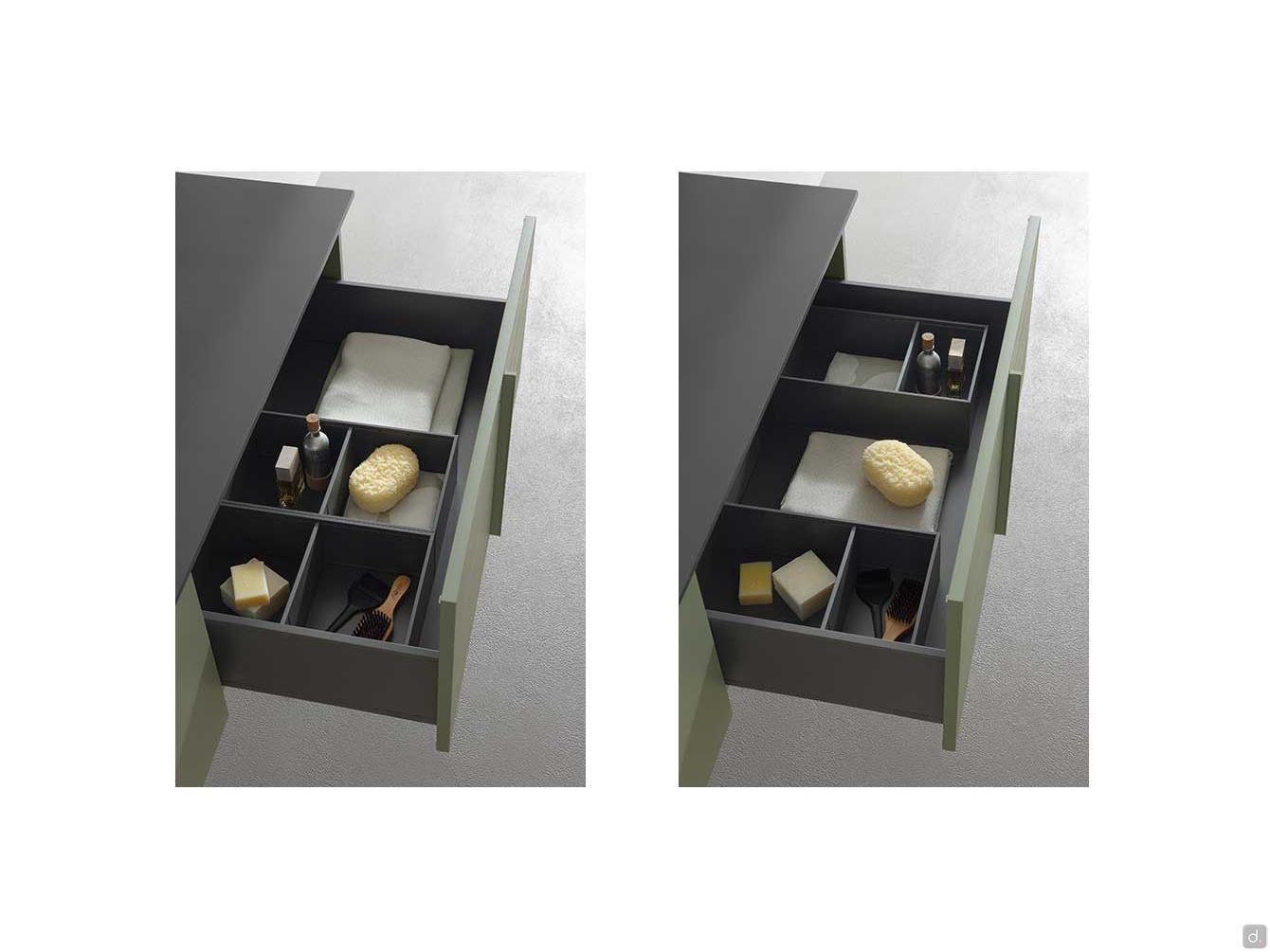

120 cm floor-standing bathroom cabinet N106 Frame - Interior organisers for baskets

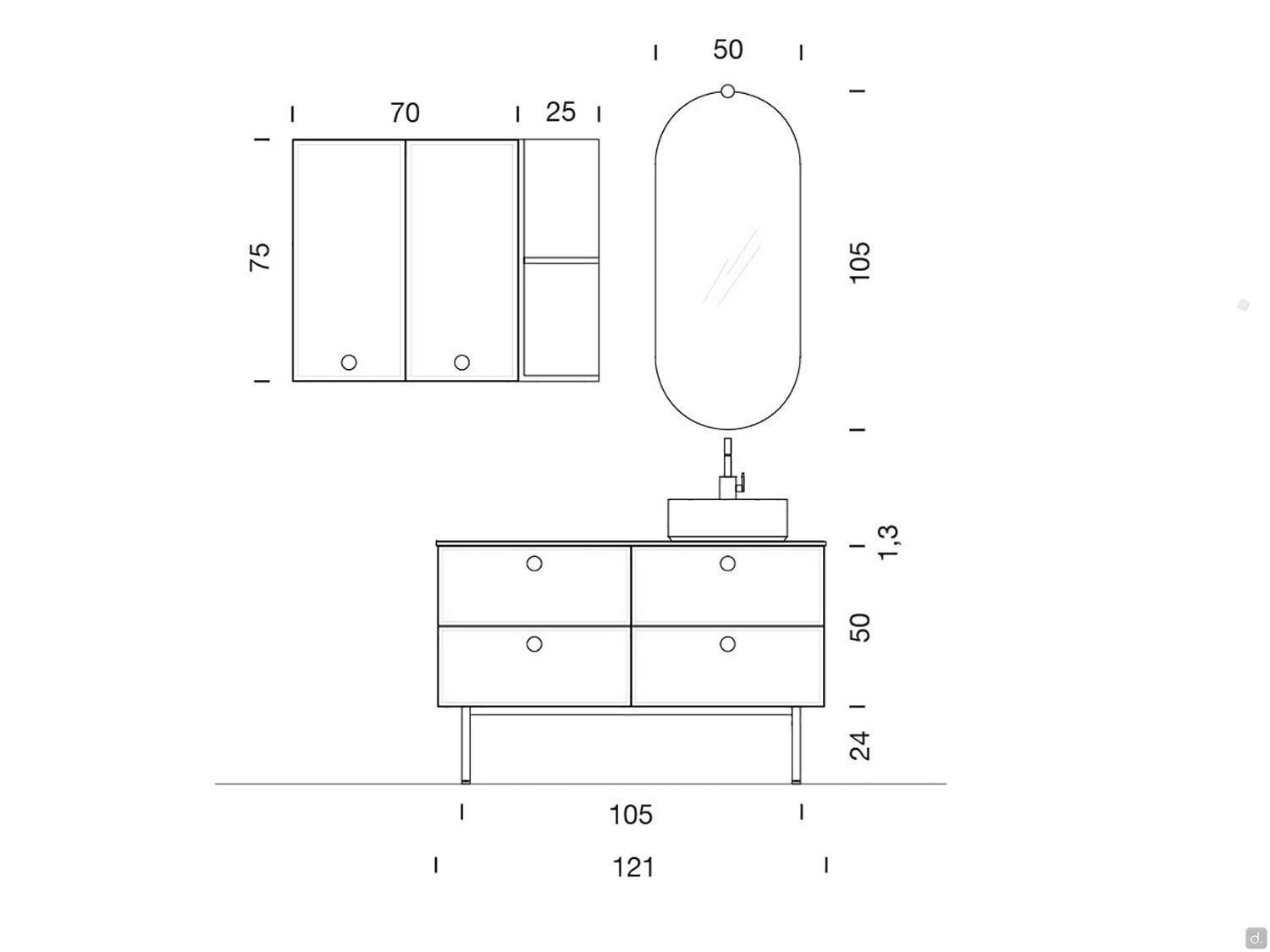

Floor-standing 120 cm bathroom cabinet N106 Frame - diagram and measurements of the entire composition

+ 8

MORE IMAGES

N106 - Frame
Floor Bathroom Vanity

N106 Frame 120 cm floor-standing bathroom cabinet, metal frame and 4-drawer base units. Mirror with spotlight and wall unit included.

Wishlist

Description

N106 - Frame is a 120 cm floor-standing bathroom cabinet, supported by a metal base and complete with a mirror with light point. Equipped with a free-standing washbasin in Minera-Kolor to match the top and base units, the N106 composition is fitted with four 30 cm high drawers that can be accessorized with internal organisers for better organisation of the storage volume. Like the other products in the Frame collection, the pull-outs come with elegant framed fronts, characterised by a subtle raised frame around the panel.
A double wall unit included, obtained by combining a double hinged door module and an open one, finally completes the N106 bathroom furniture: proposed in the same colour as the base and top units, this important accessory can be installed either on the same wall as the composition (as suggested by the images), or on a side wall to recall the colour of the main element.

Characteristics
floor-standing bathroom unit with lacquered metal structure and double base unit, for a total of 4 spacious baskets
top and washbasin in Minera-Kolor, a durable and high-quality material lacquered to match the rest of the furniture
composition of wall units with doors or open and mirror with spotlight included in the furniture
splashback in Minera-Kolor optional, for an elegant continuation of the top on the wall
further customisable by adding elements from the Atlantic and Frame collections

Measurements
Suspended bathroom cabinet
- cm 120 d.50 h.37,5
Wall unit composition:
- cm 95 d.20,8 h.75

Materials and Finishes
Base and Wall Units
- matt lacquered
Top:
- Minera-Kolor

Purchase Information
The Minera-Kolor top protrudes 1 cm at the front and 0.5 cm at the side: the depth of the base unit alone is 1 cm less than the top. The overall height of the bathroom cabinet is equal to the sum of the height of the base unit, the thickness of the top and that of the washbasin.
The wall unit with double hinged door is supplied as standard with 2 internal shelves in 0.6 cm thick clear glass.
The washbasin is not provided with an overflow hole. The tapware is not included; among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Equipment
Overall measurements: cm 120 d.50 h.74
- n.1 base unit 2 drawers cm 60 d.50 h.50
- n.1 base unit with 2 drawers cm 60 d.50 h.50
- n.1 aluminium supporting structure cm 105 d.45 h.24
- n.1 top in Minera-Kolor cm 121 d.51 th.1,3
- n.1 TRIESTE washbasin in Minera-Kolor cm ⌀37 h.13
- n.1 wall unit with 2 doors: cm 70 d.20,8 h.75<br>
- n.1 open wall unit: cm 25 d.20,8 h.75<br>
- n.1 SAMPI mirror: cm 45 h.105 th.3<br>
- n.1 LUMEN spotlight: cm 4 d.4 h.10

Structure: cm 1.8 thick made of particle board panels, then matt lacquered in the colours of the sample collection.
Fronts: made of 1.9 cm thick MDF panels, matt lacquered in the colours of the sample collection.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.
Handles: you can choose from various models of handles, in addition to the push-pull opening.
Handles codes 152 and 701 are available in matt lacquered finish in all sample colours.
The handles mod. 68- protrude 4 cm from the door surface, while the 703 handles protrude 3 cm.

Optional
splashback: designed to complete bathroom furniture with tops in stratified HPL melamine, marble stone, stoneware, quartz-resin or Minera-Kolor; particularly suitable for walls that are not perfectly square and for matching with free-standing mirrors.
organiser: internal subdivision system for the Legrabox drawer. Available in Canaletto Walnut or Orion Grey finish.

Maintenance Tips
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone based products.
Minera-Kolor: to remove most dirt and stains, powder detergent combined with an abrasive sponge or a common chlorine or bleach-based cleaner is sufficient. For the removal of stains caused by limescale, the use of a common limescale remover is recommended.To maintain the original opacity of the artefact occasionally clean with amuchina or a 1/20 solution of bleach diluted in water. To enhance the typical satin opalescent finish occasionally use an abrasive sponge, applying a circular motion.

Read more...
Minera-Kolor: is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical glaze that covers the surface of the material is matt coloured, with excellent physical and chemical resistance. It is resistant to boiling water and changes in temperature. Any colour variations that have arisen through use can be easily removed by simple cleaning, using a lightly abrasive sponge in a circular motion.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Vedi Tab Video

Other Products from the same Collection
View all the products of the collection (cod.cmp)

Partner Factory

This bathroom furniture is a 100% Italian product made by a company from the province of Pordenone that started in the field during the 90s. Initially oriented towards the production of classic and modern bathrooms, it grew throughout the years earning national and international fame in the water and sanitary system as well. The company headquarters cover 16.500 square metres and are equipped with innovative machinery. Its business is characterised by the high quality standard of the materials employed, studied and renovated every year to follow the latest fashion. The solid wood comes from forests that follow regularised policies regarding tree cutting and all the other materials are either recycled or recyclable. Every productive phase takes place inside the company itself in order to guarantee the highest monitoring level.

The company creates its personal models but still focuses on the needs of modern housings in terms of space and taste. Moreover, the modular nature of the products allows for high customisable projects. It is possible to widen the initial composition with additional accessories and equipment in every moment. The wide collection and the colour range offered cover several different styles and types of environment: from a more elegant and refined bathroom to an original design, from soft and natural shades to pastel colours. Cabinets with drawers and baskets placed under the basin, wall-hung drawers, columns to store linen or beauty products, dressing tables of the most diverse shapes: the bathroom vanities of this collection are thought to satisfy every need.
