Planeur

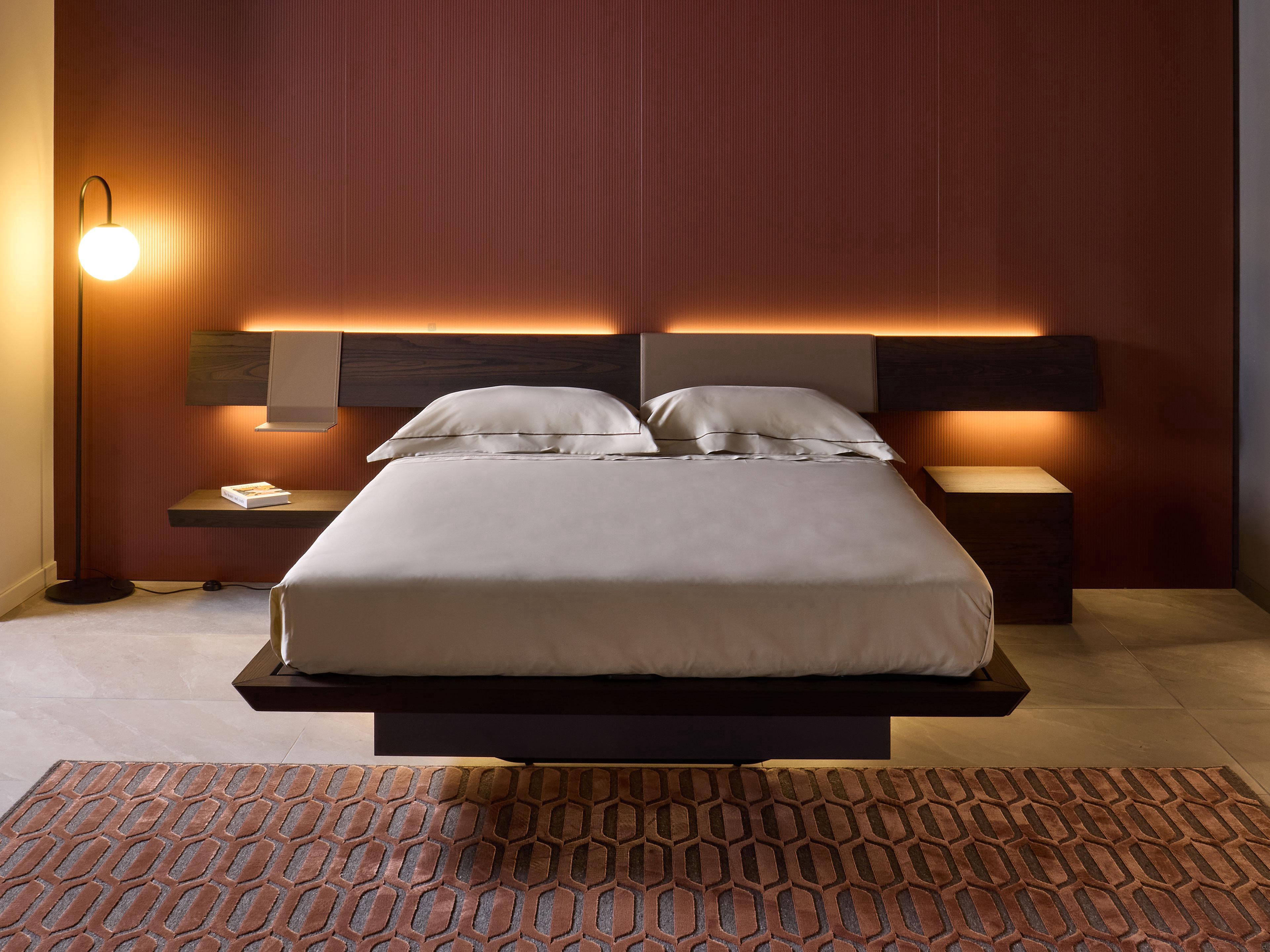

Floating Bed

Technical Specifications and Equipment

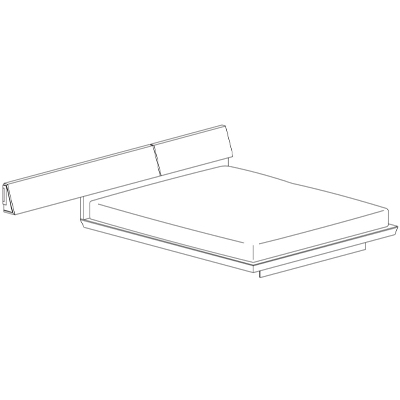

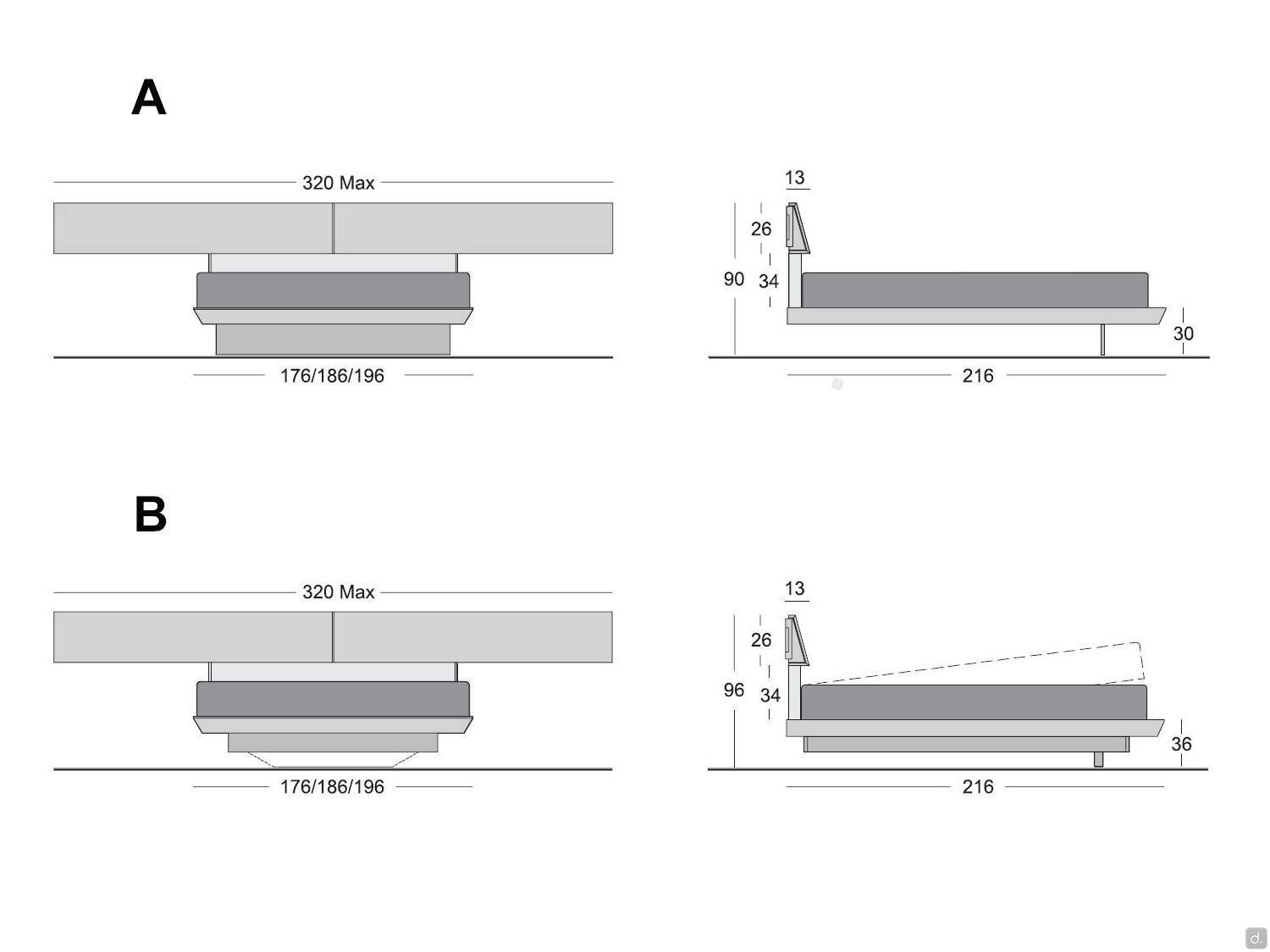

Bed composed of modular headboard panels in different sizes or sommier with a structural base measuring cm 160 / 170 / 180.

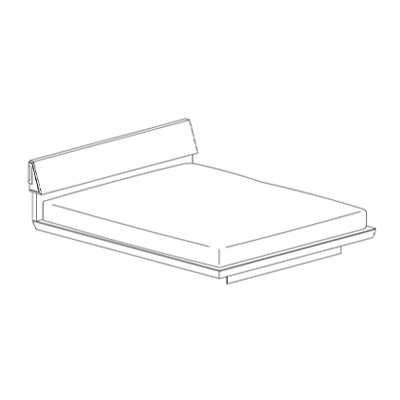

The headboard panels are fixed to the wall using a support bar and adjustable hooks, with a frontal inclination of 30° to facilitate the possible positioning of the back to the same headboard. The sommier model with headboard flush with the bed frame can be freely positioned and requires wall fixing on the headboard side, and is equipped with a transparent methacrylate support foot on the footboard side, or shaped metal one in the case of a storage box.

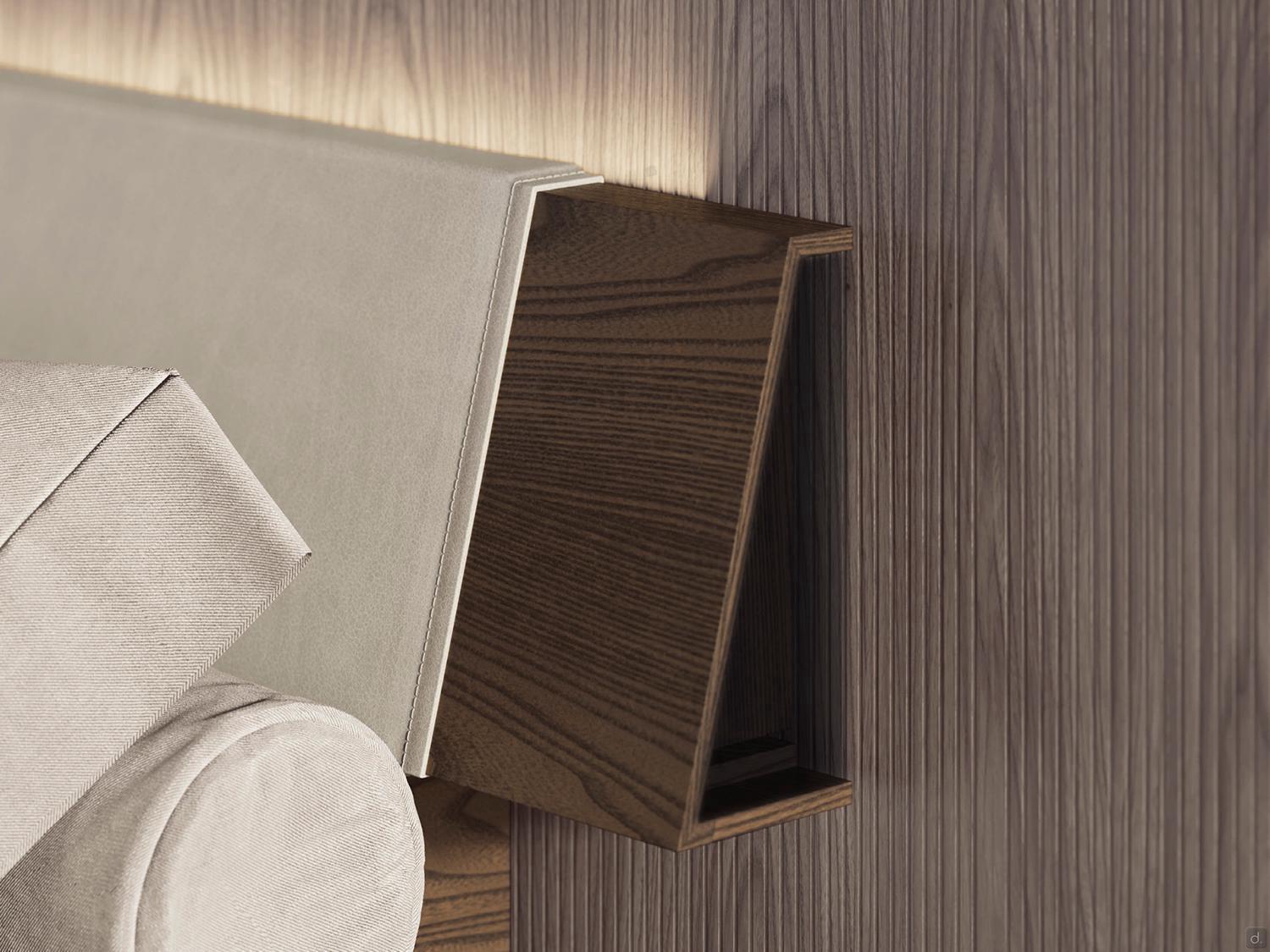

In case of fixing on low resistance walls, it is recommended to insert the additional metal support foot on the headboard side. The headboard can be equipped with upper LED bars, and lower ones in models with protruding panels, and equipped with metal shelves and headrest panels covered in leather. The headboard panels for models with a protruding side are provided with a hole for the possible accommodation of electrical sockets.

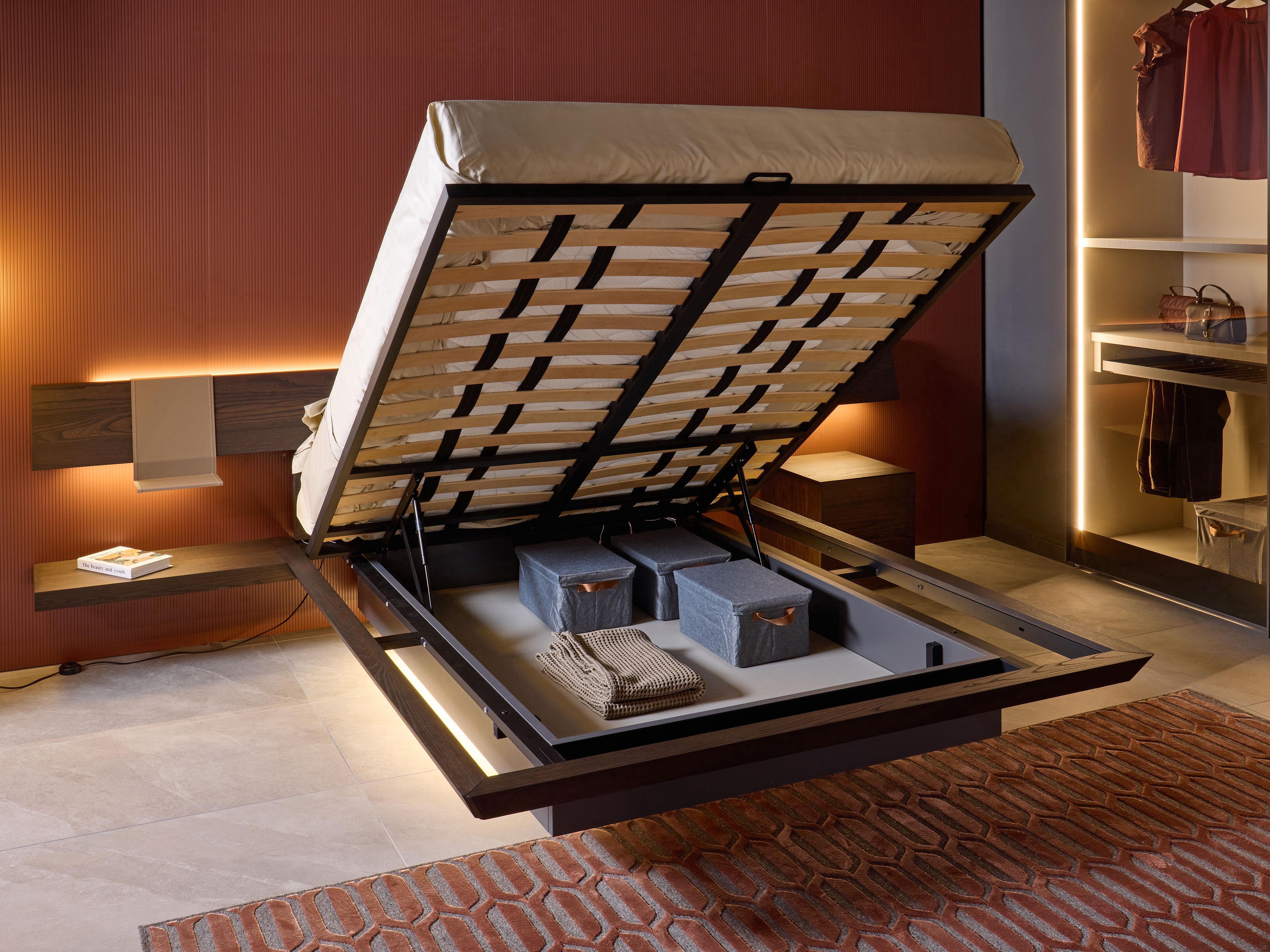

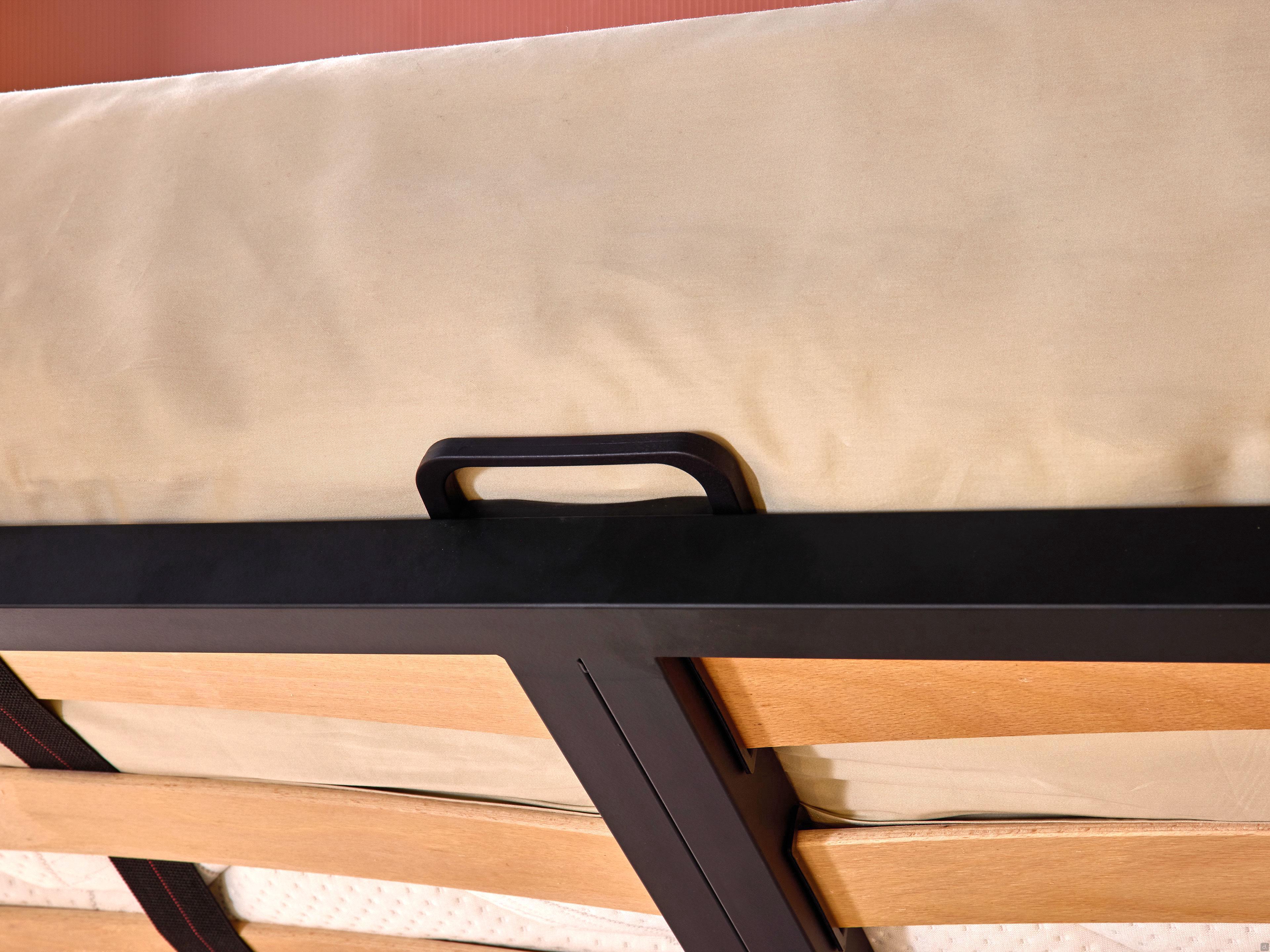

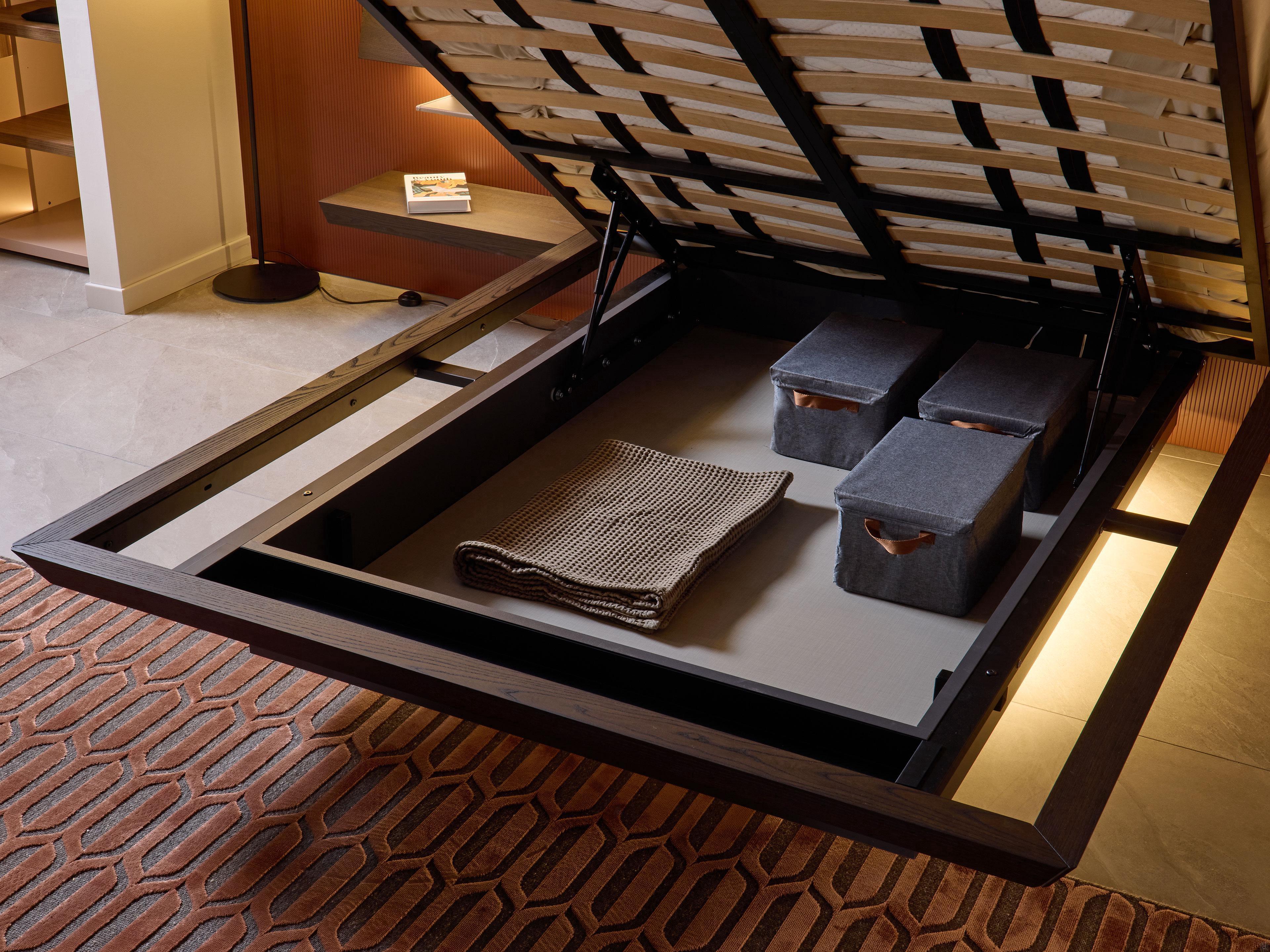

The patented storage box is fixed in suspension on the metal support frame and recessed with respect to the longitudinal supports and the footboard to ensure that it is barely visible, thus enhancing the thin lines of the bed. The suspended box also allows air recirculation in the presence of radiant floors and adequate cleaning of the part under the bed with a vacuum cleaner. The finish of the container is always slate grey melamine.

Optional
Storage Container: capacity of 350 Lt; It can be equipped with a convenient matt black sheet metal storage tray, to be inserted in front of the box.
Support Foot: metal foot to be added to the headboard side, in case of fixing to low resistance walls.

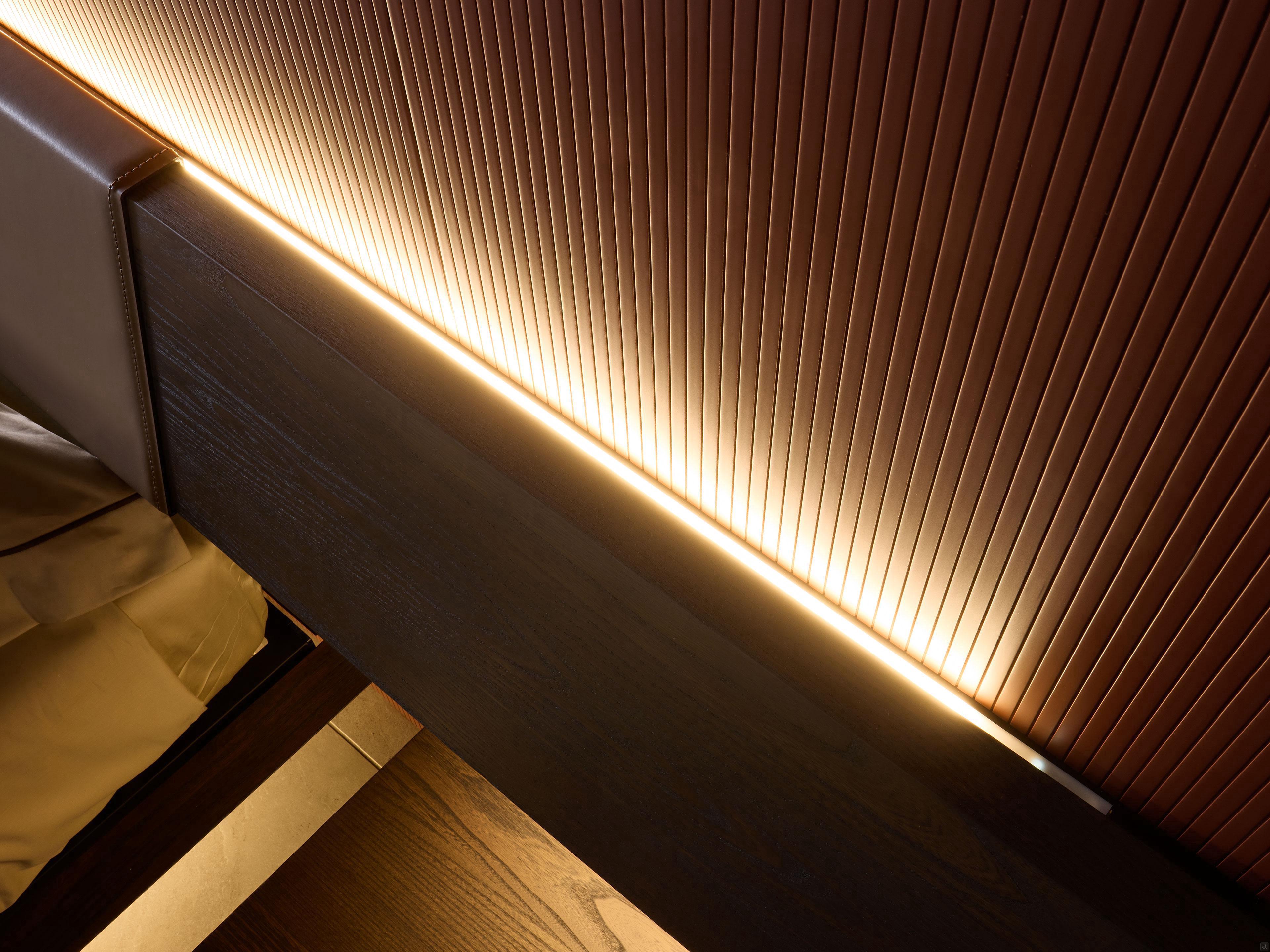

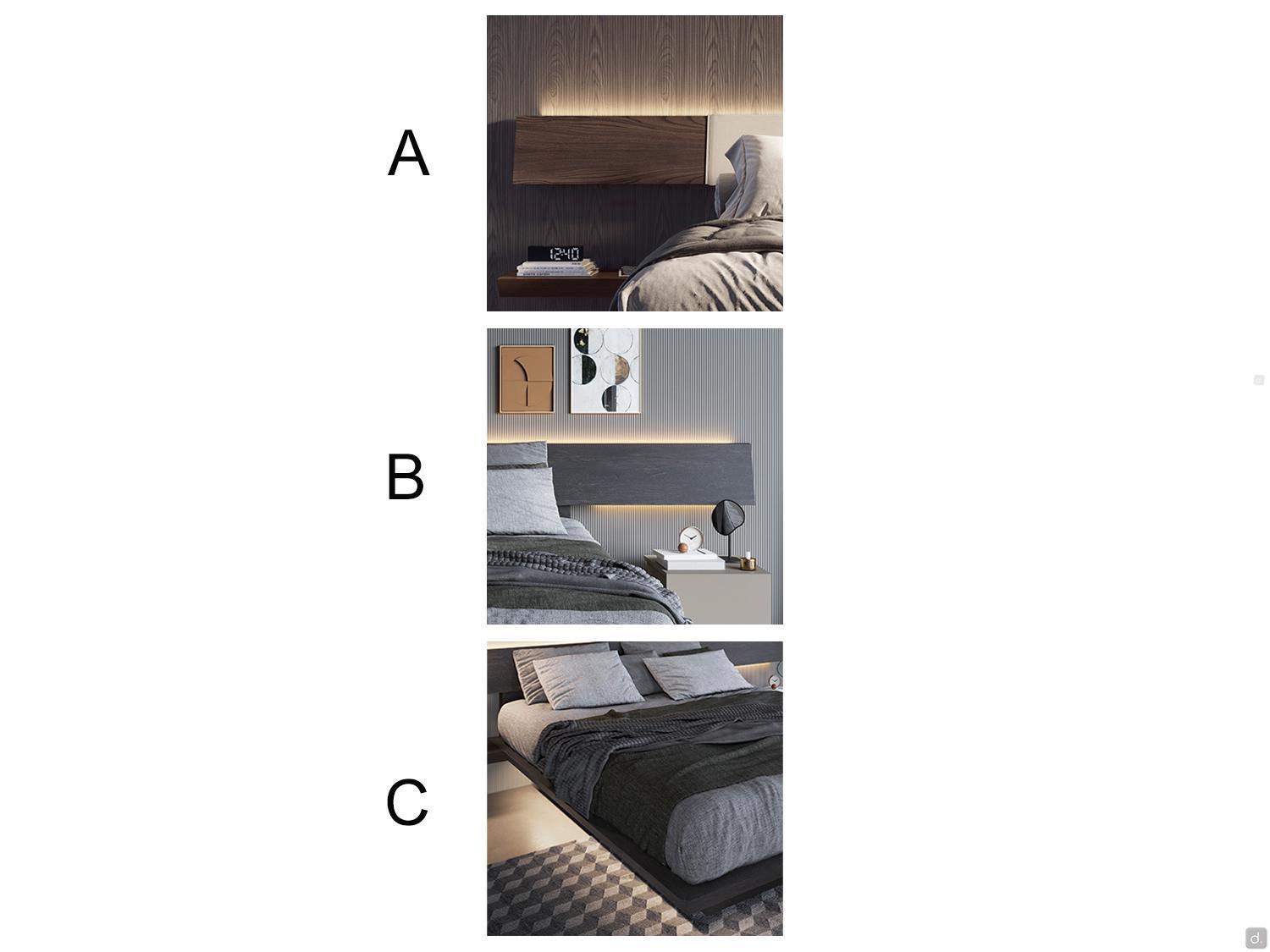

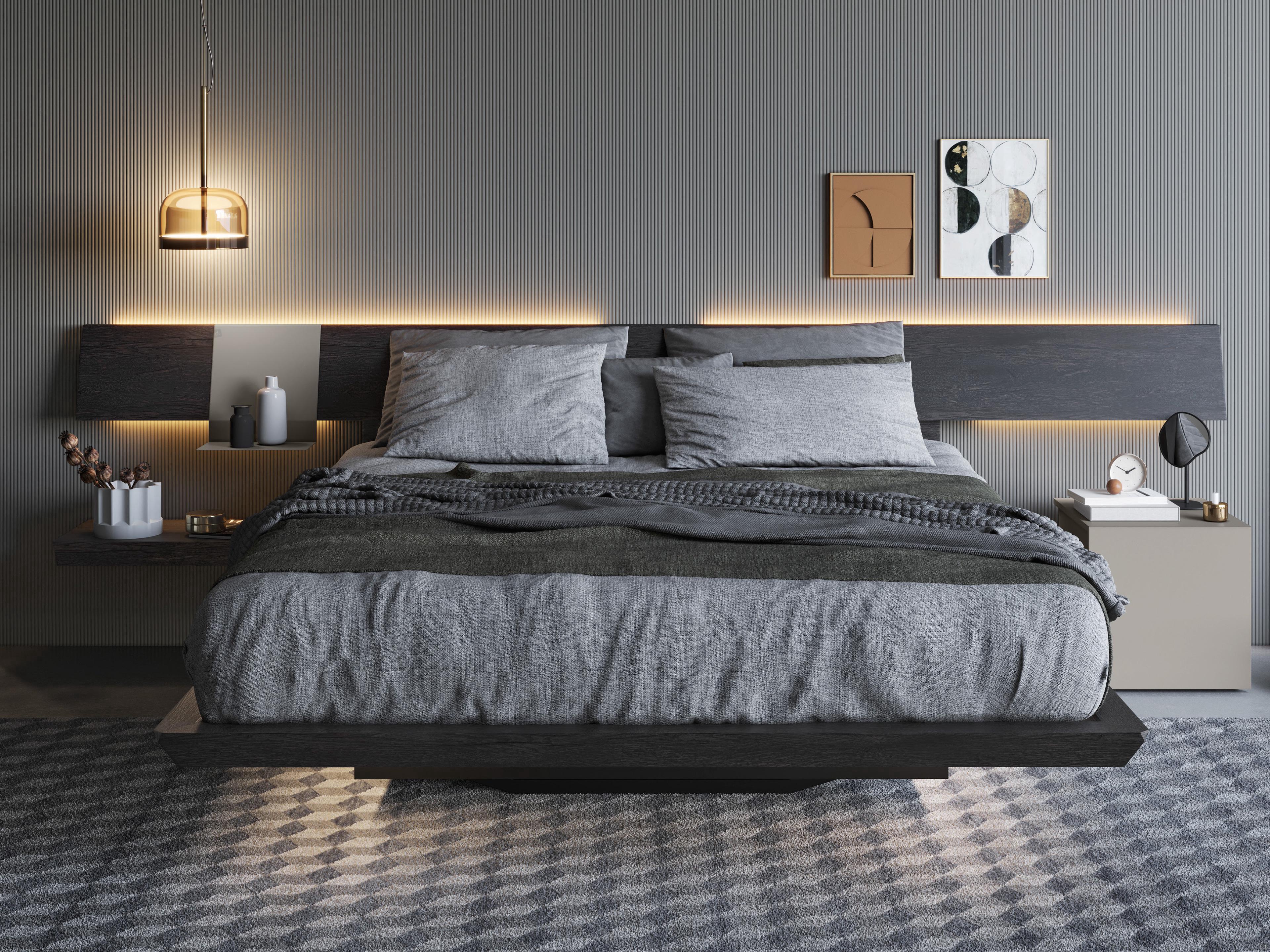

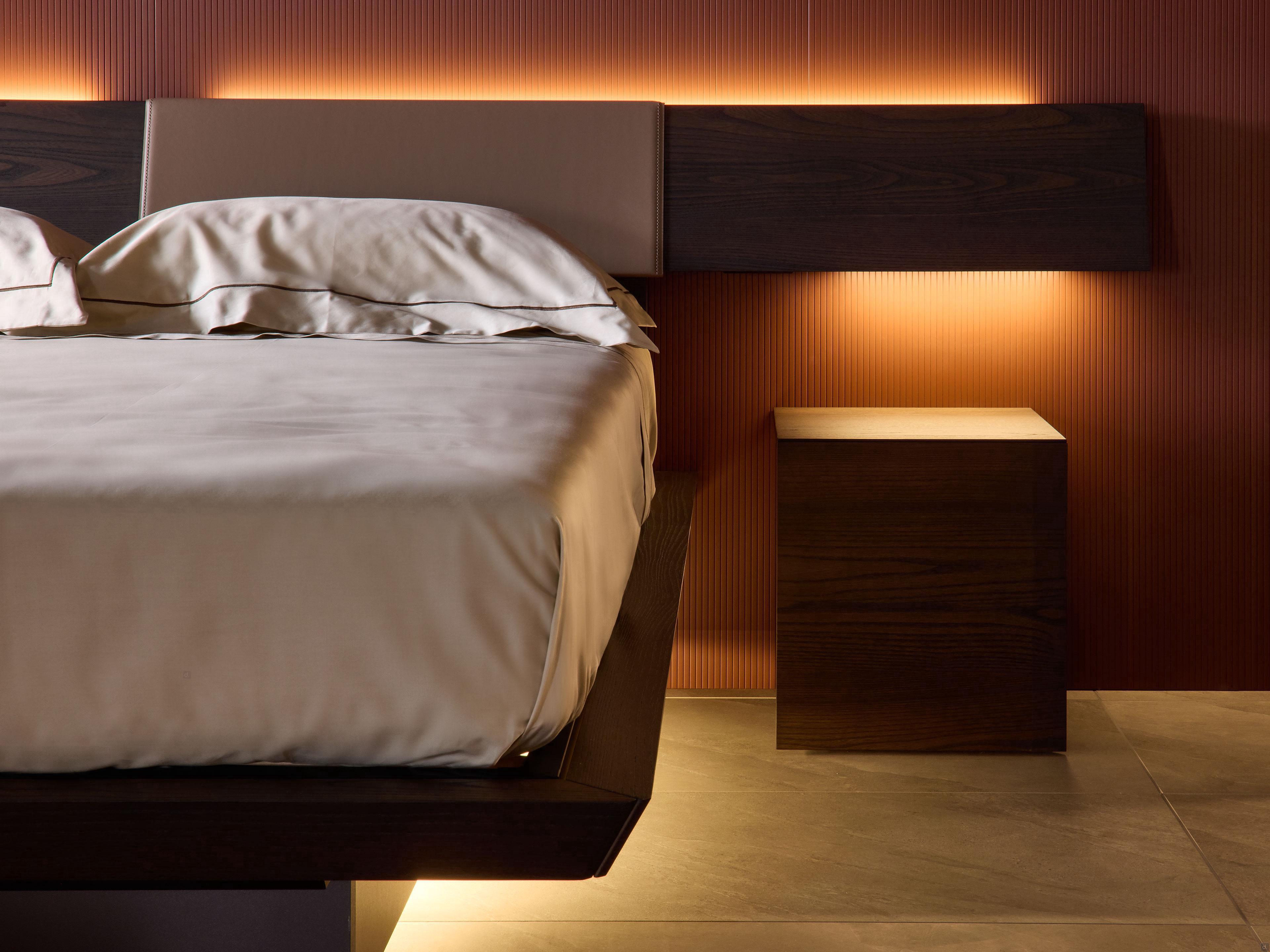

LED Lighting: the headboard panels can be backlit using an 11 x 11 mm LED bar in 3000K - 10W opal polycarbonate embedded in the back of the panel, on the upper profile, and or lower in the case of protruding panels.

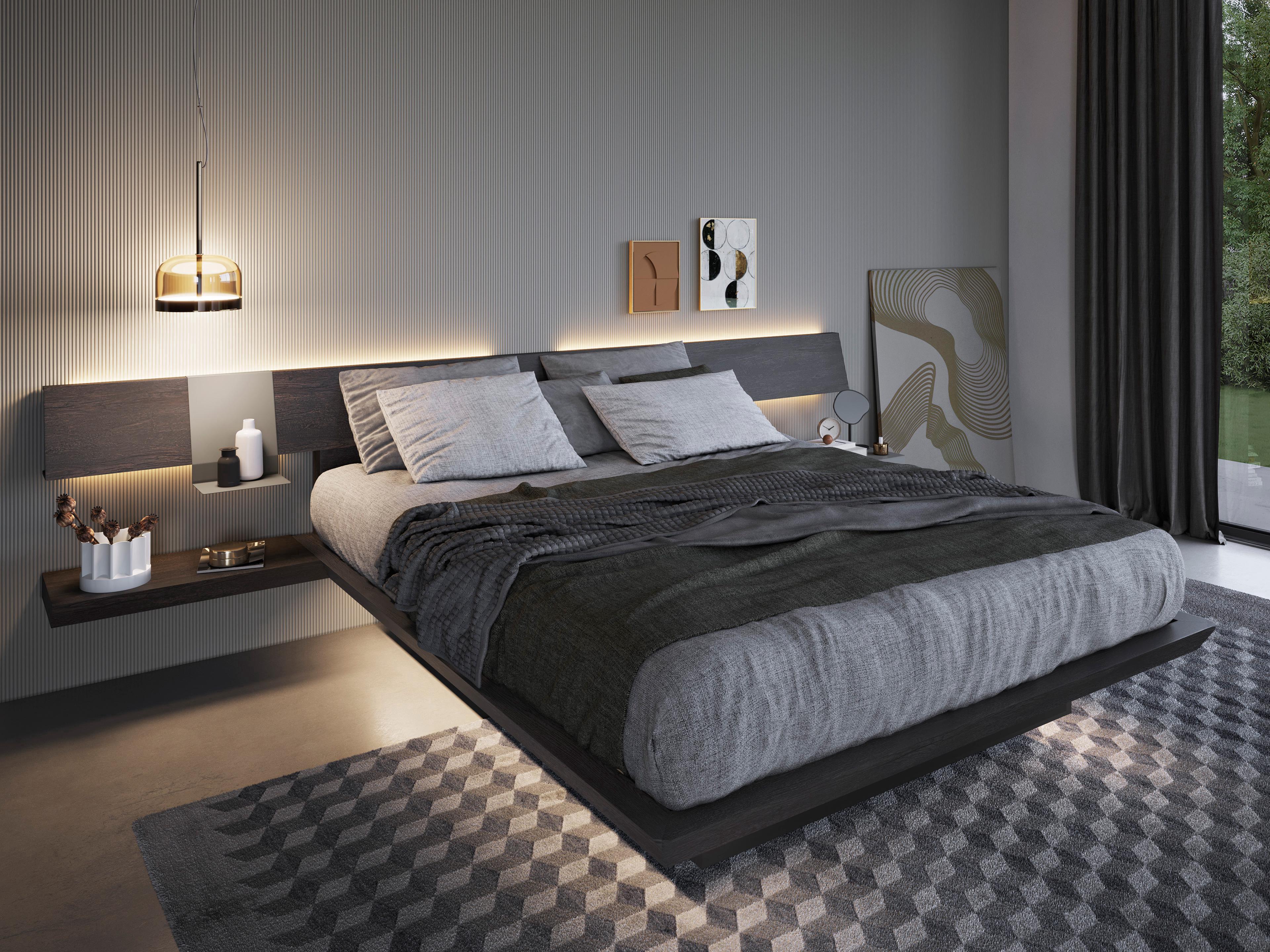

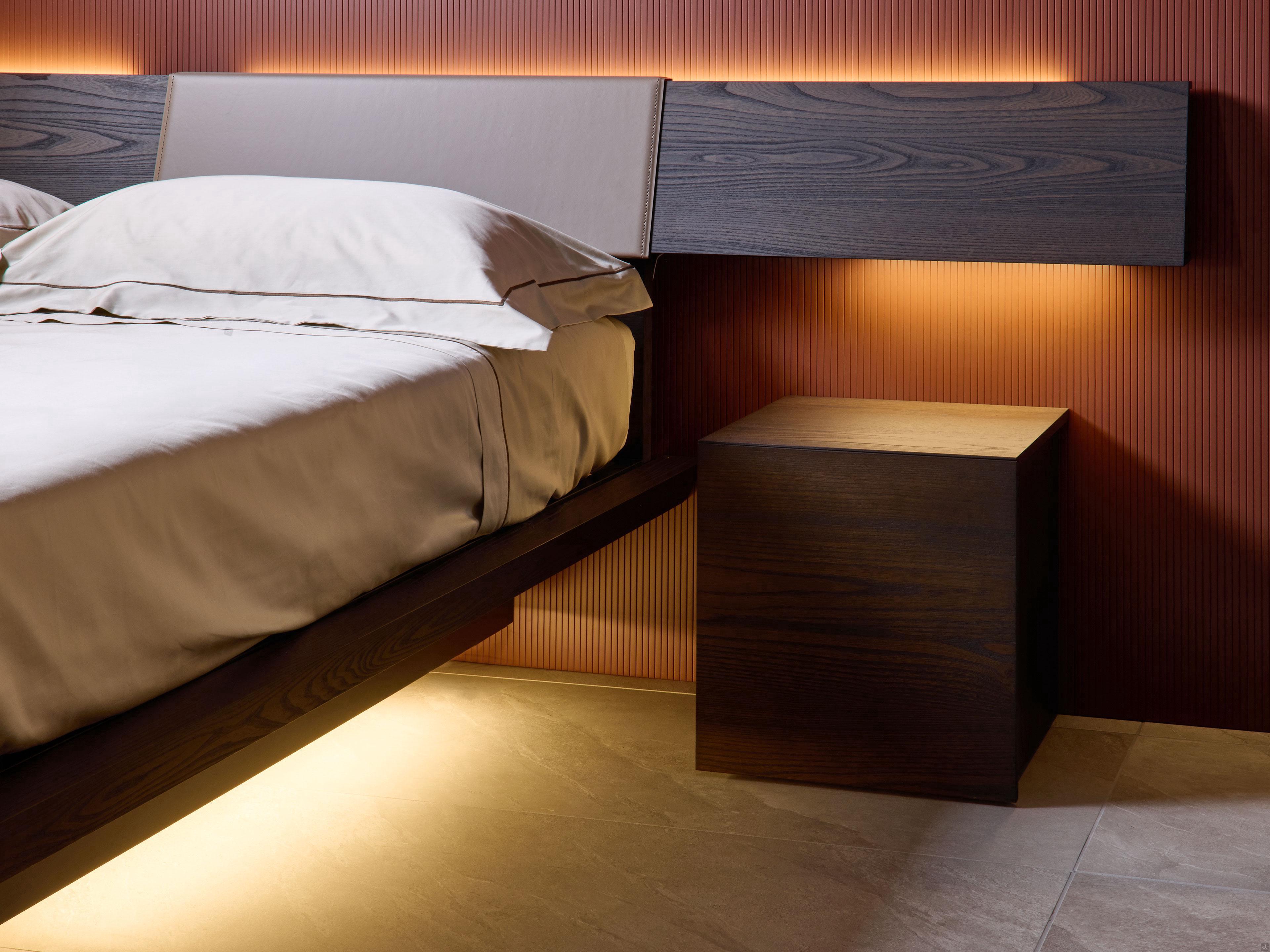

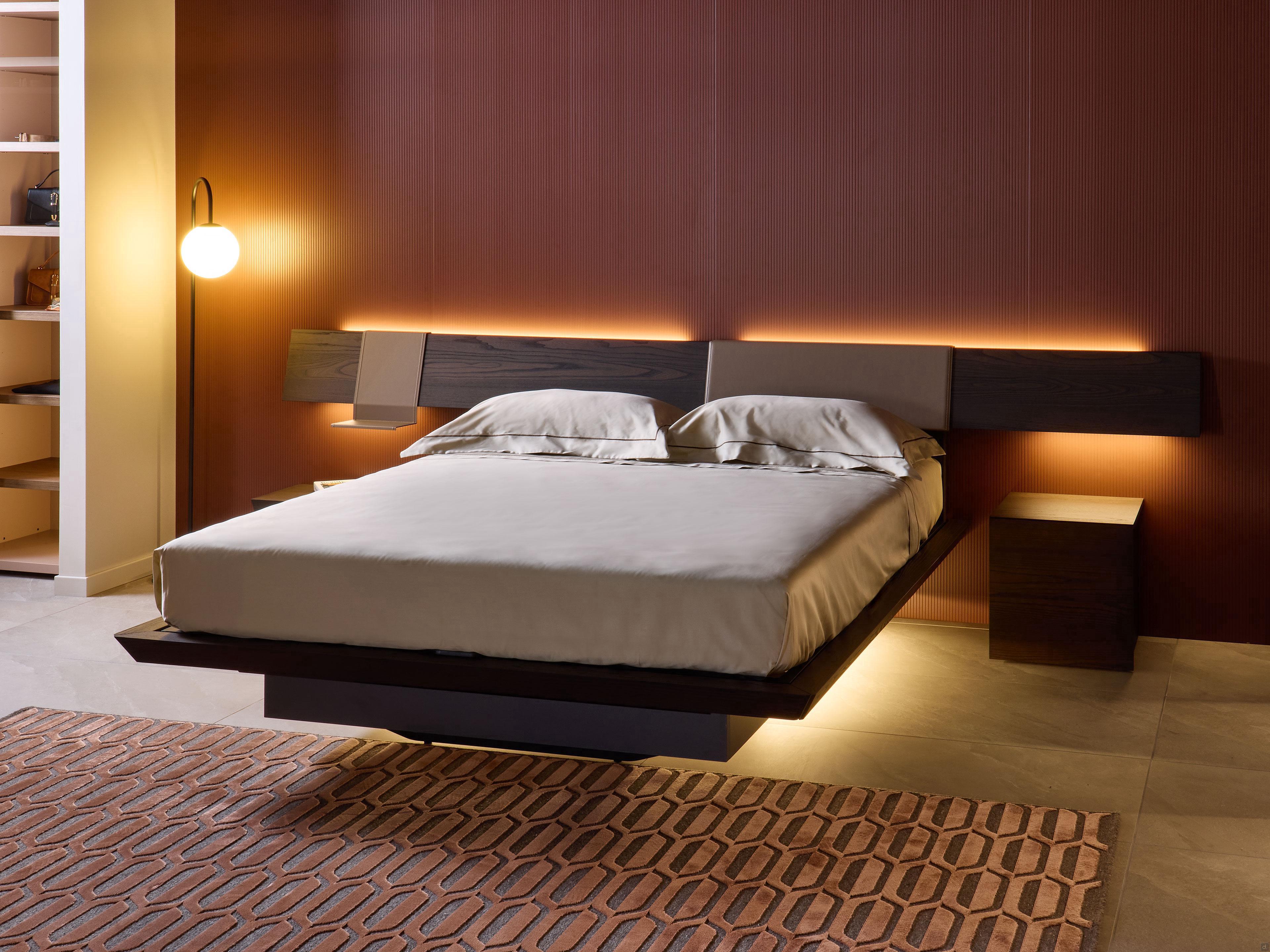

The LED lighting for the bed frame is made up of 2 LED bars with a width of 100 cm, positioned on the lower profile of the long sides of the bed frame. The light that is generated is a light with total and uniform diffusion and is switched on via a touch switch. N.B. In the models equipped with a storage box, the headboard lighting and the bed surround lighting under the storage box have separate switches. If only the bed surround lighting system is inserted, it will be switched on via connection to the home network, with power supply included.

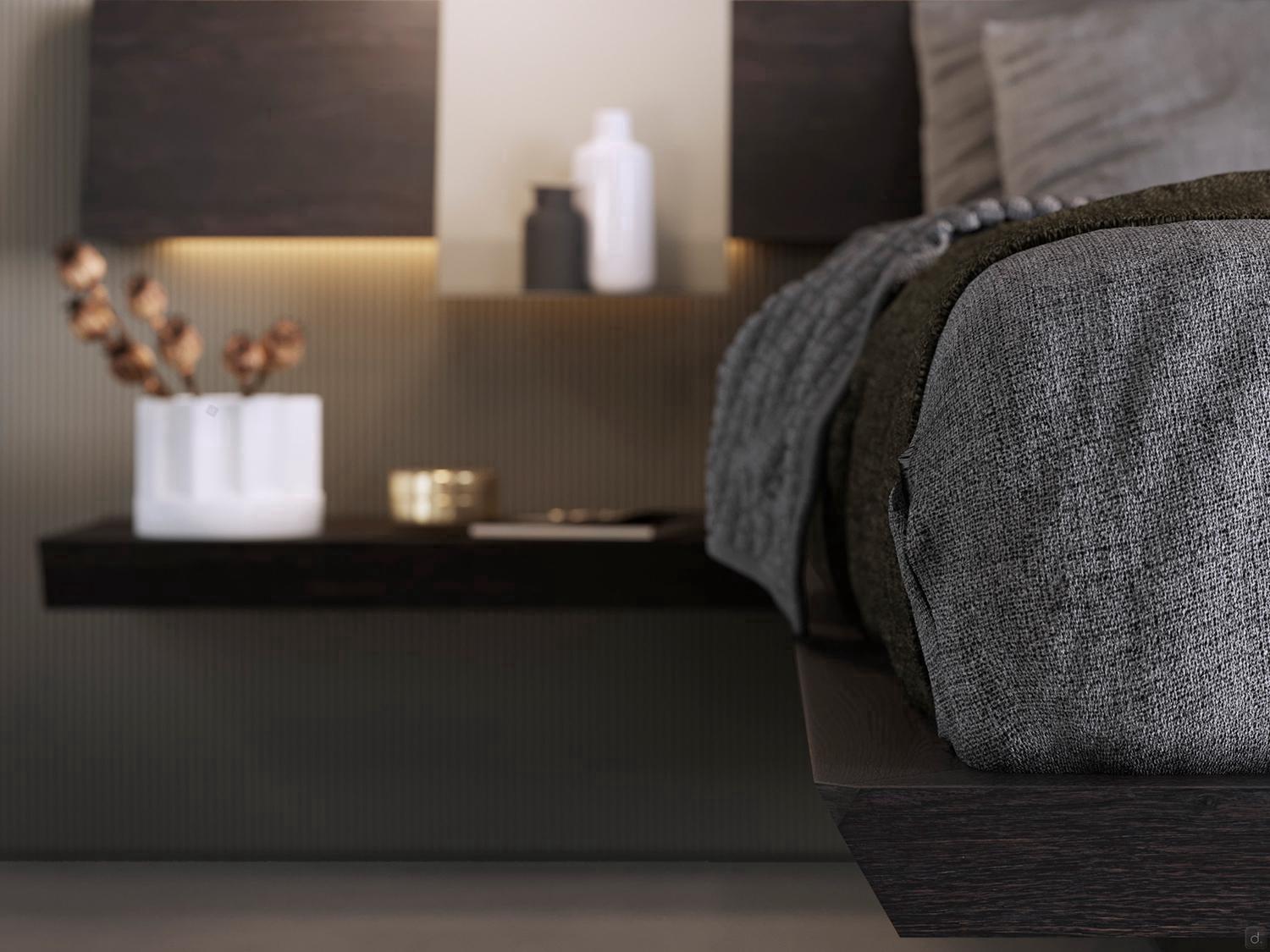

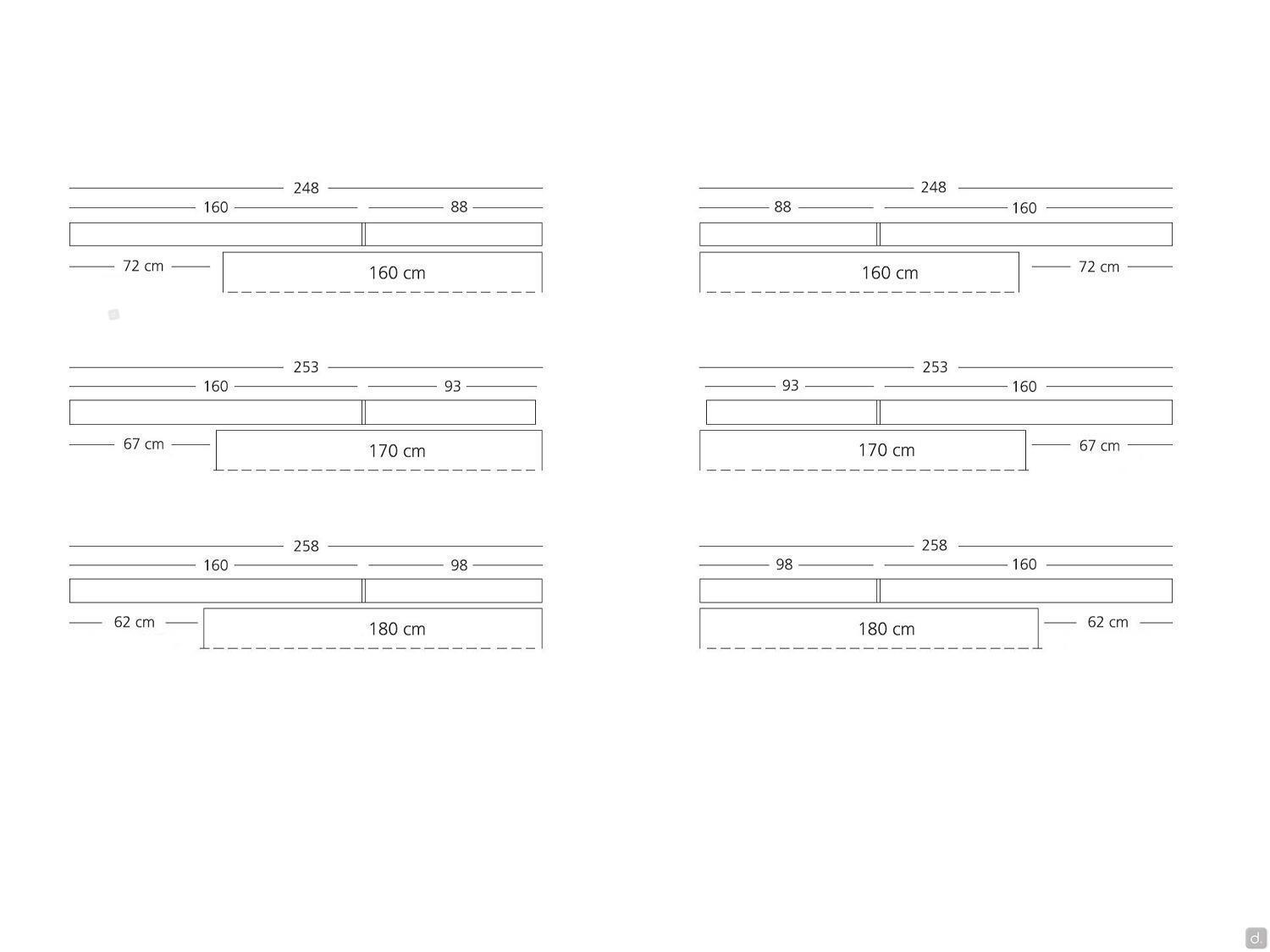

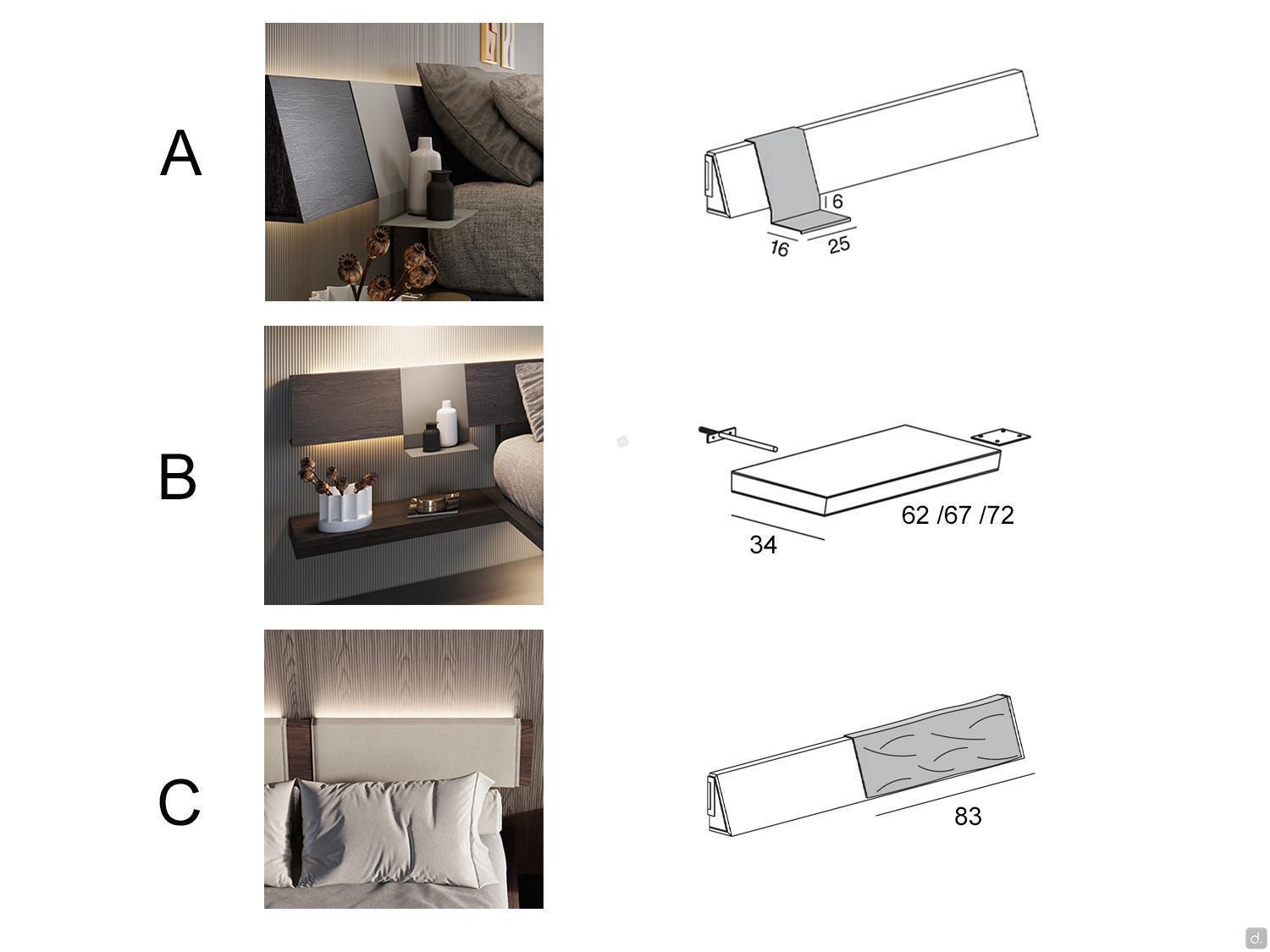

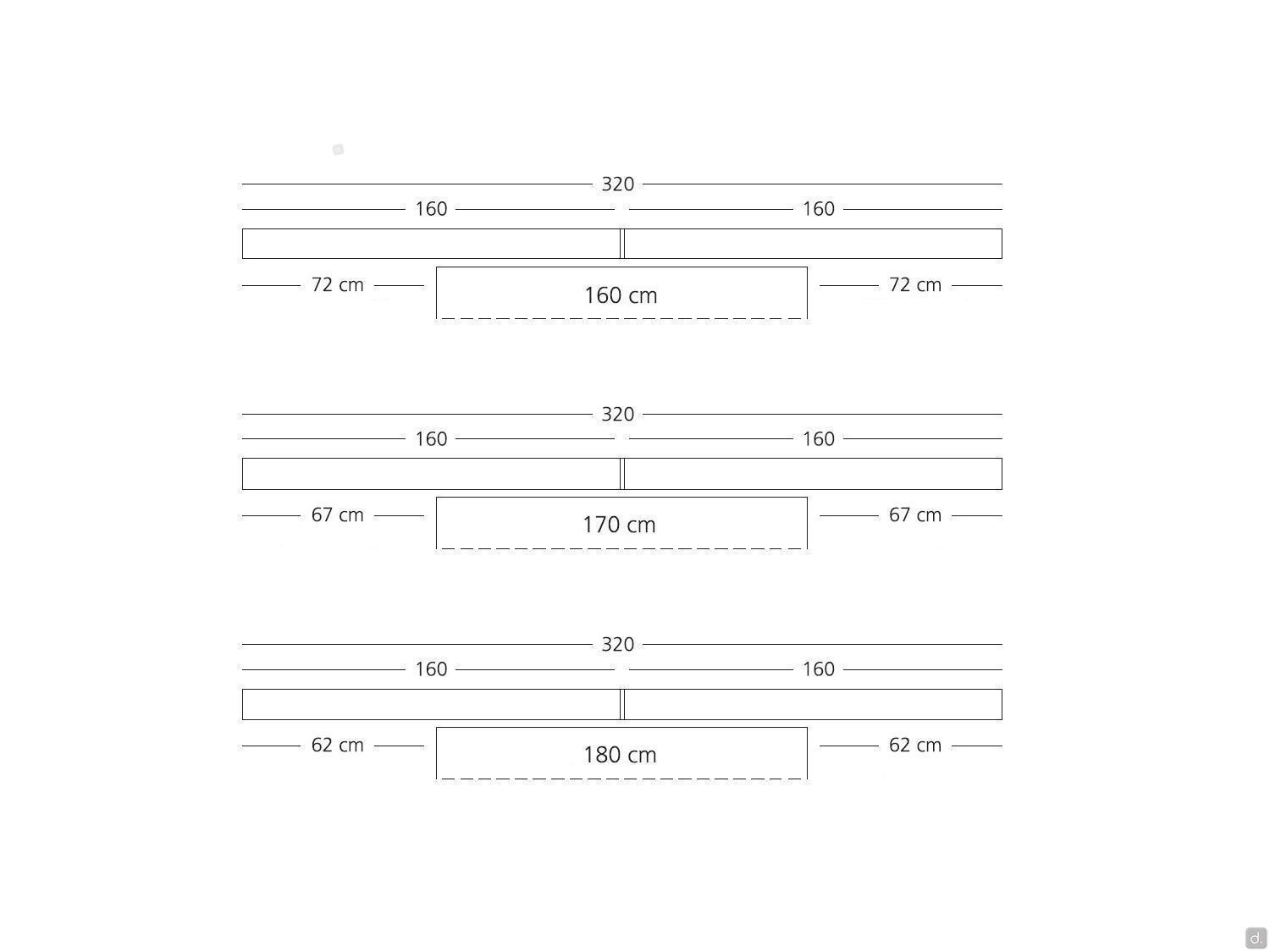

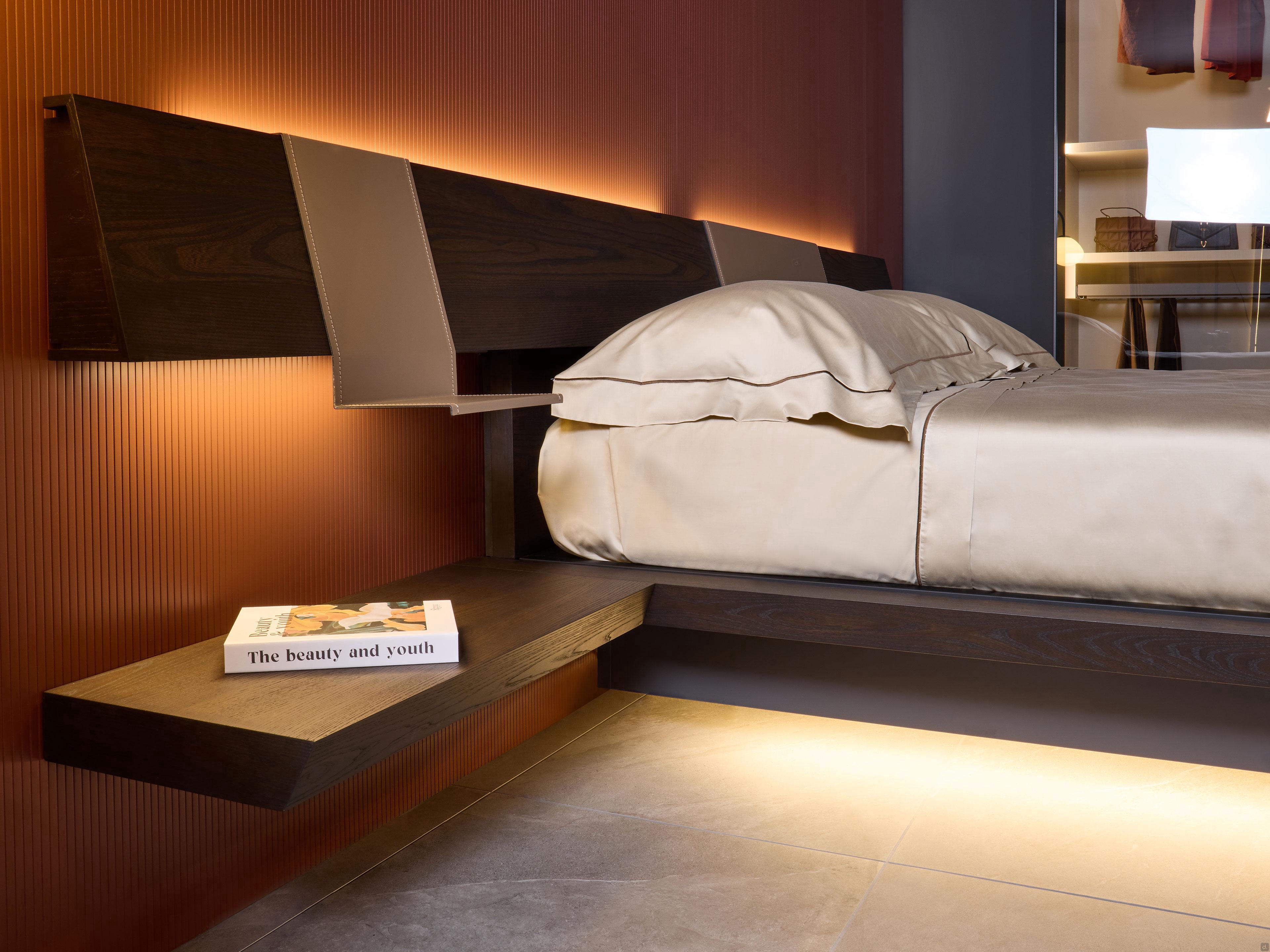

Lateral Suspended Shelf: cm 62 / 67 / 72 d.34 depending to the headboard width with an 8 cm thickness, with a finish that matched the bed frame, positionable on the left, right or both sides.

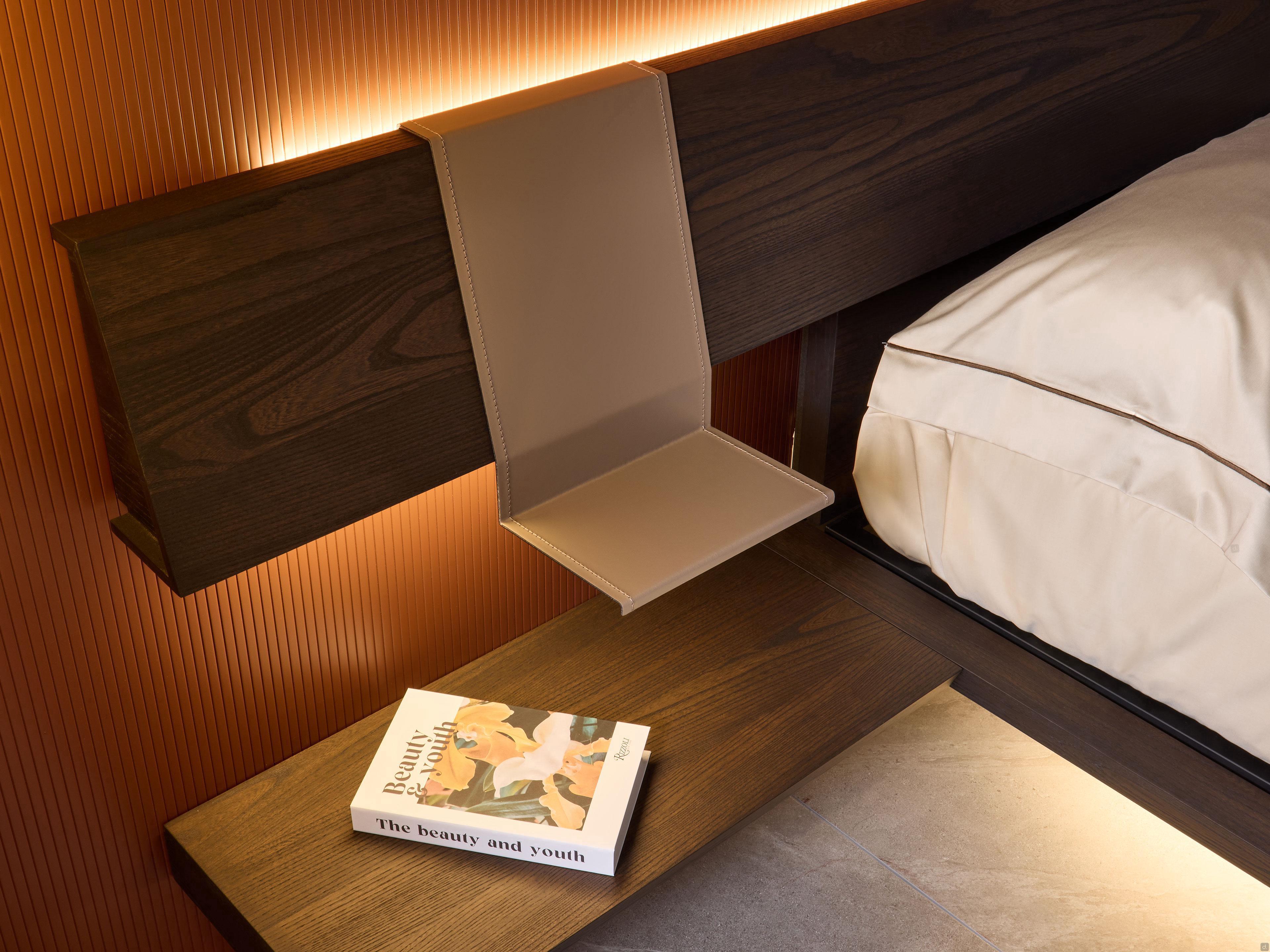

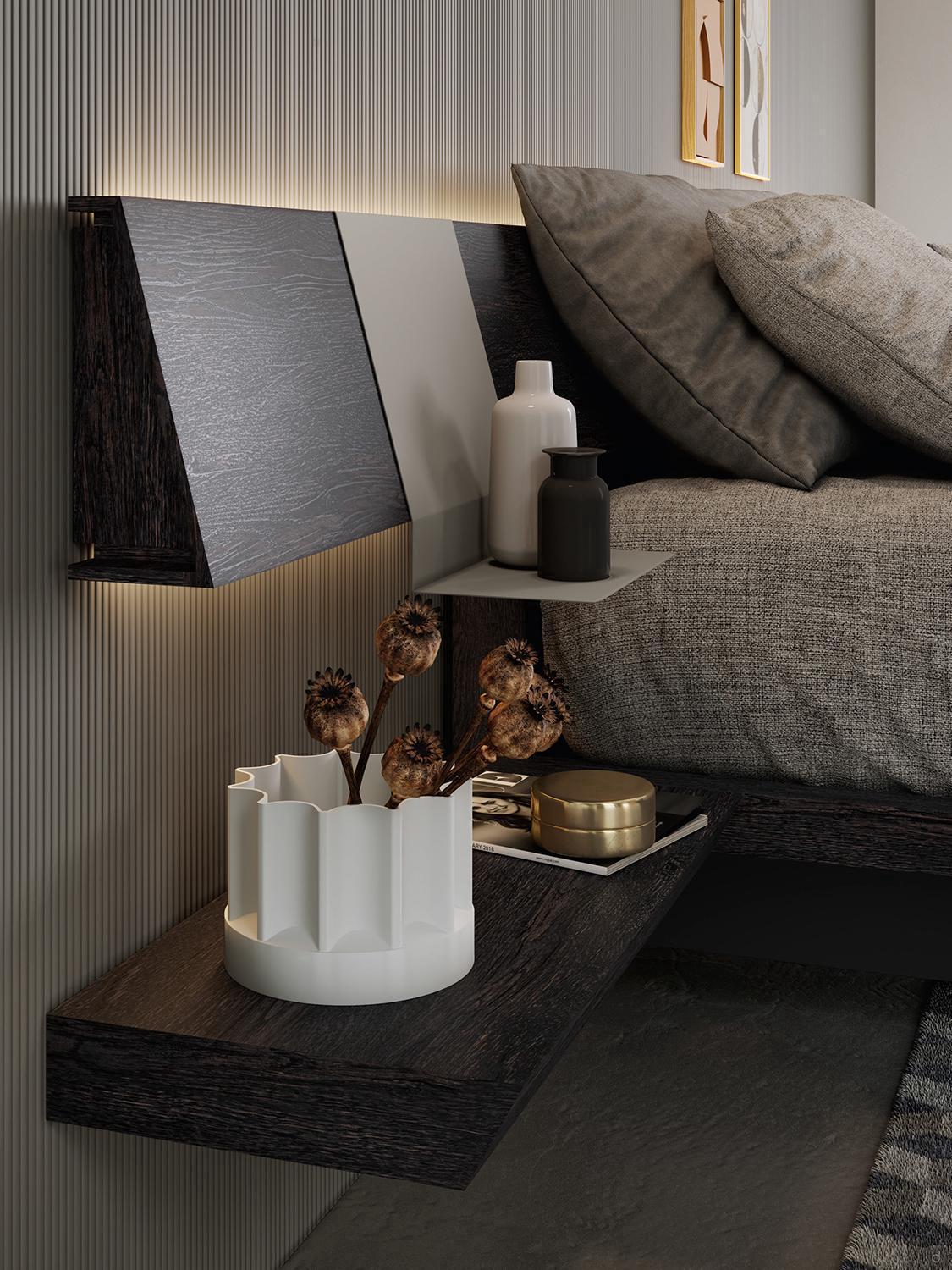

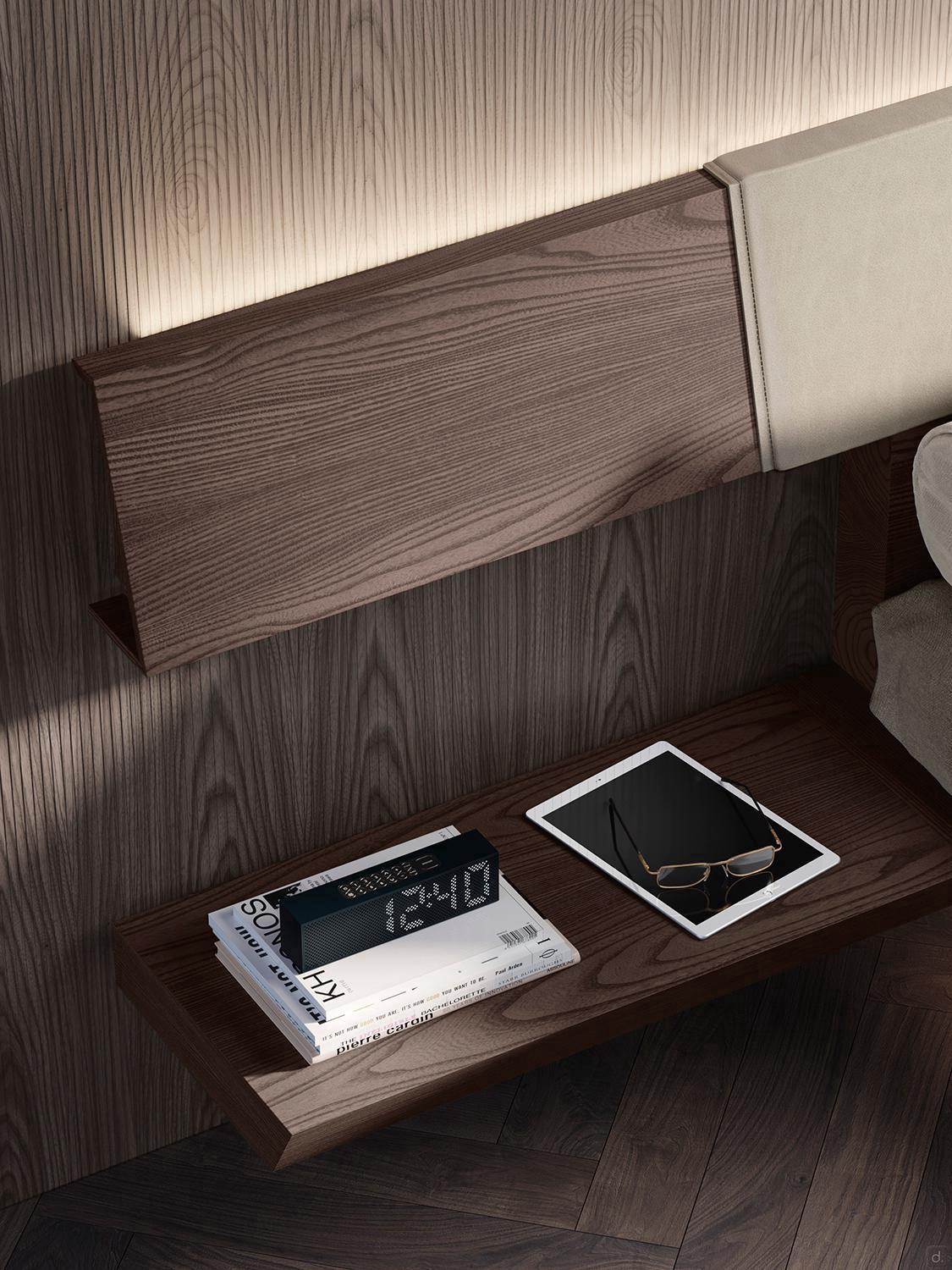

Shelf for Headboard: cm 25 d.16 h.6 in matte lacquered metal or covered in leather, freely positionable on the headboard panels, in models with 1 or 2 protruding sides.

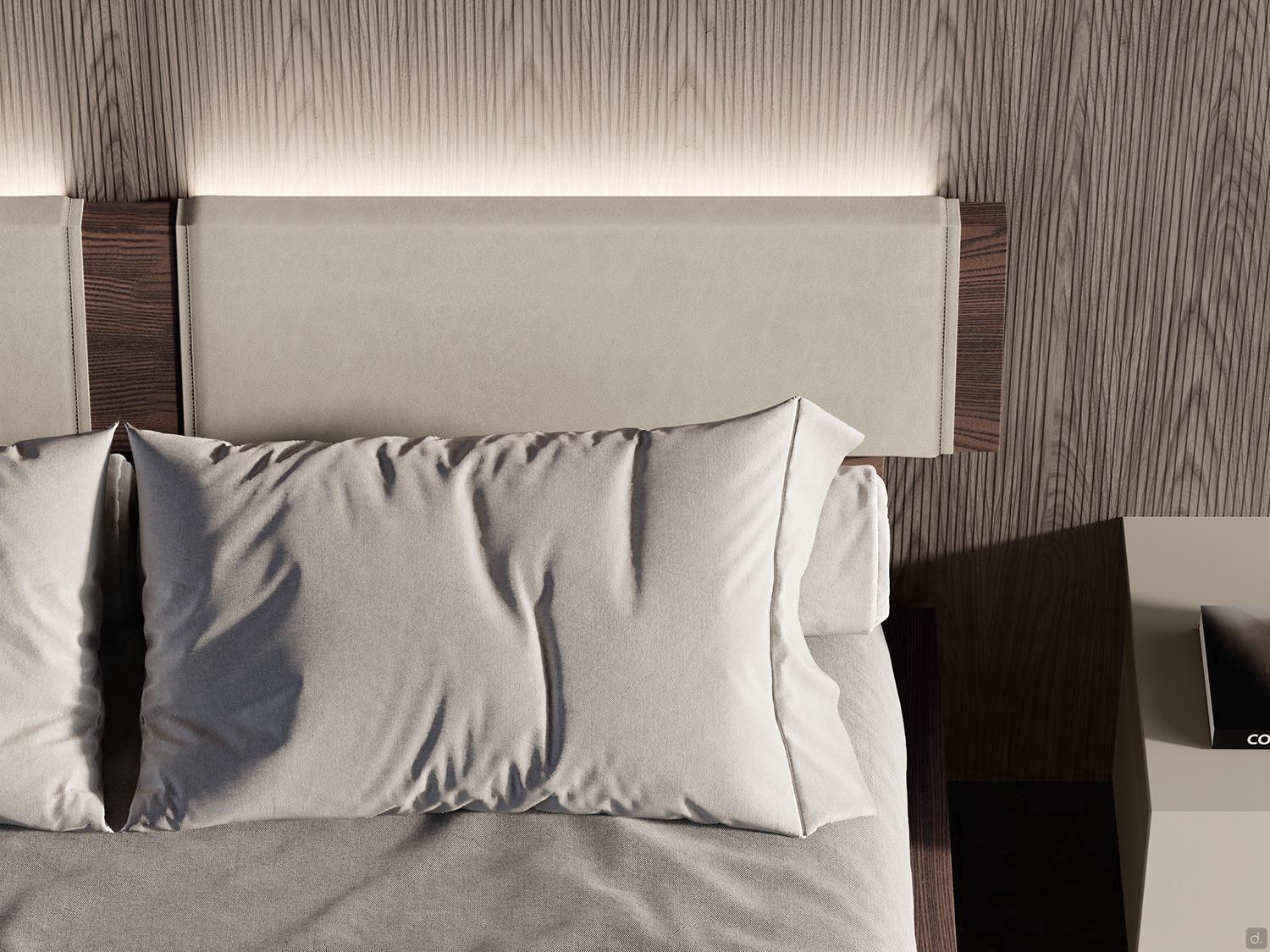

Headrest Couple: cm 83 completely upholstered in leather and freely positionable on the headboard panels.

Assembbly Tips
For greater safety when mounting on weak walls, we recommend the use of an optional additional metal foot on the headboard side.
