Model and Dimensions Specifications

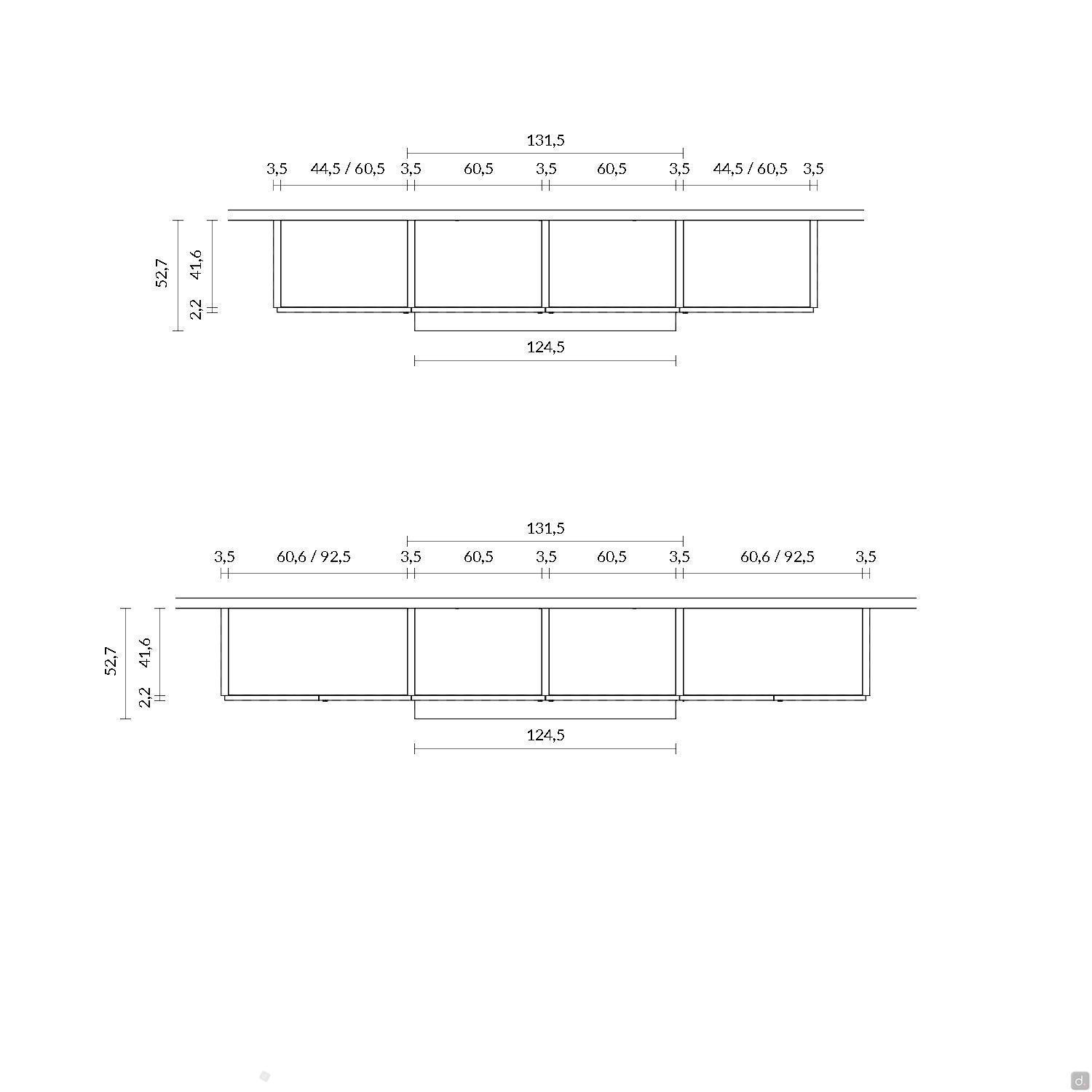

Over-head Module cm 131.5
- n.1 desk: cm 124,5 d.52,7 th.6
- n.1 shelf: cm 124,5 d.32 th.3,5
- n.2 hinged wall units: cm 60,5 d.43,8 h. made to measure
- n.1 hinged wall unit division: cm 3,5 d.41,6 h. made to measure
- n.2 side panels: cm 3,5 d.41,6 h. made to measure

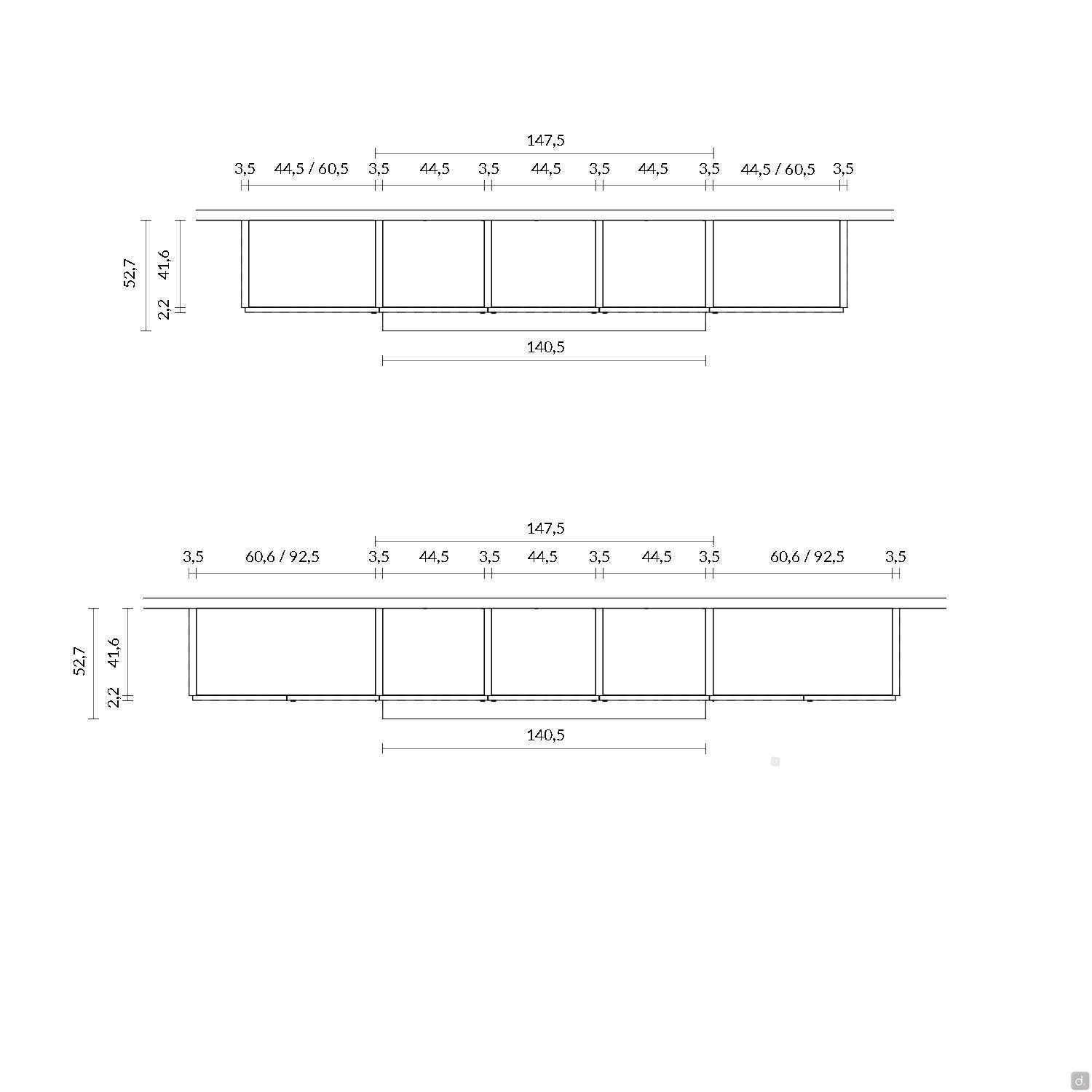

Over-head module: cm 147,5
- n.1 desk: cm 140,5 d.52,7 sp.6
- n.1 shelf: cm 140,5 d.32 sp.3,5
- n.3 hinged wall units: cm 44,5 d.43,8 h. made to measure
- n.2 hinged wall units: cm 3,5 d.41,6 h. made to measure
- n.2 made-to-measure side panels: cm 3,5 d.41,6 h.
Made-to-measure Lateral column: cm 48 to 63,9
- n.1 1 door hinged wardrobe: cm 44,5 to 60,4 d.43,8 h.187,5
- n.1 hinged wall unit with 1 door: from cm 44,5 to 60,4 d.43,8 h. made to measure
- n.1 side panel: cm 3,5 p.41,6 h. made to measure
Lateral column cm 64:
- n.1 1 door hinged wardrobe: cm 60,5 p.43,8 h.187,5
- n.1 hinged wall unit with 1 door: cm 60,5 d.43,8 h. made to measure
- n.1 made-to-measure side panel: cm 3,5 p.41,6 h.
Made-to-measure Lateral column: cm 64,1 to 95,9
- n.1 2-door hinged wardrobe: cm 60,6 to 92,4 d.43,8 h.187,5
- n.1 2-door hinged wall unit: from cm 60,6 to 92,4 d.43,8 h. made to measure
- n.1 side panel: cm 3,5 p.41,6 h. made to measure
Lateral column: cm 96
- n.1 1 door hinged wardrobe: cm 92,5 p.43,8 h.187,5
- n.1 hinged wall unit with 1 door: cm 92,5 d.43,8 h. made to measure
- n.1 side panel: cm 3,5 d.41,6 h. made to measure
Technical Specifications and Equipment
Structure: wood particle board panel (class E1 low formaldehyde emission). Wood edge, lacquered ABS or ABS. The sides are always fitted with levelling feet inserted in the thickness (cm 0.5 discharge).
Shoulders, Backs, Lids: cm thickness 3.5.

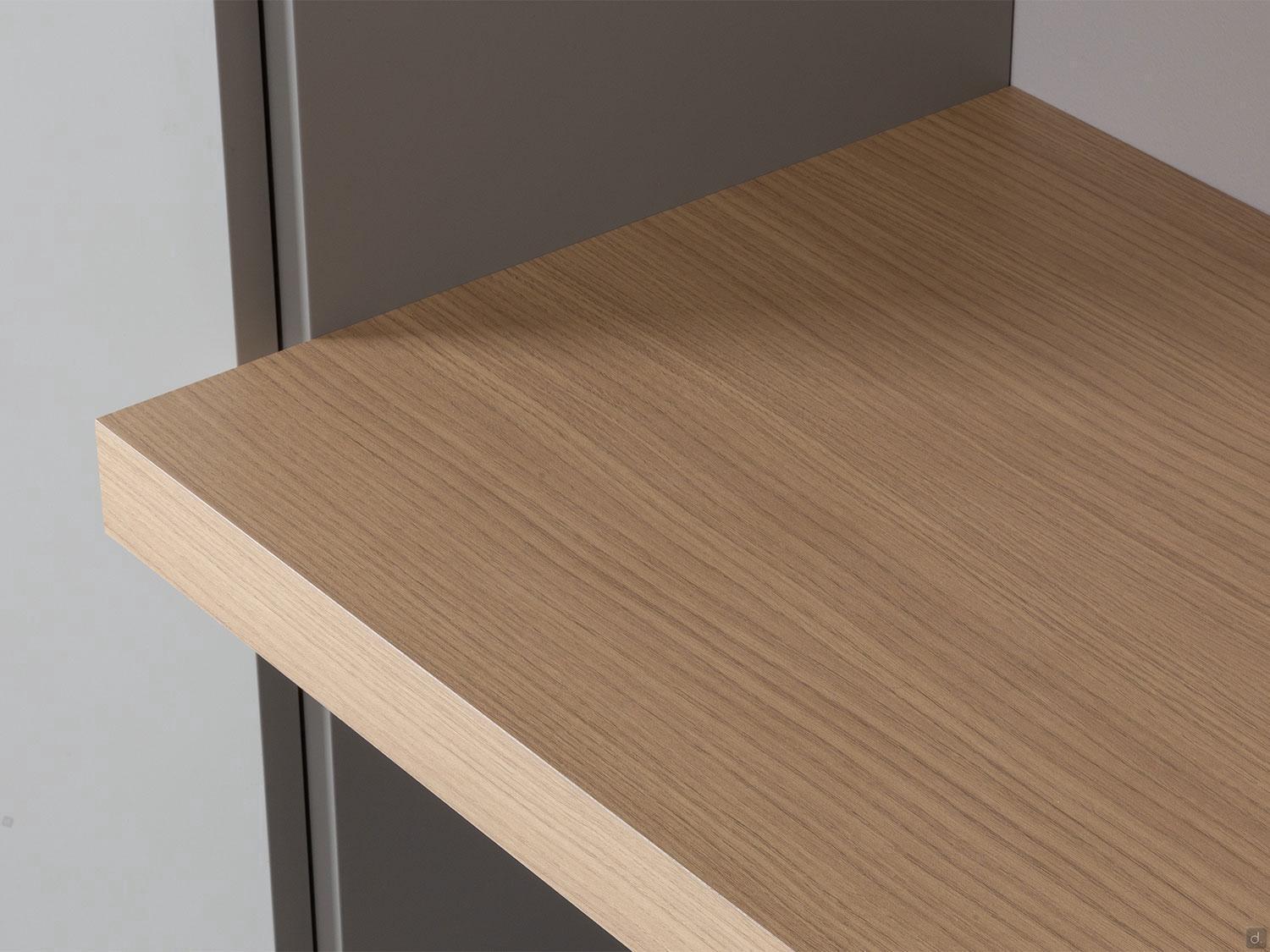

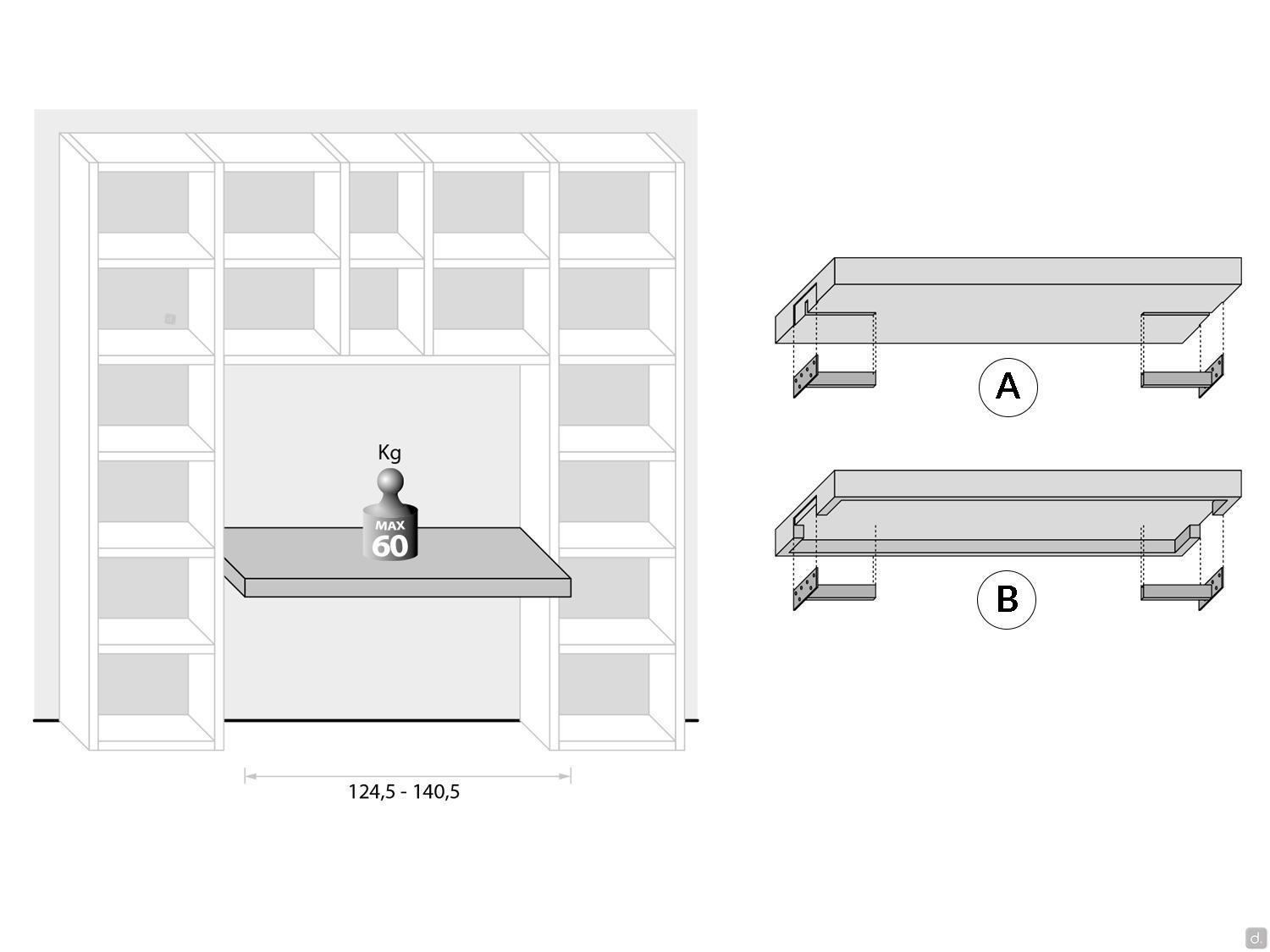

Desk: cm thickness 6. Maximum load capacity 60 Kg.
Shelf: cm thickness 3.5.
Internal shelf: cm thickness 3,5 supplied with hinged wardrobe cm h.187,5.

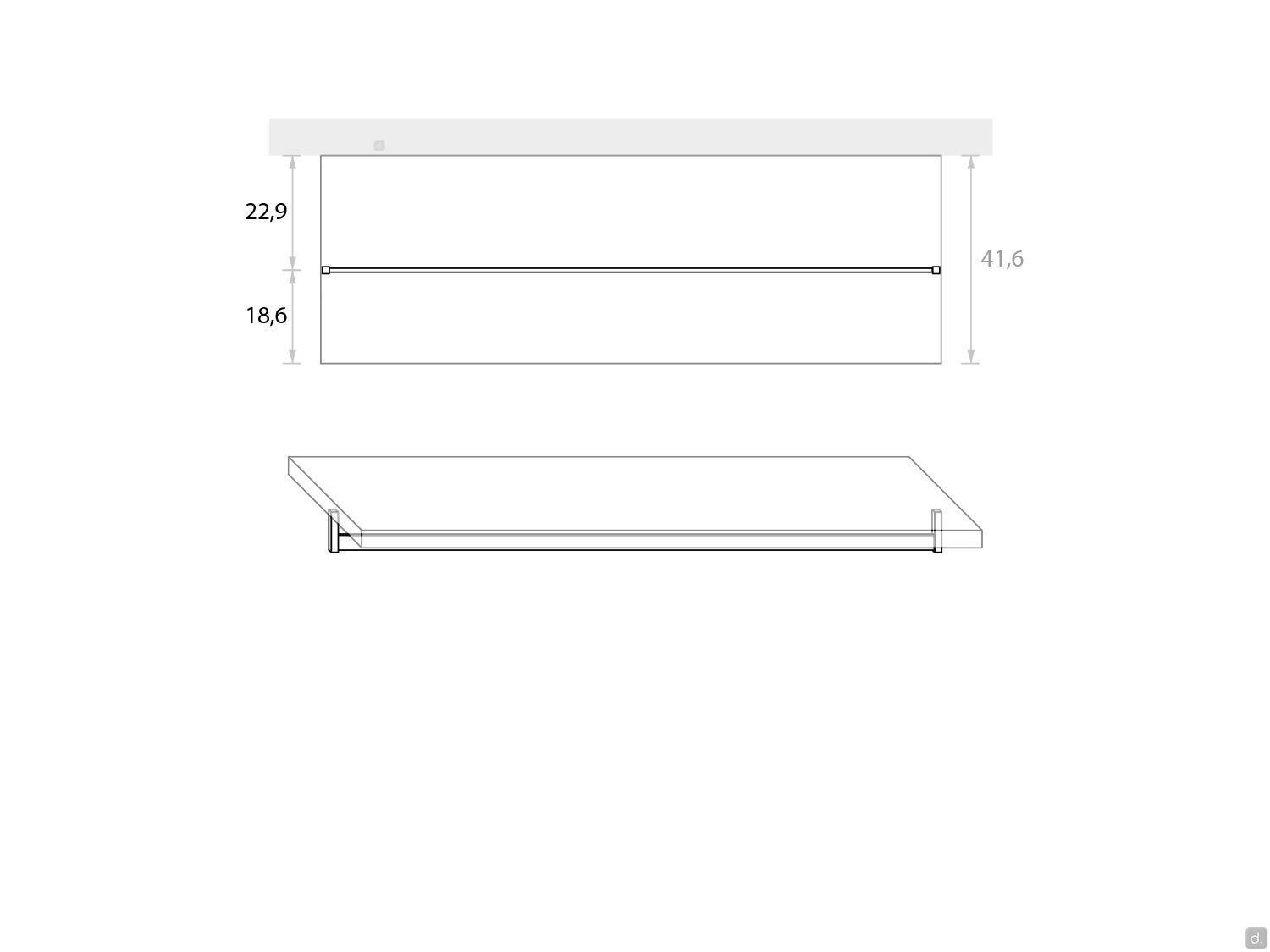

Hanging tube: in moka shine finish aluminium, complete with gasket.

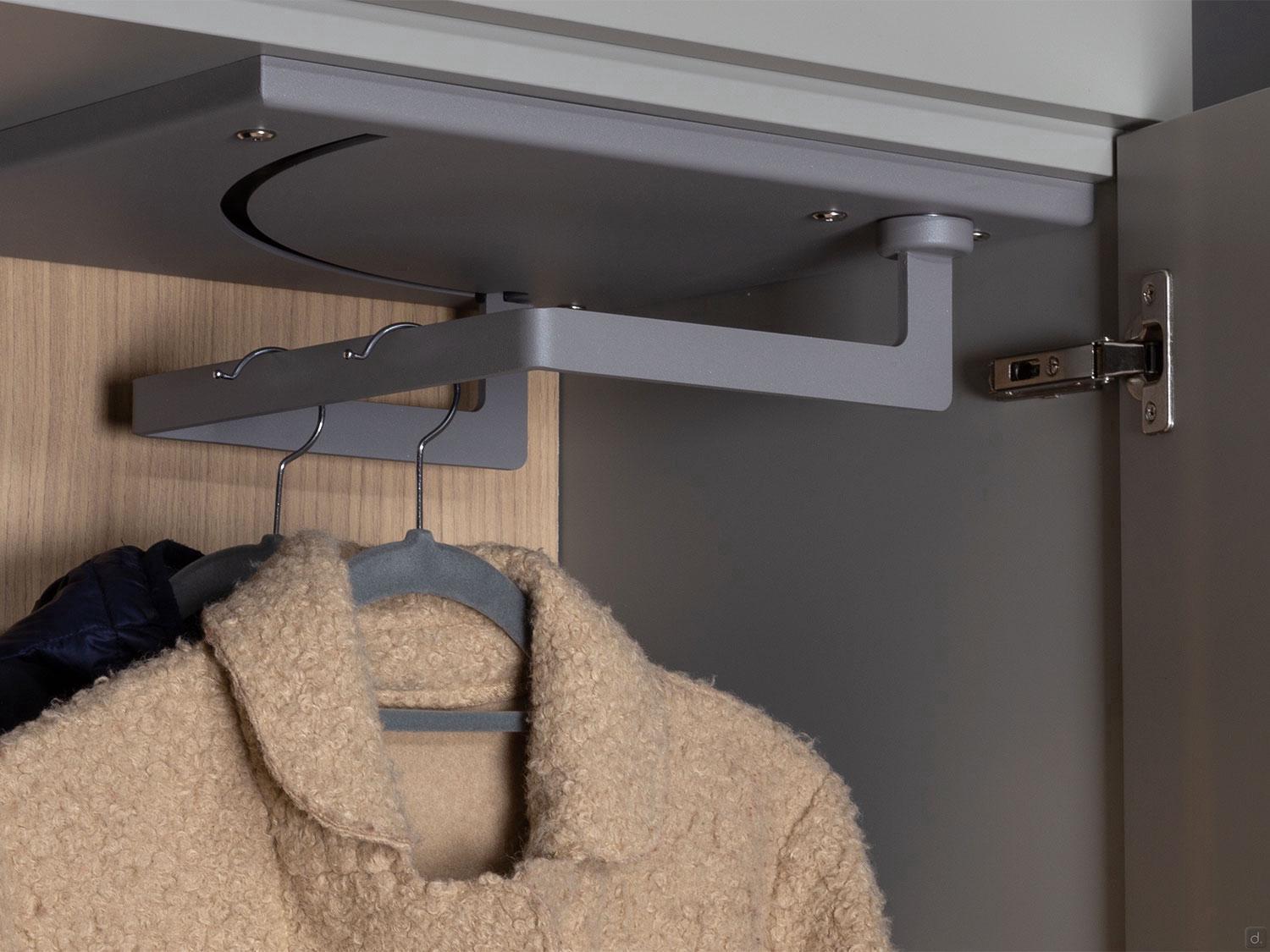

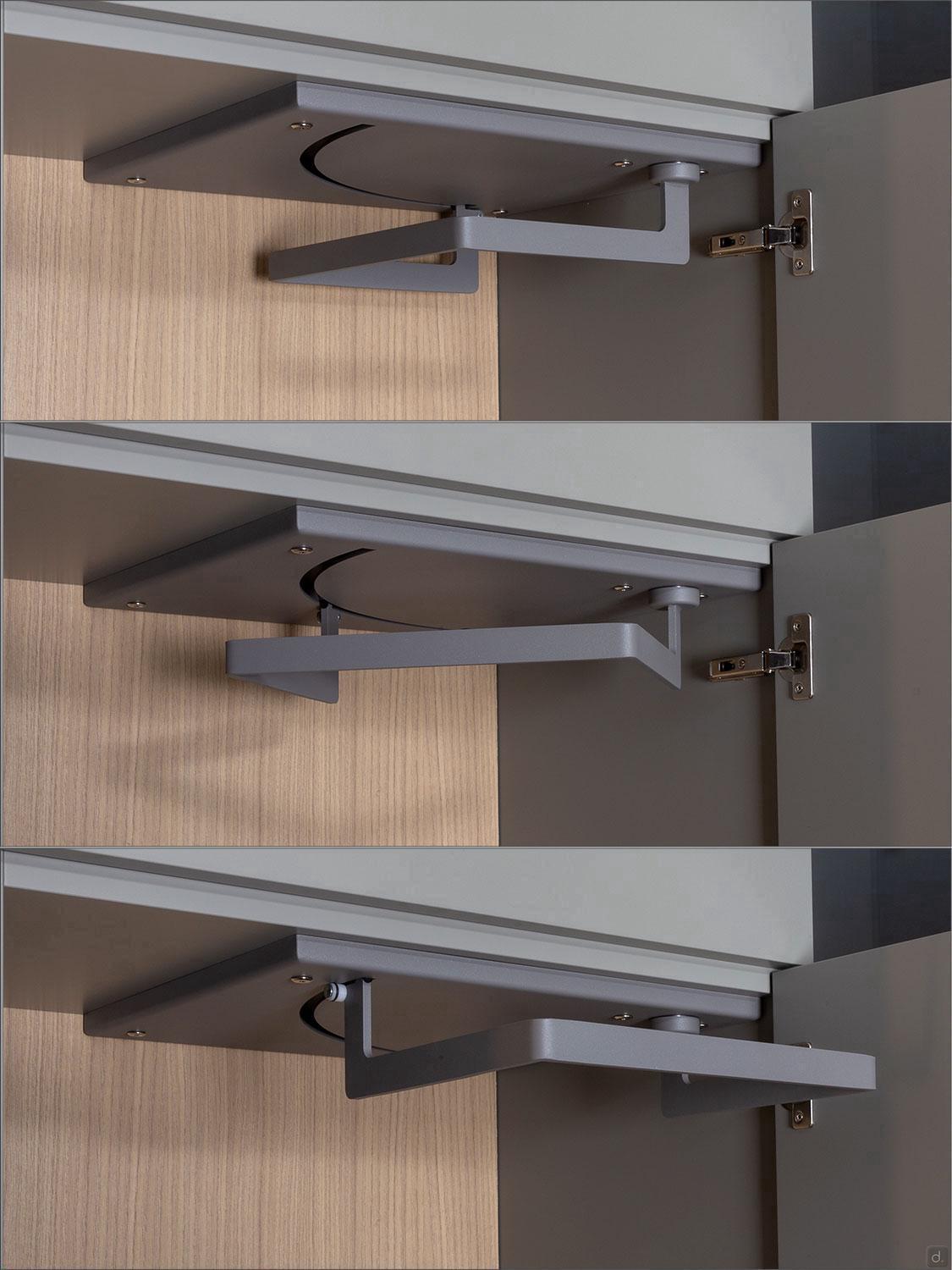

Rotating clothes rack: in titanium painted metal. Not available for side columns with customised width.
Backs: 1.4 cm thick.
Fronts: 2.2 cm thick. Wood particle board (class E1 low formaldehyde emission) or MDF. Wood edge, lacquered ABS or ABS.

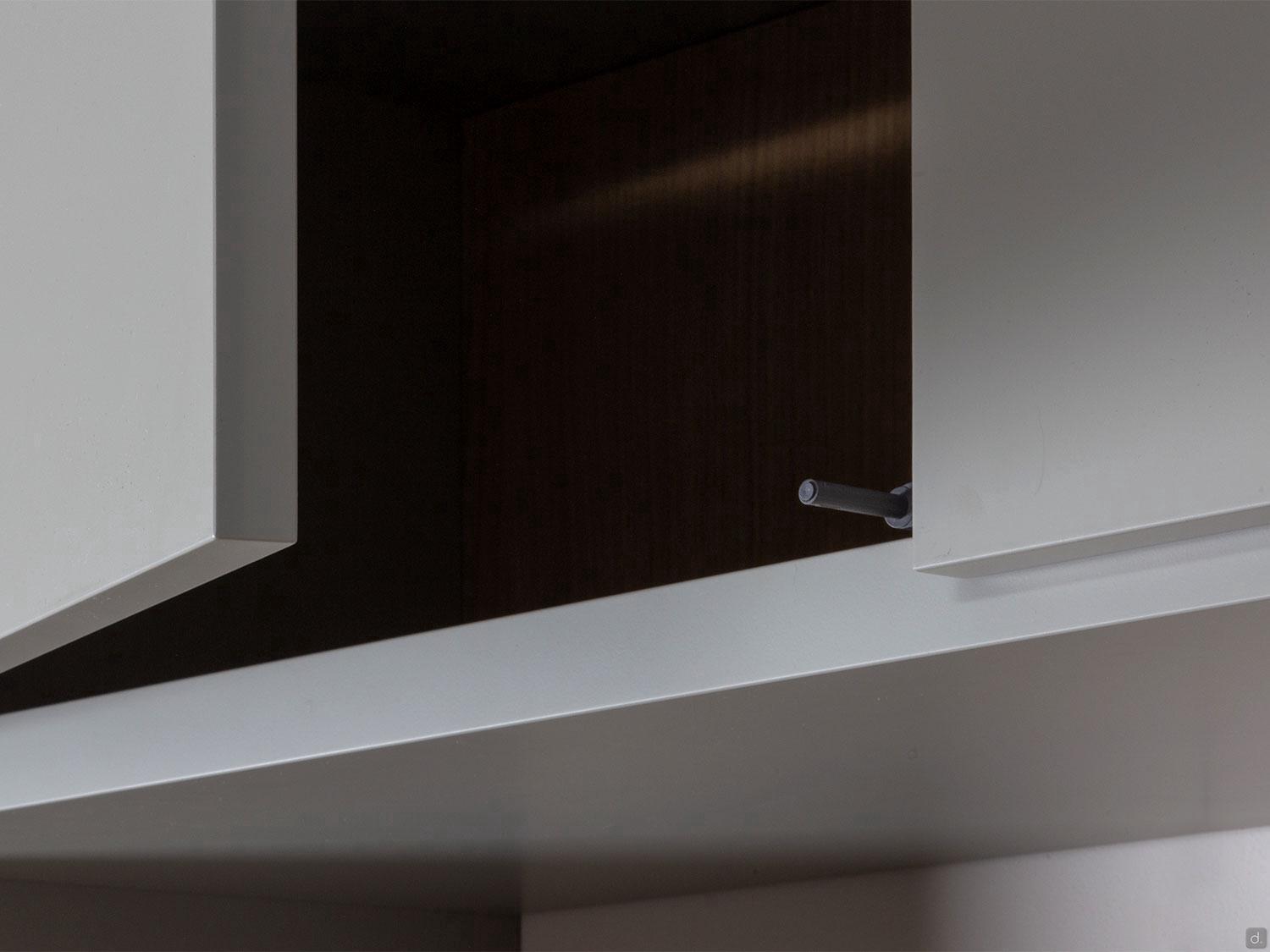

Opening: push-pull or M handle.
Optional - Shelf

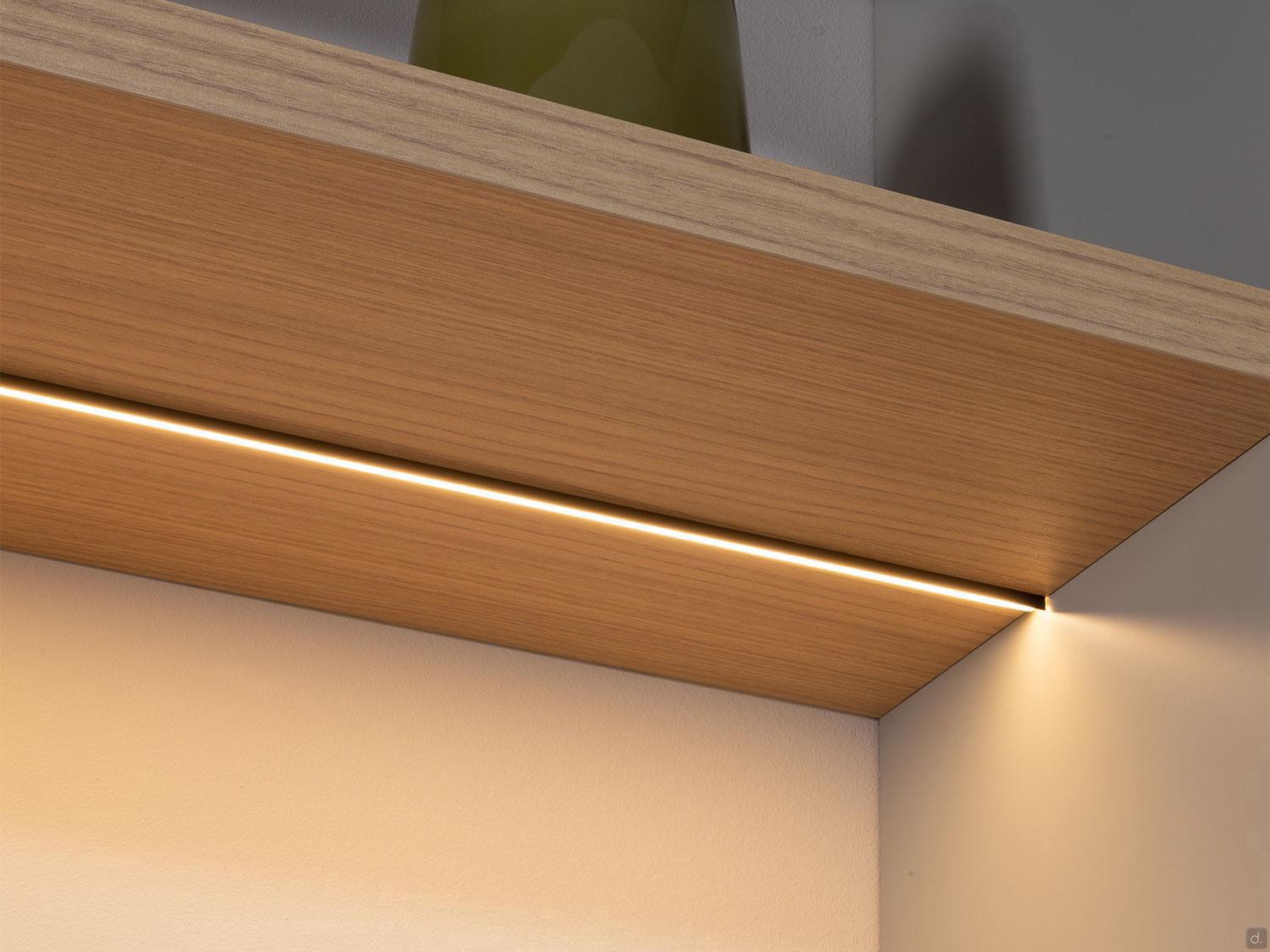

Led bar: fitted in the lower part of the shelf, aluminium structure with dark brown finish and warm light at 3000°K. Complete with power supply with ignition via mains connection or remote control.
Cleaning and Maintenance
Surfaces must not be placed in contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a damp cloth and neutral detergents, drying immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.
