Technical Specifications and Equipment

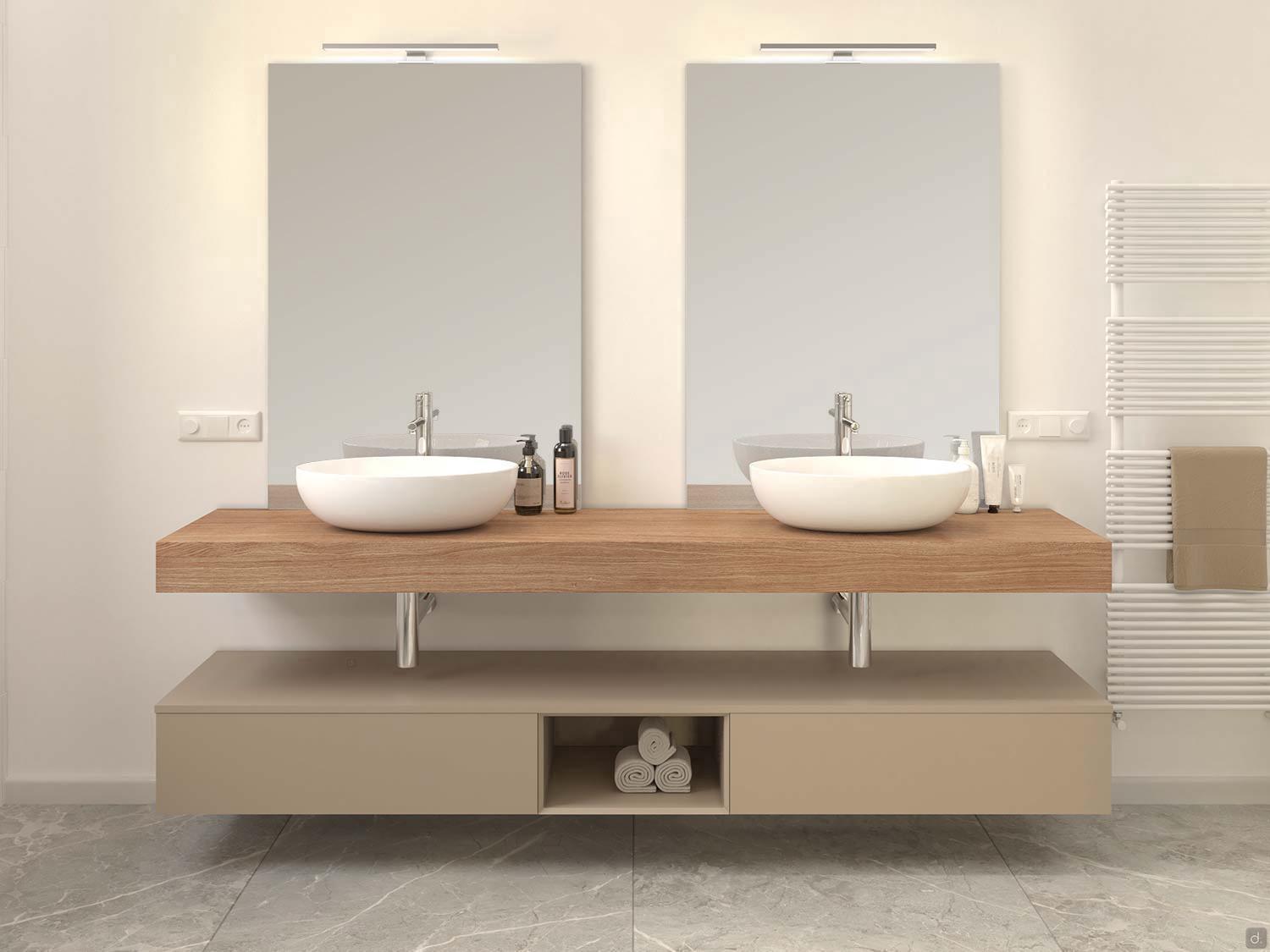

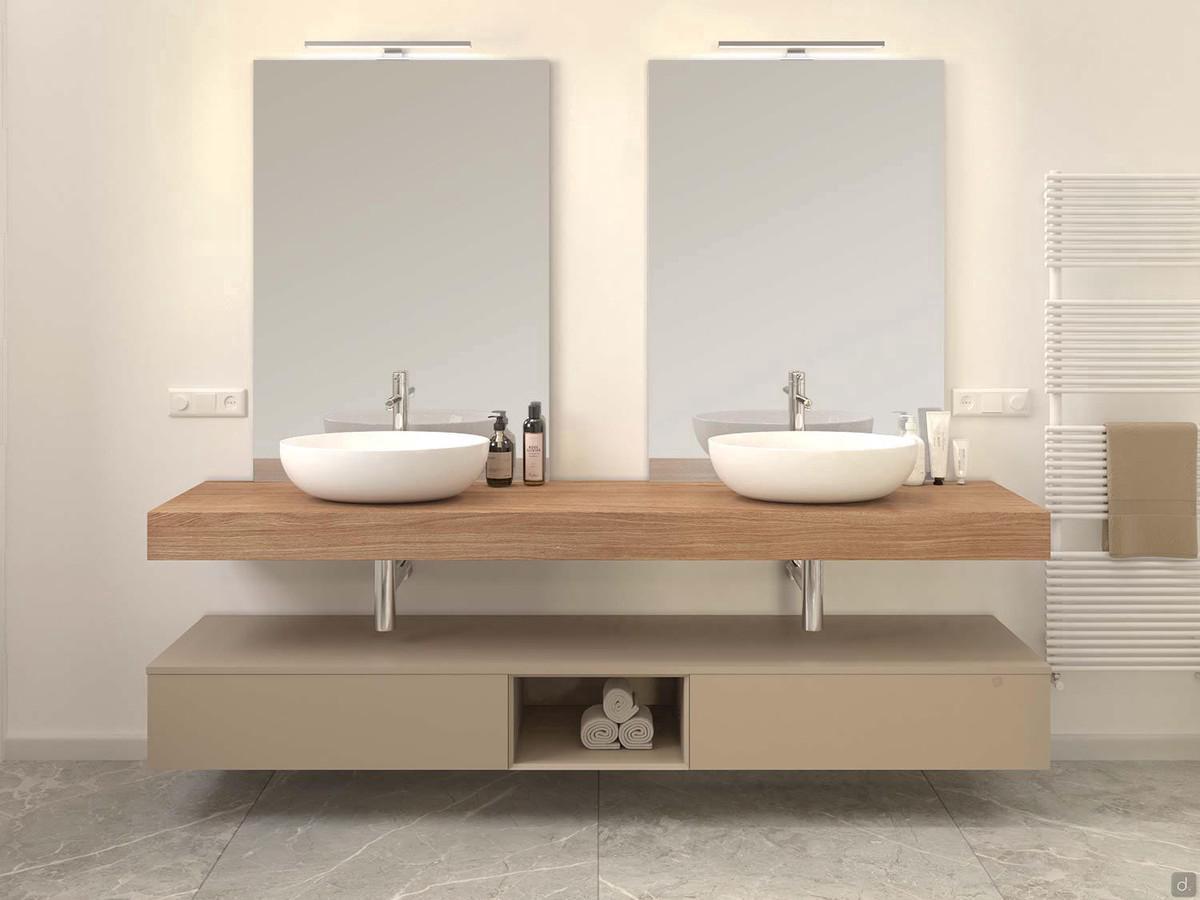

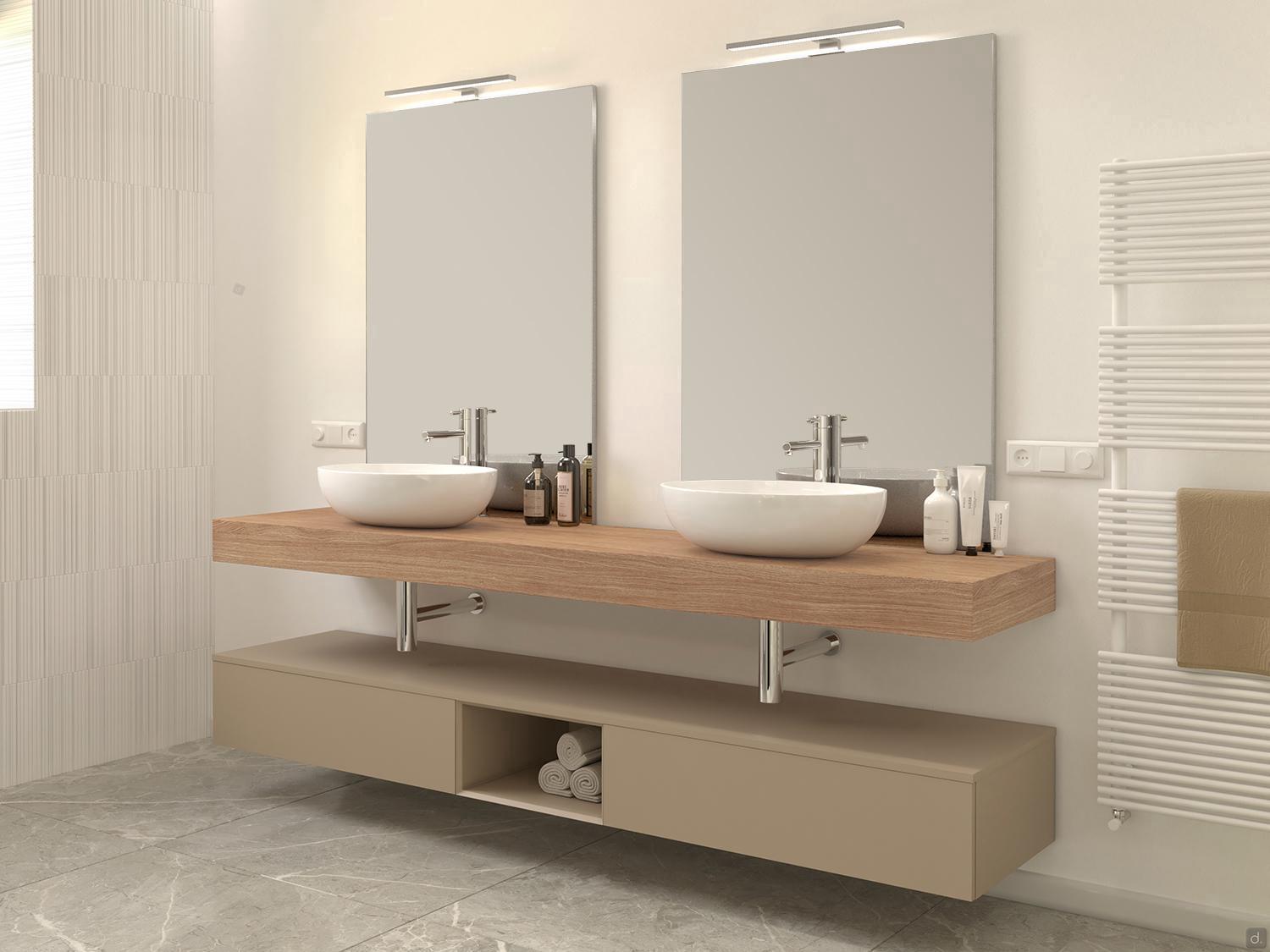

The bathroom cabinet is composed of:

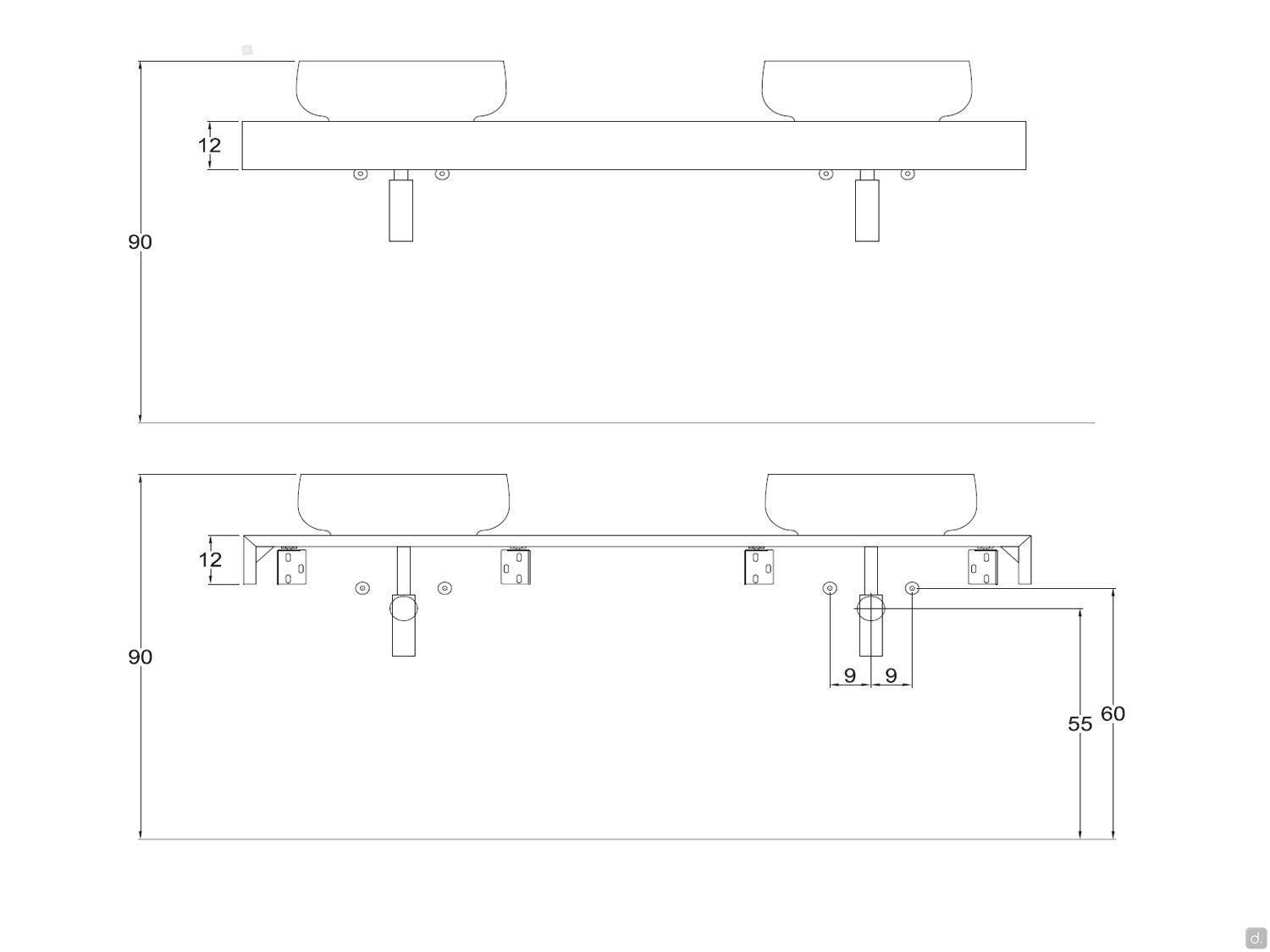

n.1 shelf cm d.50 h.12 made to measure in width from a minimum of 185 to a maximum of 225 cm, complete with n.4 support brackets. The shelf is provided with holes for counter-top washbasin: it is then possible to choose whether or not to have a hole for the mixer, always central to the basin.
n.2 base units cm d.50 h.25 with drawer; customisable in width from a minimum of 70 to a maximum of 90 cm.
n.1 central open base unit cm 45 d.50 h.25.
n.1 top cm d.50 h.2 made to measure in width from a minimum of 185 to a maximum of 225 cm.

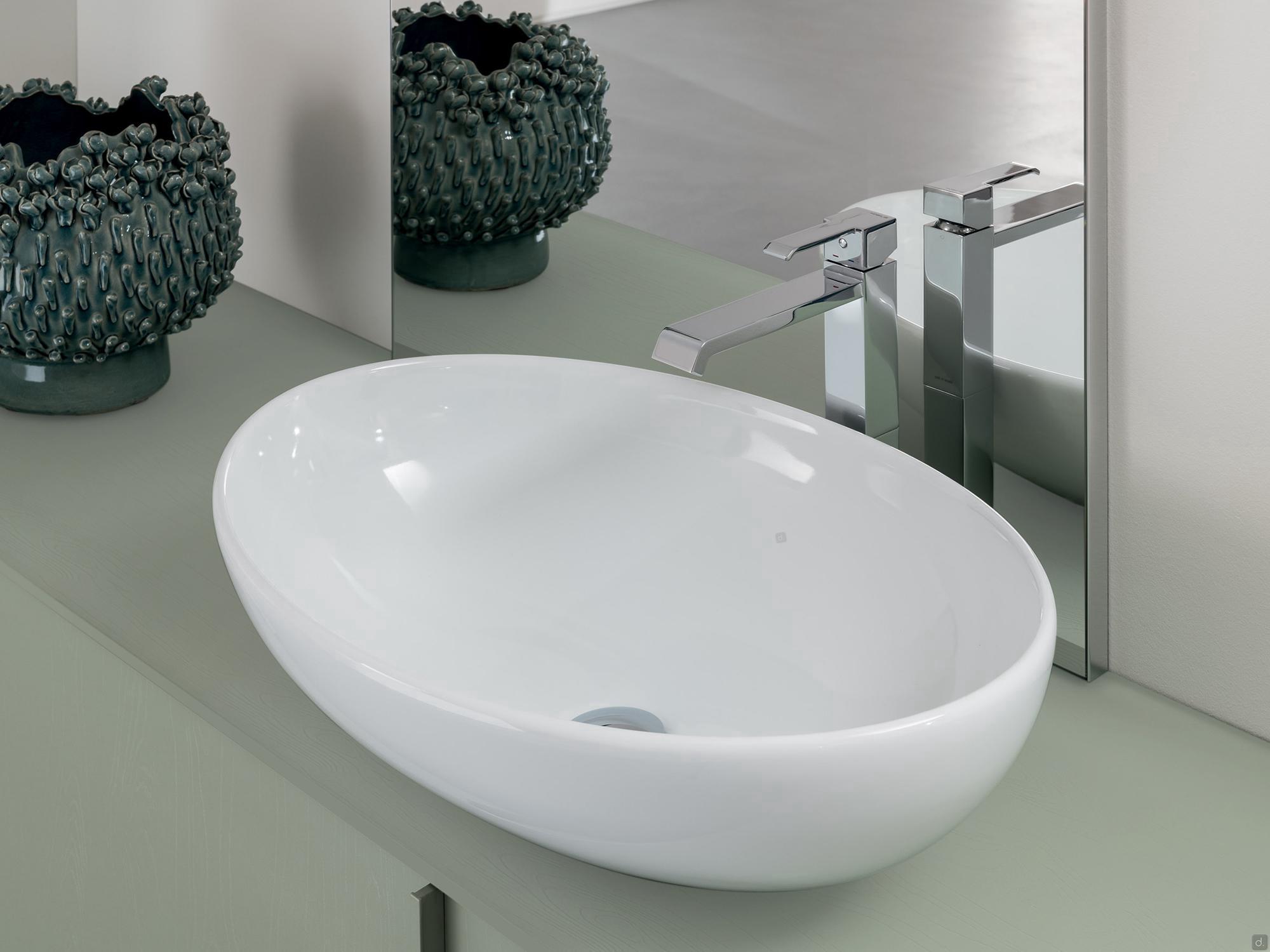

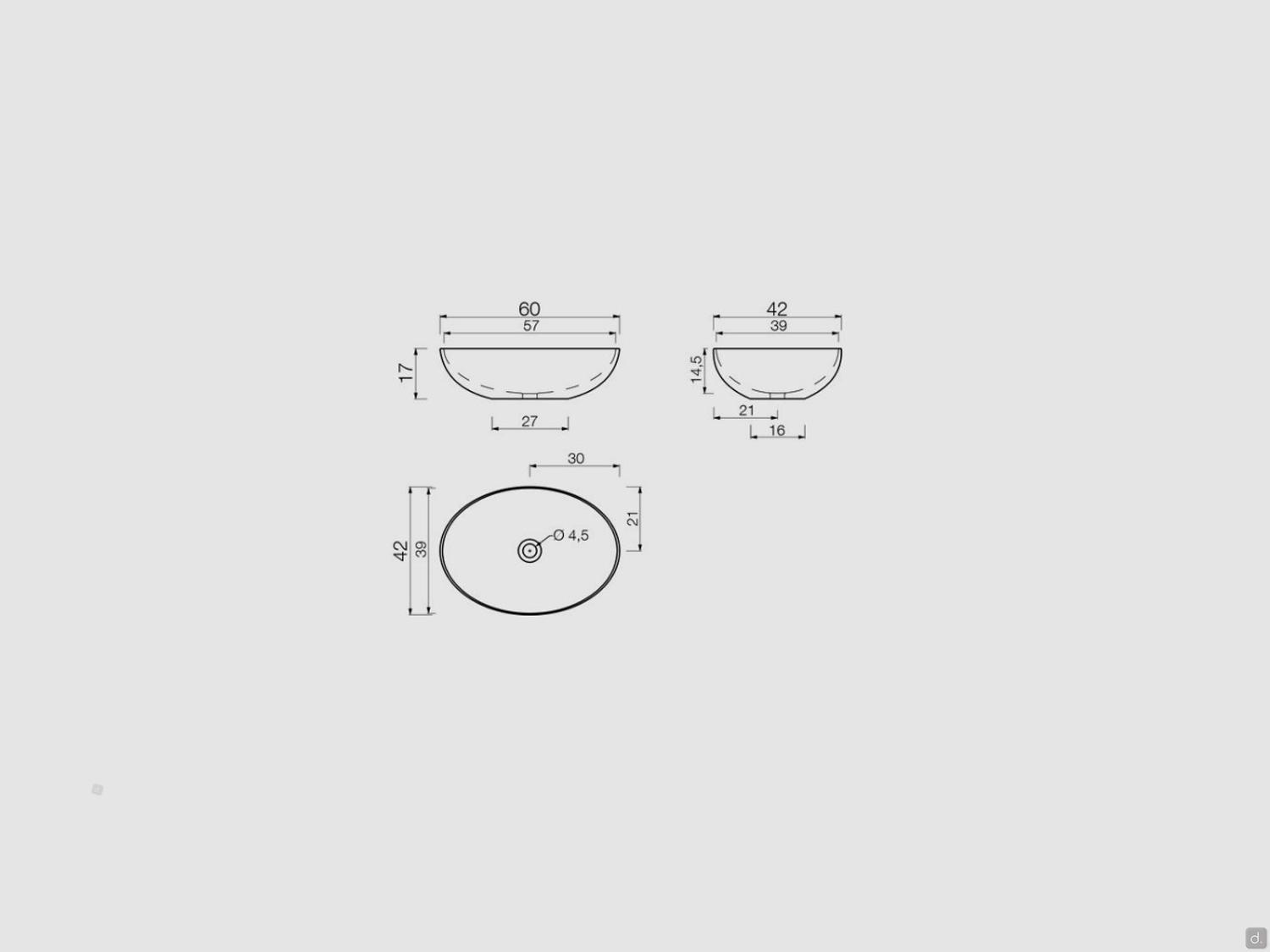

n.2 sit-on washbasins in glossy white ceramic, Softly model, cm 60 p.42 h.17 (basin dimensions: cm 57 p.39 h.14,5 - supporting surface on shelf cm 27 d.16), without overflow hole. The washbasins are equipped with a "continuous drain" drain.
PLEASE NOTE: in order to guarantee the space required to position the mixer "behind the washbasin and in the middle", the washbasins will protrude frontally by about 4 cm from the edge of the shelf.
n.2 mirrors mod. Wap cm h.111,8 sp.2,6 with made-to-measure width from cm 70 to cm 90. Aluminium frame with "brill" satin finish.
Each mirror is fitted with a spotlight of your choice:
- Tod: cm 30 d.11,3 h.4 with 4000 K LED lighting (power 4,9W, IP44, 442 lm, 230V), chrome and satin methacrylate finish, with built-in power supply.
- Tod 60: cm 59.8 d.10.5 h.4 with 4000 K LED lighting (power 9.6W, IP44, 883 lm, 230V), chrome and satin methacrylate finish, with incorporated power supply.
Structure: 1.8 cm thick made of particle board panels and then veneered or matt lacquered RAL / SIKKENS. Sides, top and bottom with 90° cut (45° cut only for the open base unit).
Drawers: 1.8 cm thick fronts made of RAL / SIKKENS matt lacquered wood particle board panels. Closing is assisted, opening by push-pull.
Maintenance Tips
Lacquered: for proper cleaning, use glass cleaning products or alcohol diluted with plenty of water, drying the surface immediately with a soft cloth. Do not use abrasive powders, furniture waxes, ammonia and acetone.
Wood: for cleaning, use a cloth moistened with common glass cleaning products or water and Marseille soap. Wood, both veneered and solid, is treated with transparent protective agents that make the product waterproof; however, it is recommended that any drops of water be wiped off to prevent water from stagnating and penetrating inside.
Wood is a 'living' material, so any colour variations over time, due to light, are not a defect, but are given by the fact that it is a natural material.
Wap mirrors: it is absolutely forbidden to use ammonia-based products or products with corrosive additives such as limescale removers. The mirror must be dried immediately after washing, especially along the edges.
Mounting Tips
The frame of Wap mirrors is supplied undrilled. When mounting, it will be necessary to drill holes in the frame to attach the spotlight.
