Material Specifications
Structure, Fronts and Upper Panels: made of particle wood panels, 2 cm thick, coated in melamine in finish matt, glossy or metallic lacquer or in varnished wood veneer. For the glossy finish, we intend the external side and the borders, while the inside is made in the same colour but in matt lacquer.
Backrest: made of medium density particle wood panels, 0,8 cm thick coated with melamine layer.

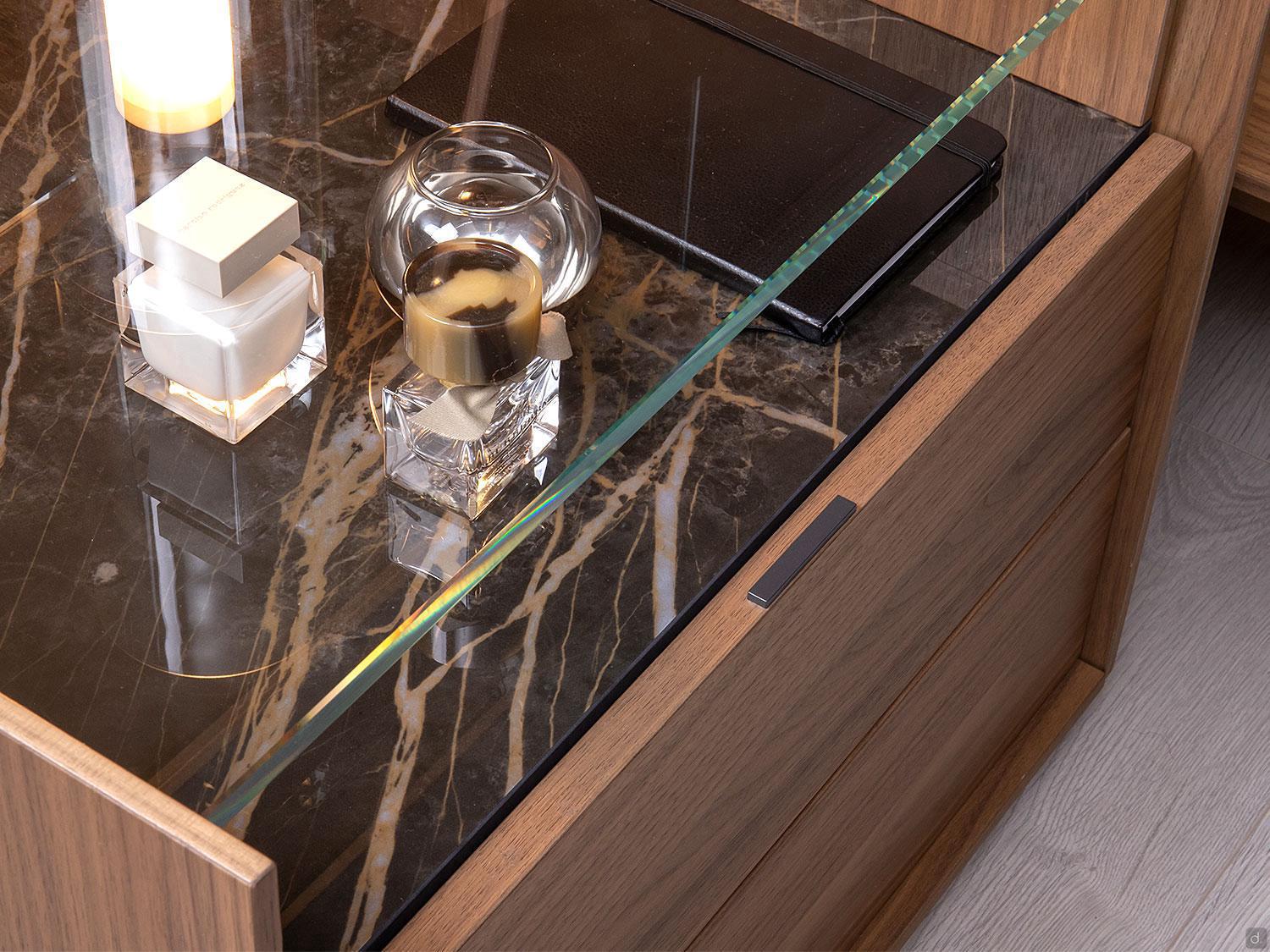

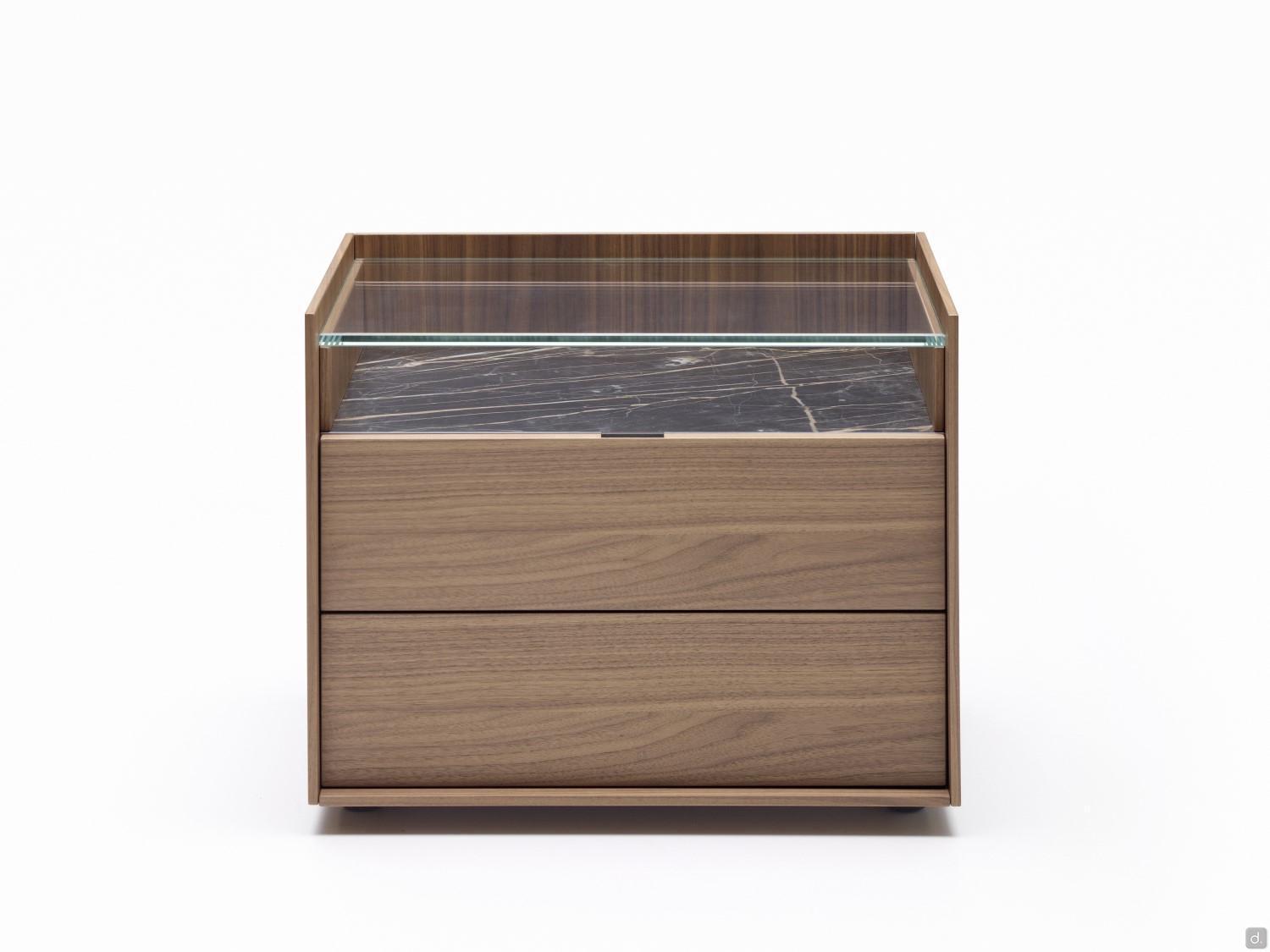

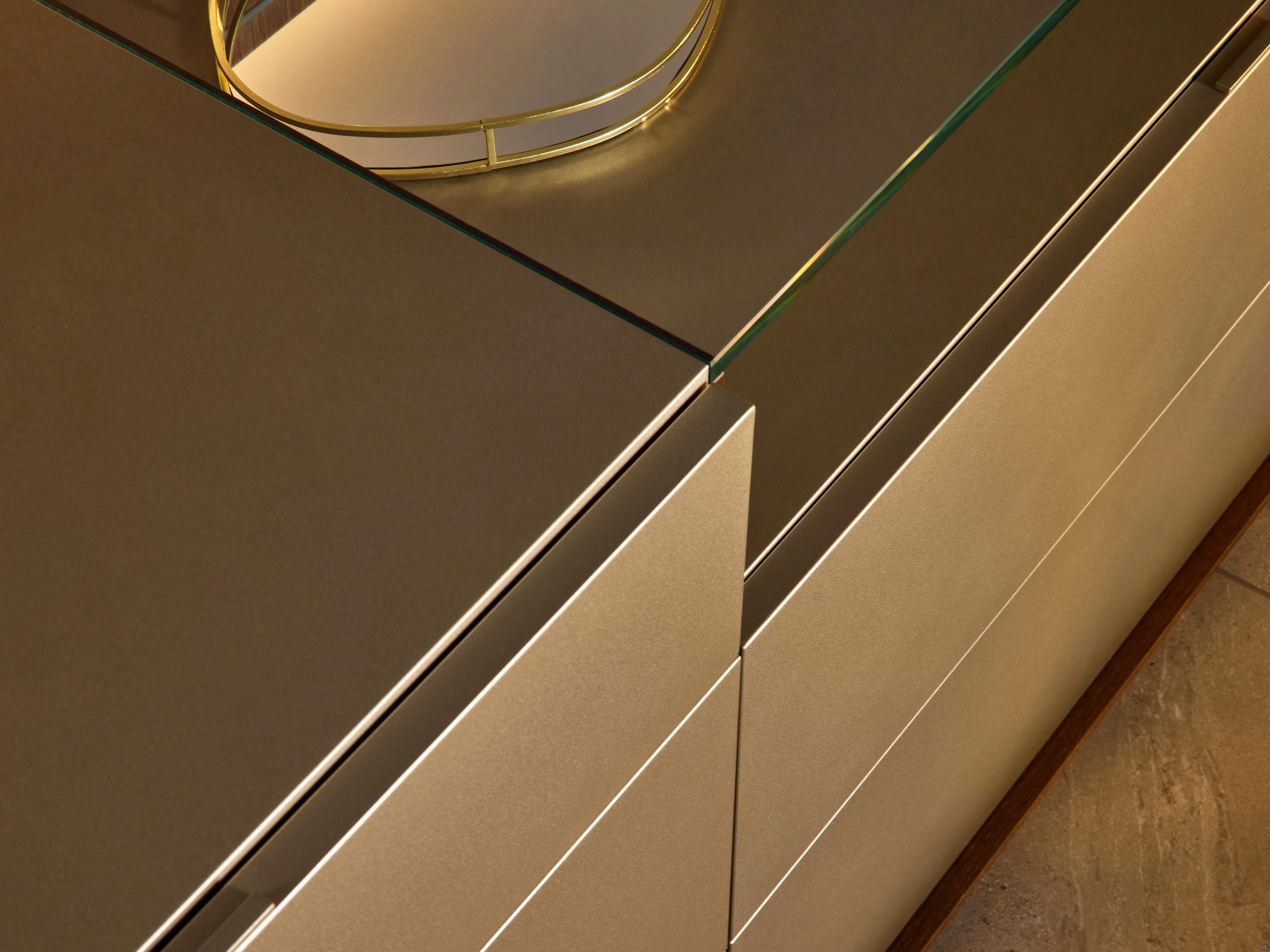

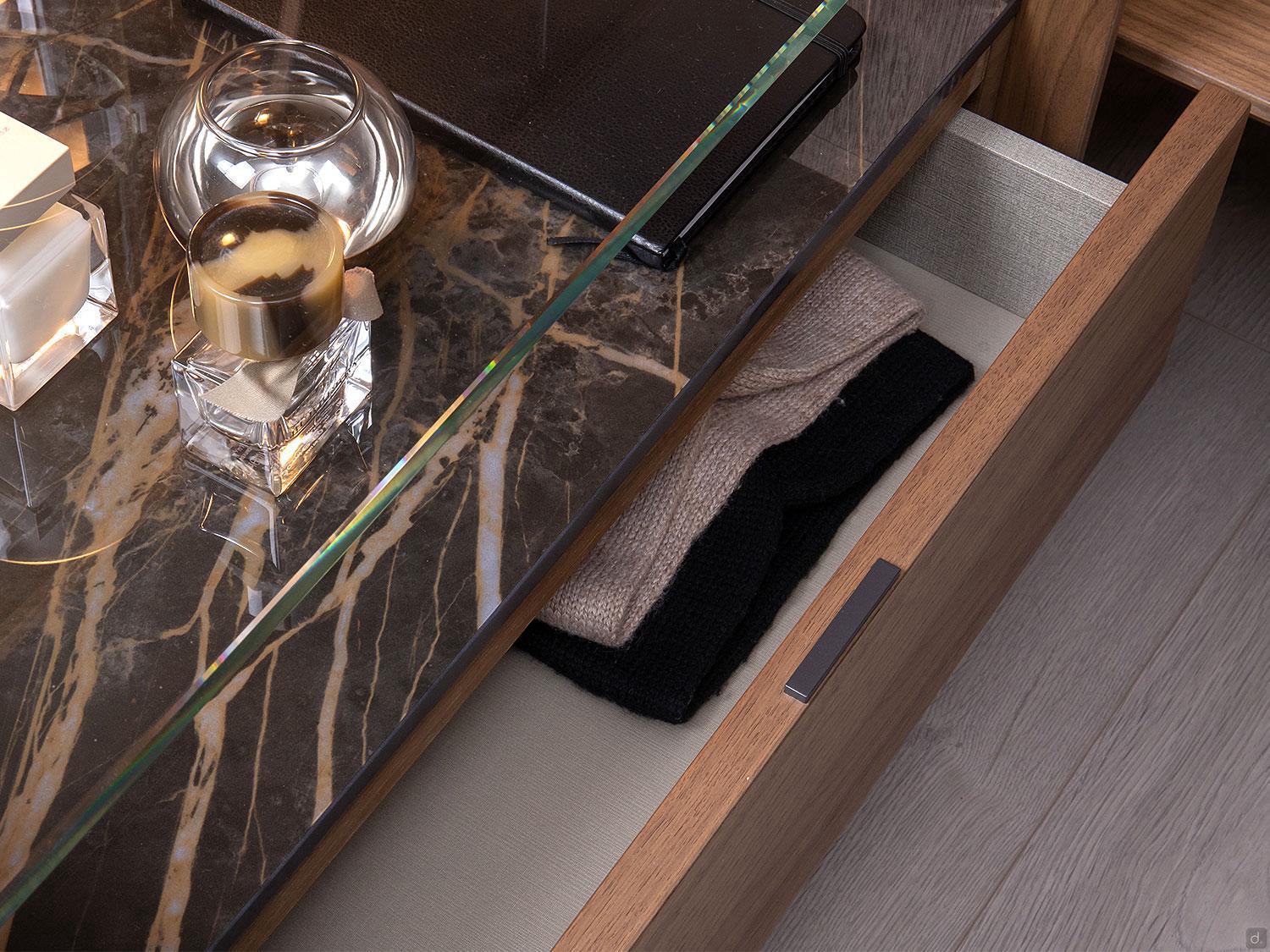

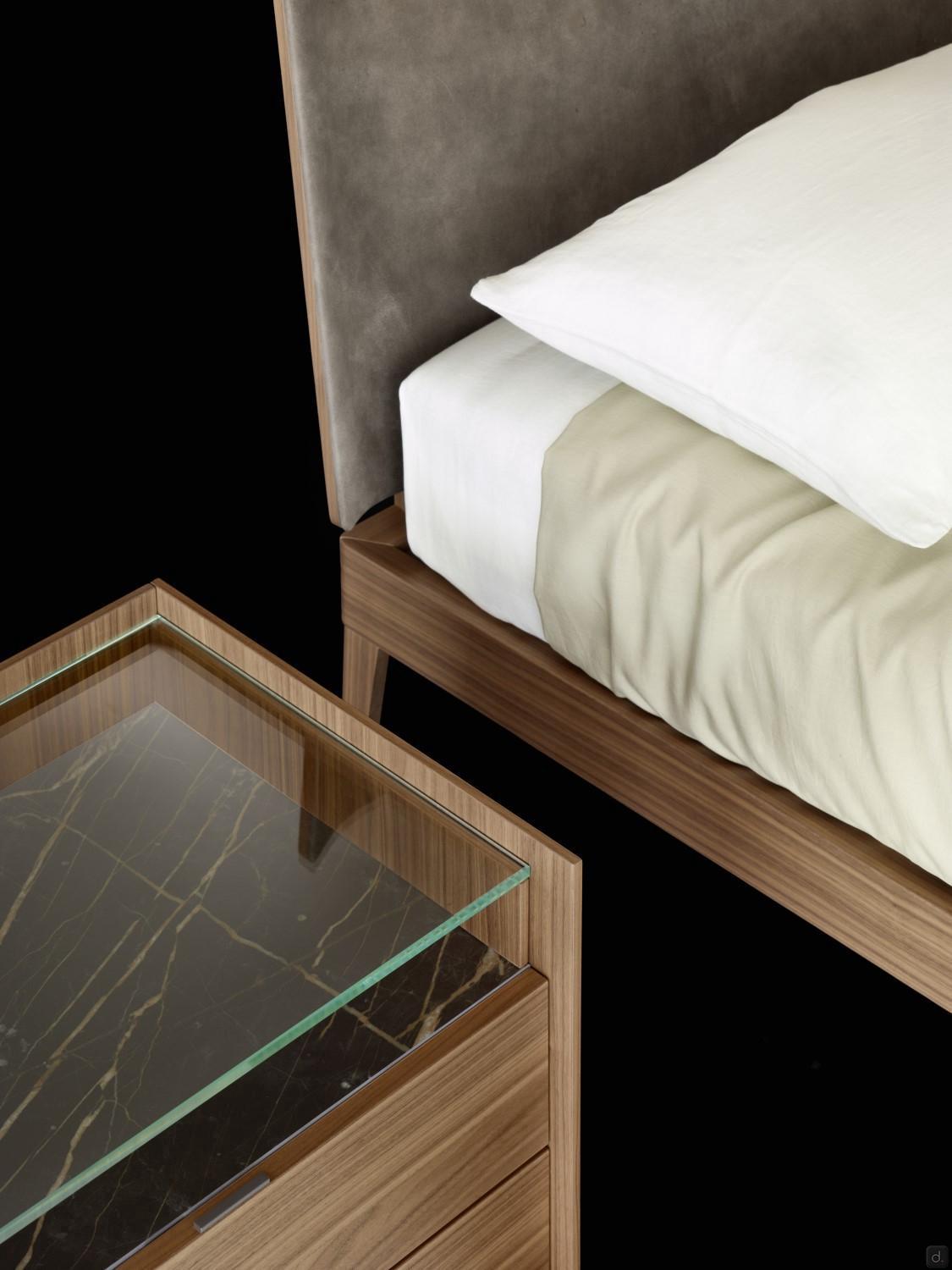

Drawer: thickness cm 1,4 with bottom panel 0,8 cm thick in particle wood panels coated in Juta textured melamine. The external shelf in clear glass has a thickness of 1,2 cm.
Perimeter Structure: made of medium density particle wood panel, 1 cm thick, coated in melamine in finish matt, glossy or metallic lacquer or in varnished wood veneer.

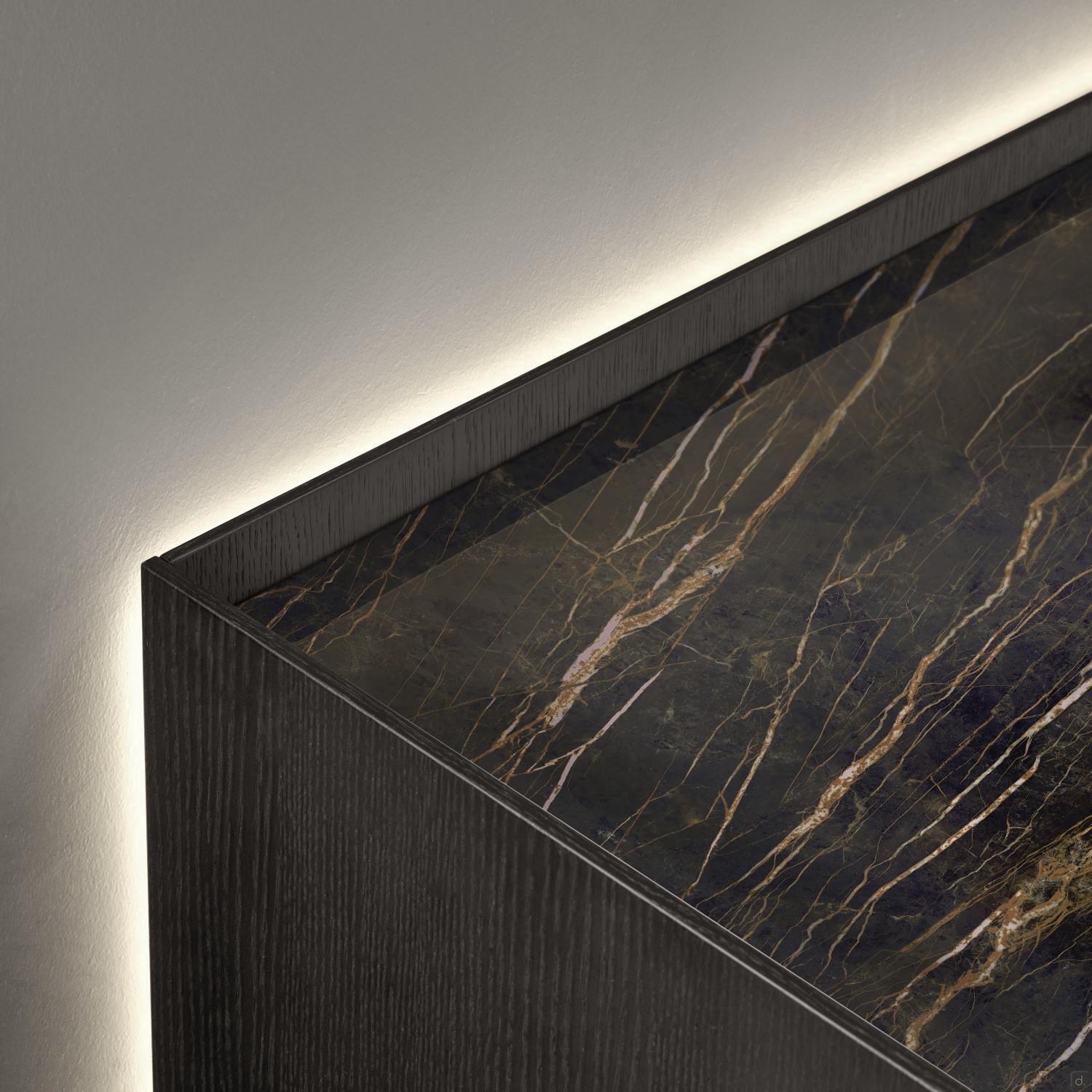

Top: made of ceramic coming from slabs measuring cm 163 x 324 with a thickness of cm 1,2. The slabs are casually cut according to the measurements and direction of the texture. Very resistant and eco-friendly.
Technical Specifications and Equipment

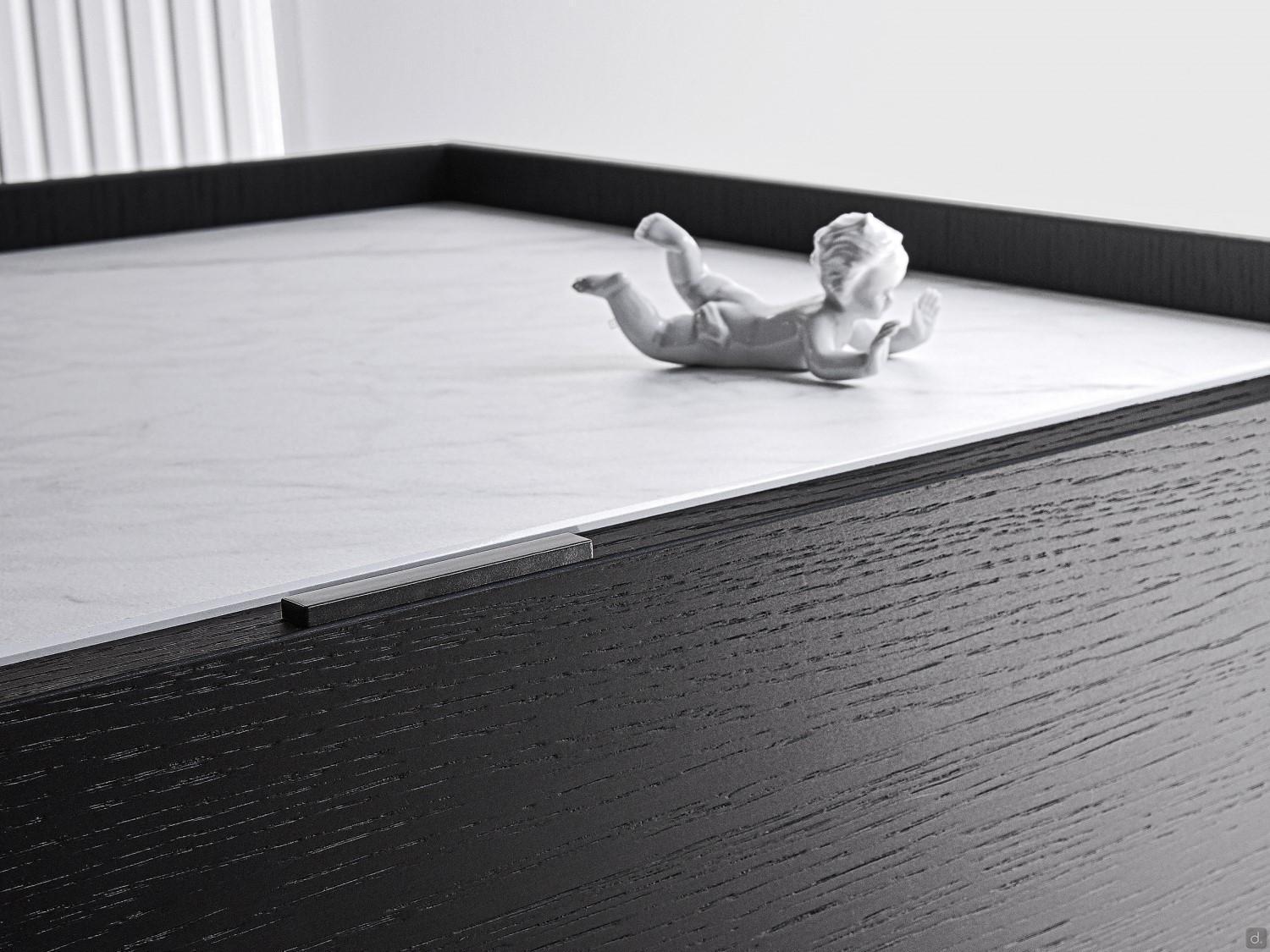

Drawers Opening: the fronts with upper visible border come with minimal handle, usually placed in the middle of the front; for all the others the opening is with push-pull.
Drawer Runners:
- opening with Minimal border: metal runners with full extension, end-of-the-line block and dynamic capacity of 30 kg. "Blumotion" soft closing system built-in the runners. Anti-release hook and vertical adjustment of the front inclination. Stabilizing bar for drawers bigger than 90 cm and "Movento" runners with incorporated stabilizer and side adjustment of the fronts for the 120 and 150 cm wide drawers.
- push-pull opening: metal runners with full extension, end-of-the-line block and dynamic capacity of 30 kg. Integrated syncronized system with drawers size bigger than 45 cm. Anti-release hook and vertical adjustment of the front inclination equipped on all runners.
Drawers 120 and 150 cm wide with "Movento" runners and side adjustment of the fronts.
Back of the Panel: the wall units can not be mounted directly to the wall but they are fixed through a black MDF panel, cm 1,9. The panel is equipped with all the arrangments and hardware to mount the wall units. As an Optional it is possible to purchase a perimetrical LED back-light applied on the thickness of the panel. The back panel keeps the element 1,9 cm from the wall.
Max. capacity: the maximum load of the hardware applied for each wall unit is 120 kg.
Chart combination between Minimal/Segno handle and the structure
| Structure |
Handles
|
| Clay oak |
matte terranova |
| Avana oak |
matte brown |
| Coal oak |
matte brown |
| Cuba oak |
matte brown |
| Thermo-treated oak |
matte brown |
| Grey oak |
matte brown |
| Canaletto walnut |
matte brown |
| matte lacquer |
matte lacquer |
| glossy lacquer |
glossy lacquer |
| metallic lacquer |
metallic lacquer |
| natura loto textured |
matte rope grey |
| taupe loto textured |
matte rope grey |
| terra loto textured |
matte terranova |
| sand sketch textured |
matte canvas 10 |
| rock sketch textured |
matte silica |
| tobacco sketch textured |
matte beaver |
| |
|
| |
|
Optional

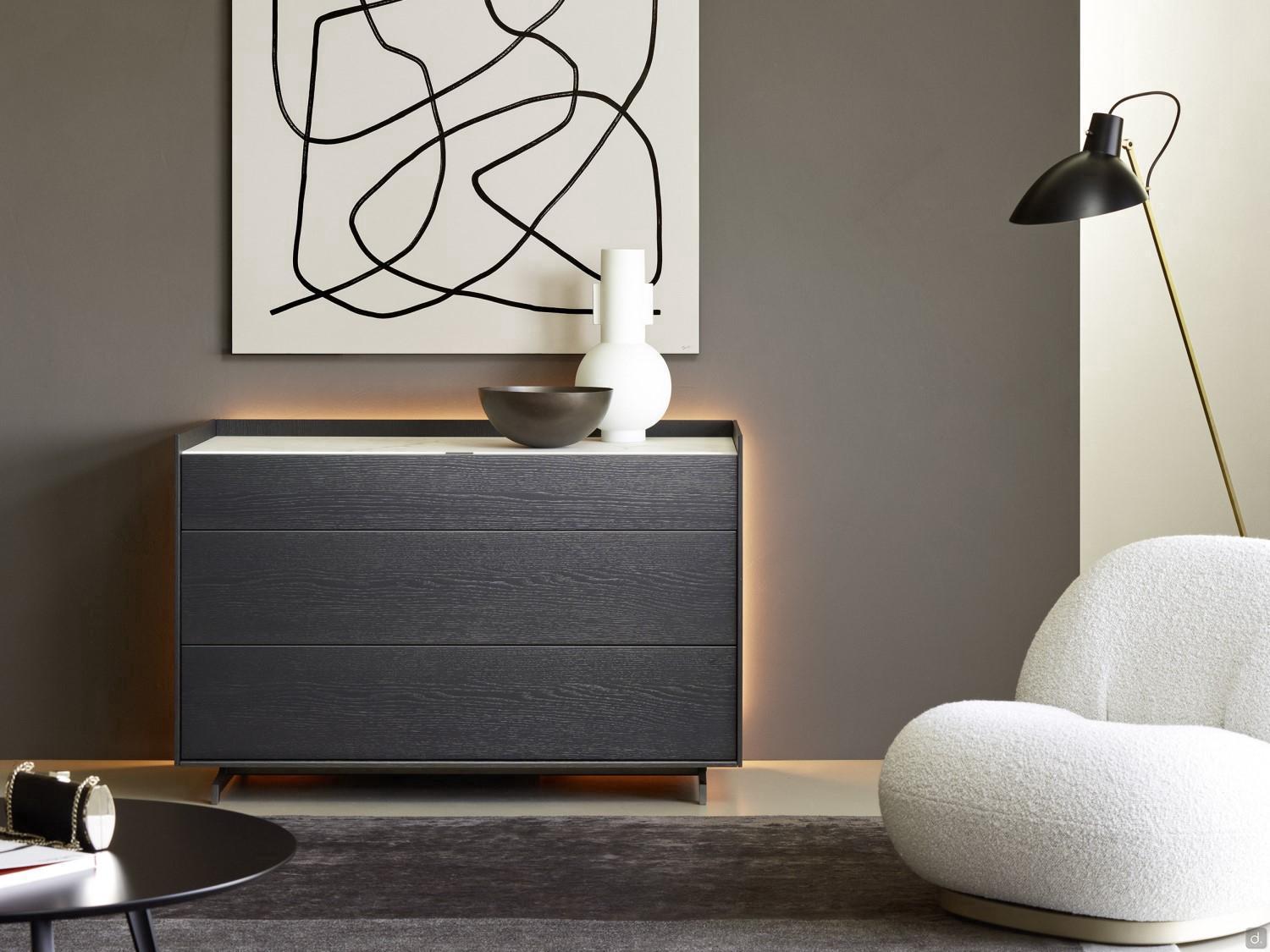

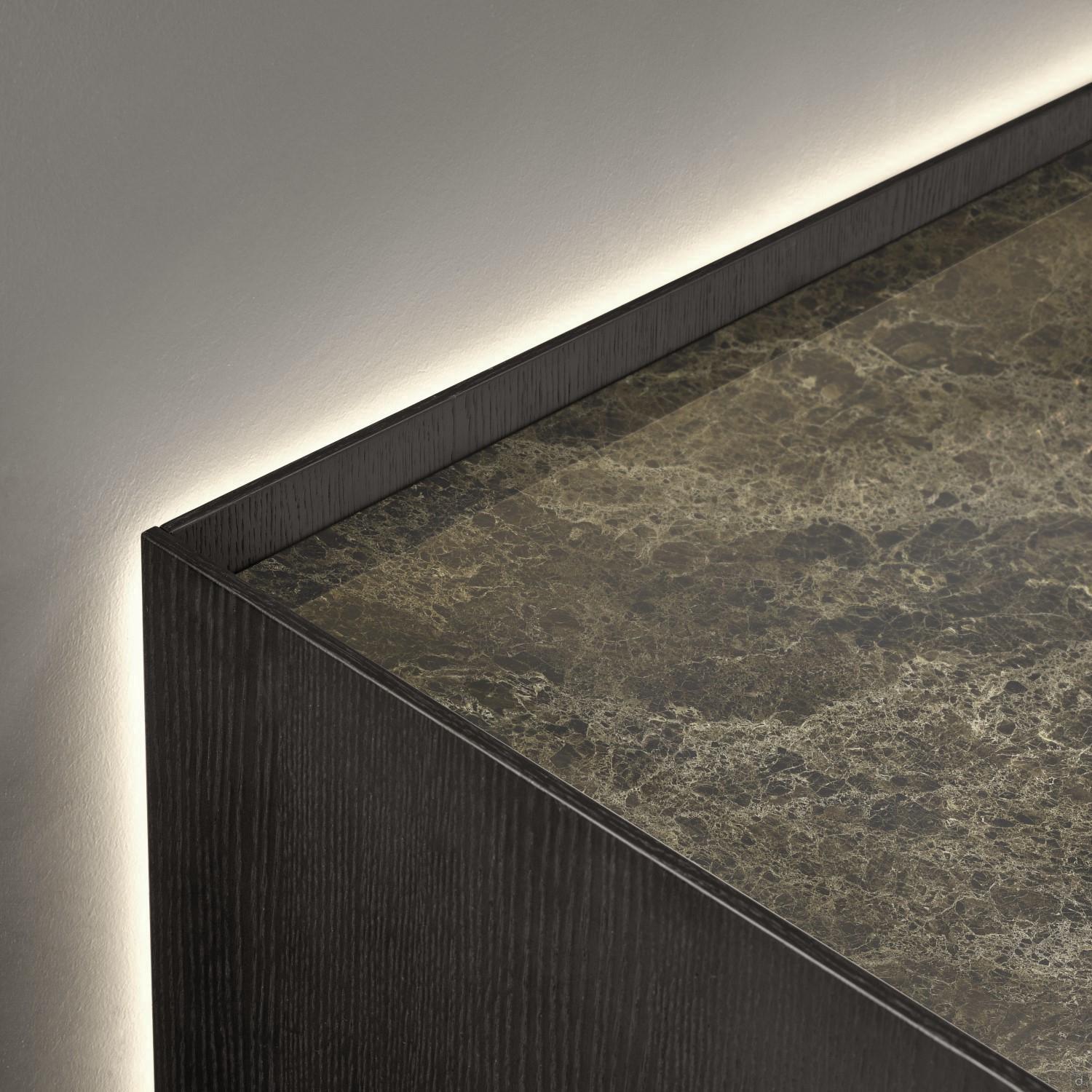

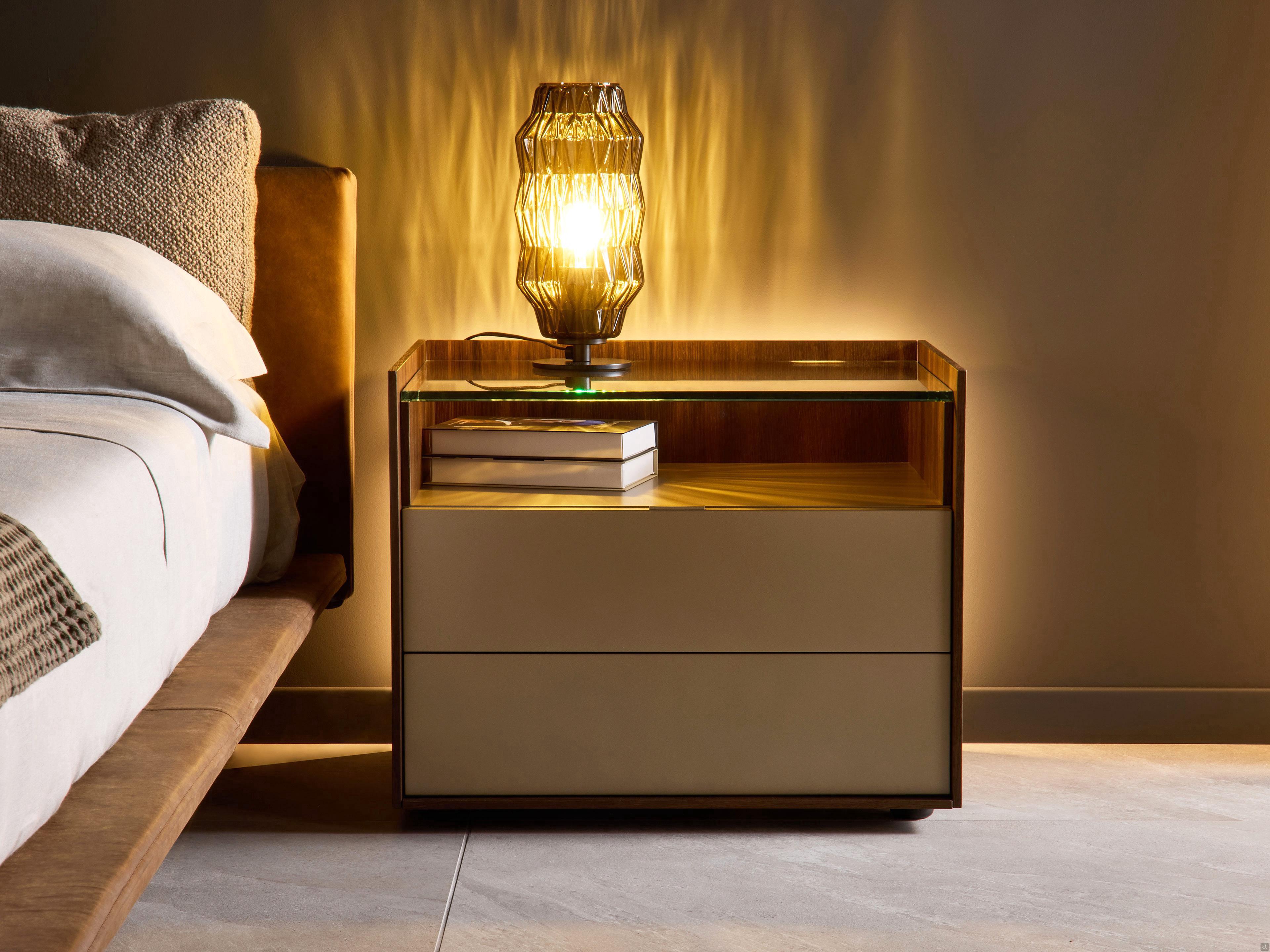

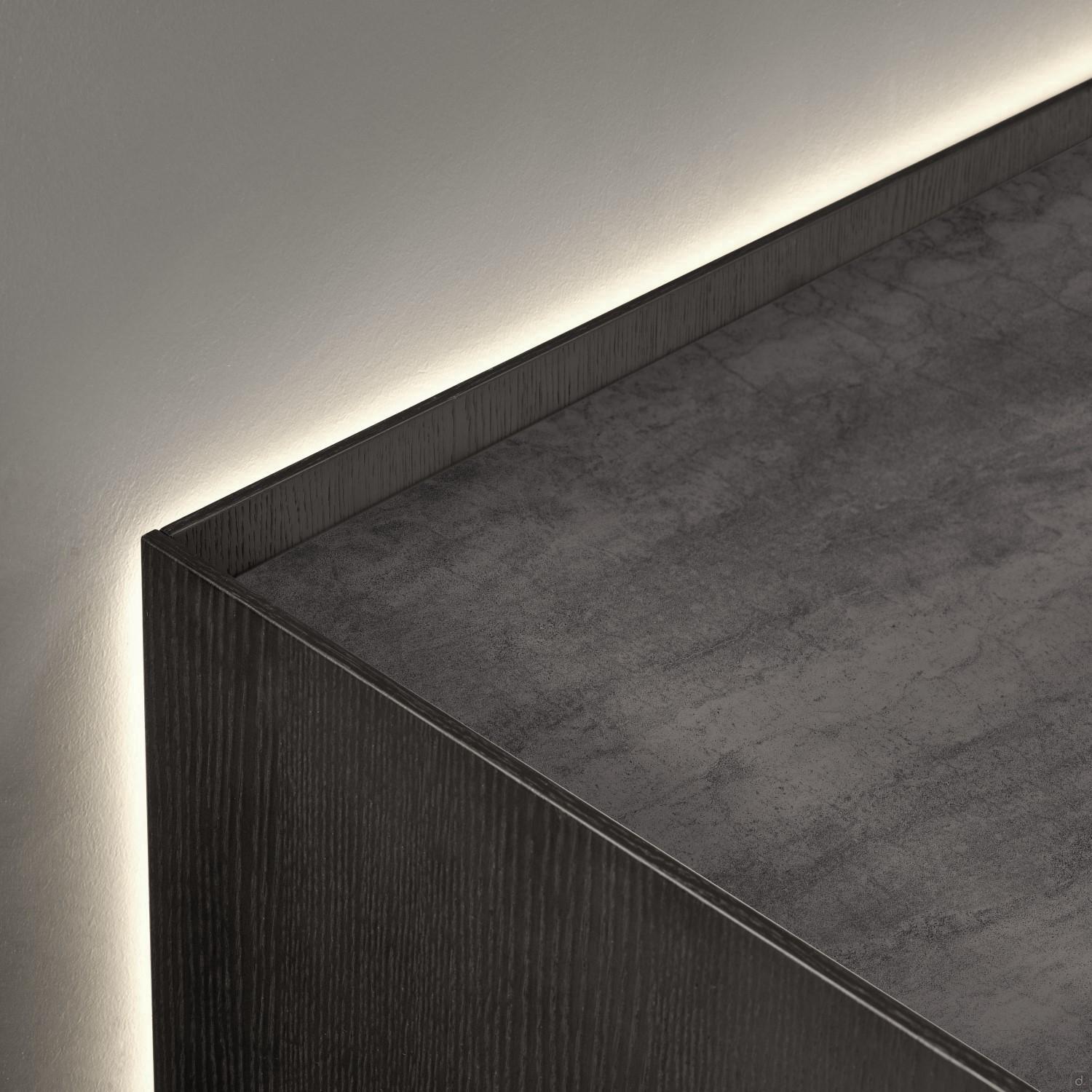

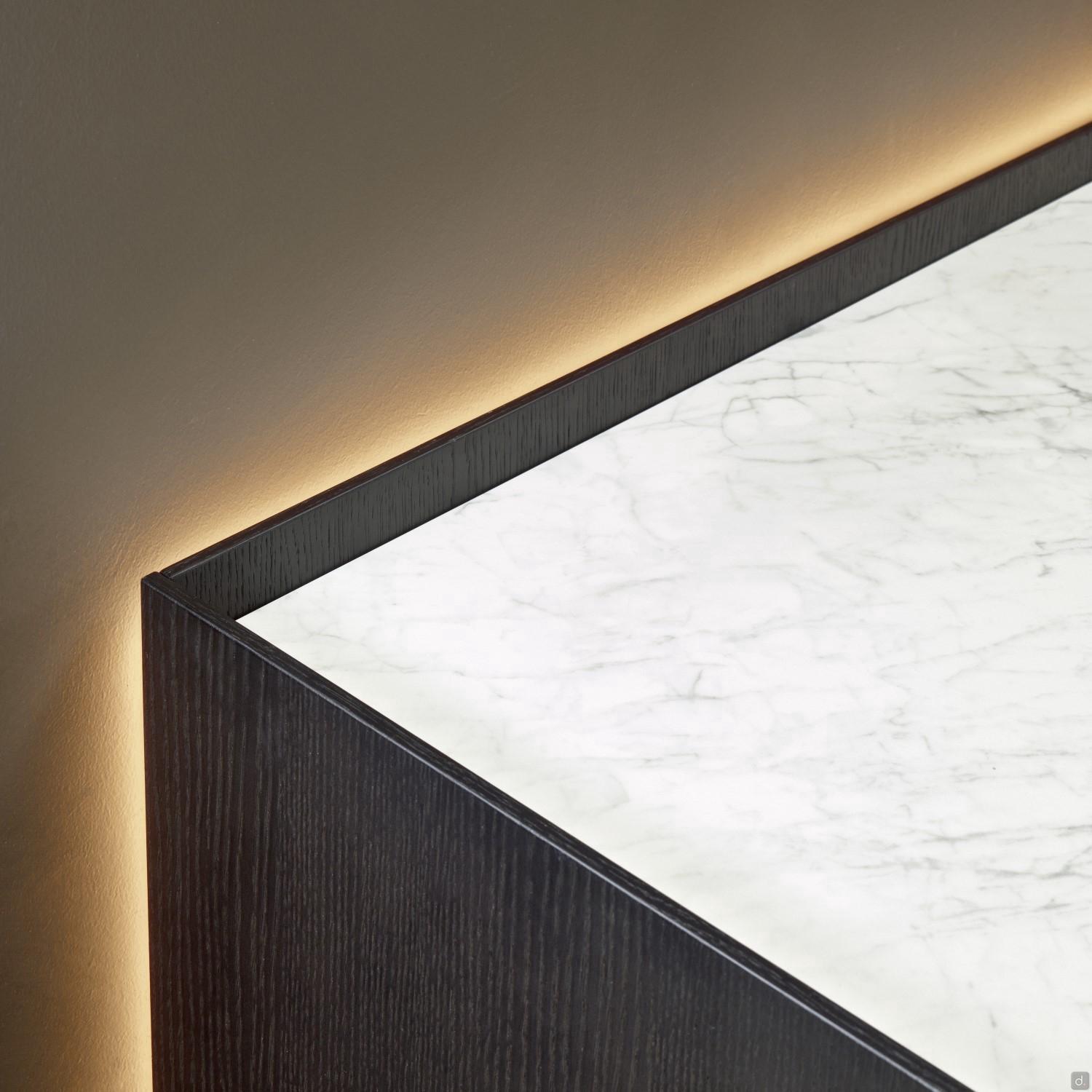

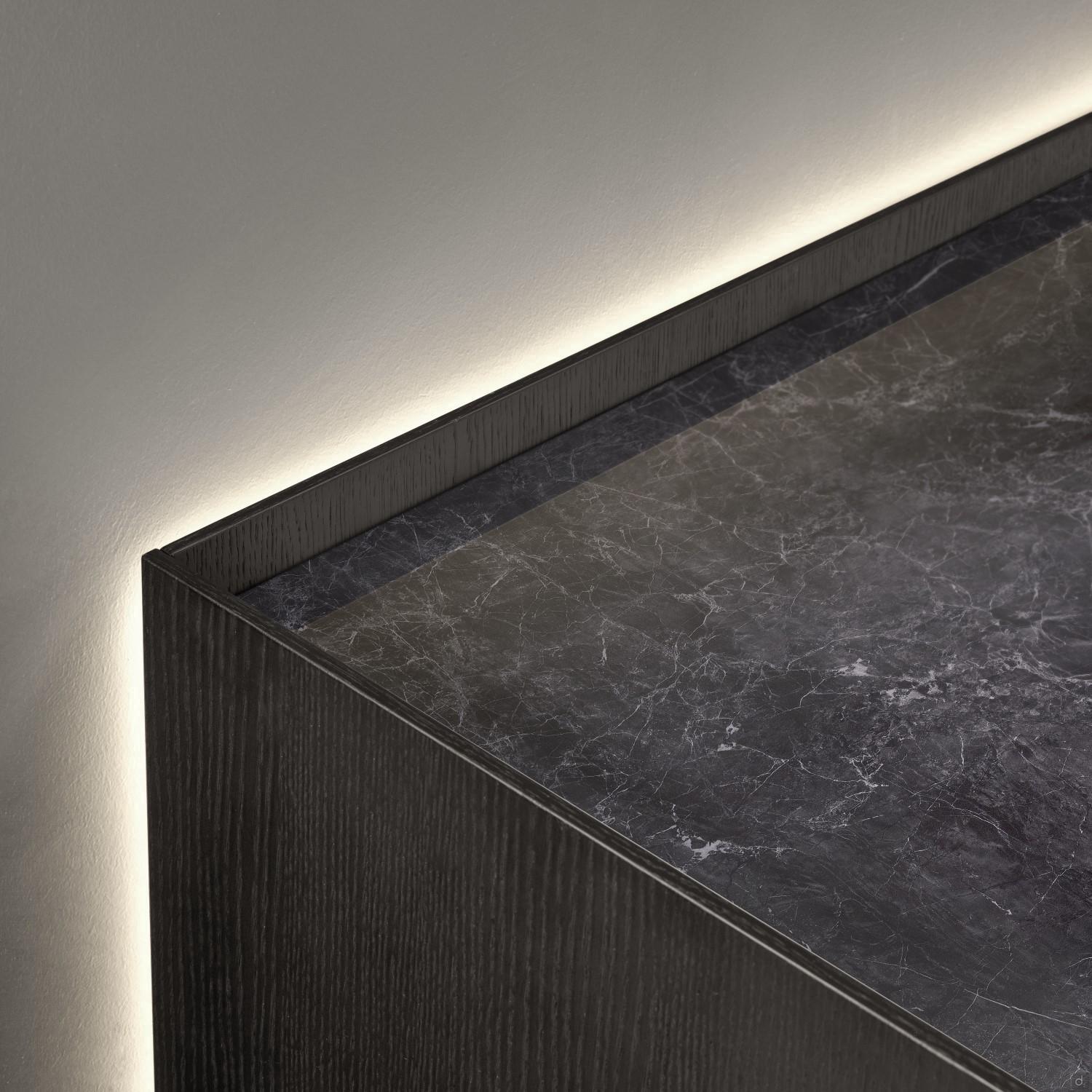

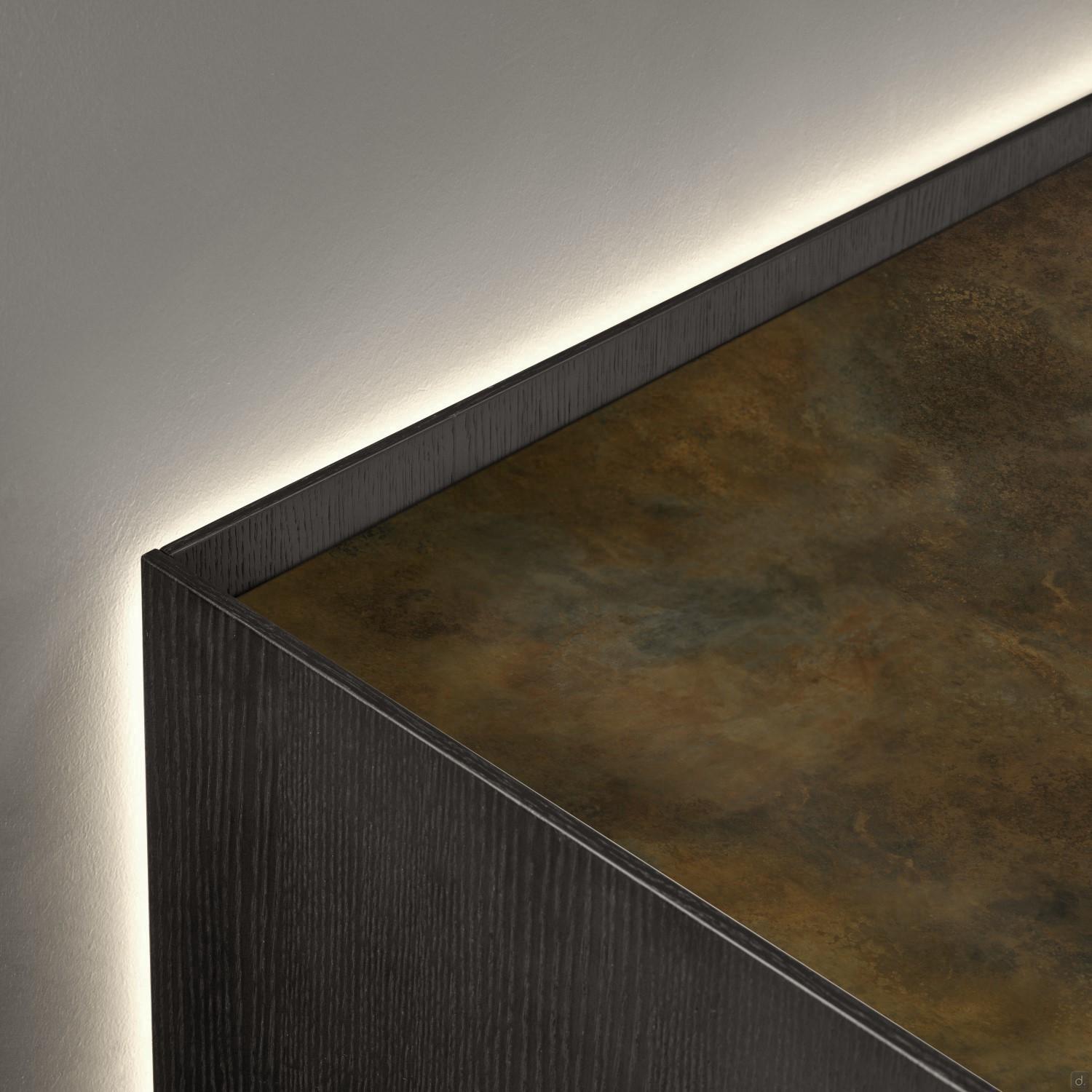

Lighting: LED light frame on 3 or 4 sides of the perimeter.
For more information...
Laminate: this is a wood-effect coating usually applied to various materials, such as melamine faced panels. This coating consists of sheets obtained by pressing together several layers of paper soaked in melamine or phenolic resins. There are different types, and aesthetically it can present itself with different aspects, such as with wooden appearances. Textural ash-effect laminate is obtained by techniques that result in a material that offers a pleasant feel, both to the touch and to the eye. There are also melamine papers that simulate wood pores by creating wrinkles on the surface, such as for example open-pore ash; in addition, this material has superior technical characteristics compared to classic laminate.
