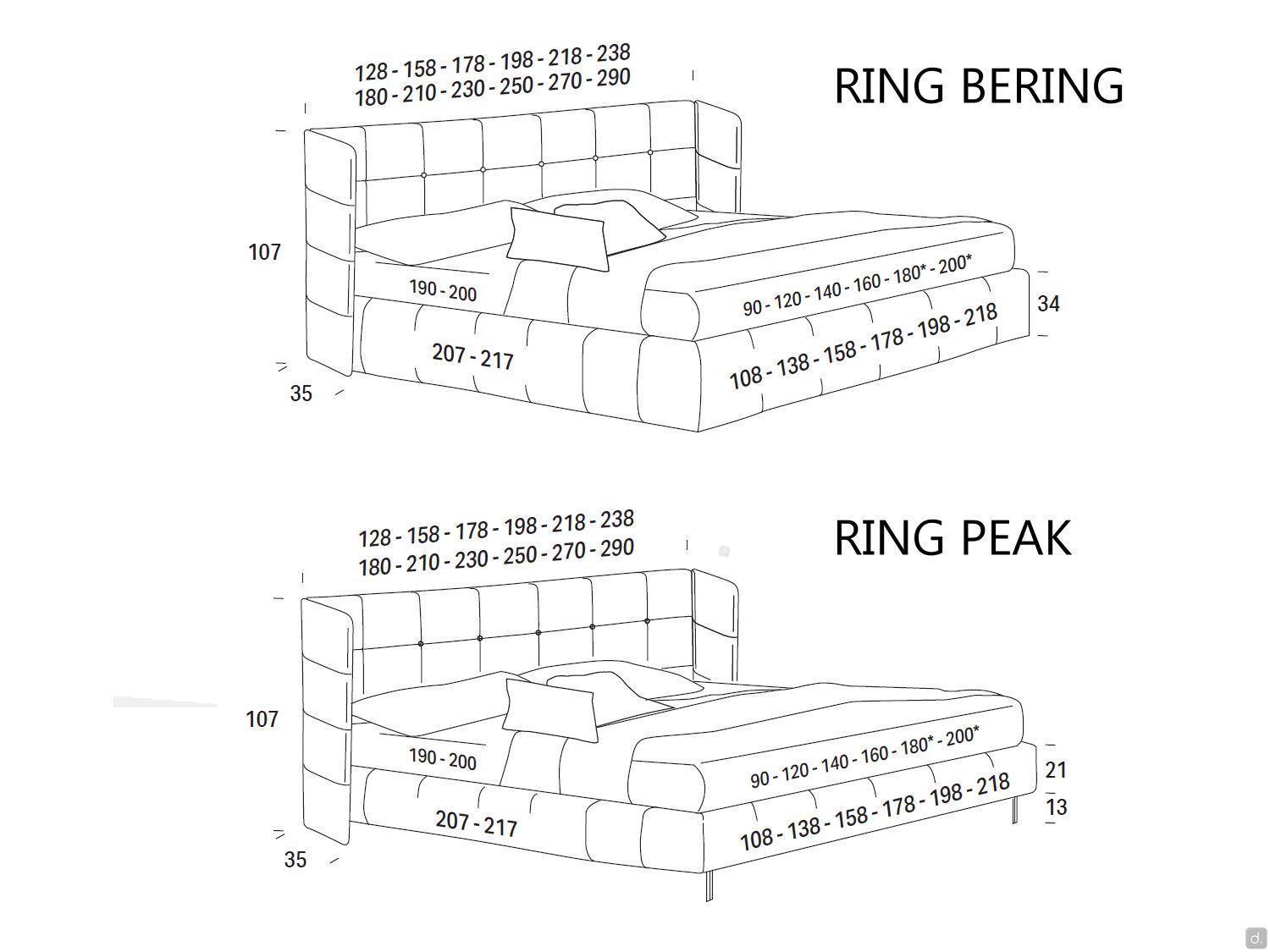

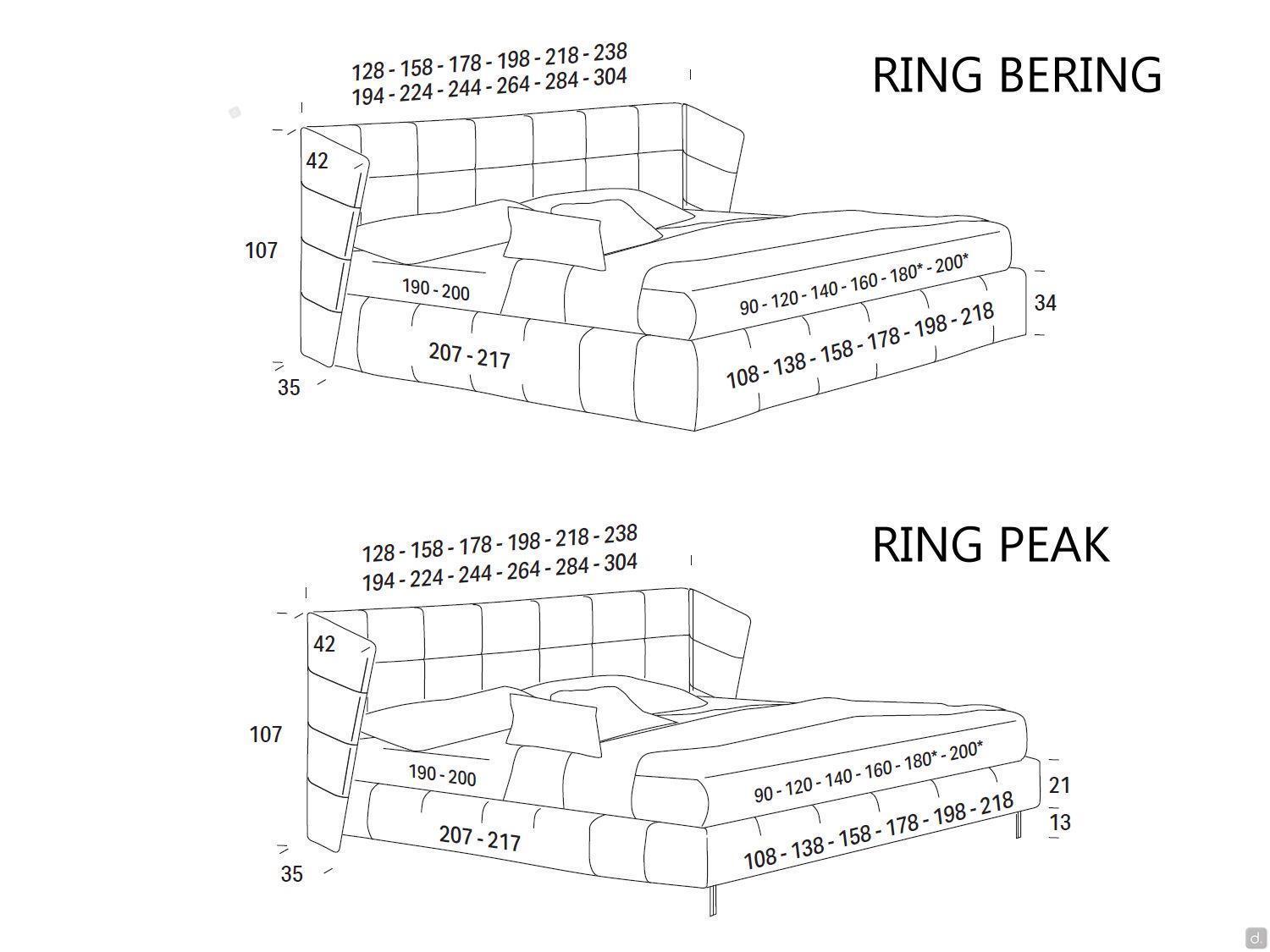

Specific Model and Measurements
Bed Frame:
- single: cm 108 h.34
- large single: cm 138 h.34
- french double: cm 158 h.34
- standard double: cm 178 h.34
- king size: cm 198 h.34
- super king size: cm 218 h.34
Bed Frame Height:
- from the ground: cm 34
- Smart: cm 31 (+ 3 cm for the legs)
- York: cm 21 (+ 13 cm for the legs)
Headboard Depth: cm 8
Technical Specifications and Equipment
Base: 68mm thick slats made of steamed beech plywood, bent with heat, with low formaldehyde emission. The slats are connected to the metal frame with silicon rubber mounts. The steel frame is a square section of 40 x 30 mm. Painted with epoxied powders.
Structure: solid fir wood and/ or caged in birch plywood. 18/25 mm thick panels made of particle birch wood in E1 class of low and natural wood fibre.
Filling: crushproof polyurethane foam with different firmness, density from 18 to 40 Kg/m³. The first layer is made of polyester foam joined with grabbing interliner made of polyester and/or batting polyester at 100% of 200 gr.
Storage Box: mm 12-14 thick panels made of particle birch wood in E1 class.

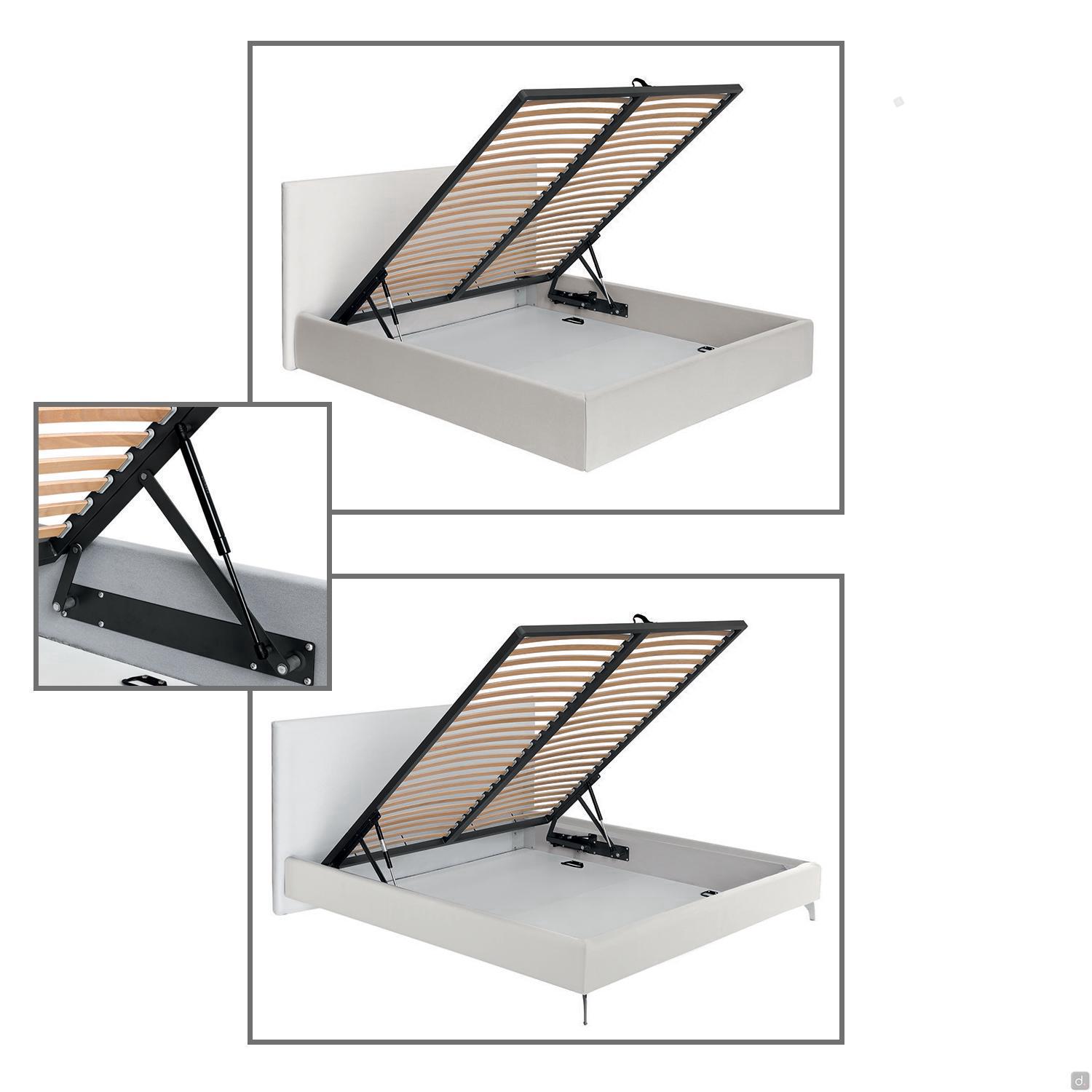

Simple Lift-up Base: traditional mechanism certified and tested up to 5.000 cycles, allows you to lift the bed base at 45°. Metal structure painted in epoxied powders with gas springs set on mattress weight.

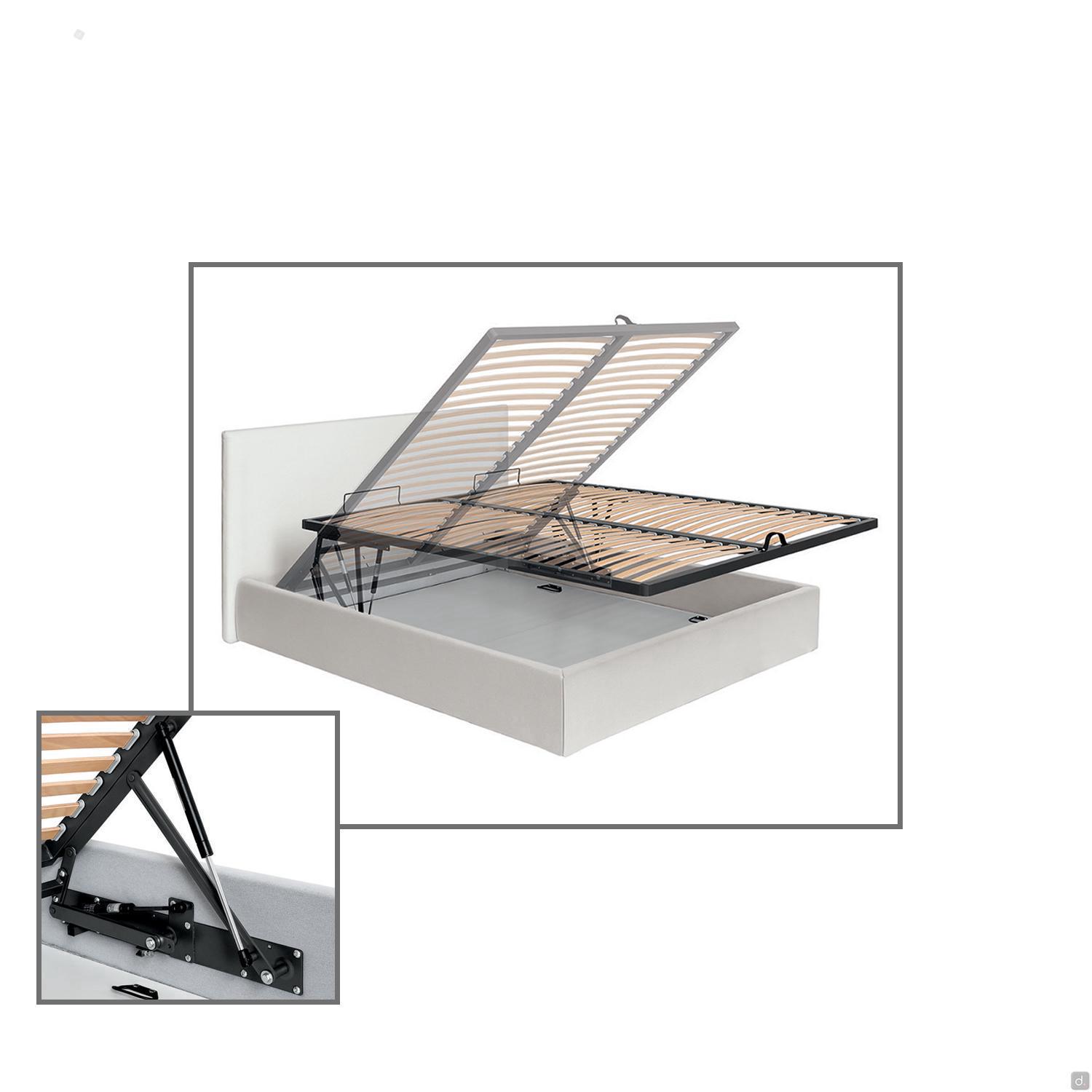

Double Lift-up Base: tested up to 4.000 cycles with assisted mechanism, allows you to lift the bed base at 45° and then raised it flat at a convenient height (m h.1). In this way, you can access the box easily and don't have to bend over the bed to make it or get into uncomfortable positions. Metal structure painted in epoxied powders with gas springs set on mattress weight.

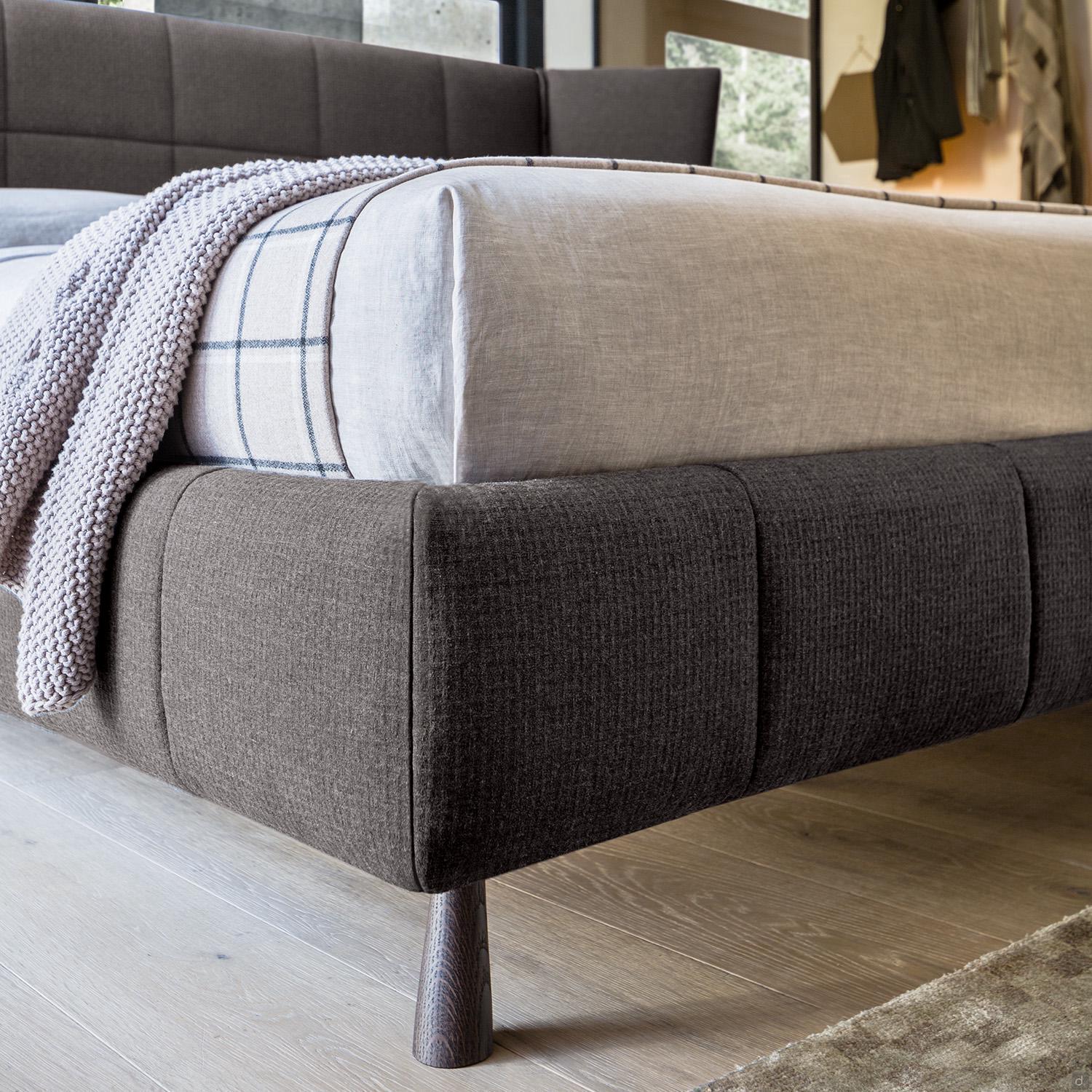

Legs:
Basic standard: n.4 legs made of regenerated or recyclable polypropylene, available in wengé, black, white or silver. Height cm 3.
Lux: n.4 L-shaped legs for overall sizes of cm 18 x 18 h.3. Available in varnished, natural beech in wengé, black, matt white or chromed.
Twinny: n.2 ‘double-stiletto’ legs in glossy chrome, glossy carbon look or matt black. Height: cm 13.
Baobab: n.2 legs in solid wood, available in natural oak, tobacco oak or London oak. Height: cm 13.
Optional
Remove Bed Base: bed can be purchased without base - only for models without storage box.

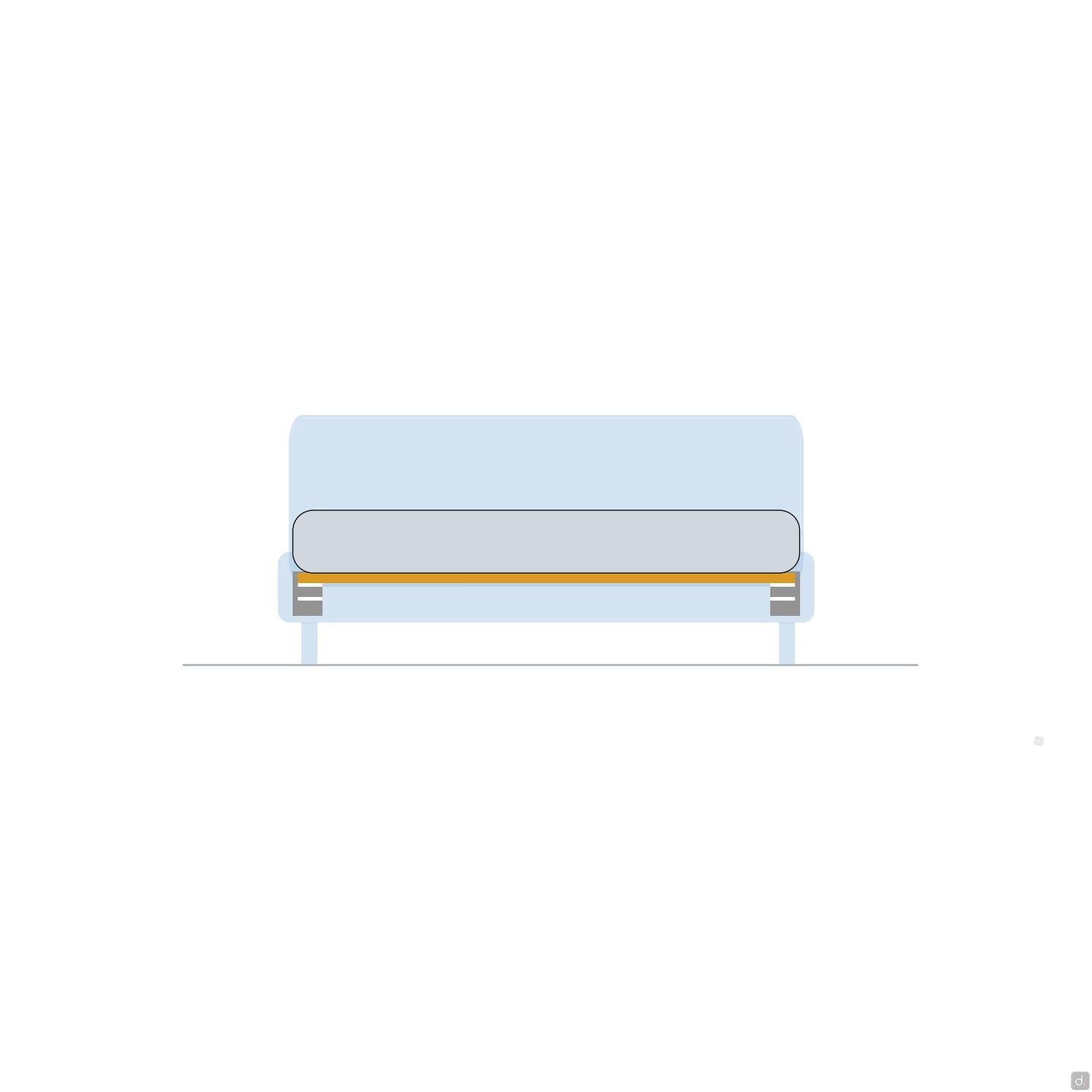

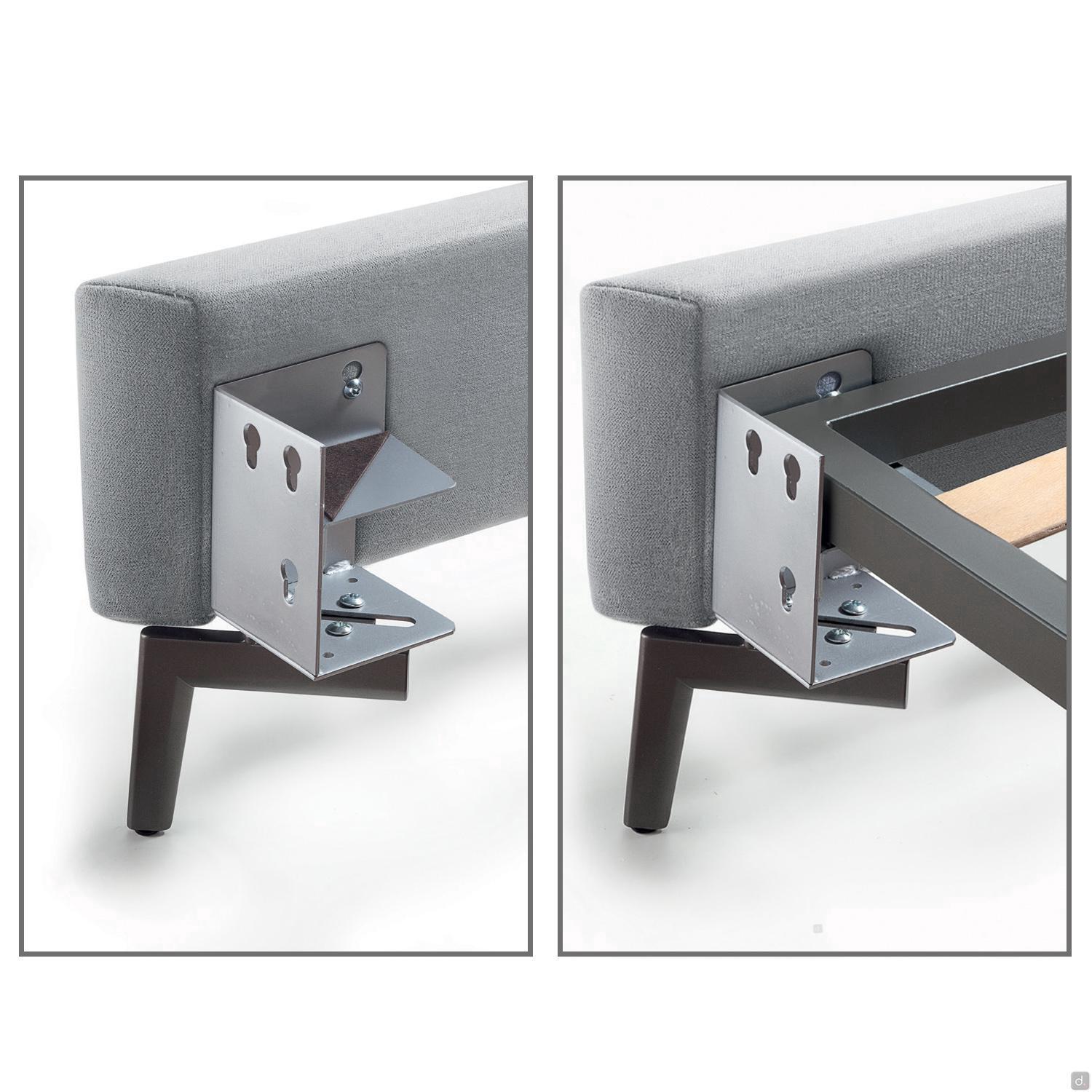

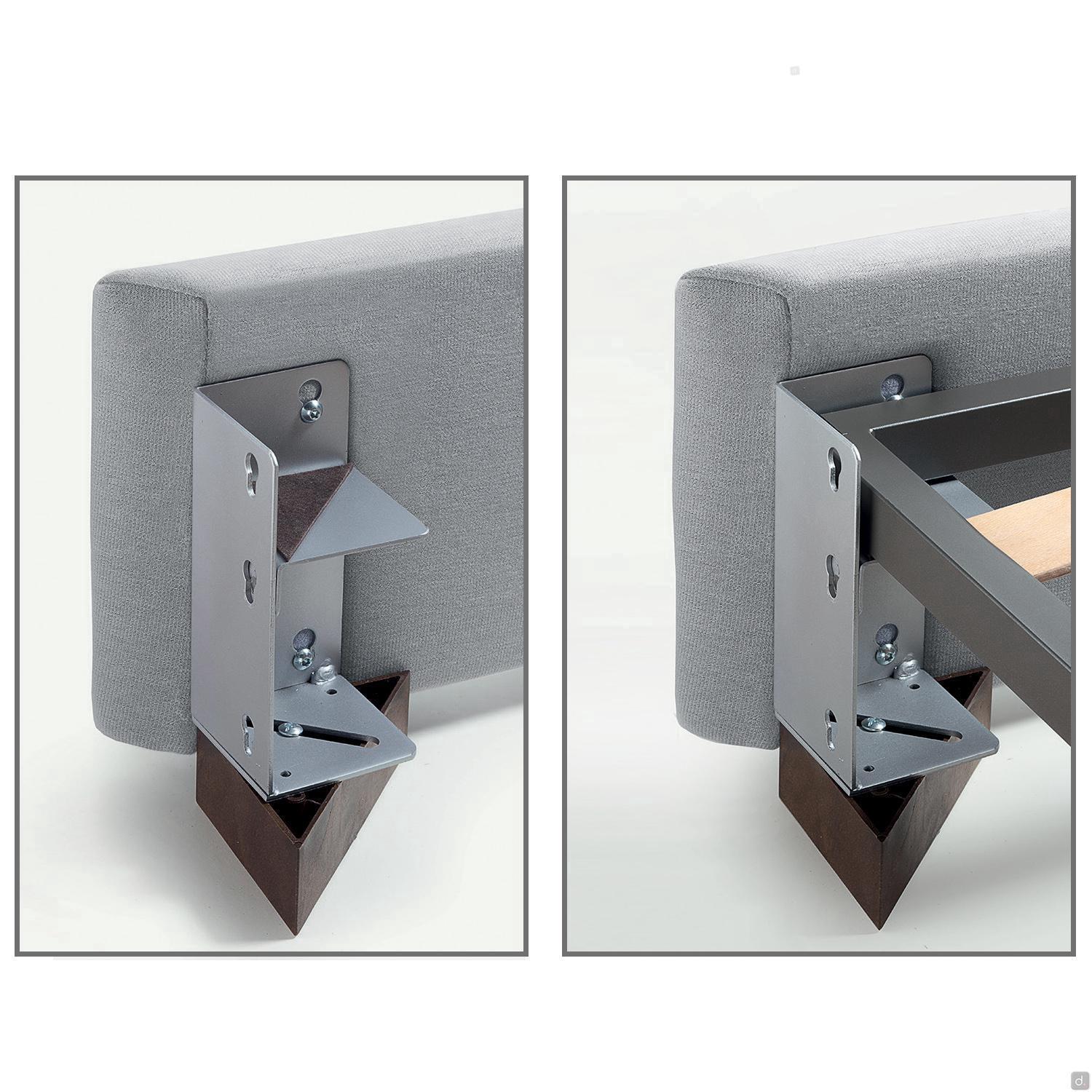

Set of Angular Supports: available for models with mechanical bed base or without bed base. The supports allow you to adjust the height of the bed base and have a mattress that is deeper or slimmer than the bed frame. The three possible heights are cm 5, cm 6 and cm 12.

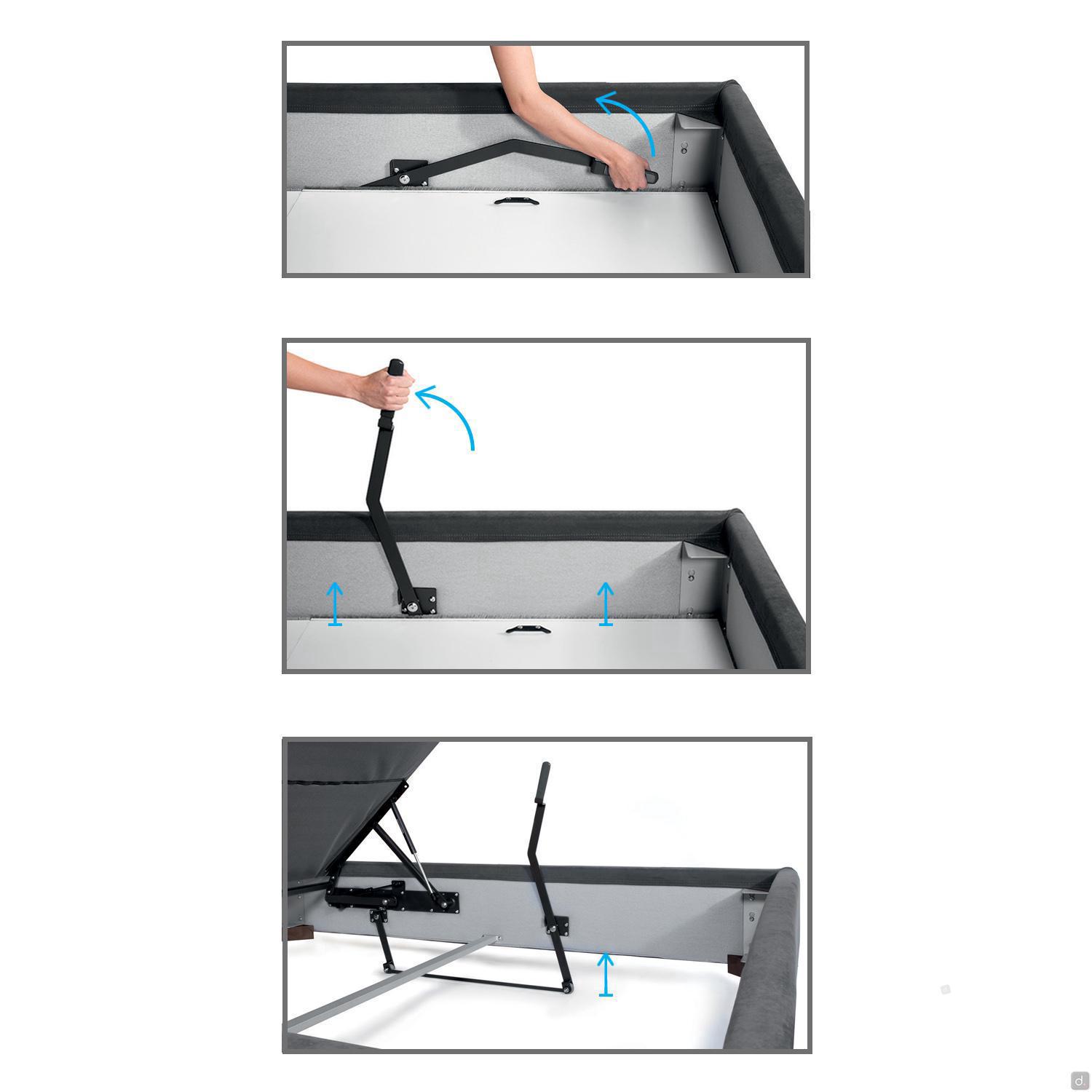

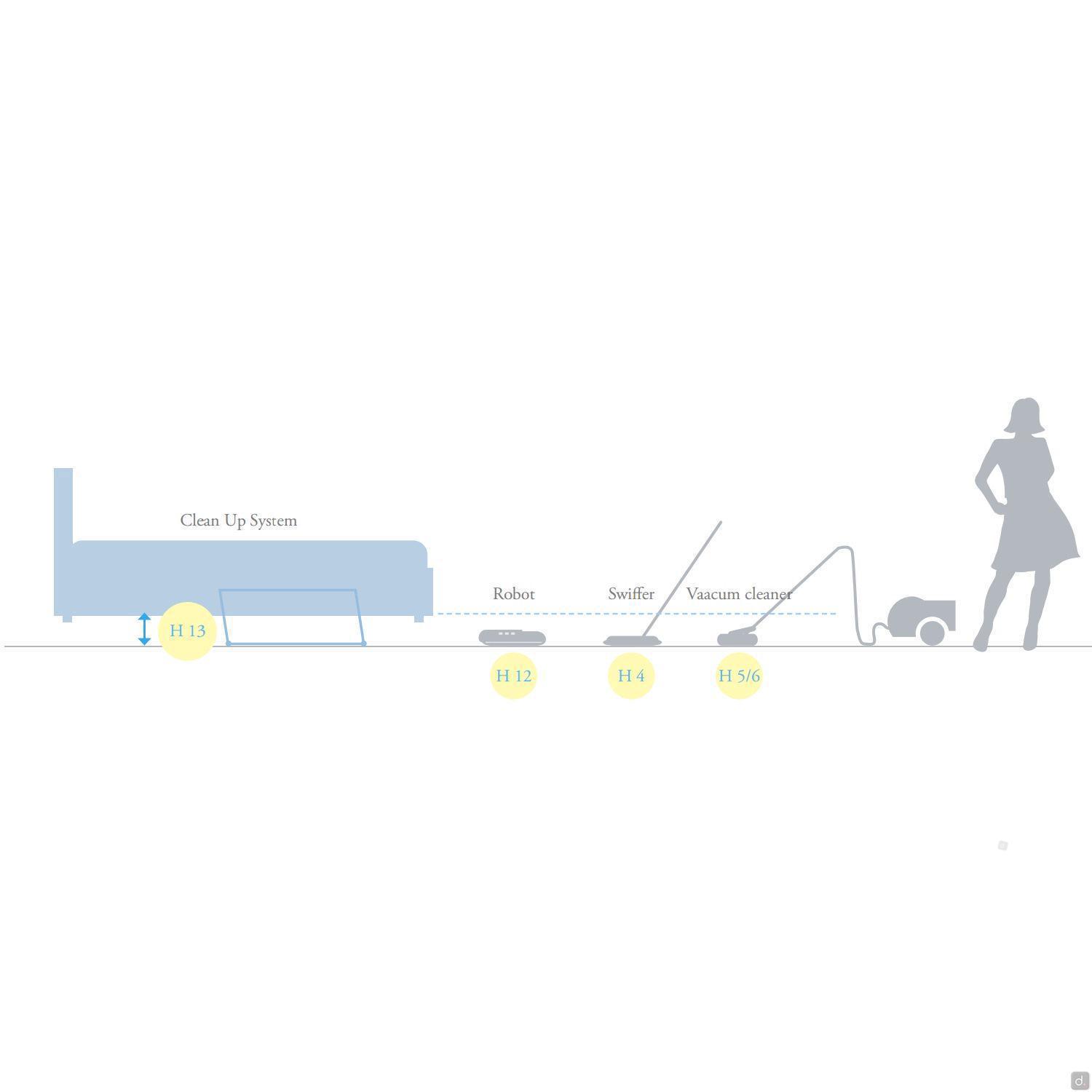

Clean Up System: is a mechanism that allows you to lift the 13cm high storage bed models and move the whole structure, without effort, by operating two hidden levers assembled on the sides of the bed frame. In this way, 4 no-marks rubber casters lower down and the whole bed is raised of cm h. 13; can be moved back and forth effortlessly. When the levers are lowered down, the casters disappear and the bed rests again on its feet. Easy, handy and safe. Only available for the Smart bed frame model.
Storage Caddy: an elegant, convenient and useful solution that is applied to the bed frame with Velcro. The caddy is divided into different compartments so you can store magazines, books, tablets, mobiles, headphone or glass cases.
Assembly Tips
Easily assembled. Assembly and maintenance instructions provided.
The bed is delivered with the mechanisms already fastened onto the side rails of the bed, for the storage beds, and the covered headboard. Provided with Catas certification, the Italian institute for certification, research and tests in the wood furniture and industrial field.
