Technical Specifications and Equipment
Wall Panel: in MDF cm th.1,8. Panel equipped with wall mouting hardware 0,8 cm of technical space. Panels can be smooth or customised (only for finishes in matt lacquer, open-pore oak wood):

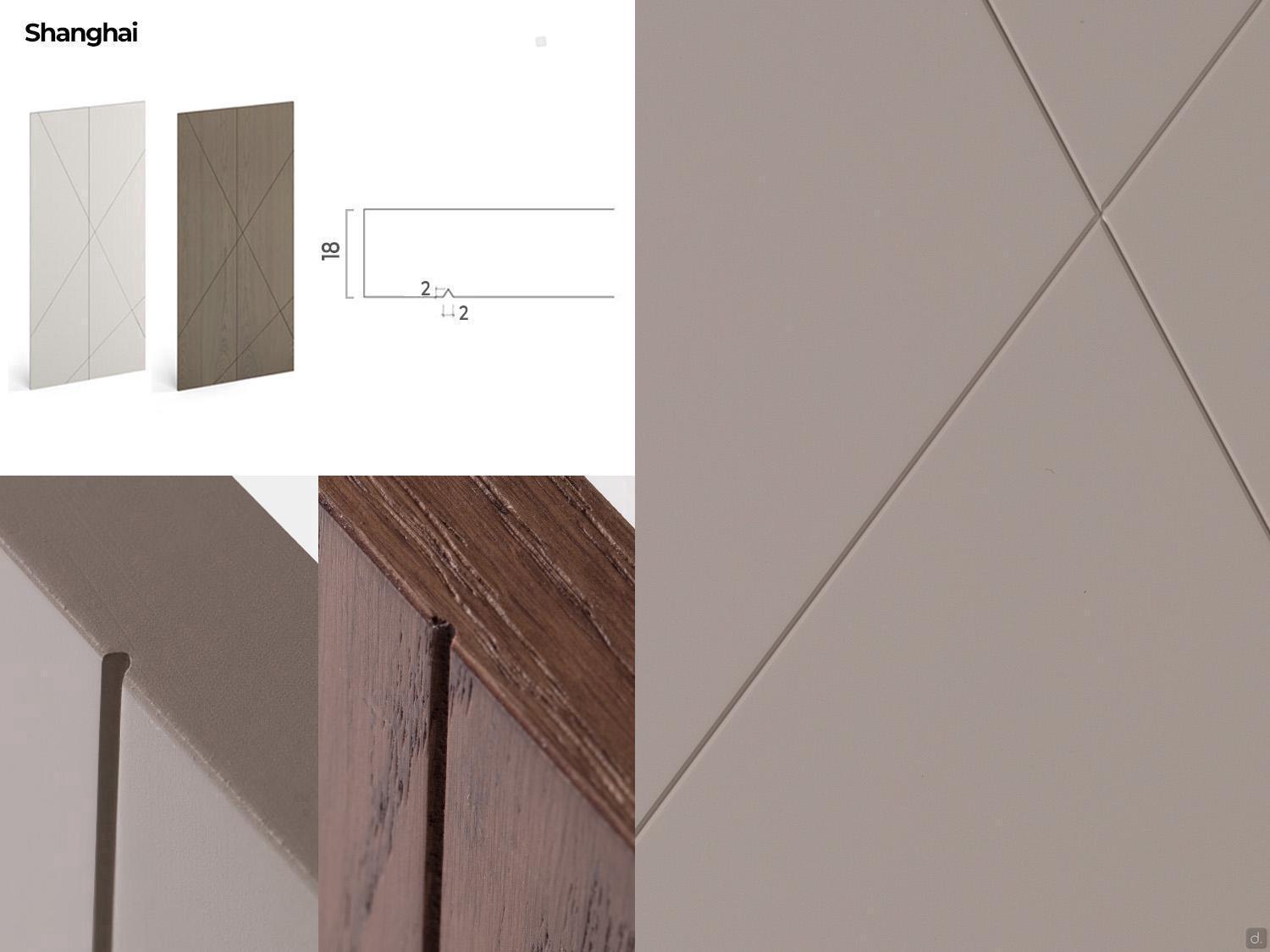

- Shanghai: diagonal "V" incisions 0.2 cm thick.

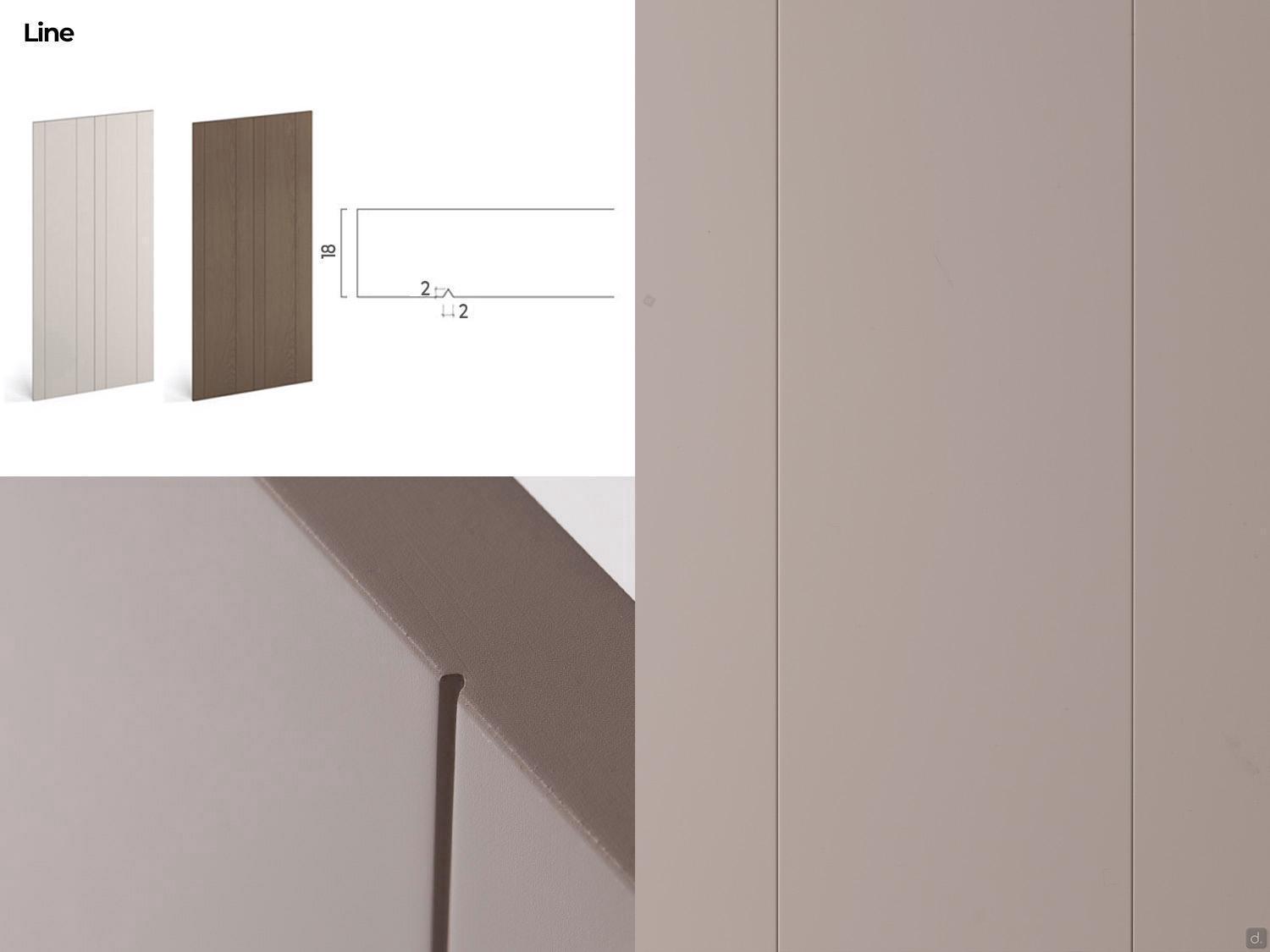

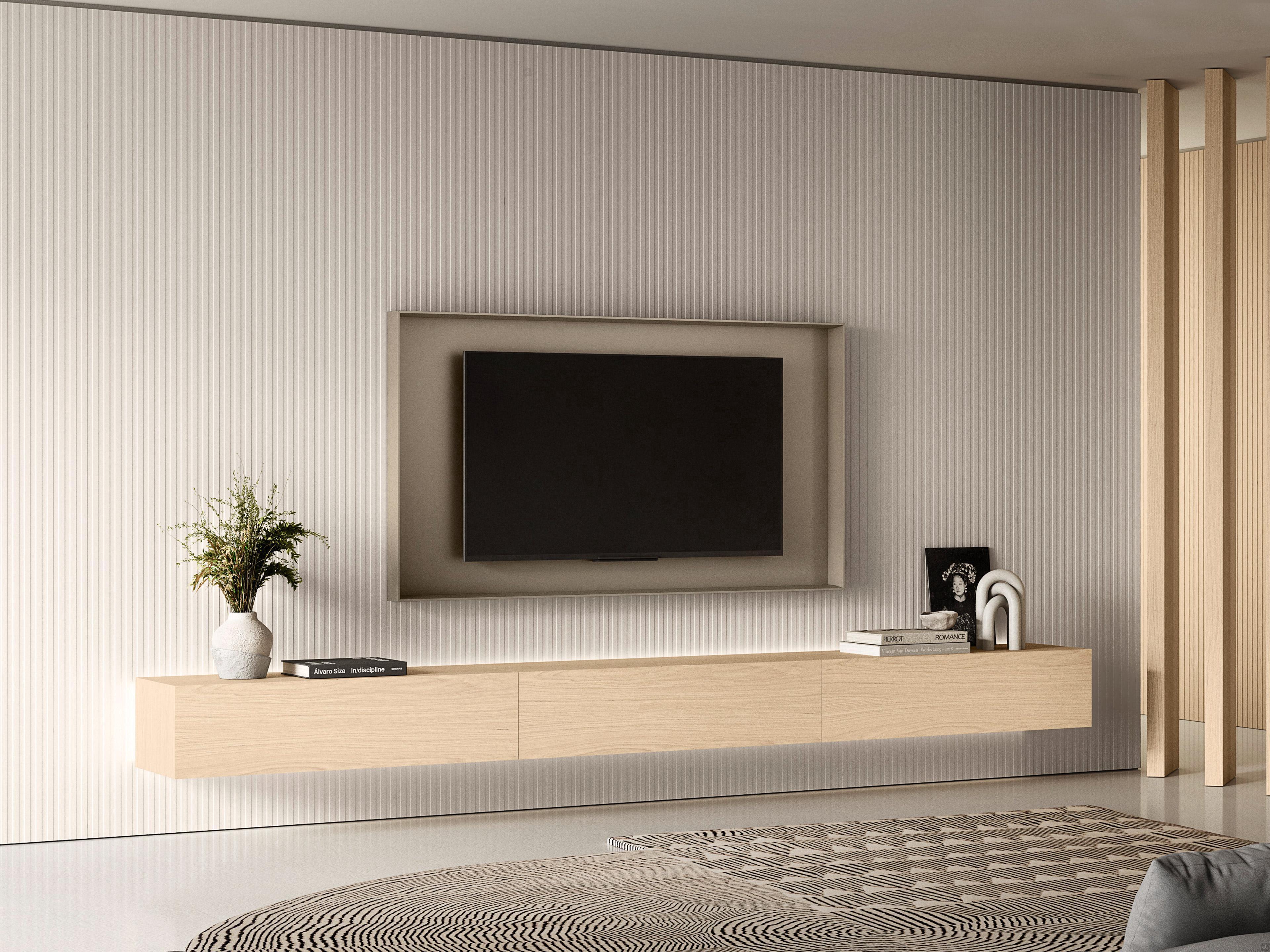

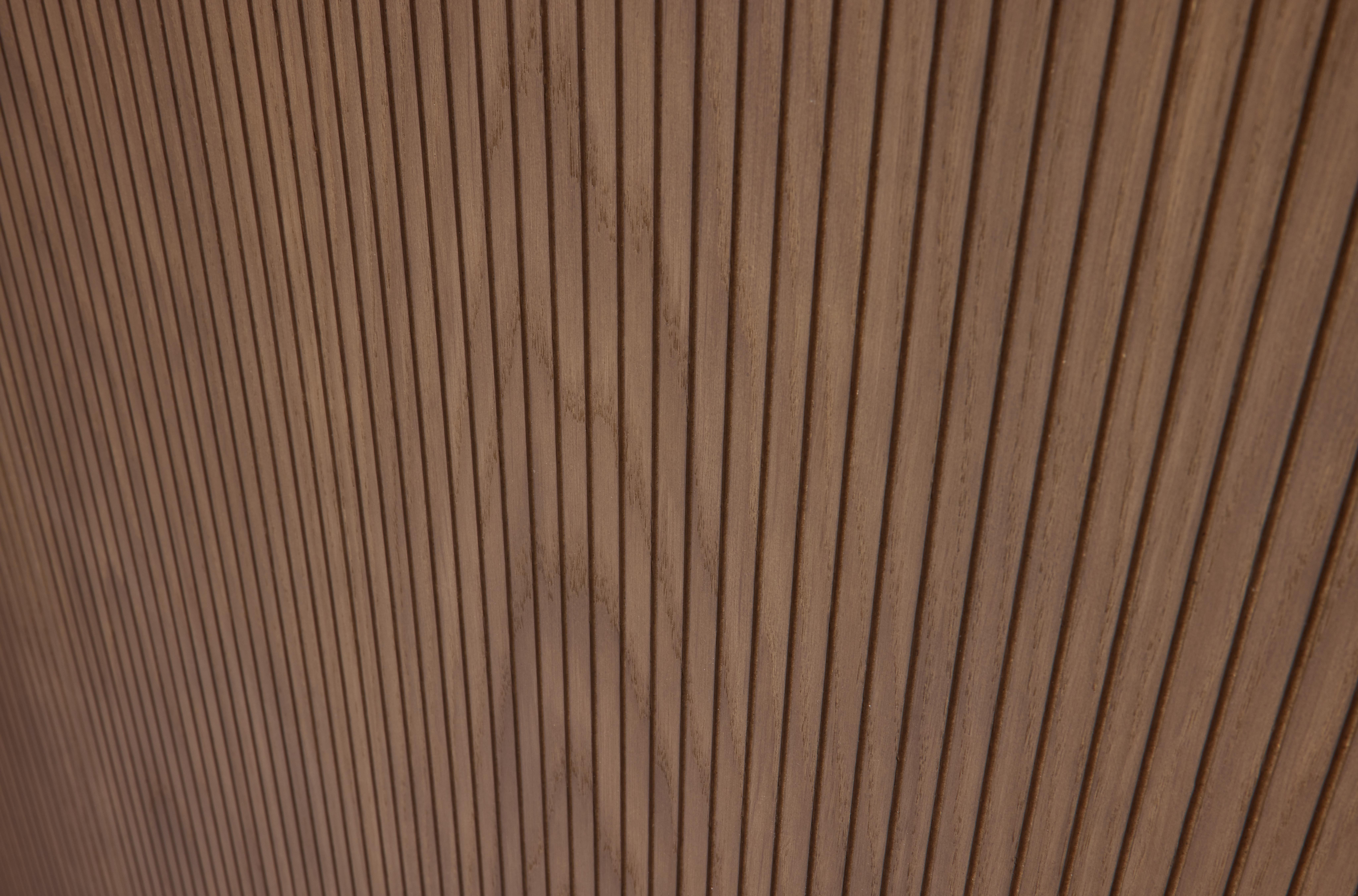

- Line: vertical "V" incisions 0.2 cm thick

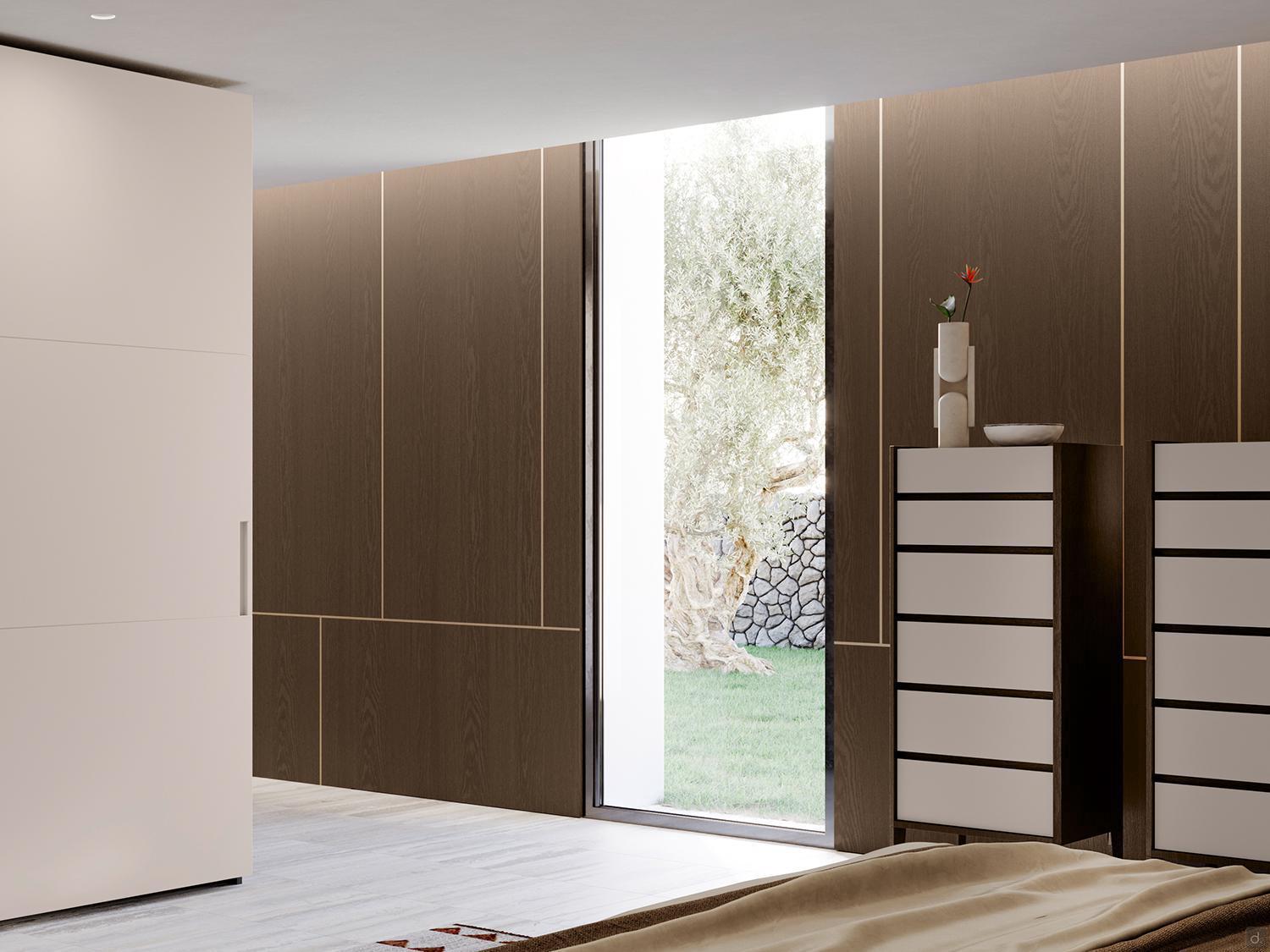

- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

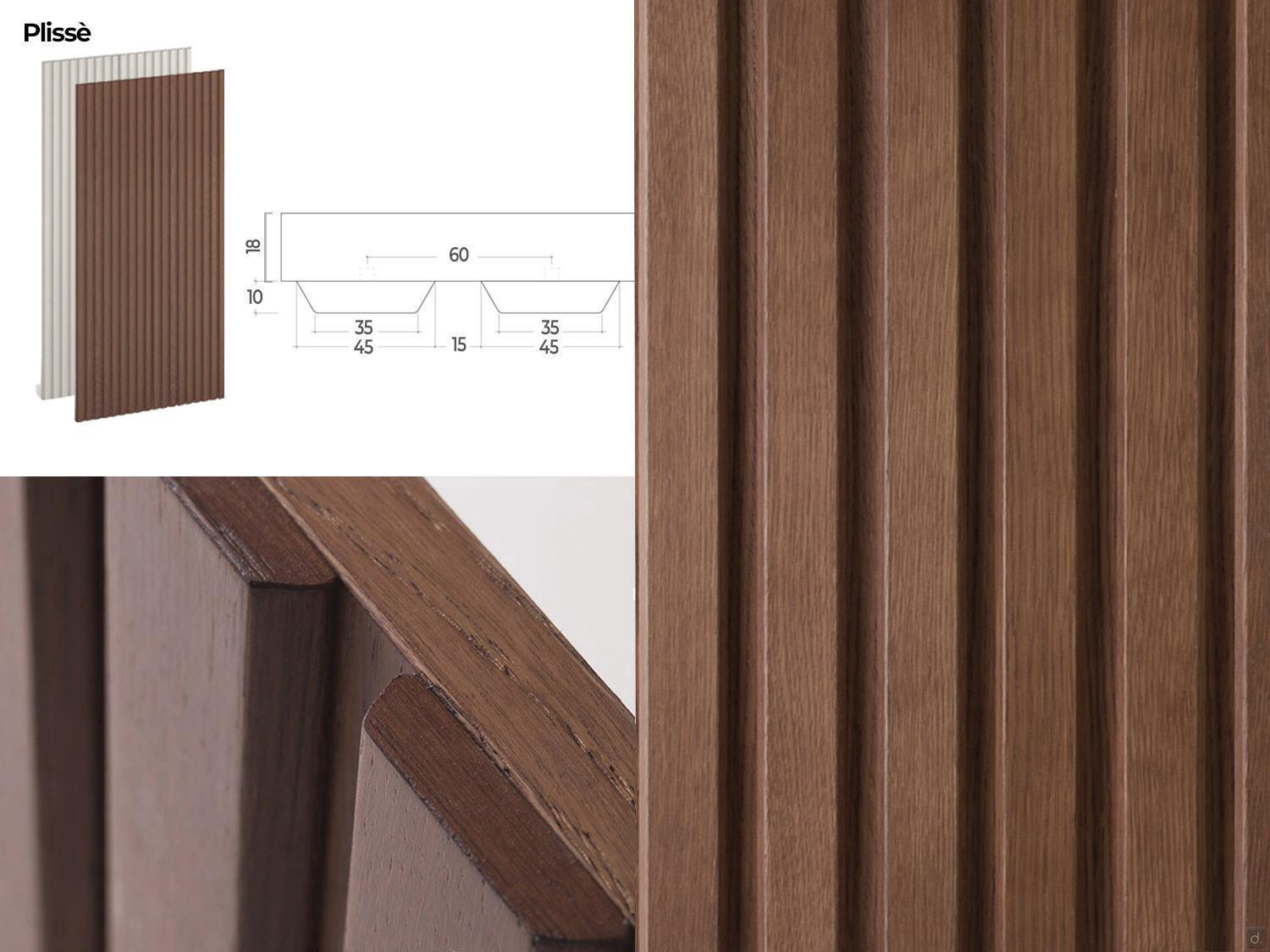

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

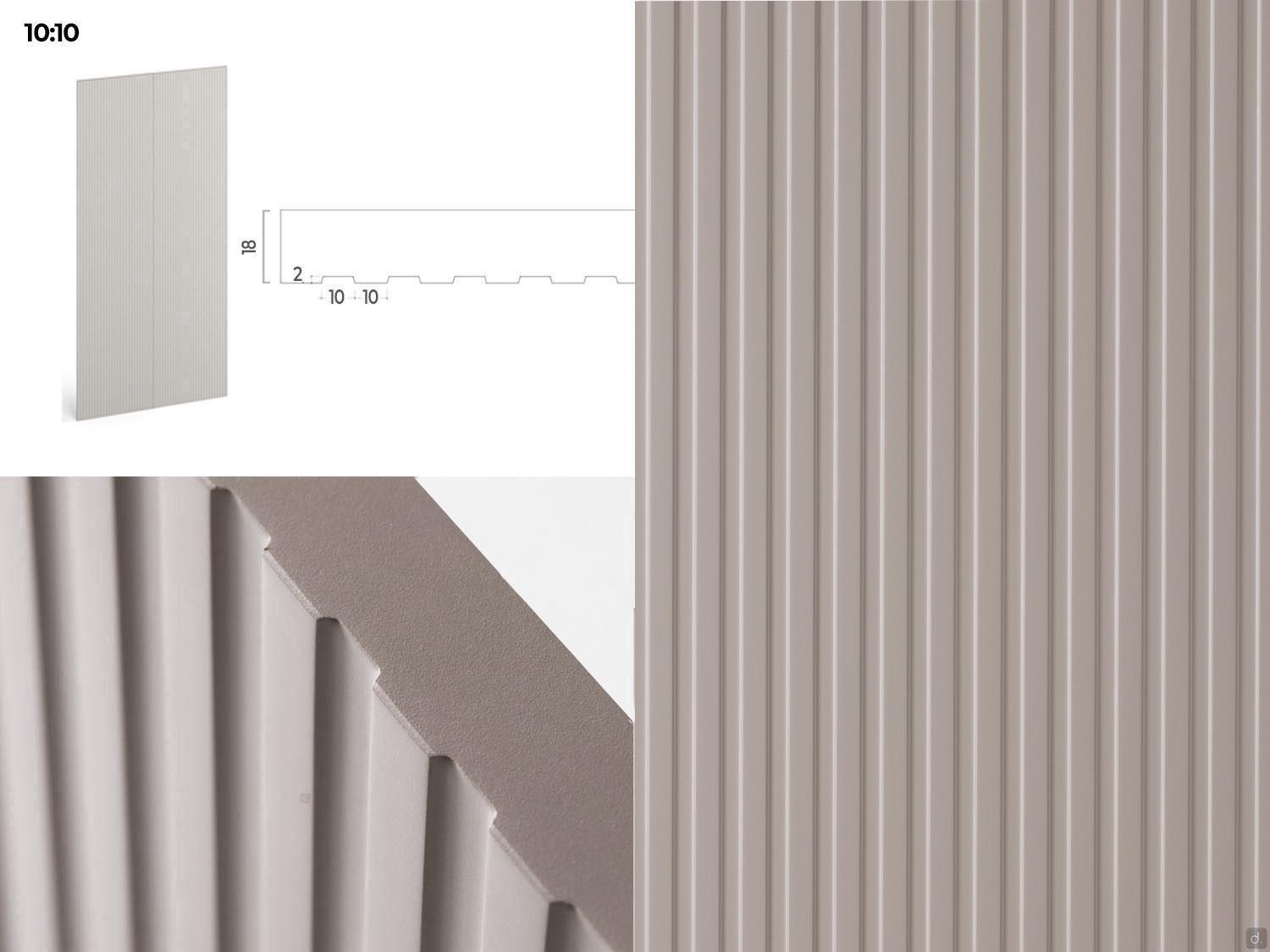

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

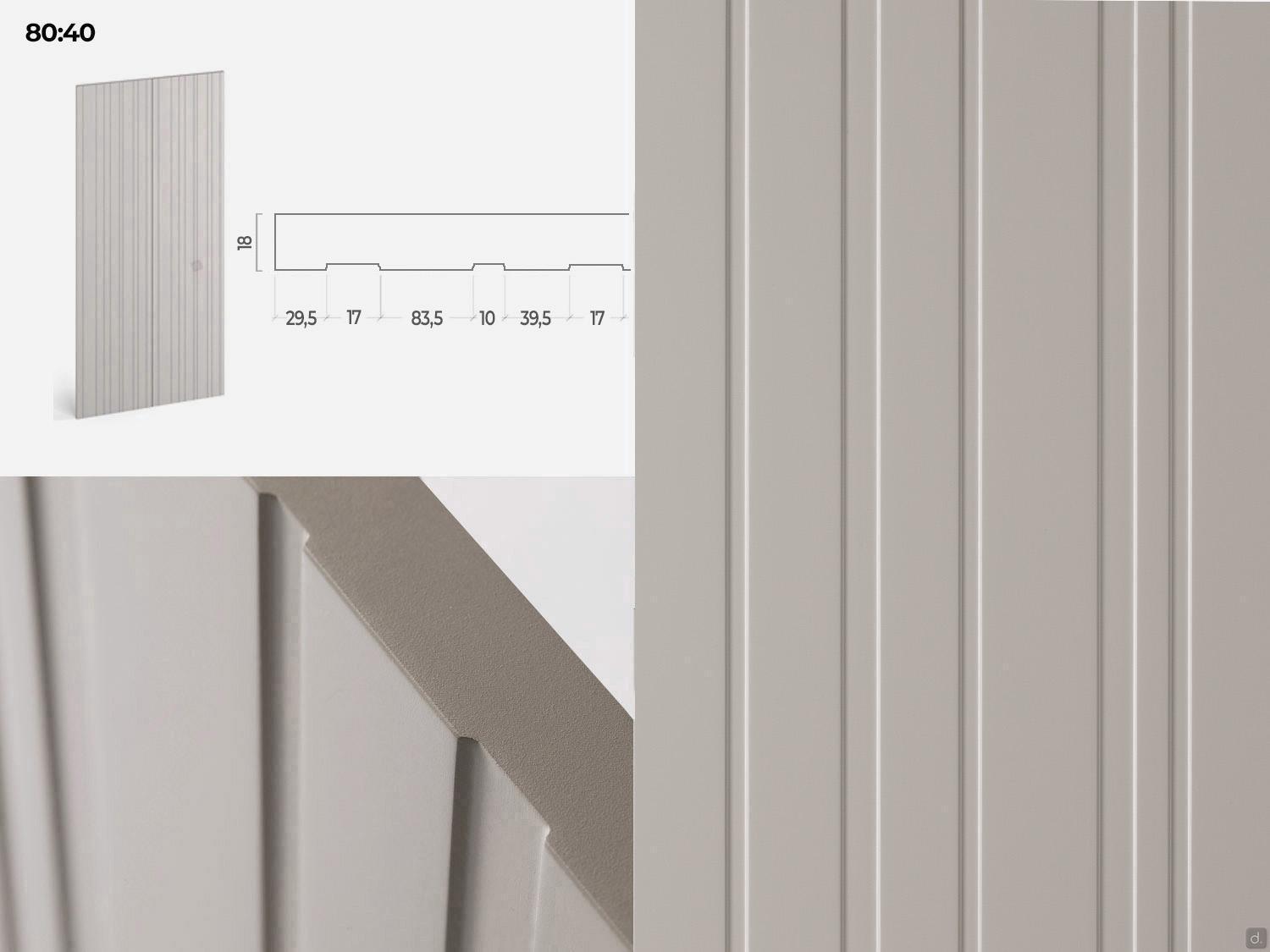

- 80:40 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 with variable spacing
- 10:2: vertical "V" incisions cm 0,2 thick.

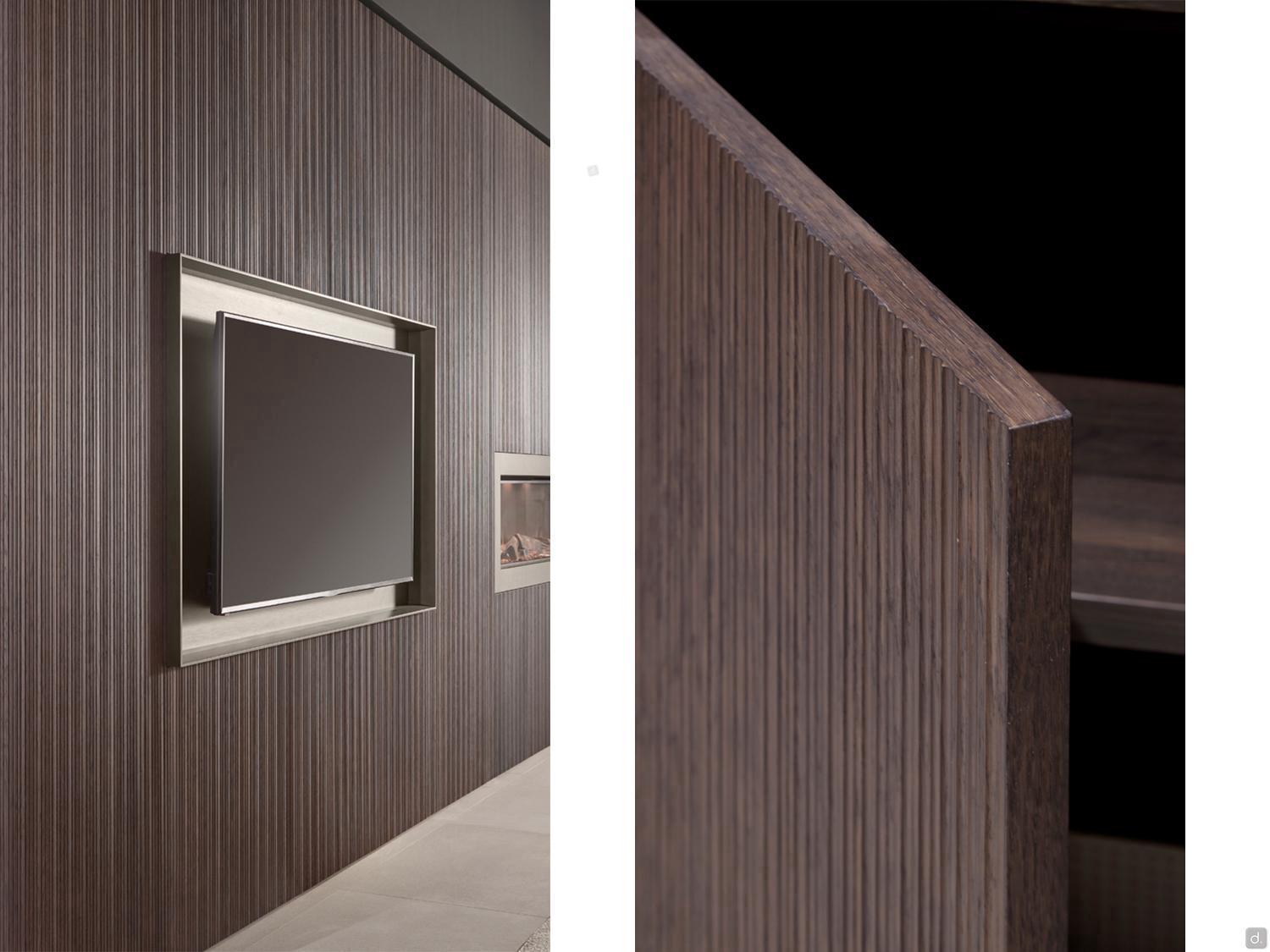

Panels also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.

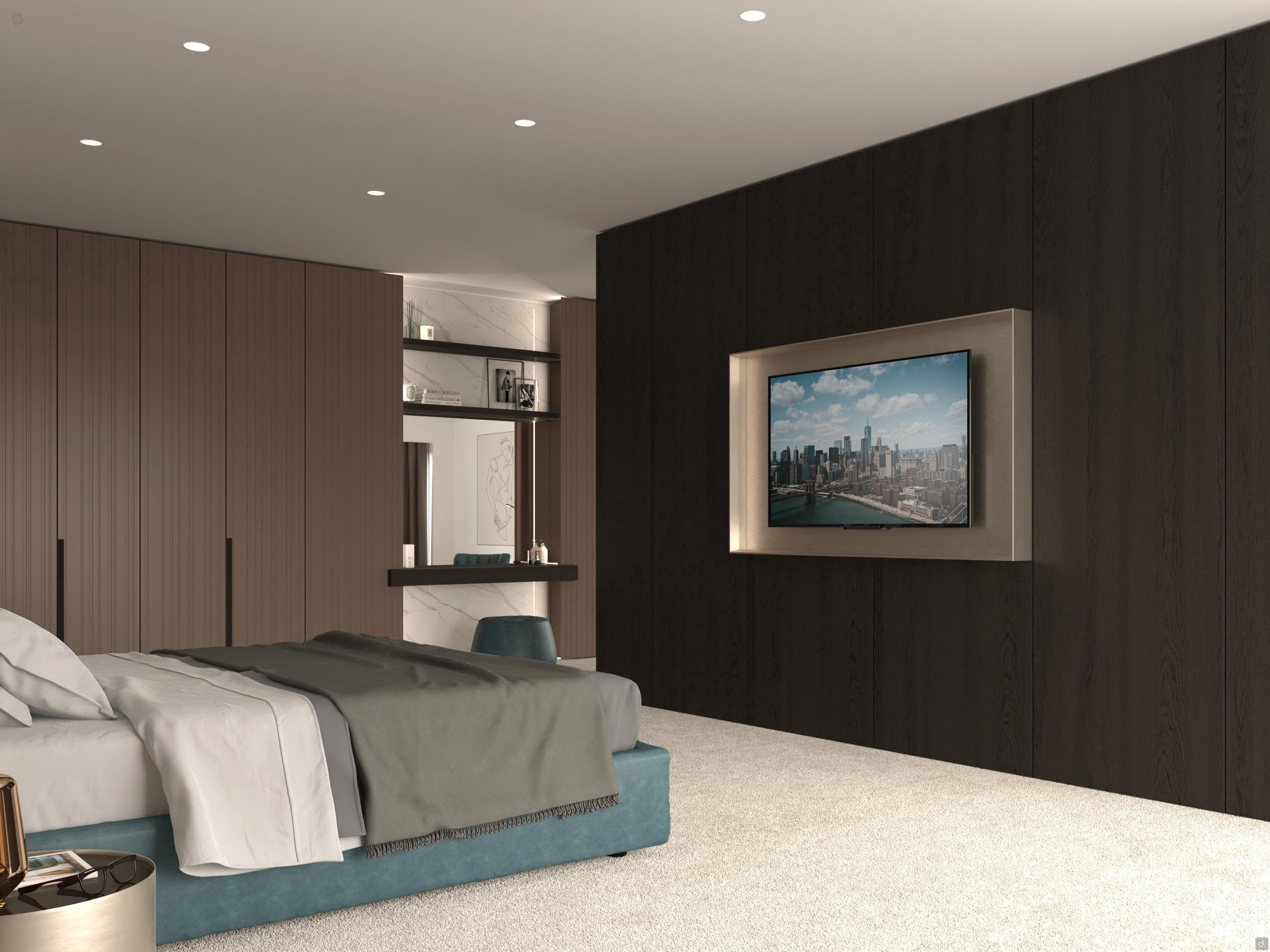

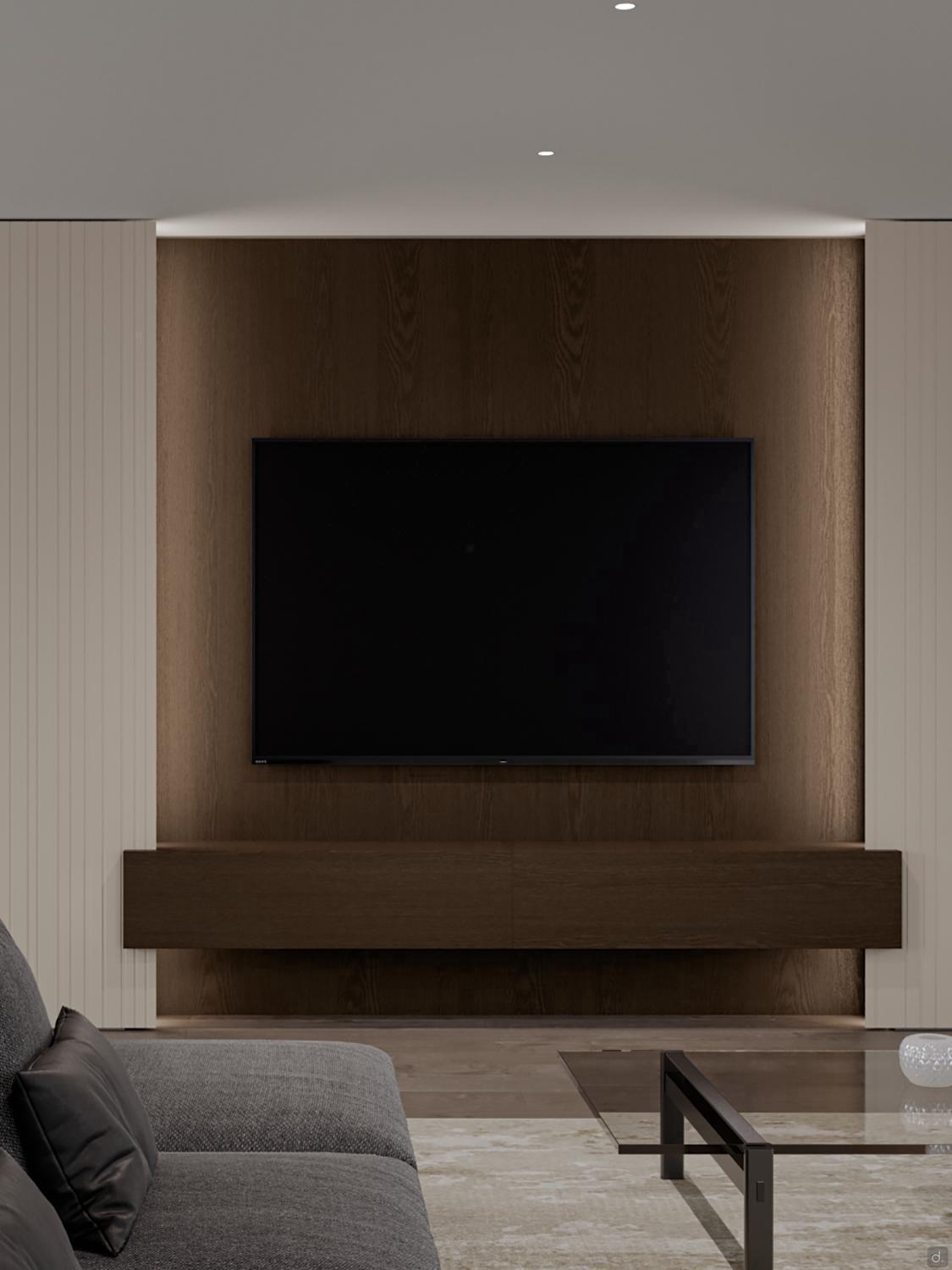

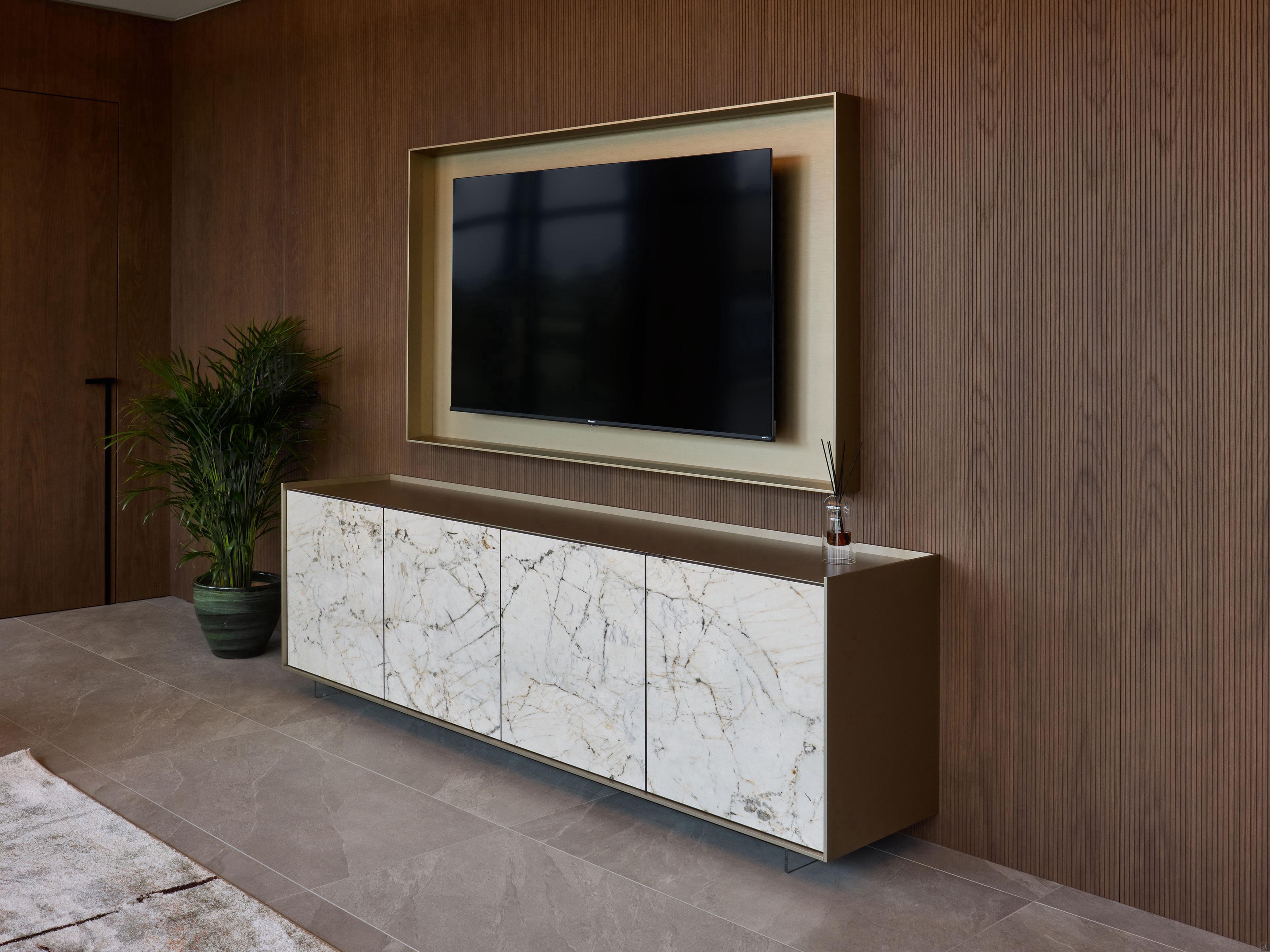

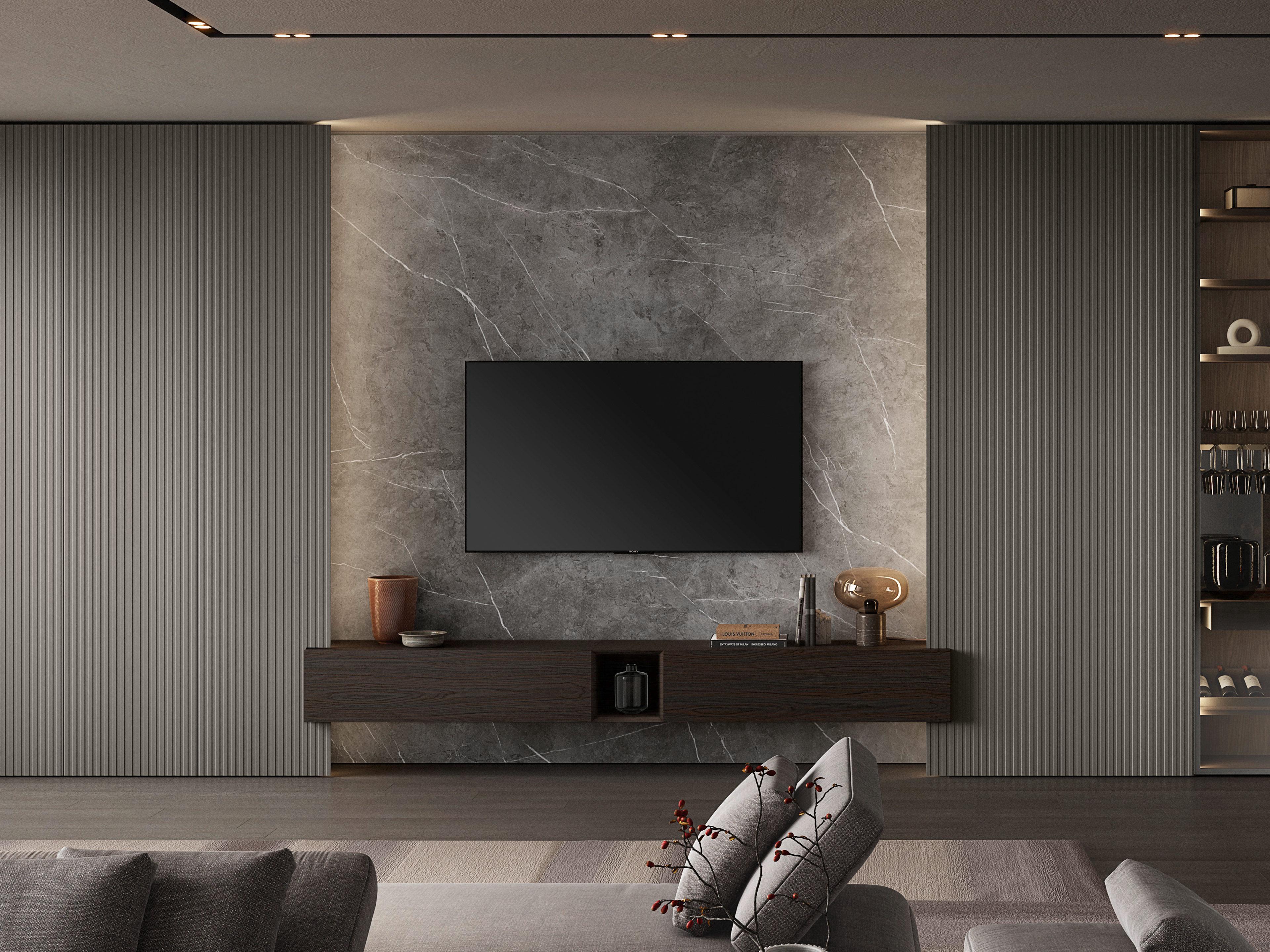

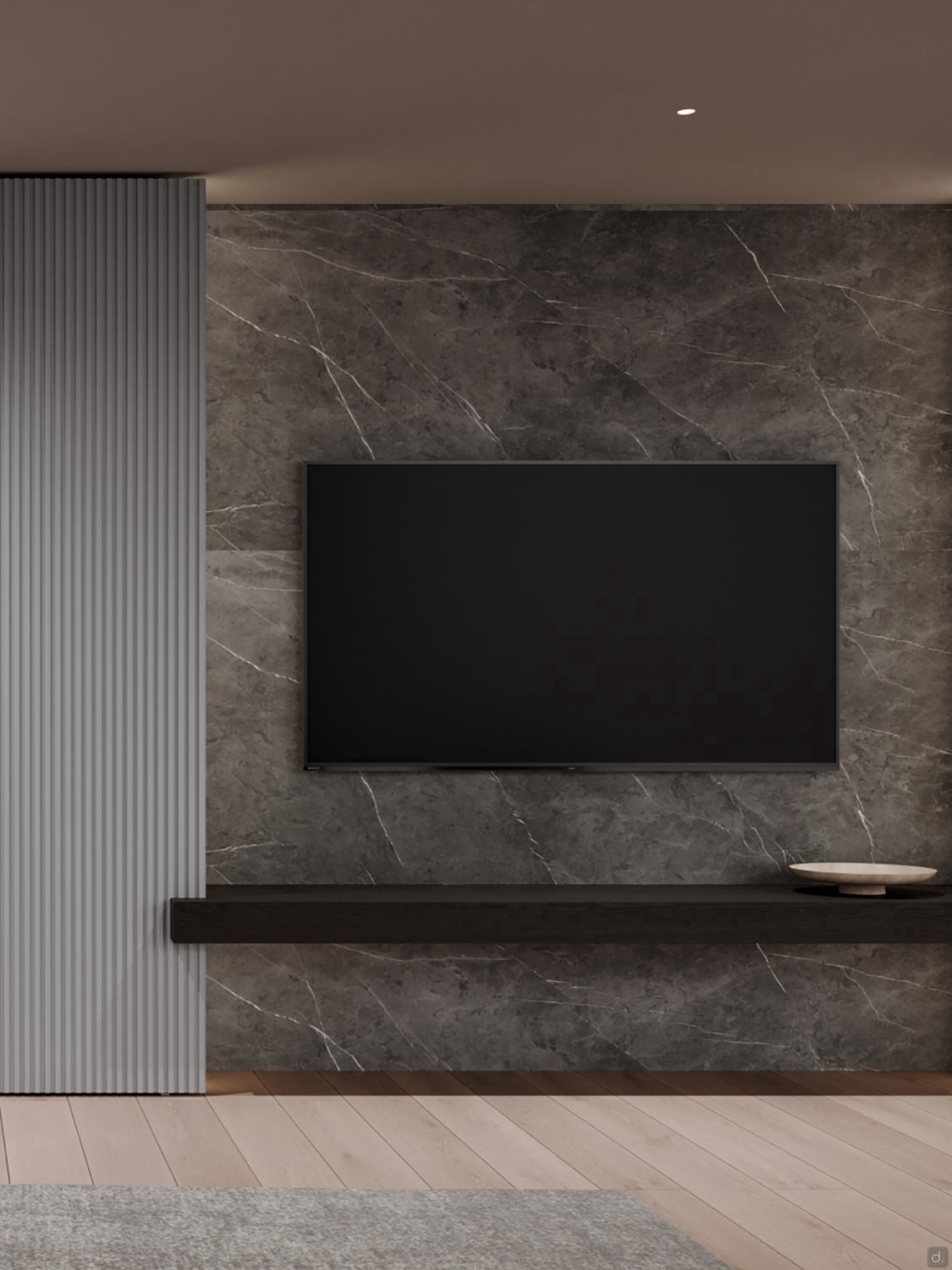

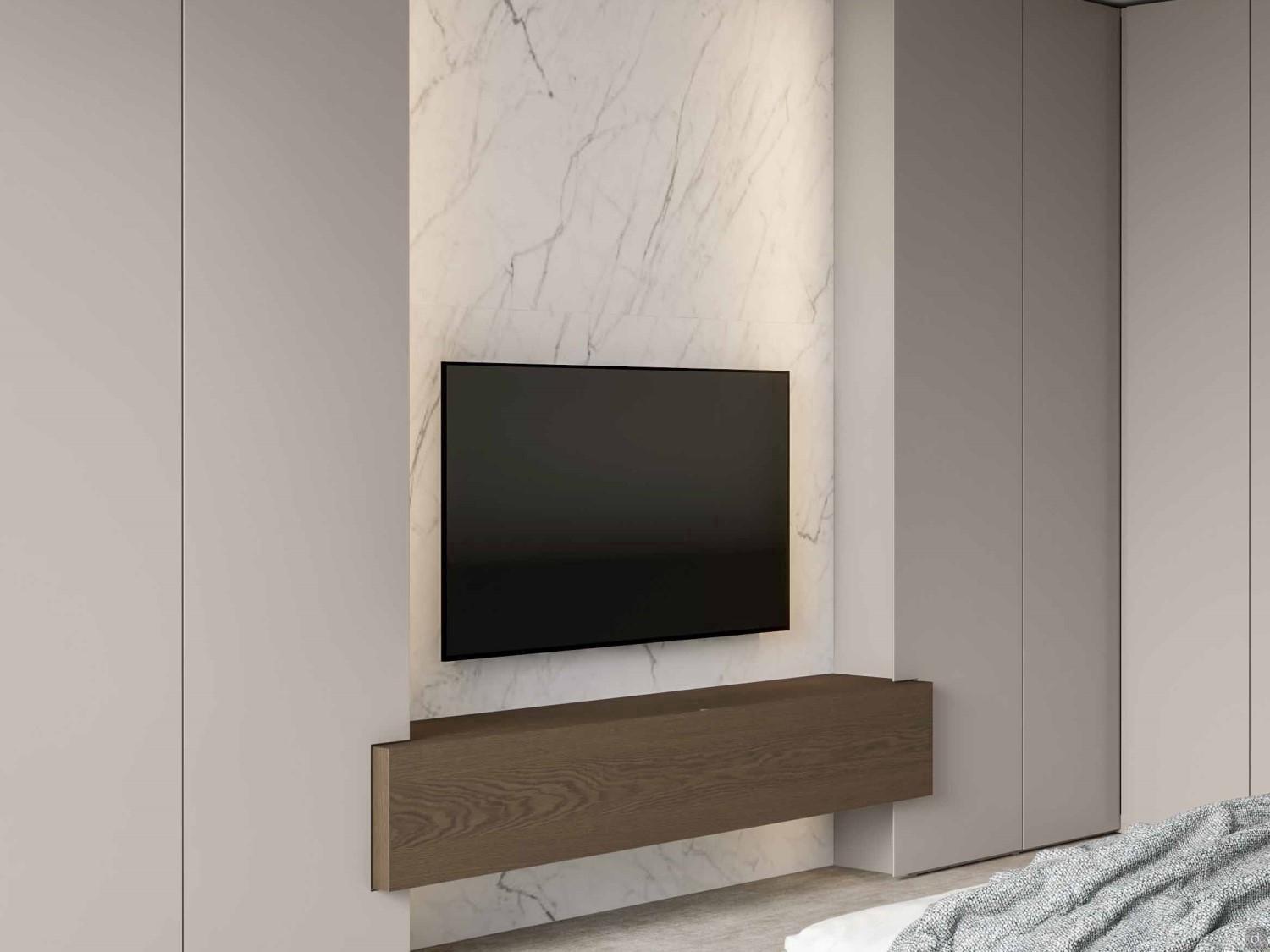

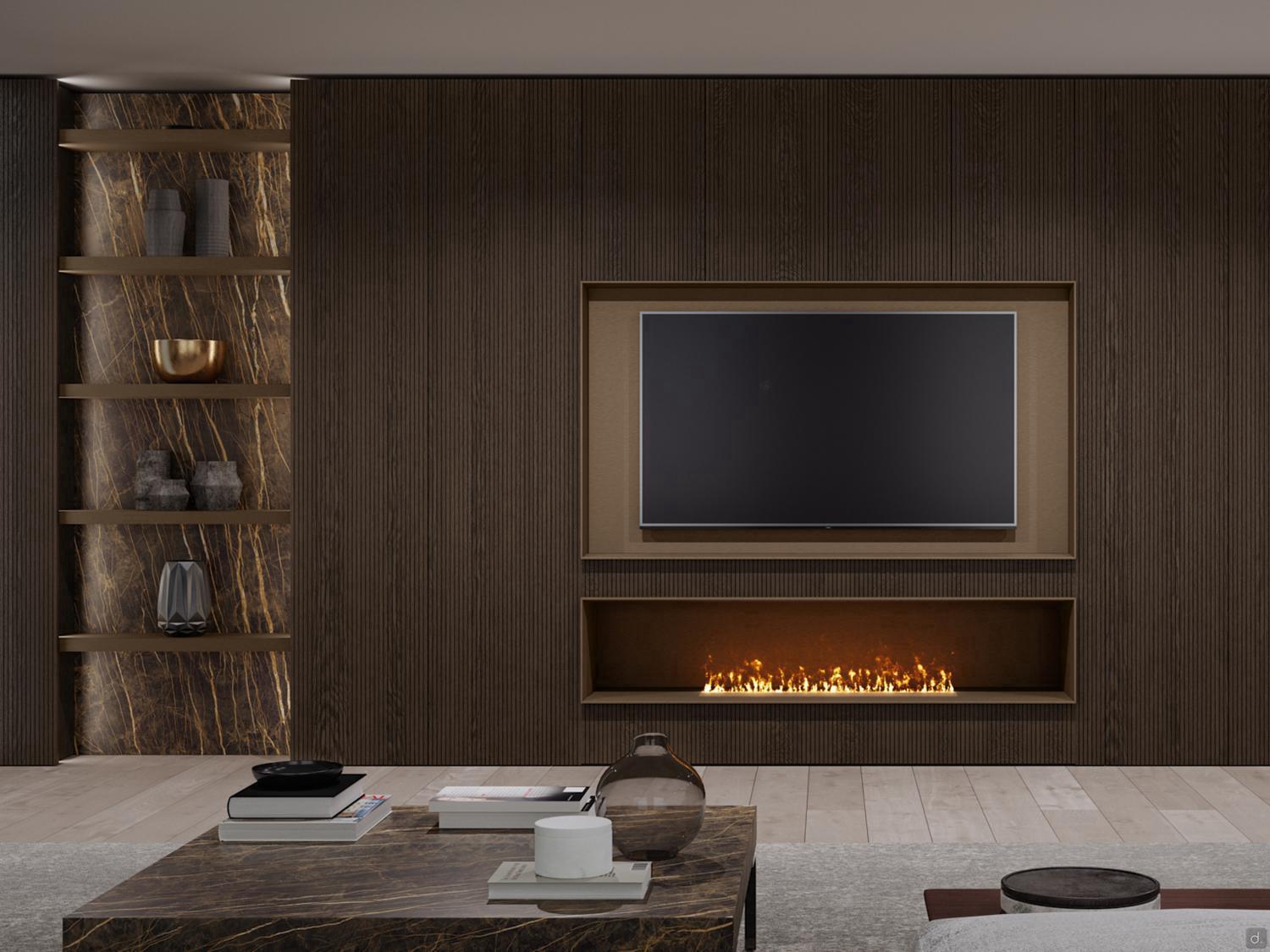

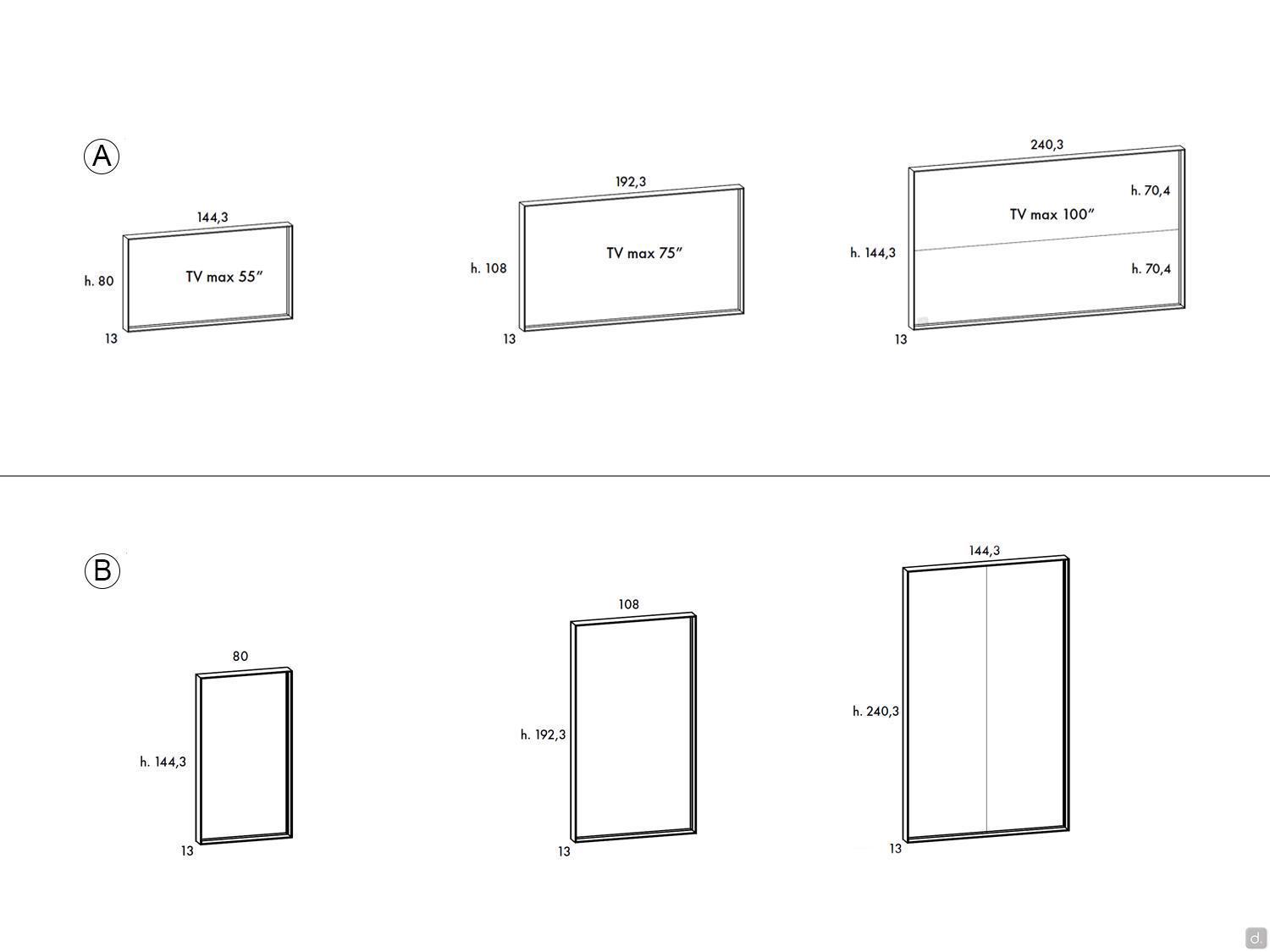

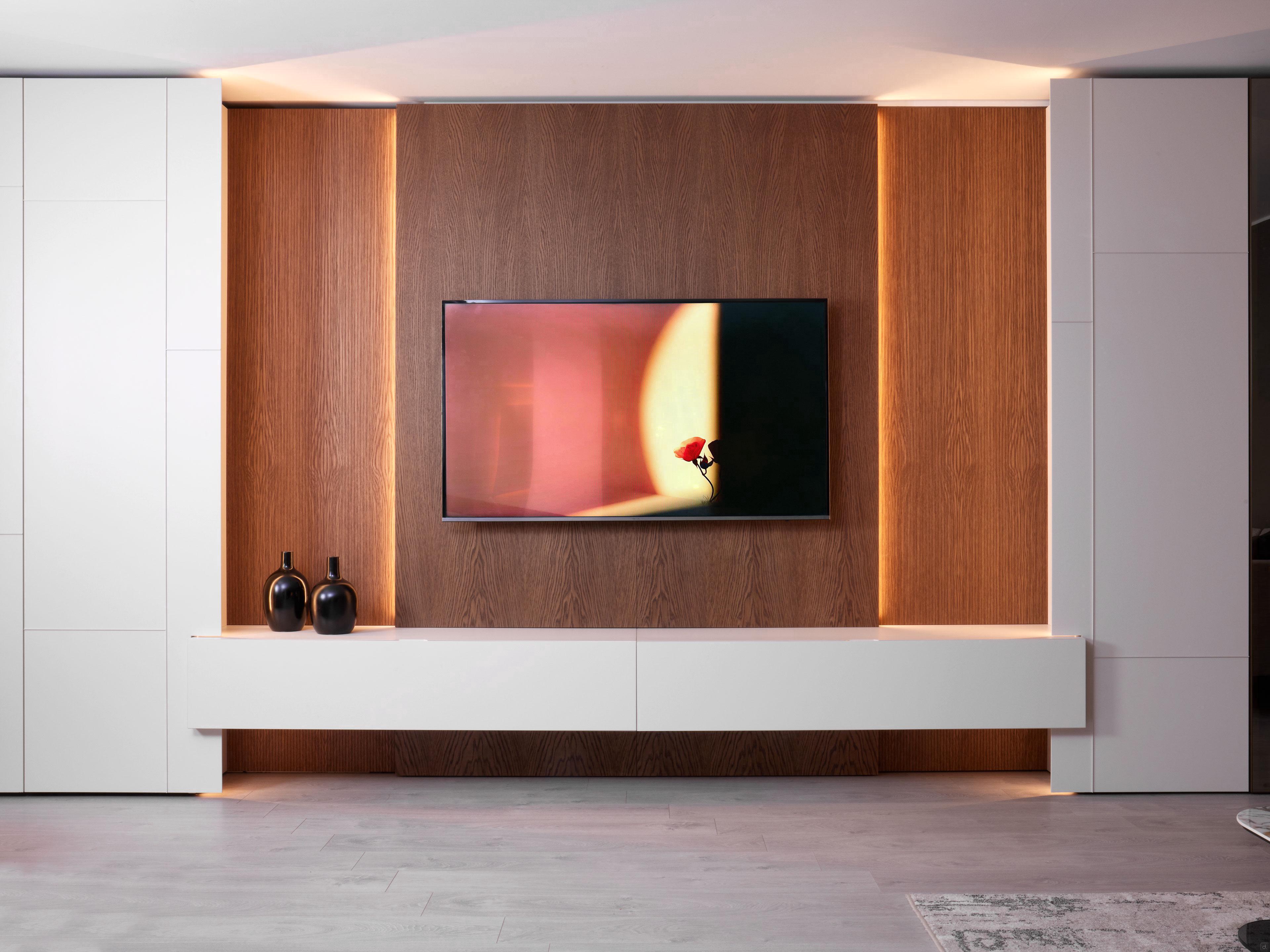

- Open TV / Display Compartment: in MDF cm th.1,8.
Assembly Tips
Pre-assembled hardware on all the elements to facilitate and speed up assembly operations.

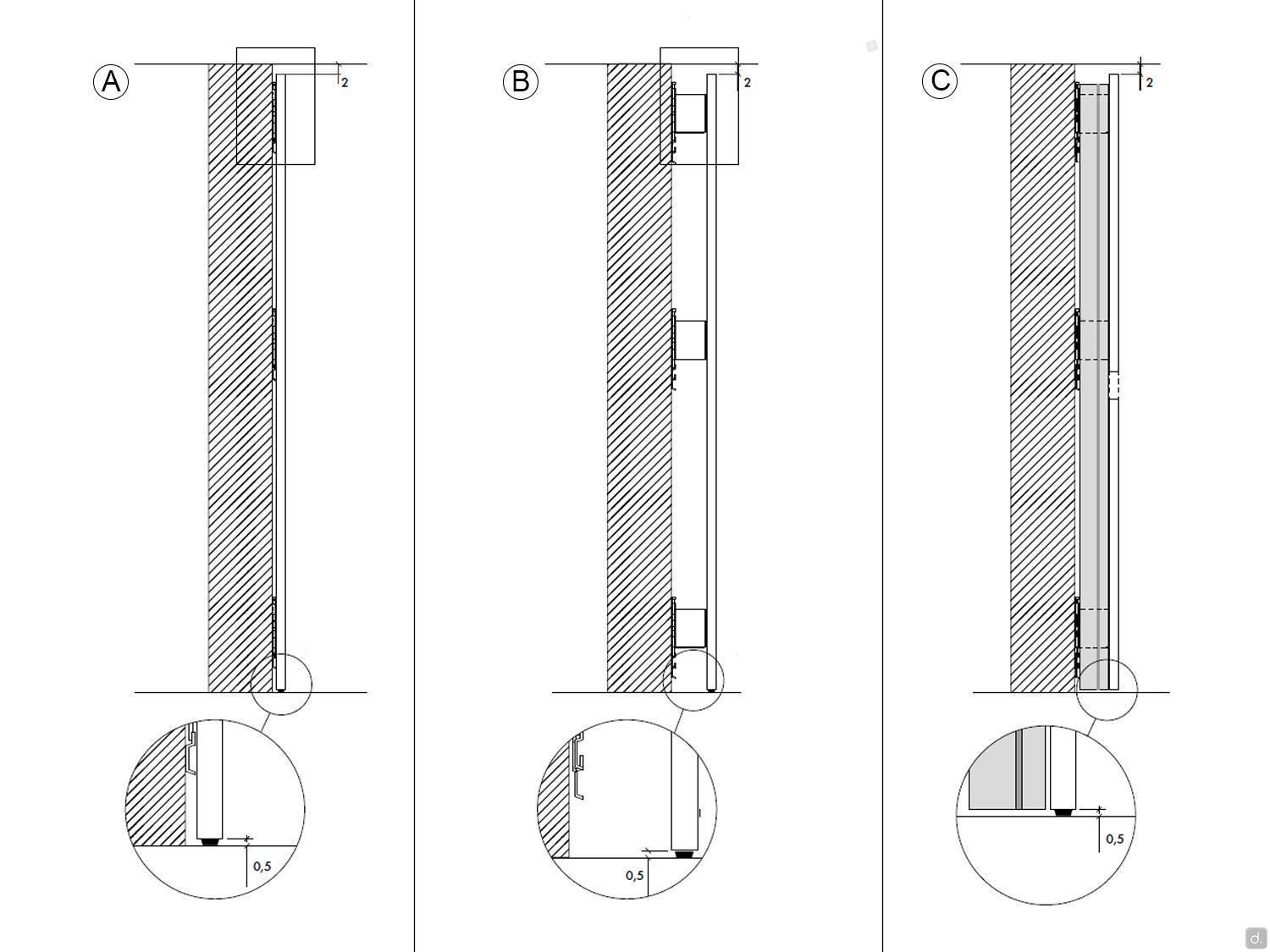

To assemble the panels, you will need 2 cm in height.
Optional - Boiserie Panels

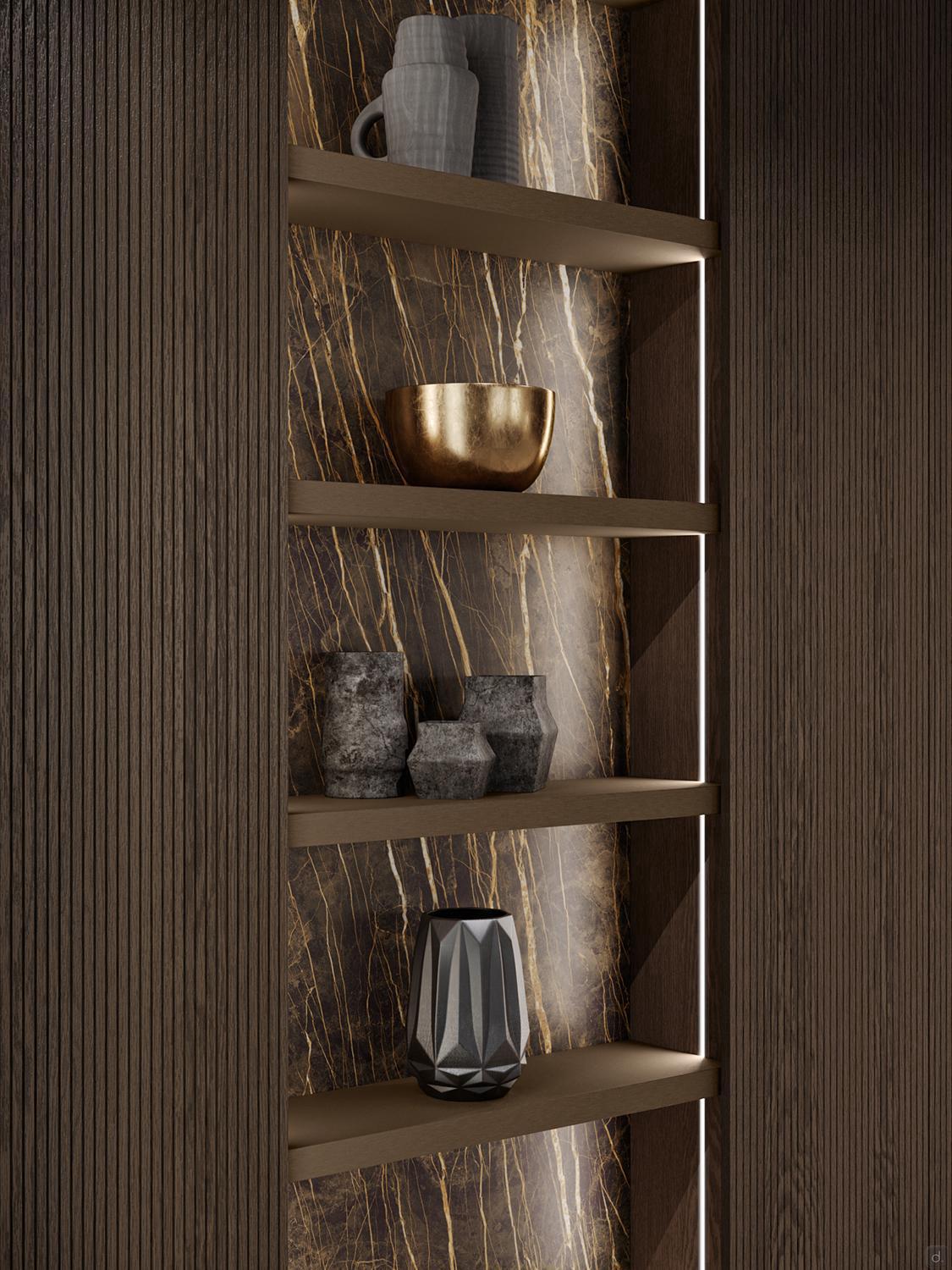

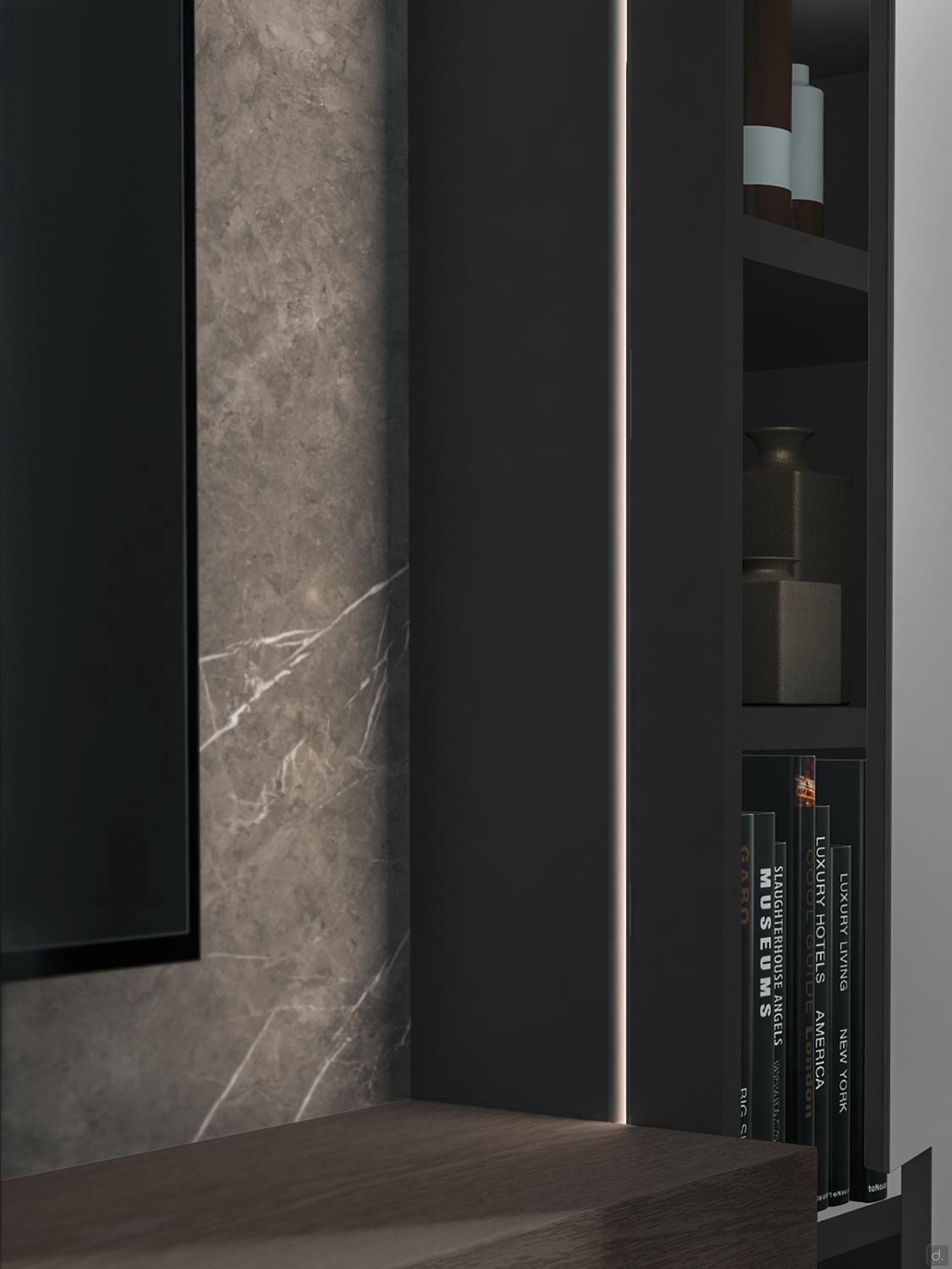

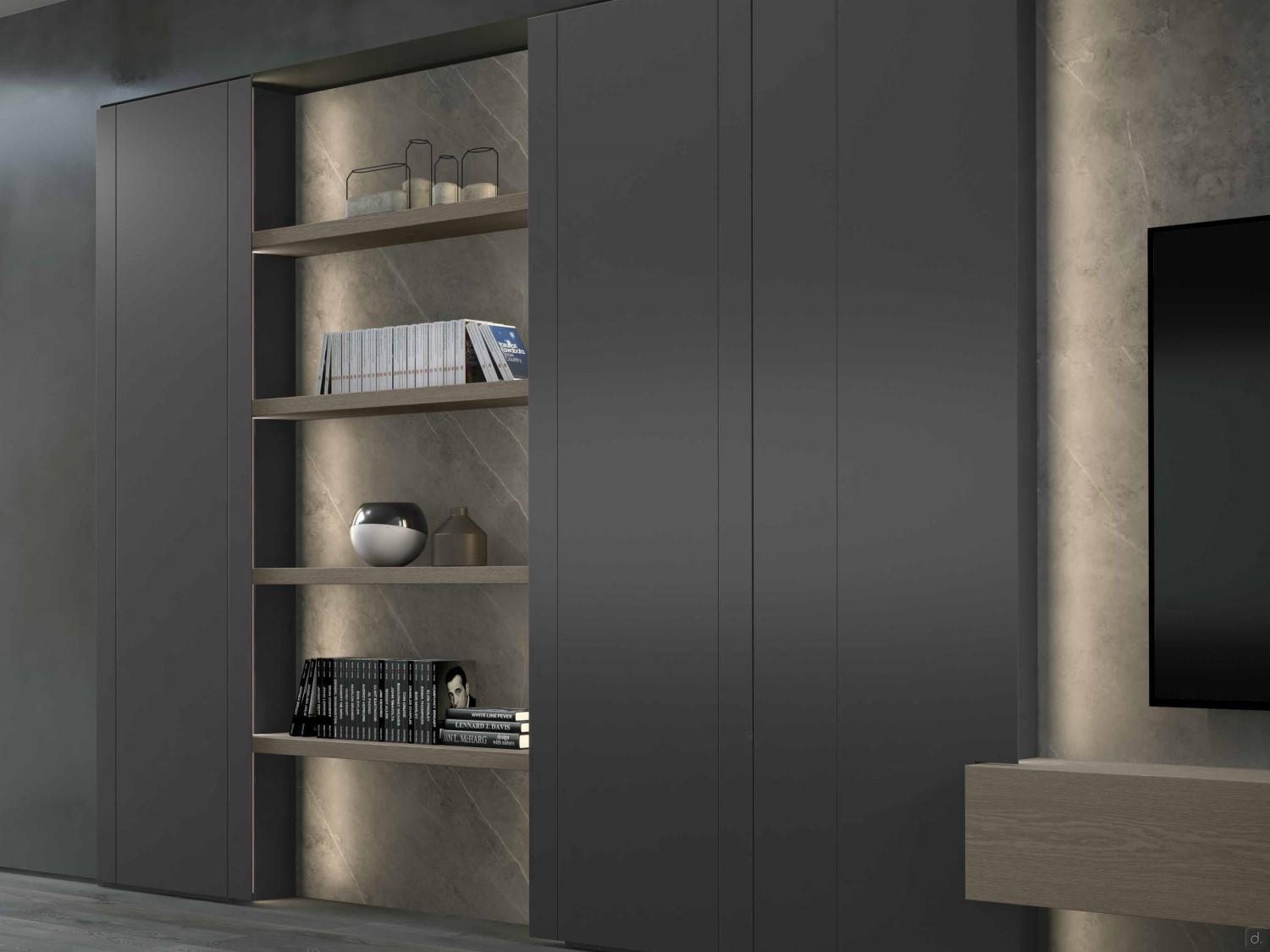

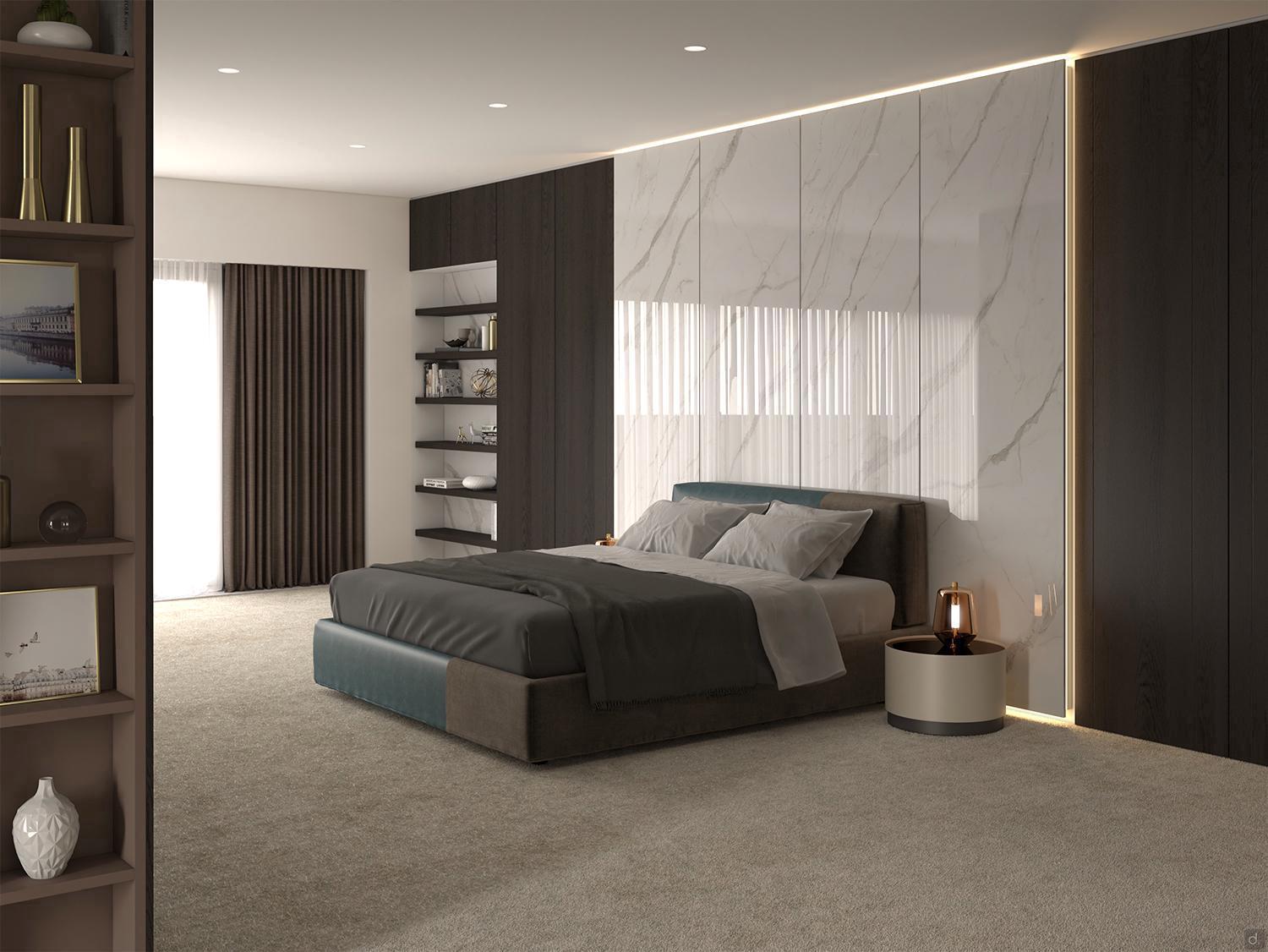

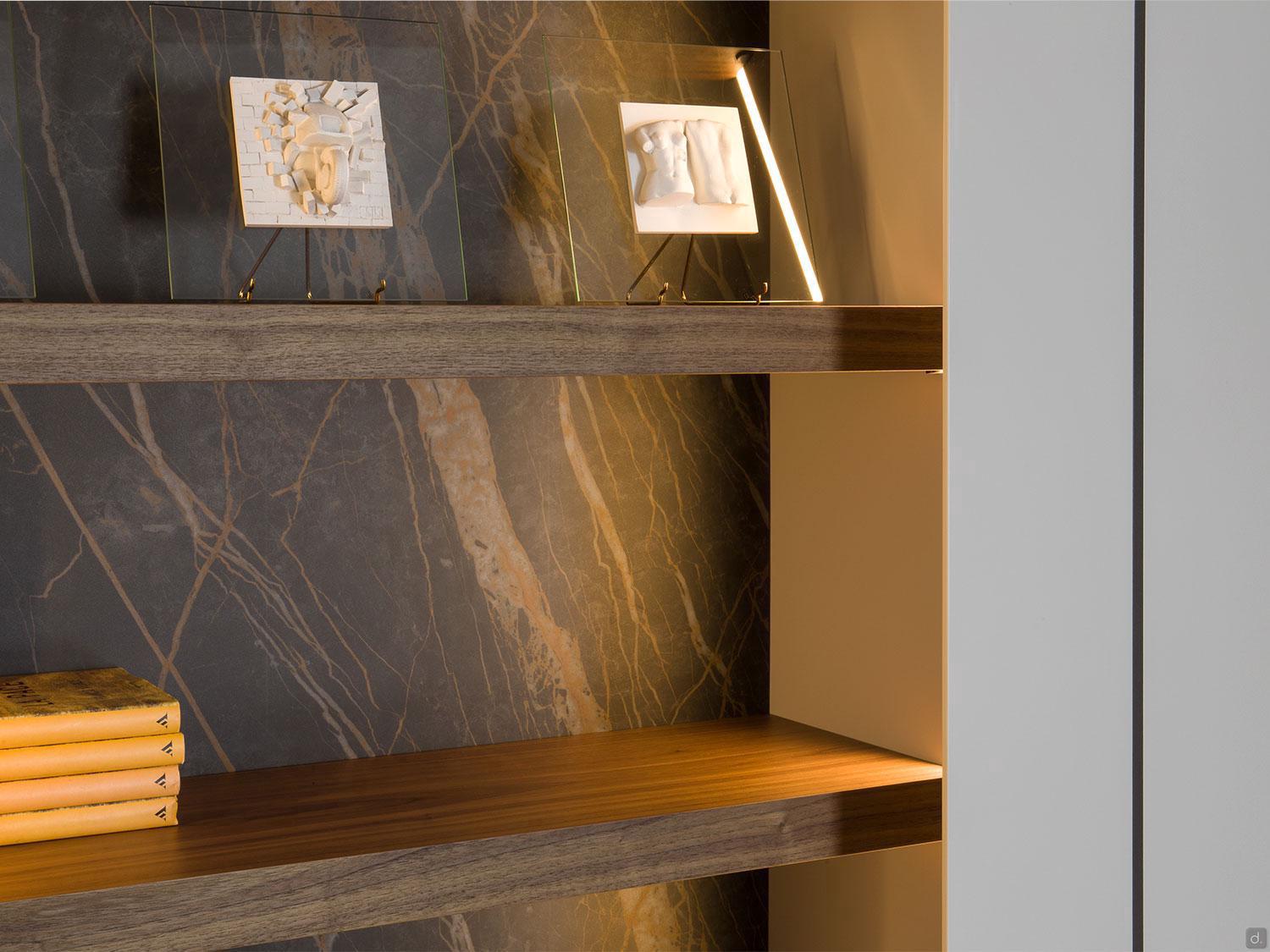

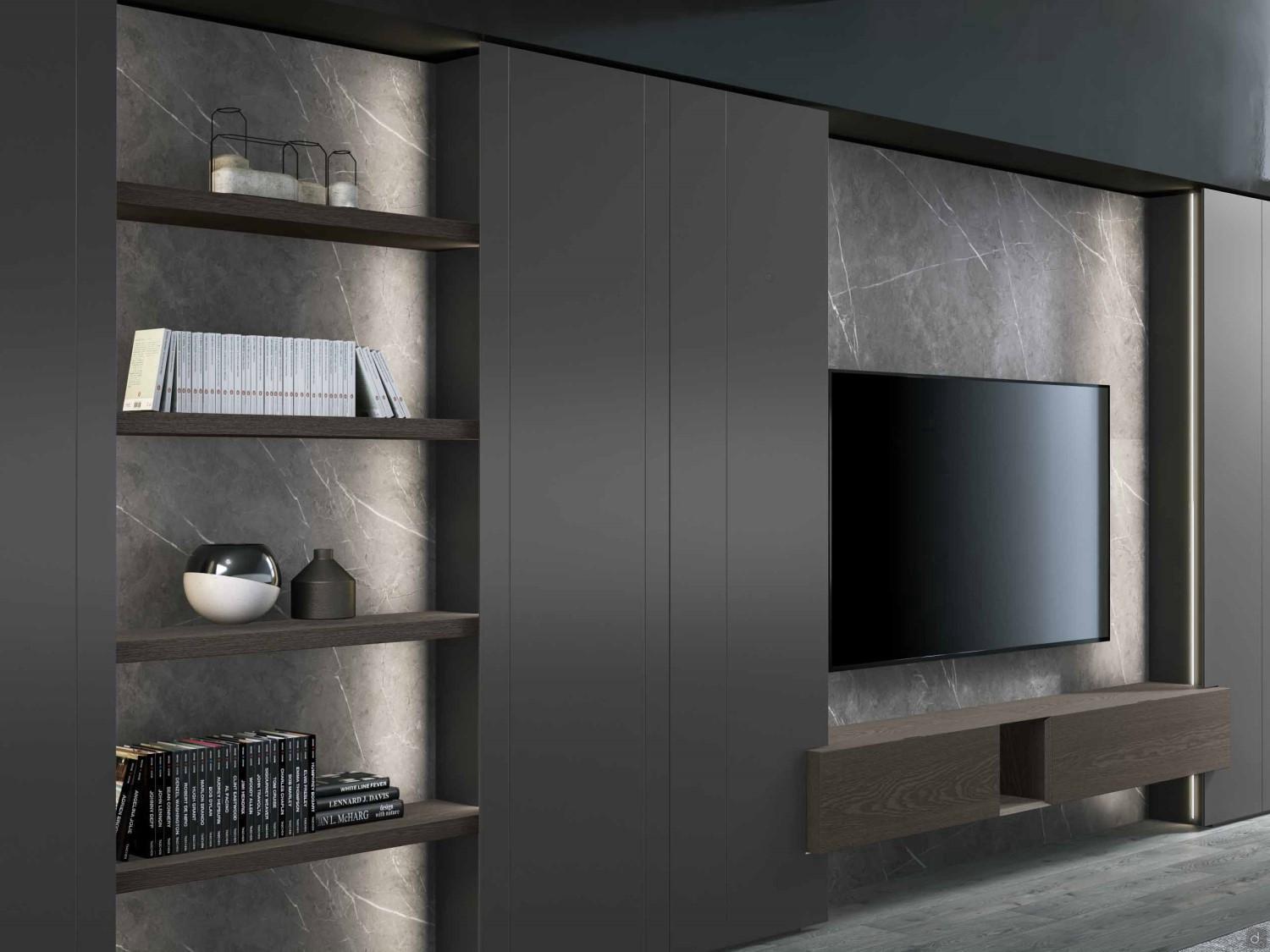

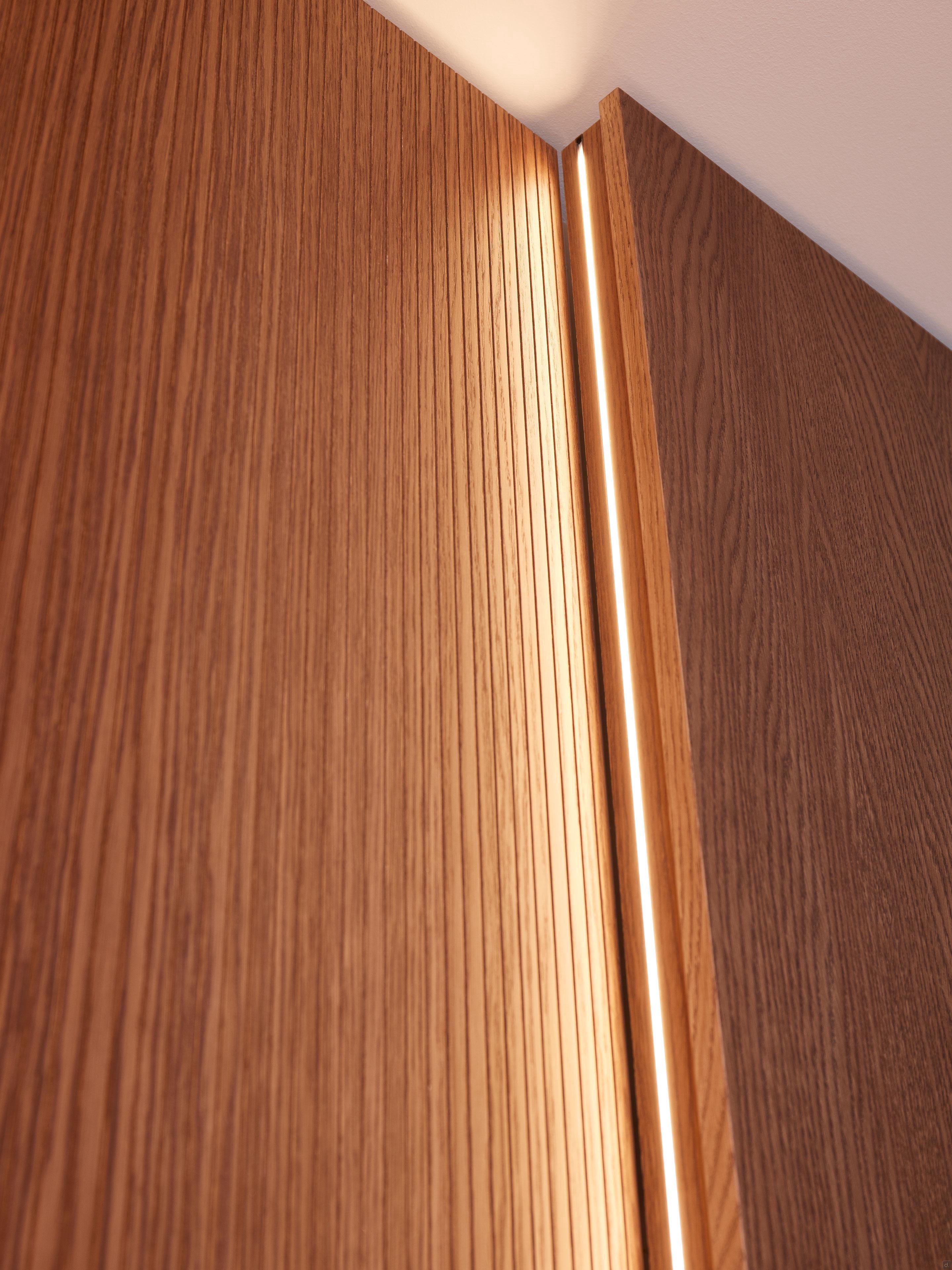

- LED lighting: positioned on the perimeter frame of the wooden composition (3000 K - 11 W/ml). Transformer for controlled socket or touch switch cm Ø 2.
- wall socket hole: rectangular in shape cm 11 x h.8,9, kept 10 cm from the edge of the boiserie panel.

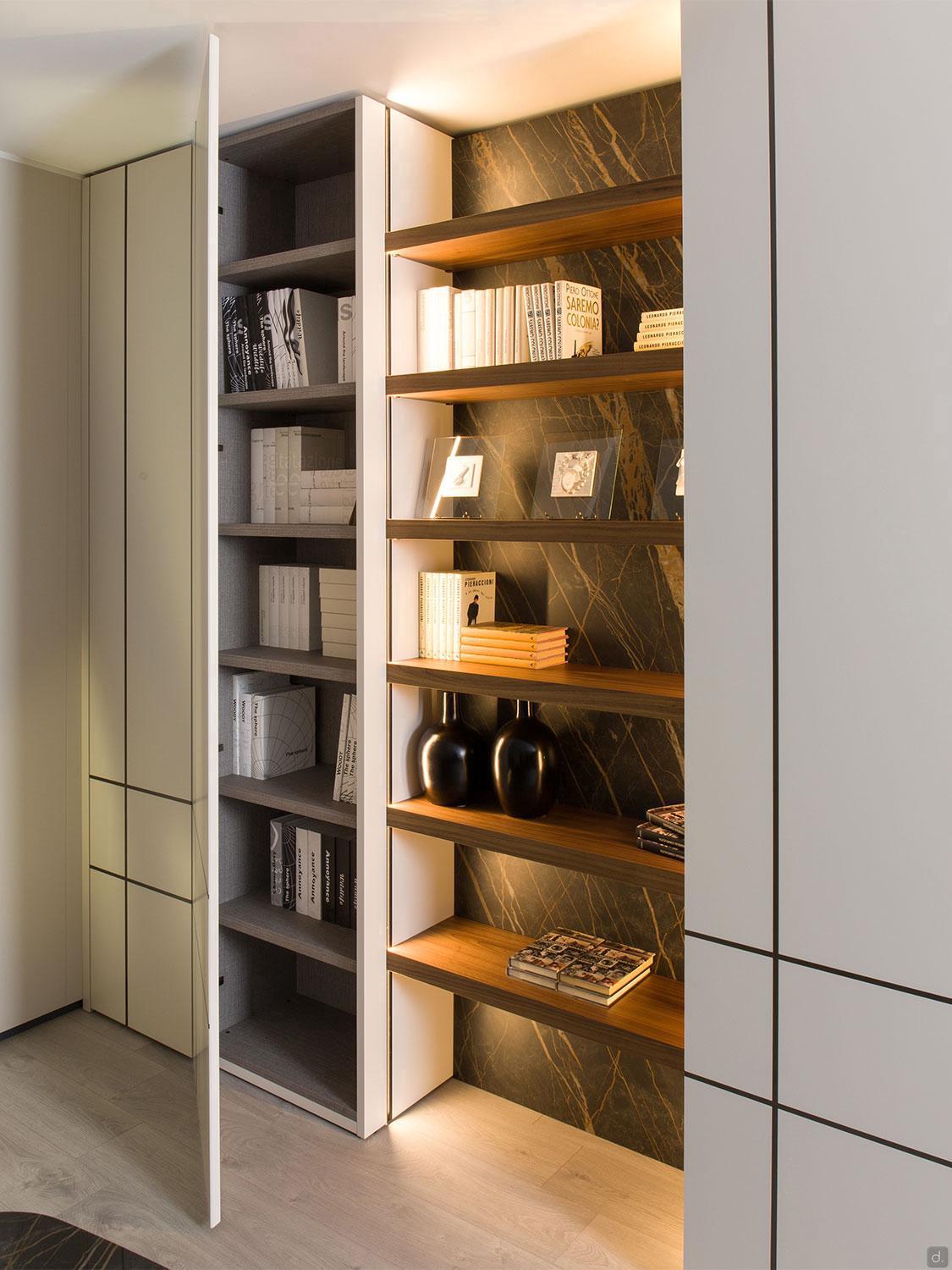

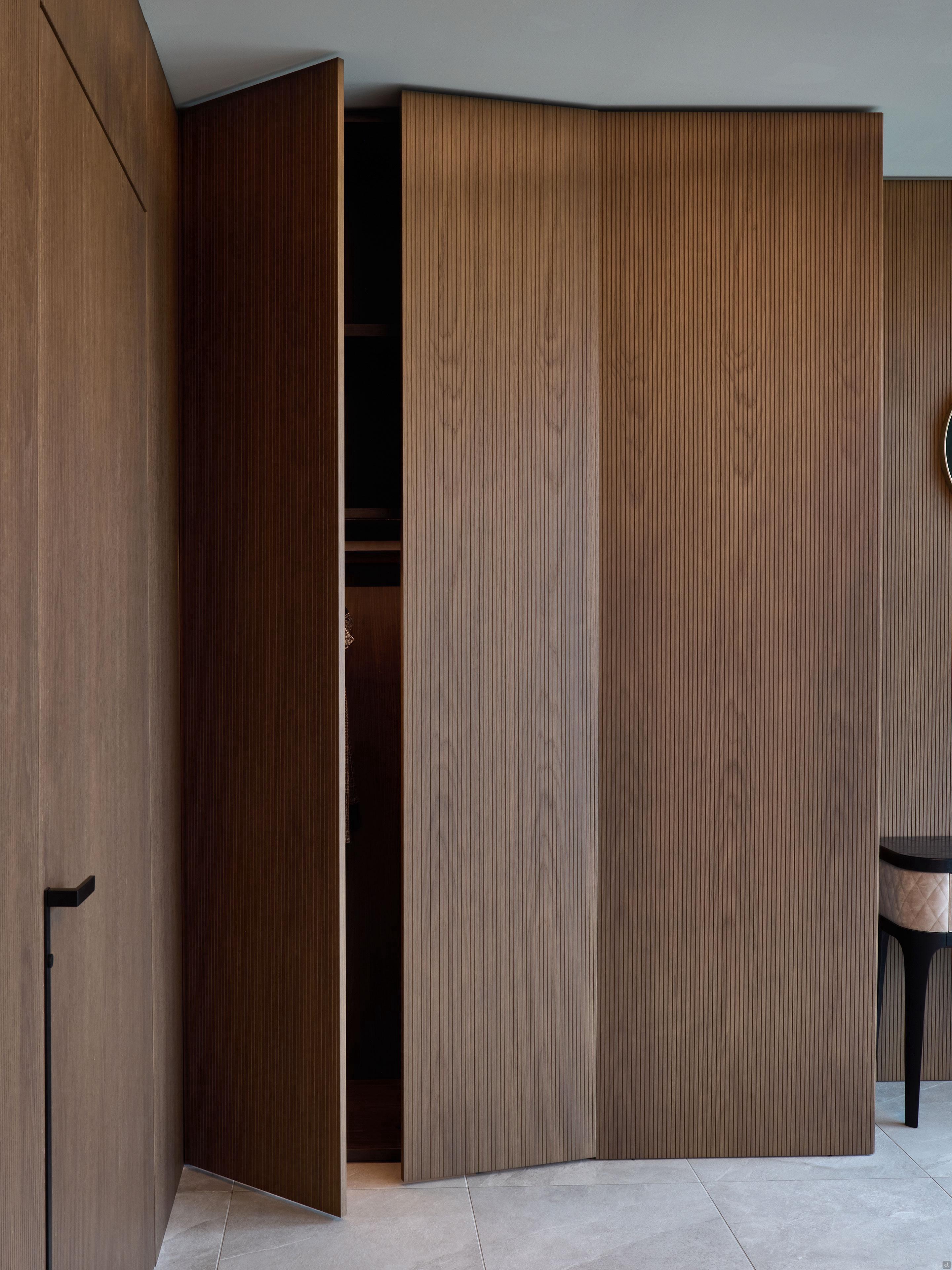

- removable panel: rectangular in shape, maximum dimensions 88 x h.76 cm, kept 10 cm from the edge of the boiserie panel. Attached to the boiserie panel using a magnet (Please note: opening occurs using a suction cup not supplied).

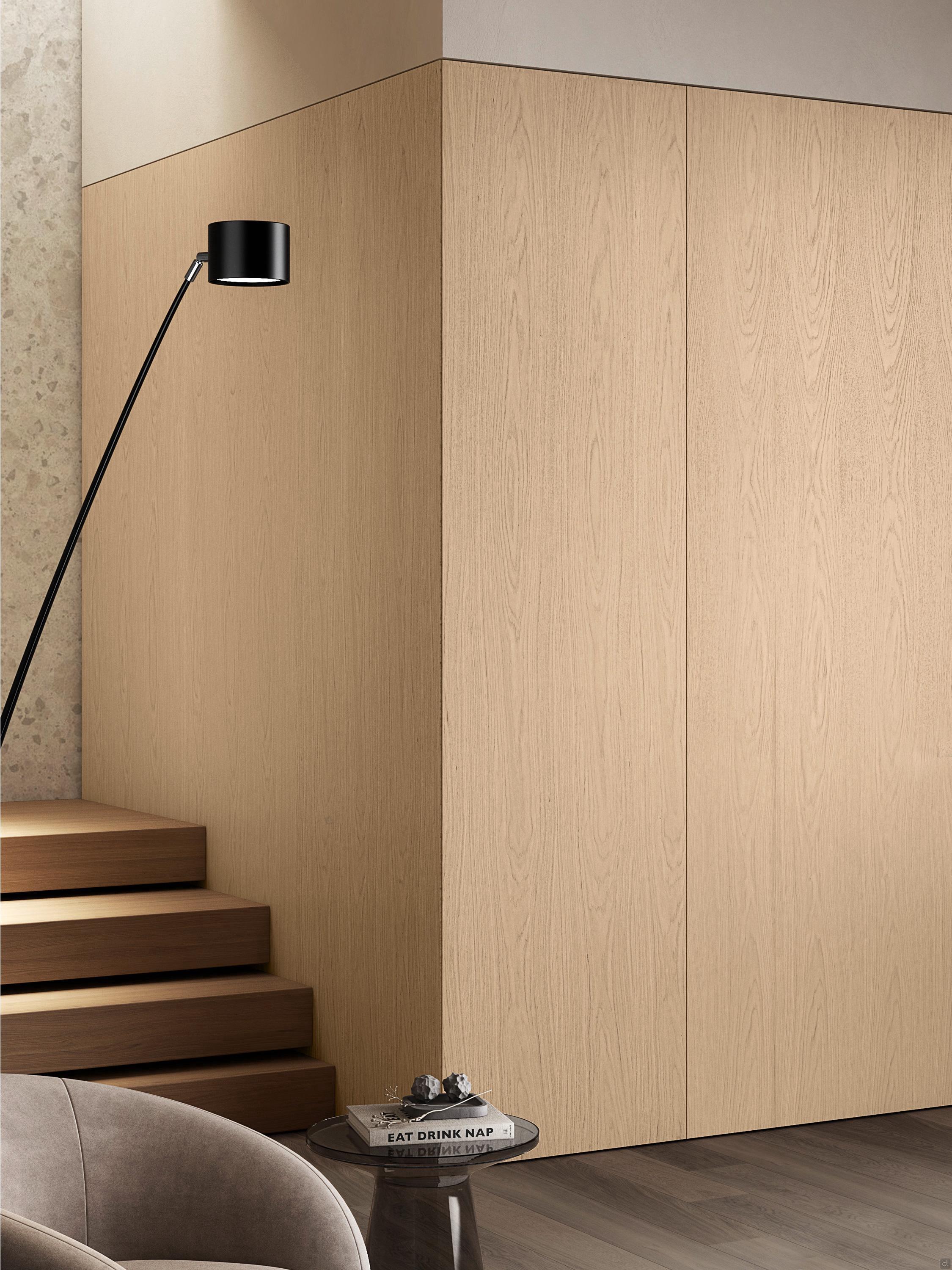

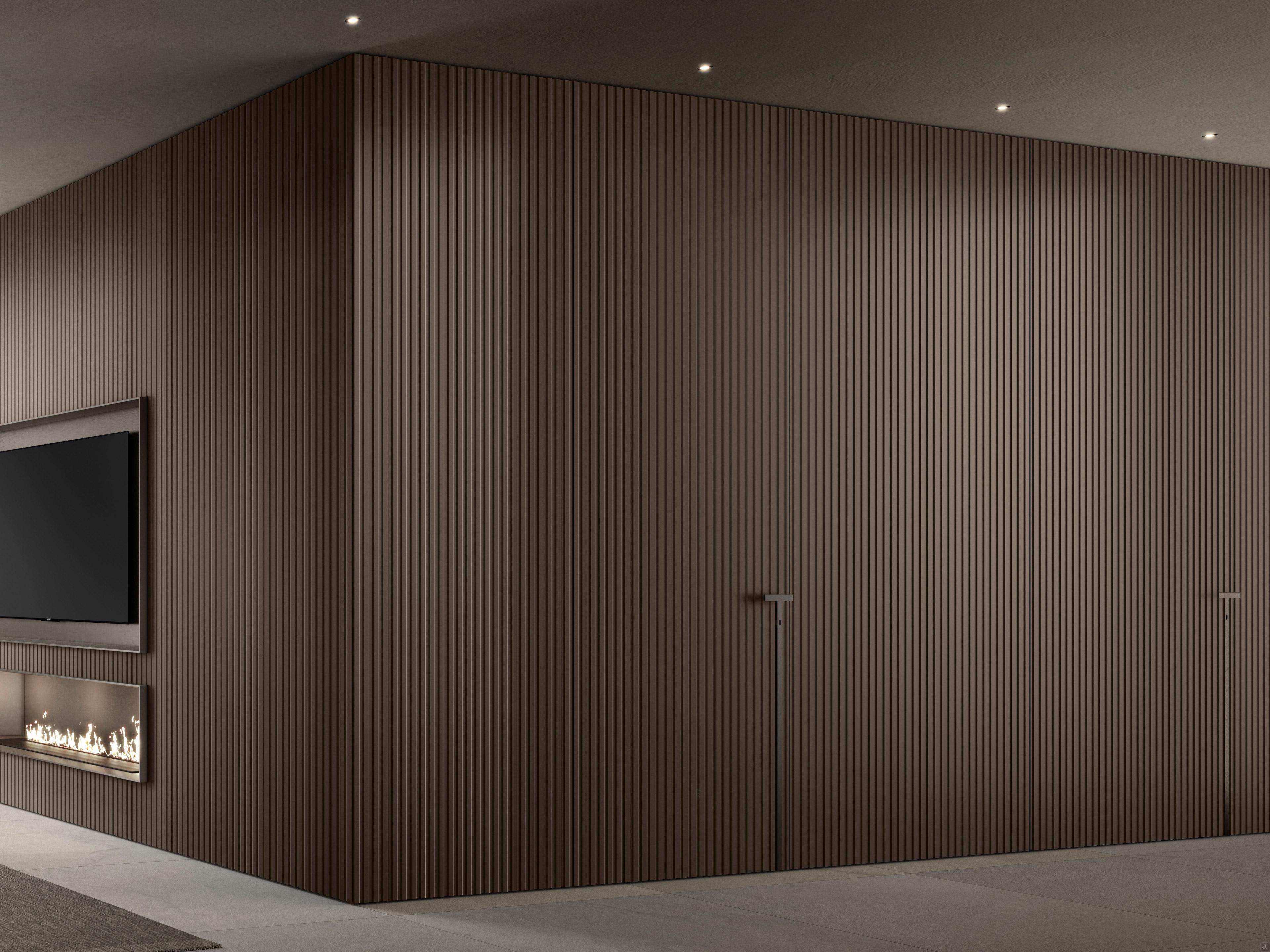

- corner boiserie: 45° processing which involves the insertion of a wooden core into the appropriate milling made on the two corner panels. During assembly, the two panels are also glued onto the meeting surfaces.
For more information...
Honeycomb Sandwich Panel: it is a panel made with an internal structure in honeycomb and perimeter frame 5 / 7 cm in solid fir wood closed with 2 panels of MDF 0.3 / 0.4 cm thick, subsequently lacquered or veneered.
The strengths of honeycomb sandwich panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of sides and doors, so hinges will have a higher resistance and furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product exclusively 100% Made in Italy.
Aged Oak: compared to the "standard" open pore oak, the aged oak is characterized by a slightly more brushed surface, which show a deeper pore and a more marked grain. This difference is noticeable even more on bigger surfaces like on tables, wall units and wardrobes and less on accessories, beds and bed frames.
