Pacific - Corner Element

Corner element for Pacific walk-in closet, available in textured melamine or matt lacquer: 4 heights and 2 depths in 12 configurations.

* Required Fields


From €616.31

Description

Corner element for Pacific walk-in closet, perfect to create functional L-shaped or U-shaped layouts. The element is available in 4 heights, 2 depths and 12 configurations in a wide range of finishes, either melamine or matt lacquer.
Each corner unit comes with one corner shelf; the 59,5 cm deep version also features 4 bars for clothes.

Characteristics
corner element compatible with Pacific walk-in closets
available in several melamine and matt lacquered finishes
position either in the middle, starting or ending the layout, with wood panel or metal frame
ideal to use at best the space at disposal

Measurements
Overall size: view the available measurements in the Menu
Heigth:
cm 223,6 / 239,6 / 255,6 / 287,6
Depth:
- structure: cm 43,5 / 59,5
- internal structure: cm 41,5 / 57,5

Materials and Finishes
- textured melamine (elm with vertical veins)
- matt lacquer

Information for your Purchase
The corner element can be placed at the beginning, in the middle or in the end of a layout with other Pacific walk-in modules. The element when is at the beginning of the layout will come with a starting side panel, when it is in the middle it will have a partition and when it is placed at the end it will be equipped with a partition and a closing side (available in the panel version or metal frame version).
In order to calculate the overall size of your corner walk-in closet you simply have to sum the width of the corner unit to the Pacific linear walk-in closet.

Technical study

Materials Specifications
Top, bottom, back panels: made of E1 class particle wood panels with low formaldehyde emissions.
Side panel: made of E1 class particle wood panels with low formaldehyde emissions or with aluminium frame painted with epoxy powders.

Technical Specifications and Equipment
Side: 2,5 cm thick.
- version with Panel:
with ABS edge, including adjustable feet inserted inside the panel thickness, adjustable by 1,5 cm.
- version with Metal Frame:
in aluminium with 45 x 25 rods in finishes brown or titanium matt lacquer. They include adjustable feet inserted inside the frame thickness, adjustable by 1,5 cm.
Top and bottom: cm 3,5 thick. ABS edge matching the inside.
Back panels:  cm 0,8 thick matching the inside.
Corner internal shelf: cm 3,5 thick. ABS edge matching the inside.
Bars for clothes hangers: rectangular section cm 3 x 1, in Titanium painted metal (for natura loto, linen textured or dark elm inside finish) or Brown (for taupe loto, terra loto or dark elm inside finish).
Usable internal height:
- for cm h.223,6 walk-in closet: cm 216,6
- for cm h.239,6 walk-in closet: cm 232,6
- for cm h.255,6 walk-in closet: cm 248,6
- for cm h.287,6 walk-in closet: cm 280,6

Side Holes
- version with Panel:
holes made every 9,6 cm.
- version with Frame:
the racks for the metal frame have gaps each 3,2 cm corresponding to the holes of the wooden sides/partitions.

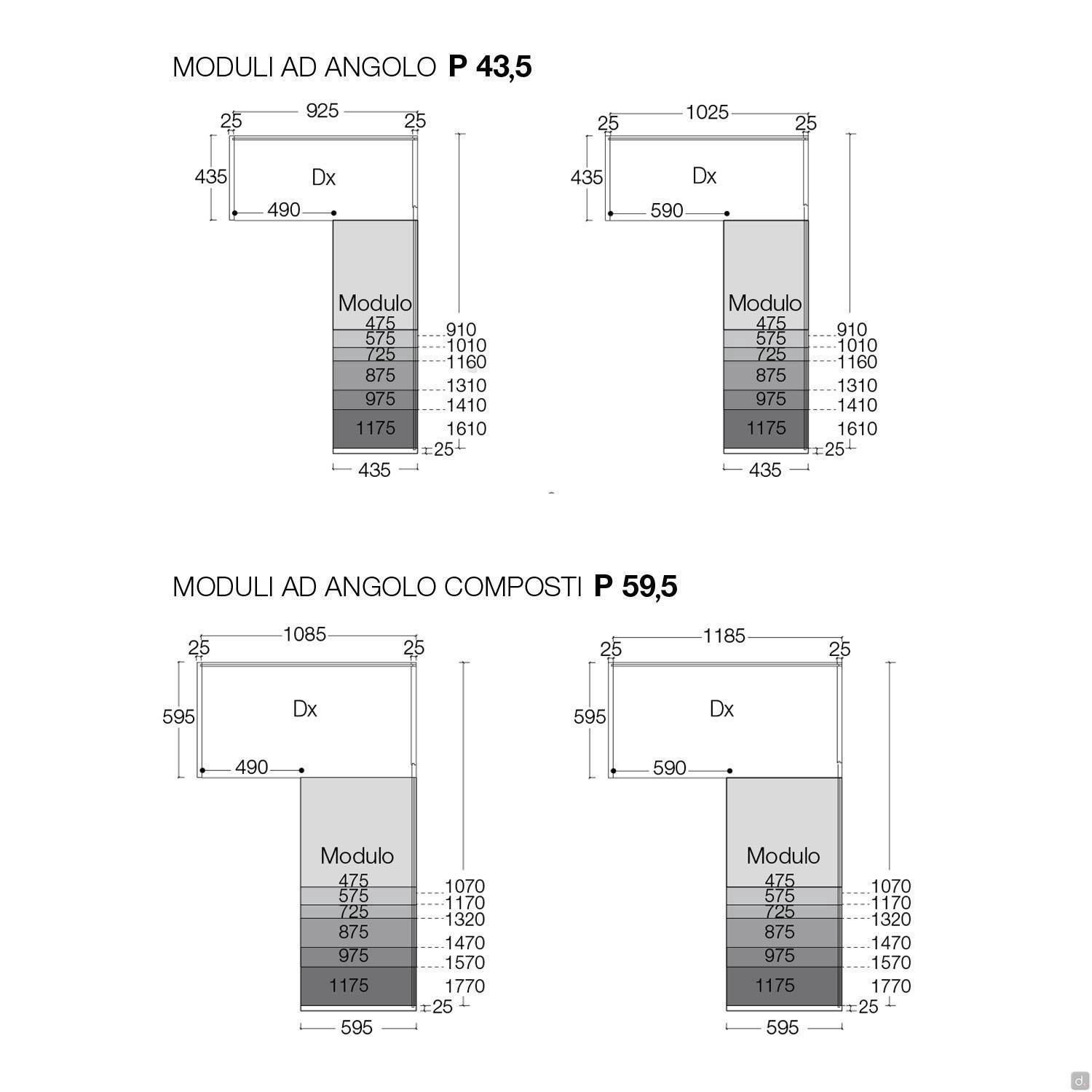

For specific measurements we recommend to have a look at the scheme in the picture gallery.

Assembling Tips
For the assembling of the structure you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in case you selected LED bars, to place the power supply on the top)

In cm d.43,5 walk-in closets, at least 2 compartments are equipped with an anti-tip hook to be fixed to the wall. In cm d.59,5 at least one compartment comes with anti-tip hook which can be used if needed. The anti-tip plate comes with spacers that allow the use when in presence of a skirting board with a max. thickness of 15 mm.

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Cubic Metres
from 0,21 to 0,35 m³
