Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb + melamine). The honeycomb has a carefully selected solid fir frame and is plated with MDF panels. It guarantees non-deformability over time, lightness, practicality and meets all the requirements of the European class 1 standards regarding the limitation of harmful emissions of formaldehyde, meets CARB2 standards.
Sides: with a depth of 38 cm the sides are made from wood particle panels (class E1 with low formaldehyde emissions). With a depth of 59,2 cm the sides are made from honeycomb with a solid fir frame. The panels of both depths have a thickness of 2,5 cm and respect the CARB2 standards.
Back Panels: made from wood particle panels (class E1 with low formaldehyde emissions), th.0,8 cm.
Base and Top: made from honeycomb, respectively cm th.3,2 and cm th.2,5.
Shelf: included equipment, in honeycomb cm th.3,2.
Clothes Hanging Rod: included equipment for models wit ha depth of 59,2 cm. With rectangular section cm 3x1 in the finish brown or metallic lacquer.
Door Height from the floor: cm h.1,1.
Hinged Doors: in honeycomb cm th.2,4 with a solid fir frame, lacquered or wooden.
Door Decorations: The fronts can be plain or customised:

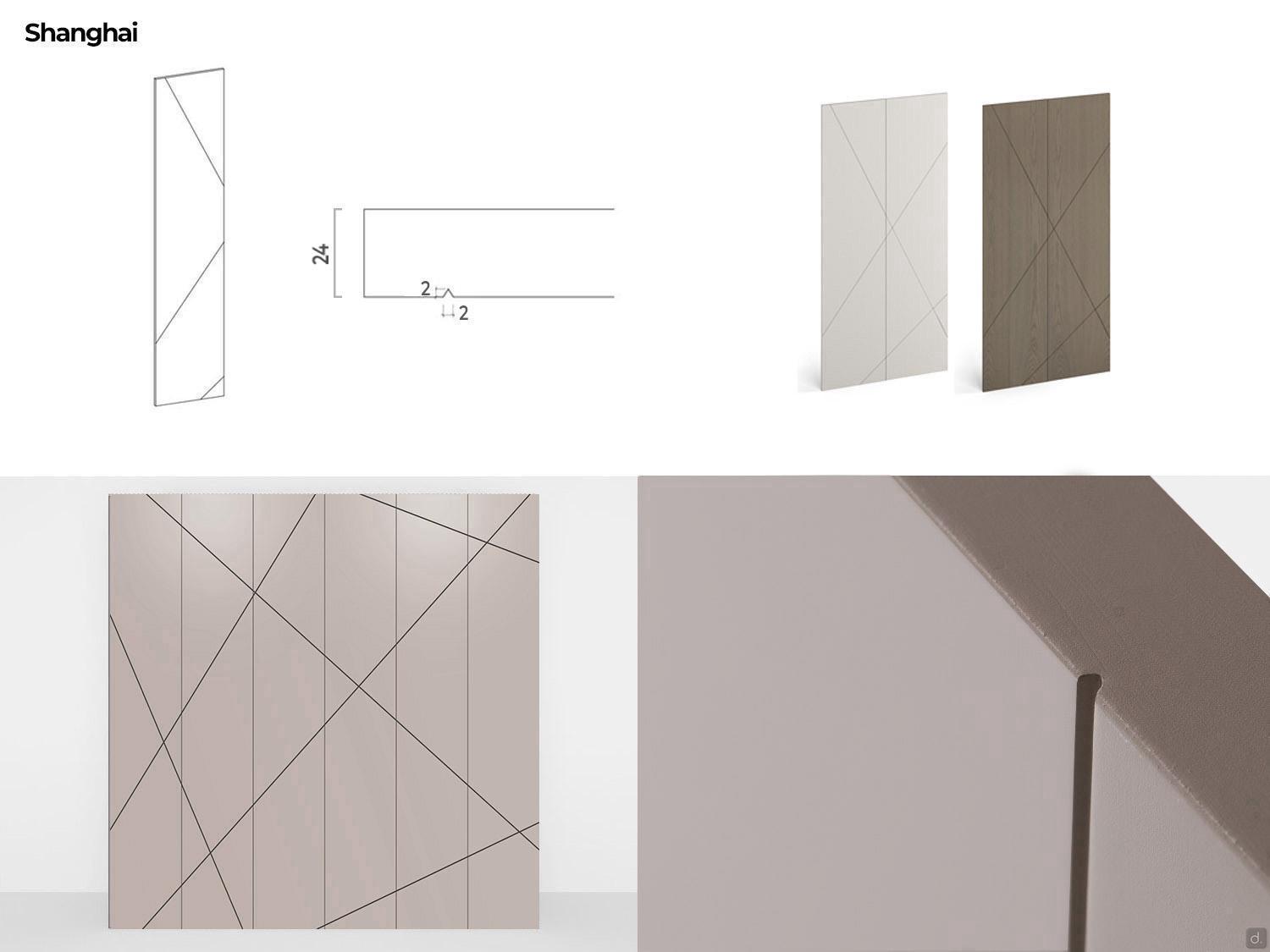

- Shanghai: diagonal "V" engravings cm 0,2 th.0,2.

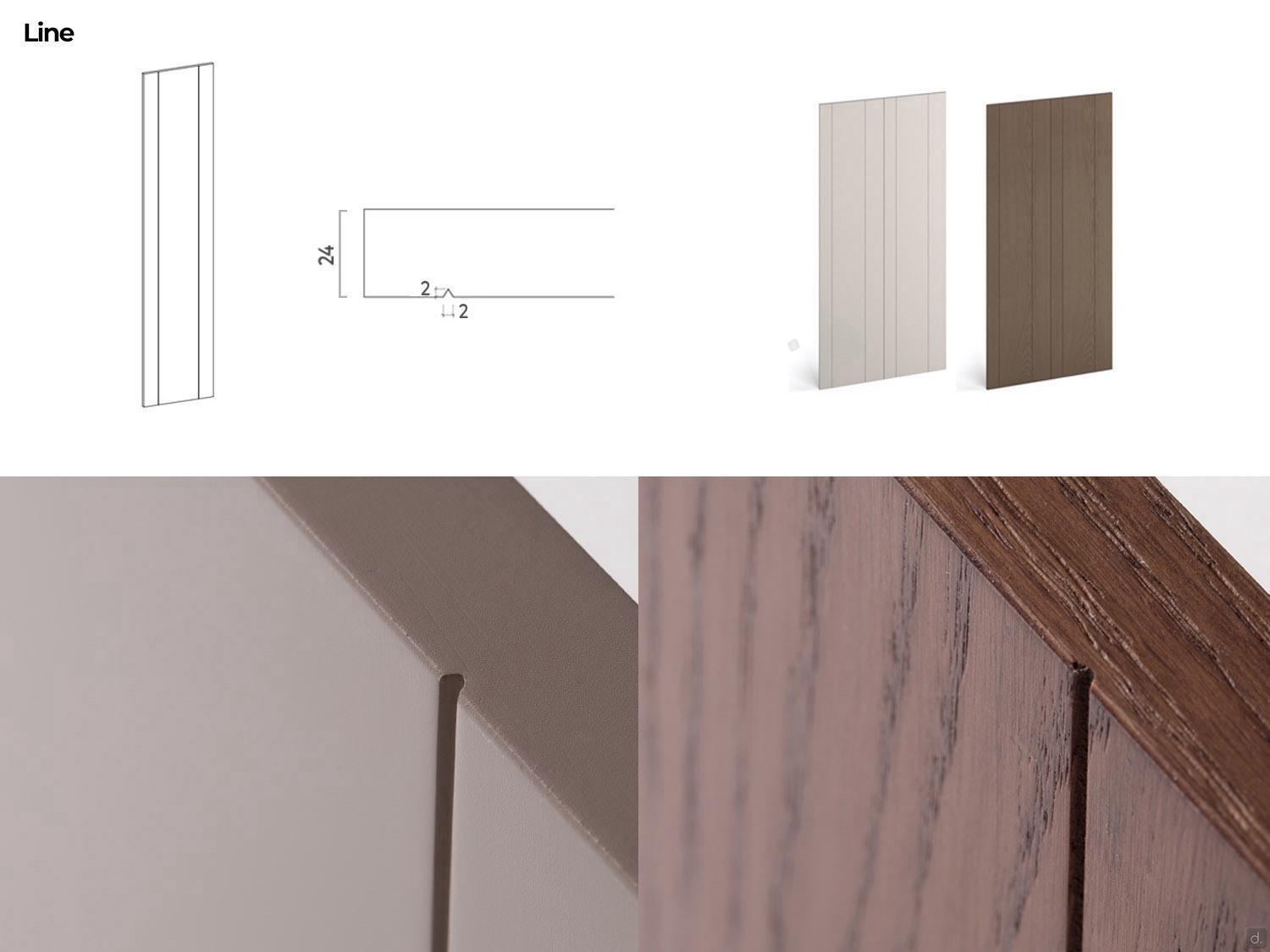

- Line: vertical "v" engravings cm 0,2 th.0,2.
- with metal insert: cm 1 th.0,2 in the "version 1" with n.2 horizontal + n.1 vertical or instead in the "version 2" with n.1 horizontal + n.1 vertical.

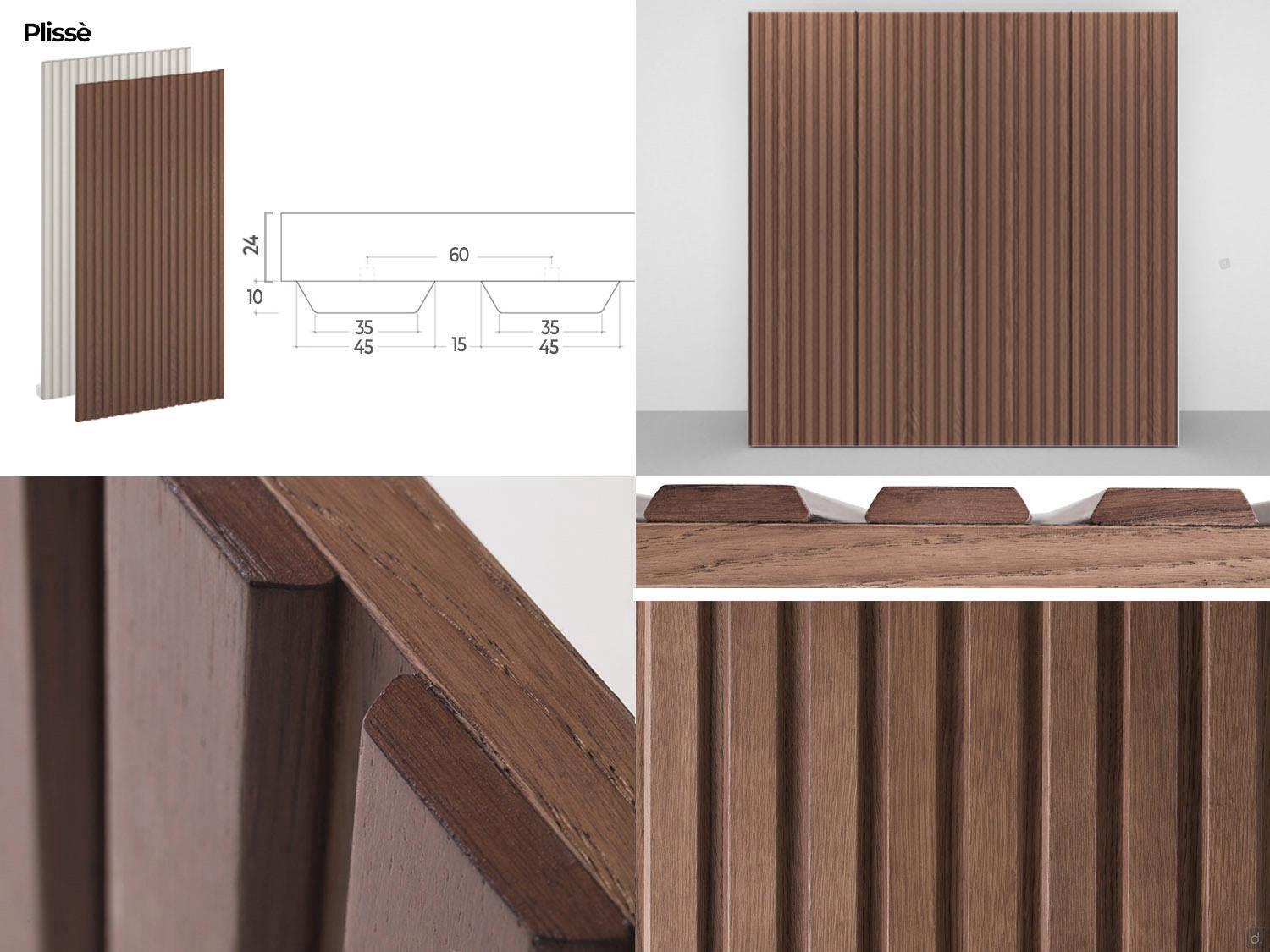

- Plissè: slats
in solid lacquered or oak veneered with 30° processing: 4,5 cm th.1.

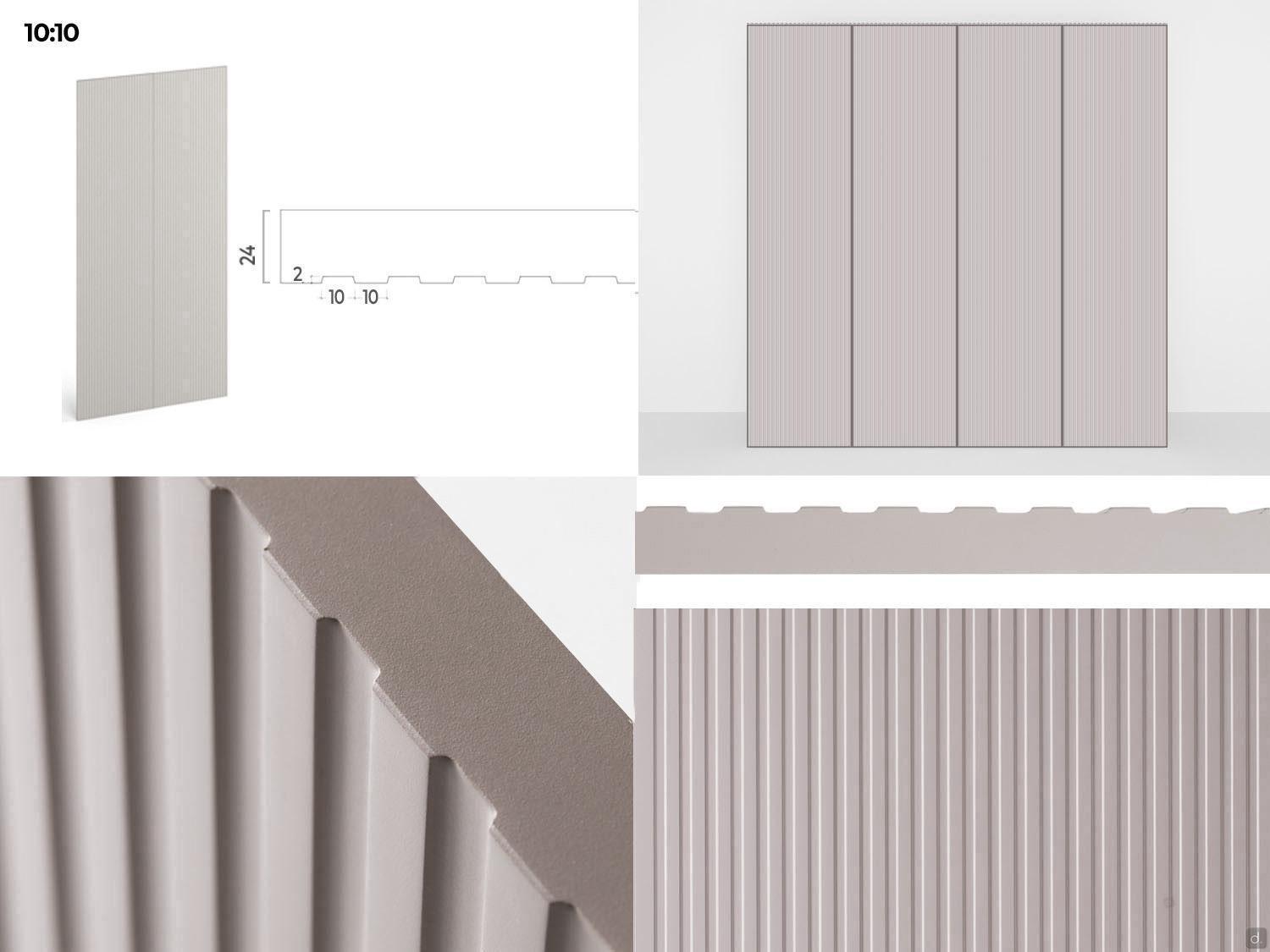

- 10:10 (only for lacquered wood finishes): "U" engravings cm 1 th.0,2.

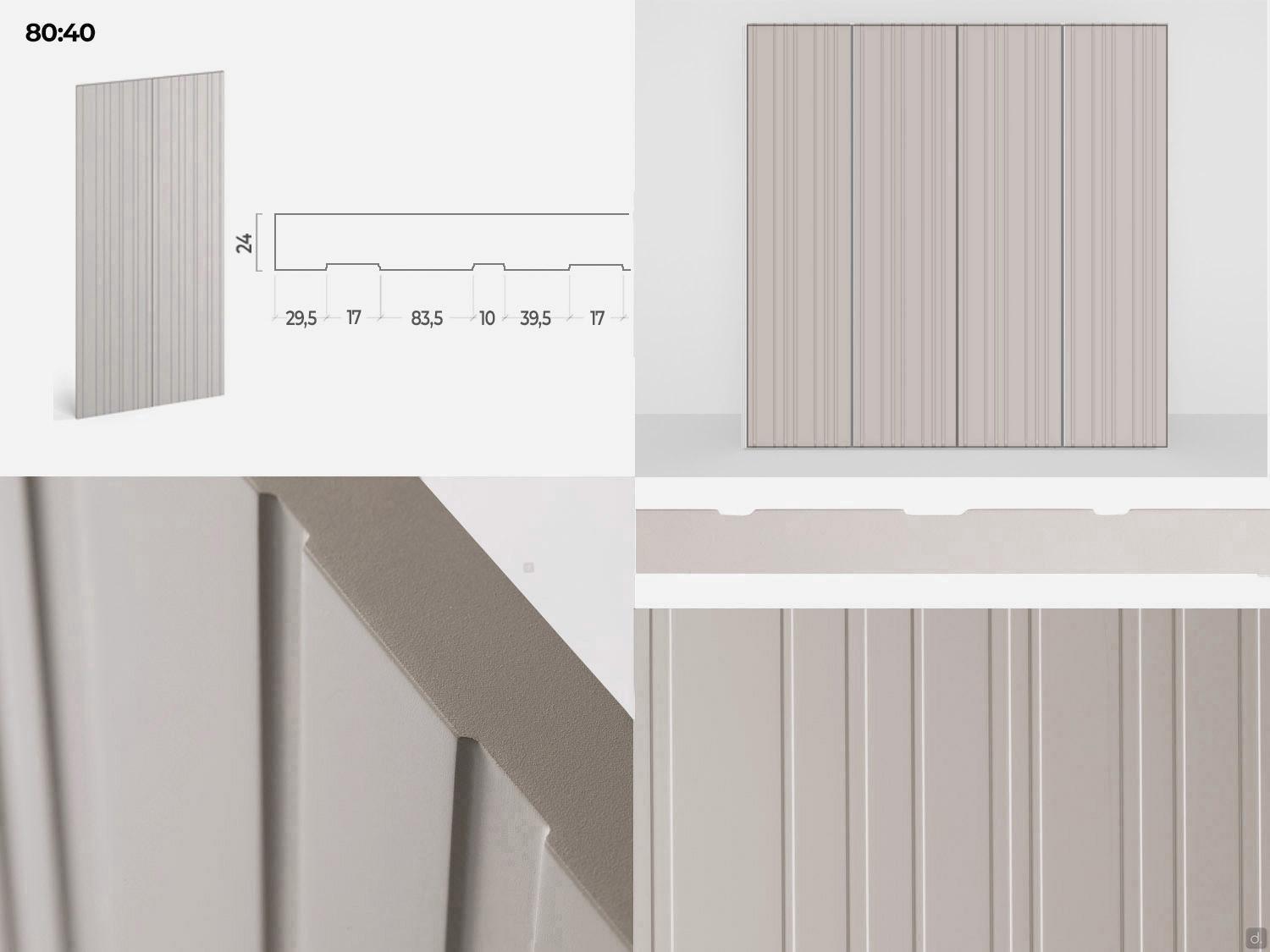

- 80:40 (only for lacquered wood finishes): "U" engravings cm 1 th.0,2 with variable pitch.
- 10:2 (only for oak wood finishes): vertical "V" engravings cm 0,2 th.0,2.

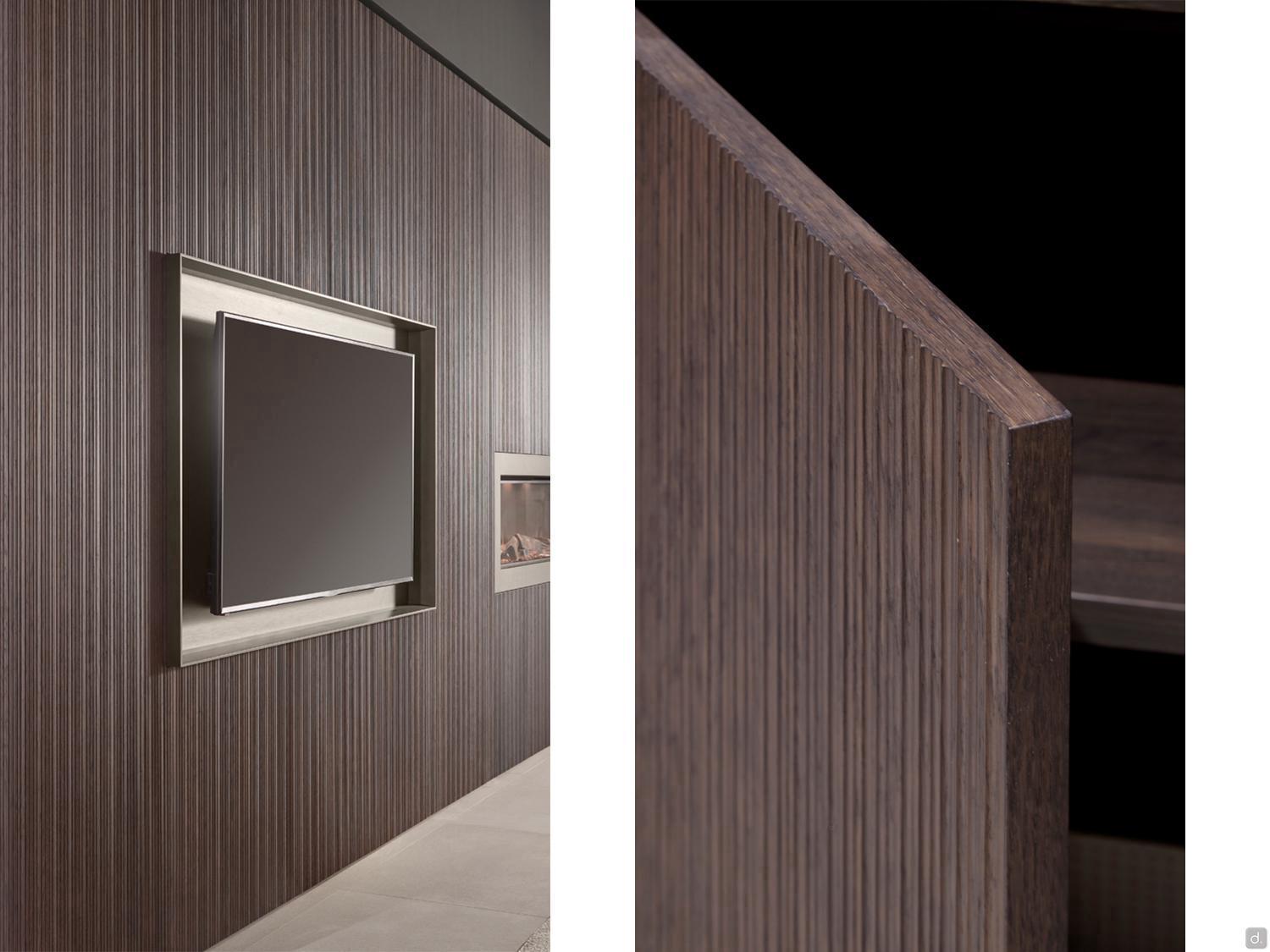

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid fir frame, plated in solid wood on both sides, stained in the sample finishes and embellished with 10:10 or Wave decorations. Achievable exclusively on project, for further information contact our Customer Service.

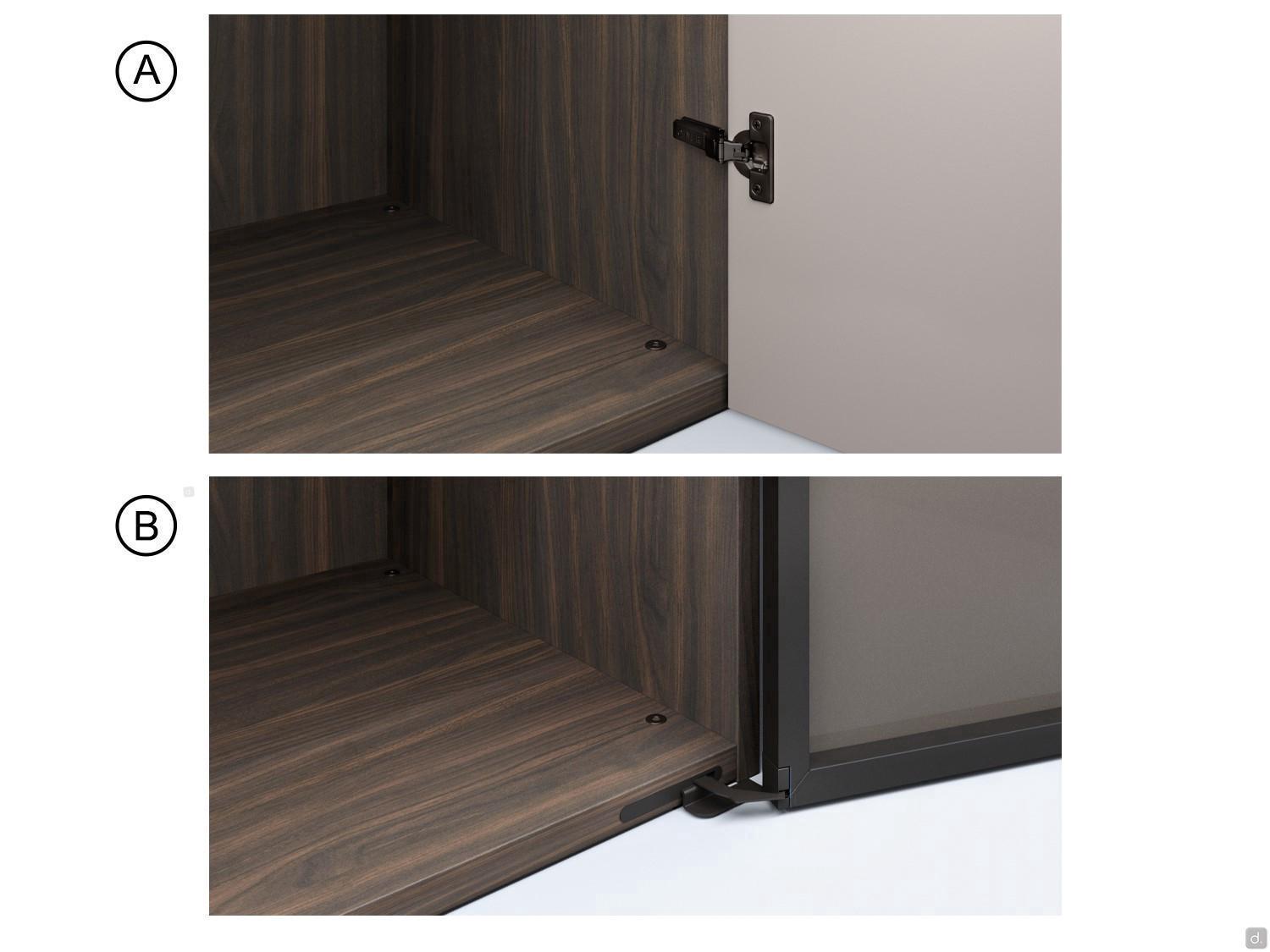

Hinges: metal in titanium finish with slow closing as standard. Standard opening angle at 155°; with 170° metal frame.
The hinged doors are equipped with n.4 slow-closure metallic hinges for heights up to 280 cm, n.5 hinges for higher wardrobes.
Usable Height: To obtain the usable internal height of the wardrobe, simply remove the thicknesses of the unloaded regulating feet from the overall height of the composition.
Please Note: Sides and doors are always supplied without edging on the short sides. This difference in finish, often hidden from view once the wardrobe has been assembled, deliberately leaves the solid fir frame of the honeycomb panel exposed to enhance the wooden component of the element and show the high quality of the finished product.
Side Drilling
Depth of 38 cm: couple of holes Ø 1,5 mm, spaced at cm 9,6 apart, placed every cm 35,2 (see the diagram in the gallery).
Depth of 59,2 cm: holed of Ø 1,5 mm every 9,6 cm on the entire height of the side.
Assembly Tips
Hardware is pre-assembled on all elements to facilitate and speed up assembly operations.
The feet, also pre-mounted on the bases, allow the correct leveling of the wardrobe thanks to a maximum extension of 0.8 cm. In the unloaded position, they measure 0.5 cm.
To assemble the wardrobe structure it is necessary to have:
- in width cm 4 (if assembled in a niche cm 2)
- in height cm 2
Read more...
Honeycomb: it
is a panel made with an internal honeycomb structure and a 5 / 7 cm perimeter
frame in first choice solid fir closed with 2 MDF panels 0,3 / 0,4 cm thick,
subsequently lacquered or veneered. The strengths of the honeycomb are:
- greater durability over time;
- greater load resistance;
- significantly
reduced weight of the panels (up to 60% less), useful both for transport,
assembly, travel or removals, but above all for reducing the weight of the
doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir) of the
sides and doors, so the hinges will have greater resistance, and the furniture
will have a significantly longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to 'standard' open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and is more noticeable on important surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom furniture sets.
