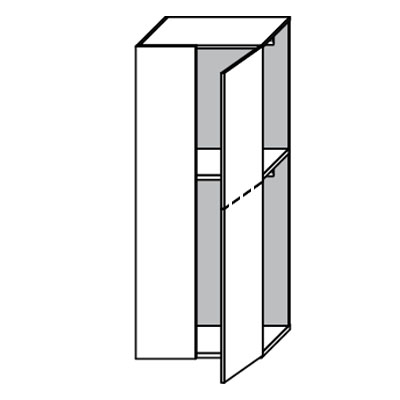

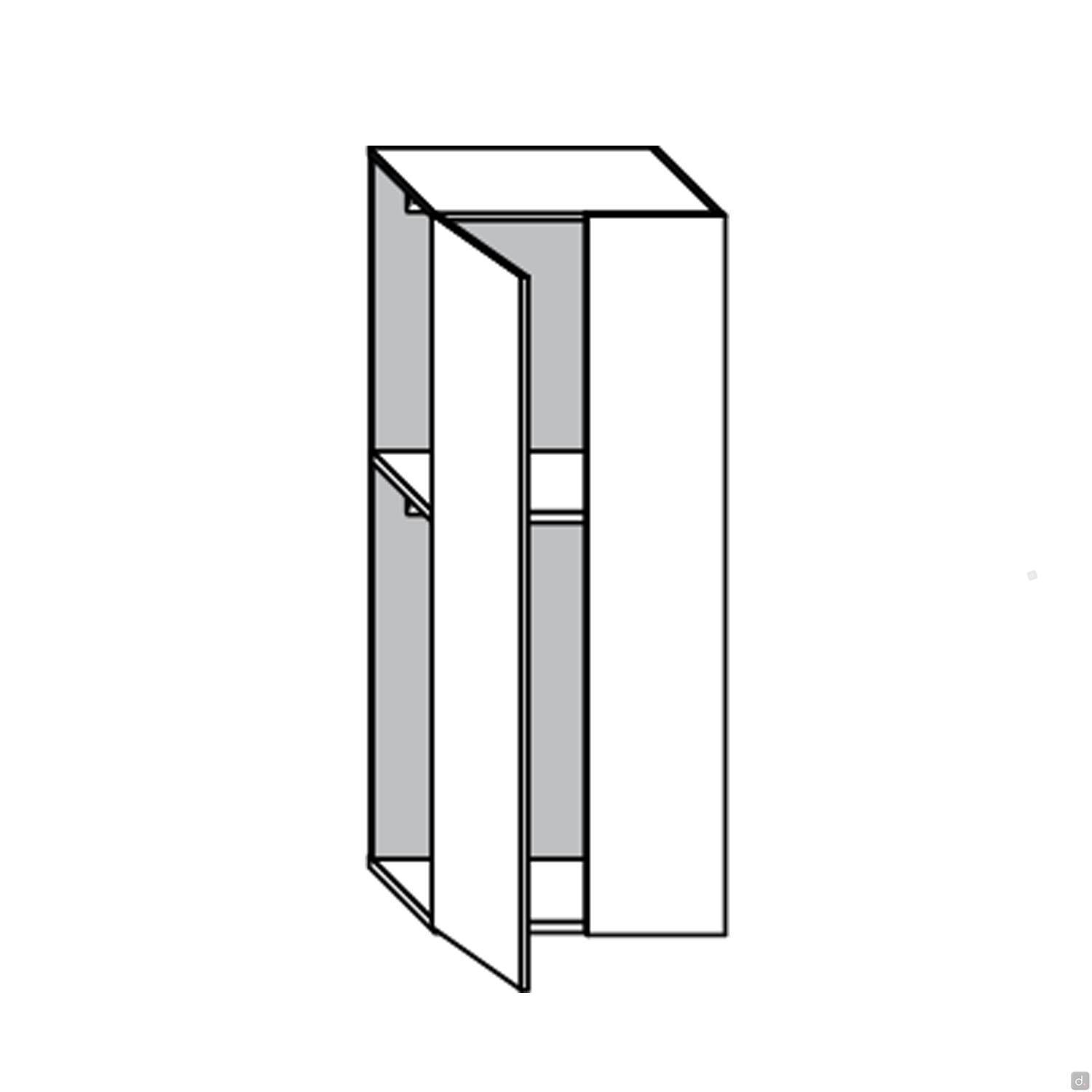

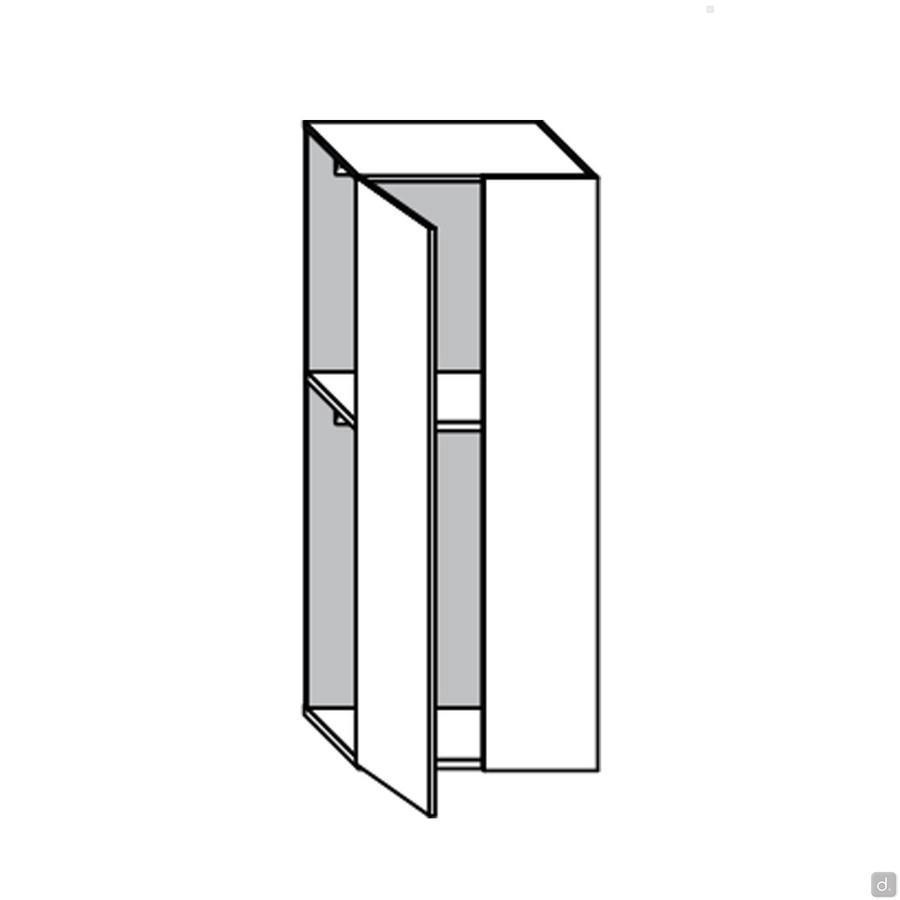

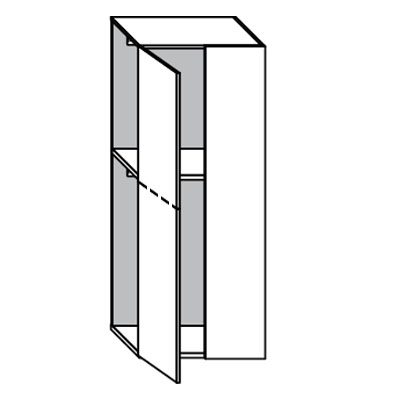

Blind end cap for Wide hinged wardrobes, can also be combined with a sliding module for special corner compositions

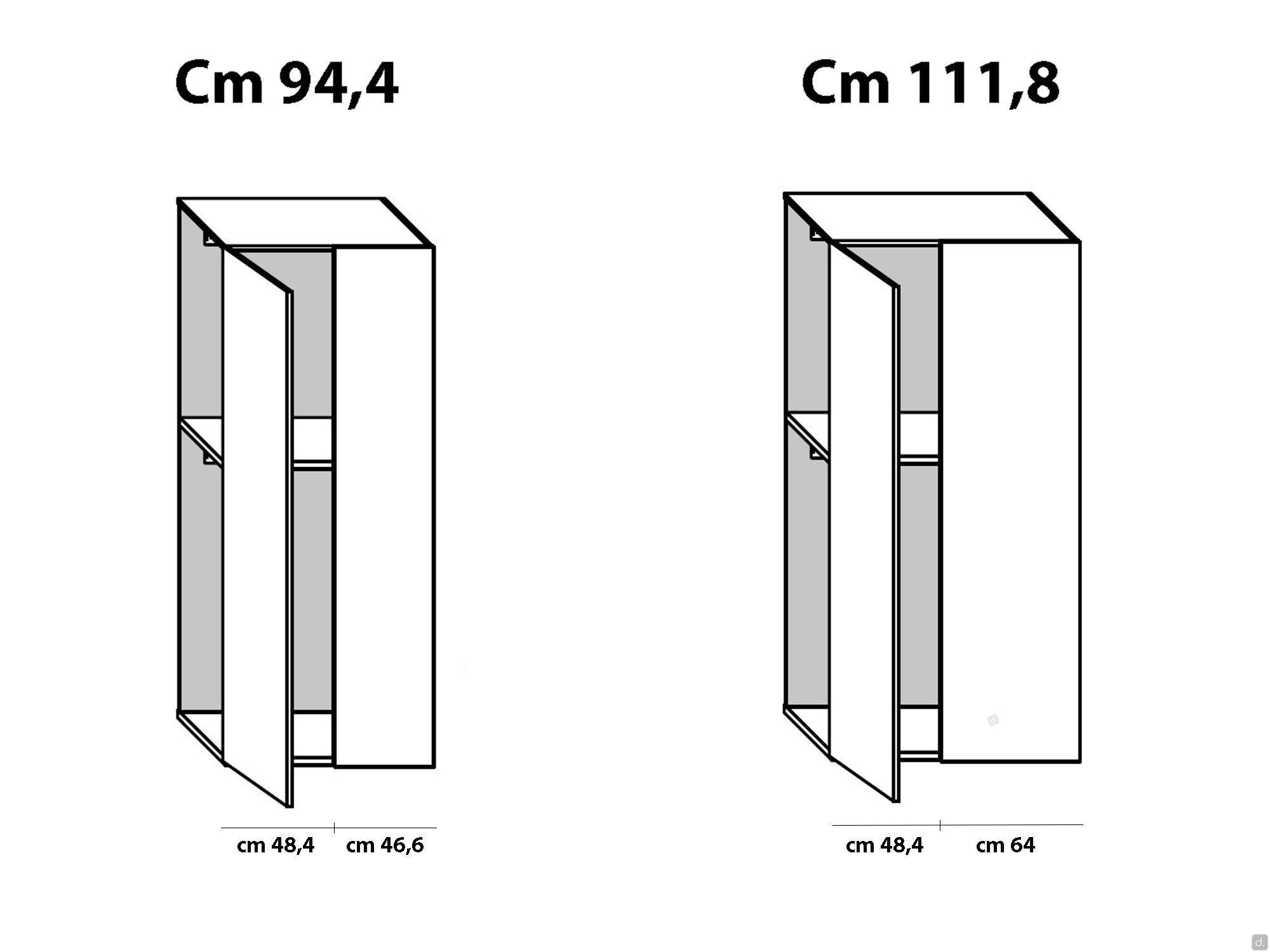

Wide blind end cap in the two available widths, with the size of the division between casement and fixed sash

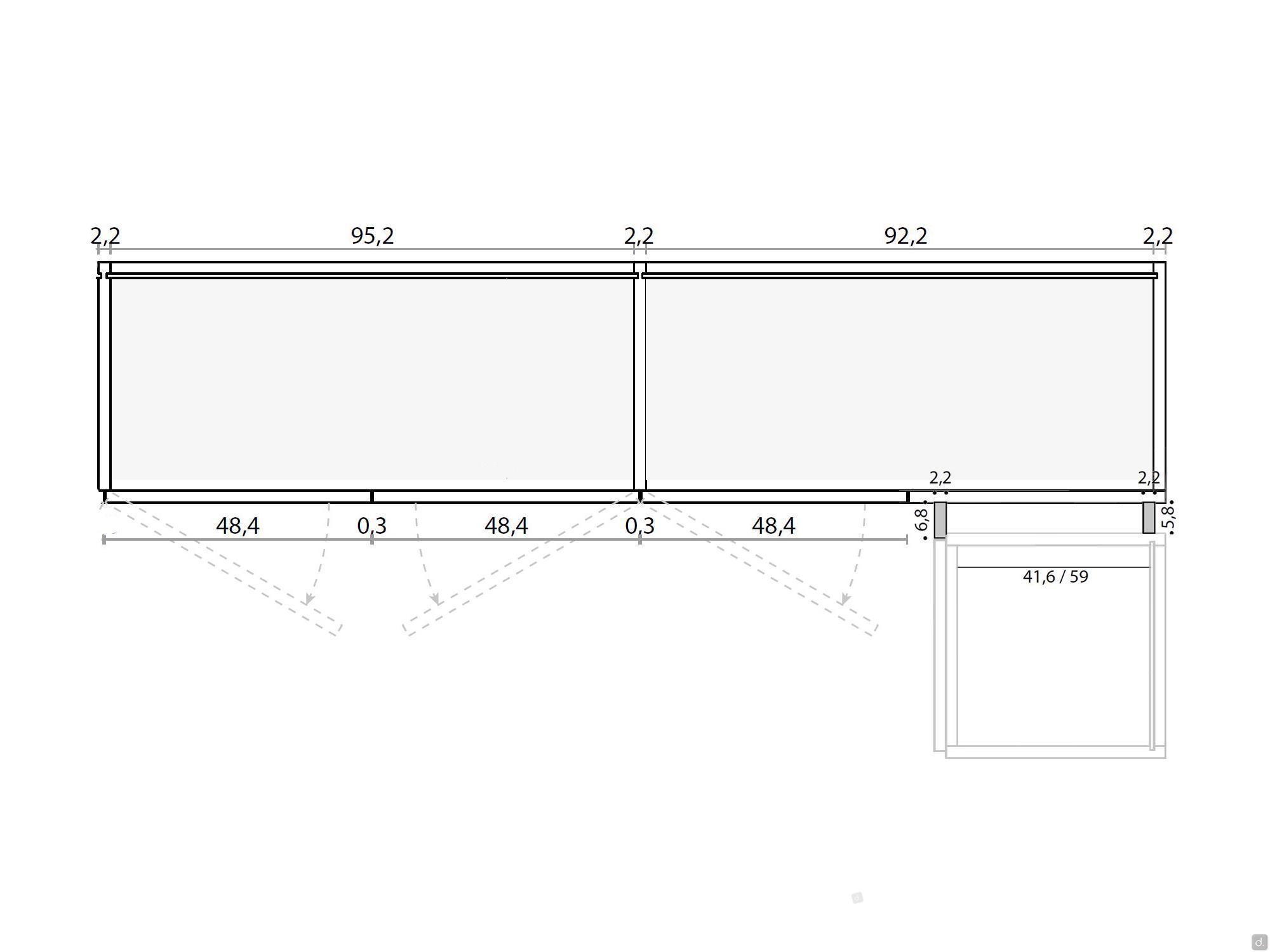

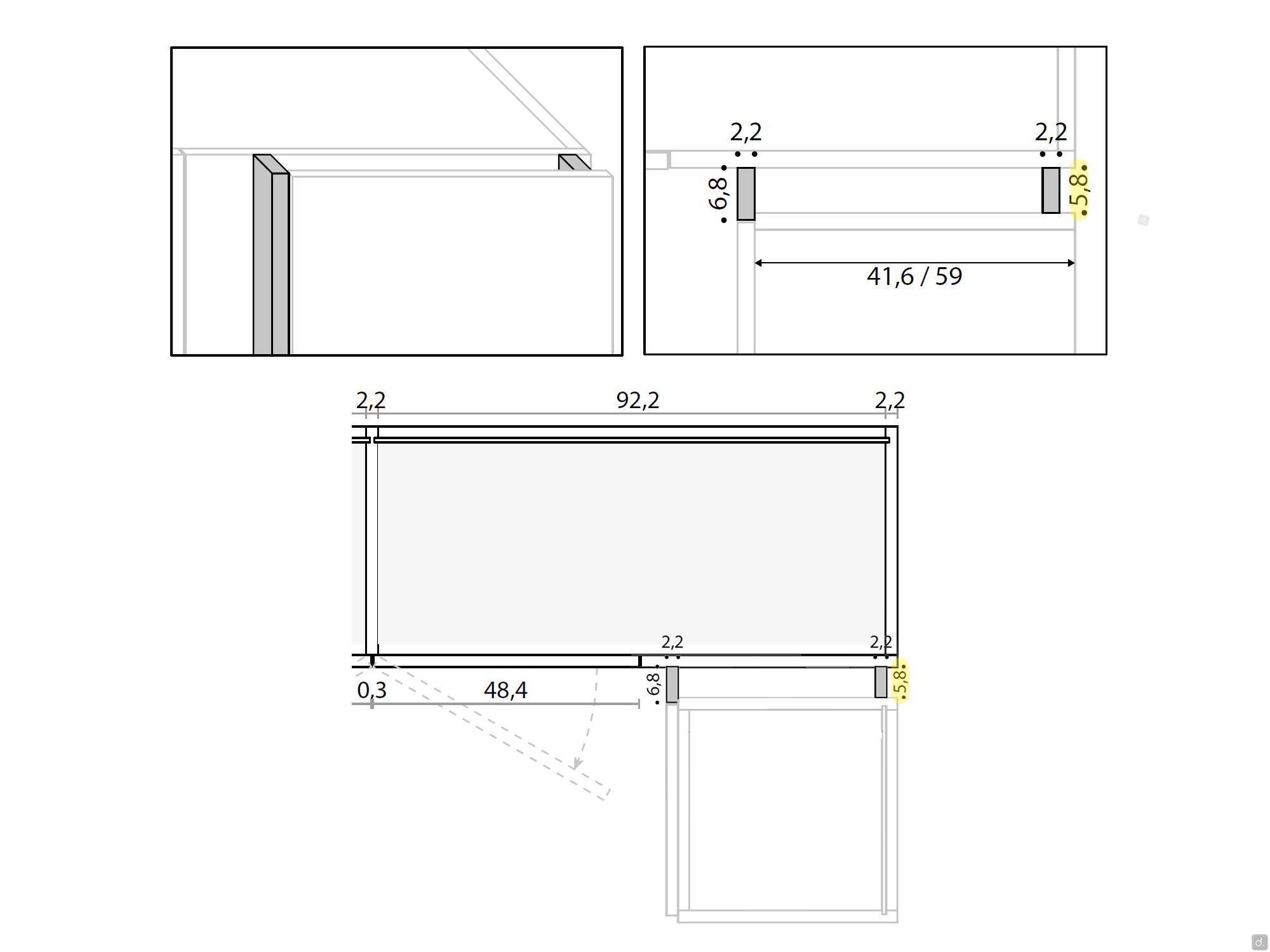

Diagram of a blind Wide end piece inserted between two hinged modules, for corner composition. The 5.8 cm spacer between the end piece and the bottom hinged module should also be taken into account.

Detail of the 5.8 cm spacer, which is essential to ensure correct opening of the hinged door of the first module after the corner.

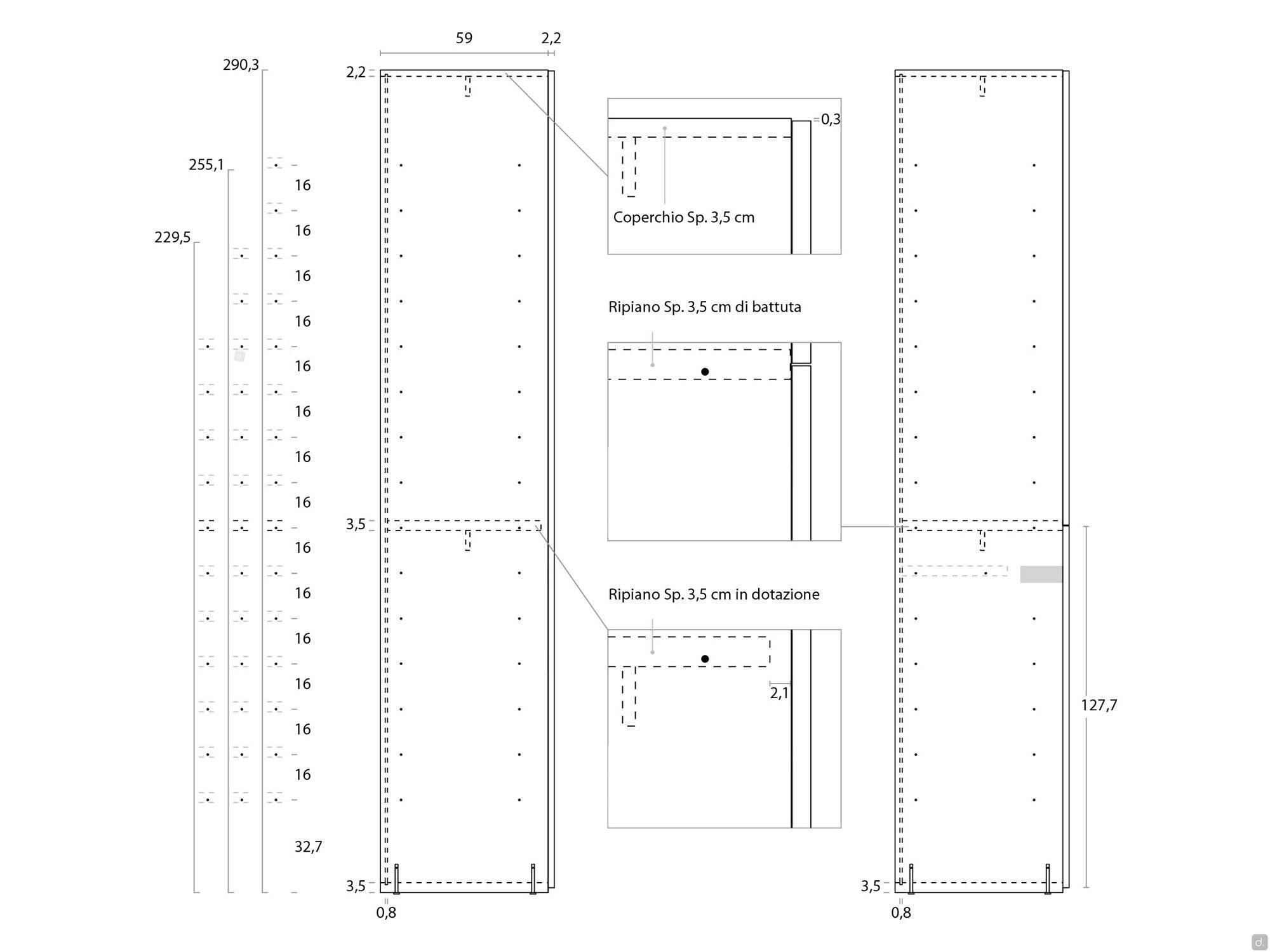

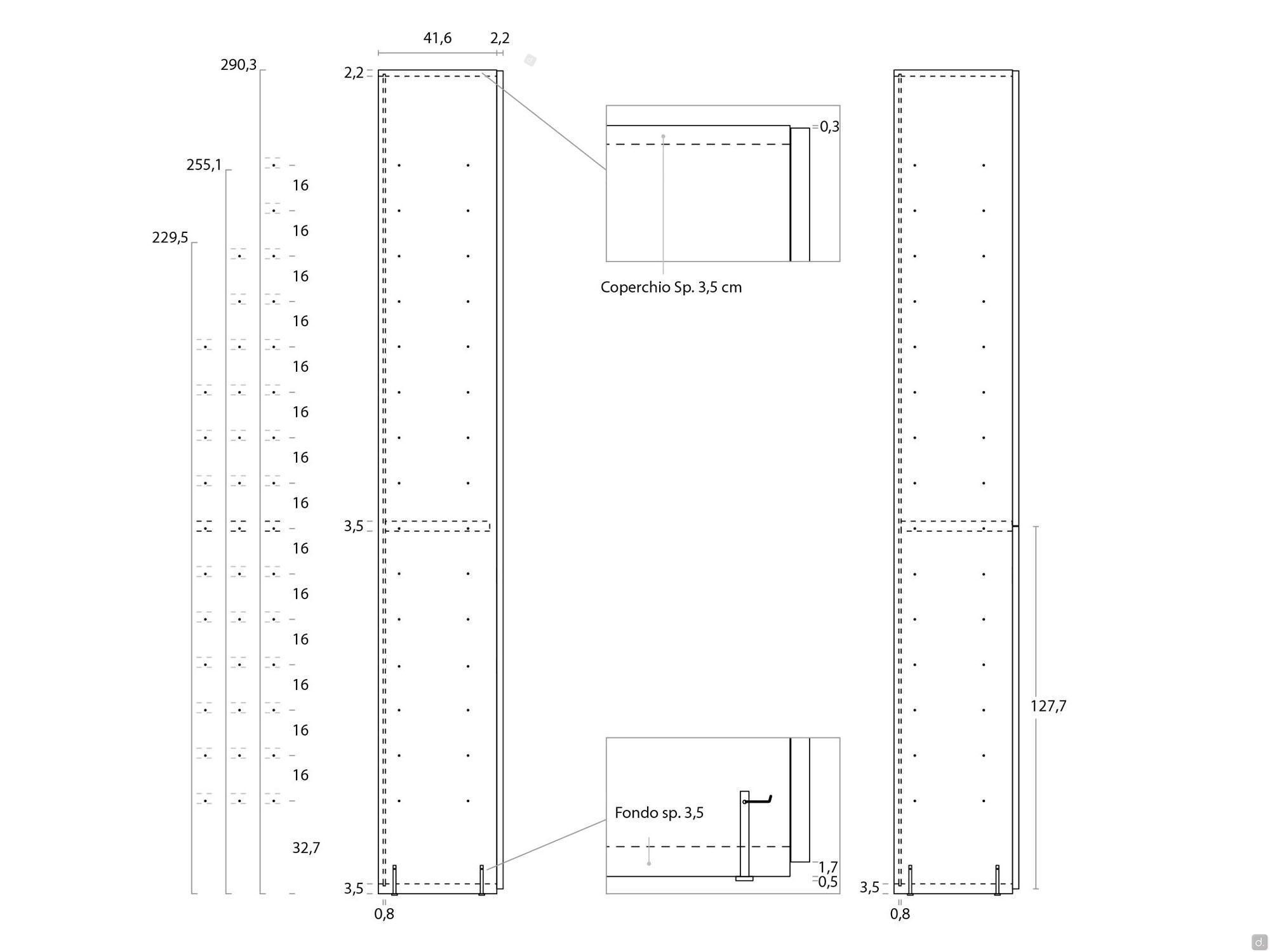

Drilling pattern inside the blind end piece in the p.43.8 cm module

Drilling pattern inside the blind end piece in the p.61.2 cm module

+ 3

MORE IMAGES

Wide Blind Terminal
Corner Wardrobe

Blind end element for Wide hinged wardrobes, with doors that can be coordinated with the other products in the collection. In two widths, for special corner compositions.

* Required Fields

Profondità Terminale *

cm p.43,8
cm p.61,2 +€69.79

Altezza Terminale *

Nota Bene *

In caso di composizione angolare con moduli Wide oltre il Terminale Cieco, è necessario considerare ulteriori cm 5,8 sulla prosecuzione della composizione per integrare i distanziali forniti di serie.

Posizionamento e Verso Apertura Anta *

------H.229,5
Destro, con apertura anta verso Destra
Sinistro, con apertura anta verso Sinistra (larghezza +2,2 cm) +€94.37
------H.255,1
Destro, con apertura anta verso Destra
Sinistro, con apertura anta verso Sinistra (larghezza +2,2 cm) +€101.25
------H.290,3
Destro, con apertura anta verso Destra
Sinistro, con apertura anta verso Sinistra (larghezza +2,2 cm) +€122.88

Modello Anta *

Modello Anta *

Modello Anta *

Finitura Anta *

Finitura Anta *

Finitura Anta *

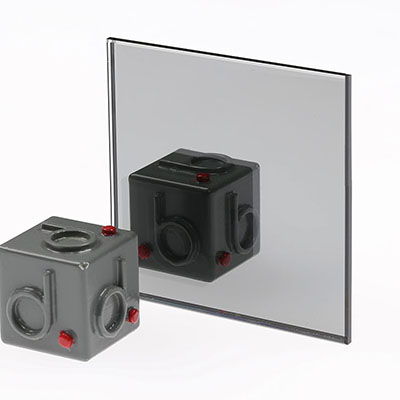

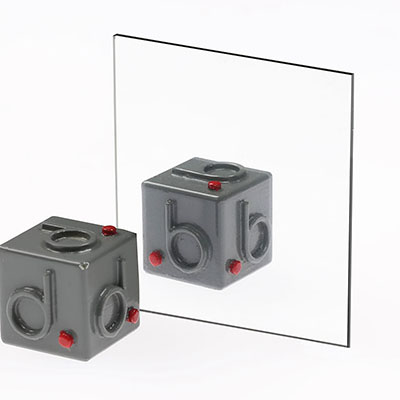

Colore Specchio *

Finitura Pannello Superiore Anta Battente *

Info per il tuo Acquisto *

L'anta fissa del Terminale Cieco Wide e il distanziale tra moduli battenti sono in tinta al pannello superiore dell'anta battente

Finitura Pannello Inferiore Anta Battente *

Modello Maniglia *

Finitura Maniglia *

Finitura Maniglie *

Finitura Maniglia *

metallo verniciato peltro spazzolato

Finitura Maniglia *

metallo verniciato Nickel, con anello esterno in metallo verniciato Moka Shine

Finitura Unghiatura *

Finitura Maniglia Integrata Curva e Profilo Orizzontale *

Finitura Maniglia Integrata Curva *

Dotazioni Interne *

-n.1 ripiano cm sp.3,5
-n.2 tubi appendiabiti

Dotazioni Interne *

-n.1 ripiano cm sp.3,5

Finitura Lato Interno Ante *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Quantity

From €699.90

View Samples

Wishlist

Description

Blind end element for Wide collection hinged wardrobes available in widths of 94.4 and 111.8 cm.
Available with all the door models and finishes of the Wide collection, the solid end unit is ideal for making the most of the limited space available, also offering the possibility of adding further hinged or sliding modules to the element.

Features
blind end element for Wide elements in 3 heights, 2 depths and 2 widths
perfect for creating original corner compositions, even hybrid hinged and sliding compositions
door opening by push-pull, handle or groove
high customisation in size and finish

Measurements
Width: cm 94.4 / 111.8
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.43,8 / 61,2
- body: cm d.41,6 / 59
- useful interior: cm d.40,8 / 58,2

Materials and Finishes
Door:
- melamine
- matt lacquered
- wood essence
- glass
- mirror
Handle and nailing
- lacquered metal
- lacquered metal
Interior:
- melamine-faced
- matt lacquered melamine

Purchase Information
The hinged door of the solid end unit always has a width of 48.4 cm. To calculate the overall dimensions of your composition simply add the width of the solid end unit to the width of the hinged wardrobe.

Technical study

Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke and Gurè material melamine have the grain direction always vertical. In these cases, in the presence of seasonal doors, there is no vein continuity between the lower and upper doors.

Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fixing, matching Interiors.
Backs: cm 0.8 thick, matching Interiors.
Inner shelf: thickness cm 3,5 complete with joints for fastening, matching Interiors.
Hanging tubes: umber shine painted metal.
Door: cm 2.2 thick with assisted closing mechanism. Equipped with handle or partial nailing, full-height and horizontal, in white, mocha shine, nickel or numerous matt lacquered metal finishes.
Handle:
- push-pull: positioned at the standard height of the supplied shelf, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- 3D: cm 1,7 p.1,9 h.116. Finishes in white lacquered metal, moka shine, nickel or matt lacquered.
- Minima: cm 1,9 p.2,1 h.110. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- IM: cm 5,3 h.16,2. Finishes in white painted metal, moka shine, nickel or matt lacquered.
- Savoir: cm 3,2 p.2,6 h.17,2. Brushed pewter painted metal finish.
- Shape: cm 7 p.2,5 h.7. White, moka shine, nickel or matt lacquered metal finish.
- Ring: cm 11,9 d.5,6 h.9. Nickel painted metal finish with mocha shine painted metal outer ring.

Drilling Sides
Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions please see the dedicated diagram in the image gallery.

Assembly Tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). In case the lighting system is mounted, this becomes cm 3.5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions
