Description

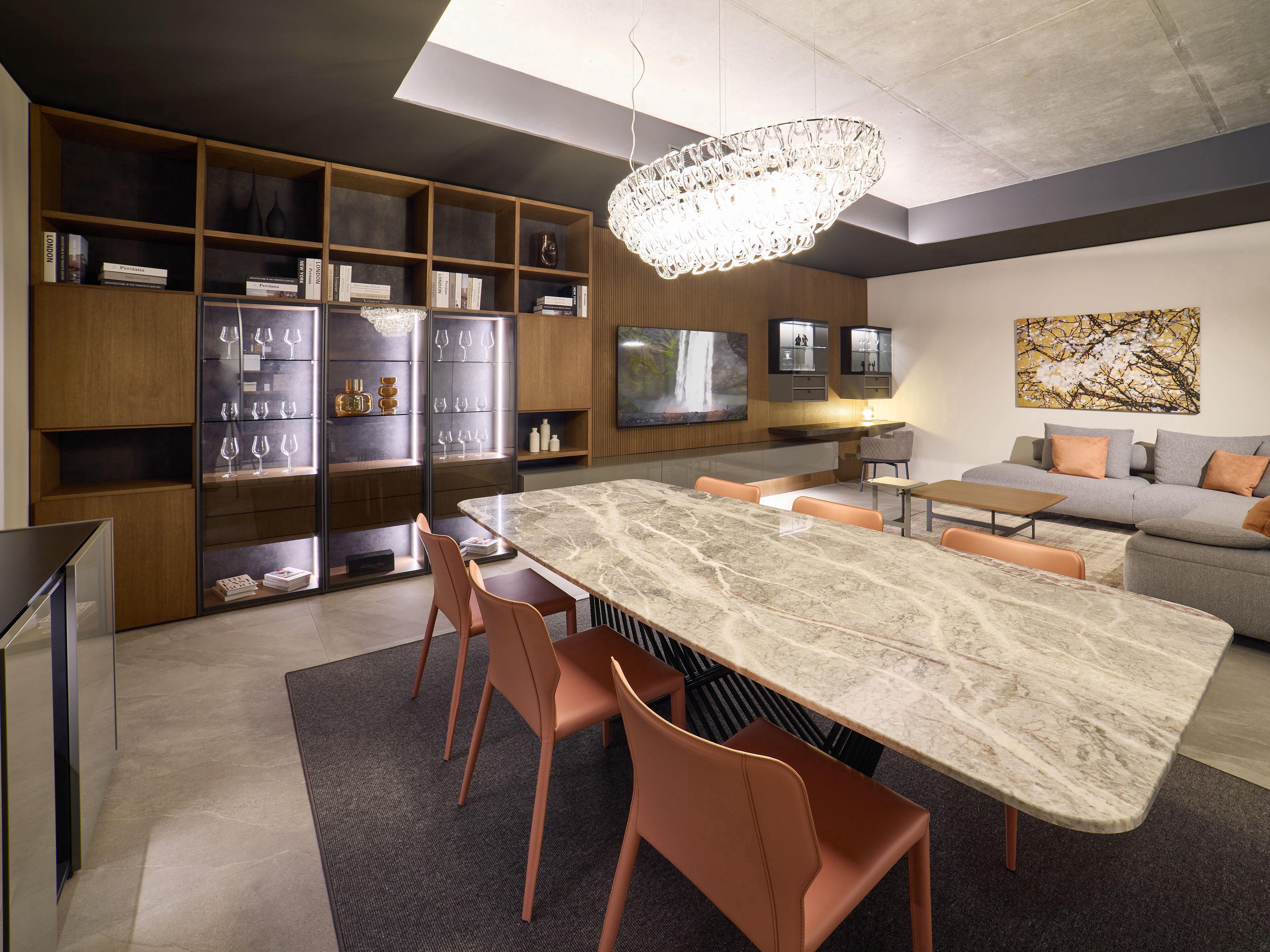

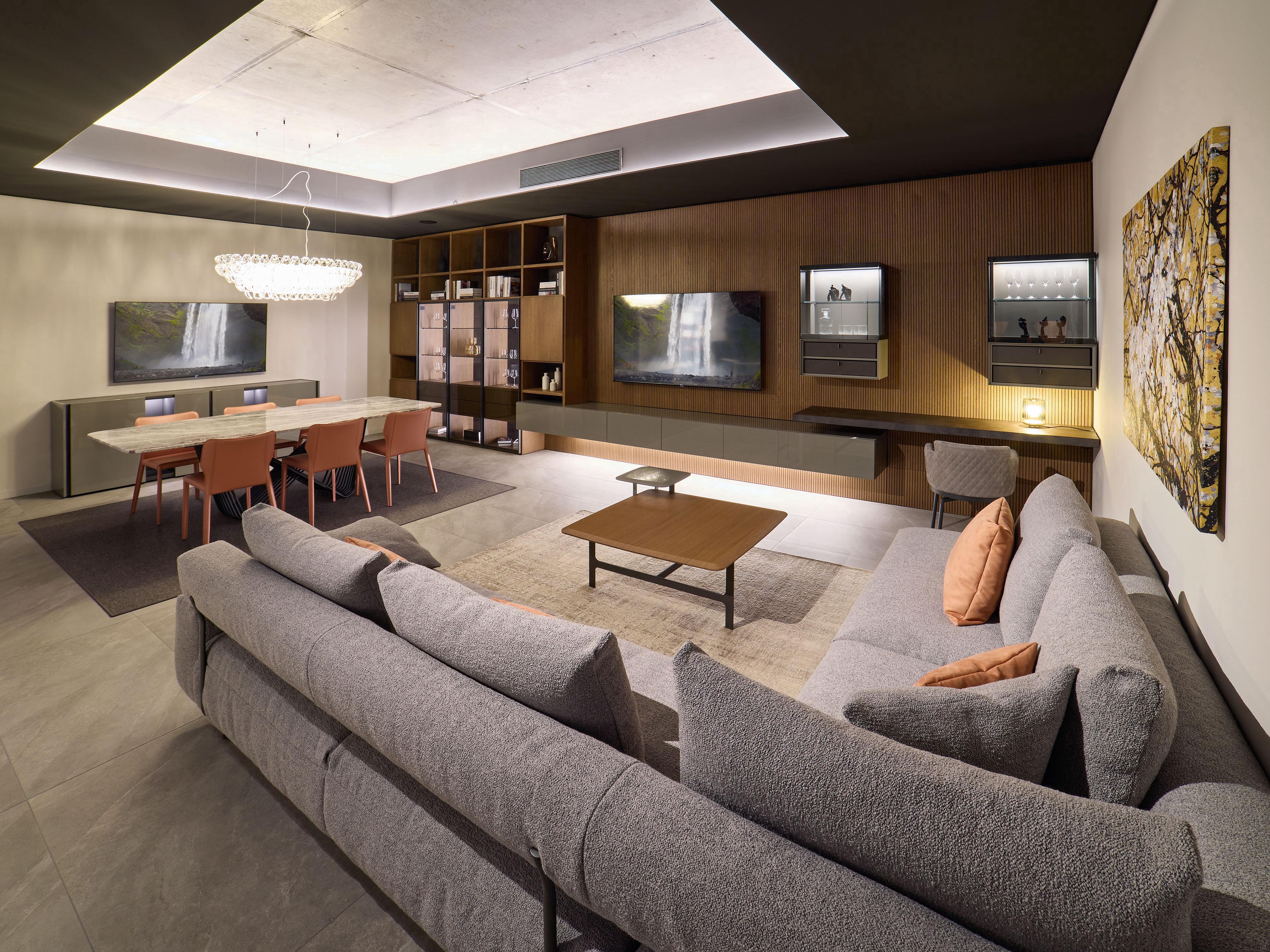

Aliant 11 is a big wall unit with wooden slats wall panel, bookcase with display cabinets and integrated desk, ideal for furnishing large living rooms and open spaces.
Distinctive features of the Aliant collection are its modularity and an extreme bespoke feature, that allow for compositions that are totally made to measure to the centimetre in height and width, customised to suit your needs.
What makes this specific wall unit unique are undoubtedly its large dimensions (787 cm in width and 278 cm in height), designed for large and luxurious living rooms, and the elegant wood panelling that gives warmth and elegance to the room.

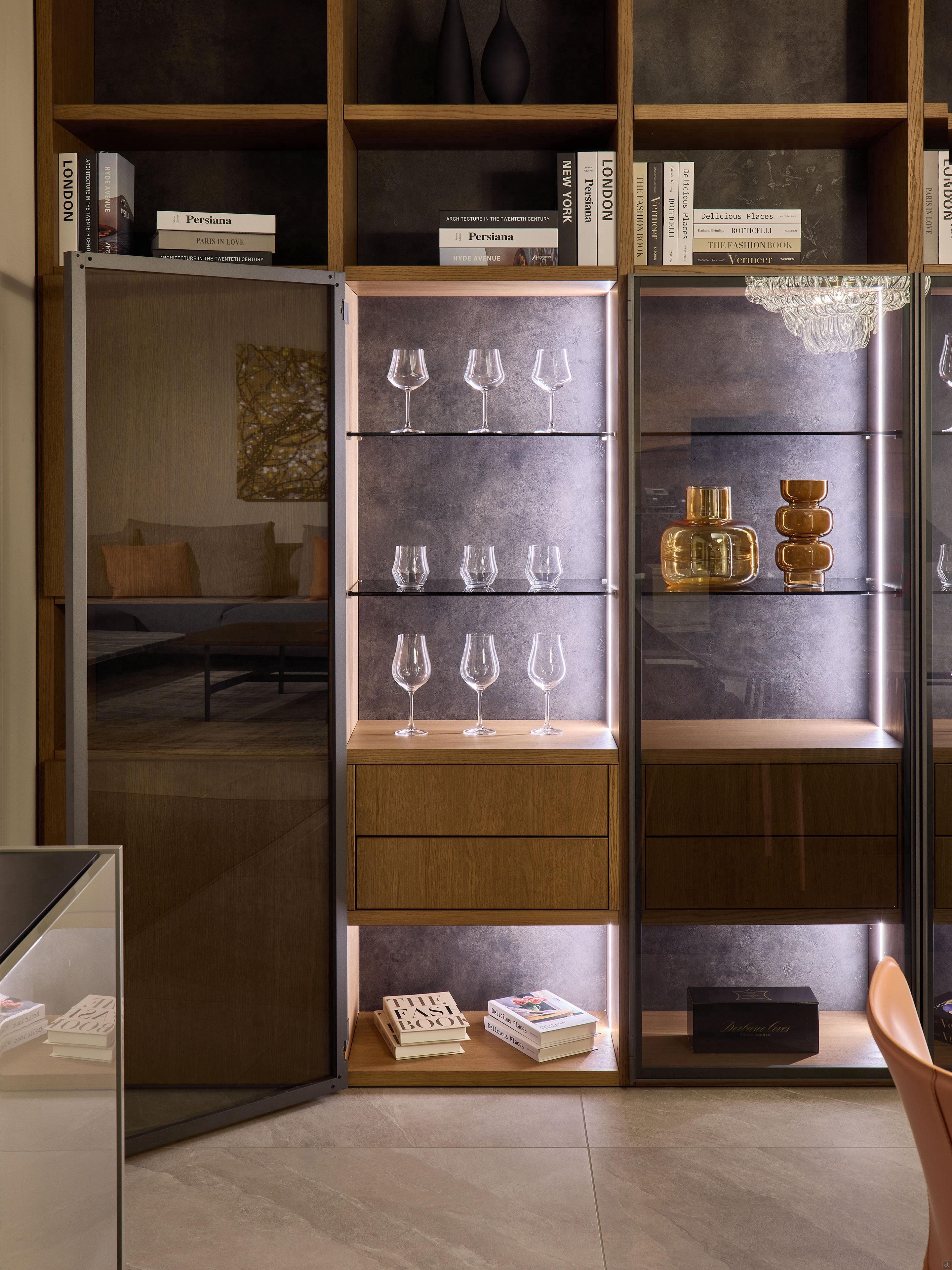

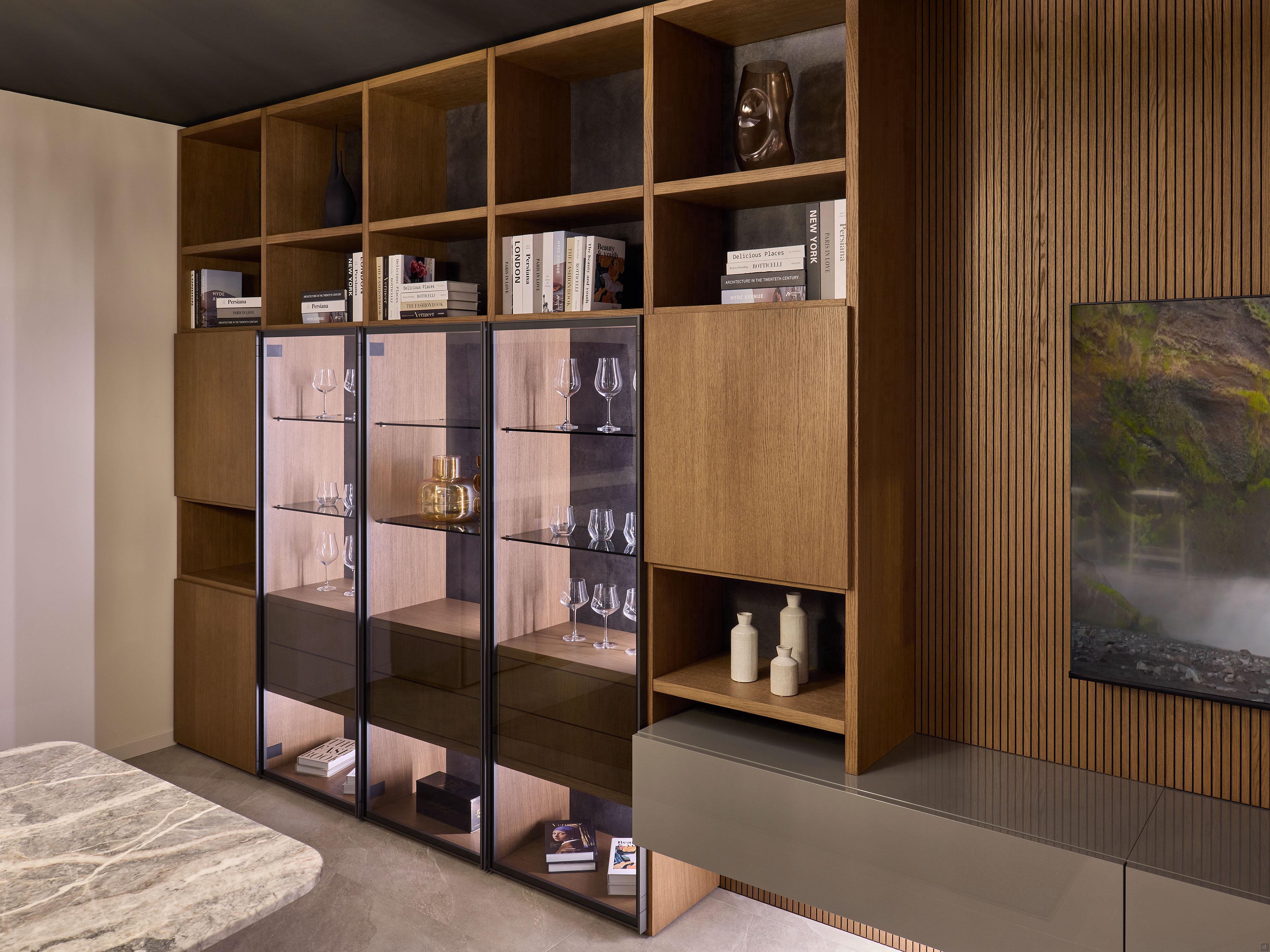

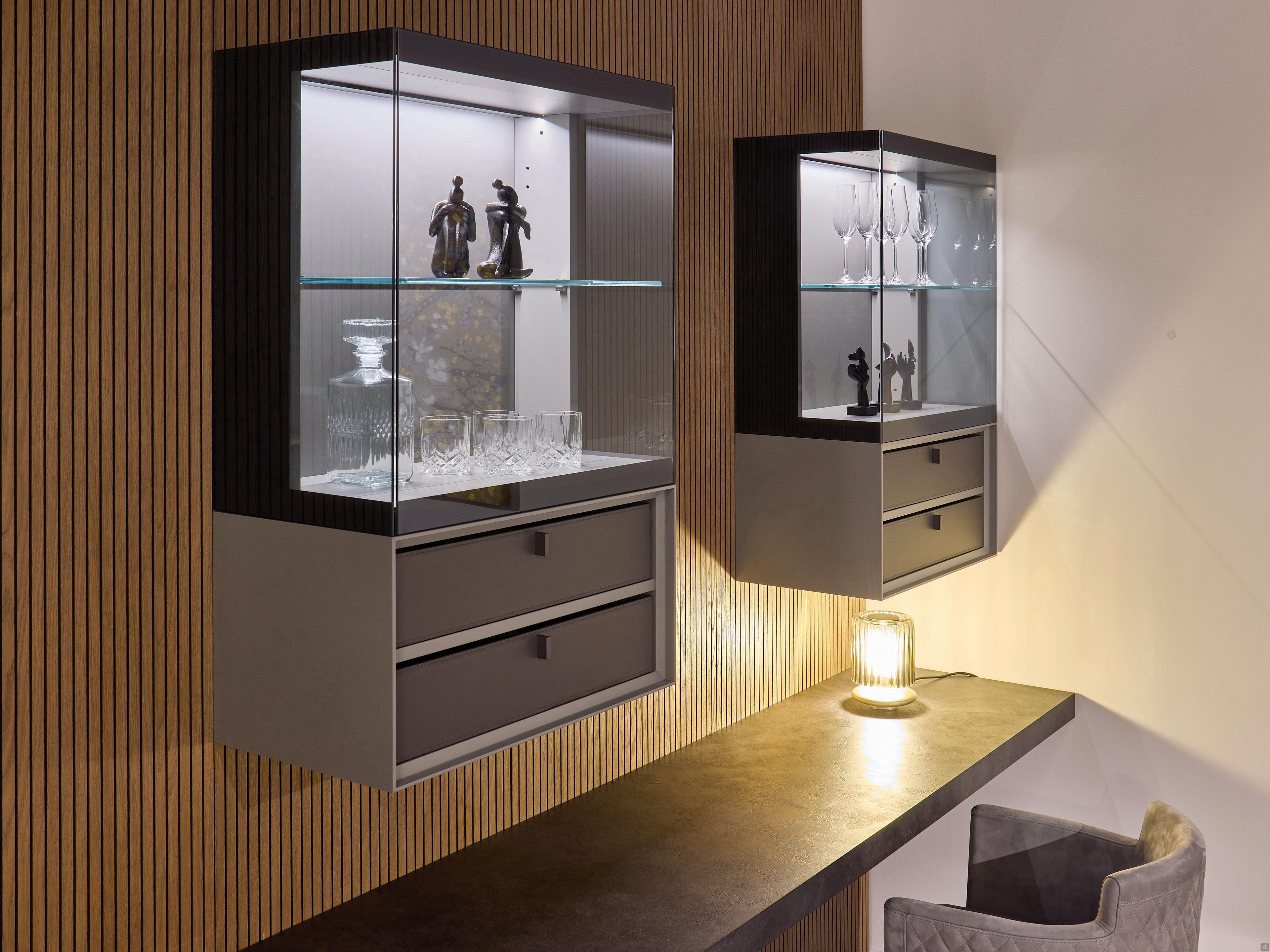

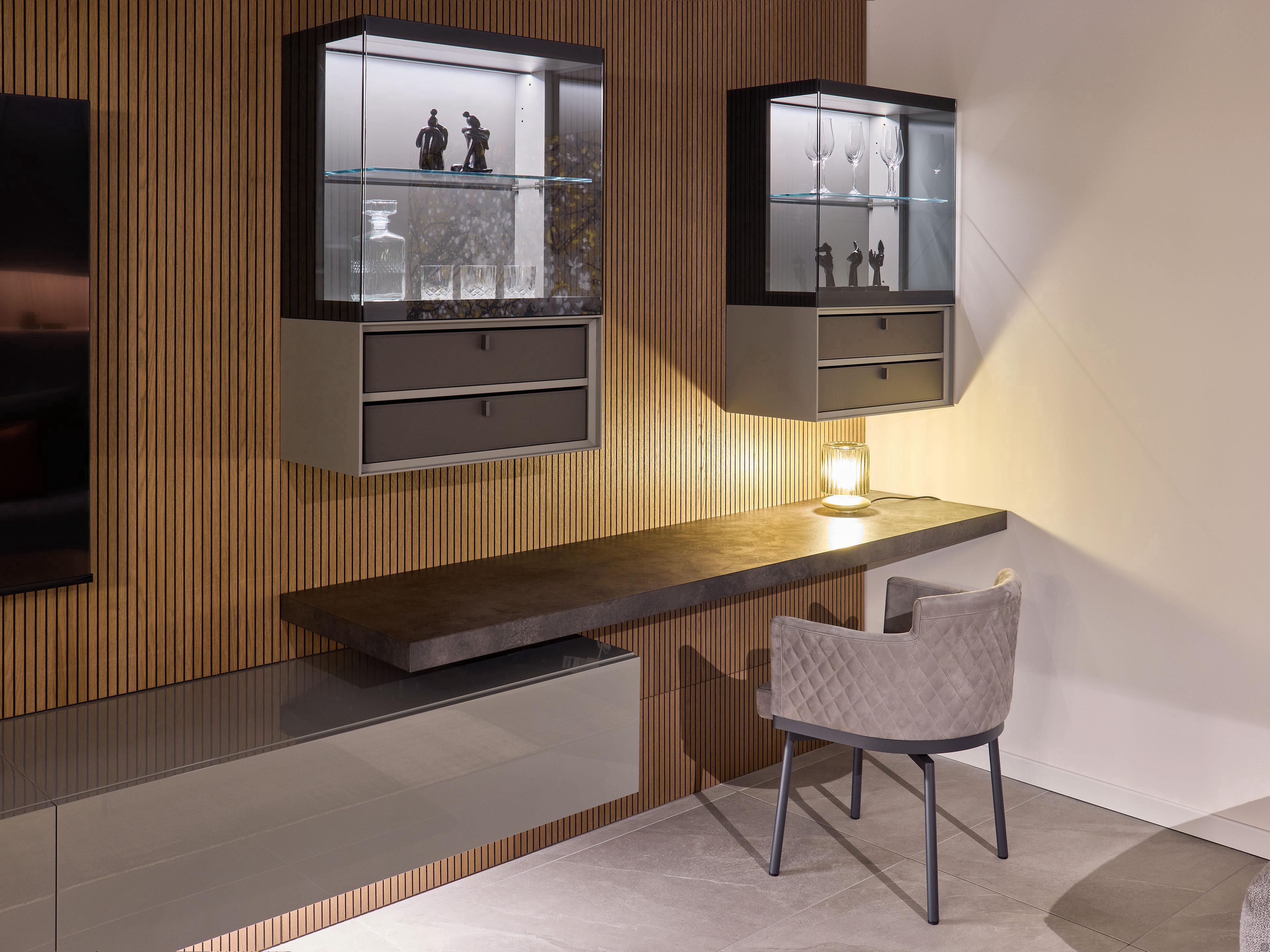

Aliant 11 is complemented on the left by a 5-column bookcase with display doors and on the right by a large desk, ideal as a home office workstation. In the centre, the large TV space allows large televisions to be hung, while the suspended base units underneath offer ample storage space organised in two drop-down doors and two baskets. Underneath, a luminous LED strip creates an interesting scenographic effect.
The compositional options of the Aliant programme do not stop only at the many available accessories, but is also expressed through the very wide range of finishes available, with a choice of melamine, matt lacquer, veneer and open-pore wood lacquer.
Quality and Value
Made in Italy wall unit made to measure to the centimetre
Groove boiserie in real walnut slats with black background
sides and shelves 3.5 cm thick
melamine-faced, matt lacquered, veneered and open-pore lacquered among the many finishes available
Made in Italy wall unit made to measure to the centimetre
Groove boiserie in real walnut slats with black background
sides and shelves 3.5 cm thick
melamine-faced, matt lacquered, veneered and open-pore lacquered among the many finishes available
Materials and Finishes
- melamine
- matt lacquered
- veneered wood
- glass (on doors and display cabinets)
Info for your Purchase
The Aliant collection can be perfectly combined with the elements and wall units of the Plan system.
In the case of shelves wider than 124.5 cm it is mandatory to provide at least one divider (also in the rectangular open version) or an open box compartment for structural reasons.
If the shelf is without back and larger than 140.5 cm, the divider must have a maximum distance of 92.5 cm from one of the two backs. If, on the other hand, the shelf has a back, the maximum distance to be observed is 124.5 cm.
For the calculation of the overall height of the bookcase, the height of the side panels already includes the thickness +0.5 cm of the levelling feet.
Technical study
Technical Specifications and Equipment
Structure: wood particle board (class E1 low formaldehyde emission). Wooden edge, lacquered ABS or ABS. The sides on the floor are always equipped with levelling feet inserted in the thickness (0,5 cm h. minimum).
Sides, Bottoms, Tops, Partitions: cm th.3,5.
Finishing Top: cm th.3,5 replacing the top in tall compositions up to cm h.187,5. For widths over cm 279,7 the top is divided into two parts.
Backrests: cm th.1,4 slotted in the bottom and top, sanitary empty space on the back of cm 2,1.
Mirror: cm th.0,4 h.33,2. To be applied on the cm th.1,4 back.
Bridge: standing on the wall with bottom equipped with invisible brackets. The bridge unit can be equipped with backs cm th.1,4.
Wooden Shelf: cm th.3,5

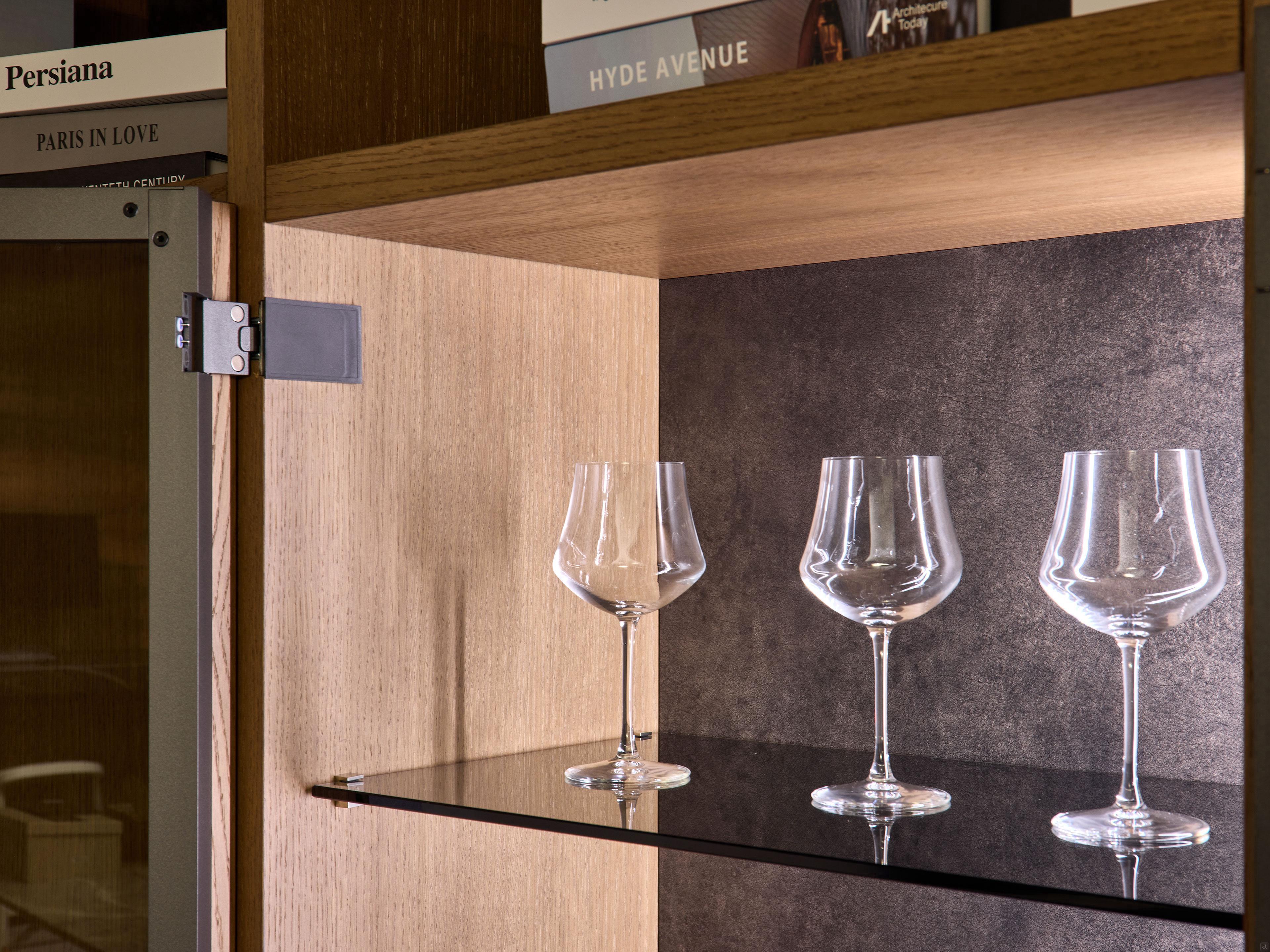

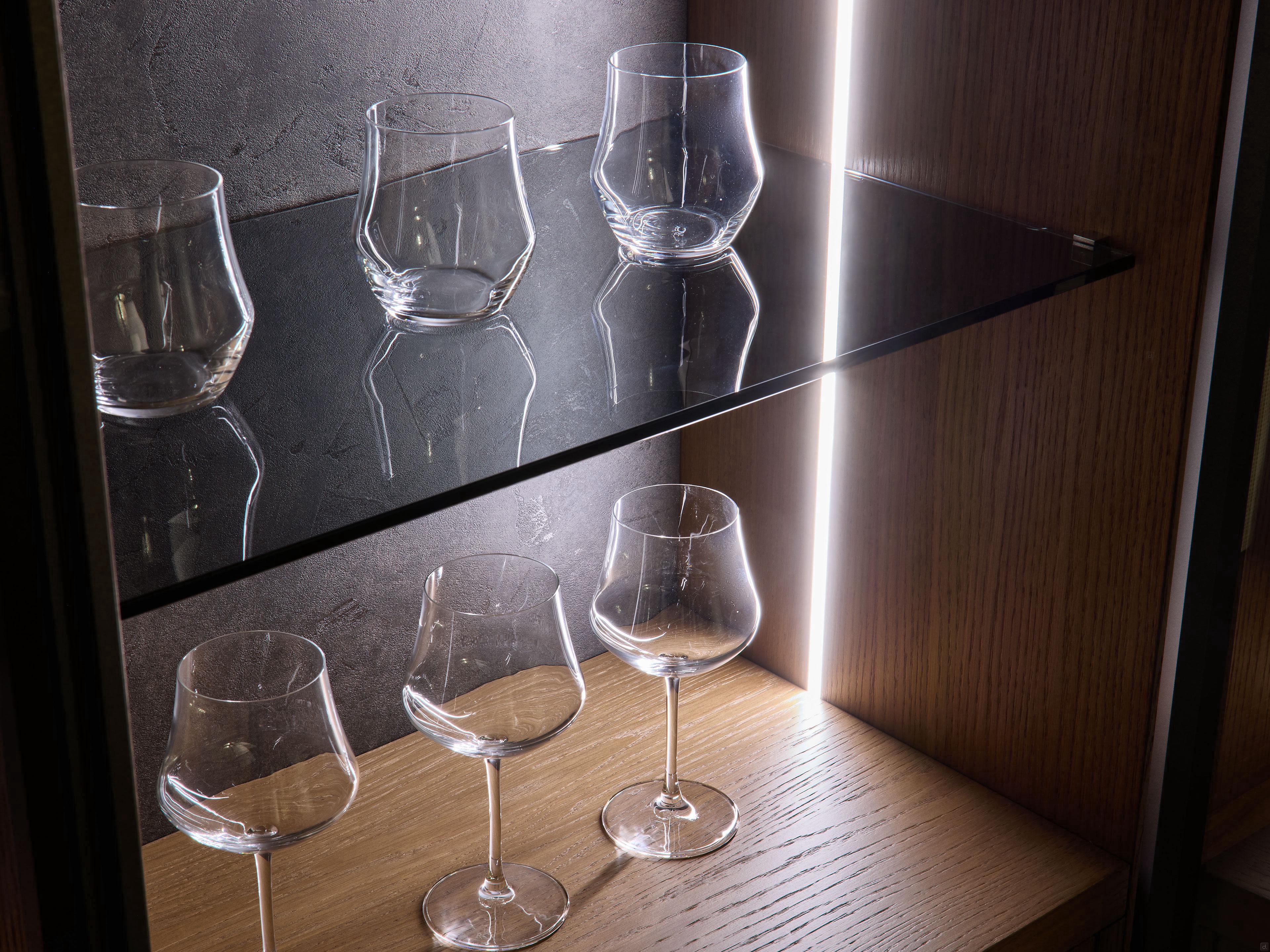

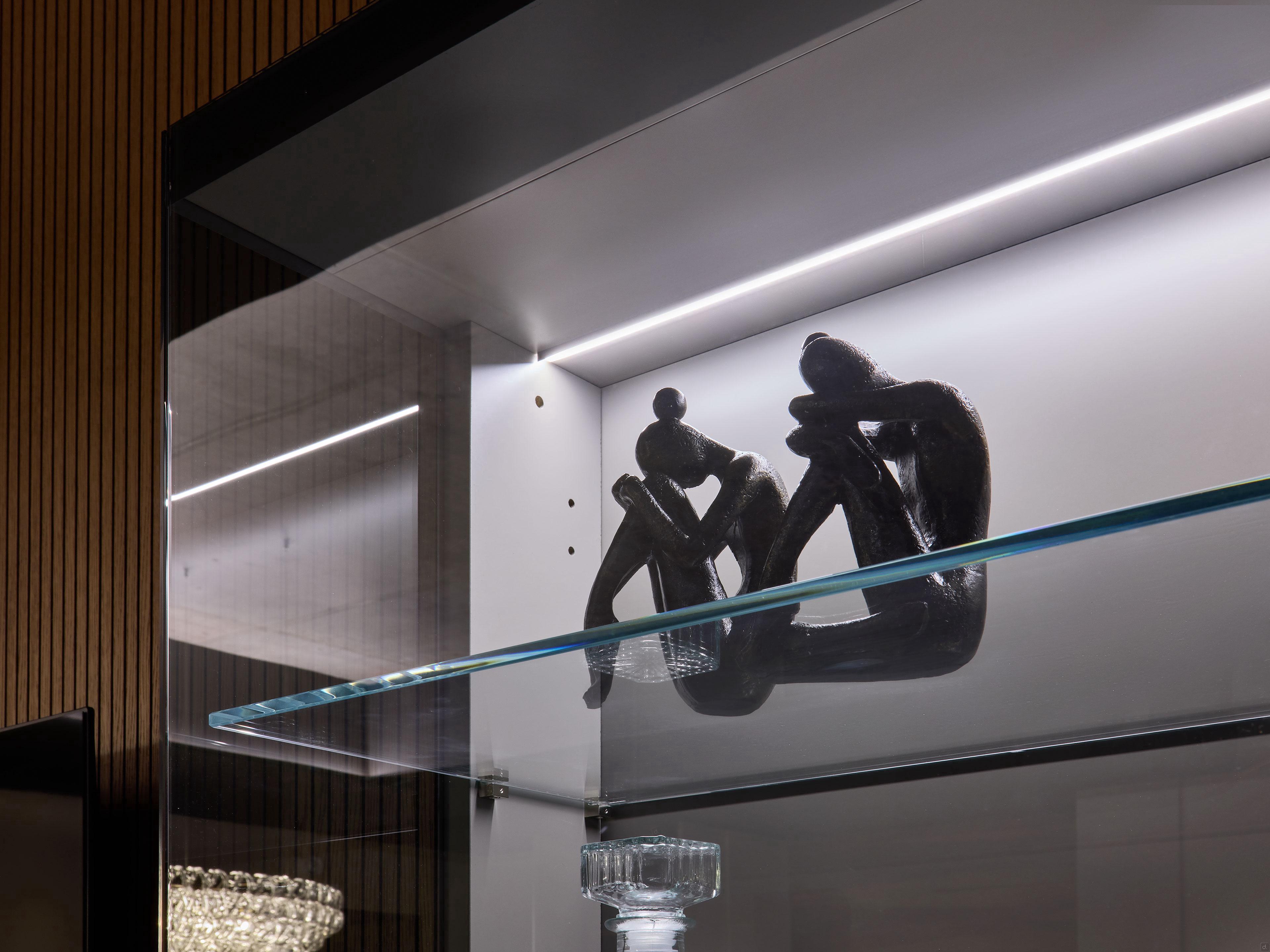

Glass Shelf: transparent grey cm th.0,8 with visible blocking shelf supports.
Rectangular Open Partition: cm th.1,2 in MDF panel coated in matt lacquer polymer. Free position, 45° cut folding workmanship. In bookcases with partition back this will stand on the backrest and in line with the side, in bookcases without back the partition will stand against the wall and 3,5 cm recessed from the side.
Box open compartment: cm th.1,4 in particle wood panels (class E1 with low formaldehyde emissions) matt lacquer. Available with matching back rest cm th. 1,4 (cm d.28,3 / 37,9) or see-through without back (cm d.31,8 / 41,4). ABS border. Free positioning, 45° folding. In bookcases with backs, the box will stand on the back and recessed cm 0,2 from the side, in bookcases without backs the box will be see-through and recessed 0,2 cm from the side.
Hinged door in wood: cm th.2,2 in wood particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle.
Hinged door in glass: cm th.2,2 in tempered clear, clear grey or glossy lacquered glass with moka shine, white or matte lacquered aluminium frame. Integrated handle to match the frame.

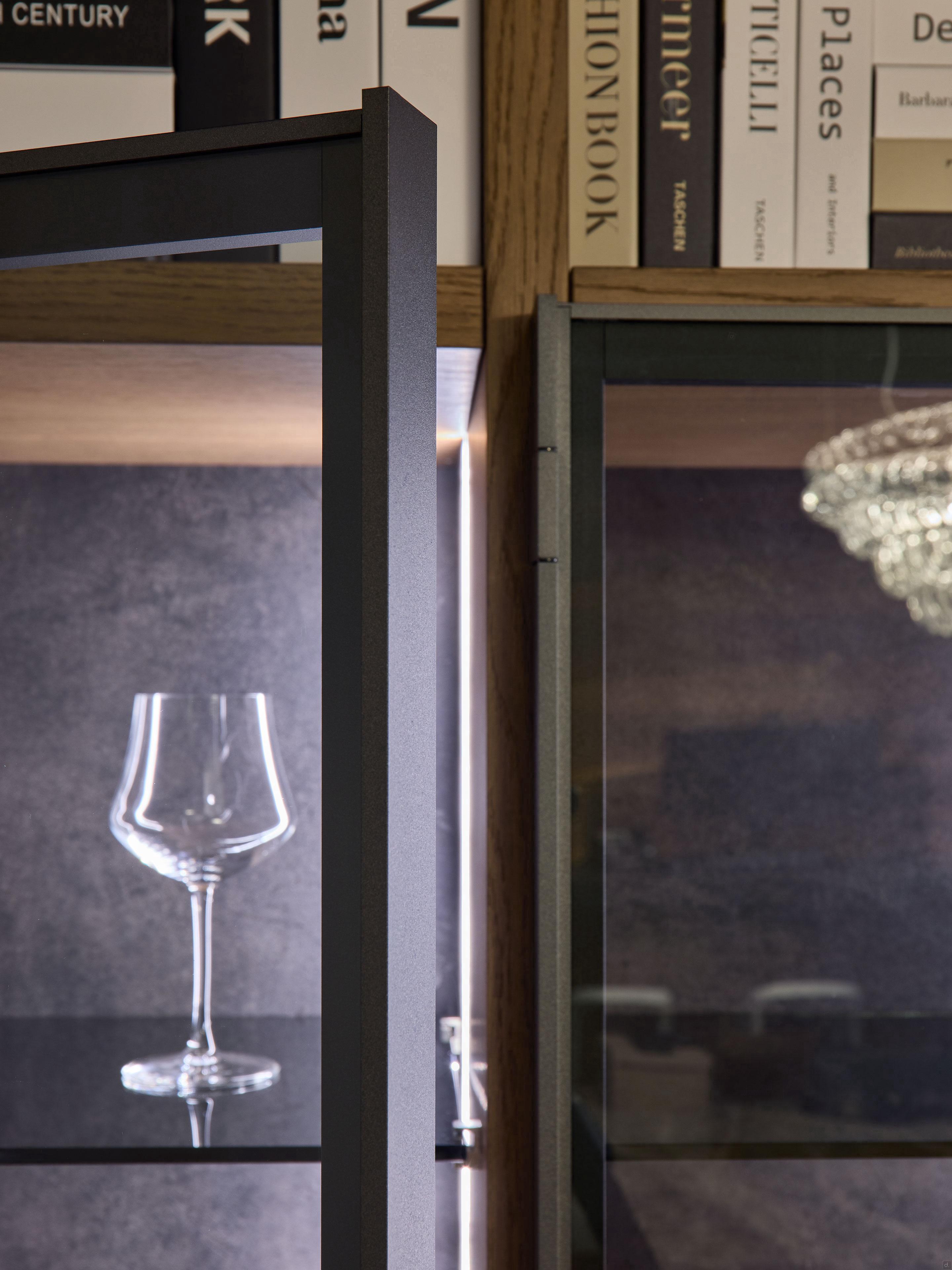

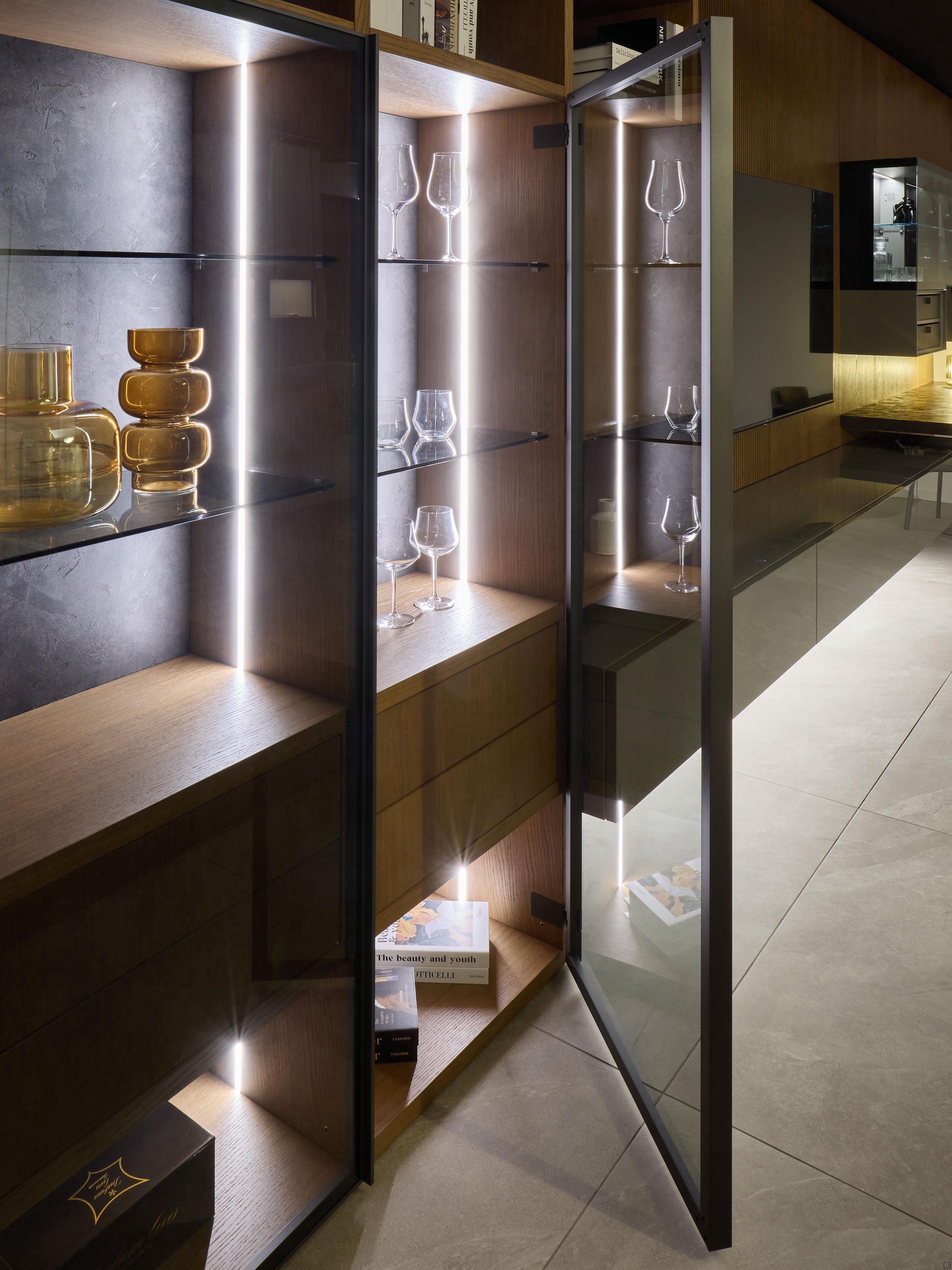

Display Case door:cm th.3,5 in grey transparent tempered glass mounted on moka shine painted aluminium frame (2 cm th.). Opening with full-height handle integrated in the frame (cm 0,8 d.3,5).

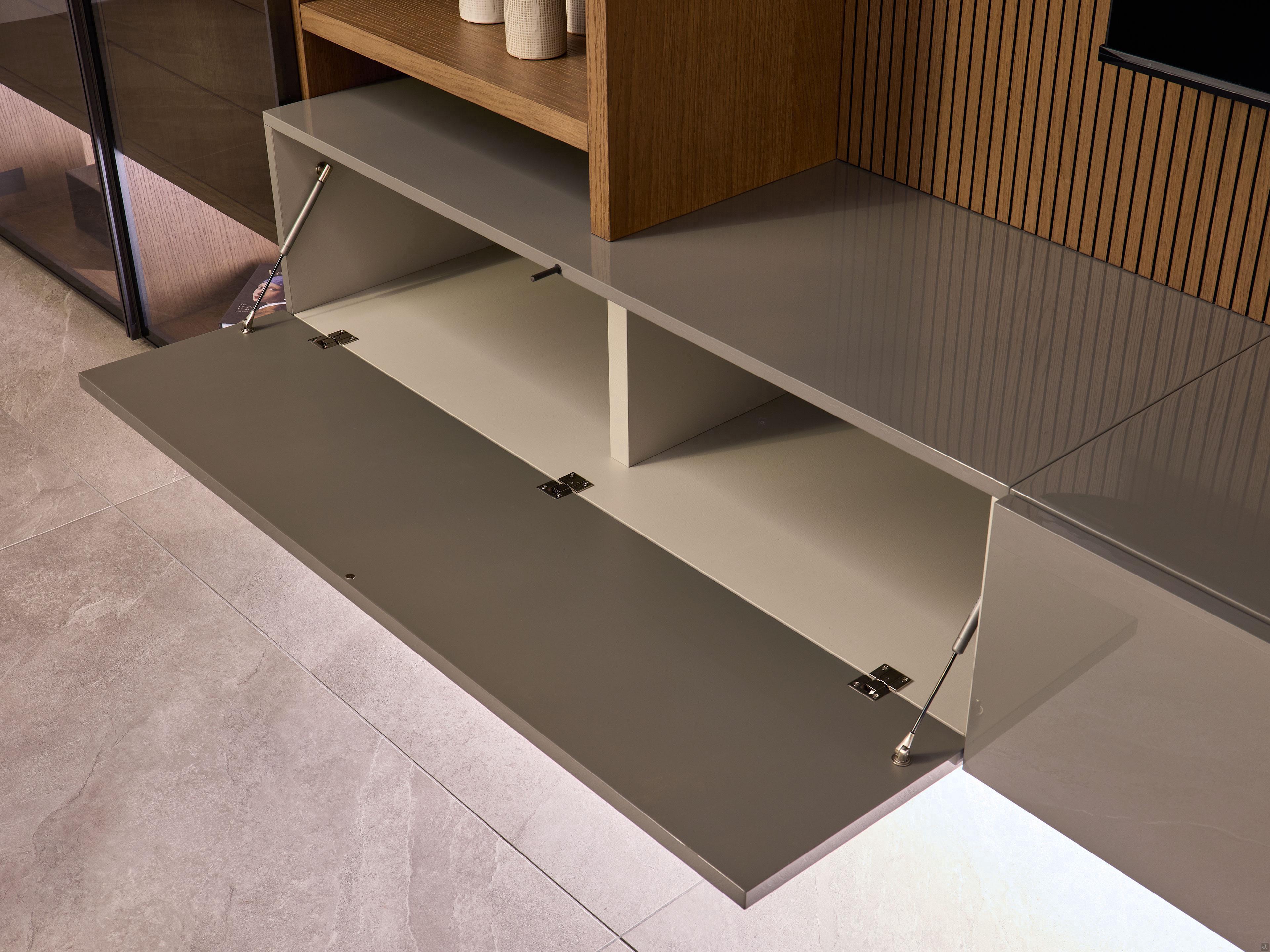

Drop down door in wood: cm th.2,2 in wood particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle downward or upward. Mechanical movement is provided by a pair of hydraulic pistons or by 'winch' mechanism (downward drop-down opening only).
Drop down door in glass: cm th.2,2 in clear transparent, clear grey or glossy lacquered glass with moka shine, white or matte lacquered aluminium frame. Integrated handle matching the frame with downward or upward opening. Mechanical movement is provided by hinges.

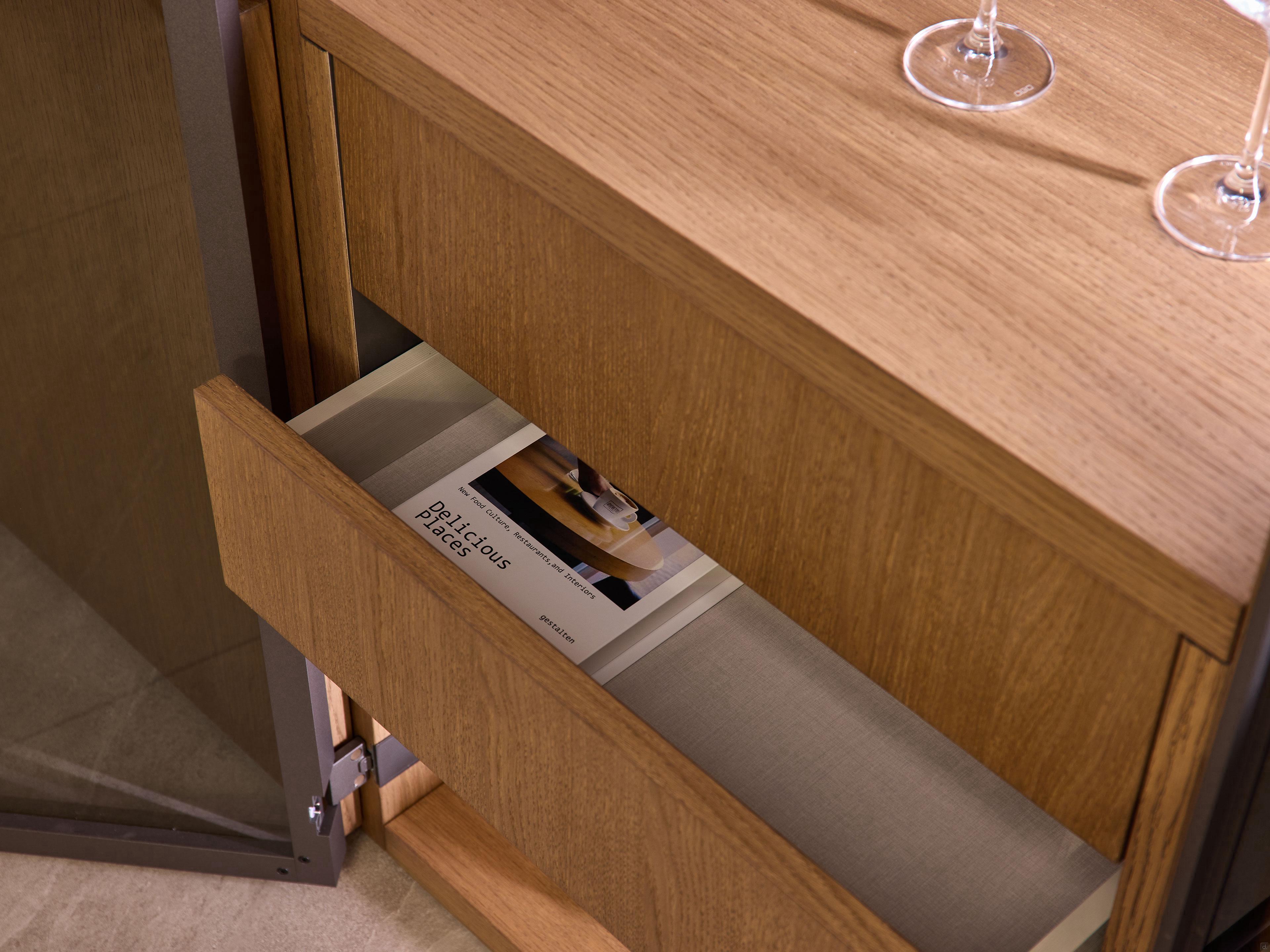

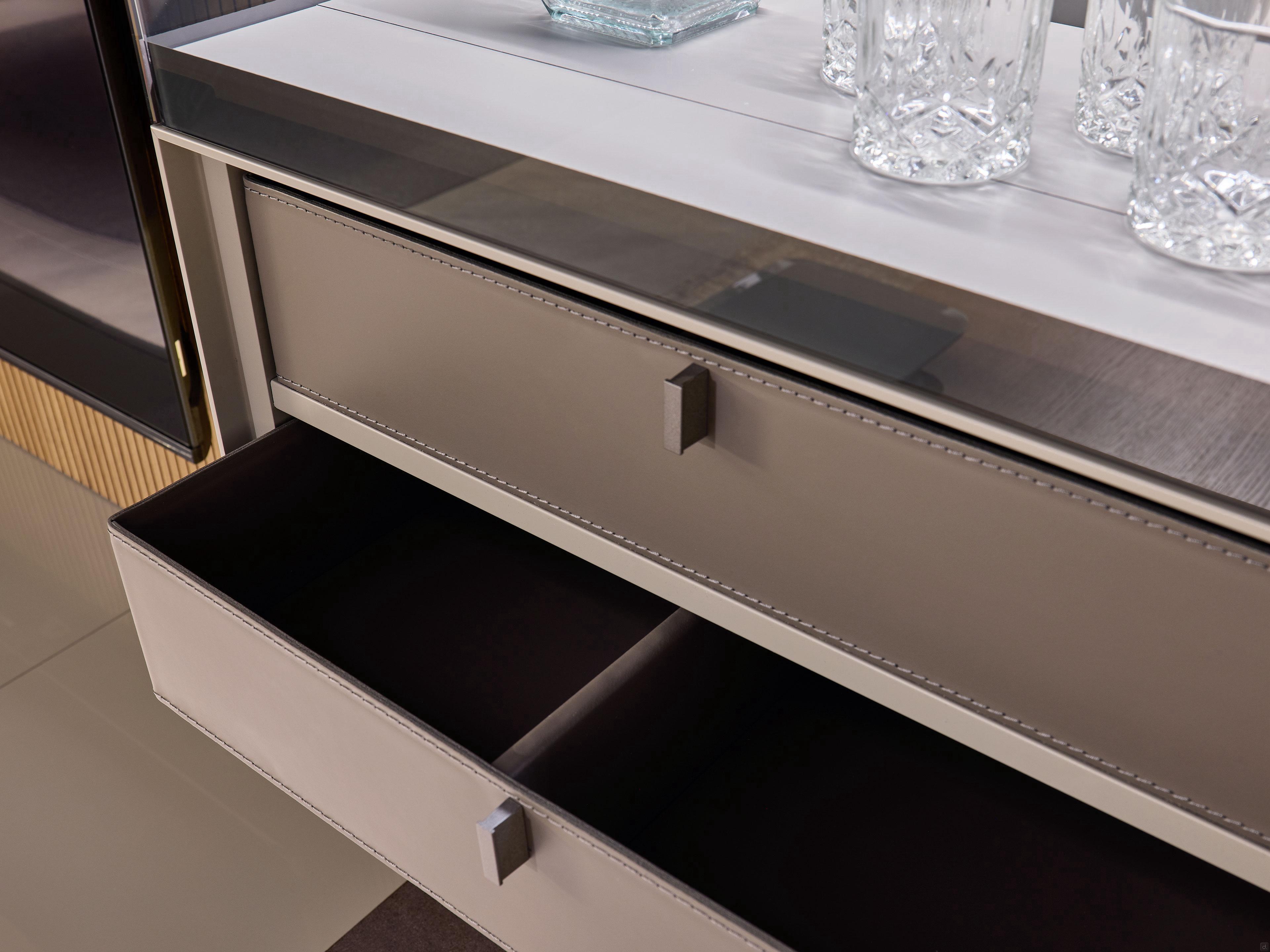

Drawer / deep drawer in wood: cm th.2,2 in particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle. Equipped with concealed full-extension runners with vertical adjustment built into the latch. Dynamic load capacity of the slides 30 kg. Assisted closing system.
Drawer / basket also offered in their "built-in" version with fronts reduced in width (framed by the two external sides and not sticking out).
Cleaning and Maintenance
Surfaces should not be placed in contact with water, liquids in general, excessive heat and moisture.
Cleaning should be done only with a damp cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.
Assembly Tips
Assembly of the bookcase requires:
- 2 cm in width
- 2,5 cm in height
Video
Additional Information
Area of Production
Italy
Italy
Assembling Instructions
Download the Instructions - Bookcase
Download the Instructions - Bench & Desk
Download the Instructions - Bookcase
Download the Instructions - Bench & Desk
Partner Factory
This is an Italian product, born from the experience and manufacturing excellence of a company which has been working in the furniture field since the 50s. A brand from Veneto region, internationally renowned and present in 81 countries worldwide. Its wide catalogue allows to furnish your entire house: wall systems, sideboards, tables and coffee table for the living area; beds, dressers and nightstands, wardrobes and walk-in closets for the night area.
Made in Italy quality is one of this company strengths: all furniture items are designed and manufactured in Italy, and undergo constant quality controls throughout the whole production process. Each item has been created directly from the experience and skill of a variety of designers and craftsmen: a custom made production relying on carefully selected products, and technologies and innovation always up to date. All the steps of the manufacturing process are carried out with utmost environment friendly techniques. This renown company produces high quality furniture able to last through time maintaining its original look and characteristics, and most of all to adapt to the lifestyles and trends of the models, becoming thus suitable for all kinds of houses.
