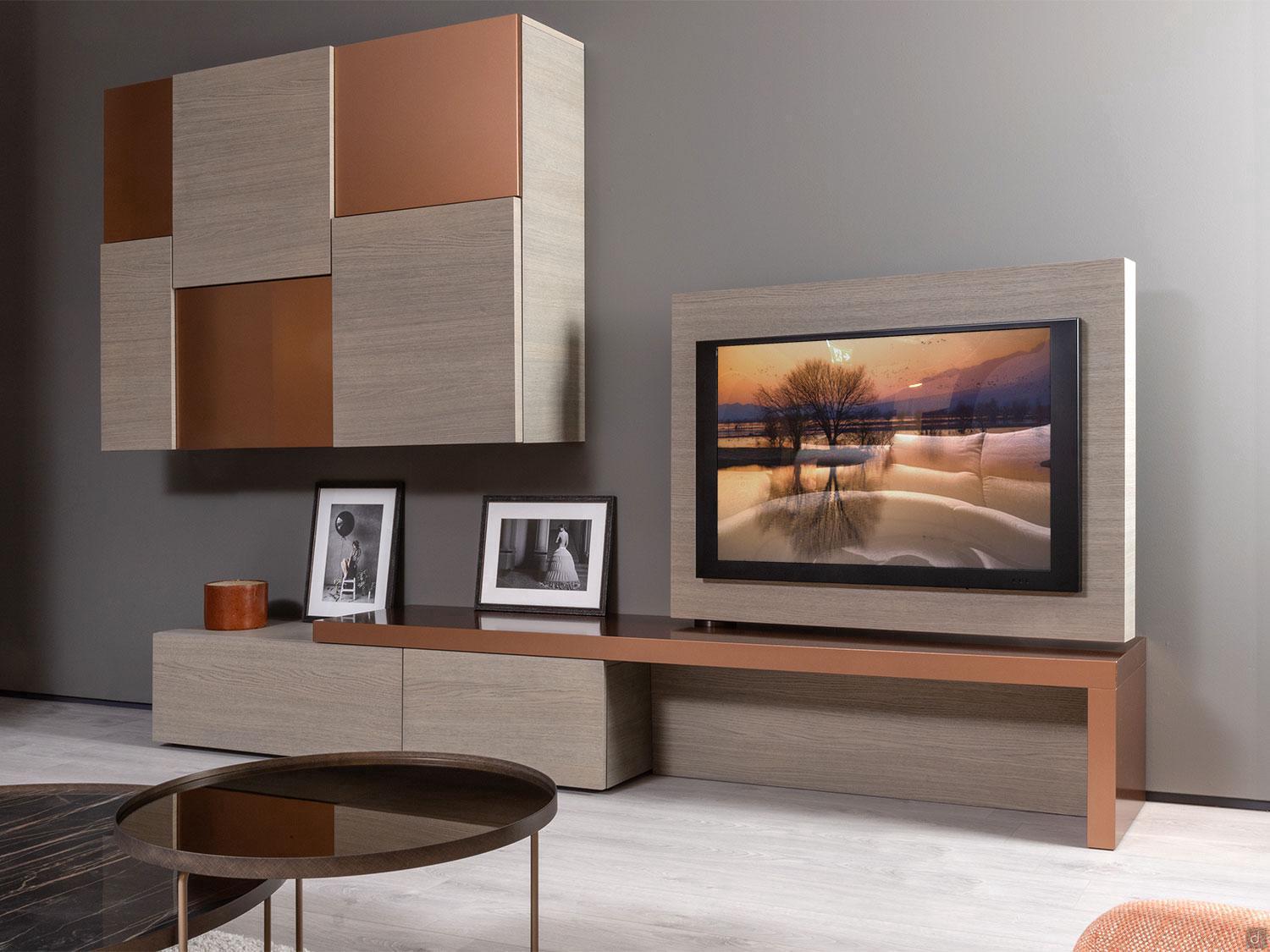

Replay 03

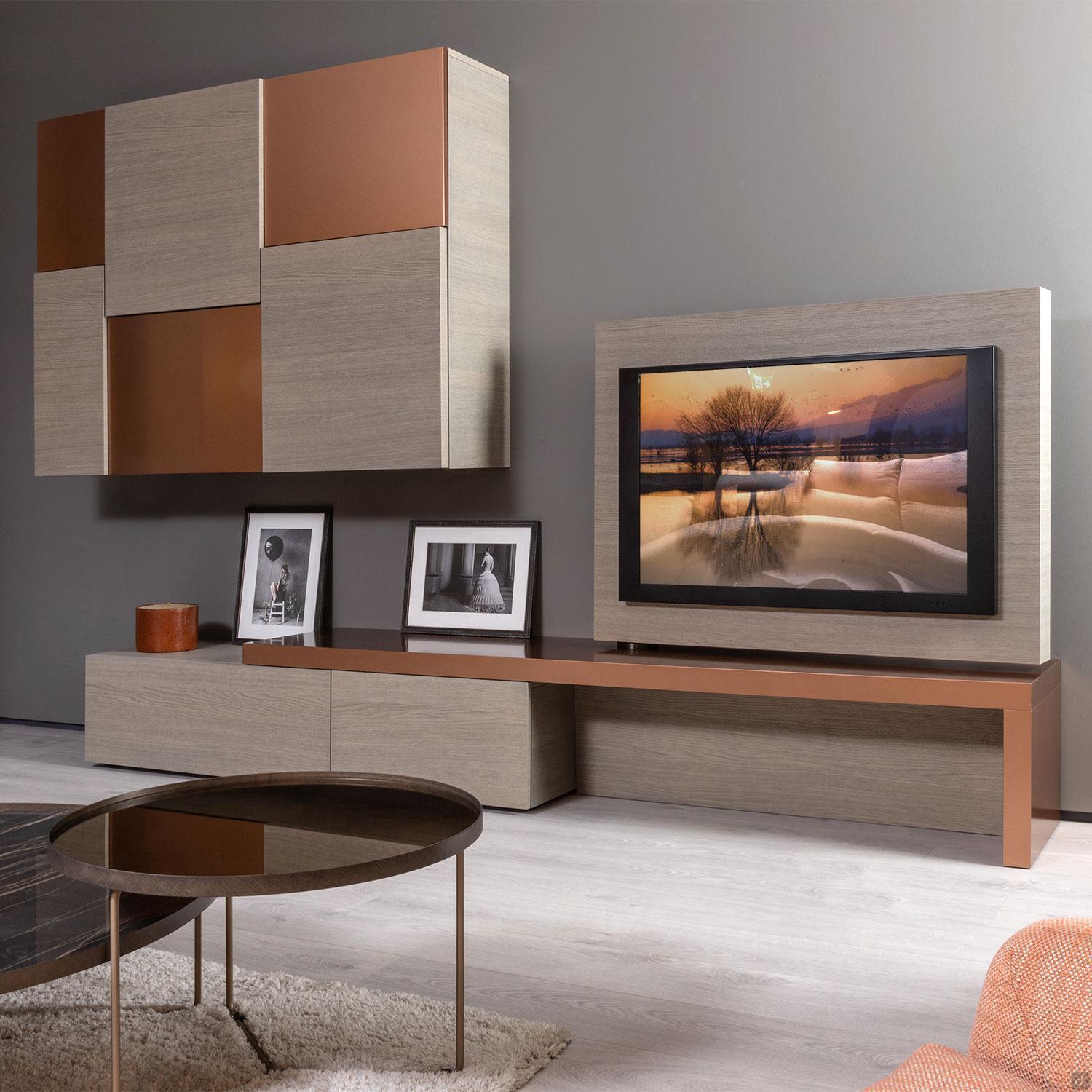

Bespoke Wall System

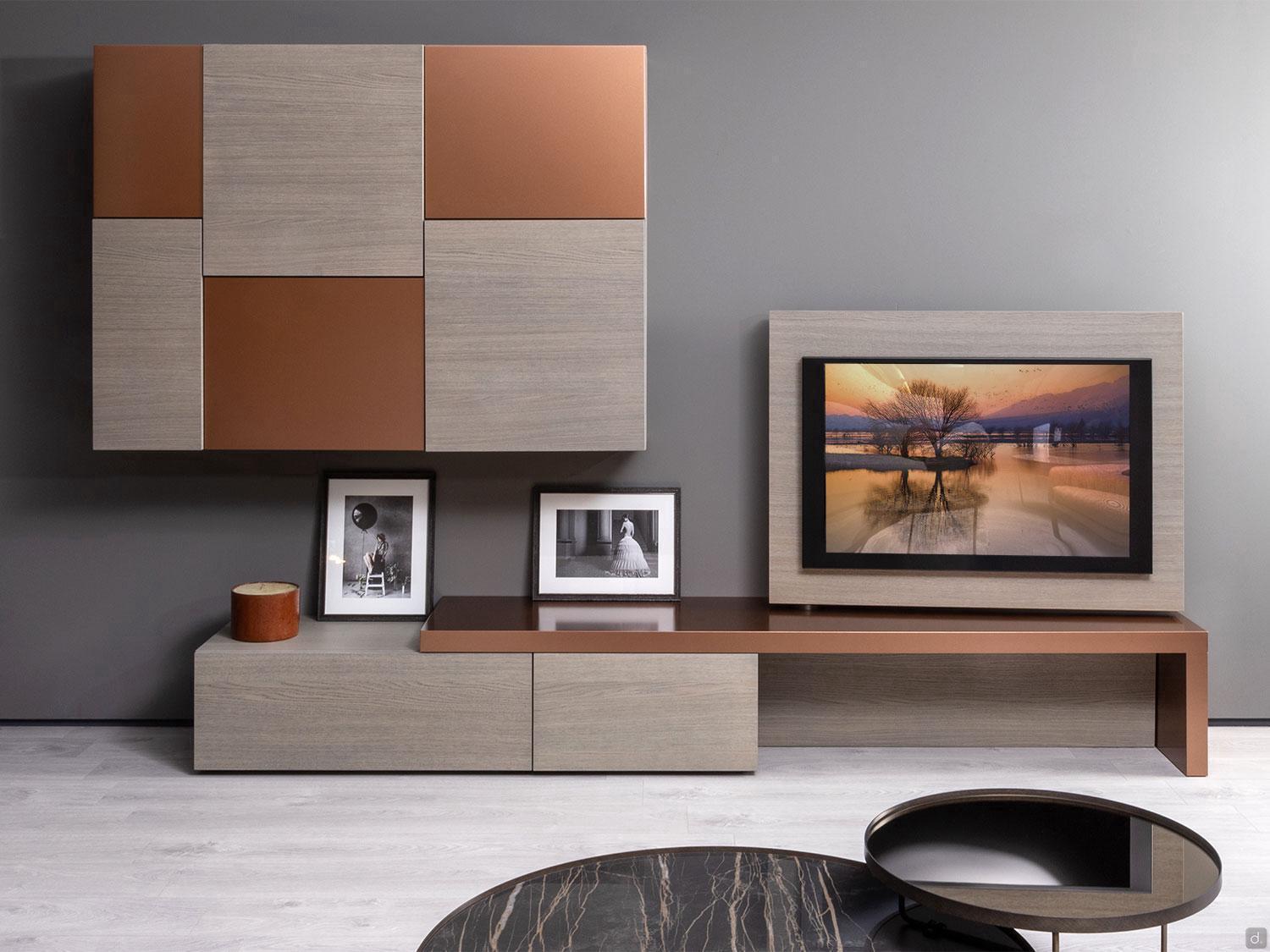

Model and Specific Measurements
n.1 base drawer: cm 90 d.45 h.32
n.1 base drawer: cm 60 d.45 h.32
n.1 orientable TV panel with platform and back panels: cm 210 d.45 h.40
n.1 hinged-door wall unit: cm 30 d.37 h.112 (double thickness front, mm 20 and 35)
n.2 hinged-door wall units: cm 60 d.37 h.112 (double thickness front, mm 20 and 35)

Technical Specification and Equipment
Base and Wall Units: 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission (sides, bottoms, covers and shelves) or mm 40 (partitions and internal dividing elements). The 90 cm elements are equipped with a support metal shaft which is positioned under the upper part to prevent the wood to flex. The back panels are 4 mm thick.

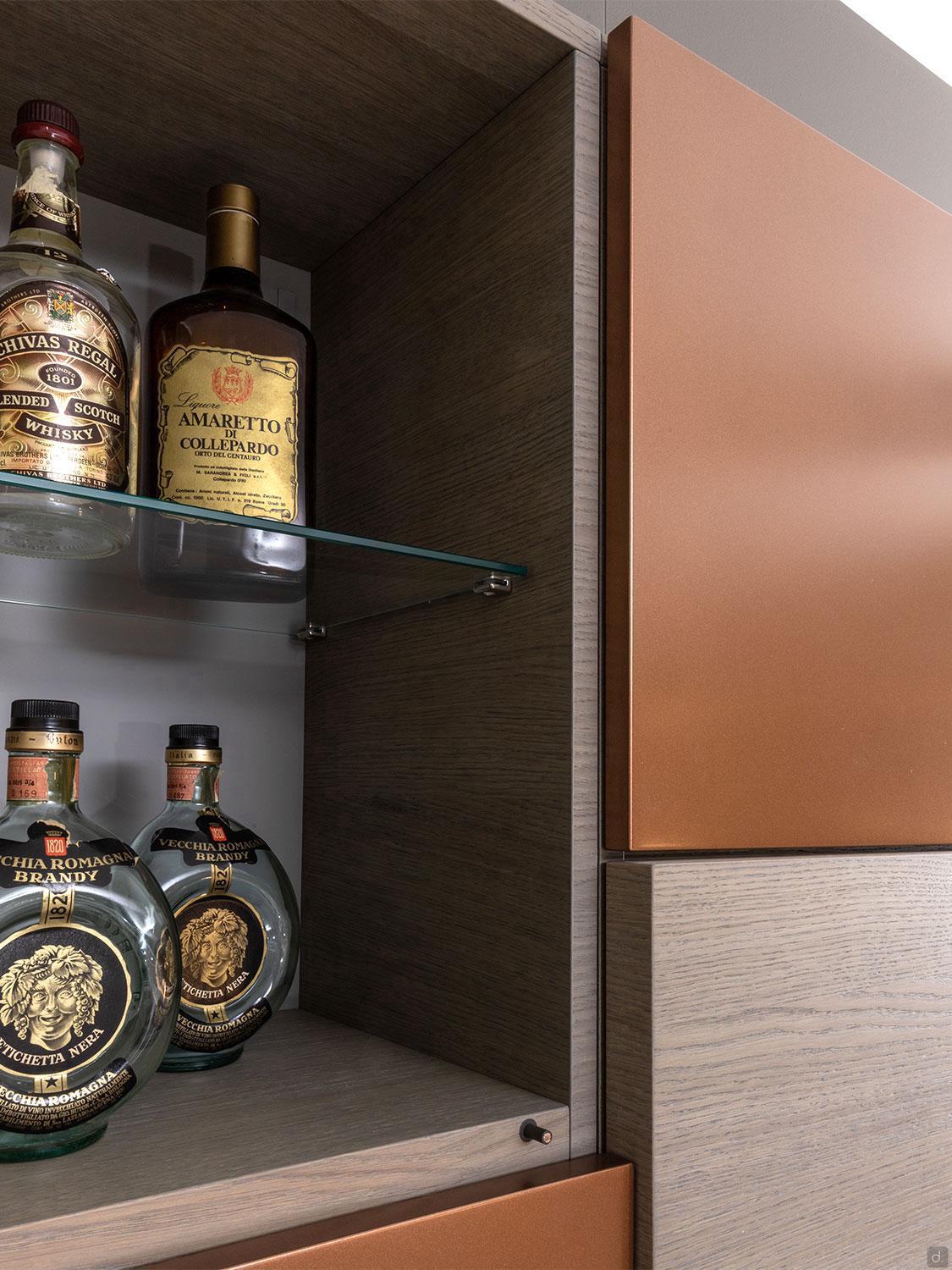

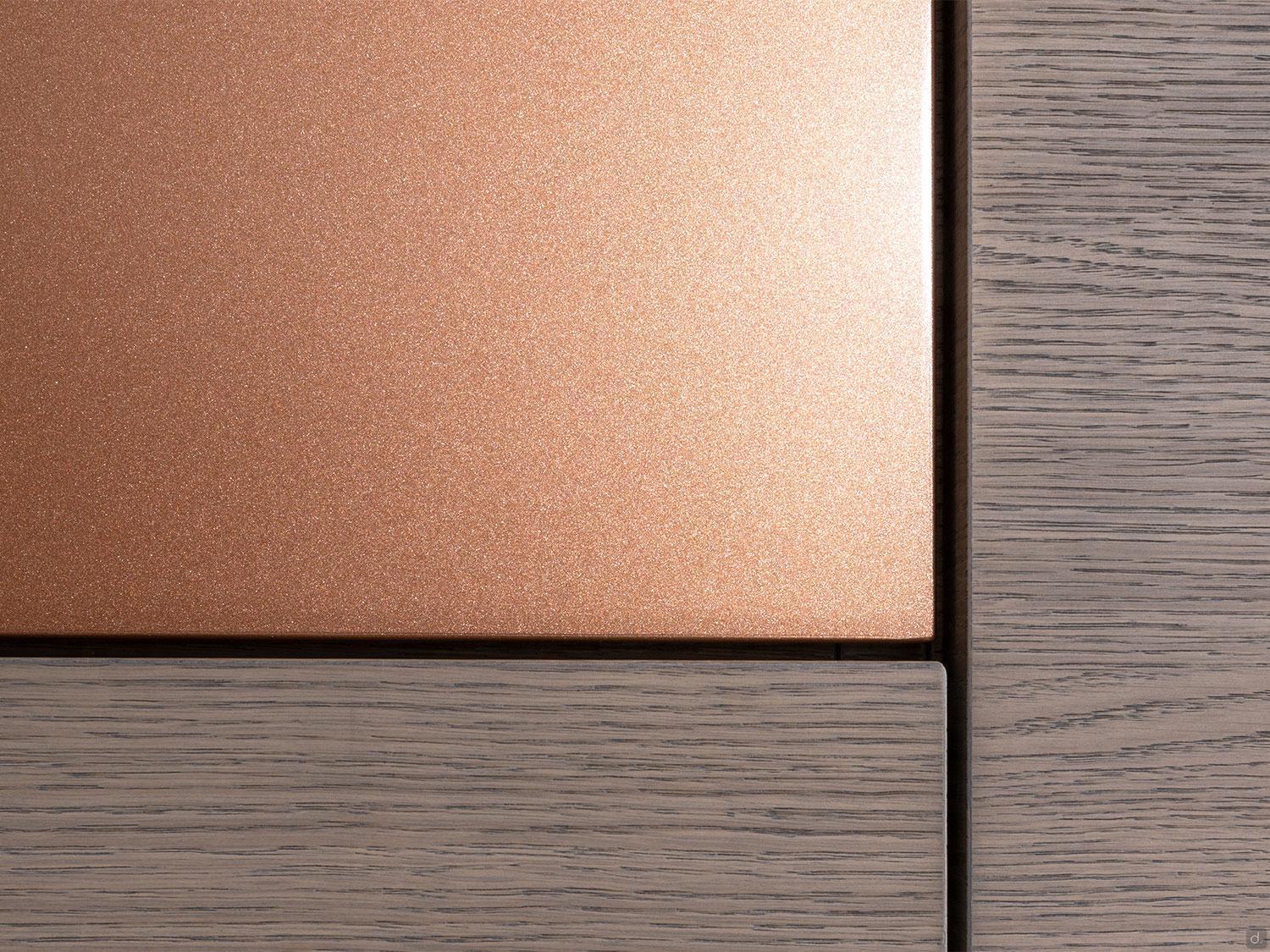

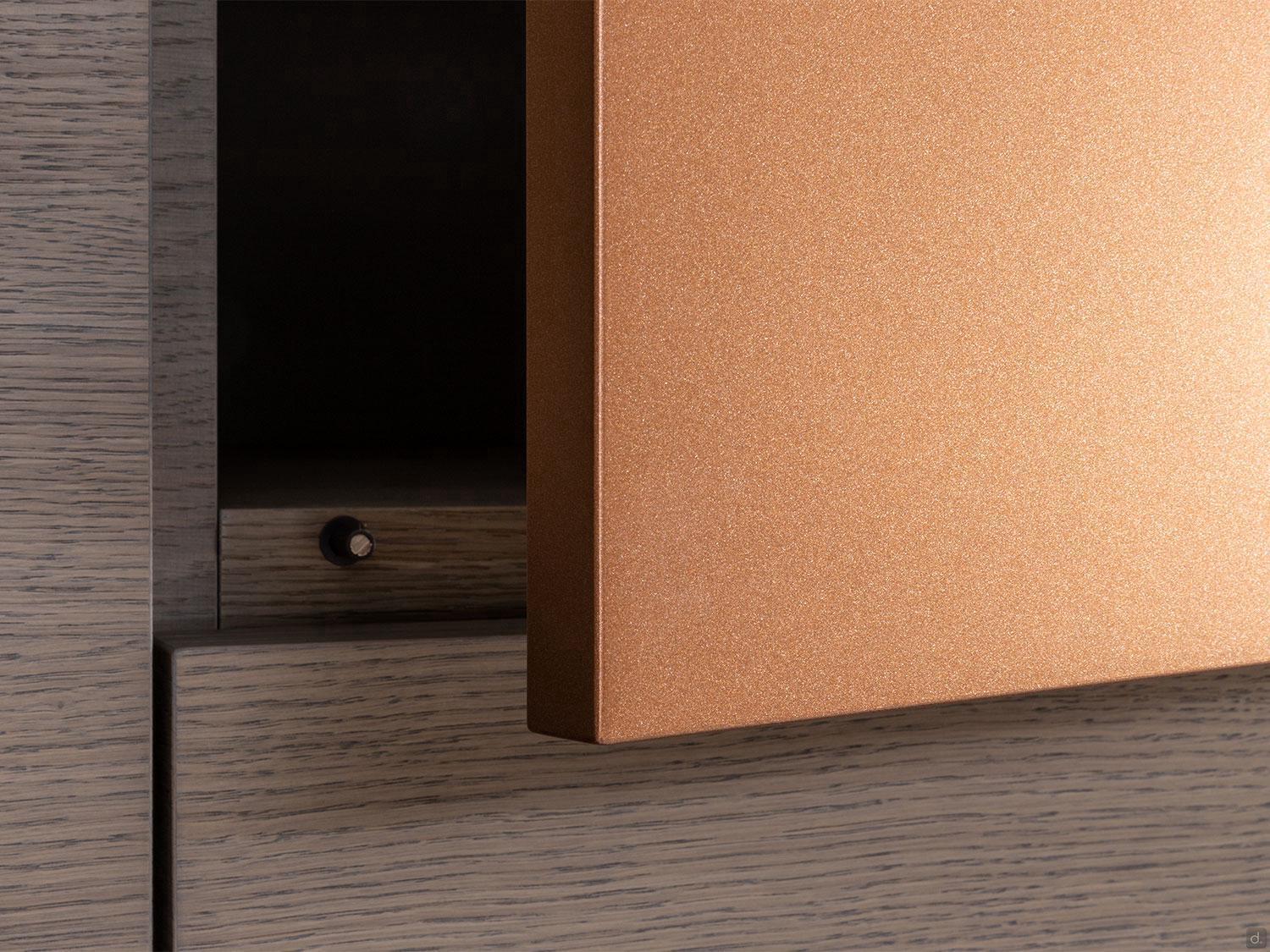

Doors: 20 or 35 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. They are equipped with metal hinges or bases in nickel finish with 90° opening. Adjustable horizontally, vertically and in depth.

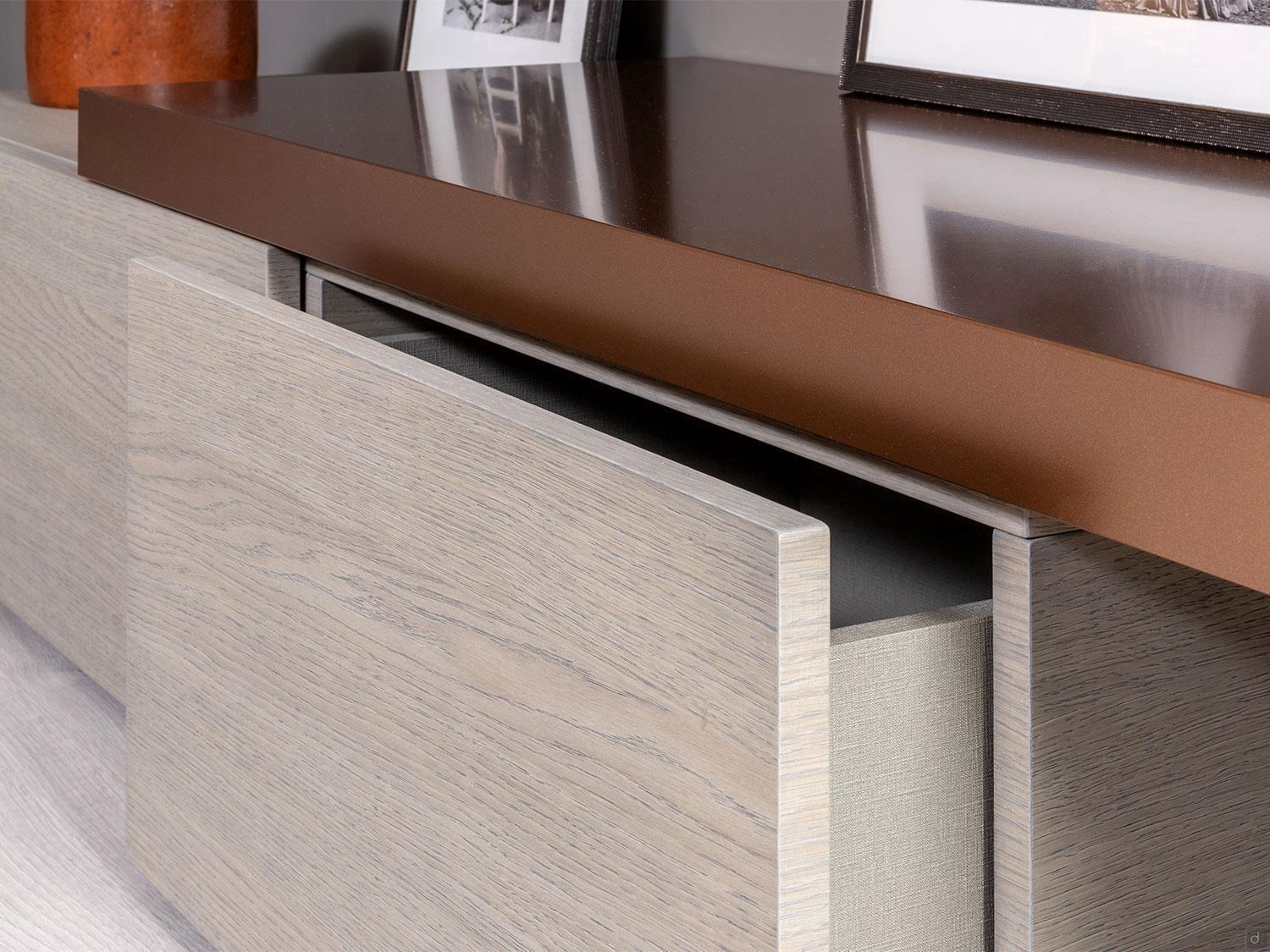

Drawers: the fronts are made of 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. The sides are made of particle wood panel, 14 mm thickness with framed jute finish and they are mounted on metal runners with end run block and soft closing mechanism.

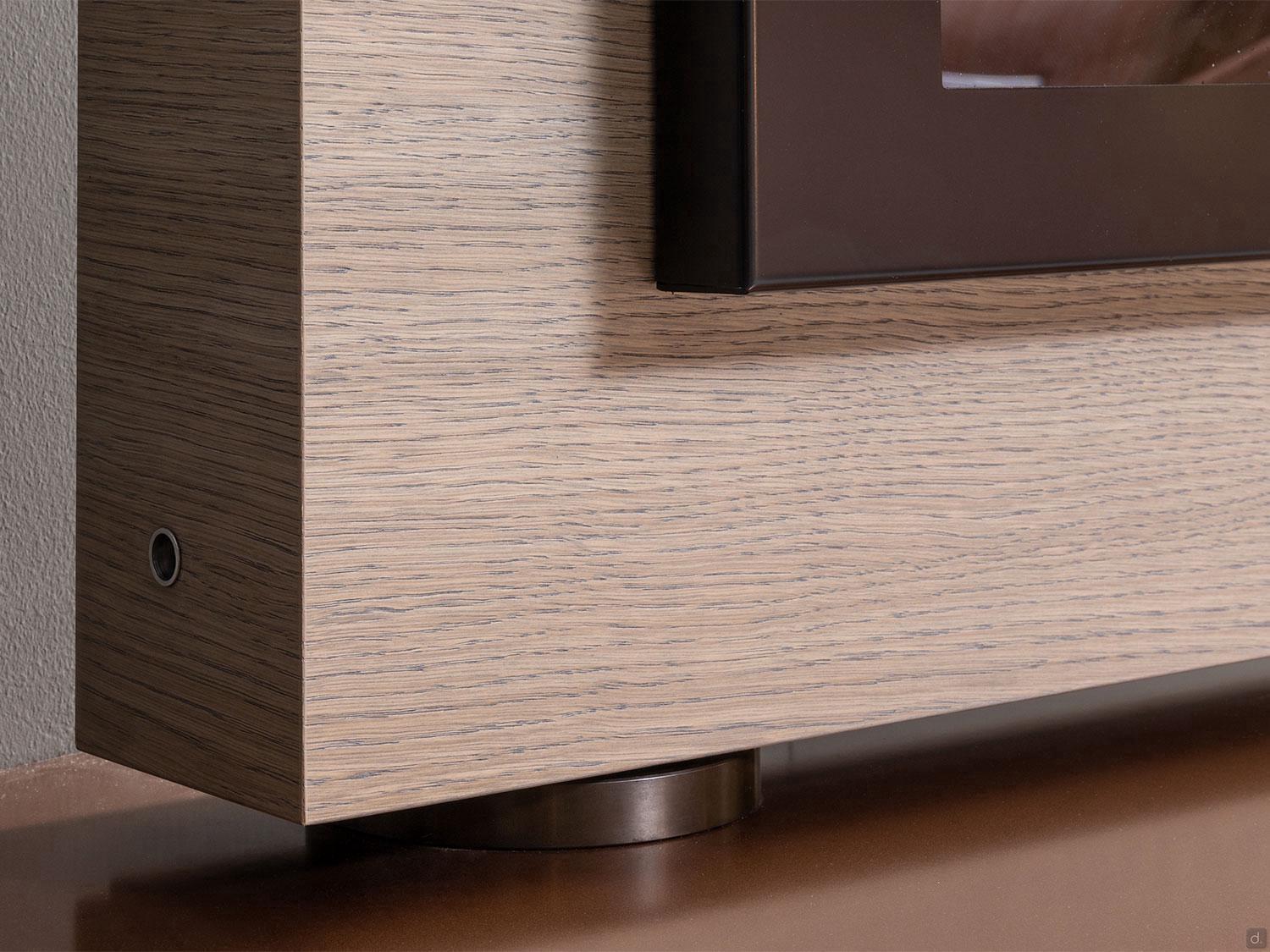

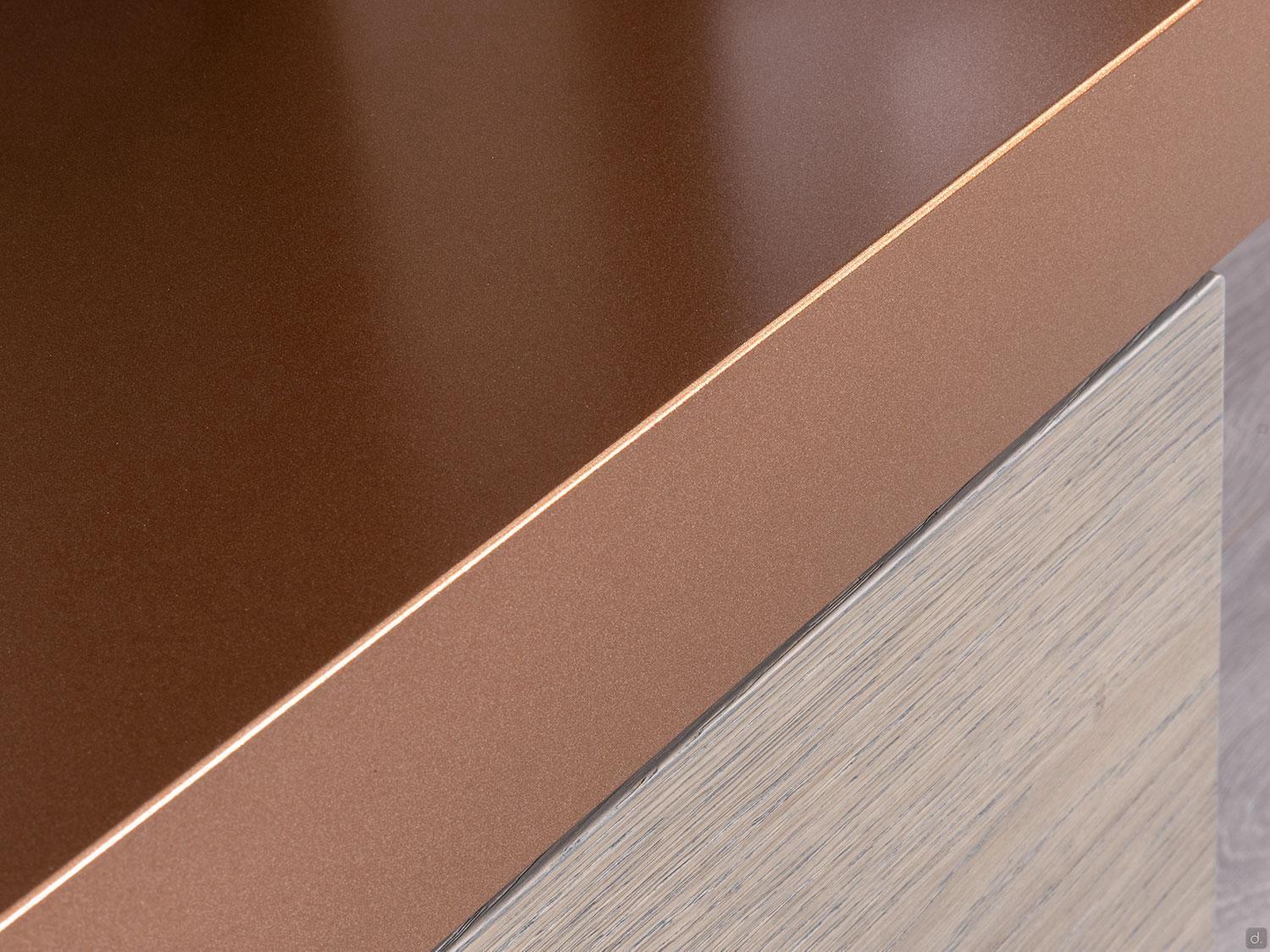

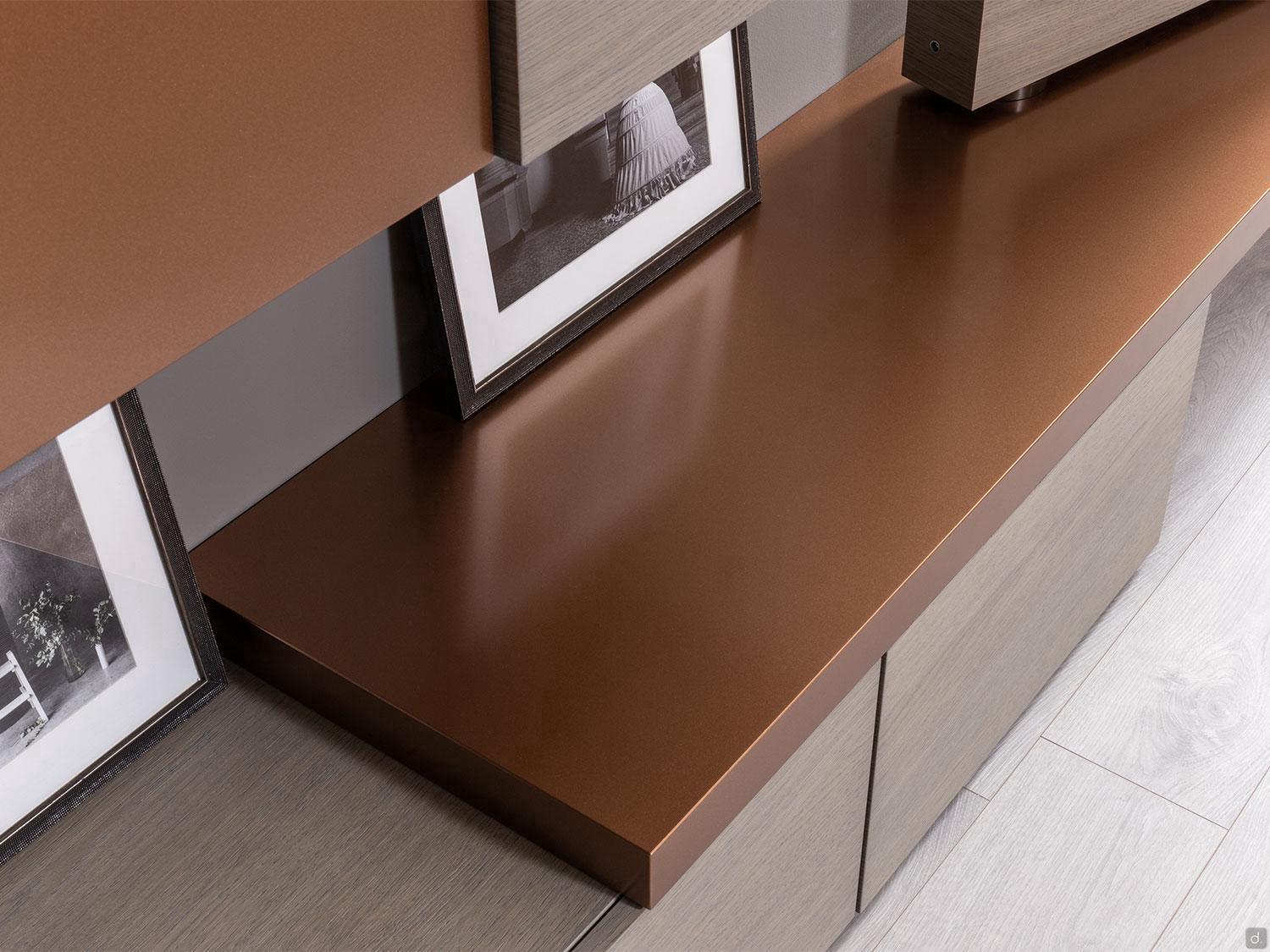

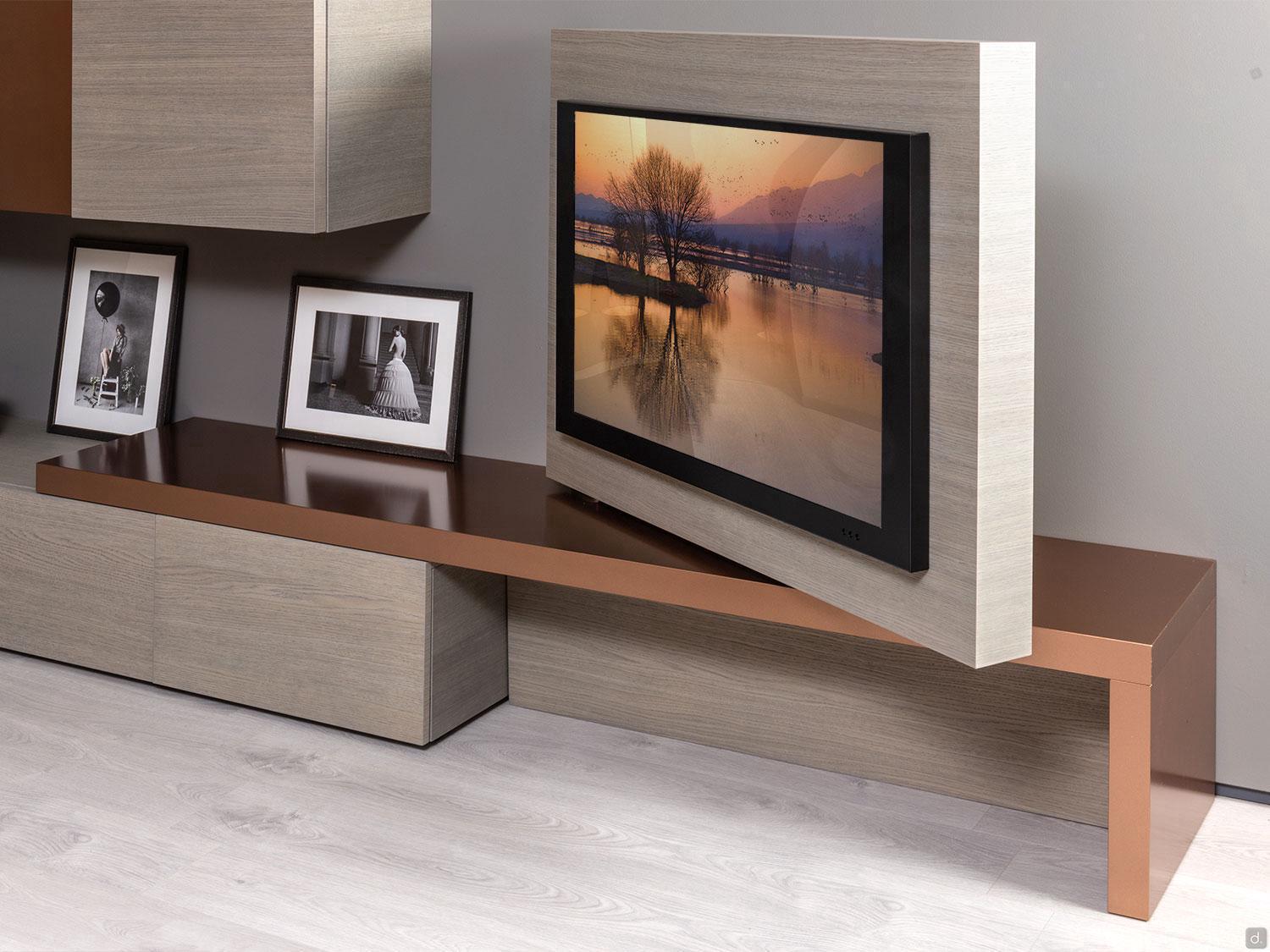

TV Panel: free standing, placed on the L-shaped platform 6 cm thickness. The platform is made in folding and inside of it you can find a cylinder support and a frame to fix your TV screen and holes for Vesa brackets. The support is in hollow metal that allows a swivel 90° movement and is equipped with hole for cable routing.
