Plan 28
Bespoke Wall System

Bespoke wall system with showcase Plan 28 , shelves, wall units and TV support. Available in lacquered, melamine, wood or fashion wood.

* Required Fields


From €5,216.96
Wishlist

Description

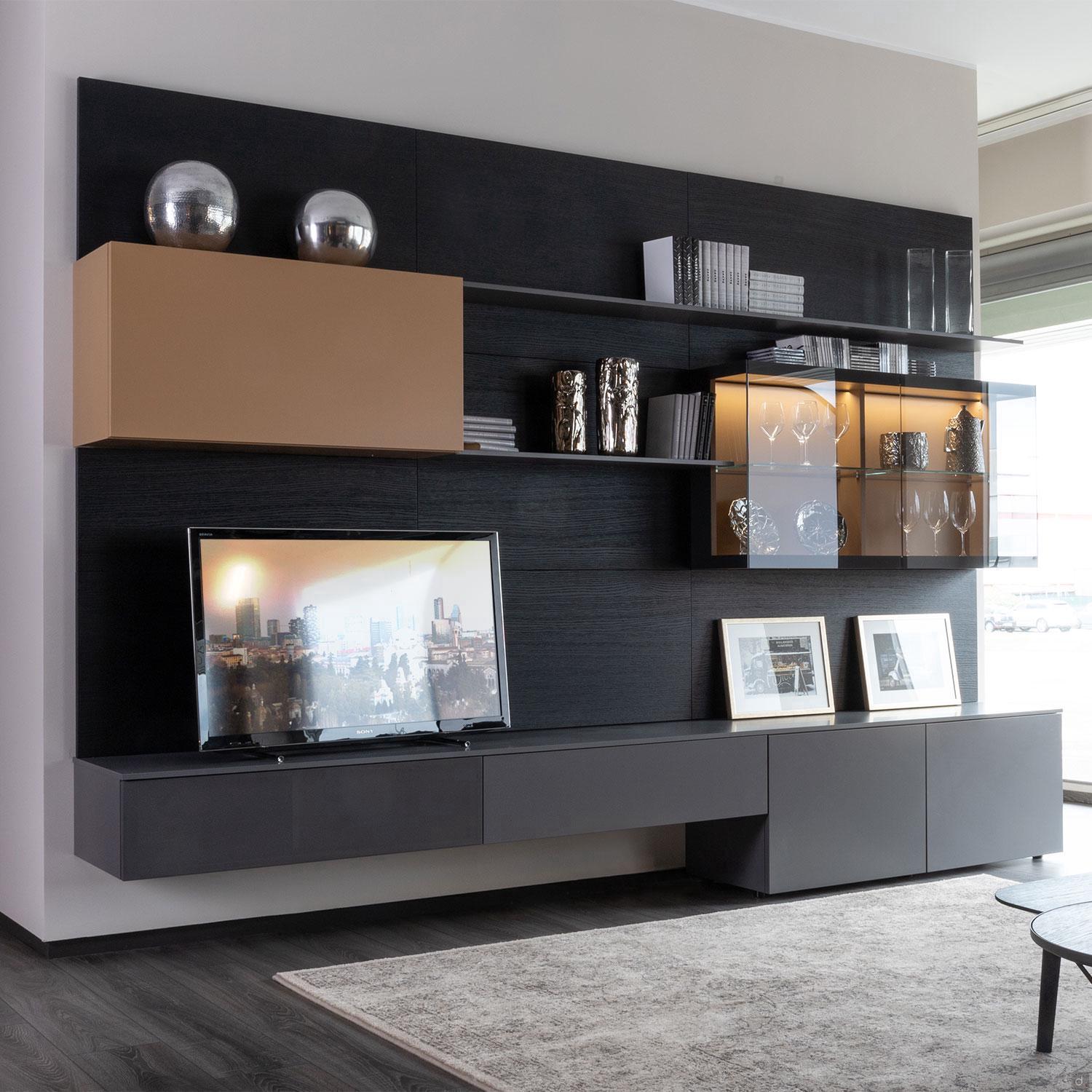

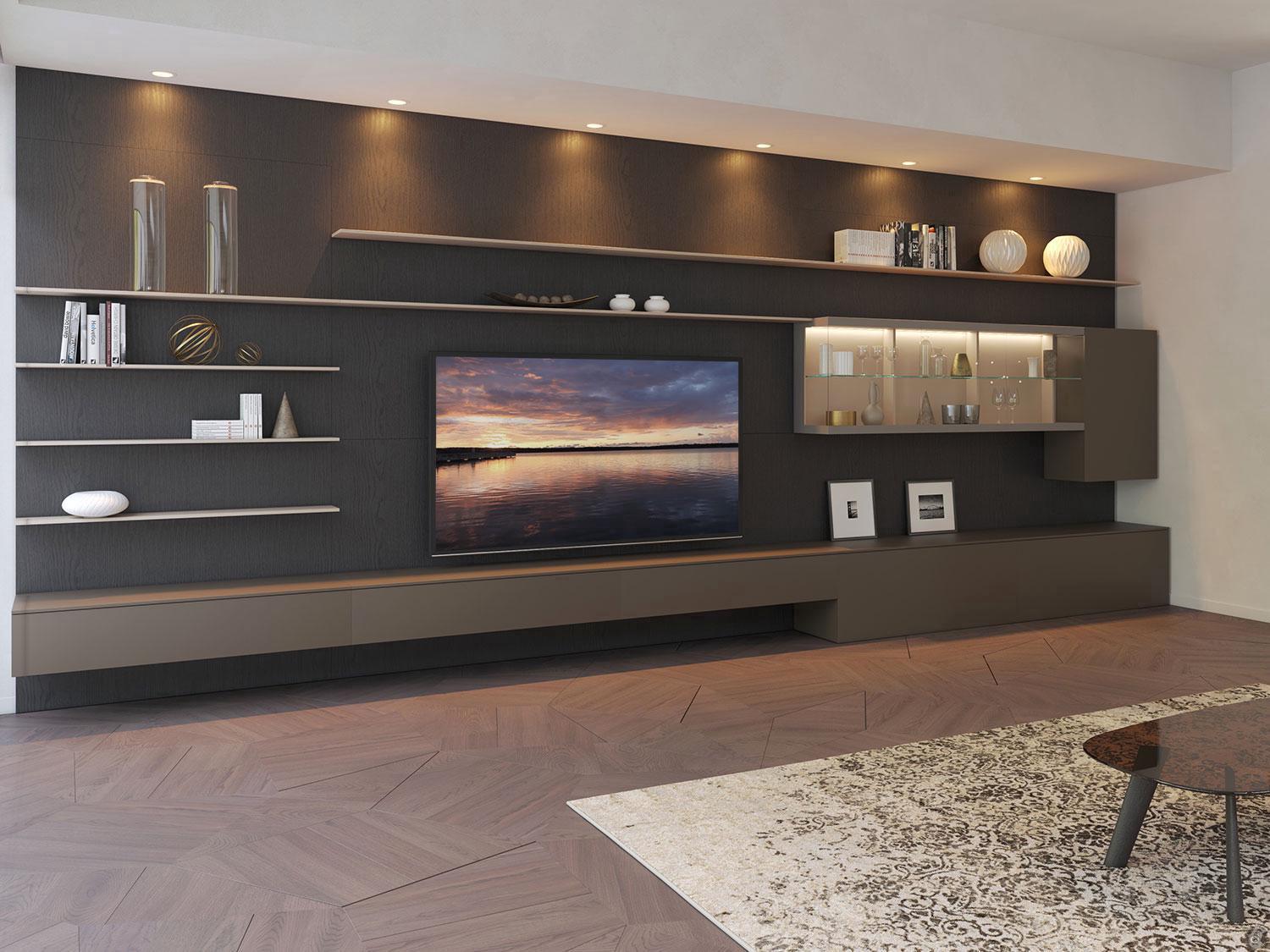

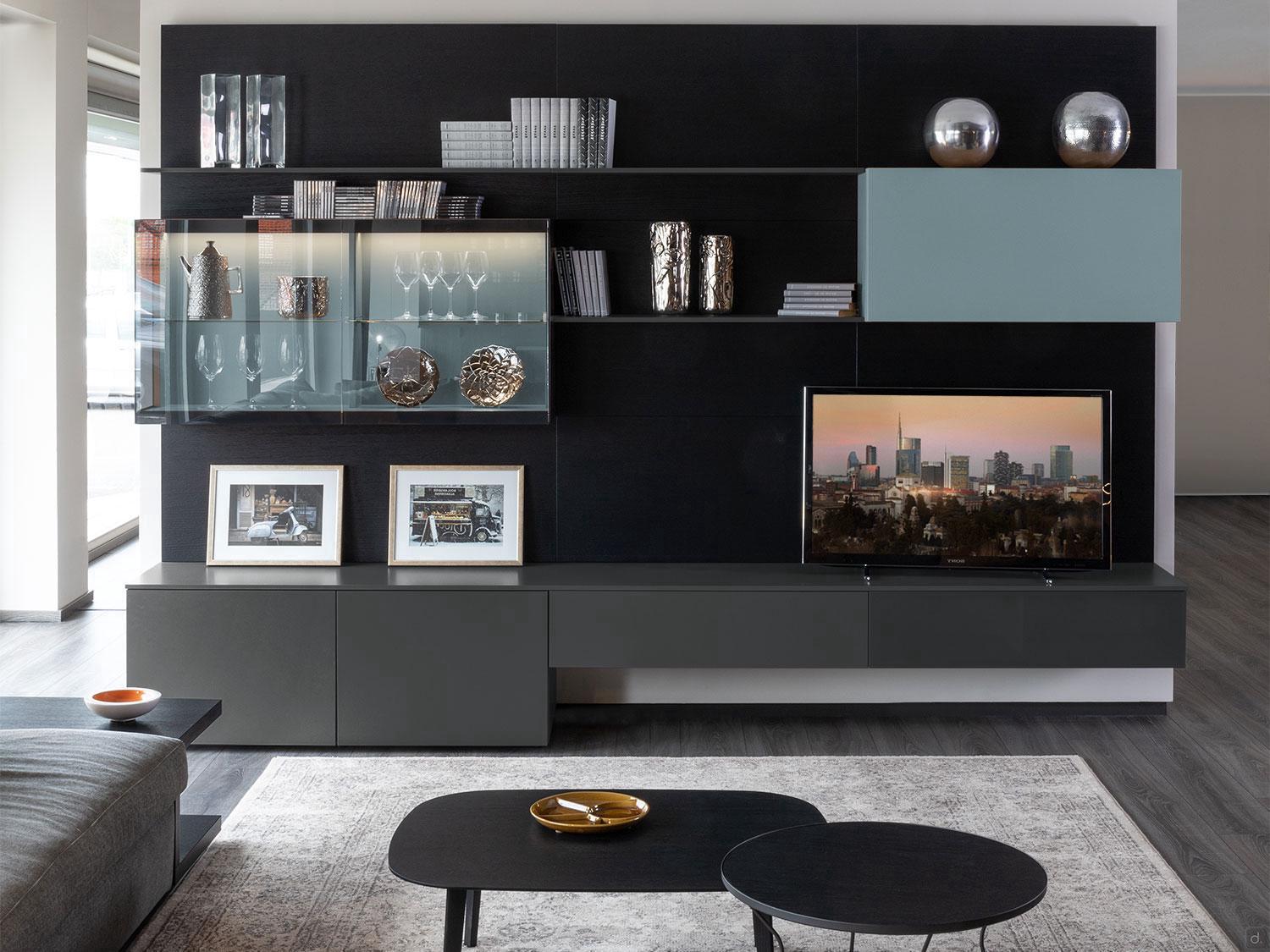

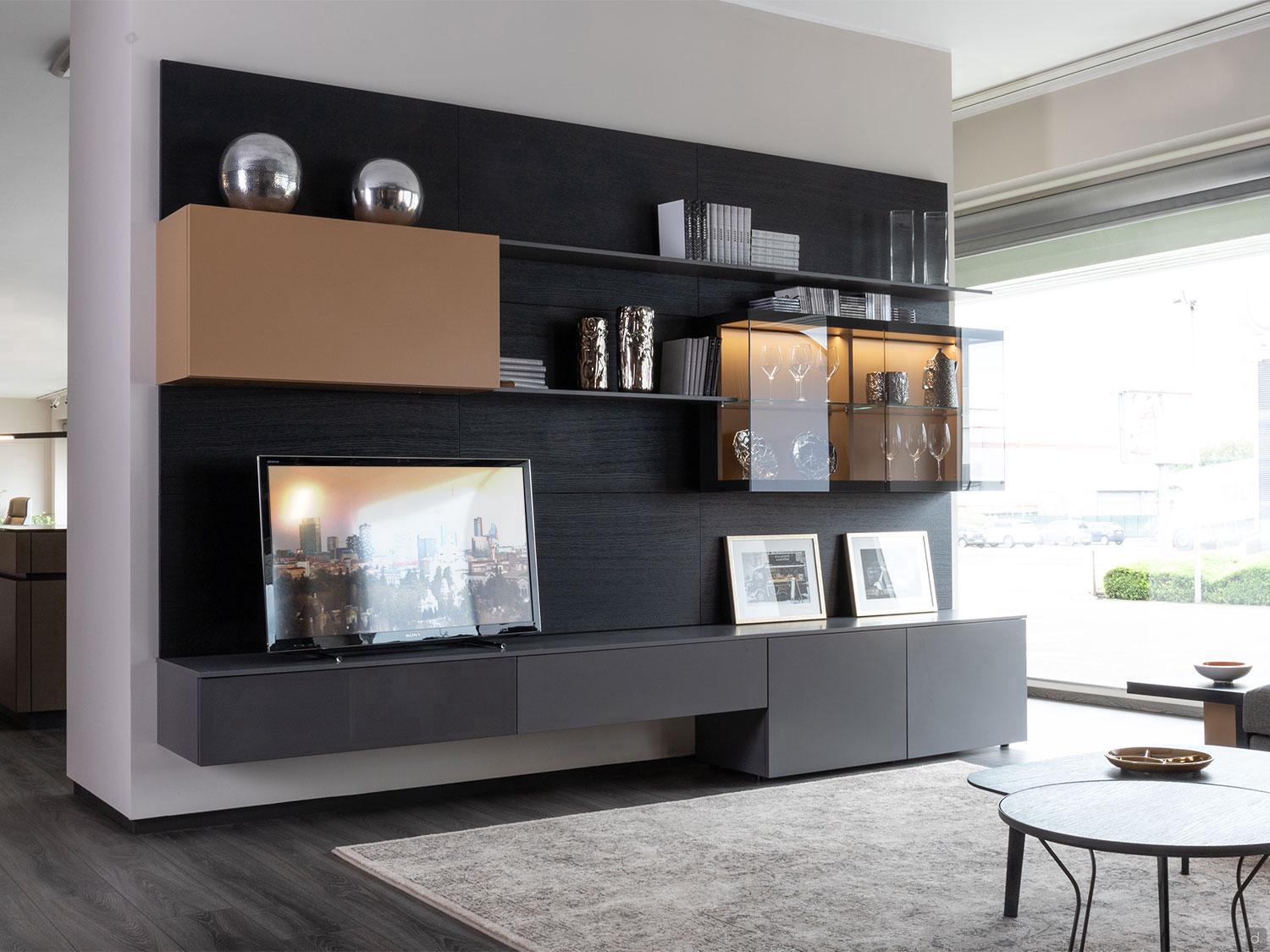

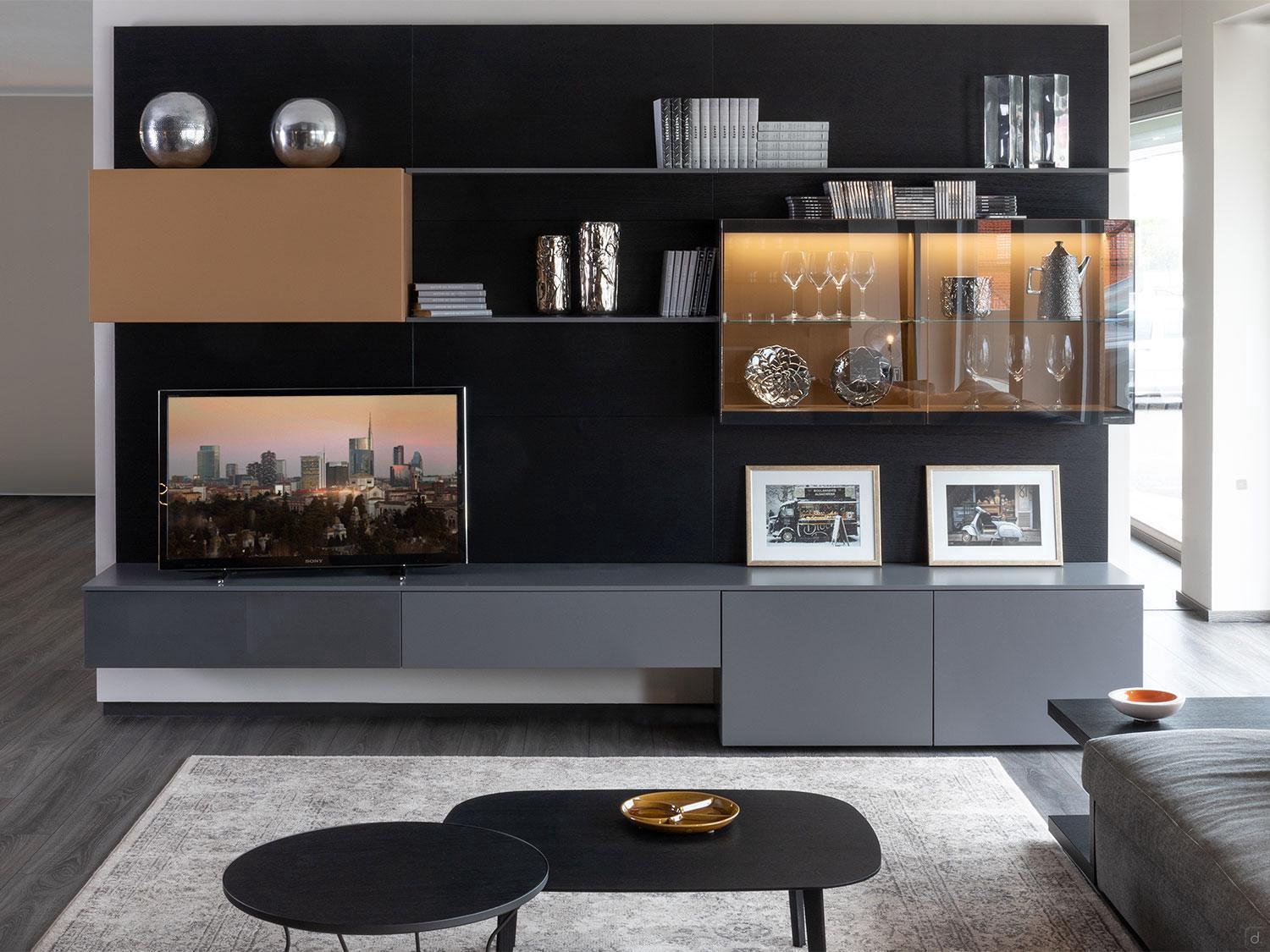

The living room composition Plan 28 it is a bespoke wall system with showcases, shelves, wall units and storage base. All the composition is framed by wall panels that function as back.

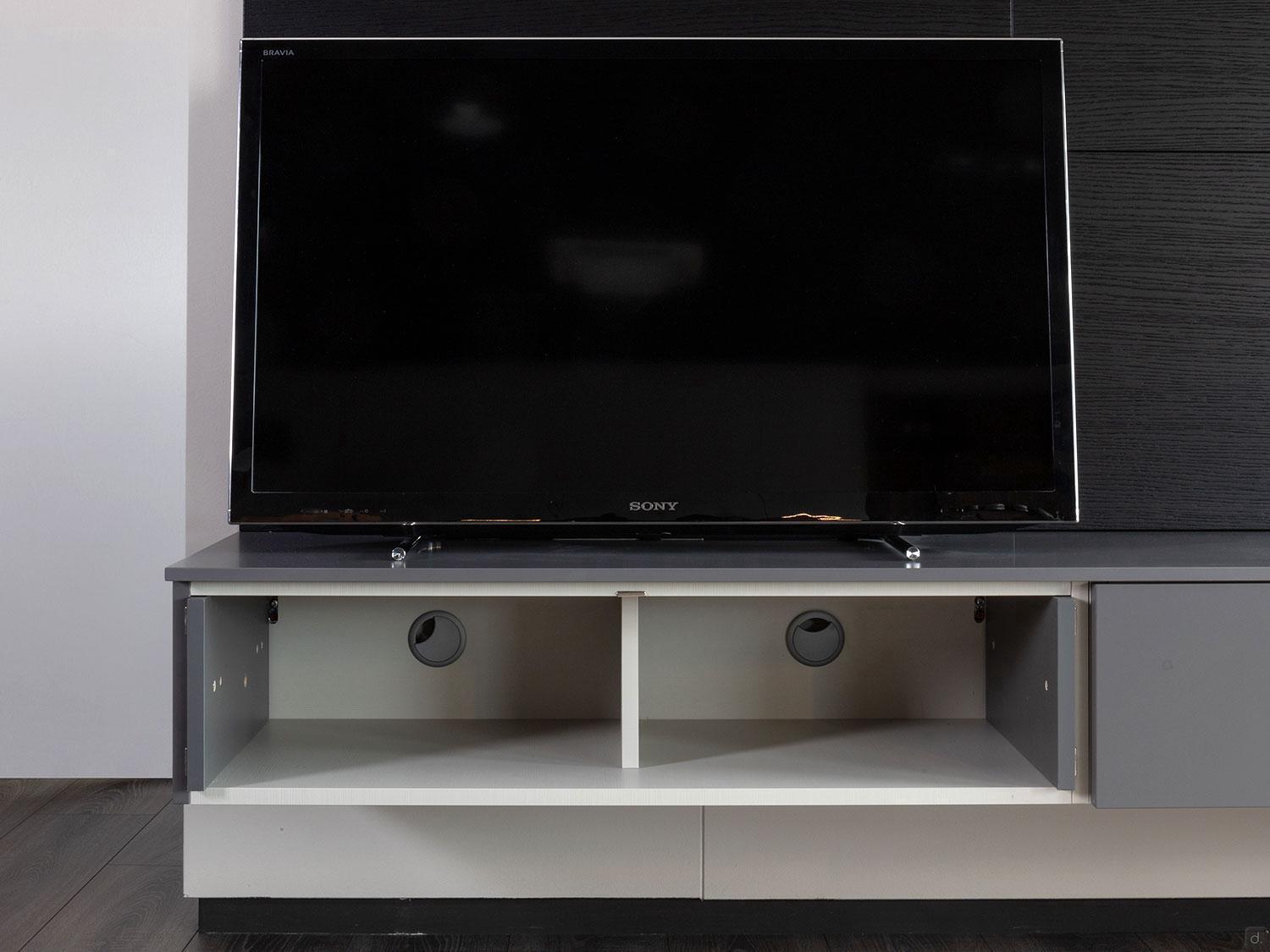

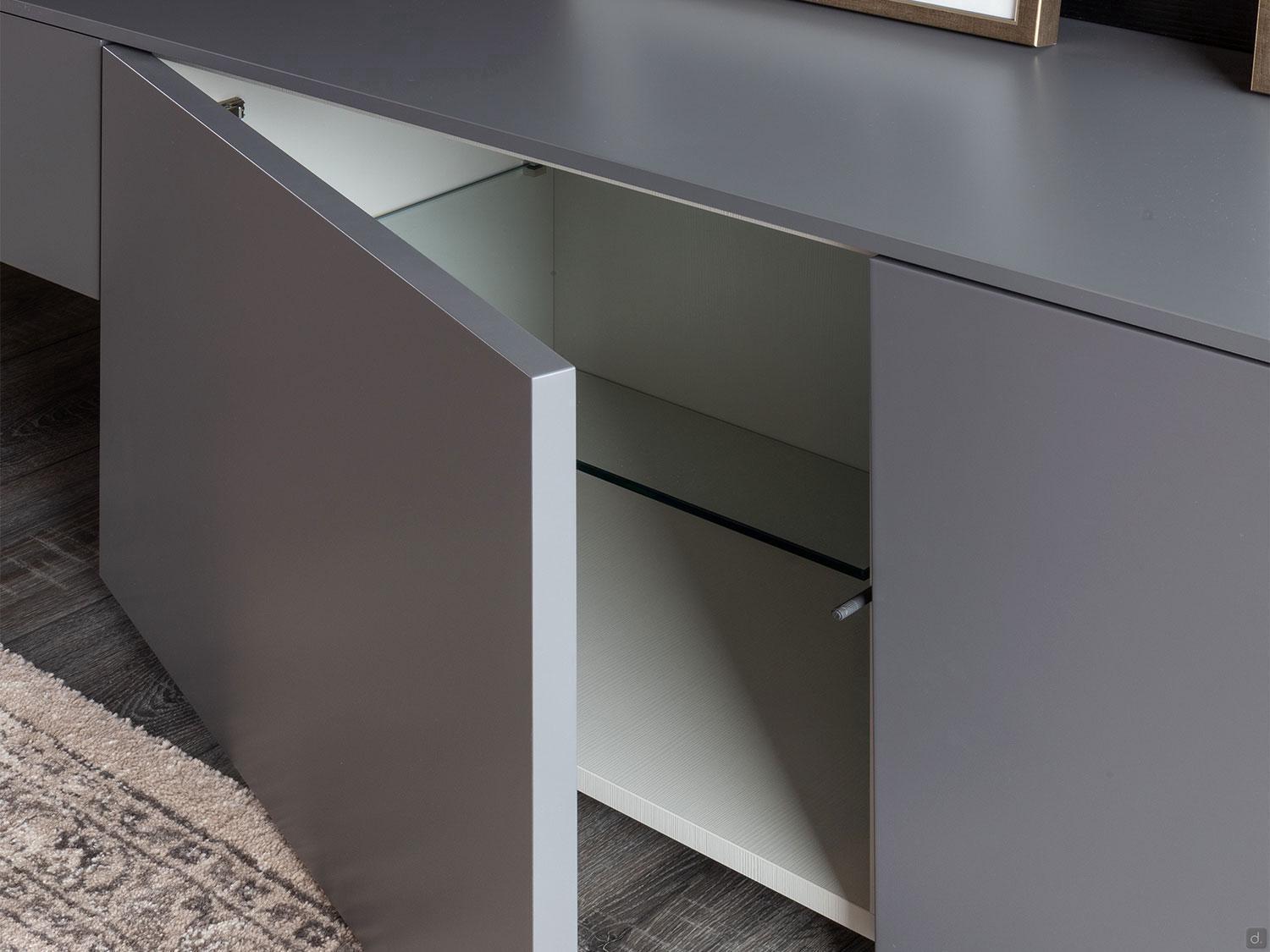

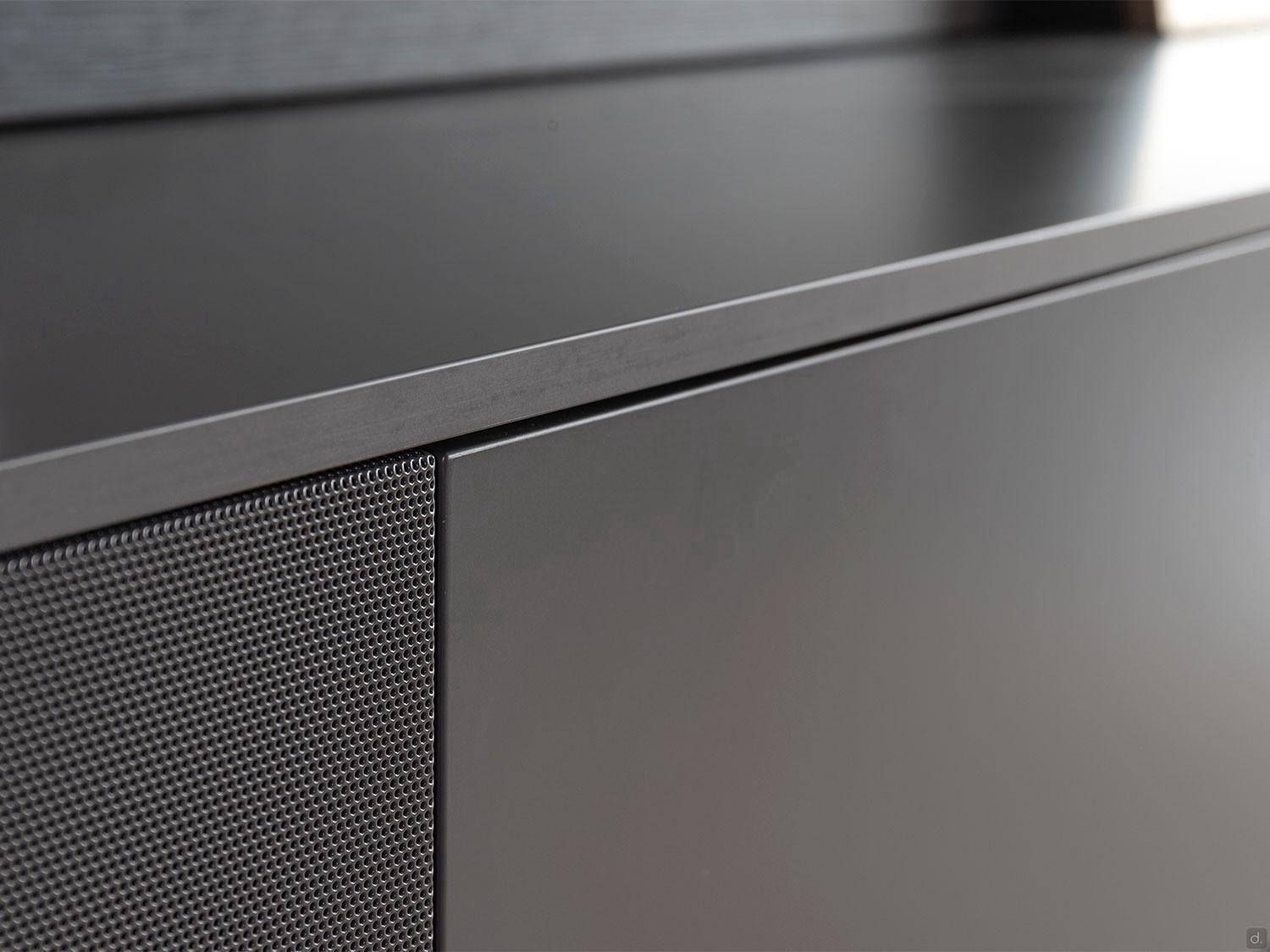

In the lower part we can find a storage base with hinged doors, a suspended drop-down base and a Plan Sound base in correspondence of which it is possible to place the TV. The base Sound has a removable front in lacquered pierced plate and some grommets to connect your TV or electronic devices.

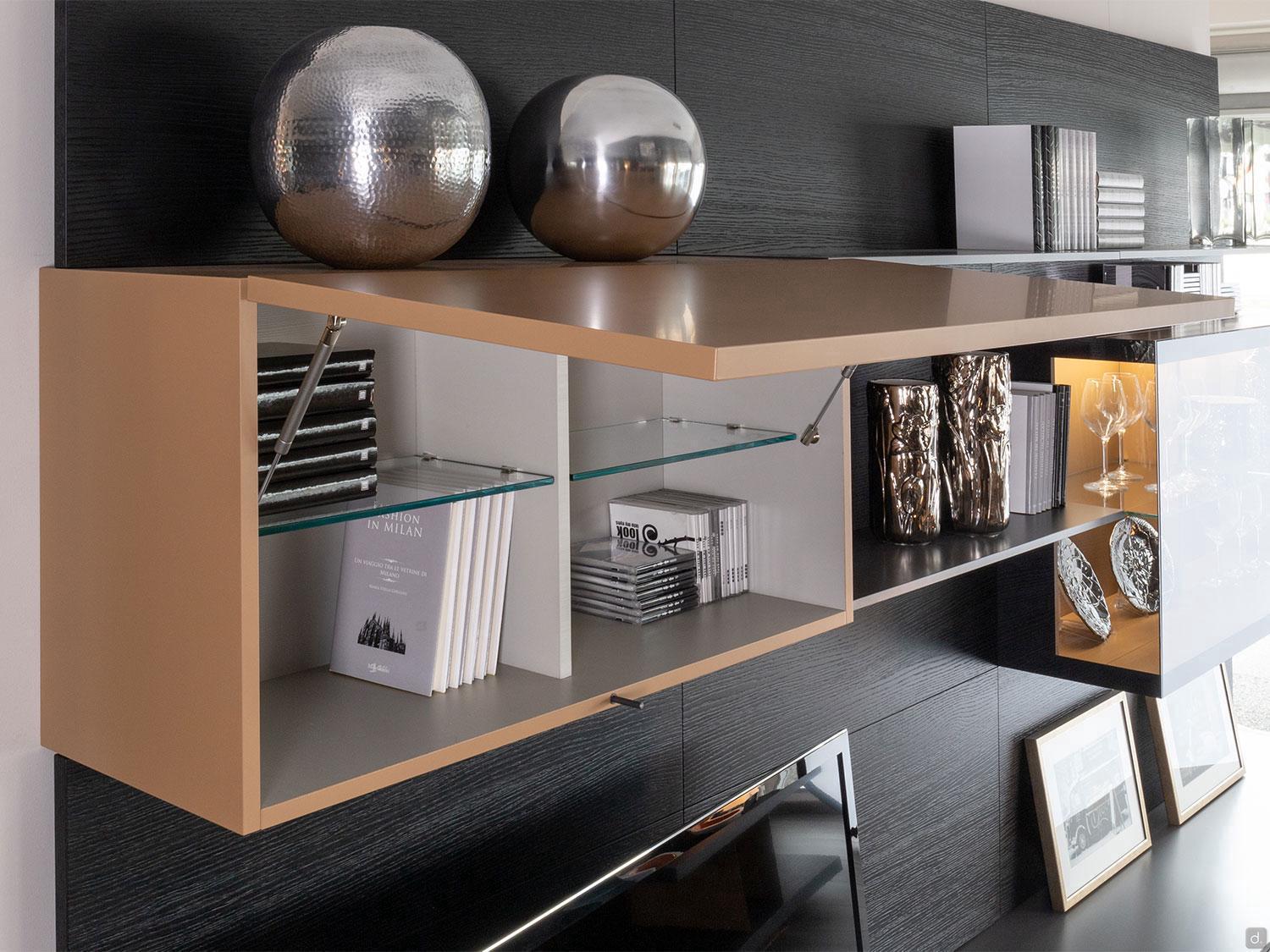

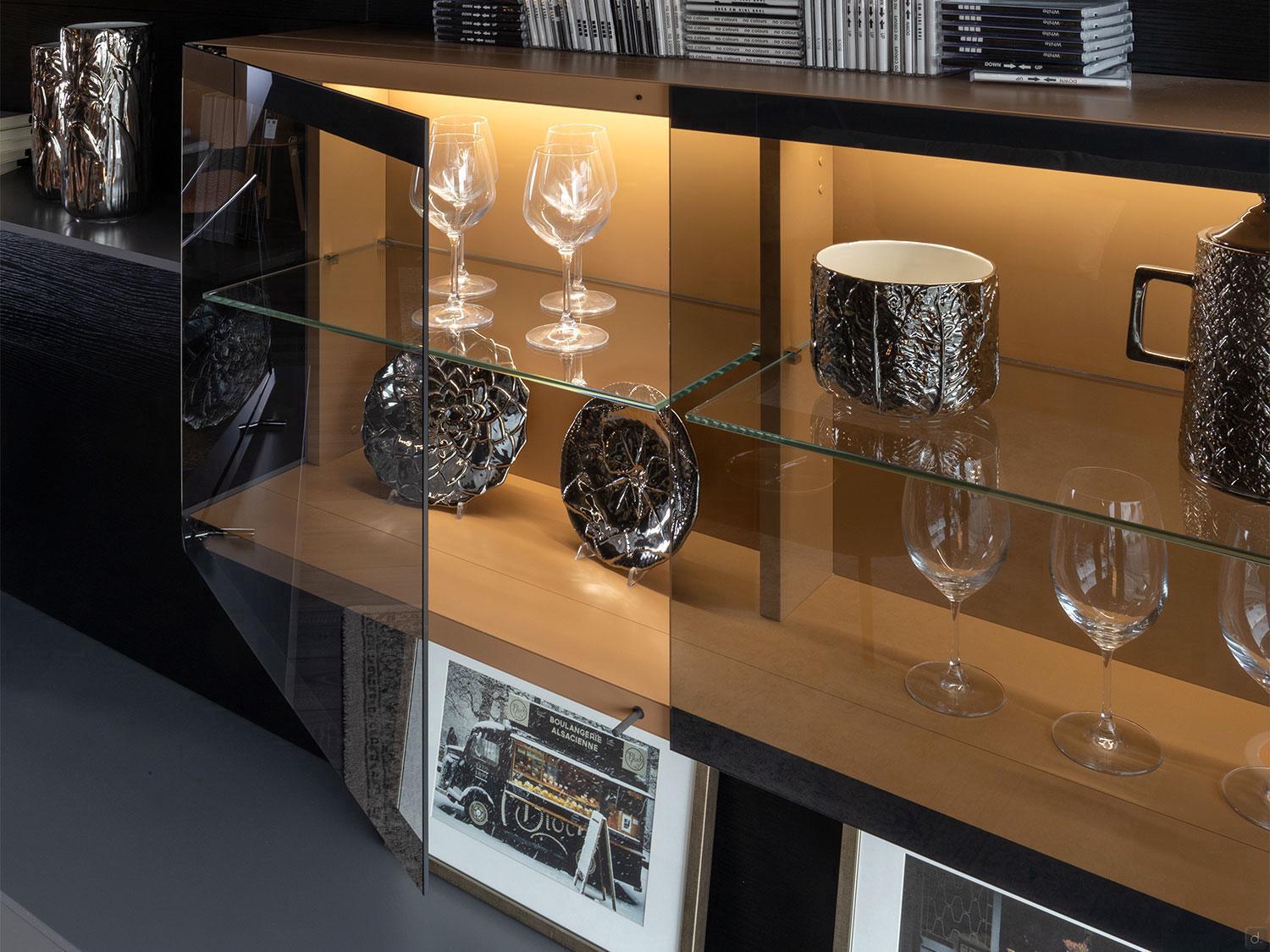

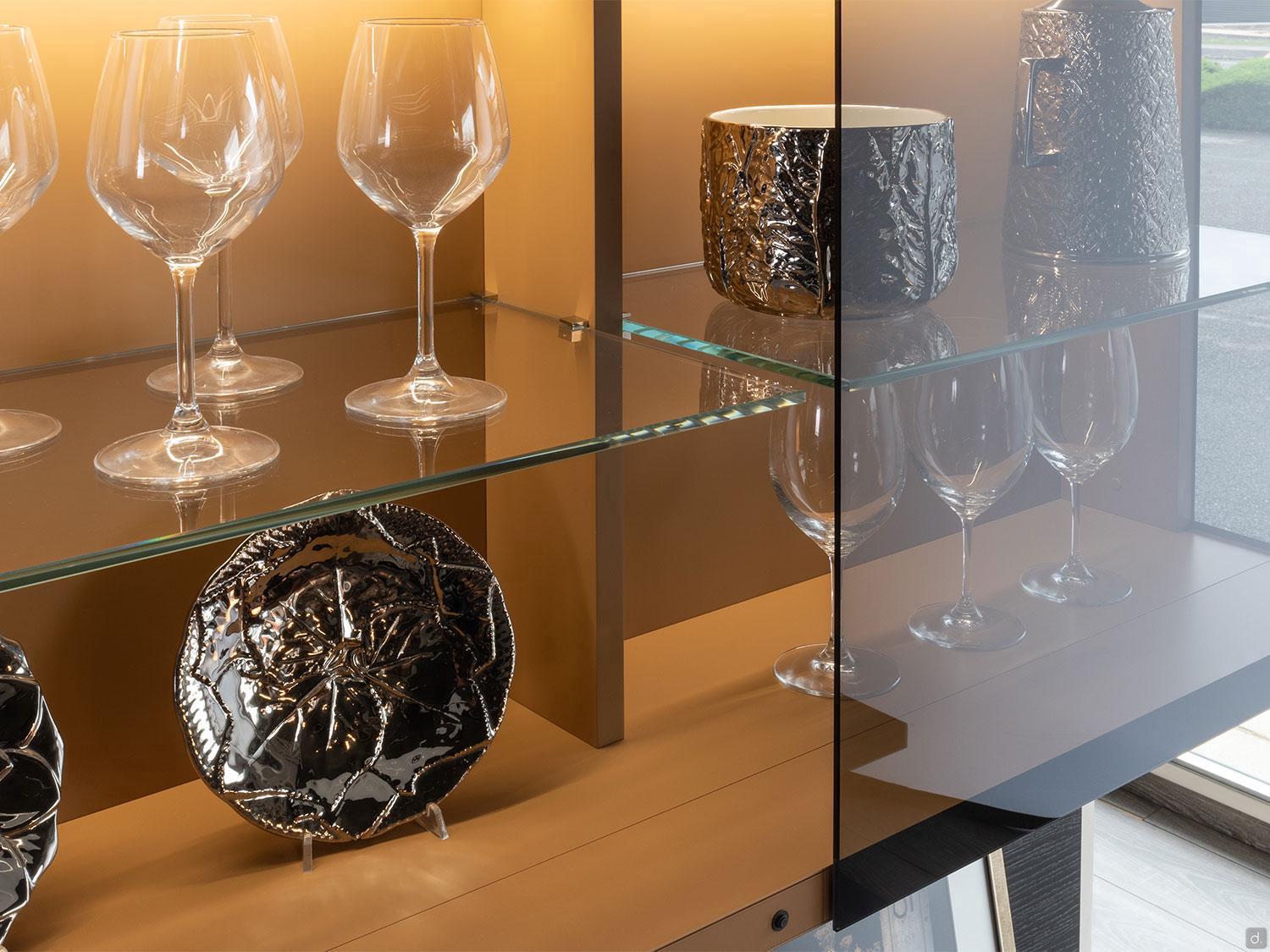

The composition continues towards the ceiling with a showcase in transparent glass with LEDs. Conceived as a glass cabinet for your silverware, it can store glasses and goblets, photos with frames, valuable objects or antiques. Two shelves for books and knick-knacks contour this glass showcase. The last wall element is a wall unit with folding upwards doors and internally divided in four compartments thanks to a central dividing element and two glass countertops.
This composition is more than 3 meters long and can furnish a wall of a modern living room with a refined taste and practicality.

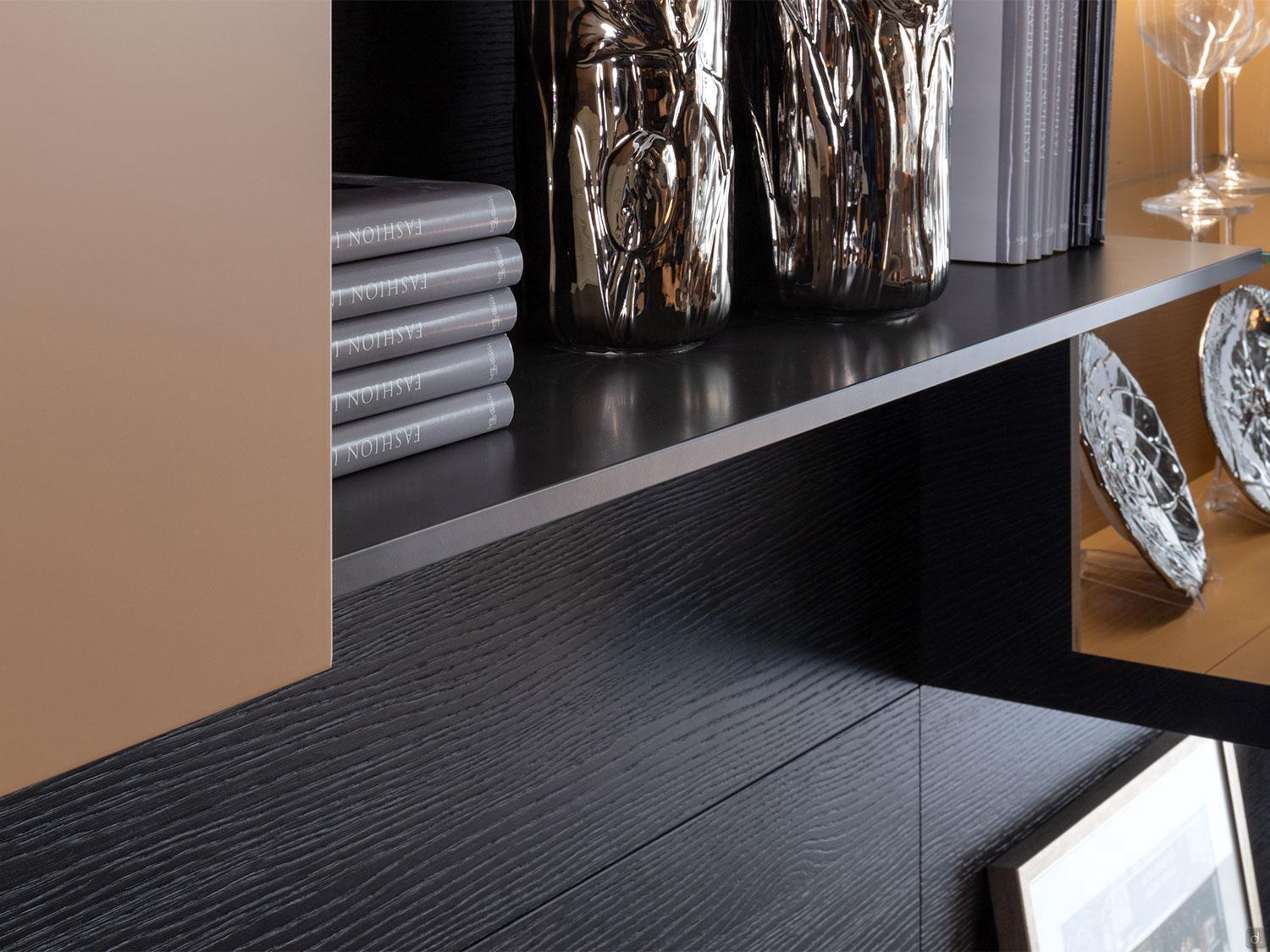

Plan 28 is an elegant wall system characterised by the combination of matt lacquered gunmetal and fashion wood fossil oak; two shades tending towards black, enlivened by their leather colour details. These colours can be completely turned upside down by choosing other materials and different nuances from the samples section.

Characteristics
the wall panels function as back panels for every element
the showcase function as a glassware to expose little objects
base and wall units doors are equipped with push-pull opening
finishes and colours of your choice

Measurements
- cm 319 d.44 h.228

Materials and Finishes
Base, Shelves and Back Panels:
- melamine
- stone effect melamine
- fashion wood
- matt lacquered oak
- glossy / matt / metallic lacquered
Frontal Base Sound:
- metal / matt / metallic lacquered
Flip-up Wall Unit, Showcase Back Panel:
- matt / metallic lacquered

Info for your Quote
If you chose the bases with "melamine" finishes you will receive two separate tops: one of 192 cm and the other of 127 cm. For all the other finishes you will receive a whole top.

Technical study

Specific Measurements
n.1 base Plan Sound: cm 96 d.44 h.24
n.1 drop-down base: cm 96 d.44 h.24
n.1 hinged base 2 doors: cm 127 d.44 h.48
n.1 top: cm 319 d.44,3 sp.1,4 (melamine will come in two tops: cm 192 + 127)
n.1 transom wall unit: cm 96 d.34,4 h.48
n.1 showcase wall unit Plan Glass with LEDs: cm 126,8 d.34,4 h.64
n.1 back panel: cm 96 h.32 th.4,4
n.3 back panels: cm 96 h.48 th.4,4
n.2 back panels: cm 96 h.64 th.4,4
n.1 back panel: cm 126,8 h.48 th.4,4
n.1 back panel: cm 126,8 h.64 th.4,4
n.2 shelves: cm 96 d.24,3 th.1,4
n.1 shelf: cm 126,8 d.24,3 th.1,4

Technical Specifications and Equipment
Structure: particle wood panel covered in melamine material (class E1 - low formaldehyde emission), wood or mdf (for glossy lacquered).
Back panel: particle wood panel covered in melamine material (class E1 - low formaldehyde emission) thickness cm 2,2; rear part covered in matt black polymeric leaf.
Shelves: made of glass, thickness cm 0,8; matching colour, thickness cm 1,8.

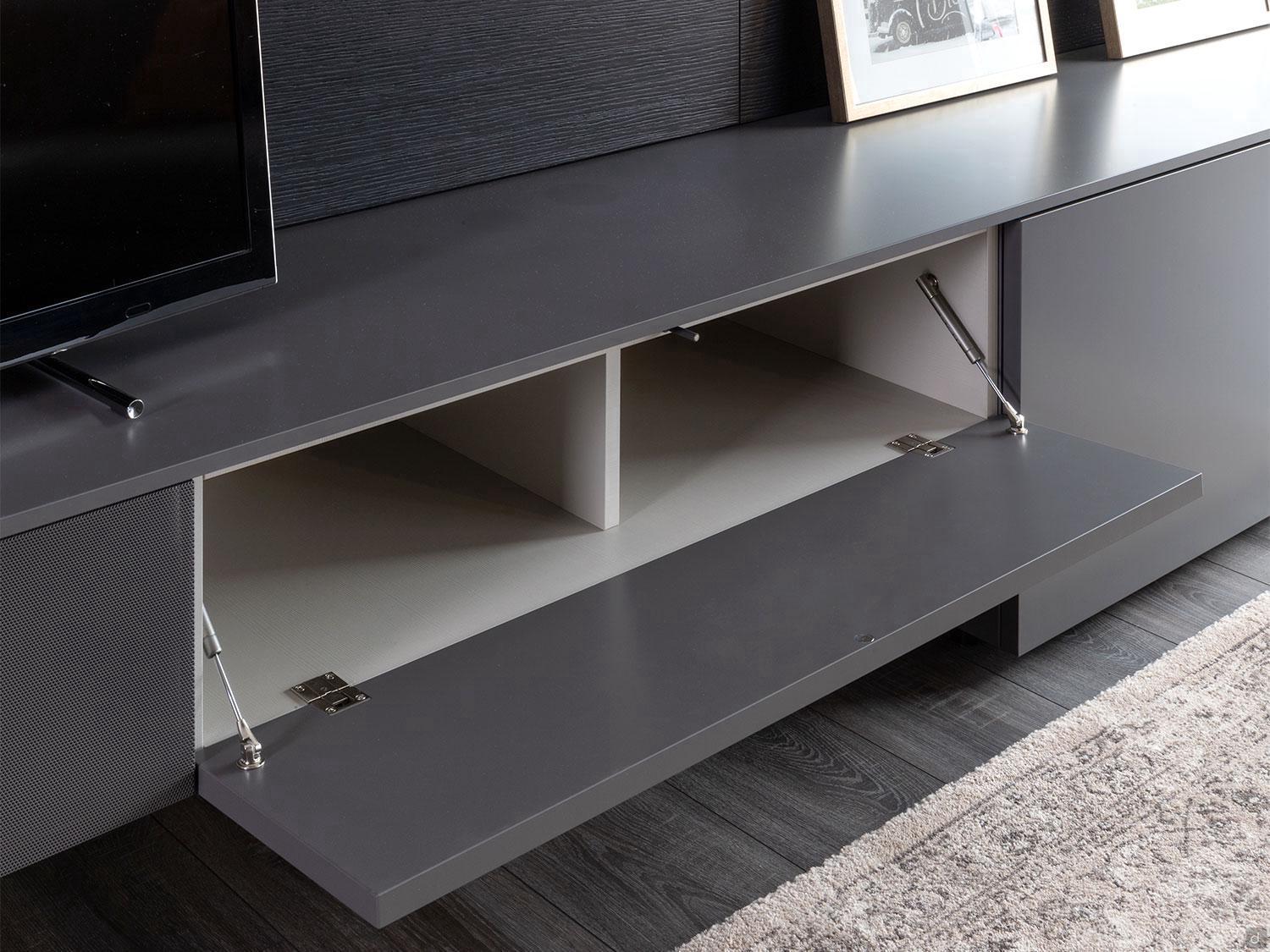

Drop-down: door with two oledynamic pistons.

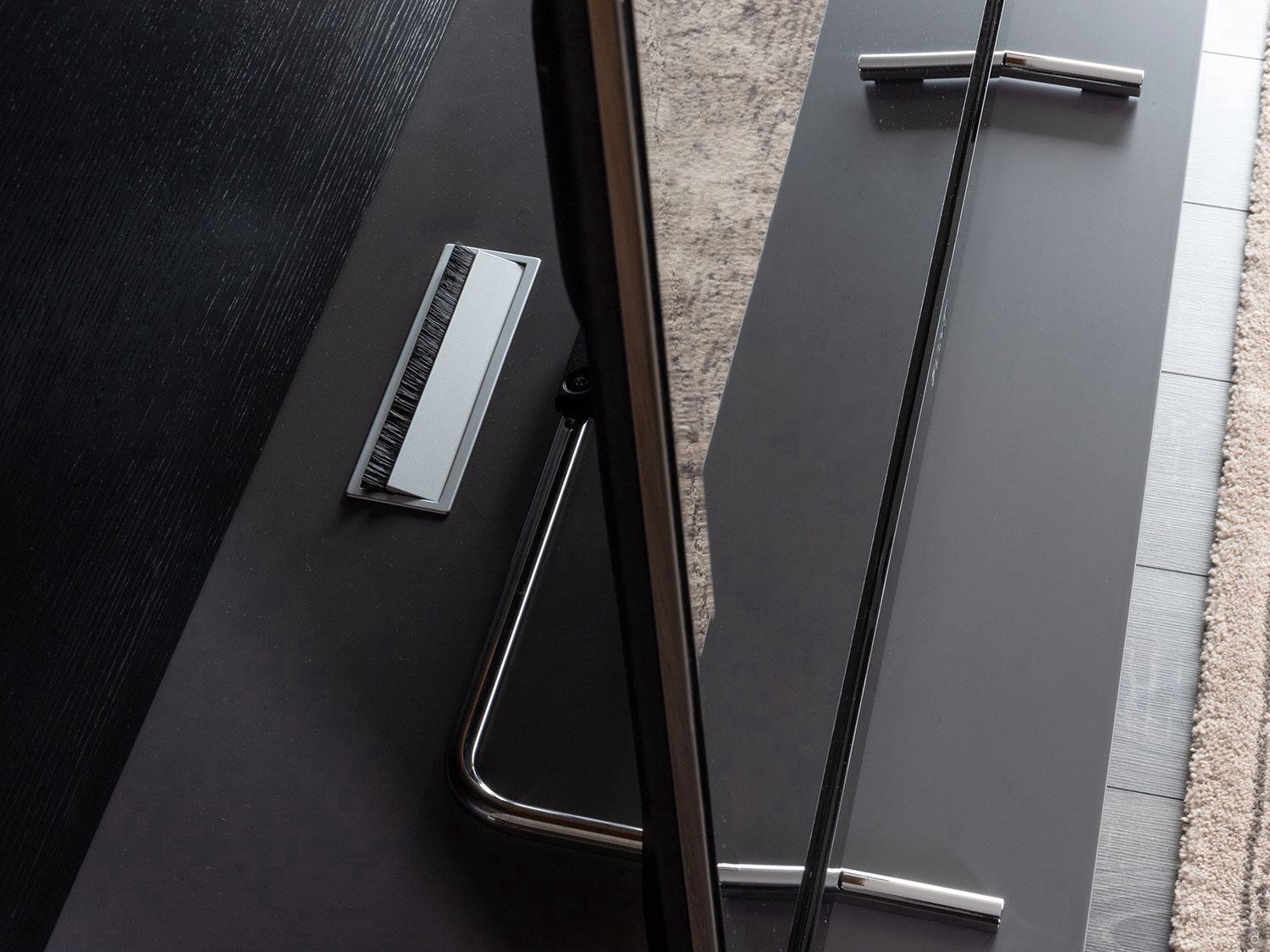

Base Plan Sound: grommet set composed by: n.1 rectangular grommet on the Top cm 18 x 5 in aluminium equipped with a small door (placed astride of the internal parapet), and n.2 round grommets on the Back cm Ø 6 cm in black PVC (place in the centre of every compartment). The front is in pierced lacquered plate and it is removable.
Base and Wall Units Opening System: push-pull.
LEDs: with transformer and remote. They're placed in the inferior part of the lid. It emits a light at 3.000° K.

Assembling tips
The wall units are equipped with brackets for wall mounting with an anti-unhooking system. The dowels are internally adjustable 1 cm in height and 0,3 cm in depth. The maximum capacity is 80 kg for each bracket.
The back panels are equipped with adjustable brackets with a maximum capacity of 80 kg each.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Weight
294 kg
Cubic Metres
1,58 m³
