Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the USA CARB2 standards.
Side and Back Panels: made in particle wood panels (E1 class with low formaldehyde emission), meets the USA CARB2 standards. The side panels are cm 2,5 thick / backrests 0,8 cm thick.
Base and Top: honeycomb panels, 3,2 and 2,5 cm thick.

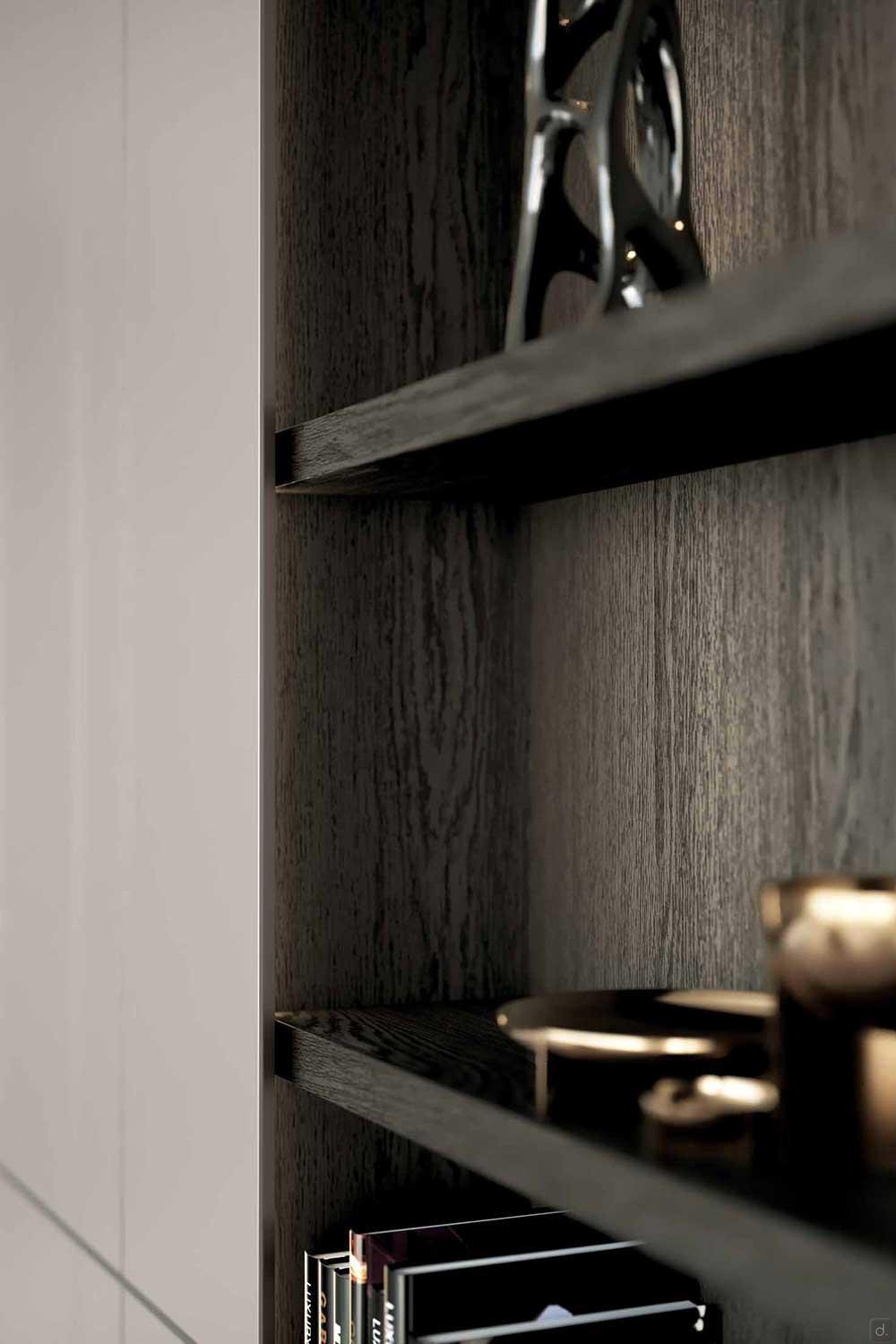

Shelf: honeycomb panel, 3,2 cm thick, 36,1 cm in depth.
Door height from the floor: cm h.1,1.
Lacquered / wooden door: honeycomb panels, 2,4 cm thick, with a frame made from solid pine, lacquer or wood. Fronts can be smooth or customised (only in matte or wood finish):

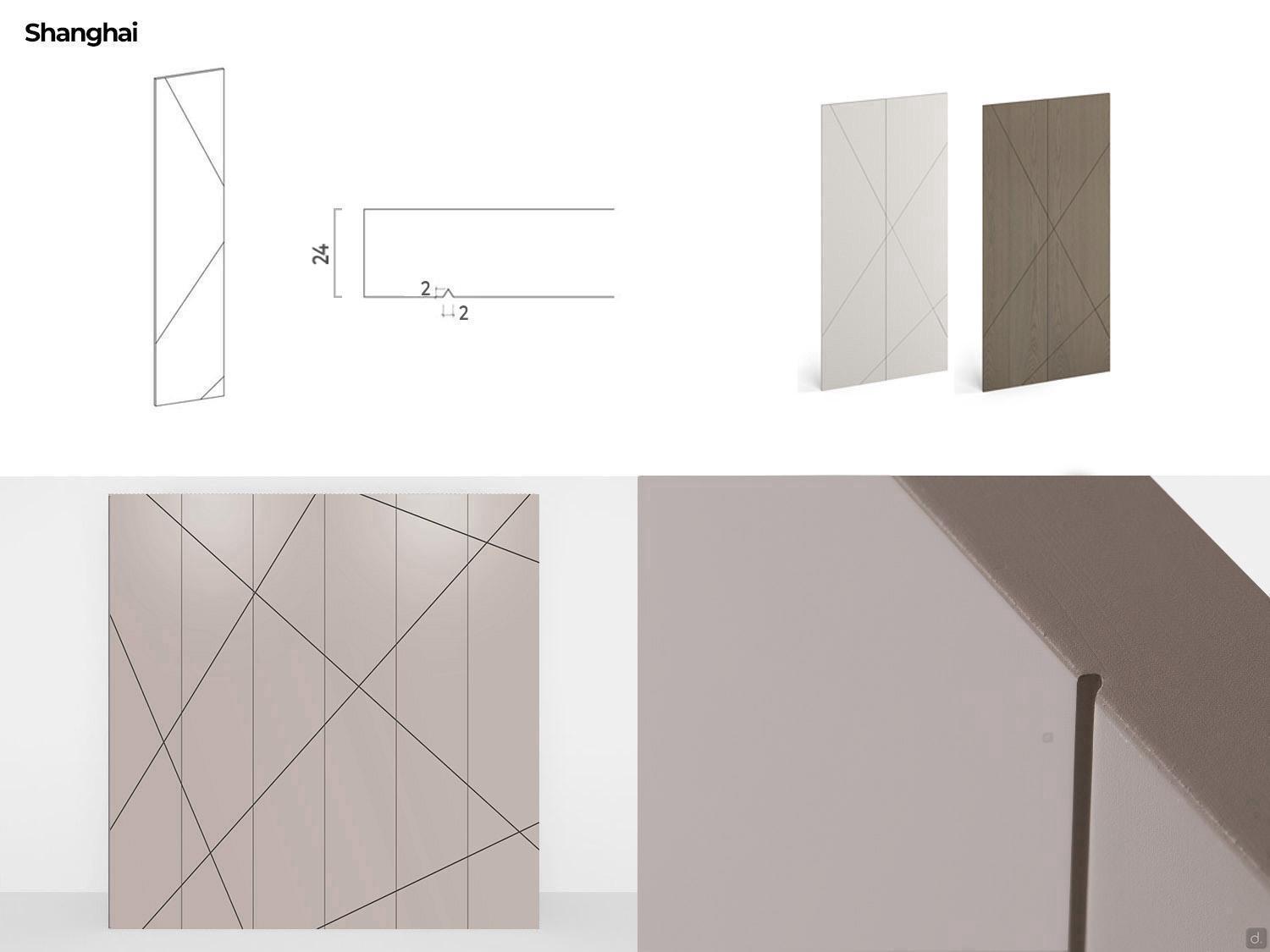

- Shanghai (only in matte lacquered finish): diagonal "V" incisions 0.2 cm thick.

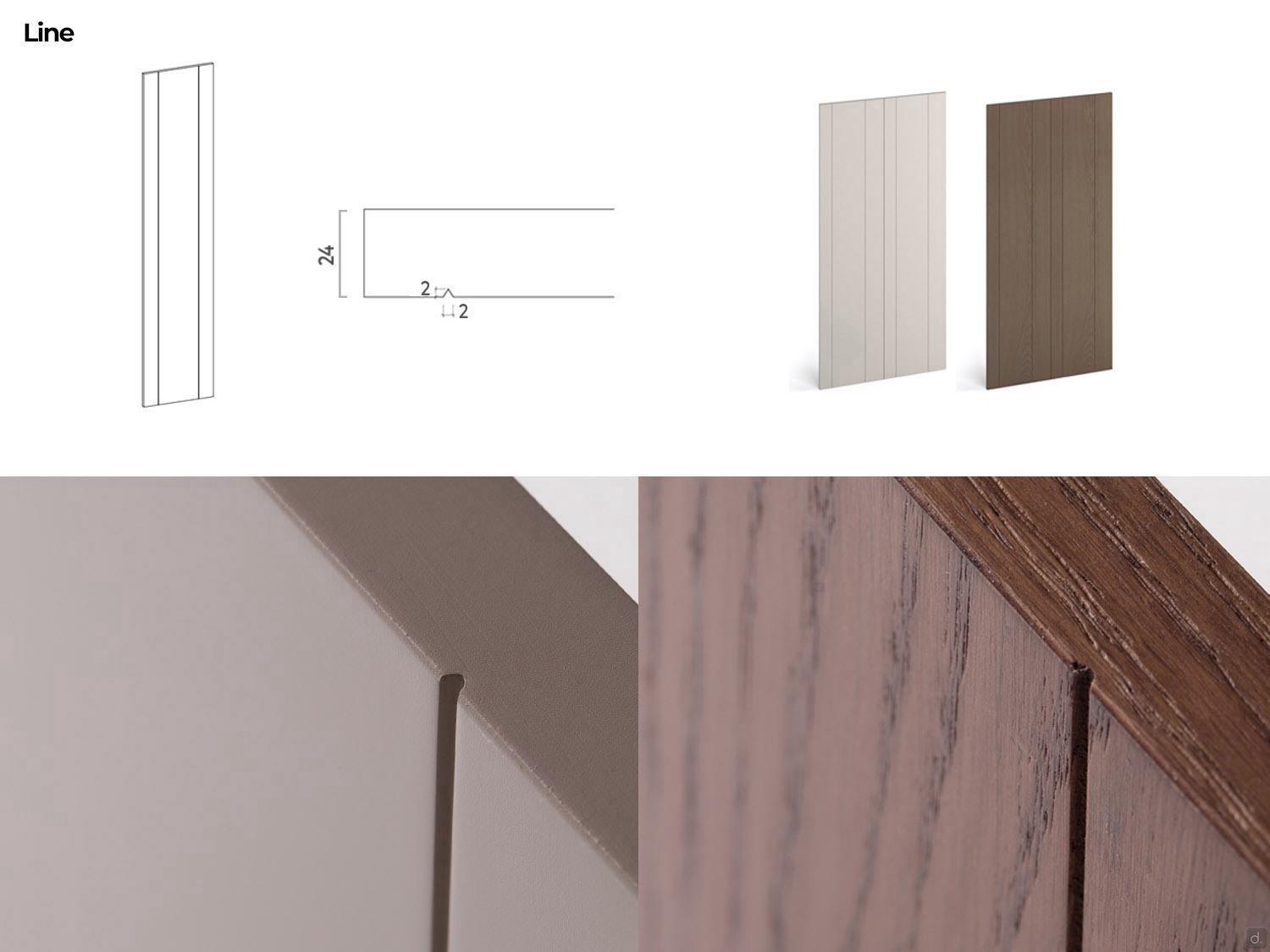

- Line (only in matte lacquered finish): vertical "V" incisions 0.2 cm thick

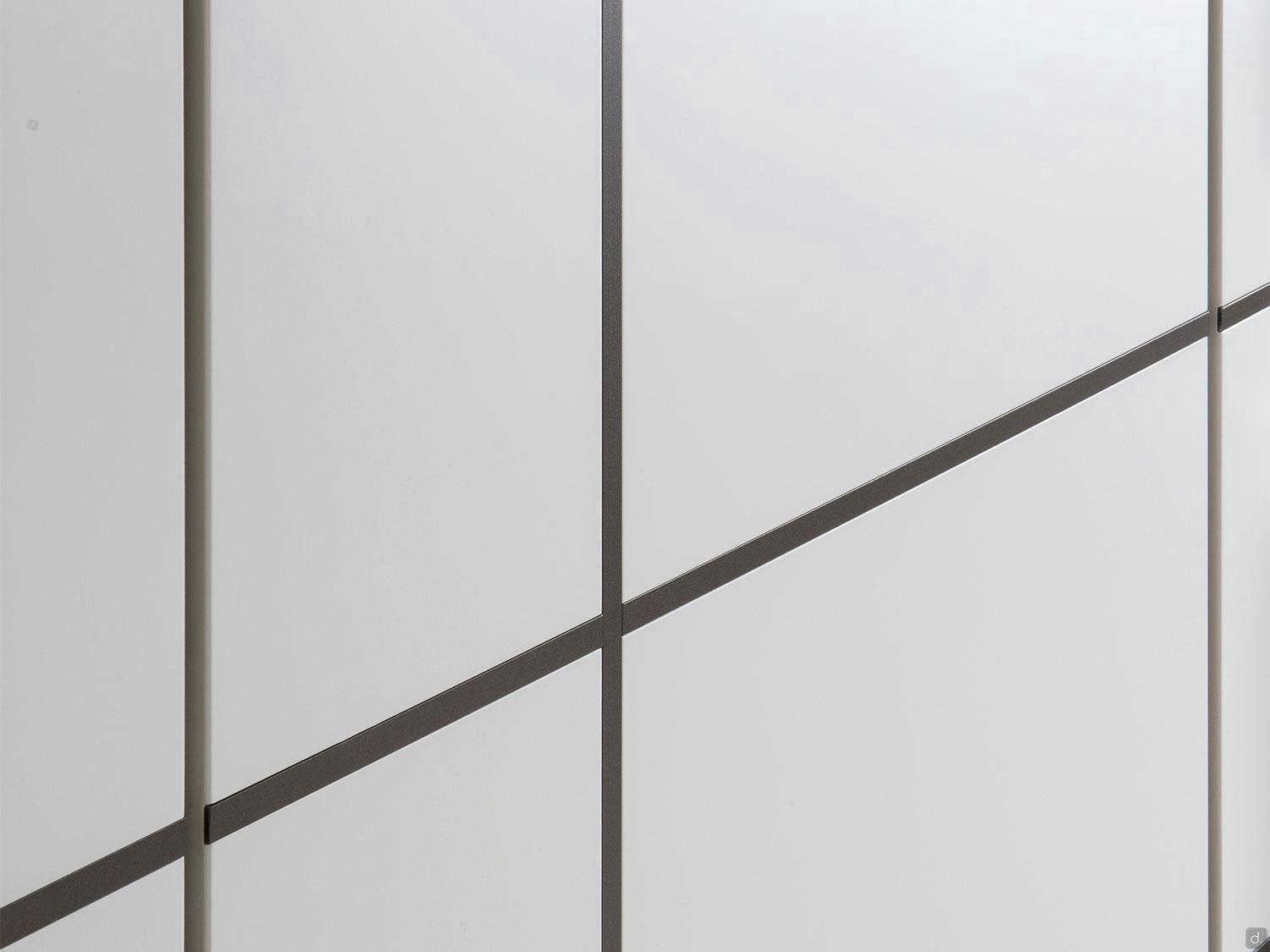

- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

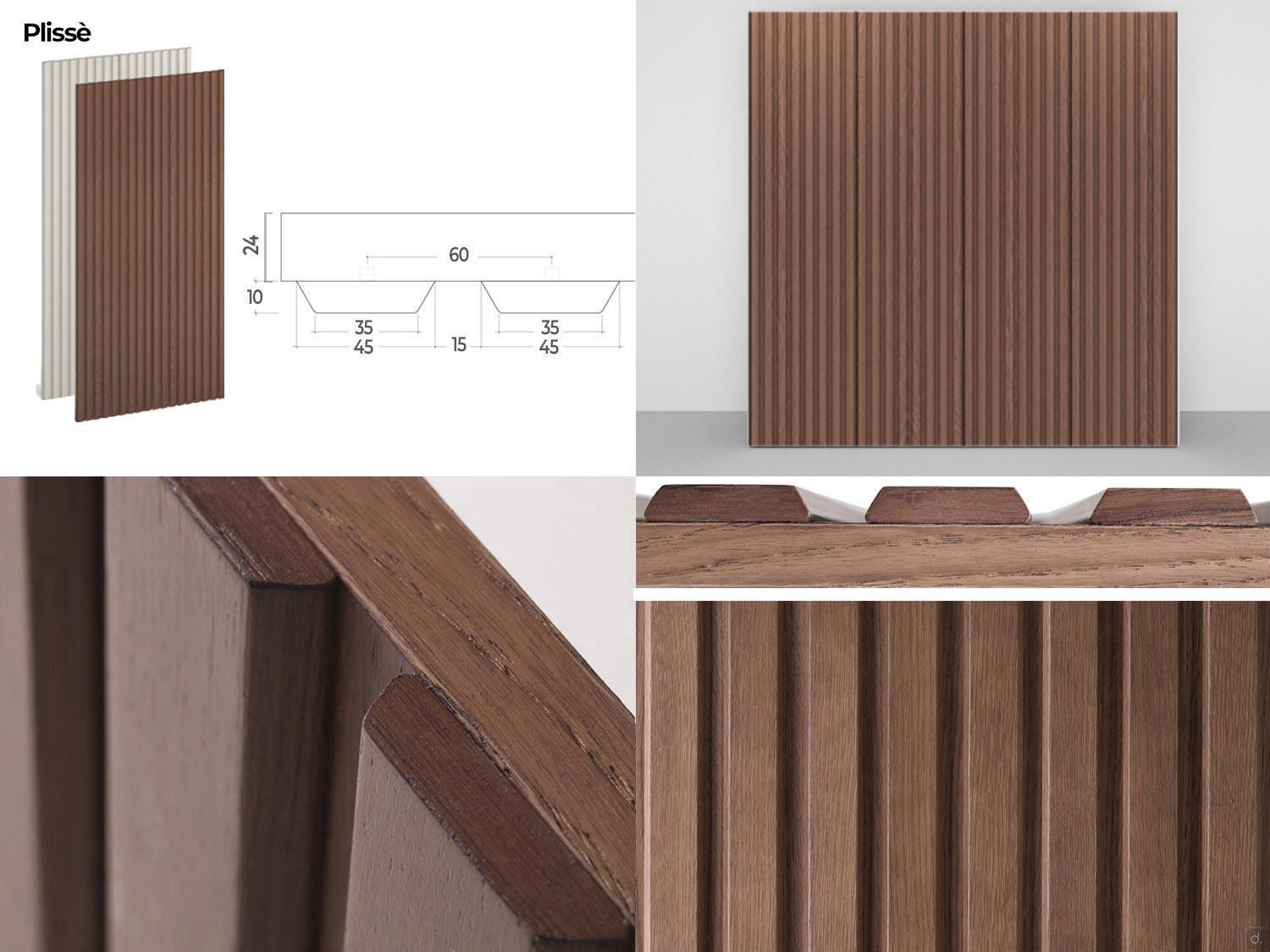

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

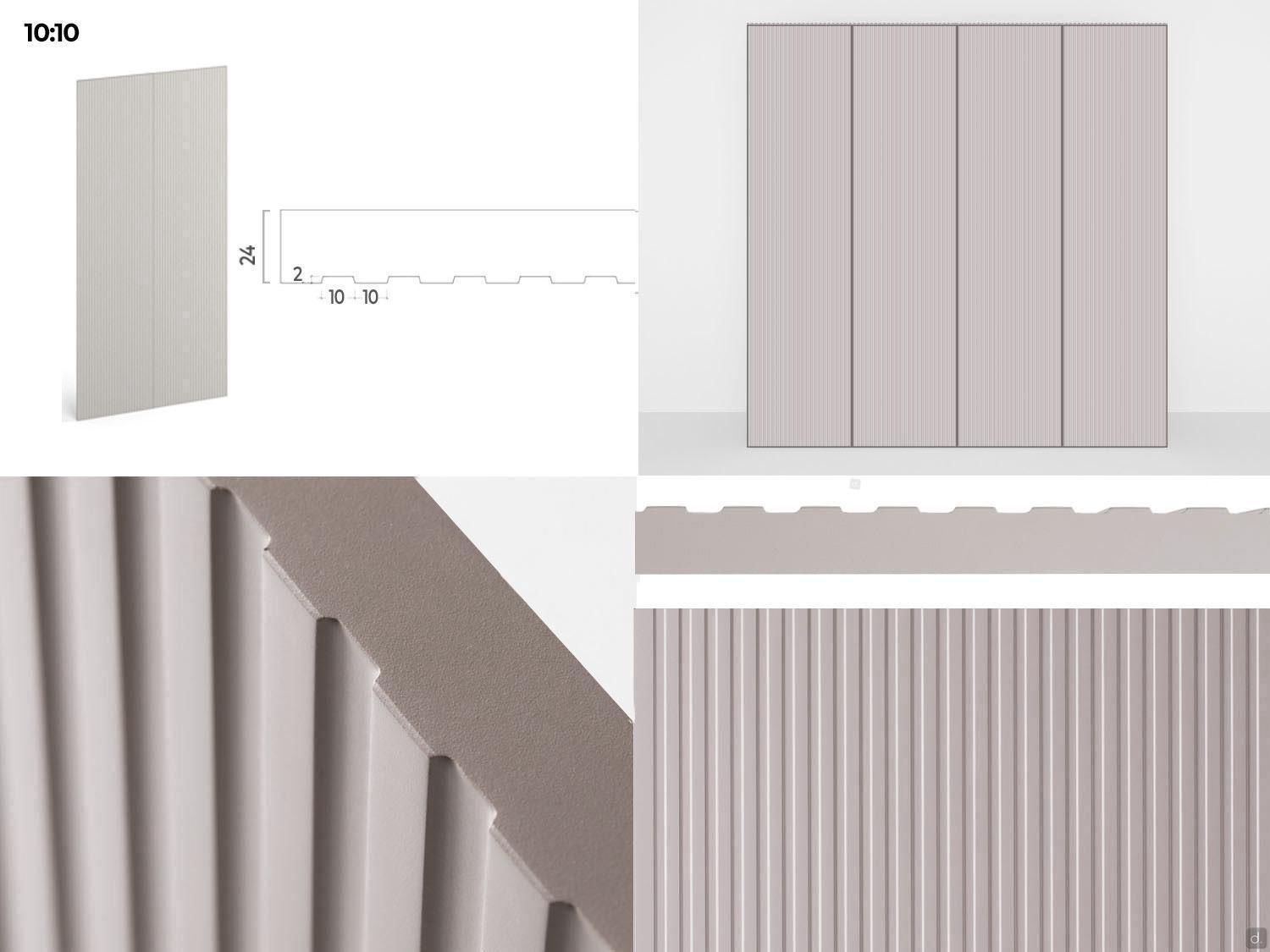

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

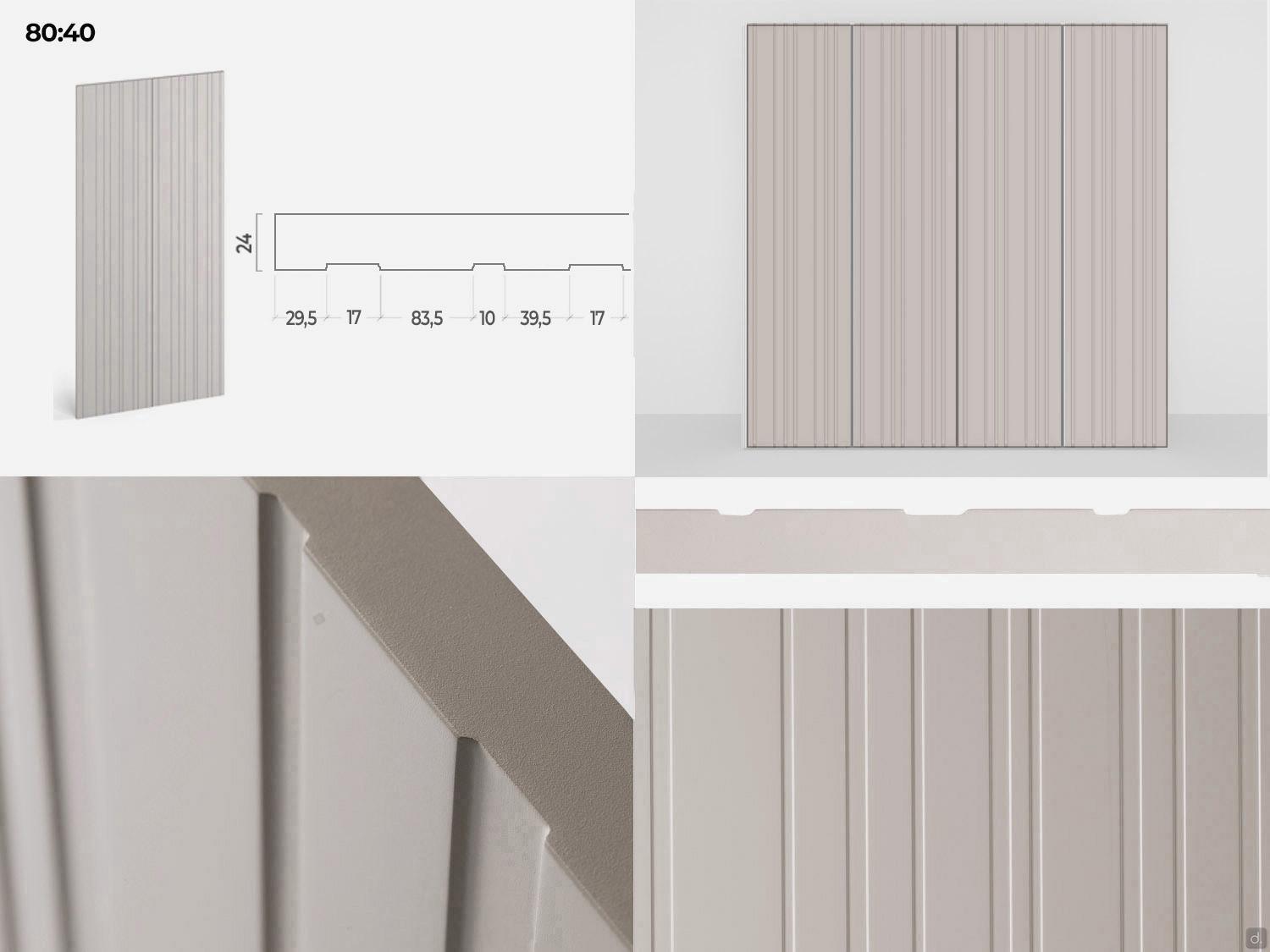

- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing

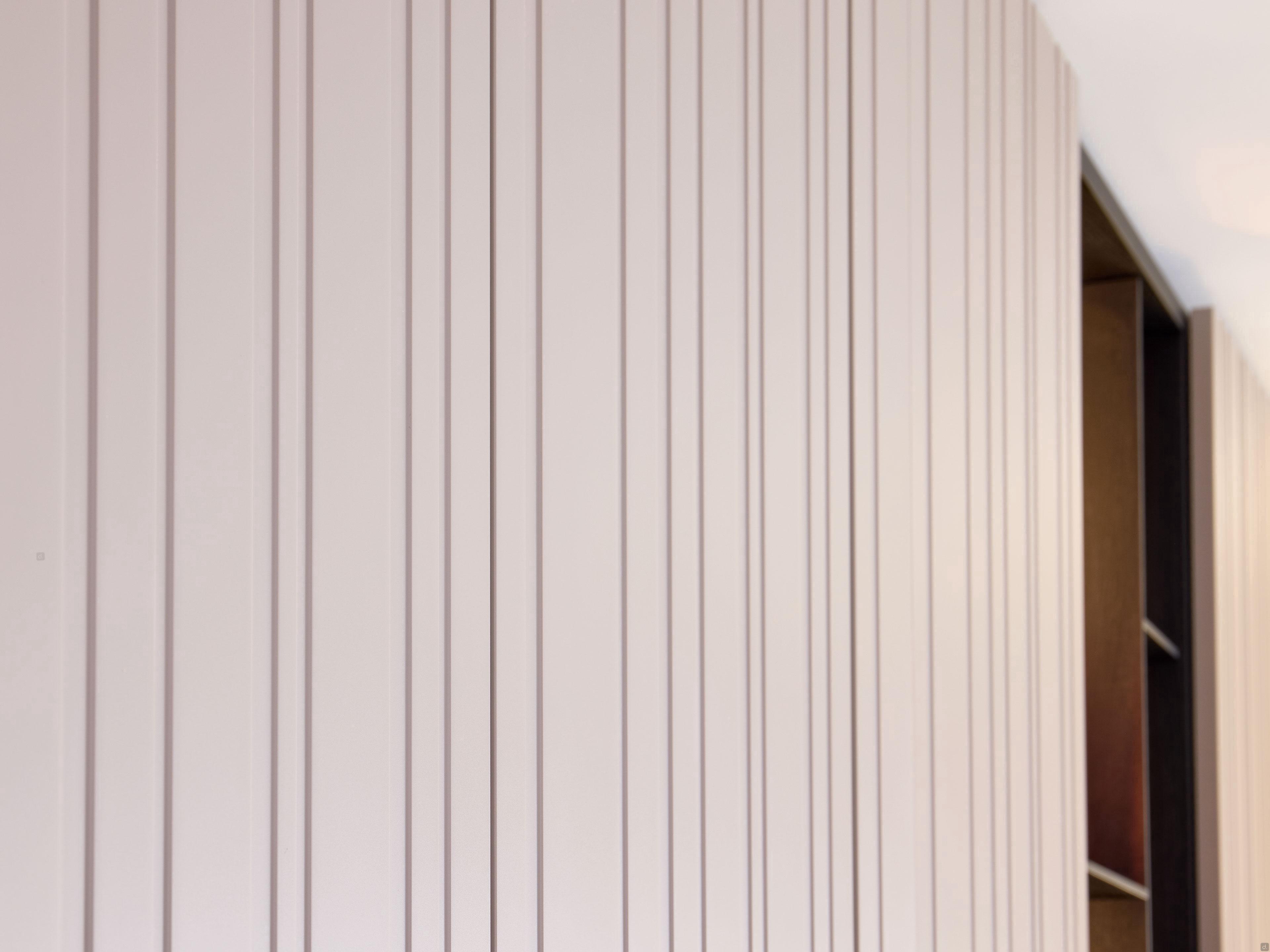

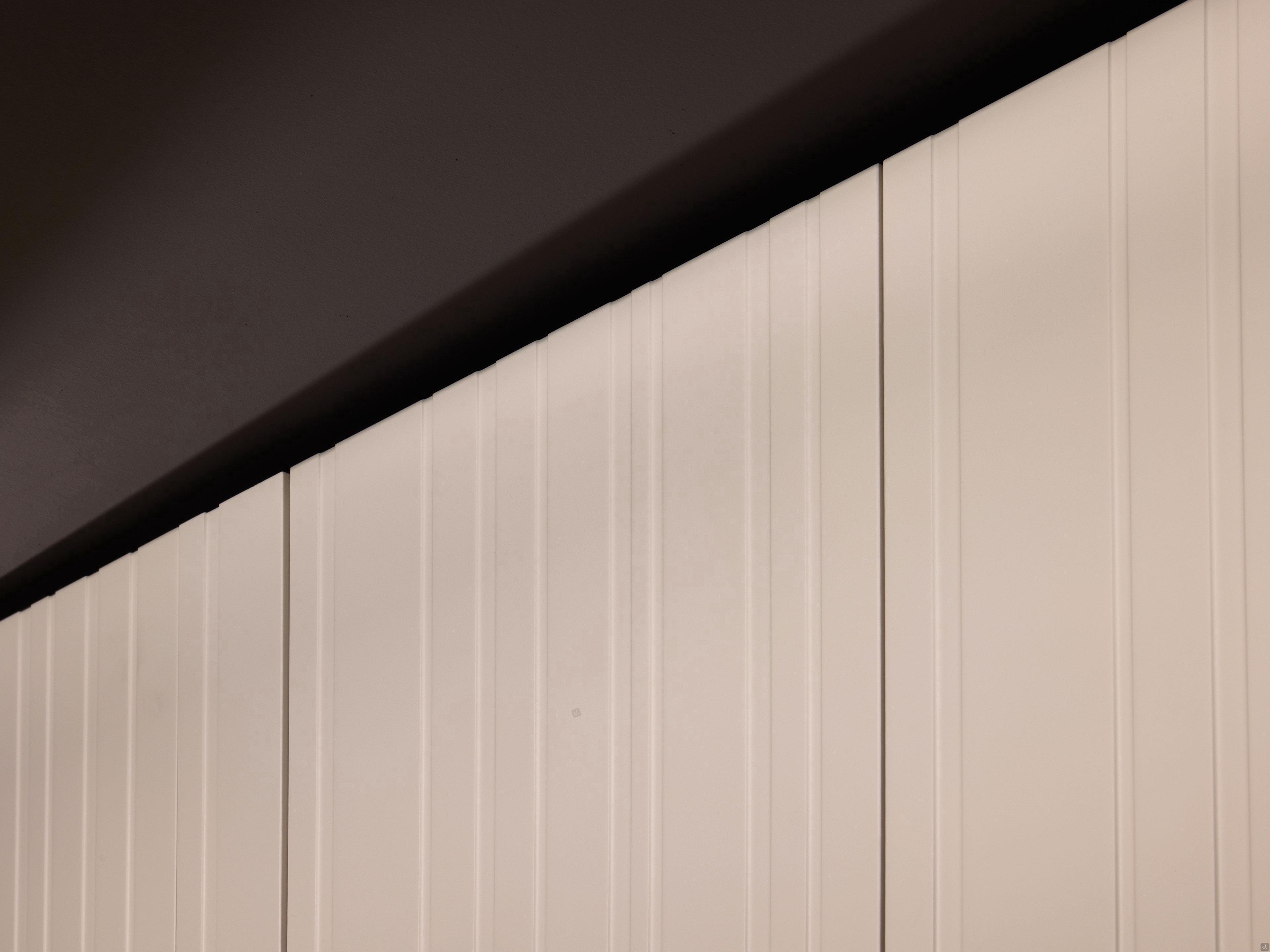

- 10:2: vertical "V" incisions cm 0,2 thick.
Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.

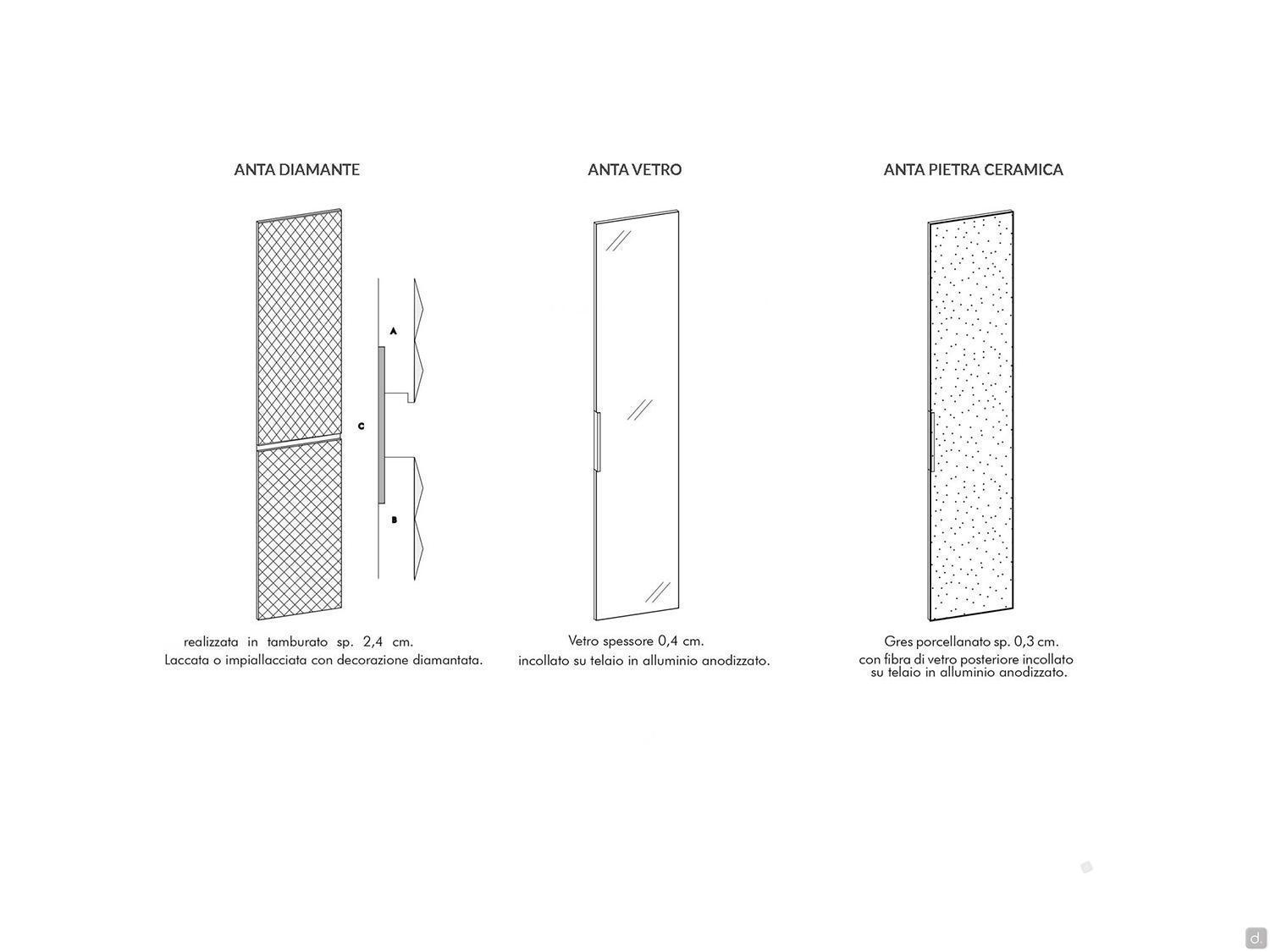

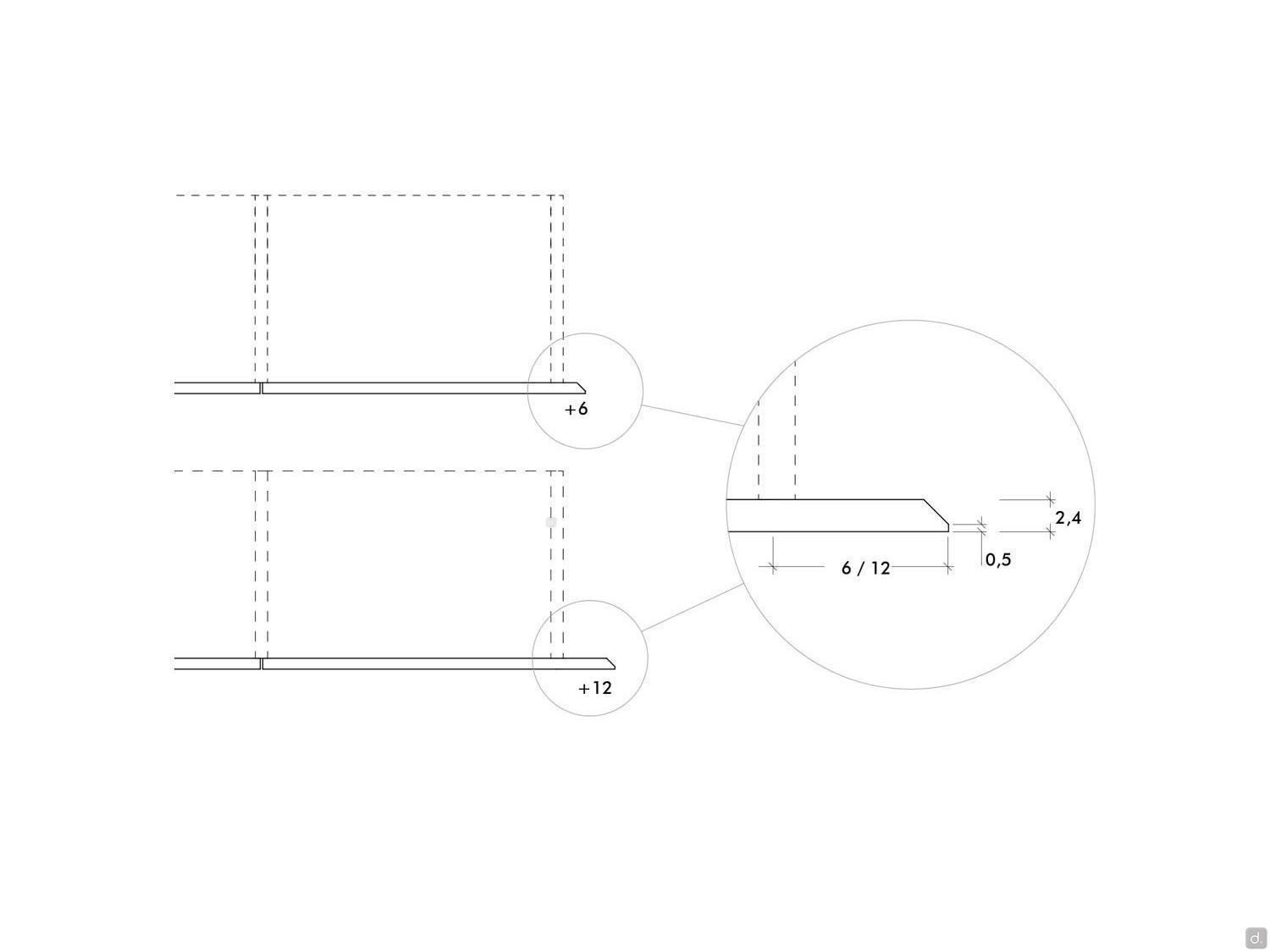

Diamond-pattern doors: a unique diamond-pattern effect on the surface of the 2,4cm-thick honeycomb-panel door with frame in solid pine, lacquered or in wood. Standard width (groove handle) or with door extending on one side (+ cm 6 / 12). The frame and horizontal groove handle are made from matt lacquer or open-pore oak wood.

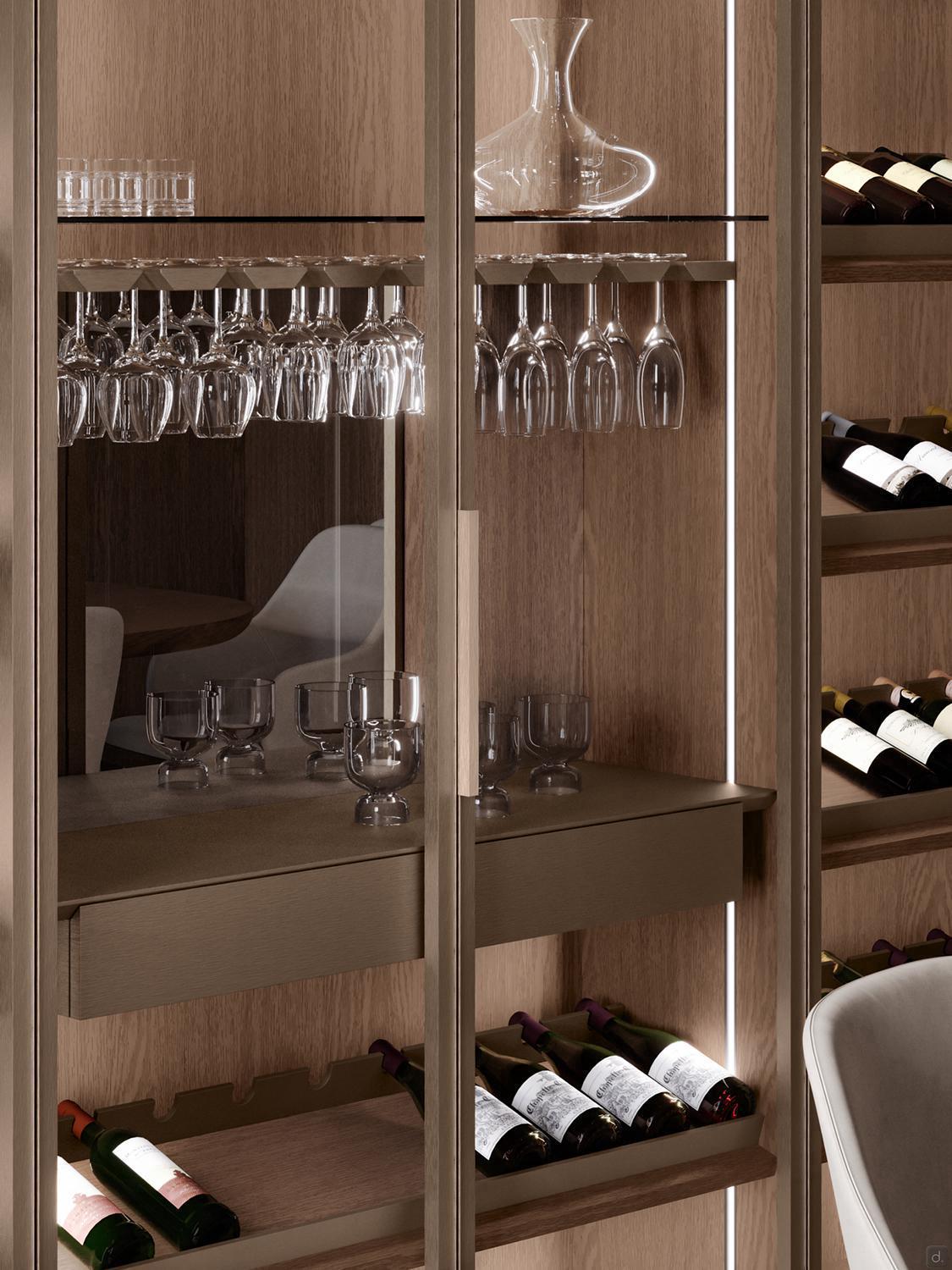

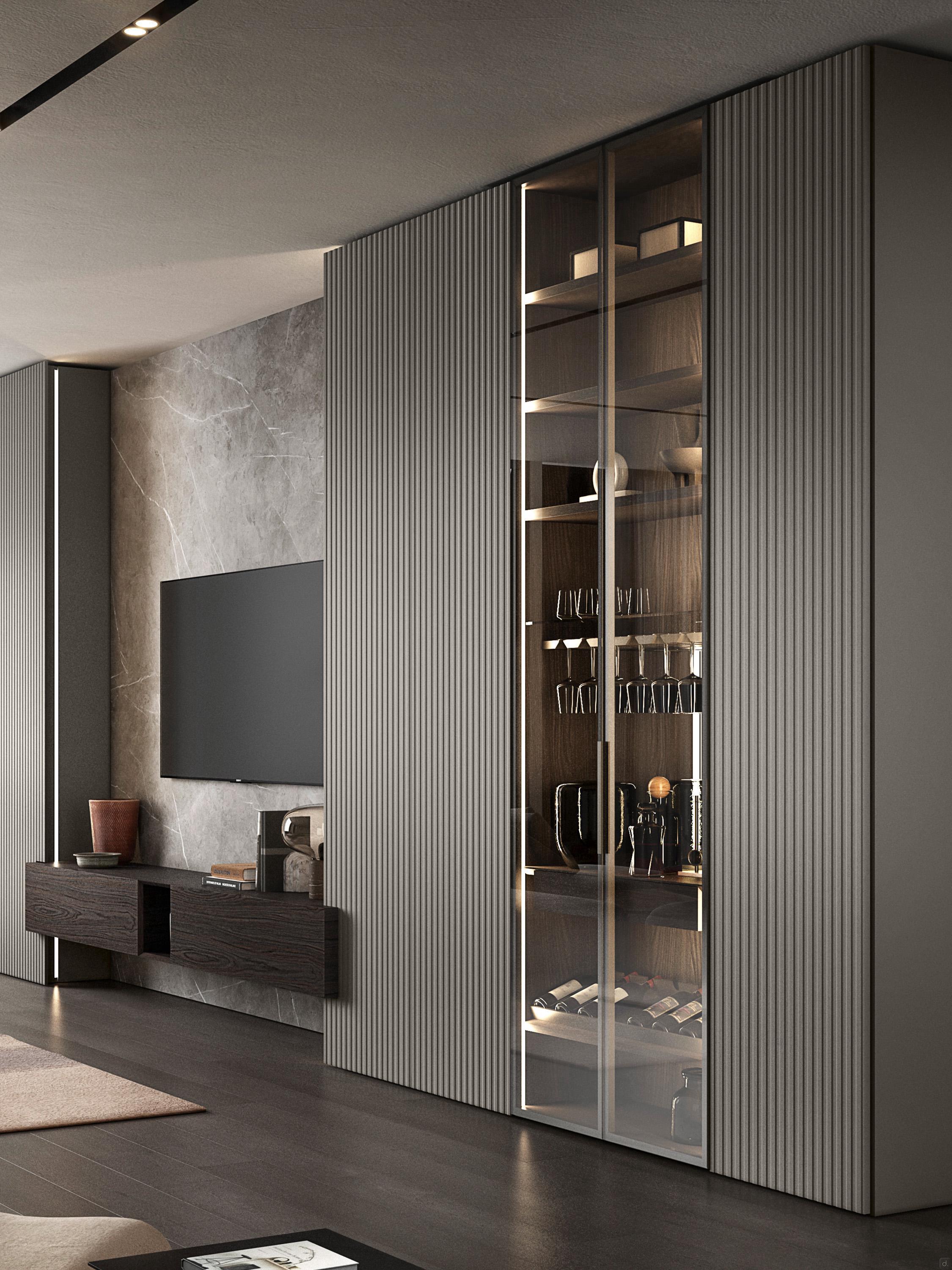

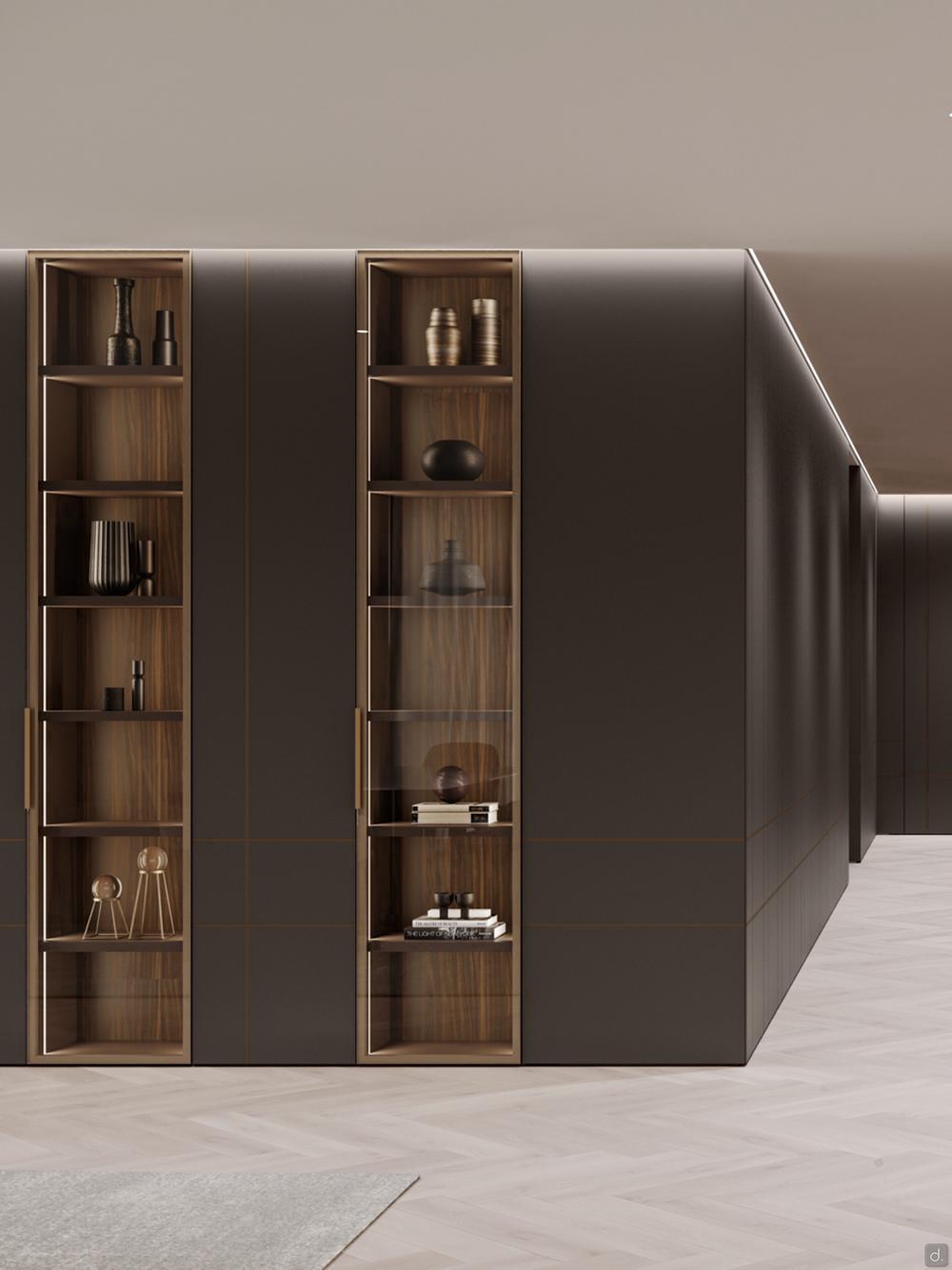

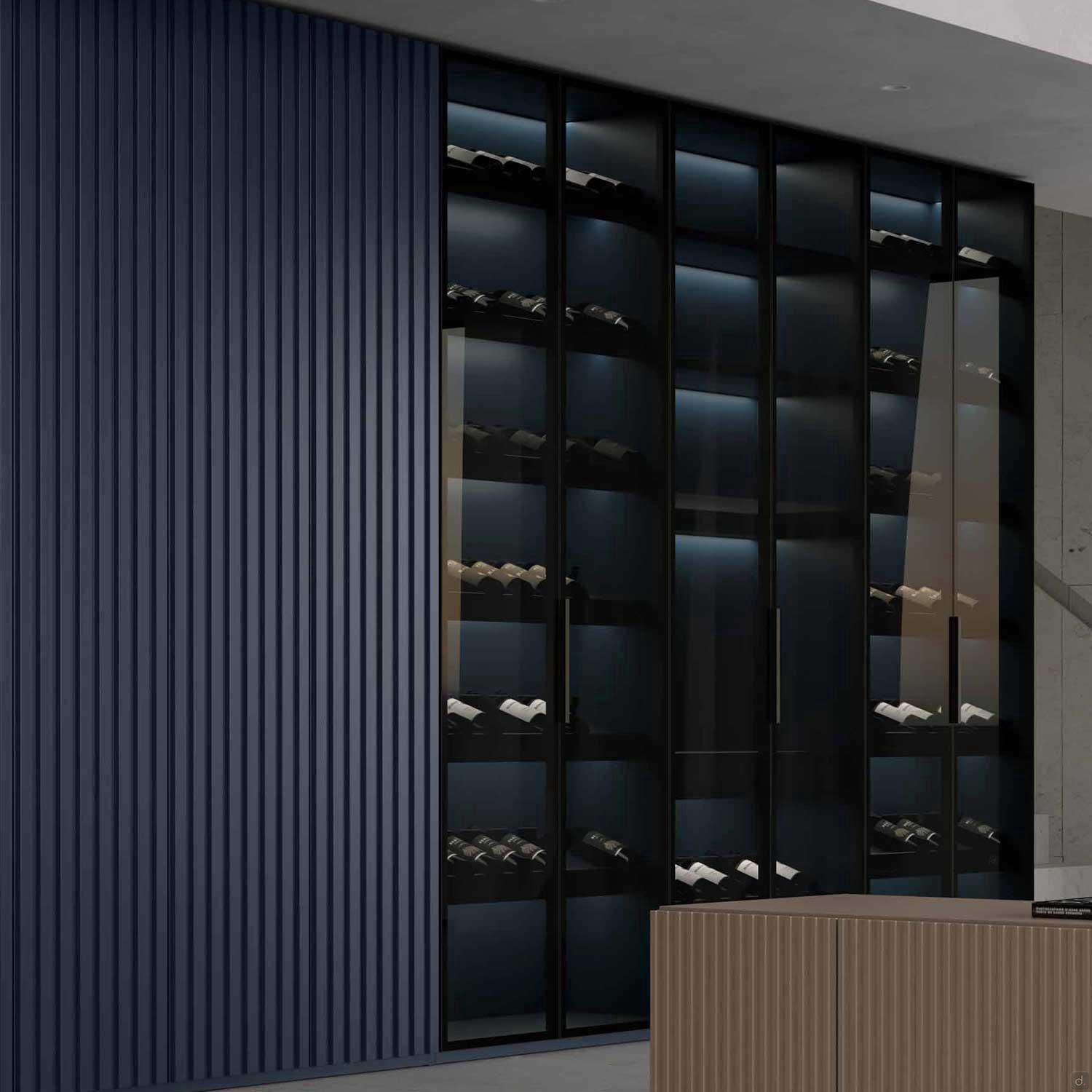

Glass / stone door: on the anodised aluminium frame. 2,8 cm thick. The glass is 0,4 cm thick and stuck to the frame. The Laminam ceramic stone is 0,3 cm thick, with rear glass fibre glued on the frame. The handle is integrated into the frame, for the version with 2 doors it is positioned so that the door opens to the right.

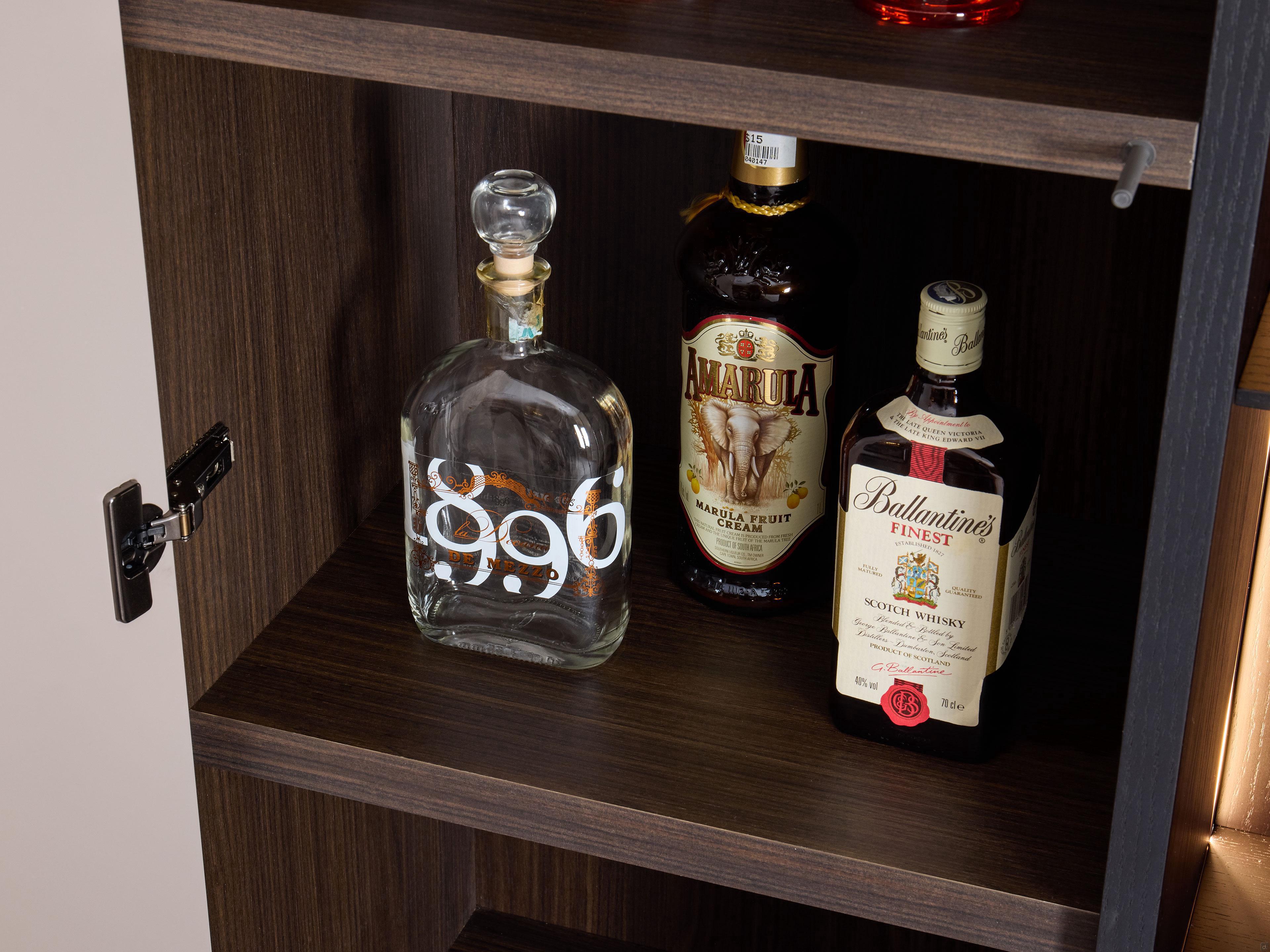

Hinges: metal in titanium finish with standard slow closing mechanism. Standard opening angle is 110°, which can be increased to 155° for wood and lacquered doors (except on slatted doors, which are only supplied with 94° opening hinges). Standard opening angle for glass doors is 94°, which can be increased to 170°
Please Note: The sides are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the wardrobe is assembled, deliberately leaves the solid spruce frame of the honeycomb sandwich panel exposed in order to enhance the wooden component of the element and show the high quality of the finished product.
Side Holes

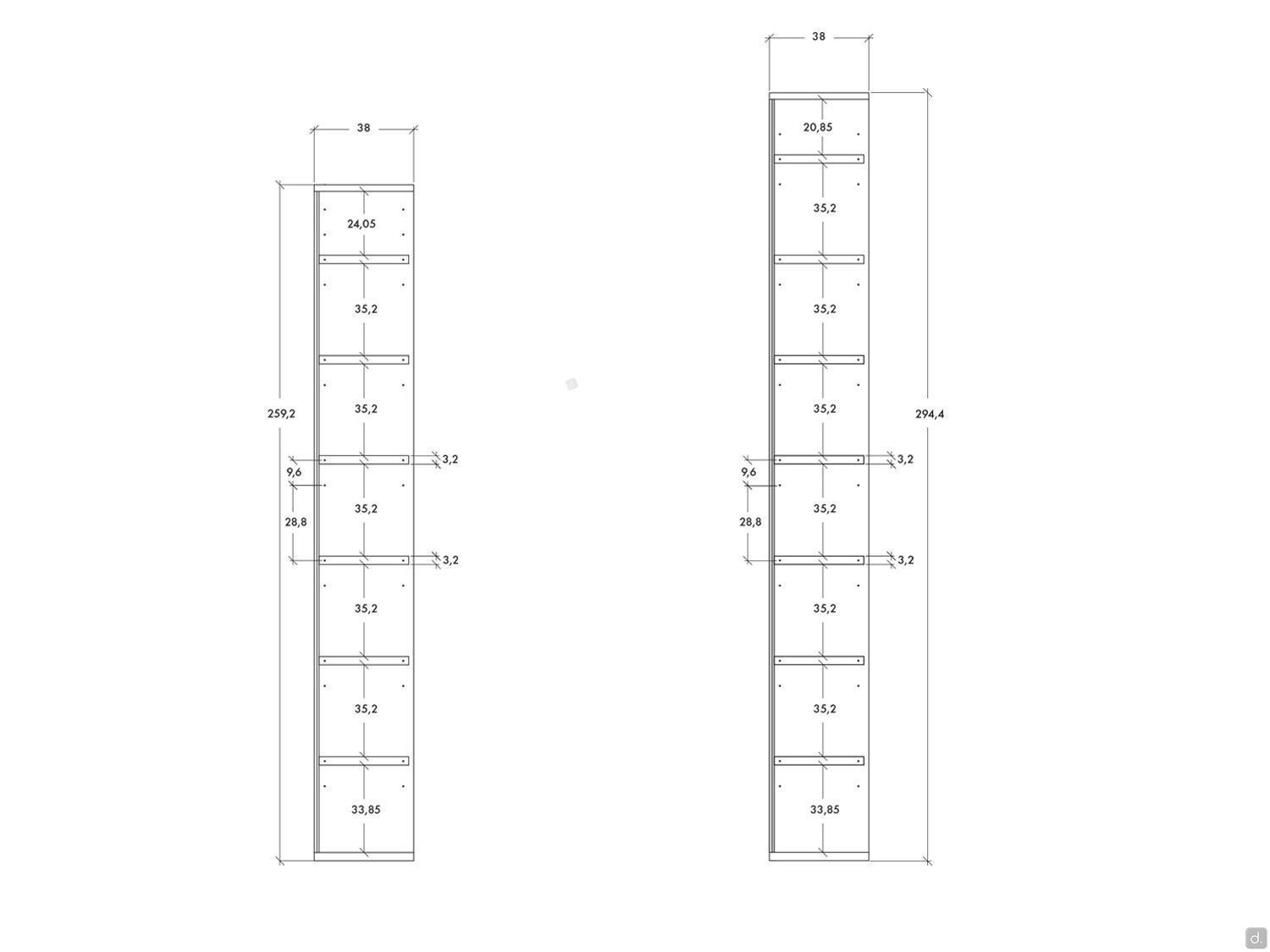

The side panels include a couple of holes, mm Ø 1,5 with a distance between them of 9,6 cm, placed each 35,2 cm (see the scheme in the picture gallery).
Optional - side columns

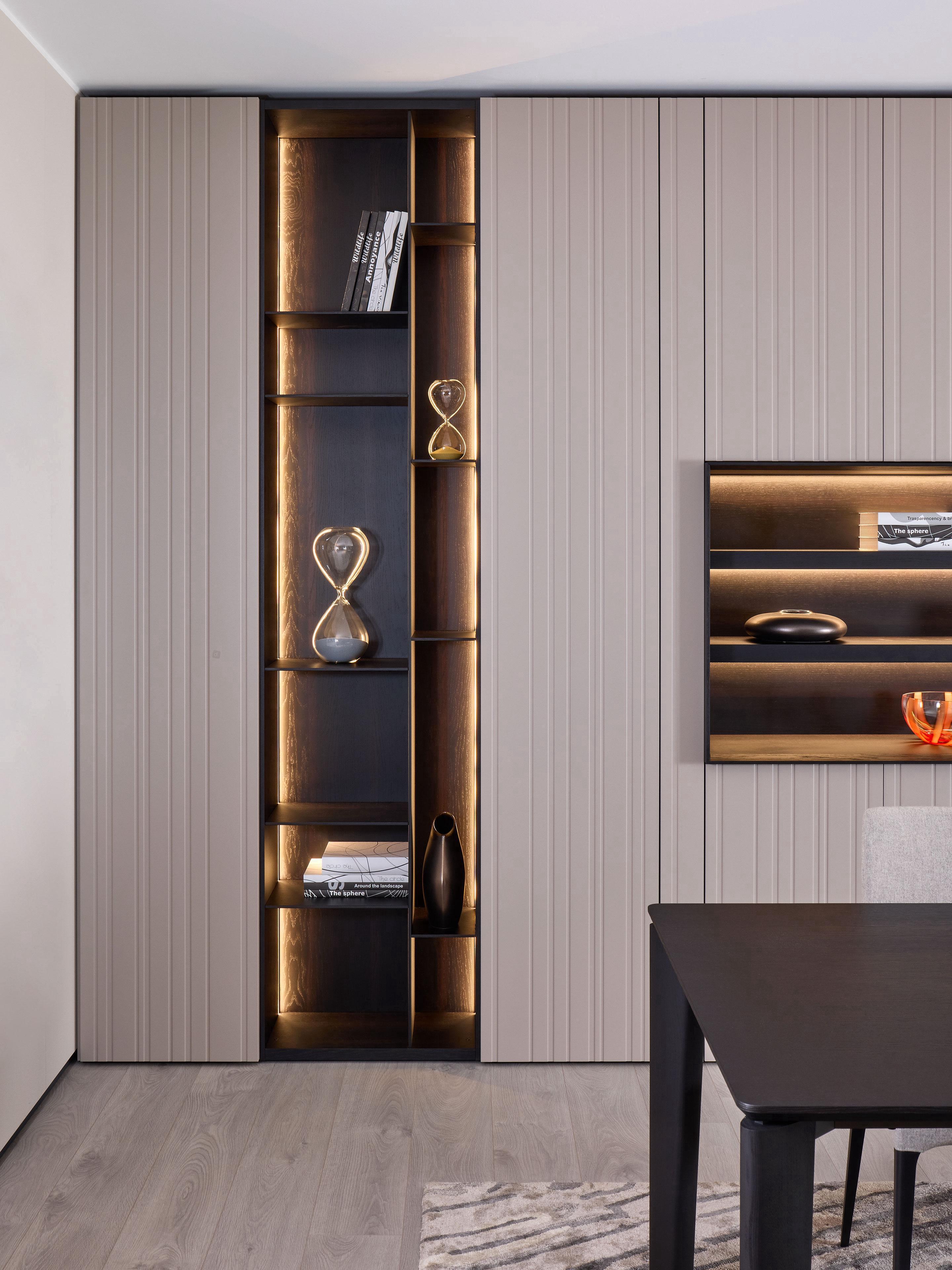

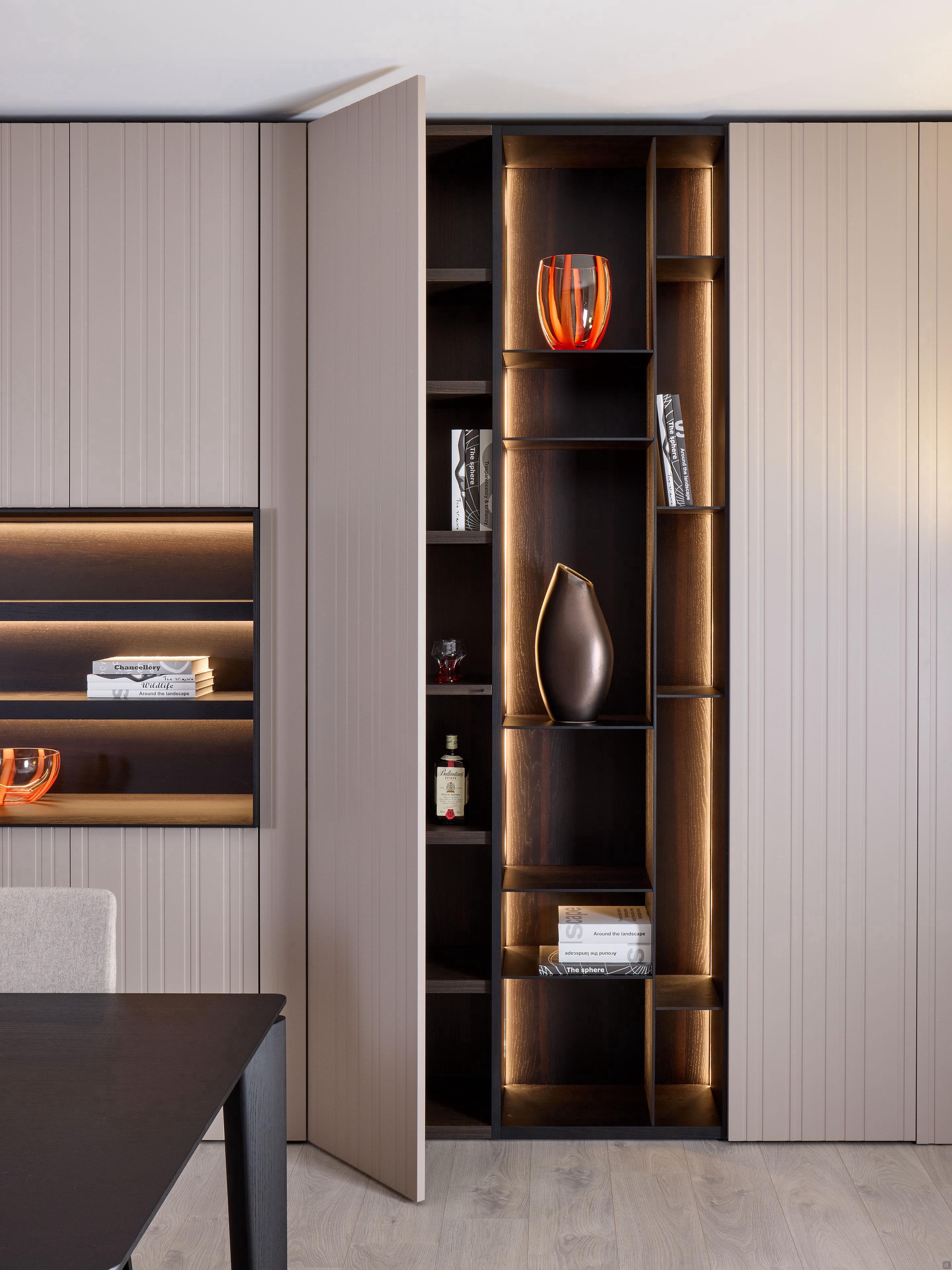

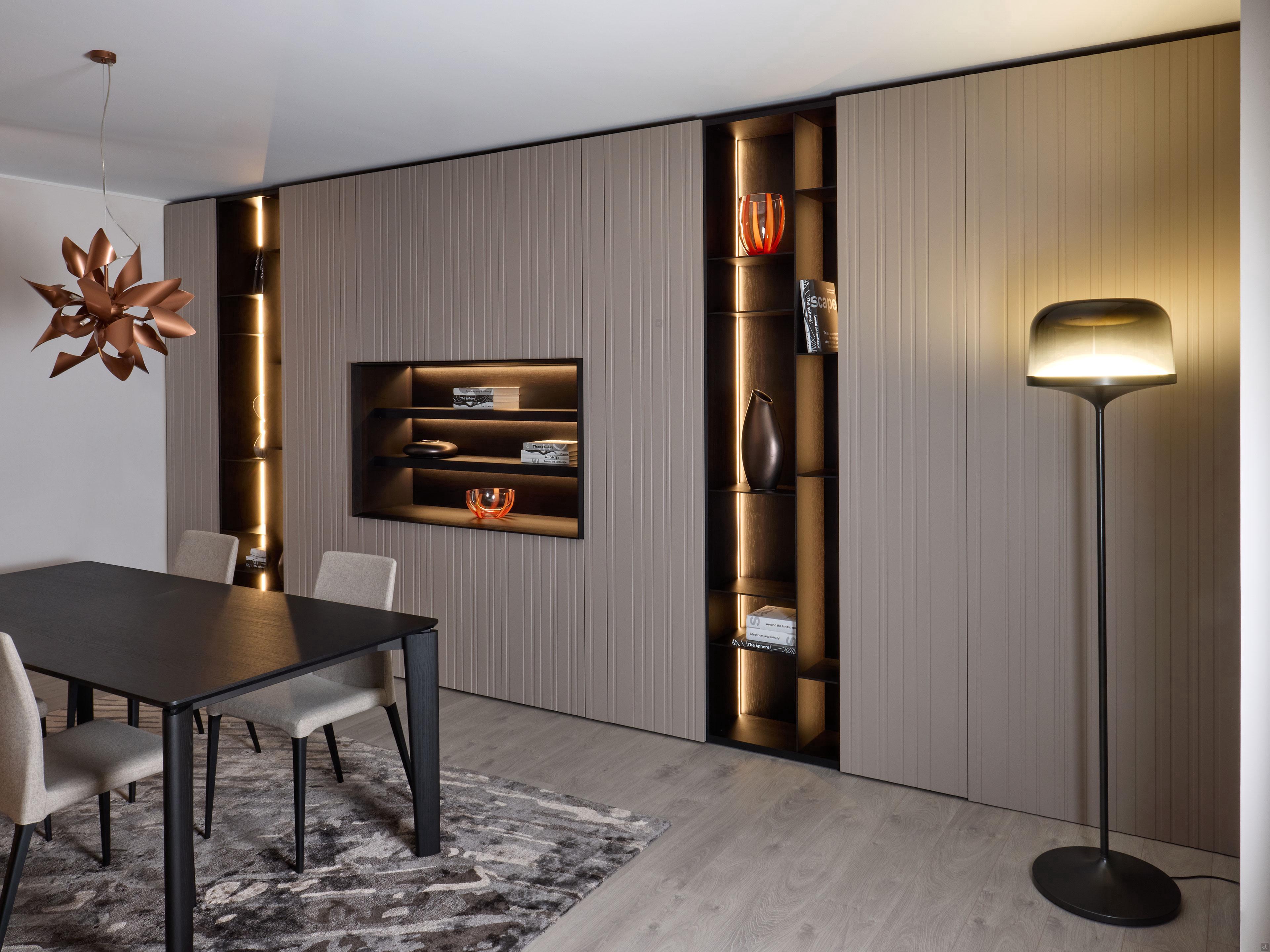

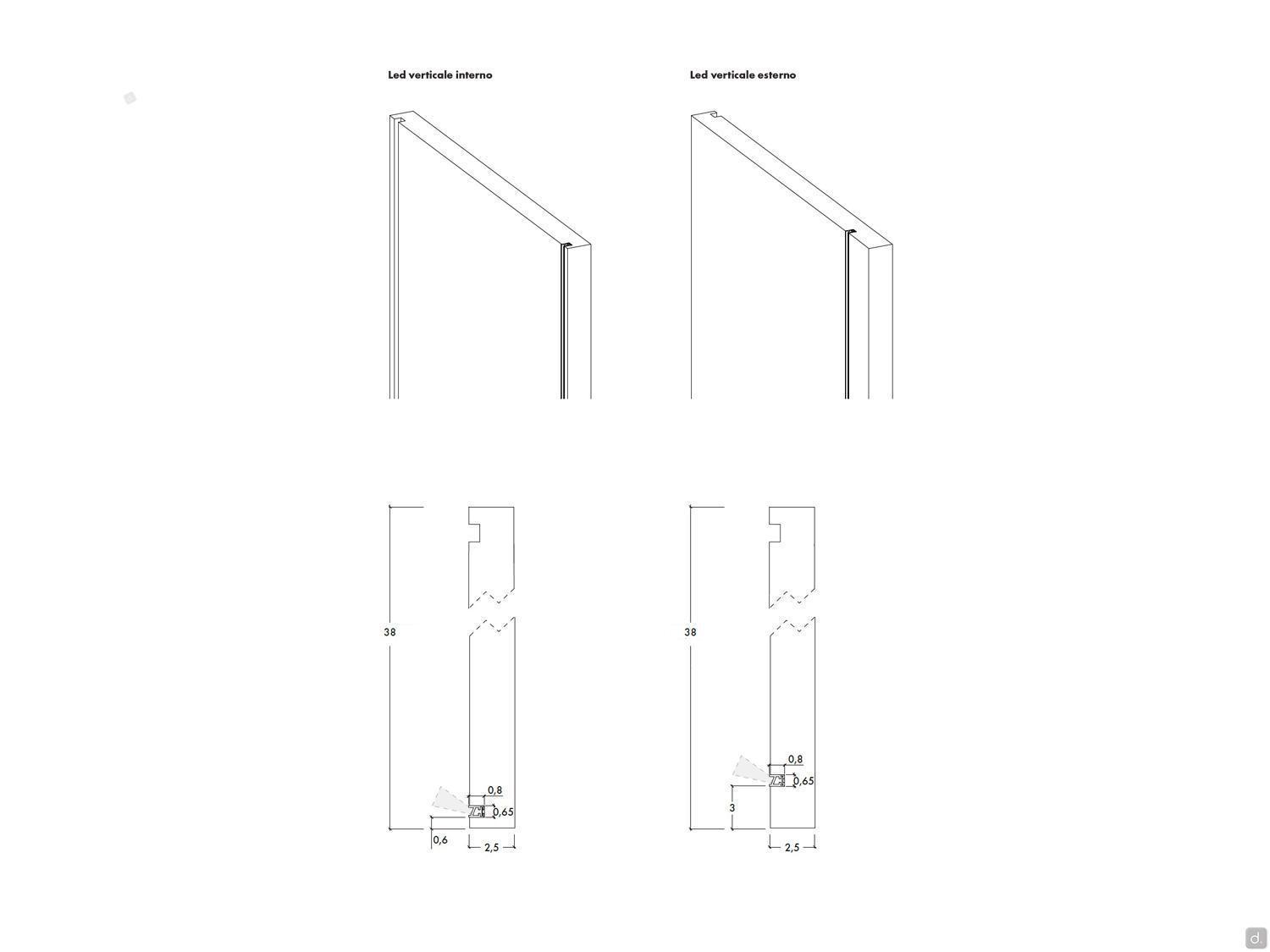

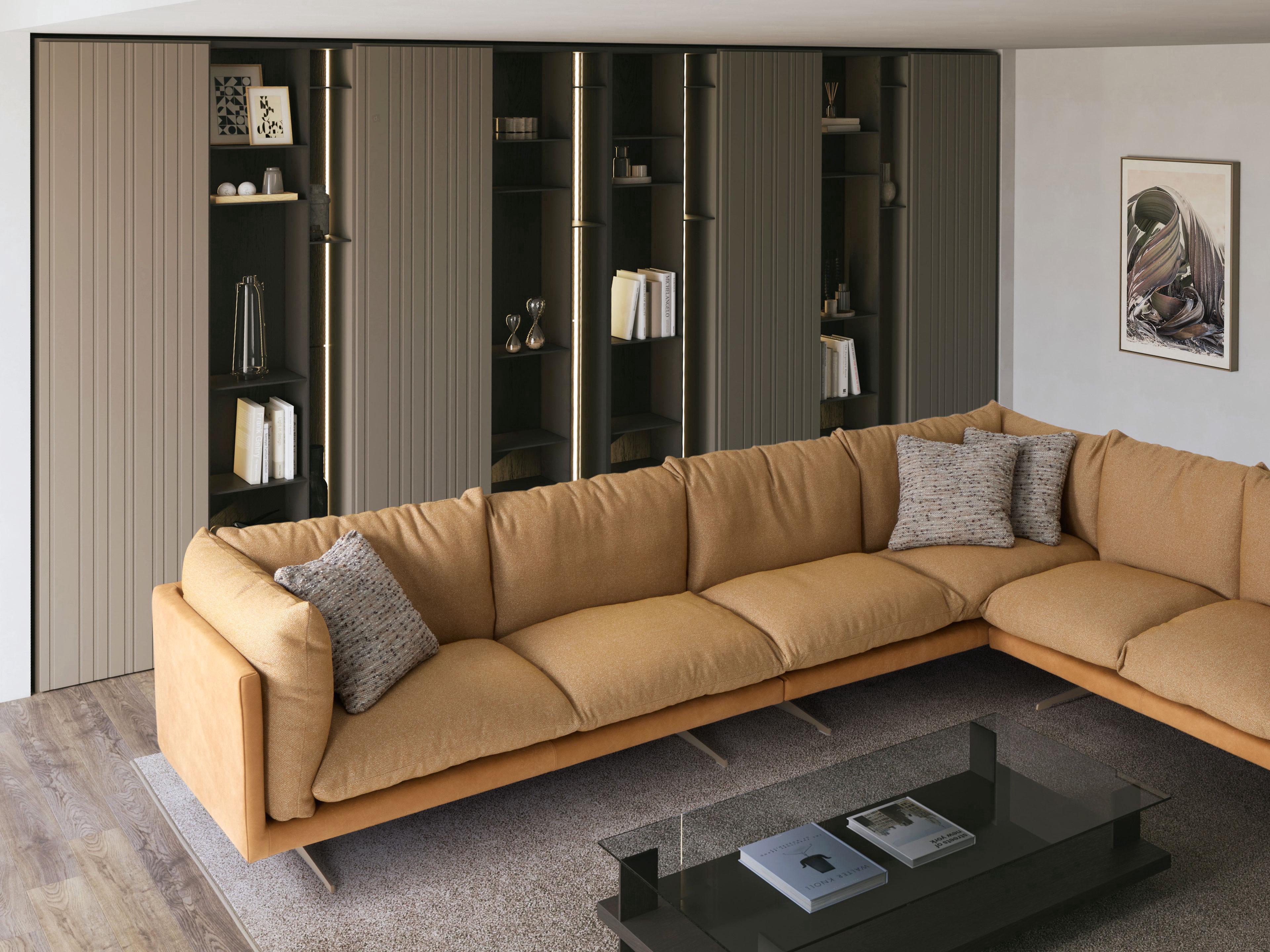

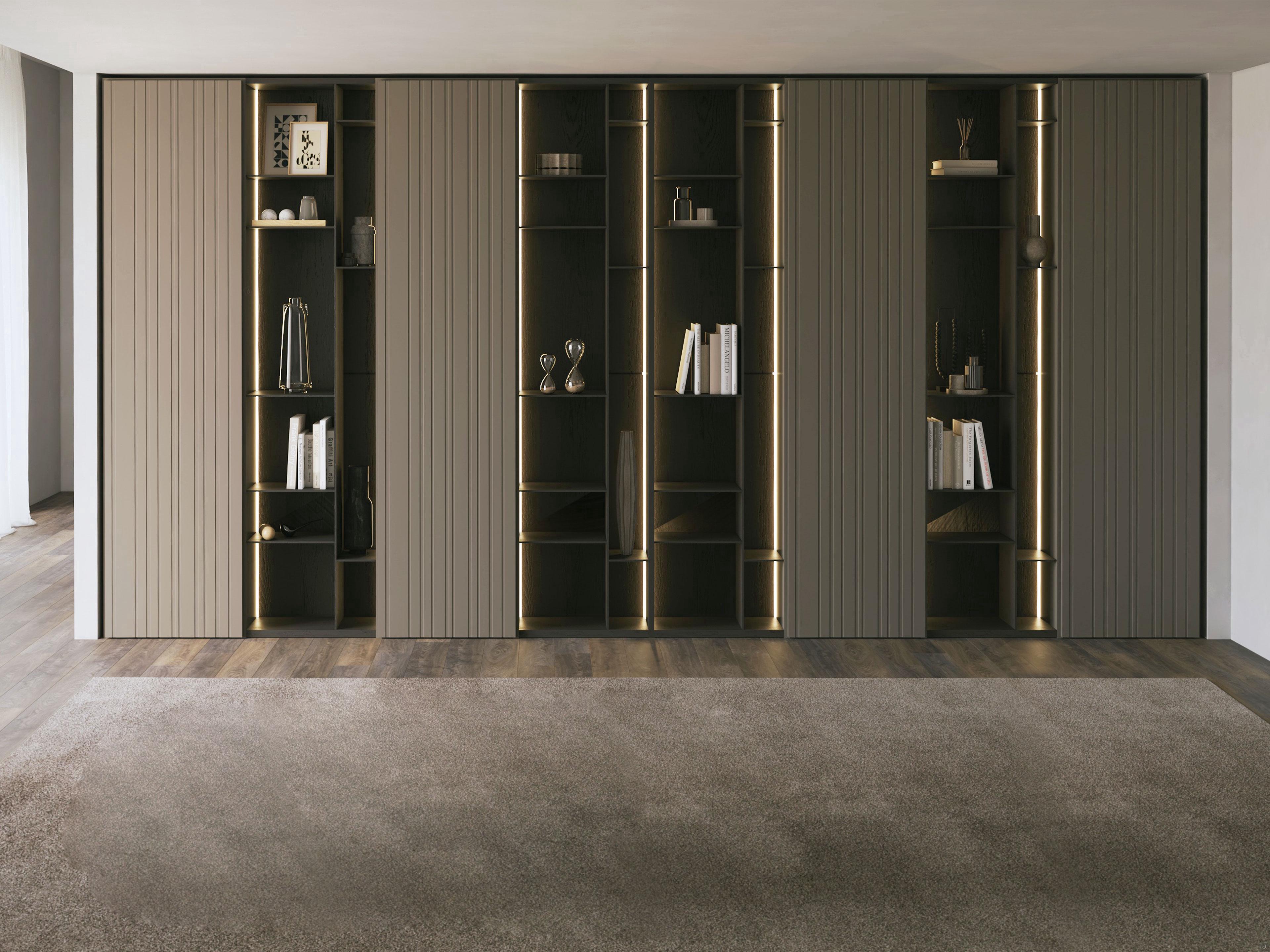

vertical LED bars: positioned on the side panels and/or the internal partitions of the cupboard, angled at 30° inwards: to light up the exterior of the column the bars are placed at 6,5 cm from the fronts, while to light up the inside of the column they are placed at 0,6 cm from the fronts. They can be equipped with a transformer (maximum power supported is 75 / 150 W) and is switched on/off with a switch-controlled socket (for open compartments or clear glass door) or with a sensor (for all the other doors). LED with warm light of 3000K-24V.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process.
The feet, which are also pre-mounted on the plinths, allow for the correct levelling of the cabinet thanks to a maximum extension of 0,8 cm. Minimum height 0,5 cm.

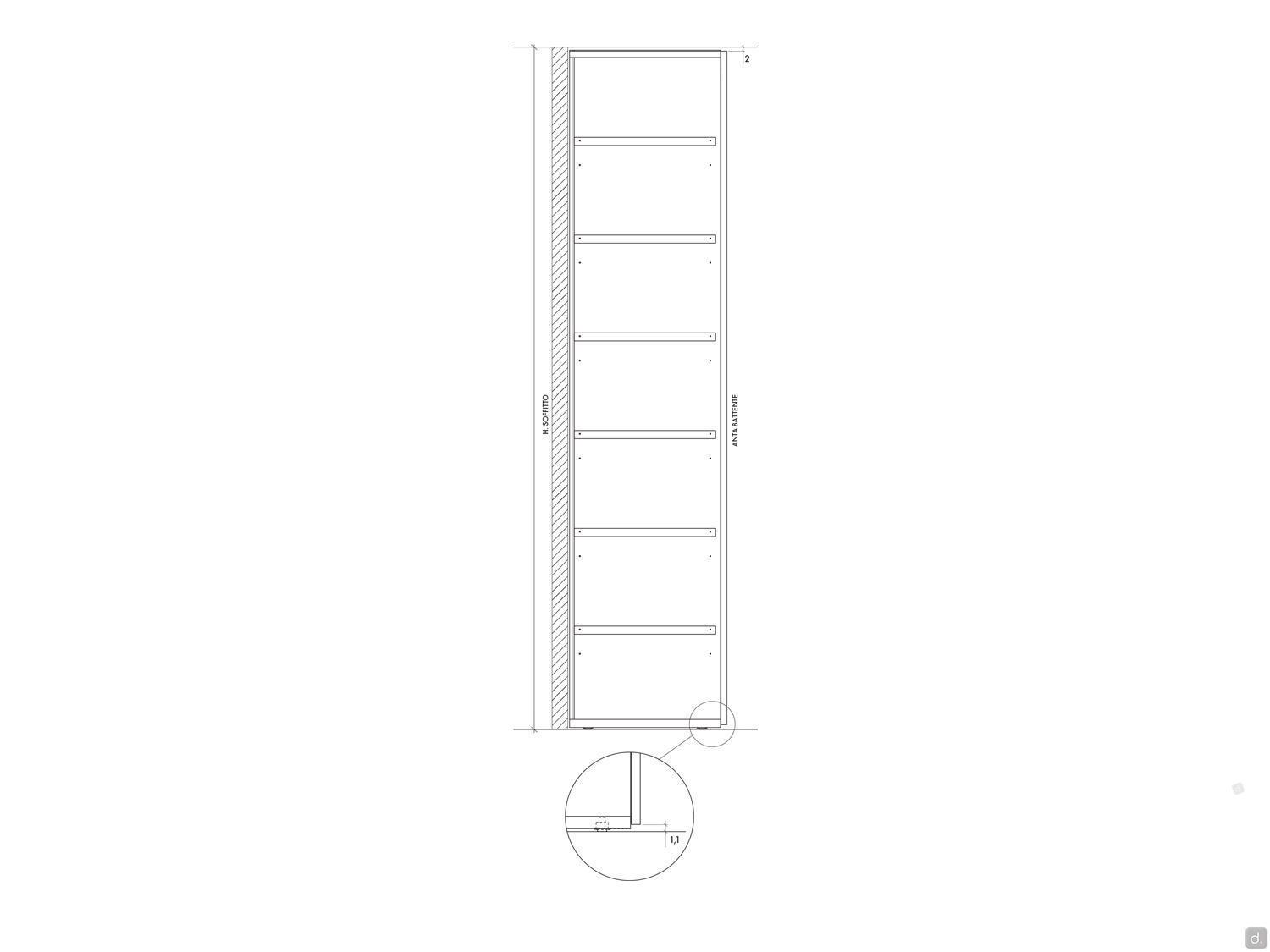

To assemble the body of the cupboard, you will need:
- 4 cm in width (if assembling in a niche you need 2 cm)
- 3 cm in height
Further Information...
Honeycomb: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
