Atlas

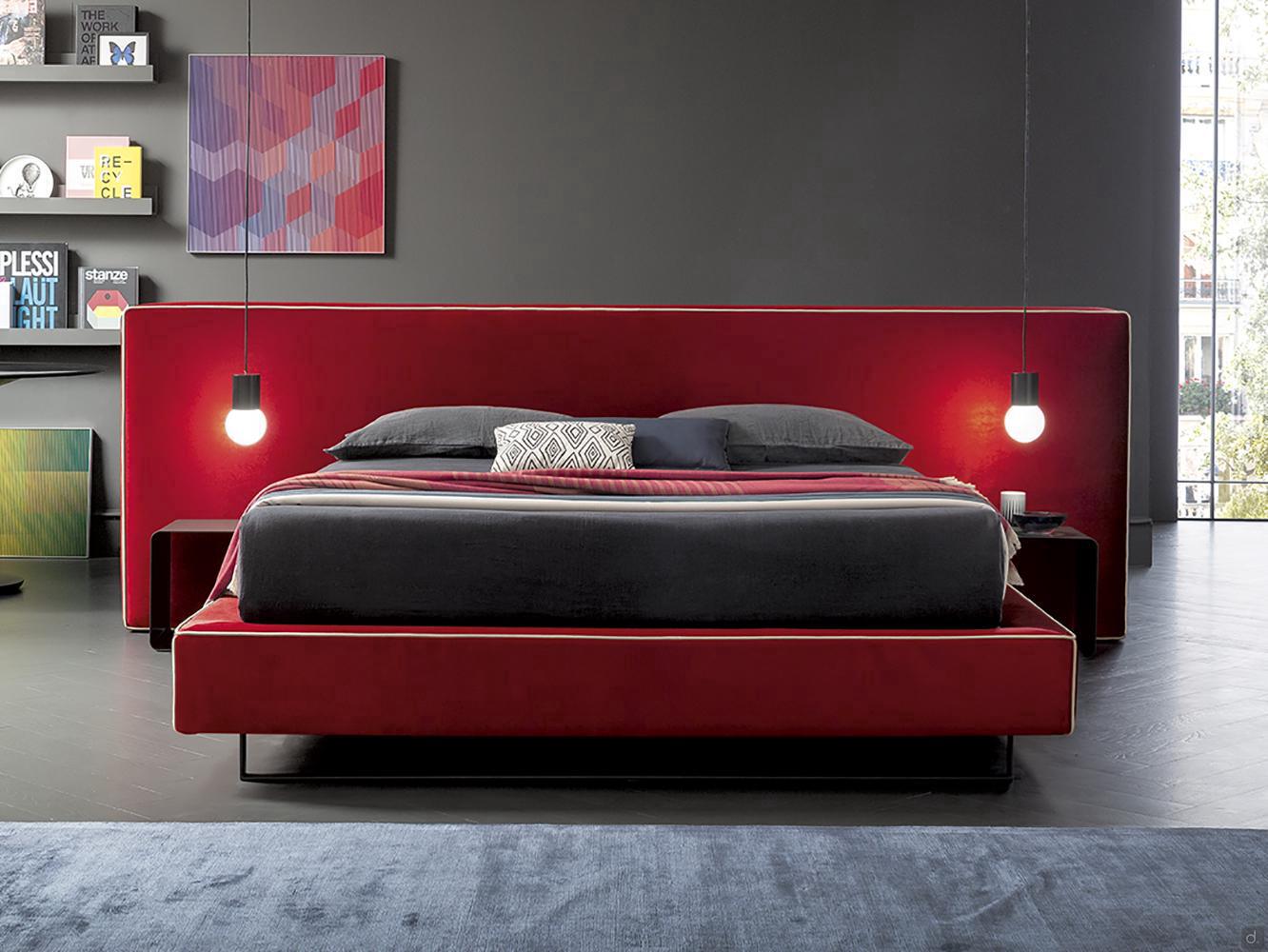

Bed With Built-In Nightstands

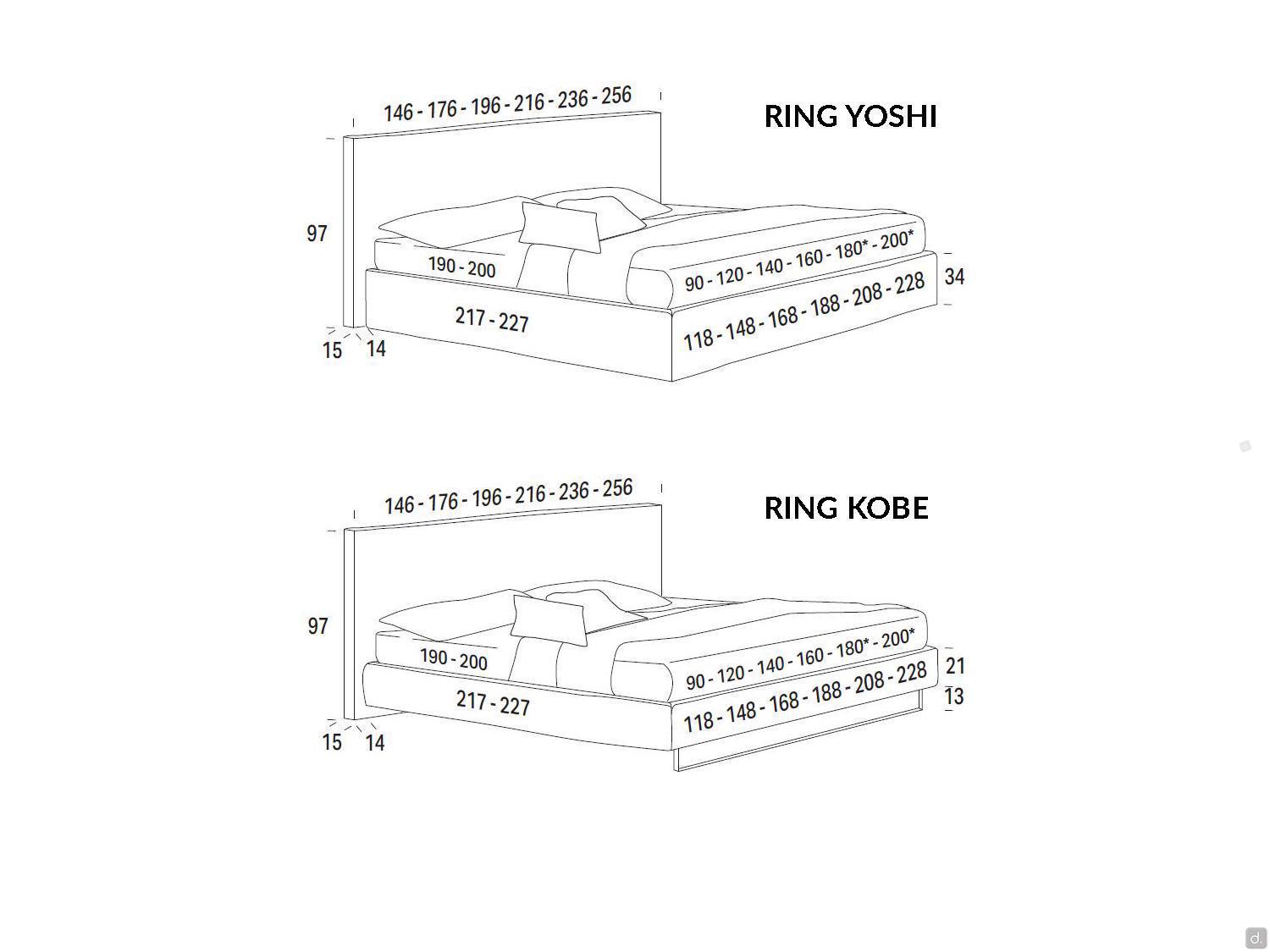

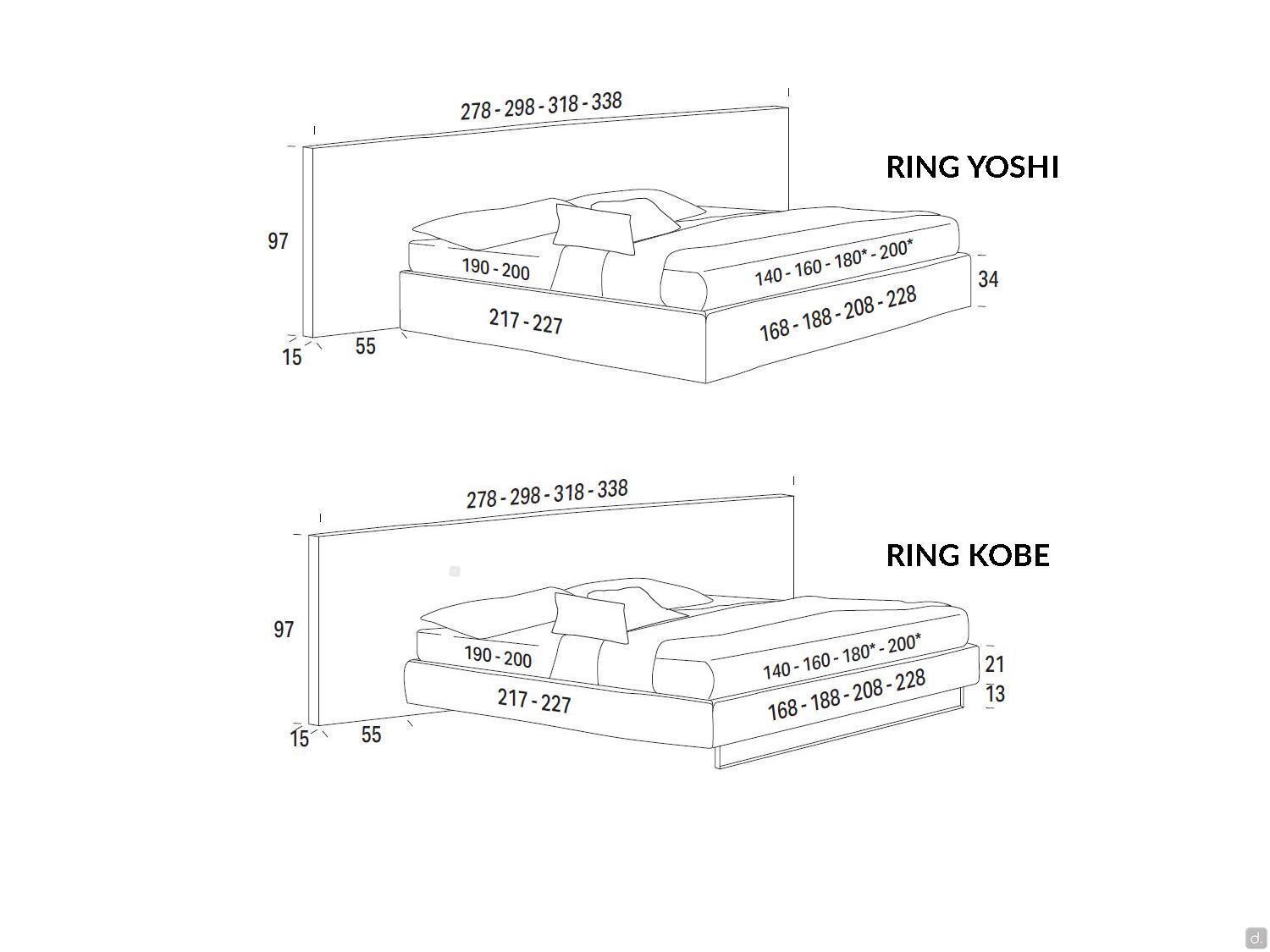

Model and Measurements Specifications
Bed Frame:
- single: cm 118 h.34
- large single: cm 148 h.34
- French double: cm 168 h.34
- standard double: cm 188 h.34
- king size: cm 208 h.34

Bed frame Height:
- from the ground: cm 34
- Smart: cm 31 (+ 3 cm for the feet)
- York: cm 21 (+ 13 cm for the feet)

Headboard Thickness: cm 15

Technical Specifications and Equipment
Slatted Base: with slabs of mm 68 in beech plywood curved with hot vapour with a really low formaldehyde emission rates. The slabs are attached to a metallic structure with rubber attachments. The structure is in stainless steel with a square section mm 40 x 30. Painted with epoxy powders.
Structure: wooden fir slabs and/or boxed wood in poplar plywood. Panels of mm 18/25 in poplar wooden particles in class E1 with low formaldehyde emissions and natural wooden fibre.
Filling: crushproof expanded polyurethanes with a differential portance, density from 18 to 40 Kg/m³. First Cover in heat coupled expanded polyester with attaching interline in polyester and/or 100% polyester wadding of 200 gr.

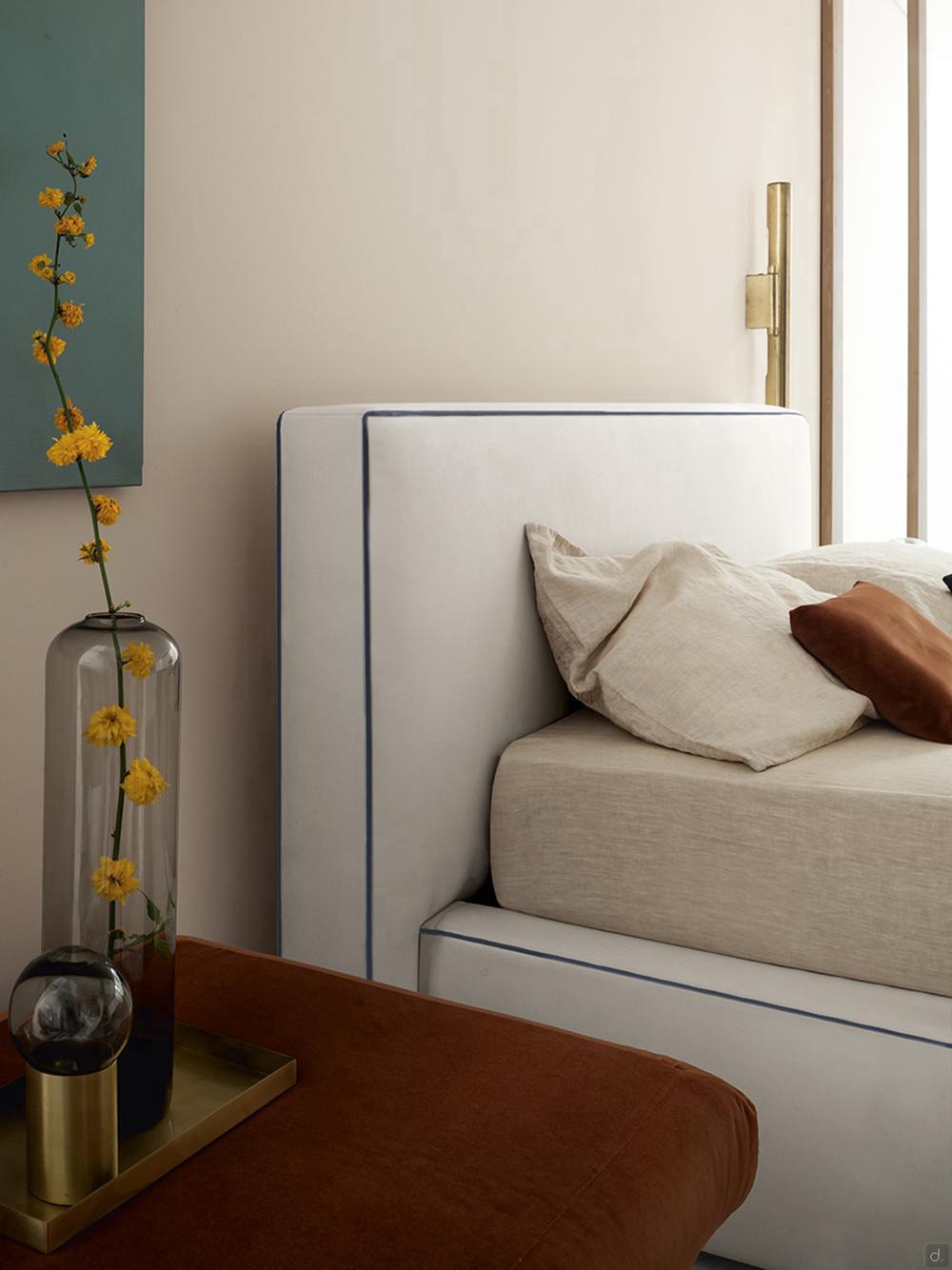

Headboard: The bed is entirely refined, also on the back part. The back of the headboard is covered with the same fabric applied on the front, granting therefore also an eventual positioning in the middle of the room.
Storage Box: panels of mm 12-14 in poplar wooden particles in class E1.

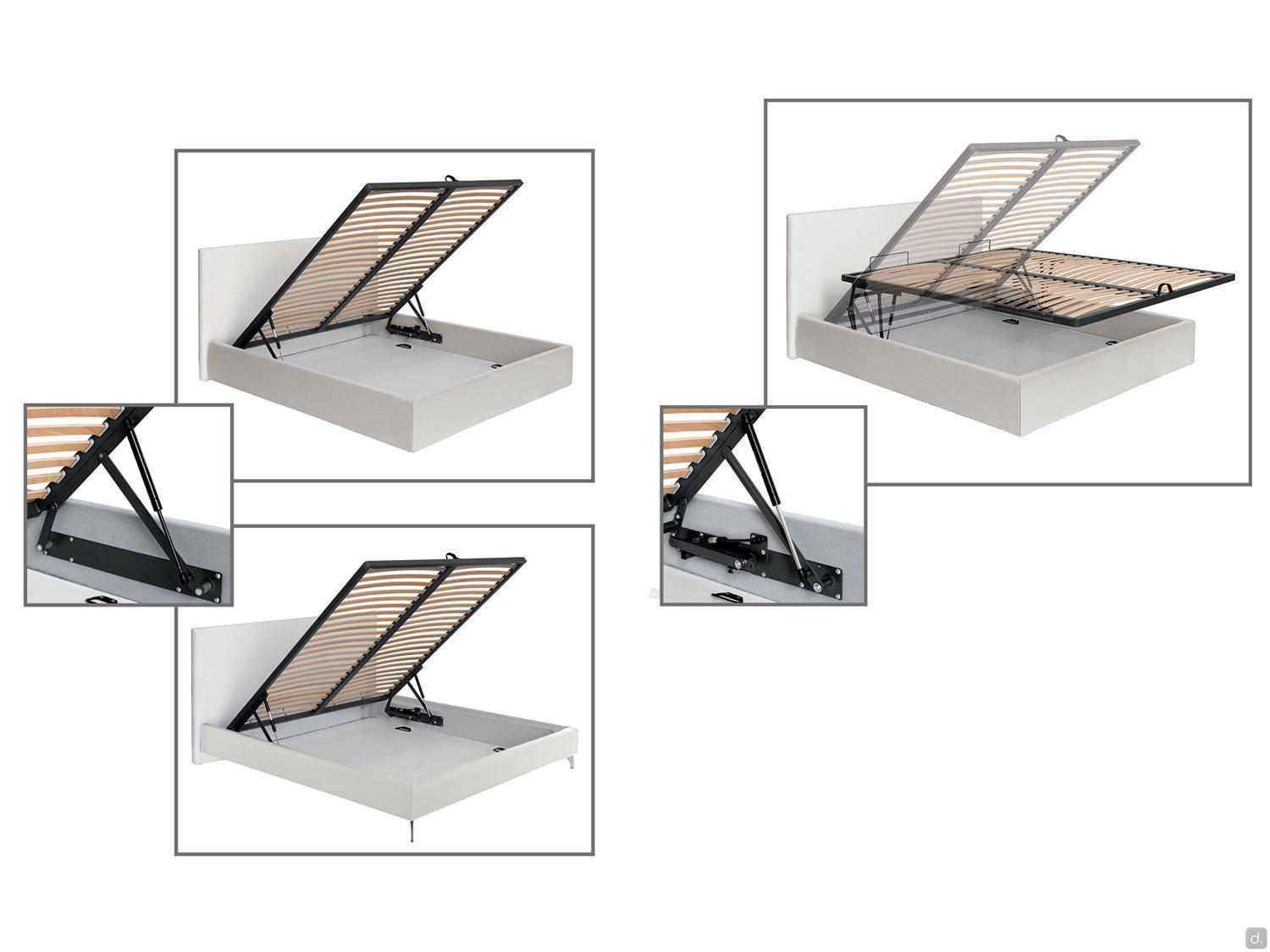

Slatted base with simple lift up mechanism: traditional tested and certified up to 5.000 cycles, it allows the lift up at 45°. The structure in epoxy powders painted steel has gas springs set to the weight of the mattress.
Slatted Base with double lift up mechanism: tested up to 4.000 cycles with the same assisted mechanism, that allows the lift up to 45°; and the lift up of the slatted base and of the mattress parallel to the floor at the necessary height (m h.1). Useful to have easy access to the storage box and to make the bed with more comfort. Structure epoxy powders painted steel with gas springs set to the weight of the mattress.

Feet:
Basic standard: n.4 feet in regenerated or recycled polypropylene, available in wengé black, white or silver. Height cm 3.

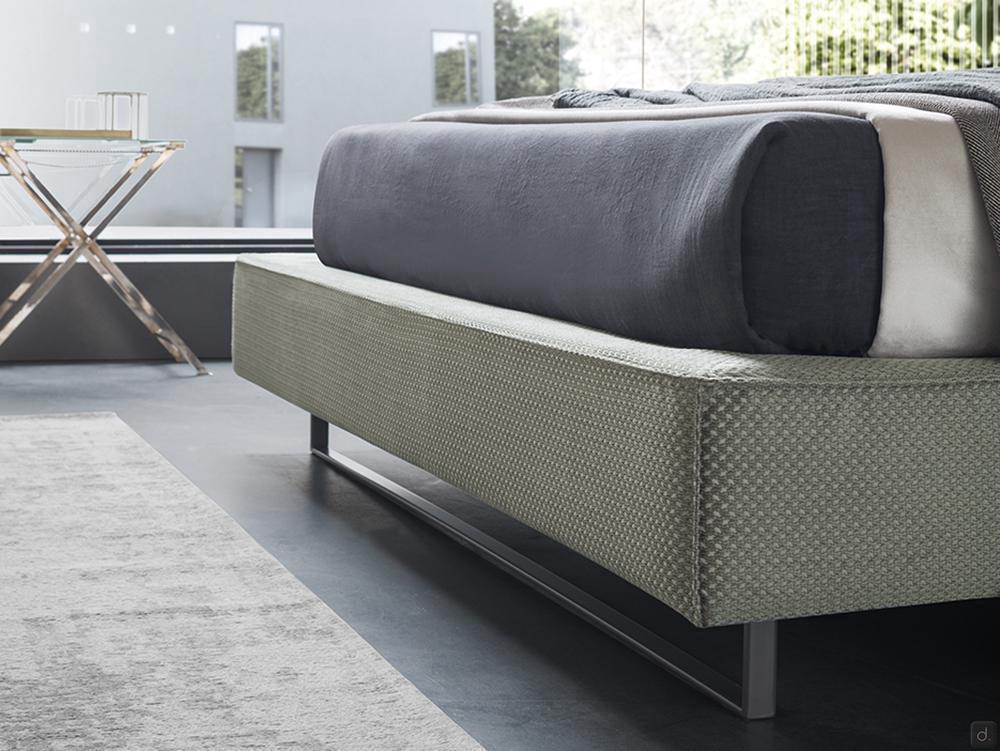

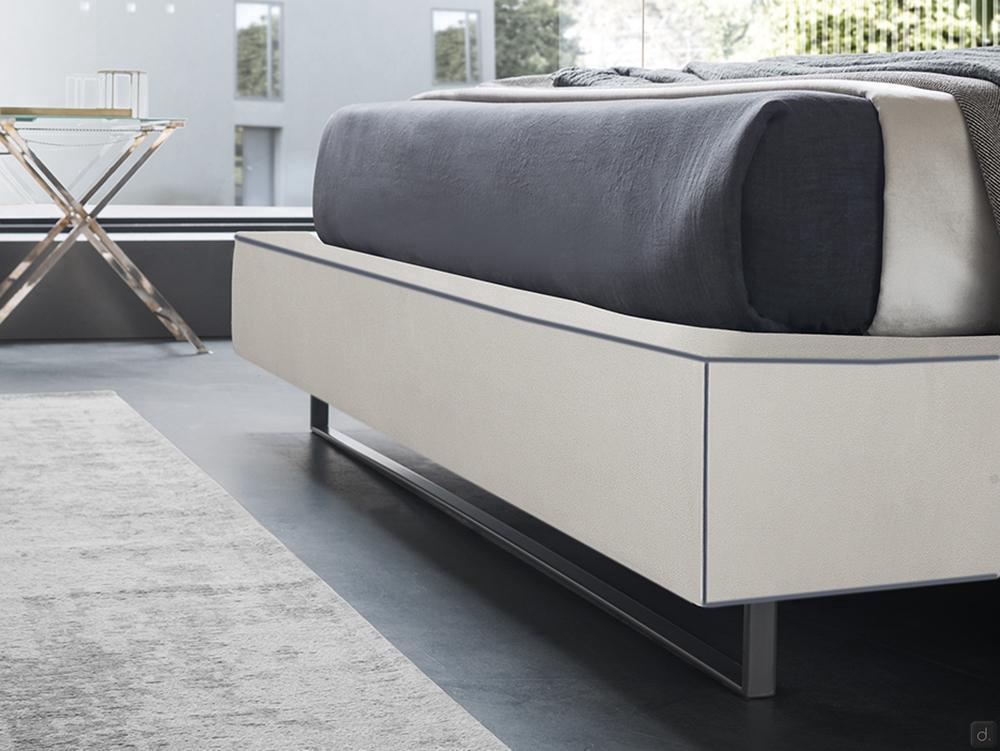

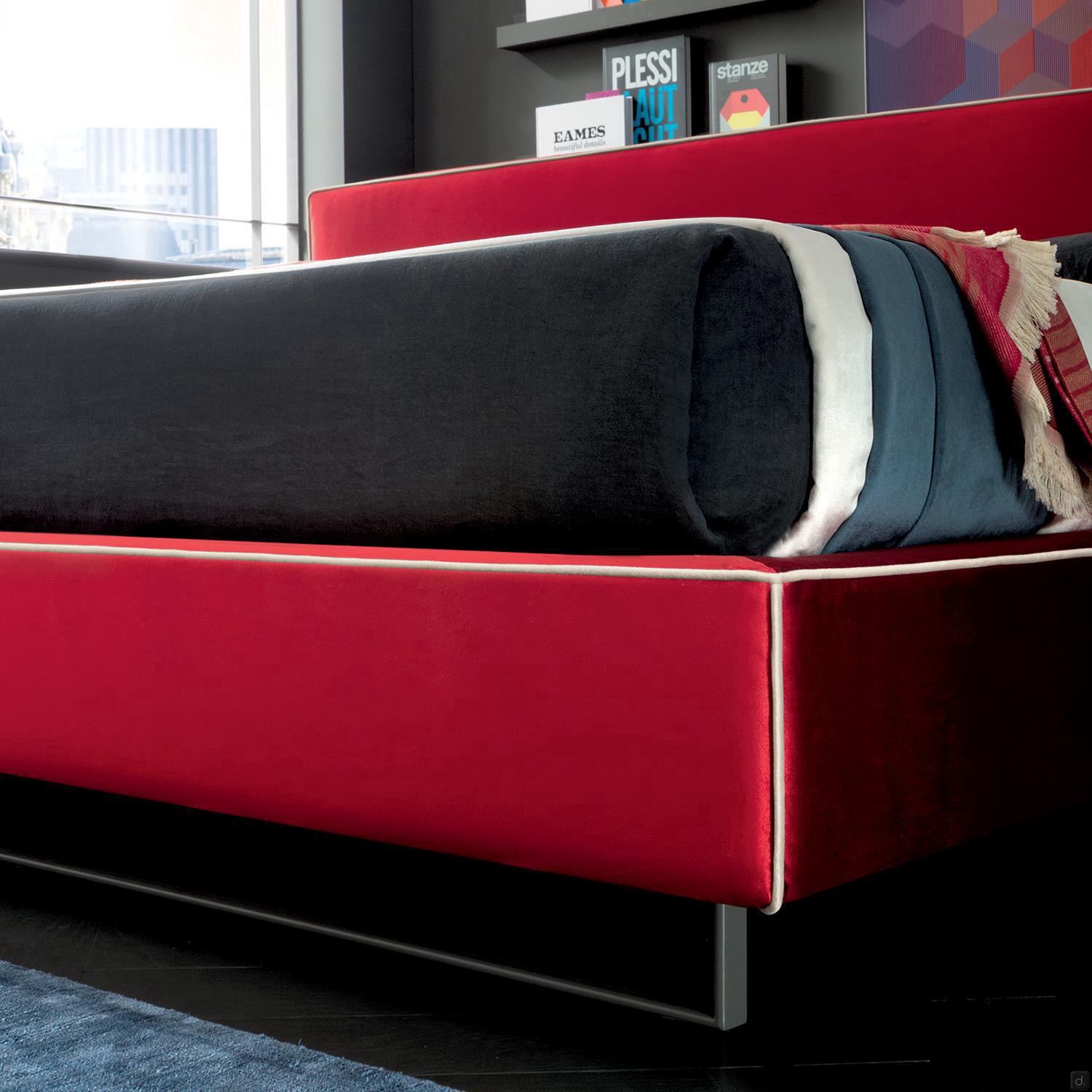

Sleigh feet: feet in oval tube in grey lead painted metal m h.13.
Lux: n.4 "L" shaped feet for overall measurements cm 18 x 18 h.3. Available in natural seasoned beech wood painted in wengé black, matt white or chrome.

Optional
Remove Slatted Base: possibility to buy the bed without the slatted base, option available only for models without storage box.

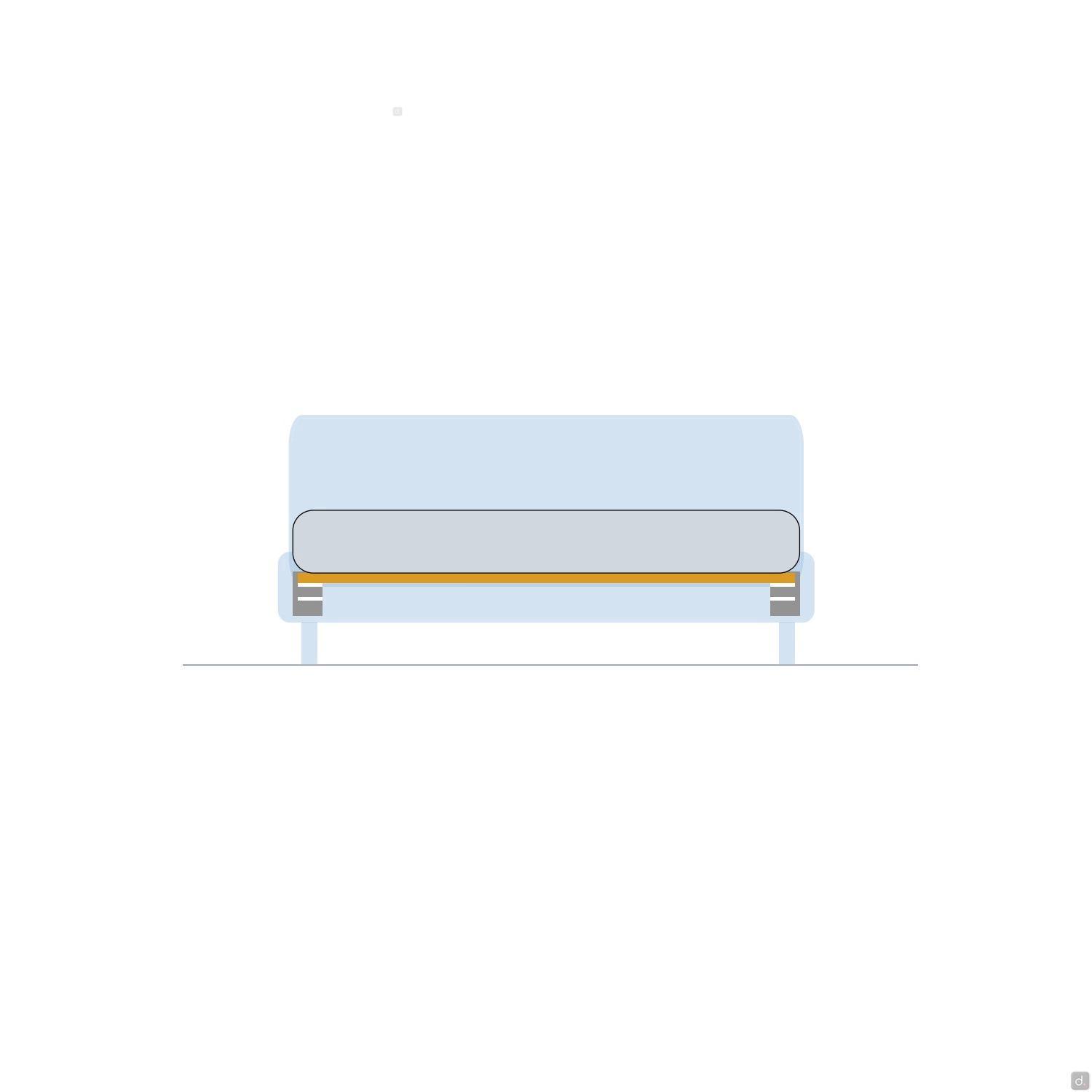

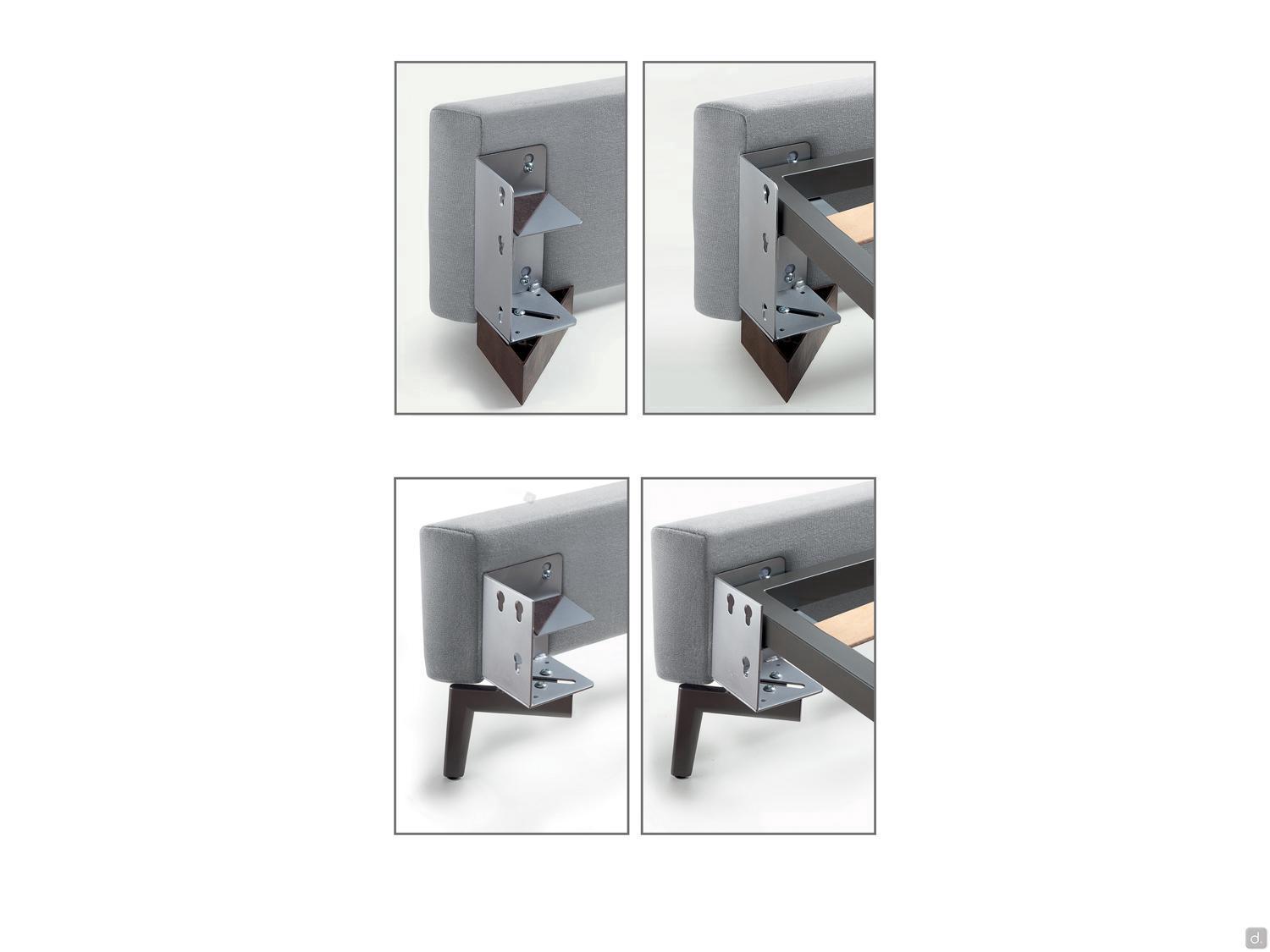

Set of corner supports: available for he models with non-mechanic slatted base without storage box. These supports enables you to adjust the height of the slatted base to obtain a mattress which could be more or less set deeply in the structure. The 3 heights of positioning are: cm 5, cm 6 e cm 12.

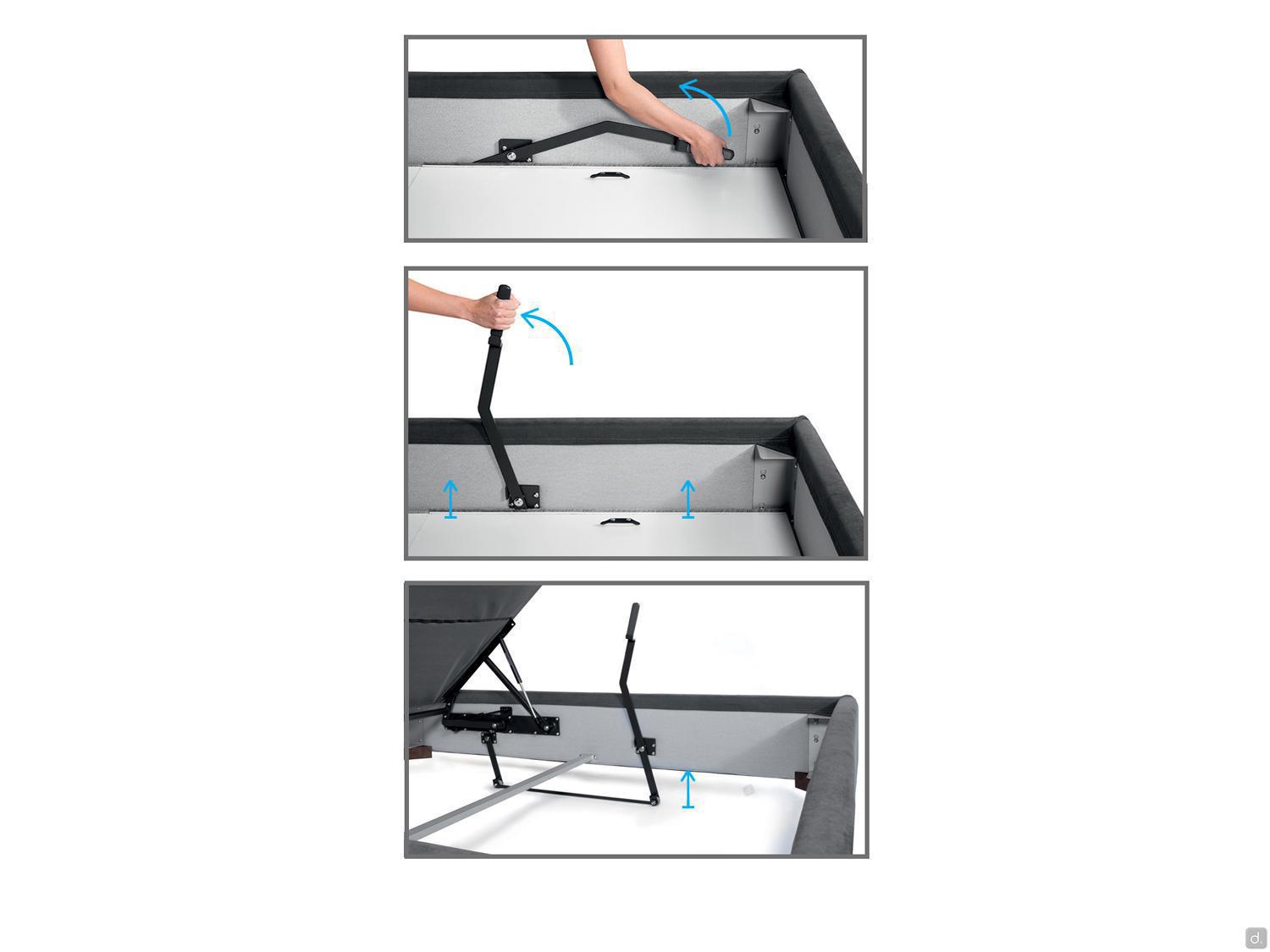

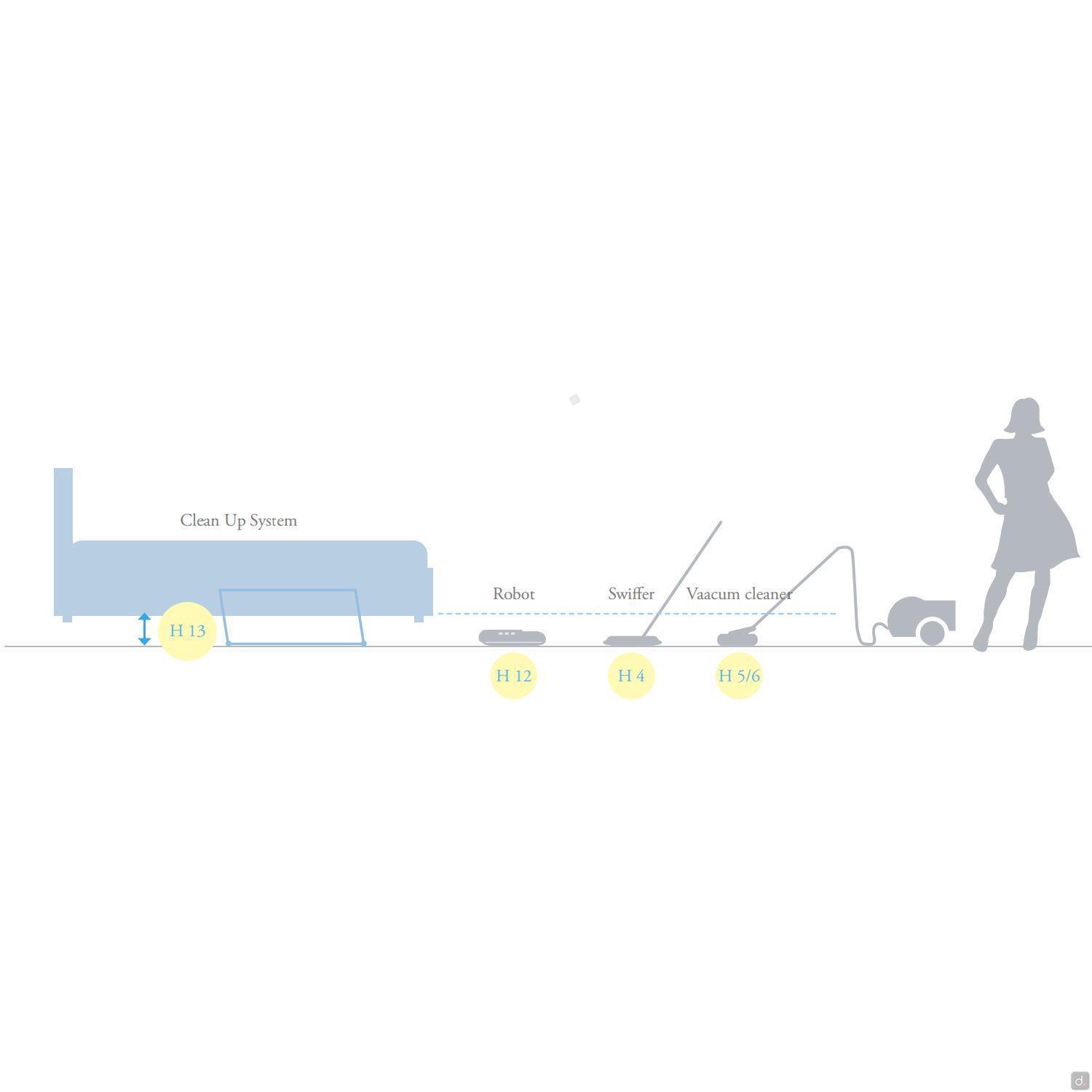

Clean Up System: manual lift up mechanism for the beds with storage box that allows to displace the the structure lifting 2 levers, set on the sides of the bed frame. In this way, 4 strong rubber wheels low down and the bed lifts up of cm h.13; it can be displaced  effortlessly back and forth. When levers are pulled down, the wheels go up becoming invisible and the bes rests again on its feet. Easy, fast, practical and safe.
Tool Holder: useful practical solution attached to the bed frame with a velcro. These you can store glasses, magazines the mobile phone and all your personal objects.

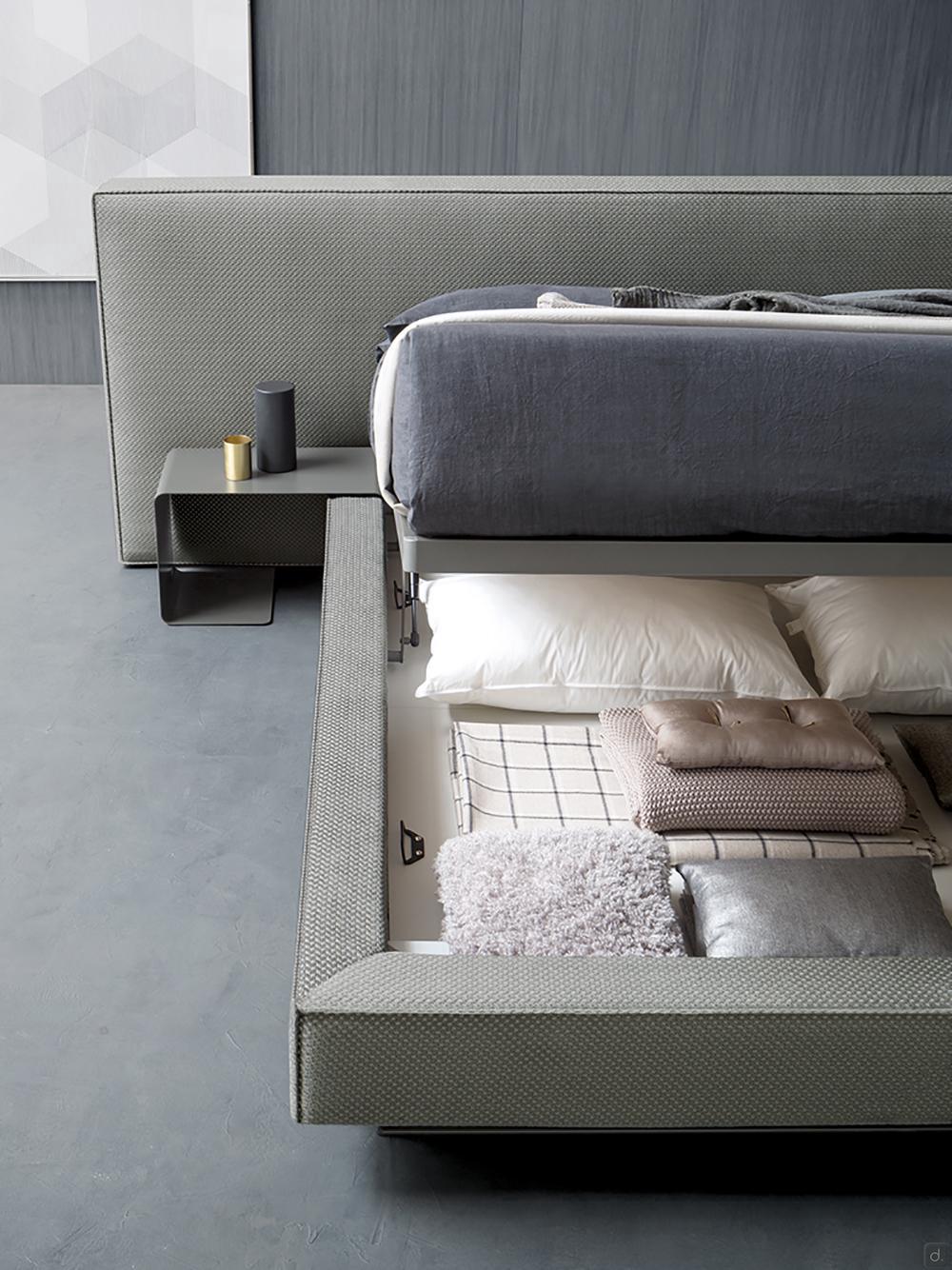

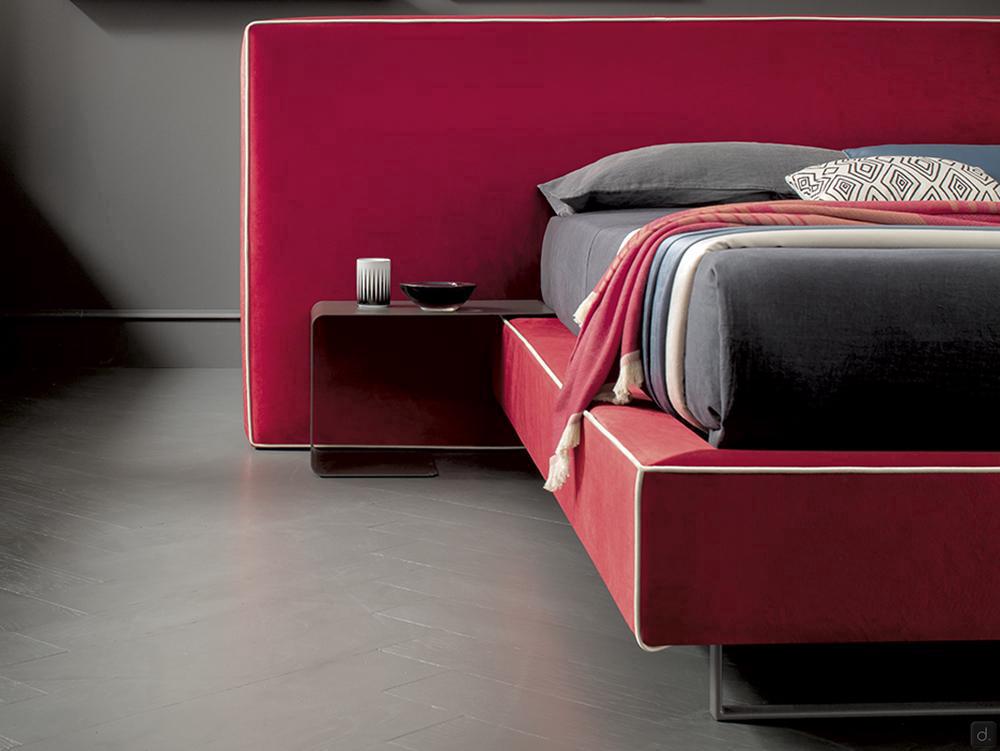

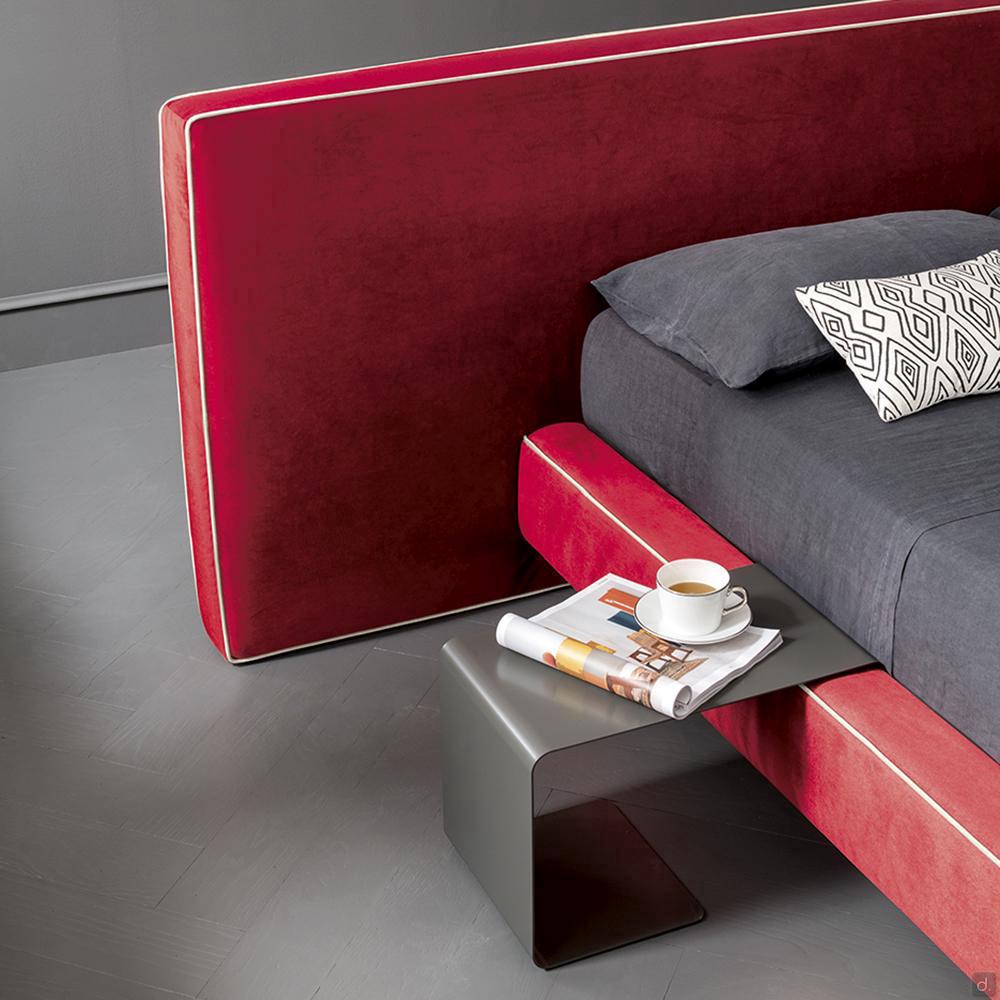

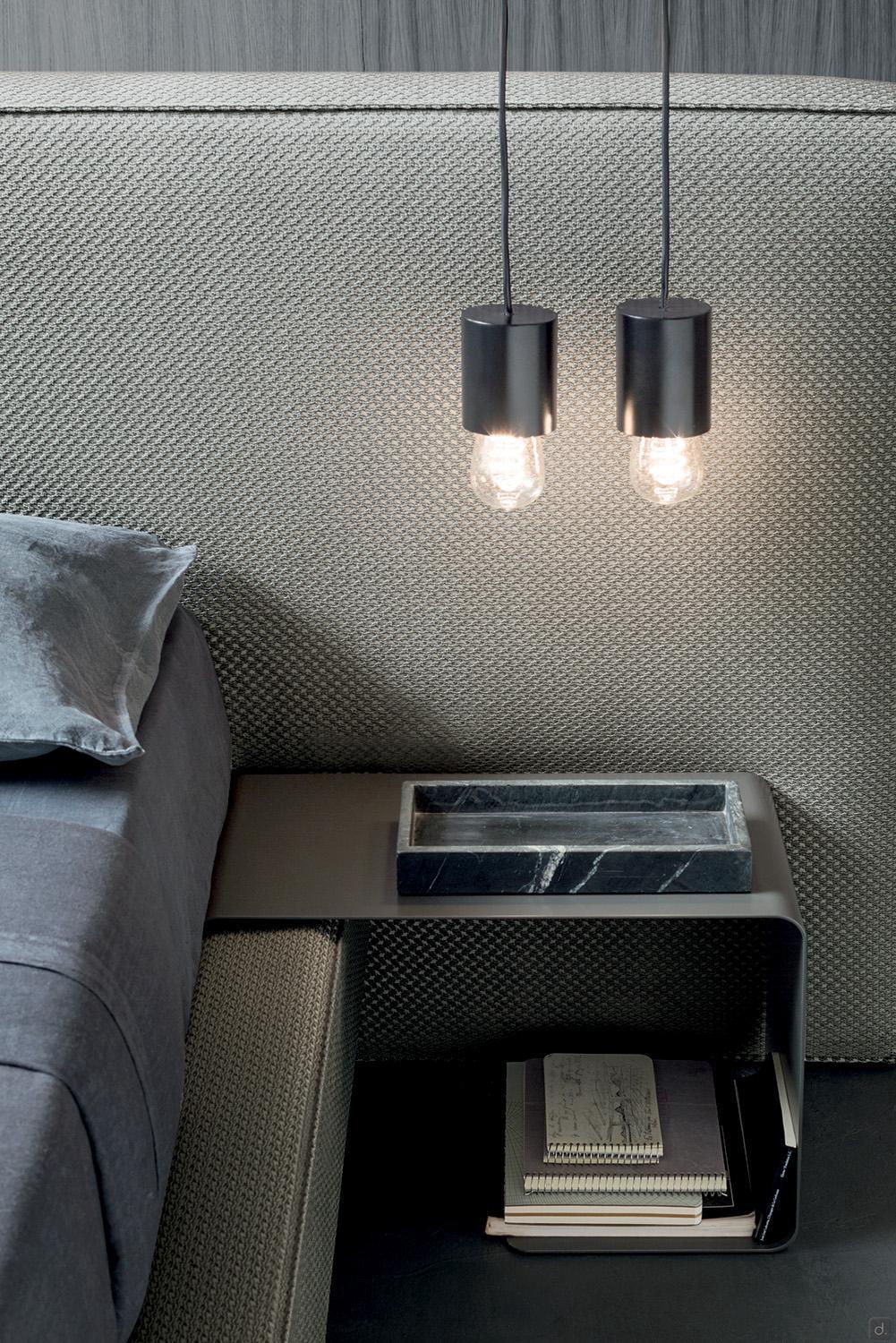

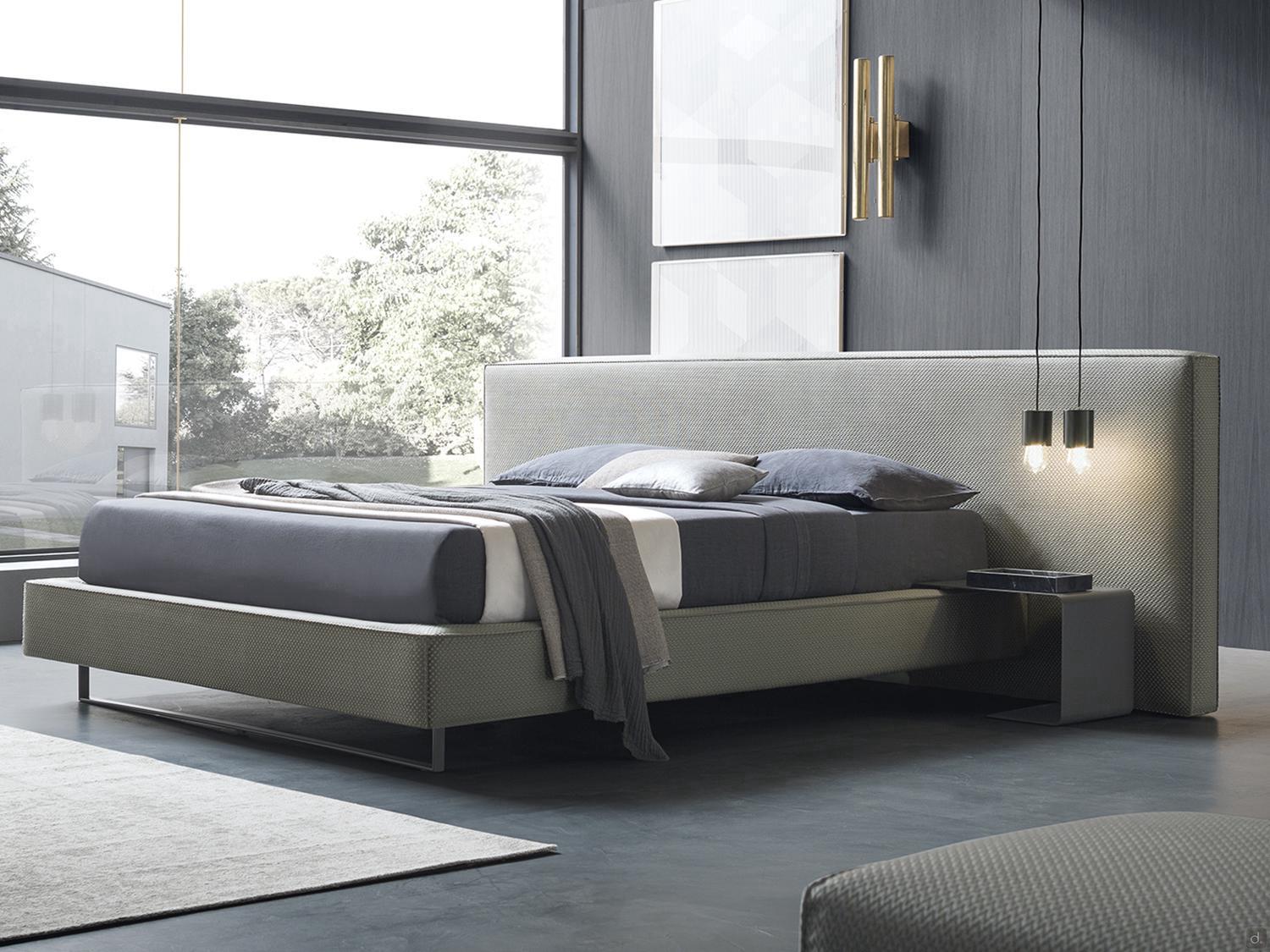

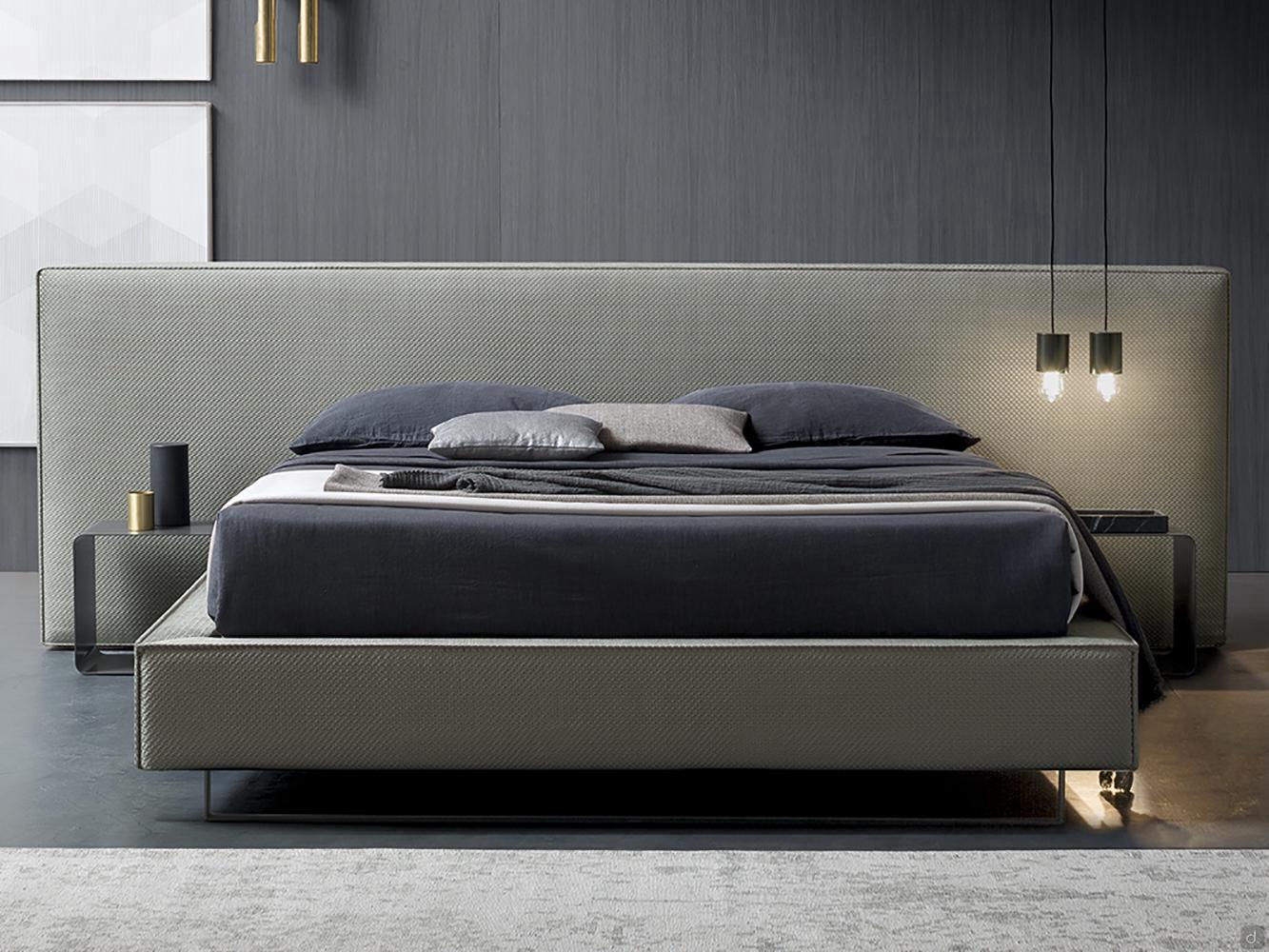

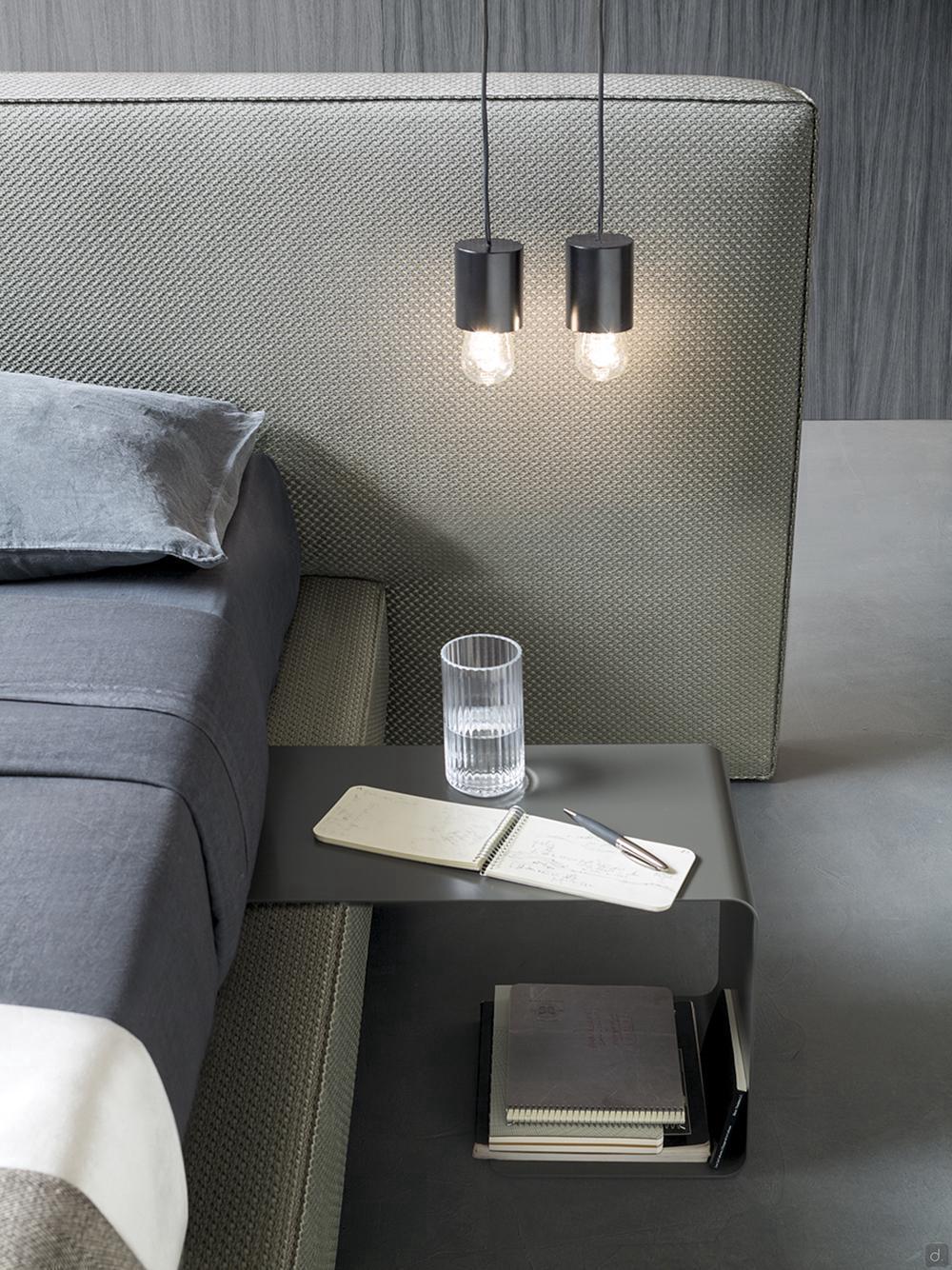

Nightstand: in curved metal painted in coal grey that can be pulled inside the bed frame and can be displaced. These elements can become comfortable seating surfaces with their upholstered covers. Measurements:cm 53 d.30 h.33.

Assembly Tips
Easy to be assembled, equipped with instructions for the assembly and maintenance.
The bed is delivered with mechanisms already set on sides, in case of the bed with storage box, and the headboard is upholstered. Equipped with Catas certification
