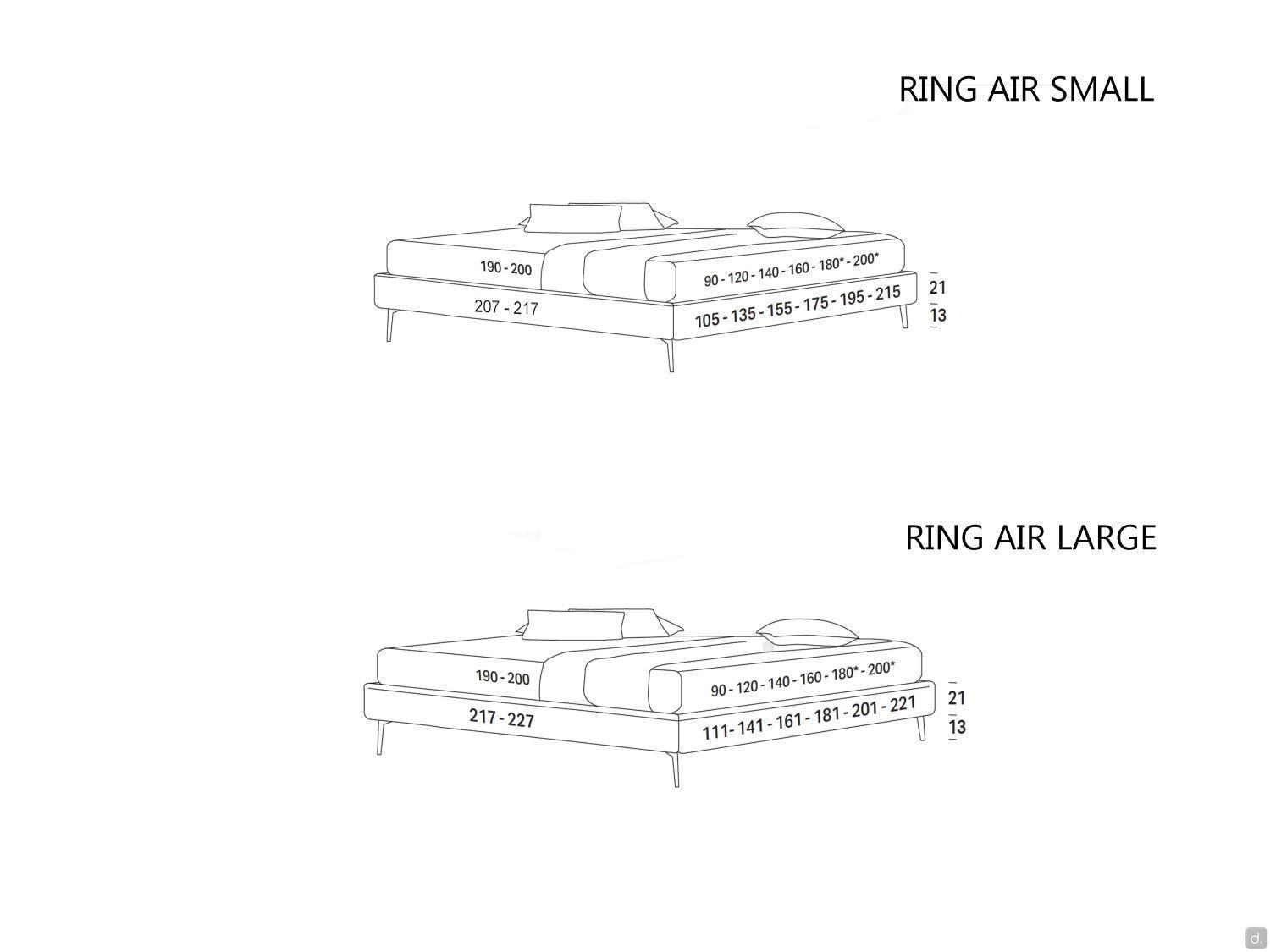

Model and Specific Measurements
Small Bed Frame:
Height off the ground: cm 34
Large Bed Frame:
Height off the ground: cm 34
Technical specifications and Equipment
Slatted Base: 68mm thick slats made of steamed beech plywood bent by warm with low formaldehyde emission. The slats are connected to the metal frame with silicon rubber mounts. The steel frame is at square section mm 40 x 30. Painting with epoxy powders.
Structure: fir solid wood and/or caged in multi-layer poplar wood. 18/25 mm thick panels made of particle poplar wood in E1 class of low and natural wood fibre.
Filling: crushproof polyurethane foam with different firmness, density from 18 to 40 Kg/m³. First layer made of polyester foam joined with thermo-coupled interline made of polyester and/or batting polyester at 100% of 200 gr.

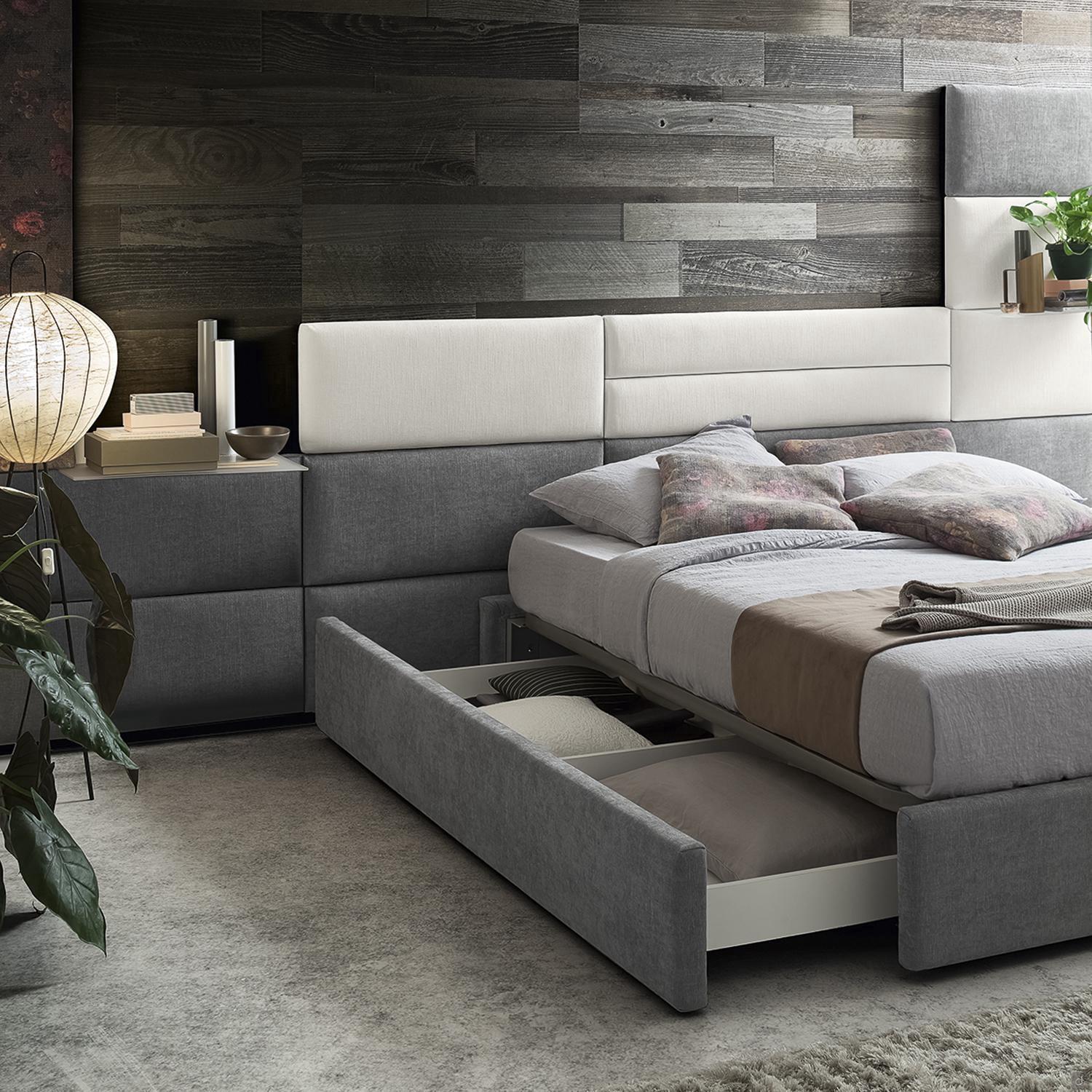

Pull-out drawer: practical solution to store everyday objects and keep your bedroom tidy.

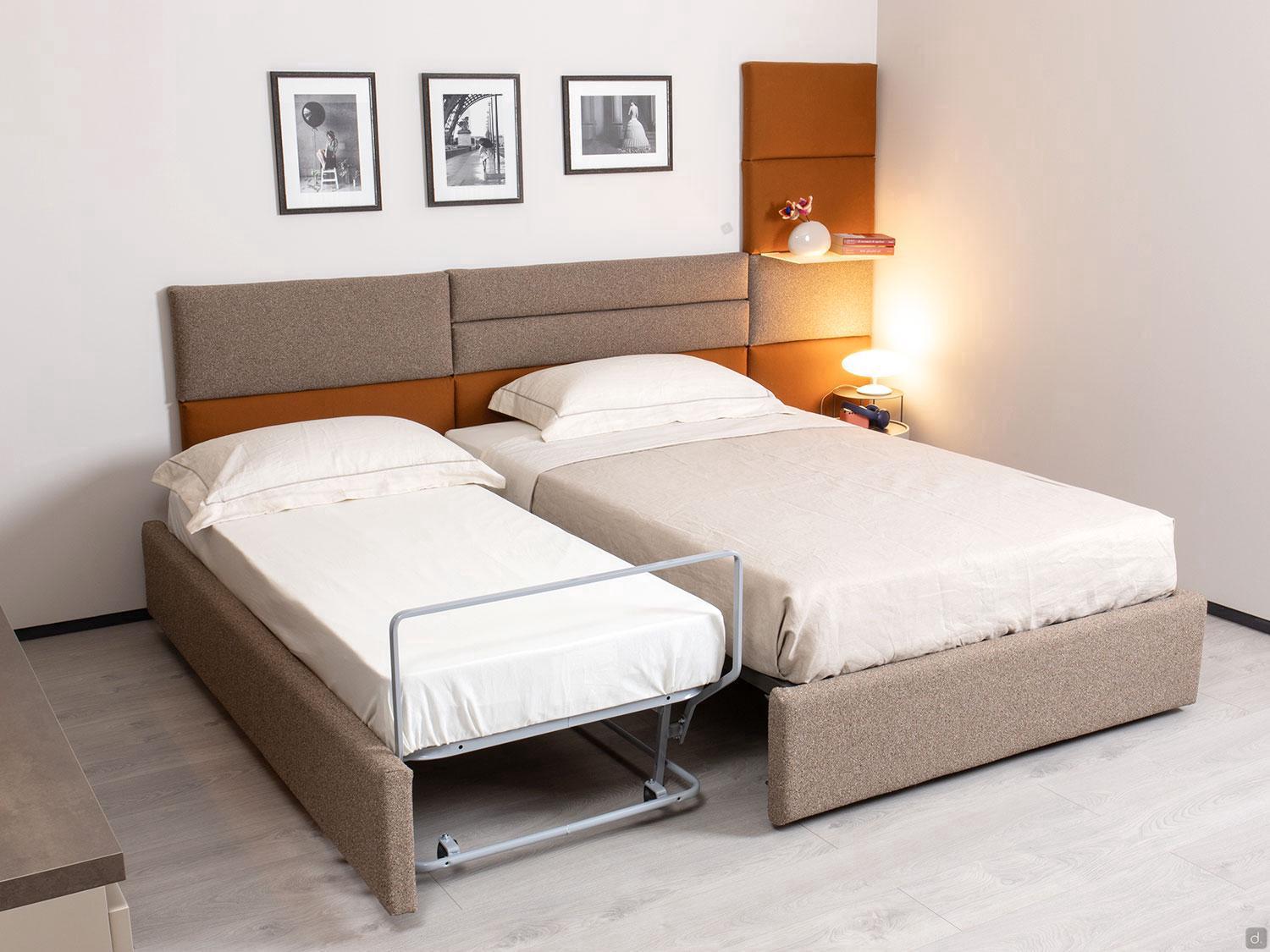

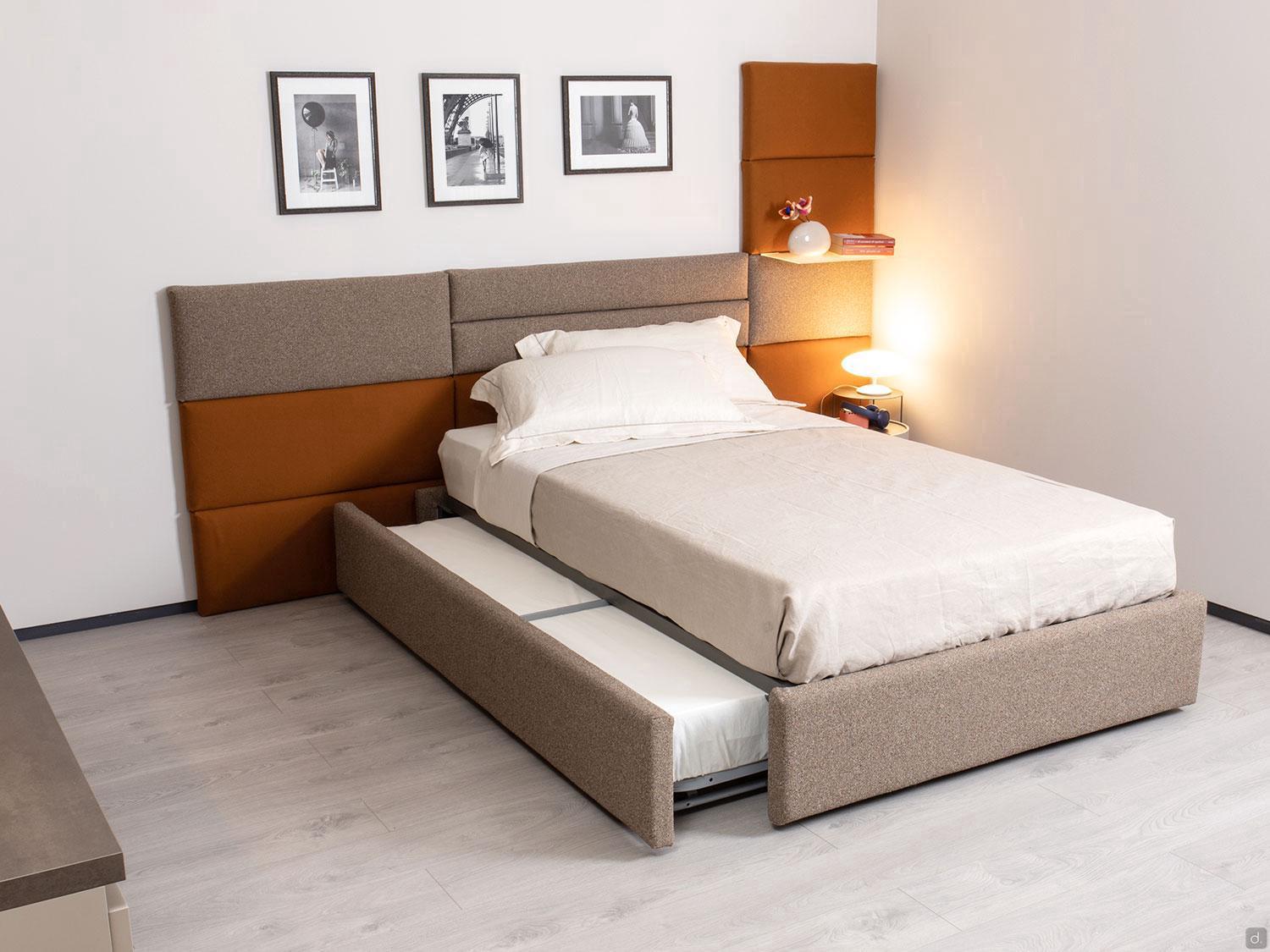

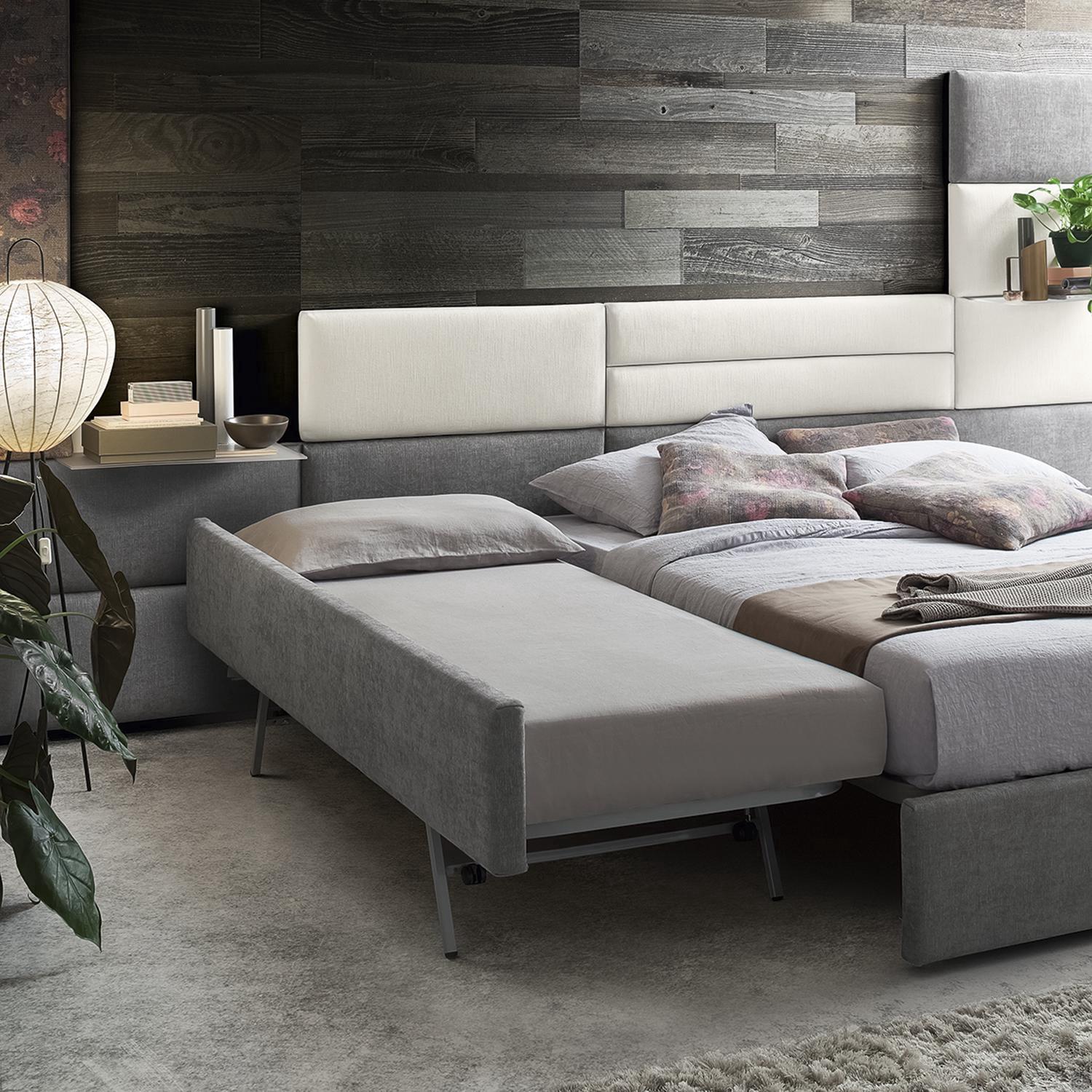

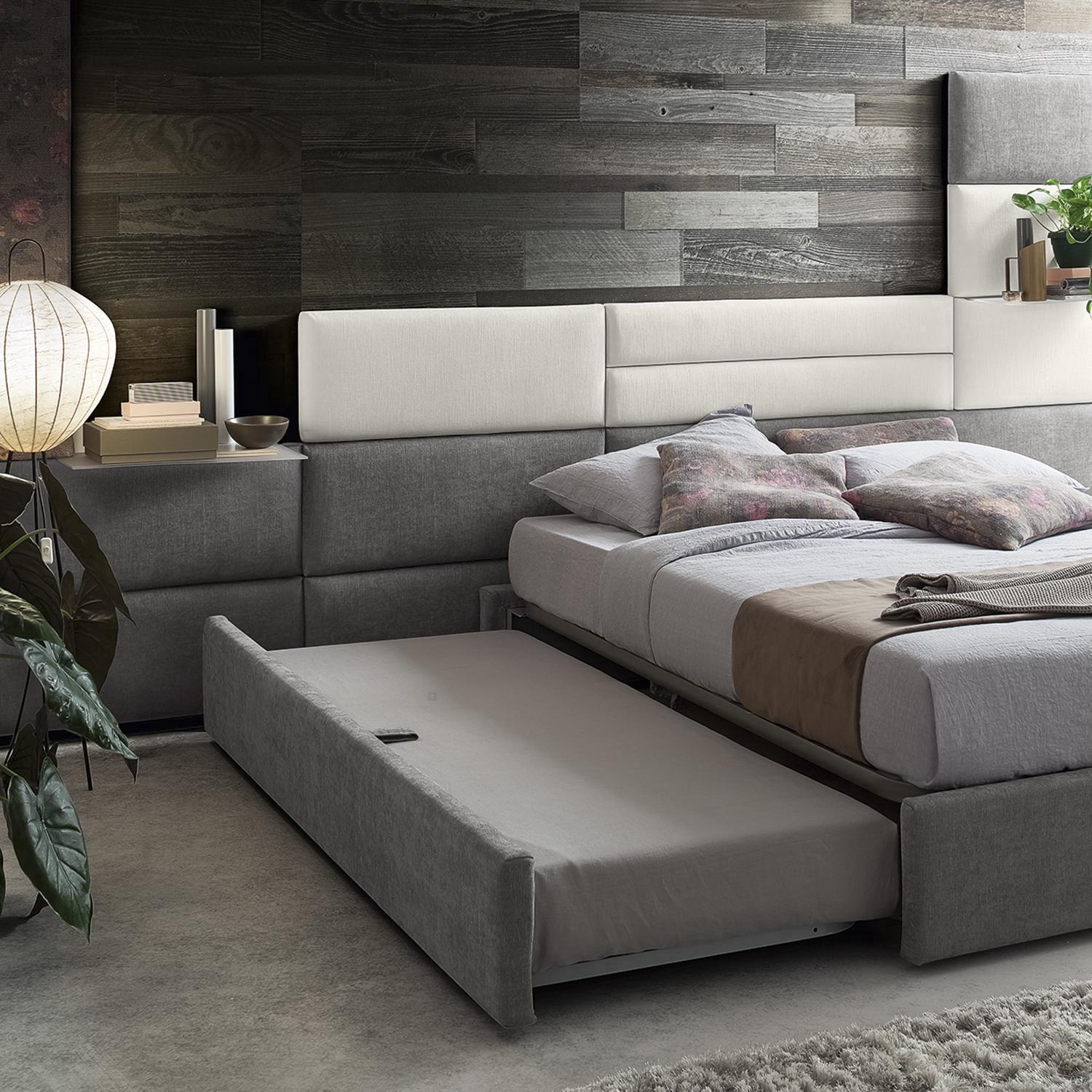

Pull-out extra slatted base: with slats available for the beds with extra under bed, with semi automatic or automatic mechanism, measurements cm 75 x 183. Complete with its own mattress cm 75 x 183 h.14
Storage Box: 12-14 mm thick panels made of polyester and/or batting polyester at 100% of 200gr.
Simple lift-up mechanism: traditional mechanism certified and tested up to 5.000 cycles, allows you to lift the bed base at 45°. Metal structure painted in epoxy powders with gas springs set on mattress weight.
Double lift-up mechanism: tested up to 4.000 cycles with assisted mechanism, allows you to lift the bed base at 45° and then raised it flat at a convenient height (m h.1). In this way, you can access the box easily and don't have to bend over the bed to make it or get into uncomfortable positions. Metal structure painted in epoxy powders with gas springs set on mattress weight.
Feet:
Basic standard: n.4 polypropylene regenerated and recyclable feet, available in wengé, black, white or silver. 3 cm height.
Visual: n.4 polypropylene regenerated and recyclable feet, available in wengé, black, white or silver. 3 cm height. Feet height cm 9, the total bed height increases of 6 cm.
Lux: n.2 " L " shaped footboard feet for measurements of cm 18 x 18 h.3. Available in seasoned natural beech wood in wengé, black, matt white or in a chrome plated colour.
Blade (Air bed frame): n.4 plexiglass footboard feet in moulded alluminium alloy. Painted in epoxy, satin or bronze, with brushing treatment. 13 cm height.
Plexi (Air bed frame): n.4 footboard feet in clear plexiglass 30 mm thick with non-sliding rubber 13 cm height.
Tower (Air bed frame): n.4 footboard feet in polish chrome-plated stainless steel, 13 cm height.
Optionals
Remove slatted base: you can purchase a bed without bed base only for the models without storage box
Clean Up System: it is a mechanism that allows you to lift the storage bed models and move the whole structure,without effort, by operating two hidden levers assembled on the sides of the bed frame. In this way, 4 no-marks rubber casters lower down and the whole bed is raised of cm h. 13 and can be move back and forth effortlessly. When the levers are lowered down, the casters disappear and the bed rests again on its feet. Easy, handy and safe.
Tool-holder: useful, practical and elegant solution to store magazines, glasses and handkerchiefs. It is attached to the bed frame with a velcro. Non available for those models with drawer or pull-out slatted base
Assembly Tips
Easy to assembly, with useful instructional sheet with maintenance advice.
Beds with drawer or with pull-out slatted base are delivered with an already fixed mechanisms and they come with the Catas Italian quality certification.
