N99 - Frame
Wall Hung Bathroom Vanity

N99 - Atlantic Frame bathroom vanity unit with washbasin and mirror, ceramic all-out basin, base units with oak wood basket and quartz-resin top.

* Required Fields

  • Veneer Wood 838 Raw Oak
  • stone Q-TOP 9D milk
  • stone Q-TOP 89 white terrace
  • stone Q-TOP 9A grey terrace
  • stone Q-TOP 9B dark terrace
  • stone Q-TOP 9C black terrace

From €2,800.94
Wishlist

Description

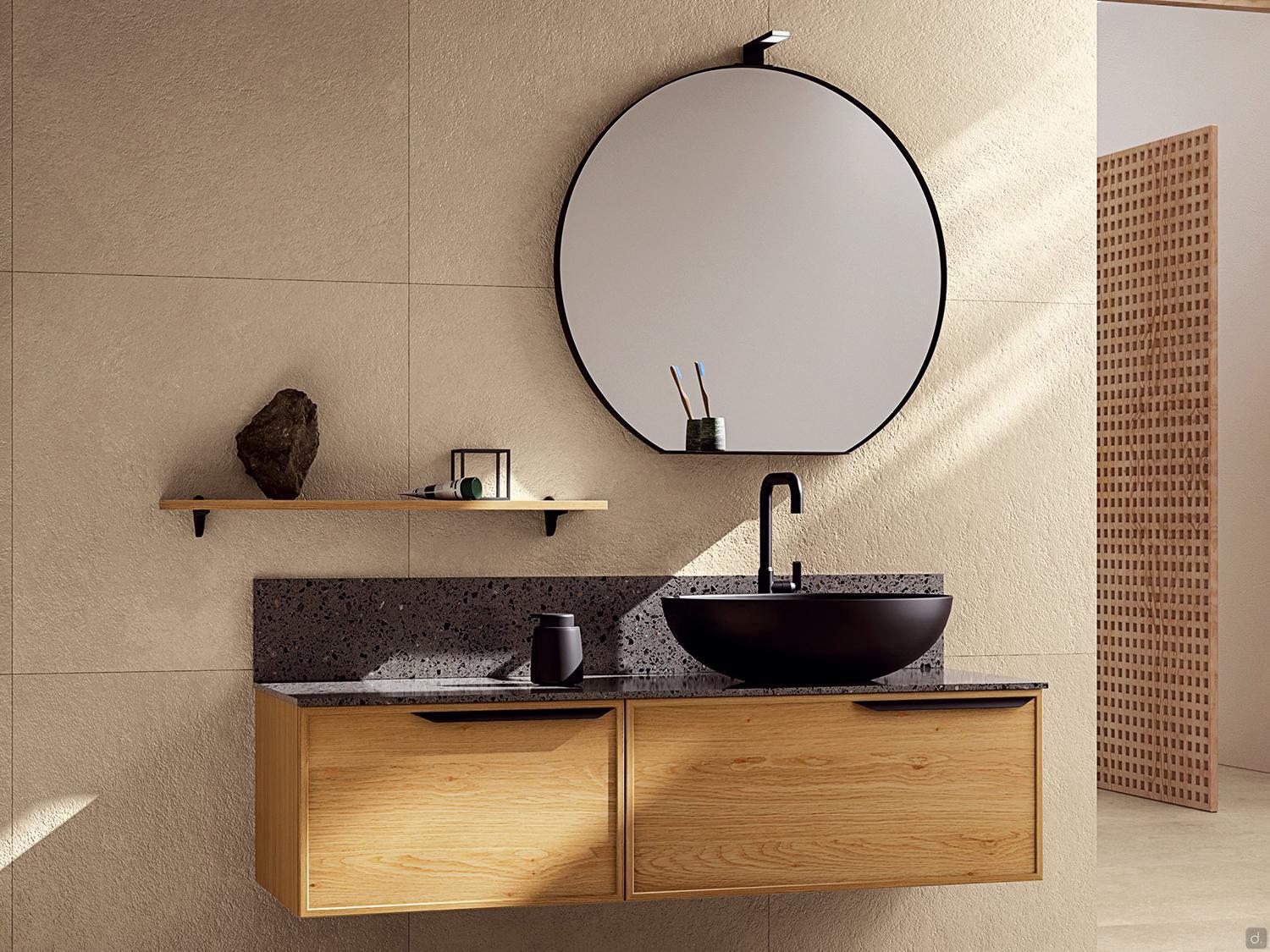

N99 - Frame is a bathroom vanity with washbasin and mirror that stands out for the essentiality of its shapes, clean and minimal, devoted to simplicity. The strong scenic impact, bright and modern, is enhanced by the fronts in oak veneer with horizontal grain, knots and details typical of wood. The doors are made with solid oak frames that, together with the many available handles, allow the creation of special colour and material combinations.
Attention is immediately captured by the prominent top made of quartz-resin stone Q-TOP, a prestigious innovative material consisting of natural quartz, one of the most precious minerals found in nature, structural resin and small amounts of glass. In addition to being waterproof and easy to clean, Q-TOP also gives fantastic surface effects of reflections and colour play.

Characteristics

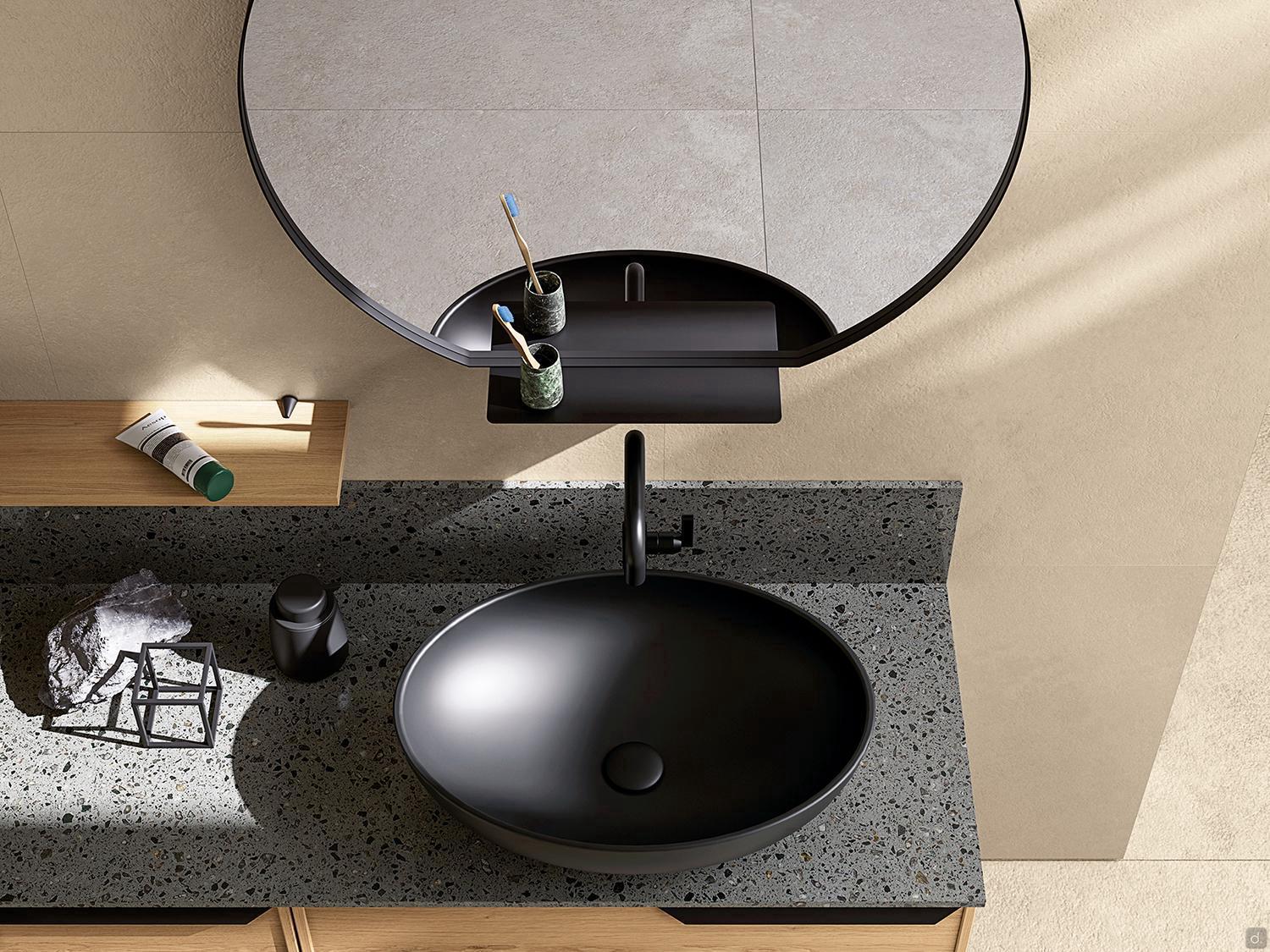

suspended vanity with all-out ceramic basin in your choice of black or matte white
quartz-resin stone top with special texture, with valuable reflections, veins and dots
doors with solid oak frame and central panel veneered in matching colour
oak base and shelf with typical wood grain and knots
round mirror with LED spotlight

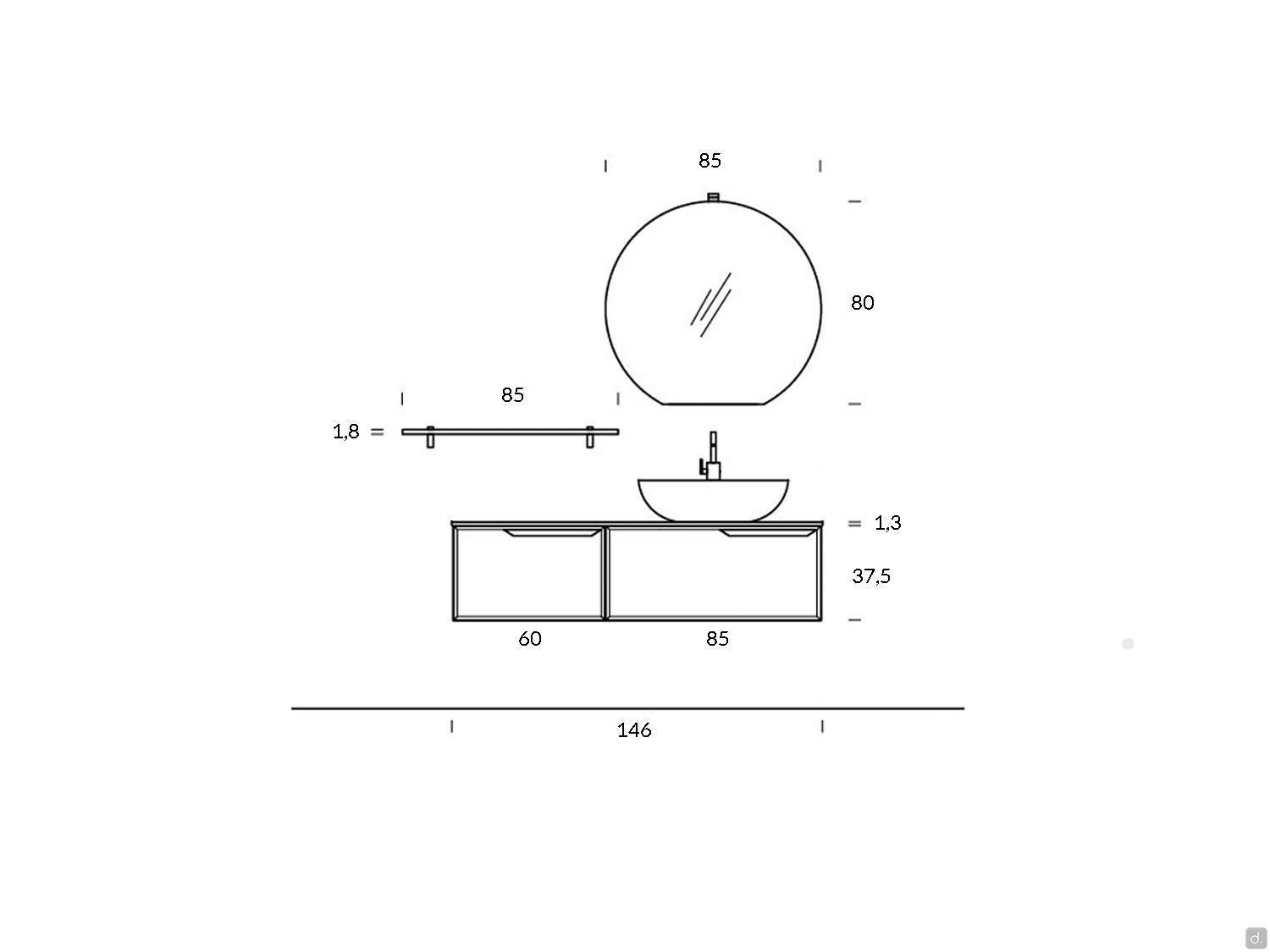

Measurements
Suspended bathroom vanity:
- cm 146 d.51 h.37,5
Accessories:
- mirror: cm 85 th.4 h.80
- shelf with mirror: cm 30 th.0,3 d.14
- spotlight mod.Ziko: cm 8 d.4,3 h.17,5

Materials and Finishes
Bases and Shelf:
- veneer wood
Top:
- quartz-resin stone
Washbasin:
- black or white matte ceramic

Purchase Information
The top protrudes 1 cm frontally and 0,5 cm laterally. The overall height of the bathroom vanity is equal to the sum of the height of the base and the thickness of the top, so it is 1,3 cm higher than indicated in the configurator.
The washbasin does not have an overflow hole and the faucets are not included. Among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Equipment
N99 bathroom furniture consists of:

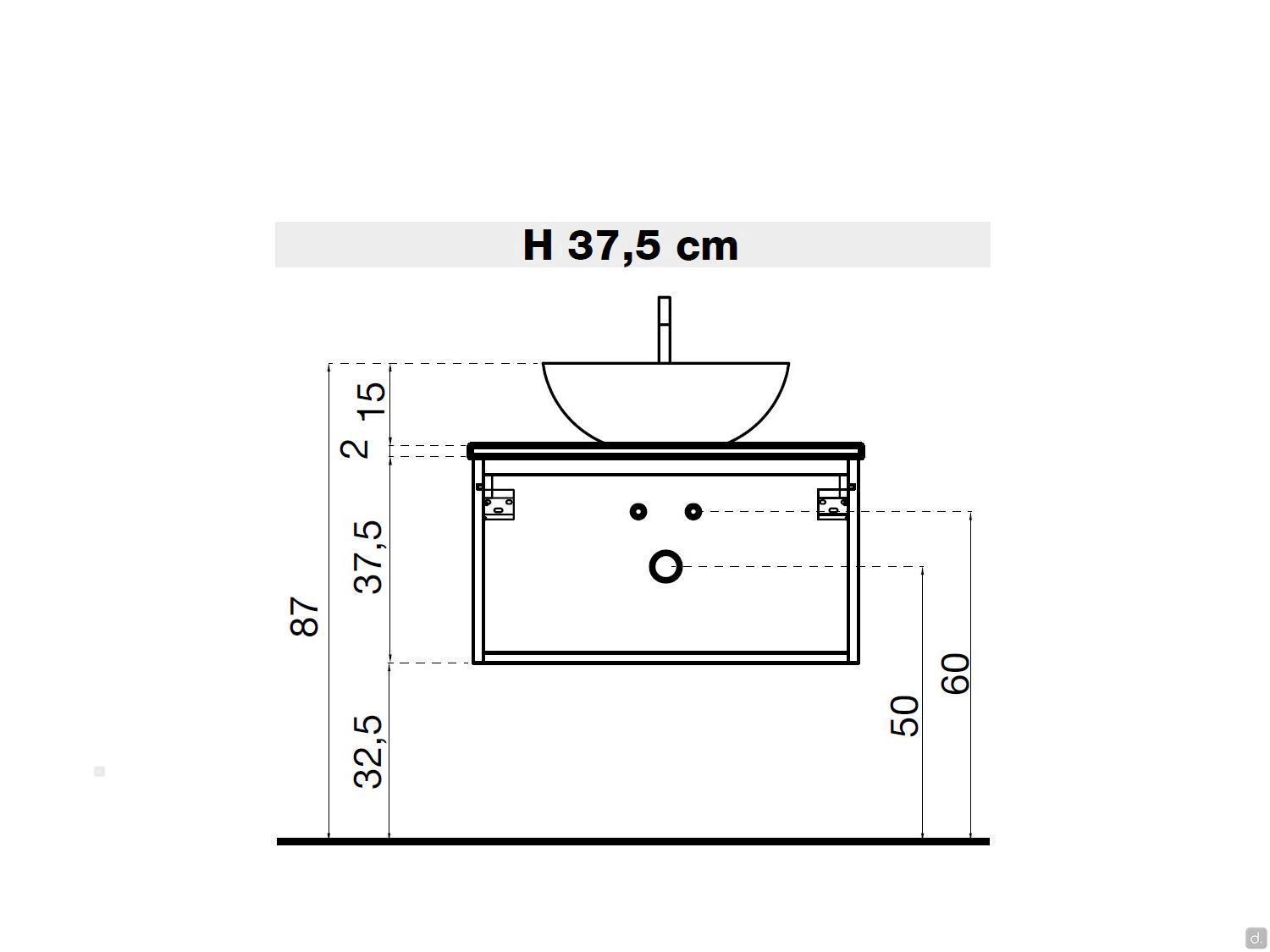

n.1 Washbasin base with 1 drawer: cm 85 d.50 h.37,5.
n.1 Base with 1 basket: cm 60 d.50 h.37,5.
n.1 All-out washbasin in matte black ceramic mod. Bologna-N, cm 60 d.42 h.17. The measurements of the basine are: cm 57 d.39 h.14,5. It is without an overflow hole.
n.1 Q_TOP quartz-resin top: cm 146 d.51 sp.1,3.
n.1 Shape mirror: cm 85 th.4 h.80.
n.1 Ziko spotlight with LED (3,5W, 230V, IP44, 4000K, 338lm, class A) matte black and frosted methacrylate finish, integrated transformer. Measurements cm 8 d.17,5 h.4,3.

Structure: cm th.1,8 made of wood particle board, then veneered with vertical grain.
Fronts: made of solid oak frame and center panel of wood particle board cm th.2, then veneered with horizontal grain.

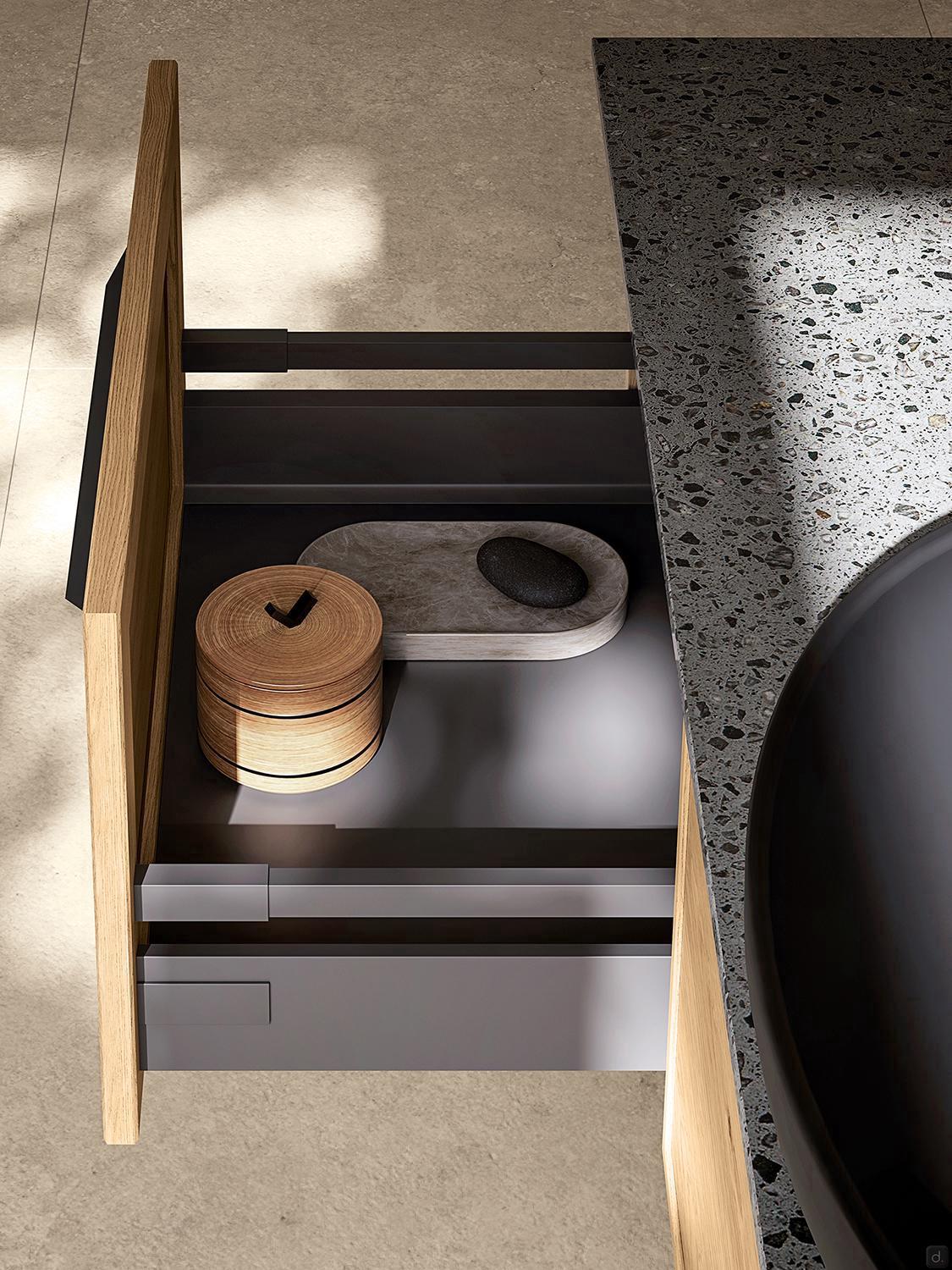

Legrabox Drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with metal body with full-extension runners and slow closing.

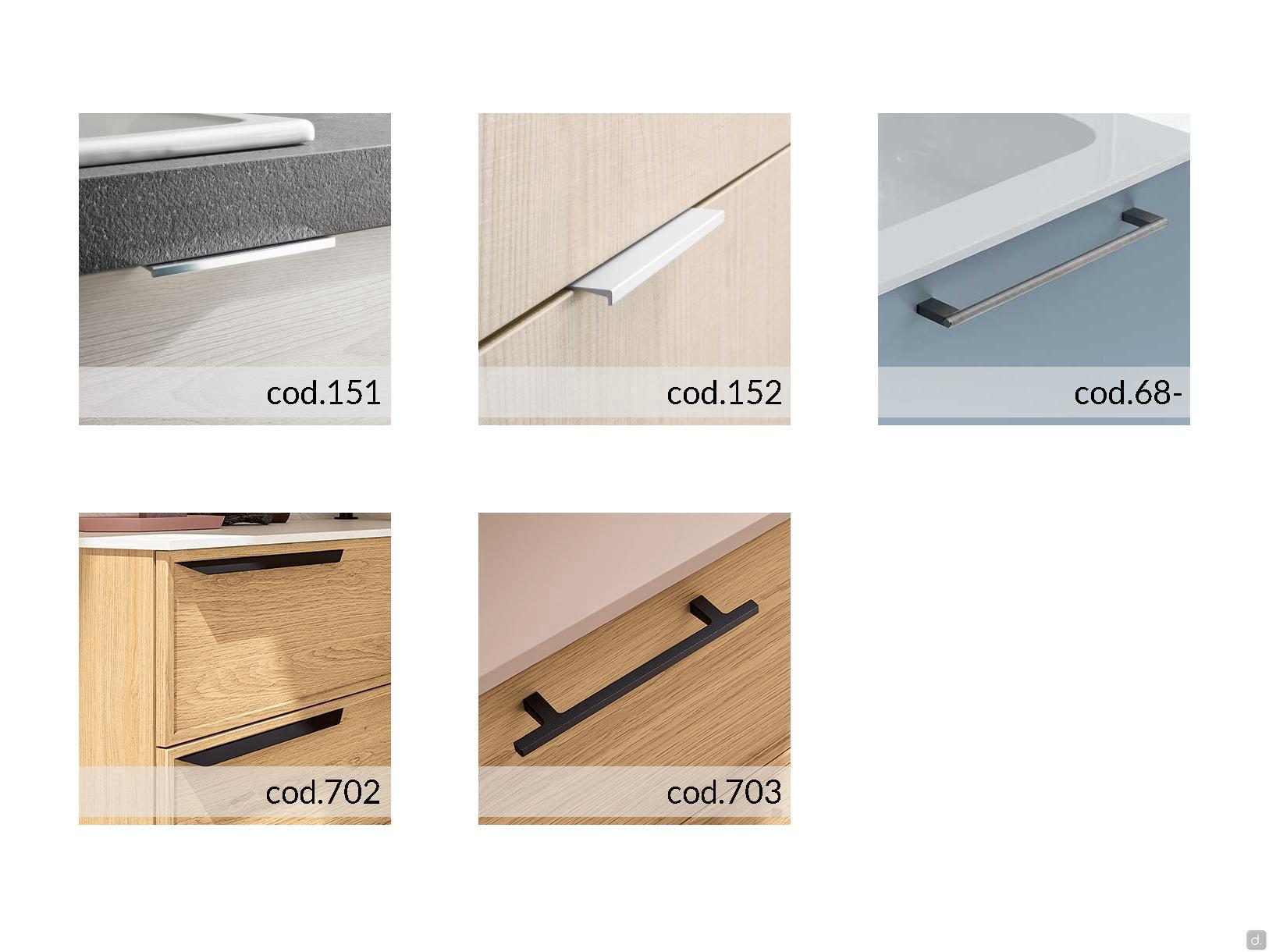

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles mod.152 are available in a matte lacquer finish in all colours in the sample book.
Handles mod.68-protrude 4 cm from the door surface, while handles mod.703 protrude 3 cm.

Washbasin Model H Measurements Inner Basin Encased
Type
Faucet Hole Overflow
Bologna-N - matte black ceramic cm 60 d.42 h.17 cm 57 d.39 h.14,5 all-out on wall or on center top, right or left no
Bologna-B - matte white ceramic cm 60 d.42 h.17 cm 57 d.39 h.14,5 all-out
on wall or on center top, right or left no
Aprilia-N - matte black ceramic cm 59 d.37 h.14,5 cm 56,5 d.34,5 h.12 all-out
on wall or on center top no
Aprilia-B - matte white ceramic cm 59 d.37 h.14,5 cm 56,5 d.34,5 h.12 all-out
on wall or on central top no
Firenze - matte black ceramic cm 43 d.43 h.15 cm 41 d.41 h.10 all-out
on wall or on center top, right or left
yes
Roma - matte white ceramic cm 43 d.43 h.15 cm 41 d.41 h.10 all-out
on wall or on center top, right or left
yes

N.B. The faucet hole has a standard diameter of 3,5 cm.
For basins without an overflow hole, the use of a continuous drain is recommended.

The indicated measurements of all ceramic sinks may be subject to dimensional variation (specifically about 0,8%) due to mold wear or small variations in the technical characteristics related to the materials that make up the mixture.

Optional

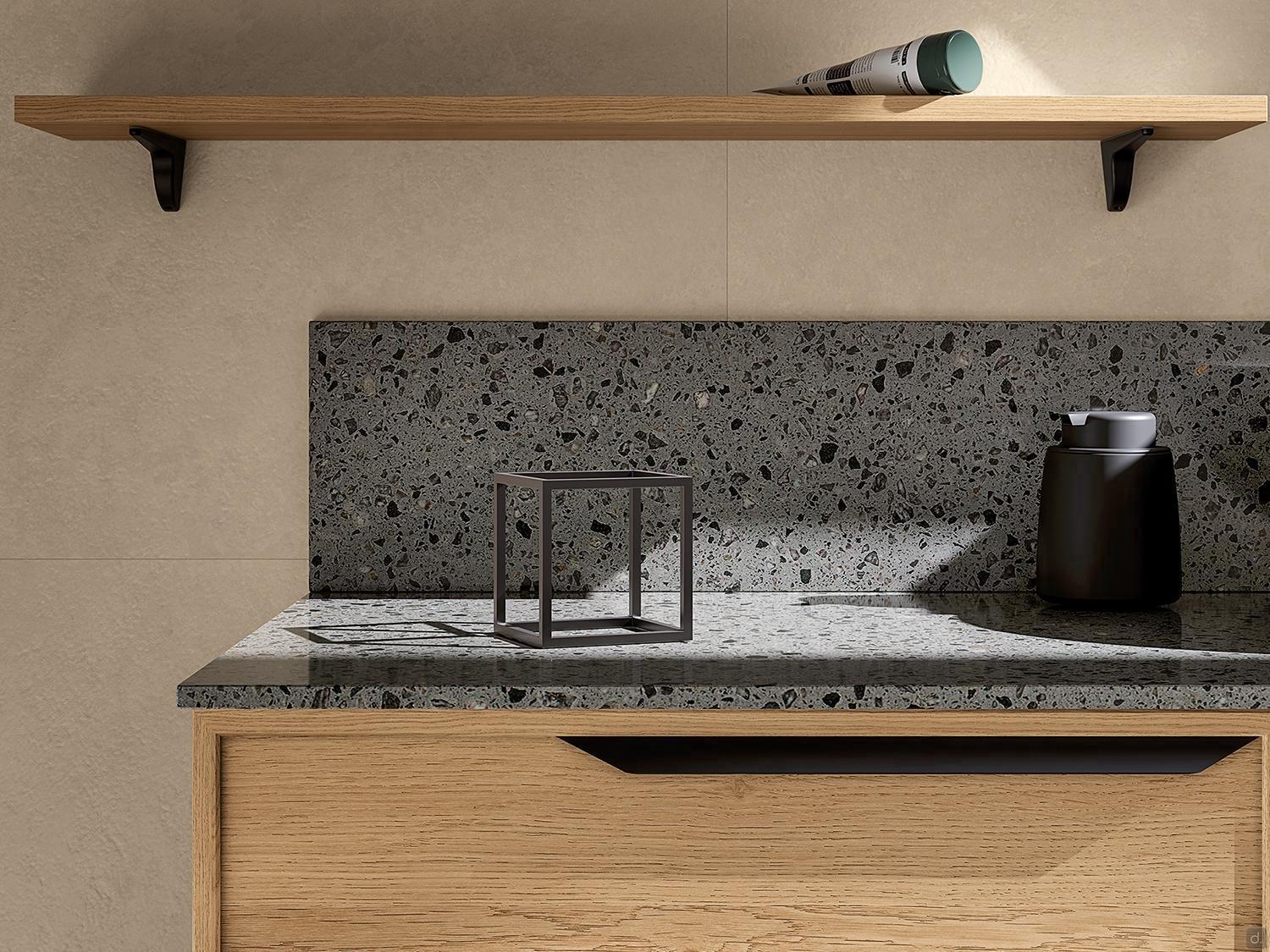

splashback: designed to complement bathroom cabinets with HPL layered melamine, marble stone, porcelain stone or quartz-resin tops; particularly suitable for walls that are not perfectly square and for pairing with free-standing mirrors.

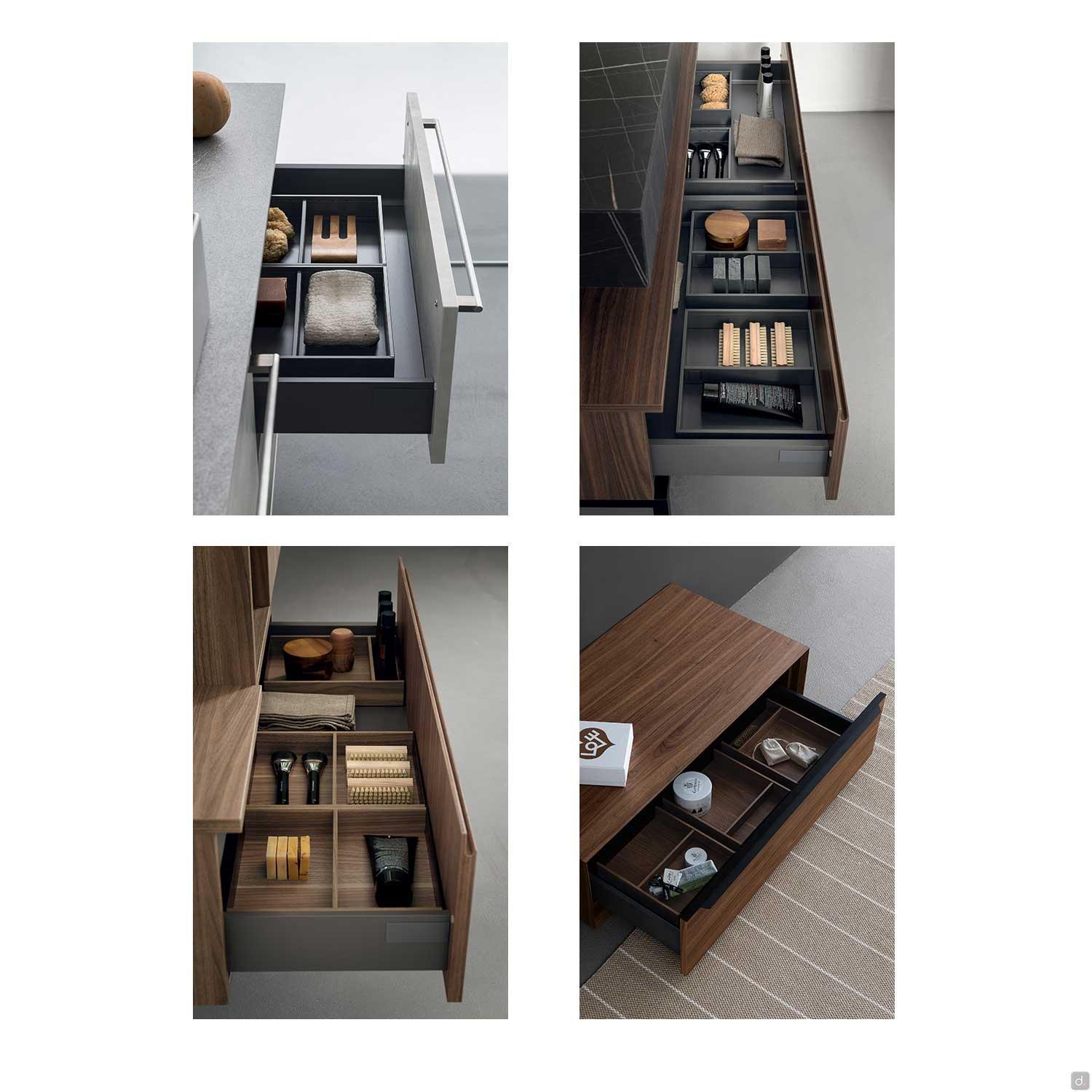

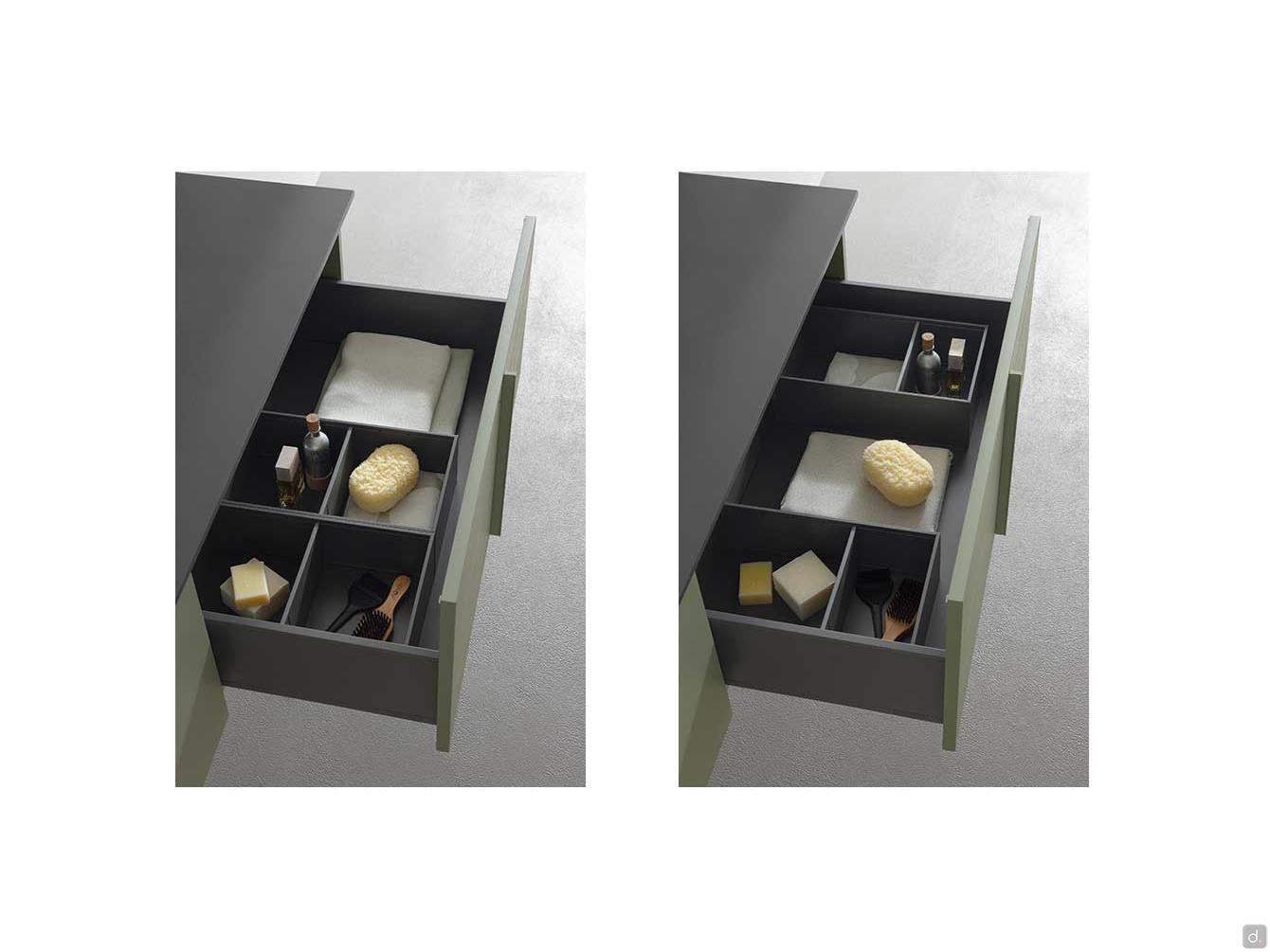

organiser: internal partitioning system for Legrabox drawer and basket. Available in Canaletto walnut and Orion finishes.

Maintenance Tips
Wood: "living" material protected superficially by varnish; a soft, non-abrasive, damp cloth, well squeezed should be used for cleaning. It is recommended to wipe the top in the direction of the grain and dry carefully.
QTOP: unlike marble-resin, mineral filler is not chemically attackable by acids. Recommended cleaning products should not have high alkalinity (basic pH), which could alter, mainly from an aesthetic point of view, the binding resin. The best way to prevent stains is to remove the soiling agents promptly with a damp rag or neutral detergents before they harden.

Read more...
QTOP: is a quartz-resin product, shaped from natural materials (quartz and granite) and a high quality binding agent, supplemented with coloured pigments and glass or mirror granules.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
Vedi Tab Video
Cubic Metres
0,39 m³
Other Products from the same Collection
View all the products of the collection (cod.cmp)

Partner Factory

This bathroom furniture is a 100% Italian product made by a company from the province of Pordenone that started in the field during the 90s. Initially oriented towards the production of classic and modern bathrooms, it grew throughout the years earning national and international fame in the water and sanitary system as well. The company headquarters cover 16.500 square metres and are equipped with innovative machinery. Its business is characterised by the high quality standard of the materials employed, studied and renovated every year to follow the latest fashion. The solid wood comes from forests that follow regularised policies regarding tree cutting and all the other materials are either recycled or recyclable. Every productive phase takes place inside the company itself in order to guarantee the highest monitoring level.

The company creates its personal models but still focuses on the needs of modern housings in terms of space and taste. Moreover, the modular nature of the products allows for high customisable projects. It is possible to widen the initial composition with additional accessories and equipment in every moment. The wide collection and the colour range offered cover several different styles and types of environment: from a more elegant and refined bathroom to an original design, from soft and natural shades to pastel colours. Cabinets with drawers and baskets placed under the basin, wall-hung drawers, columns to store linen or beauty products, dressing tables of the most diverse shapes: the bathroom vanities of this collection are thought to satisfy every need.
