N100 - Frame
Wall Hung Bathroom Vanity

N100 Frame bathroom vanity with off center basin with double drawer base and open wall units. Matte lacquer in multiple colours, wall mounting.

Description

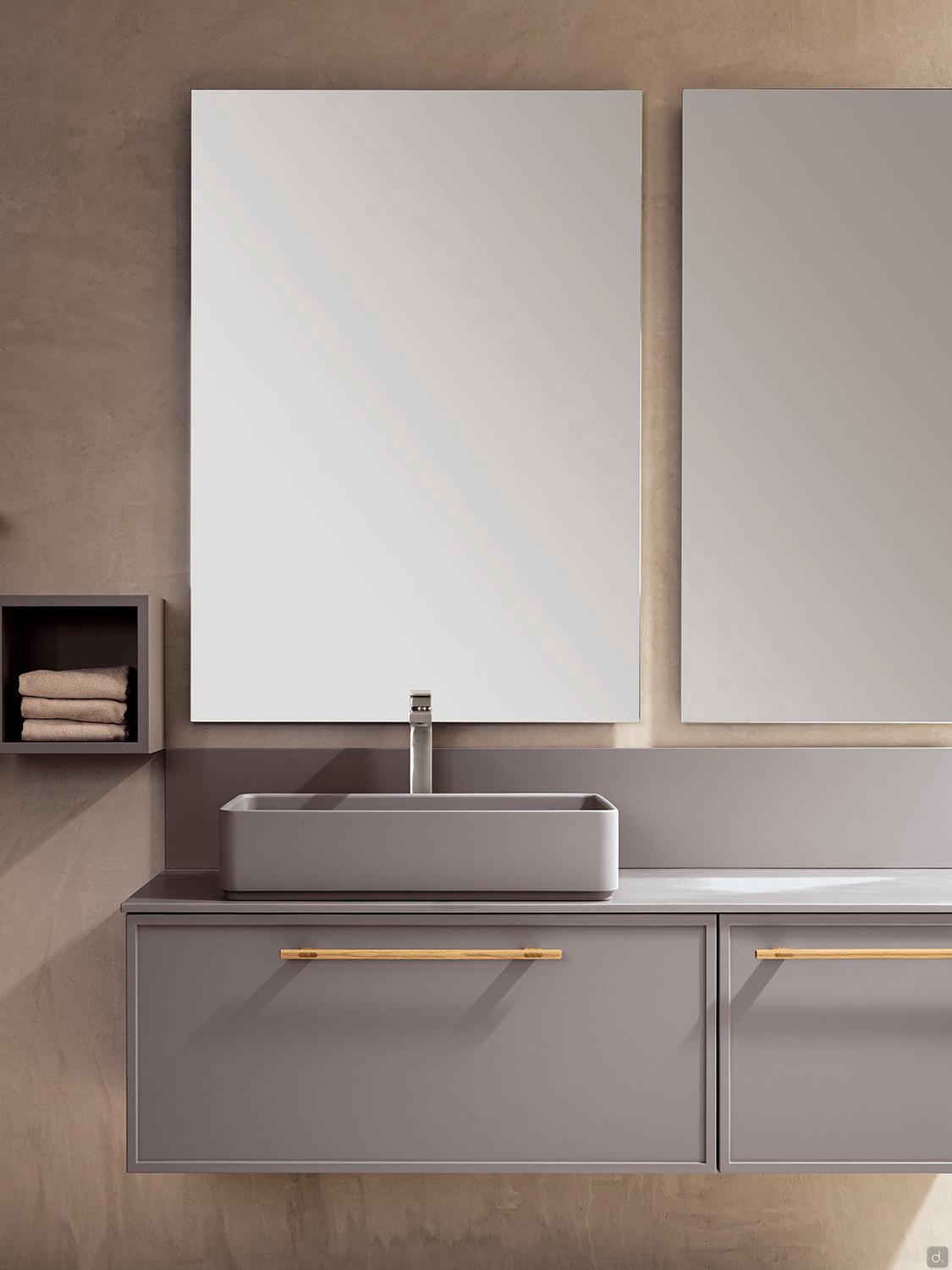

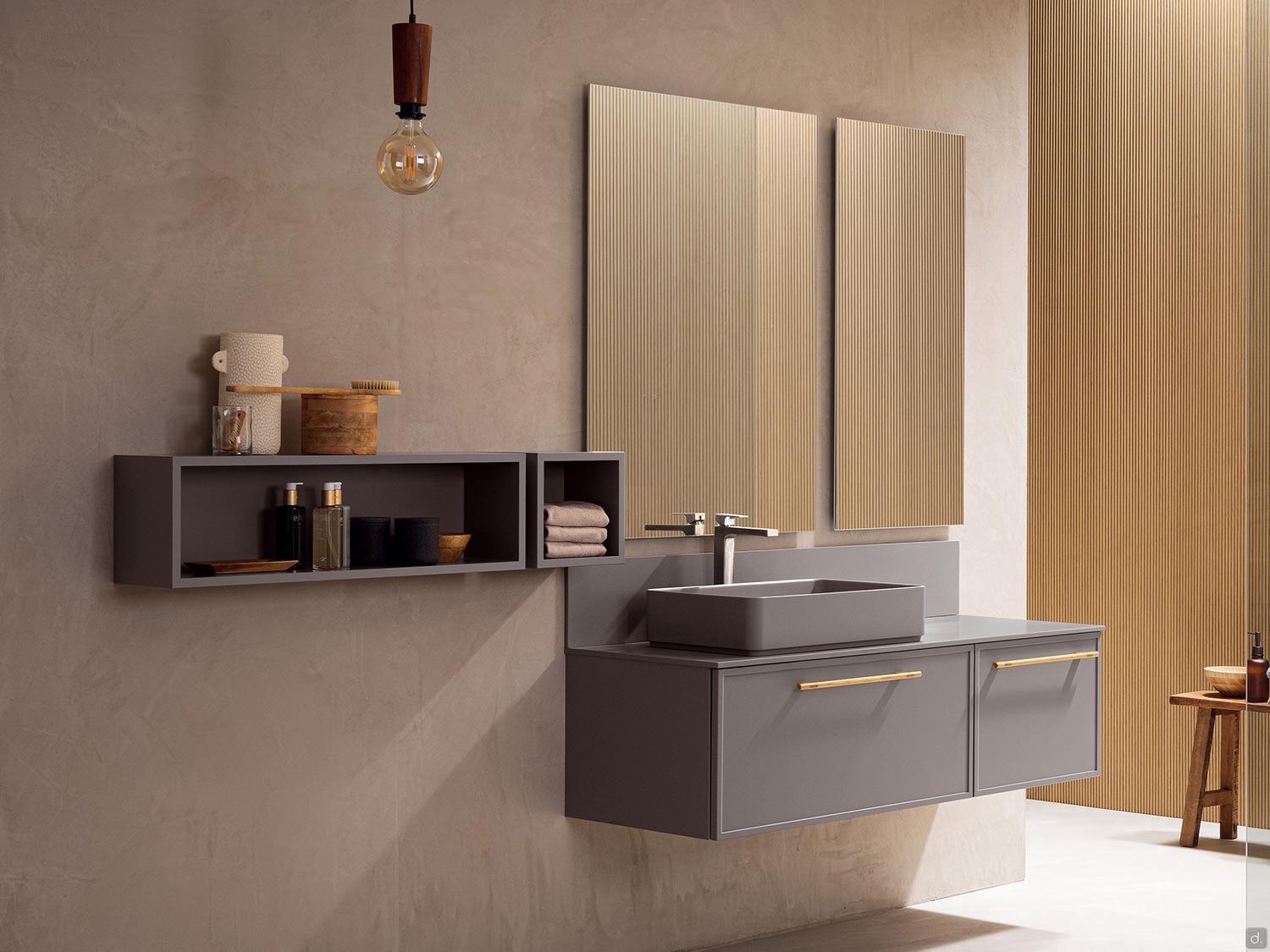

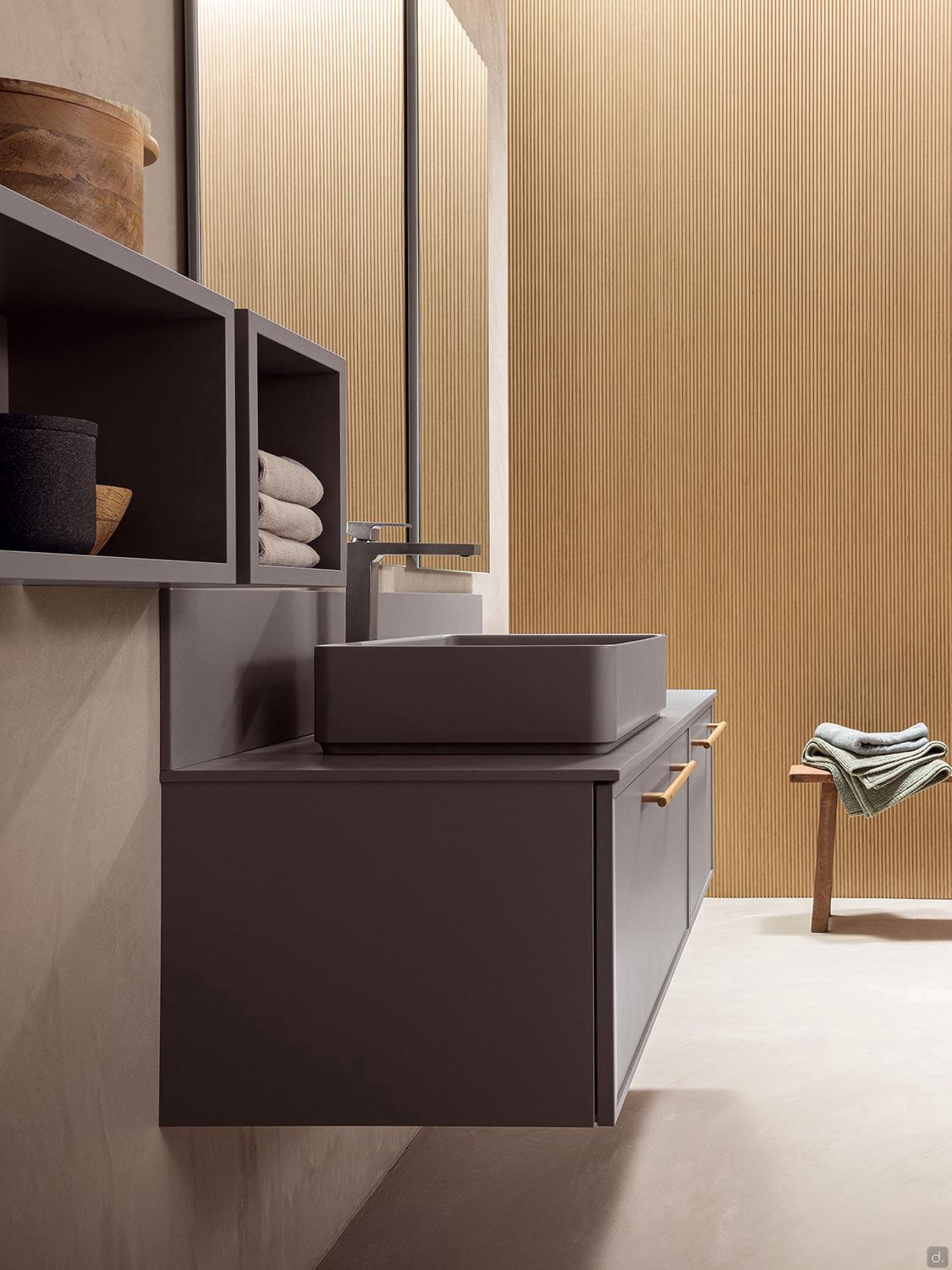

N100 Frame is a bathroom vanity with an off-center washbasin and double single-drawer suspended base unit. Available in several opaque colours and just under 140 cm wide, the N100 composition is completed by an impressive double mirror and two optional 20 cm deep open wall units, complementing the large interior volume already offered by the two undermount drawers.
Increasing the degree of customisation of the bathroom vanity is the choice of different models of handles, in chromed or lacquered metal or natural oak, for an appearance with references to an essential, natural design with a Scandinavian flavour. Top and washbasin, enameled and lacquered to match the bases to create a harmonious yet eye-catching monochromatic effect, are in Minera-Kolor, a material that combines natrual meneral elements with polyester resin to offer and aesthetically pleasing finish.
N100 is part of the Frame collection, which combines the versatility of the Atlantic bathroom sectional with elegant fronts distinguished by a subtle raised frame.

Characteristics
wall-hung bathroom vanity with two capacious drawers and optional matching open wall units
top and washbasin in Minera-Kolor, a durable and high-quality material lacquered to match the rest of the composition
customisable finishes and handles, for compositions that are always unique and tailored to your environment
optional splashback in Minera-Kolor, for an elegant continuation of the top on the supporting wall
can be completed with other elements from the Atlantic and Frame collections,such as shelves, wall units, columns and more

Measurements
Suspended bathroom vanity:
- cm 136 d.51 h.37,5

Materials and Finishes
Bases and Wall Units:
- matte lacquer
Top:
- Minera-Kolor

Purchase Information

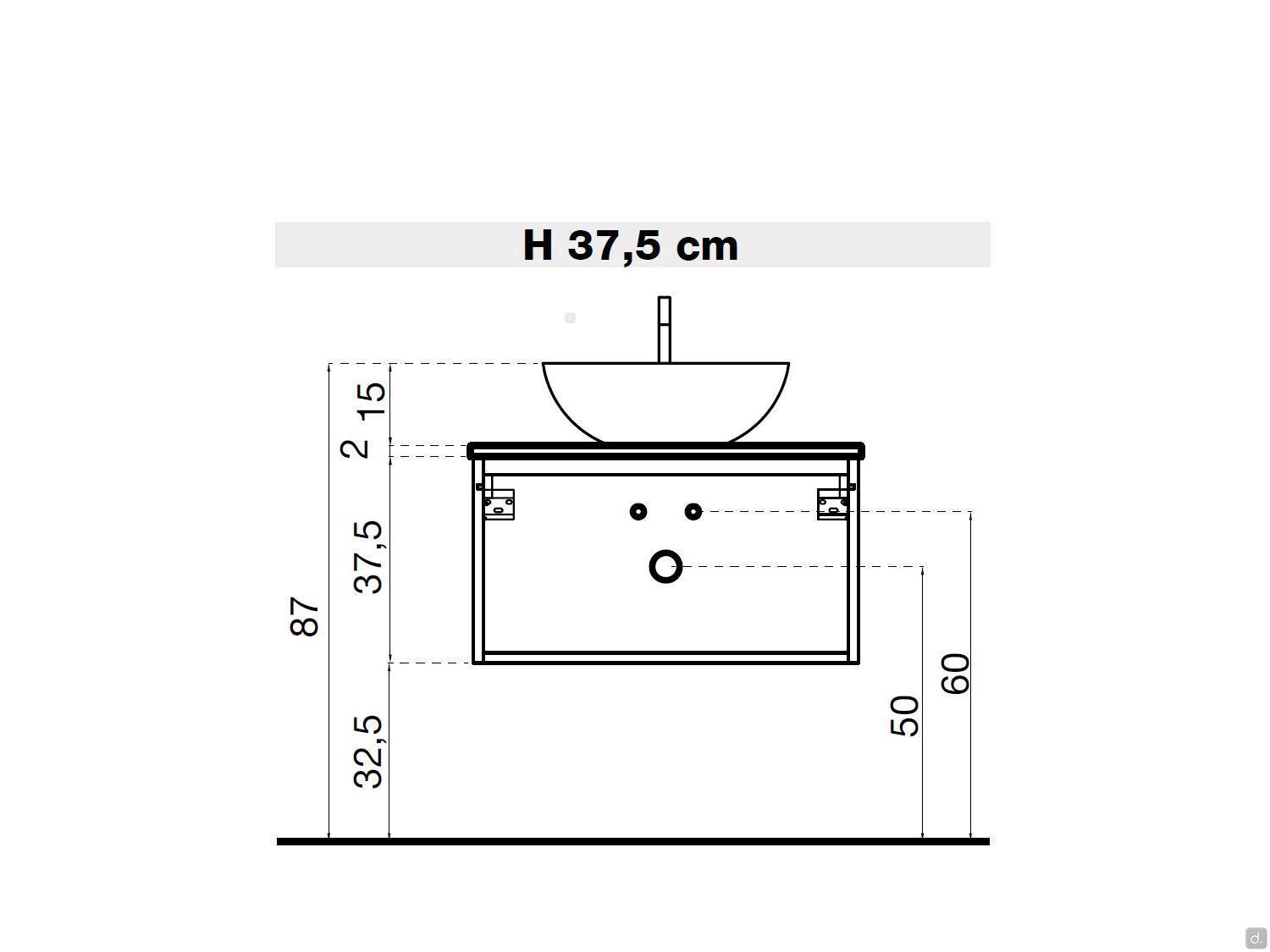

The Minera-Kolor top protrudes 1 cm frontally and 0.5 cm laterally on each side: the depth of the base alone is 1 cm less than the top. The overall height of the bathroom vanity is equal to the sum of the height of the base, the thickness of the top and that of the washbasin.
The washbasin does not have an overflow hole. Faucets are not included; among the products at the bottom of the page you can find the Universal Siphon and Drain.

Technical study

Technical Specifications and Equipment

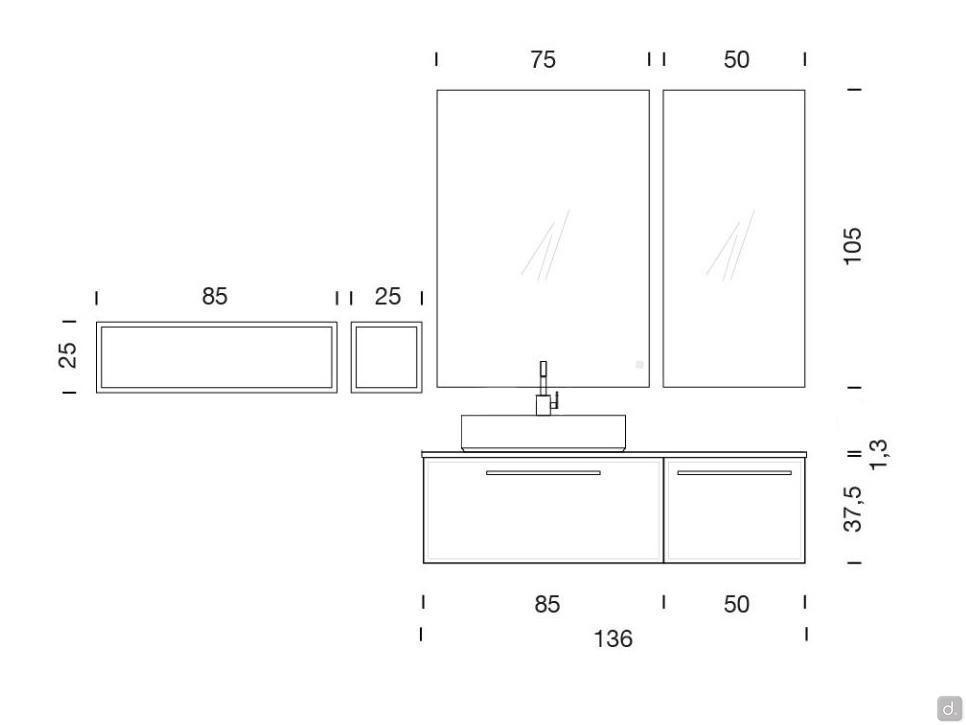

Overall measurements: cm 136 d.50 h.37,5
- n.1 washbasin base unti with basket: cm 85 d.50 h.37,5
- n.1 base with basket: cm 50 d.50 h.37,5
- n.1 top in MineraKolor: cm 136 d.51 sp.1,3

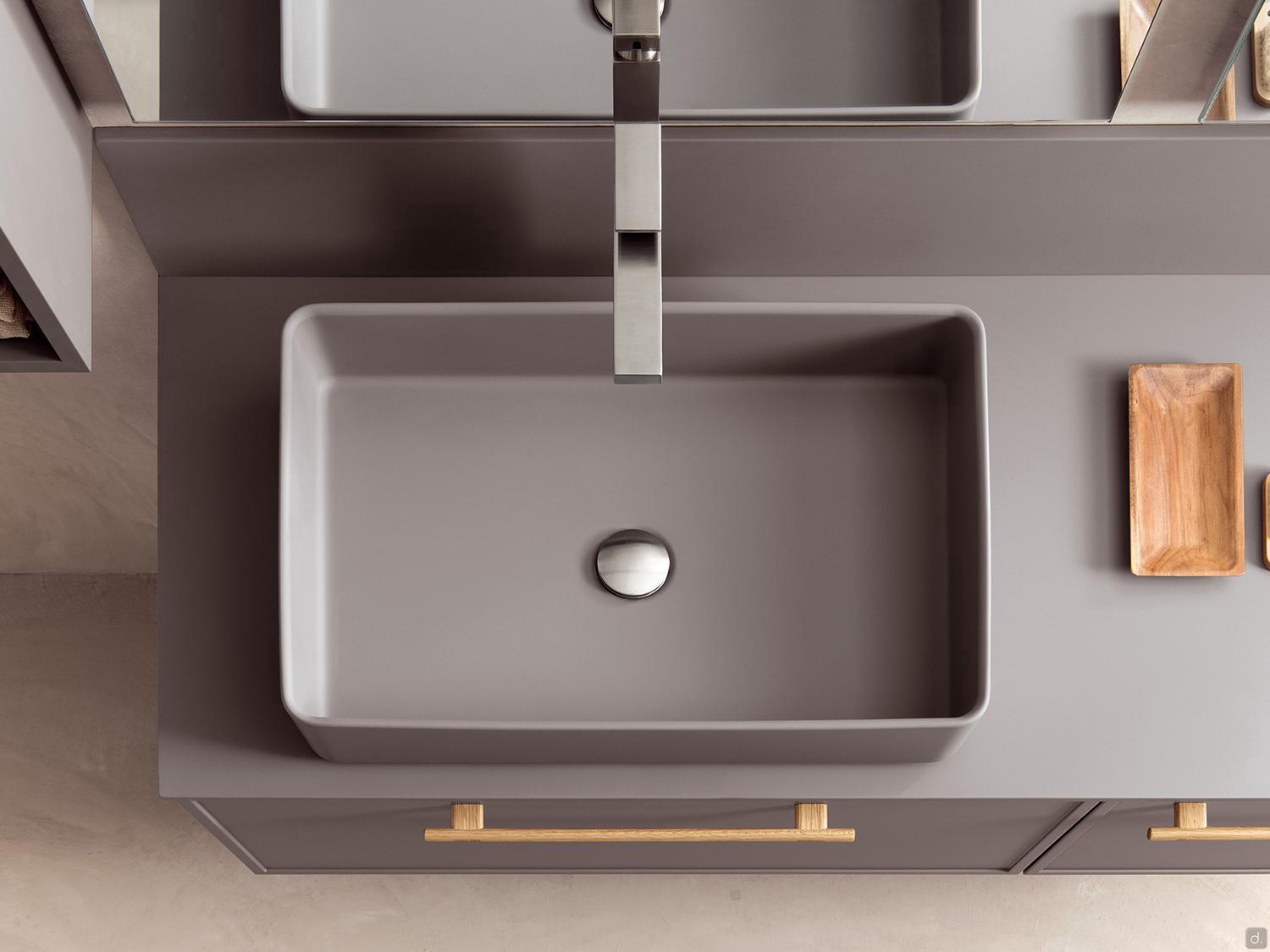

- n.1 basin MILANO in MineraKolor: cm 58 d.37 h.13
- n.1 mirror NET: cm 75 th.3 h.105
- n.1 mirror NET: cm 50 th.3 h.105

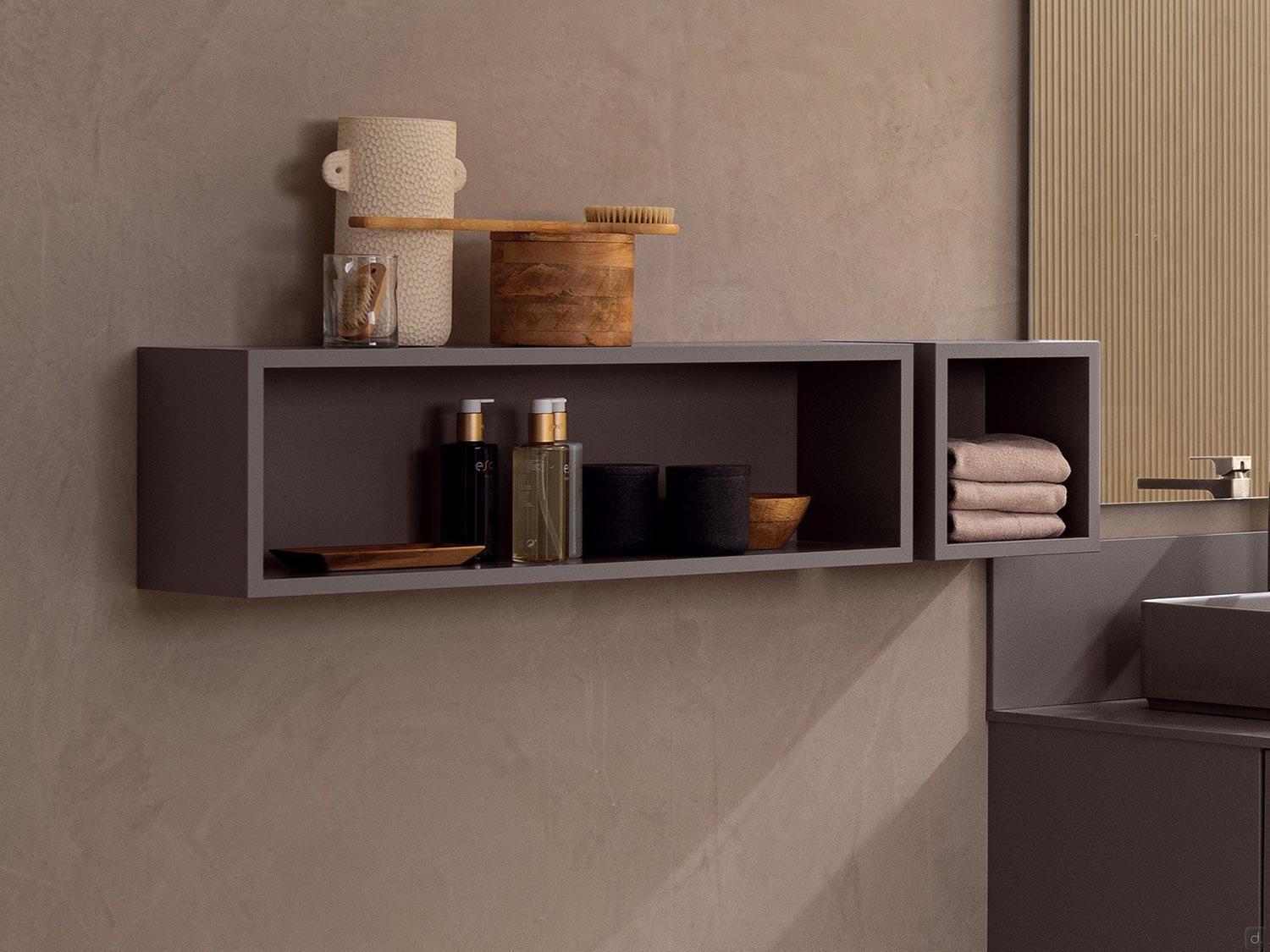

- n.1 open wall unit (purchased separately): cm 85 d.20,8 h.25
- n.1 open wall unit (purchased separately): cm 25 d.20,8 h.25

Base structure: cm th.1,8 made up of particle board panels..
Base fronts: cm th.1,9 made of matte lacquered MDF panels. Choice of handles or push-pull.
Legrabox drawer: characterised by straight drawer sides both internally and externally, only 1.28 cm thick. Equipped with metal body with full-extension runners and slow closing.

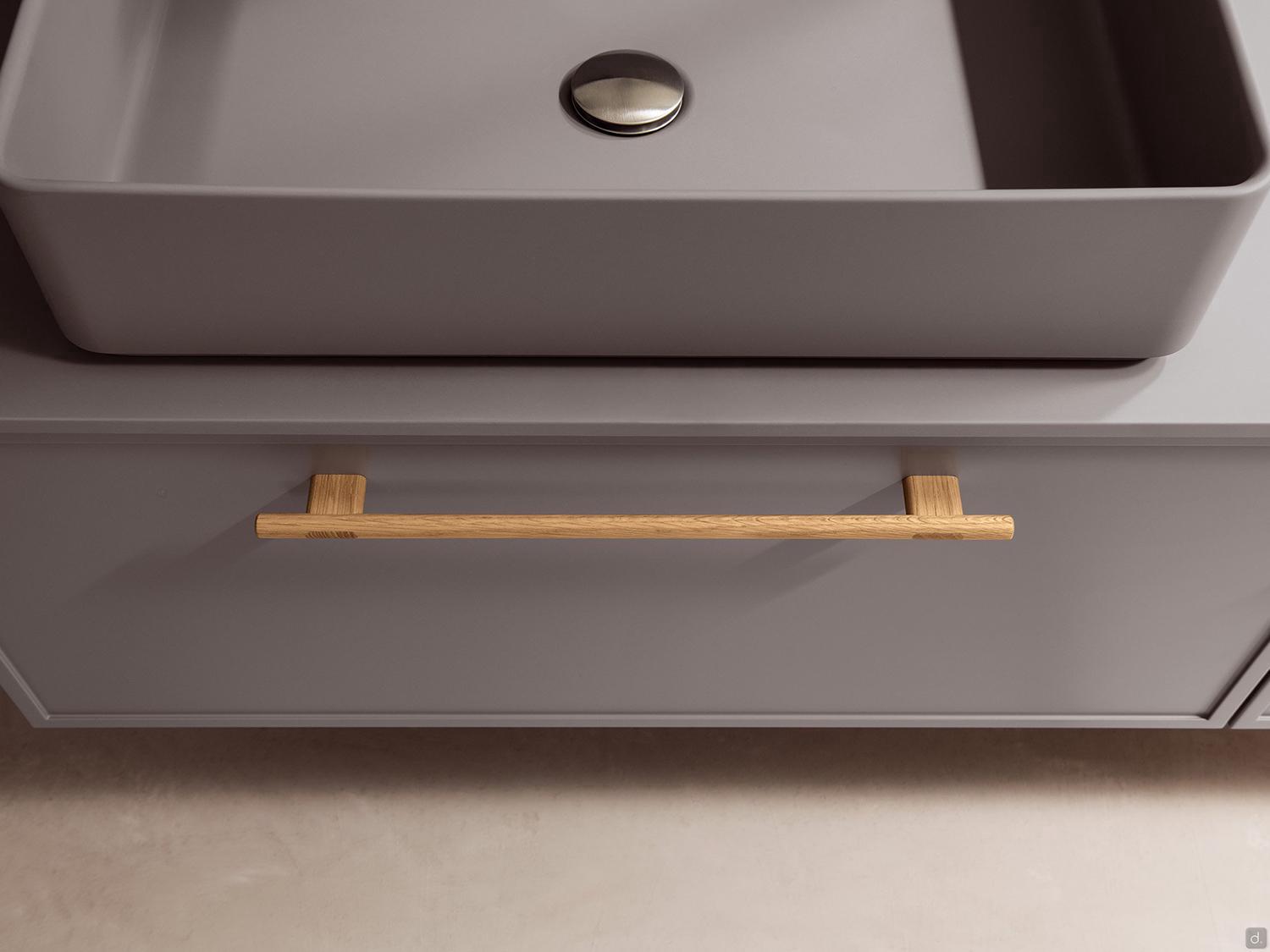

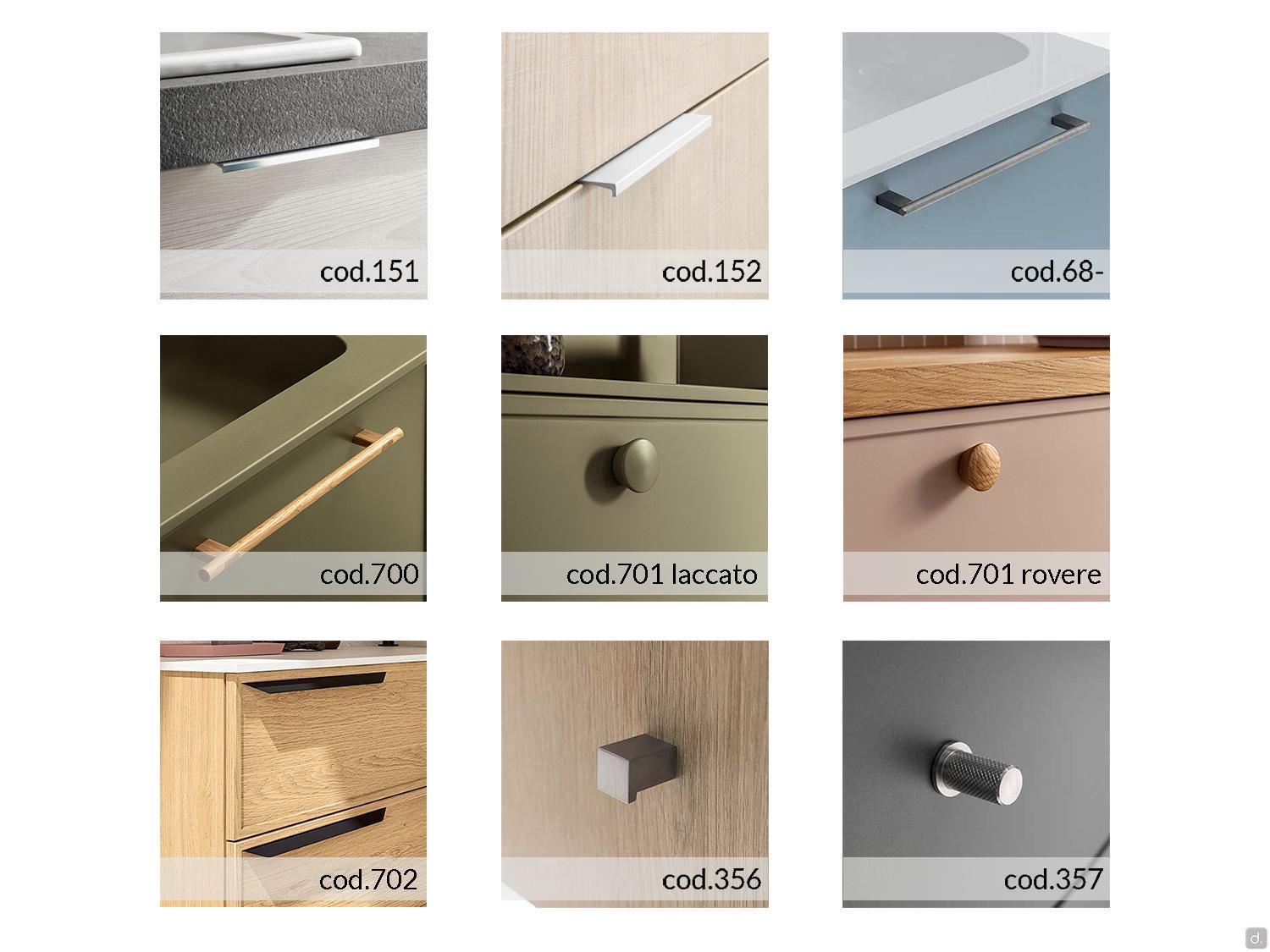

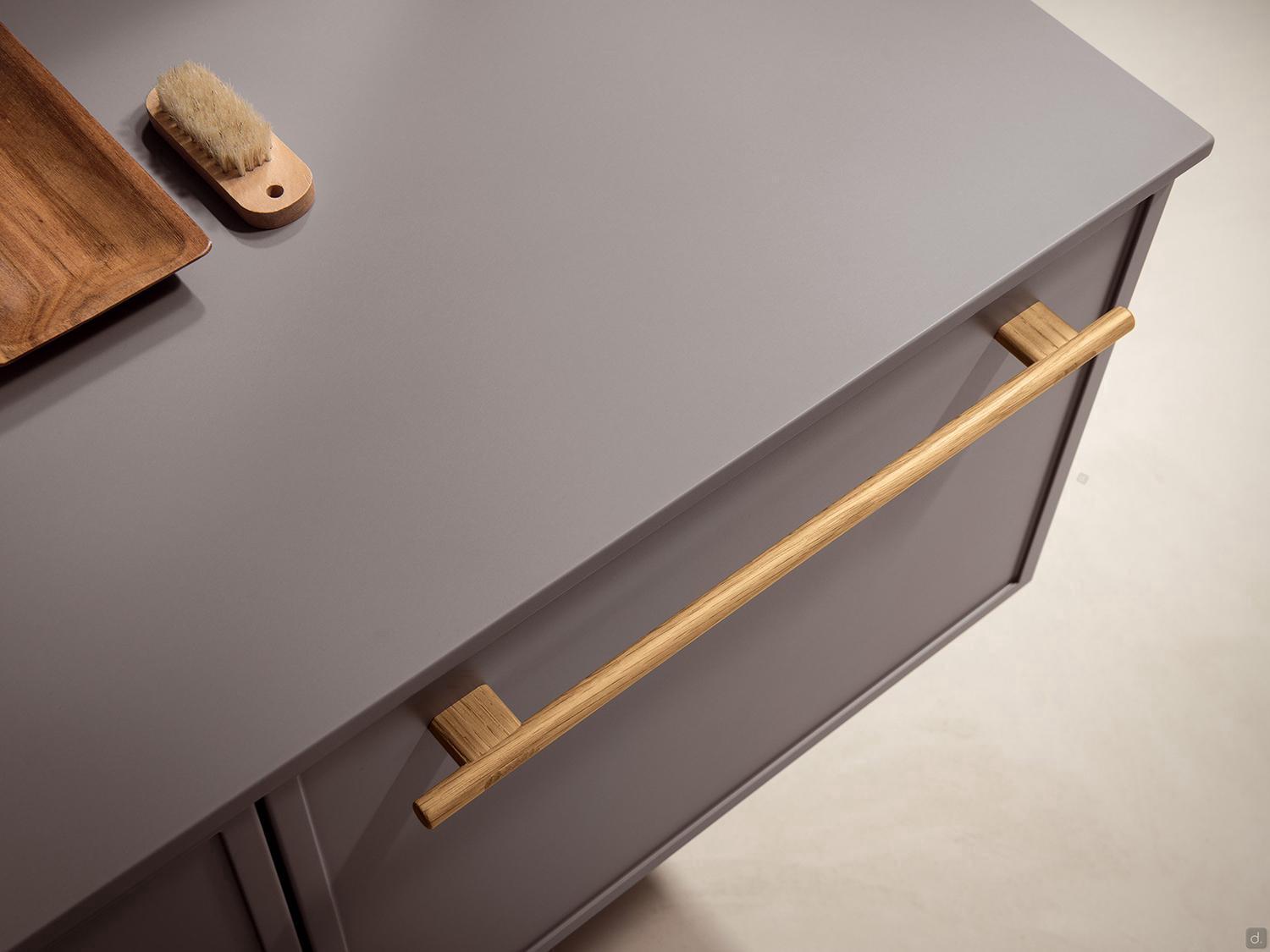

Handles: you can choose from various models of handles, as well as push-pull opening.
Handle codes 152 and 701 are available in a matte lacquer finish in all sample colours.
Handle models 68 protrude 4 cm from the door surface, while handles 703 protrude 3 cm.

Optional
splashback: designed to complement bathroom cabinets with tops in HPL layered melamine, marble stone, porcelain gres, quartz-resin or Minera-Kolor; particularly suitable for walls that are not perfectly square and for pairing with free-standing mirrors.

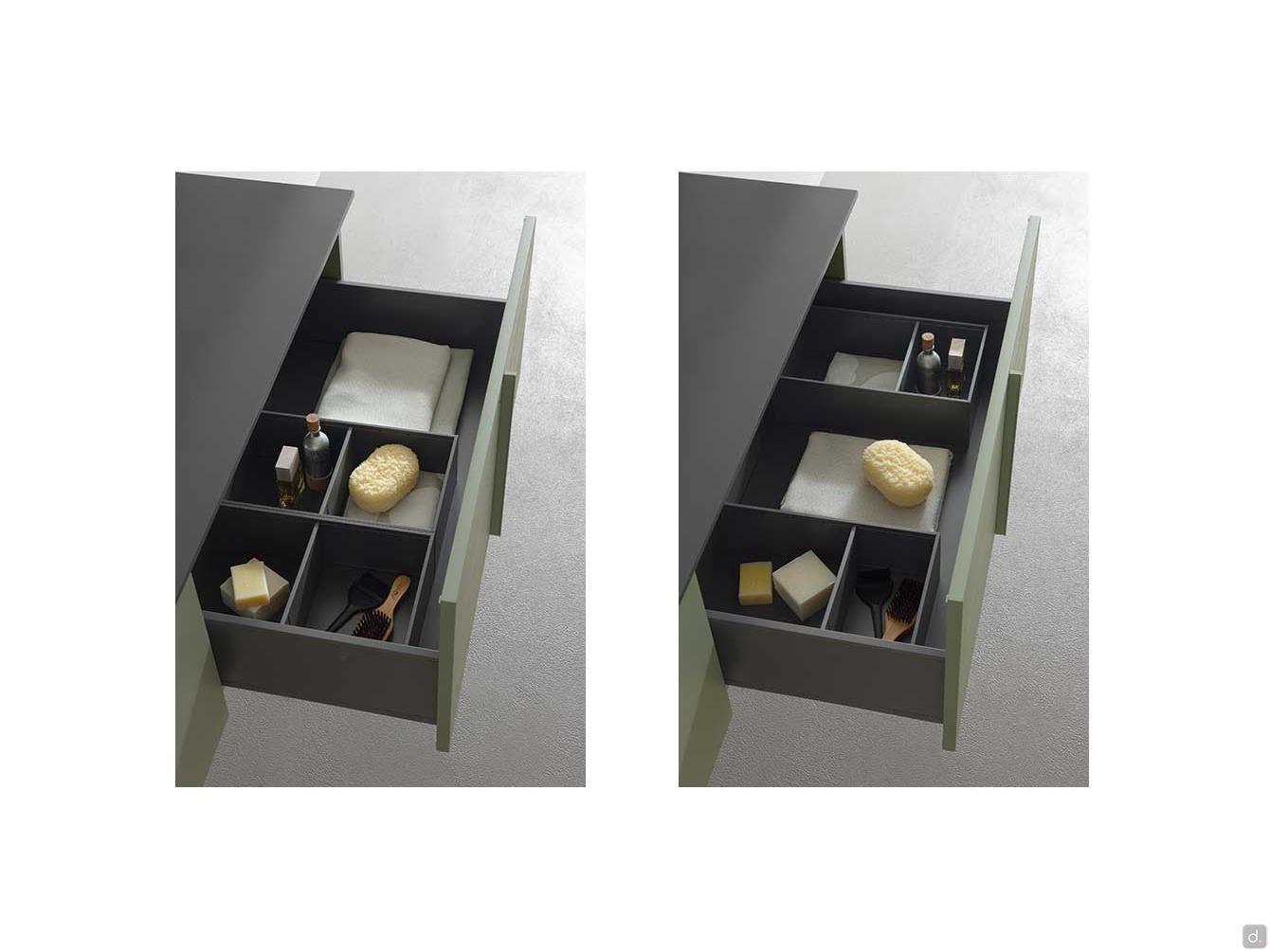

organiser: internal subdivision system to Legrabox drawer. Available in Canaletto Walnut or Orion Grey finish.

Maintenance Tips
Lacquer: use soft, non-abrasive cloths for cleaning to avoid surface damage. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Minera-Kolor: Powdered detergent combined with an abrasive sponge or a common chlorine or bleach-based cleaner is sufficient to remove most dirt and stains. For the removal of stains caused by limescale, the use of a common limescale remover is recommended. To maintain the artifact's original matte fnish, clean occasionally using i.e. disinfectant or a 1/20 solution of bleach diluted in water. To enhance the typical matte opalescent finish, occassionally wipe with an abrasive sponge, applying a circular motion.

Read more...
Minera-Kolor: is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom fittings. The technical glaze that covers the surface of the material is matte coloured, with excellent physical and chemical resistance. It is resistant to boiling water and temperature changes. Any colour variations that have arisen due to use can be easily removed by simple cleaning, using a lightly abrasive sponge by applying a circular motion.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Vedi Tab Video

Other Products from the same Collection
View all the products of the collection (cod.cmp)

Partner Factory

This bathroom furniture is a 100% Italian product made by a company from the province of Pordenone that started in the field during the 90s. Initially oriented towards the production of classic and modern bathrooms, it grew throughout the years earning national and international fame in the water and sanitary system as well. The company headquarters cover 16.500 square metres and are equipped with innovative machinery. Its business is characterised by the high quality standard of the materials employed, studied and renovated every year to follow the latest fashion. The solid wood comes from forests that follow regularised policies regarding tree cutting and all the other materials are either recycled or recyclable. Every productive phase takes place inside the company itself in order to guarantee the highest monitoring level.

The company creates its personal models but still focuses on the needs of modern housings in terms of space and taste. Moreover, the modular nature of the products allows for high customisable projects. It is possible to widen the initial composition with additional accessories and equipment in every moment. The wide collection and the colour range offered cover several different styles and types of environment: from a more elegant and refined bathroom to an original design, from soft and natural shades to pastel colours. Cabinets with drawers and baskets placed under the basin, wall-hung drawers, columns to store linen or beauty products, dressing tables of the most diverse shapes: the bathroom vanities of this collection are thought to satisfy every need.
