N109 - Frame
Wall Hung Bathroom Vanity

N109 Frame suspended bathroom unit with stone-effect washbasin, with stoneware top and basin. Oak wood base units, mirror and open compartment.

Description

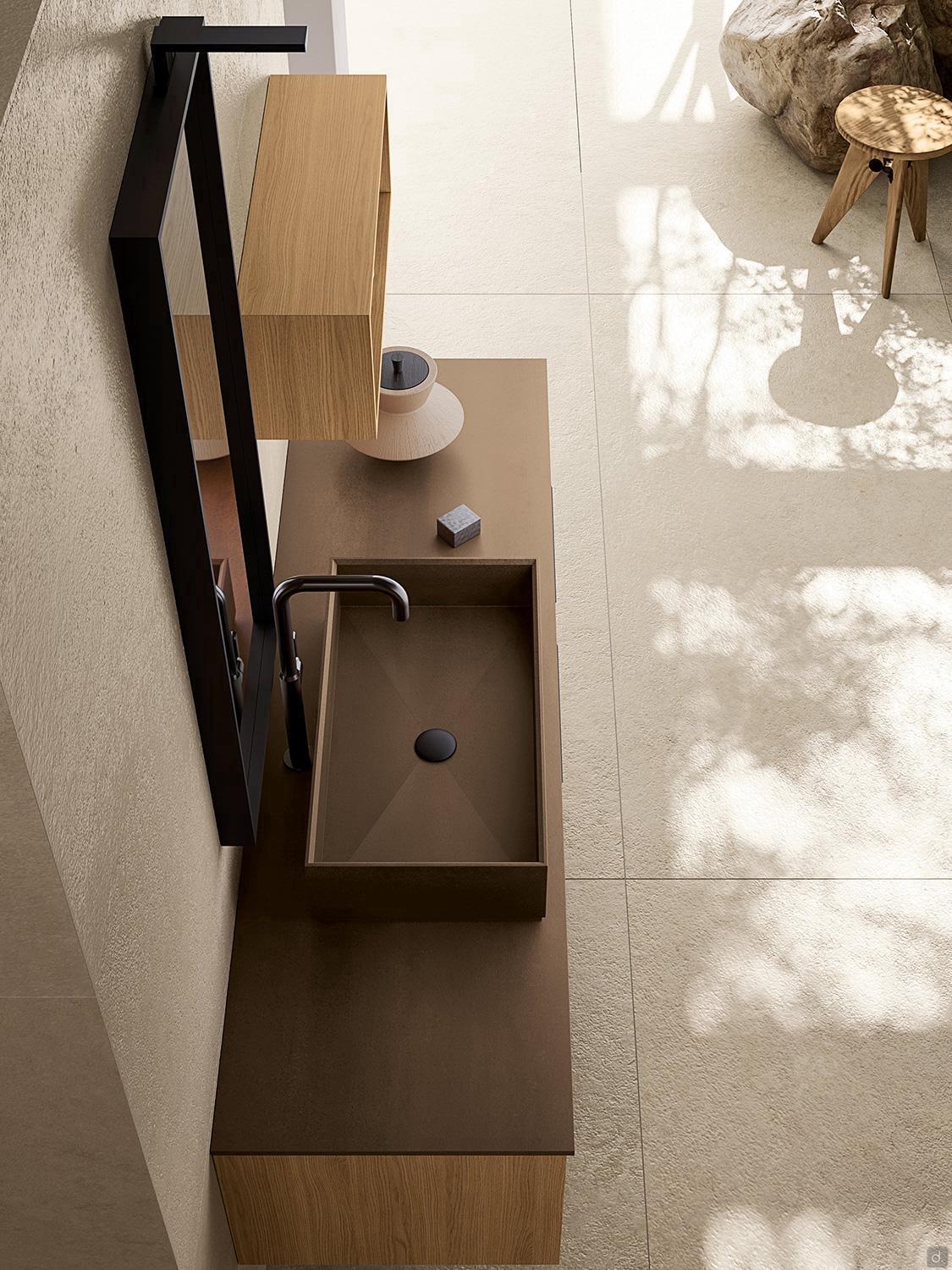

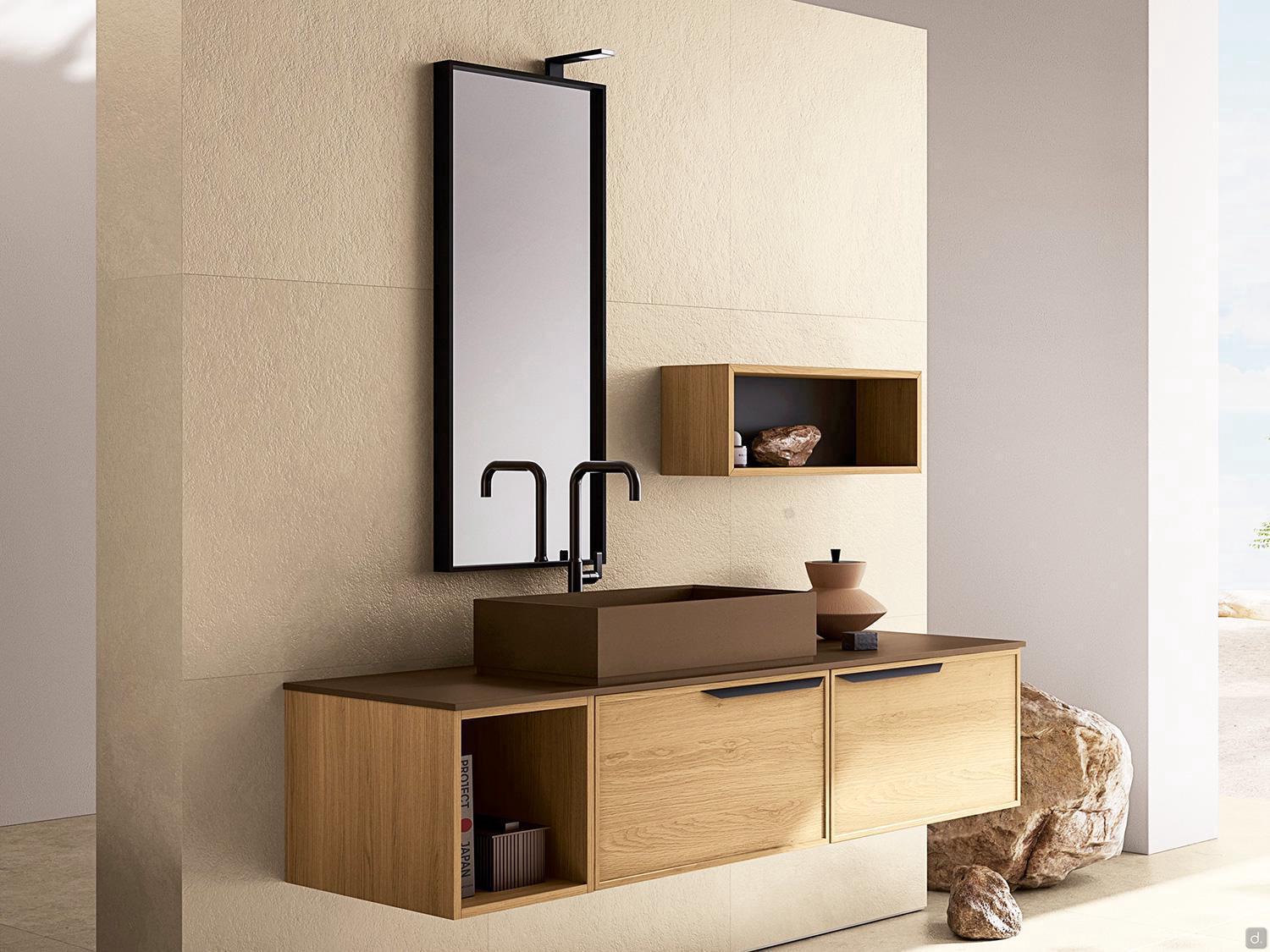

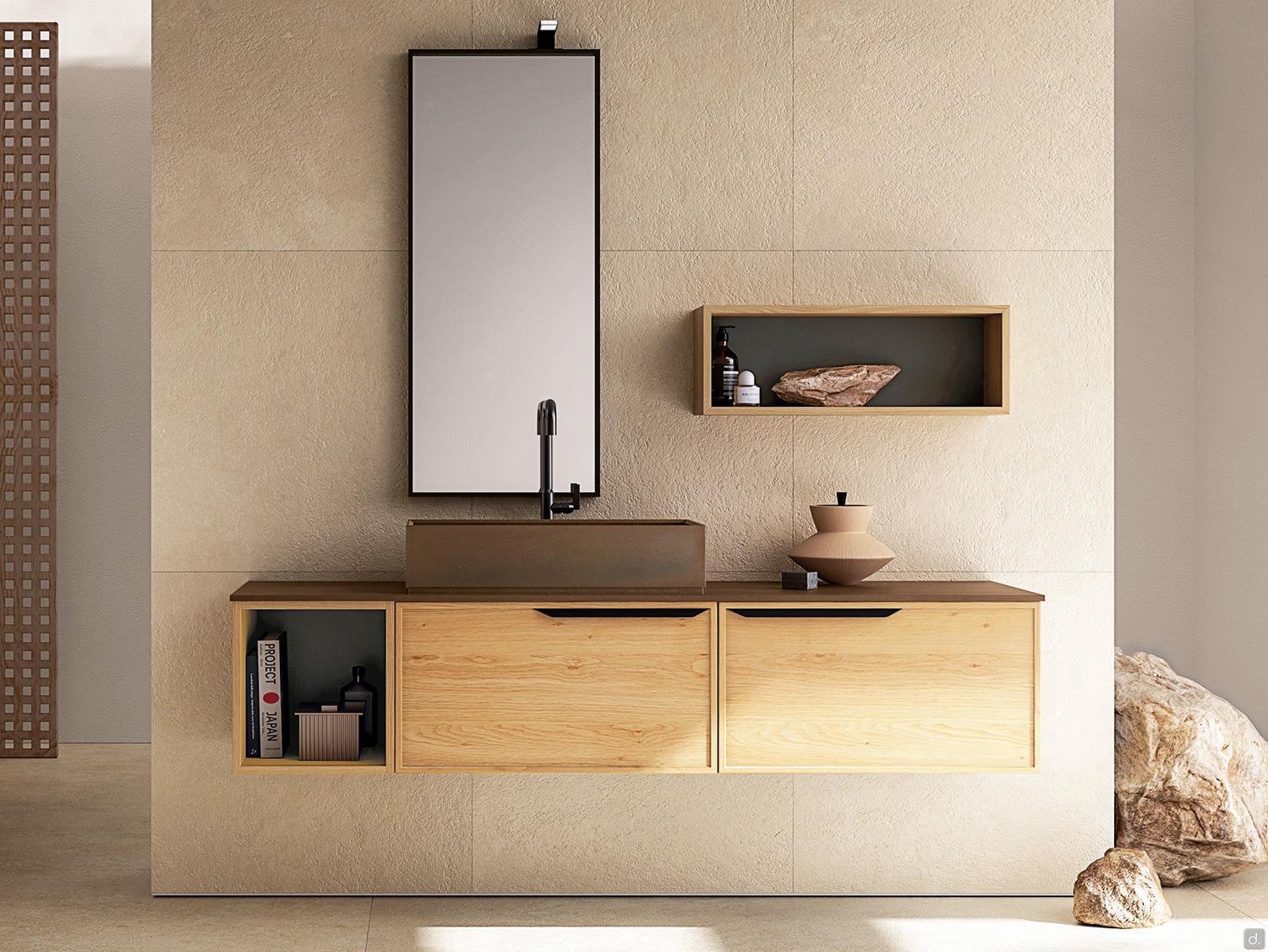

N109 Frame is a bathroom cabinet with a wall-hung stone-effect washbasin, 50 cm deep and 176 cm wide, with baskets, open compartments and a mirror with LED spotlight. The top and the all-out washbasin, entirely made of stoneware, dominate the central part, showing the sophisticated texture along the entire width of the composition.

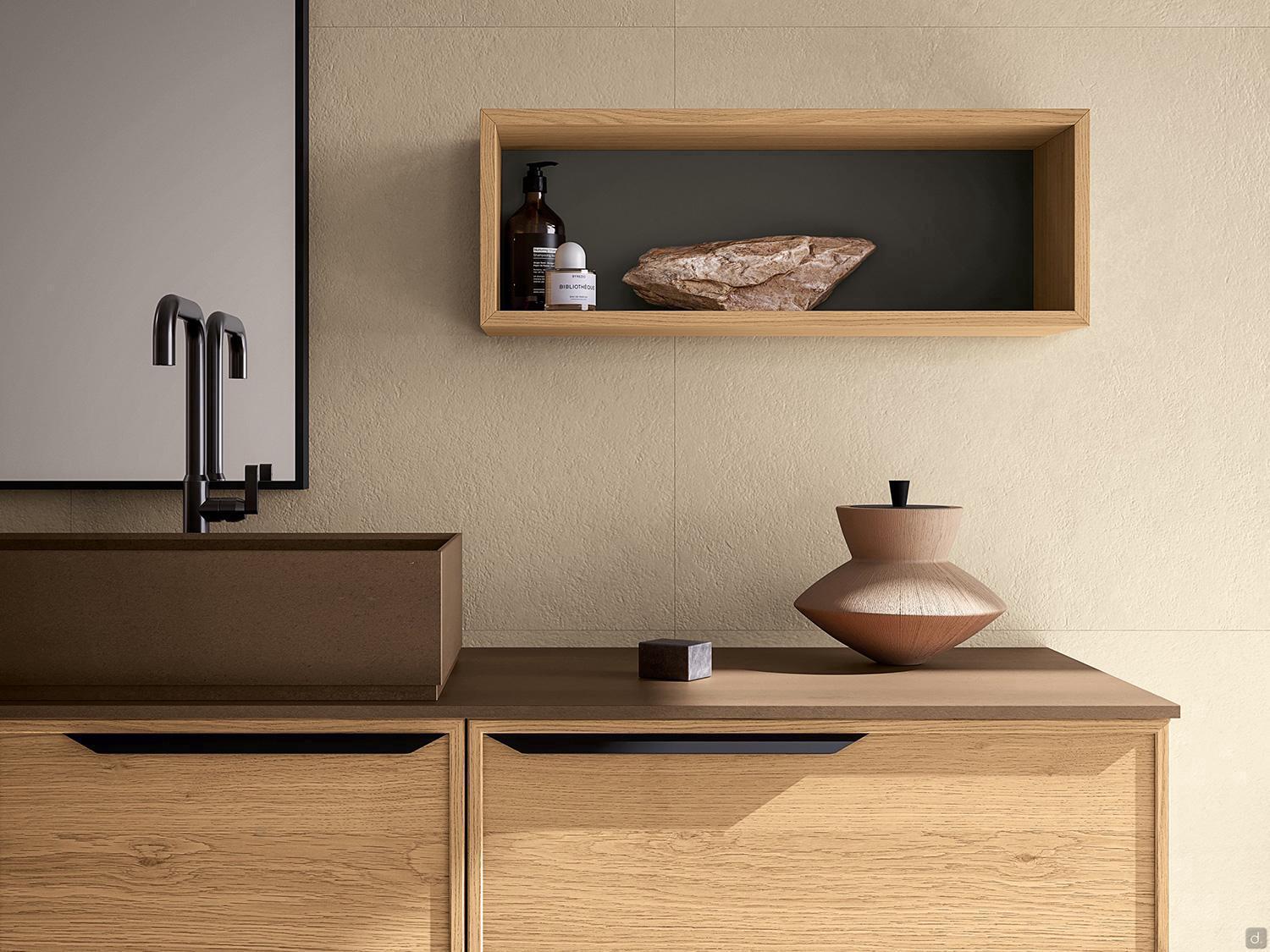

The base units made of oak wood are characterised by the visible solid wood frame, while the entire silhouette is lightened by the open compartment, placed to the side of the washbasin base unit. The mirror with metal frame and LED spotlight completes the composition, together with the open compartment above, perfect as a shelf for everyday objects.

Characteristics
generously sized wall-hung bathroom cabinet with baskets and open compartments
beautiful stoneware top with matching all-out washbasin
mirror with metal frame and LED spotlight
open compartments with grey matt lacquered back panel
knots and grains of the fronts enclosed by the solid wood frame

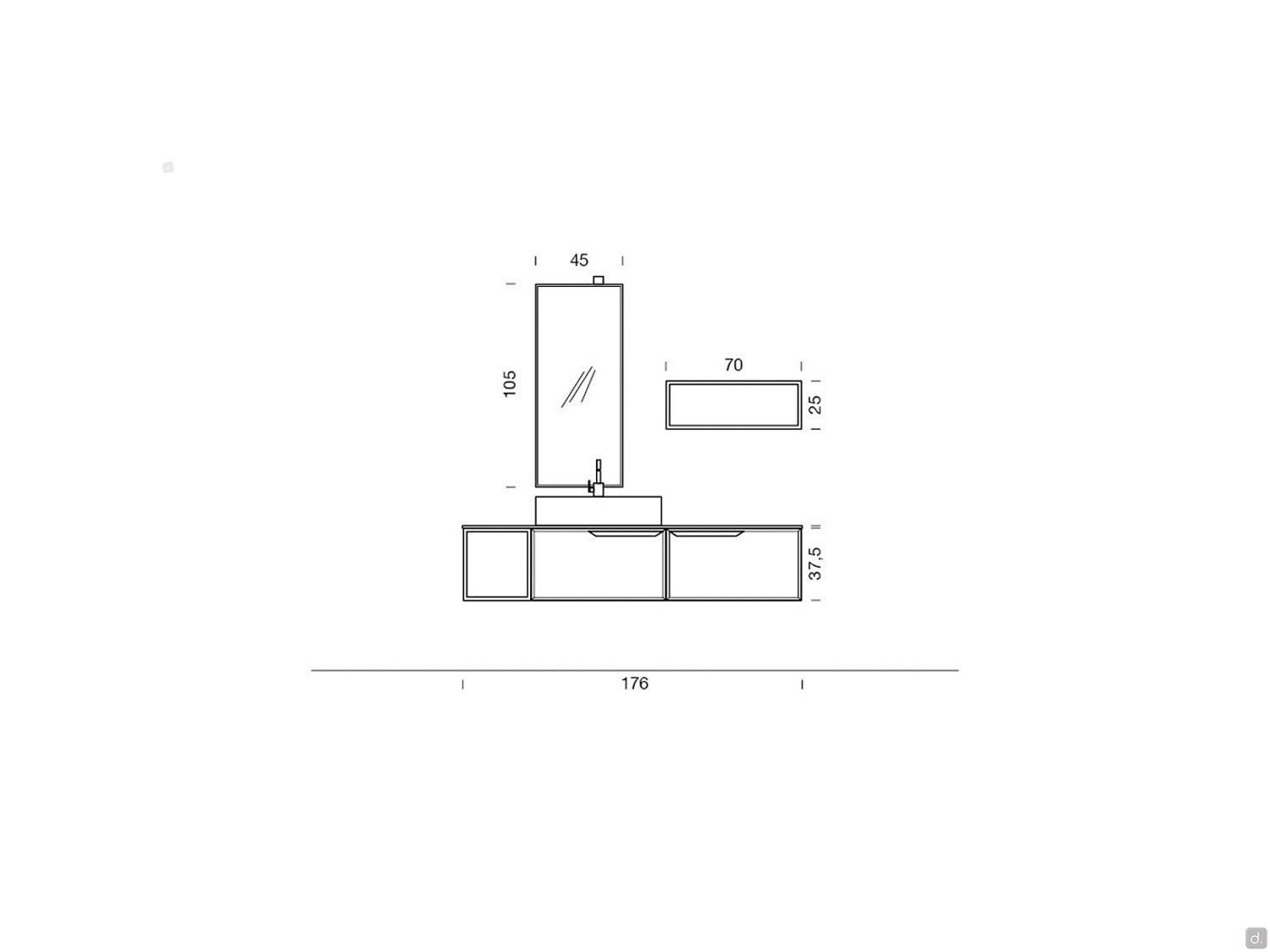

Measurements
Suspended bathroom cabinet
- cm 176 d.51 h.37,5
Accessories:
- mirror: cm 45 d.5,5 h.105
- open wall unit: cm 70 d.20,8 h.25

Materials and Finishes
Base, Wall Unit and Open Base:
- veneered wood
Top and Washbasin
- stoneware

Purchase Information
The top protrudes 1 cm at the front and 0.5 cm at the side. The overall height of the bathroom furniture is equal to the sum of the height of the base and the thickness of the top, it is therefore 1.3 cm higher than indicated in the configurator.
The washbasin is not provided with an overflow hole and the tapware is not included; among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Features
The N109 Frame bathroom furniture is composed of:
n.1 base unit with n.1 drawer: cm 70 p.50 h.37,5.
n.1 base unit with n.1 drawer: cm 70 d.50 h.37,5.

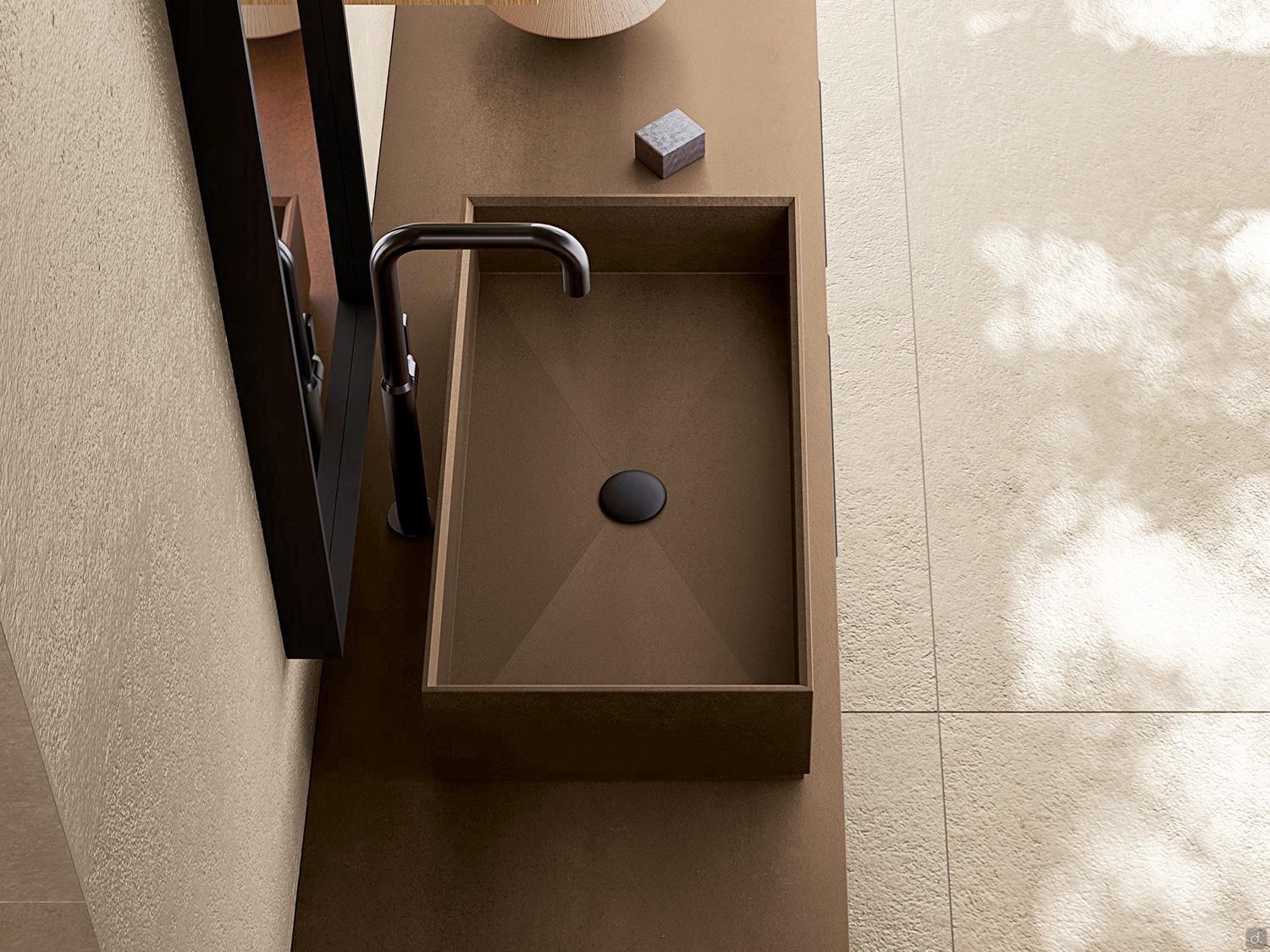

n.1 all-out washbasin in stoneware stoneware mod. Logyn cm 65 p.36 h.15. The dimensions of the basin are: cm 62,5 d.33,5 h.12,5. It does not have an overflow hole and a hole for mixer Ø 3.5 cm.
n.1 stoneware top: cm 176 d.51 sp.1,3.

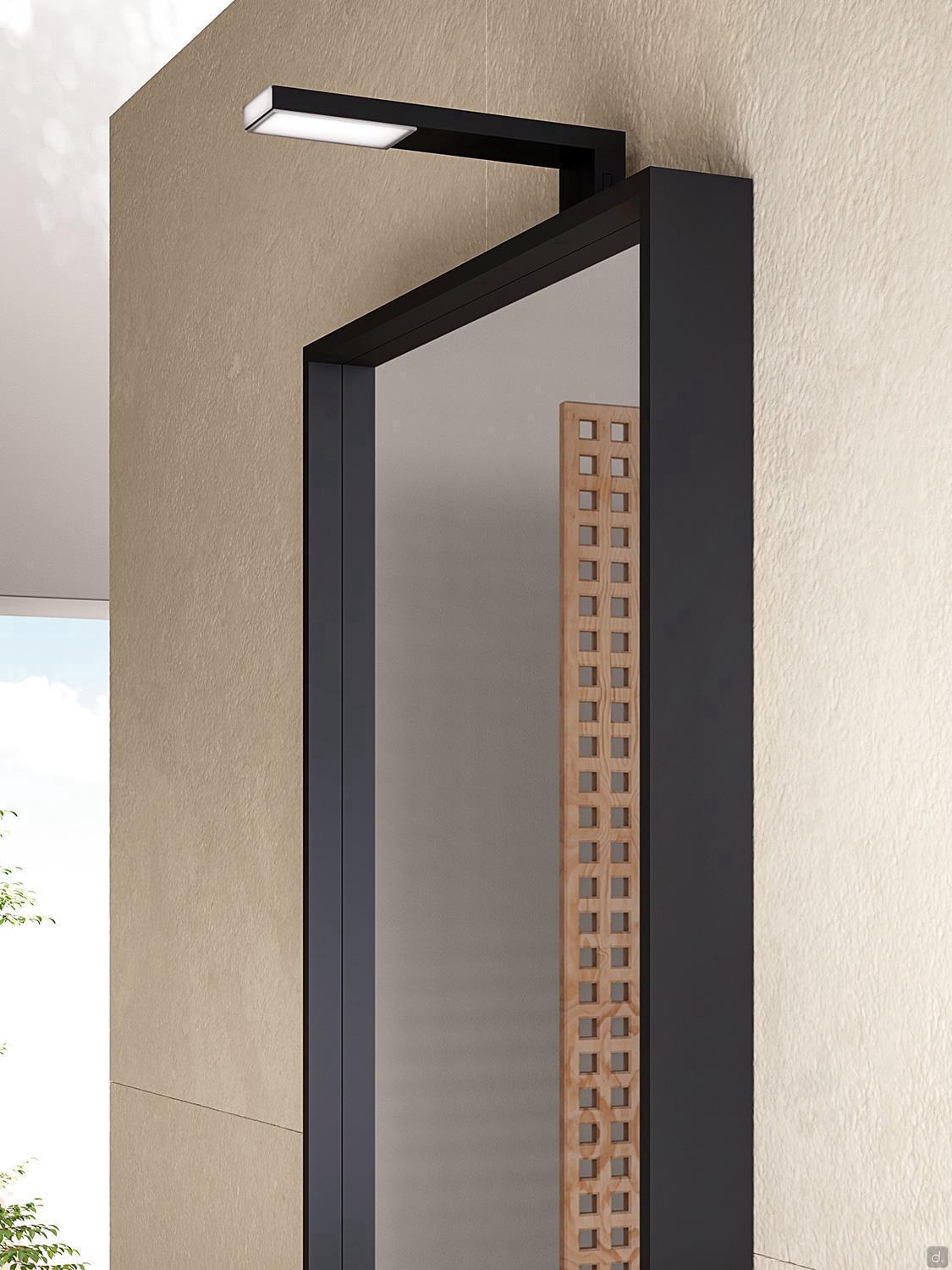

n.1 Look mirror: cm 45 sp.5,5 h.105 with LED spotlight model Ziko (3,5W, 230V, IP44, 4000K, 338lm).
n.1 open wall unit: cm 35 p.50 h.37,5. Back in orion grey finish.

Structure: cm 1.8 thick made of particle board panels, then veneered with vertical grain.
Fronts: made of solid oak frame and central panel of 2 cm thick particle board, then veneered with horizontal grain.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.

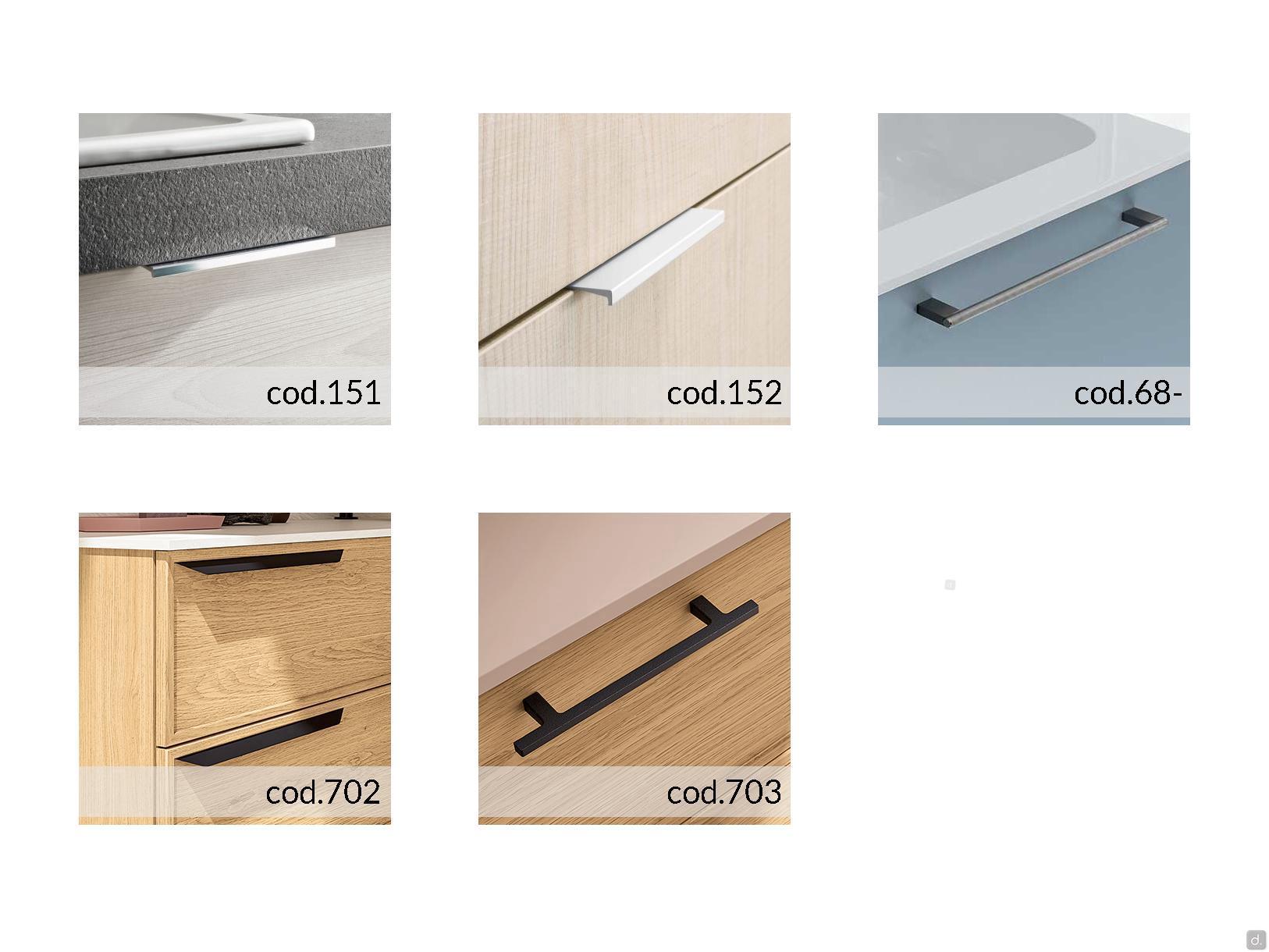

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles mod.152 are available in matt lacquered finish in all sample colours.
Handles mod.68- protrude 4 cm from the door surface, while handles mod.703 protrude 3 cm.

Washbasin Model	Dimensions	Internal basin	Type Built-in	Mixer Hole	Overflow
Logyn - stoneware	cm 65 d.36 h.15	cm 62,5 d.33,5 h.12,5	allround	on central top	no

N.B. The mixer hole has a standard diameter of 3.5 cm.
For washbasins without an overflow hole, the use of a continuous drain is recommended.

Optional
splashback: designed to complete bathroom furniture with tops in HPL laminated veneer, marble stone, stoneware or quartz-resin; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.

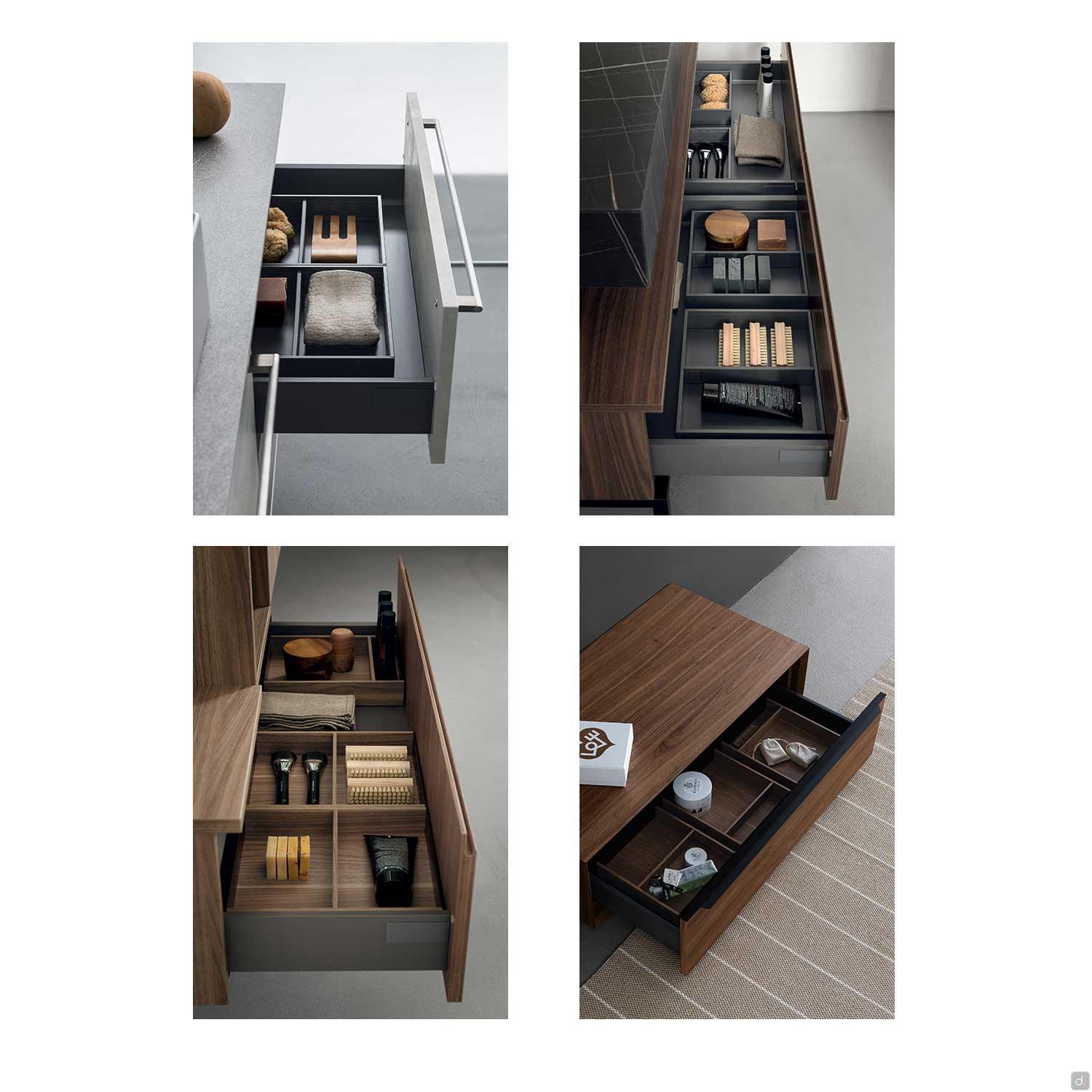

organisers: internal partitioning system for Legrabox drawer and basket. Available in Canaletto walnut and Orione finish.
Open element: cm 70 d.20,8 h.25. Wooden structure essence 838 Raw oak, back in Orione grey finish.

Maintenance Tips
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is advisable to clean the top in the direction of the grain and dry carefully.
Stoneware: to prevent stains, clean promptly with a damp cloth or neutral detergents. We recommend the use of neutral detergents.

Read more...
Stoneware : Porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Vedi Tab Video

Cubic Metres
0,44 m³
