Material Specifications
Structure: 1.8 cm thick particle board panels, then lacquered or veneered with vertical grain.

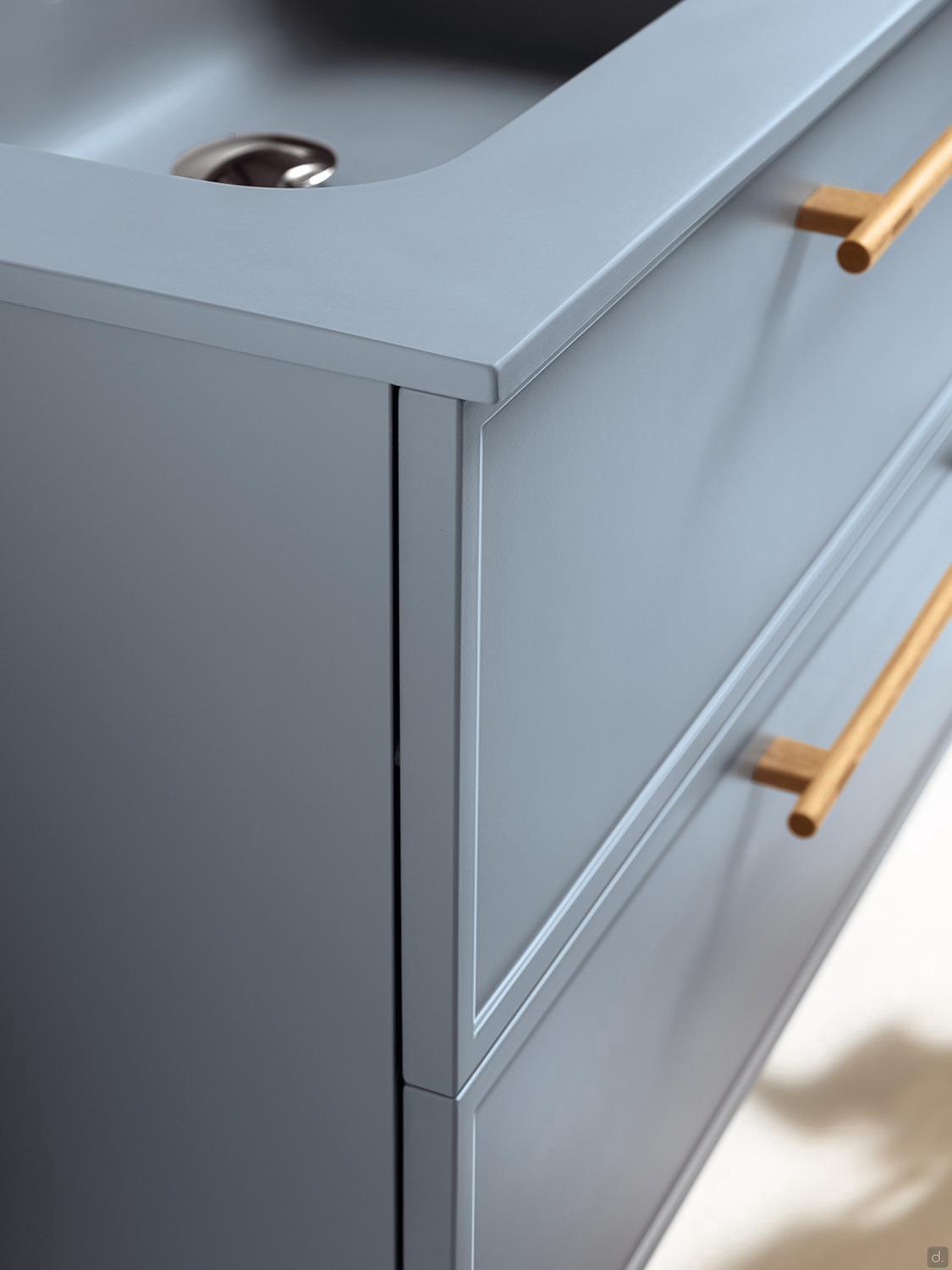

Fronts: doors, drawers and baskets made of 1.9 cm thick MDF panels in the lacquered version, and of 2 cm thick particle board in the veneered version with horizontal grain.
Technical Specifications and Equipment
Structure: characterised by a free back for the passage of drains.

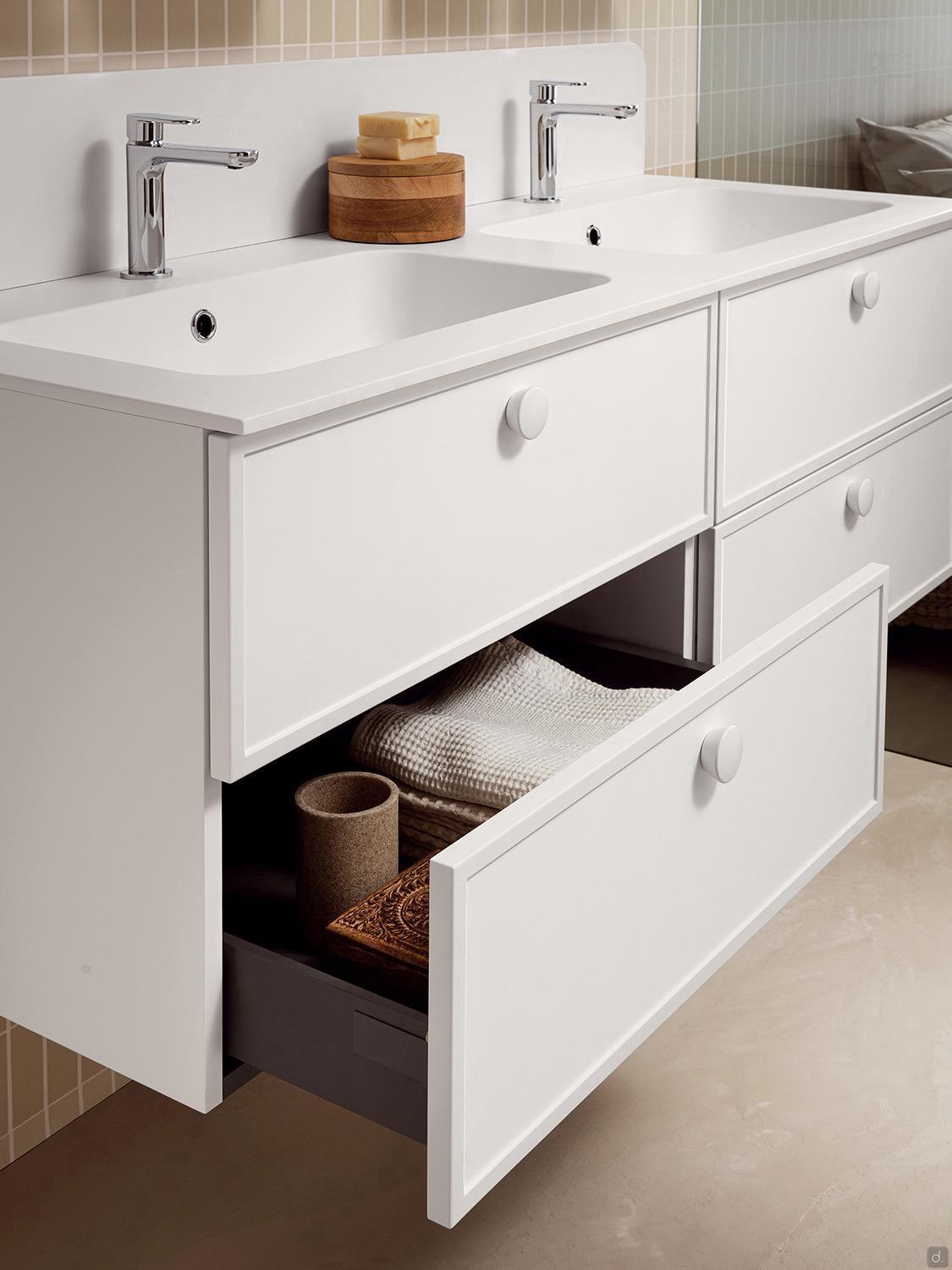

Drawers / Legrabox drawer: equipped with a metal frame characterised by straight sides both internally and externally, only 1.28 cm thick. Full-extension runners and slow-closing mechanism.
Doors: fitted as standard with Smoove hinges that allow slow closing.

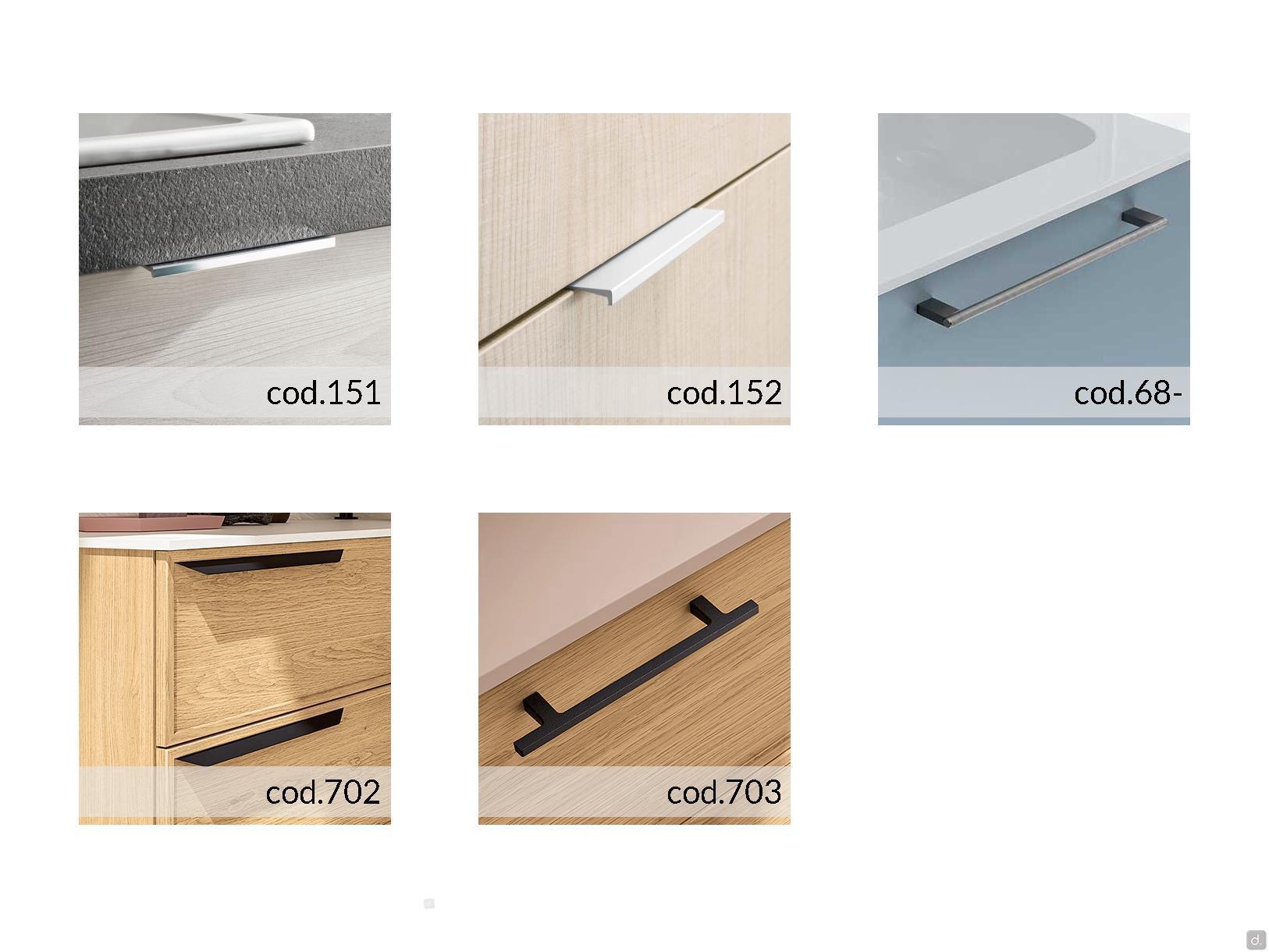

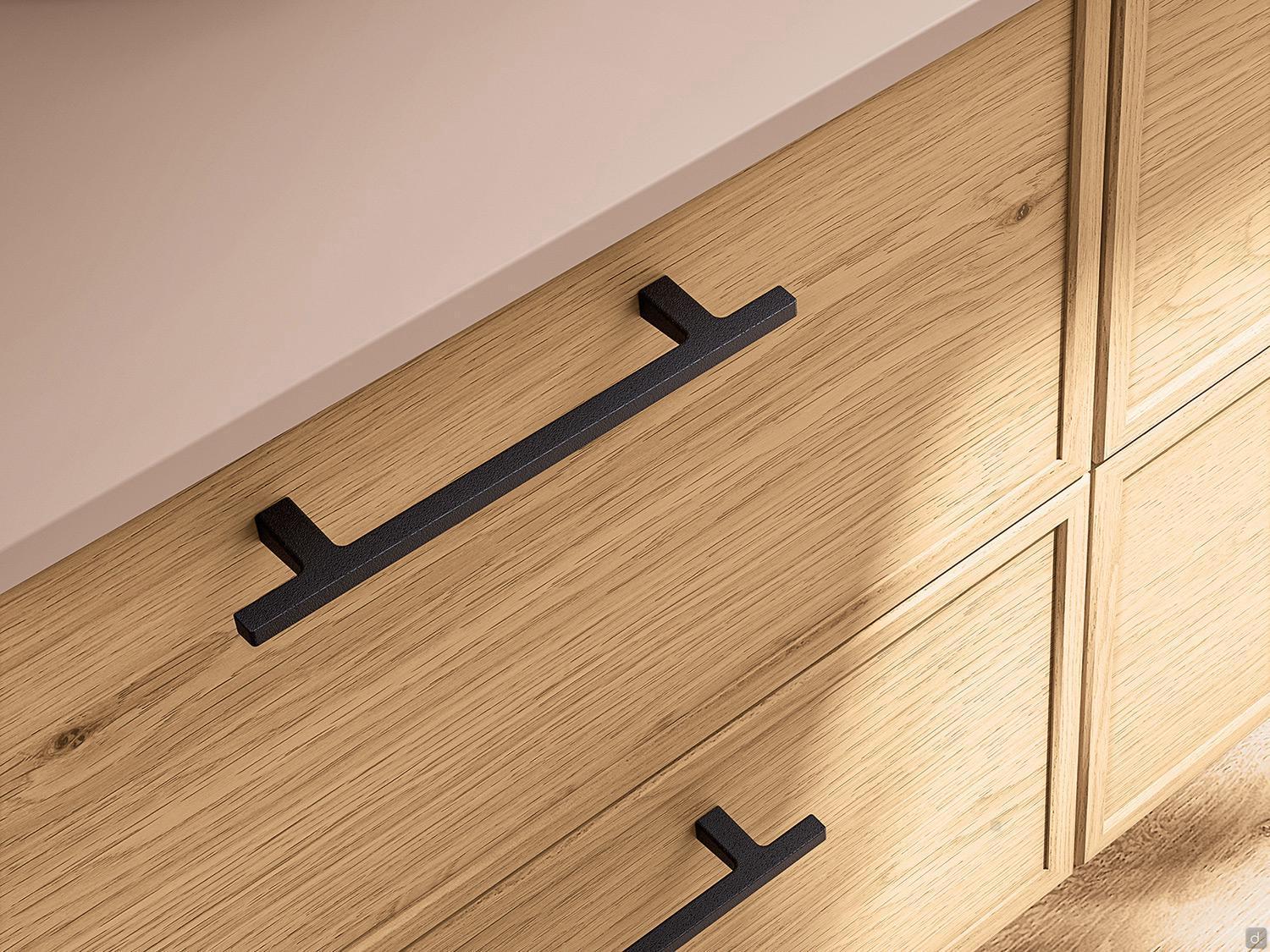

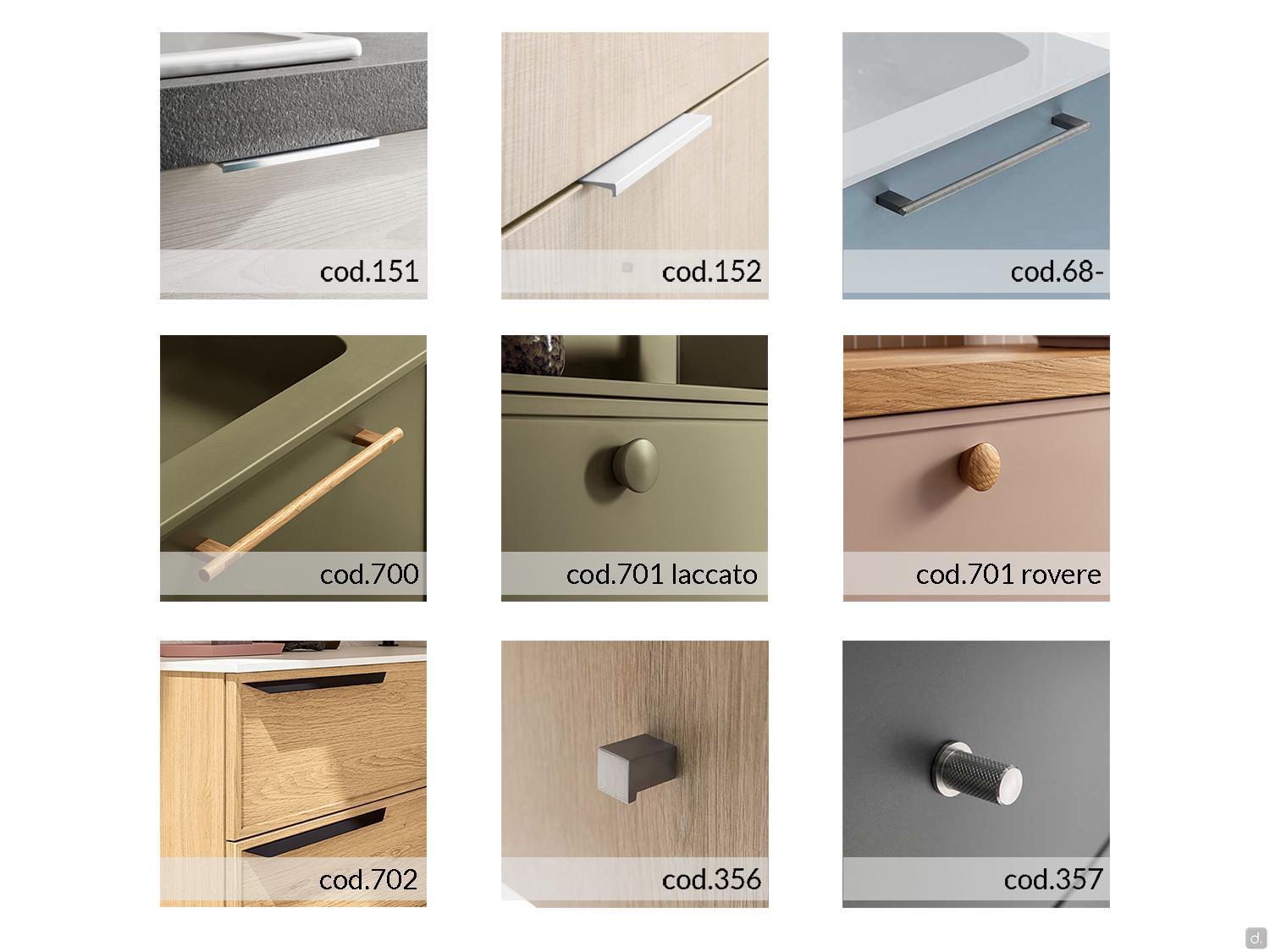

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles codes 152 and 701 are available in a matt lacquered finish in all sample colours.
The handles mod. 68- protrude 4 cm from the door surface, while the 703 handles protrude 3 cm.
Feet cm h.1: concealed adjustable.
Feet cm h.10: with rectangular or shaped section, available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted lacquered metal in all sample colours.
Feet: cm h.20: with square cross-section available in satin nickel metal, matt lacquered or sandblasted lacquered in all sample colours.
Plinth: cm h.6 / 10 / 15 in aluminium or matt lacquered in all sample colours.

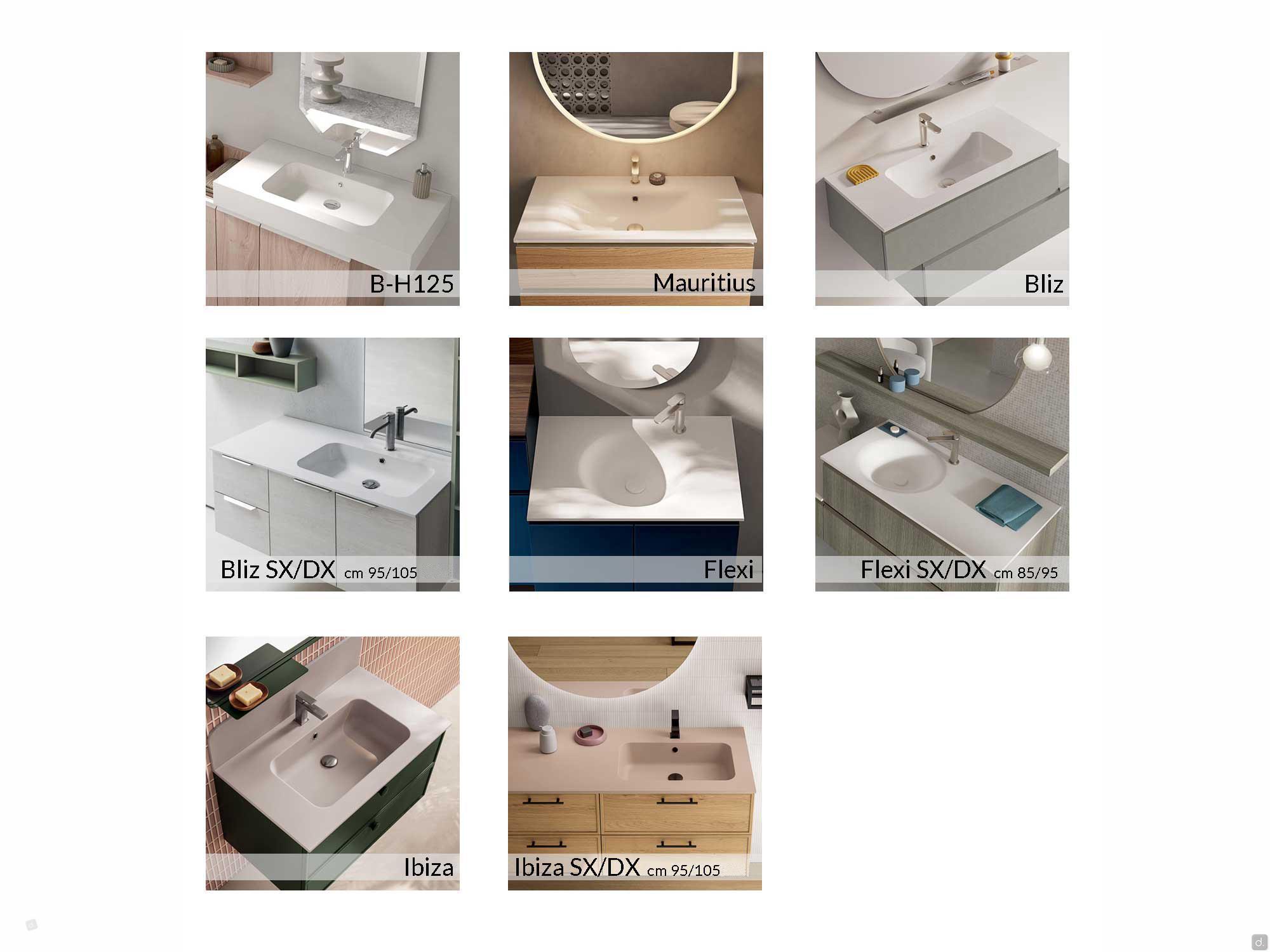

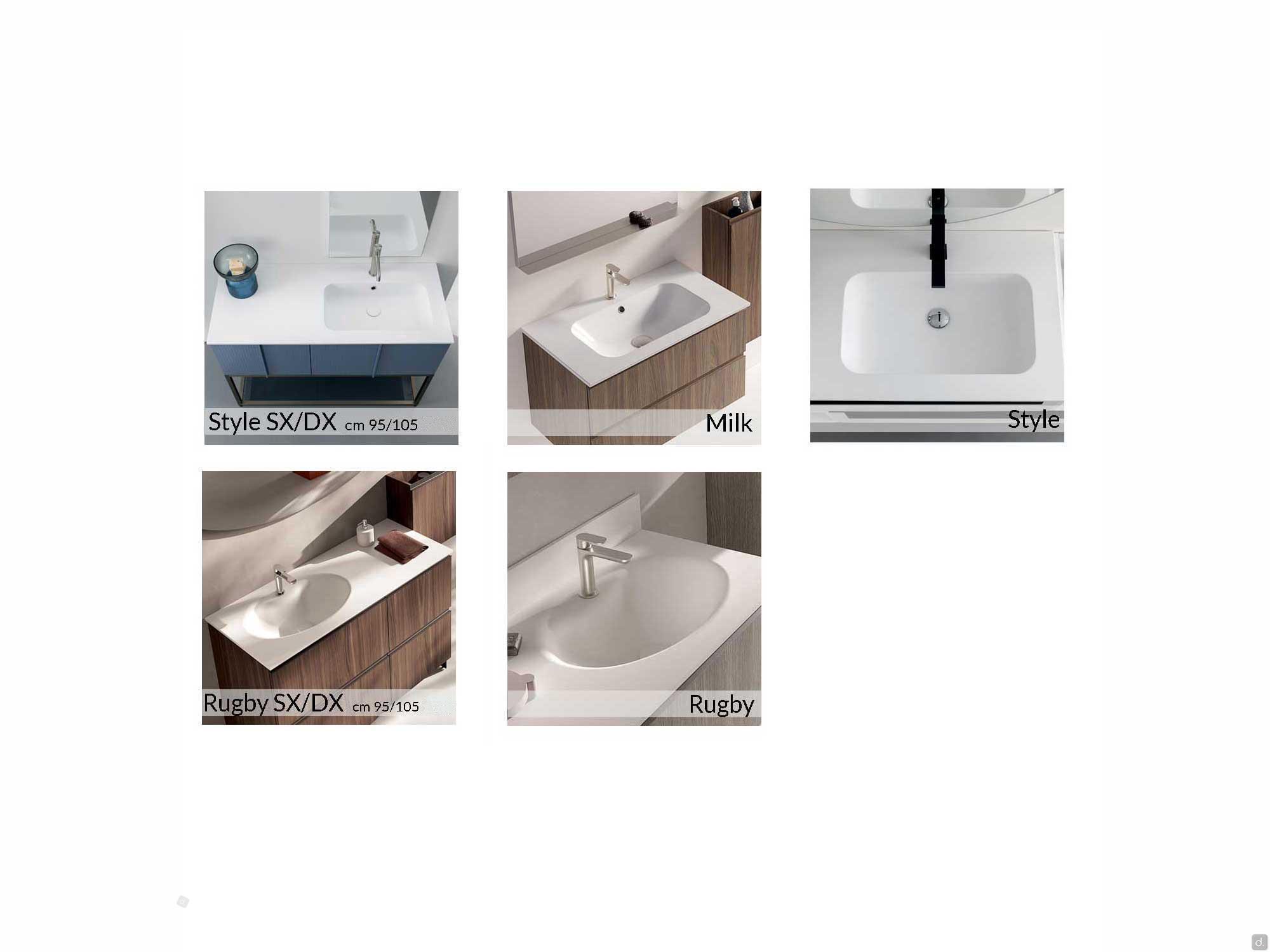

| Washbasin Model |
Dimensions |
Internal basin |

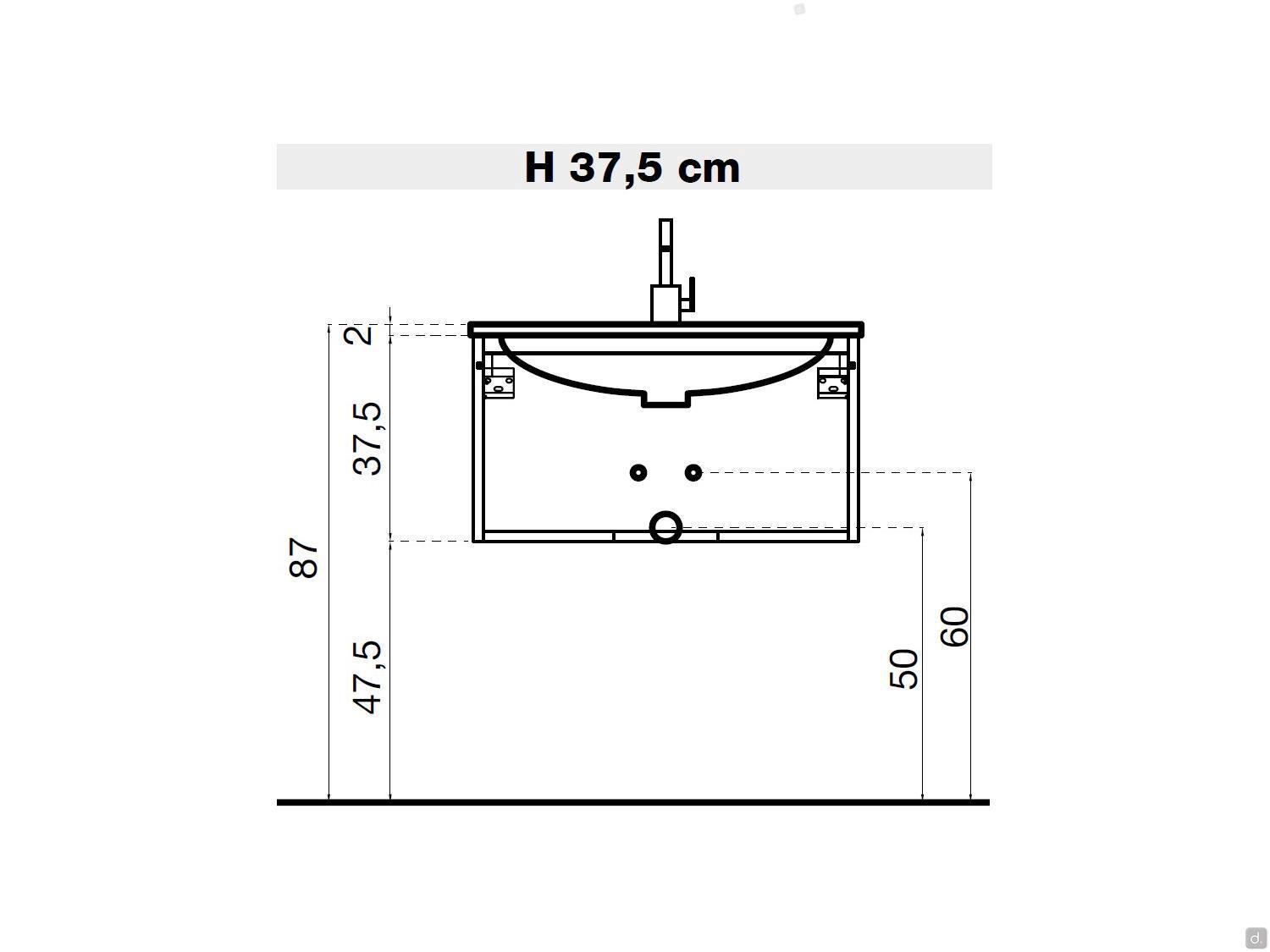

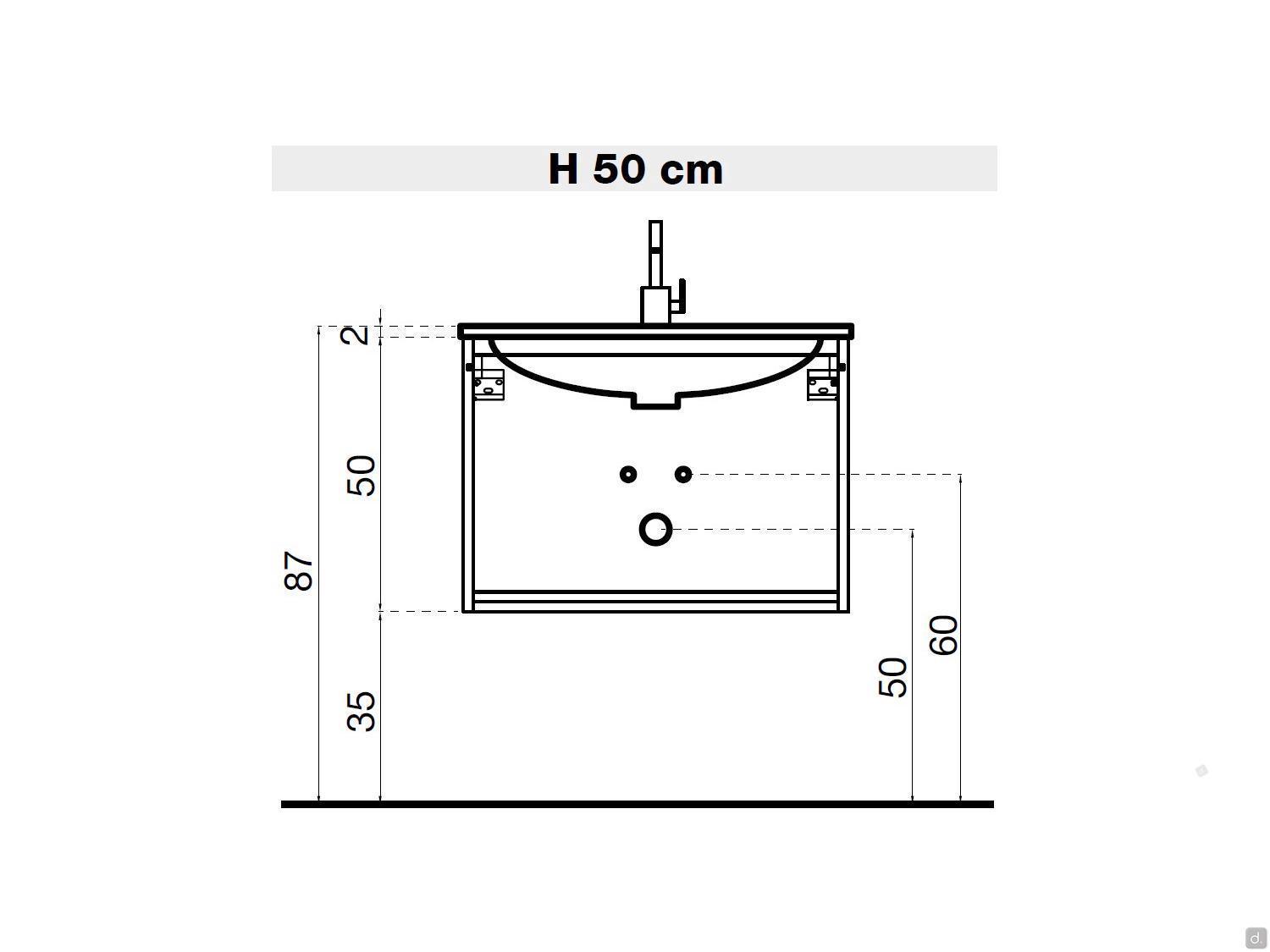

Base Depth |
Overflow |
| Zara 70 - glossy white ceramic |
cm 73 d.48 h.16 |
cm 59 d.29,5/19 h.12 |
cm 37 |
yes |
| Zara 85 - glossy white ceramic |
cm 88 d.48 h.16 |
cm 62 d.29,5/19 h.12 |
cm 37 |
yes |
| Zara 95 - glossy white ceramic |
cm 98 d.48 h.16 |
cm 72 d.29,5/19 h.12 |
cm 37 |
yes |
| Bliz - glossy white mineralguss |
cm 70,5 d.51,5 h.17,5
cm 85,5 d.51,5 h.17,5
cm 95,5 d.51,5 h.17,5
cm 105,5 d.51,5 h.17,5
cm 120,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Mauritius 60 - matt white ceramic |
cm 61 d.51 h.16,8 |
cm 53 d.38 h.12,3 |
cm 50 |
yes |
| Mauritius 70 - ceramic matt white |
cm 71 d.51 h.16,8 |
cm 63 d.38 h.12,3 |
cm 50 |
yes |
| Mauritius 85 - ceramic matt white |
cm 86 d.51 h.16,8 |
cm 72 d.38 h.12,3 |
cm 50 |
yes |
| Mauritius 95 - ceramic matt white |
cm 96 d.51 h.16,8 |
cm 75,7 d.38 h.12,3 |
cm 50 |
yes |
| Milk 60 - glossy white ceramic |
cm 61,5 d.51,5 h.18 |
cm 43 d.33 h.13 |
cm 50 |
yes |
| Milk - glossy white ceramic |
cm 71,5 d.51,5 h.18
cm 86,5 d.51,5 h.18
cm 96,5 d.51,5 h.18
cm 106,5 d.51,5 h.18
cm 121,5 d.51,5 h.18 |
cm 50 d.33 h.13
cm 57 d.33 h.13
cm 57 d.33 h.13
cm 64 d.33 h.13
cm 64 d.33 h.13 |
cm 50 |
yes |
| Ibiza 60 - minera-kolor matt |
cm 60,5 d.51,5 h.17,5 |
cm 48 d.30 h.12,5 |
cm 50 |
yes |
| Ibiza 70 - matt minera-kolor |
cm 70,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Ibiza 85 - matt minera-kolor |
cm 85,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Ibiza 95 - matt minera-kolor |
cm 95,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Style 60 - mineralguss matt white |
cm 60,5 d.51,5 h.17,5 |
cm 48 d.30 h.12,5 |
cm 50 |
yes |
| Style 70 - mineralguss matt white |
cm 70,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Style 85 - mineralguss matt white |
cm 85,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |
| Style 95 - mineralguss matt white |
cm 95,5 d.51,5 h.17,5 |
cm 54 d.30 h.12,5 |
cm 50 |
yes |

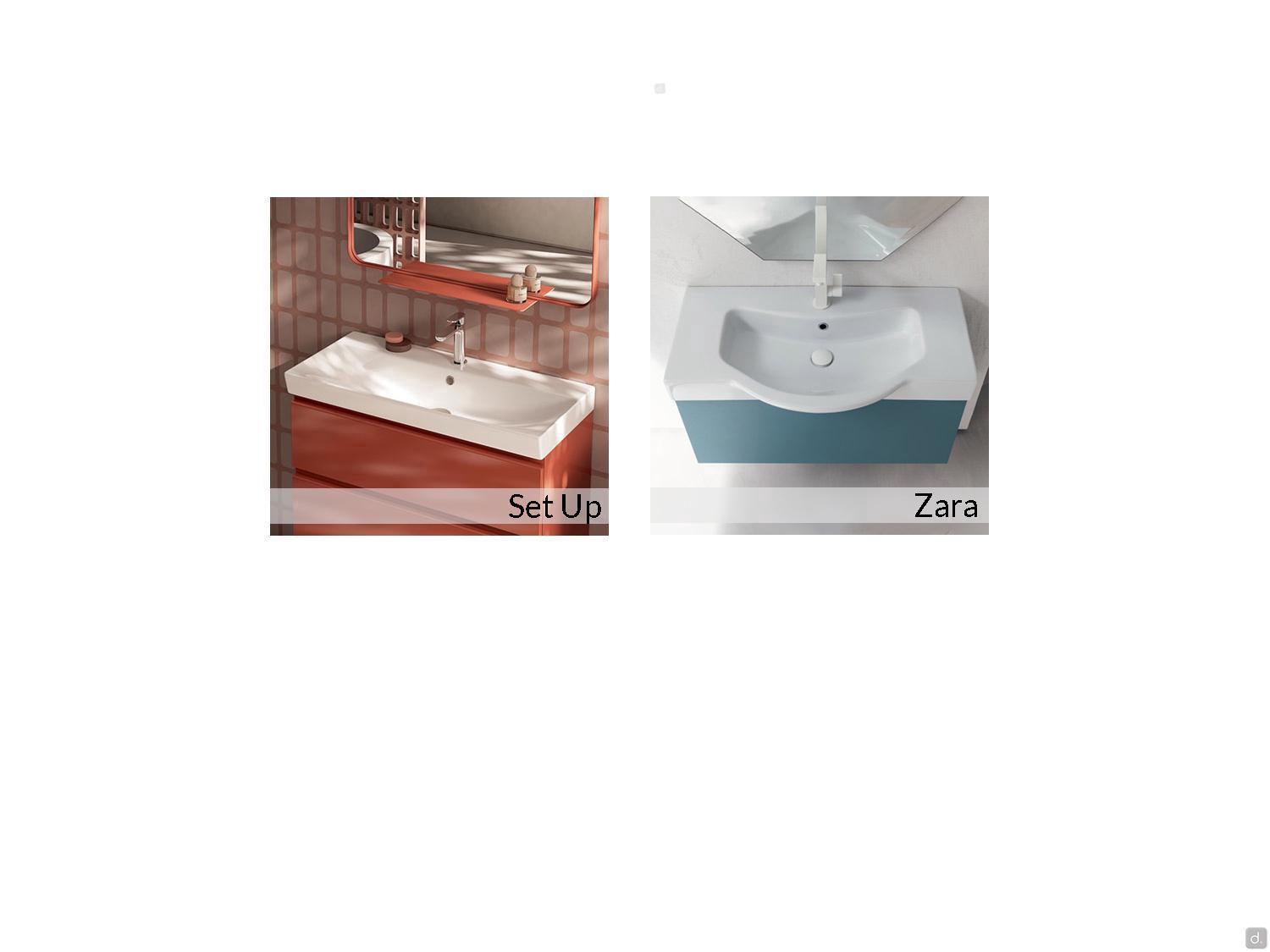

| Set Up 52 - ceramic glossy white |
cm 52,5 d.40 h.17 |
cm 51 d.28 h.12 |
cm 37 |
yes |
| Set Up 71 - glossy white ceramic |
cm 71 d.40 h.17 |
cm 69 d.28 h.11,5 |
cm 37 |
yes |
| Set Up 86 - glossy white ceramic |
cm 86 d.40 h.17 |
cm 84 d.28 h.11,5 |
cm 37 |
yes |
| Set Up 96 - glossy white ceramic |
cm 96 d.40 h.17 |
cm 94 d.28 h.11,5 |
cm 37 |
yes |
| B-H125 61 - glossy white mineralguss |
cm 61 d.51 h.12,5 |
cm 48 d.30 h.10,5 |
cm 50 |
yes |
| B-H125 71 - glossy white mineralguss |
cm 71 d.51 h.12,5 |
cm 54 d.30 h.10,5 |
cm 50 |
yes |
| B-H125 86 - glossy white mineralguss |
cm 86 d.51 h.12,5 |
cm 54 d.30 h.10,5 |
cm 50 |
yes |
| B-H125 96 - glossy white mineralguss |
cm 96 d.51 h.12,5 |
cm 54 d.30 h.10,5 |
cm 50 |
yes |
| Flexi 61 - matt white corian |
cm 61 d.51 h.1,3 |
cm 39 d.39 h.11 |
cm 50 |
yes |
| Flexi 71 - matt white corian |
cm 71 d.51 h.13 |
cm 39 d.39 h.11 |
cm 50 |
yes |
| Flexi 86 - matt white corian |
cm 86 d.51 h.13 |
cm 39 d.39 h.11 |
cm 50 |
yes |
| Flexi 96 - matt white corian |
cm 96 d.51 h.13 |
cm 39 d.39 h.11 |
cm 50 |
yes |
|
| Rugby 71 - matt white corian |
cm 71 d.51 h.16 |
cm 58 d.30 h.14 |
cm 50 |
no |
| Rugby 86 - matt white corian |
cm 86 d.51 h.16 |
cm 58 d.30 h.14 |
cm 50 |
no |
| Rugby 96 - matt white corian |
cm 96 d.51 h.16 |
cm 58 d.30 h.14 |
cm 50 |
no |
N.B. All the above washbasins are equipped with a hole for the central mixer with a standard diameter of 3.5 cm.
For washbasins without an overflow hole, the use of a continuous drain is recommended.
The indicated dimensions of all ceramic washbasins may vary in size (specifically by approximately 0.8%) due to wear and tear on the moulds or small variations in the technical characteristics of the materials that make up the mix.
Optional

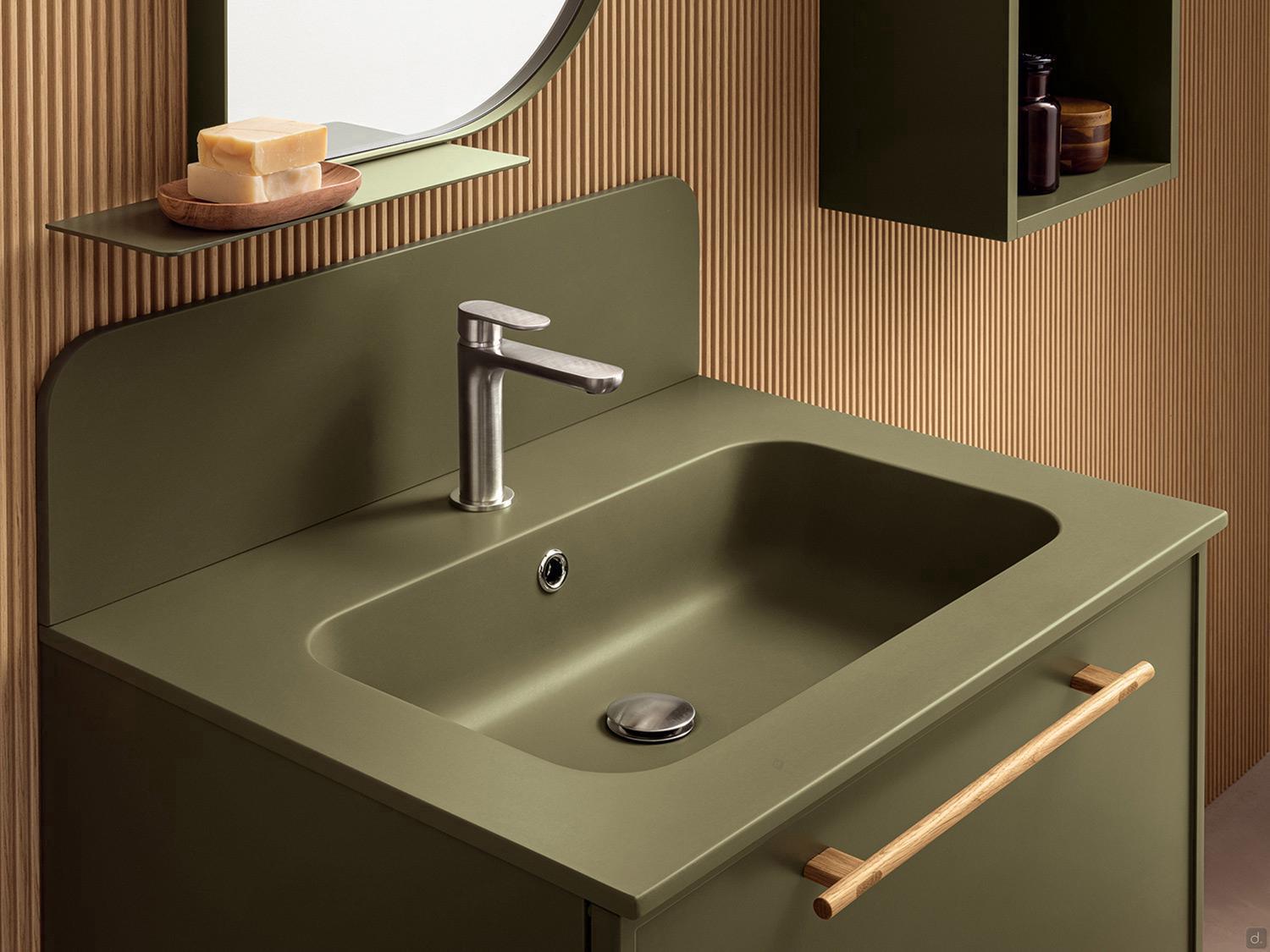

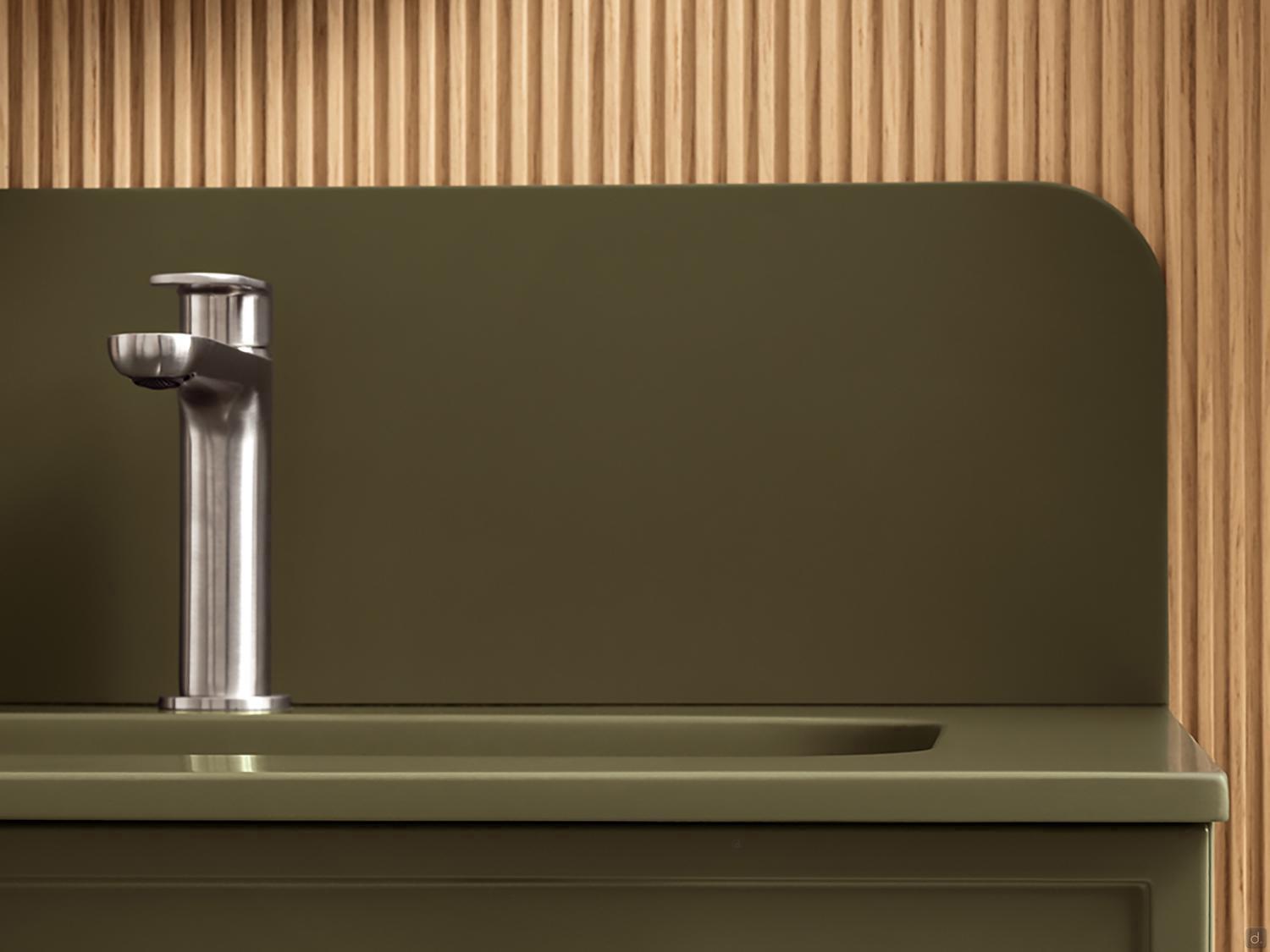

splashback: designed to complete bathroom furniture with tops in Mineralguss or Minera-Kolor; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.

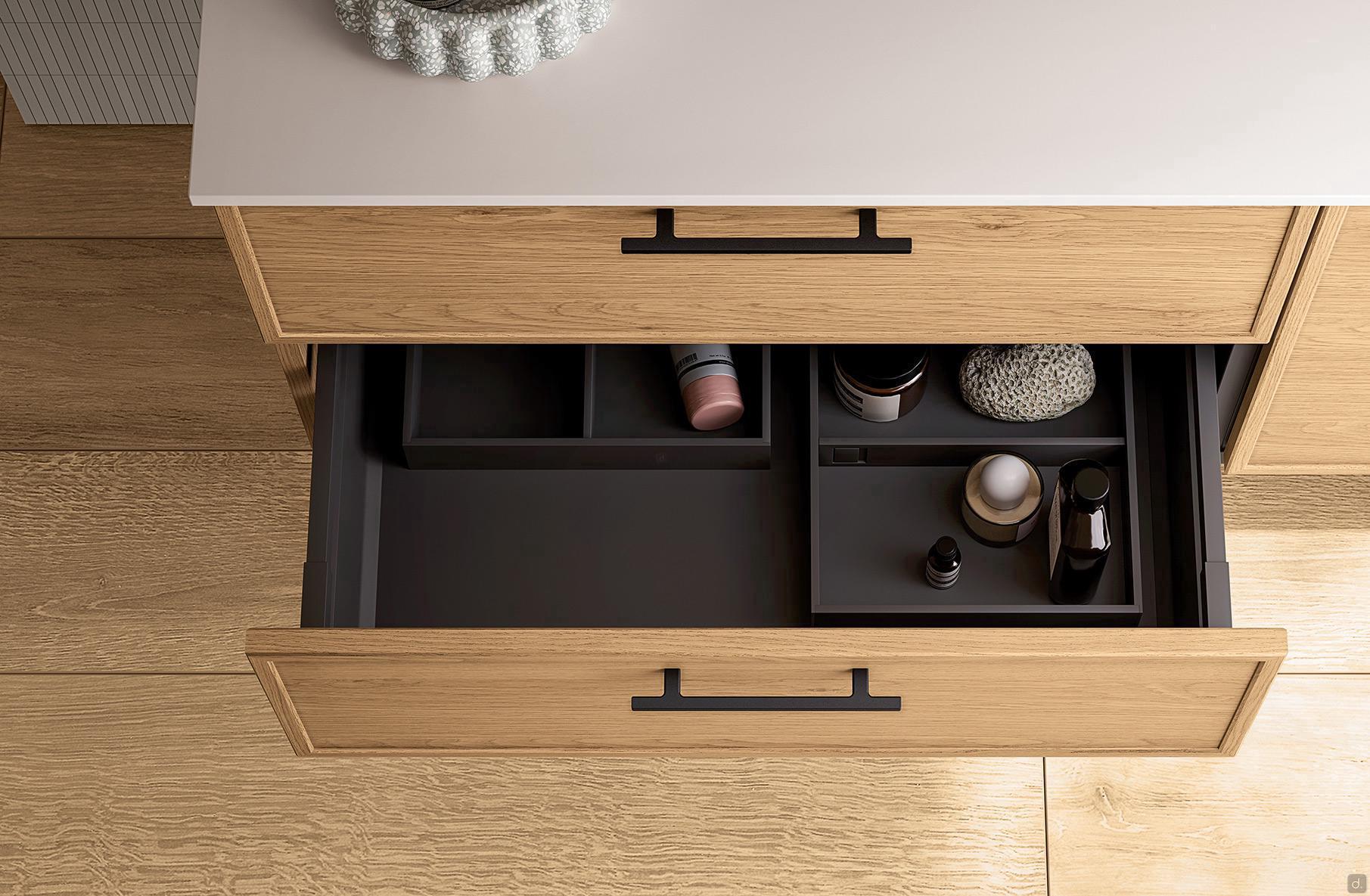

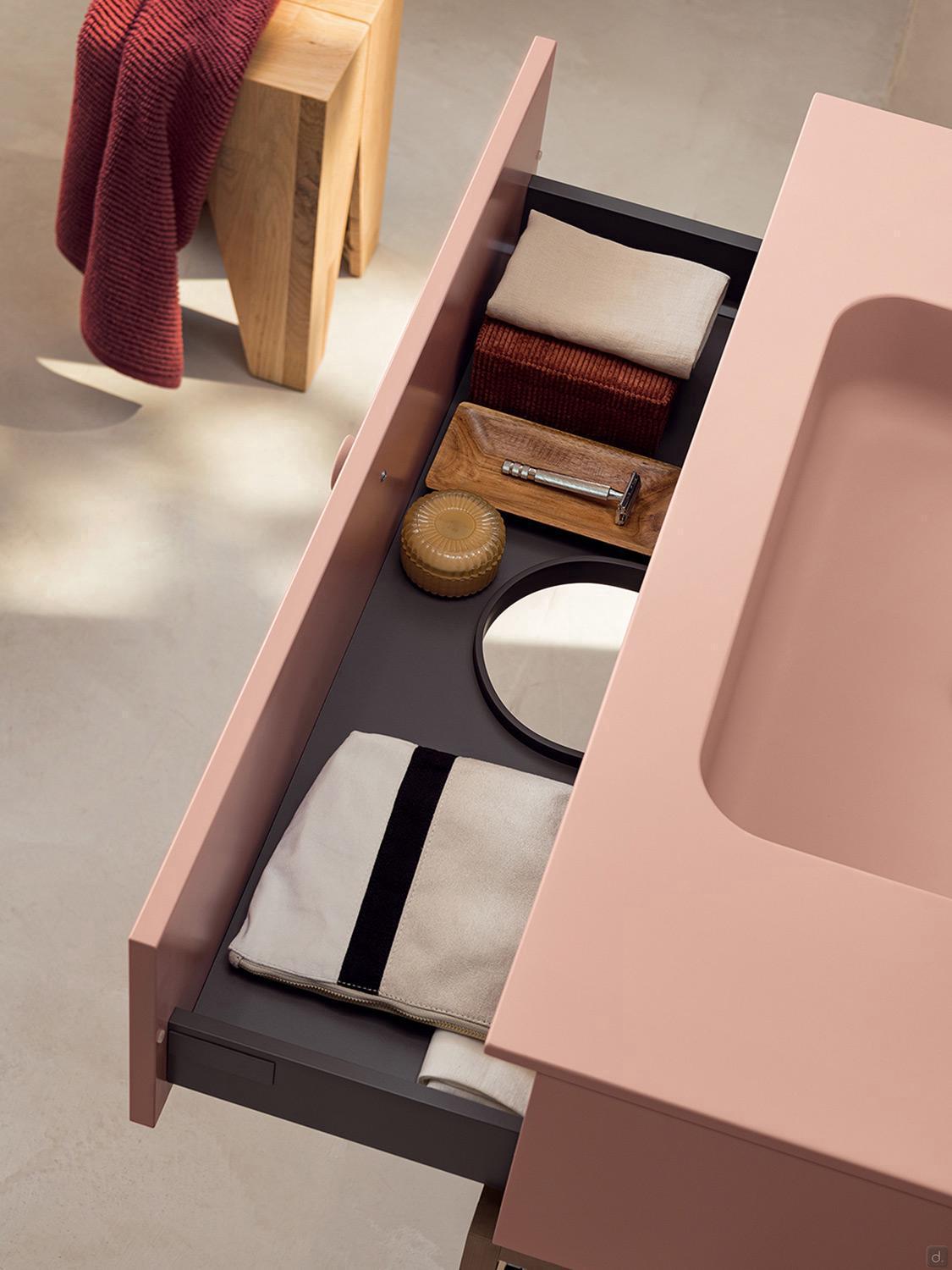

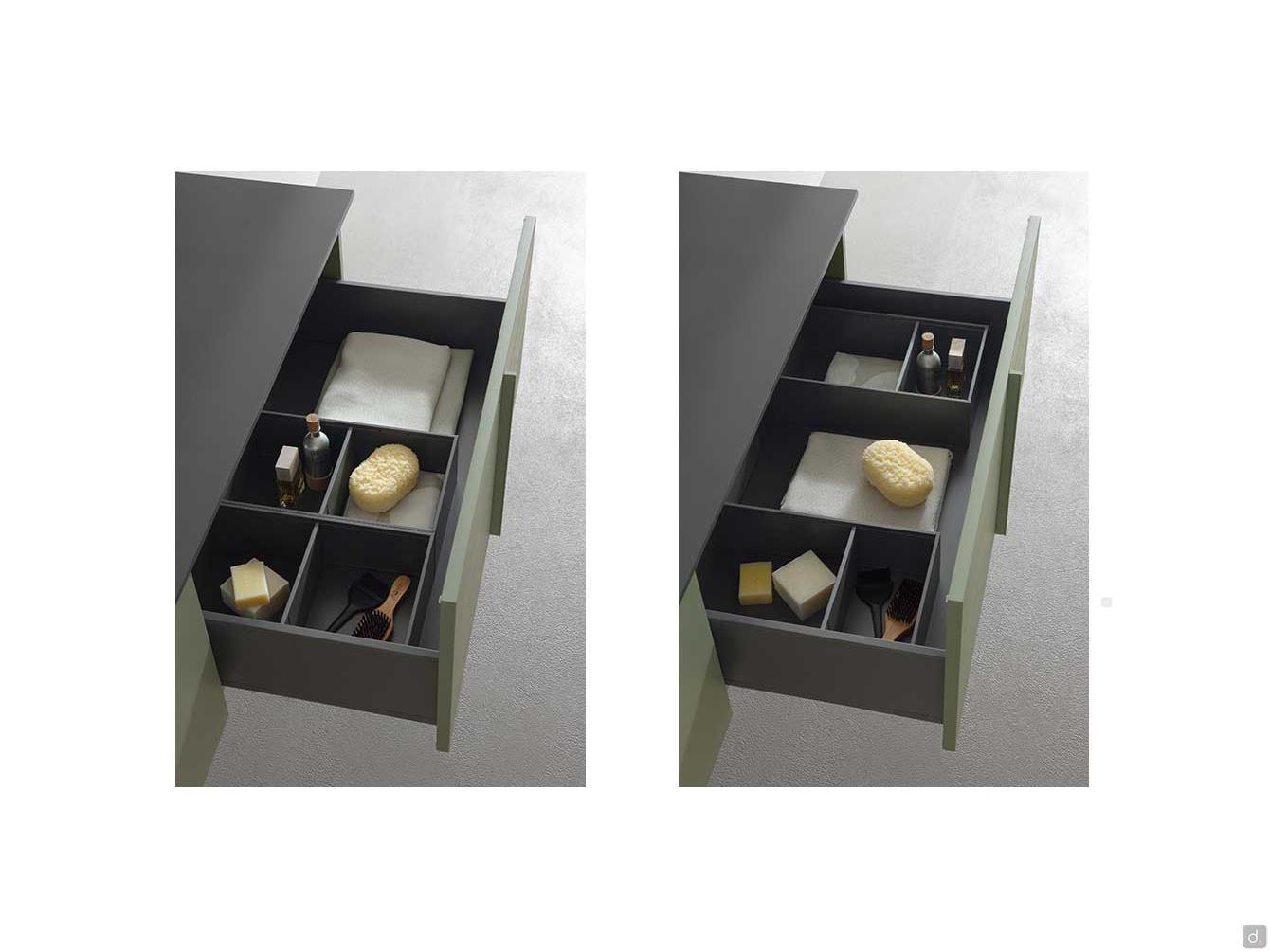

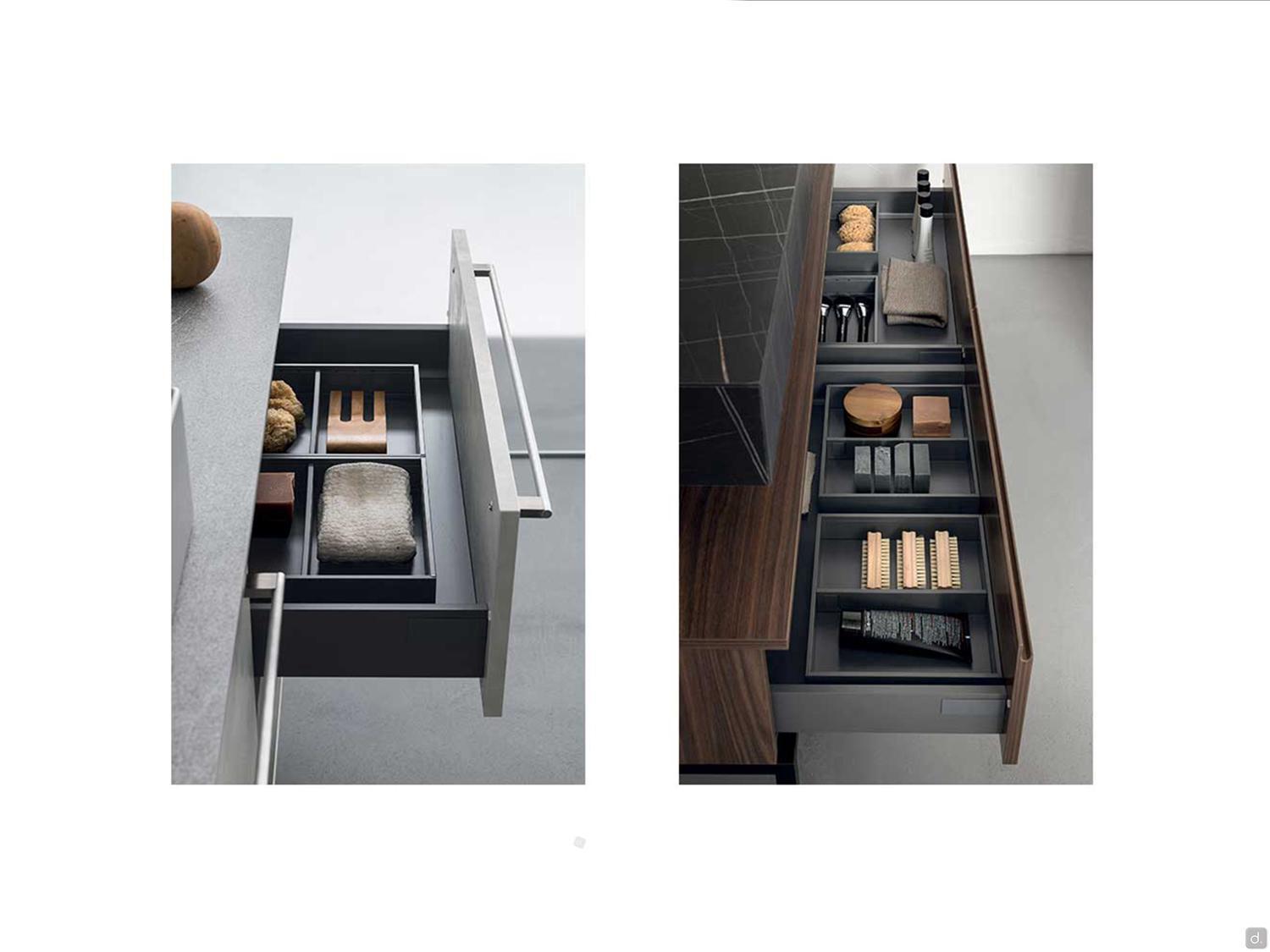

Organiser: internal subdivision system for Legrabox drawer and basket. Available in Canaletto Walnut and Orione finish.
Read more...
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the surface with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the surface for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Wood: 'living' material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp, well-wrung cloth. It is recommended to clean the top in the direction of the grain and dry it carefully.
Mineralguss: is a material composed of calcium carbonates and aluminium trihydrates, bound by a low percentage of polyester resin. The surface is coated with a gelcoat film that offers excellent physical and chemical resistance. The compound is ductile and heat resistant. Any colour variations caused by high temperatures can be removed by cleaning with a lightly abrasive sponge and subsequent polishing.
For cleaning, use a sponge with water and a normal cream detergent. The surface of the top must not be in contact with solvents and alkaline lotions such as ammonia. Hair dye products must not stagnate in the basin and must be rinsed off immediately. Never fill the sink with hot water above 60°C.
Minera-Kolor: Minera-Kolor is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical glaze that covers the surface of the material is matt-coloured, with excellent physical-chemical resistance. It is resistant to boiling water and changes in temperature. Any colour variations that have arisen through use can be easily removed by simple cleaning, using a lightly abrasive sponge in a circular motion.
