Technical Specifications and Equipment

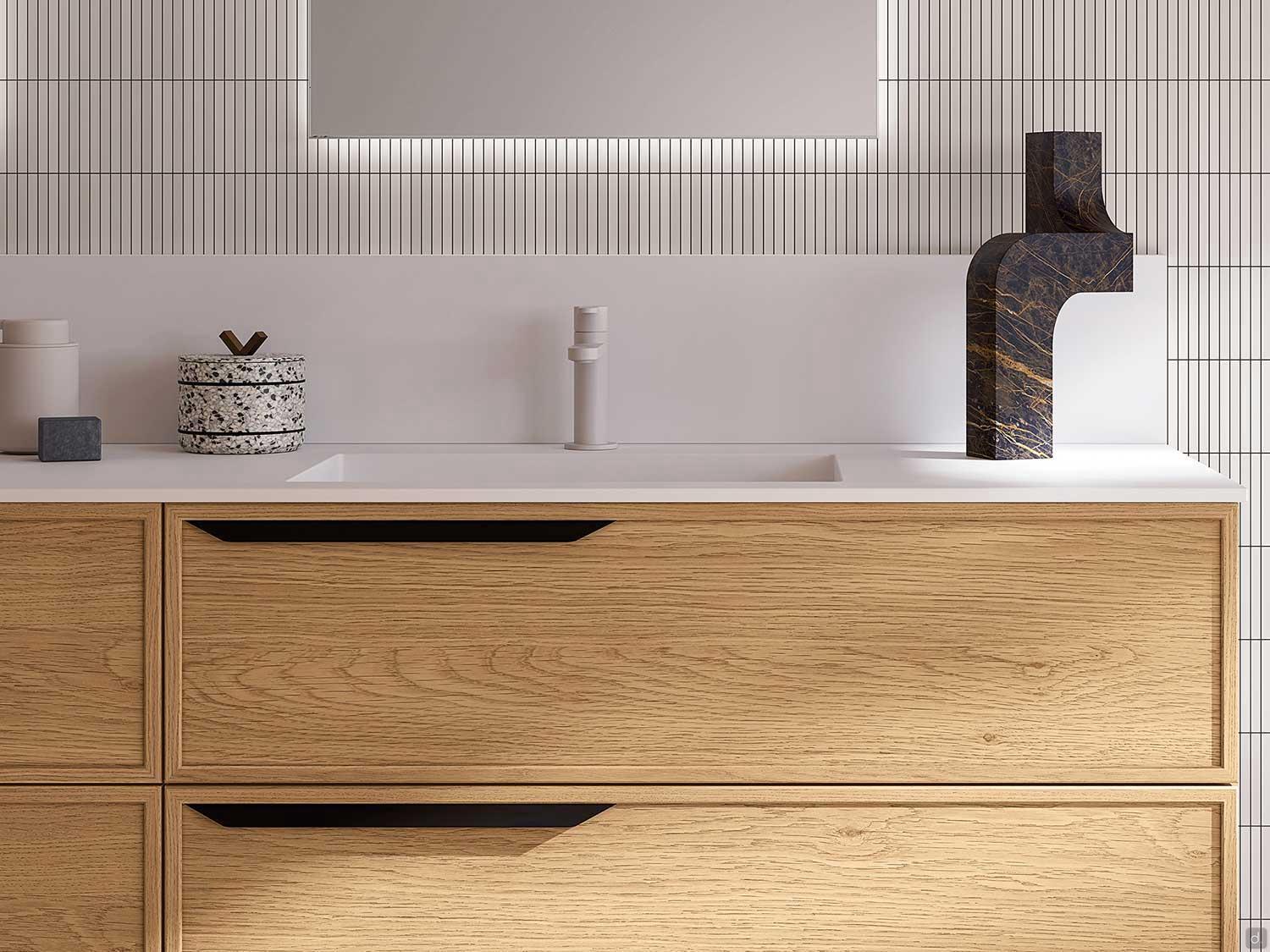

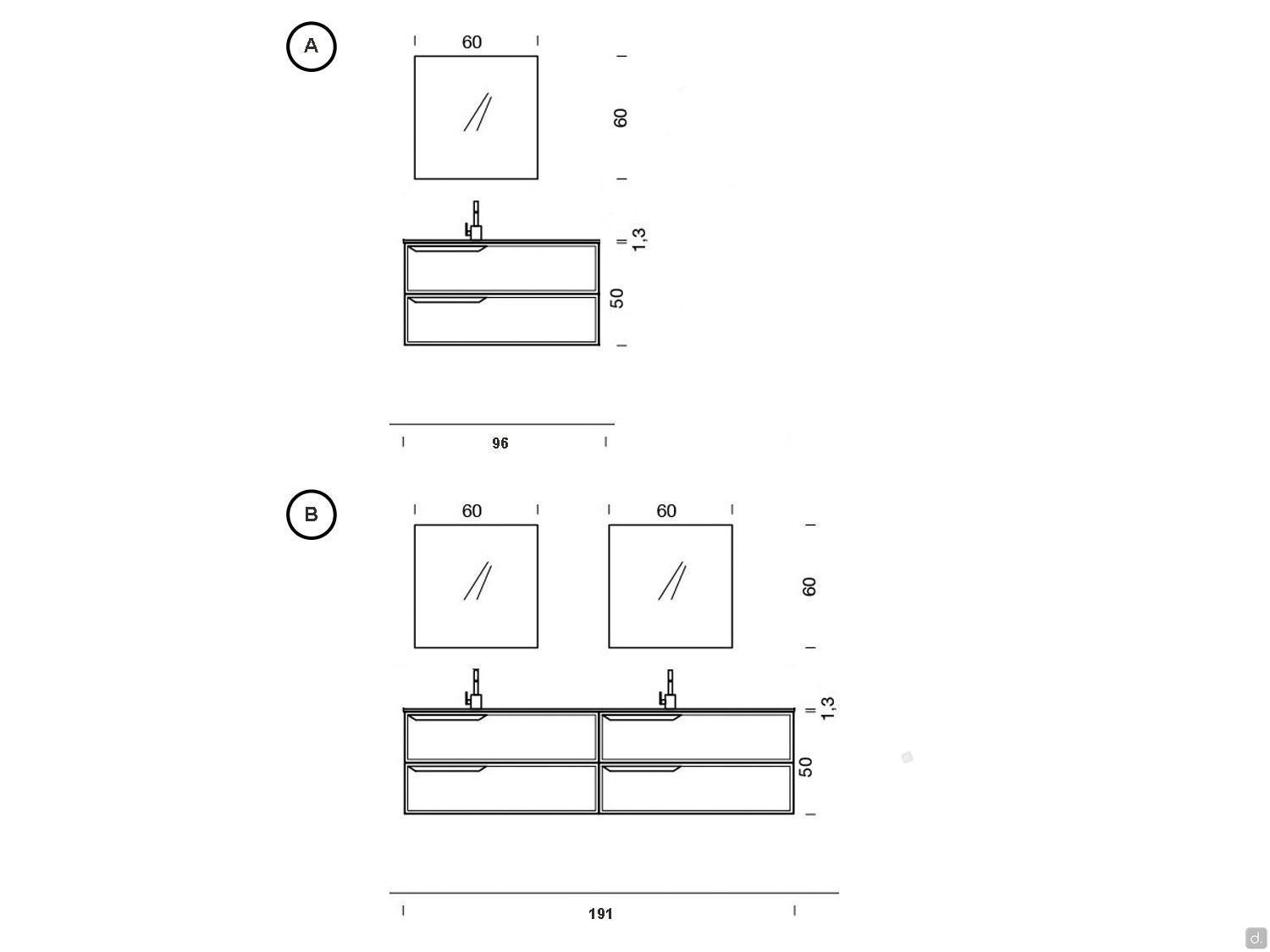

The bathroom cabinet "N103 Composition A" is composed of:

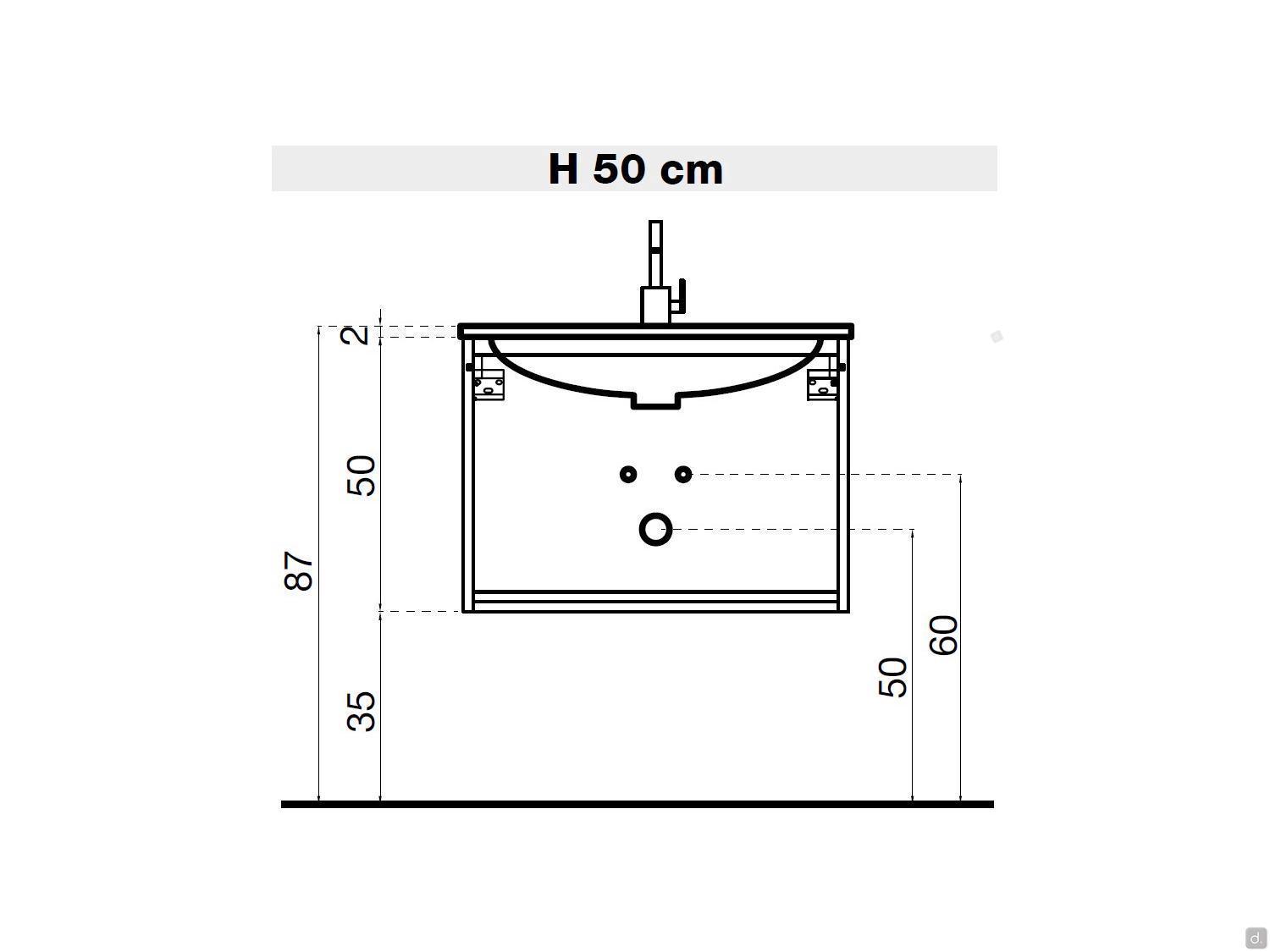

n.1 washbasin base with n.2 drawers: cm 95 d.50 h.50..
n.1 top in tekor with integrated basin: cm 96 d.51 th.1,3; the measurements of the basin mod.Itaca are:cm 50 d.31 h.10.

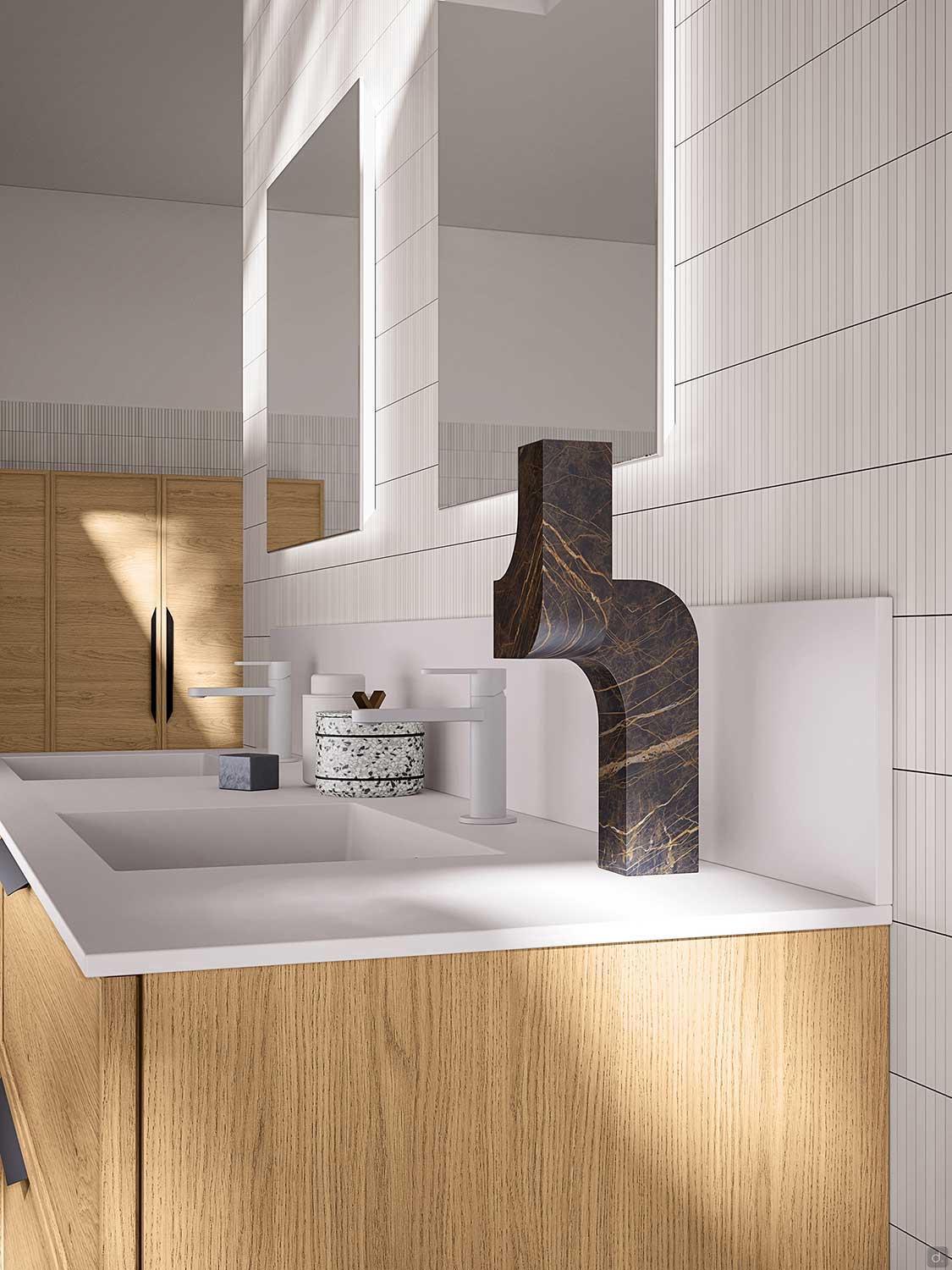

n.1 mirror mod.Net: cm 60 th.4 h.60 with LED lighting (12W, 230V, IP21,4000K) without a socket and switch.

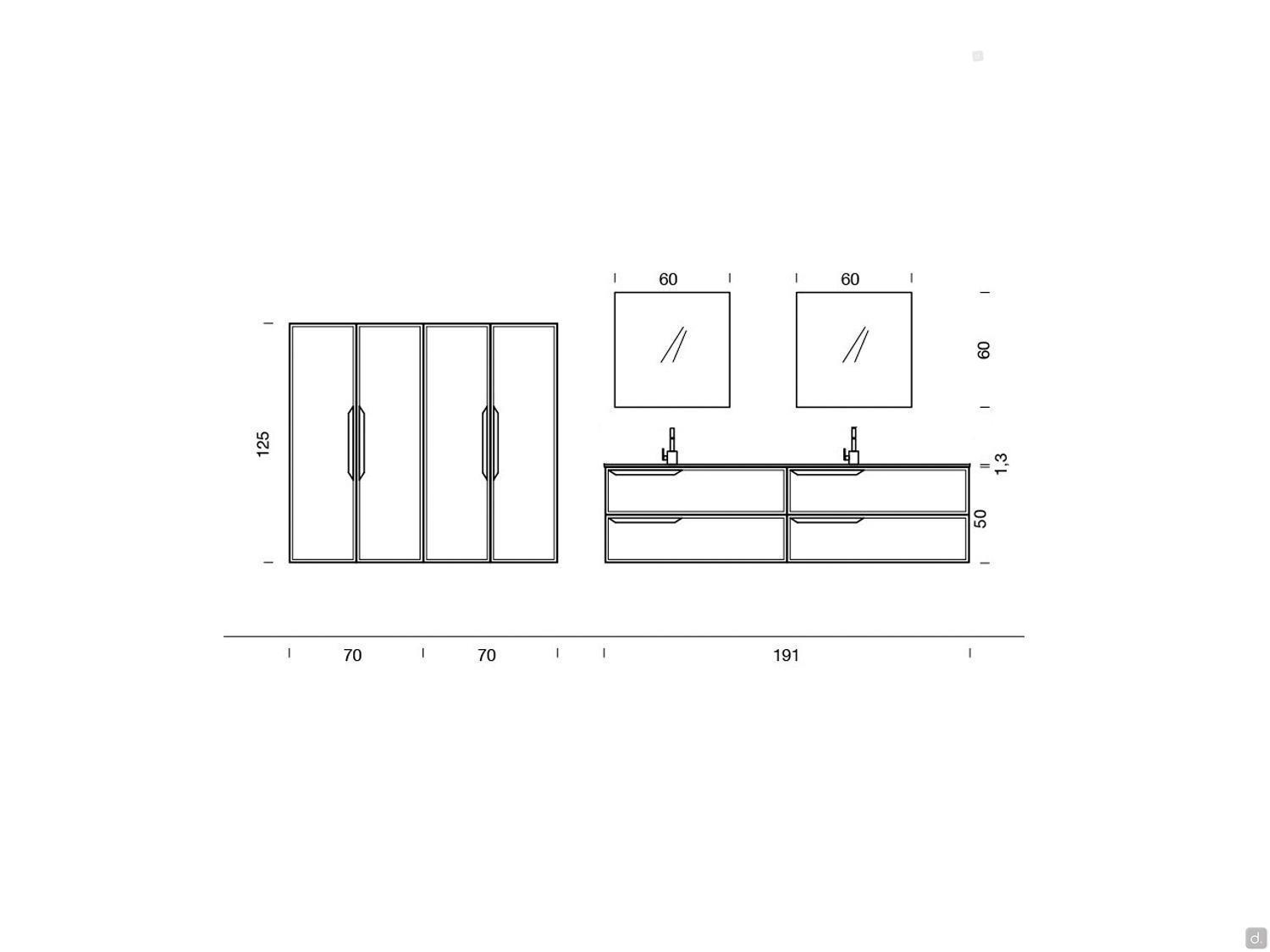

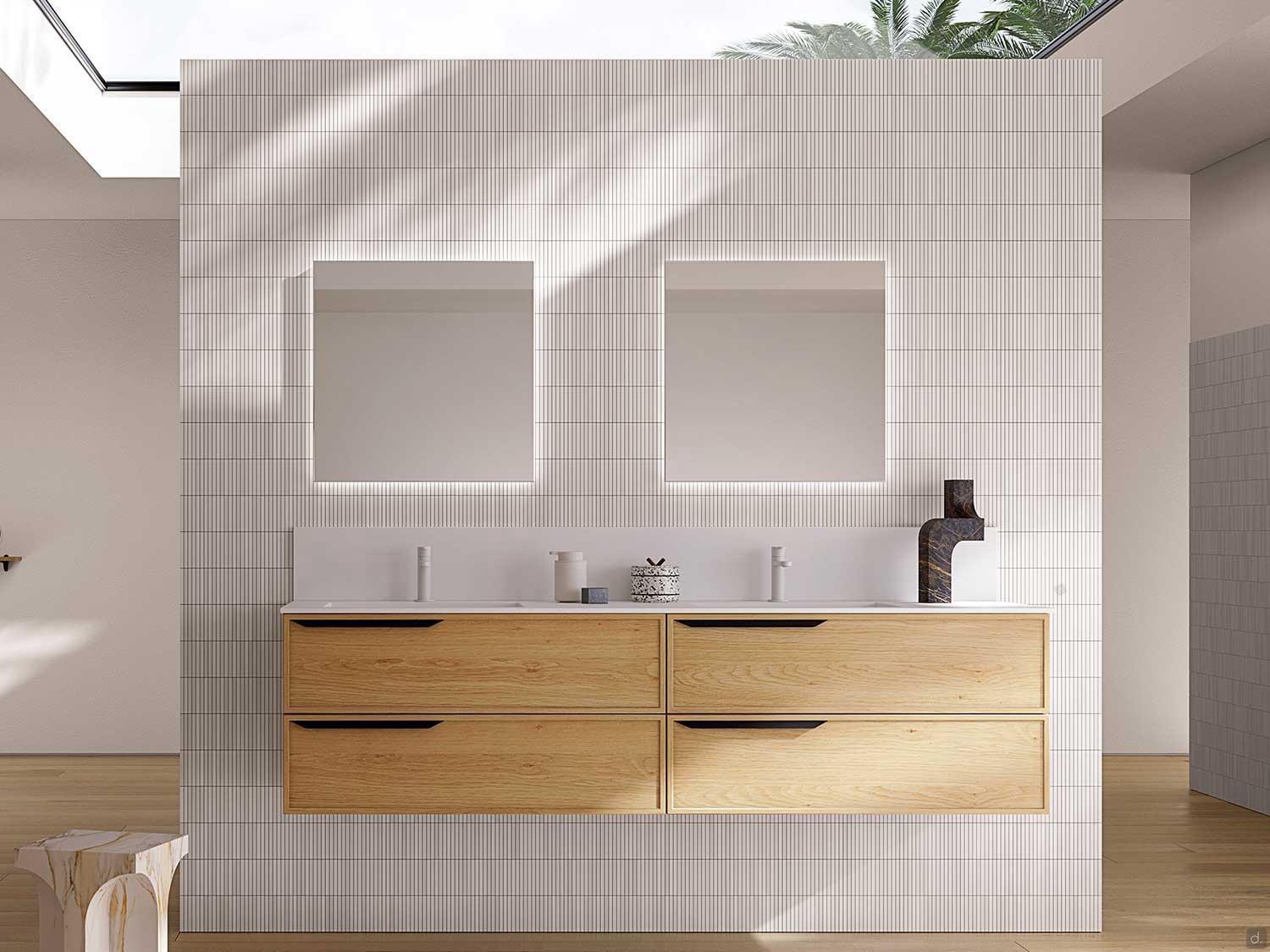

The bathroom cabinet "N103 Composition B" is composed of:

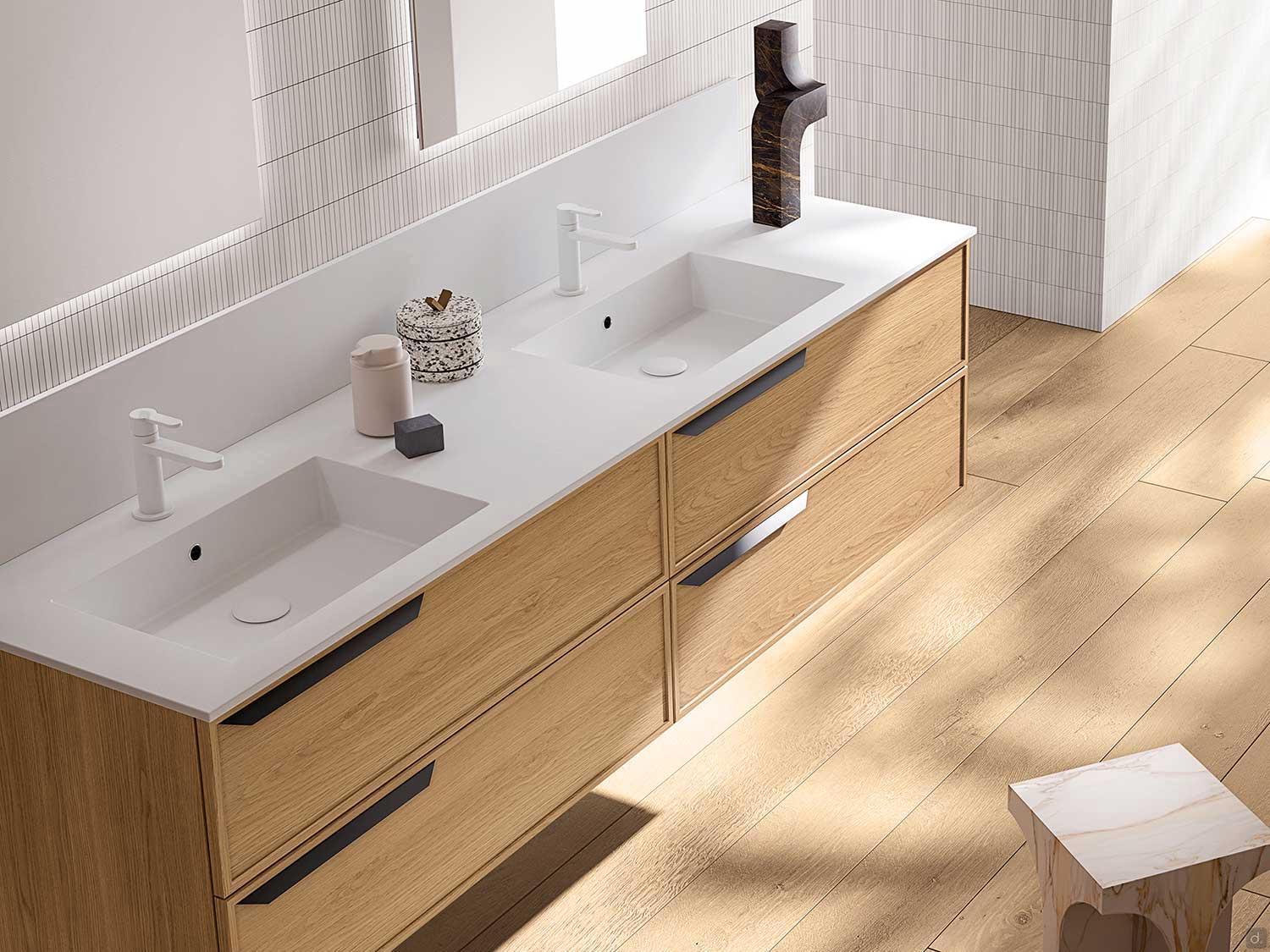

n.2 washbasin bases with n.2 drawers: cm 95 d.50 h.50.
n.1 top in tekor with integrated basin: cm 96 d.51 th.1,3; the measurements of the basin mod.Itaca are:cm 50 d.31 h.10.
n.2 mirrors mod.Net: cm 60 th.4 h.60 with LED lighting (12W, 230V, IP21,4000K) without a socket and switch.
Structure: cm th.1,8 made up of wood particle board panels.
Legrabox Drawer: characterised by straight side rails both internally and externally, only 1,28 cm thick. Equipped with Legrabox type metal shell, characterised by straight side rails both internally and externally with a thickness of only 1,28 cm.

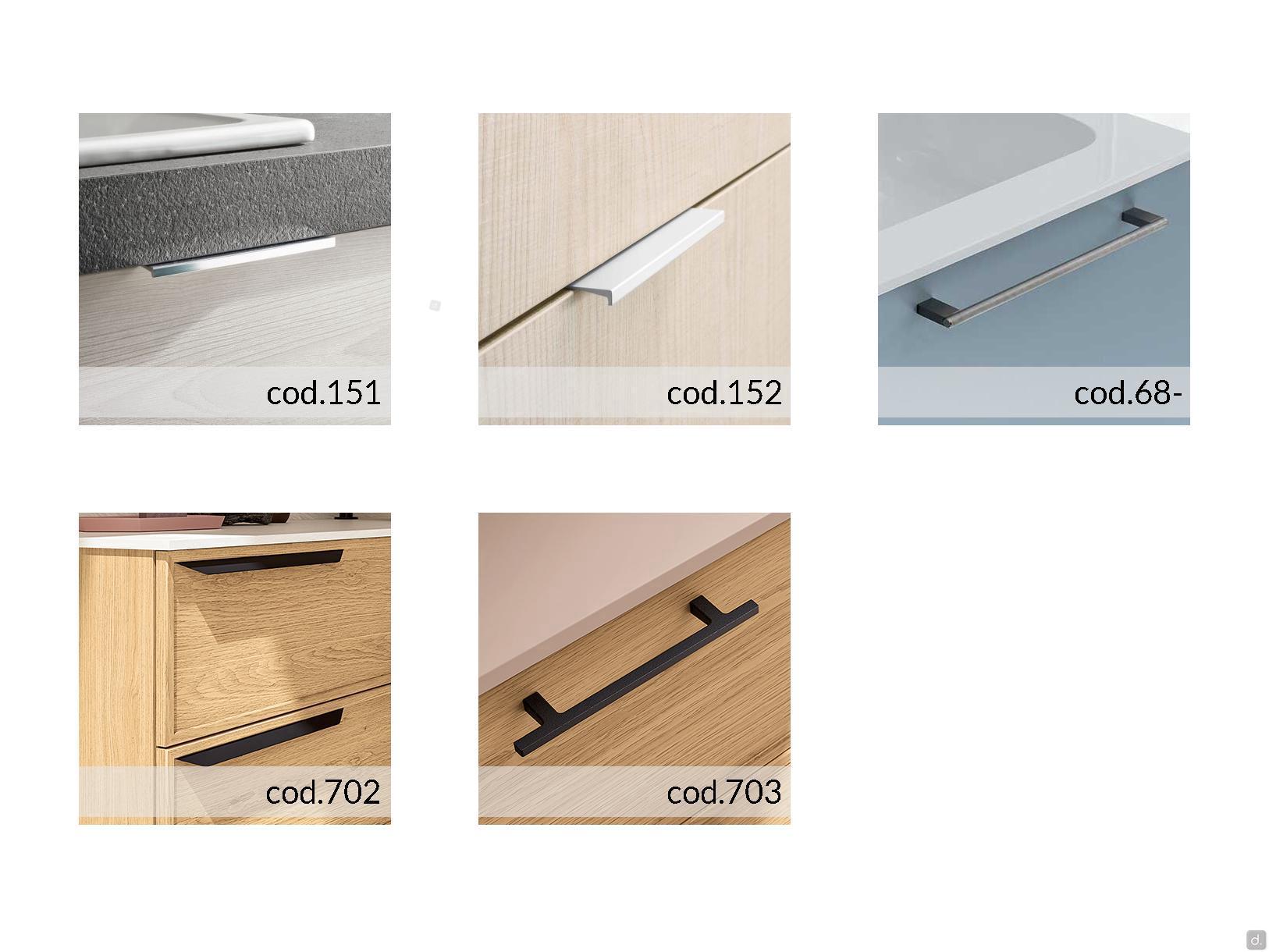

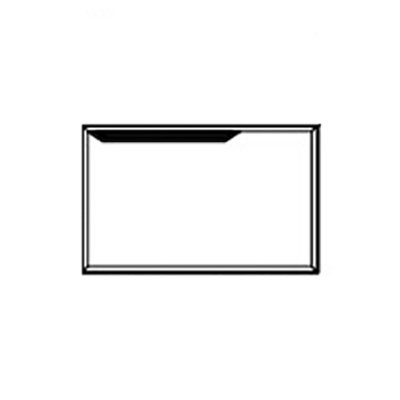

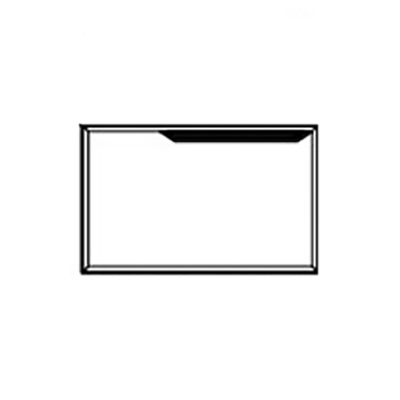

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles cod.152 are available in a matte lacquer finish in all colours shown in the samples menu.
Handles mod. 68- protrude 4 cm from the front surface.
| Basin Model |
Top Measurements |
Internal Basin |
Encased
Type |
Faucet Hole |
Overflow |
| Itaca - tekor matte white |
cm 96 / 191 d.51 |
cm 50 d.31 h.10 |
integrated |
on the top right or left |
yes |
N.B. The faucet hole has a standard diameter of 3,5 cm.

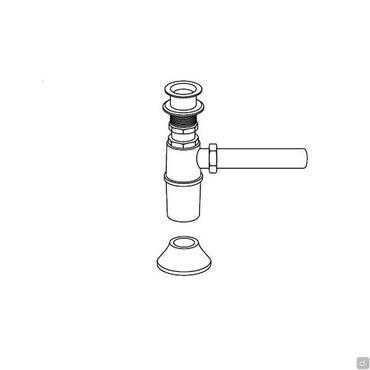

For basins without an overflow hole, the use of a continuous drain is recommended.
Optional
splashback: designed to complement bathroom furniture with HPL laminated melamine tops, marble stone, stoneware or quartz-resin; particularly suitable for walls that are not perfectly square and for pairing with countertop mirrors.

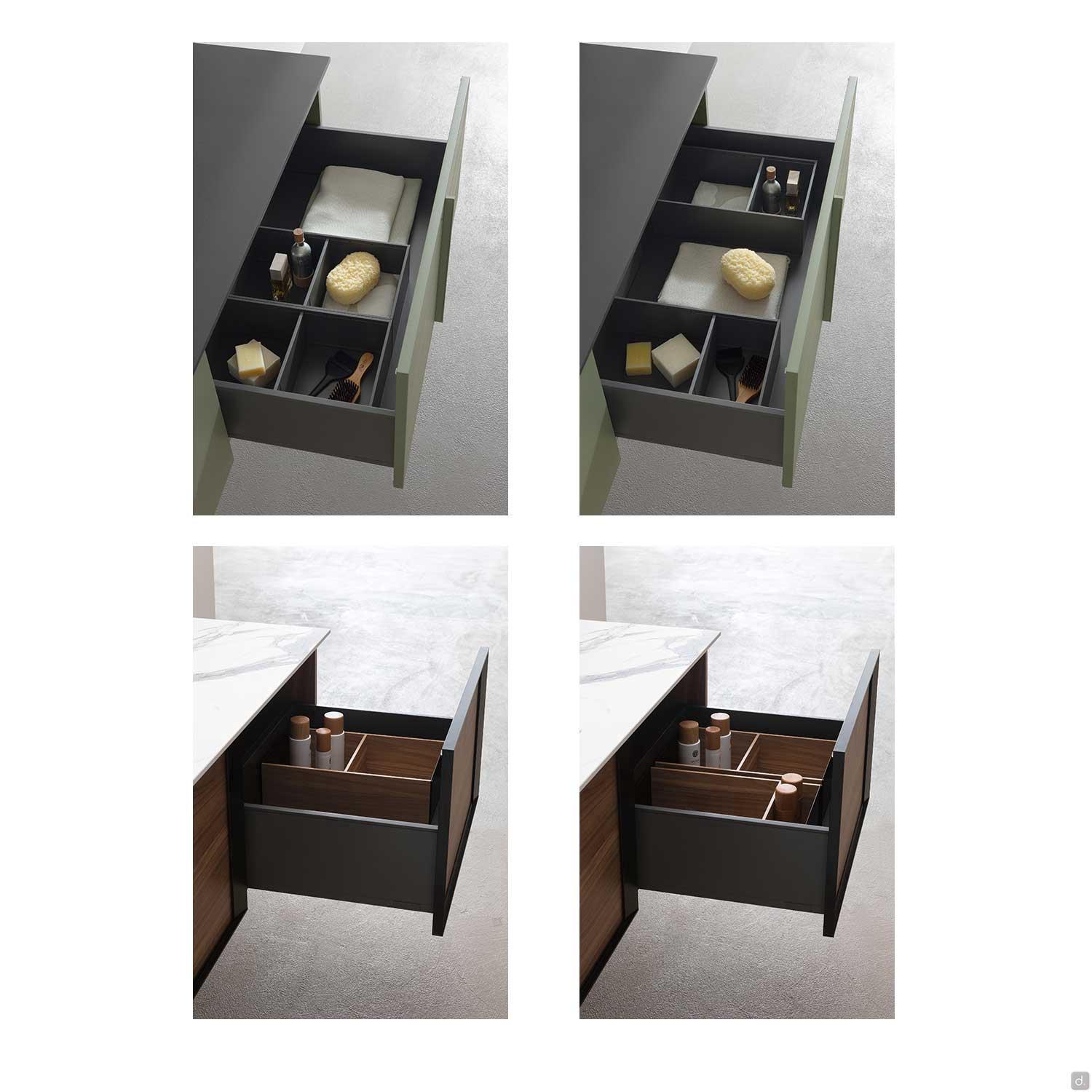

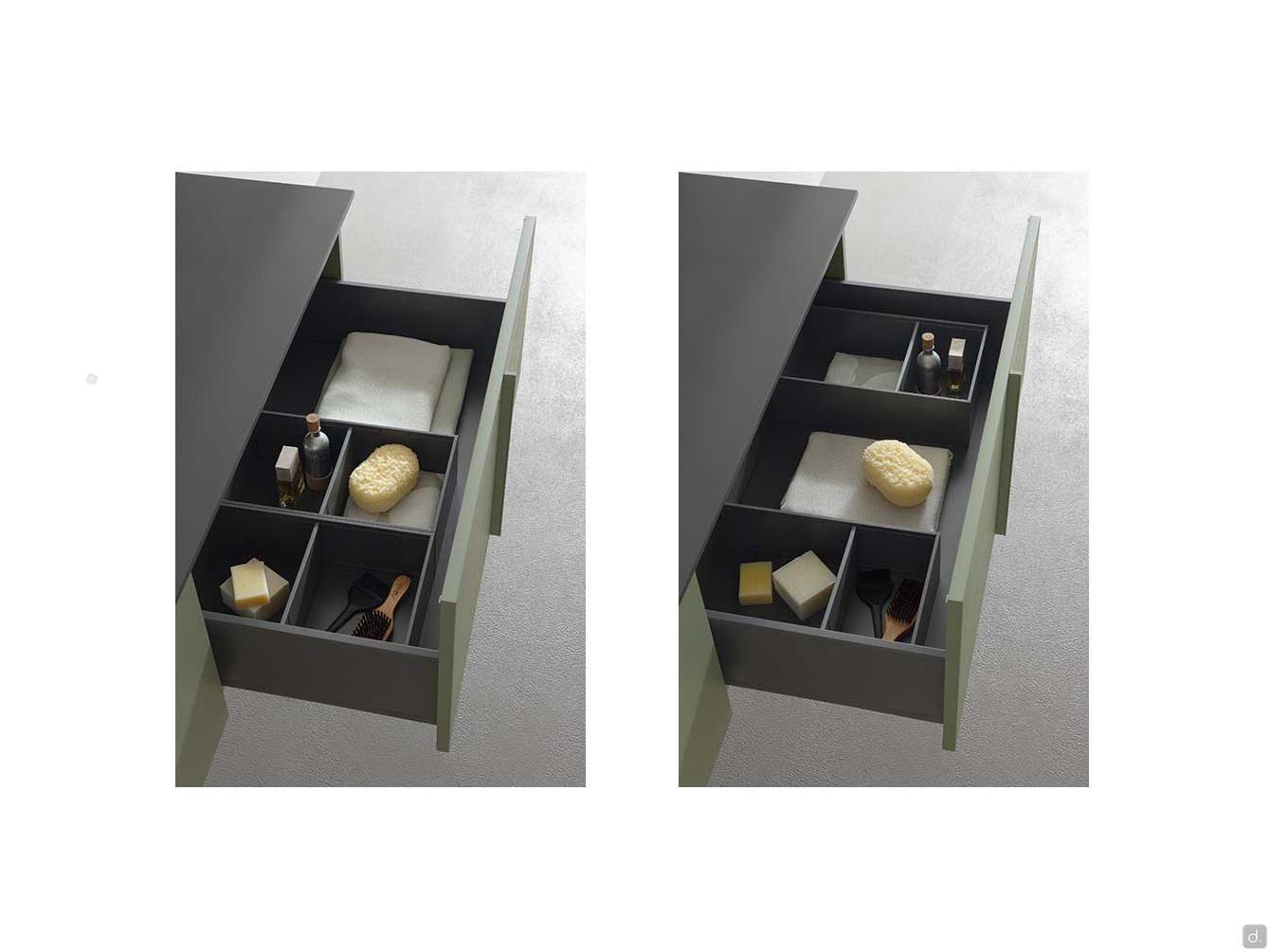

organiser: Legrabox internal subdivision system for drawer and basket. Available in Canaletto Walnut and Orion finish.

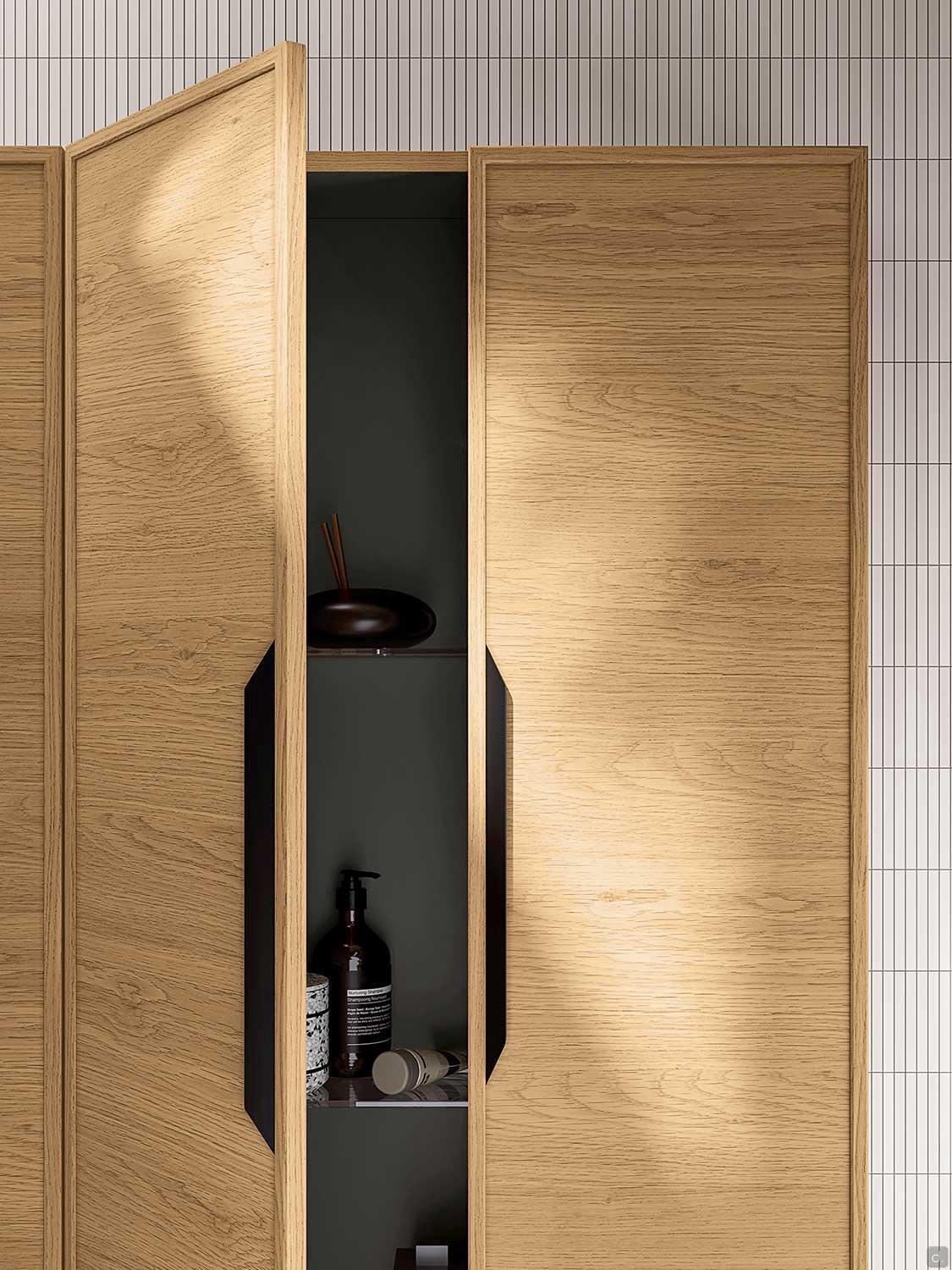

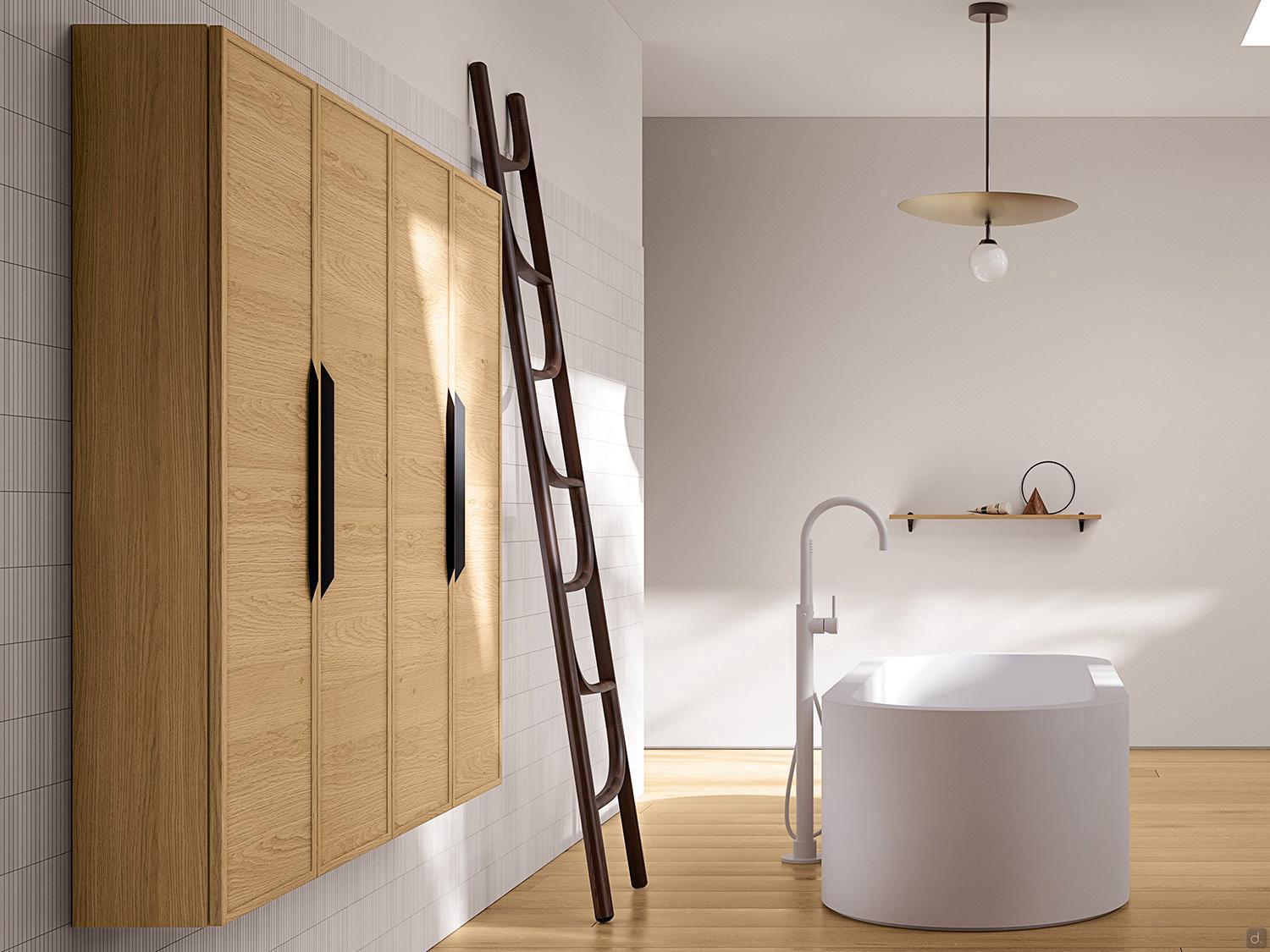

suspended wall units with hinged doors: cm 70 d.20,8 h.125 in veneer wood 837 corn oak with choice of handles or push-pull opening system. Interior matching the external structure with back in Orion finish. Interior shelves in clear glass cm th.0,6.
Maintenance Tips
Wood: "living", material protected superficially by varnich; a soft, non-abrasive, damp, well squeezed cloth should be used for cleaning. It is recommended to clean the top in the direction of the grain and dry carefully.
Read more...
Tekor: is composed of natural mineral combined with high-quality acrylic resin; this mix allows the material to retain its original colour over time and avoid yellowing. In addition, it is a compact, hygienic and fireproof material: the surface is non-porous, making it durable and easy to clean. Thanks to its composition, small cuts and scratches can be easily removed to restore the product to its original beauty.
