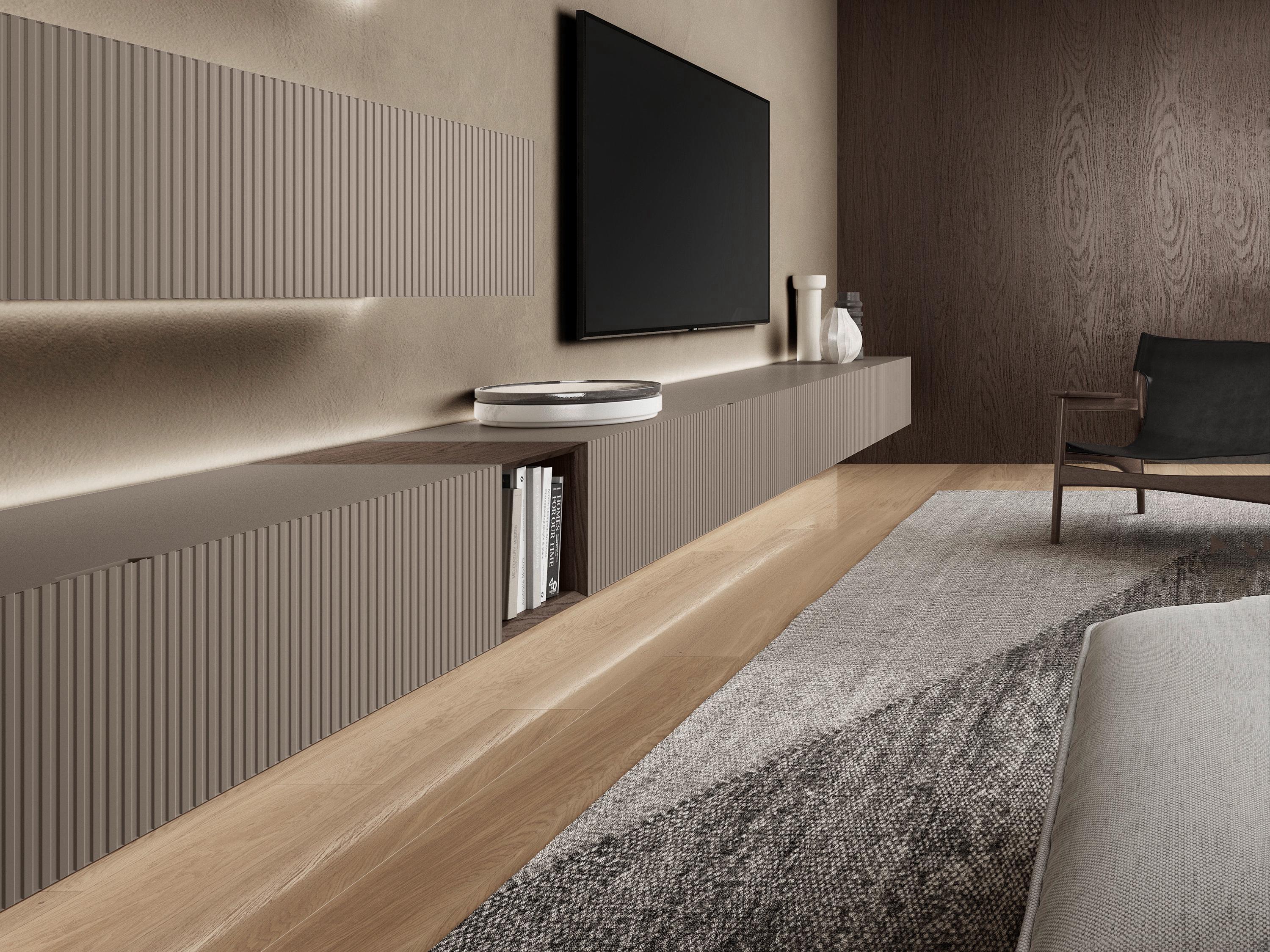

Wall-hung base units in matt lacquered hazelnut finish with 10:10 front processing

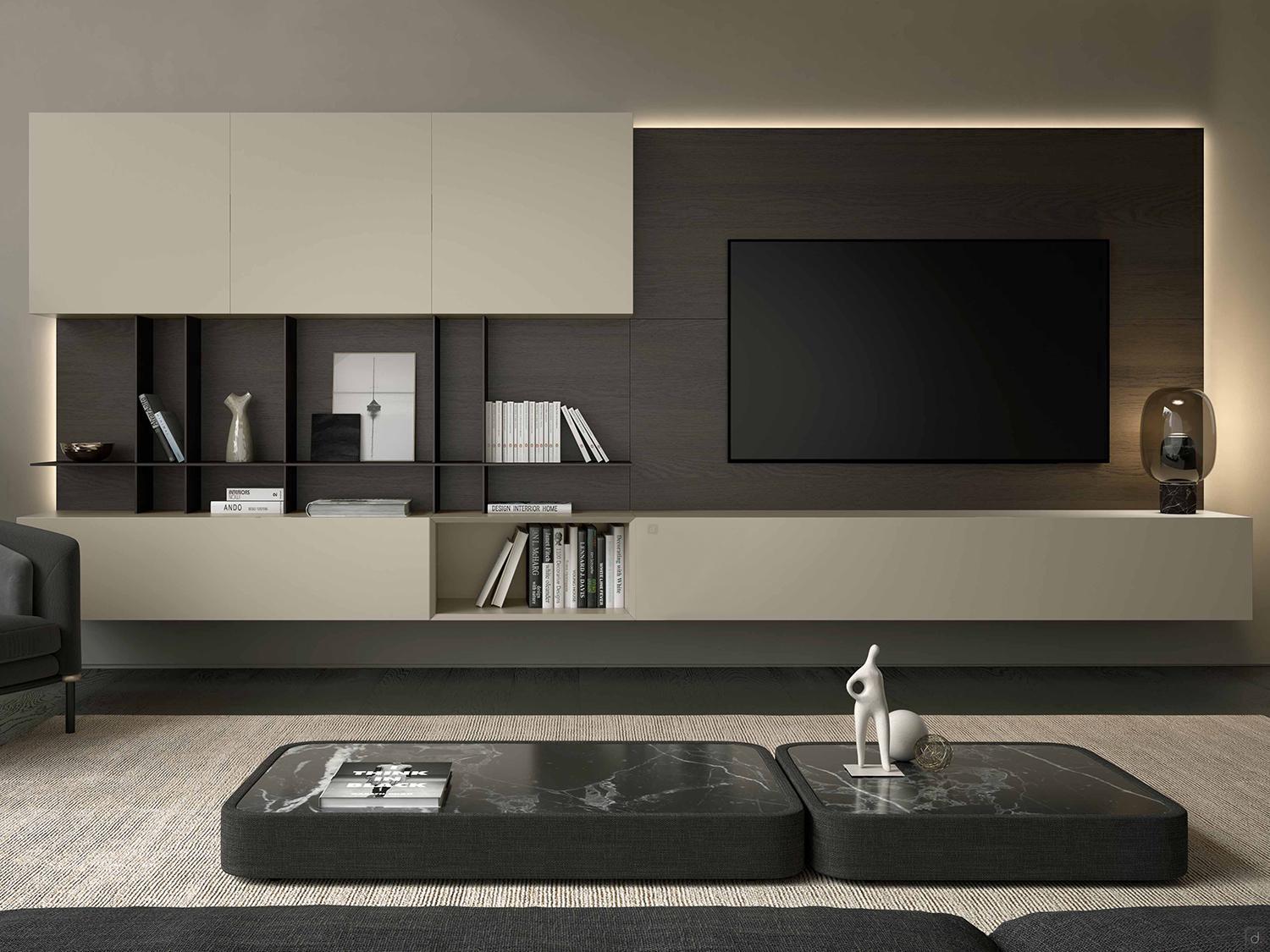

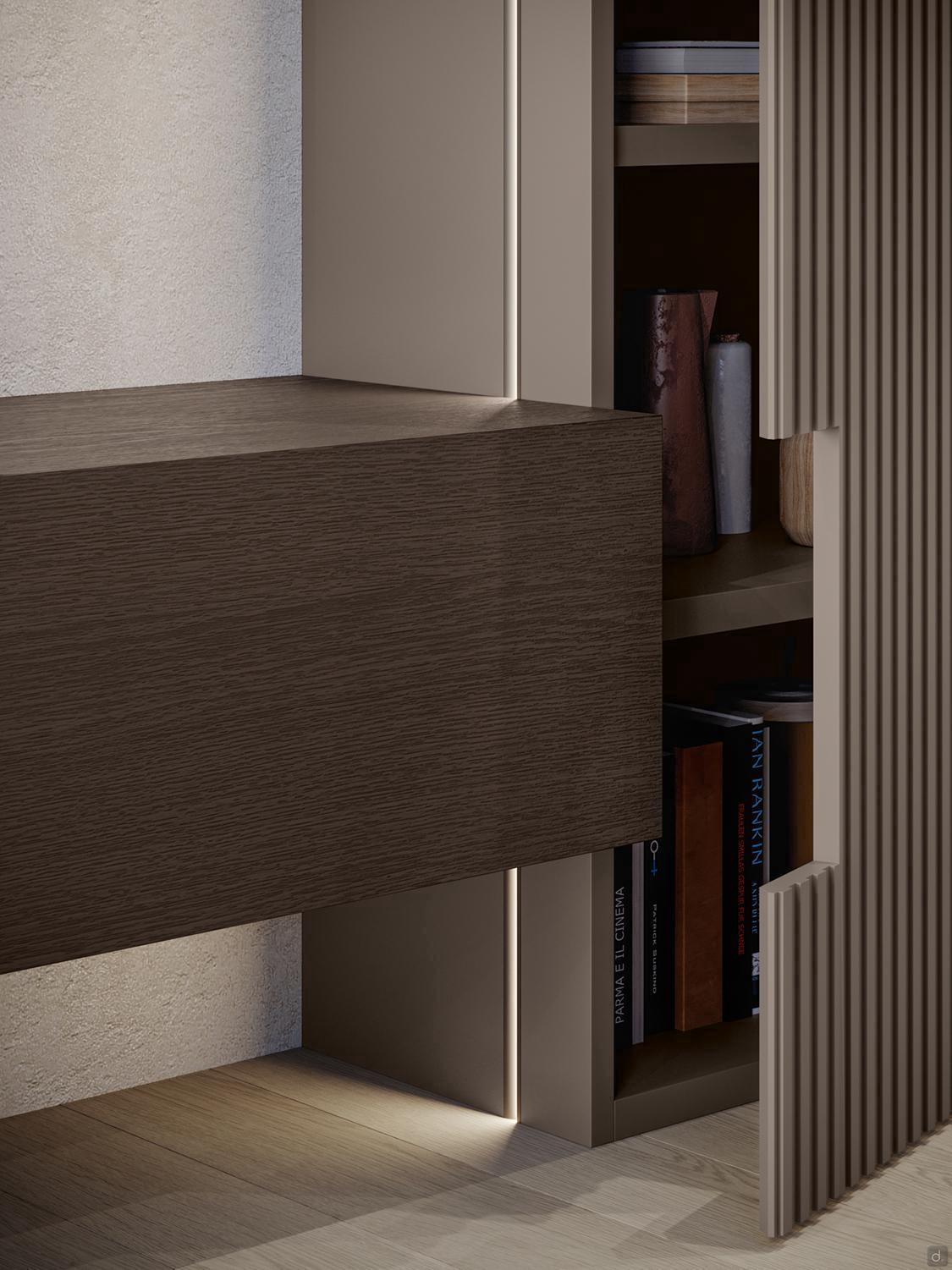

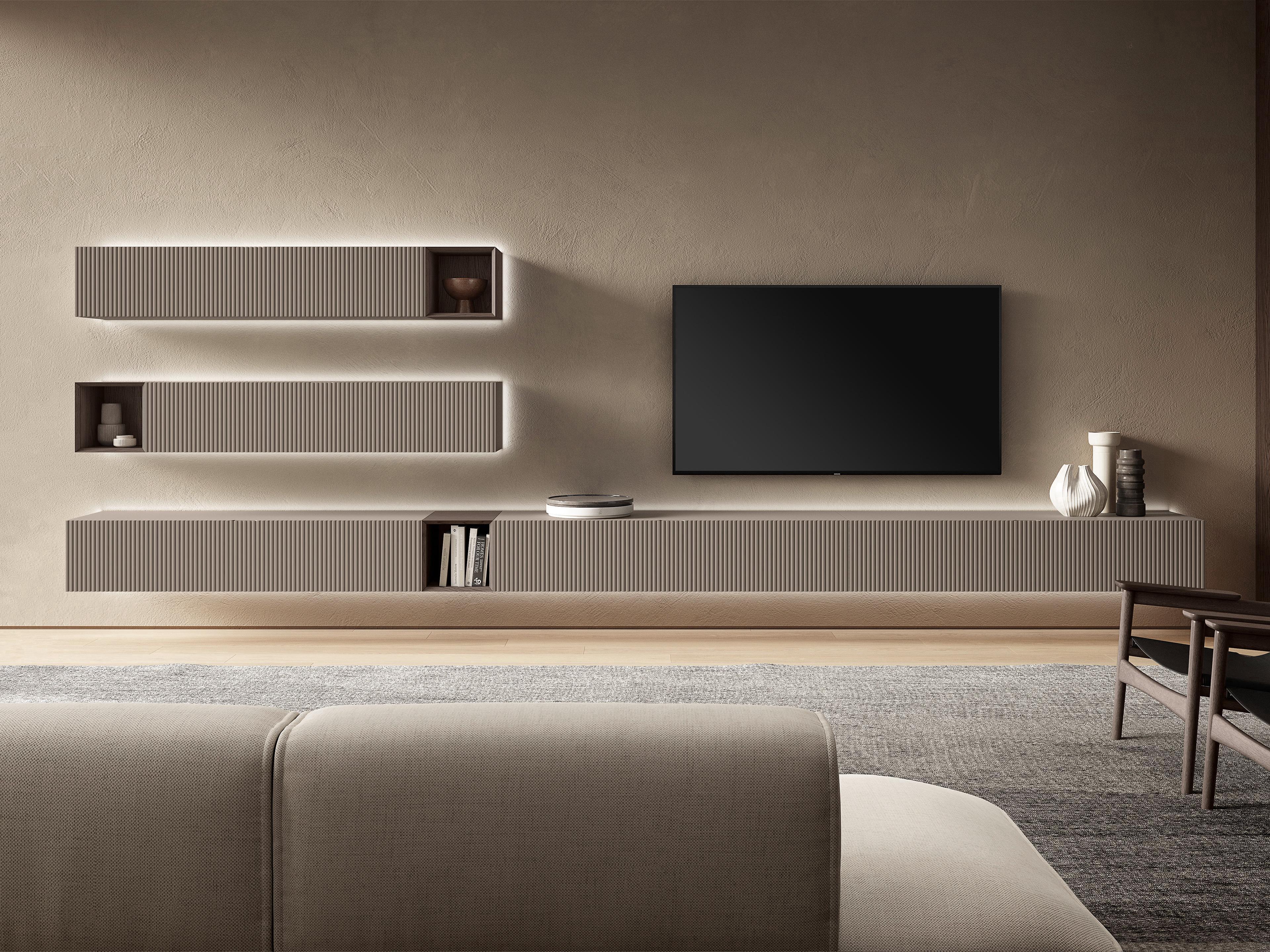

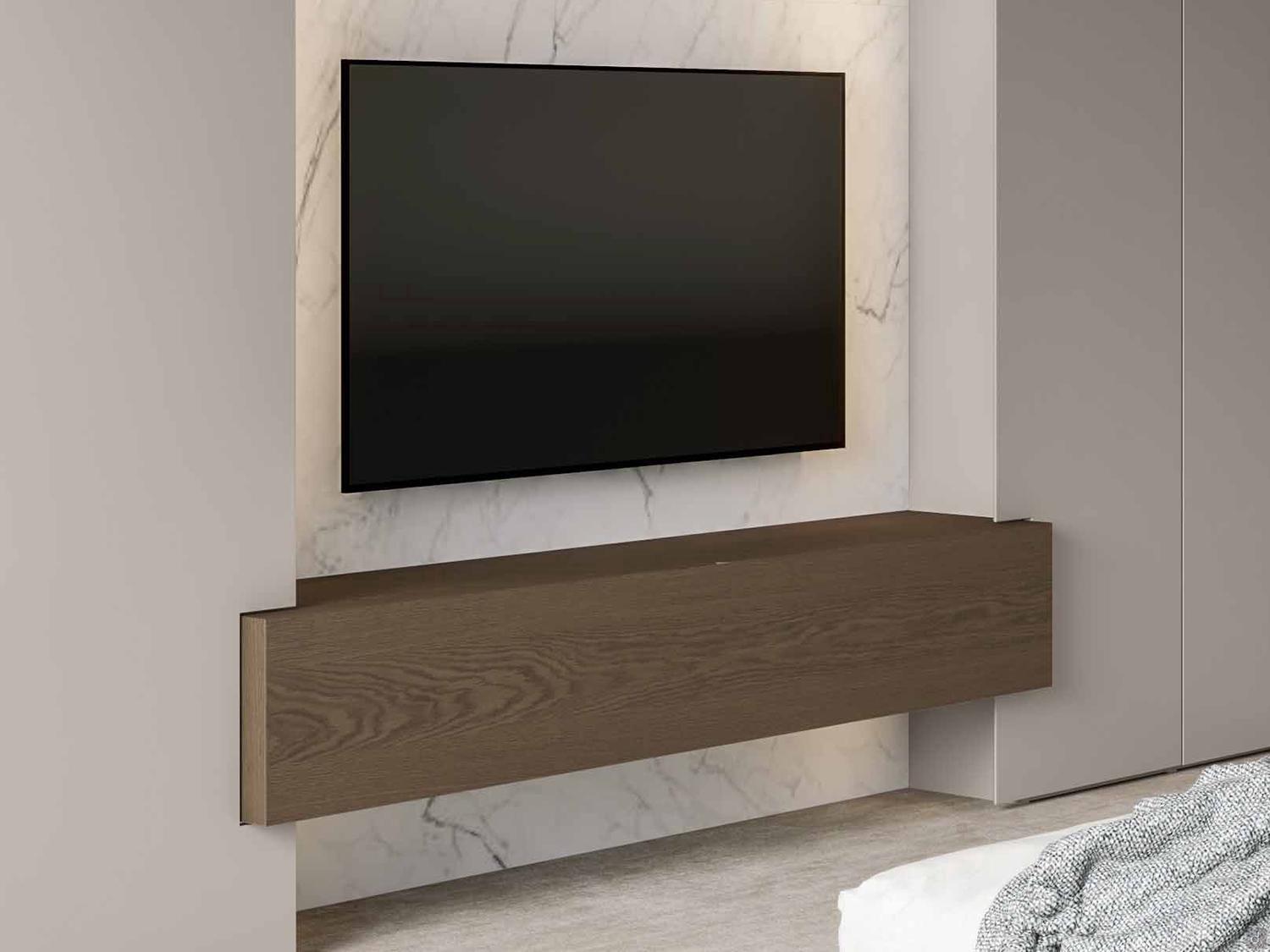

Suspended wall unit with drop-down base and wall units, complete with LED perimeter lighting.

Suspended flap base unit combined with suspended wall unit complete with open compartment. Lacquered matt hazelnut finish with 10:2 front processing.

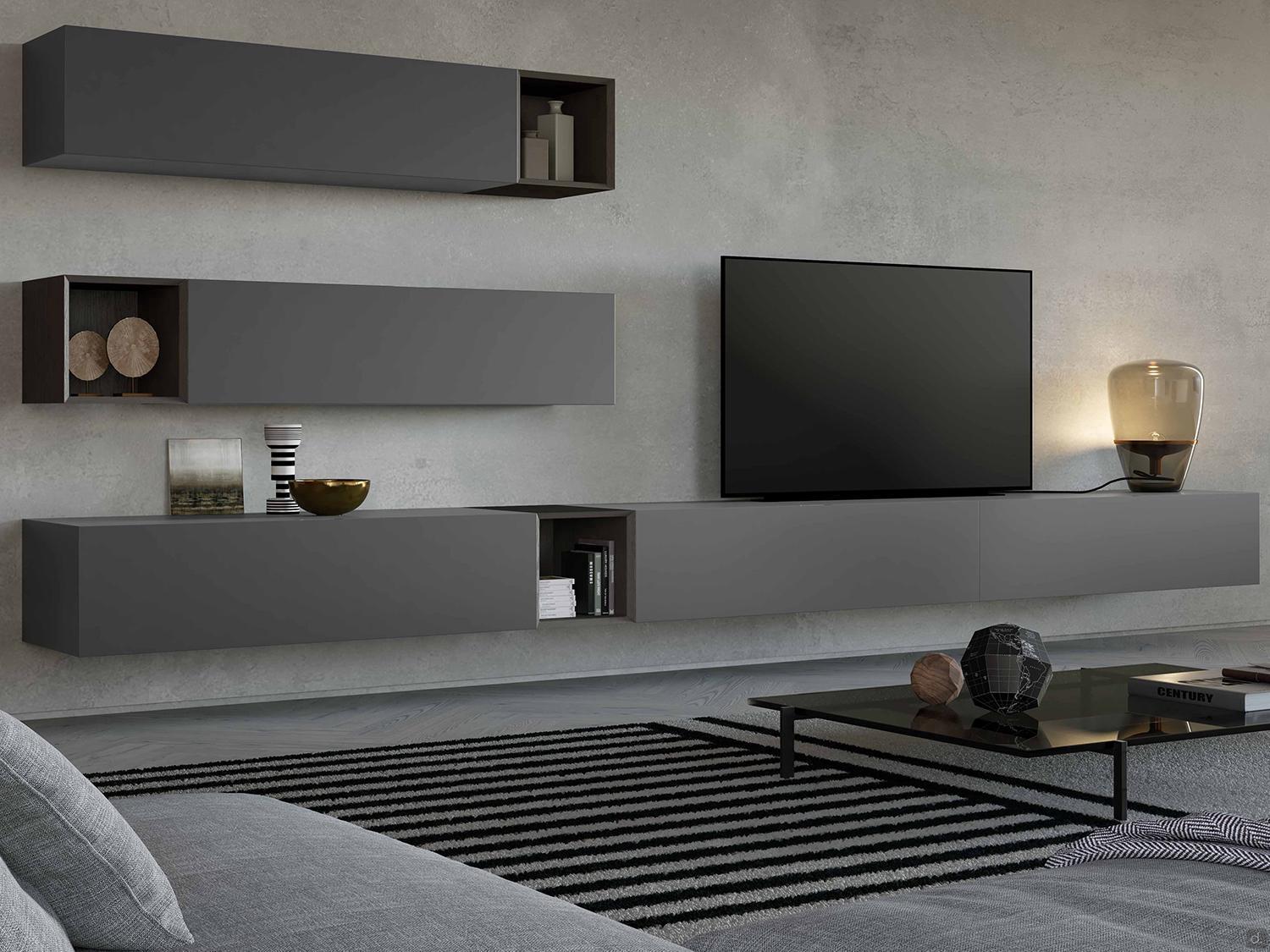

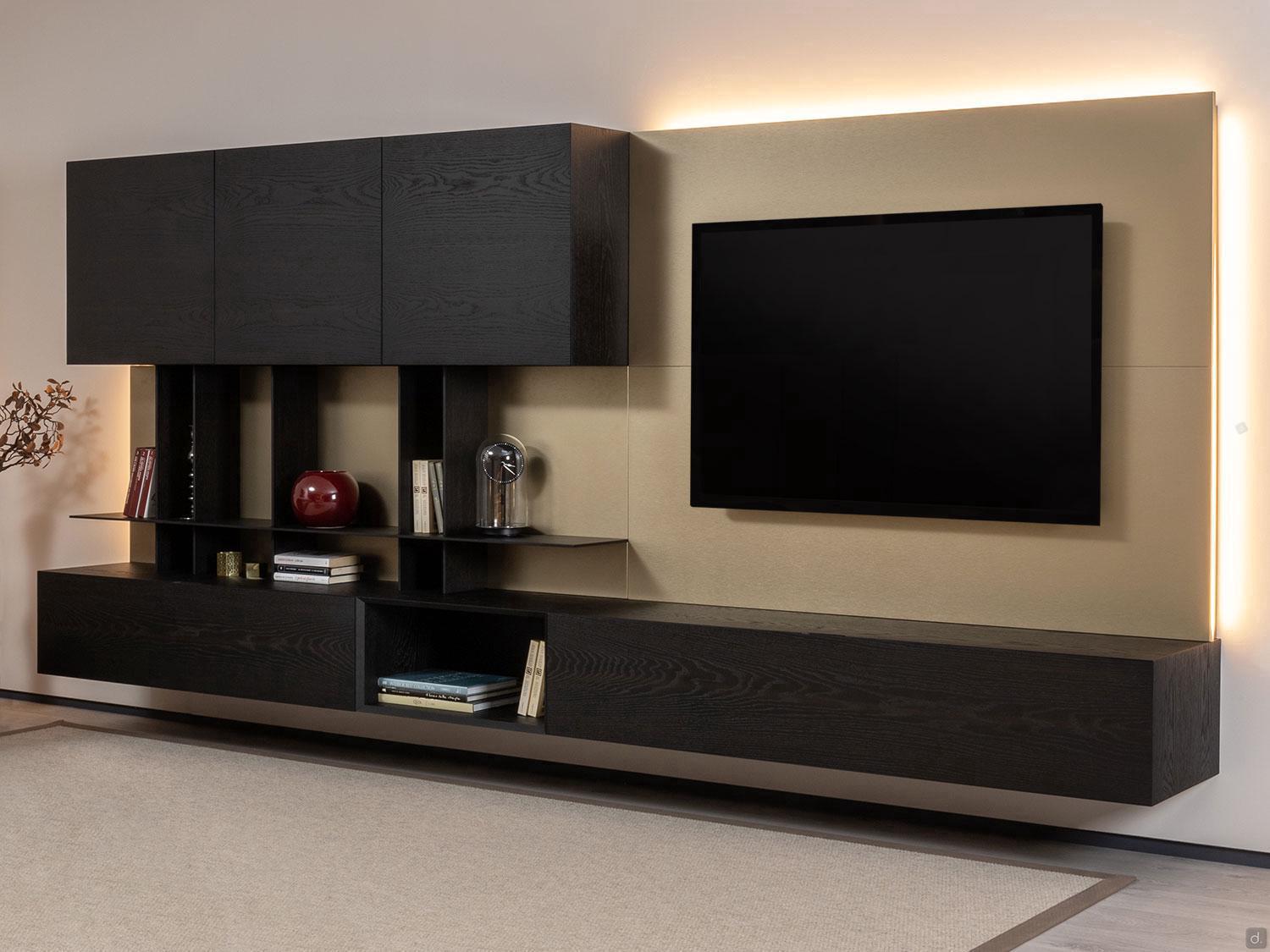

Wall unit complete with drop-down base units, wall units in hazelnut matt lacquer and contrasting open compartment in mocha oak.

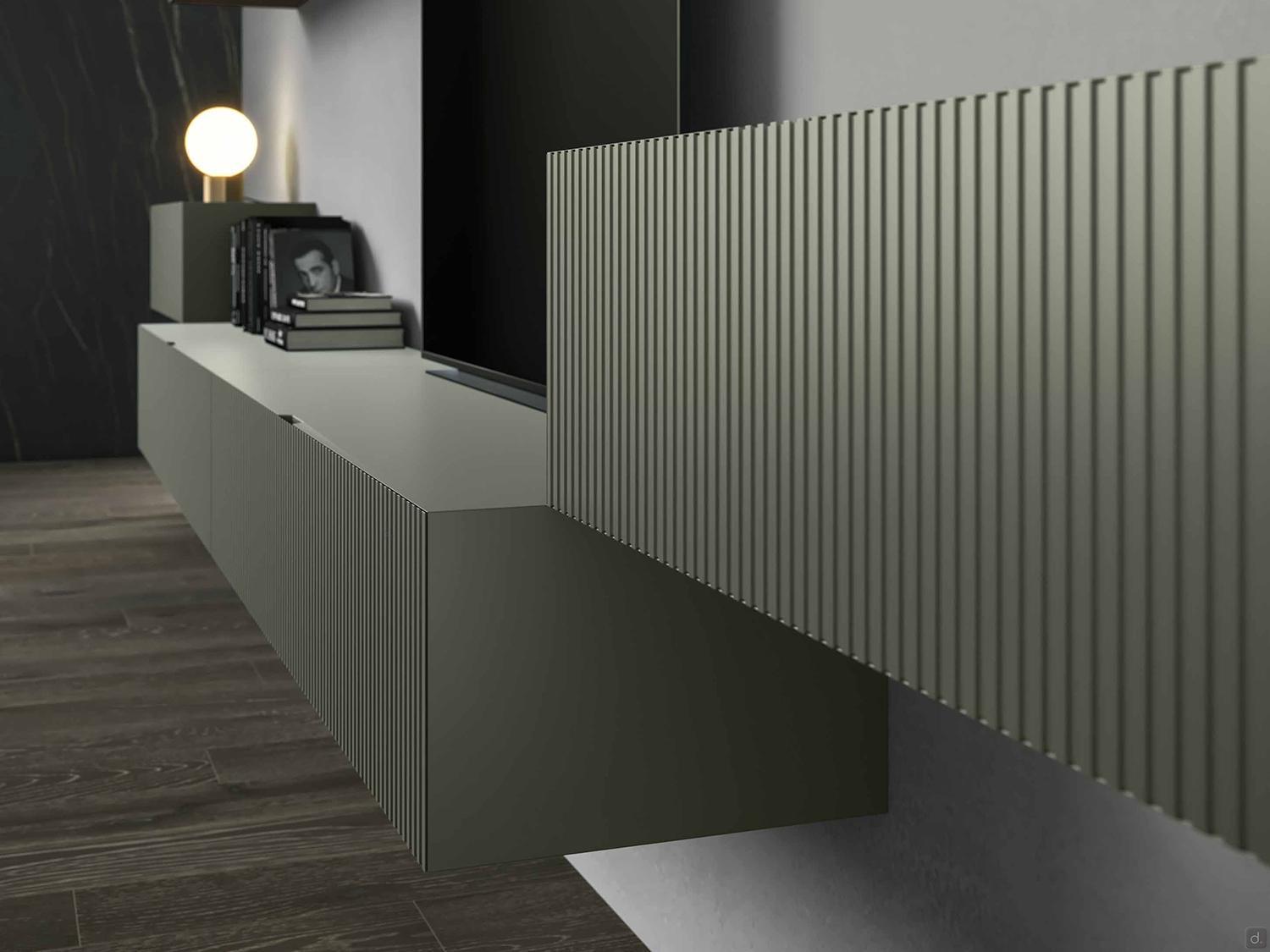

Royal base unit with drop-down door, featuring the 10:10 effect on the front panels

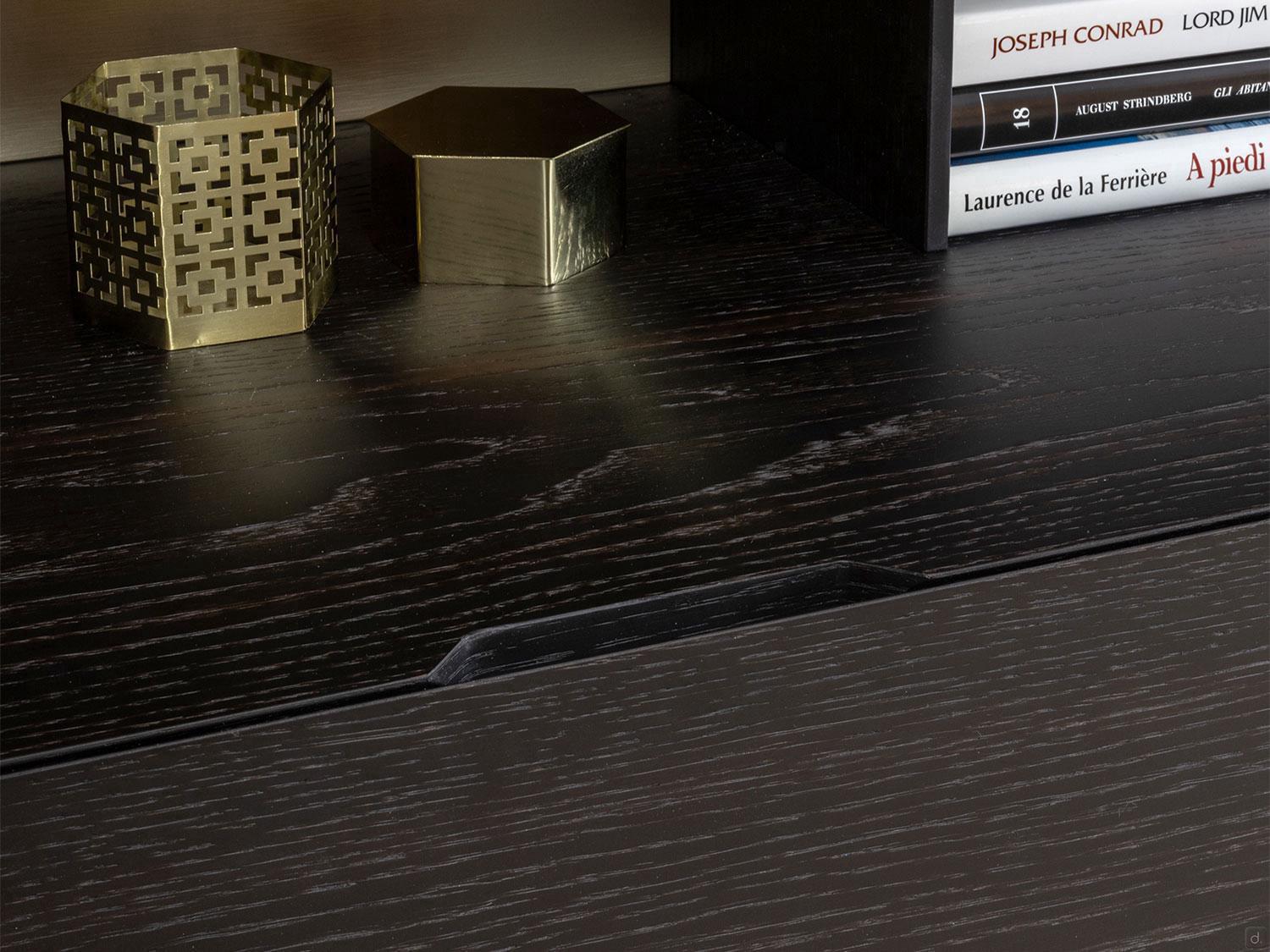

Doors are easy to open, thanks to the recess at the top of the unit

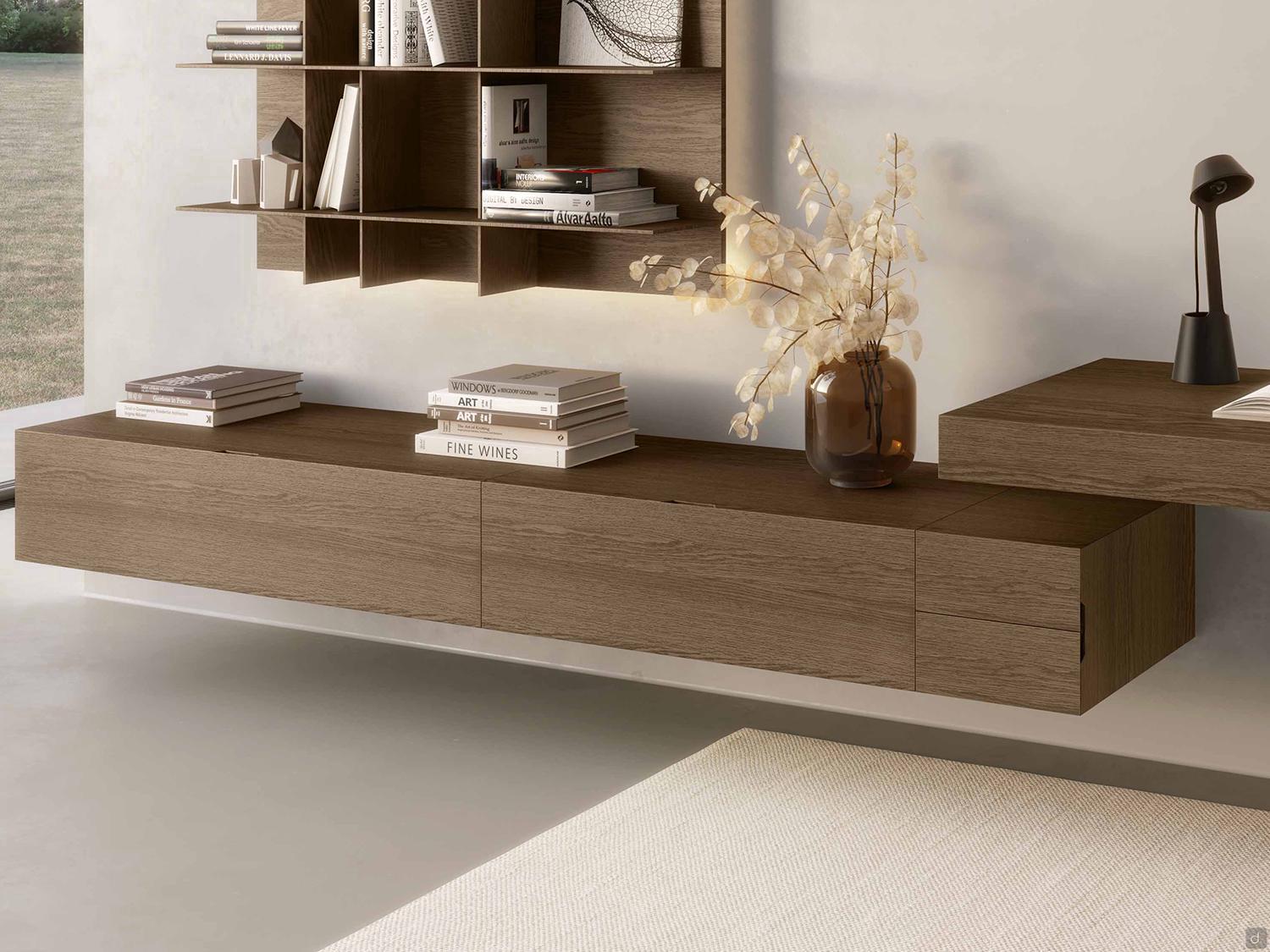

A composition of base units with drop-down doors and drawers - aged oak wood in the E25 Tobacco finish.

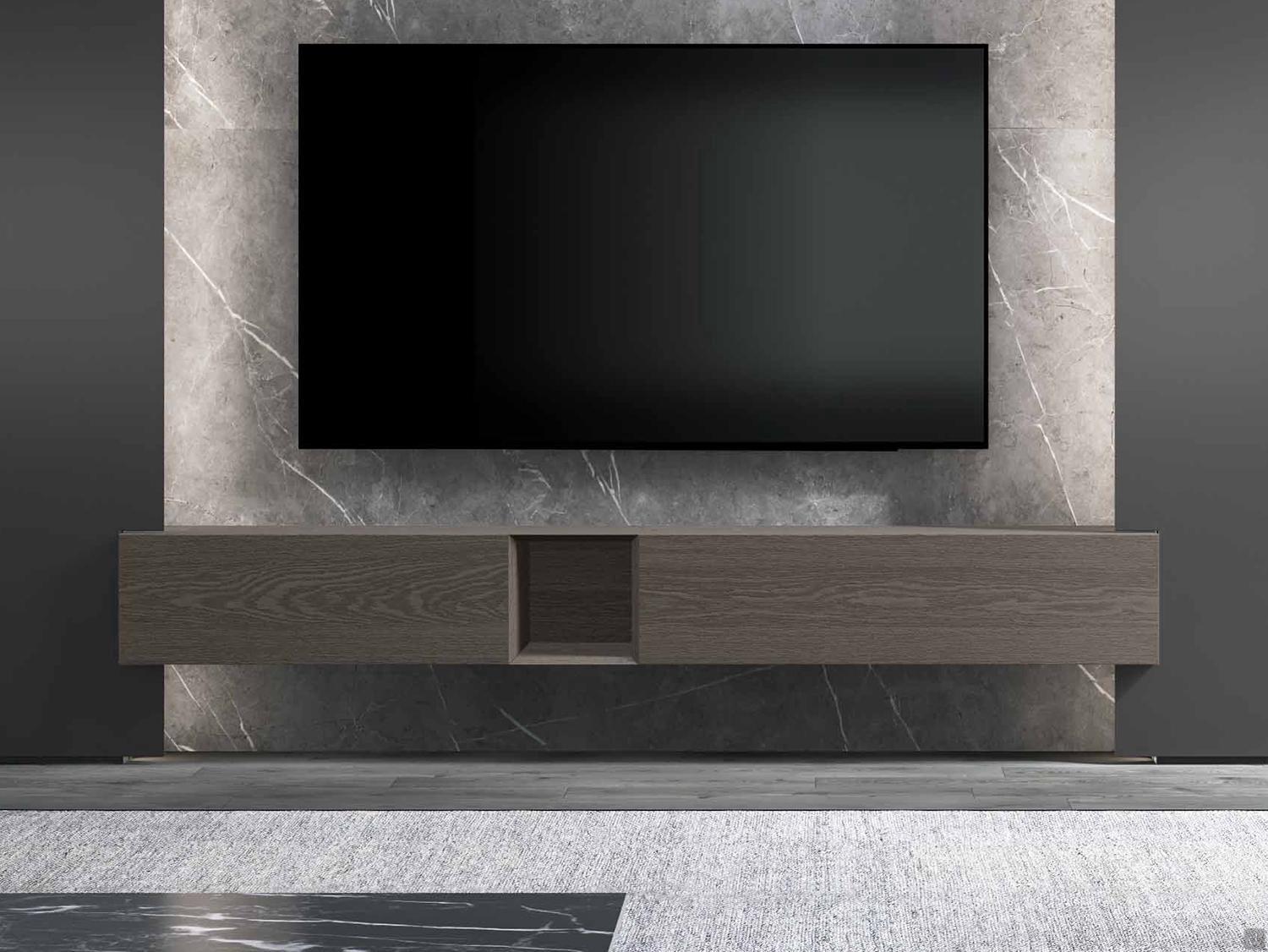

TV wall paired with a suspended base unit with a drop-down door and open compartment

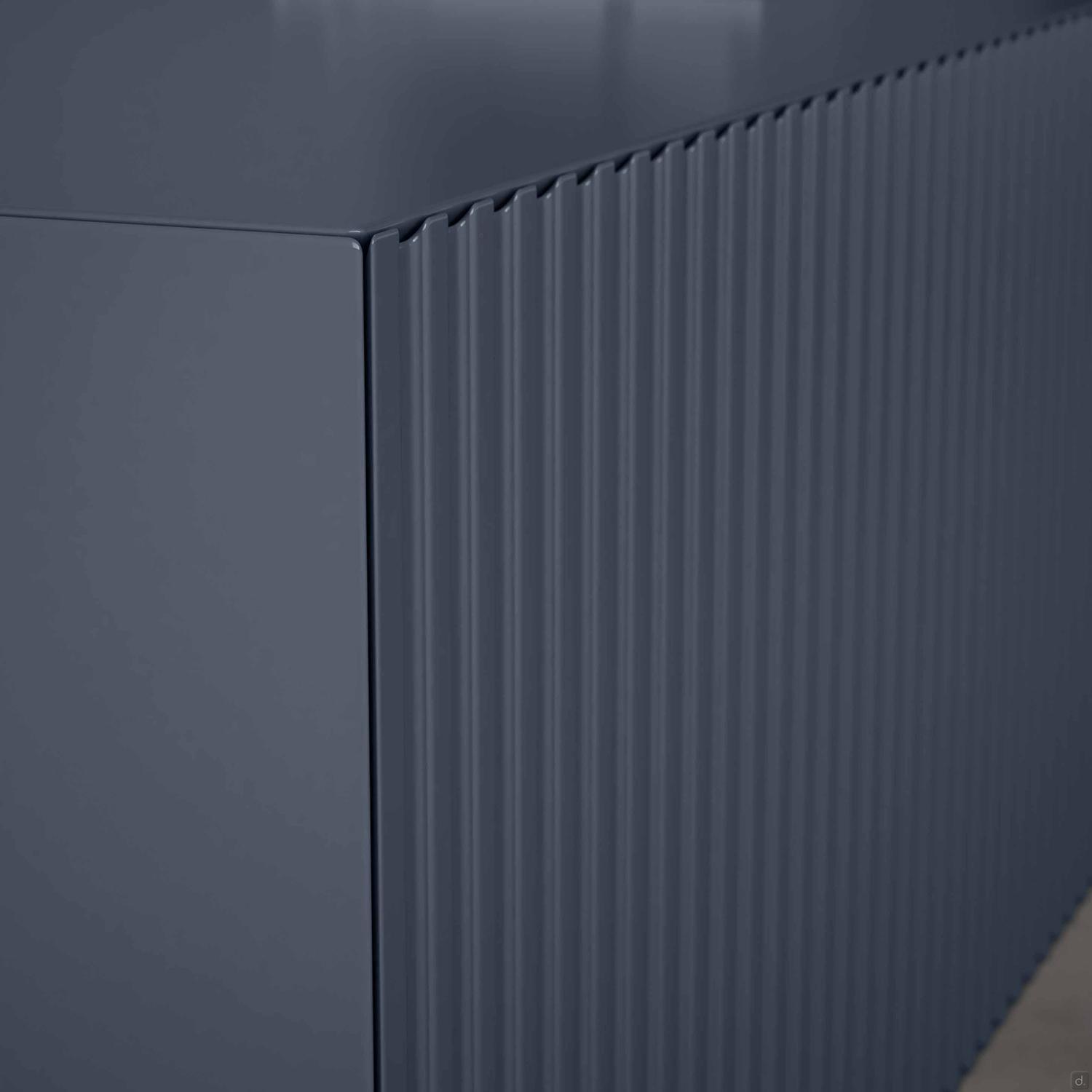

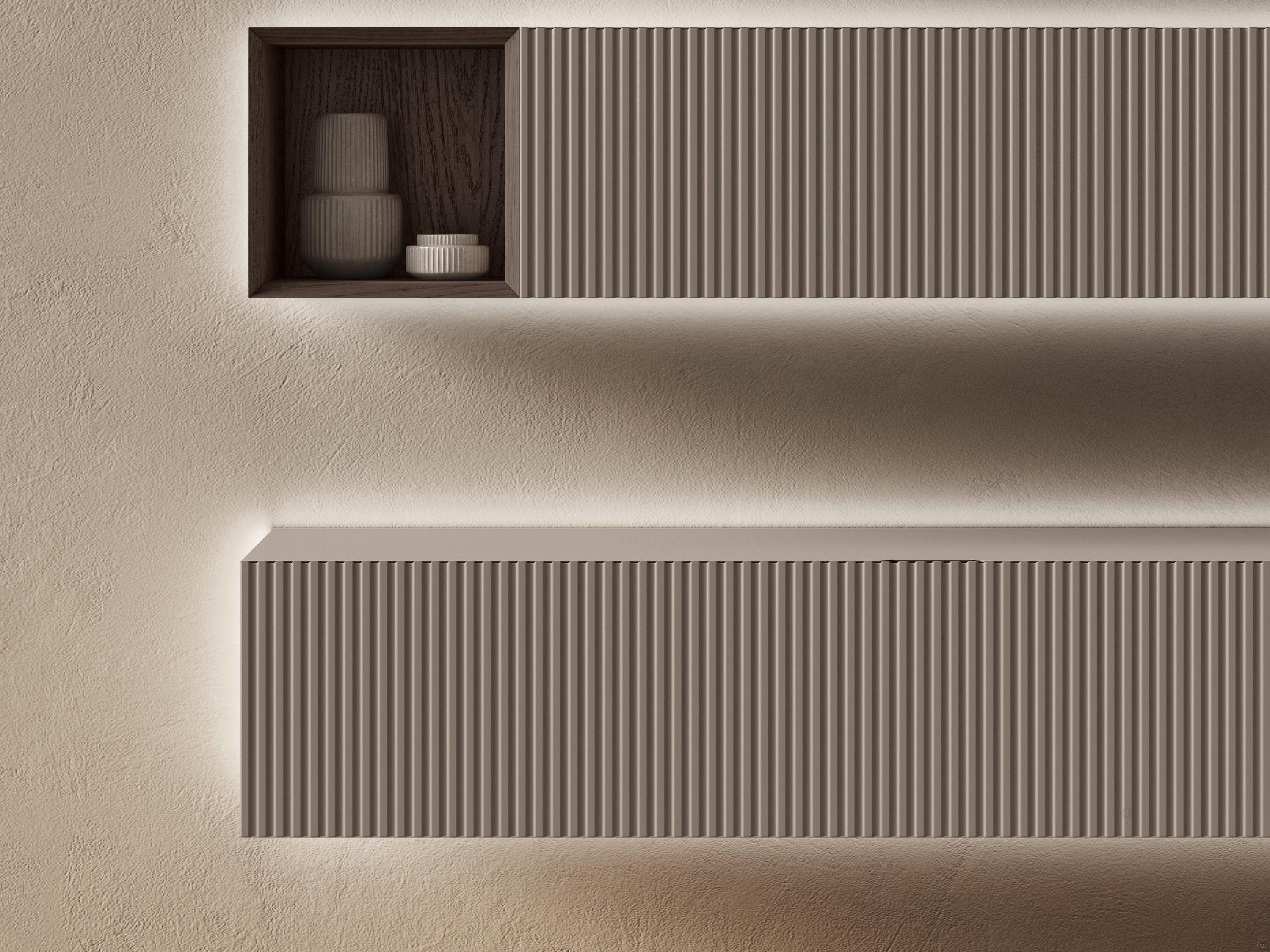

A close up of matt-lacquer panels in the Mistletoe finish with the 10:10 effect on the surface

Royal base unit with drop-down doors, ideal for positioning under a TV

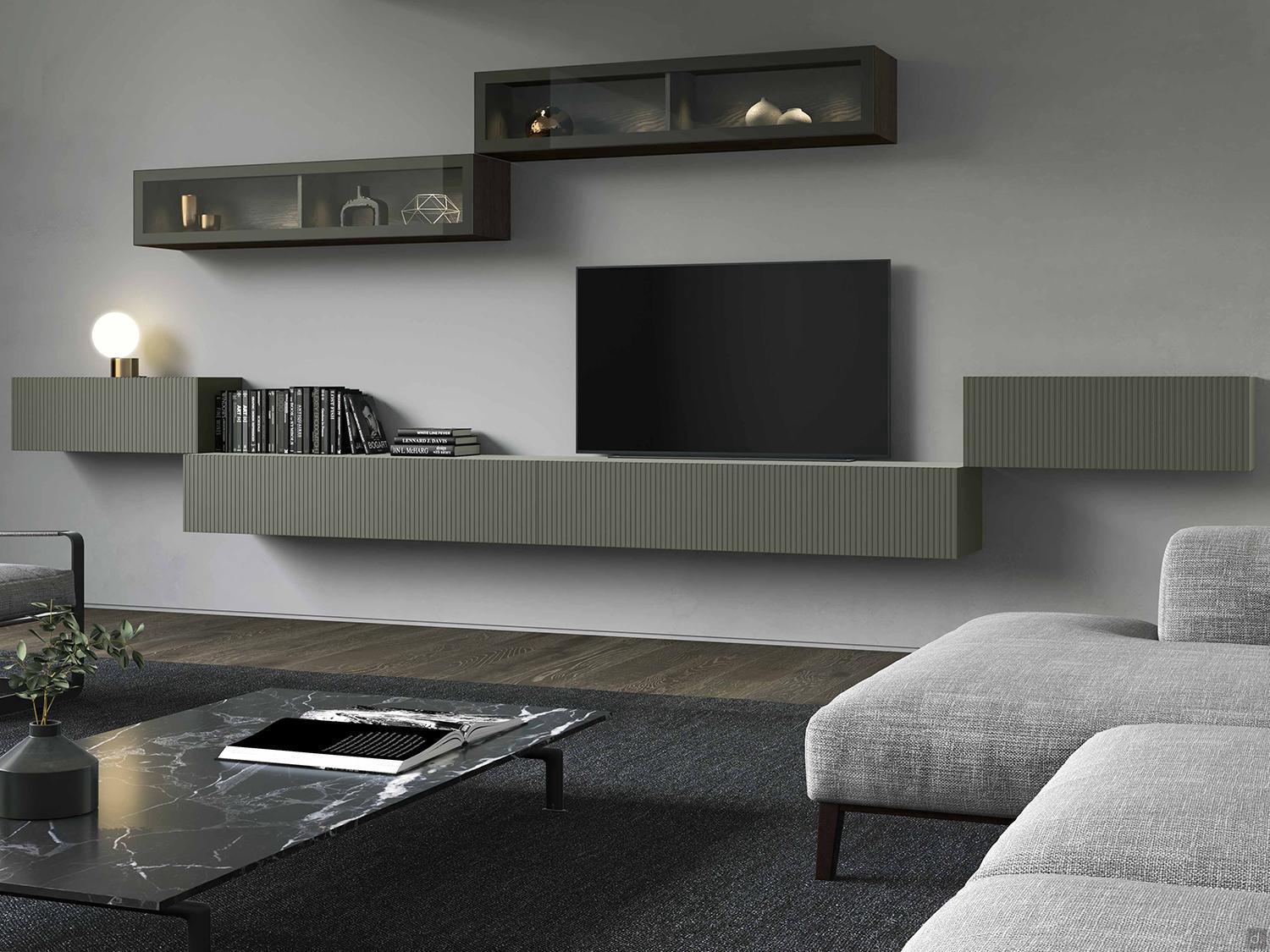

A Royal wall system with base units in aged oak wood (E27 Carbon)

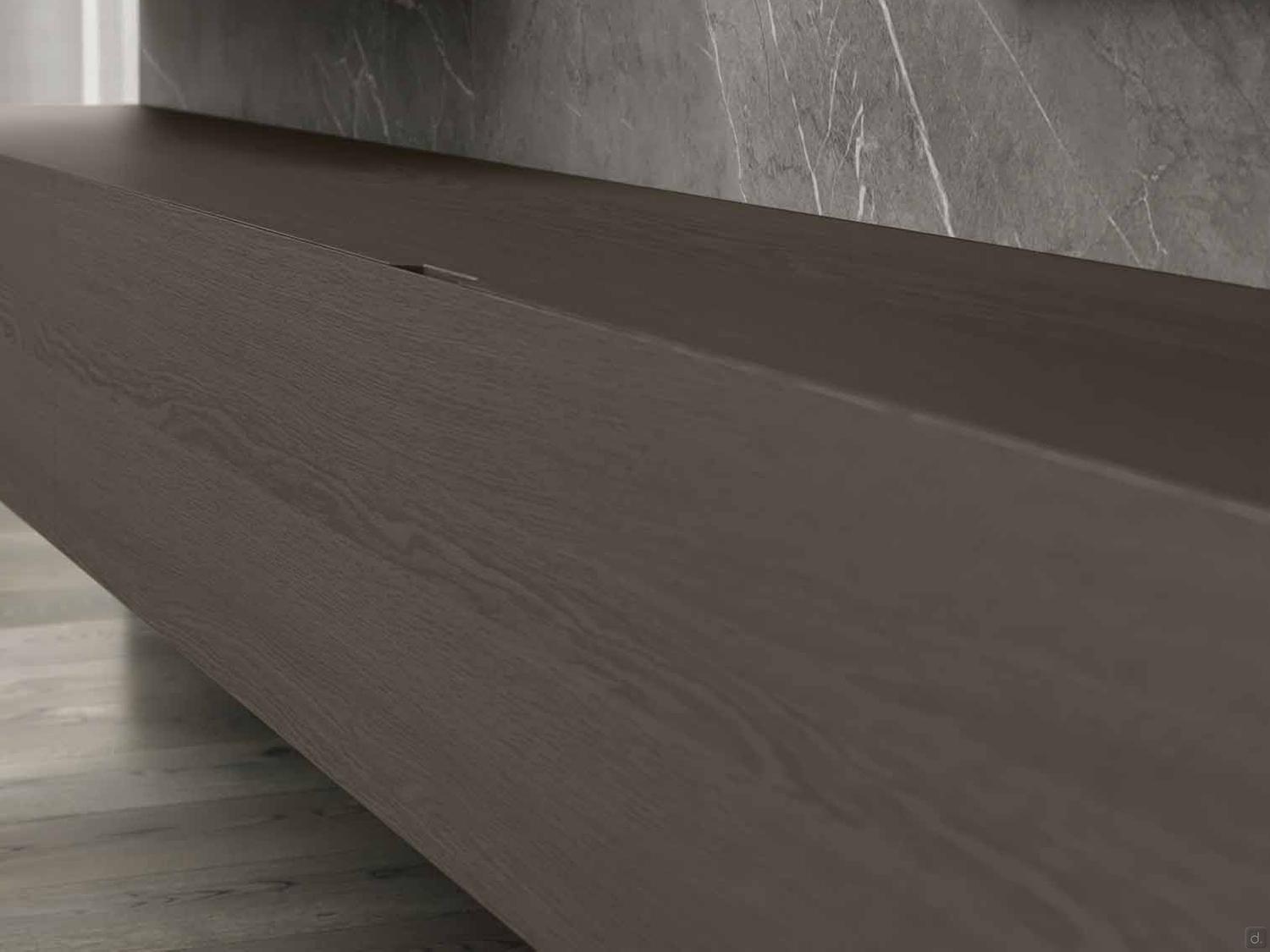

Close up of the practical opening system which consists of a recess at the top of the unit

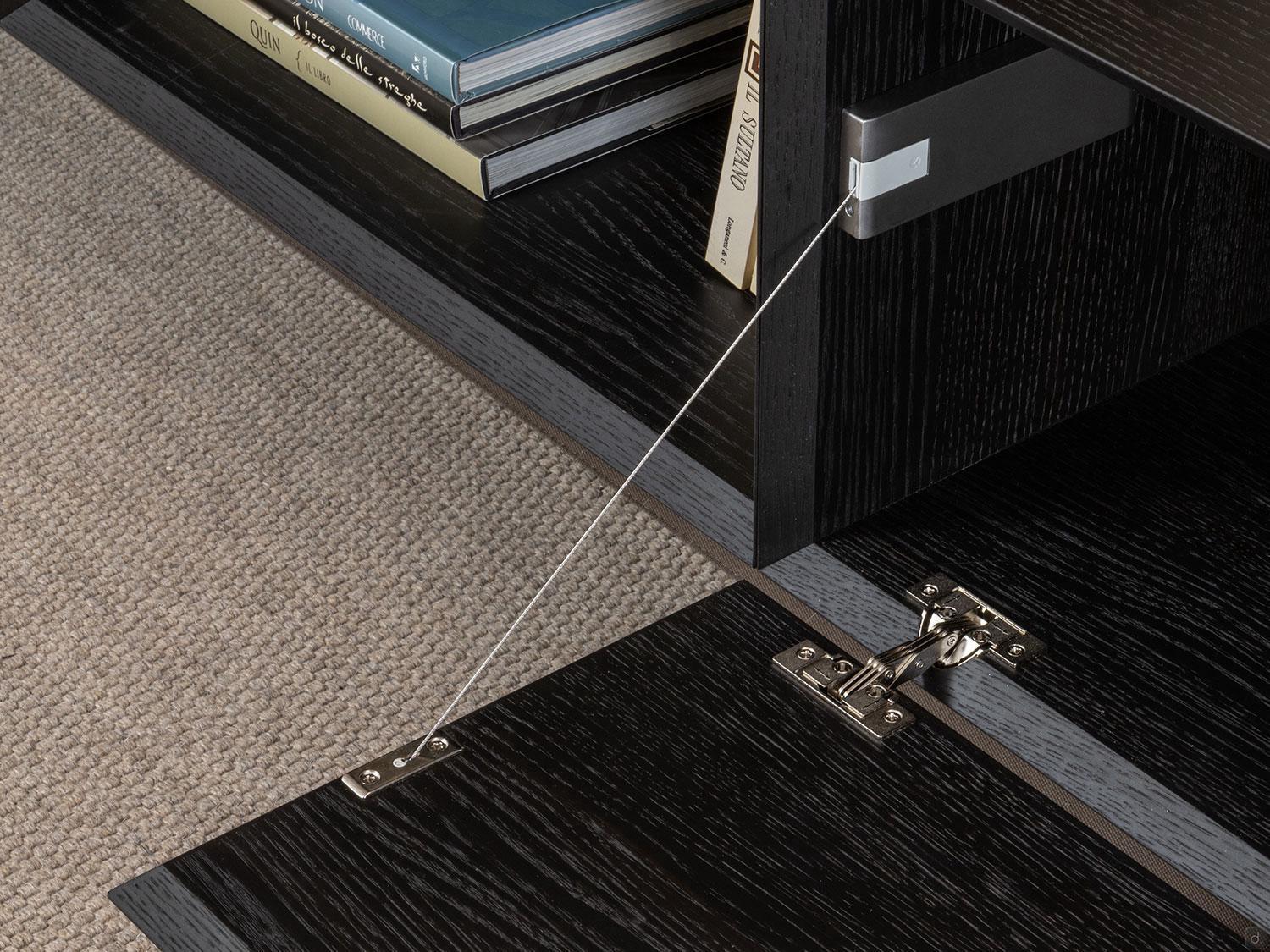

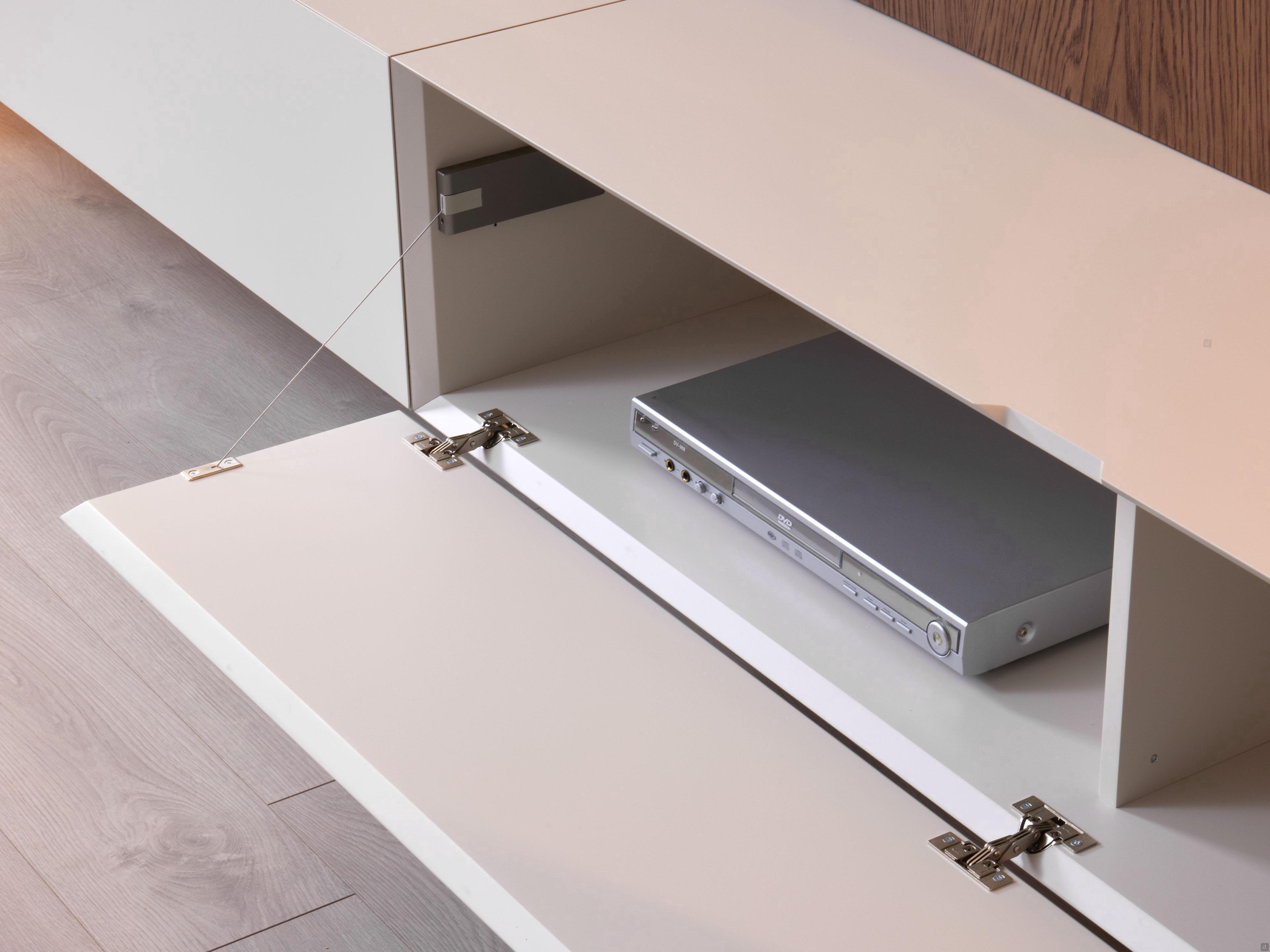

The drop-down opening system for Royal base units

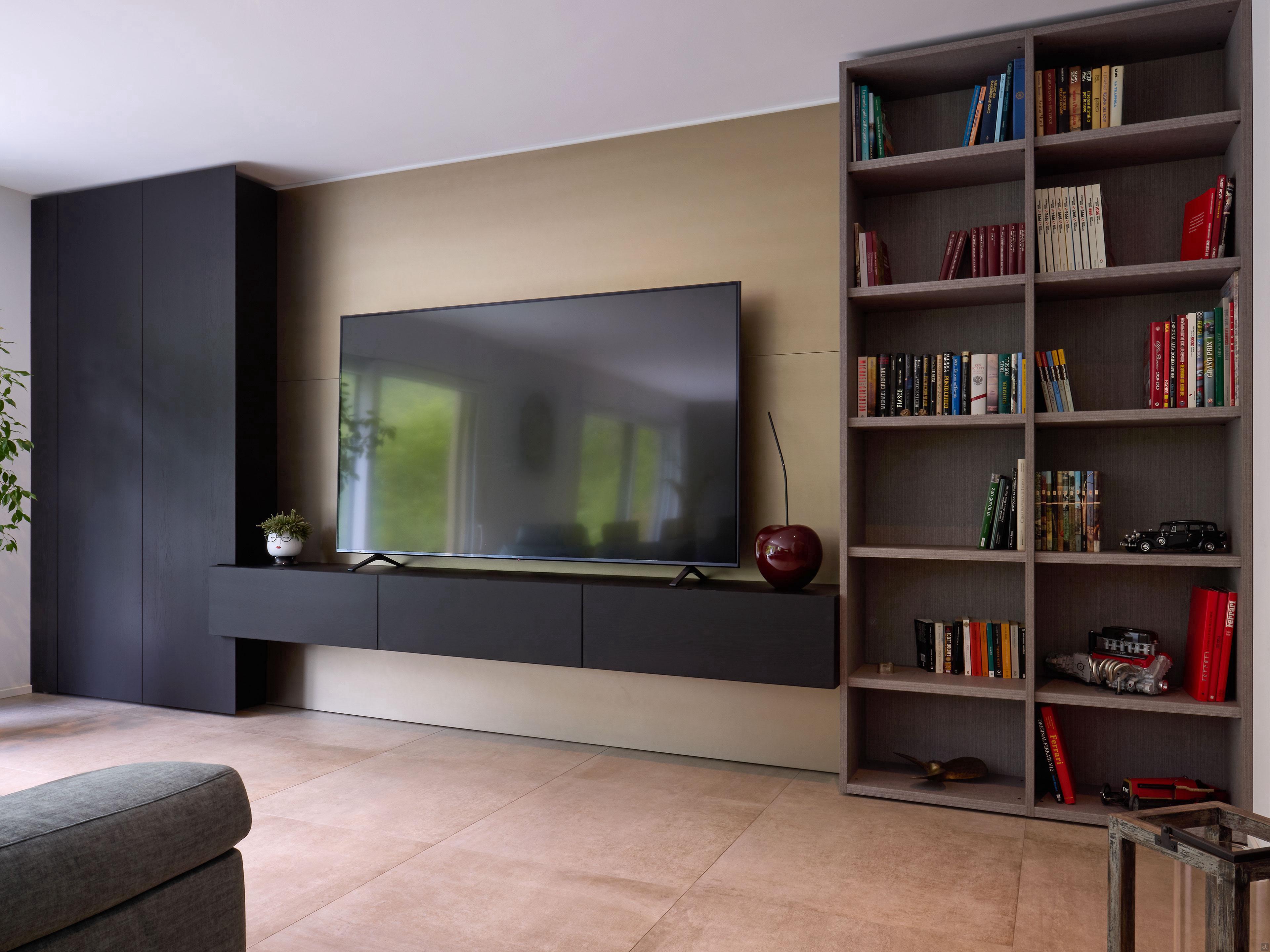

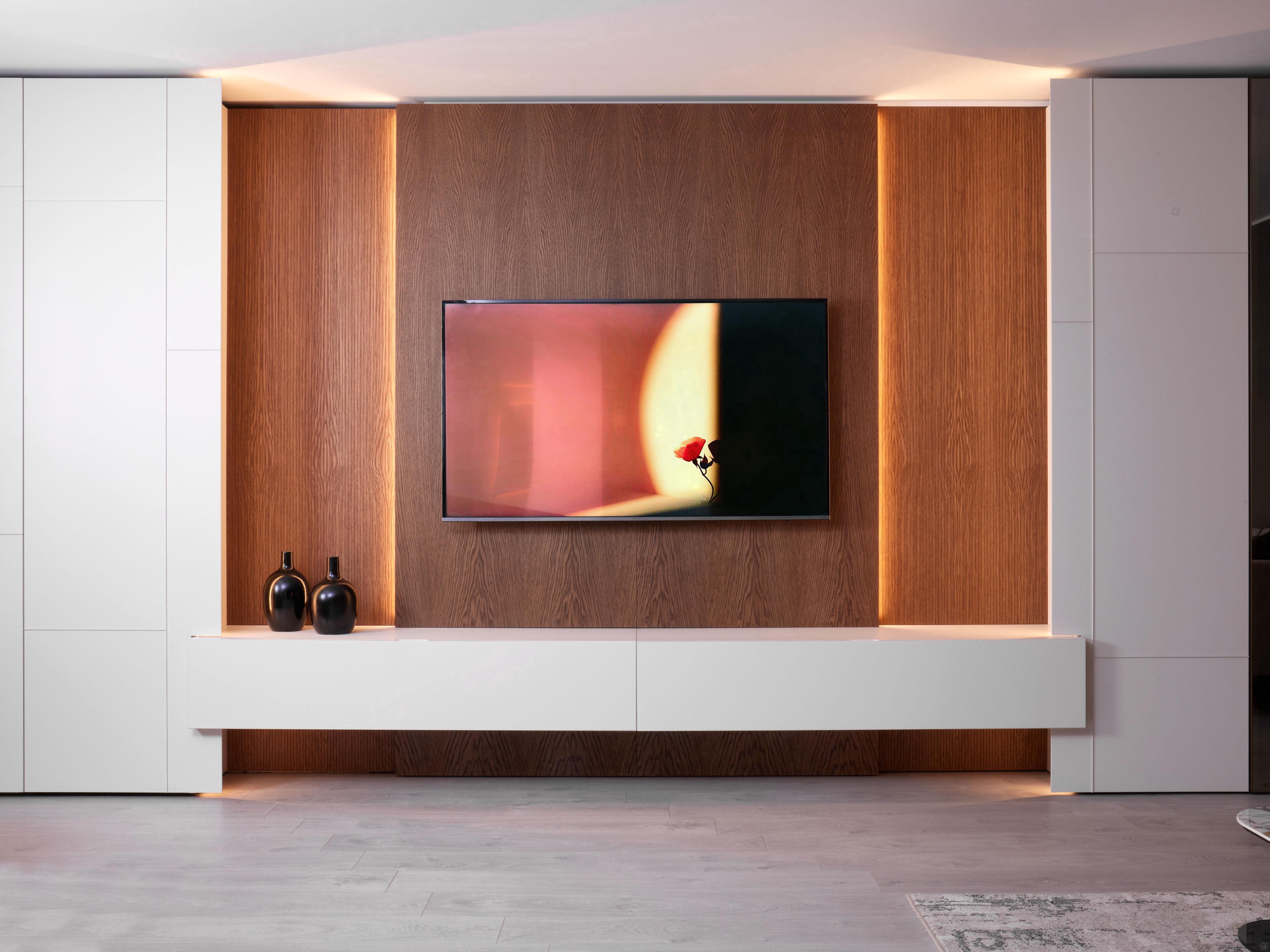

Royal flap base units combined with the boiserie from the same collection and Lounge columns (cupboard and open units) - Customer photo

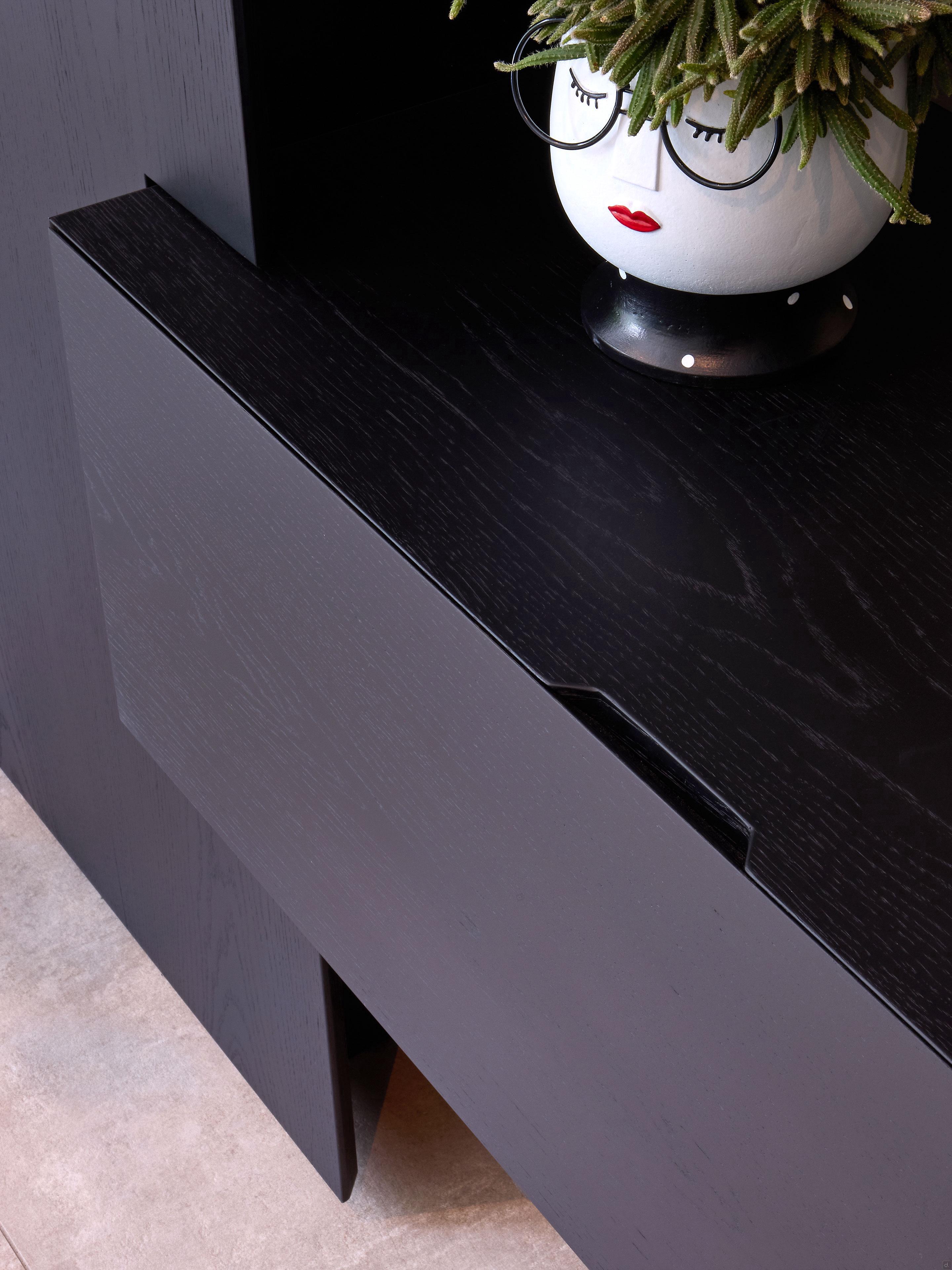

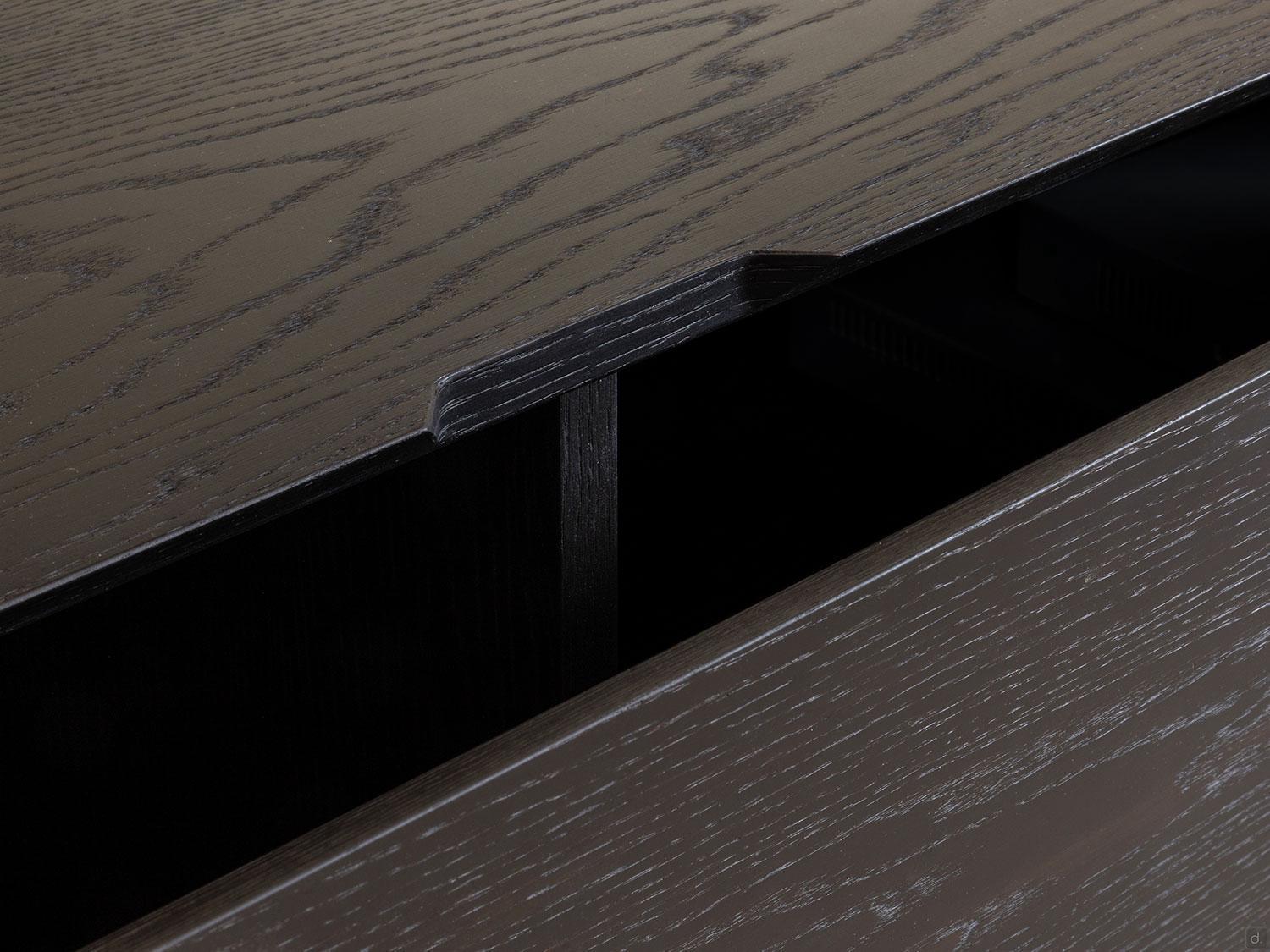

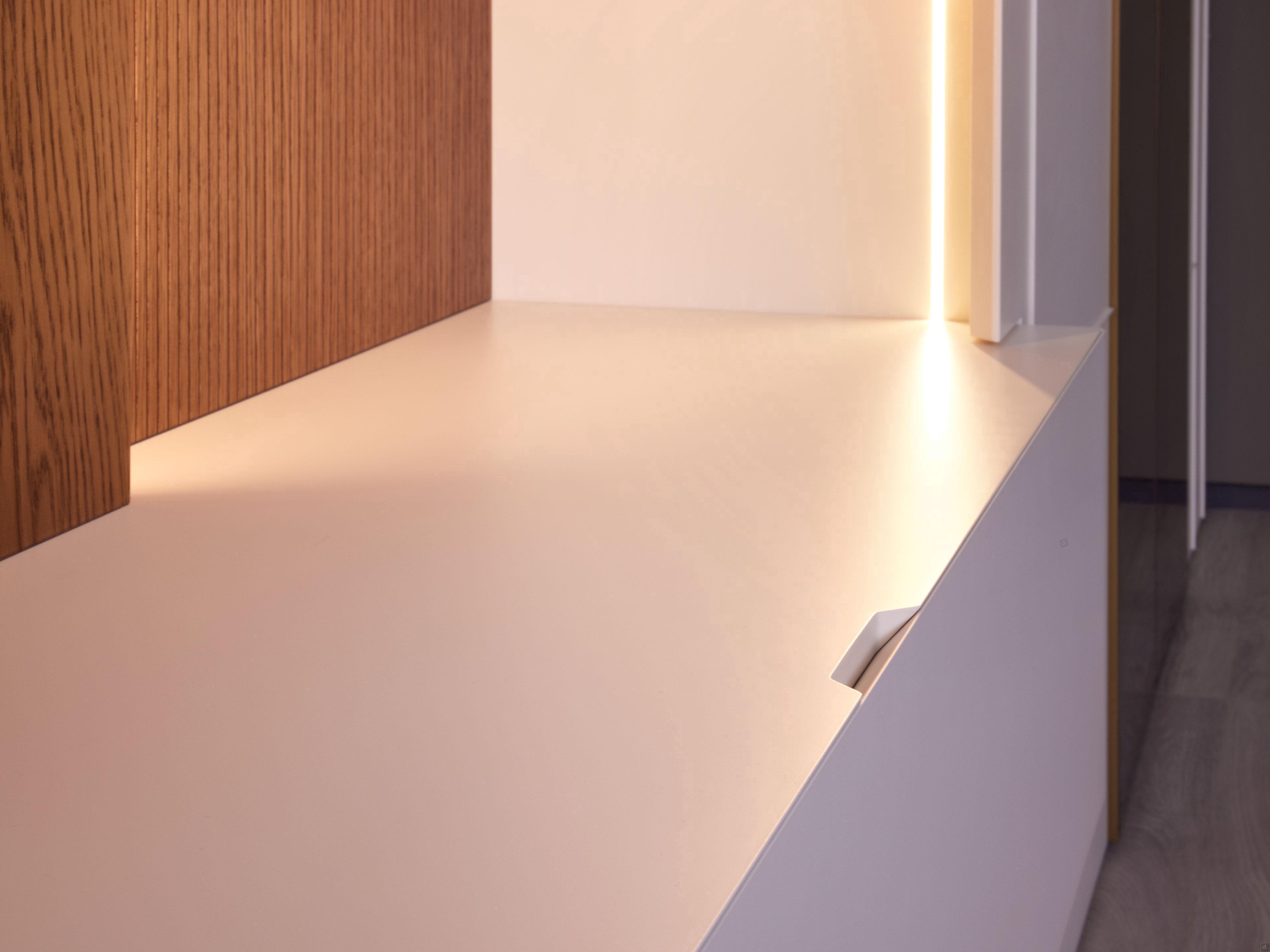

Detail of the groove with which all Royal flap base units open, always proposed in the same colour as fronts and structure - Customer photo

Royal base unit with drop-down door and floor-standing base

By including open compartments with your base units, you can create a captivating contrast between the open and closed spaces

Royal base unit with drop-down door made from matt lacquer in the Canvas finish

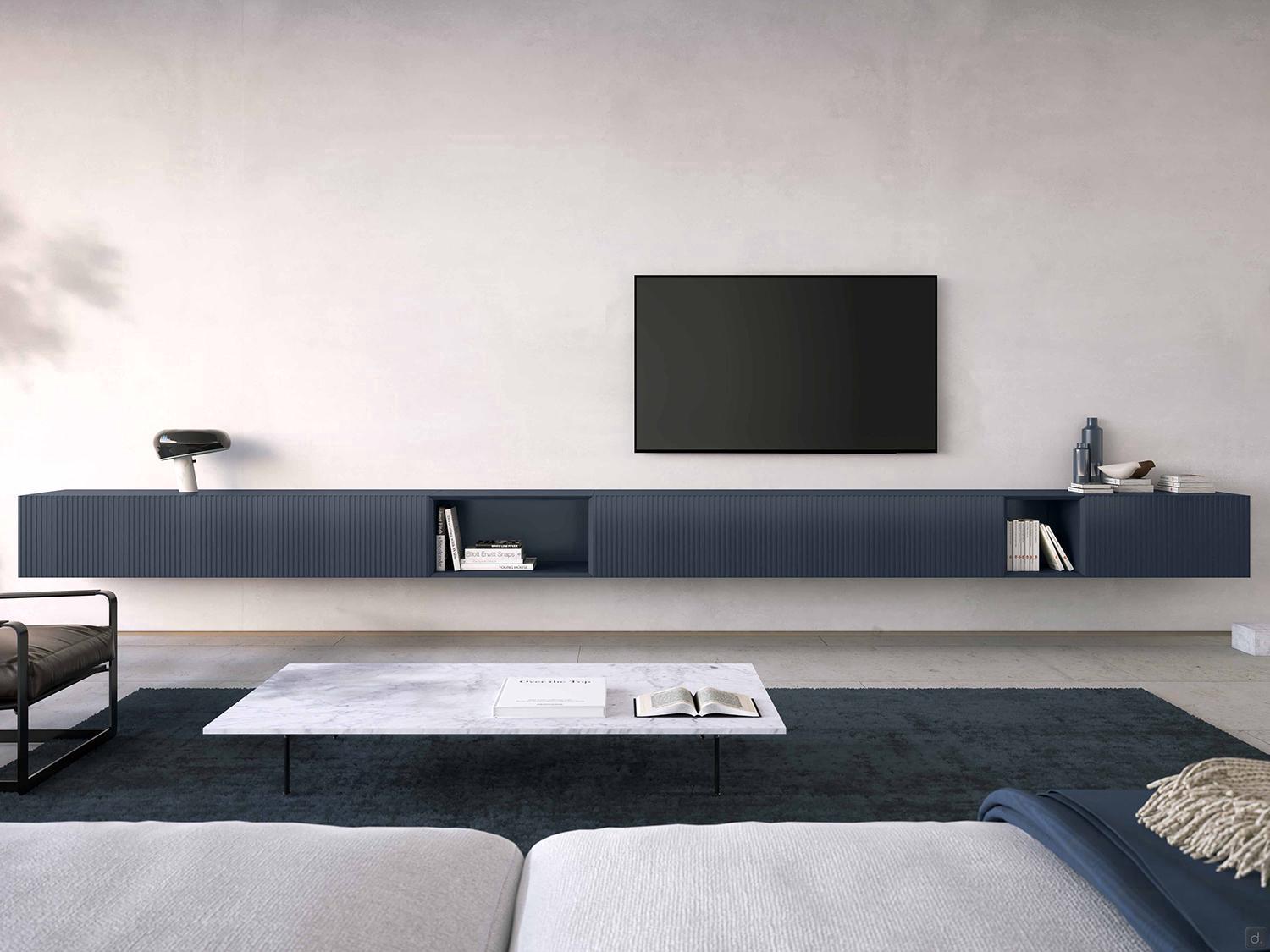

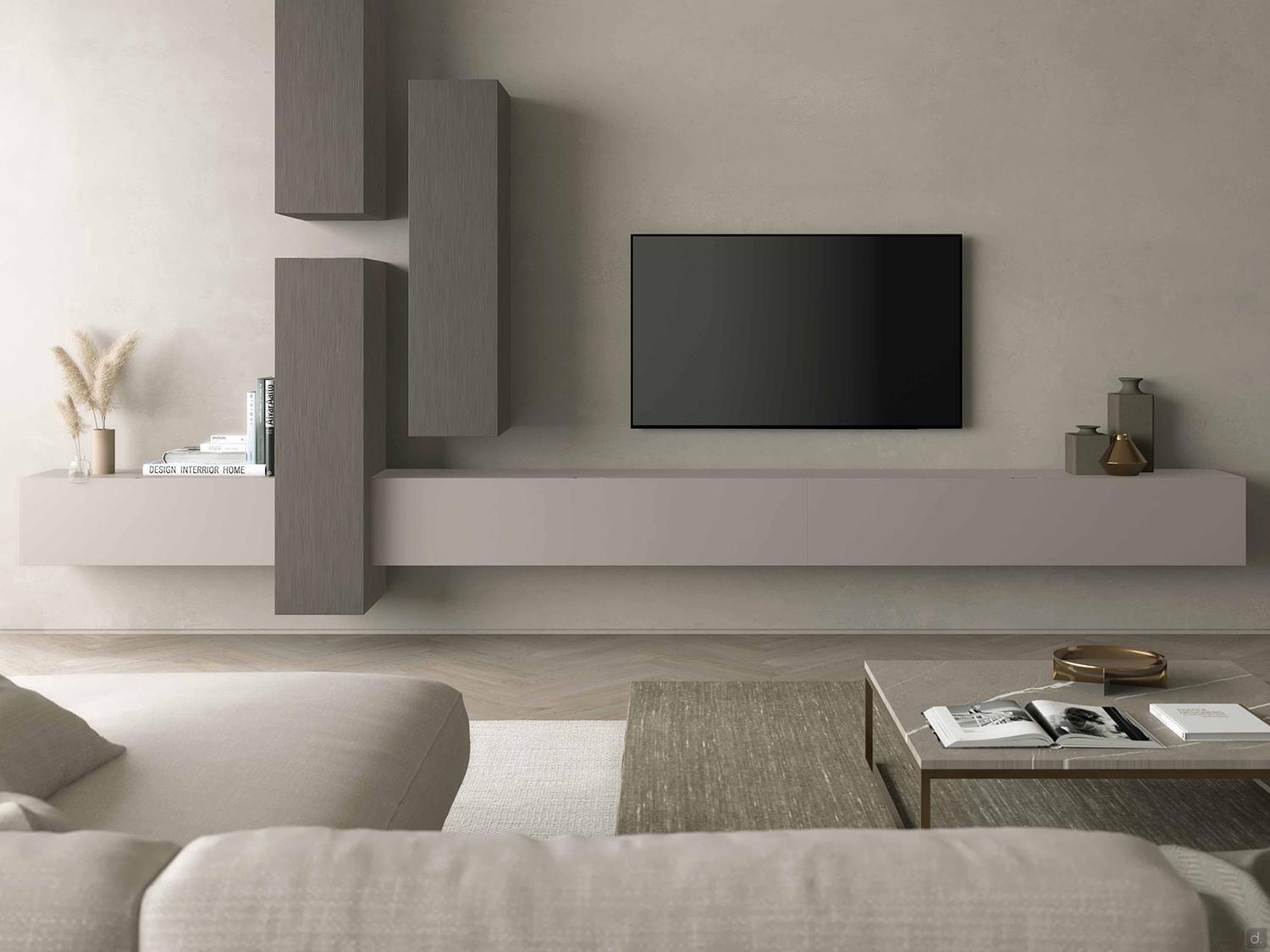

Wall system with a minimalist design and Royal base units in matt lacquer (Ocean finish)

An example of the 10:10 effect with “U”-shaped carvings which is available for the front panels

Royal flap storage unit - detail of door opening with shaping

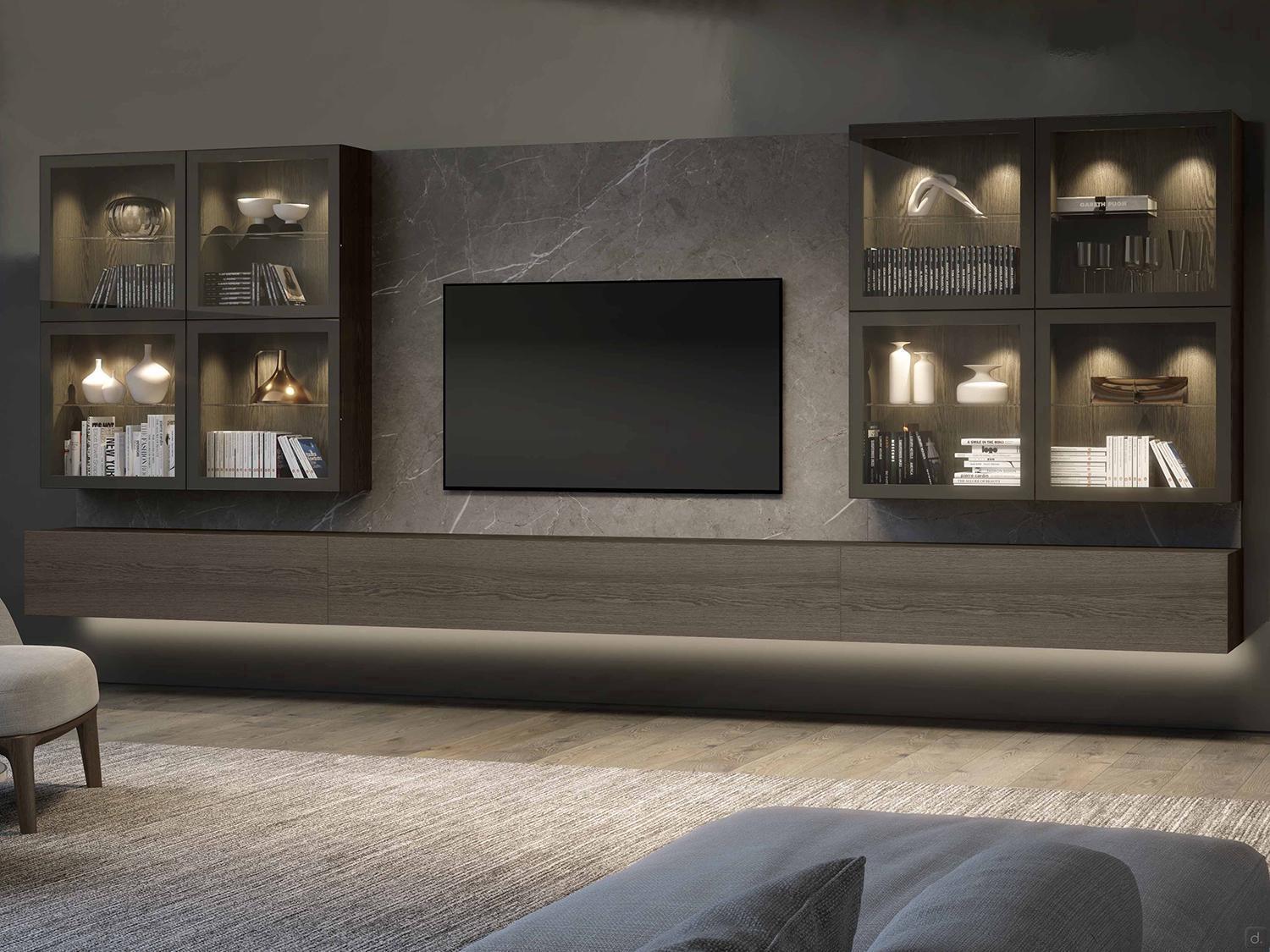

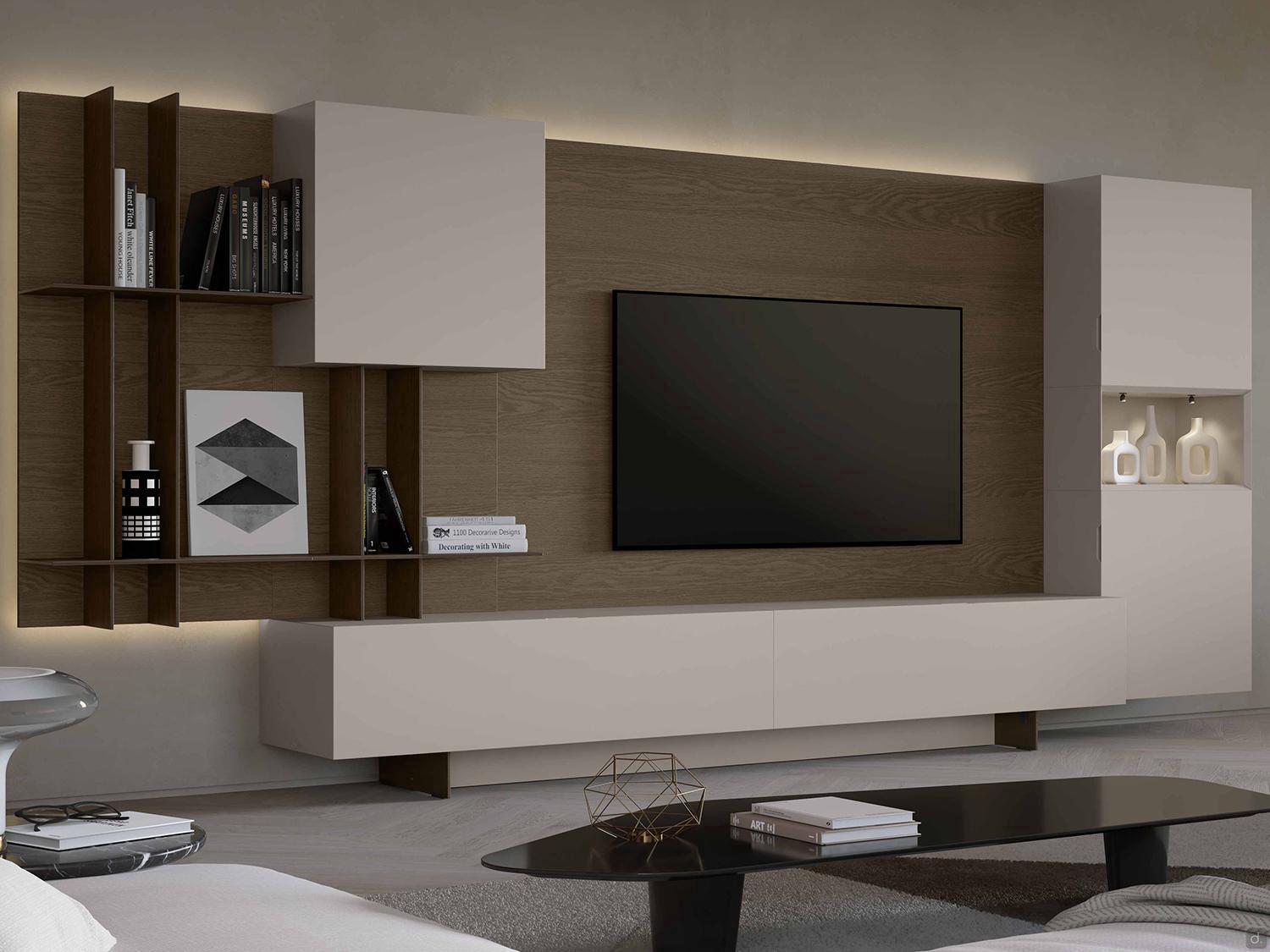

Royal wall system with base units, back panels and glass wall units

Base unit with a drop-down door and a recess at the top to open it

Royal base unit with drop down door, paired with column cupboards from the Lounge collection

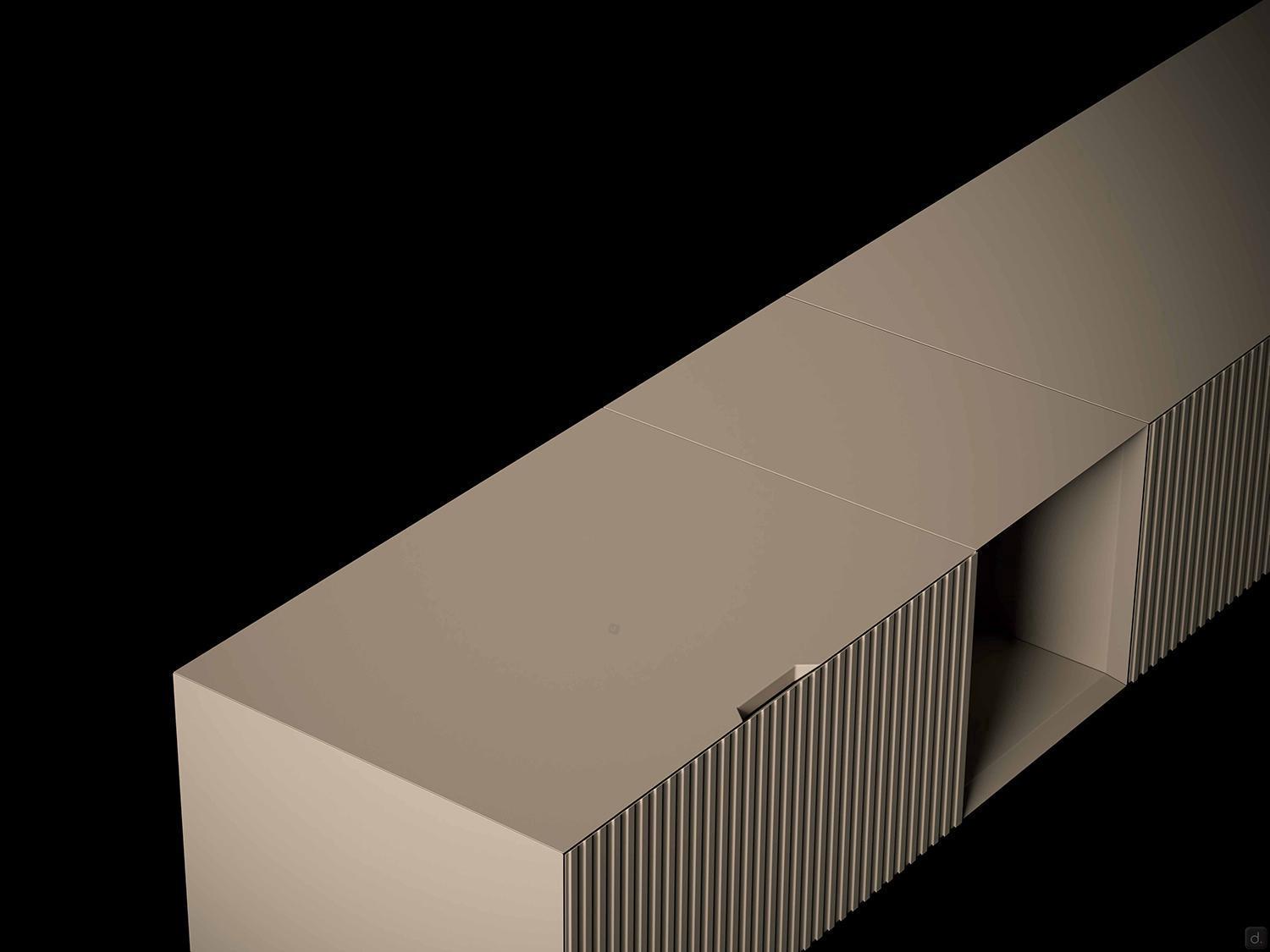

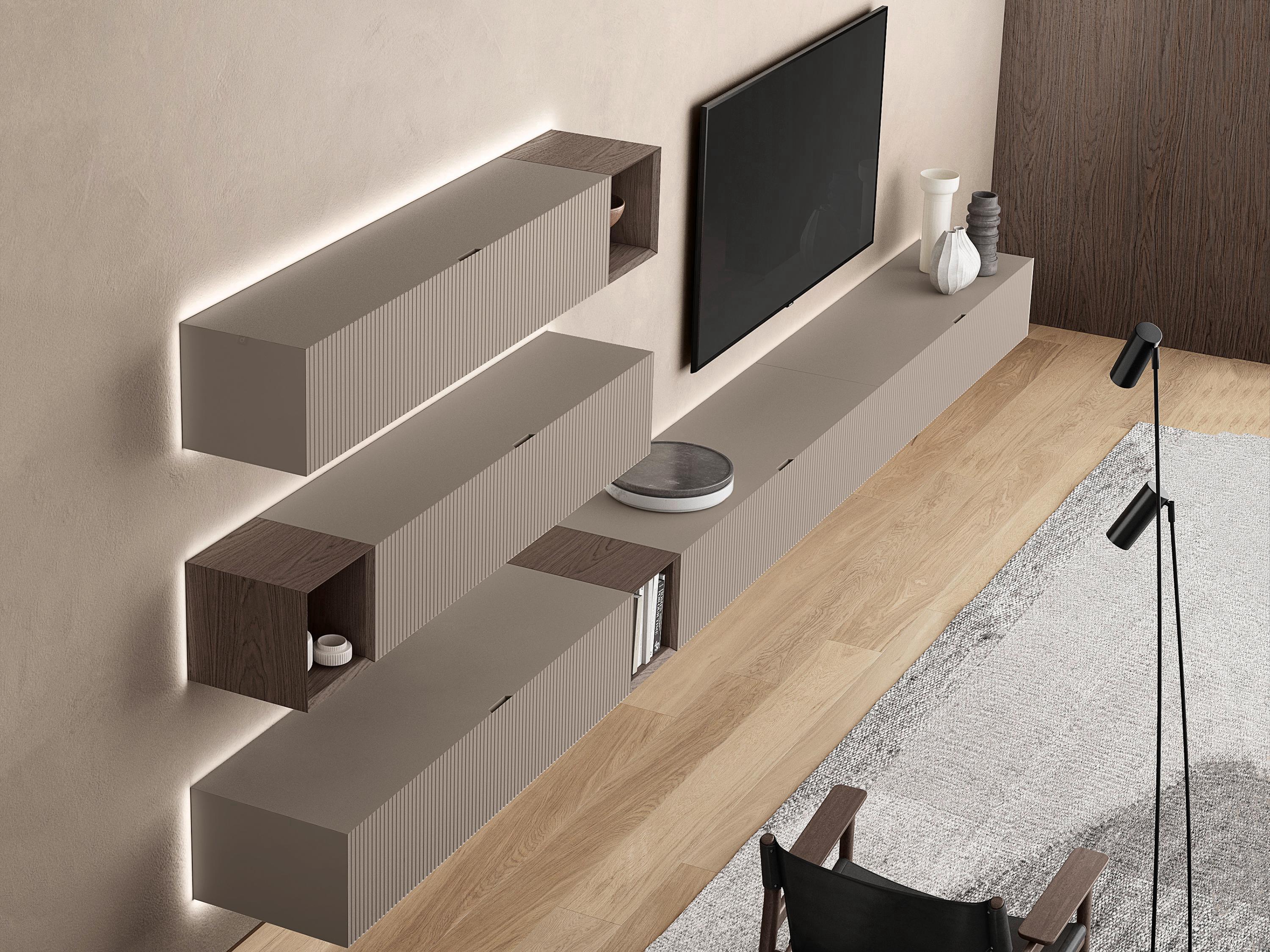

A view of the Royal composition with base units and open compartments, from above

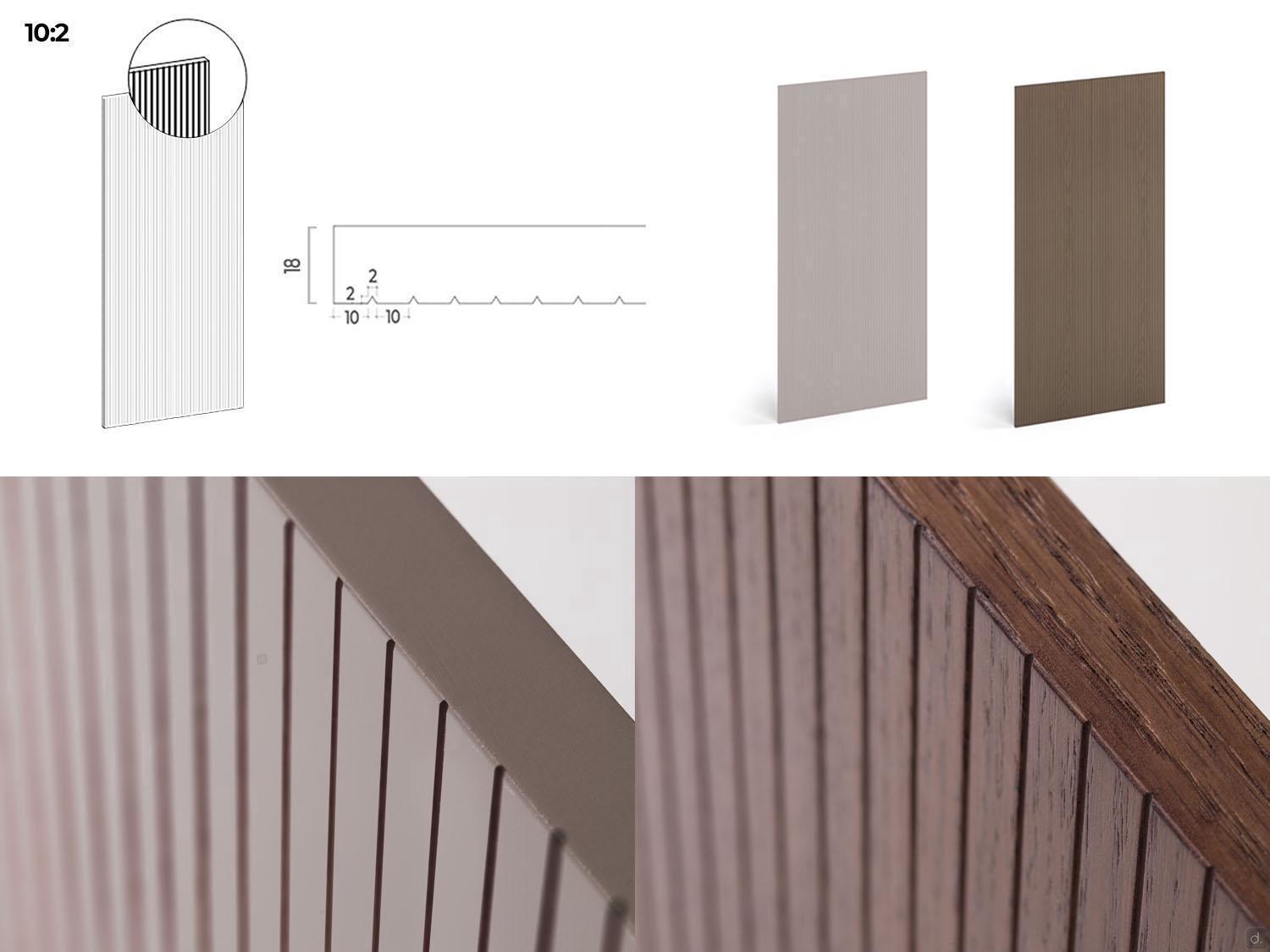

Lounge illuminated niche wall unit - "10:2" processing with vertical "V" engravings mm 2 thick

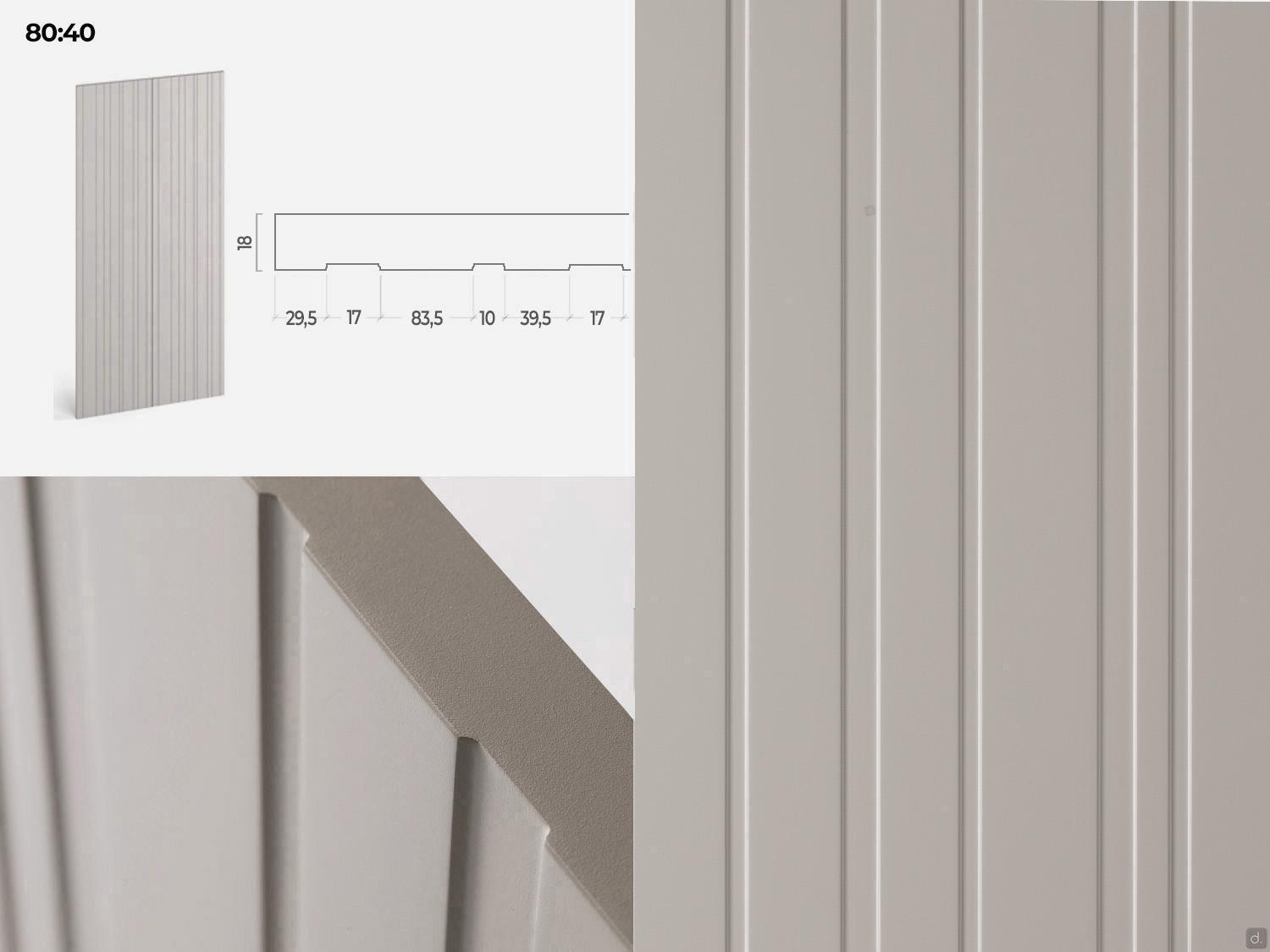

Wall equipped with Lounge illuminated niche - "80:40" processing with "U" shaped engravings 10 mm thick with variable pitch (available only on lacquered wood)

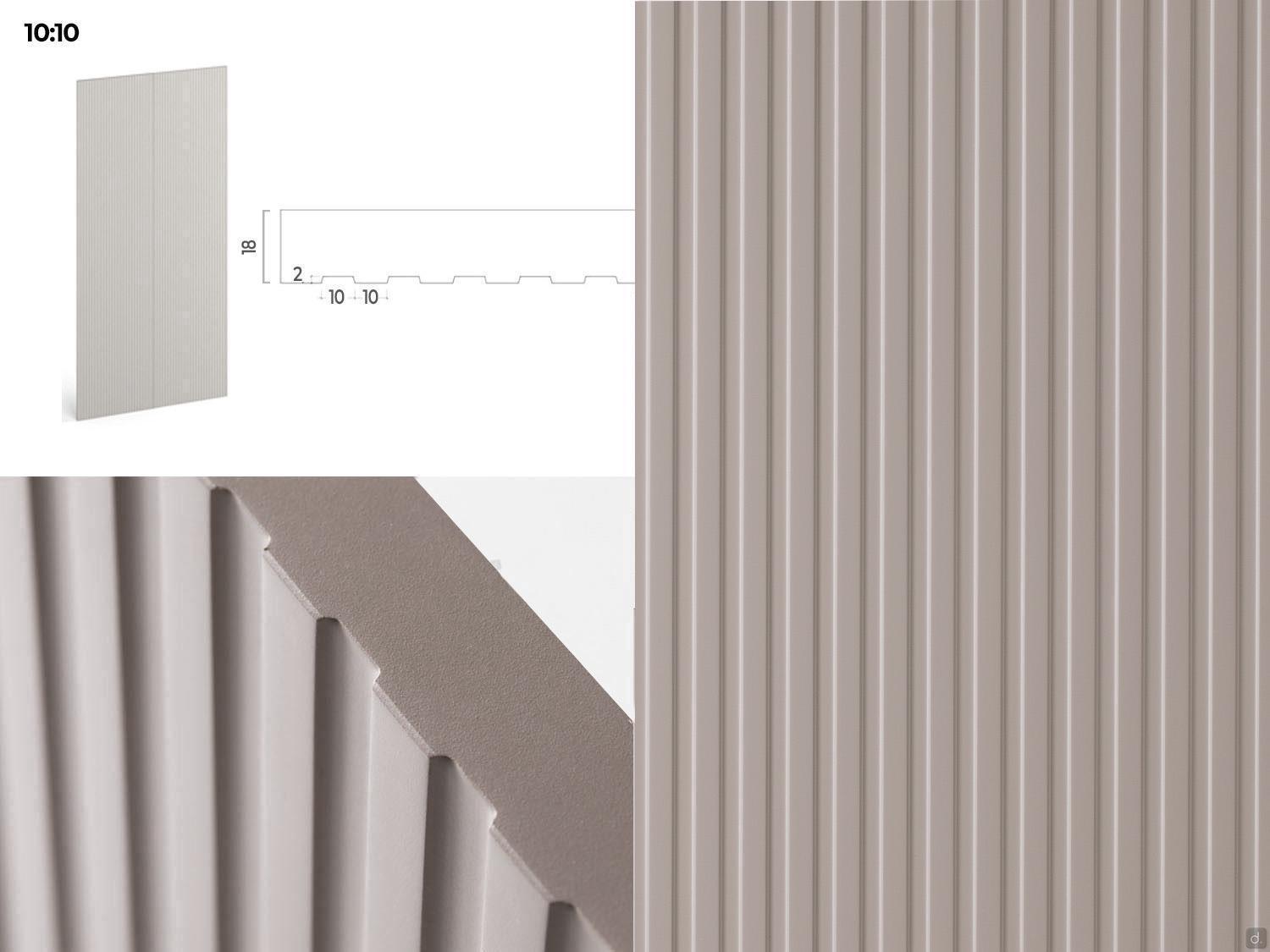

Royal base - Decoration "10:10" with vertical "U" shaped incisions mm 10 th.2 (available only on lacquered wood)

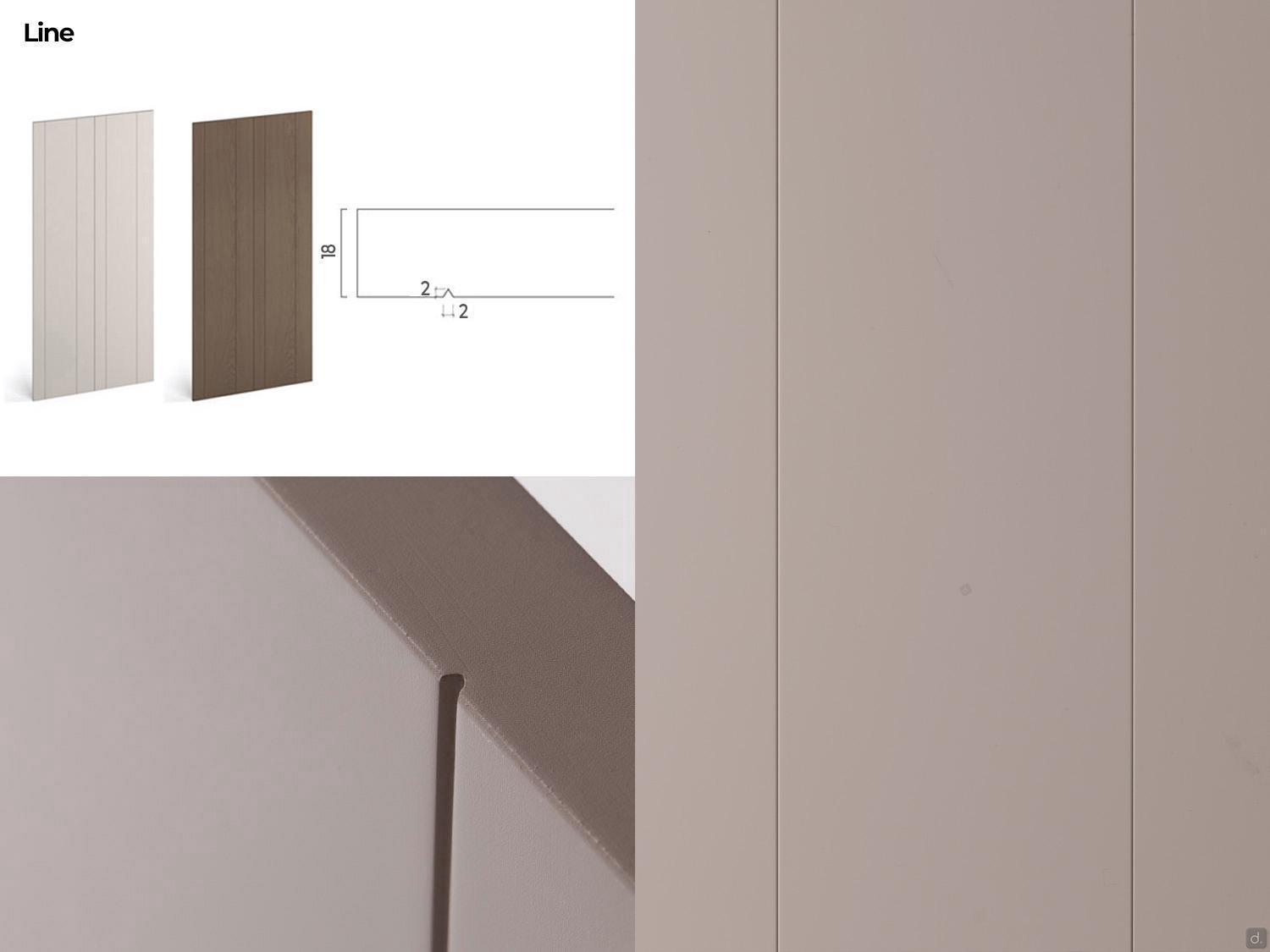

Royal base - Decoration "Line" with vertical "V" shaped incisions mm 2 th.2

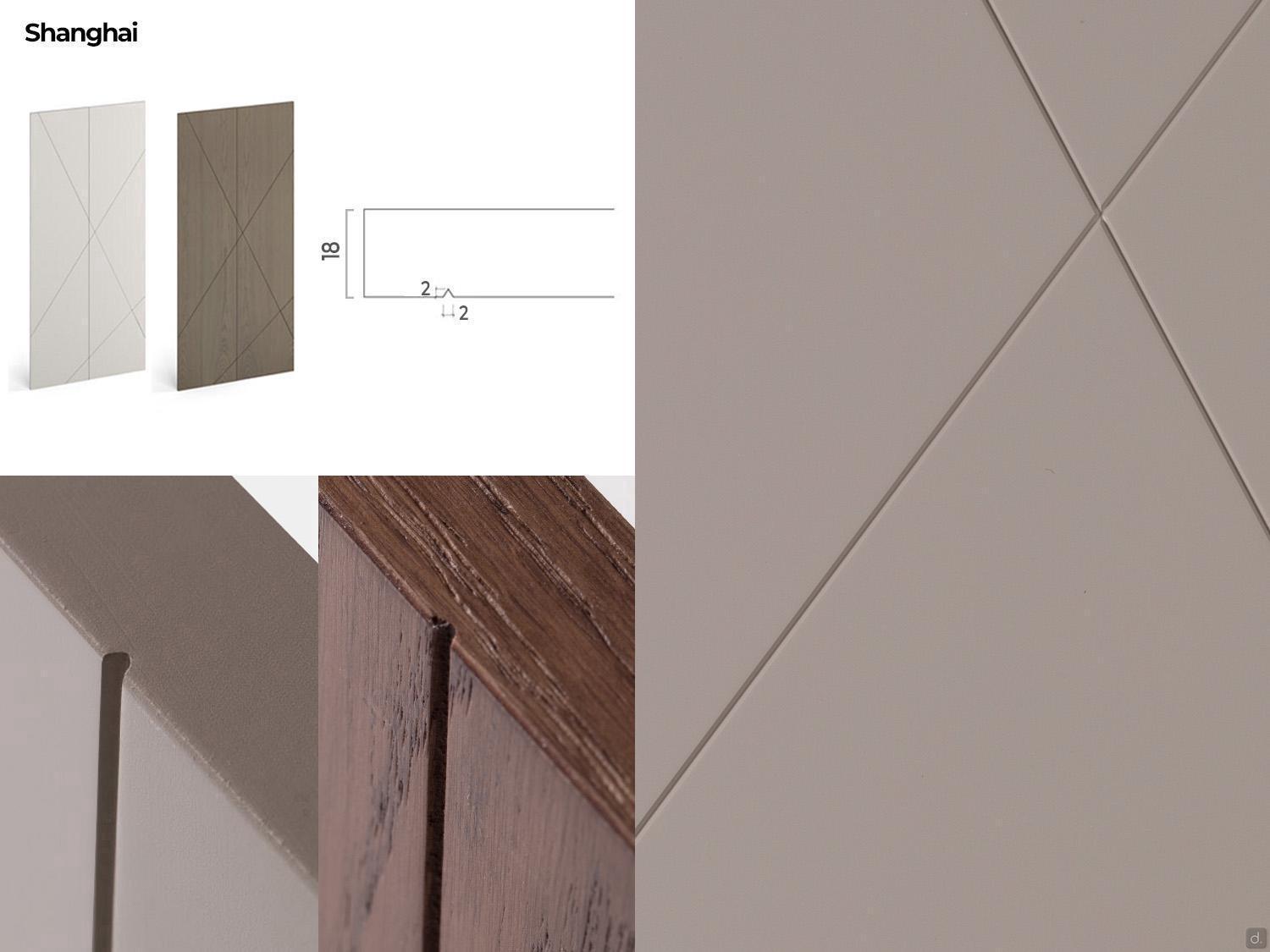

Royal base - Decoration "Shanghai" with diagonal "V" shaped incisions mm 2 th.2

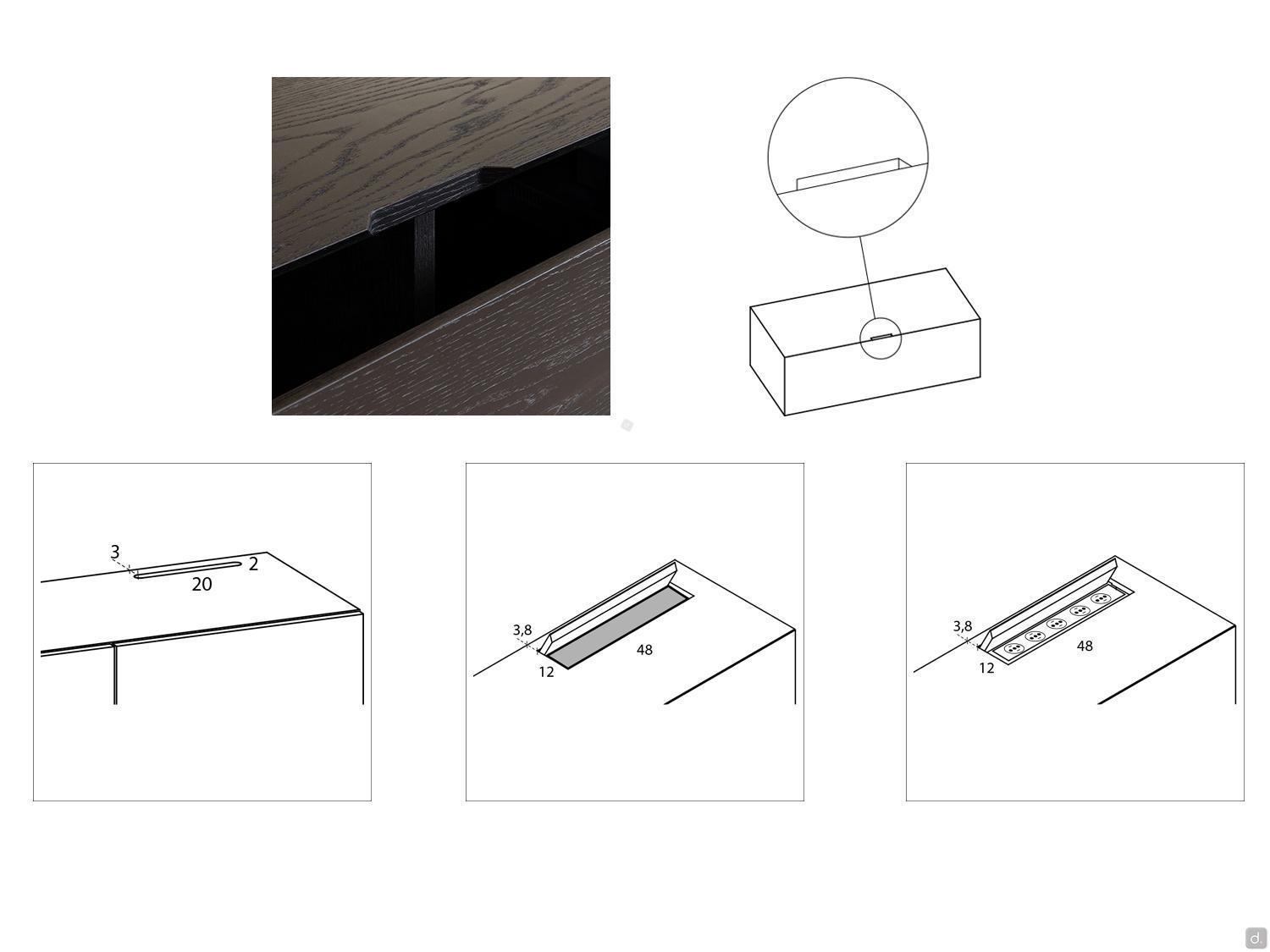

Royal base units with drop-down doors - Opening type and optional set of cable holes

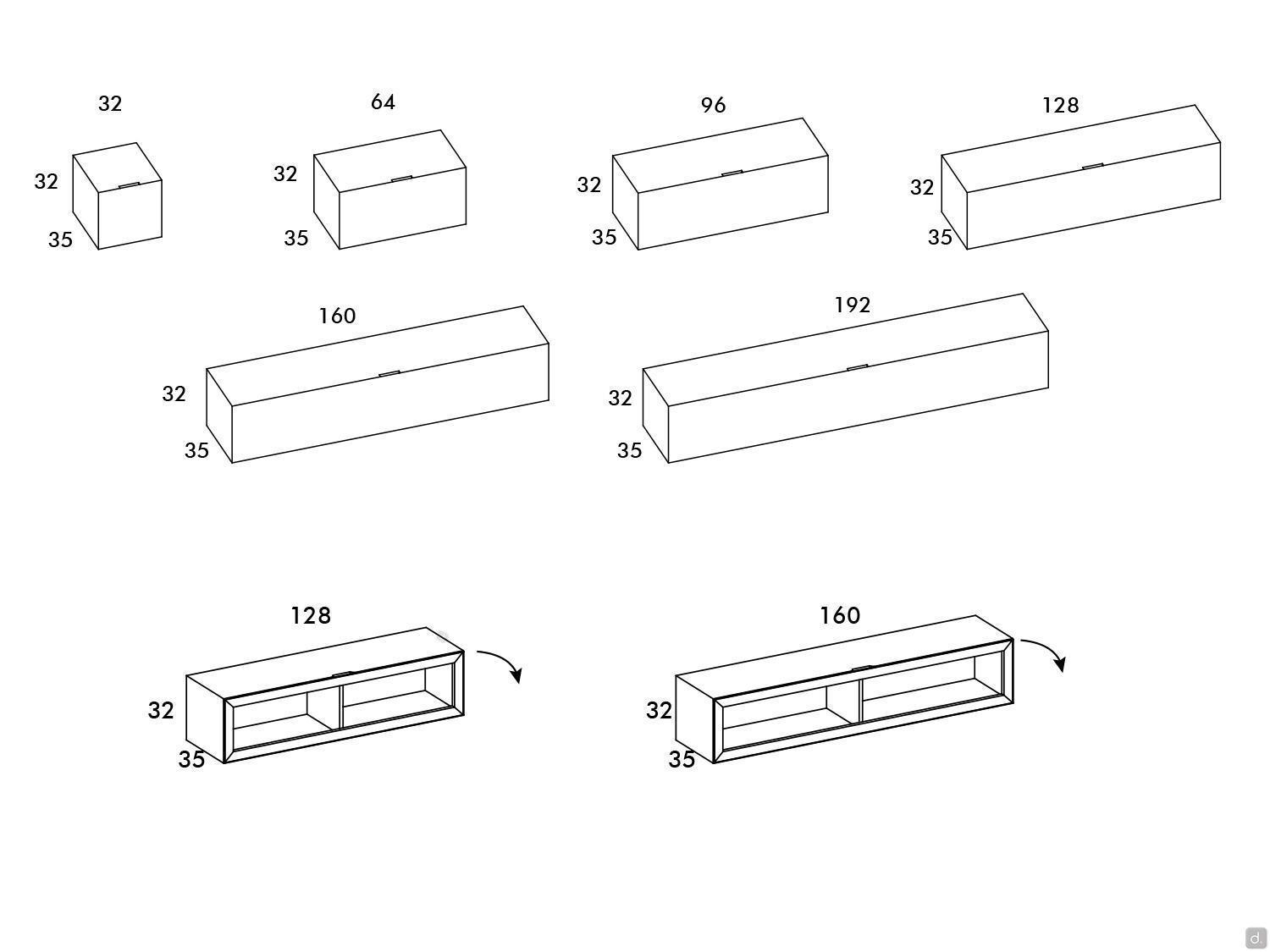

Royal base units (35 cm in depth) - Models and Measurements

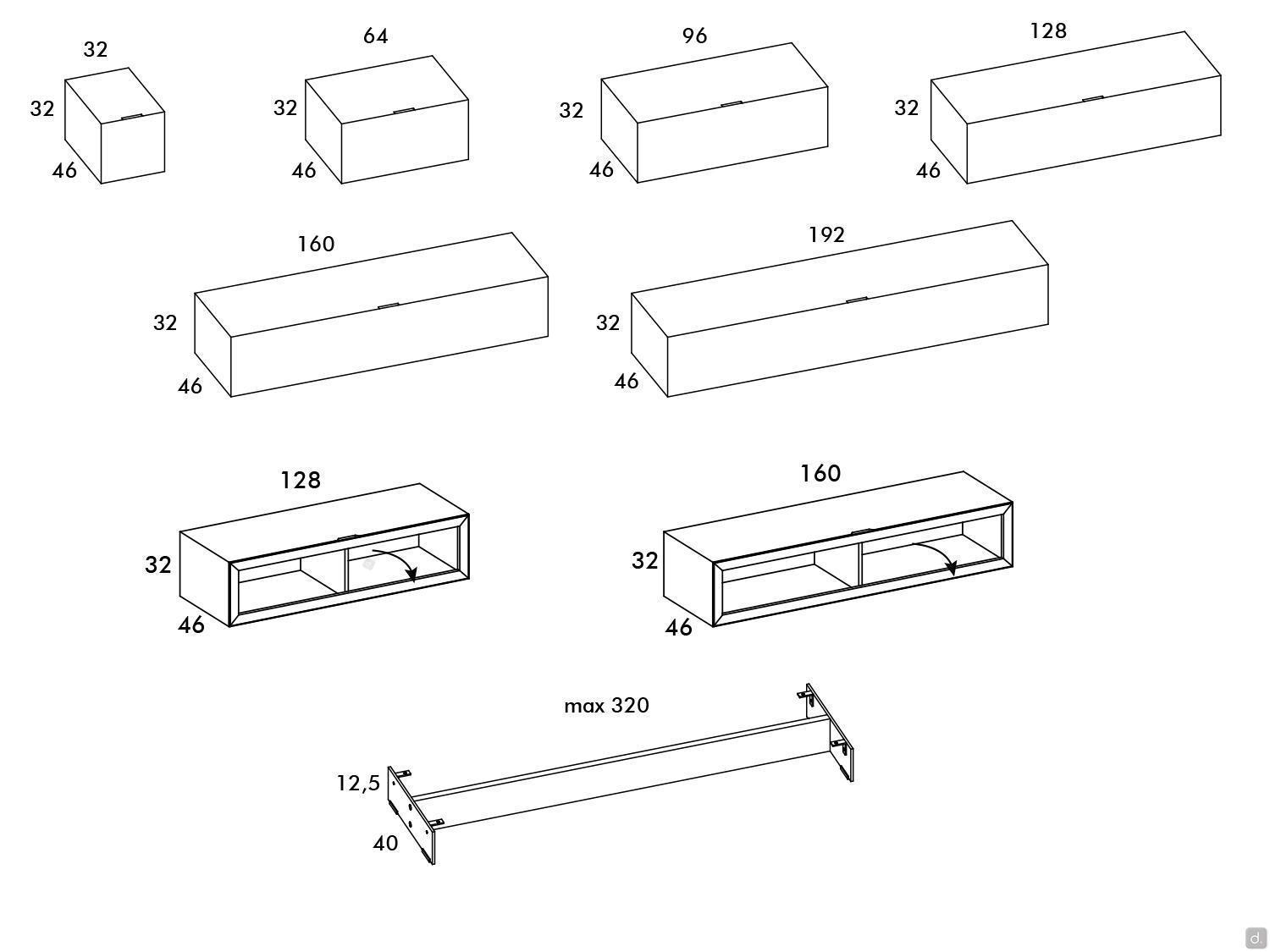

Royal base units (46 cm in depth) - Models and Measurements

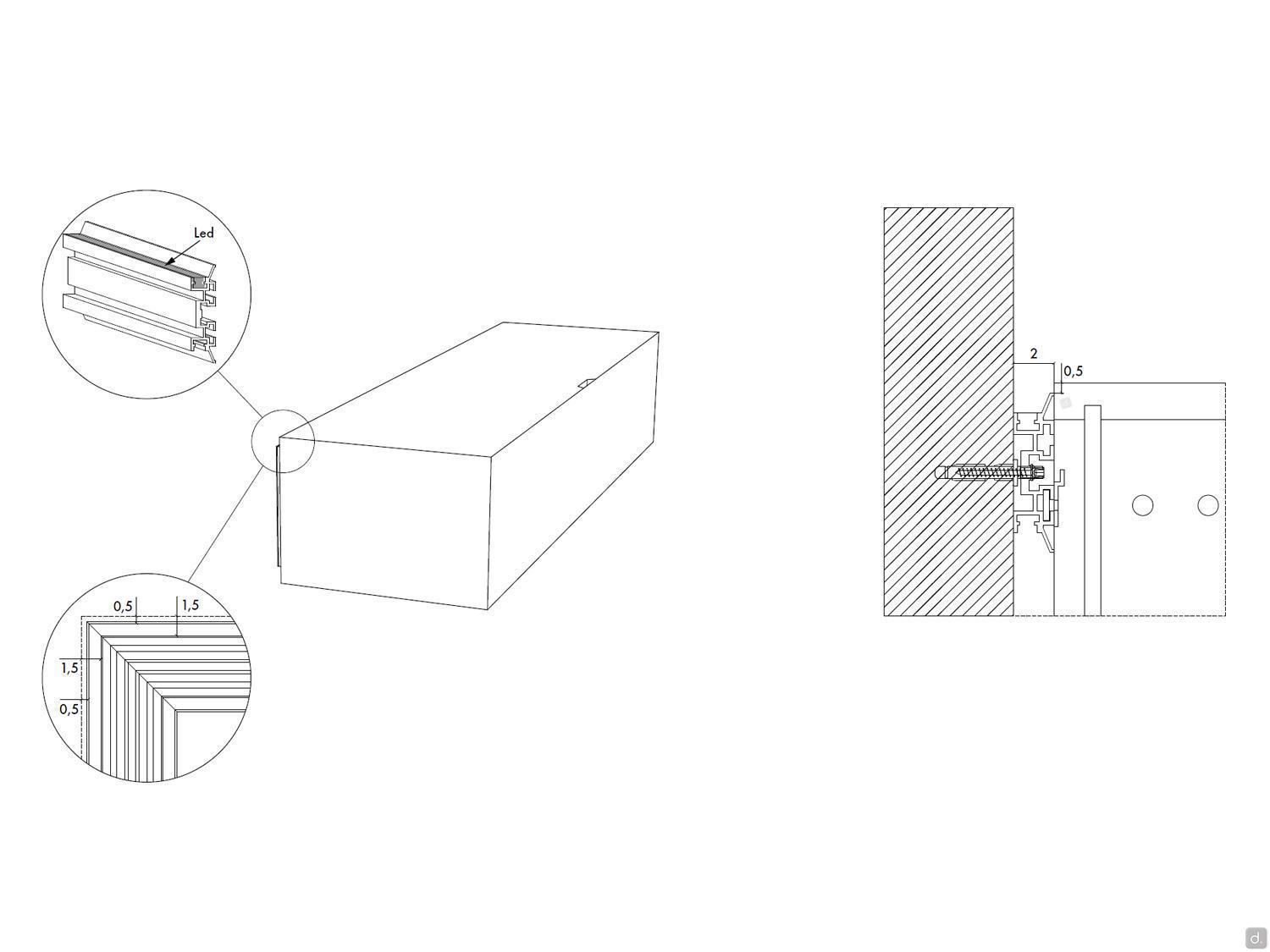

Optional perimeter lighting by means of an LED strip mounted on an aluminium frame placed between the masonry and the back of the base

+ 31

MORE IMAGES

Royal Drop Down Base

Royal base unit with drop-down door. Doors available with various handcrafted carvings, or in glass or mirror. Combine the 32 and 192 cm models to create a modular unit.

* Required Fields

Width *

Depth *

Height *

cm h.32

Equipment: *

n.2 internal compartments

Door Type *

Base Finish *

matt lacquer

Base Unit Finish *

Base Unit Finish *

Base Unit Colour *

Door Material *

Door Finish *

Door Frame Finish *

brown aluminium

Structure Finish *

Structure Colour *

Internal Finish *

matching the structure finish

Internal Finish *

Internal Finish *

matching the base unit finish

Base Unit Opening Type *

upper - with recess at the top

Base Unit Installation Type *

Floor Base - Measurements *

cm max 320 d.40 h.12,5

Floor Base - Finish *

grey Pheltrox stainless steel

Base Unit Positioning *

Transformer for LED light *

Switch Type *

wall switch
touch switch +€64.86

Voltage * For Europe the voltage is 220 V

220 V
110 V

Optional - Fireplace

water steam fireplace +€4,702.35

Note: *

In the presence of the water steam fireplace, the interior of the compartment can not be used for storage.

Set of Cable Holes - Model and Measurements *

Cable hole flap Finish *

Purchase Information *

As soon as you place your order, please send us a drawing of your Royal base unit with drop-down door, indicating the correct position of the cable hole set

Quantity

From €488.61

View Samples

Wishlist

Description

The Royal base unit with drop-down door, designed for the Royal wall system, can be used to give your living room a modern and original touch. This unit is further enhanced by the optional effects available for the surface, such as patterned carvings. Alternatively, you can opt for a glass or mirrored door with a brown aluminium frame.
There is also the option to include a practical set of cable holes in the top of the unit, which is ideal if you want to connect your TV, cable box or games consoles. This drop-down unit, which can either be suspended or floor-standing, is further enhanced by the optional LED lighting.

Characteristics
storage compartment with drop-down door, between 32 and 192 cm in width
modular components for creating a personalised wall system
optional set of cable holes with slot or flap
door made from wood, glass or mirror with an aluminium frame

Measurements
Width: cm 32 / 64 / 96 / 128 / 160 / 192
Depth: cm 35 / 46
Height: cm 32

Finish
Structure:
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood
Door:
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood
- glass
Internal Section:
- melamine
- matt / glossy / metallic lacquer
- open-pore oak wood / aged oak wood

Info for your Purchase
Matte or glossy lacquer (where available) in RAL, NCS and Sikkens colours are available for this product. Please contact our Customer Service for a quote or additional info.

Technical study

Technical Specifications and Equipment
Structure: made from MDF, 1,8 cm thick, with a 45° edge on all sides. The interior section is made from melamine, matt lacquer, glossy lacquer, metallic lacquer, open-pore oak wood or aged oak wood.
Partition: matching the interior section, cm 1,8. Available for the models that are cm 96, 128, 160 and 192 in width.
Lacquer/ wooden door: the front panels can be smooth or customised with a pattern:
- Shanghai: diagonal "V"-shaped carvings cm 0,2 d.0,2.
- Line: vertical "V"-shaped carvings cm 0,2 d.0,2.
- 10:10 (only for lacquer finishes): "U"-shaped carvings cm 1 d.0,2.
- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing
- 10:2: vertical "V" incisions cm 0,2 thick.
Glass door: equipped with a brown aluminium frame.
Opening: open using a cut on the top.
Base: max cm 320 d.40 h.12,5 in grey Pheltrox steel.

Optional
set of cable holes: positioned on the top, in the following models:
- slot: for a 20 x 2 cm cable passage (distance from back panel: cm 3);
- flap without duct: cm 48 x 12 (distance from back panel: cm 3,8);
- flap with duct: cm 48 x 12 (distance from back panel: cm 3,8).

Optional LED lights:
LED strip under the wall unit for external light: placed under the wall mounted storage unit (3000 K - 11 W/lm). Transformer with wall switch or touch switch (30, 75 or 150 W - 24V).
perimetral LED strip for external light: placed in a dedicated "slot" built-in the modular frame in brow anodised aluminium, which is mounted between the wall and the back of the wall unit (3000 K - 11 W/lm). Transformer with wall switch or touch switch (30, 75 or 150 W - 24 V).

Assembly Tips
Hardware is pre-mounted on all elements to facilitate and speed up assembly. Elements are complete with brackets for fixing unit to the wall.

Further Information...
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.

Video

Additional Information

Area of Production
Italy

Approximate Time
9 - 12 working weeks for production

Assembling
Medium Assembling

Weight
from 9,7 to 46,4 Kg

Cubic Metres
from 0,06 to 0,33 m³
