Specific Models and Measurements
Bed Model
|
Dimensioni Letto
|
Rete
|
Materasso
|

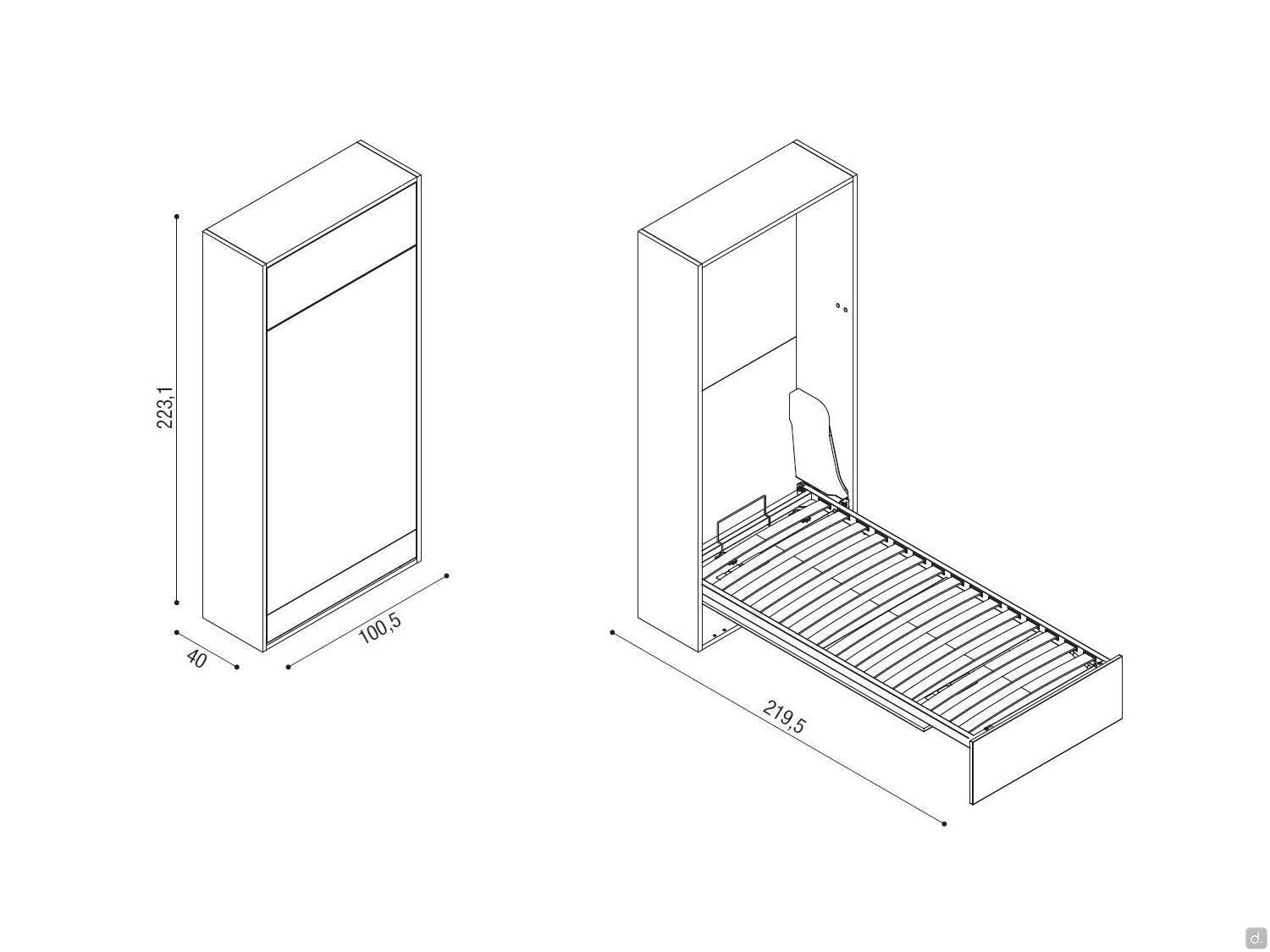

| single |
cm 100,5 x 219,5 |
cm 87 x 200 |
cm 85 x 200 |

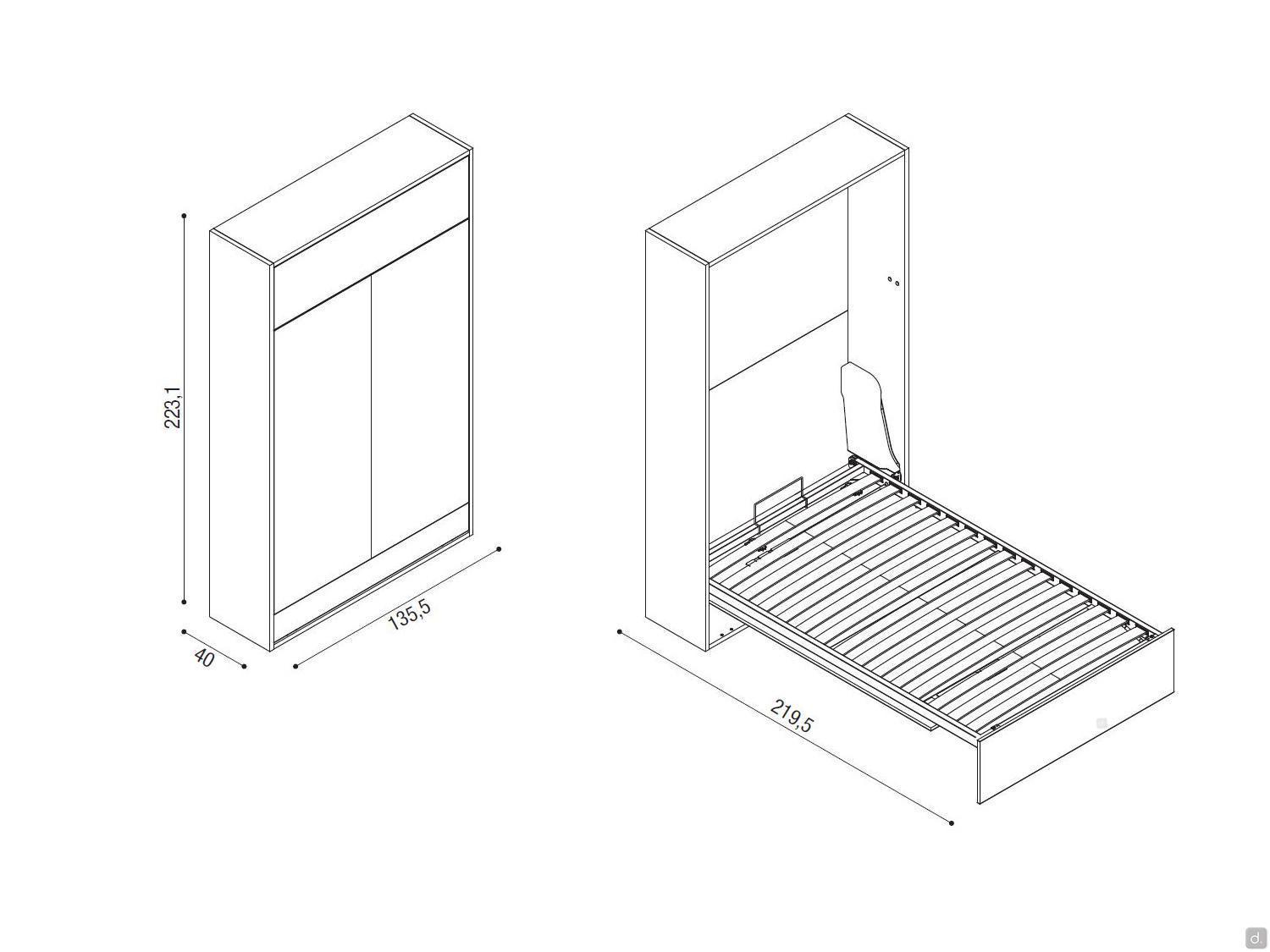

| queen size |
cm 135,5 x 219,5 |
cm 122 x 200 |
cm 120 x 200 |

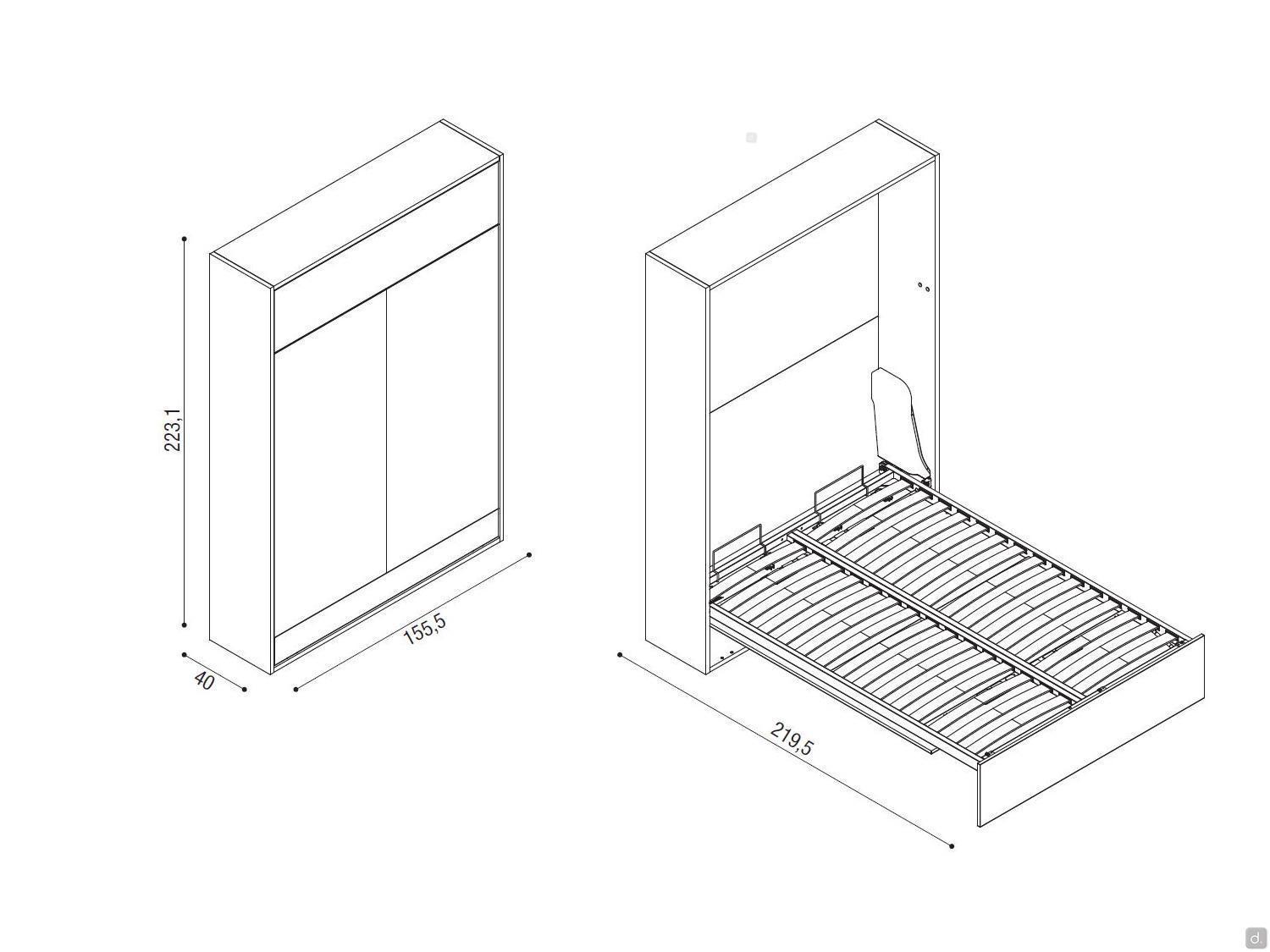

| French double |
cm 155,5 x 219,5 |
cm 142 x 200 |
cm 140 x 200 |

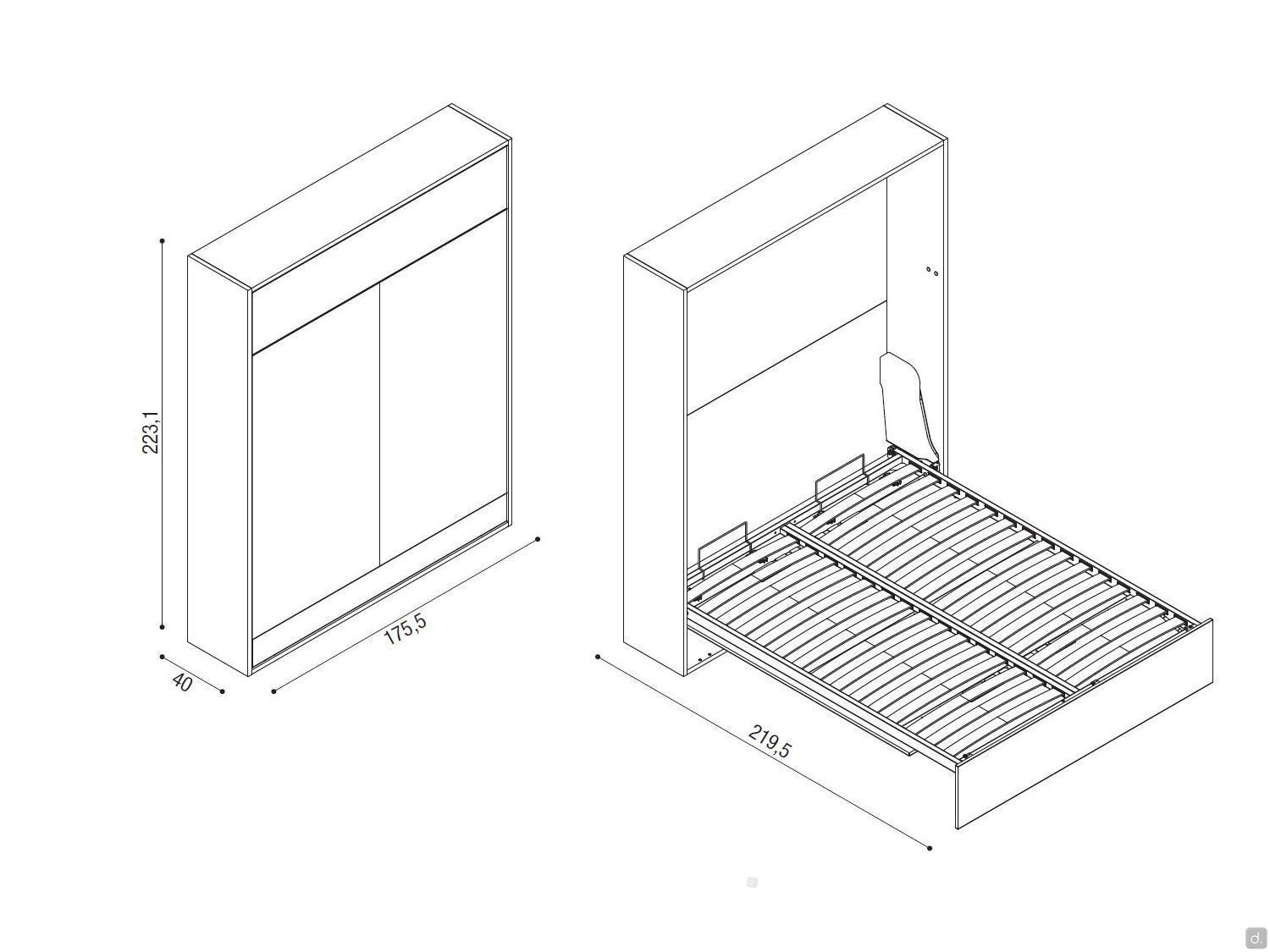

| standard double |
cm 175,5 x 219,5 |
cm 162 x 200 |
cm 160 x 200 |

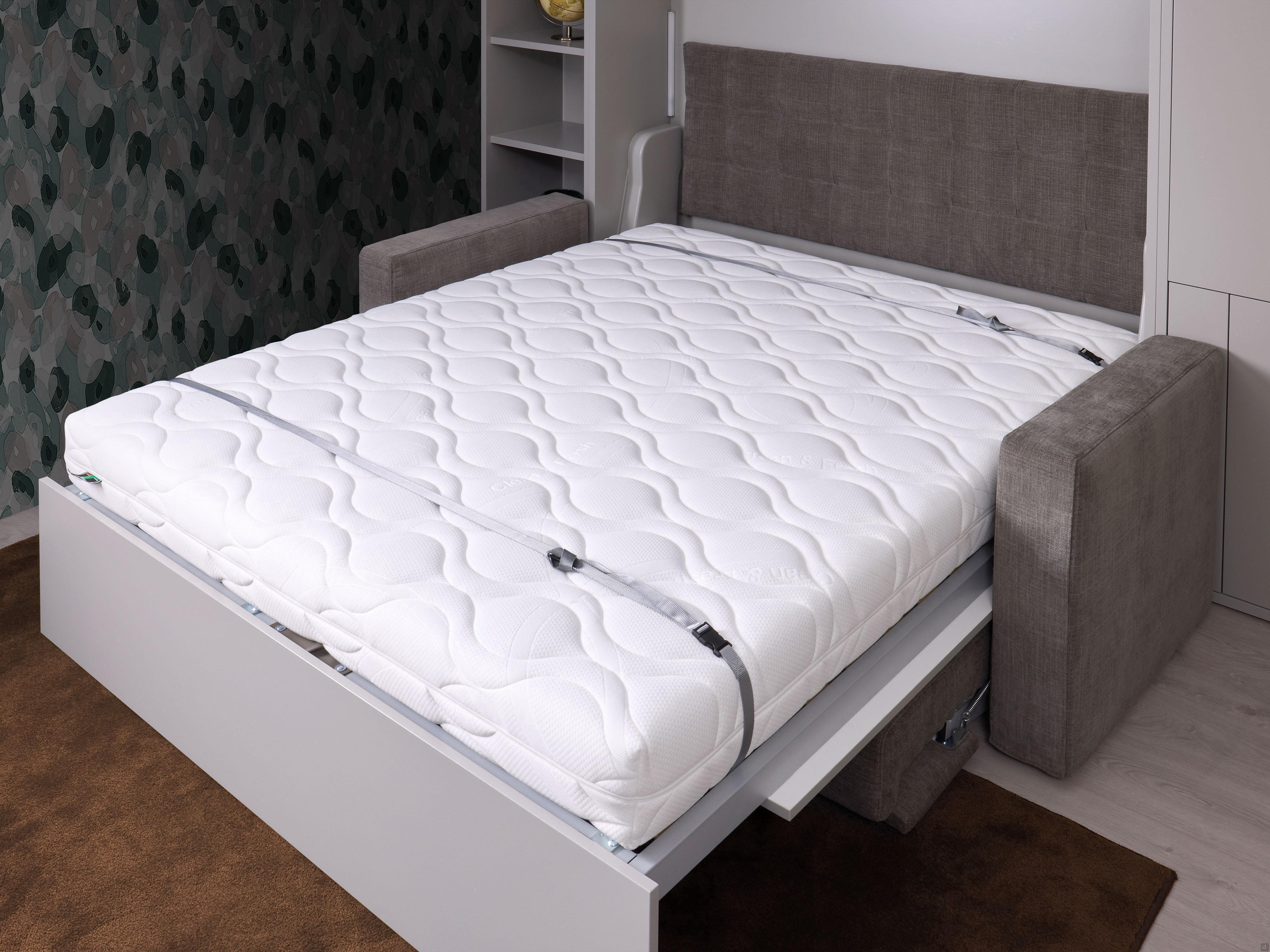

spring mattress: internal steel springing with 2.20 mm wire and 1.30 mm steel spirals, 1000 gr/m² thermo-bonded insulating felt, layer of D21 resin on both sides, 1,5 cm thick, padding in 320 gr/m² hypoallergenic hypoallergenic fibre padding and polyester covering fabric, heat-sealed nylon bag packaging.

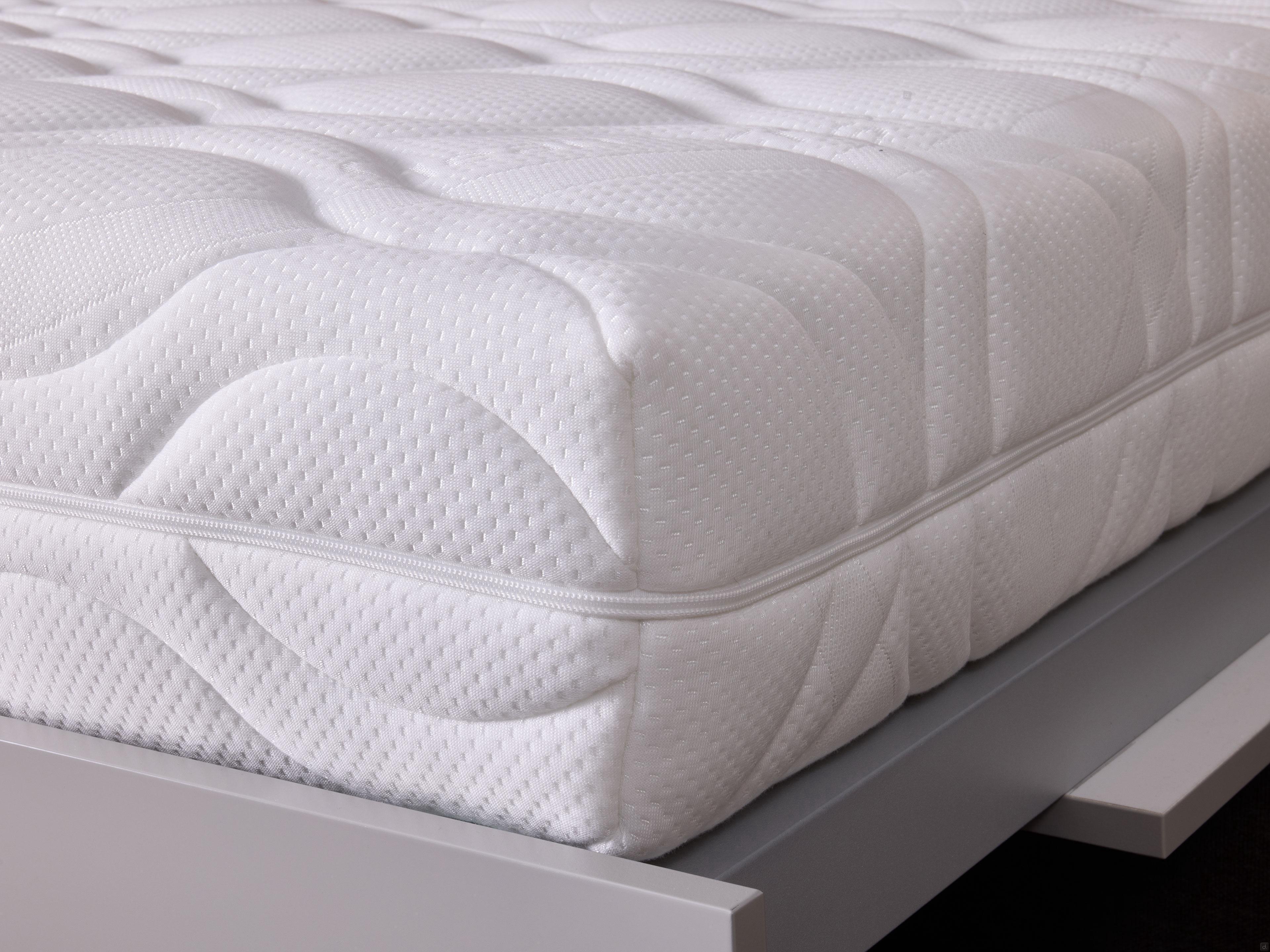

memory foam mattress: internal solid block in non-deformable water-based polyurethane foam with density 30 Kg/m³, 4 cm thick memory sheets, 320 gr/m² hypoallergenic fiber padding and polyester covering fabric, heat-sealed nylon bag packaging.
customer mattress: the mattress must weigh between 25 and 30 kg for double models; between 20 and 25 kg for the queen size model and between 15 and 20 kg for the single model.
Technical Specifications and Equipment
sides, lids and bottoms: class E1 melamine faced panel, thickness. 2.5cm. The bottoms are equipped with height-adjustable feet.
doors and backs: class E1 melamine faced panel, thickness: 1.8cm.

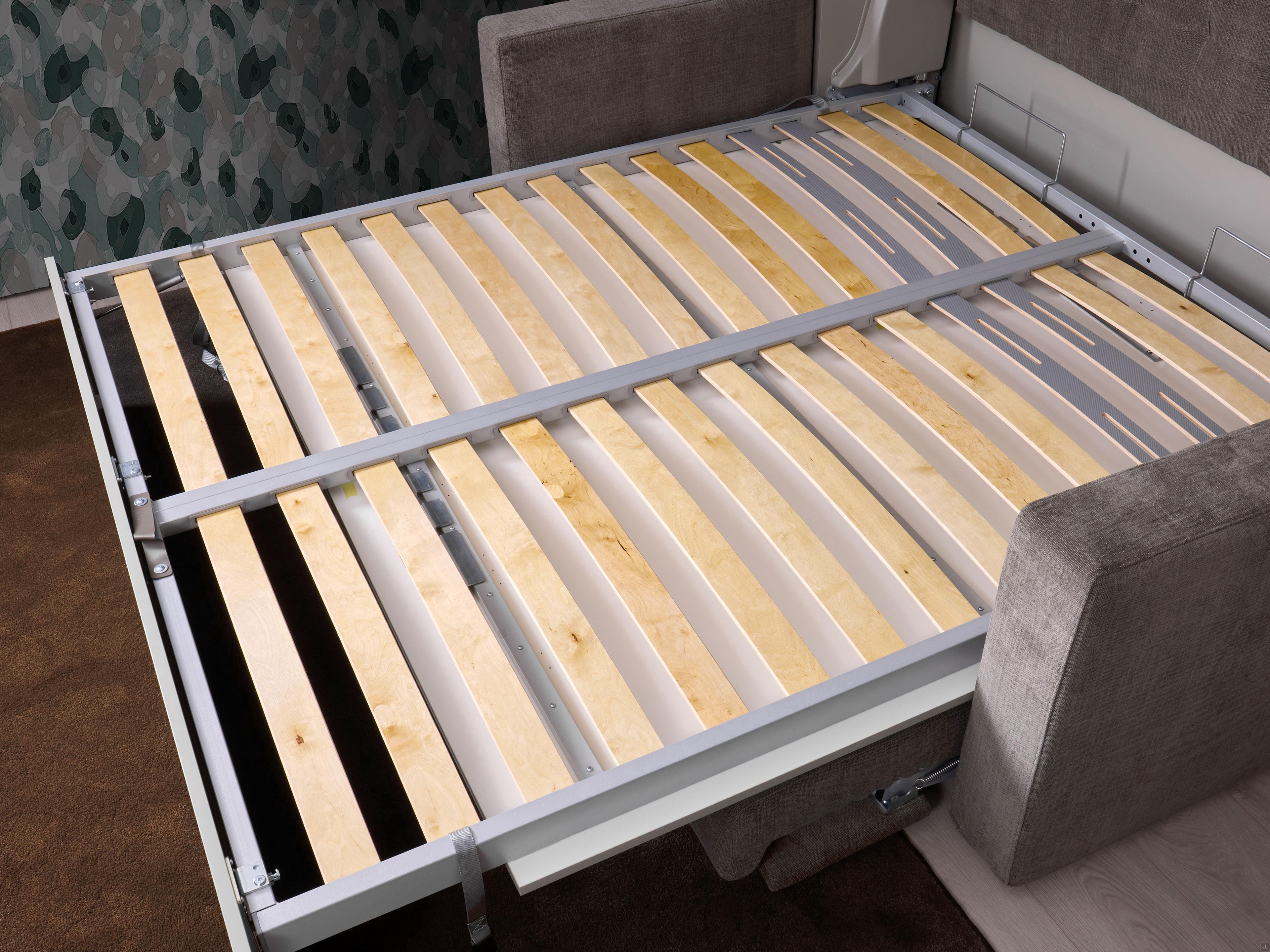

bed base: epoxy powder coated bed base, equipped with beech slats and anti-torsion system.

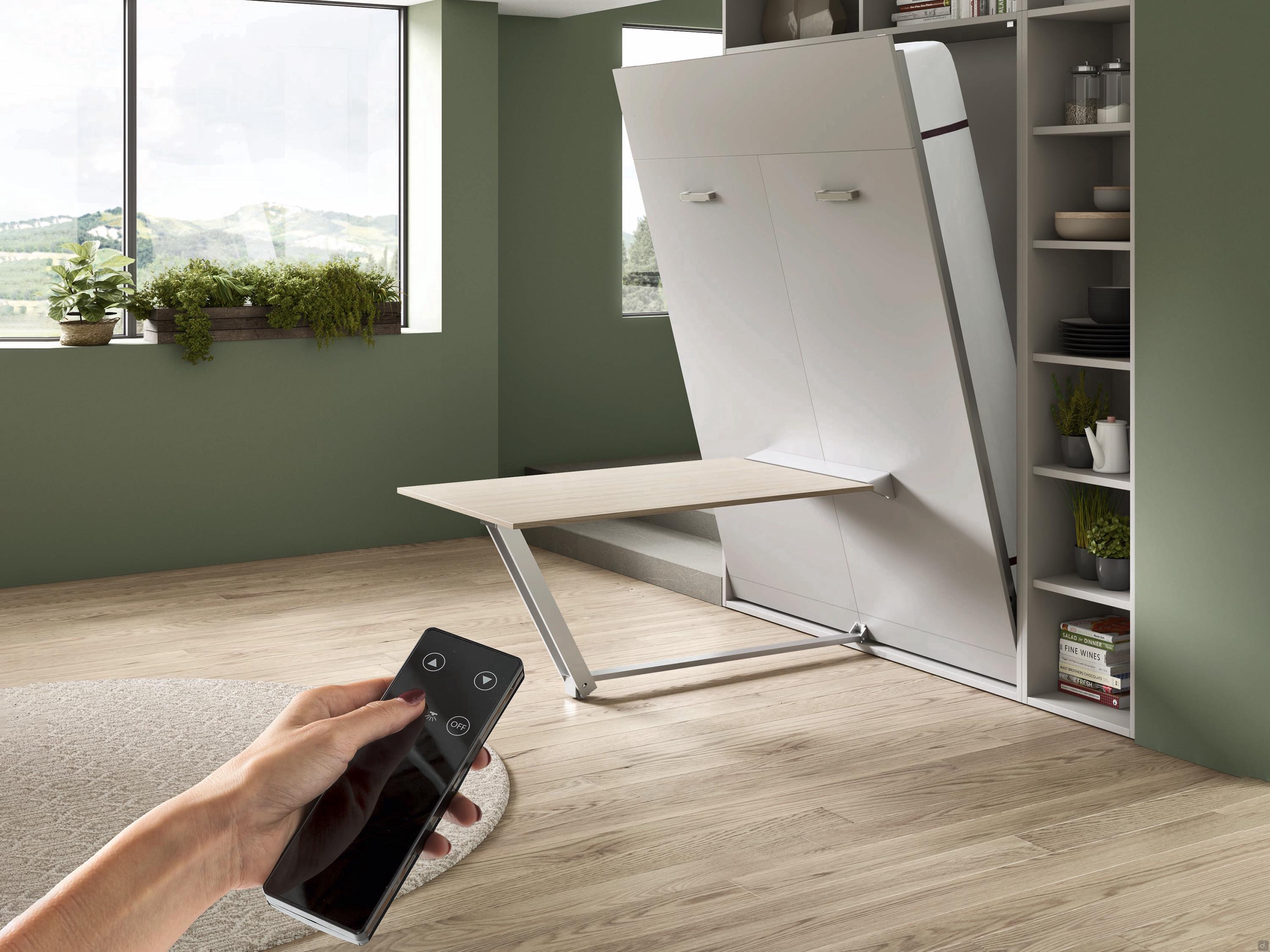

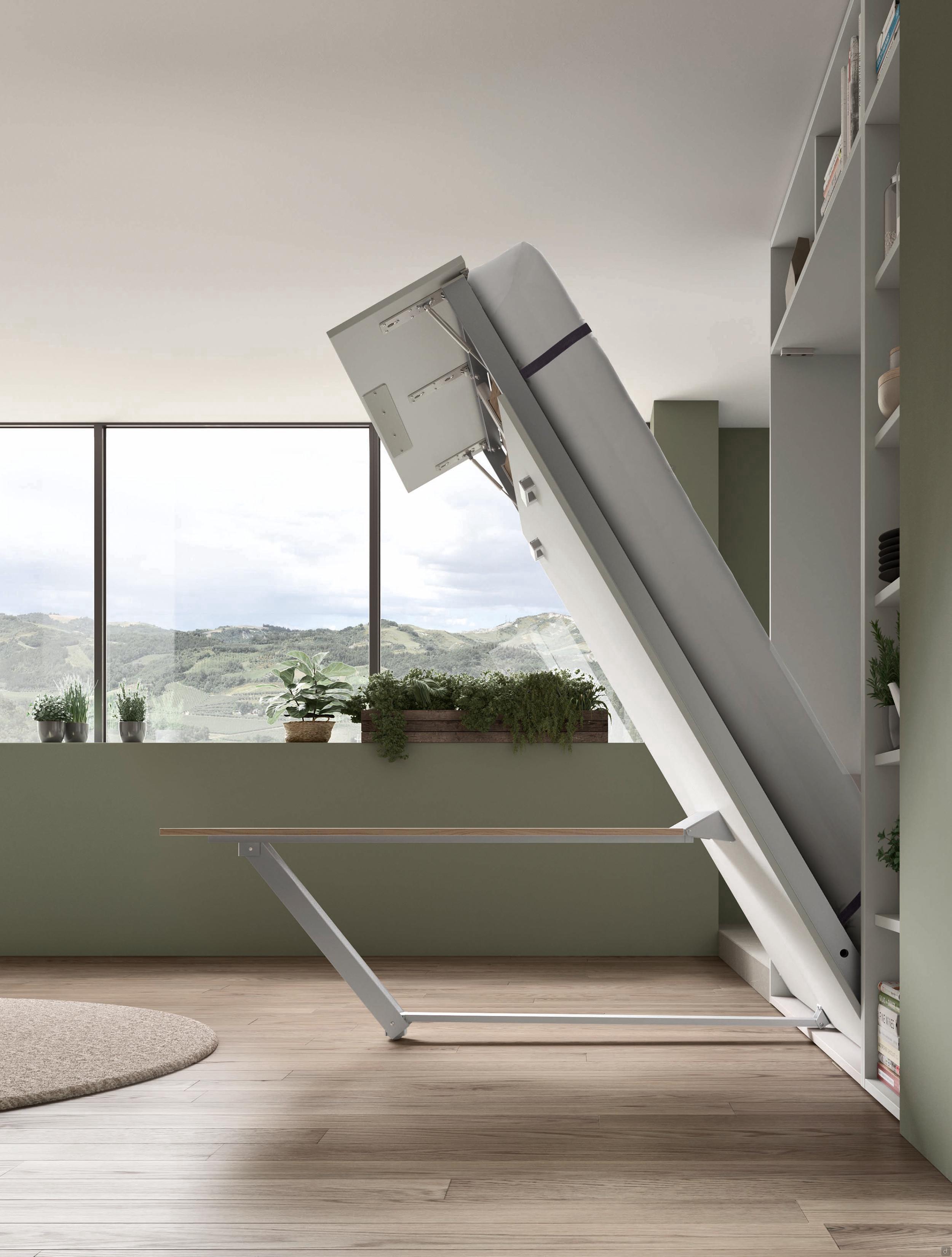

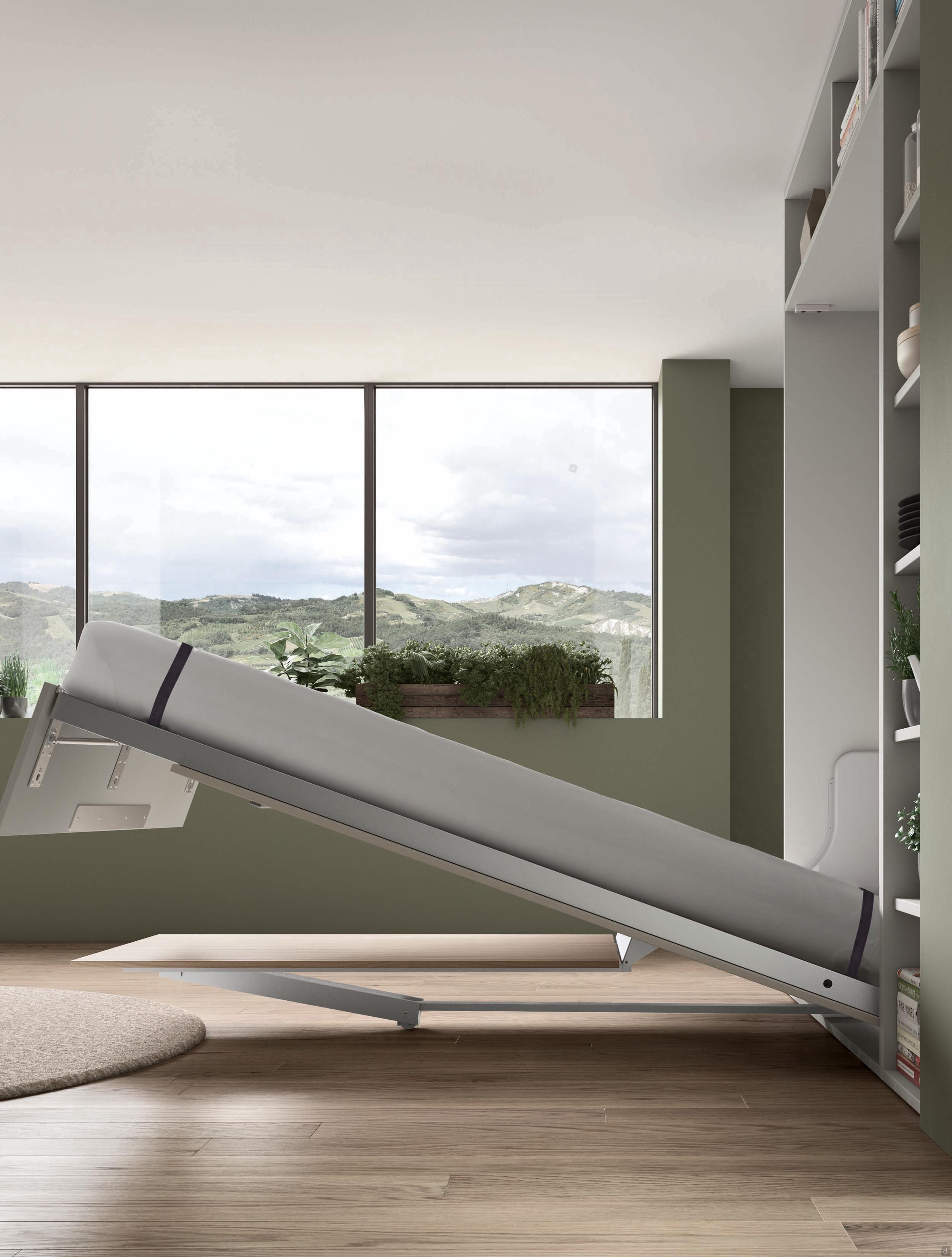

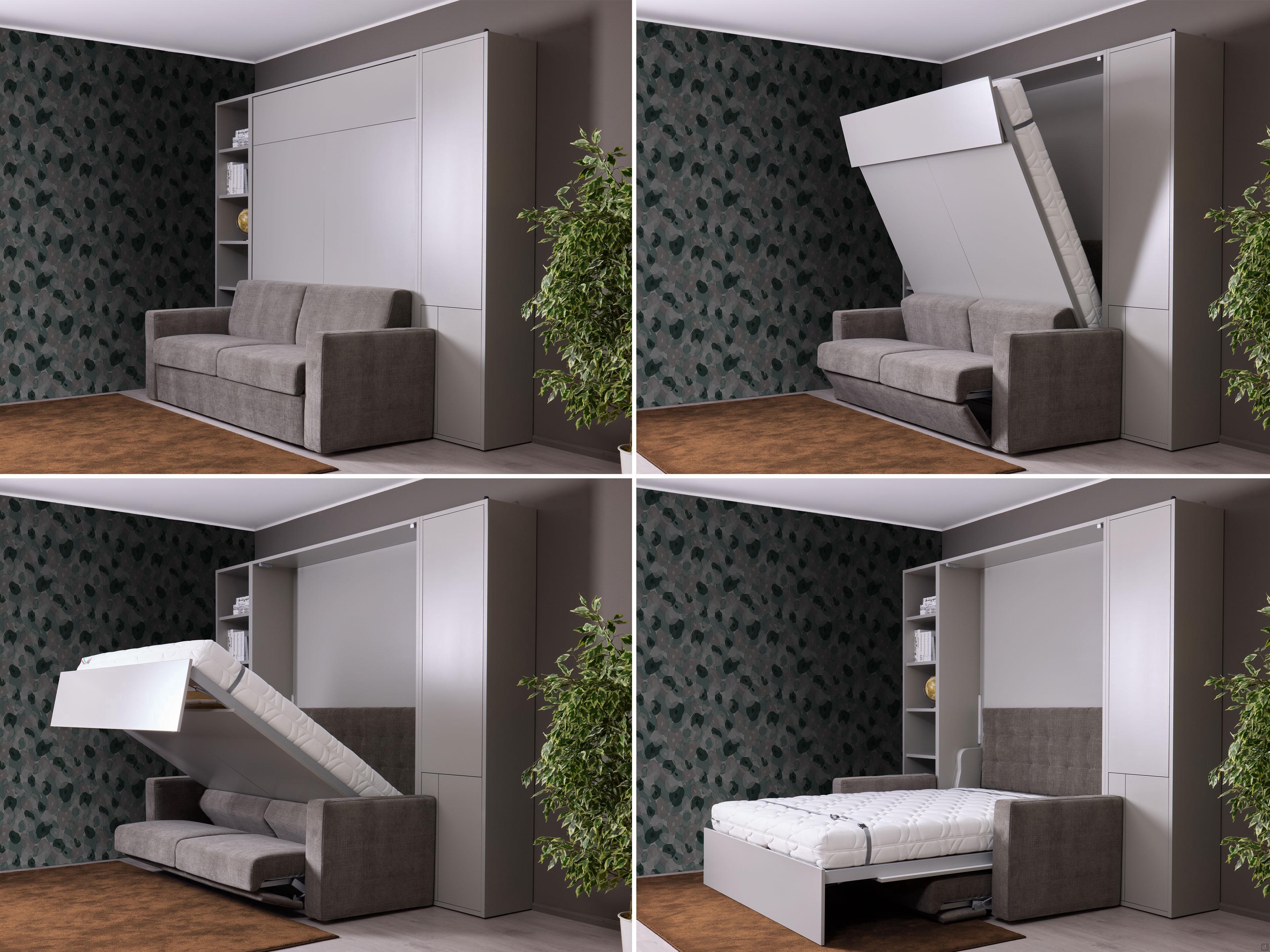

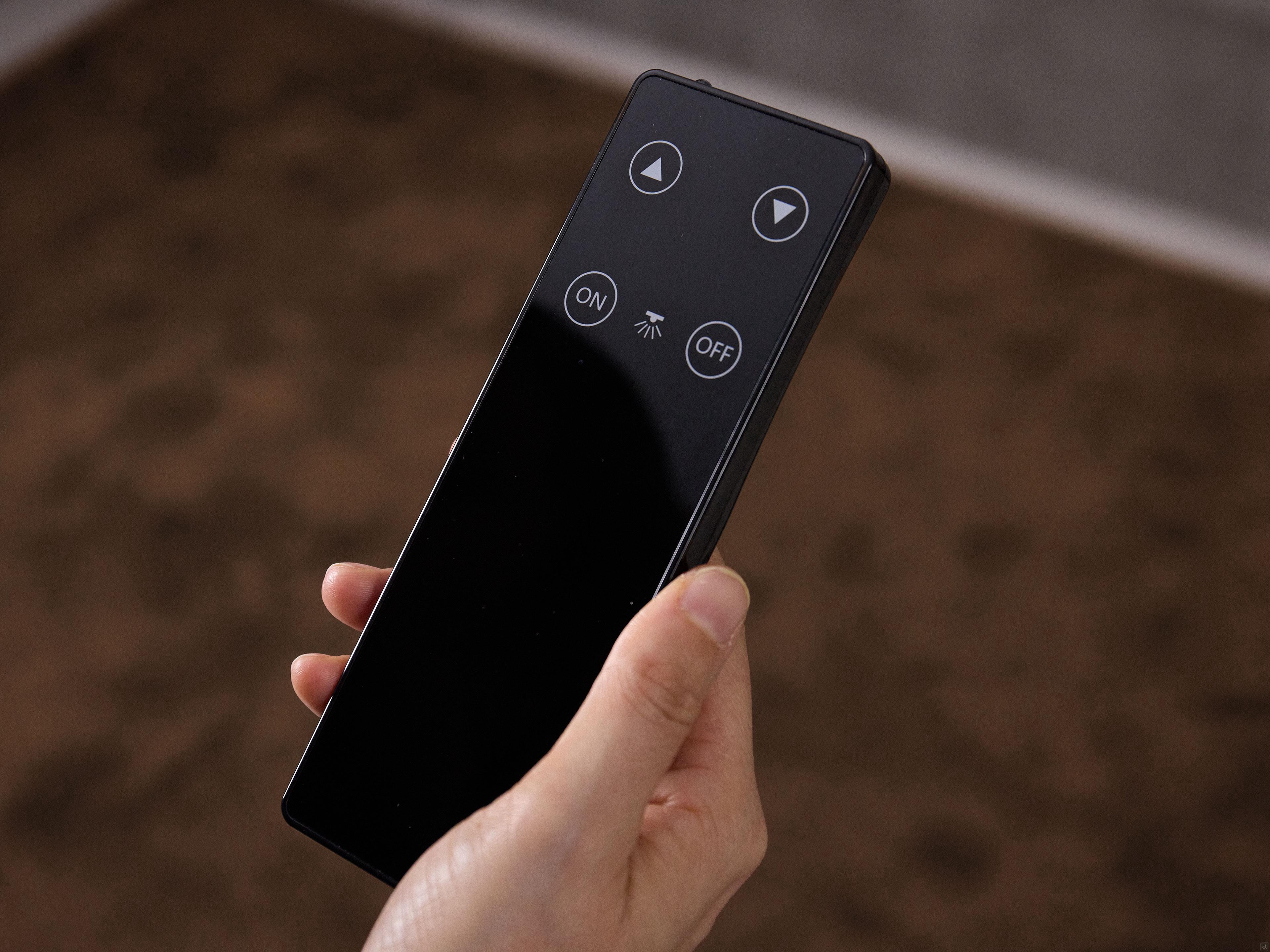

mechanism: motorised opening and closing system composed of 2 actuators placed on the external corners of the net towards the structure, and fixed. The power is supplied by the home network, via a single Schuko plug for the wall socket. Through the wiring hidden internally on the lower part, it supplies energy to the control unit, hidden externally on the upper part of the lid. Opening can take place via a fixed button that can be freely positioned on the external side of the structure, or via an infrared remote control transmitting the signal to the receiver connected directly to the control unit. System is equipped with manual emergency release.
Optional
upper cabinet: 2,5 cm thick class E1 melamine panel, with a single compartment for the single and queen size beds, and a double compartment with internal division for the French and standard double. Also available with a 1,8 cm thick flap with a push-pull opening system.

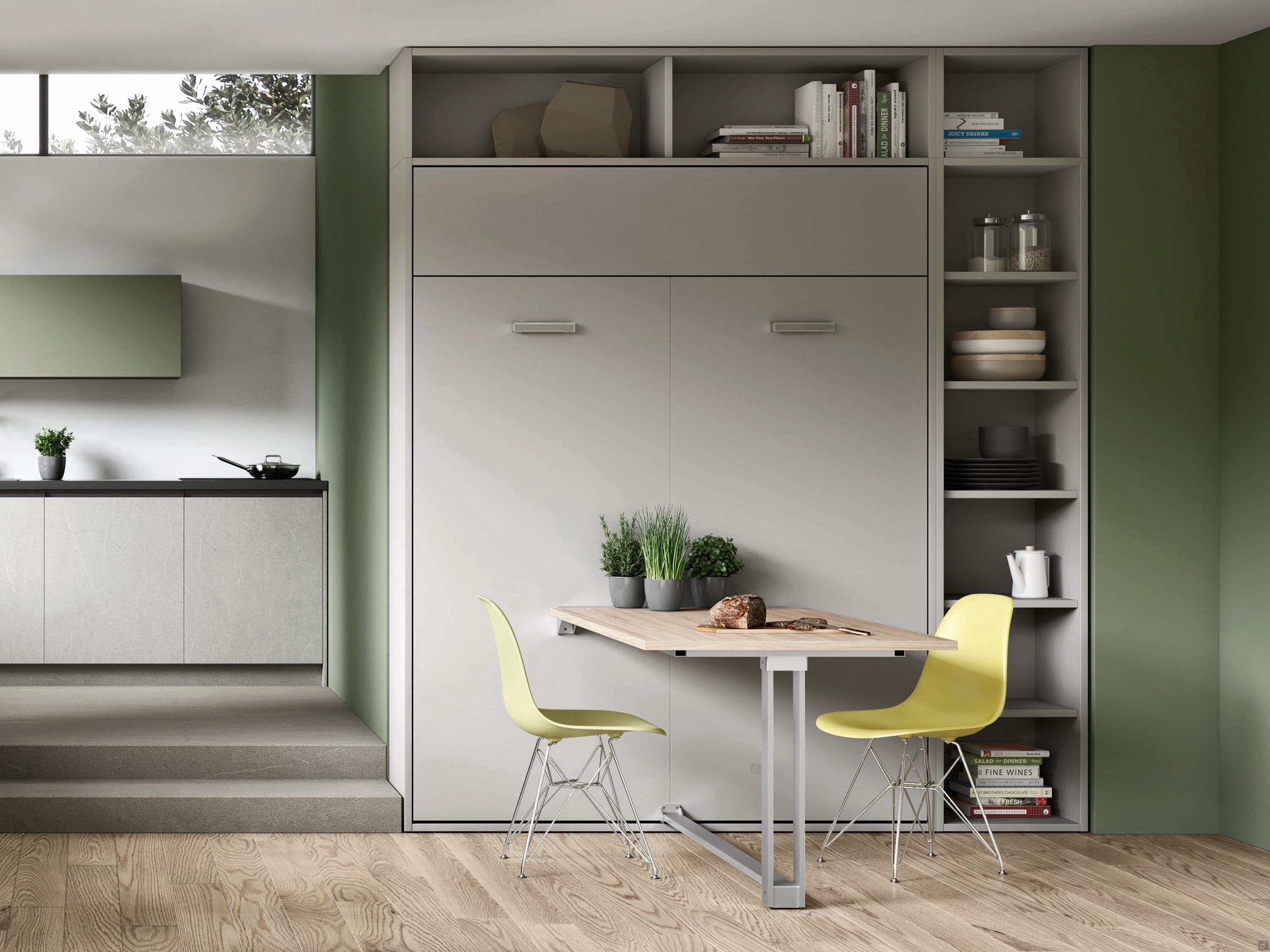

table: 2,5 cm thick class E1 melamine panel. Leg in epoxy powder coated metal. Equipped with a folding system, it is fixed to the front of the bed.
desk: 2,5 cm thick class E1 melamine panel. Equipped with a folding system, it is fixed to the front of the bed.

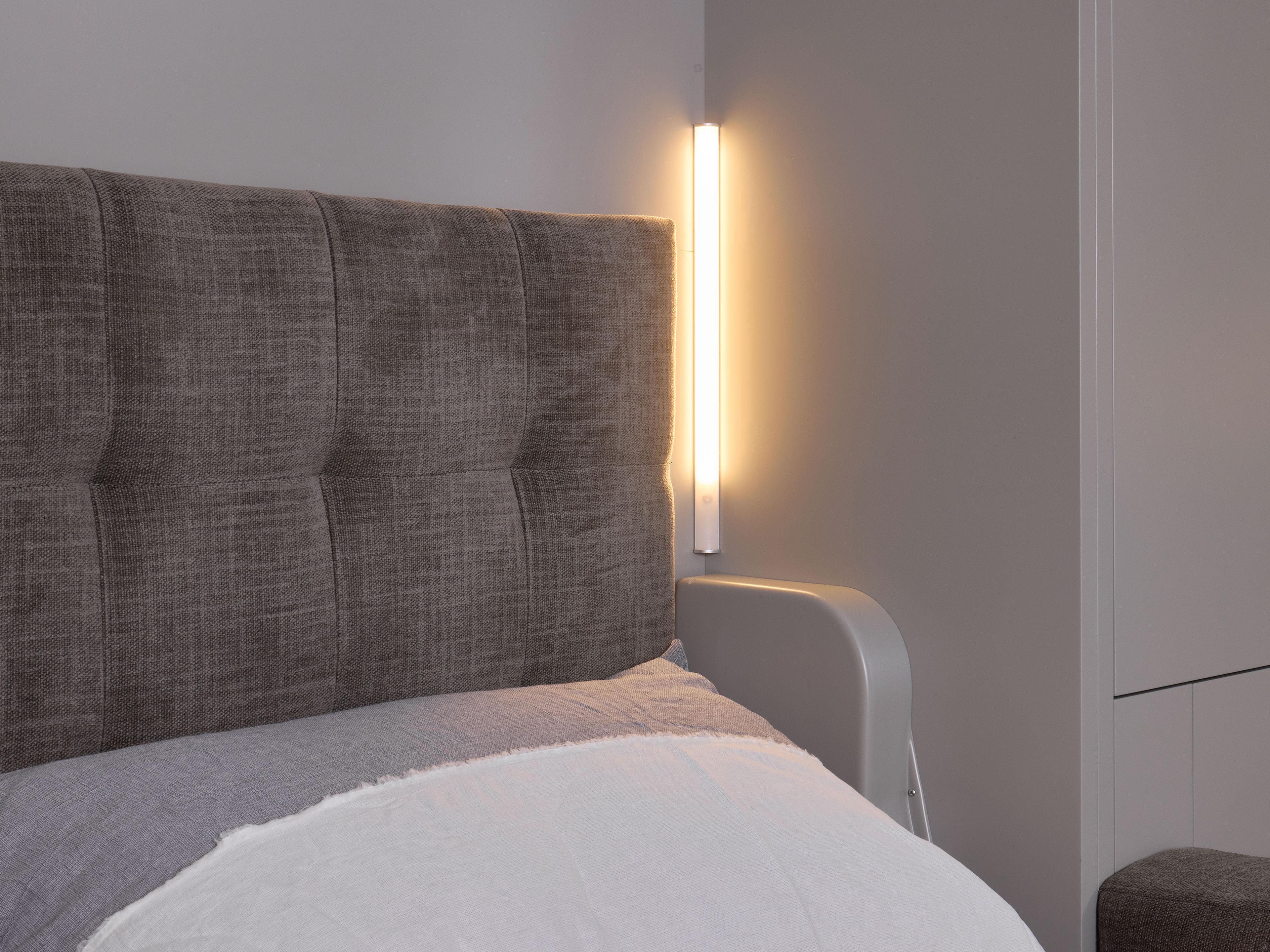

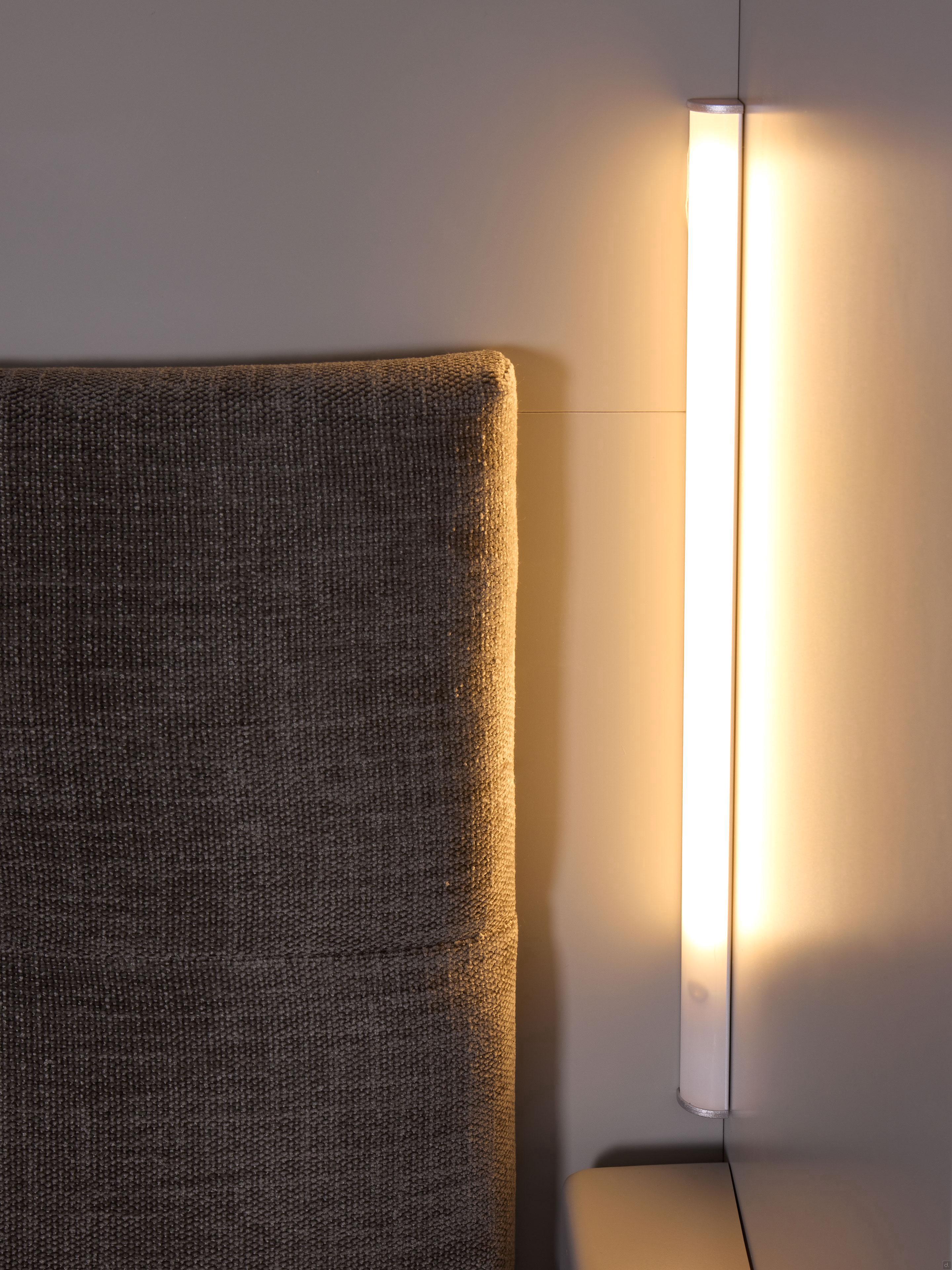

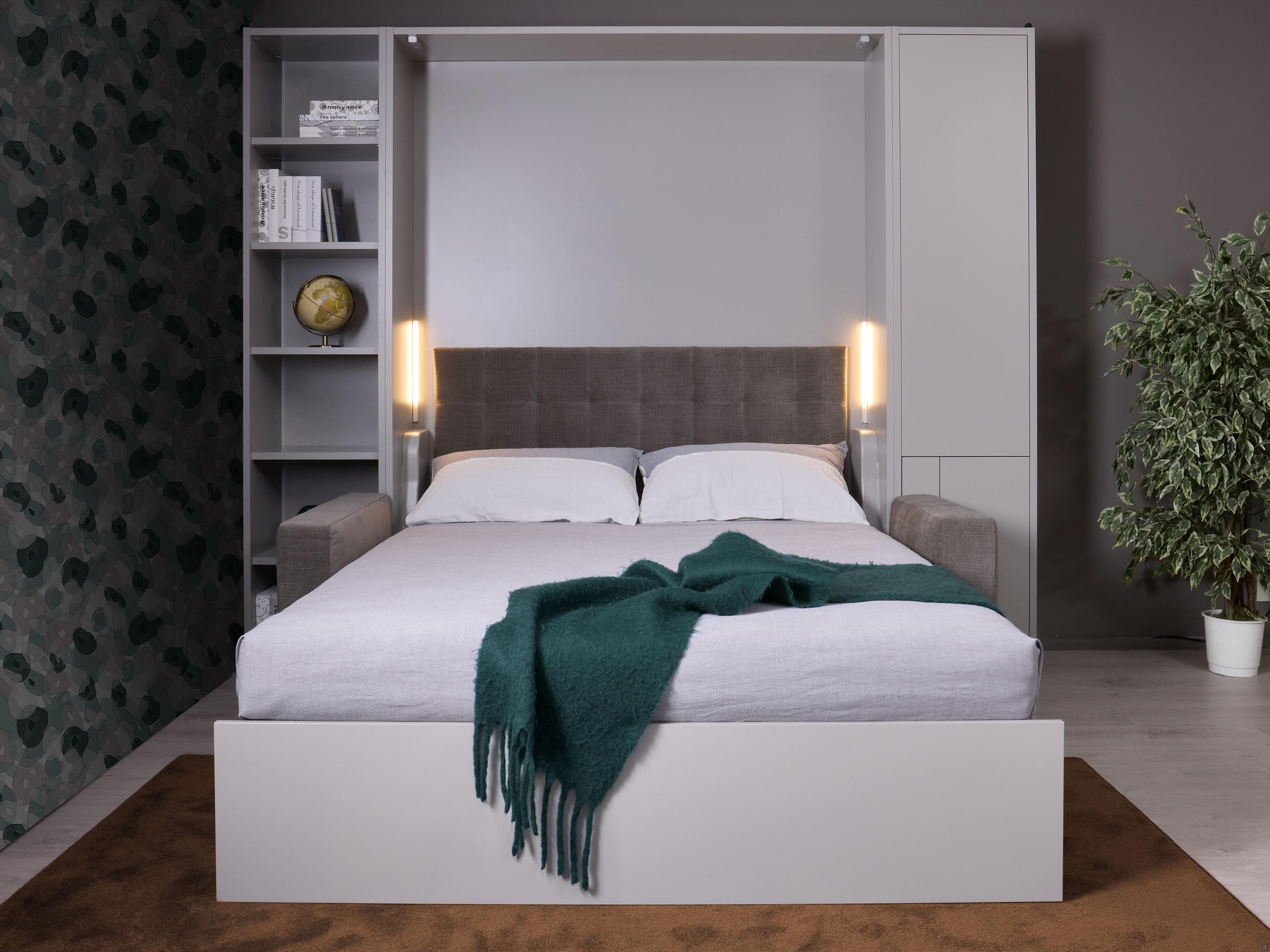

LED lighting: pair of dimmable LED lights.
Material Specifications
matte lacquered: sides and front are finished in matt lacquer on both sides; lid and bottom are lacquered on the inside.
Assembly Tips
For safety reasons, fixing to a masonry wall is mandatory
In the presence of the Optional upper cabinet, 5 cm in height are required for assembly.
