Technical Specifications and Equipment

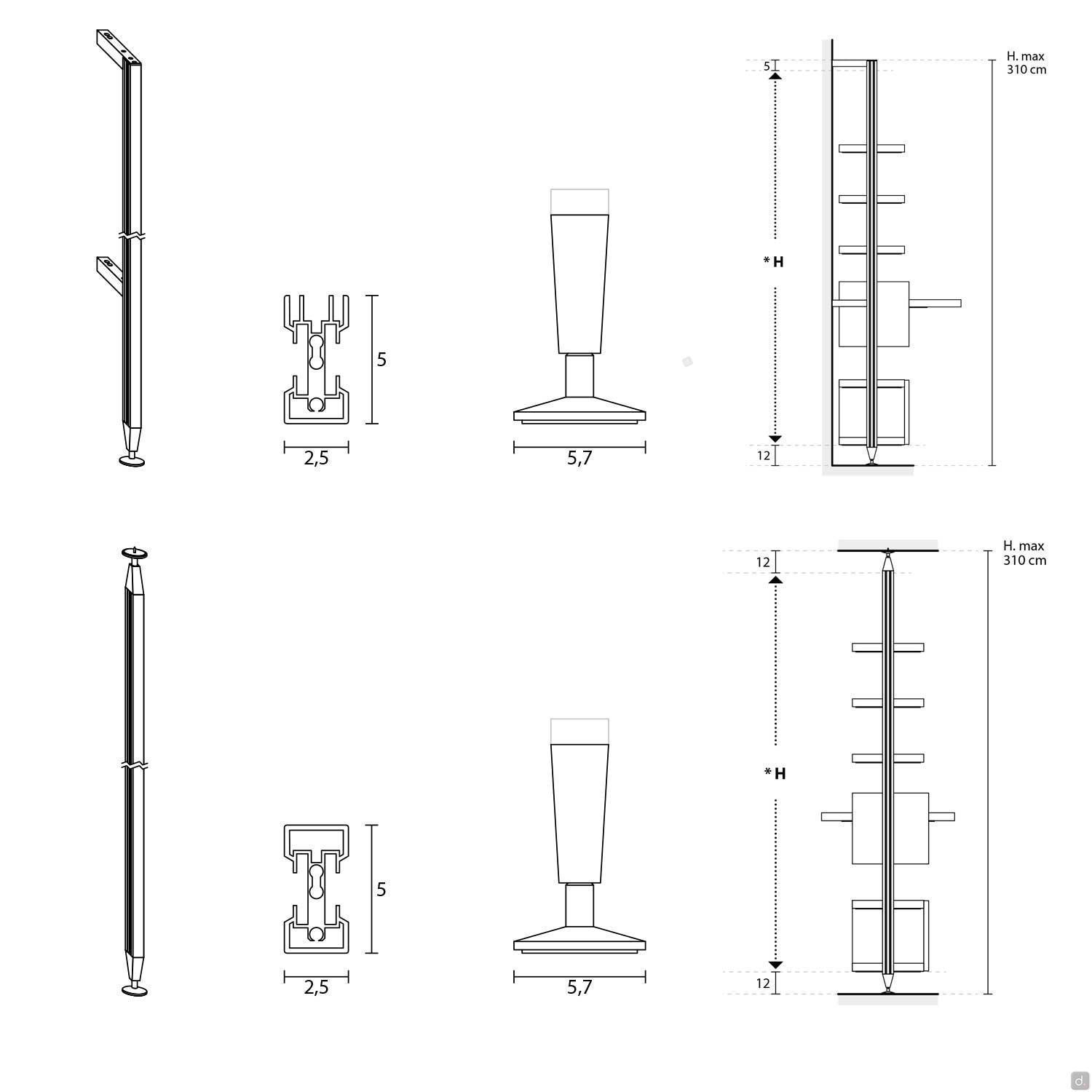

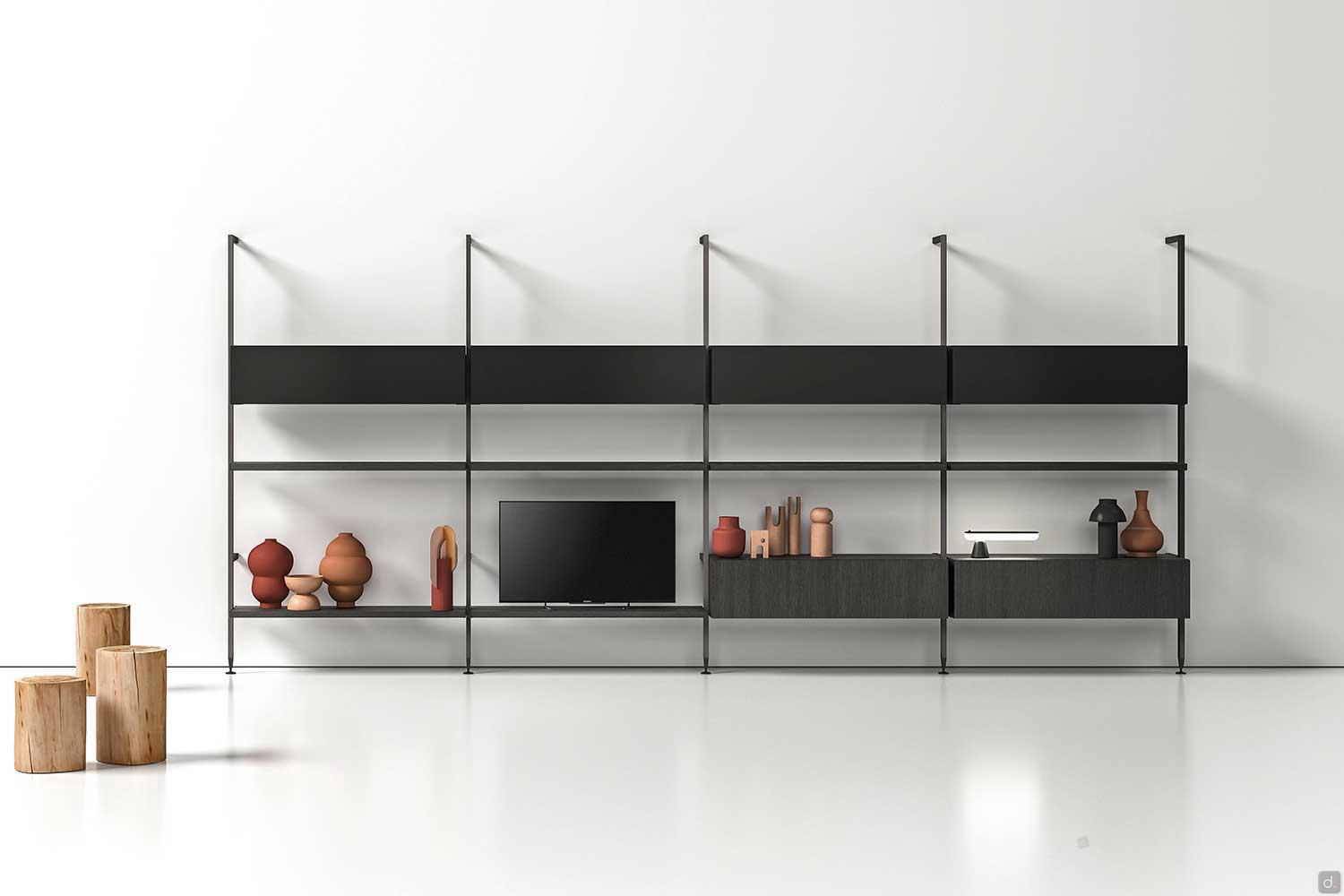

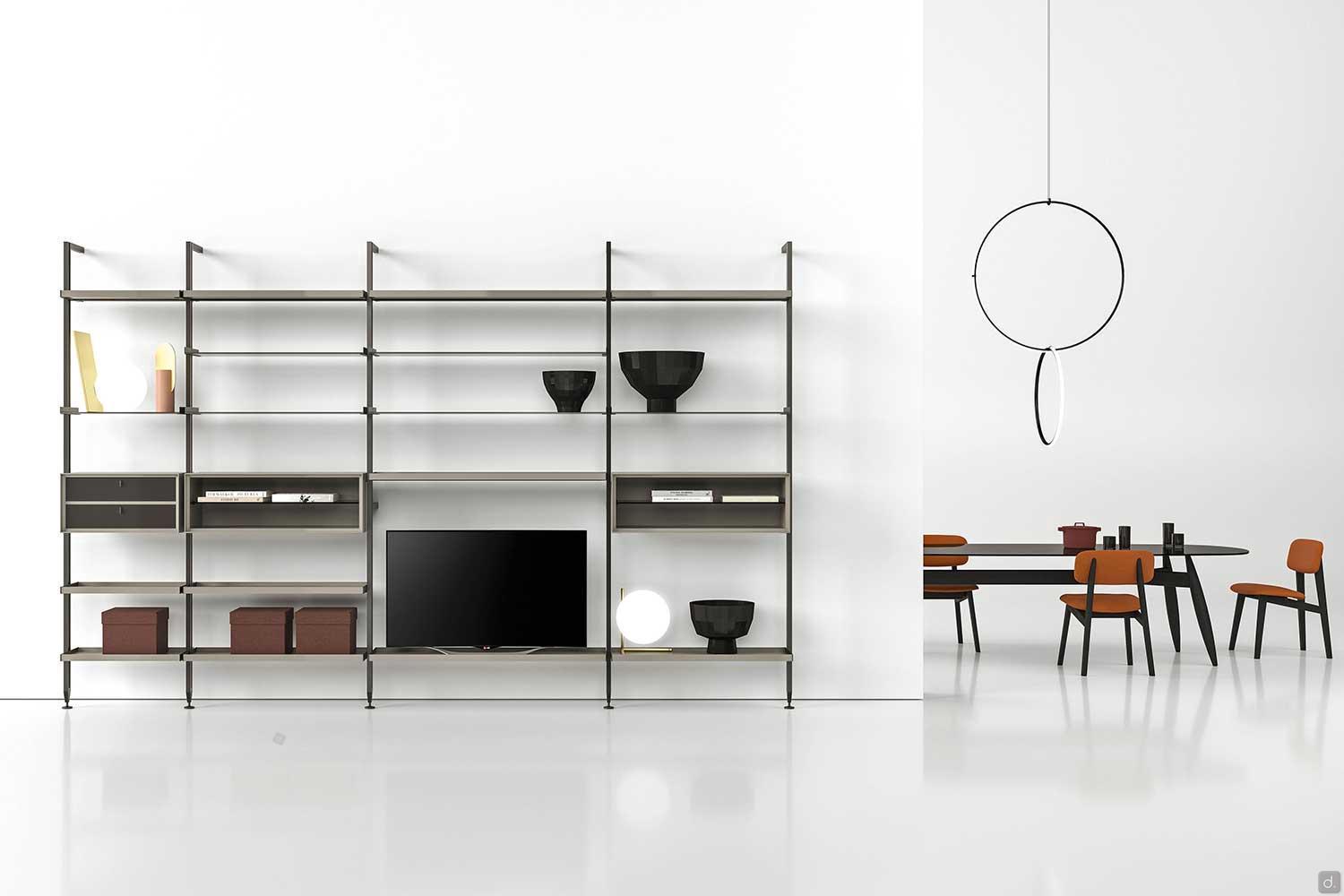

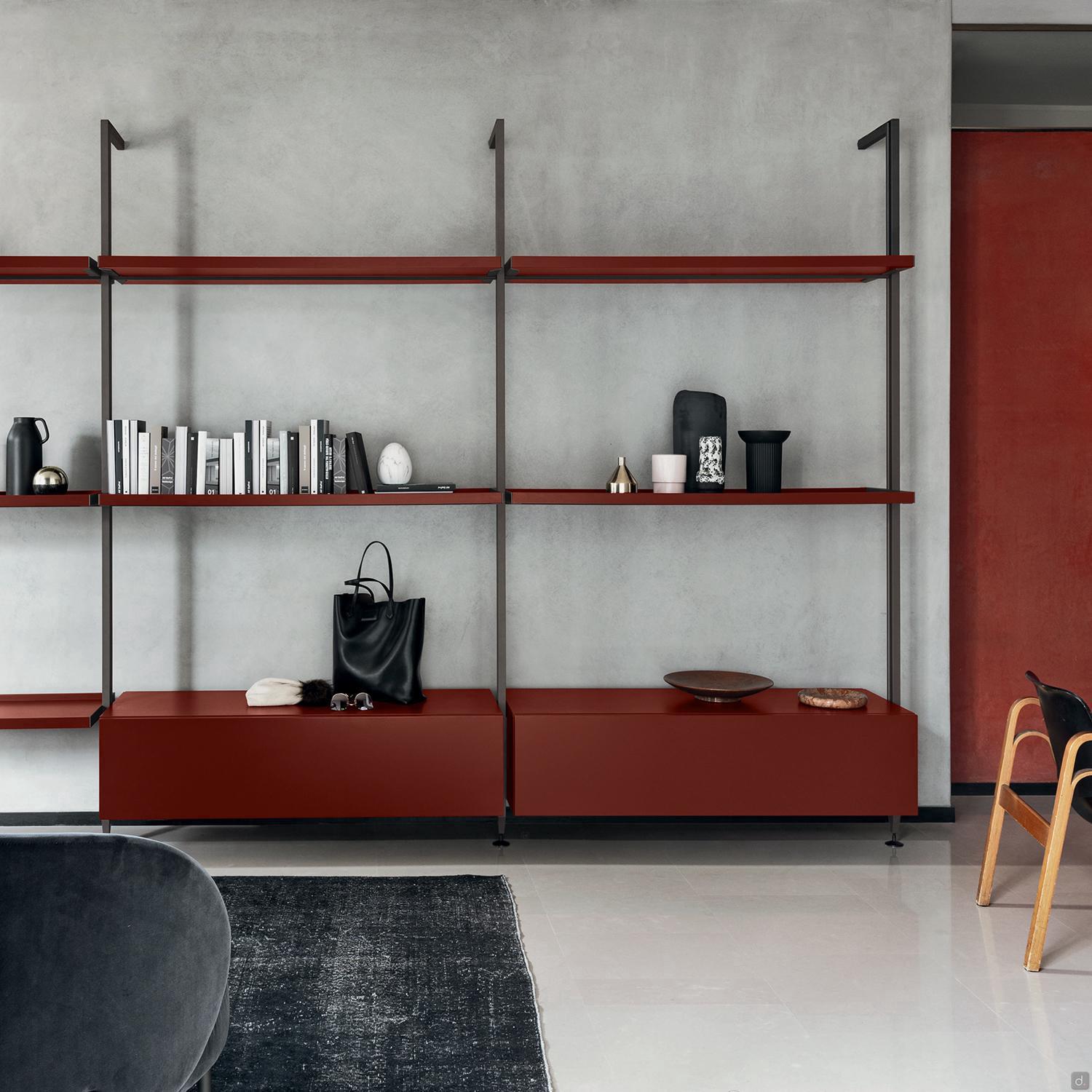

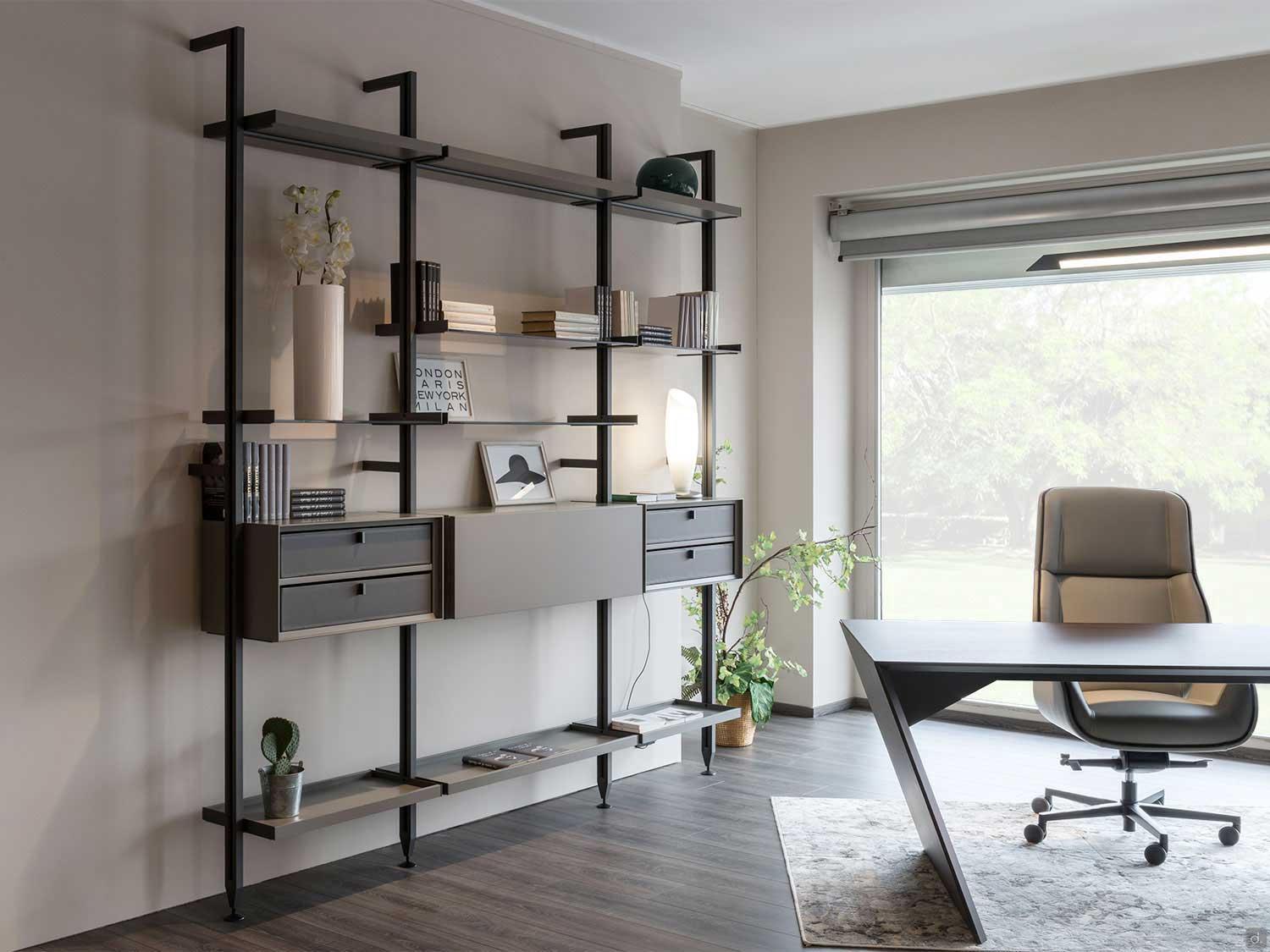

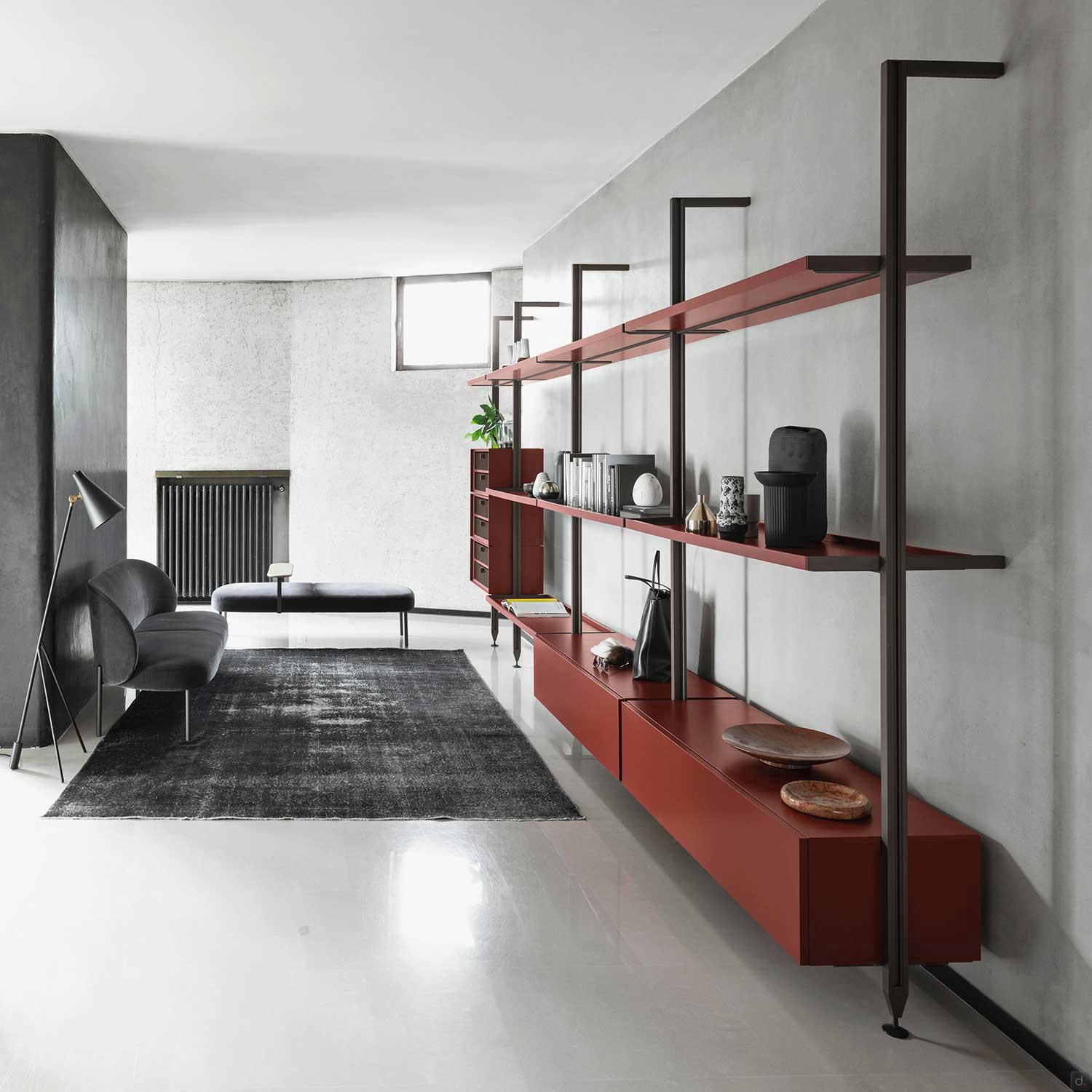

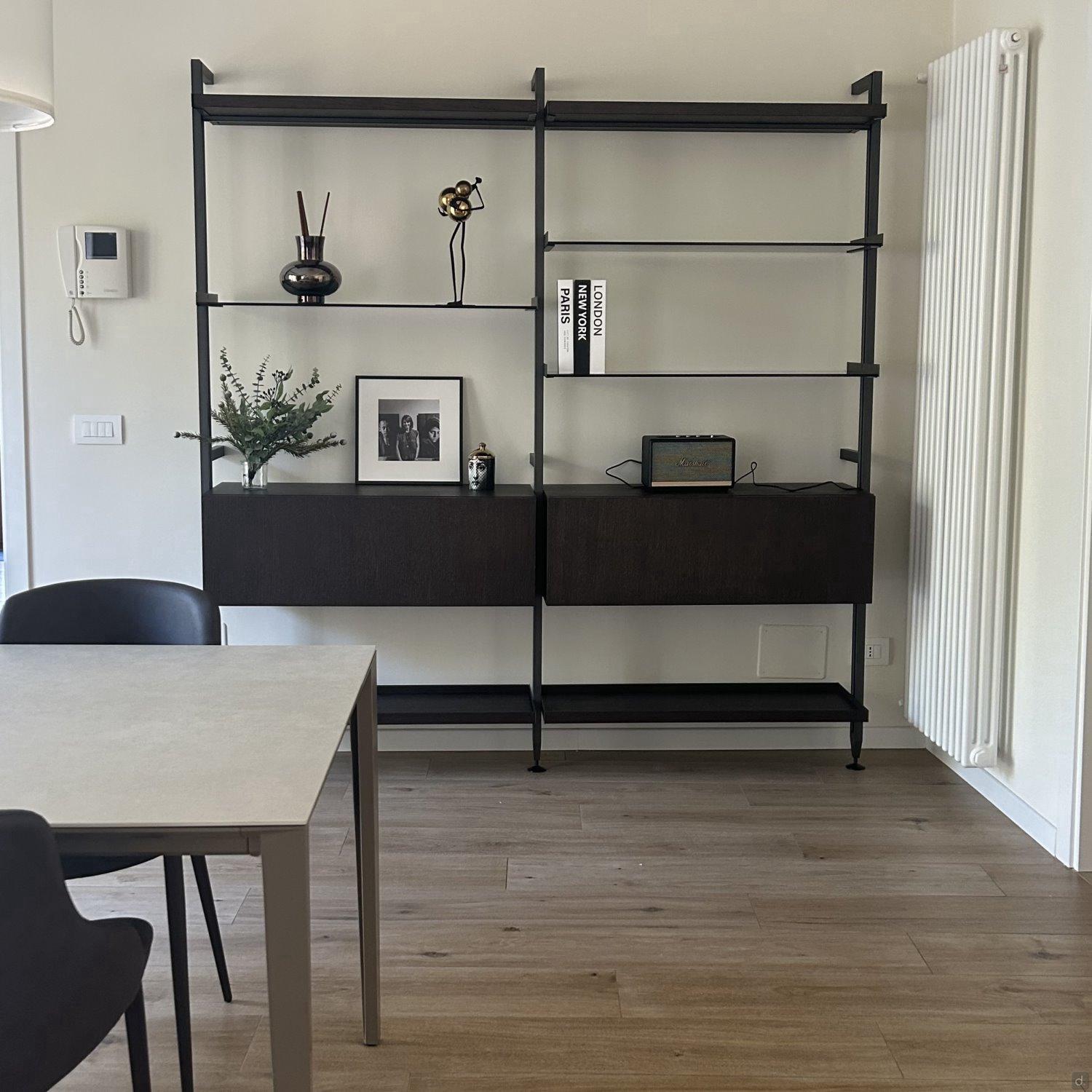

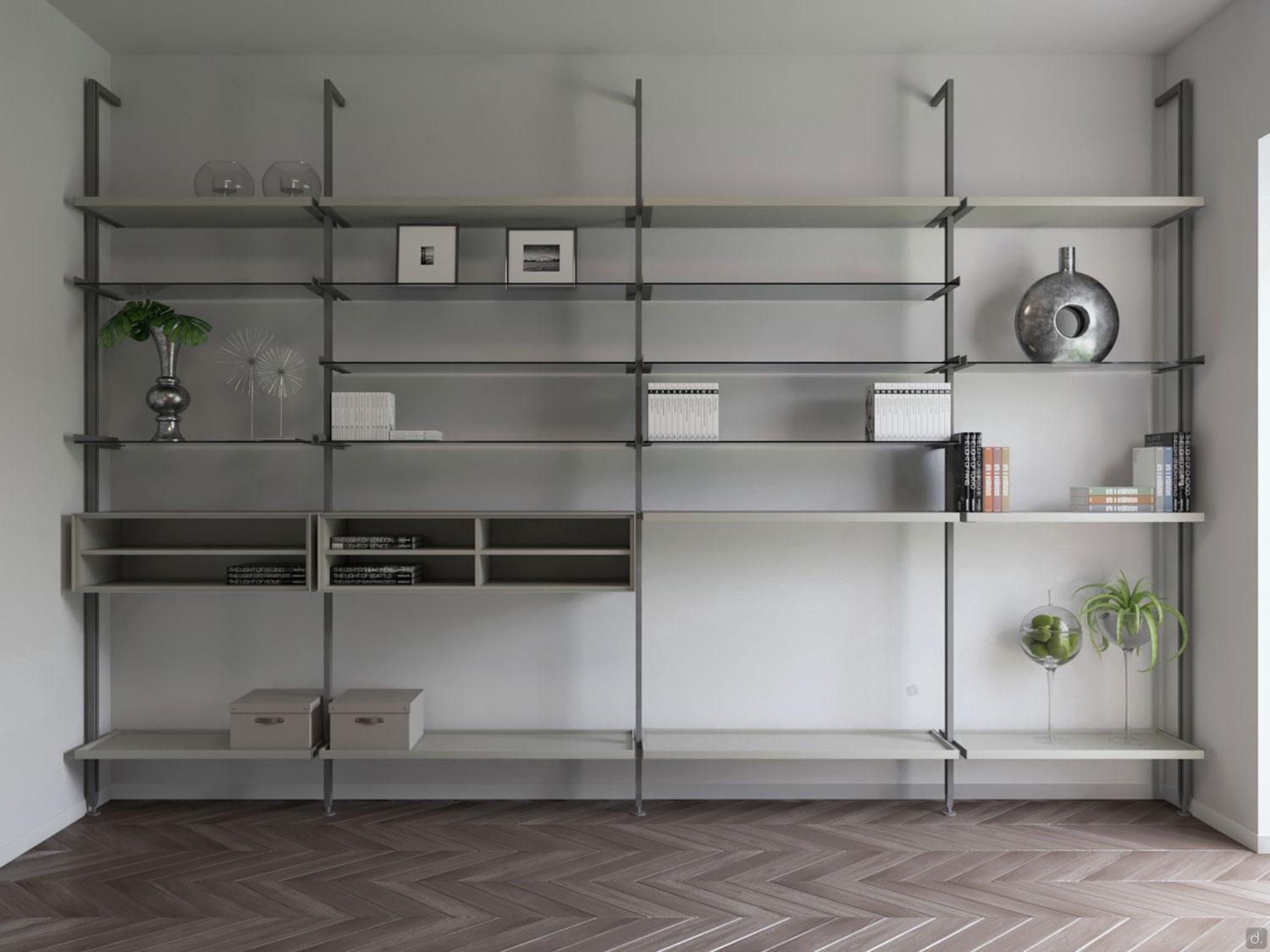

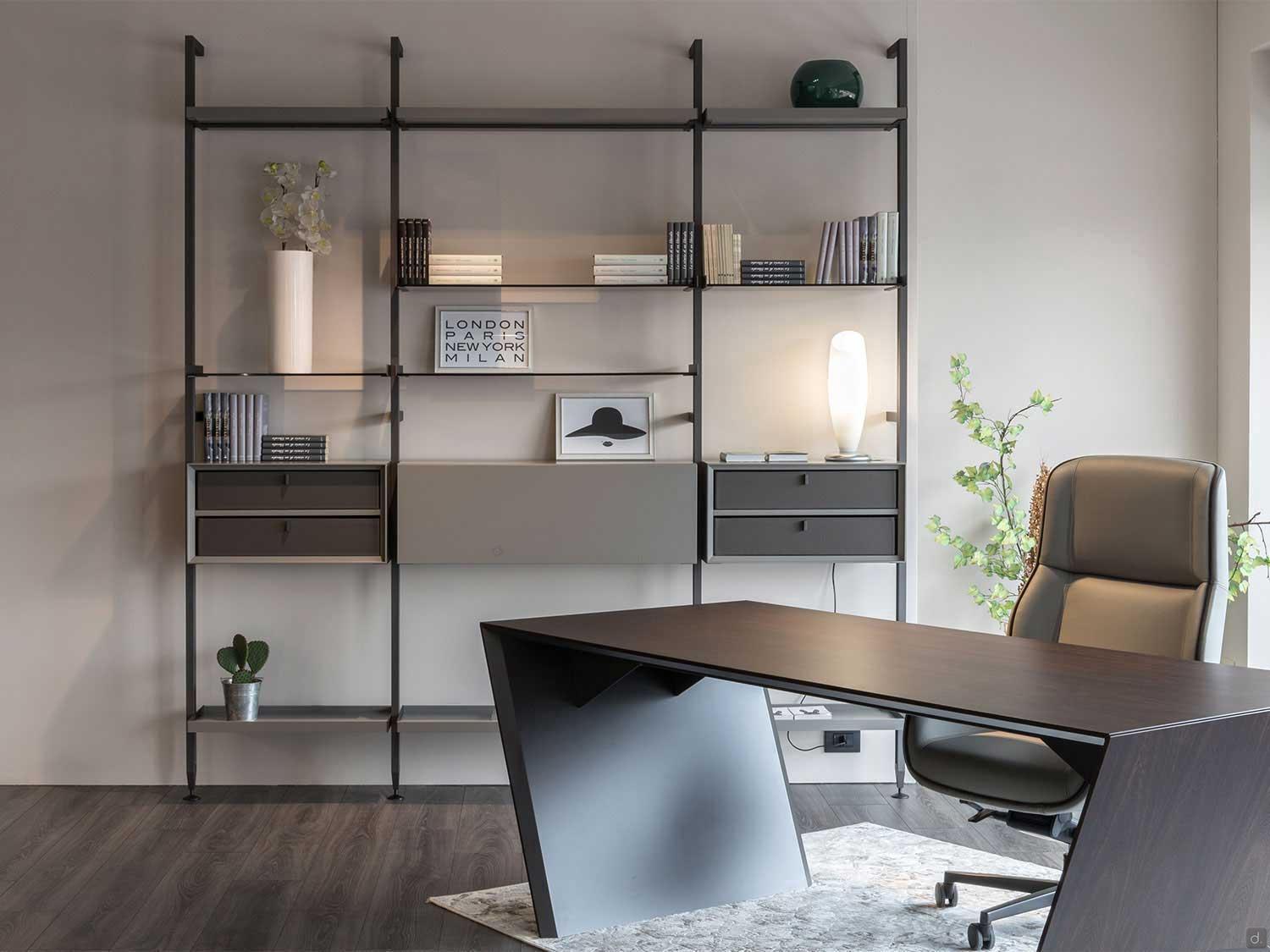

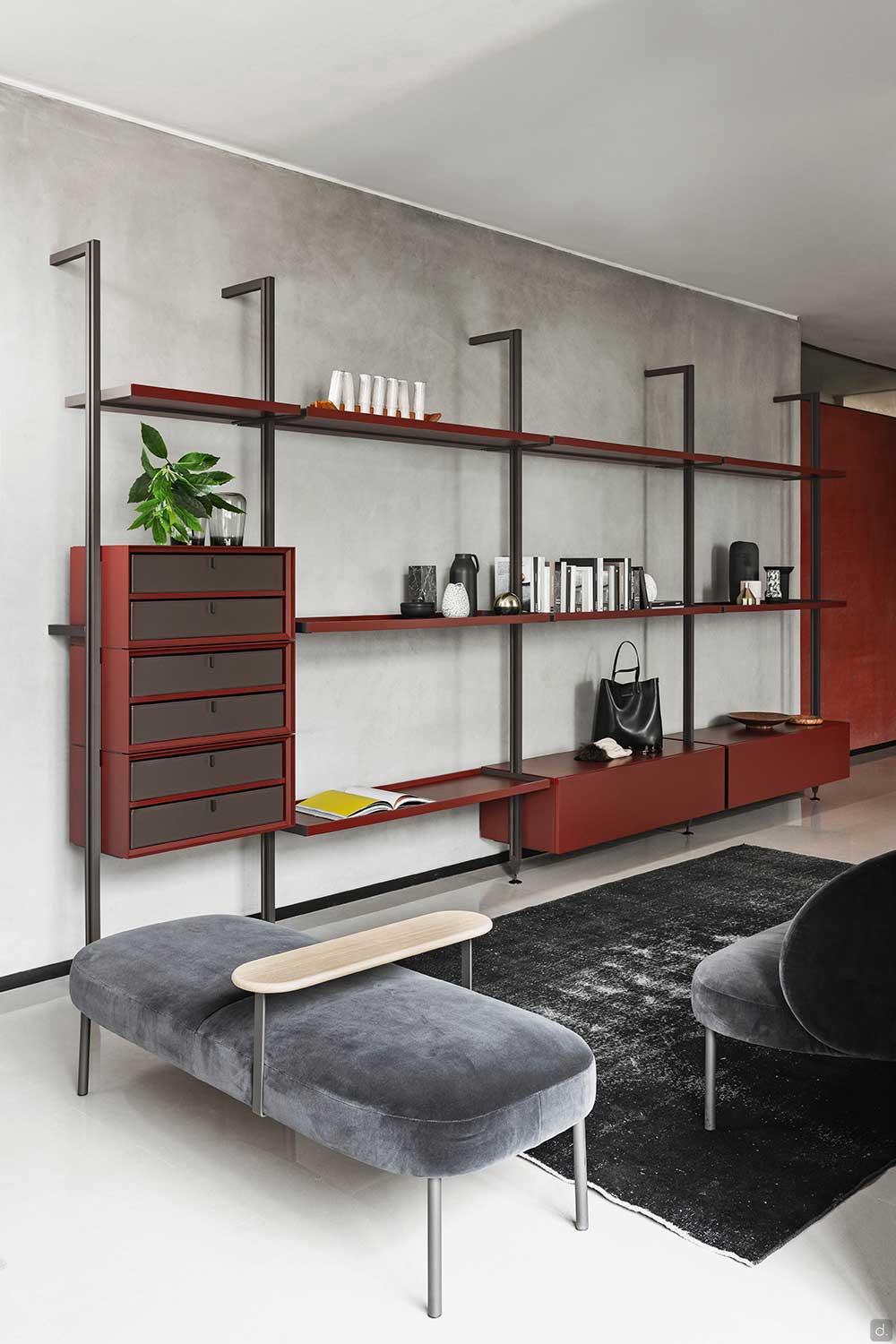

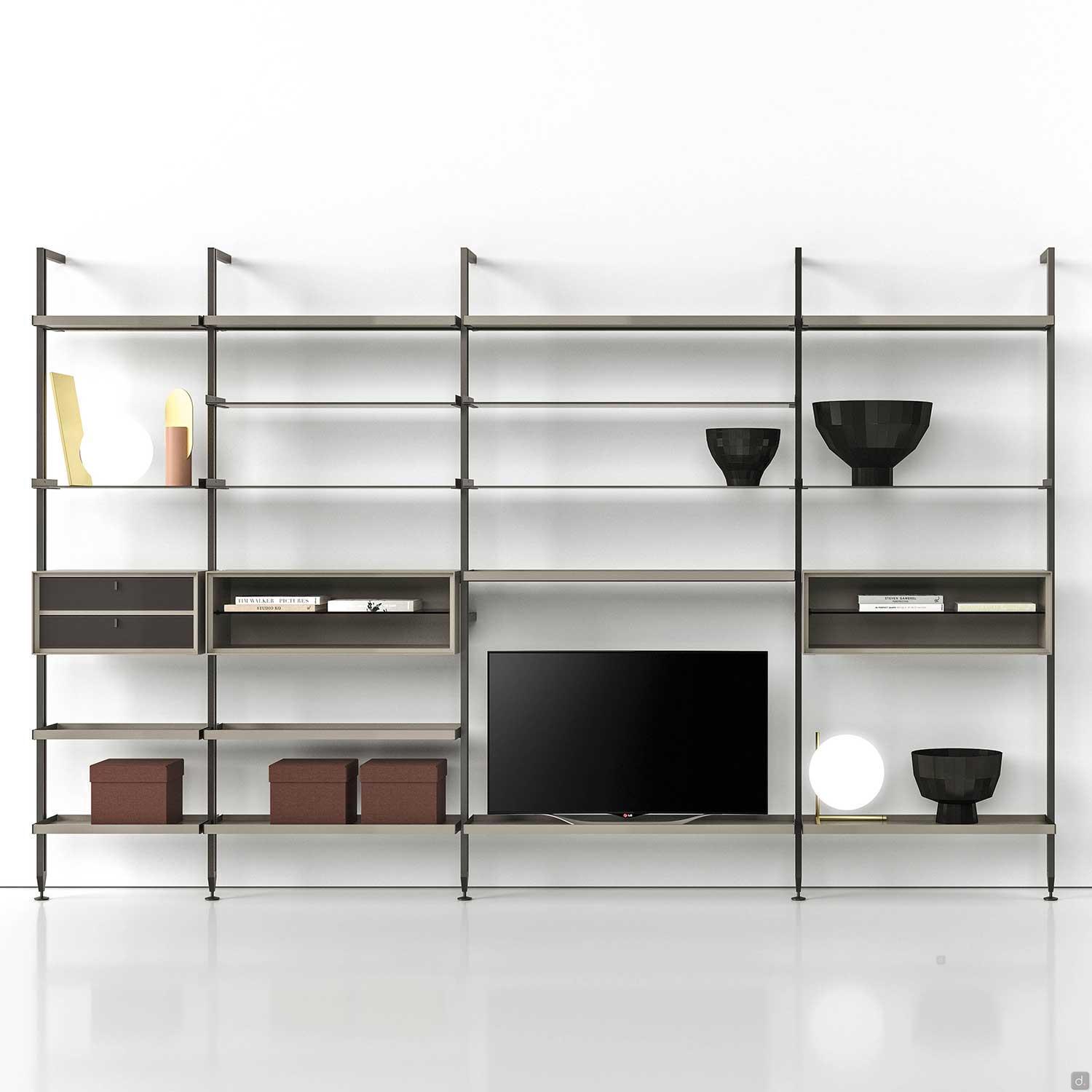

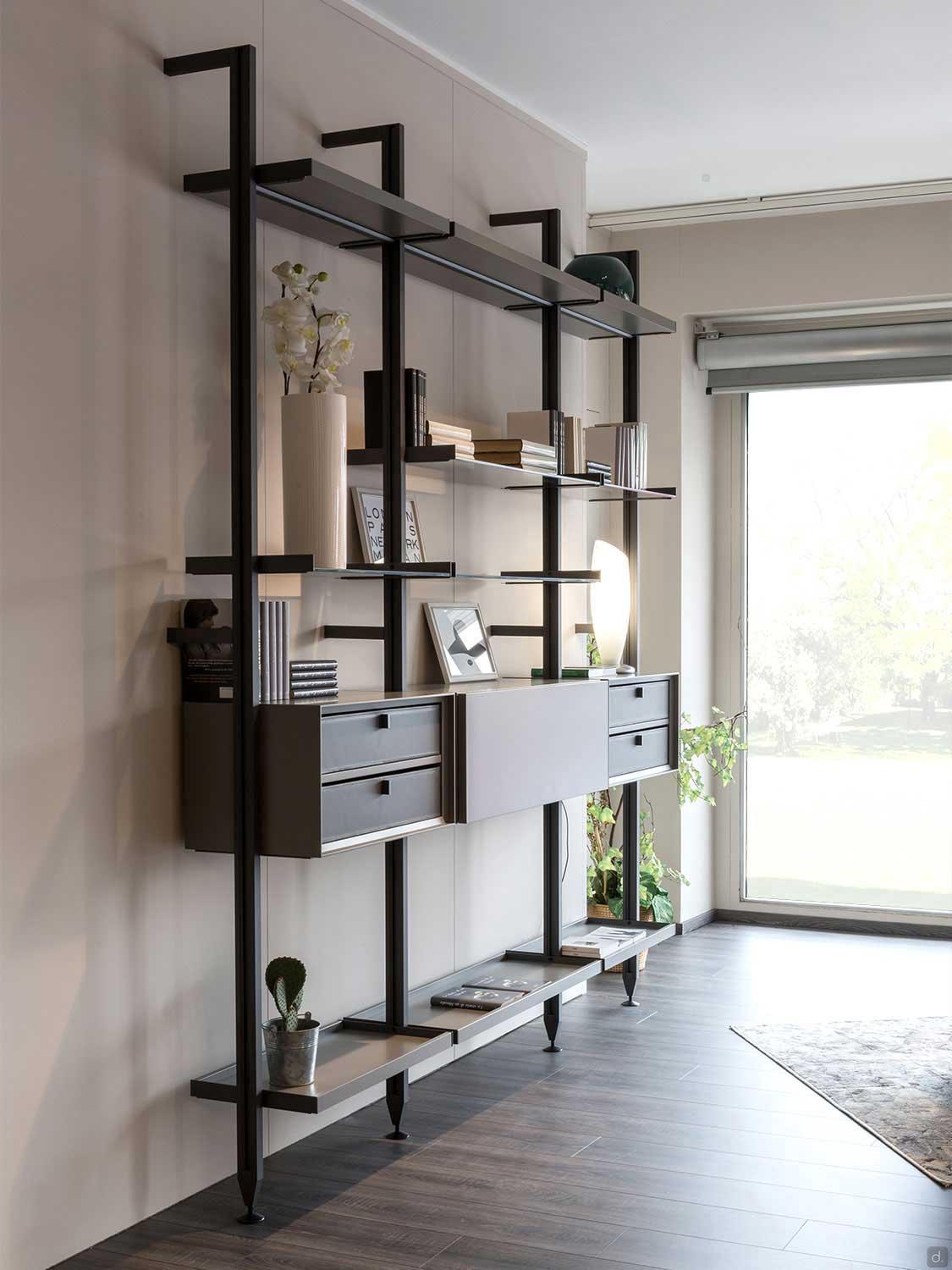

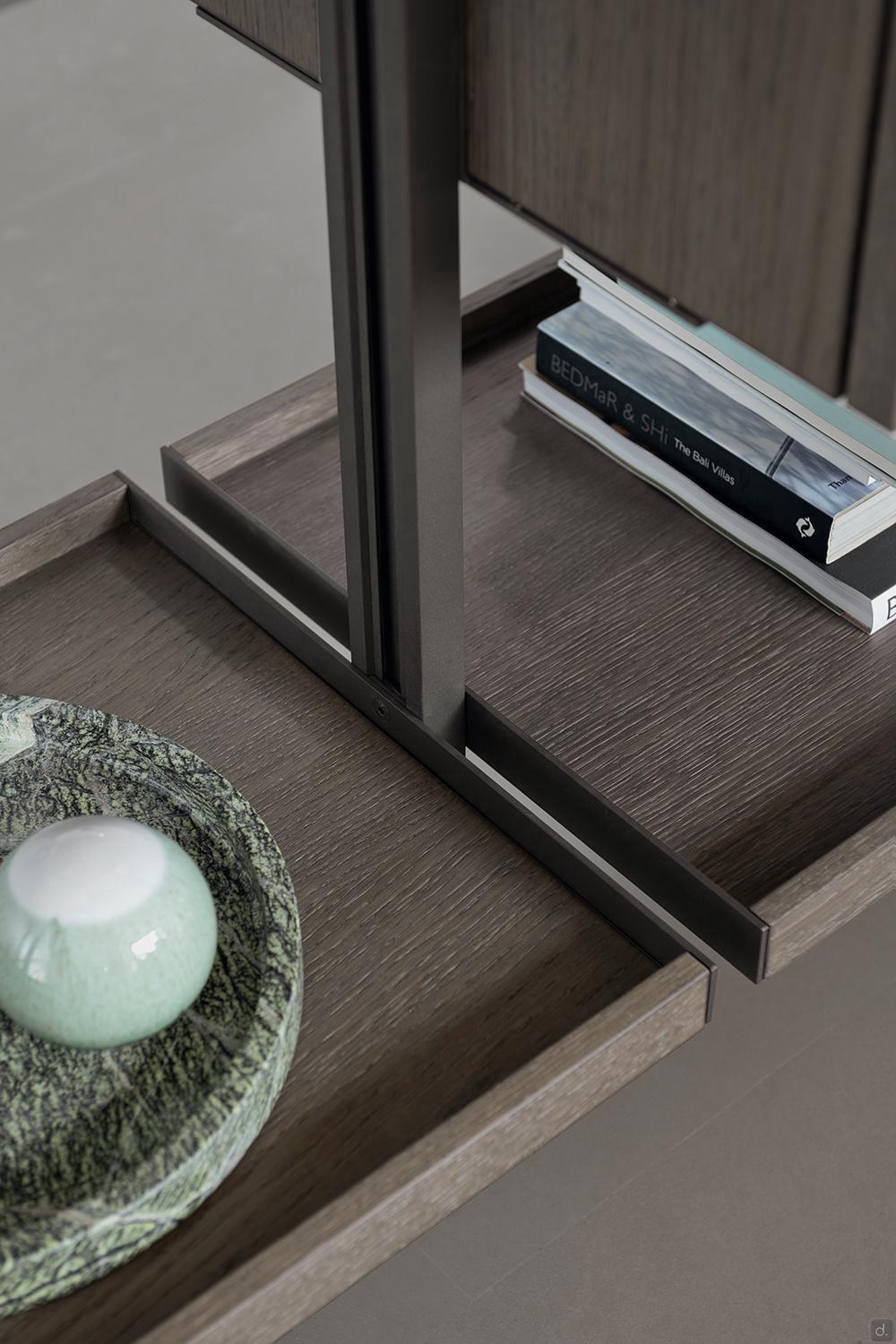

Wall-mounted upright: in extruded aluminium painted Moka shine / nickel (for the latter, the end part of the floor foot is in chrome finish) composed of a floor standing foot cm Ø 5,7 h.12, profile for wall upright cm 2,5, central crosspiece (always included regardless the height) and upper crosspiece. The foot does not need any fixing to the floor and it can be adjusted by +/- 0,5 cm. Please specify the height of the wall upright (max cm 310).
Central and upper cross pieces always have to be fixed to the wall by using the supplied dowels; the quality of the installation operations is the exclusive responsibility of the customer that must use the correct fixing materials according to the type of wall. The position of the central cross-piece is free, except if you match it with a desk: in this case, both must be placed at the same height and the desk needs to be fixed to it by using the included bracket.

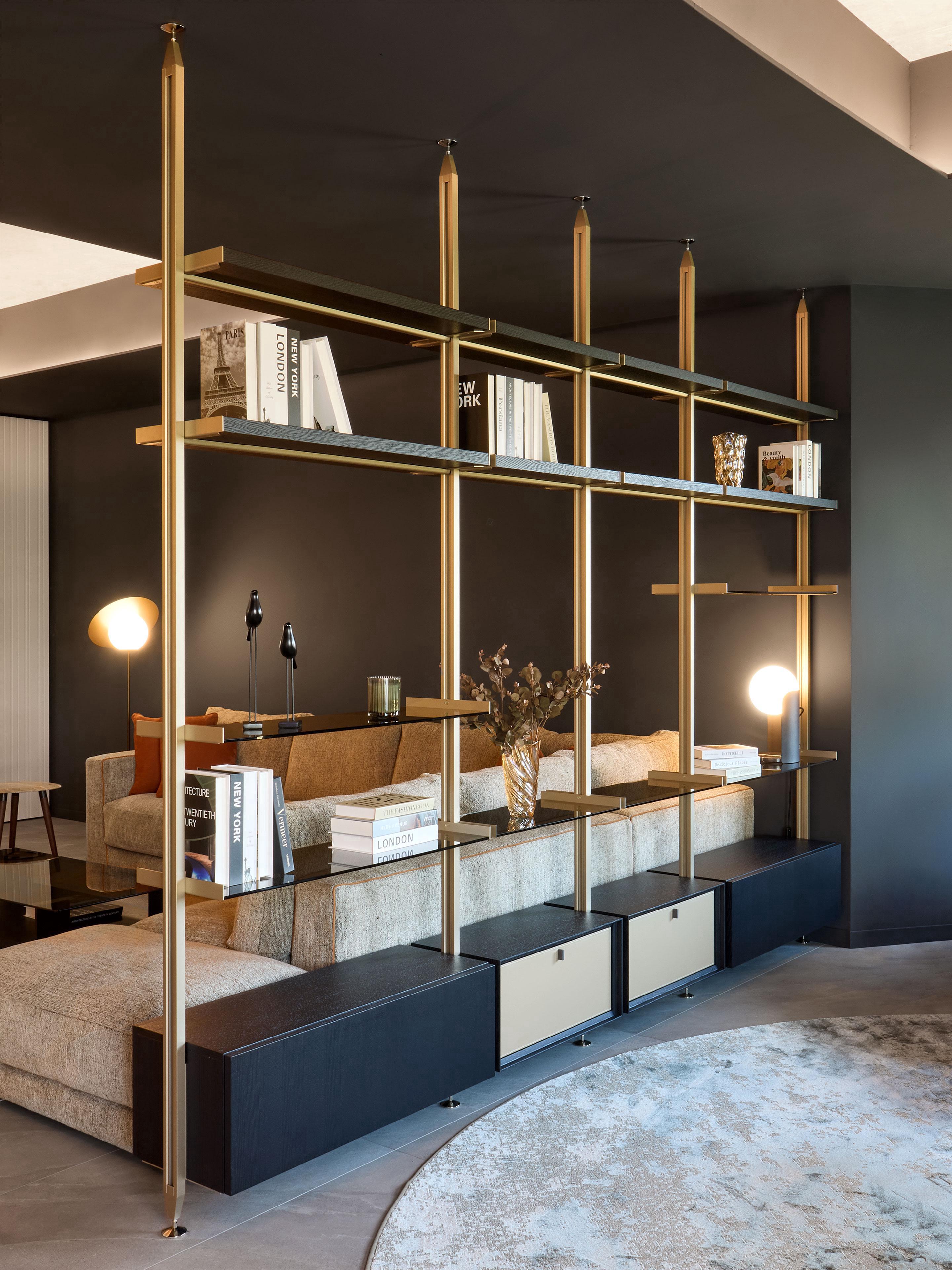

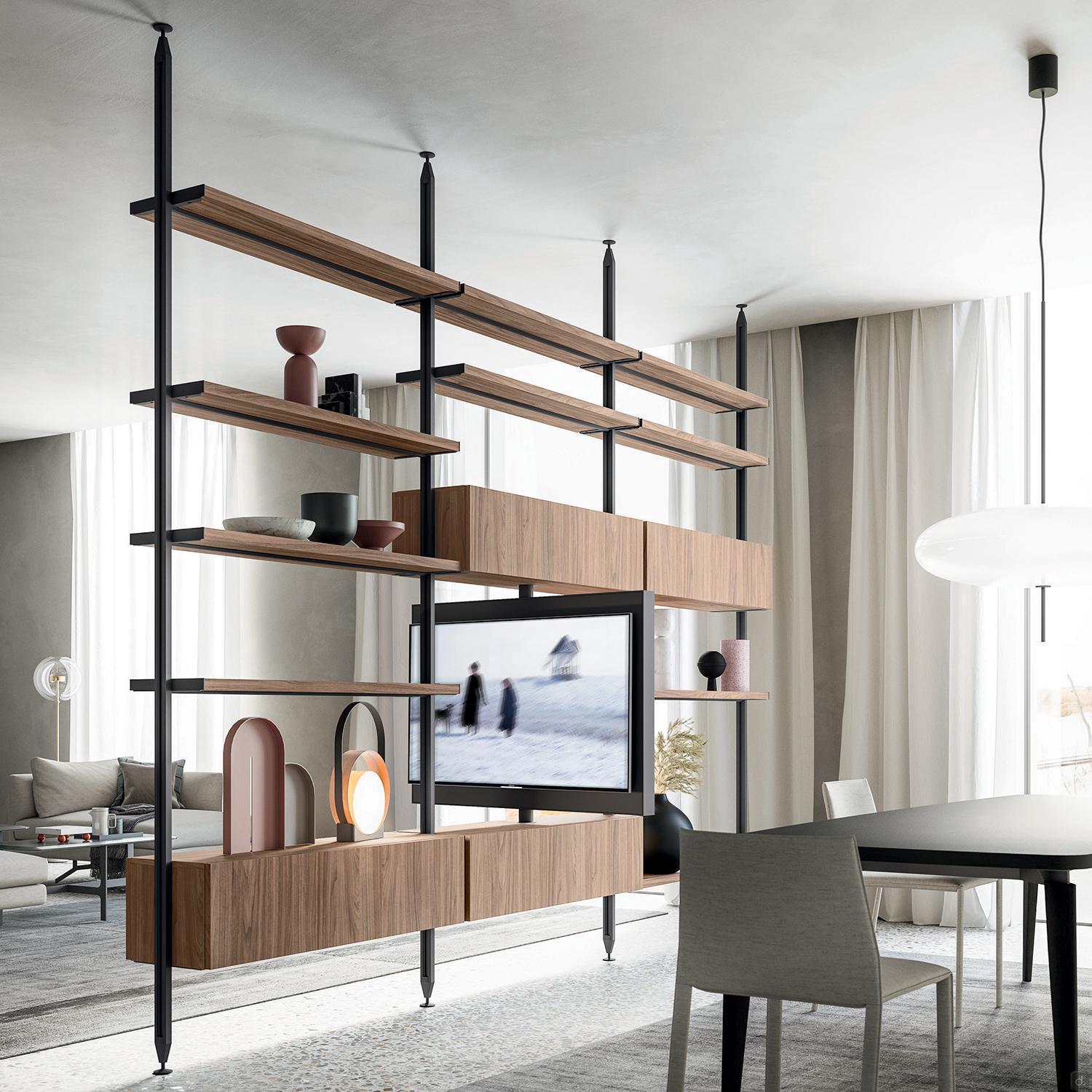

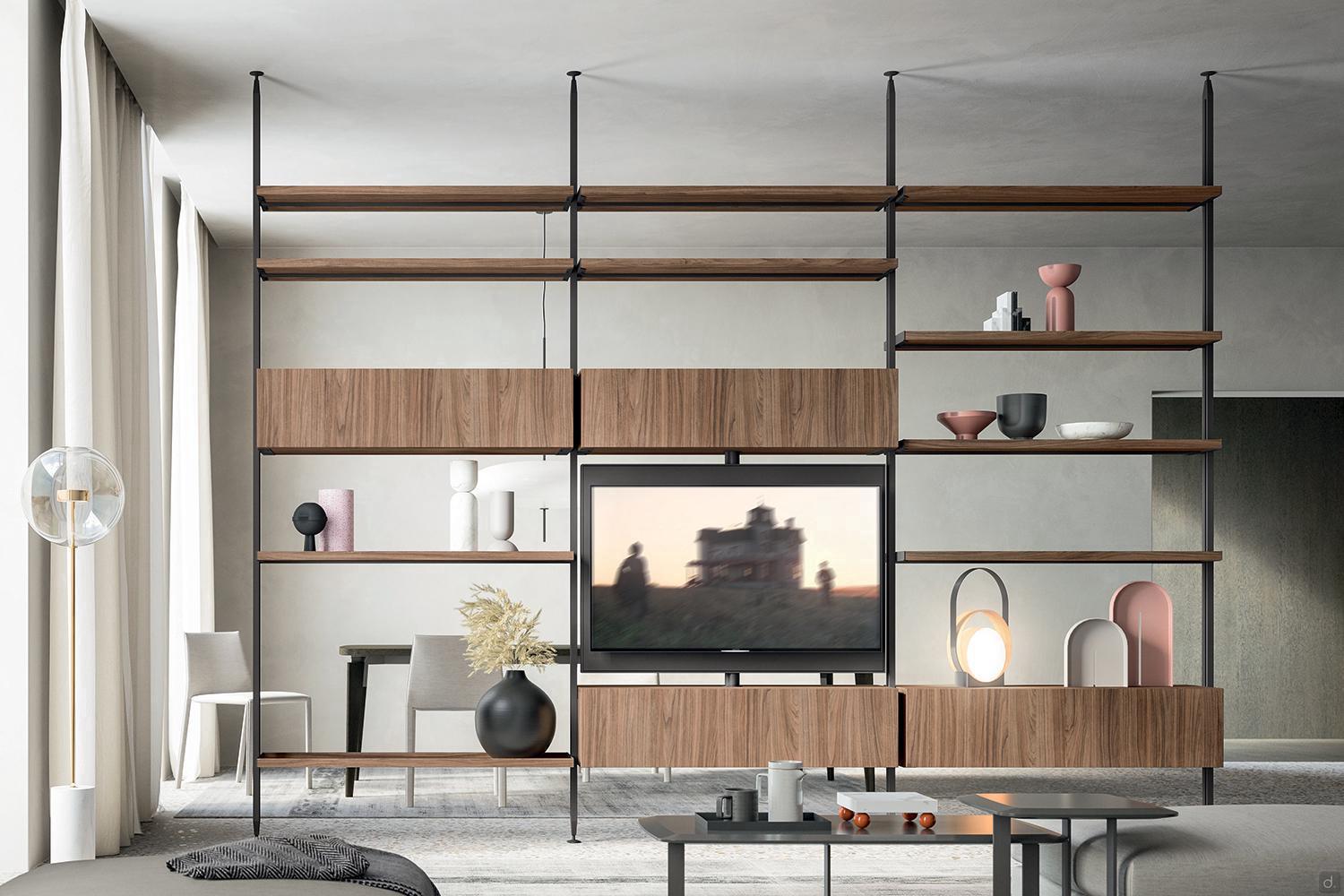

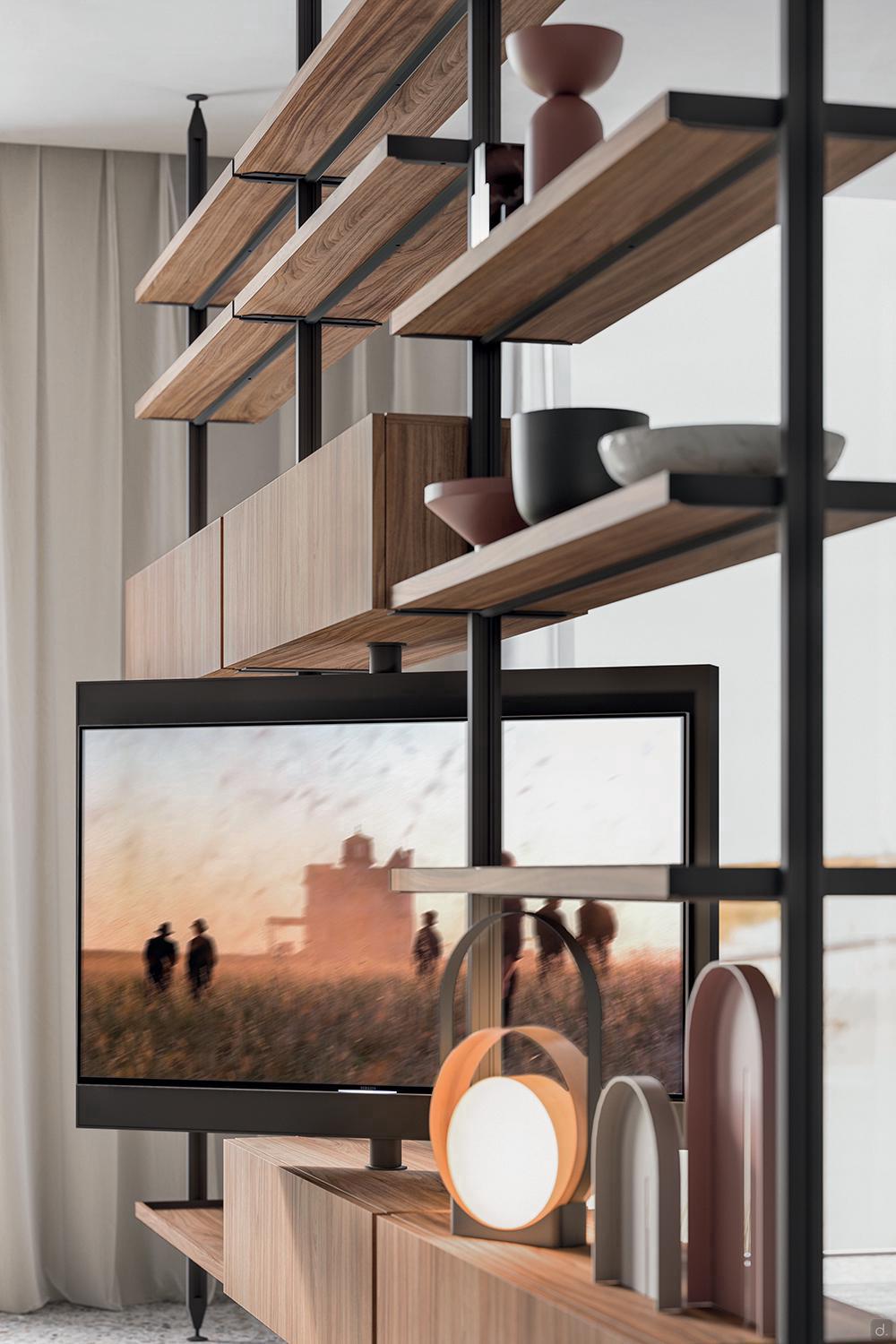

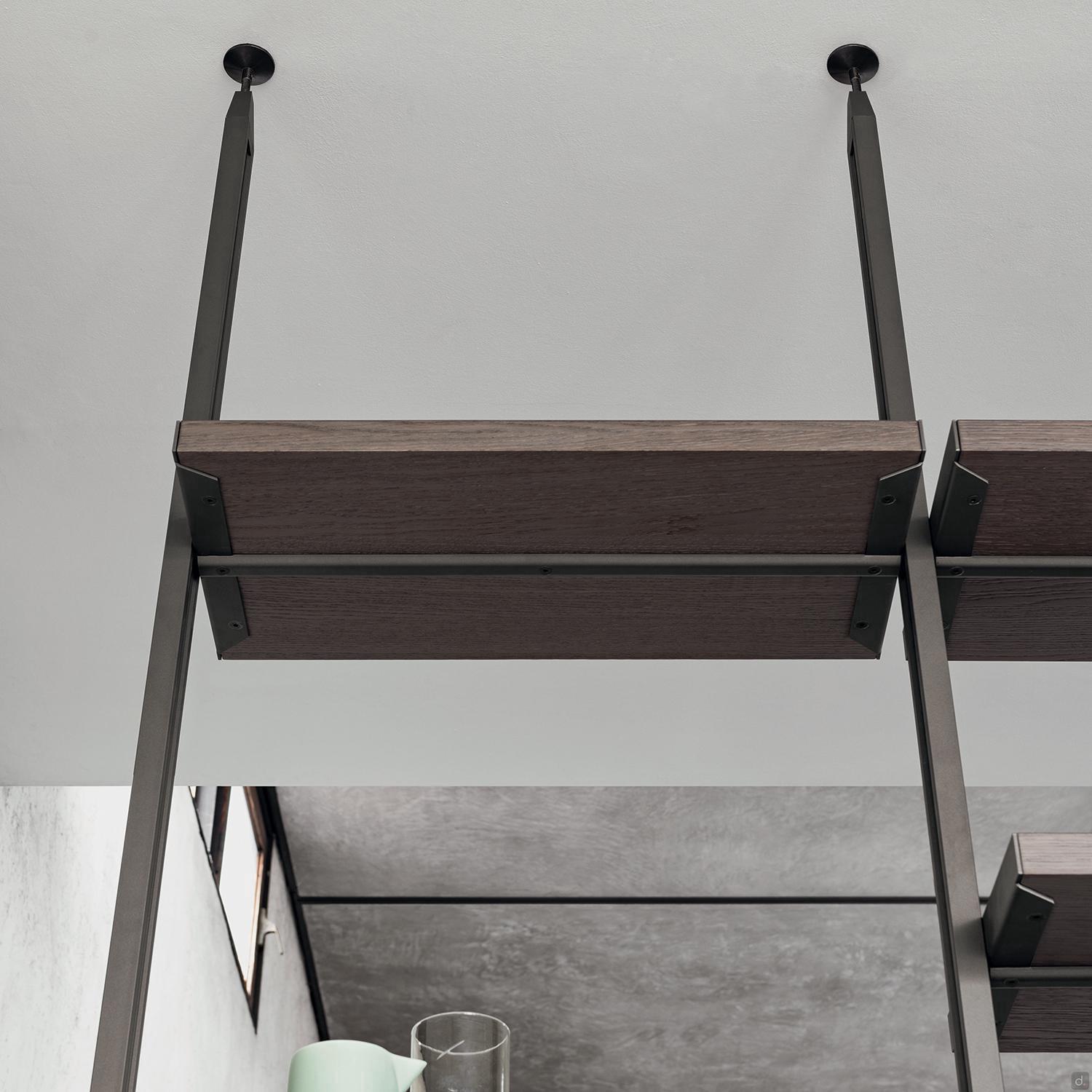

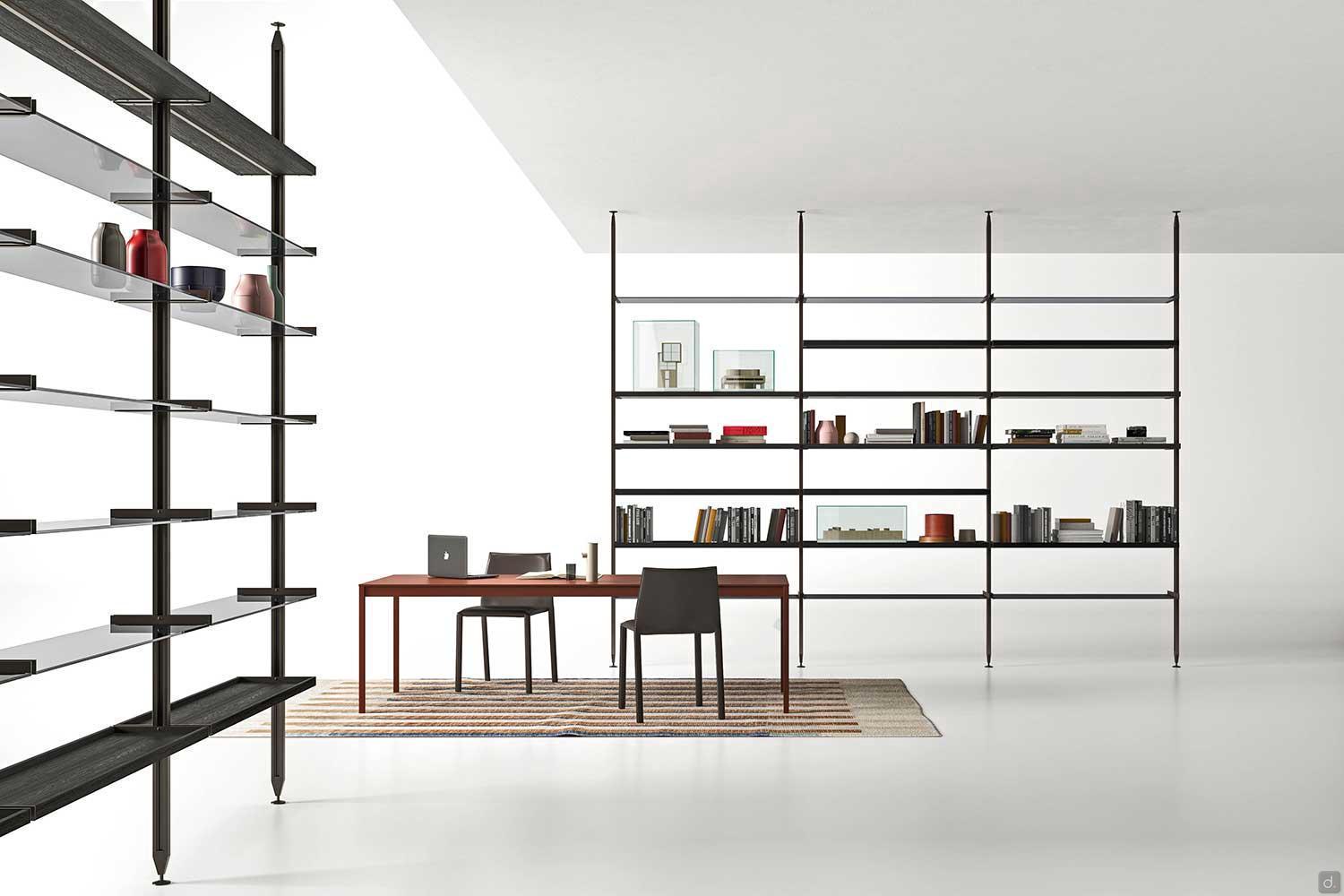

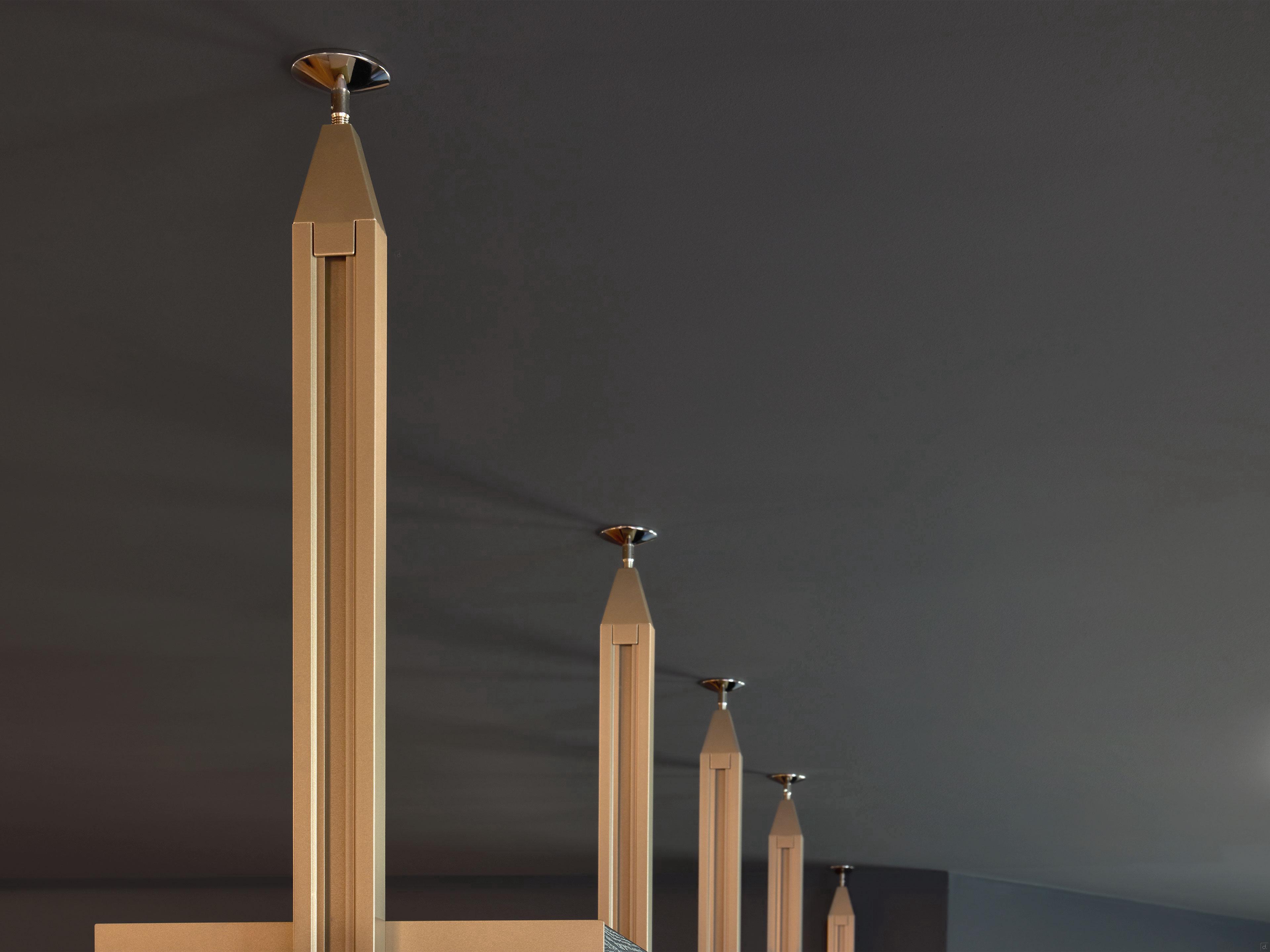

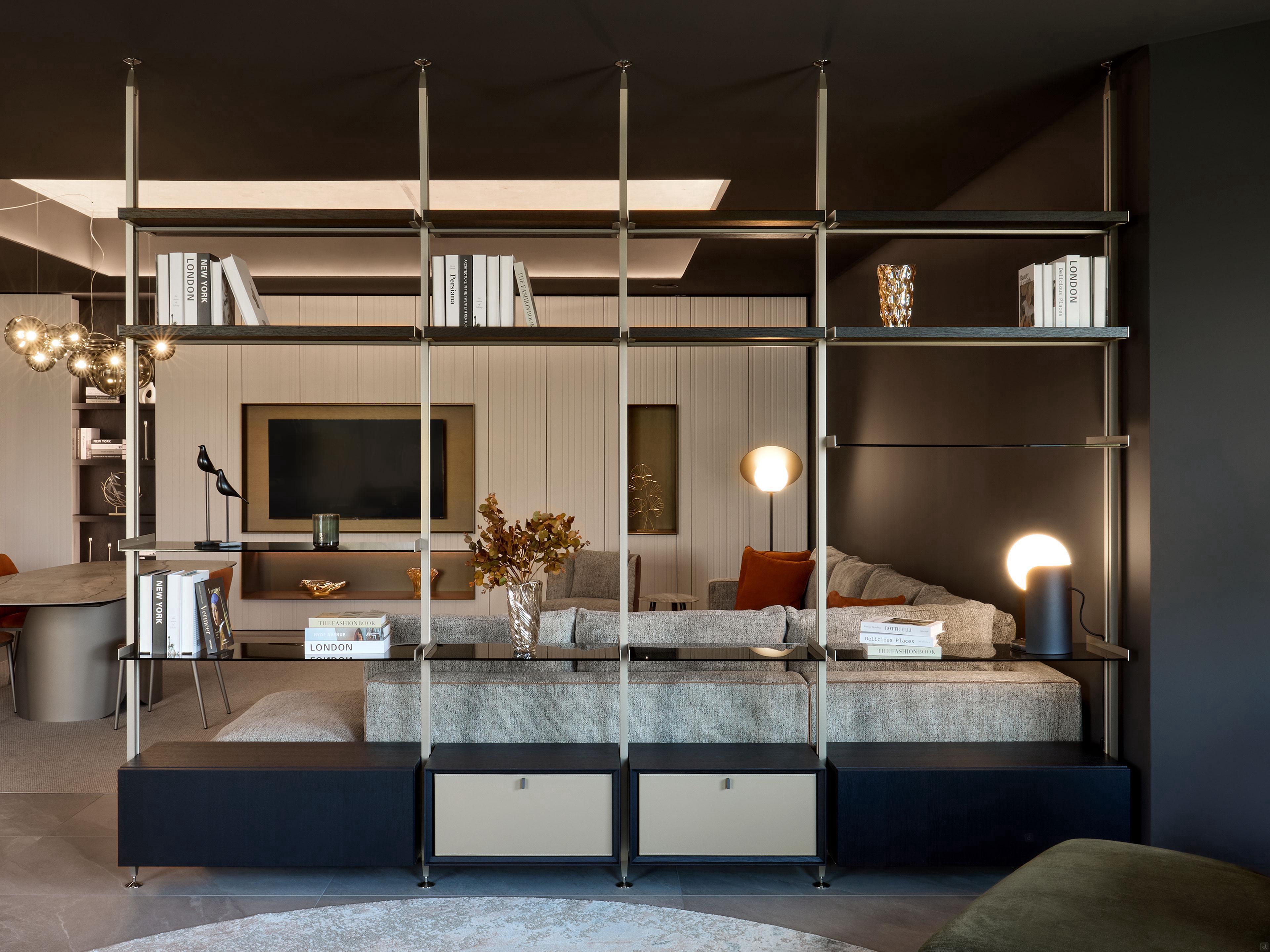

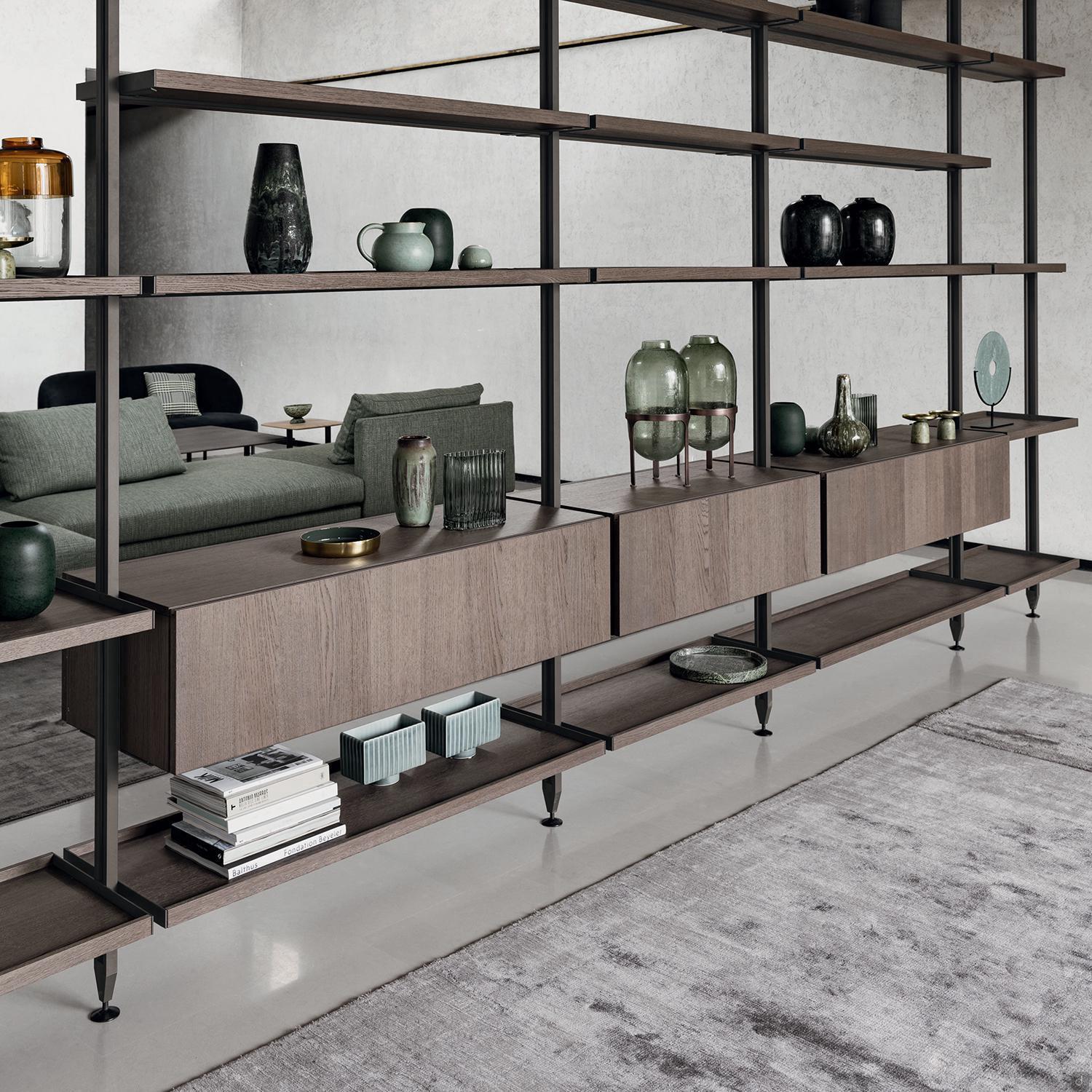

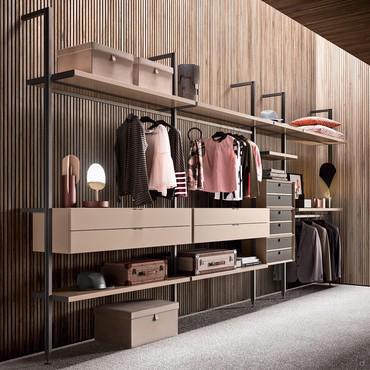

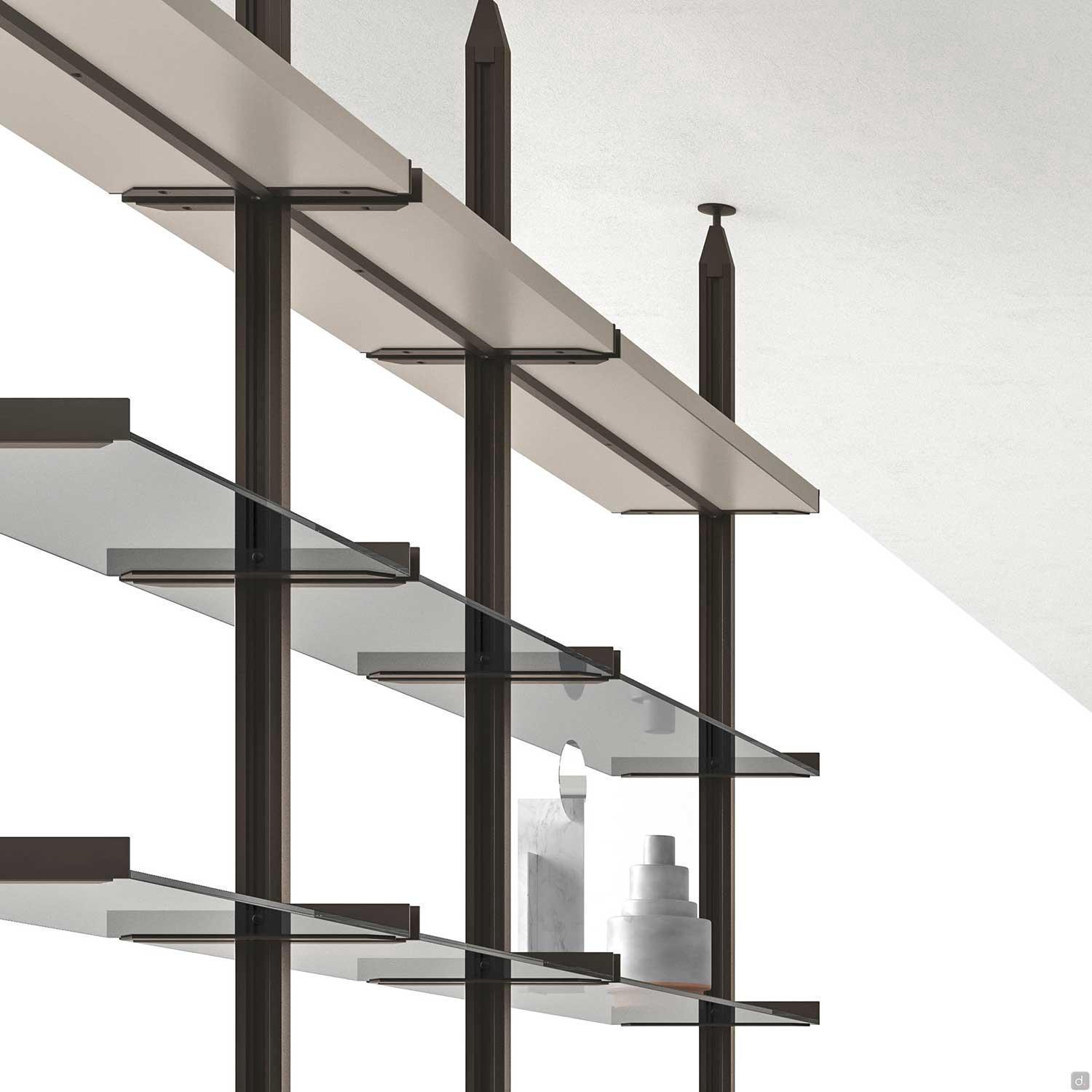

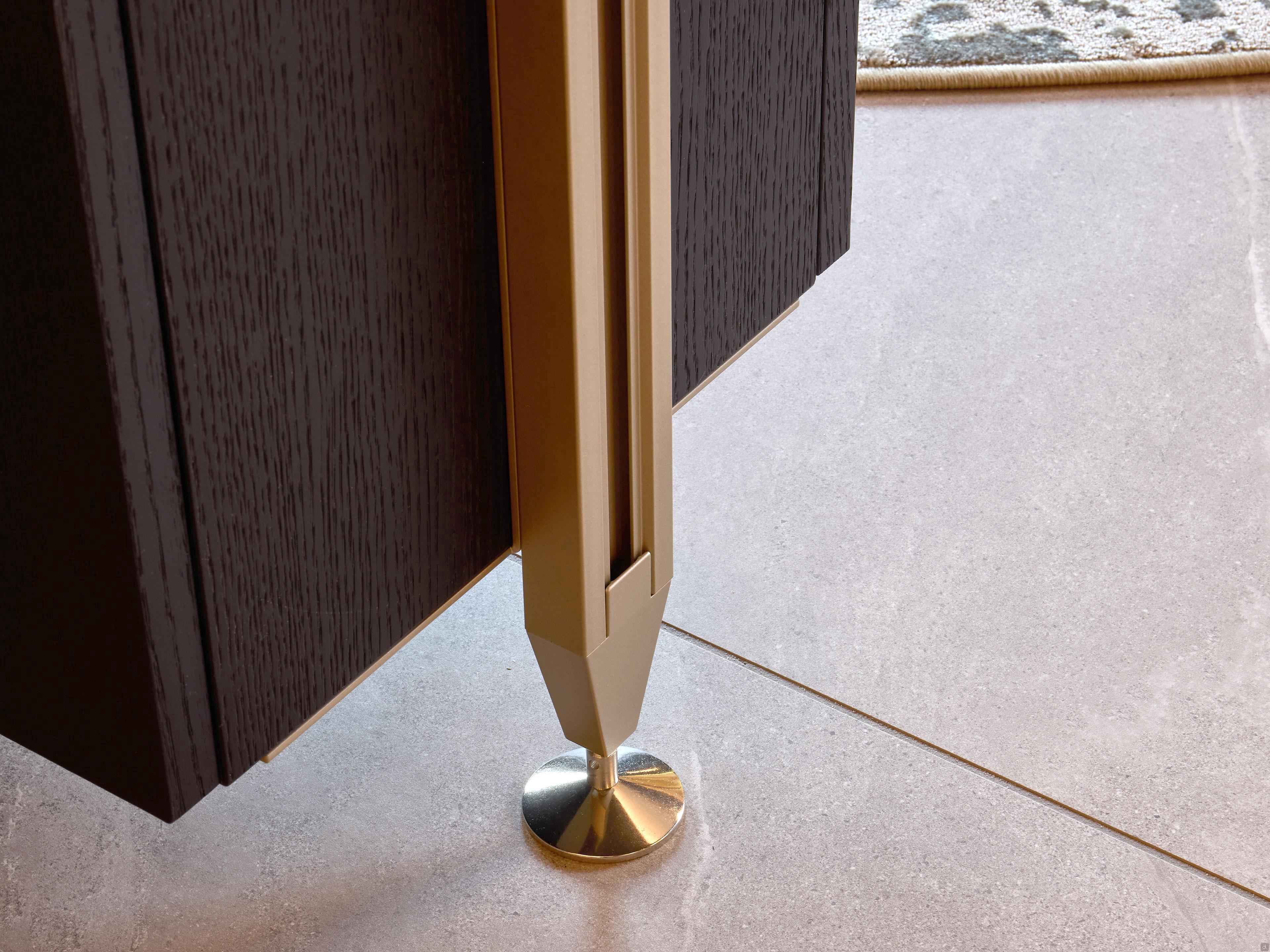

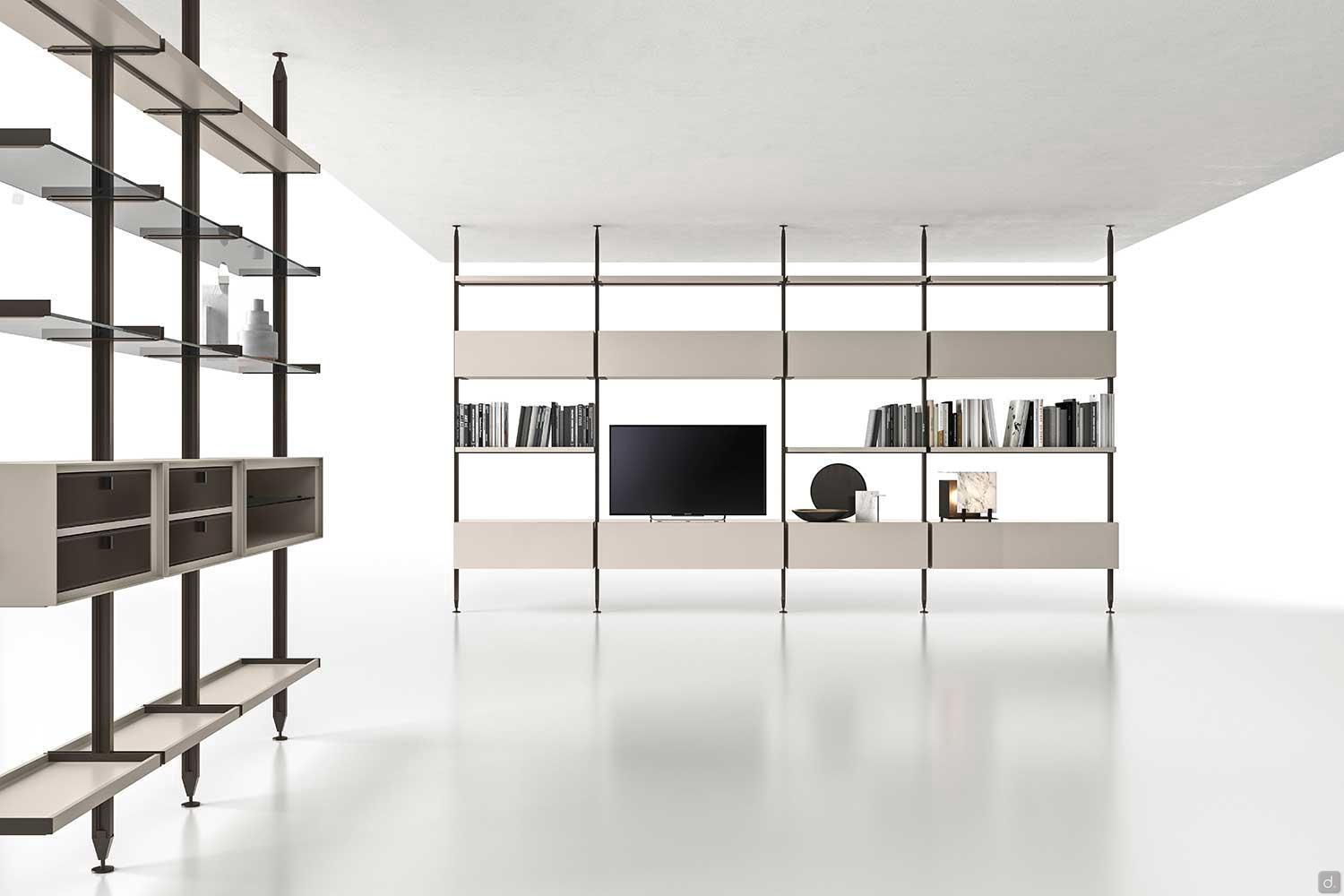

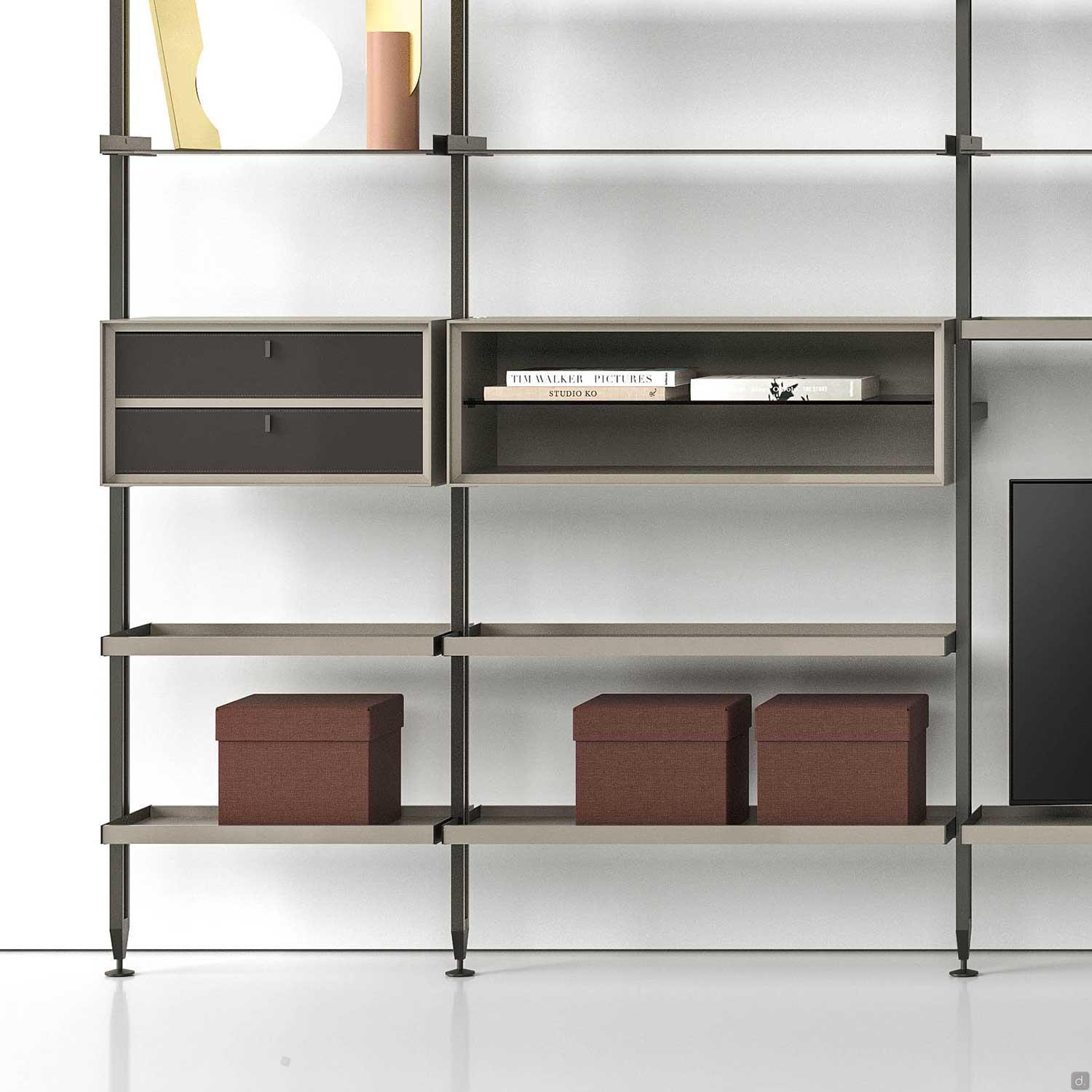

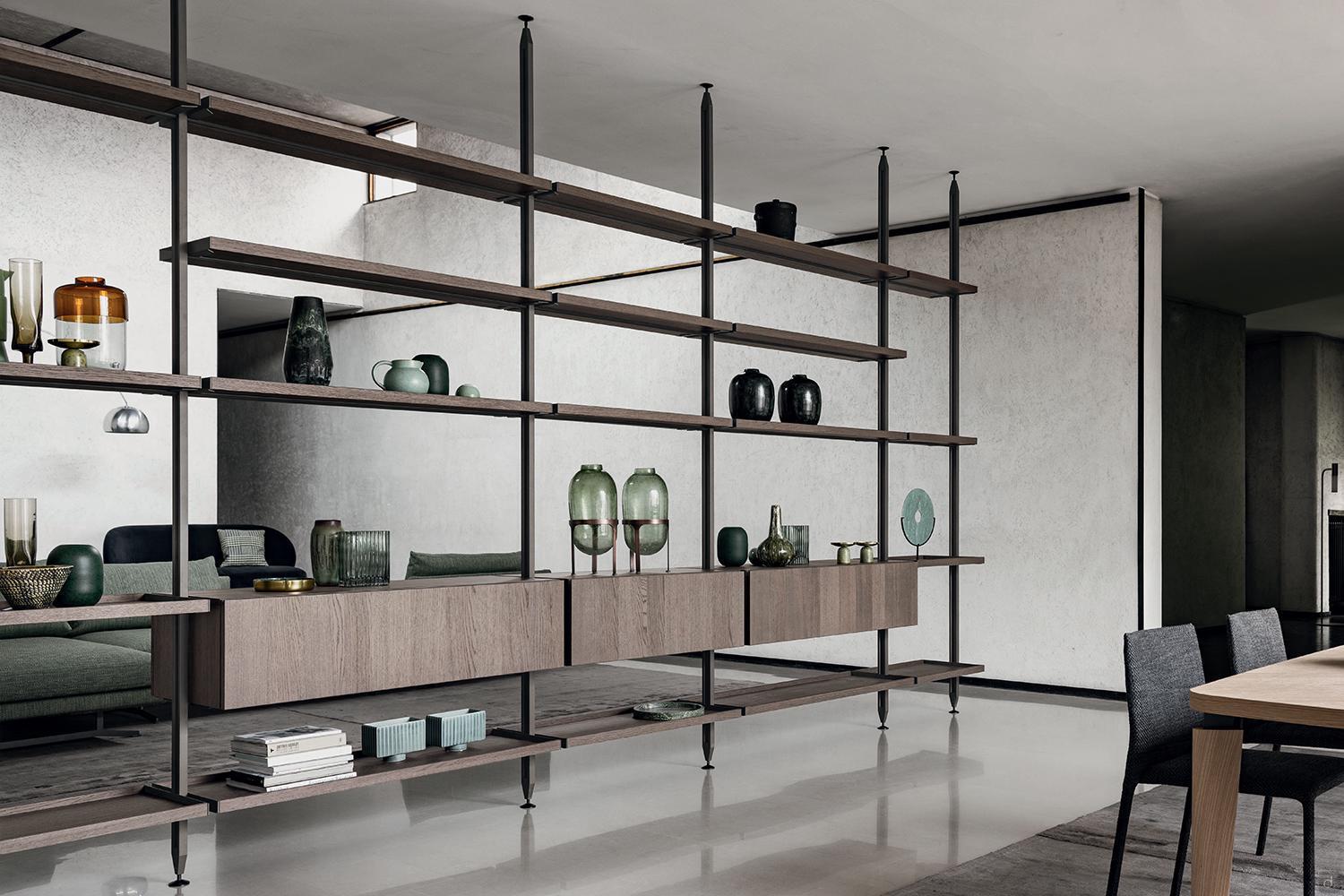

Floor to ceiling upright: in Moka shine / nickel painted extruded aluminium (for the latter, the end part of the floor and ceiling foot is in chrome finish), composed of a floor standing foot cm Ø 5,7 h.12, profile for ceiling upright cm 2,5 and ceiling foot cm Ø 5,7 h.12. Feet can be adjusted by +/- 2 cm in height; the foot does not need to be fixed to the floor, on the other hand, the ceiling one has to be fixed by using the included dowels. The quality of the installing operations is exclusively the responsibility of the customer that must use the correct fixing materials according to the type of wall.

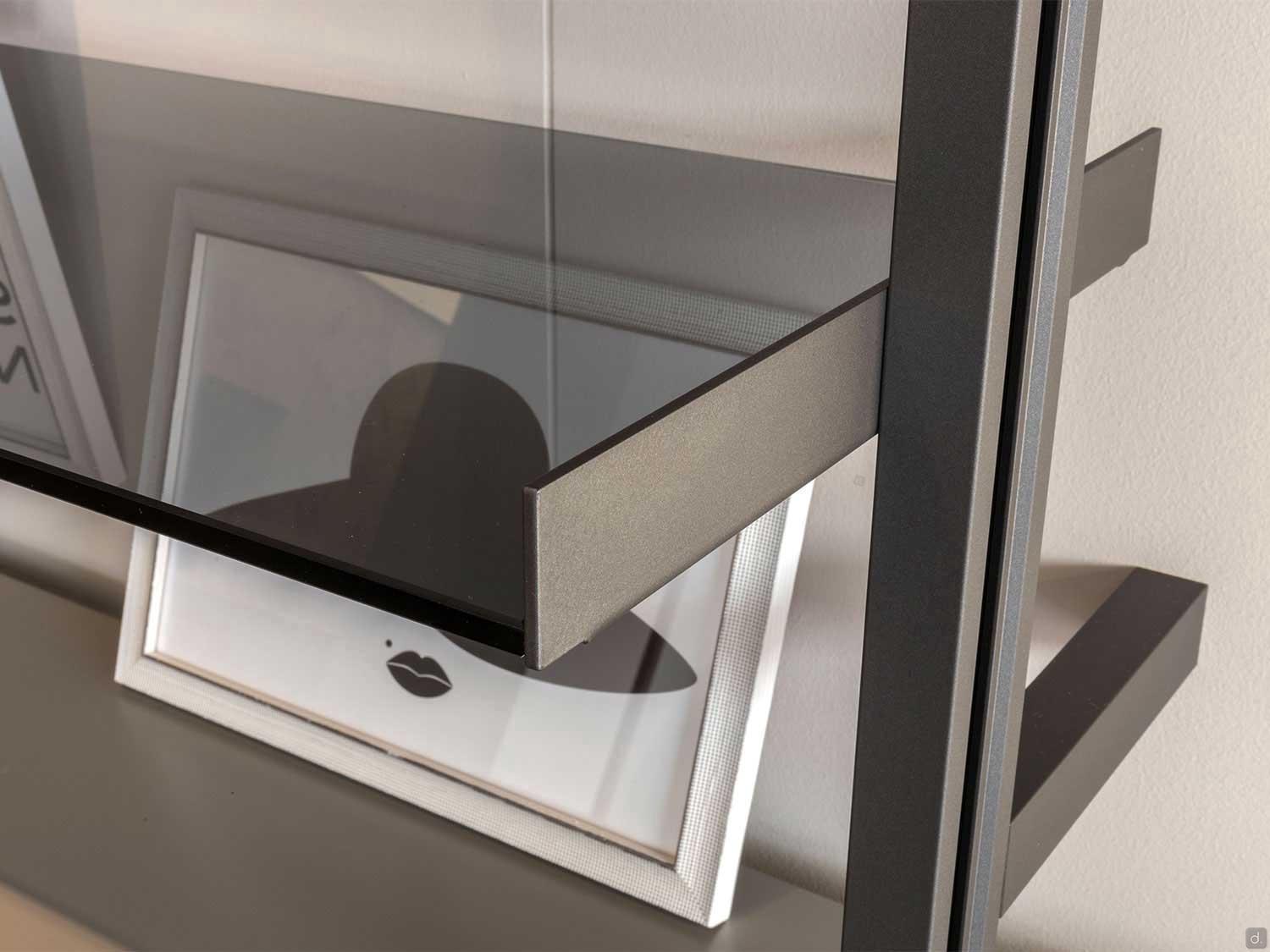

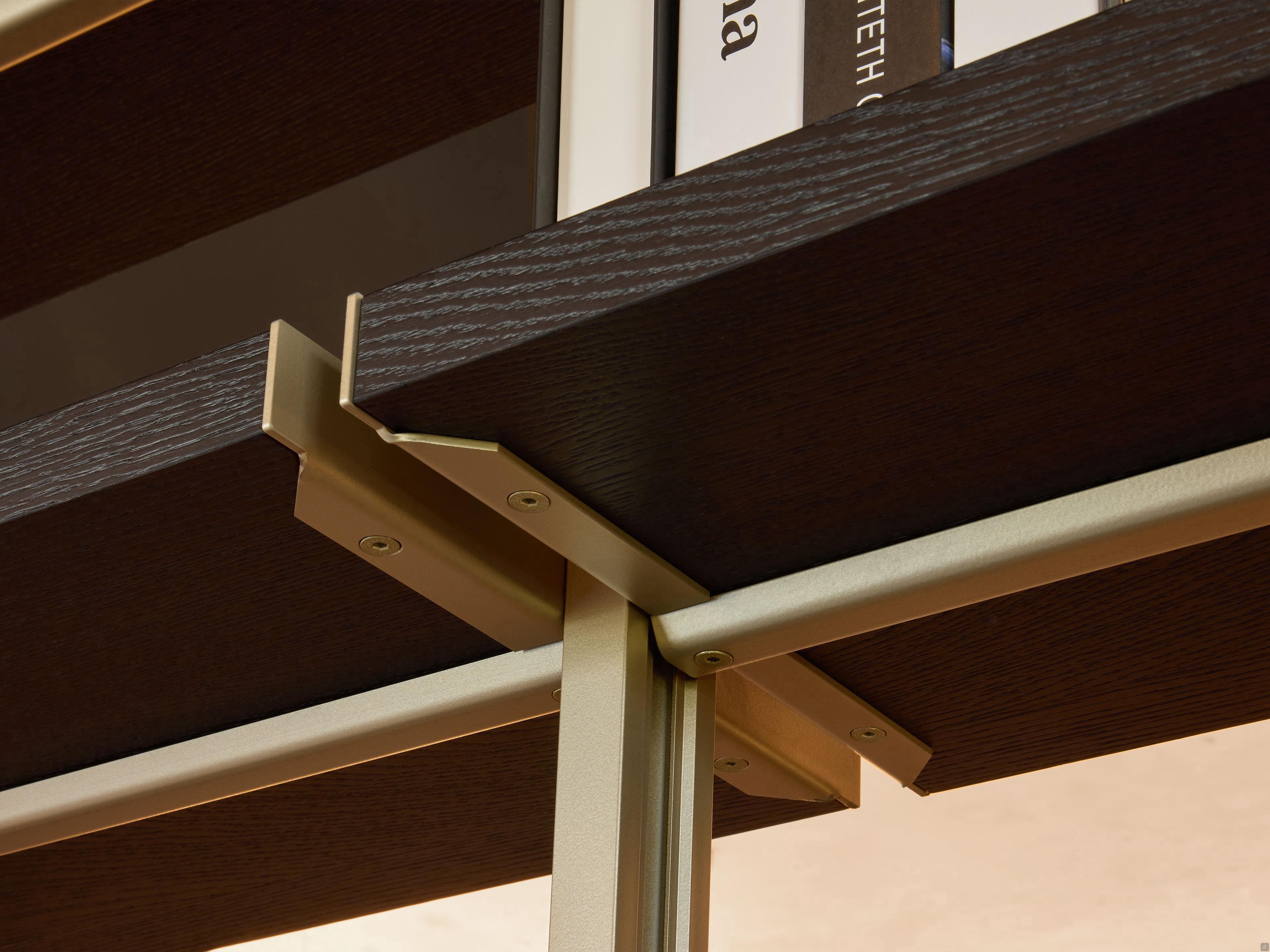

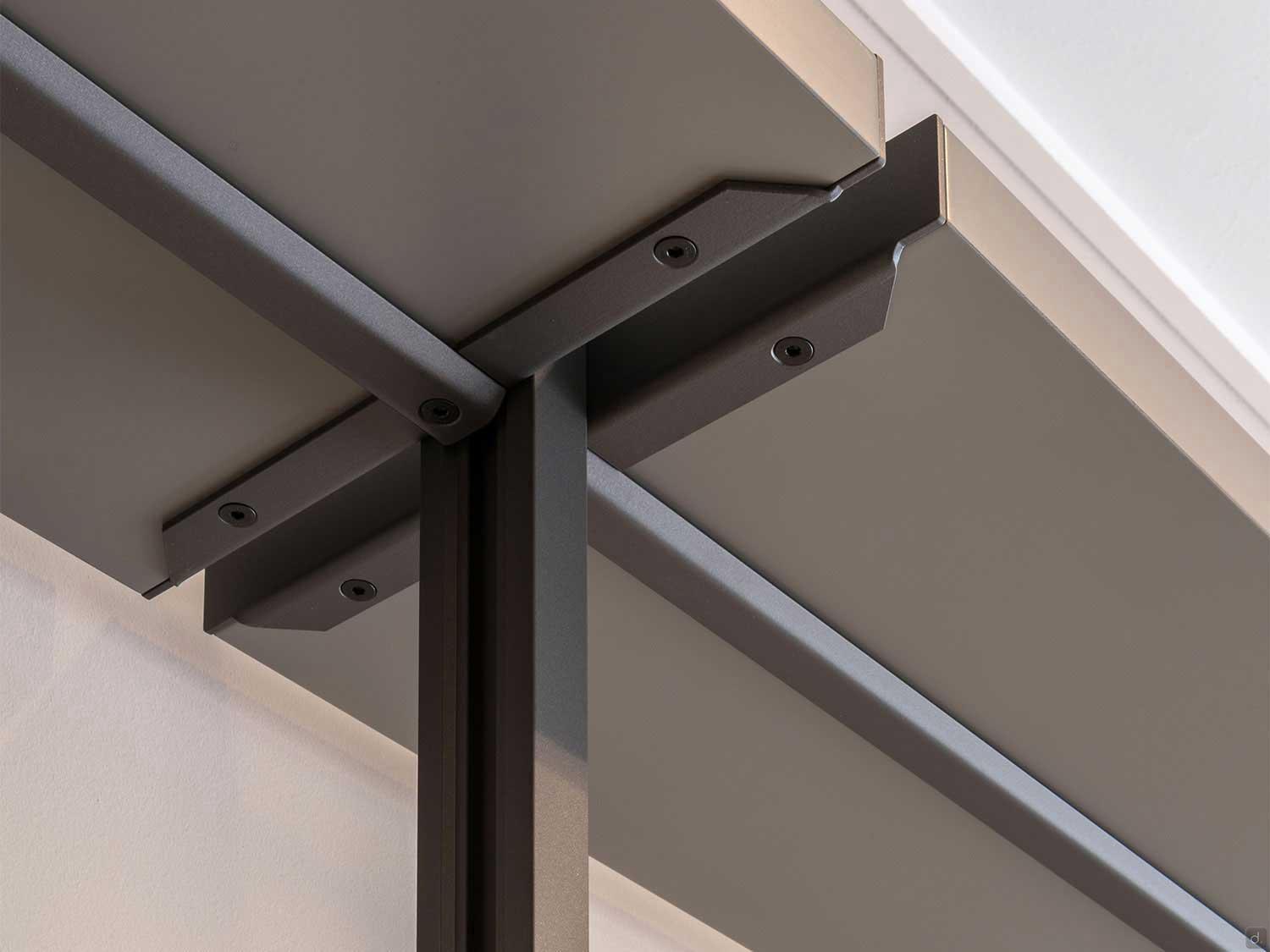

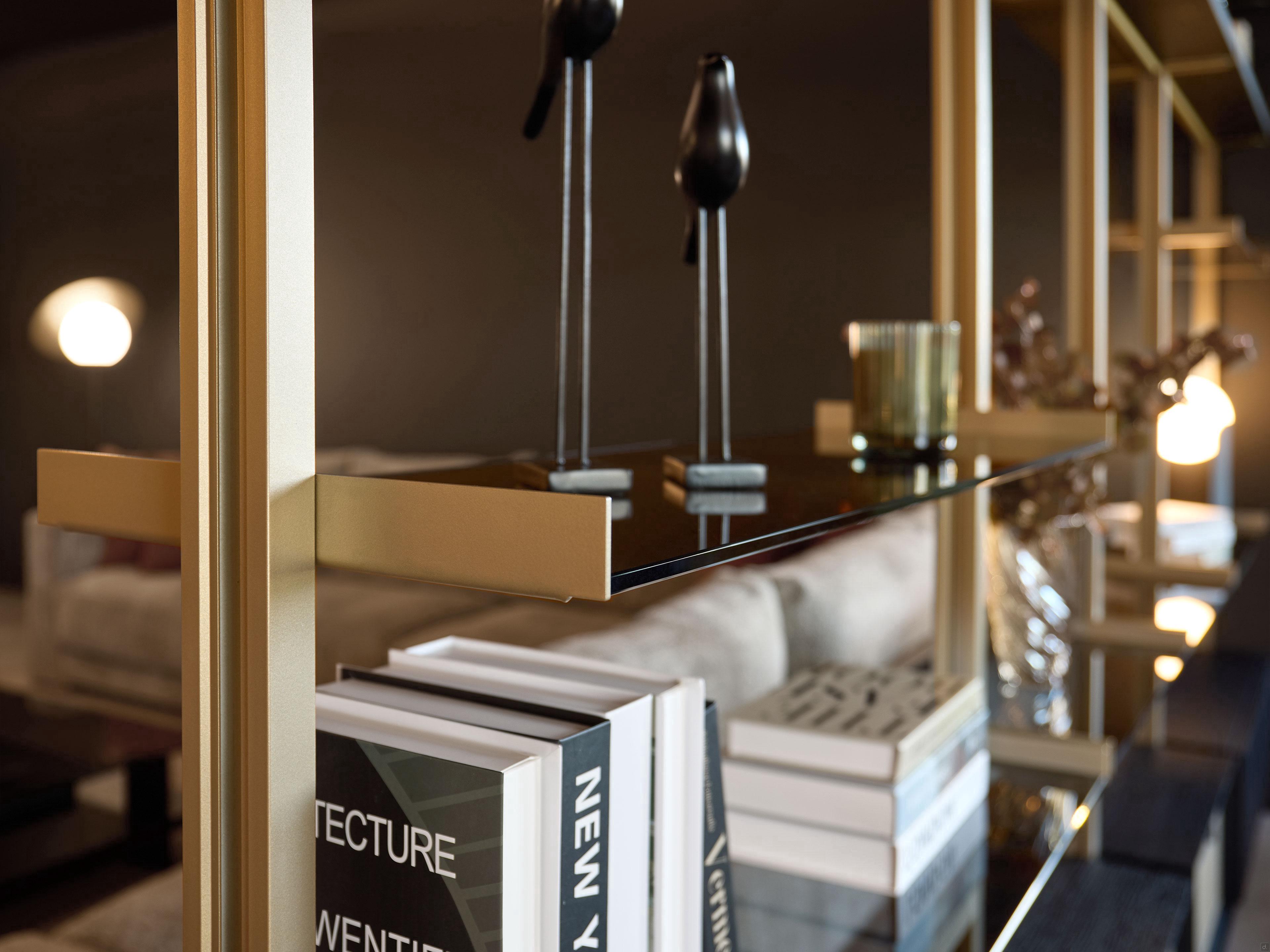

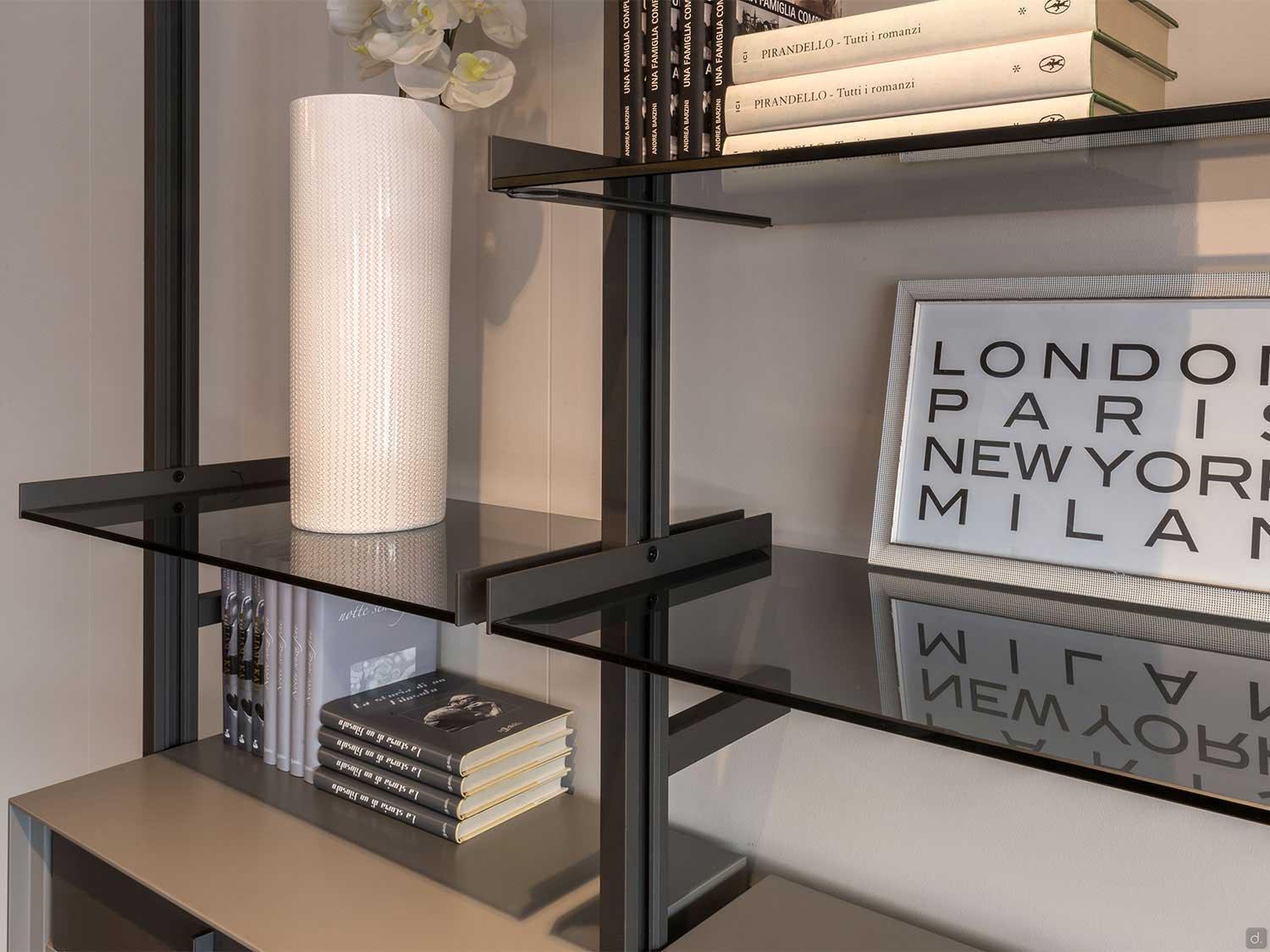

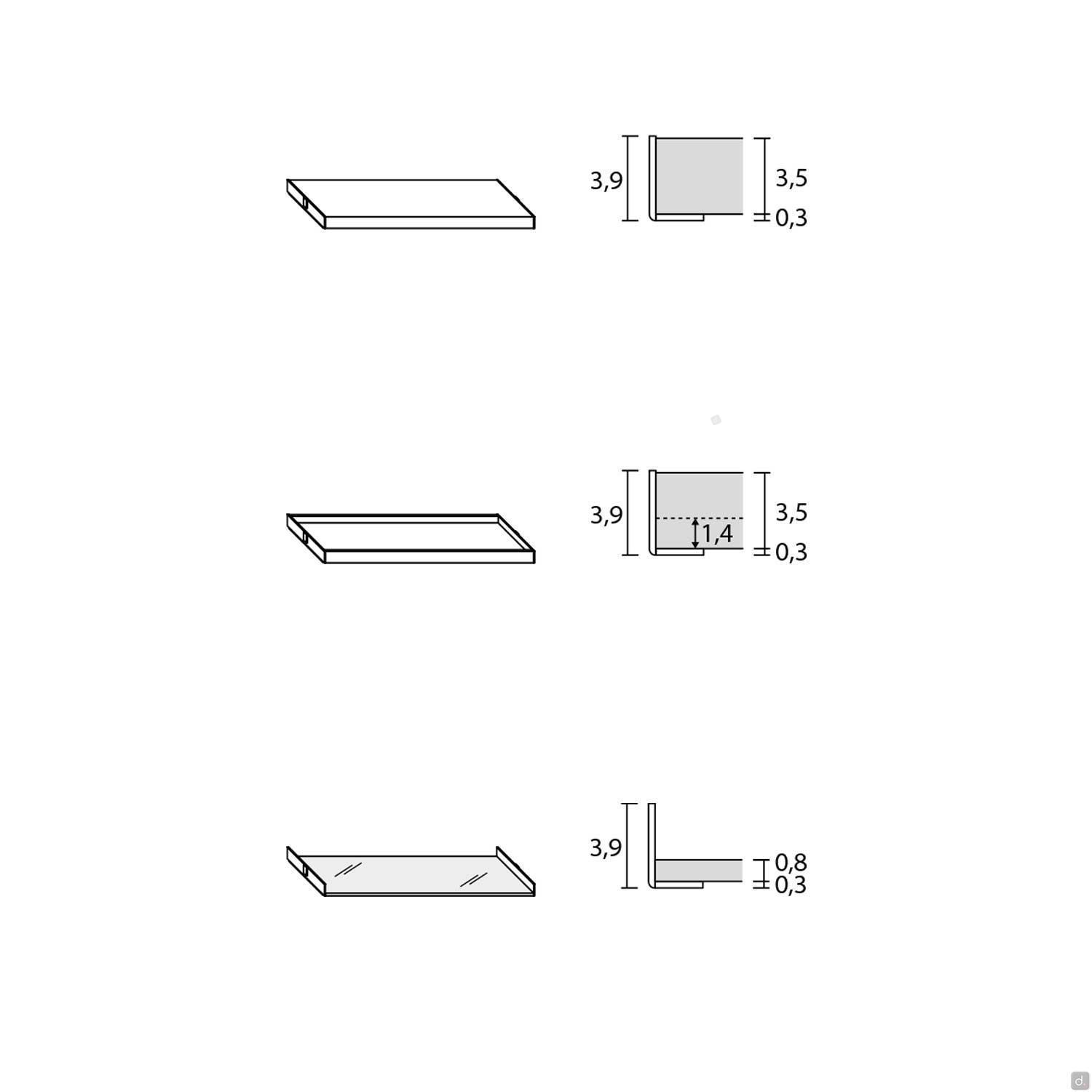

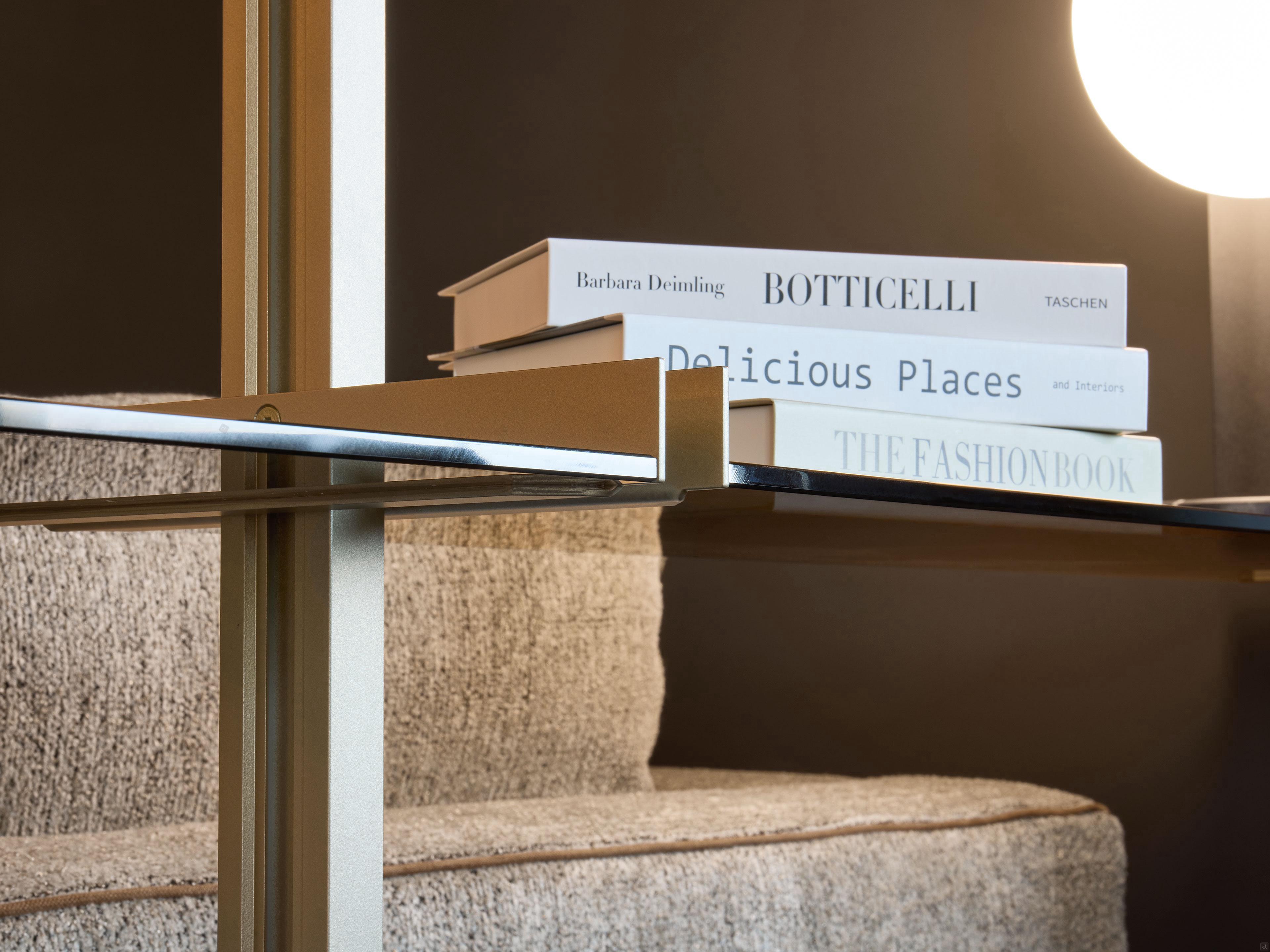

Shelf: available in wood 3,5 cm thick, tray (with folding finishing) 1,4 cm thick or in grey clear glass 0,8 cm thick. All shelves are equipped with a supporting bar under the shelf and Moka shine / nickel painted metal bracket to fix them to the uprights. Total height cm 3,9. Always centred in depth compared to the uprights. Max capacity: wooden shelf 45 Kg, tray shelf 40 Kg, glass shelf 30 Kg.

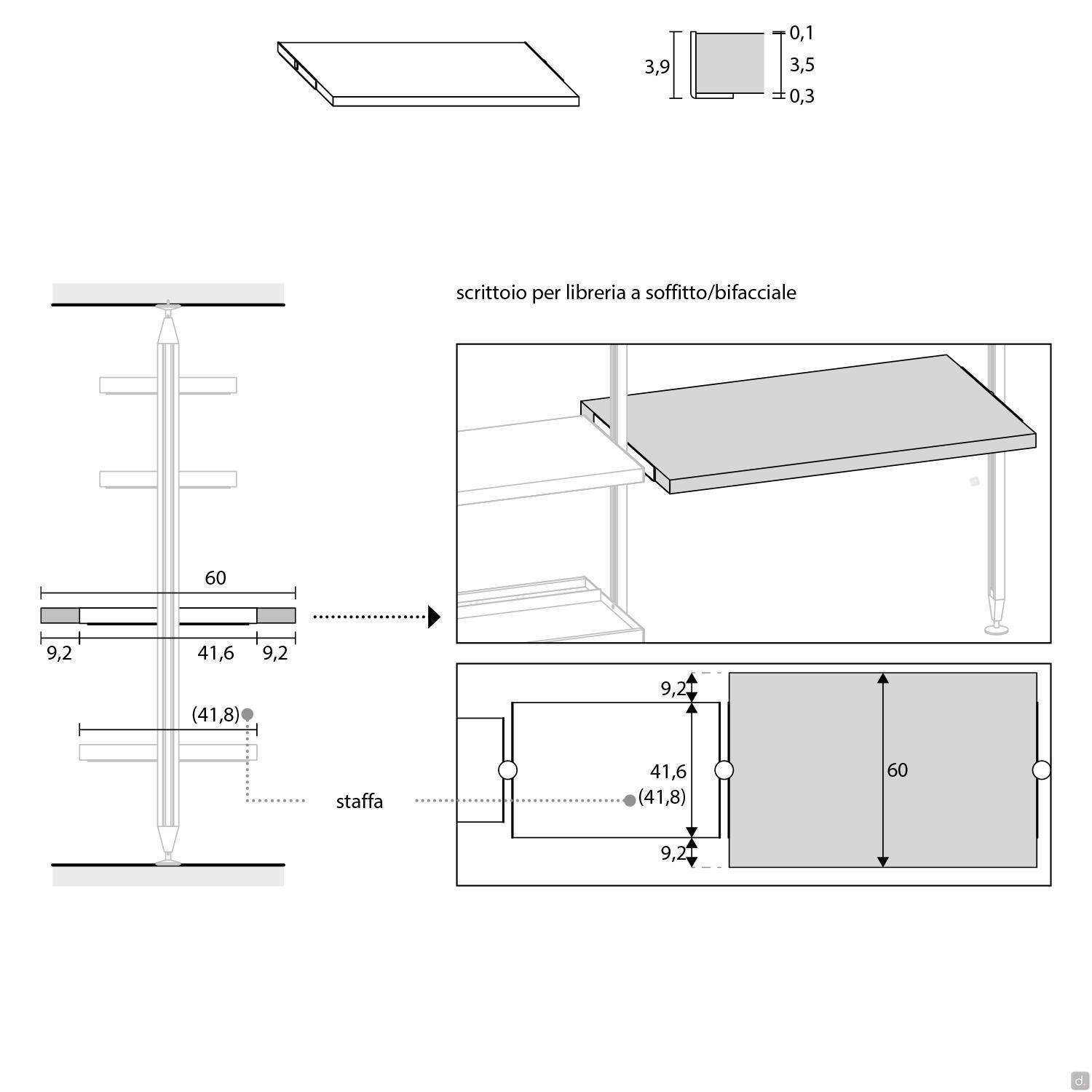

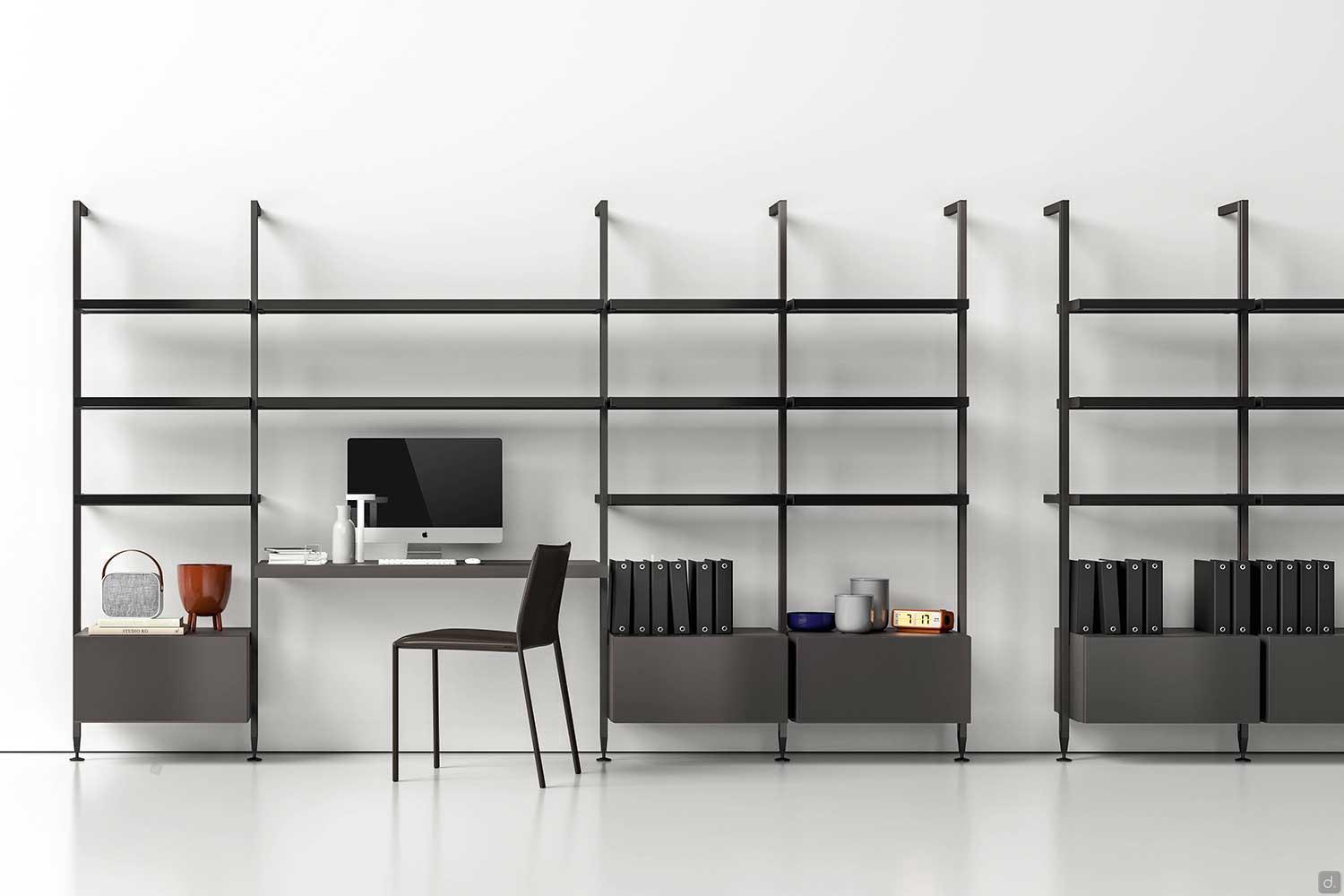

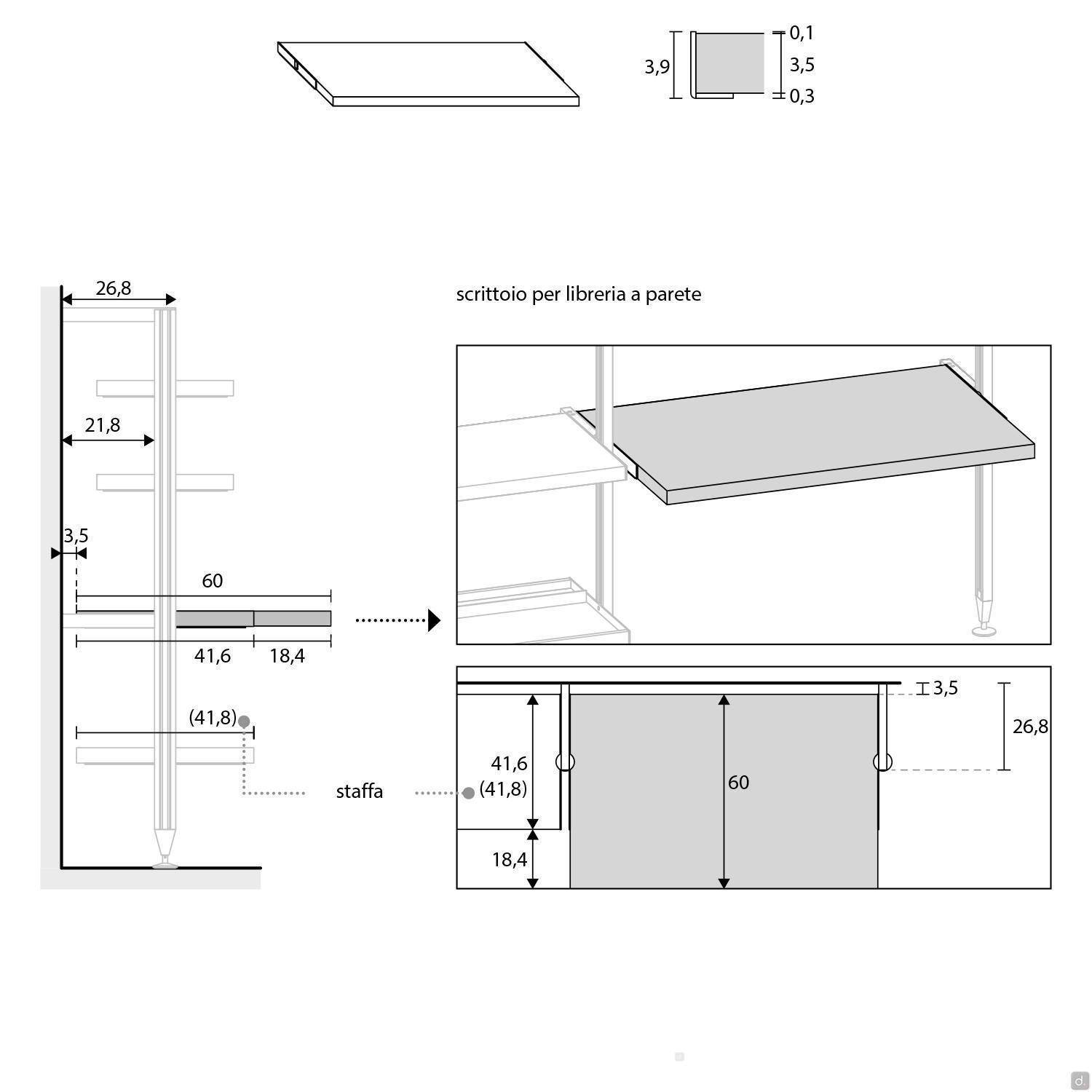

Desk: in wood, 3,5 cm thick, equipped with supporting bar placed under the desk and Moka shine / nickel painted metal brackets for fixing it to the uprights. Total height cm h.3,9. In the wall-mounted version the desk can only be placed on a 29,5 deep upright; not centred in depth but it protrudes on the front, it must always be placed at the same height of the central cross-piece and fixed to it by using the included bracket. In the floor to ceiling version, it is always centred in depth compared to the uprights. Max capacity of the desk: 50 kg.

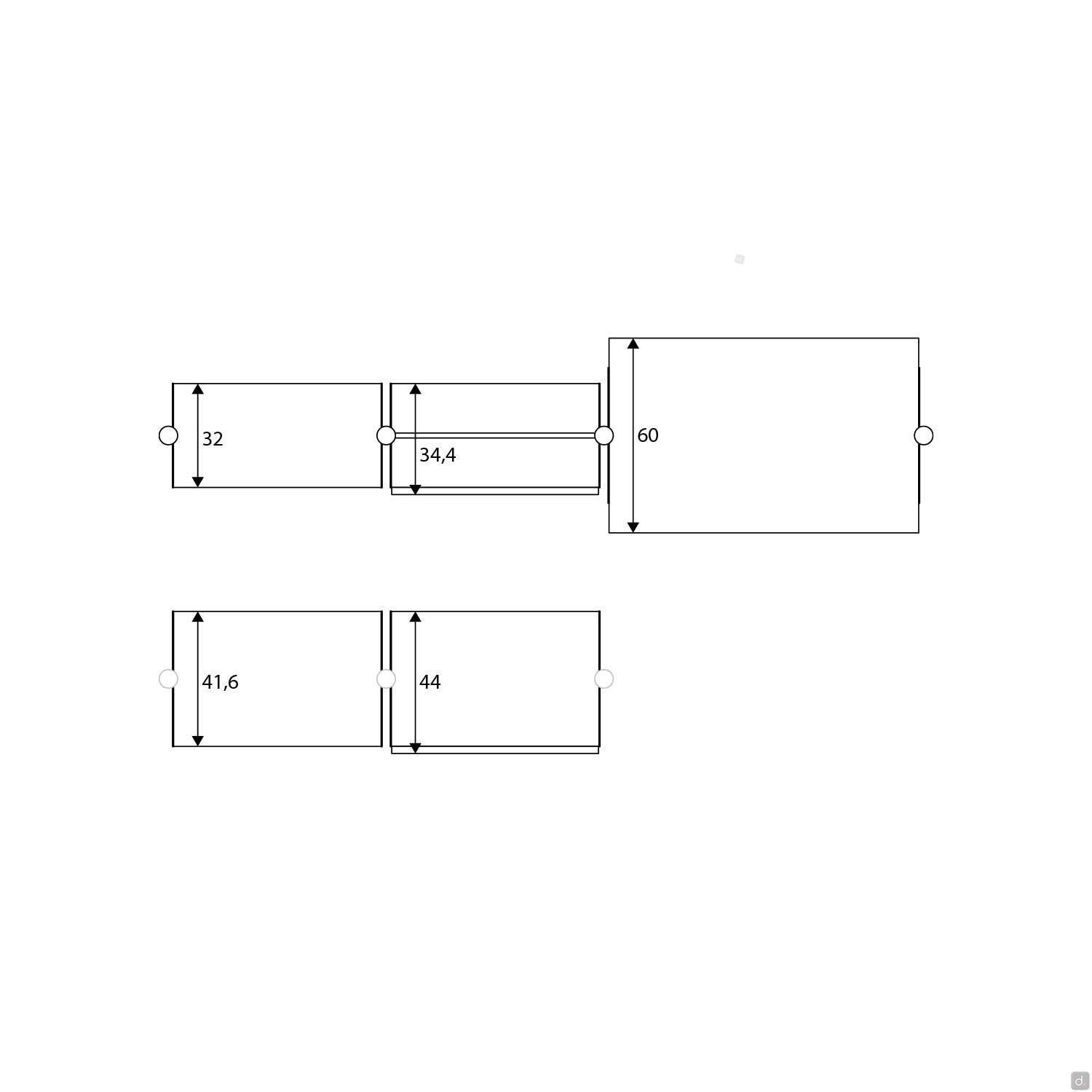

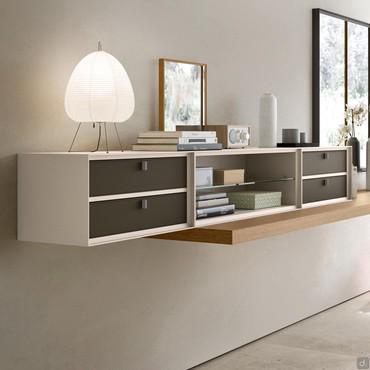

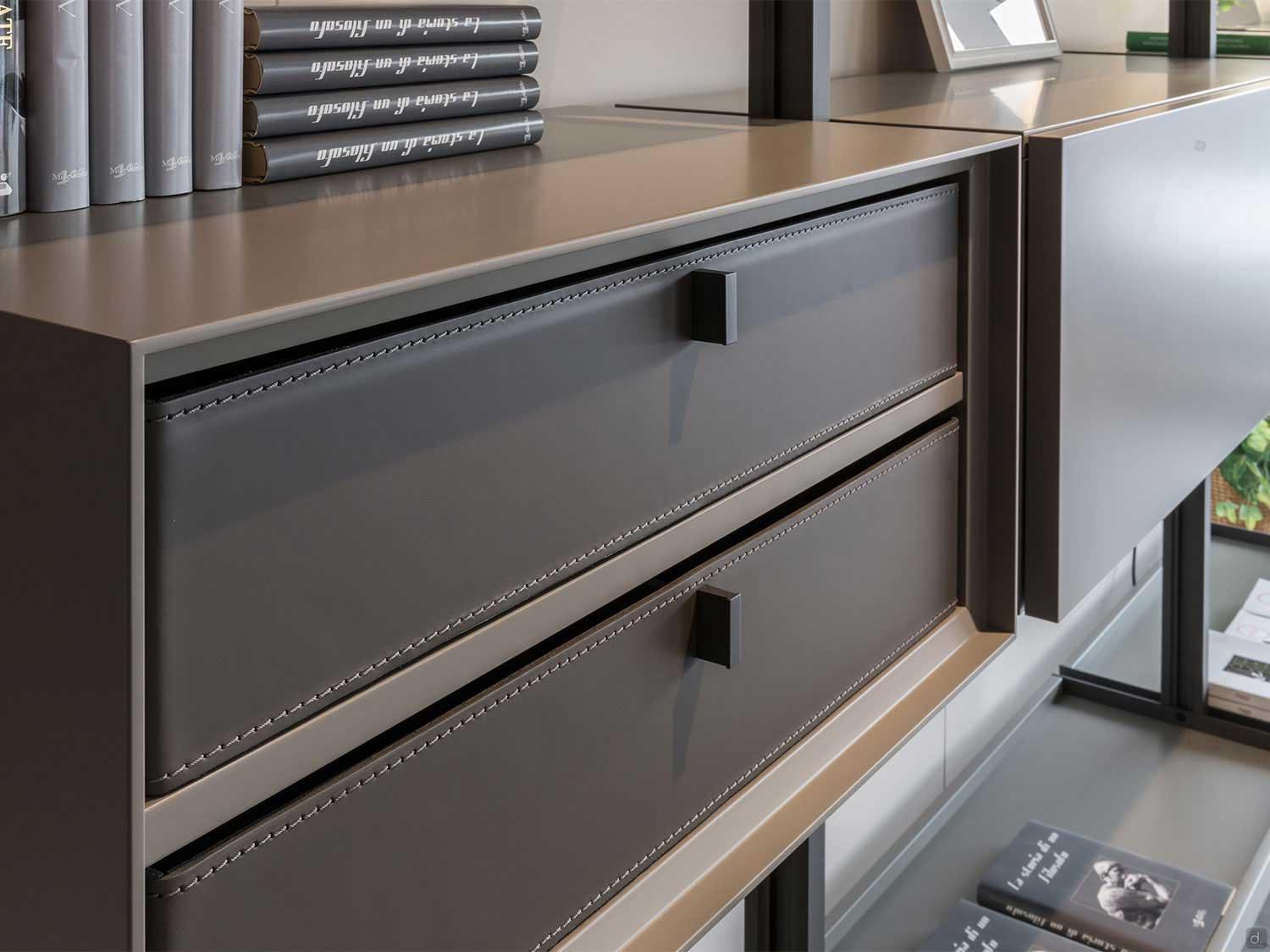

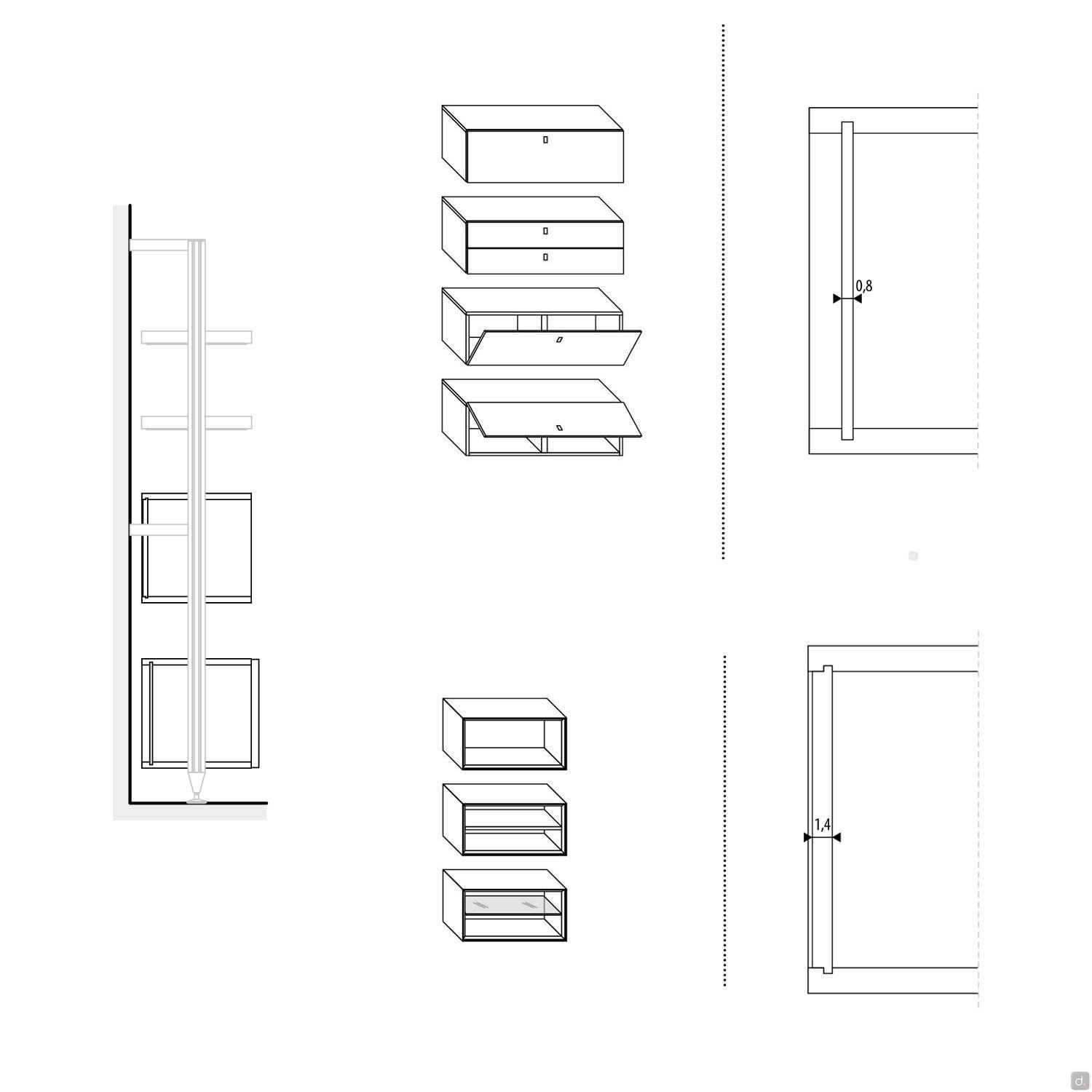

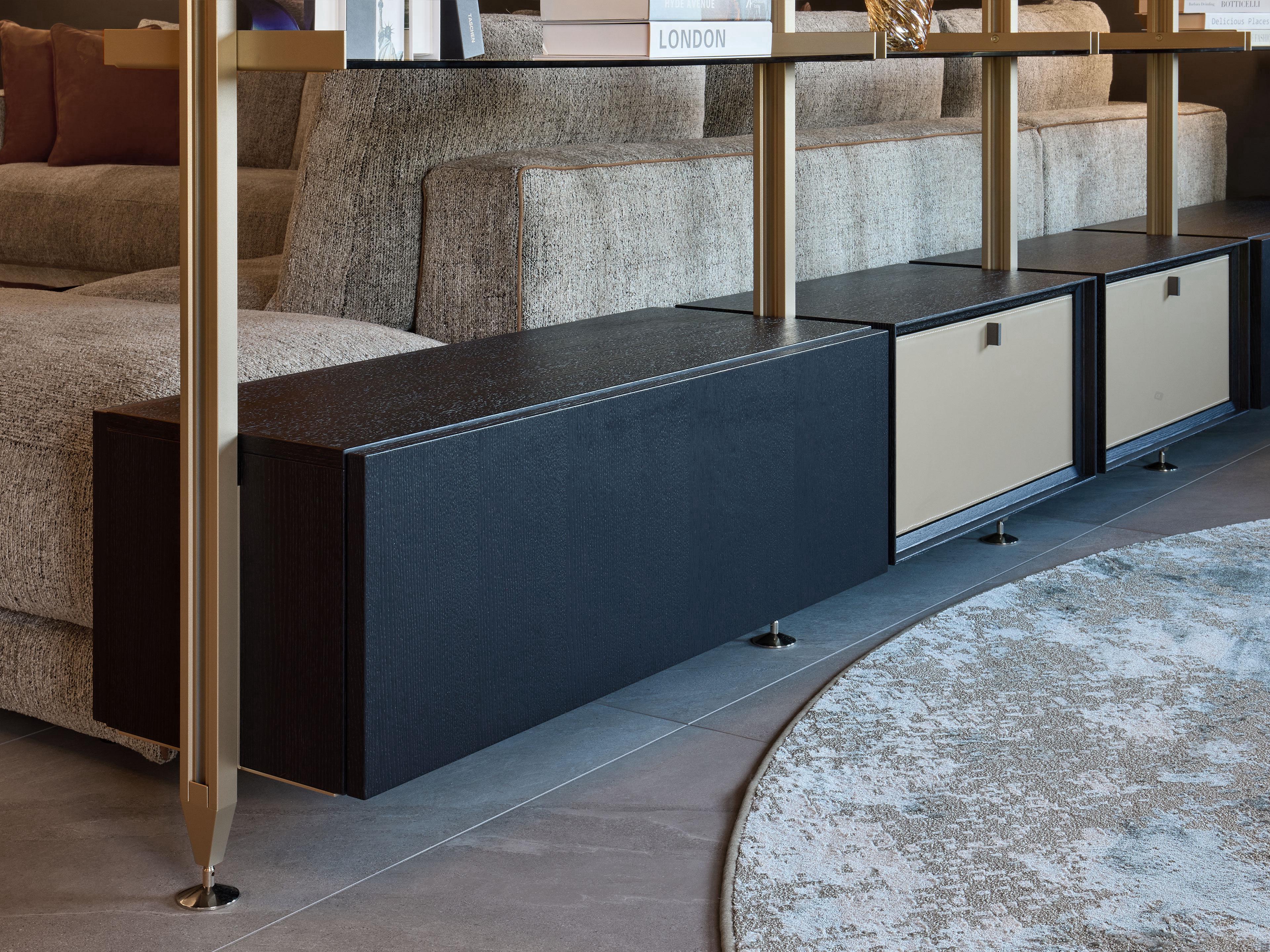

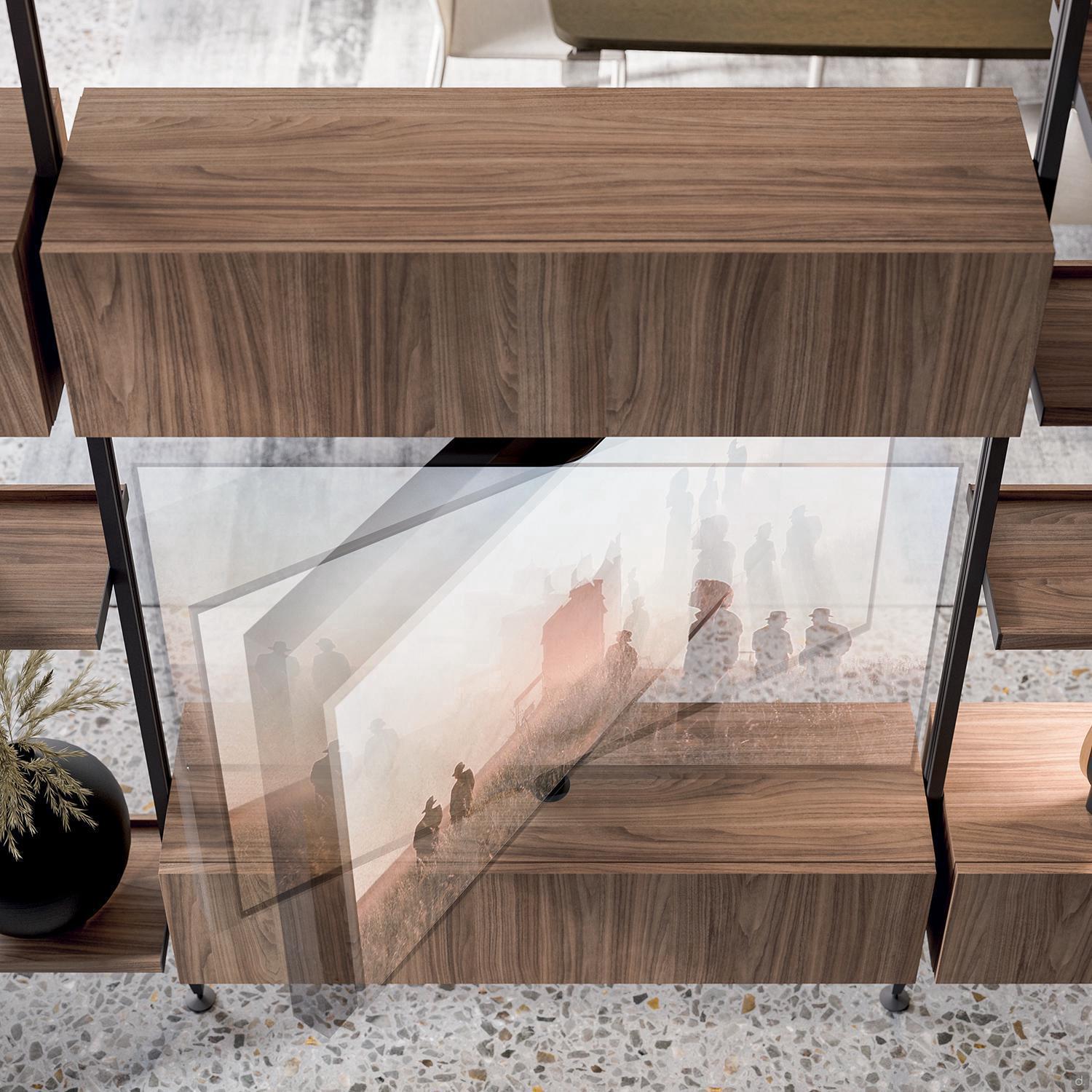

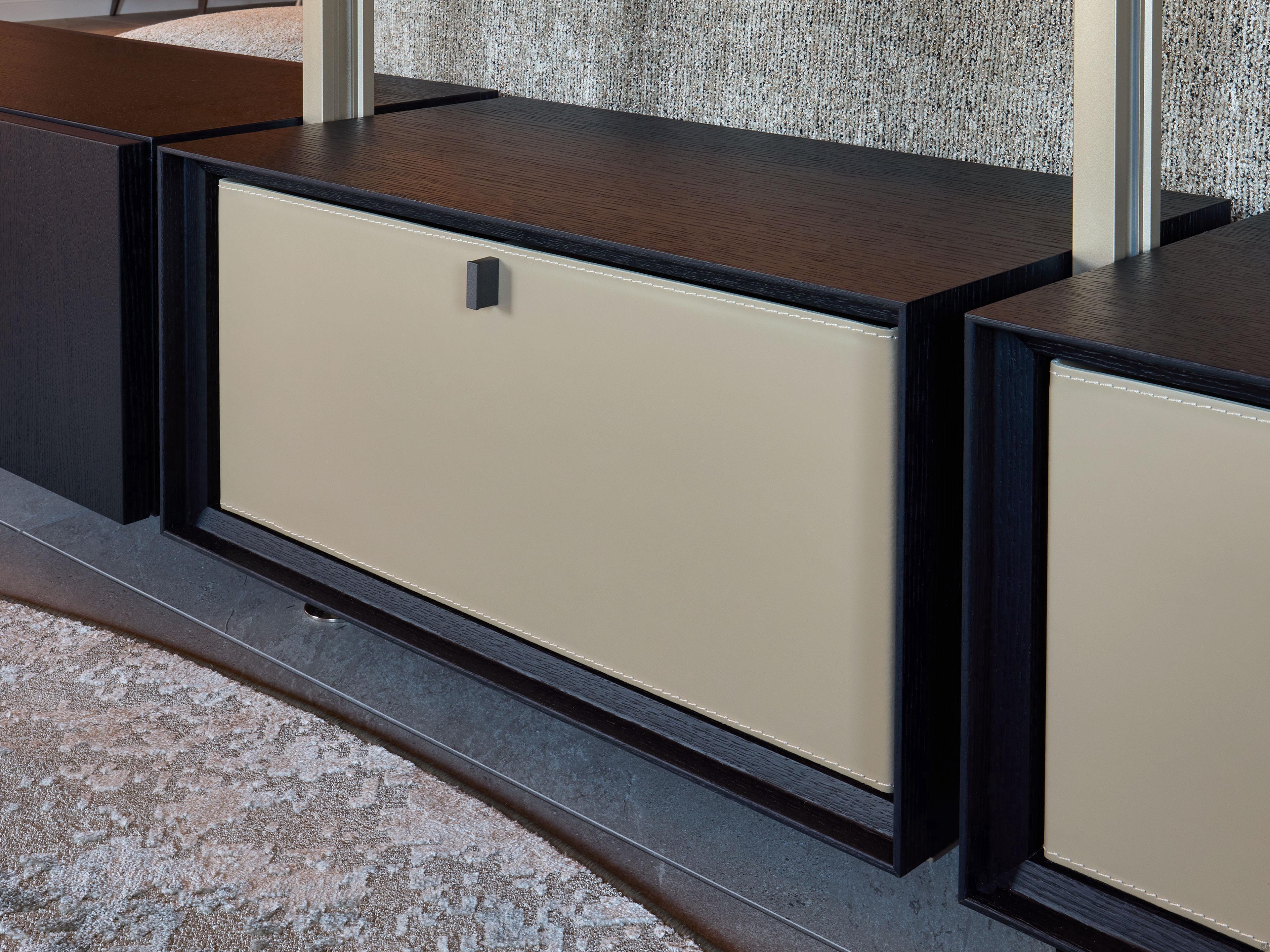

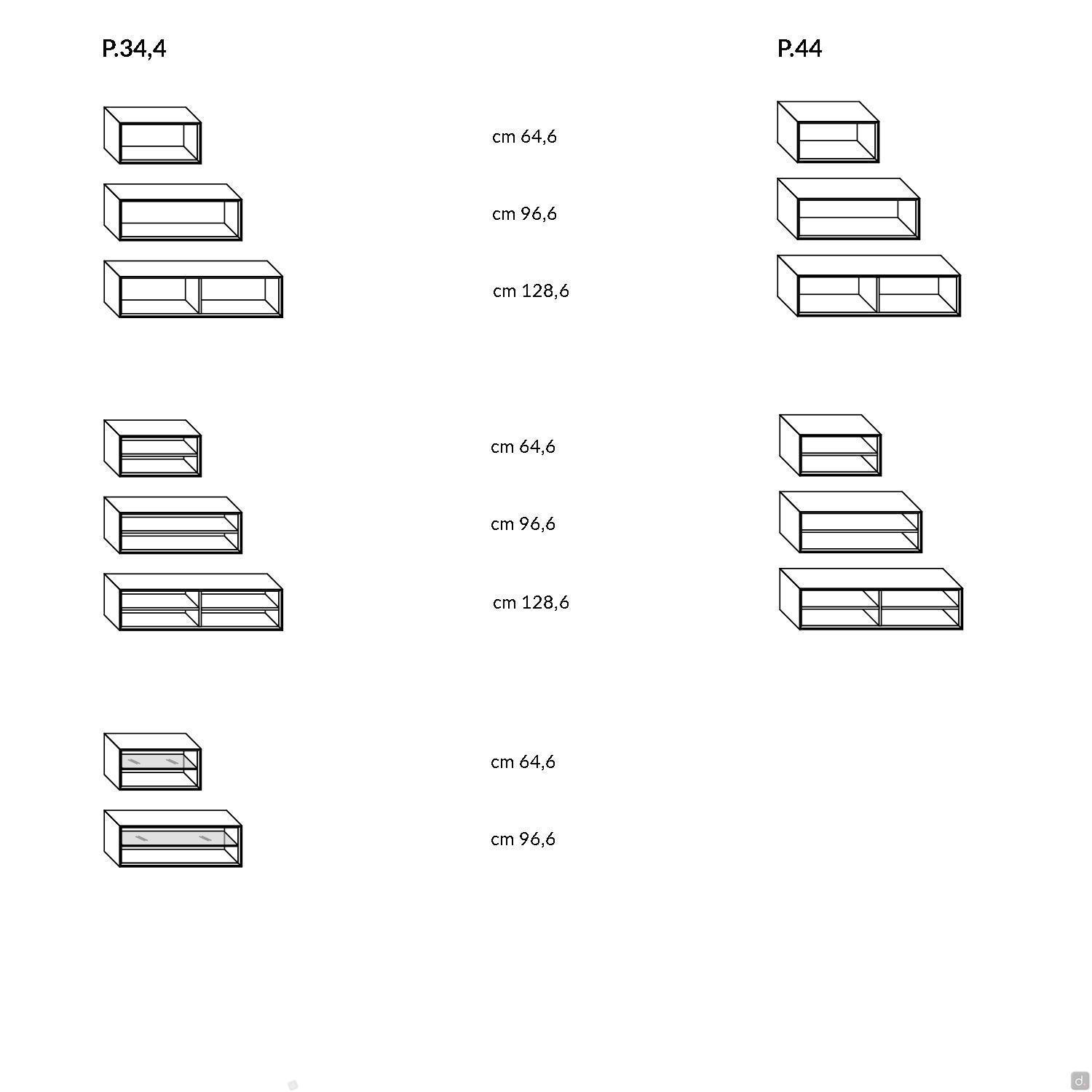

Storage (wall-mounted version): not finished on the back, equipped with cm 0,8 thick backrest (cm 1,4 thick for open compartment). The storage is finished on the bottom side and it is equipped with moke shine painted metal brackets to fix it to the uprights. Big drawers and standard drawers equipped with a soft closing system.

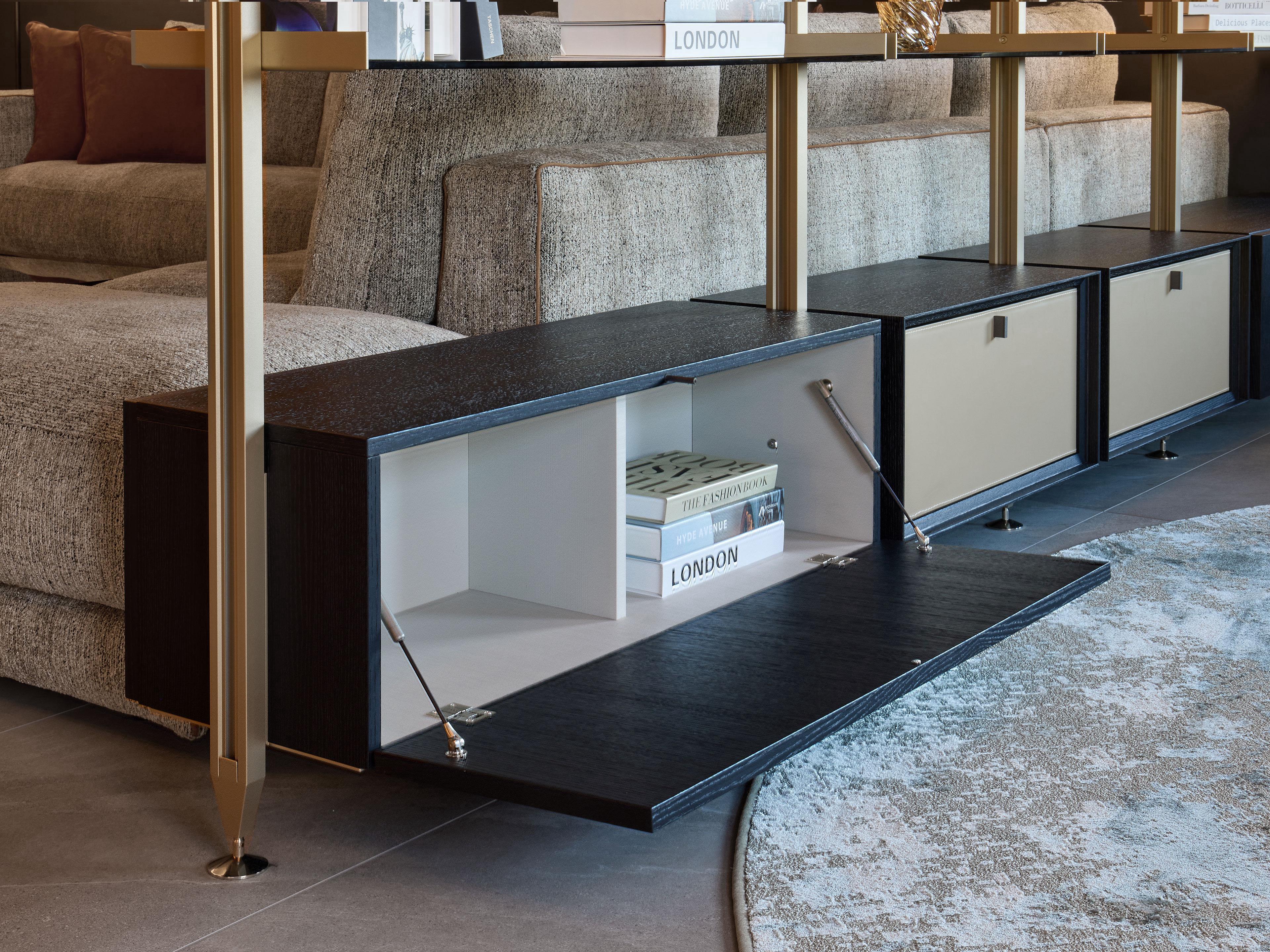

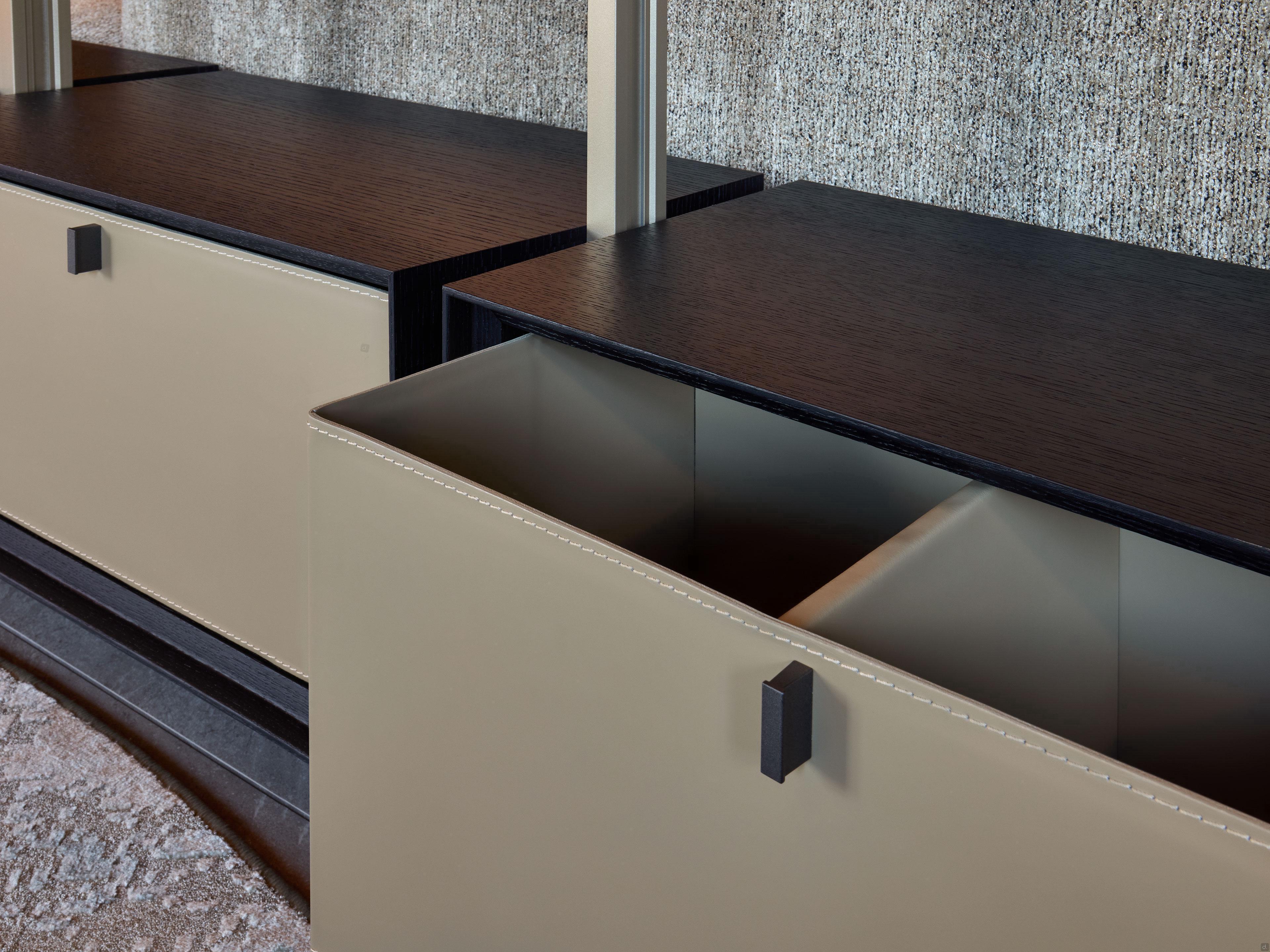

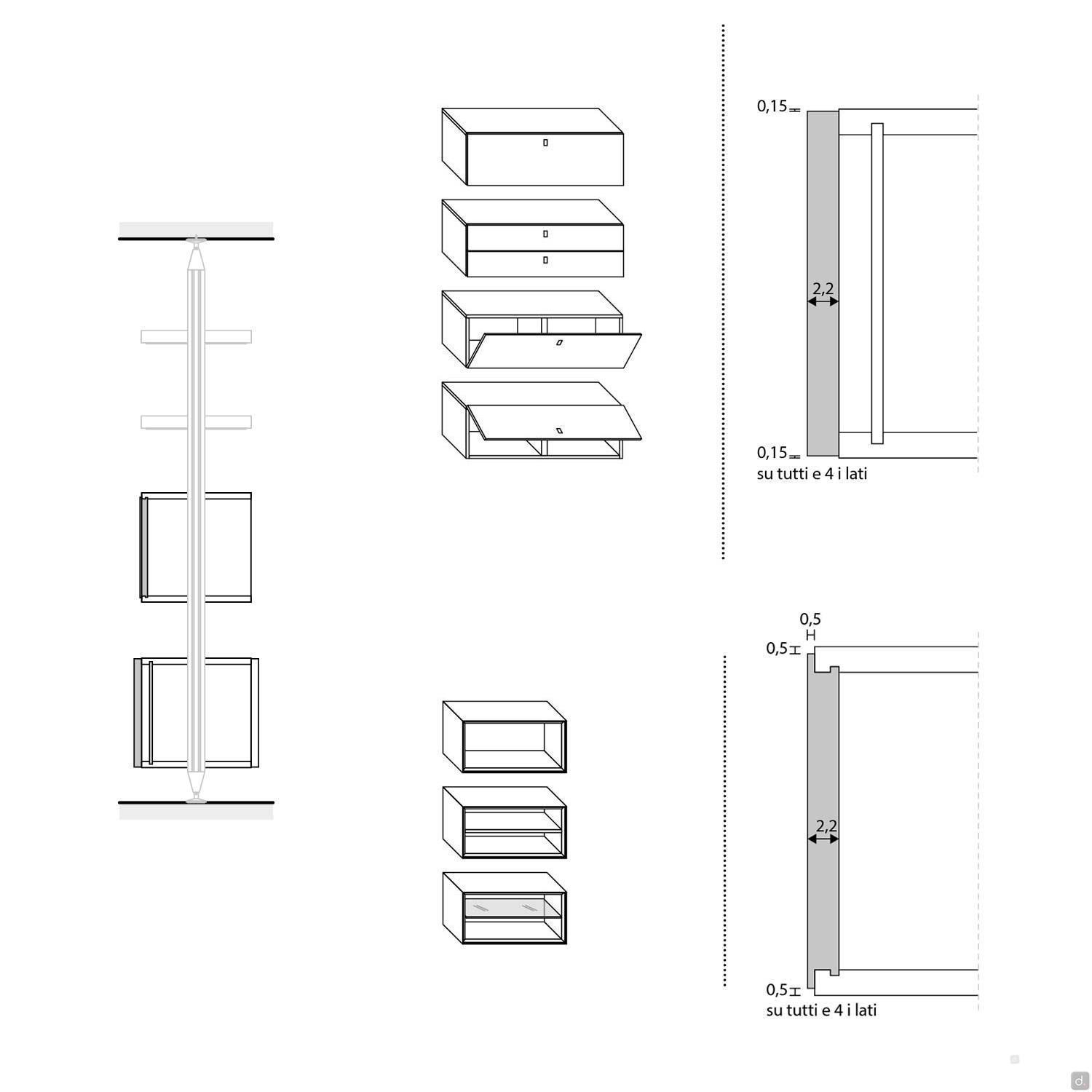

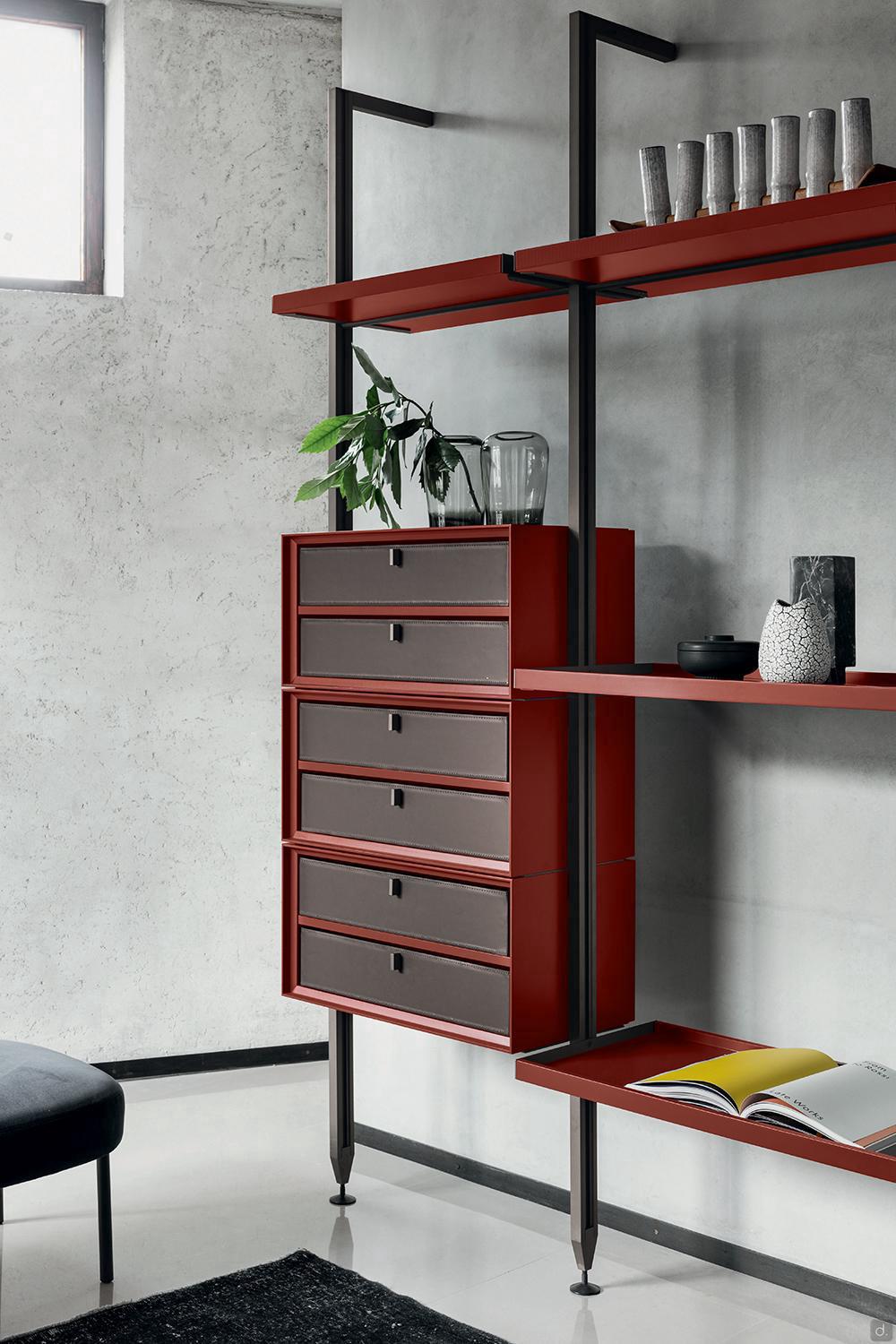

Storage (floor to ceiling version): finished on the back with a 2,2 cm thick backrest to add to the internal 0,8 cm thick one (for the open compartments the 1,4 cm thick back is replaced with a 2,2 cm thick one). The storage is finished on the bottom part as well and it is equipped with Moka shine / nickel painted metal brackets to fix it to the uprights. Basket and drawers equipped with a soft closing system.
Opening type:
- handle I: cm 10 d.0,2 h.0,65 in Moka shine, nickel, white painted metal or matt lacquered (in the lower drawer of the chest of 2 drawers, it is replaced by push-pull / not available for the vasistas container with upward-opening);
- handle T16: cm 19 d.3,3 h.0,8 in Moka shine, nickel, white painted metal or matt lacquer (not available for the flip up opening door);
- handle M: cm 10,2 d.1,4 h.0,3 in Moka shine, nickel, white painted metal or matt lacquer;
- handle Z: cm d.1,5 h.0,7 in Moka shine, nickel, white painted metal or matt lacquer;
- knob handle: cm 4,1 d.1,6 h.4,1 in Moka Shine painted metal with knob handle covered in grey hide-leather;
- handle C15: cm d.1,7 h.1,4 in Moka Shine, nickel, white painted metal or matt lacquer (only for upper drawer, lower drawer(s) equipped with a push-pull opening system);
- push-pull.
Optional
custom width: only available for storage units.
full-extension drawers: only available for 2-drawer units.

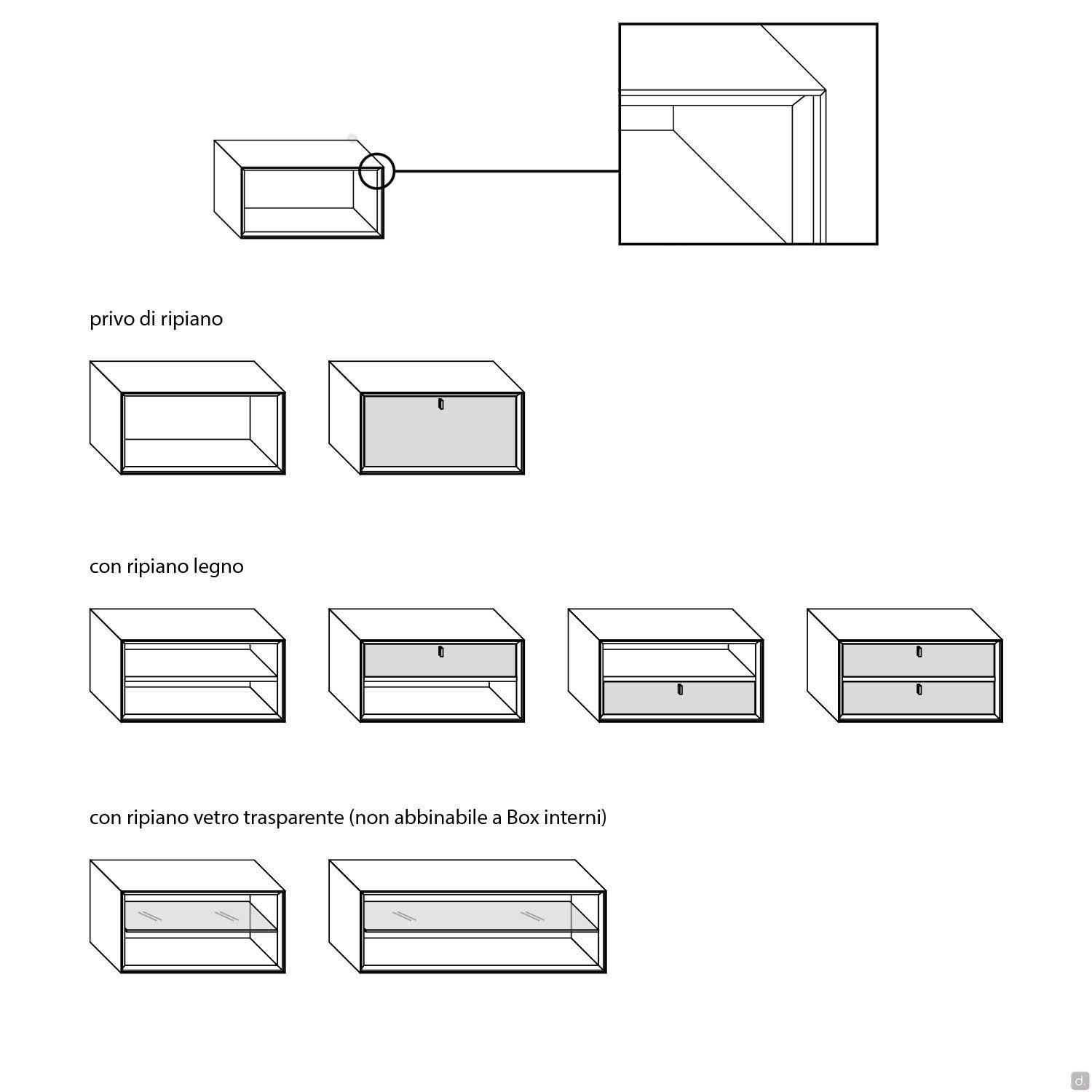

internal box: only available for open compartments - 64,6 cm wide - without shelf or with wooden shelf. Covered in belting leather with central handle in Moka shine painted metal, available in measurements cm 59 d.30,2 h.12,7 or cm 59 d.30,2 h.27,4.

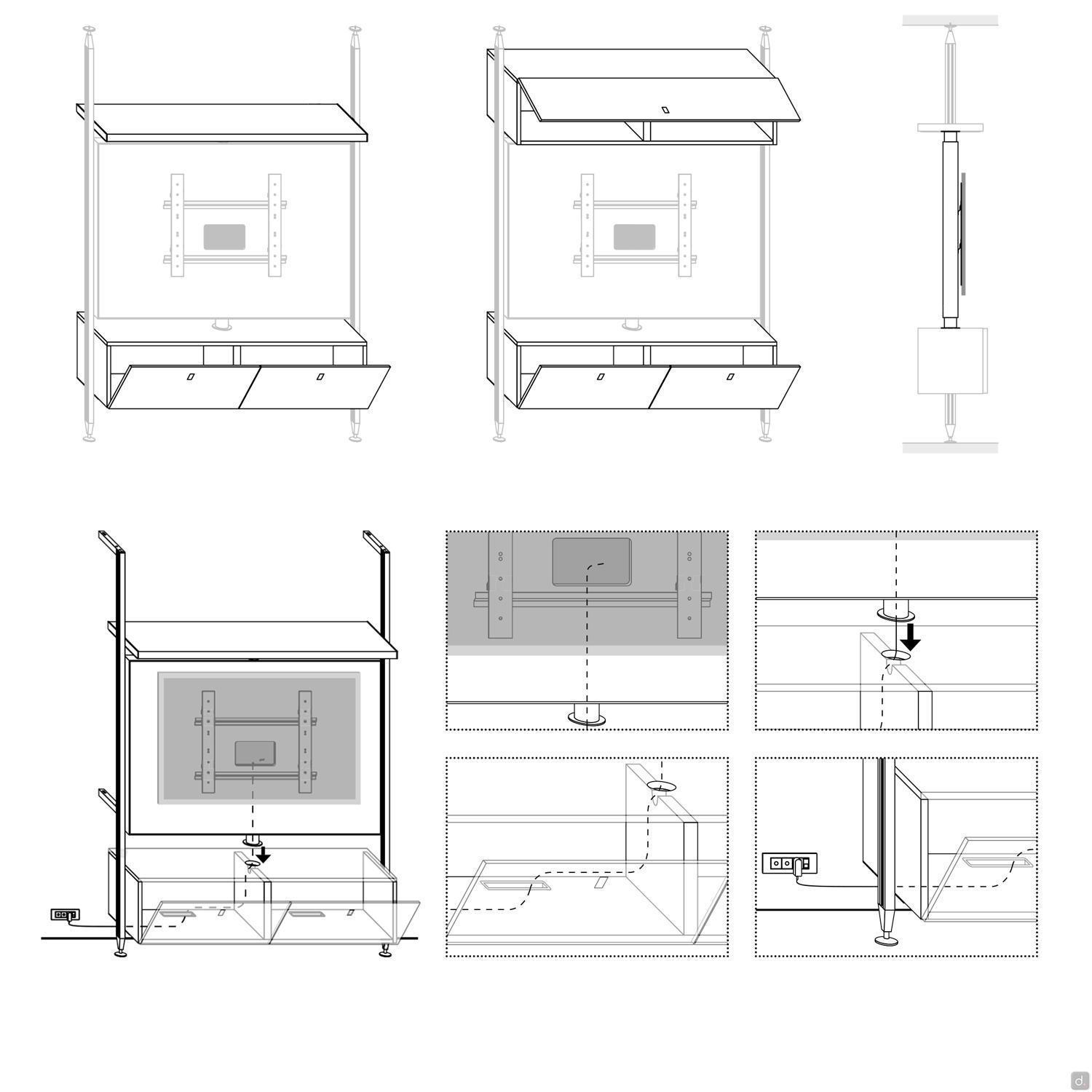

cable hole set: only available for open compartments. It includes a cm 18 x 5 aluminum rectangular cable hole with a lid on the top and two black PVC round cable holes cm Ø 6 placed one on top of the other in the middle of the back.
