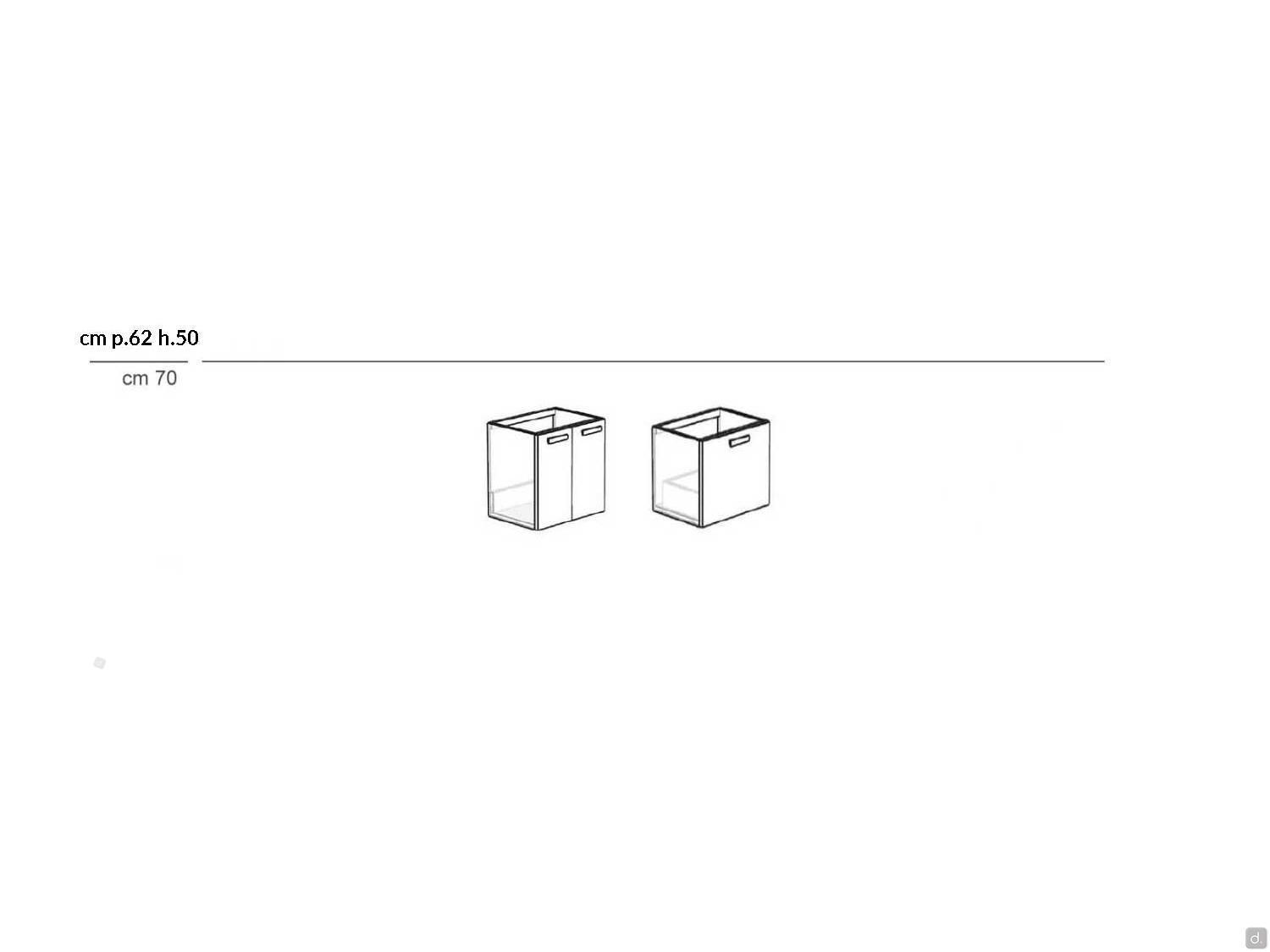

Specific Dimensions
3-door base unit cm 85: n.1 central door cm 35 + n.2 side doors cm 25.
Base unit with 3 doors cm 95: n.2 doors cm 35 + n.1 side door cm 25.
Base unit with 3 doors cm 105: n.3 doors cm 35.
Material Specifications
Structure: cm 1.8 thick particle board panels.
Fronts: doors, drawers and jumbo drawer made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.
Technical Specifications and Equipment

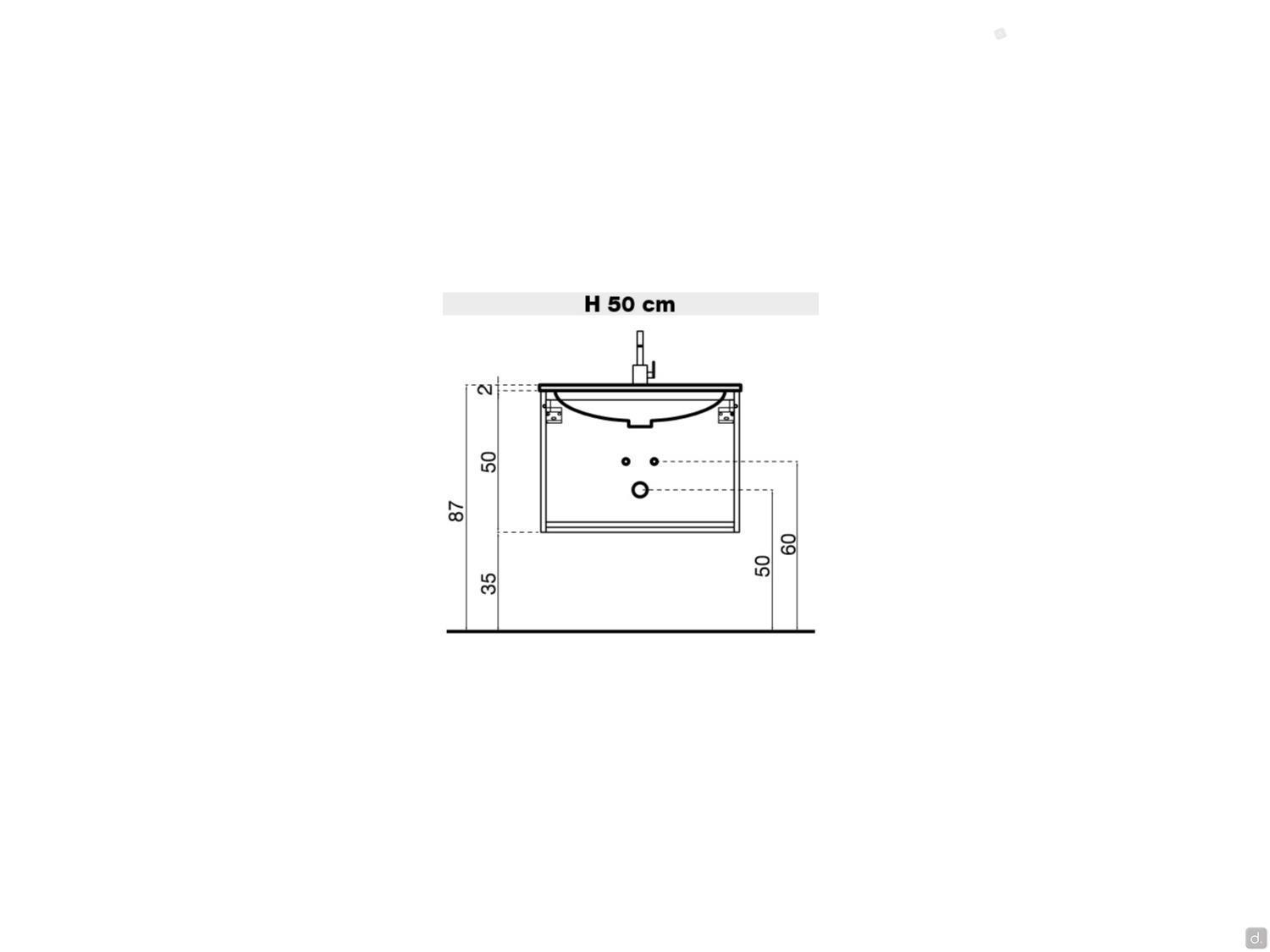

Structure: characterised by free back for the passage of drains.

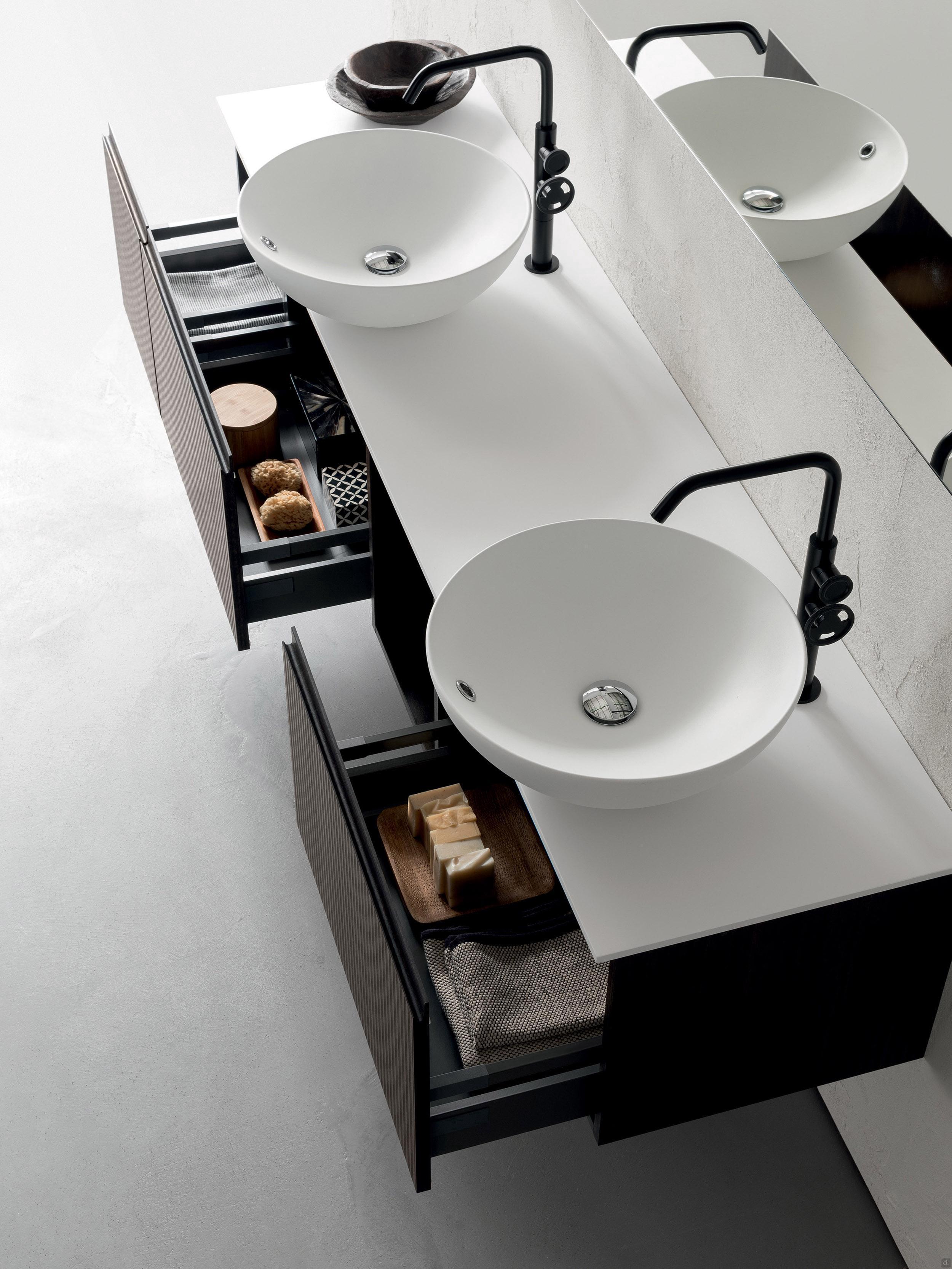

Drawers / Legrabox drawer: fitted with a metal frame characterised by straight drawer sides both internally and externally, only 1.28 cm thick. Full-extension runners and slow-closing mechanism.
Doors: fitted as standard with Smoove hinges that allow slow closing.

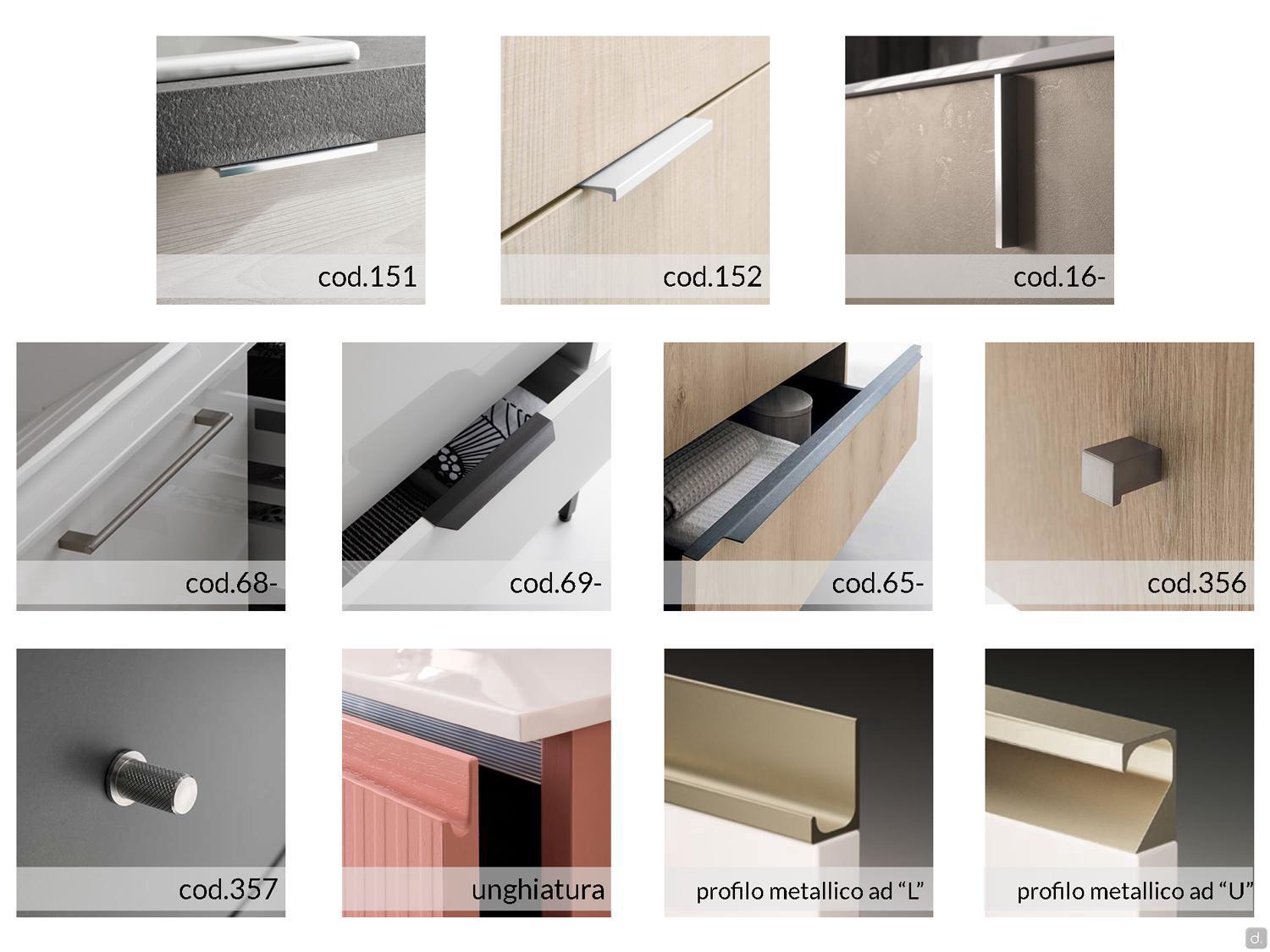

Handles: you can choose from various models of handles, as well as push-pull opening.
The handles cod.152-, cod.16- and both metal profiles are available in a matt lacquered finish in all the colours of the sample collection.
The handles mod. 68- protrude 4 cm from the surface of the door.

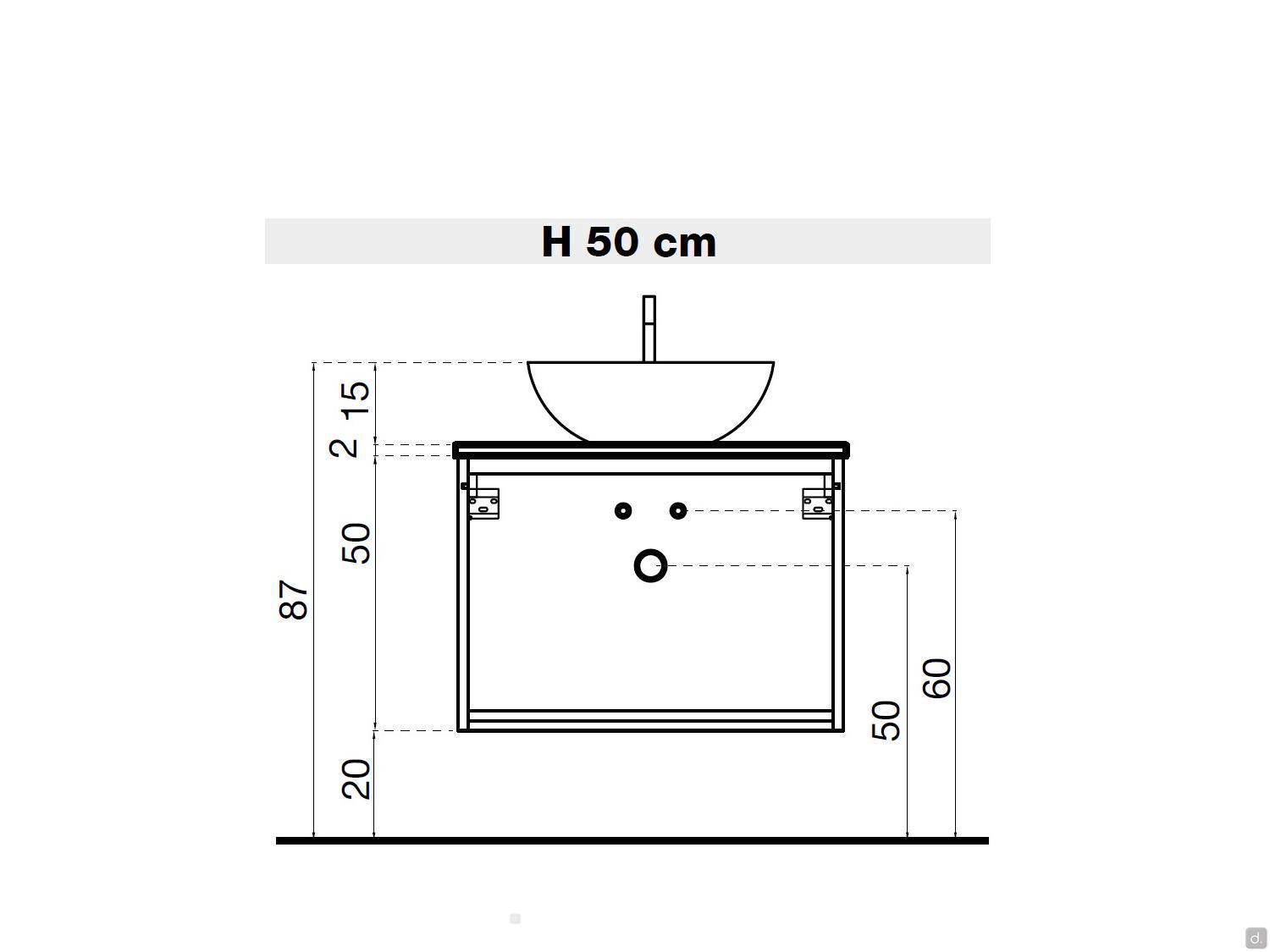

Feet cm h.10: with rectangular or shaped section available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted lacquered metal in all sample colours; the wall-hung base unit cm h.62,5 thus becomes a floor-standing unit cm 72,5 high (excluding height of the washbasin and thickness of the top).
Plinth cm h.10: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.62,5 thus becomes a 72,5 cm high floor-standing unit (excluding height of the washbasin and thickness of the top).

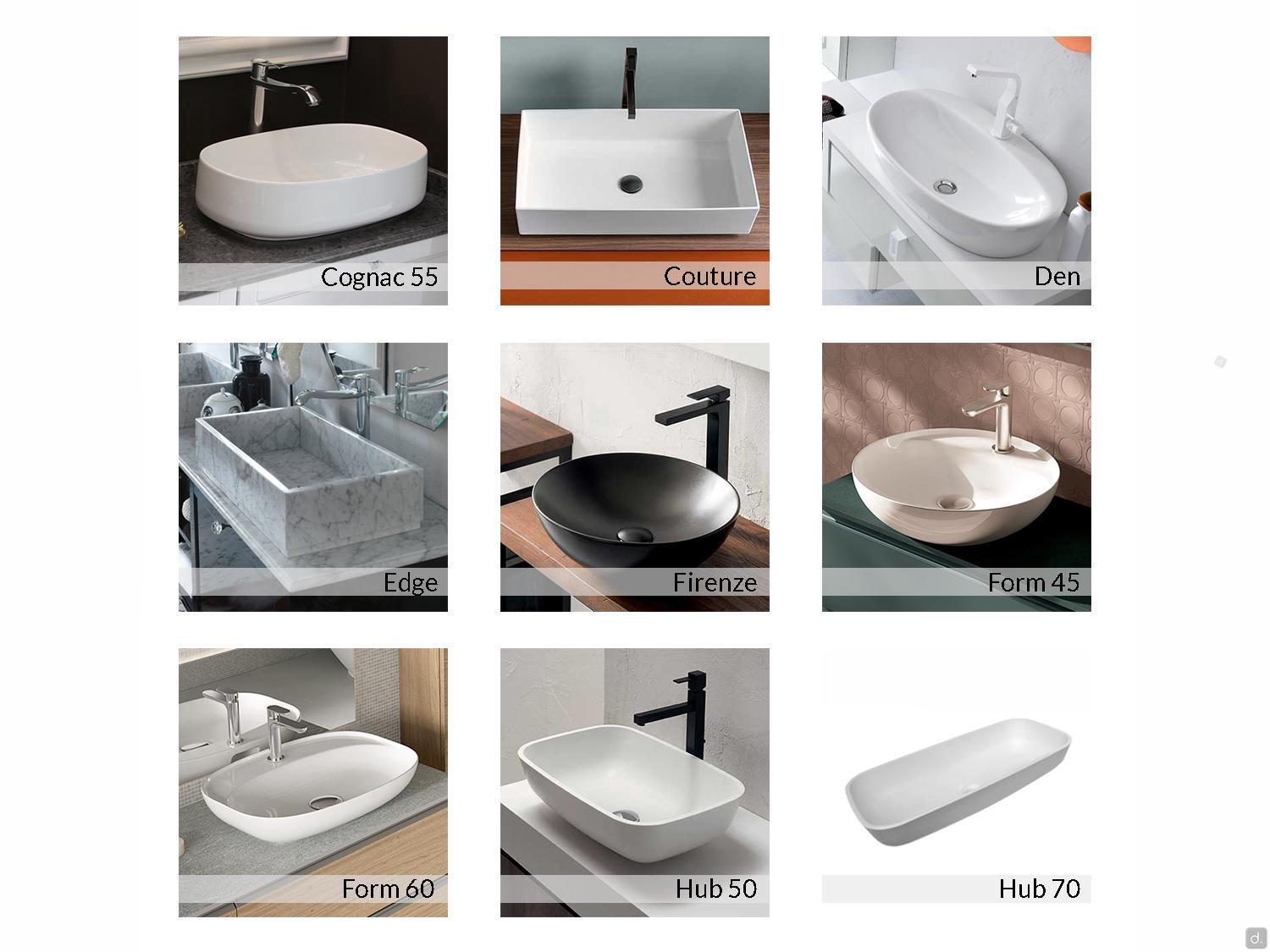

| Washbasin Model |
Dimensions |
Internal basin |
Mixer Hole |
Overflow |

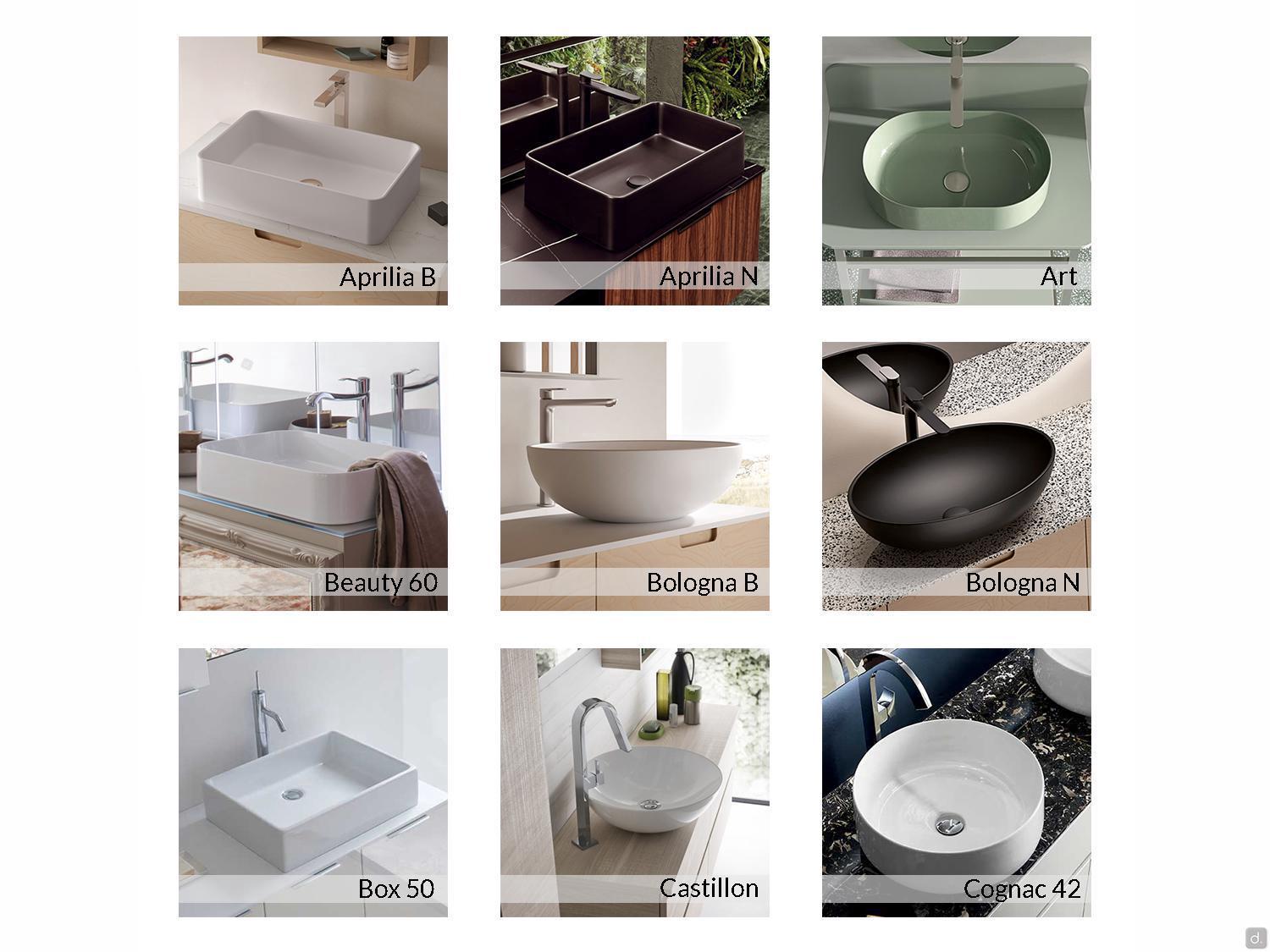

| Aprilia - ceramic matt white or black |
cm 59 p.37 h.14,5 |
cm 56,5 d.34,5 h.12 |
wall-mounted
or on central top |
no |
| Art - polished coloured ceramic |
cm 54 p.34,5 h.15 |
cm 52,5 d.33 h.12 |
wall-mounted
or on central top |
no |
| Beauty 60 - glossy white ceramic |
cm 60,5 p.38,5 h.12,5 |
cm 59 d.37 h.10 |
wall-mounted
or on central top |
no |
| Bologna - ceramic matt white or black |
cm 60 p.42 h.17 |
cm 57 p.39 h.14,5 |
wall-mounted or on central top, right or left |
no |
| Box 50 - glossy white ceramic |
cm 50,5 p.38 h.12,5 |
cm 48 p.36 h.10 |
wall-mounted
or on central top |
no |
| Castillon - glossy white ceramic |
cm 43 p.43 h.15 |
cm 41 p.41 h.10 |
wall-mounted or on central top, right or left |
yes |
| Cognac 42 - glossy white ceramic |
cm 42 p.42 h.16,5 |
cm 40 p.40 h.14 |
wall-mounted
or on right or left top |
no |
| Cognac 55 - glossy white ceramic |
cm 56 p.36,5 h.15 |
cm 54 p.34,5 h.12 |
wall-mounted or on central top, right or left |
no |
| Couture - Mineralguss glossy white |
cm 65,5 p.36,5 h.15 |
cm 64 d.35 h.13,5 |
wall-mounted
or on central top |
no |
| Den - glossy white ceramic |
cm 66 p.40 h.14,5 |
cm 60 p.28 h.11 |
on washbasin |
no |
| Edge - Carrara White marble |
cm 65 p.36 h.15 |
cm 61 d.32 h.13 |
wall-mounted
or on central top |
no |
| Firenze - matt black ceramic |
cm 43 p.43 h.15 |
cm 41 p.41 h.10 |
wall-mounted or on central top, right or left |
yes |
| Form 45 - ceramic glossy white |
cm 45 p.45 h.12 |
cm 44 p.33 h.8,5 |
on washbasin |
no |
| Form 60 - glossy white ceramic |
cm 60 p.45 h.12 |
cm 59 d.34 h.8,5 |
on washbasin |
no |
| Hub 50 - matt white Corian |
cm 52,4 p.34,3 h.14,5 |
cm 50 p.32 h.12 |
wall-mounted
or on centre top |
no |
| Hub 70 - Matt white Corian |
cm 72,4 p.34,3 h.14,5 |
cm 70 p.32 h.12 |
wall-mounted
or on central top |
no |

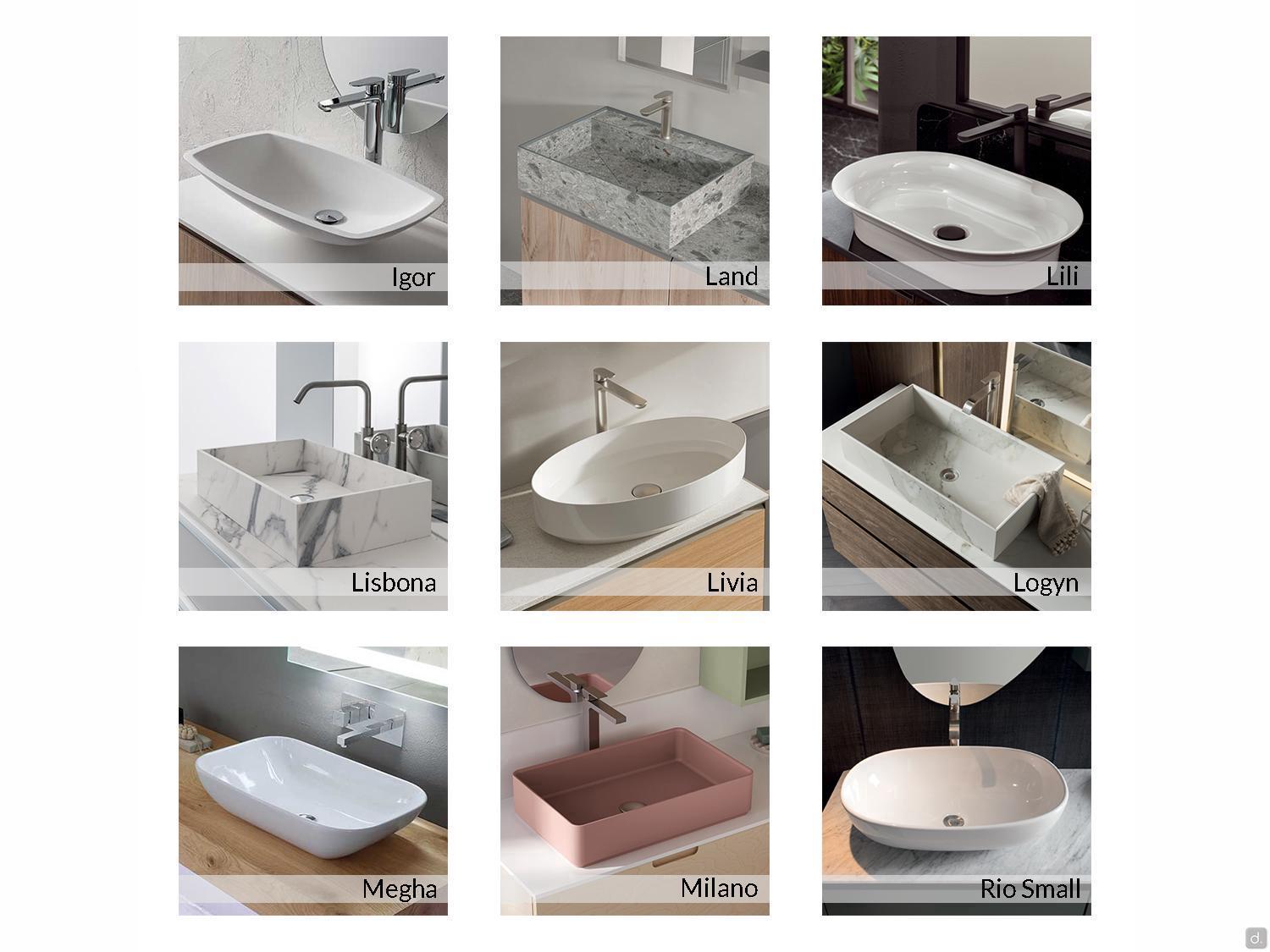

| Igor - matt white tekor |
cm 60,5 p.35 h.17 |
cm 56 d.30,5 h.13 |
wall-mounted
or on central top |
no |
| Land - stoneware |
cm 60,2 d.46 h.15 |
cm 57,7 d.33,5 h.10,5 |
on washbasin |
no |
| Lili - glossy white ceramic |
cm 62 p.40 h.13 |
cm 52 p.30 h.10 |
wall-mounted or on central top, right or left |
no |
| Lisbon - stratified HPL |
cm 54 d.33,5 h.13 |
cm 52 d.31,5 h.10 |
wall-mounted
or on central top |
no |
| Livia - glossy white ceramic |
cm 61 p.39 h.13 |
cm 58,5 p.37,5 h.10 |
wall-mounted or on central top, right or left |
no |
| Logyn - stoneware |
cm 65 p.36 h.15 |
cm 62,5 p.33,5 h.12,5 |
wall-mounted
or on central top |
no |
| Megha - glossy white ceramic |
cm 59 p.35 h.17 |
cm 61 d.39,5 h.14 |
wall-mounted
or on central top |
no |
| Milan - Minera-Kolor |
cm 58,5 p.37,5 h.13 |
cm 56,8 d.35,5 h.11,5 |
wall-mounted |
no |
| Rio Small - glossy white ceramic |
cm 61 p.39,5 h.14 |
cm 59,5 p.38,5 h.12 |
wall-mounted |
no |

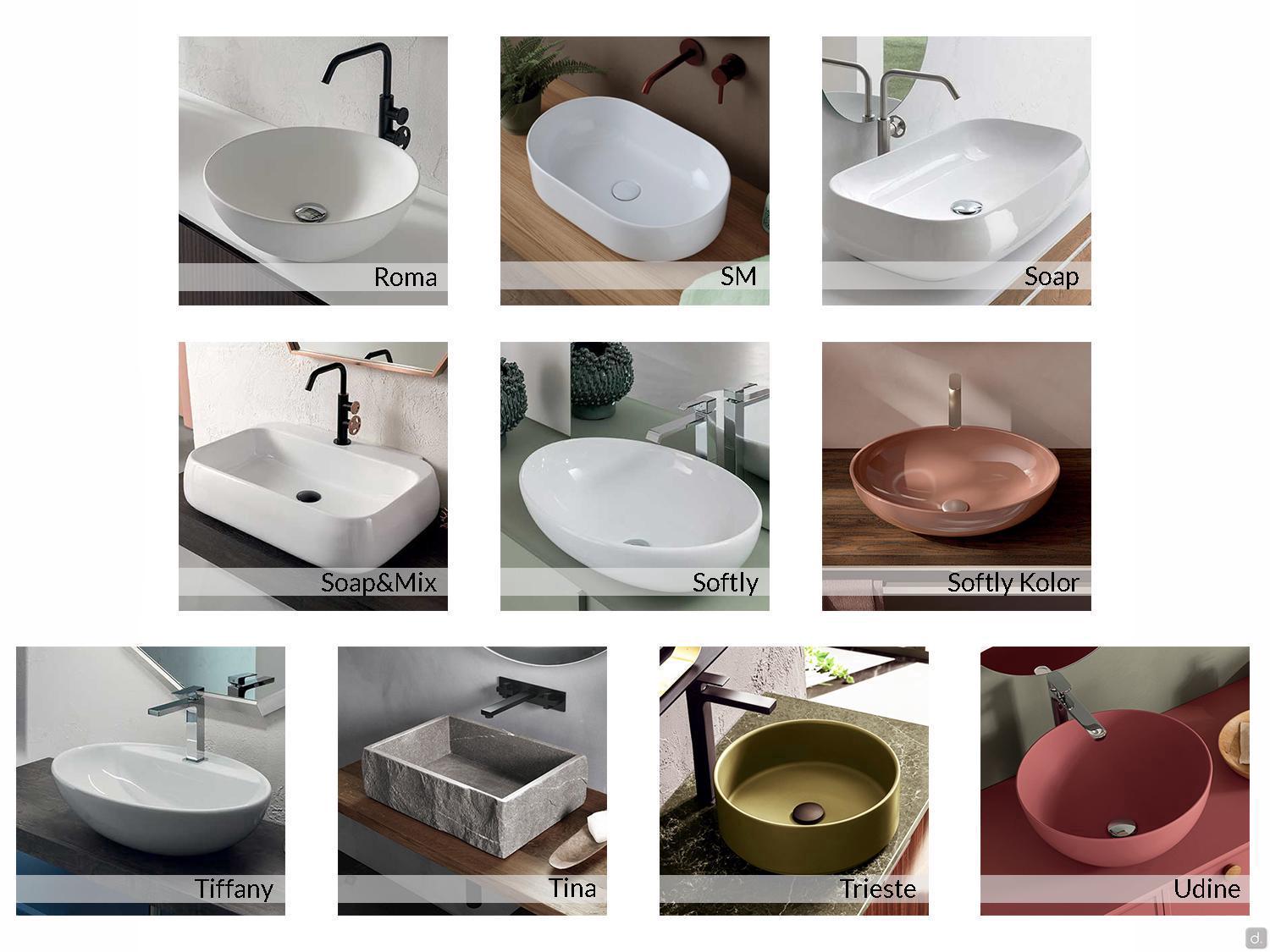

| Roma - matt white ceramic |
cm 43 p.43 h.15 |
cm 41 p.41 h.10 |
wall-mounted or on central top, right or left |
yes |
| SM - glossy white ceramic |
cm 54 p.34,5 h.15 |
cm 52,5 d.33 h.12 |
wall-mounted or on central top, right or left |
no |
| Soap - glossy white ceramic |
cm 71 p.41 h.15 |
cm 66,5 p.35,5 h.12 |
wall-mounted
or on central top |
no |
| Soap & Mix - ceramic only glossy white |
cm 71 p.49 h.17,5 |
cm 63 p.33 h.12 |
on washbasin |
no |
| Softly / Softly Kolor - glossy white or coloured ceramic |
cm 60 p.42 h.17 |
cm 57 p.39 h.14,5 |
wall-mounted or on central top, right or left |
no |
| Tiffany - glossy white ceramic |
cm 60 p.43 h.17 |
cm 57 d.32 h.14,5 |
on washbasin |
no |
| Tina - Piasentina stone |
cm 65 d.36 h.15 |
cm 60 p.30 h.13 |
wall-mounted
or on central top |
no |
| Trieste - Minera-kolor |
cm 37 p.37 h.13 |
cm 35 p.35 h.11 |
wall-mounted or on central top, right or left |
no |
| Udine - Minera-kolor |
cm 42 p.42 h.19,5 |
cm 40,5 p.40,5 h.18 |
wall-mounted or on central top, right or left |
no |
N.B. The mixer hole has a standard diameter of 3.5 cm.
For washbasins without an overflow hole, the use of a continuous drain is recommended.
The indicated measurements of all ceramic washbasins may be subject to a dimensional variation (specifically about 0.8%) due to wear and tear of the moulds or to small variations in the technical characteristics of the materials that make up the mix.
Optional

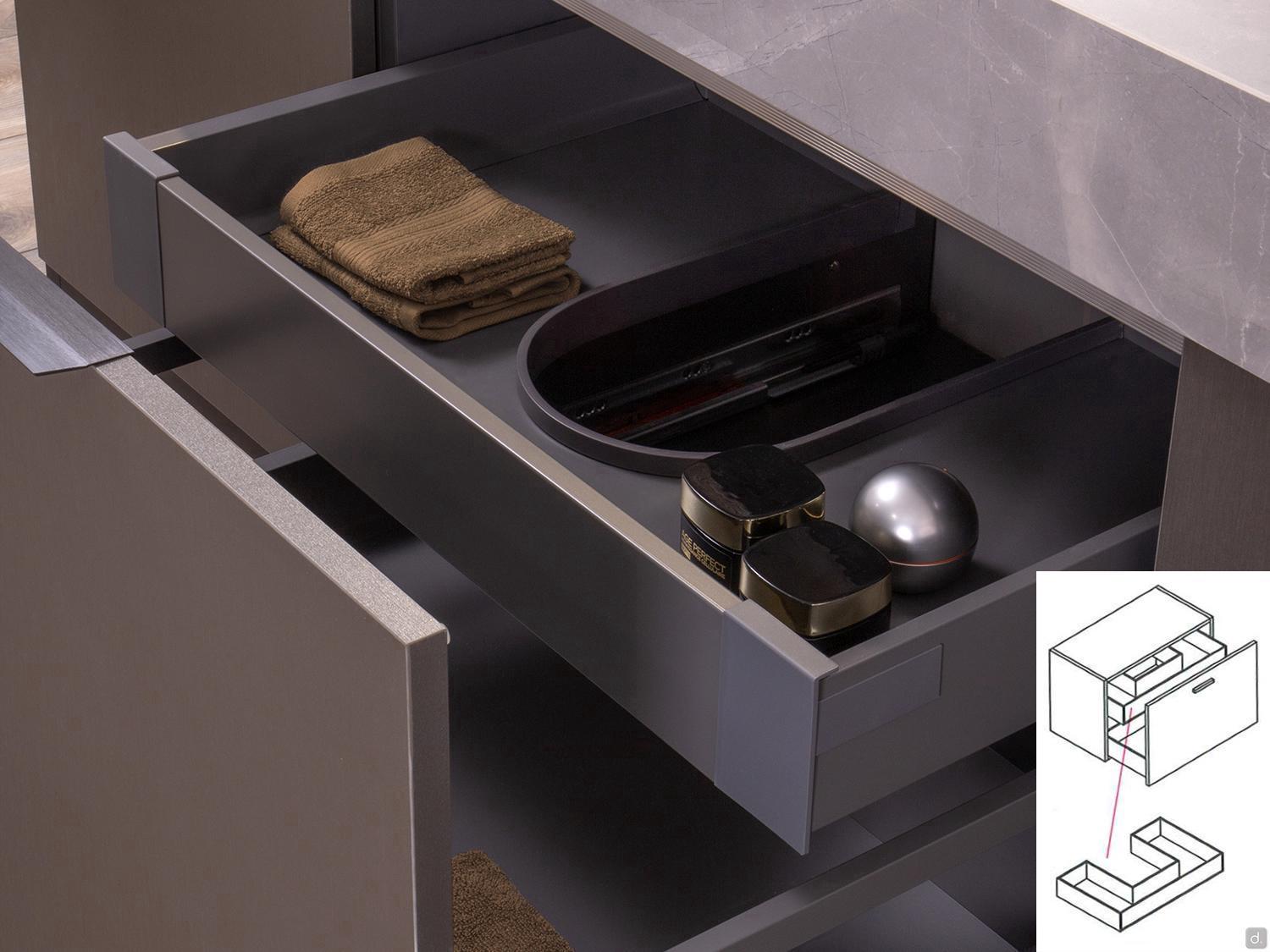

Shaped internal metal drawer: available for all models with metal drawer; the drawer is positioned approximately halfway along the washbasin base unit and is shaped for the passage of drains.
Splashback: designed to complete bathroom furniture with tops in stone, Qtop, stoneware, HPL or resin; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.

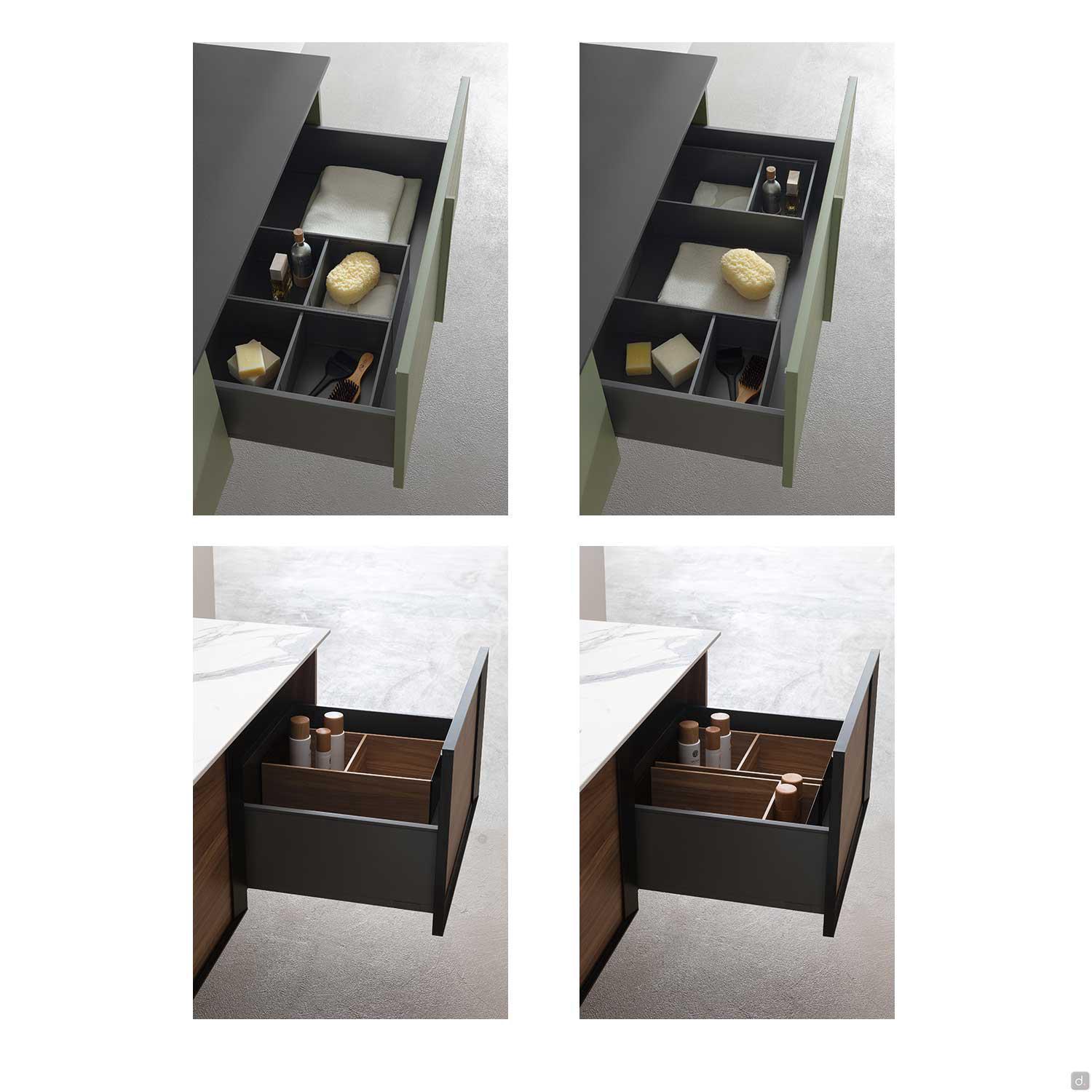

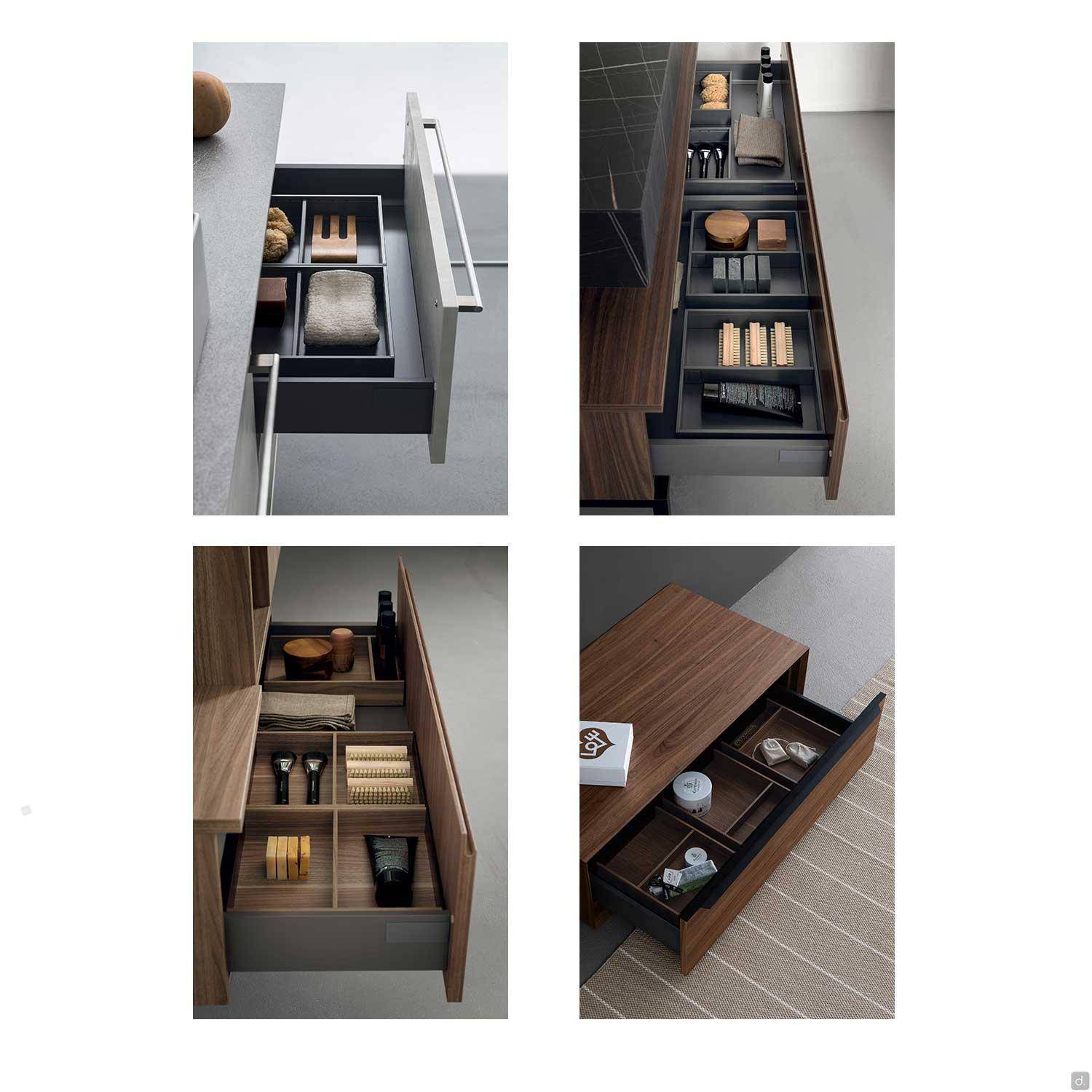

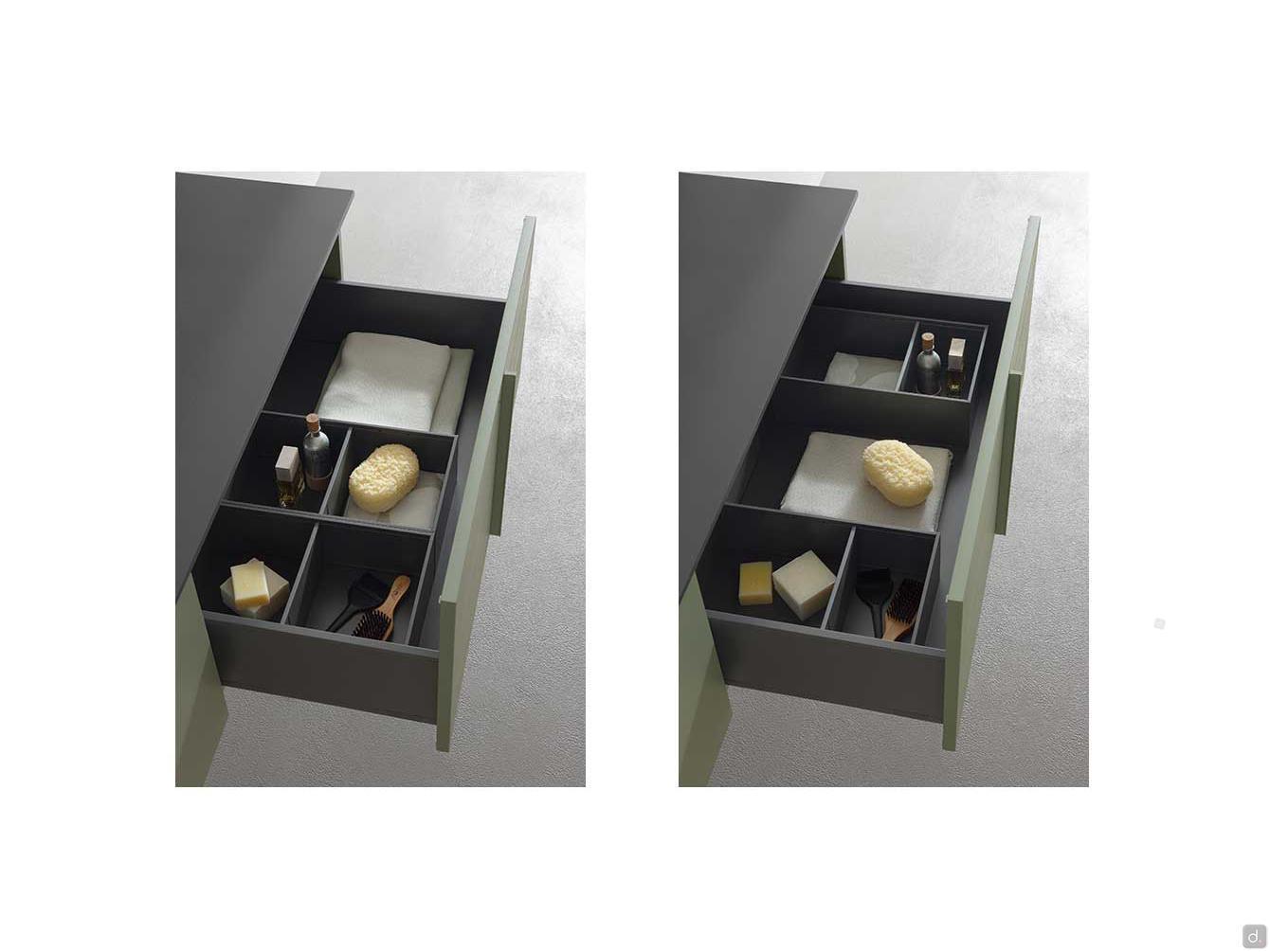

Organiser: internal subdivision system for Legrabox drawer and basket. Available in Canaletto Walnut and Orione finishes.
Maintenance Tips
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the top with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the top for a prolonged period of time, as this may cause halos.
Layered HPL: for maintenance, the top must be cleaned with a soft, damp cloth, without scrubbing in order not to scratch or abrade the top. We recommend the use of neutral detergents. Do not use abrasive or scratching substances, strong acids or salts, metal cleaners and concentrated limescale removers. Avoid contact with boiling water, avoid using steam cleaners.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is recommended to clean the top in the direction of the grain and dry carefully.
Stone: to prevent stains, clean promptly with a damp cloth or neutral detergents. The use of neutral detergents is recommended.
Tekor: for maintenance, the use of soapy water or common mildly abrasive detergents with a cotton cloth or mildly abrasive sponge is sufficient, taking care to rinse the surface thoroughly. Avoid very hot objects, very aggressive acids or combinations of solvents. Any damage can however be repaired by a specialised craftsman.
QTOP: unlike marble-resin, the mineral filler is not chemically attackable by acids. the products recommended for cleaning must not have a high alkalinity (basic pH) that could alter, mainly from an aesthetic point of view, the binding resin. The best way to prevent stains is to remove them promptly with a damp cloth or neutral detergents before they harden.
Minera-Kolor: To remove most dirt and stains, powder detergent combined with an abrasive sponge or a common chlorine or bleach cleaner is sufficient. For the removal of stains caused by limescale, the use of a common limescale remover is recommended. To maintain the original opacity of the artefact occasionally clean with amuchina or a 1/20 solution of bleach diluted in water. To enhance the typical satin opalescent finish occasionally wipe with an abrasive sponge, applying a circular motion.
Read more...
Porcelain stoneware : Porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
Tekor: mineral compound coated with a resin film that provides both physical and chemical resistance.
QTOP: QTOP is a quartz-resin product consisting of natural materials (quartz and granite) and a high-quality binding agent, supplemented with coloured pigments and glass or mirror granules.
Minera-Kolor: Minera-Kolor is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical enamel that covers the surface of the material is matt coloured, with excellent physical and chemical resistance. It is resistant to boiling water and temperature changes. Any colour variations that have arisen through use can be easily removed by simple cleaning, using a lightly abrasive sponge in a circular motion.
