Technical Specifications and Equipment

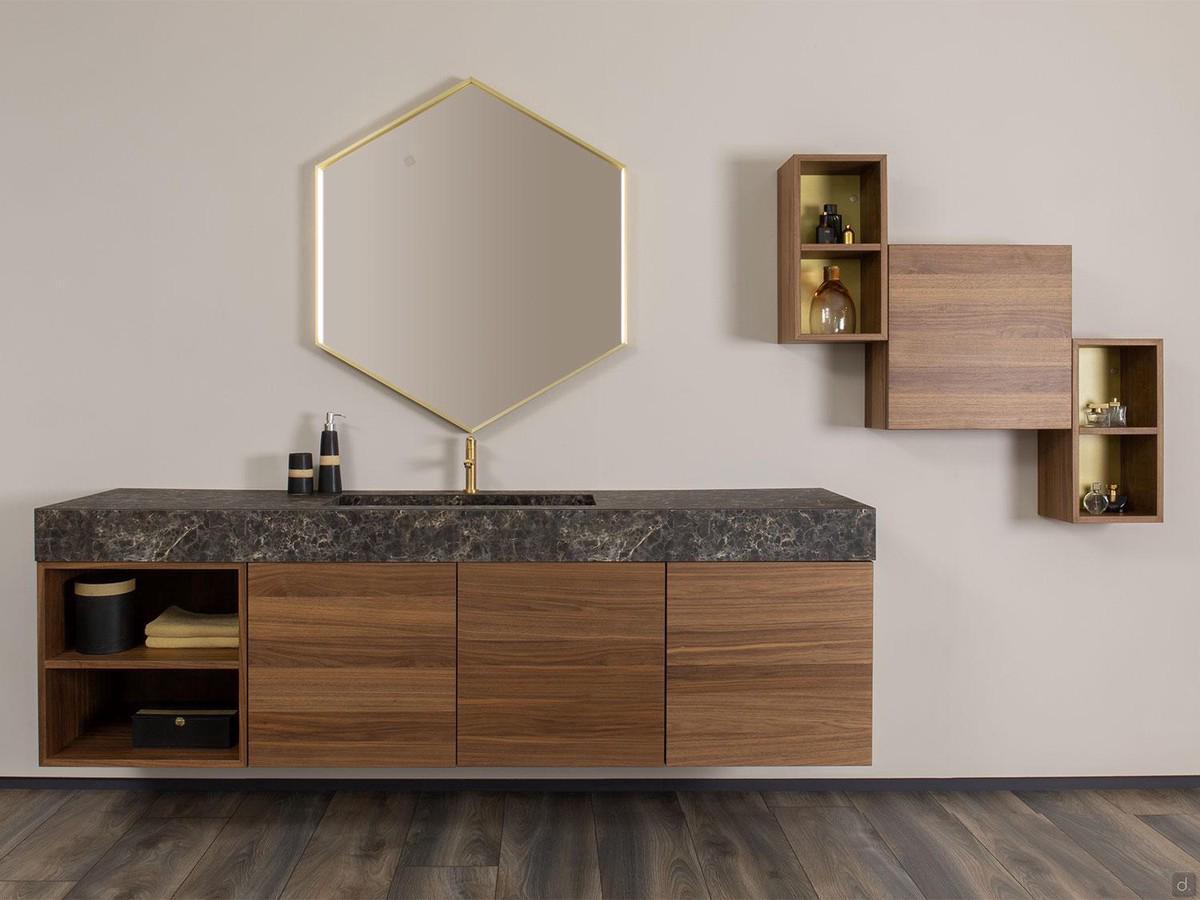

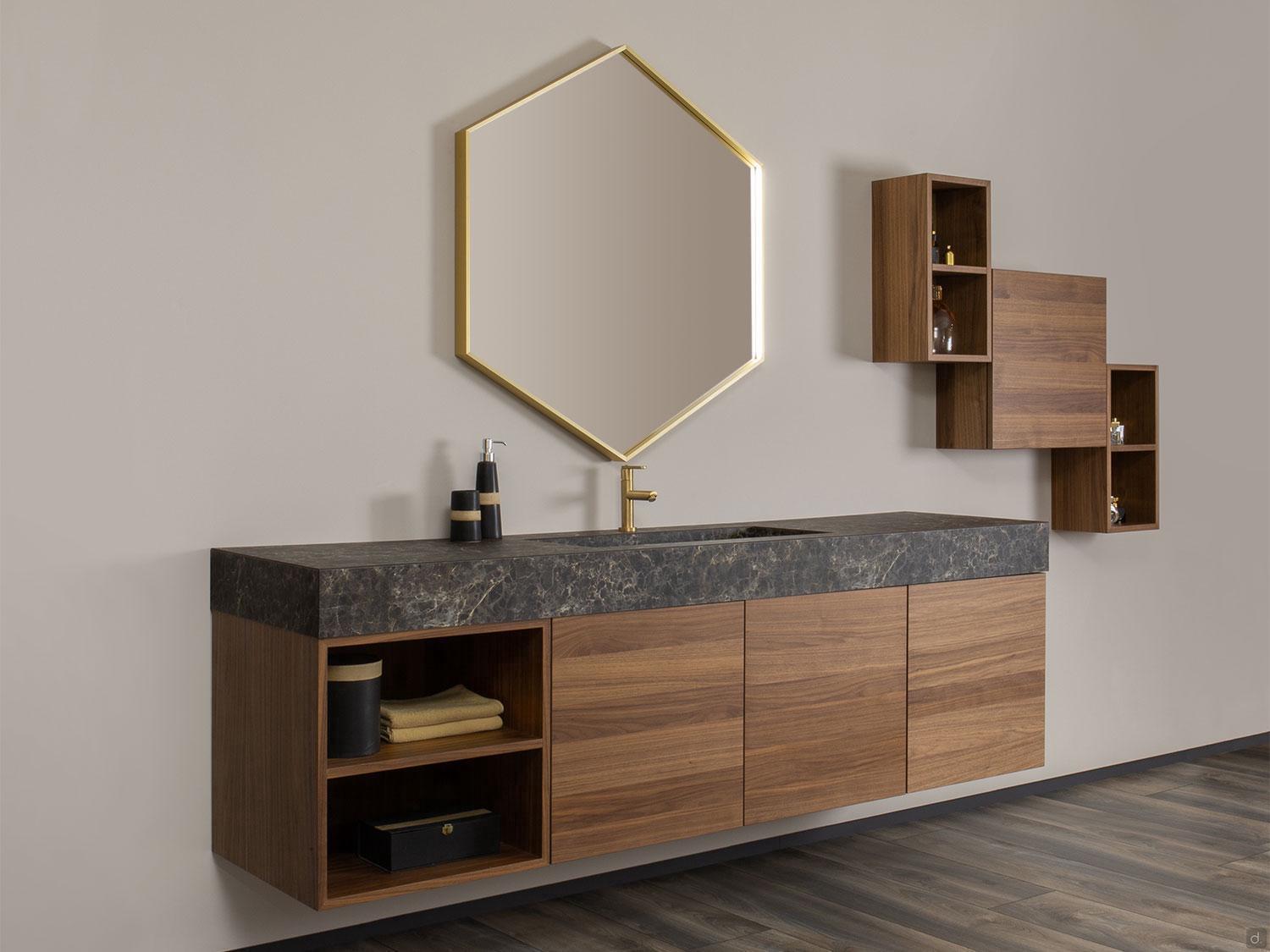

The N68 Atlantic bathroom base unit is composed of:
n.1 suspended unit with 2 doors, cm 100 d.50 h.50.
n.1 side unit with drawers, cm 50 d.50 h.50.
n.1 open shelf unit with two compartments, cm 50 d.50 h.50.

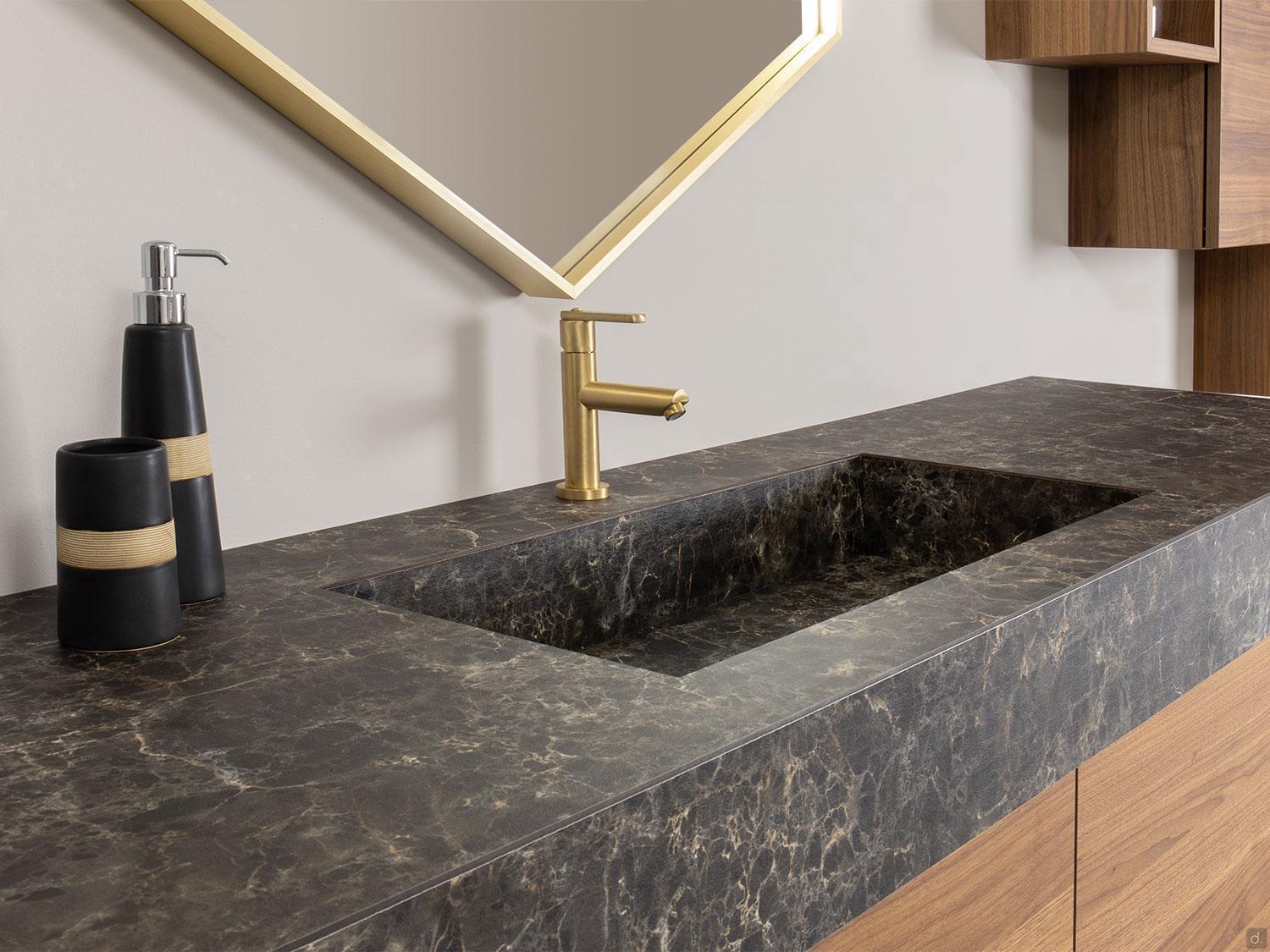

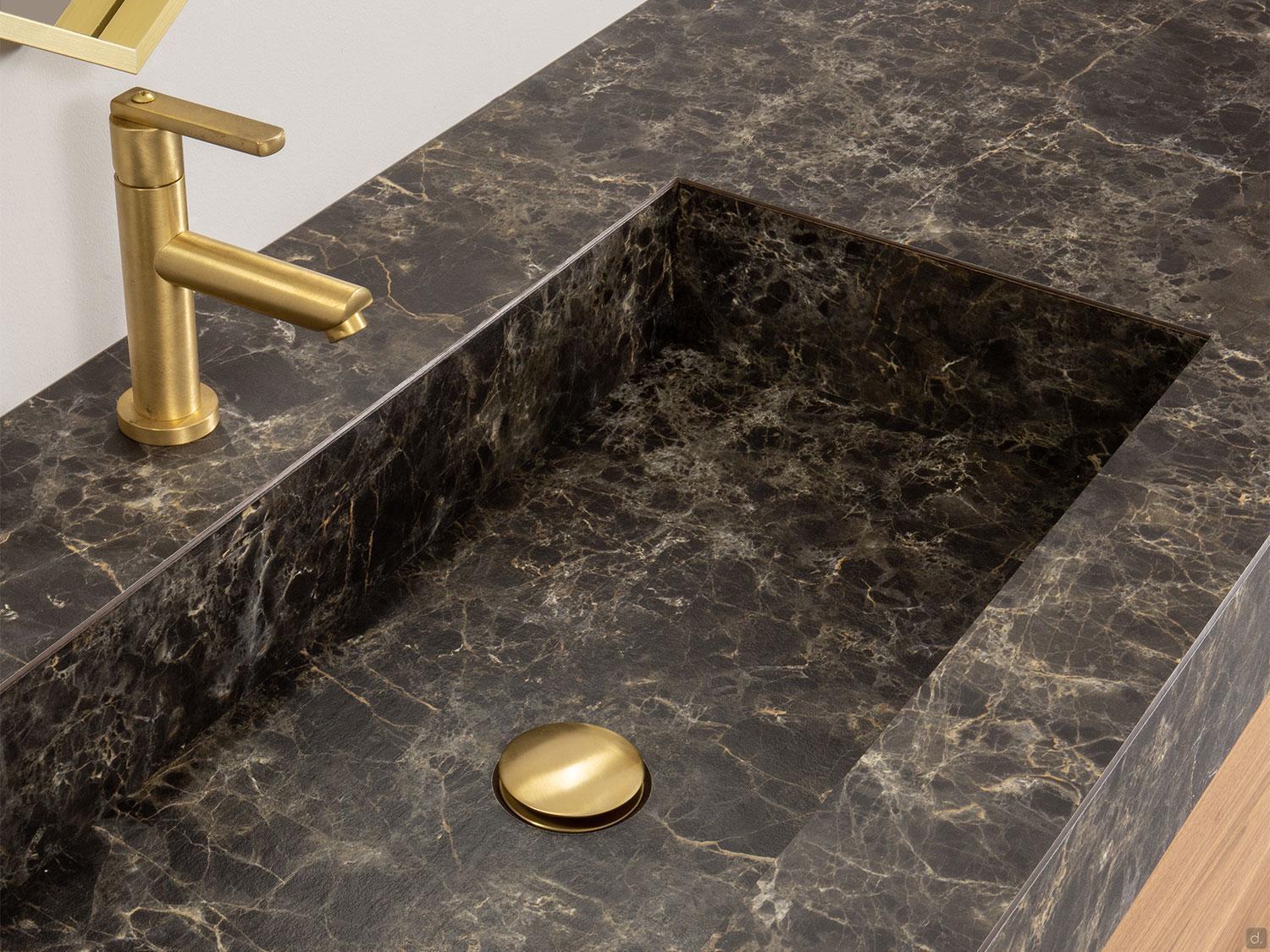

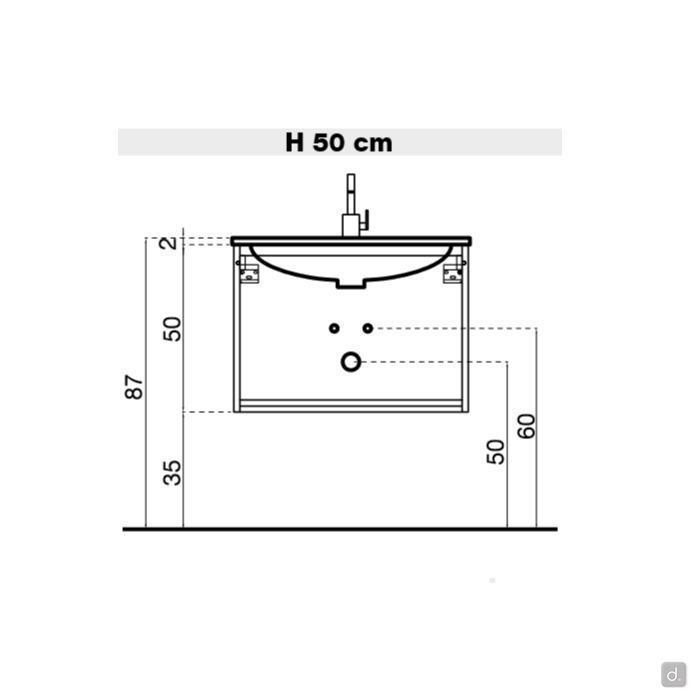

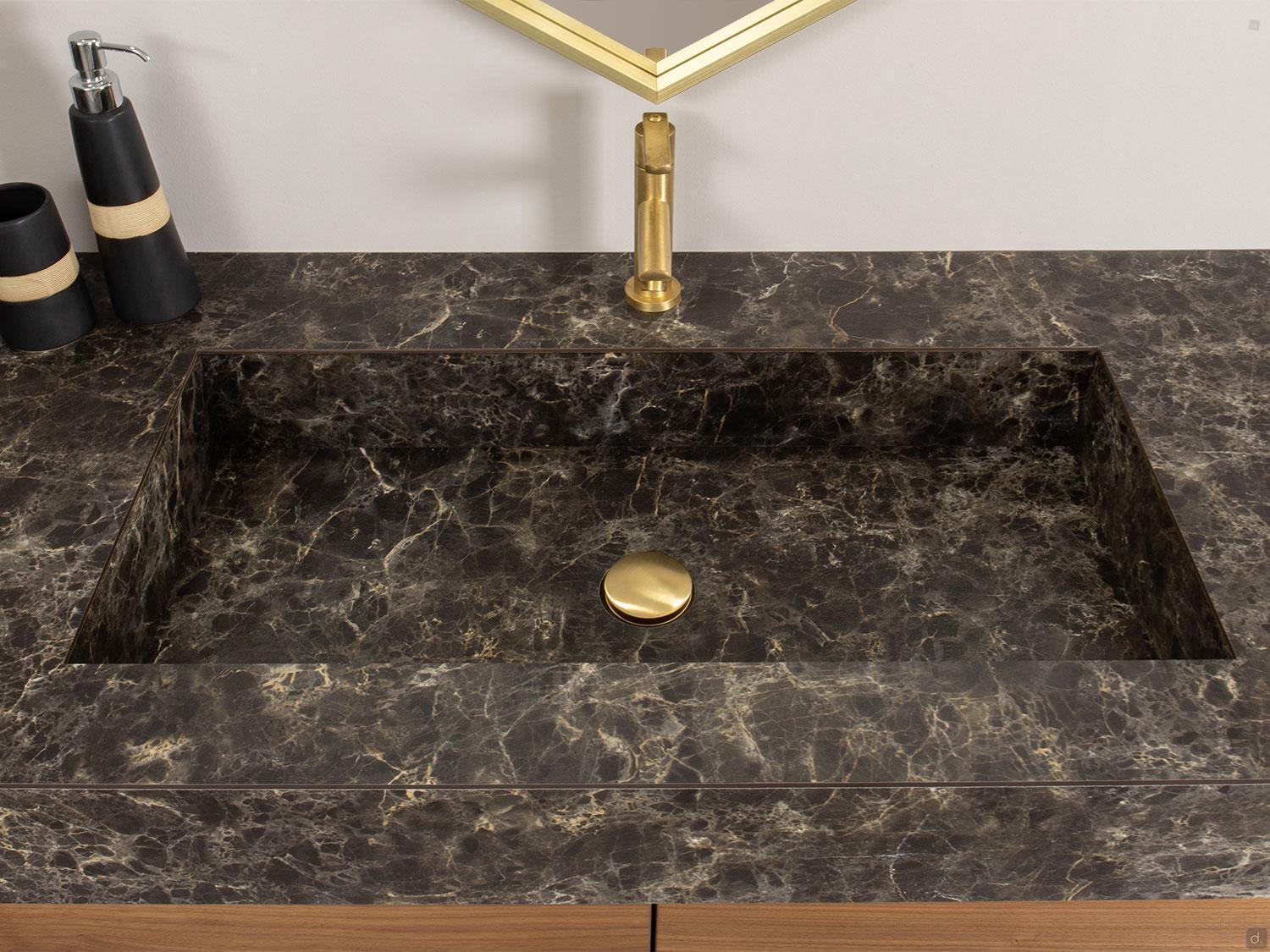

n.1 top in stratified HPL, cm 201 d.51 th.12,5, with integrated basin mod. Carlo 50, cm 68,5 d.29,5 h.11. The basin is not equipped with an overflow flow. The base is in steel with a standard drain hole cm Ø 4,5. The top is fitted with mixer hole cm Ø 3,5 positioned in the centre of the sink.
n.1 wall mirror mod. Antrim, cm 100 h.87, 5,5cm thick, with gold frame and internal LED light (IP21, 4000K, class A), without switch.
n.1 cabinet with 1 door, cm 50 d.20,8 h.50.
n.2 open shelf units with 2 compartments, cm 25 d.20,8 h.50.

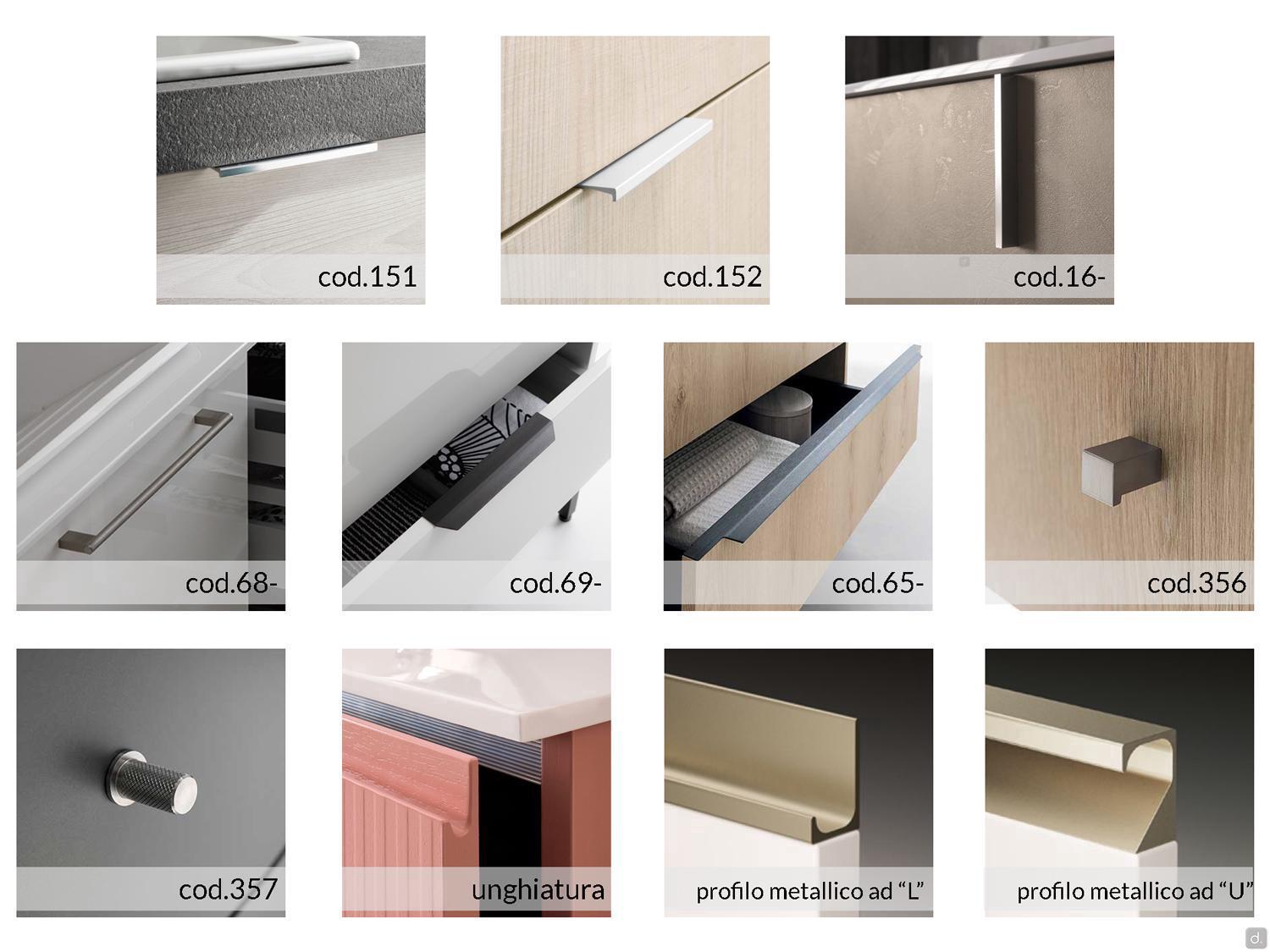

Structure (base and wall unit): cm 1,8 thick made wooden particle panels. Handles: there are various handle models to choose from, as well as the push-pull opening system. The cod.152 handles and the groove handle with grip are available in a matt lacquer finish in all of the colours seen in the Material Samples. The recess grip handle is only available in a melamine and lacquer finish. The groove handle with grip is available in a wood finish (except for the 306 Smoky Walnut) and lacquer.
The mod.68 handles protrude by 4 cm from the surface of the door.

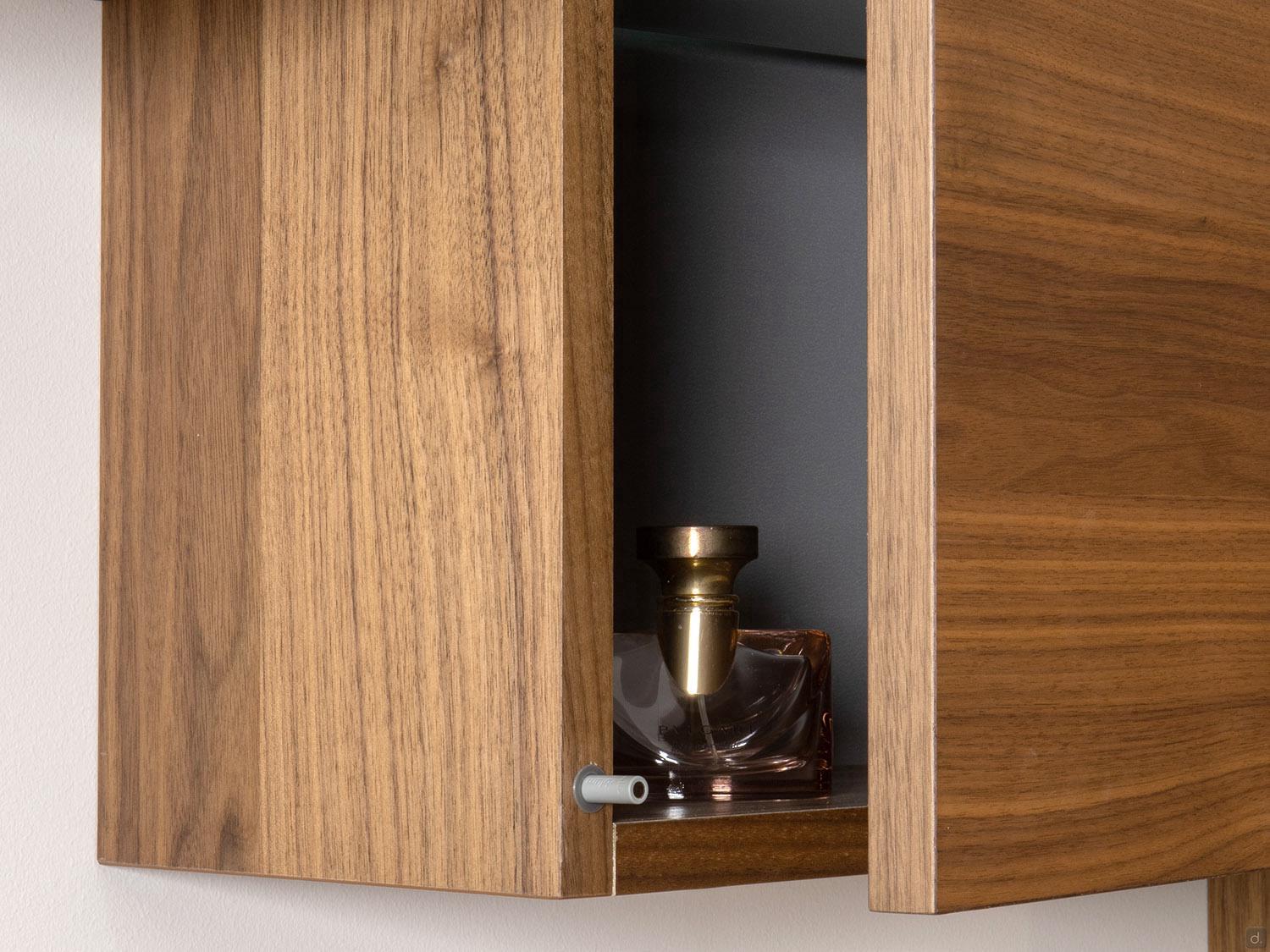

Doors:equipped with soft-closing hinges which slow down the doors as they close, without making any noise.

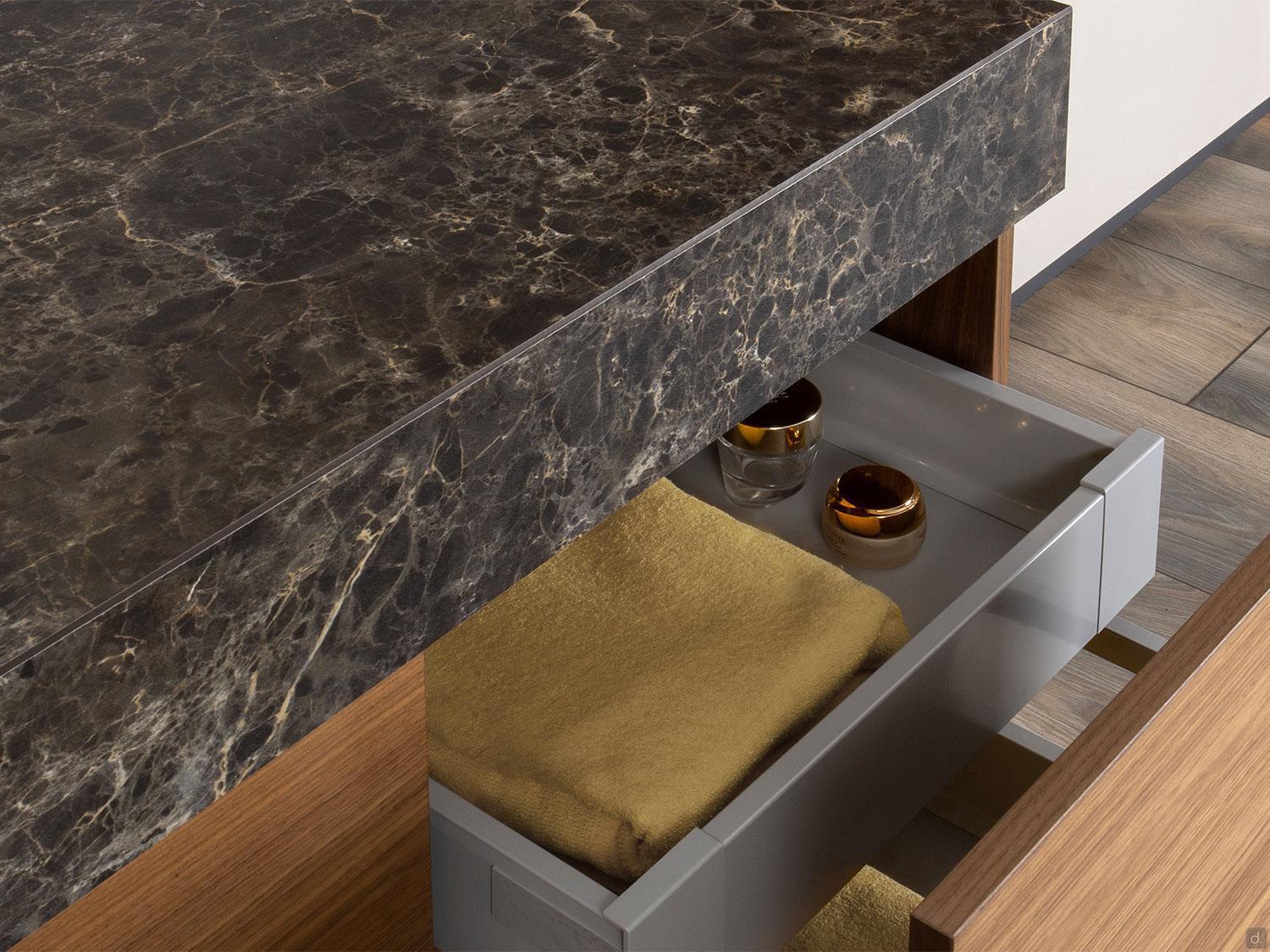

Drawers: one large drawer unit with a second, sliding drawer inside, equipped with metal Legrabox frame, characterised by straight rails both inside and outside, only 1,28 cm thick.
Optional

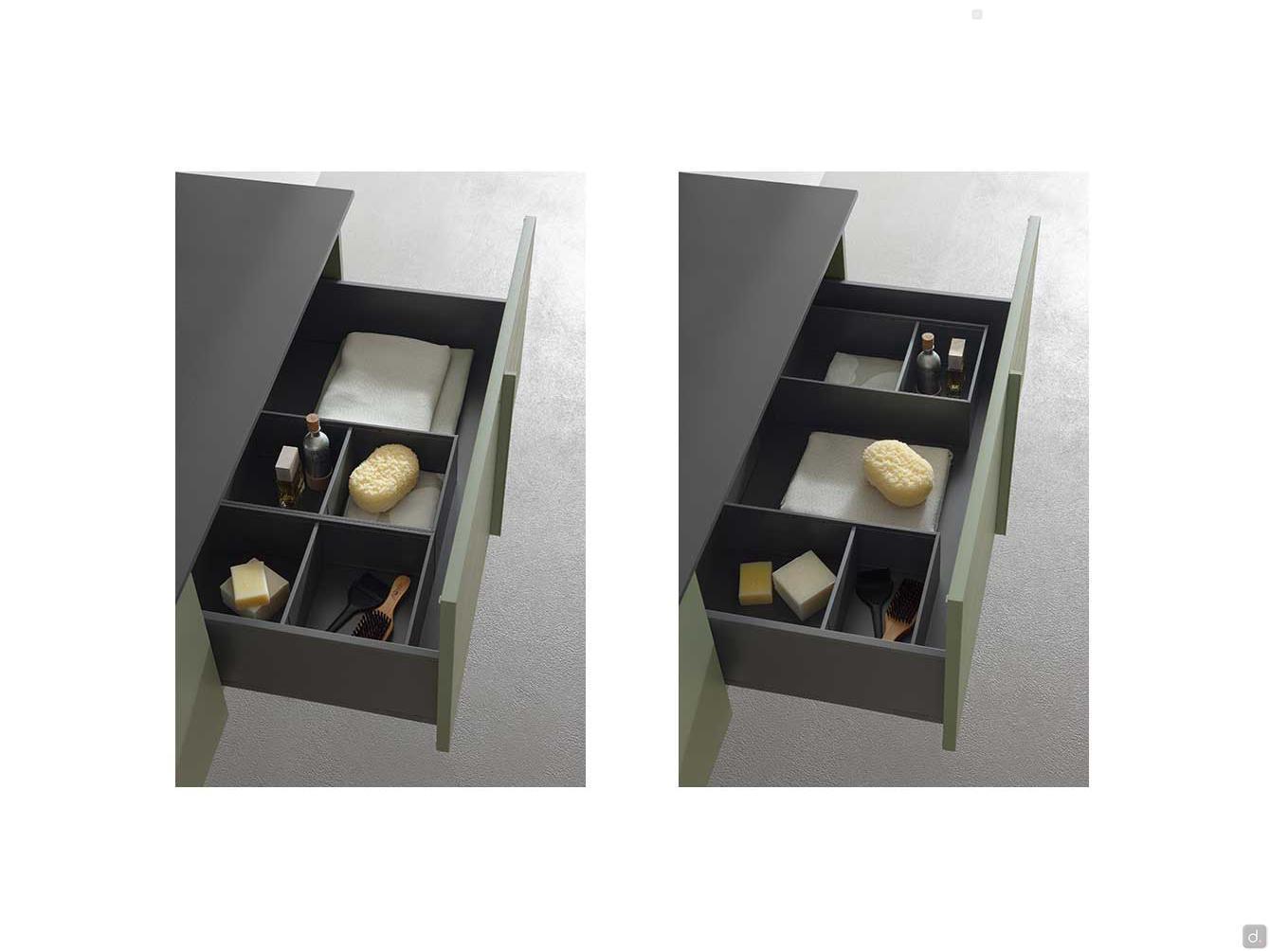

organiser: a system for dividing objects inside the drawer / Legrabox chest drawer. Available in a Canaletto Walnut and Orion finish.
Maintenance Tips
Melamine: simply use neutral liquid detergent to clean. To get rid of limestone stains clean the side with anti-limestone or a vinegar soaked sponge, then rinse and dry. Do not use acid, abrasive powder or products; do not leave anti-limestone products in contact with the side for long as they may leave rings.
Lacquer: to clean use a soft and non-abrasive rag to avoid damaging the surface. Do not use products with solvent, acetone and abrasive, or wax, alcohol and silicone-based products.
Wood: "living" material with protective painted cover; use a soft, non-abrasive and slightly damp, well-wrung cloth to clean. It is recommended to clean the side following the grain of the wood and then to dry with care.
Further Info...
Stratified HPL: laminated HPL, 10mm thick, made up of layers of cellulosic fibres impregnated with phenolic resin. The external layers, however, are impregnated with thermosetting resins. The material is subjected to polycondensation of the resins with a combination of strong pressure and heat of 150°. The surface is then rough to the touch. The material has many properties which are necessary for settings where there is a need for a high level of hygiene. It is a non-porous material which does not generate mould or the growth of bacteria. It is resistant to scratches, bumps and general wear. It is characterised by its capacity to endure chemicals, organic agents, and for its high level of impermeability. It is dust-proof, easy to clean, non-toxic and suitable for contact with food, environmentally friendly, heat-resistant up to 170° and non-flammable.
